# Aeroelastic Performance Analysis of Wind Turbine in the Wake with a New Elastic Actuator Line Model

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theoretical Model

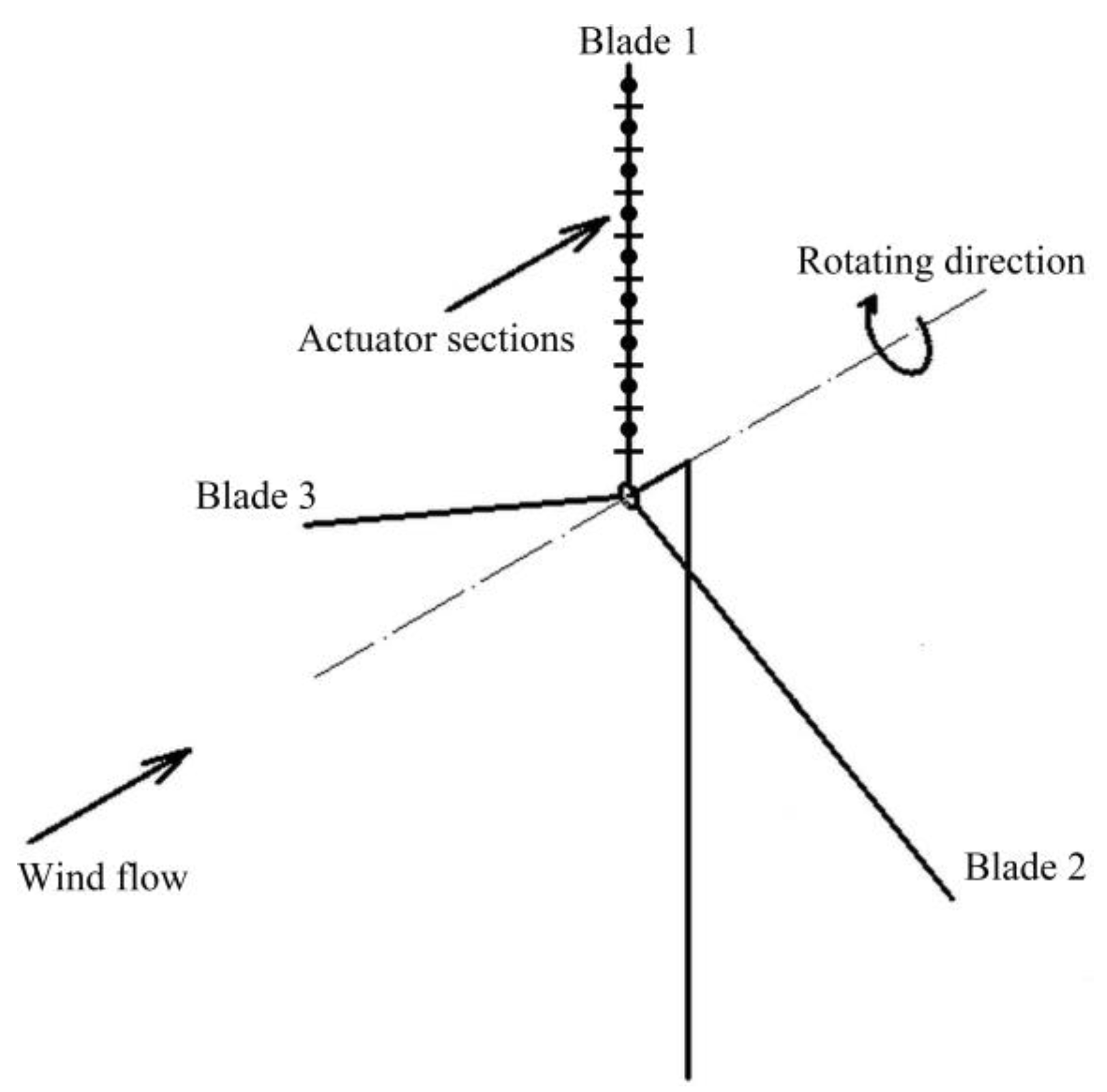

#### 2.1. Actuator Line Model

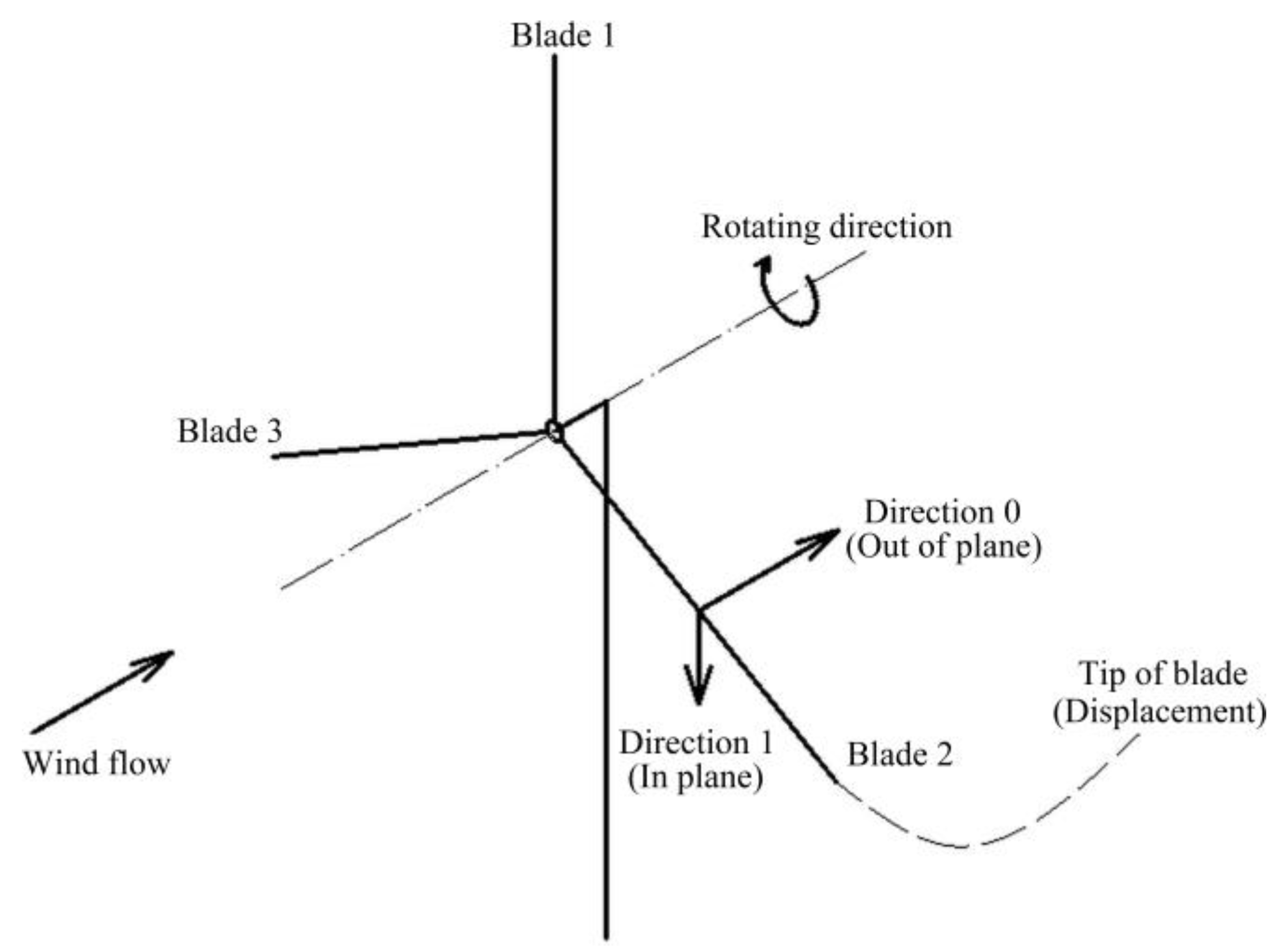

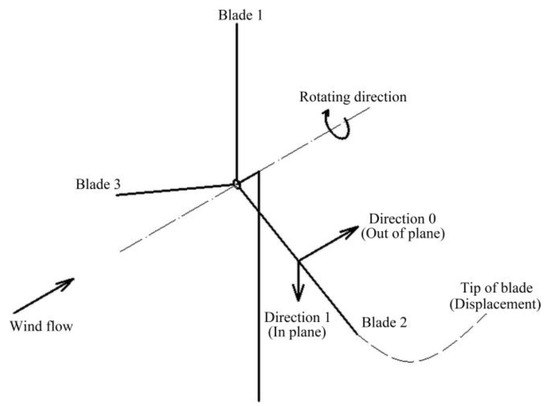

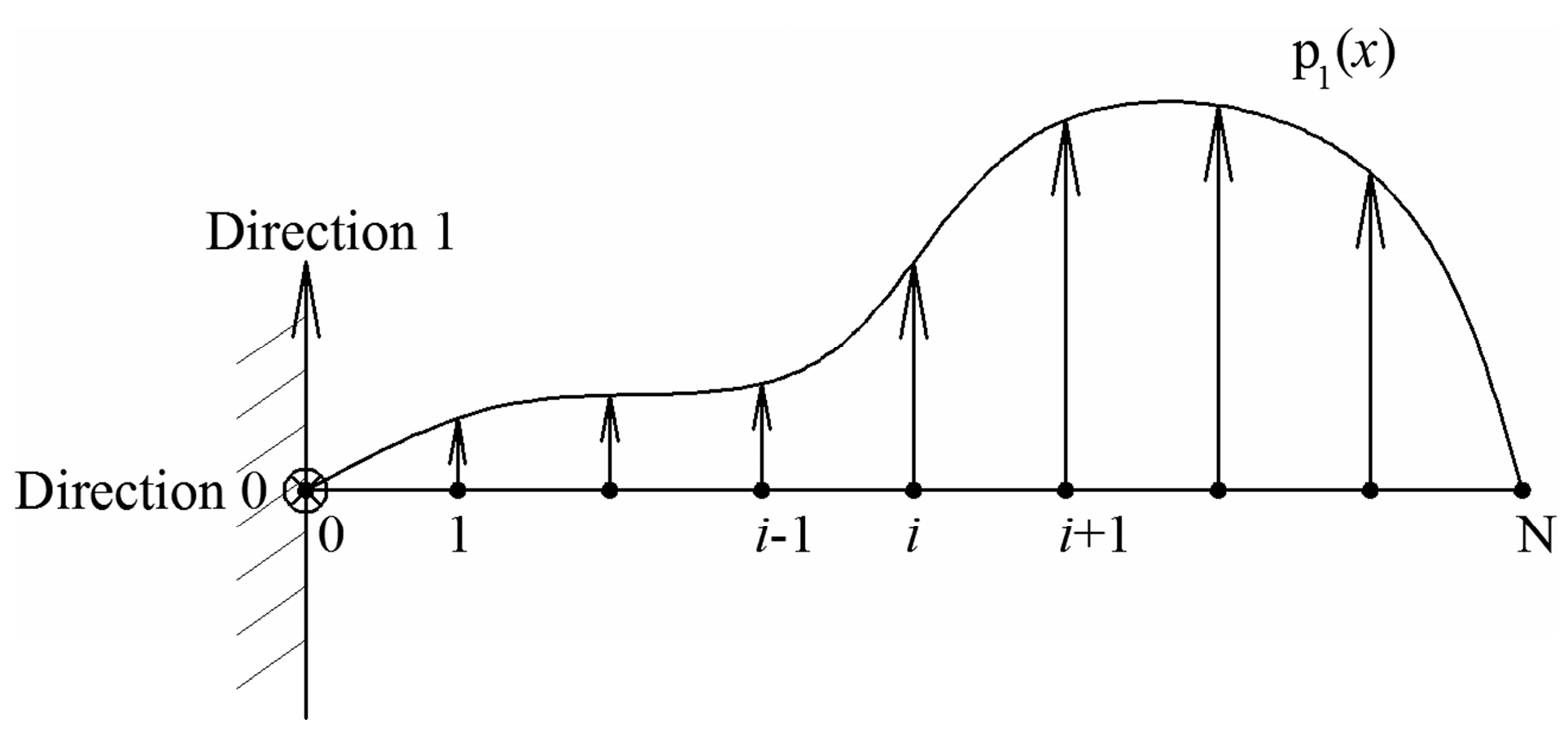

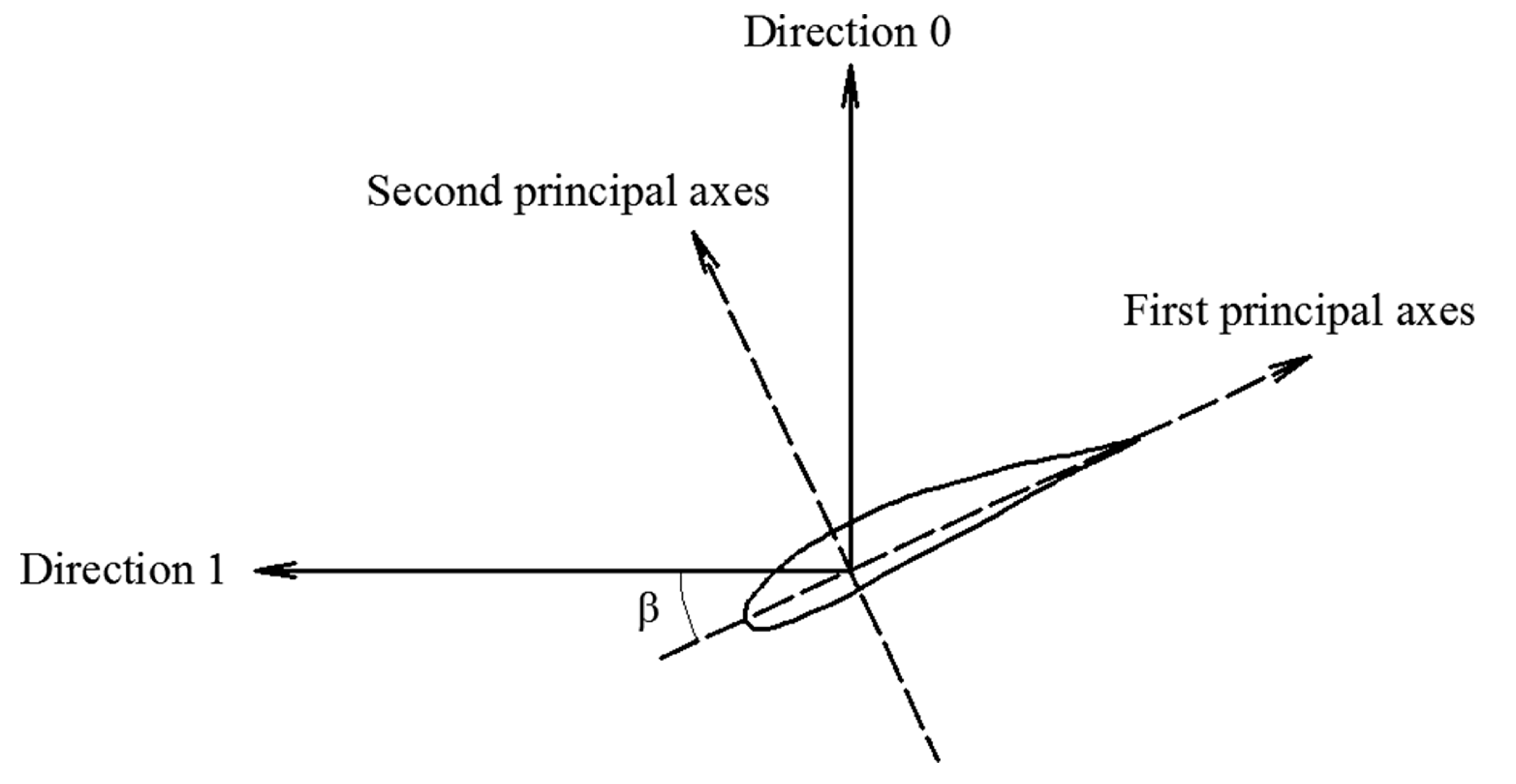

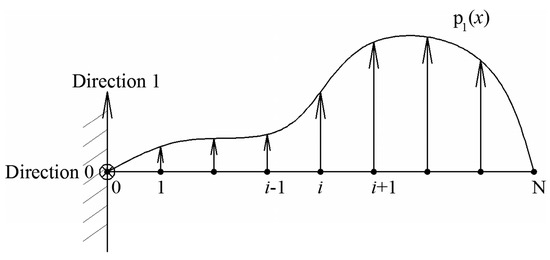

#### 2.2. Rotating Beam Solver

_{0}, N

_{1}are the component of centrifugal force in 0 direction and 1 direction.

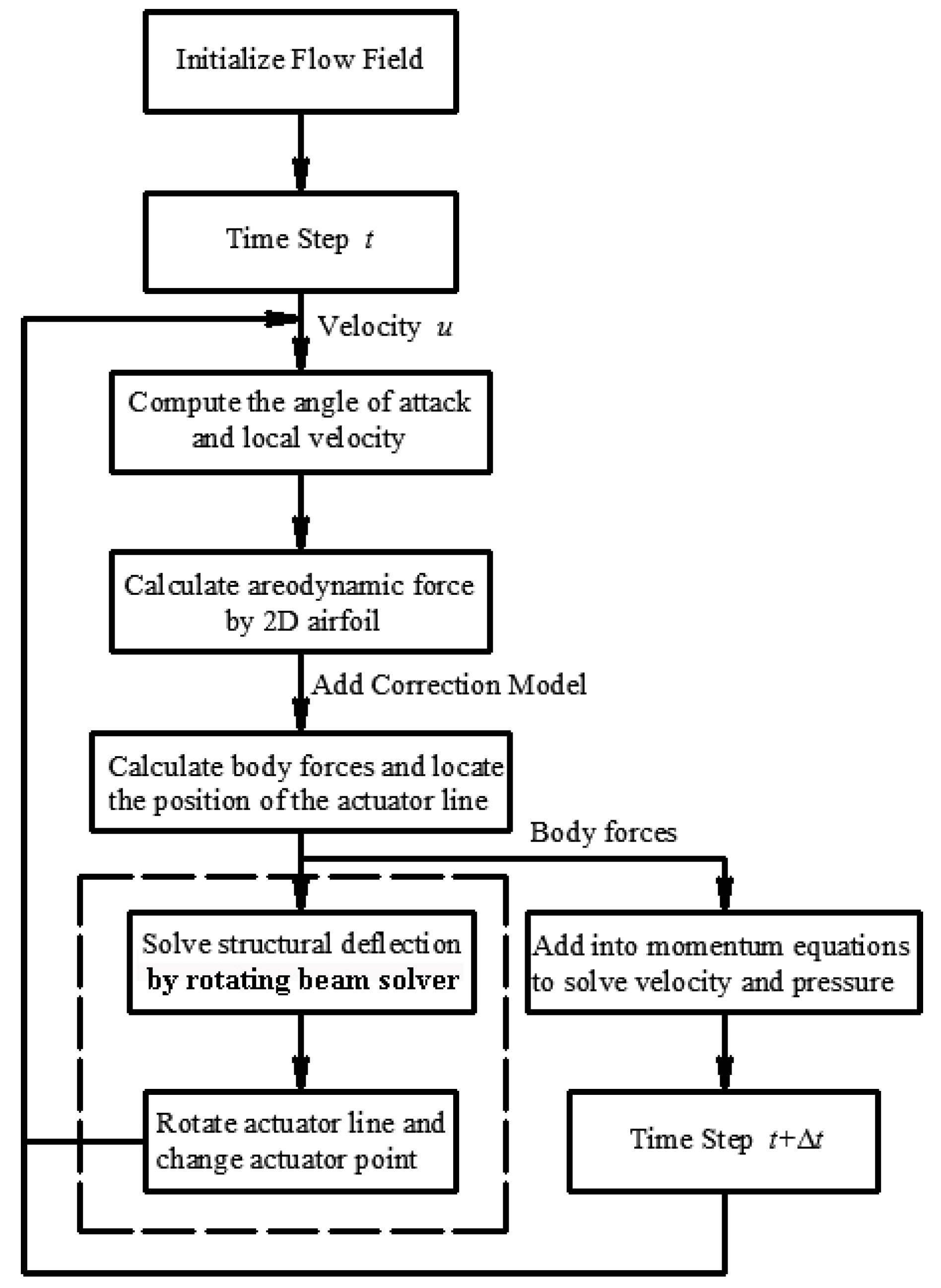

#### 2.3. New Elastic Actuator Line Model

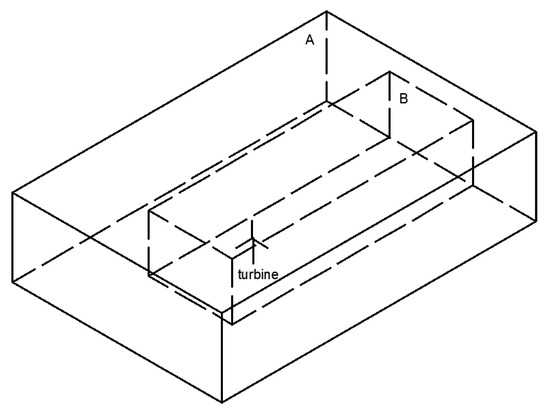

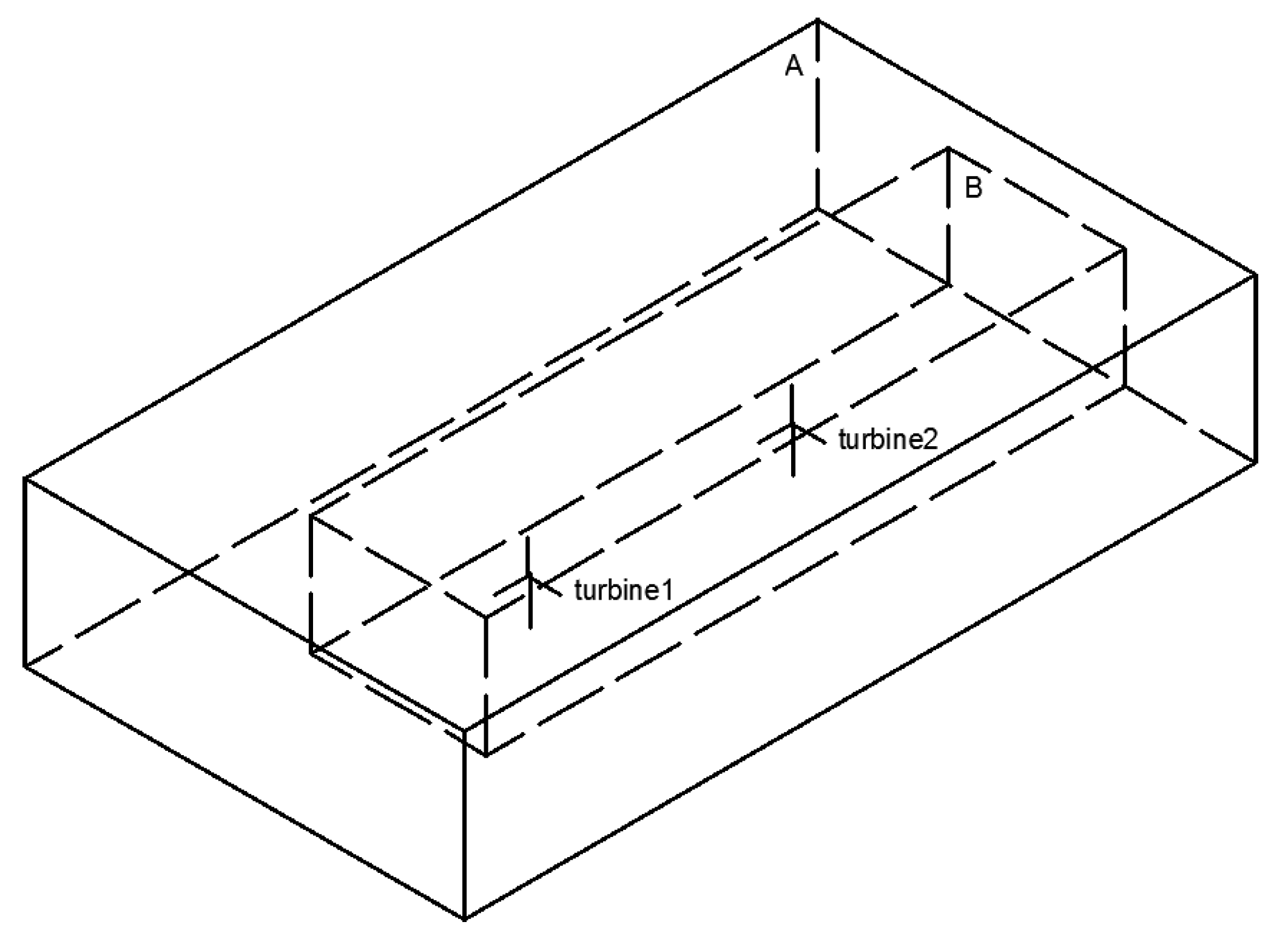

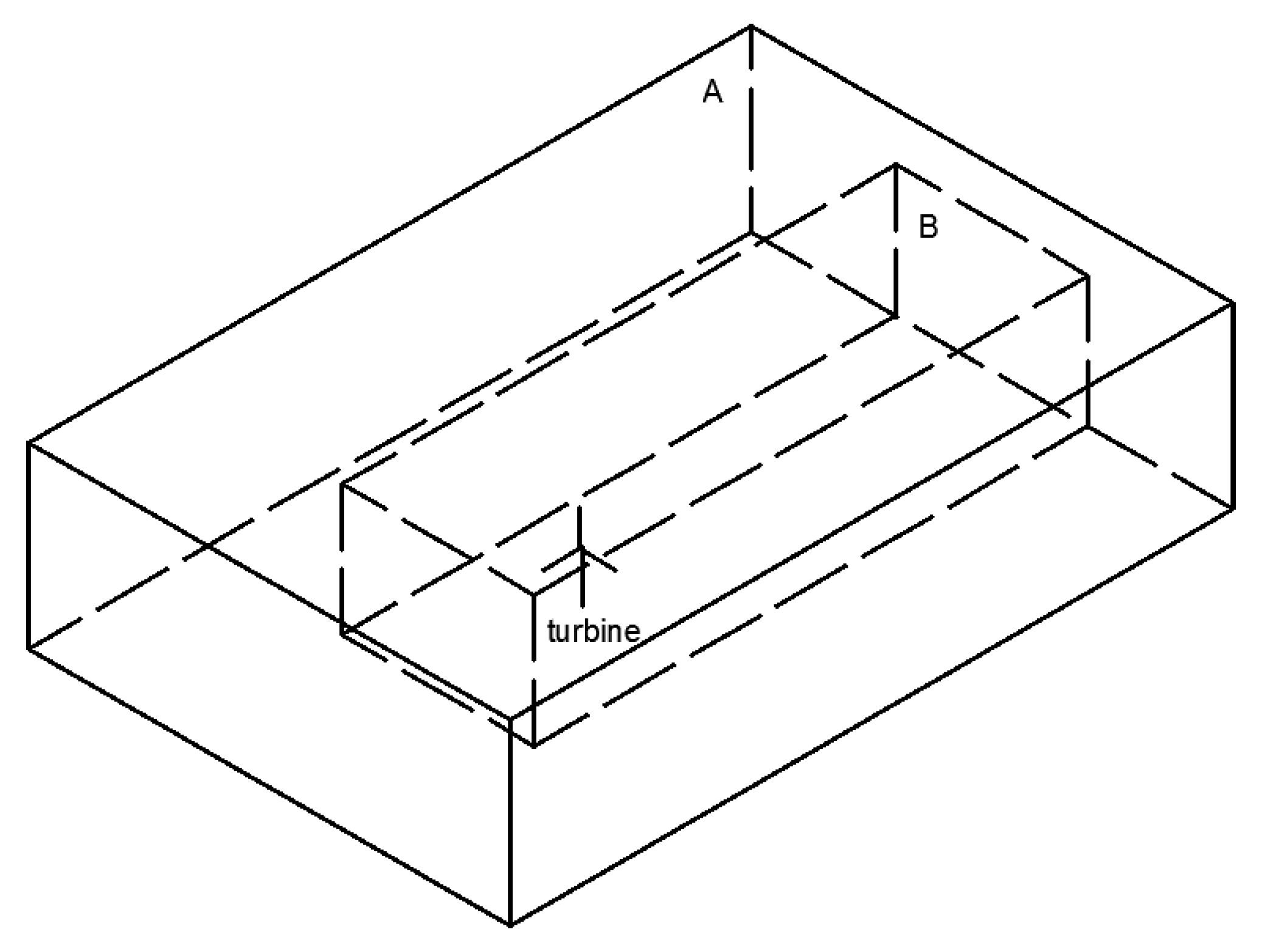

#### 2.4. Computational Wind Turbine Model

## 3. Verification and Analysis

#### 3.1. Mesh Independence and Uncertainty Analysis

_{p}and thrust coefficient C

_{t}as below:

_{p}and C

_{t}can be achieved. They are 0.129% D and 0.126% D, where D is the reference data from the NREL technical report [8]. Because both of them are less than 1% D, that proves the results are credible. Through the verification above, the level 2 actuator point number will be adopted, and it will obtain reliable results.

#### 3.2. Comparison of the Power and the Thrust

#### 3.3. Comparison of the Tip Displacement

## 4. Aeroelastic Performance Analysis

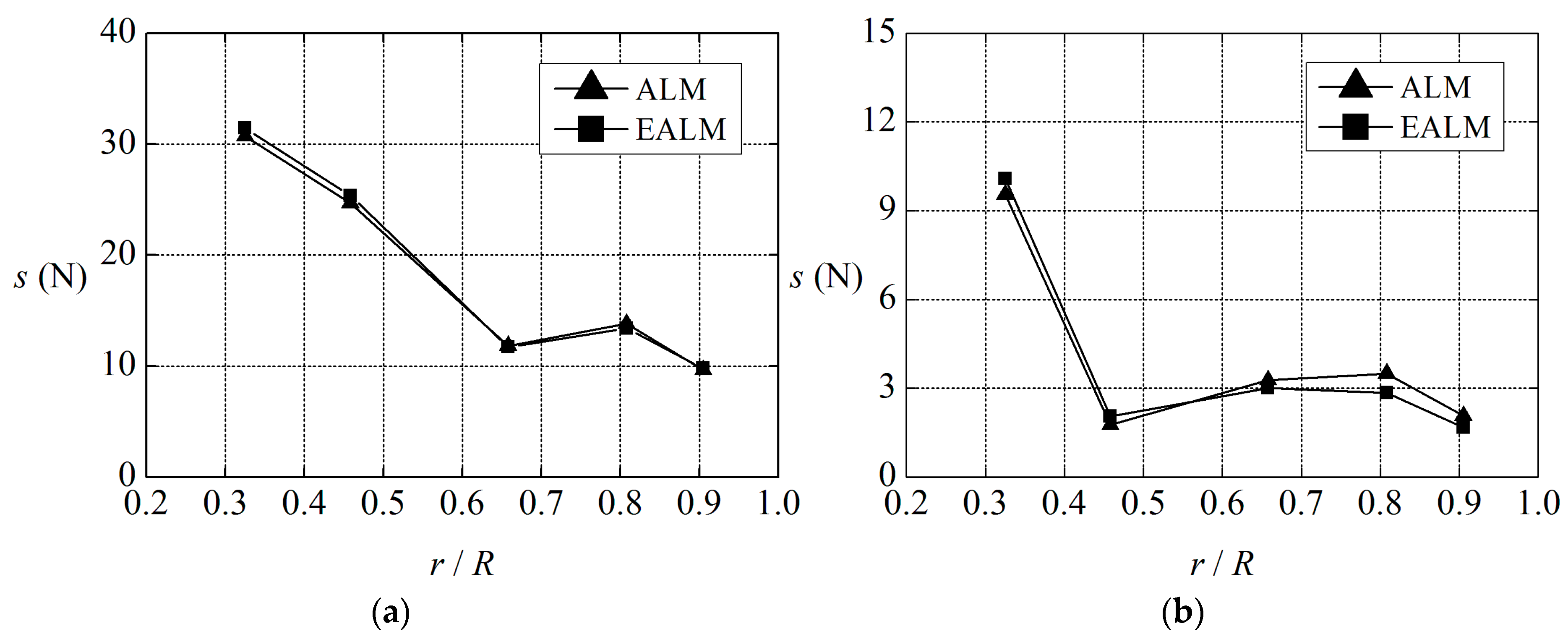

#### 4.1. Influence on Aerodynamic Performance

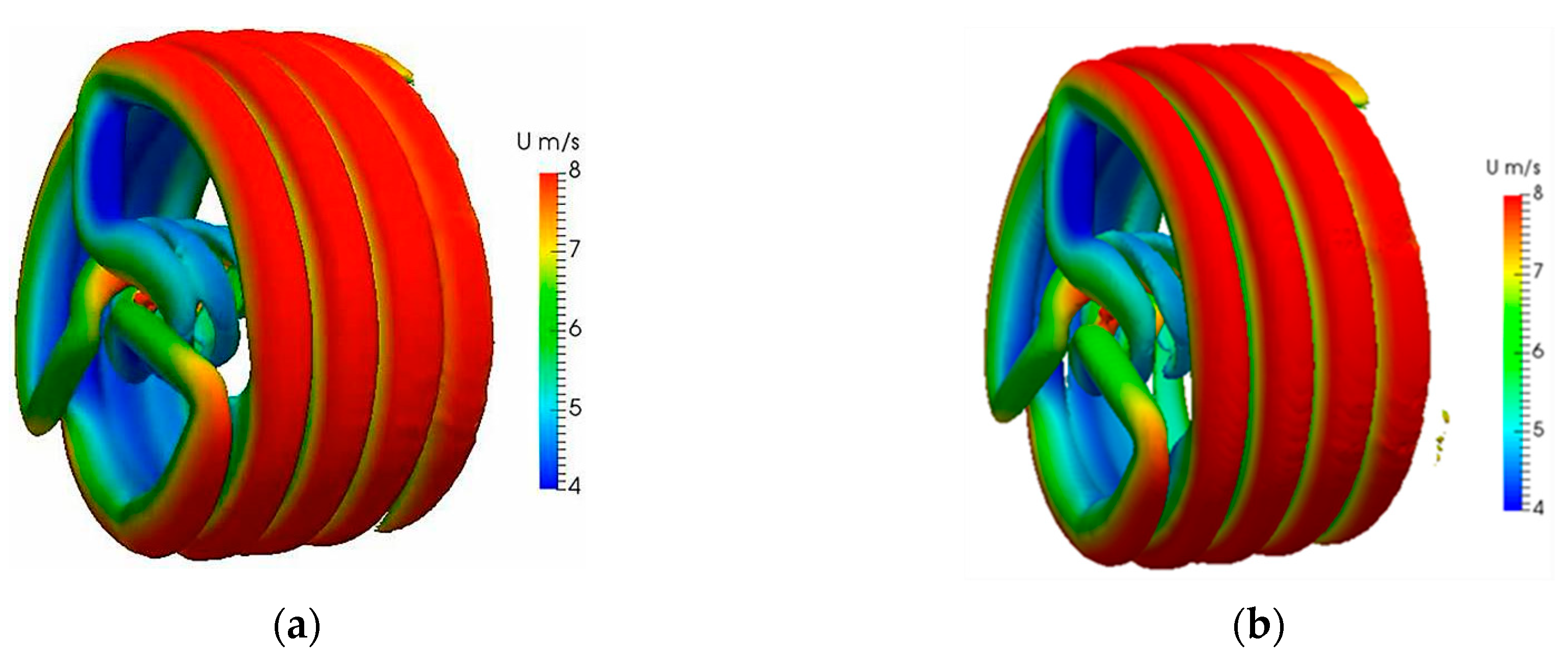

#### 4.2. Wake Flows Analysis

## 5. Conclusions and Discussions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Agarwal, P.; Manuel, L. Simulation of offshore wind turbine response for long-term extreme load prediction. Eng. Struct.
**2009**, 31, 2236–2246. [Google Scholar] [CrossRef] - Ghassempour, M.; Failla, G.; Arena, F. Vibration mitigation in offshore wind turbines via tuned mass damper. Eng. Struct.
**2019**, 183, 610–636. [Google Scholar] [CrossRef] - Kim, D.H.; Lee, S.G.; Lee, I.K. Seismic fragility analysis of 5MWoffshore wind turbine. Renew. Energy
**2014**, 65, 250–256. [Google Scholar] [CrossRef] - Santangelo, F.; Failla, G.; Santini, A.; Arena, F. Time-domain uncoupled analyses for seismic assessment of land-based wind turbines. Eng. Struct.
**2016**, 123, 275–299. [Google Scholar] [CrossRef] - Rendon, E.A.; Manuel, L. Long-term loads for a monopile-supported offshore wind turbine. Wind Energy
**2012**, 17, 209–223. [Google Scholar] [CrossRef] - Alati, N.; Failla, G.; Arena, F. Seismic analysis of offshore wind turbines on bottom-fixed support structures. Philos. Trans. R. Soc. A
**2015**, 373, 20140086. [Google Scholar] [CrossRef] - Dong, W.; Moan, T.; Gao, Z. Long-term fatigue analysis of multi-planar tubular joints for jacket-type offshore wind turbine in time domain. Eng. Struct.
**2011**, 33, 2002–2014. [Google Scholar] [CrossRef] - Jonkman, J.; Butterfield, S.; Musial, W.; Scott, G. Definition of a 5-MW Reference Wind Turbine for Offshore System Development; National Renewable Energy Laboratory technical report; National Renewable Energy Laboratory (NREL): Golden, CO, USA, 2009.
- Bak, C.; Zahle, F.; Bitshe, R.; Kim, T.; Yde, A.; Henriksen, L.C.; Natarajan, A.; Hansen, M. Description of the DTU 10 MW Reference Wind Turbine; Technical University of Denmark Wind Energy report; DTU Wind Energy: Frederiksborgvej, Denmark, 2013. [Google Scholar]
- Tran, T.T.; Ryu, G.J.; Kim, Y.H.; Kim, D.H. CFD-Based Design Load Analysis of 5MW Offshore Wind Turbine. In Proceedings of the 9th International Conference on Mathematical Problems in Engineering, Aerospace and Sciences, Vienna, Austria, 10–14 July 2012; Volume 1493, pp. 533–545. [Google Scholar]
- Miao, W.P.; Li, C.; Pavesi, G.; Yang, J.; Xie, X.Y. Investigation of wake characteristics of a yawed HAWT and its impacts on the inline downstream wind turbine using unsteady CFD. J. Wind Eng. Ind. Aerodyn.
**2017**, 167, 60–71. [Google Scholar] [CrossRef] - Liu, Y.C.; Xiao, Q.; Incecik, A.; Peyrard, C.; Wan, D.C. Establishing a fully coupled CFD analysis tool for floating offshore wind turbines. Renew. Energy
**2017**, 112, 280–301. [Google Scholar] [CrossRef] [Green Version] - Ma, Z.; Zeng, P.; Lei, L.P. Analysis of the coupled aeroelastic wake behavior of wind turbine. J. Fluids Struct.
**2019**, 84, 466–484. [Google Scholar] [CrossRef] - Zhang, P.T.; Huang, S.H. Review of aeroelasticity for wind turbine: Current status, research focus and future perspectives. Front. Energy
**2011**, 5, 419–434. [Google Scholar] [CrossRef] - Zienkiewicz, O.C.; Taylor, R.L. The finite element method. McGraw-Hill Lond.
**1977**, 3, 39–84. [Google Scholar] - Ferede, E.; Abdalla, M.M.; van Bussel, G.J.W. Isogeometric based framework for aeroelastic wind turbine blade analysis. Wind Energy
**2017**, 20, 193–210. [Google Scholar] [CrossRef] - Li, Y.; Castro, A.M.; Sinokrot, T.; Prescott, W.; Carrica, P.M. Coupled multi-body dynamic and CFD for wind turbine simulation explicit wind turbulence. Renew. Energy
**2015**, 76, 338–361. [Google Scholar] [CrossRef] - Ageze, M.B.; Hu, Y.; Wu, H.C. Comparative Study on Uni- and Bi-Directional Fluid Structure Coupling of Wind Turbine Blades. Energies
**2017**, 10, 1499. [Google Scholar] [CrossRef] [Green Version] - Heinz, J.C.; Sørensen, N.N.; Zahle, F. Fluid-structure interaction computations for geometrically resolved rotor simulations using cfd. Wind Energy
**2016**, 19, 2205–2221. [Google Scholar] [CrossRef] - Sørensen, J.N.; Shen, W.Z. Numerical modeling of wind turbine wakes. J. Fluids Eng.
**2002**, 124, 393–399. [Google Scholar] [CrossRef] - Fleming, P.; Gebraad, M.O.; Lee, S.; van Wingerden, J.W.; Johnson, K.; Churchfield, M.; Michalakes, J.; Spalart, P.; Moriarty, P. Simulation comparison of wake mitigation control strategies for a two-turbine case. Wind Energy
**2015**, 18, 2135–2143. [Google Scholar] [CrossRef] - Na, J.S.; Koo, E.; Munoz-Esparza, D.; Jin, E.K.; Linn, R.; Lee, J.S. Turbulent kinetics of a large wind farm and their impact in the neutral boundary layer. Energy
**2016**, 95, 79–80. [Google Scholar] [CrossRef] [Green Version] - Meng, H.; Lien, F.-S.; Li, L. Elastic actuator line modelling for wake-induced fatigue analysis of horizontal axis wind turbine blade. Renew. Energy
**2018**, 116, 423–437. [Google Scholar] [CrossRef] - Hansen, M.O.L. Aerodynamics of Wind Turbines; Earthscan: London, UK; Sterling, AV, USA, 2008. [Google Scholar]
- TurbinesFoam. 2014. Available online: https://github.com/turbinesFoam (accessed on 16 January 2019).
- Shives, M.; Crawford, C. Mesh and load distribution requirement for actuator line CFD simulations. Wind Energy
**2013**, 16, 1183–1196. [Google Scholar] [CrossRef] - Shen, W.Z.; Mikkelsen, R.; Sørensen, J.N. Tip Loss Corrections for Wind Turbine Computations. Wind Energy
**2005**, 8, 457–475. [Google Scholar] [CrossRef] - Yu, Z.Y.; Zheng, X.; Ma, Q.W. Study on Actuator Line Modeling of Two NREL 5-MW Wind Turbine Wakes. Appl. Sci.
**2018**, 8, 434. [Google Scholar] [CrossRef] [Green Version] - Ferziger, J.H.; Peric, M. Computational Methods for Fluid Dynamics; Springer Science & Business: Berlin, Germany, 2012. [Google Scholar]
- Jeong, M.; Cha, M.; Kim, S.; Lee, L. Numerical investigation of optimal yaw misalignment and collective pitch angle for load imbalance reduction of rigid and flexible hawt blades under sheared wind inflow. Energy
**2015**, 84, 518–532. [Google Scholar] [CrossRef] - Ponta, F.L.; Otero, A.D.; Lago, L.I.; Rajan, A. Effect of rotor deformation in wind-turbine performance: Dynamic rotor deformation blade element momentum model (DRD-BEM). Renew. Energy
**2016**, 92, 157–170. [Google Scholar] [CrossRef] [Green Version] - Yu, D.O.; Kwon, O.J. A coupled CFD-CSD method for predicting HAWT rotor blade performance. In Proceedings of the 51st AIAA Aerospace Science Meeting Including the New Horizons Forum and Aerospace Exposition, Grapevine, TX, USA, 7–10 January 2013; p. 911. [Google Scholar]
- Yu, D.O.; Kwon, O.J. Time-accurate aeroelastic simulations of a wind turbine in yaw and shear using a coupled CFD-CSD method. In Proceedings of the Science of Making Torque from Wind 2014 (TORQUE 2014), Copenhagen, Denmark, 18–20 June 2014; p. 524. [Google Scholar]
- Choi, N.J.; Nam, S.H.; Jeong, J.H.; Kim, K.C. Numerical study on the horizontal axis turbines arrangement in a wind farm: Effect of separation distance on the turbine aerodynamic power output. J. Wind Eng. Ind. Aerodyn.
**2013**, 117, 11–17. [Google Scholar] [CrossRef] - Zheng, X.; Shao, S.D.; Khayyer, A.; Duan, W.Y.; Ma, Q.W.; Liao, K.P. Corrected first-order derivative ISPH in water wave simulations. Coast. Eng. Res.
**2017**, 59, 1750010. [Google Scholar] [CrossRef]

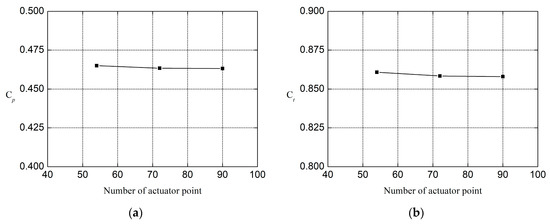

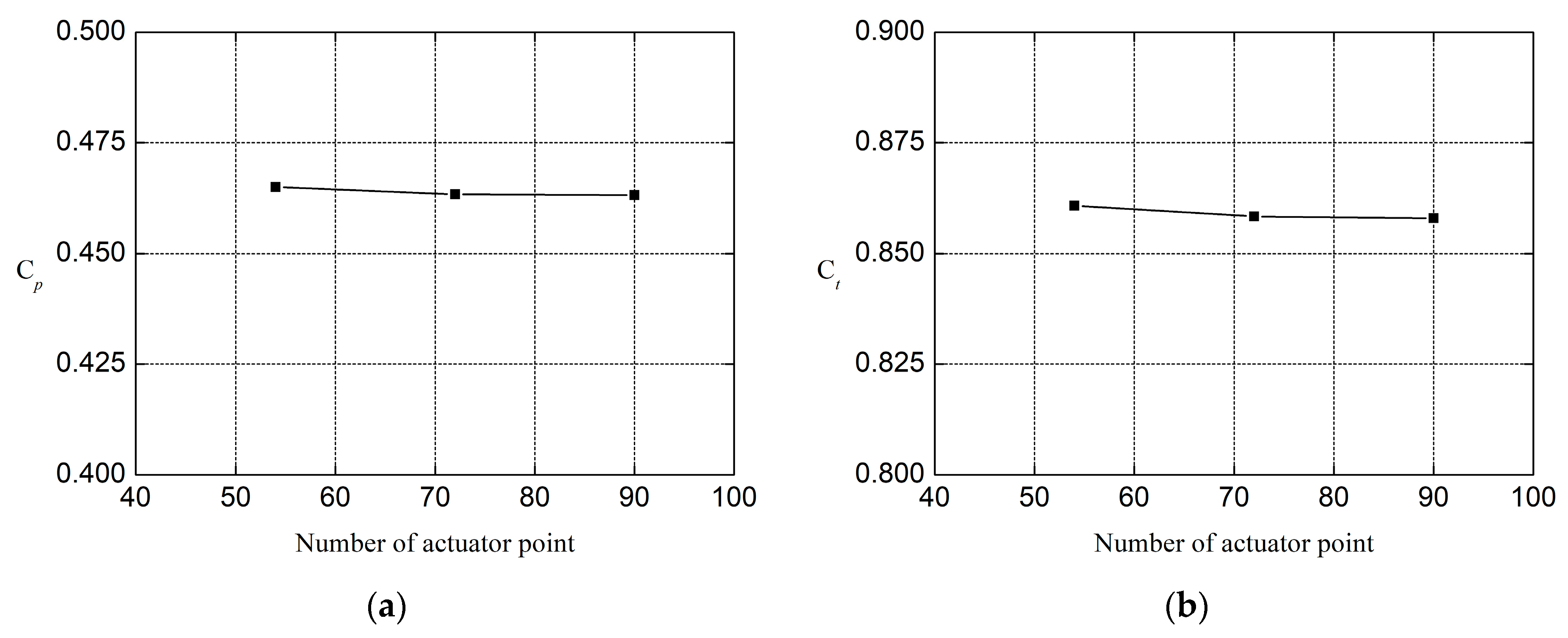

**Figure 8.**Relationship between actuator point number and aerodynamic coefficient, (

**a**) power coefficient, and (

**b**) thrust coefficient.

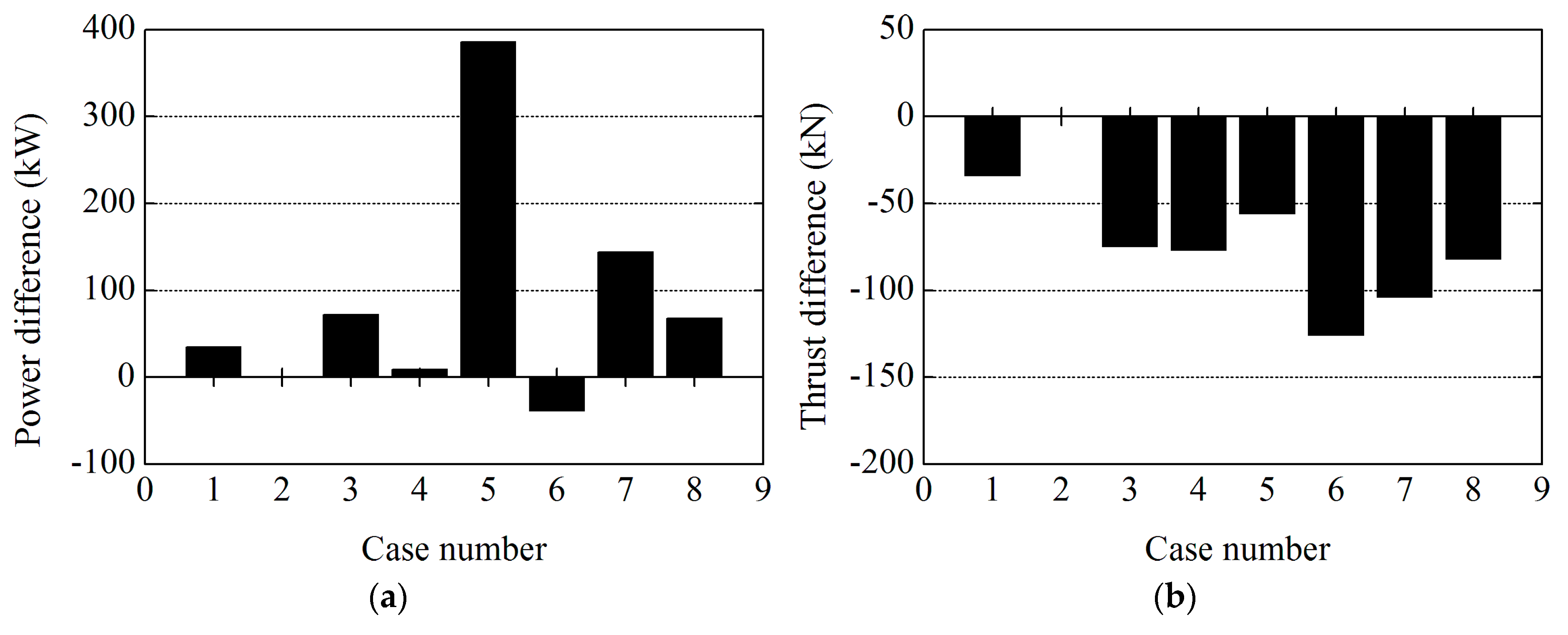

**Figure 9.**Comparison of different cases results in 8 m/s: (

**a**) power; and (

**b**) thrust Case 1: Elastic Actuator Line Model (present study); Case 2: NREL’s FAST code; Case 3: Horizontal Axis Wind turbine simulation Code 2nd generation results; Case 4: research by Li et al. [17]; Case 5: research by Jeong et al. [30]; Case 6: research by Ponta et al. [31]; Case 7: research by Yu et al. [32,33]; Case 8: research by Ma et al. [13].

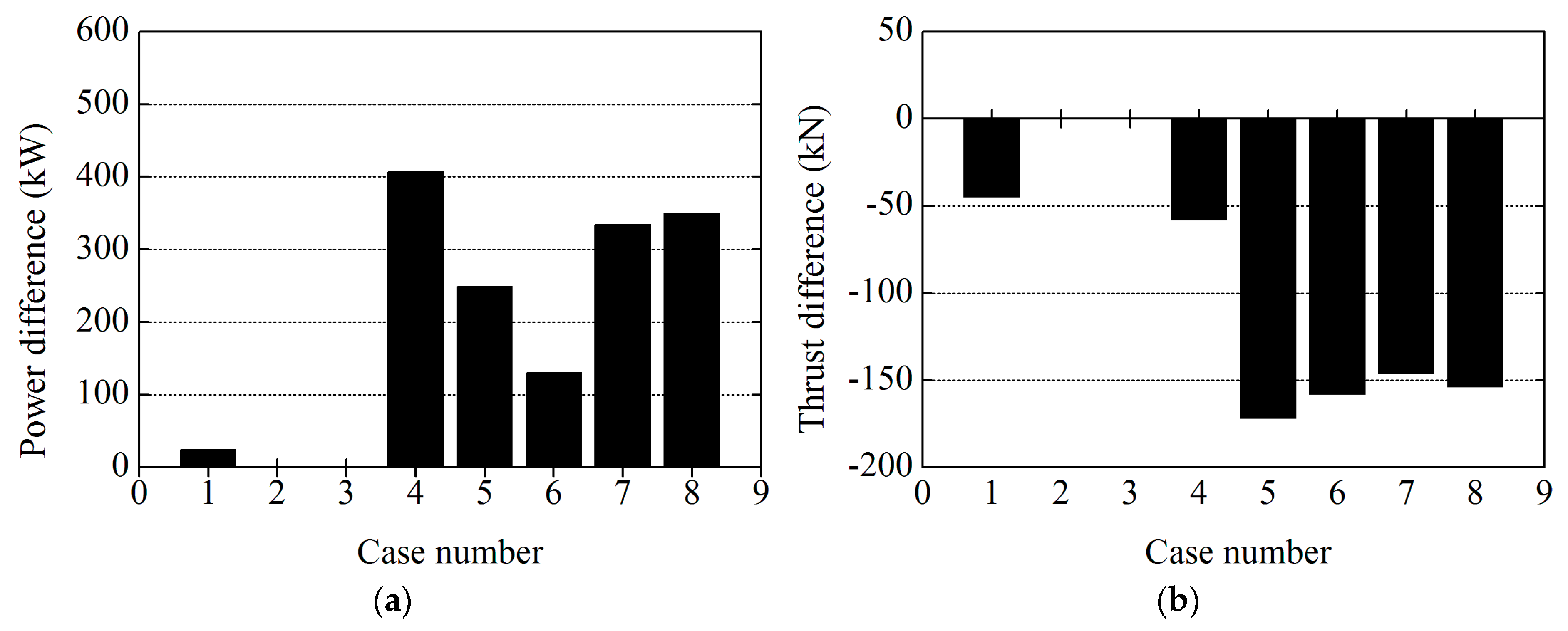

**Figure 10.**Comparison of different cases results in 11.4 m/s: (

**a**) power; and (

**b**) thrust Case 1: Elastic Actuator Line Model (present study); Case 2: NREL’s FAST code; Case 3: Horizontal Axis Wind turbine simulation Code 2nd generation results; Case4: research by Li et al. [17]; Case 5: research by Jeong et al. [30]; Case 6: research by Ponta et al. [31]; Case 7: research by Yu et al. [32,33]; Case 8: research by Ma et al. [13].

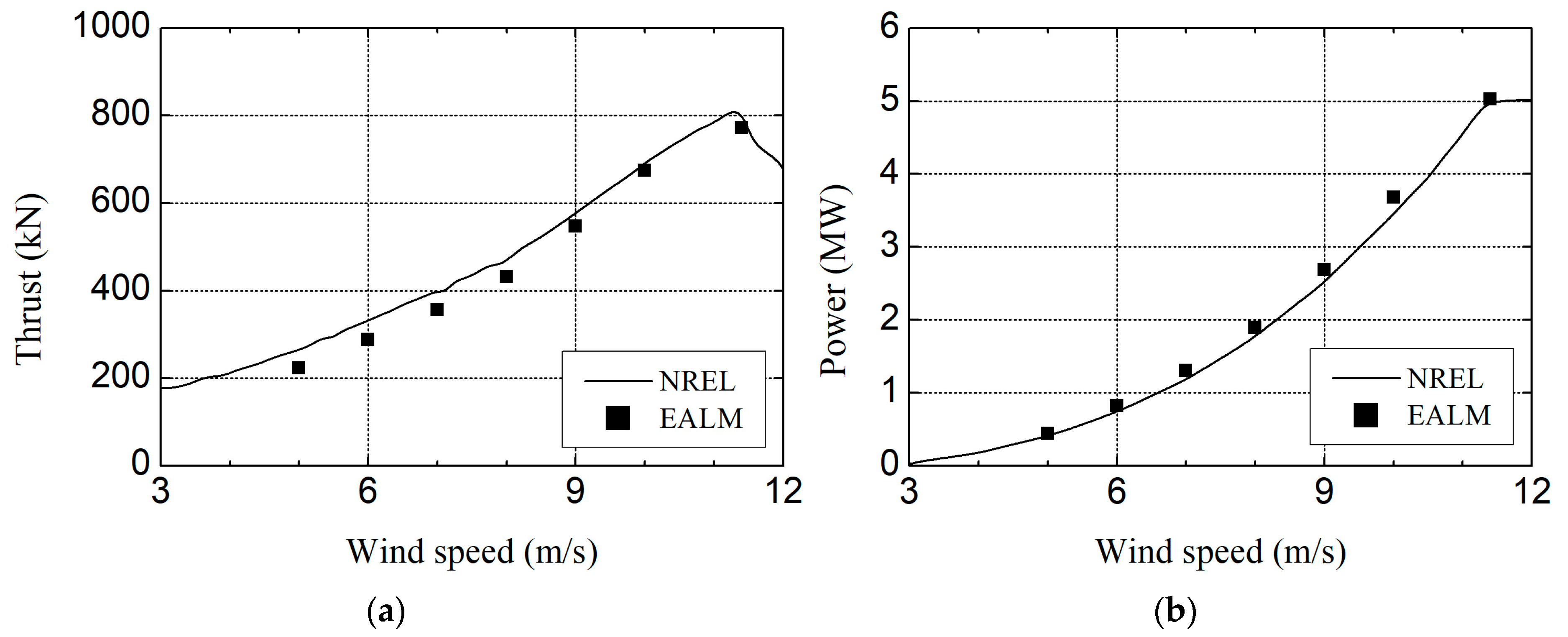

**Figure 11.**Comparisons of the aerodynamic performance results between elastic actuator line model (EALM) and NREL’s FAST code at different wind speeds: (

**a**) thrust; and (

**b**) power.

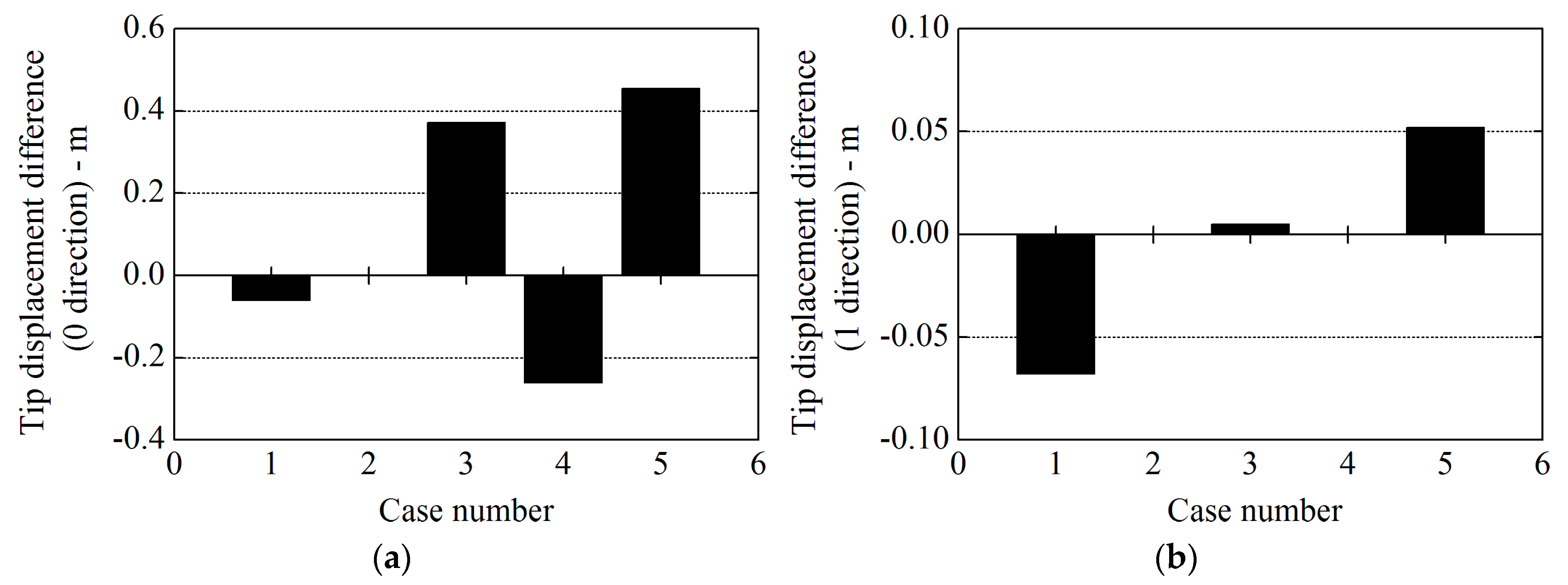

**Figure 12.**Comparison of different cases tip displacement results in 8 m/s: (

**a**) 0 direction; and (

**b**) 1 direction Case 1: Elastic Actuator Line Model (present study); Case 2: NREL’s FAST code; Case 3: research by Li et al. [17]; Case 4: research by Yu et al. [32,33]; Case 5: research by Ma et al. [13].

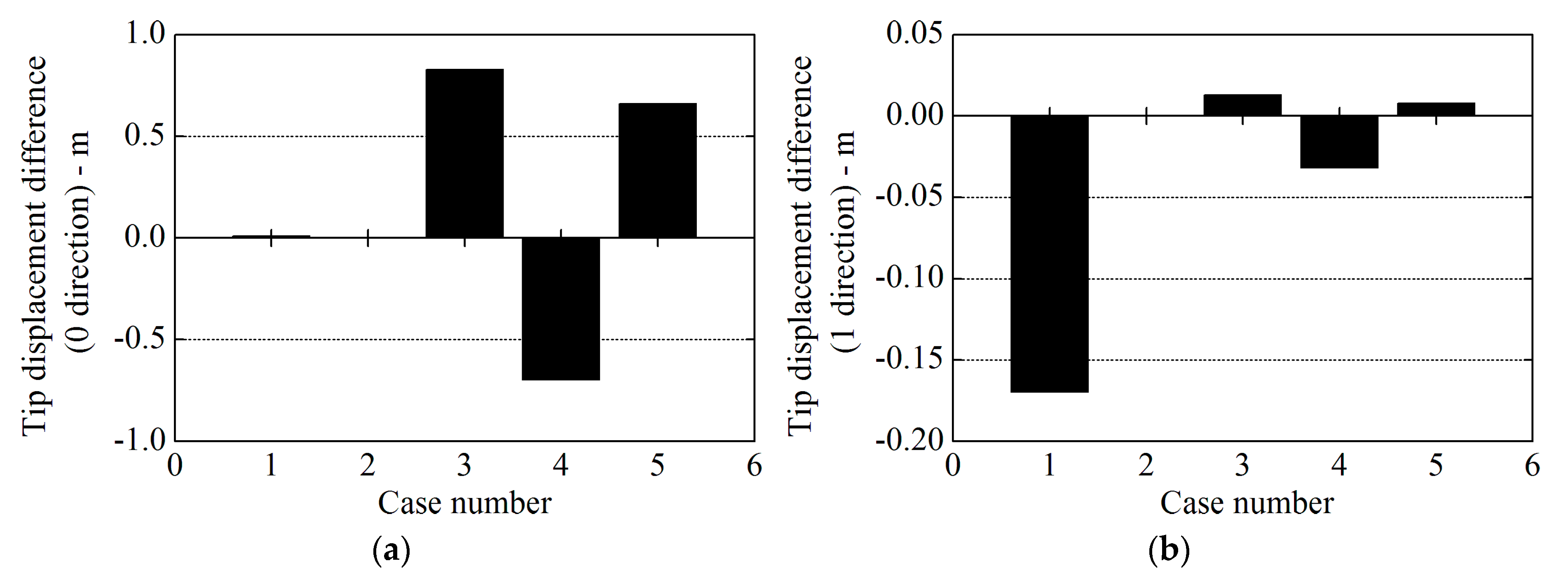

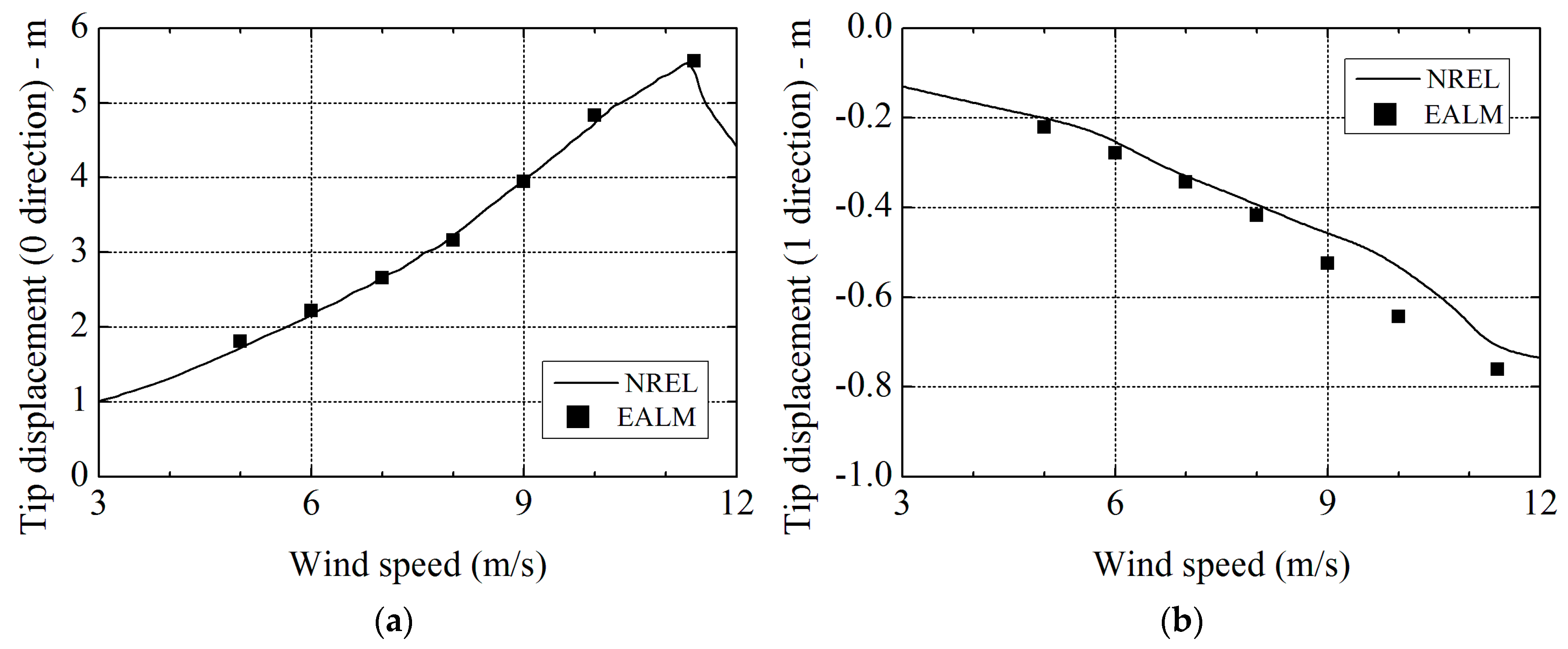

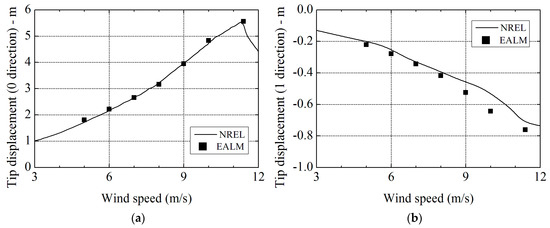

**Figure 14.**Comparison of the tip displacement results between elastic actuator line model (EALM) and NREL’s FAST code at different wind speeds: (

**a**) in 0 direction; and (

**b**) in 1 direction.

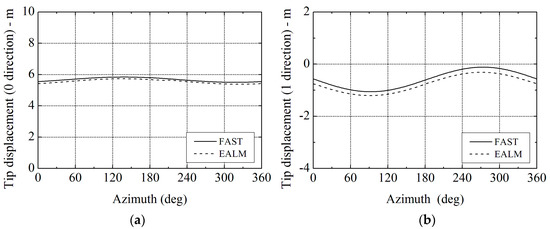

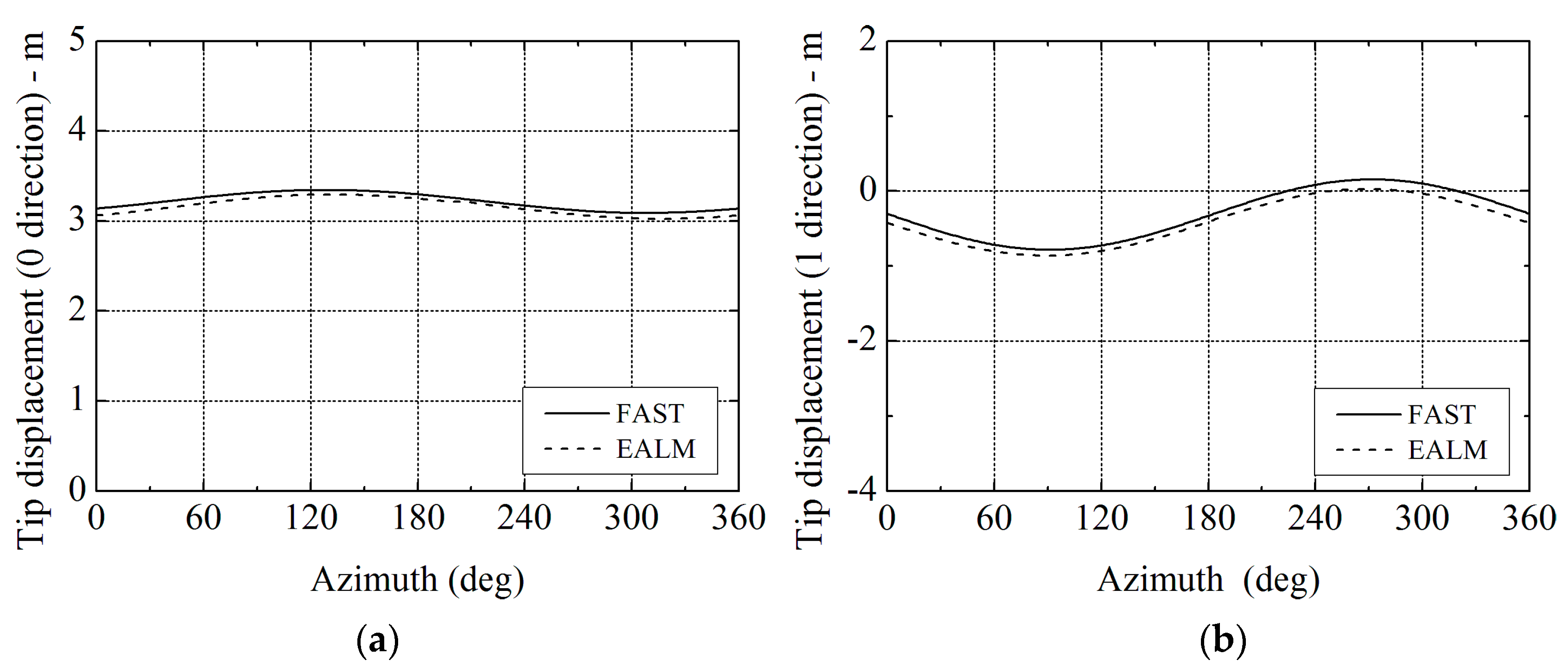

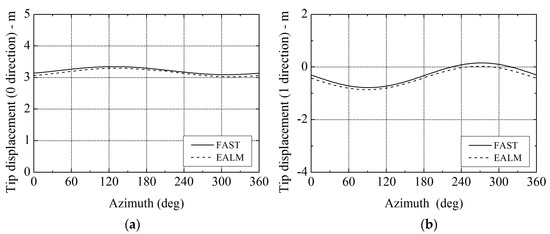

**Figure 15.**Comparison of azimuthal variations of blade tip deformations between elastic actuator line model (EALM) and NREL’s FAST code at 8 m/s: (

**a**) in 0 direction; and (

**b**) in 1 direction.

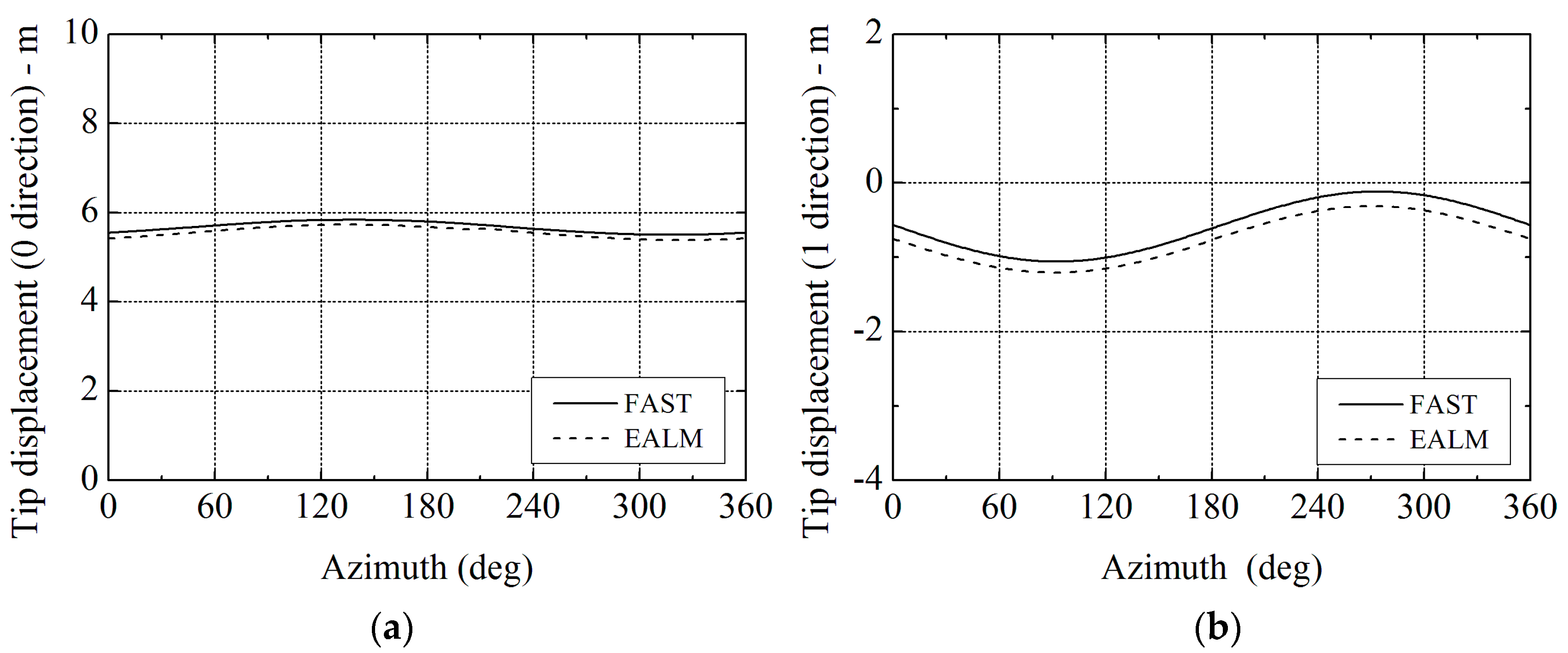

**Figure 16.**Comparison of azimuthal variations of blade tip deformations between elastic actuator line model (EALM) and NREL’s FAST code at 11.4 m/s: (

**a**) in 0 direction; and (

**b**) in 1 direction.

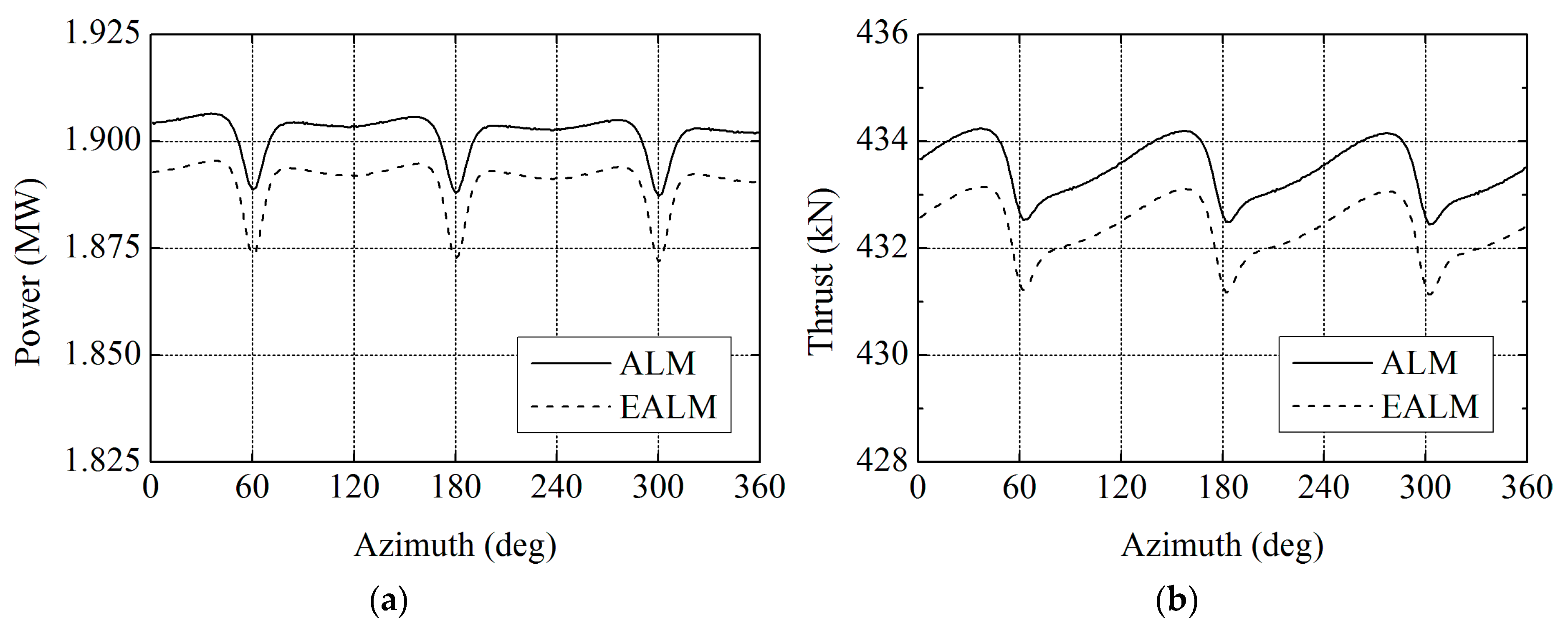

**Figure 17.**Comparisons of the aerodynamic performance results between traditional actuator line model (ALM) and elastic actuator line model (EALM) at 8 m/s: (

**a**) power; and (

**b**) thrust.

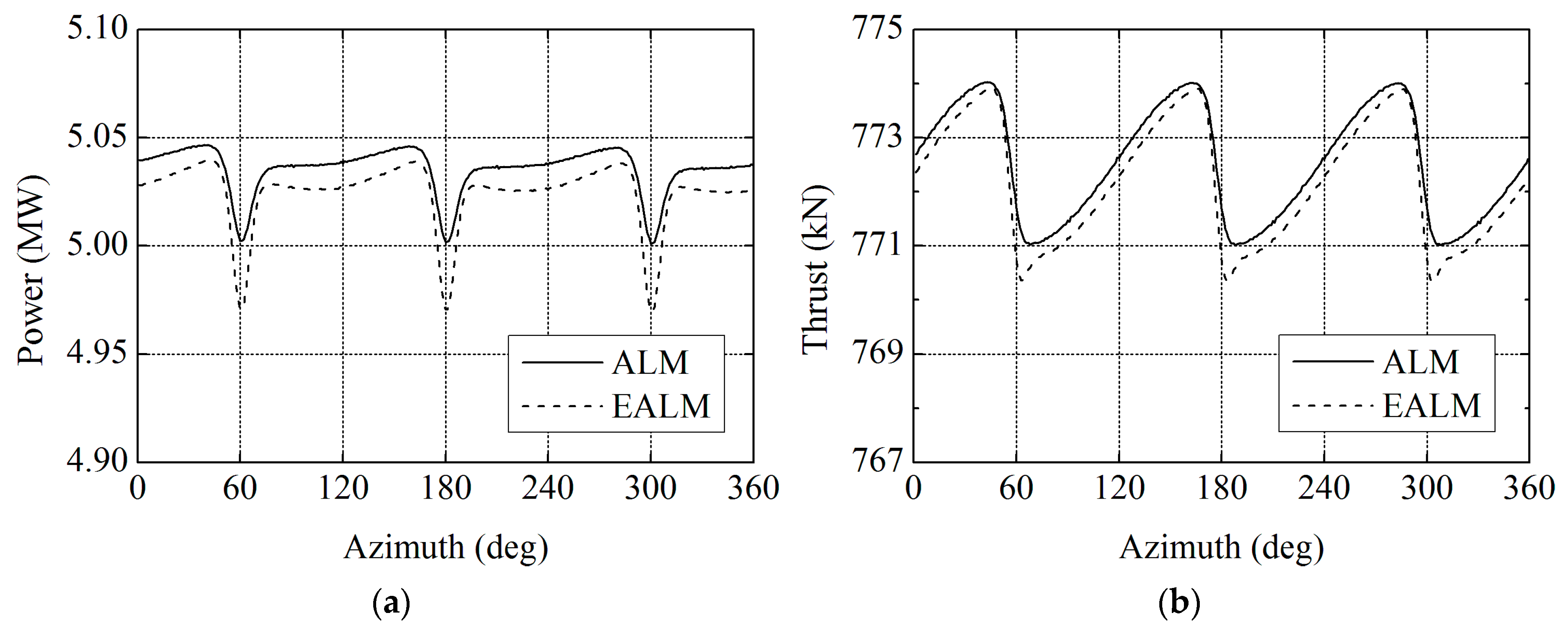

**Figure 18.**Comparisons of the aerodynamic performance results between traditional actuator line model (ALM) and elastic actuator line model (EALM) at 11.4 m/s: (

**a**) power; and (

**b**) thrust.

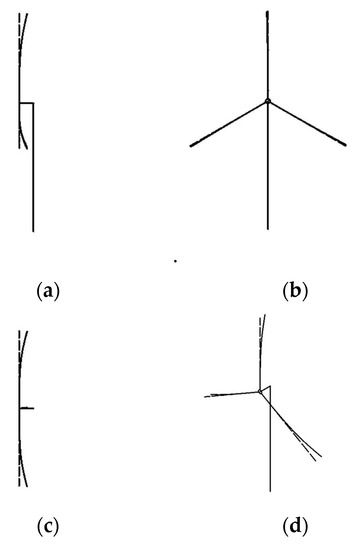

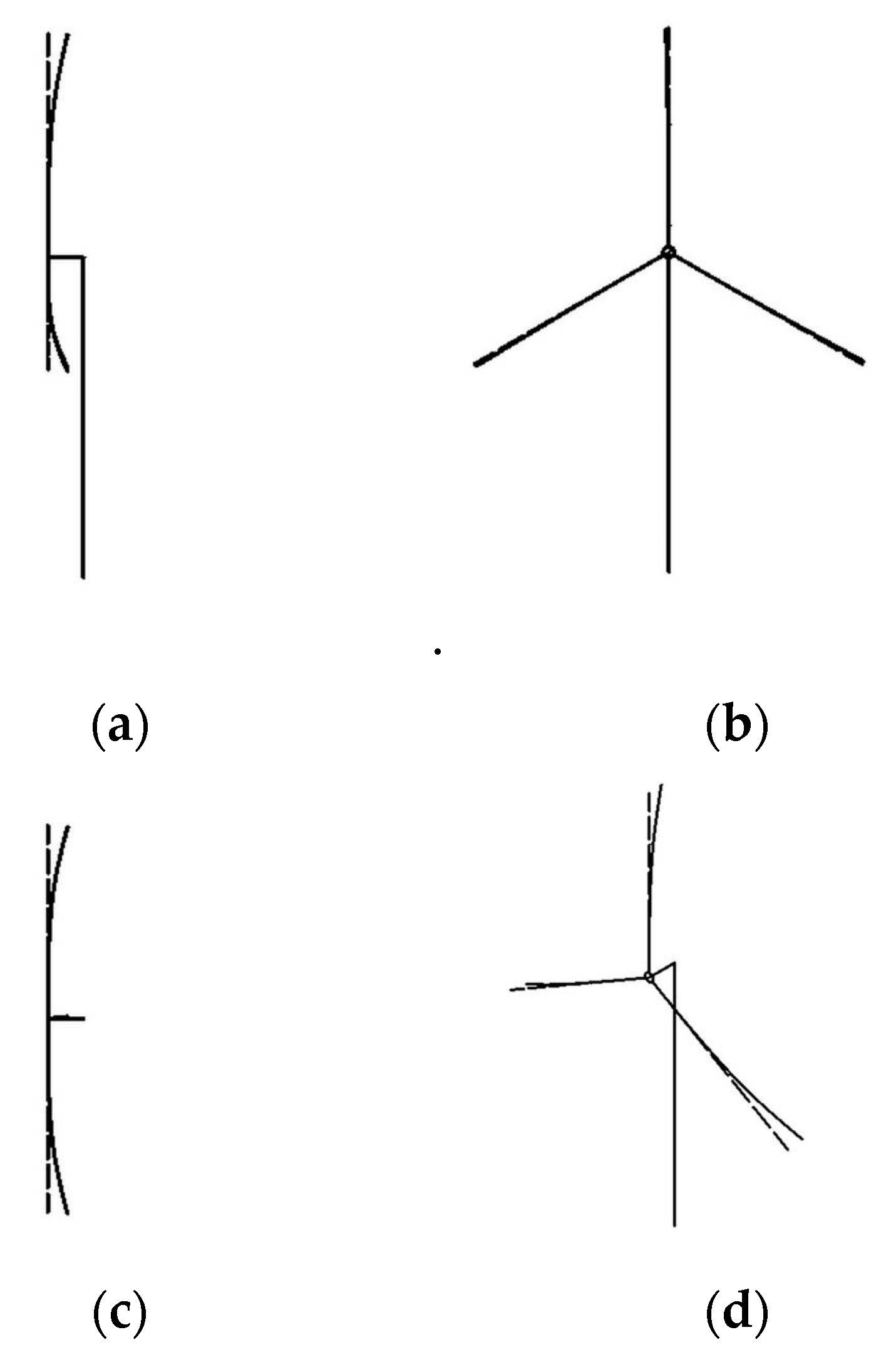

**Figure 21.**The abbreviated sketches of blade deflection: (

**a**) front side view; (

**b**) left side view; (

**c**) vertical side view; and (

**d**) southwest isometric side view.

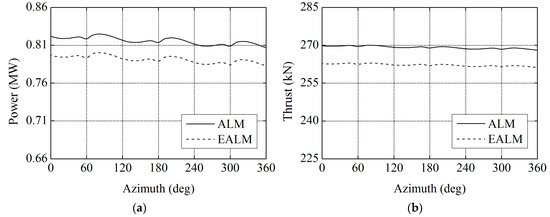

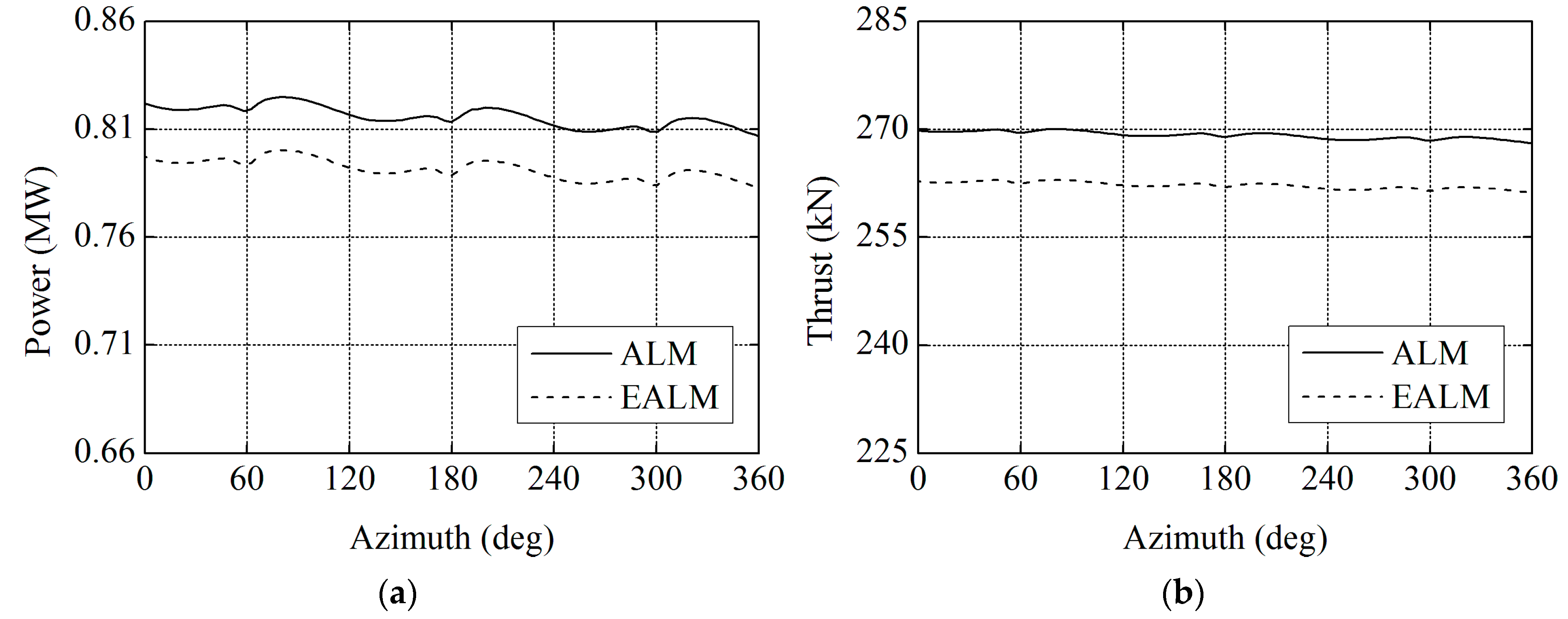

**Figure 22.**Comparison of downstream wind turbine aerodynamic performance results between Table 8. m/s: (

**a**) power; and (

**b**) thrust.

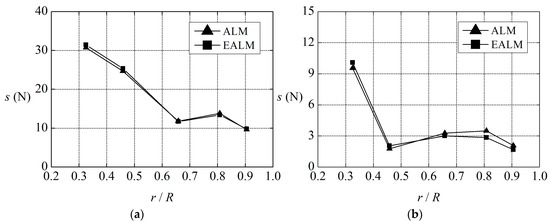

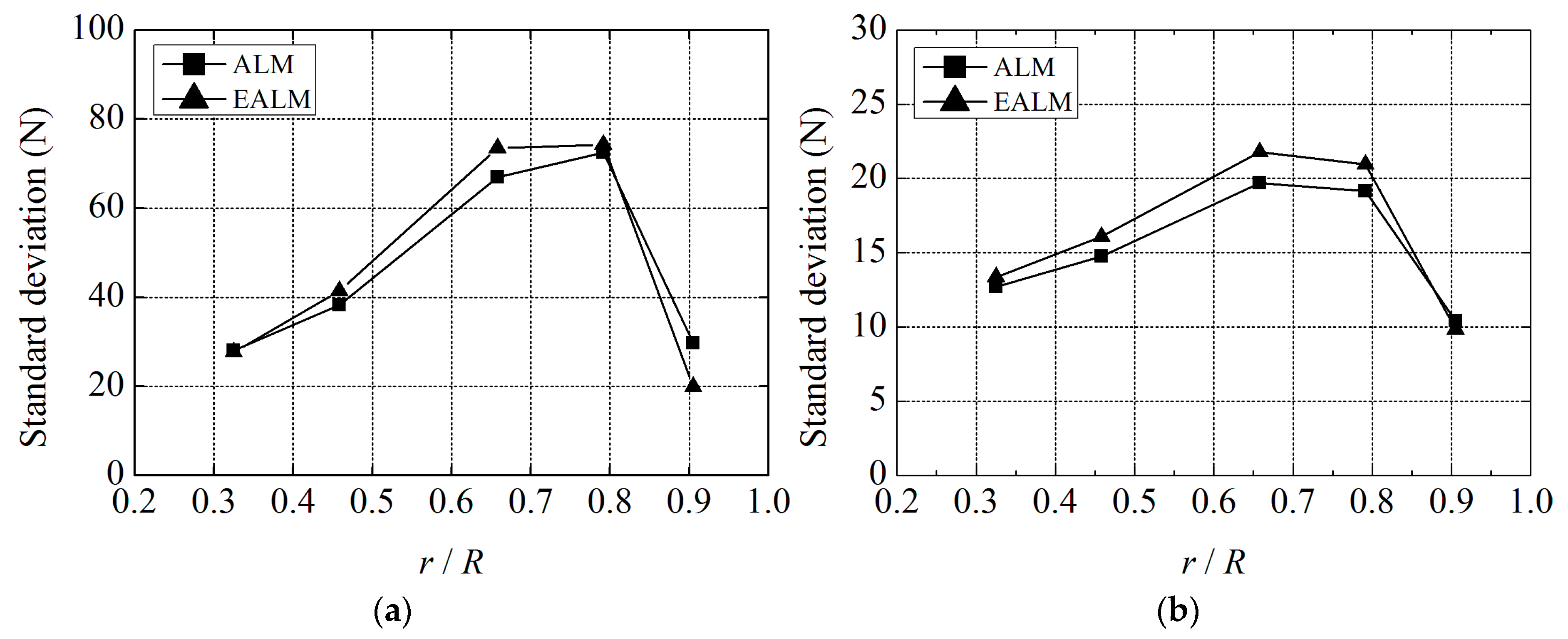

**Figure 23.**Stabilization of forces on downstream wind turbine blades: (

**a**) normal force; and (

**b**) tangential force.

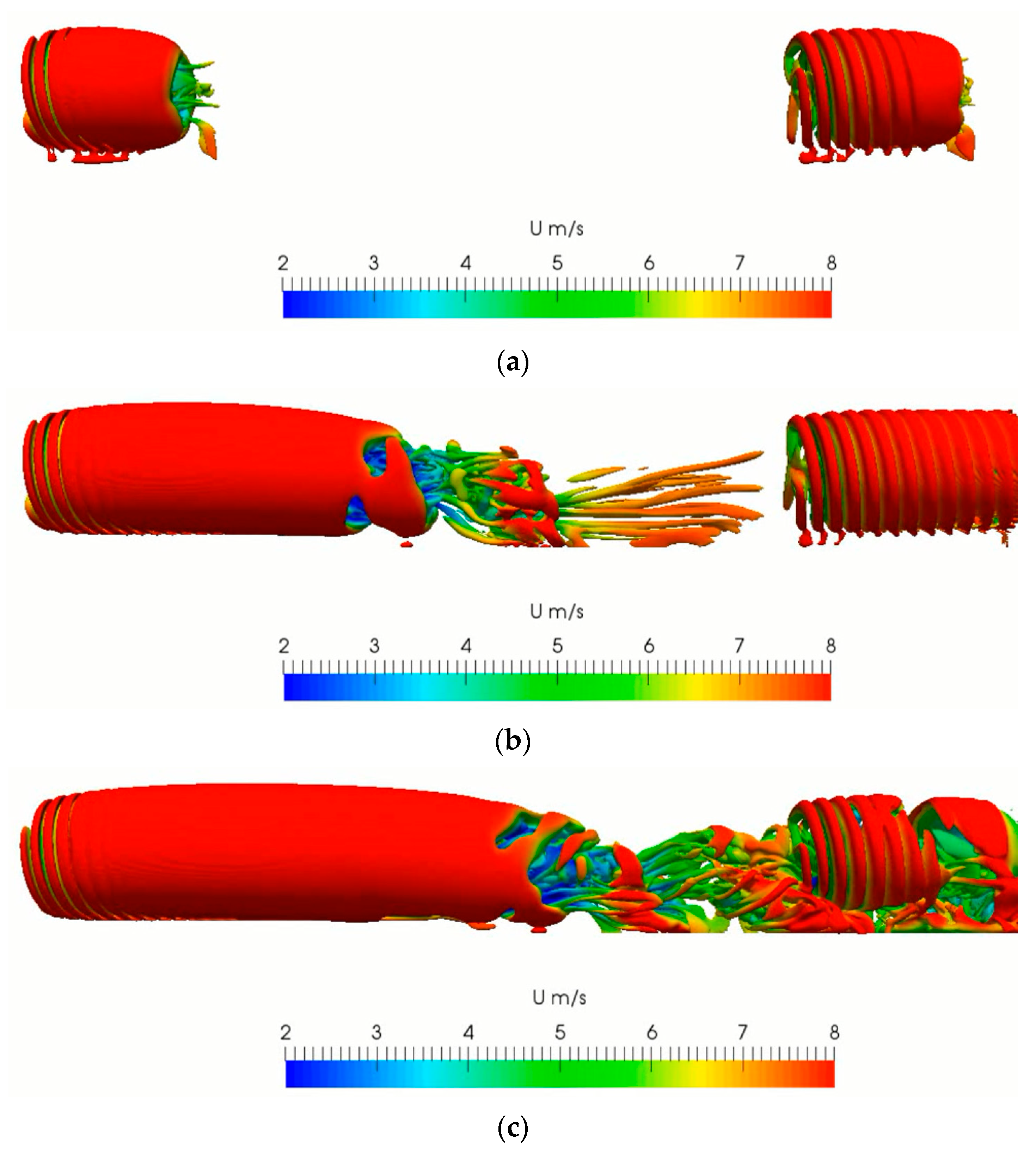

**Figure 24.**The wake structure development of double wind turbine aligned: (

**a**) initial status without disturb; (

**b**) developing status; and (

**c**) interference status.

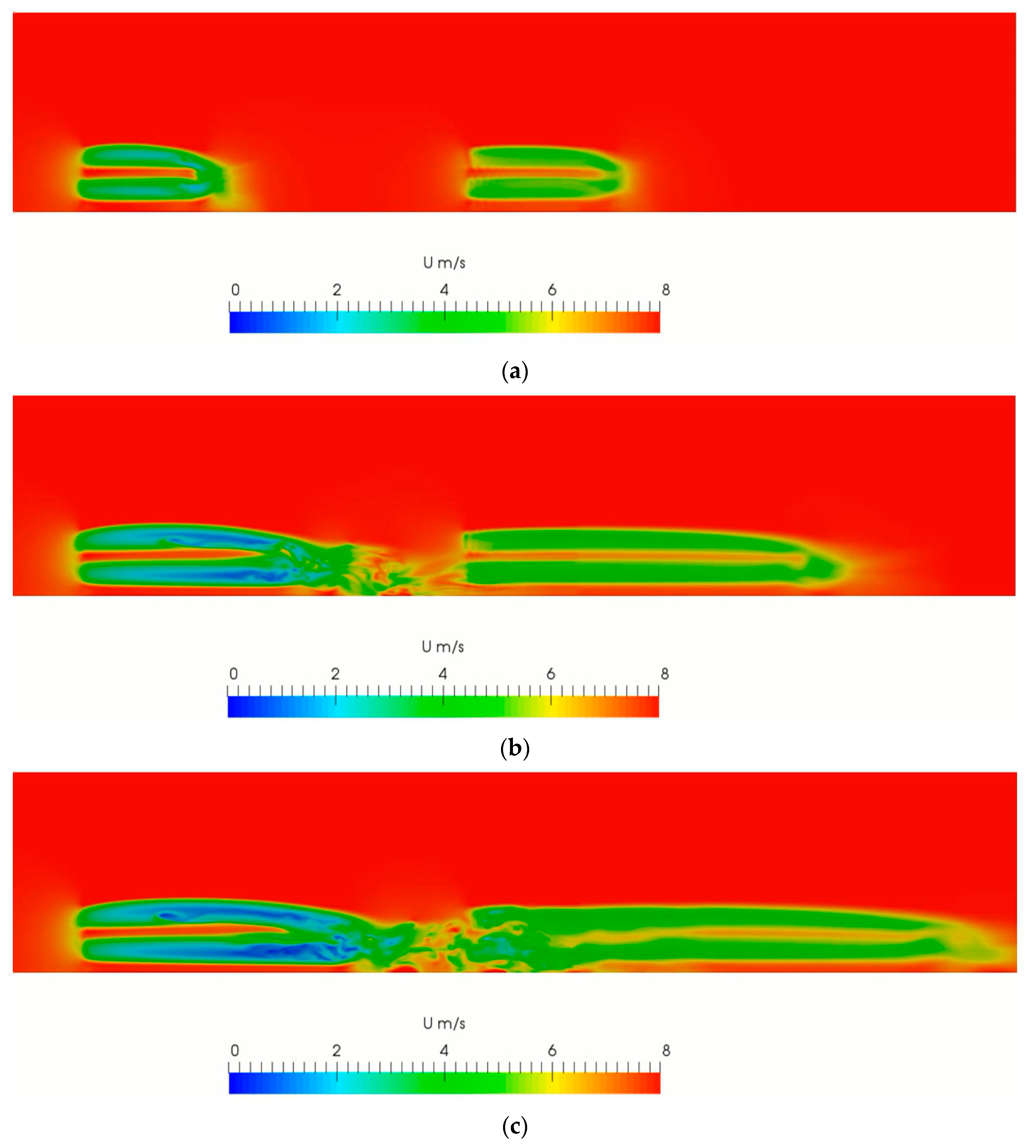

**Figure 25.**The wake velocity field development of double wind turbine aligned: (

**a**) initial status without disturb; (

**b**) developing status; and (

**c**) interference status.

**Table 1.**Properties of NREL 5 MW baseline wind turbine (NREL: National Renewable Energy Laboratory).

Properties | Content |
---|---|

Rotor orientation | Upwind |

Rotor configuration | Three blades |

Rotor diameter | 126 m |

Hub diameter | 3 m |

Hub height | 90 m |

Shaft tilt angle | 5° |

Rotor mass | 110,000 kg |

Rated power | 5 MW |

Rated wind speed | 11.4 m/s |

Rated rotor speed | 12.1 rpm |

Grid Level | Number of Cell | Size of Wake Region Cell (m) | C_{p} | C_{t} |
---|---|---|---|---|

1 | 0.38 M | 2.5 | 0.4678 | 0.8665 |

2 | 0.75 M | 2.0 | 0.4642 | 0.8599 |

3 | 2.90 M | 1.5 | 0.4634 | 0.8584 |

4 | 5.96 M | 1.0 | 0.4627 | 0.8572 |

Level | Actuator Point Number | C_{p} | C_{t} |
---|---|---|---|

1 | 54 | 0.4650 | 0.8608 |

2 | 72 | 0.4634 | 0.8584 |

3 | 90 | 0.4632 | 0.8580 |

**Table 4.**Comparison of the computational cost between actuator line method (ALM) and computational fluid dynamics (CFD) method.

Method | Software | Number of Cell | Simulated Time | Power |
---|---|---|---|---|

ALM | OpenFOAM | 1.49 M | 9.2 h | 5.036 MW |

CFD | Star CCM+ | 5.01 M | 82.0 h | 5.050 MW |

**Table 5.**Detailed information about the solved method on the aerodynamic performance and the structural responses in different cases.

Case Number | Aerodynamic Method | Elastic Dynamics Method | Studying Contents |
---|---|---|---|

1 | ALM | Rotating beam solver | Variation in wake flow |

2 | BEM | Modal approach | Blade response and aerodynamics |

3 | BEM | MBD | Blade response and aerodynamics |

4 | CFD | MBD | Influence of wind turbulence |

5 | BEM | Geometric nonlinearity beam model | Optimal yaw and pitch angle |

6 | BEM | Dynamic rotor deformation model | Rotor structure deformation |

7 | CFD | FEM-based CSD beam solver | Yaw and wind shear |

8 | ALM | Finite-element beam method | Wake behavior |

Case Number | 8 m/s | 11.4 m/s | ||
---|---|---|---|---|

Power (MW) | Thrust (kN) | Power (MW) | Thrust (kN) | |

1 | 1.891 | 432 | 5.024 | 772 |

2 | 1.856 | 466 | 5.000 | 817 |

3 | 1.928 | 391 | No data | No data |

4 | 1.865 | 389 | 5.407 | 759 |

5 | 2.242 | 410 | 5.249 | 645 |

6 | 1.817 | 340 | 5.130 | 659 |

7 | 2.000 | 362 | 5.334 | 671 |

8 | 1.924 | 384 | 5.350 | 663 |

**Table 7.**Comparisons of the power and the thrust relative error between elastic actuator line model (EALM) and NREL’s FAST code at different wind speeds.

Wind Speed (m/s) | Power (MW) | Error | Thrust (kN) | Error |
---|---|---|---|---|

5.0 | 0.4355 | 2.828% | 222.6153 | 15.965% |

6.0 | 0.8194 | 7.080% | 287.8339 | 13.253% |

7.0 | 1.2986 | 6.099% | 356.5589 | 10.233% |

8.0 | 1.8906 | 3.856% | 432.3593 | 7.543% |

9.0 | 2.6880 | 3.564% | 546.8937 | 5.374% |

10.0 | 3.6799 | 3.405% | 674.6184 | 2.392% |

11.4 | 5.0241 | 0.482% | 772.1718 | 3.948% |

Case Number | 8 m/s | 11.4 m/s | ||
---|---|---|---|---|

Out of Plane Tip Displacement (m) | In Plane Tip Displacement (m) | Out of Plane Tip Displacement (m) | In Plane Tip Displacement (m) | |

1 | 3.159 | −0.418 | 5.560 | −0.762 |

2 | 3.220 | −0.350 | 5.550 | −0.592 |

3 | 3.592 | −0.345 | 6.379 | −0.579 |

4 | 2.958 | No data | 4.851 | −0.624 |

5 | 3.675 | −0.298 | 6.212 | −0.584 |

**Table 9.**Comparison of the tip displacement relative errors between elastic actuator line model (EALM) and NREL’s FAST code at different wind speeds.

Wind Speed (m/s) | Out of Plane Tip Displacement (m) | Error | In Plane Tip Displacement (m) | Error |
---|---|---|---|---|

5.0 | 1.8092 | 5.340% | −0.2215 | −10.536% |

6.0 | 2.2194 | 2.598% | −0.2793 | −8.828% |

7.0 | 2.6592 | 0.345% | −0.3437 | −3.692% |

8.0 | 3.1594 | 2.090% | −0.4177 | −4.895% |

9.0 | 3.9490 | 0.596% | −0.5247 | −14.135% |

10.0 | 4.8308 | 2.069% | −0.6441 | −20.776% |

11.4 | 5.5591 | 2.545% | −0.7616 | −3.225% |

**Table 10.**Comparison of blade tip displacement Pearson simplified correlation coefficient between elastic actuator line model (EALM) and NREL’s FAST code.

Wind Speed (m/s) | Direction | R |
---|---|---|

8.0 | 0 | 99.18% |

1 | 99.91% | |

11.4 | 0 | 99.40% |

1 | 99.97% |

**Table 11.**Comparisons of mean output power with Jha et al. [34].
