# Advanced Operating Technique for Centralized and Decentralized Reservoirs Based on Flood Forecasting to Increase System Resilience in Urban Watersheds

## Abstract

**:**

^{3}compared to the current operation in 2010, and the flooding volume in 2011 decreased from 664 to 490 m

^{3}. In the 2010 event, the results of resilience were 0.831835 and 0.866566 in current and new operations, respectively. The result of resilience increased from 0.988823 to 0.993029 in the 2011 event. This suggestion can be applied to operating facilities in urban drainage systems and might provide a standard for the design process of urban drainage facilities.

## 1. Introduction

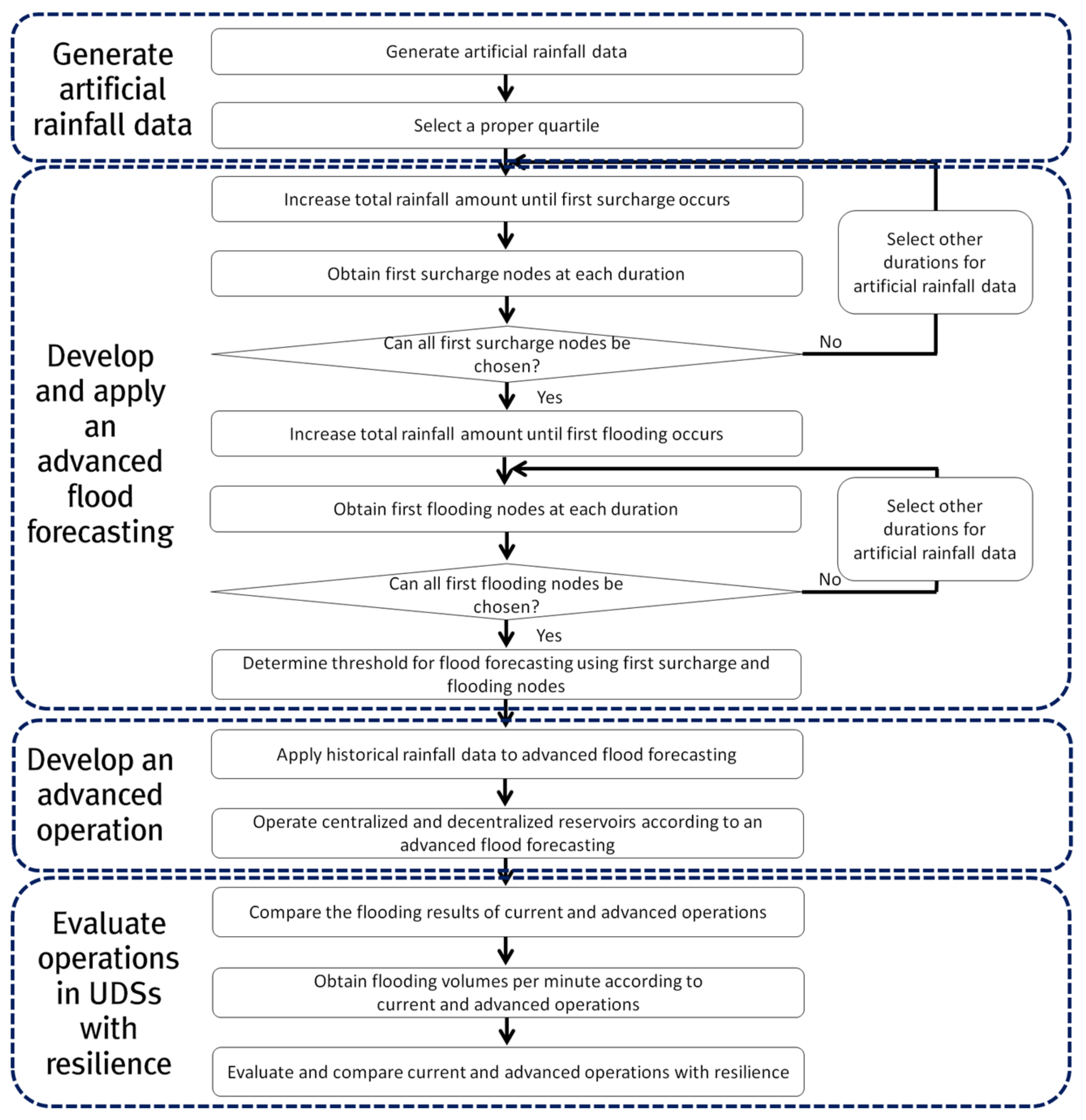

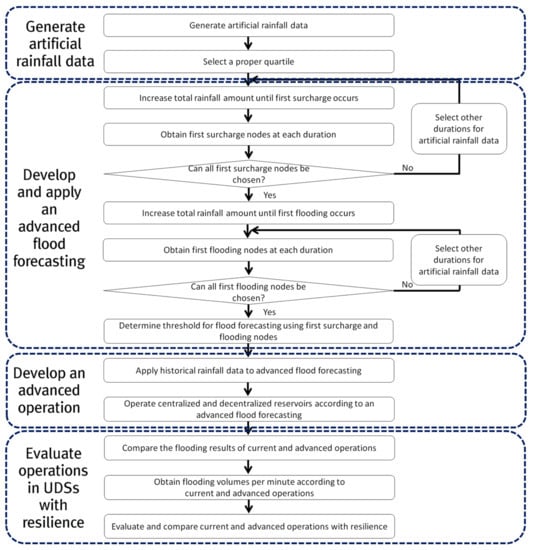

## 2. Methodologies

#### 2.1. Production of Artificial Rainfall Data

_{n}(i = 1, 2, 3, …, n) is the constant of the nth polynomial equation for a Huff distribution in each area. In Korea, a value of 6 is generally selected for n, although the value can be an integer of 5, 6, or 7. A process for applying non-dimensional cumulative rainfall into non-dimensional distributed rainfall is required. For example, the non-dimensional distributed rainfall volume at time i is A − B, when the non-dimensional cumulative rainfall volume at time i is A and at time i − 1 is B.

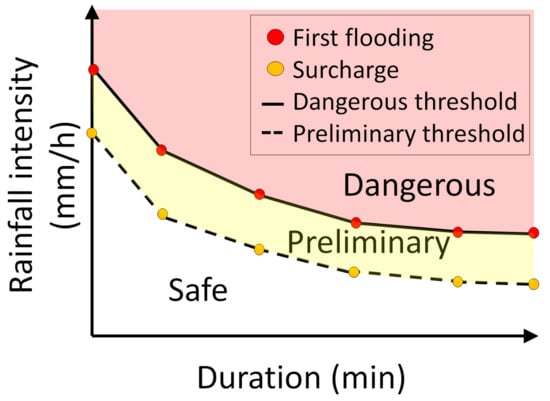

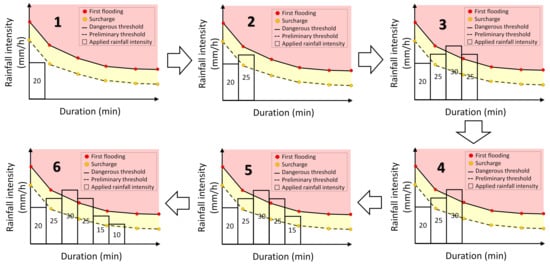

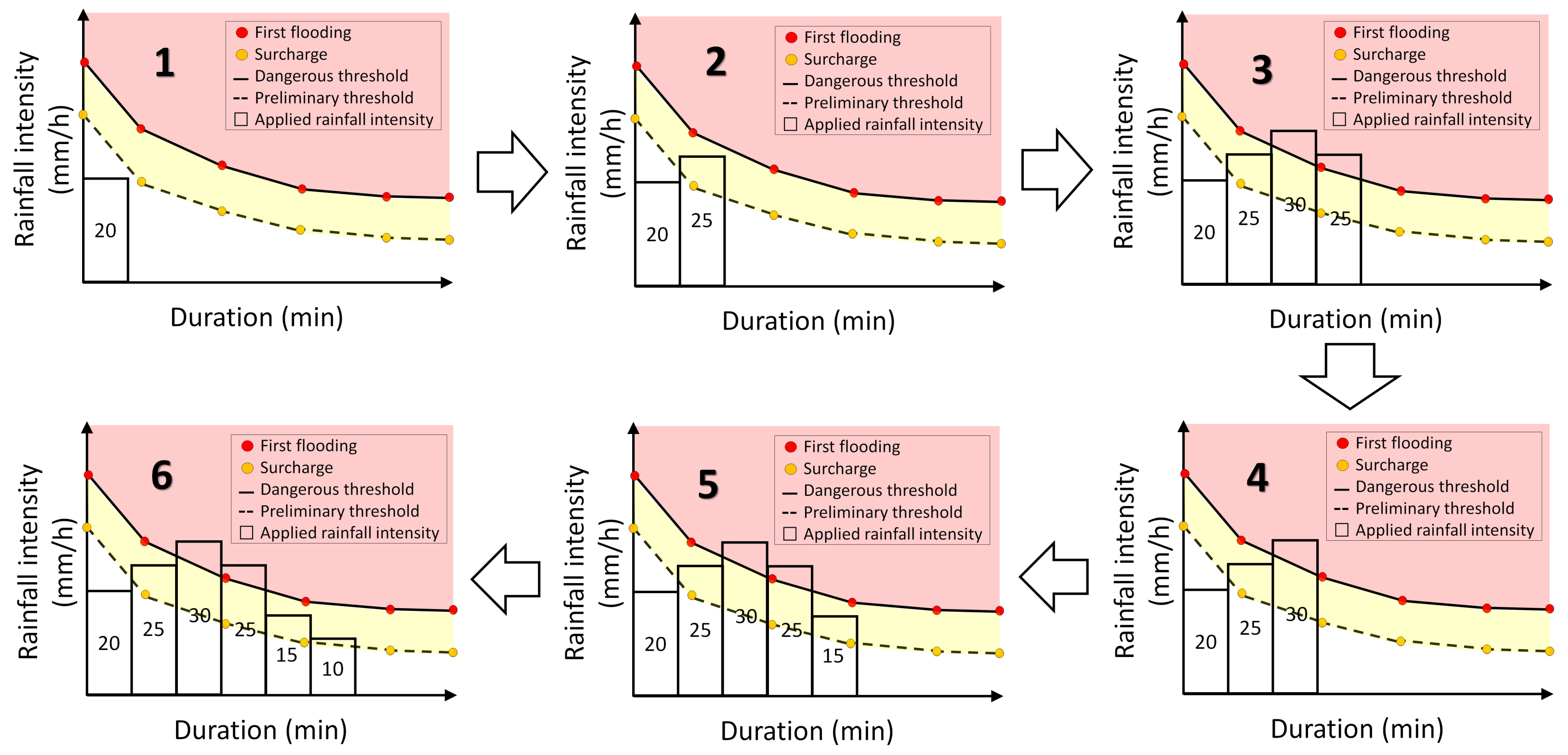

#### 2.2. Advanced Flood Forecasting Technique

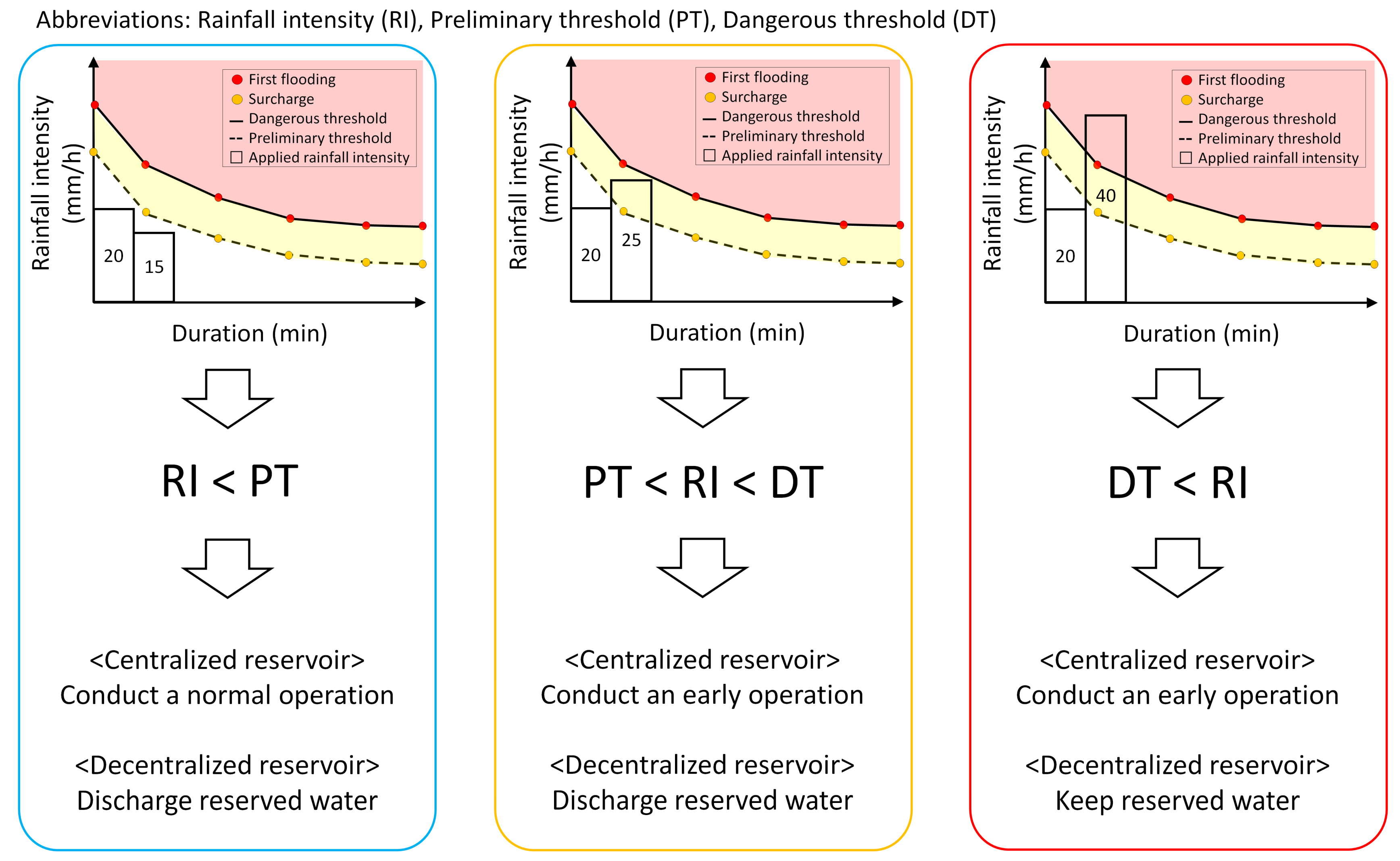

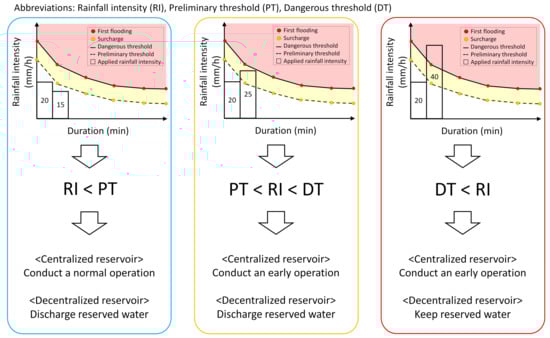

#### 2.3. Advanced Operation for Centralized and Decentralized Reservoirs

#### 2.4. Resilience of UDSs

^{3}) are the value of the performance evaluation function and flood volume at time t, respectively. R(t) (m) is the rainfall amount at time t, and A (m

^{2}) is the basin area of the target watershed. The resilience of the UDS is calculated based on the value of the PE function in Equation (7).

## 3. Application and Results

#### 3.1. Information of the Target Watershed

^{2}. In addition, the area of Seoul is only 0.6% of the total area of Korea, and it has a high population density. The Han River penetrates from east to west in Seoul. Because Seoul is downstream of the Han River, the hydraulic gradient is gradually decreasing, and the flow of water is slow. In the case of flooding, the water level in Seoul (downstream from the Han River) is increased because of the water flowing from the upper and middle stream basin.

^{3}/min), while the capacity of the centralized reservoir is 33,650 m

^{3}. The design return period of the Daerim decentralized reservoir is 20 years, and it has 2 drainage pumps (18 m

^{3}/min), while the capacity of a decentralized reservoir is 2477 m

^{3}. Table 2 shows the information on the centralized and decentralized reservoirs.

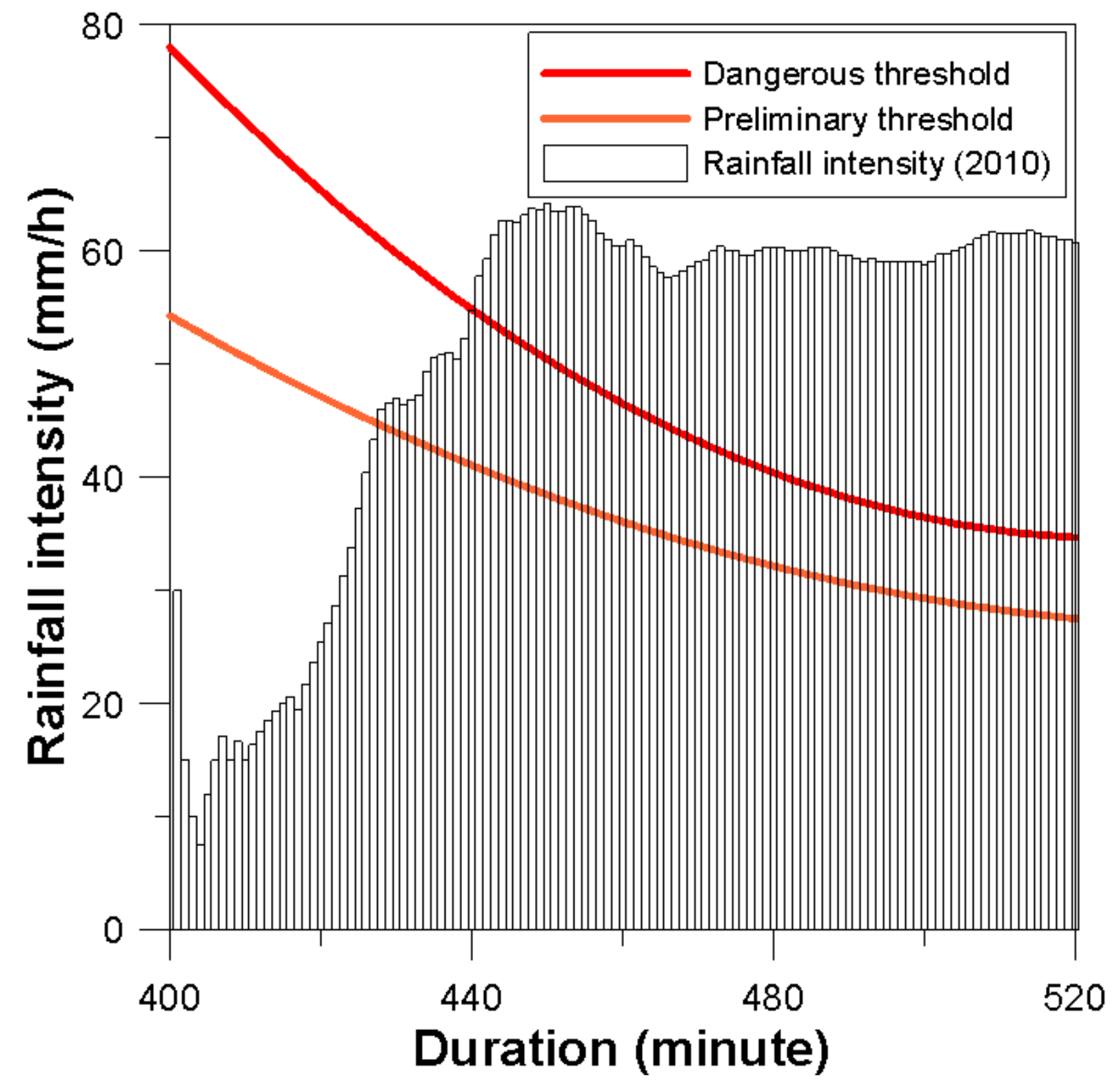

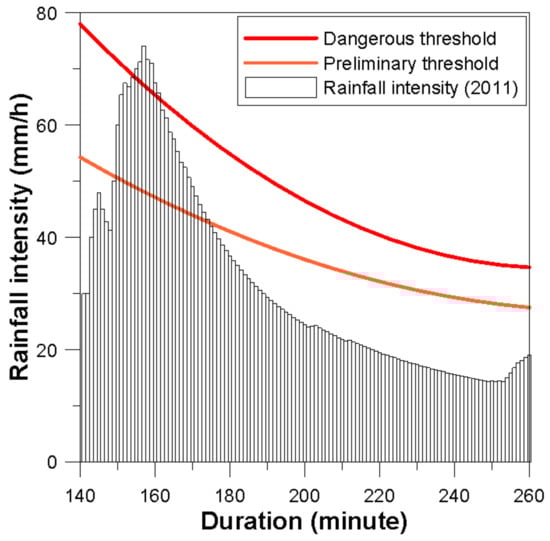

#### 3.2. Application of Advanced Flood Forecasting

#### 3.3. Application of Advanced Operation for Centralized and Decentralized Reservoirs

_{R}is the required depth, P is the initial pump capacity, and T is the initial preparation time for the pump. In addition, V is the required volume, and A

_{m}is the mean area. The initial operating level is calculated using Equation (10).

^{3}) of the previous operation [16] was lower than that (611.4 m

^{3}) of the current operation. Additionally, the advanced operation (new operation) showed the minimum peak value of flooding volume (50.4 m

^{3}) among the three operations. The results of the total flooding volume during the current operation, previous operation, and new operation were 6617, 3904, and 3368 m

^{3}, respectively. The new operation showed a flooding reduction of 3249 m

^{3}compared to the current operation. The results of applying the current operation, previous operation, and new operation to the historical rainfall event in 2011 are shown in Figure 9.

^{3}) in the previous operation [16] was higher than that (57 m

^{3}) in the current operation. The current and advanced operation (new operation) showed the minimum peak flooding volume (57 m

^{3}). The previous operation showed the largest peak flooding volume among the three operations. The results of the total flooding volume during the current operation, previous operation, and new operation were 664, 552, and 490 m

^{3}, respectively. The new operation showed a flooding reduction of 174 m

^{3}compared to the current operation. Diagrams with the reservoirs volume and discharge evolution are required. The volume and discharge in 2010 were selected because the flooding volume in 2010 was larger than 2011. The volume of the centralized reservoir in 2010 is shown in Figure 10.

#### 3.4. Resilience of Advanced Operation with Advanced Flood Forecasting

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Lee, E.H.; Lee, Y.S.; Joo, J.G.; Jung, D.; Kim, J.H. Investigating the impact of proactive pump operation and capacity expansion on urban drainage system resilience. J. Water Resour. Plan. Manag.
**2017**, 143, 04017024. [Google Scholar] [CrossRef] - Gaudio, R.; Penna, N.; Viteritti, V. A combined methodology for the hydraulic rehabilitation of urban drainage networks. Urban Water J.
**2016**, 13, 644–656. [Google Scholar] [CrossRef] - Beeneken, T.; Erbe, V.; Messmer, A.; Reder, C.; Rohlfing, R.; Scheer, M.; Schuetze, M.; Schumacher, B.; Weilandt, M.; Weyand, M. Real time control (RTC) of urban drainage systems—A discussion of the additional efforts compared to conventionally operated systems. Urban Water J.
**2013**, 10, 293–299. [Google Scholar] [CrossRef] - Cembrano, G.; Quevedo, J.; Salamero, M.; Puig, V.; Figueras, J.; Martı, J. Optimal control of urban drainage systems. A case study. Control Eng. Pract.
**2004**, 12, 1–9. [Google Scholar] [CrossRef] - Fiorelli, D.; Schutz, G.; Klepiszewski, K.; Regneri, M.; Seiffert, S. Optimised real time operation of a sewer network using a multi-goal objective function. Urban Water J.
**2013**, 10, 342–353. [Google Scholar] [CrossRef] - Fuchs, L.; Beeneken, T. Development and implementation of a real-time control strategy for the sewer system of the city of Vienna. Water Sci. Technol.
**2005**, 52, 187–194. [Google Scholar] [CrossRef] [PubMed] - Galelli, S.; Goedbloed, A.; Schwanenberg, D.; van Overloop, P.J. Optimal real-time operation of multipurpose urban reservoirs: Case study in Singapore. J. Water Res. Plan. ASCE
**2012**, 140, 511–523. [Google Scholar] [CrossRef] - Hsu, N.S.; Huang, C.L.; Wei, C.C. Intelligent real-time operation of a pumping station for an urban drainage system. J. Hydrol.
**2013**, 489, 85–97. [Google Scholar] [CrossRef] - Kroll, S.; Fenu, A.; Wambecq, T.; Weemaes, M.; Van Impe, J.; Willems, P. Energy optimization of the urban drainage system by integrated real-time control during wet and dry weather conditions. Urban Water J.
**2018**, 15, 1–9. [Google Scholar] [CrossRef] - Lund, N.S.V.; Falk, A.K.V.; Borup, M.; Madsen, H.; Steen Mikkelsen, P. Model predictive control of urban drainage systems: A review and perspective towards smart real-time water management. Crit. Rev. Environ. Sci. Technol.
**2018**, 48, 1–61. [Google Scholar] [CrossRef] - Pleau, M.; Colas, H.; Lavallée, P.; Pelletier, G.; Bonin, R. Global optimal real-time control of the Quebec urban drainage system. Environ. Model. Softw.
**2005**, 20, 401–413. [Google Scholar] [CrossRef] - Raimondi, A.; Becciu, G. On pre-filling probability of flood control detention facilities. Urban Water J.
**2015**, 12, 344–351. [Google Scholar] [CrossRef] - Schütze, M.; Campisano, A.; Colas, H.; Schilling, W.; Vanrolleghem, P.A. Real time control of urban wastewater systems—Where do we stand today? J. Hydrol.
**2004**, 299, 335–348. [Google Scholar] [CrossRef] - Vanrolleghem, P.A.; Benedetti, L.; Meirlaen, J. Modelling and real-time control of the integrated urban wastewater system. Environ. Model. Softw.
**2005**, 20, 427–442. [Google Scholar] [CrossRef] - Zacharof, A.I.; Butler, D.; Schütze, M.; Beck, M.B. Screening for real-time control potential of urban wastewater systems. J. Hydrol.
**2004**, 299, 349–362. [Google Scholar] [CrossRef] - Sweetapple, C.; Astaraie-Imani, M.; Butler, D. Design and operation of urban wastewater systems considering reliability, risk and resilience. Water Res.
**2018**, 147, 1–12. [Google Scholar] [CrossRef] [PubMed] - Lee, E.H.; Lee, Y.S.; Joo, J.G.; Jung, D.; Kim, J.H. Flood reduction in urban drainage systems: Cooperative operation of centralized and decentralized reservoirs. Water
**2016**, 8, 469. [Google Scholar] [CrossRef] - Xu, W.D.; Fletcher, T.D.; Duncan, H.P.; Bergmann, D.J.; Breman, J.; Burns, M.J. Improving the multi-objective performance of rainwater harvesting systems using real-time control technology. Water
**2018**, 10, 147. [Google Scholar] [CrossRef] - Todini, E. Looped water distribution networks design using a resilience index based heuristic approach. Urban Water J.
**2000**, 2, 115–122. [Google Scholar] [CrossRef] - Prasad, T.D.; Park, N.S. Multiobjective genetic algorithms for design of water distribution networks. J. Water Resour. Plan. Manag.
**2004**, 130, 73–82. [Google Scholar] [CrossRef] - Farmani, R.; Walters, G.A.; Savic, D.A. Trade-off between total cost and reliability for Anytown water distribution network. J. Water Resour. Plan. Manag.
**2005**, 131, 161–171. [Google Scholar] [CrossRef] - Mugume, S.N.; Gomez, D.E.; Fu, G.; Farmani, R.; Butler, D. A global analysis approach for investigating structural resilience in urban drainage systems. Water Res.
**2015**, 81, 15–26. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Siekmann, T.; Siekmann, M. Resilient urban drainage—Options of an optimized area-management. Urban Water J.
**2015**, 12, 44–51. [Google Scholar] [CrossRef] - Huff, F.A. Time distribution of rainfall in heavy storms. Water Resour. Res.
**1967**, 3, 1007–1019. [Google Scholar] [CrossRef] - Yoon, Y.N.; Jung, J.H.; Ryu, J.H. Introduction of design flood estimation. J. Korea Water Resour. Assoc.
**2013**, 46, 55–68. [Google Scholar] - Lee, E.H.; Kim, J.H.; Choo, Y.M.; Jo, D.J. Application of Flood Nomograph for Flood Forecasting in Urban Areas. Water
**2018**, 10, 53. [Google Scholar] [CrossRef] - United States Environmental Protection Agency. Storm Water Management Model User’s Manual Version 5.0. EPA; United States Environmental Protection Agency: Washington, DC, USA, 2010.
- Lee, E.H.; Choi, Y.H.; Kim, J.H. Real-Time Integrated Operation for Urban Streams with Centralized and Decentralized Reservoirs to Improve System Resilience. Water
**2019**, 11, 69. [Google Scholar] [CrossRef]

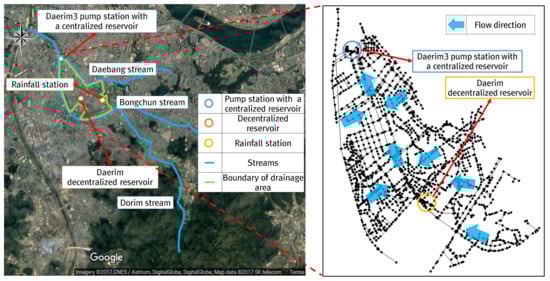

**Figure 5.**Information on the UDS used in the target watershed (Imagery © 2019 CNES/Airbus, DigitalGlobe, Landsat/Copernicus, NSPO 2019/Spot Image, Map data © SK telecom).

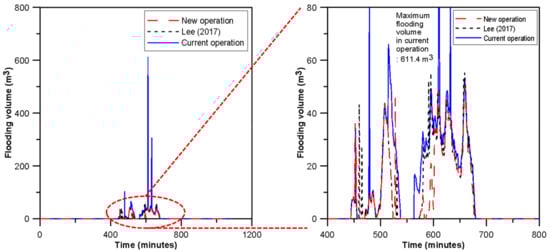

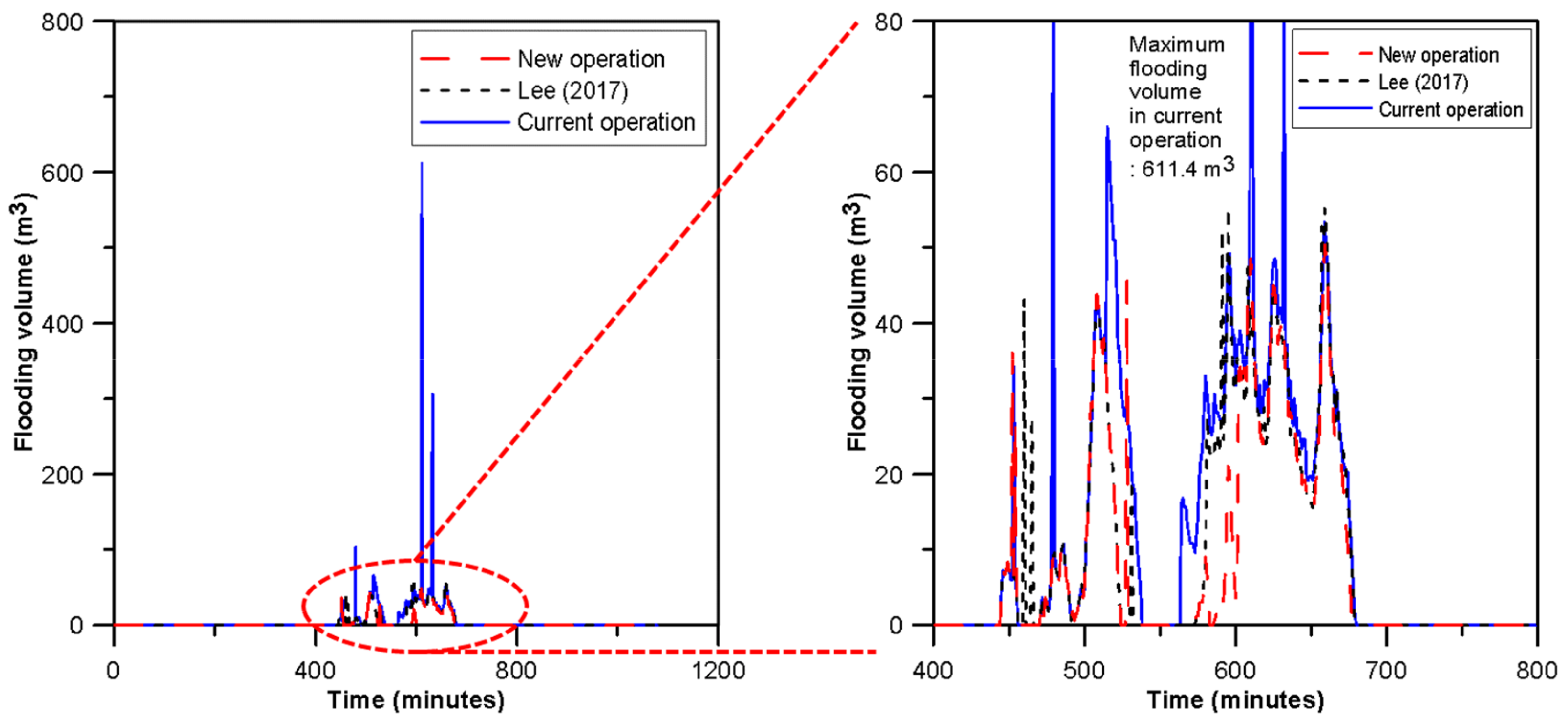

**Figure 8.**Flooding results of an advanced operation in 2010 [1].

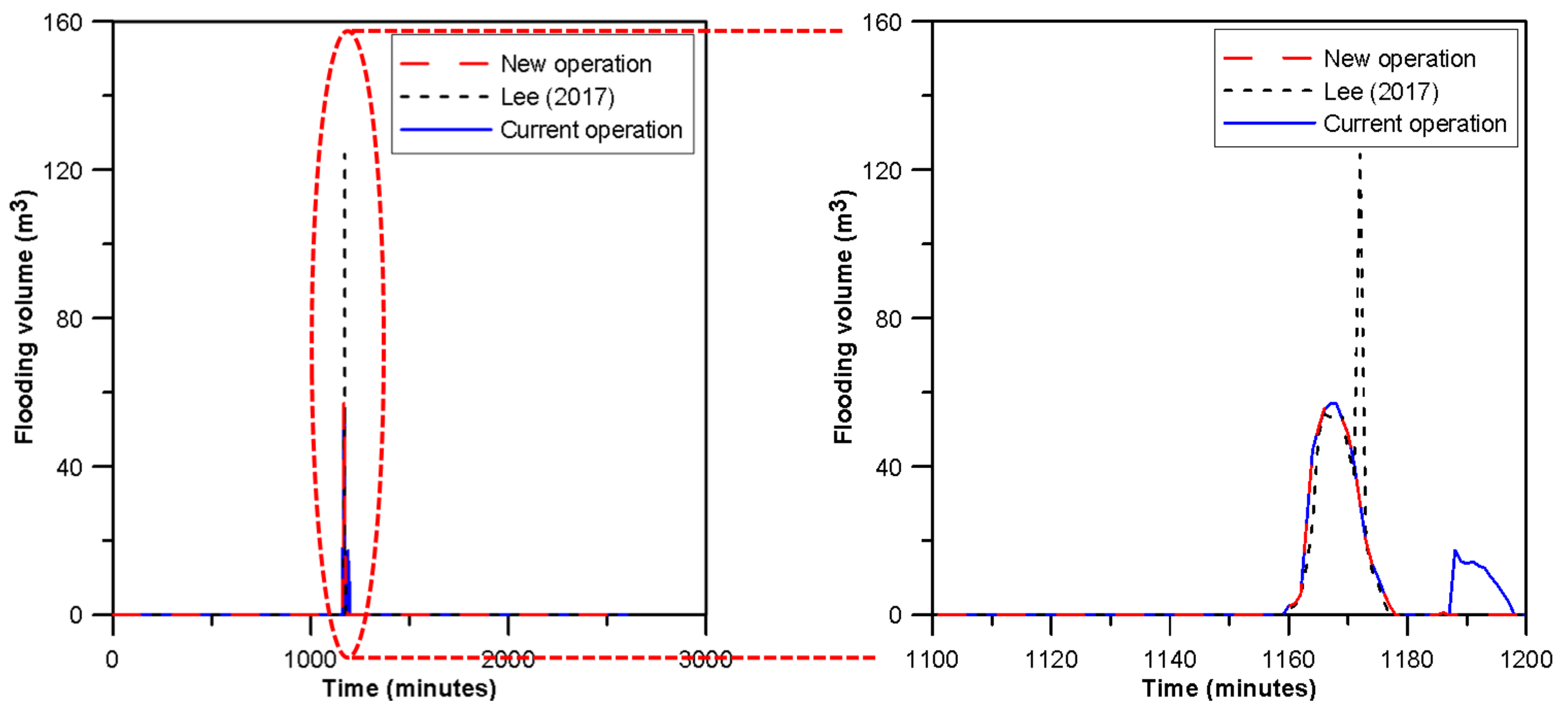

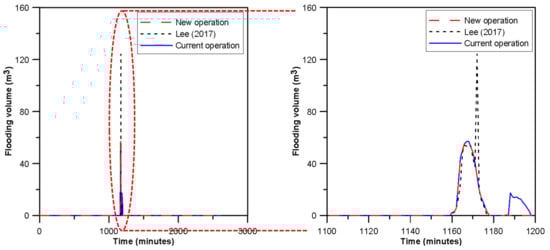

**Figure 9.**Flooding results of an advanced operation in 2011 [1].

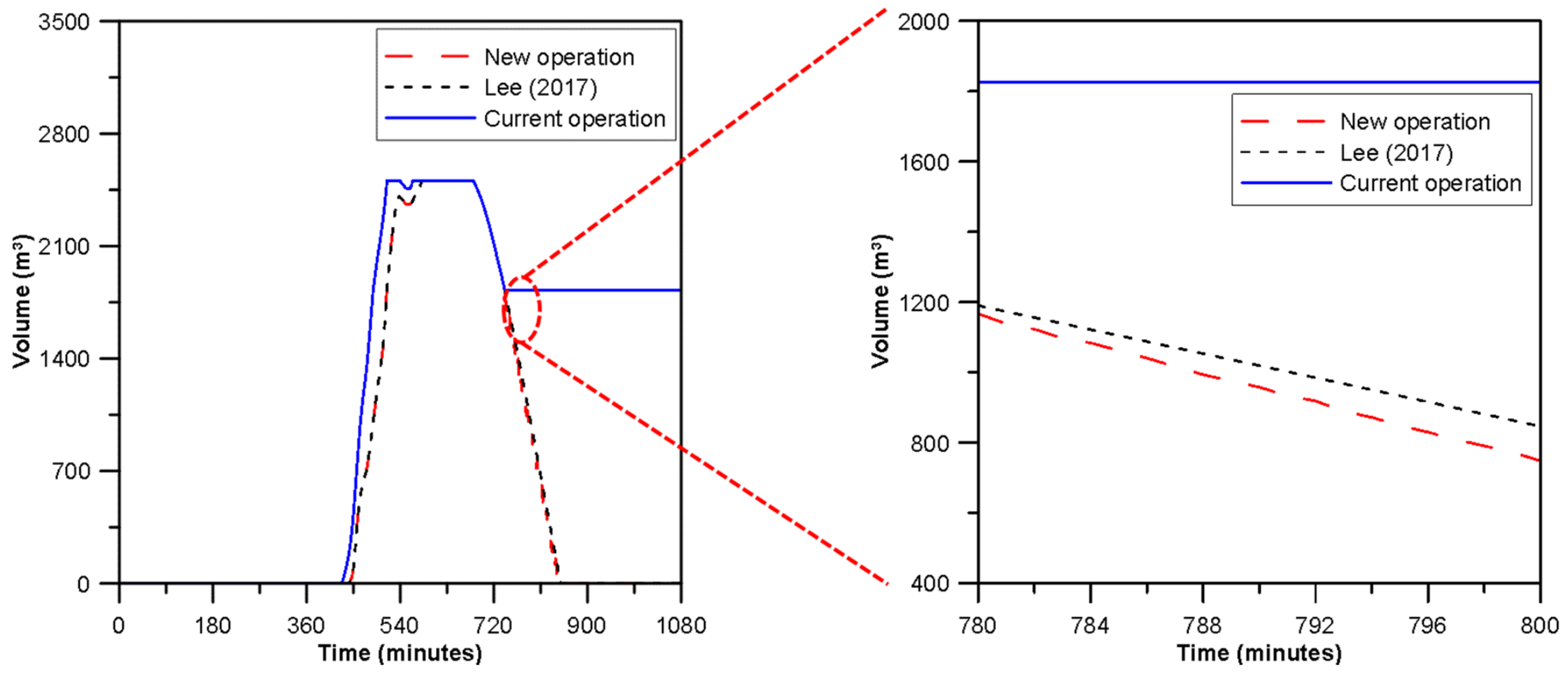

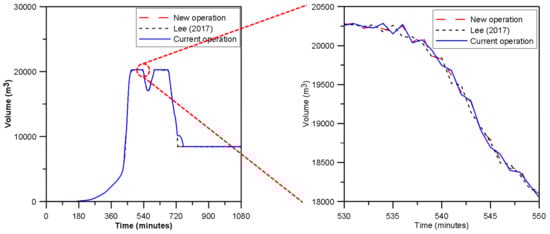

**Figure 10.**Volume of the centralized reservoir in 2010 [1].

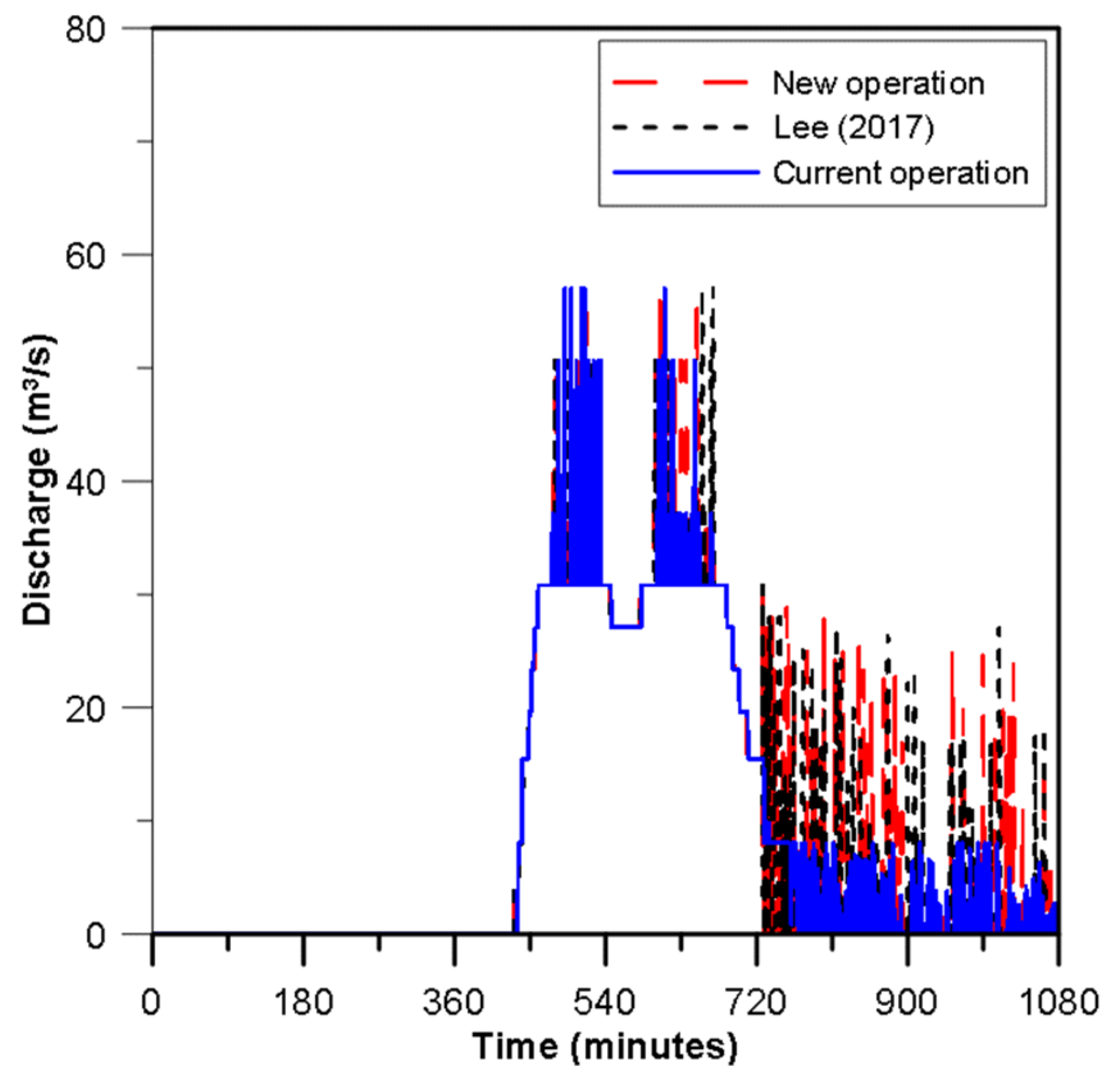

**Figure 11.**Discharge of the centralized reservoir in 2010 [1].

**Figure 12.**Volume of the decentralized reservoir in 2010 [1].

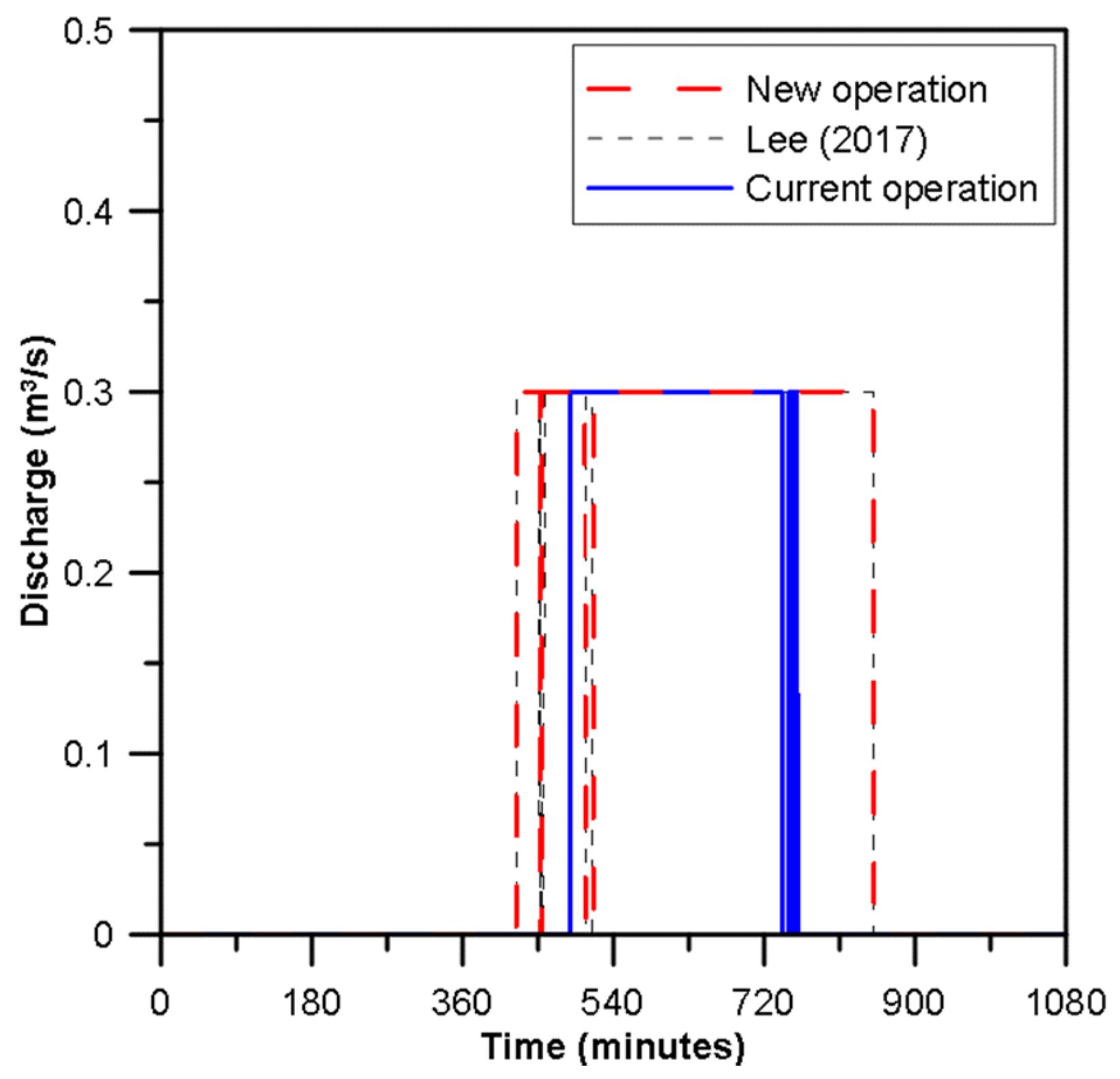

**Figure 13.**Discharge of the decentralized reservoir in 2010 [1].

**Table 1.**Classification of measures with real-time control (RTC) in urban drainage systems (UDSs). NSM, non-structural measure.

Measures | Studies |
---|---|

Independent NSMs | Beeneken et al. (2013) [3]; Cembrano et al. (2004) [4]; Fiorelli et al. (2013) [5]; Fuchs and Beeneken (2005) [6]; Galelli et al. (2012) [7]; Hsu et al. (2013) [8]; Kroll (2018) [9]; Lund et al. (2018) [10]; Pleau et al. (2005) [11]; Raimondi and Becciu (2015) [12]; Schütze et al. (2004) [13]; Vanrolleghem et al. (2005) [14]; Zacharof et al. (2004) [15] |

Combined NSMs | Lee et al. (2017) [1]; Sweetapple et al. (2018) [16] |

Integrated NSMs | Lee et al. (2016) [17]; Xu et al. (2018) [18] |

Mixed NSMs | This study |

Drainage Facilities | Capacity of Reservoirs (m^{3}) | Capacity of Drainage Pumps (m^{3}/min) | Boundary Conditions |
---|---|---|---|

Daerim3 pump station with a centralized reservoir | 36,200 | 3411 (223 m ^{3}/min × 7,150 m ^{3}/min × 1,250 m ^{3}/min × 2,600 m ^{3}/min × 2) | High water level: 9.0 m Low water level: 6.8 m |

Daerim decentralized reservoir | 2477 | 18 (9.0 m ^{3}/min × 2) | Total height: 3.2 m Inflow weir: 2 m × 0.4 m |

**Table 3.**Normal and early operation of the centralized reservoir in the study area [28].

Pump Station | Operation | Operating Level (m) | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Daerim3 | Elevation (m) | 6.5 | 6.8 | 7.2 | 7.3 | 7.5 | 7.6 | 7.7 | 7.8 | 7.9 | 8.0 | 8.1 | 8.3 | 9.0 |

Normal | - | - | - | 3.88 | 8.05 | 15.48 | 19.65 | 23.36 | 27.08 | 30.80 | 57.02 | 57.02 | 57.02 | |

Early | - | 3.88 | 8.05 | 15.48 | 19.65 | 23.36 | 27.08 | 30.80 | 57.02 | 57.02 | 57.02 | - | - |

Event | System Resilience | |||
---|---|---|---|---|

Current Operation (1) | Previous Operation [16] (2) | New Operation (3) | Resilience Increment ((3) − (1)) | |

2010 | 0.831835 | 0.855584 | 0.866566 | 0.034731 |

2011 | 0.988823 | 0.992997 | 0.993029 | 0.004206 |
