A Review of the 21st Century Challenges in the Food-Energy-Water Security in the Middle East

by
Maysoun Hameed
,
Hamid Moradkhani
*,
Ali Ahmadalipour
,
Hamed Moftakhari
,
Peyman Abbaszadeh
and
Atieh Alipour
Center for Complex Hydrosystems Research, Department of Civil, Construction and Environmental Engineering, University of Alabama, Tuscaloosa, AL 35487, USA
*
Author to whom correspondence should be addressed.
Water 2019, 11(4), 682; https://doi.org/10.3390/w11040682
Submission received: 11 February 2019 / Revised: 23 March 2019 / Accepted: 29 March 2019 / Published: 2 April 2019
(This article belongs to the Special Issue Insights on the Water–Energy–Food Nexus)
Browse Figures
Versions Notes

Abstract

:
Developing countries have experienced significant challenges in meeting their needs for food, energy, and water security. This paper presents a country-level review of the current issues associated with Food-Energy-Water (FEW) security in the Middle East. In this study, sixteen countries in the Middle East are studied, namely Iraq, Iran, Syria, Lebanon, Israel, Palestine, Egypt, Turkey, and the Arabian Peninsula (Bahrain, Kuwait, Oman, Qatar, Saudi Arabia (KSA), United Arab Emirates (UAE), and Yemen). Here, we conduct a comprehensive assessment to study and evaluate the emerging drivers of FEW systems in the region. The investigated drivers include water security, extreme events, economic growth, urbanization, population growth, poverty, and political stability. The results suggest that most of the studied countries are facing FEW resource insecurity or weak planning/management strategies. Our evaluation further revealed the current status of each country with respect to each factor, and suggested that climatic and socioeconomic factors have contributed to the subsequent stress on FEW resources, specifically on the water sector. In general, and with respect to the water-energy security, it was found that energy production in the Middle East is highly constrained by water deficiency, drought, and/or economic growth. The water-food security in the region is mainly affected by drought, water scarcity, population growth, urbanization, and/or political unrest.

1. Introduction

Despite the fact that water, food, and energy sectors are of high importance to sustain and develop human life, not everyone in the world has access to secure water, food, and energy. Globally, it is reported that 1.2 billion people do not have access to safe water [1]. Therefore, it is crucial to understand the complicated connection between the food, energy, and water sectors to ensure the safe and sustainable development for any nation [2].
Typically, there is no single definition of nexus, but generally, the concept is introduced as the process of linking stakeholders’ ideas and activities under various conditions (i.e., sectors and states) to attain sustainable evolution [3]. The Stockholm Environment Institute (SEI) in the Bonn 2011 Nexus Conference introduced the food-energy-water (FEW) nexus where it first started. Then, the 2011/2012 European Report on Development proposed the water-energy-land (WEL) nexus. Over time, linkages that are more complex have been defined to include more core sectors, e.g., climate, land, energy and water (CLEW) nexus. The FEW system has an interference nature whereby the evolution of any sector may, in general, adversely influence the other two [4]. Therefore, many researchers have chosen to study only two sectors of the FEW system at a time. The water-energy nexus, originally studied by Gleick [5], has received more attention than the other inter-linkage sectors, e.g., the water-food nexus and then the energy-food nexus [6].
A study by Cai and Rosegrant [7] investigated the water-food nexus in China and India by comparing water resources development and food production in both countries. The authors found that both China and India have limited land and water resources for agricultural purposes; therefore, they suggested that food production may increase in the future, depending on yield increase more than on area increase. Other dimensions can be integrated with the FEW nexus to address sustainability challenges and opportunities involving trade-offs, i.e., land, climate, and ecosystems [4]. The climate dimension has been linked with either all or some of the sectors in FEW system [8,9,10,11,12,13,14,15]. Hanjra and Qureshi [16] analyzed the global water-food nexus addressing the effects of climate change on food security. The analysis revealed that climate change and population growth are two factors that intensify food insecurity globally. Verdon-Kidd et al. [17] mentioned that food security is tightly connected to water availability at a large scale. However, drought may put this connection at risk by reducing vegetation health and productivity and water allocations to irrigated agriculture. Moreover, Verdon-Kidd et al. [17] concluded that better understanding of drought onset, duration, and cessation may assist drought management strategies, specifically in water scarce regions. Food production is more water intensive than energy production. Food production accounts for about 70% of global freshwater withdrawal, whereas energy production accounts for about 15% [18]. However, Lee et al. [19] suggested that the water-energy nexus might be a serious issue in future sustainable planning and policies, given the impacts of climate change.
Several nexus studies have been recently conducted in the Middle East. Dubreuil et al. [20] proposed an optimized model to assess the water-energy nexus in the Middle East region, taking into account reused and non-conventional water, i.e., desalination and wastewater. Saif et al. [21] analyzed the current state of water resources in the Gulf Cooperation Council (GCC) countries. The authors concluded that the region faces serious challenges in water-food security systems. Al-Mulali and Ozturk [22] studied the reasons behind environmental degradation in the Middle East and North Africa (MENA) region and discovered that ecological footprint, energy consumption, urbanization, trade openness, industrial development and political stability are the main contributors to induce environmental degradation in the region. Moreover, a FEW nexus modeling tool was developed by Daher and Mohtar [23]; the tool provided an assessment of resources’ demand under different scenarios. Another study by Magazzino [24] investigated the carbon dioxide emissions, economic growth, and energy nexus for a total of ten Middle Eastern countries, i.e., GCC countries, Iran, Jordan, Syria, and Yemen for the period of 1971–2006. Here, we provide an overview of the current issues related to FEW security in the Middle East. We provide a comprehensive assessment for sixteen selected countries in the region to identify these issues and interpret the main findings as pertained to the FEW security concept.

2. The Food-Energy-Water (FEW) Security in the Middle East

FEW security is of paramount importance in the Middle East, given its influence in the region’s stability and economic growth [25]. For instance, an extensive amount of energy is consumed powering the desalination and wastewater recycling units for water supply in the Gulf region [26]. Siddiqi and Anadon [27] studied the water-energy nexus over the MENA region and found that the water sector exhibits a strong level of dependency of on the energy sector, but not the opposite. In Arabian Peninsula countries, groundwater contributes to about 84% of the total water supply, whereas desalinated water covers about 8%; both groundwater extraction and desalination are energy demanding. Furthermore, carbon dioxide emissions can be a limitation factor for energy consumption when fossil fuels are used [28]. Globally, the GCC countries are among the top twenty-five countries for CO2 emissions/capita because of their high dependency on fossil fuels to cover domestic energy demands [29]. The International Energy Agency (IEA) reported a significant increasing trend for carbon dioxide emissions in the Middle East since 2000, particularly for Saudi Arabia and Iran having 125% and 80% increase, respectively [30]. Therefore, there is a need to use green energy, e.g., wind, sunlight, geothermal heat, and hydropower [31].
The water-food security in the Arab region is limited by several factors: socio-economic growth, dry climate, reliance on external resources, climate change, and political conflict [32]. Figure 1 presents the Pardee RAND FEW security index [33]. The FEW index provides information about the availability and accessibility of the three resources in any region or country in the world. According to the definition, and as shown in Figure 1, Turkey is the most secure country in the Middle East, whereas Yemen is the most insecure [33]. The World Economic Forum 2010 Report underlined water insufficiency, energy insecurity, and weak investments in infrastructure as the most mutually dependent and chronic risks in the Middle East and North Africa (MENA) region. It was reported that these risks (including food security as a related risk) are extremely affected by economic production, population growth, and industrial potency in the region [34].

2.1. Food Security

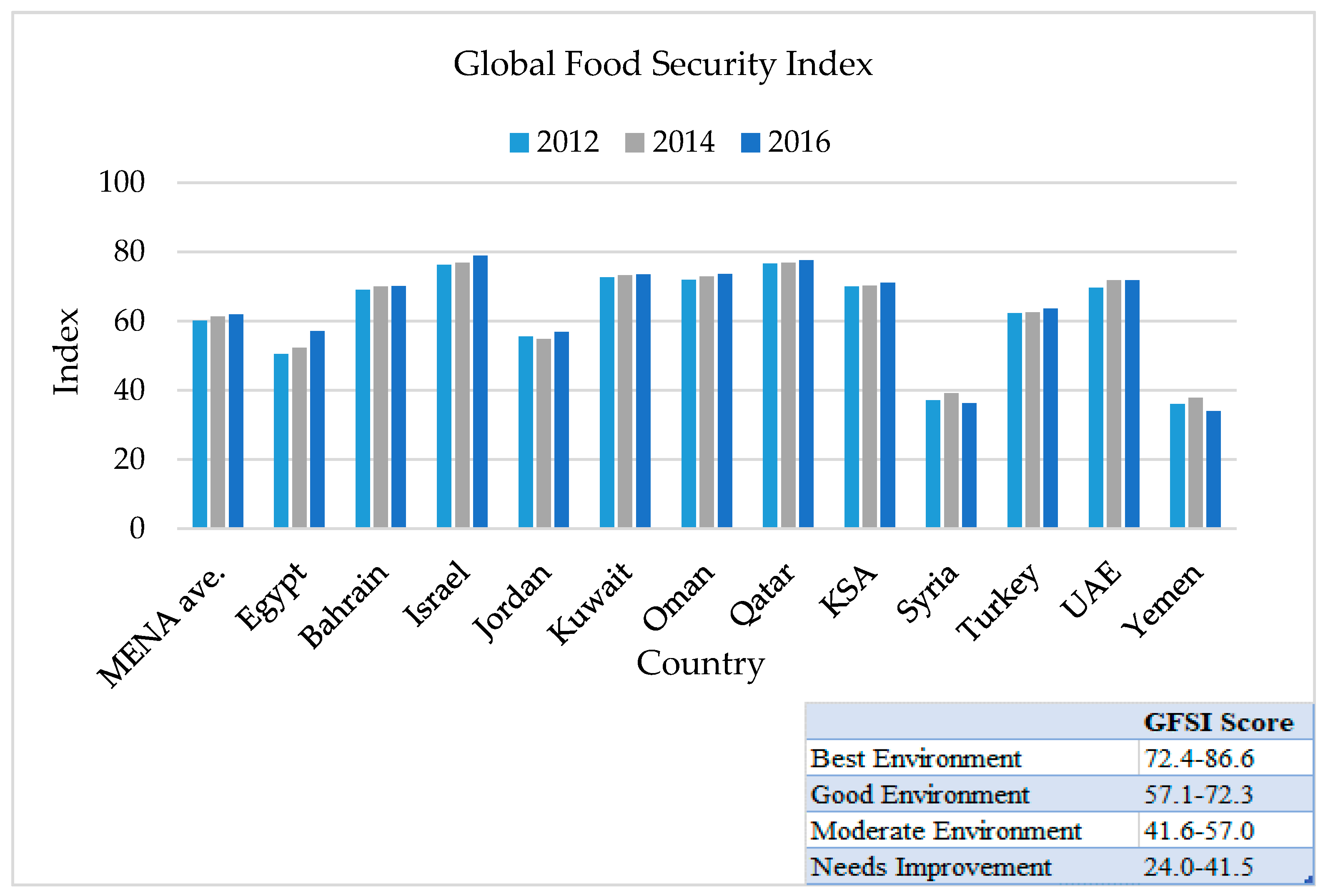

Food security is the right of all individuals to have, at any time, access to adequate, safe, and healthy food in order to meet the required nutrients and food desire to ensure vital and nutritious life [35]. Two conclusive factors should be considered for determining food security: food quantities and demands. In other words, how much food can be produced under certain amount of water and environmental circumstances while remaining economically feasible? [36]. For instance, KSA was the sixth largest wheat exporter by the last decade of the 20th century; however, this was at the expense of groundwater depletion in the region, resulting in unsustainable agricultural production [37].
Food production is the most limited sector by water scarcity in the Arab region [38]. Figure 2 shows the Global Food Security Index (GFSI) for the years 2012, 2014, and 2016 across the Middle East. The GFSI accounts for the fundamental issues of food affordability, availability, quality, and safety in 113 countries around the world [39]. From Figure 2, Israel, Qatar, and Kuwait are categorized as the most food secure countries in the region for the years 2012, 2014, and 2016. However, Syria and Yemen are classified as food insecure countries. Overall, the GFSI shows a slight improvement across most of the Middle East countries except in Syria and Yemen. In a global context, the wealthy nations (i.e., the United States (US), Denmark, and France) are the most food secure countries. Sub-Saharan African countries are the most food insecure, and Burundi, Chad and the Democratic Republic of Congo (DRC) have the worst food insecurity situation in the world [40].

2.2. Energy Security

Energy security can include a broad range of aspects. Some of these aspects can be motivated by energy supply, geopolitical power, economic growth, sustainability, and social expansion [33]. In 2012, the Middle East countries consumed about 6.6% of the total residential energy consumption of the world. It is worth mentioning that electricity is the main energy consumption source in the Middle East [43].
The Middle East has a significant impact on the oil/gas market in the world, and the main income source of the Middle Eastern countries is oil and natural gas resources. More than 56% of the world oil reserves and about 36% of the world natural gas reserves are in the Middle East [28]. In 2009, the five largest natural gas reserves reported in the world were Russia, Iran, Qatar, KSA, and UAE, respectively [44]. Although the natural gas production has increased considerably in the Middle East during the period of 2010–2014, the demand has also increased significantly in the region due to population growth, economic expansion, urbanization, and desalination plants [45]. As a result, Qatar, KSA, and UAE are facing considerable energy deficiency mainly in the natural gas resources [44].
Understanding how energy is consumed may provide us valuable insights on the effectiveness of energy efficiency. Globally, the energy demand has increased 1.9% in 2017, the largest annual increase since 2010. Meanwhile, the progress of energy efficiency initiatives since 2000 prevented an additional 12% energy use in 2017. China, India, and the European Union (EU) are the main regions affecting 2017 energy demand growth. Energy demand in the US has decreased since 2015 [46]. A study by Nejat et al. [47] found that the global energy demand in the residential sector increased by 14% for the period of 2000 to 2011, and developing countries were the most contributors to this increase due to population growth, urbanization, and economic growth in these countries. The study further suggested that China, Iran, and India have experienced the most dramatic increase in CO2 emissions (25%, 245%, and 84%, respectively) between 1990 and 2011. Russia, Germany, South Korea, Canada, and the United Kingdom have shown reductions in CO2 emissions, with the greatest decline being in Germany (−30%).

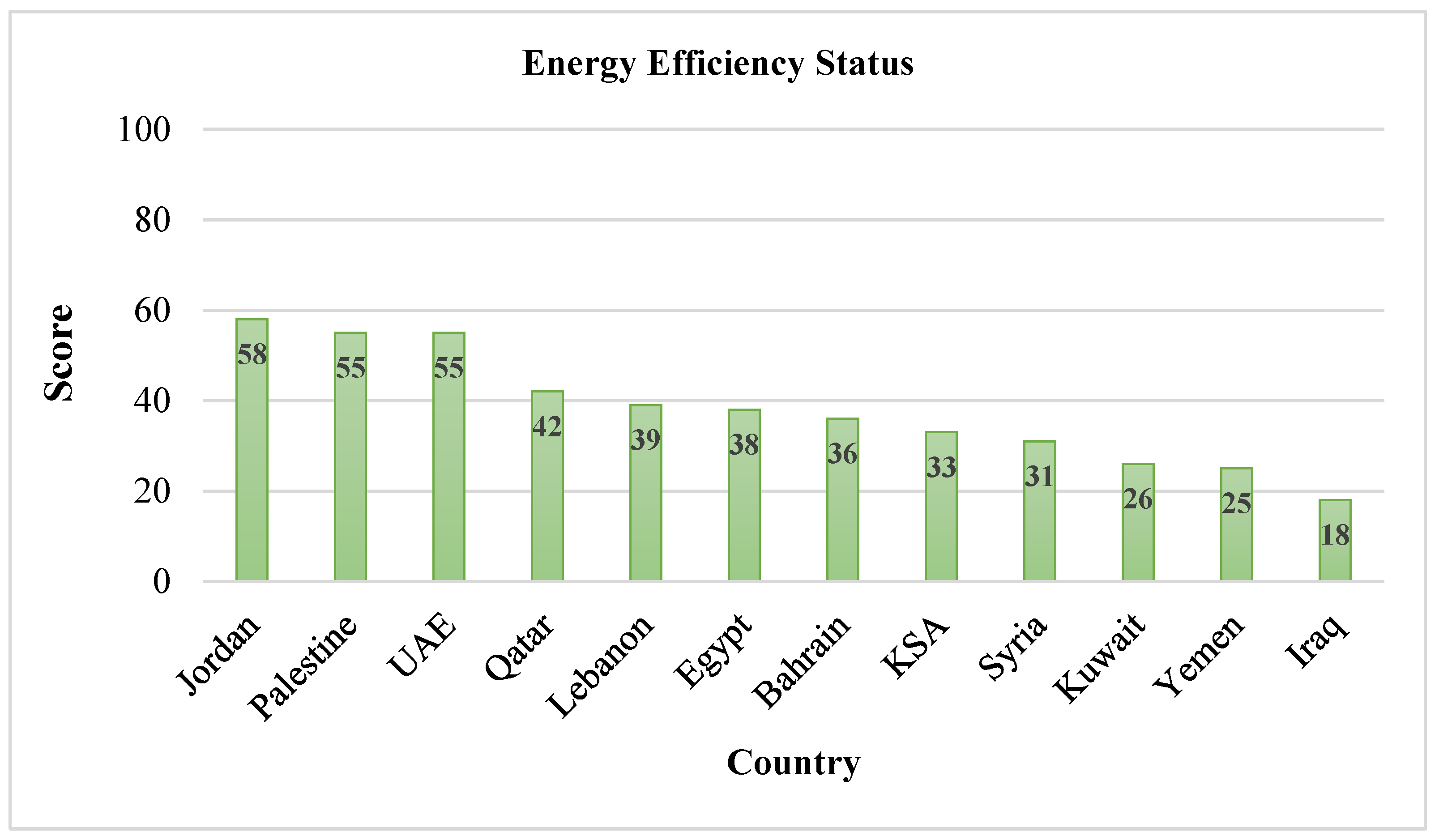

According to the Regional Center for Renewable Energy and Energy Efficiency (RCREEE) 2015 report, Jordan is the most optimum country among the 12 Middle Eastern countries given its energy efficiency status. Figure 3 displays the efficiency status in the Middle East. The energy efficiency score reported in Figure 3 is evaluated under four categories, i.e., energy pricing, policy framework, institutional capacity, and utility [48].
Nematollahi et al. [28] assessed the prospective of solar and wind energy sources in the Middle East. The results showed that Middle East has a high potential to use renewable energy resources. Furthermore, El Bassam [49] mentioned that the Middle East has the highest potential of solar energy source on the earth. However, solar energy accounts for less than 0.2% (on average) of the electricity supply in the region. In addition, the percentage of the renewable energy used for electricity production (including hydro) in the Middle East has decreased from 4.3% in 2005 to 2.2% in 2015 [44]. Hajj [50] stated that electricity production by wind energy is approximately 0.6% in the Arab region.

2.3. Water Security

Water security is the proportion of people that can insure sustainable access to sufficient amounts of usable water to sustain living needs, human welfare and socio-economic progress, to protect people from water related pollution and disasters, and to guard ecosystems in peaceful and politically stable conditions [51]. Water security is one of the greatest challenges in the Arab region [32]. Freshwater in the Arab region has declined due to the reliance on transboundary water bodies, poor water quality, political instability, climate change, non-beneficial water losses, absence of water use efficiency, and excessive population growth [52]. In addition, the mean annual evaporation rate in MENA can exceed 2000 mm/year, which significantly contributes to freshwater scarcity in the region [53]. In 2011, most of the Arab countries reported that the total renewable water resources were less than 1000 m3/capita/year, which represents the water poverty line. For Bahrain, Kuwait, Qatar, KSA, UAE and Yemen, the total renewable water resources were even less than 100 m3/capita/year [54].
Groundwater depletion is of high concern in the Middle East especially in the Gulf countries where groundwater has over-exploited for irrigation and agricultural purposes [55]. Extreme pressure on the already scarce groundwater resources in the GCC countries has occurred as a consequence of rapid population growth, urbanization, industrialization, and agricultural production since the 1970s [21,56]. Therefore, currently the Gulf countries are mainly relying on the desalinated water supply to assure their water demands [6]. However, water production via the desalination process has markedly increased energy consumption.

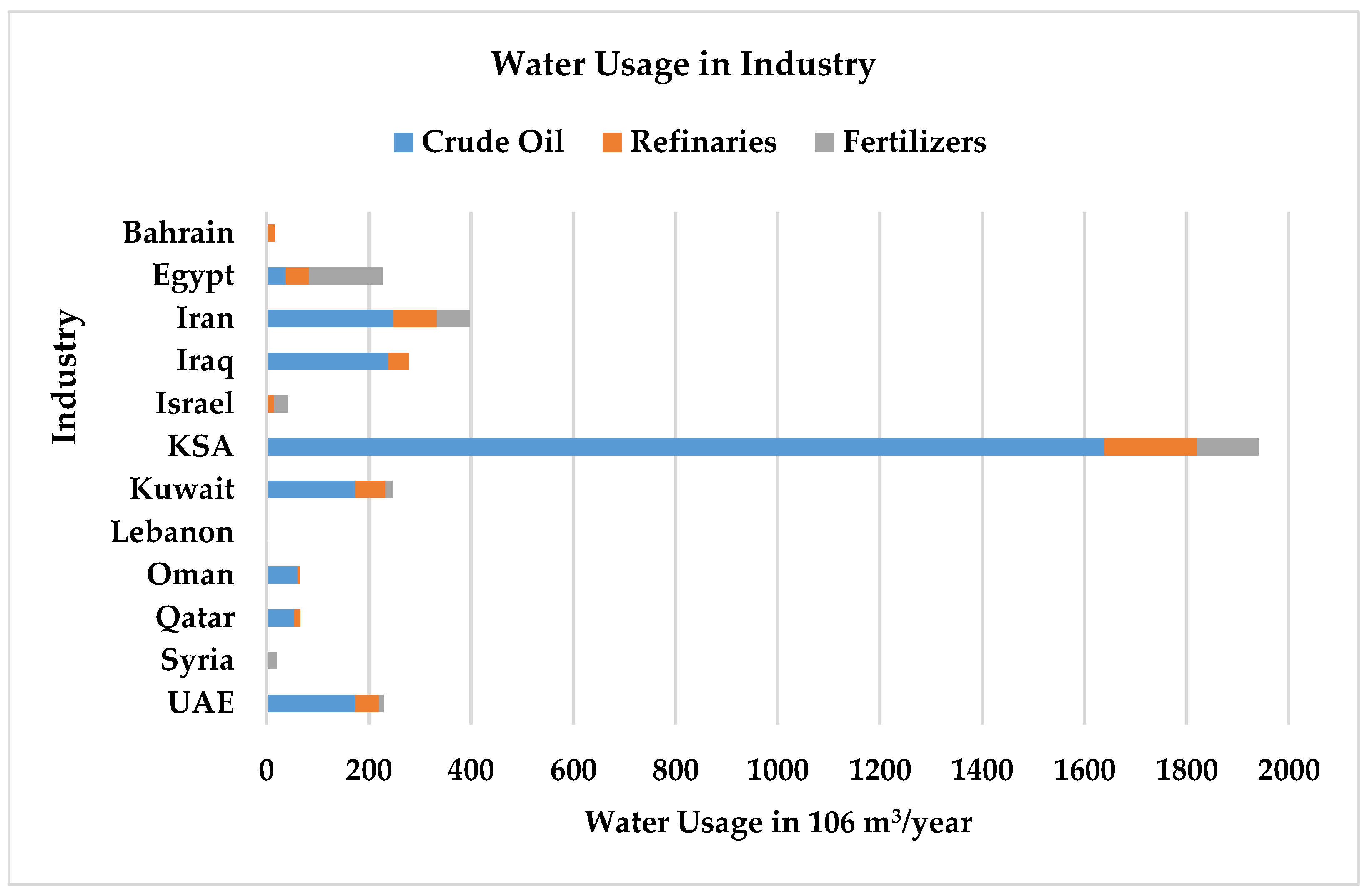

Industry is one of the main drivers of water usage in the Middle East especially the crude oil industry. Figure 4 shows industrial water consumption in the Middle East in 2011. The oil exporter countries use large amounts of water to produce crude oil. For instance, KSA consumes over 1600 million m3/year water in crude oil production [57].
Damerau et al. [58] reported that the MENA region has the largest fossil energy reservoirs in the globe and extensive renewable energy resources, however it is also the highest water scarce region. Therefore, the future water-energy linkages might become critical and complex in the region. Climate change and socio-economic factors including population growth, globalization, economic progression, and urbanization play a part in the FEW nexus [3]. Therefore, the next section will highlight the predominant challenges in the Middle East and their interconnections with FEW security in the region.

3. Drivers Impacting the FEW Security in the Middle East in the 21st Century

3.1. Water Scarcity

The means of addressing the challenges of water deficiency for a region may differ across the spatiotemporal scales, according to people needs, and resources availability [59]. Rijsberman [59] defined the water being “insecure” when safe and consumable water is not available to satisfy individual living needs whereas the water was defined as “scarce” when a large group of people are water insecure for a long period in a specific region. Dubreuil et al. [20] explained that water scarcity happens when the water demands exceed water supply.
The Middle East region is one of the most arid regions in the world and substantially suffering from scarce water resources [60]. Albeit several large rivers are located in the Middle East, transboundary water resources are also a struggle in the region. For example, the Tigris-Euphrates basin water is shared between Turkey, Syria, and Iraq. Mainly, Turkey has been controlling the discharge of both rivers across its borders with Syria and Iraq. Turkey has constructed 15 major dams on the Tigris and Euphrates rivers. Based on Food and Agriculture Organization’s Information System on Water and Agriculture (FAO AQUASTAT) Database, 98% of Turkey water resources originate within its borders. Whereas Syria and Iraq respectively have about 28% and 39% of their water inside their borders [61]. Figure 5 expresses the percentage of the total renewable water resources that originate outside the country borders. From Figure 5, Kuwait, Egypt, and Bahrain are the most dependent countries on shared water resources from neighboring countries.
Negewo [62] mentioned that for the period of 2000–2009, the Gulf countries had the lowest per capita water availability in the MENA region, with an annual average of <300 m3/capita, which may decrease to <200 m3/capita, as a consequent of climate change impacts. Voss et al. [63] reported that about 144 km3 of water was depleted mostly from the groundwater in the Tigris-Euphrates-Western Iran region during the period of 2003–2009 due to a combined effect of drought and groundwater withdrawals. Therefore, water depletion resulted in reduction of crop yields and economic damages in the region [63,64]. On the other hand, water scarcity in the Middle East is a limitation factor on energy productivity [44].

3.2. Extreme Events: Droughts, Floods, Storm Surges, and Dust Storms

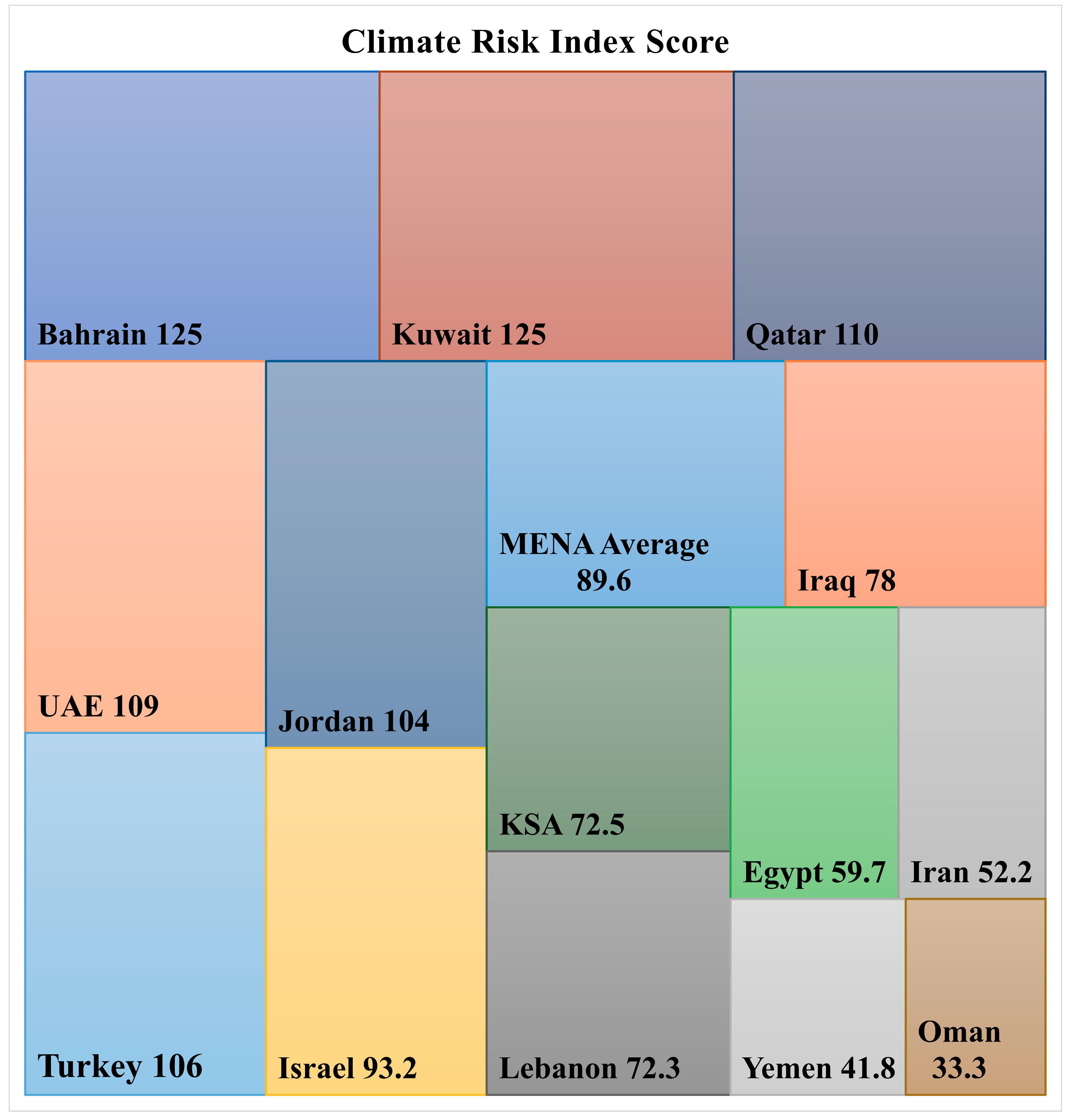

Disaster risk management is one of the top concerns in the MENA region. Floods, droughts, and earthquakes are the most consequential catastrophes that threaten growth and resources security in the region. Historically, it is identified that food security is vulnerable to extreme weather events [65]. For the period of 1981–2011, the World Bank reported that 53% of the total number of natural disasters in the MENA region were floods, 24% were earthquakes, and about 10% were storms and droughts. However, data availability is a limitation for drought events records [66].
Lately, the frequency of extreme events, i.e., droughts, floods, storm surges, and dust storms, has shown an increasing trend in the Arab region [67], but the consequences of these events have not been thoroughly investigated [68]. In most arid regions, flash floods are a natural phenomenon because rainfall can be very intense in a short time period, especially when these events are accompanied by dry or low infiltration capacity soils in the region [69]. The flash flood events in 2009, 2010, and 2011 in KSA were documented as the worst since the 1980s [66]. Regarding the seismic risk, the World Bank reported that Iran is the most vulnerable country in the Middle East to seismic hazard; it accounts for about 95% of the total mortality during catastrophes in Iran. Moreover, Egypt and Yemen have also experienced earthquake events, floods, and landslides [66]. These events impose crucial risk of failure to the infrastructures concerning energy security in the region.
Frequent drought events have increased in the Fertile Crescent countries, namely, Iraq, Syria, Jordan, Israel, and western Iran since 2006 wet season [70]. This long-term drying trend coincides with the active period of dust storms, which has evoked during the period of 2007–2013 in the region [70]. Given that agriculture is the most sensitive sector to drought [71], and because of persistent drought over the region, vegetation cover has decreased, consequently intensifying dust storm occurrence in the aforementioned Fertile Crescent countries, and transporting dust to the Arabian Peninsula [70]. A study by Amin et al. [72] revealed that in the past twenty years, KSA has faced severe and extreme drought conditions mostly in agricultural areas, underlining the risk of water depletion and vegetation cover reduction in the region. In Turkey, about 15.3% reduction in crop yield occurred in 2007 [71]. Figure 6 shows climate risk index in the Middle East, where countries with lower scores indicate those at higher risk to climate change. From Figure 6, Oman and Yemen are the most vulnerable countries to the risks of climate change in the Middle East.

3.3. Economic Growth

The abundant oil resources in the Middle East have increased the economic growth level in the region. However, economic growth is different from the economic advancement or sustainable development [73]. Energy consumption is highly connected to economic development. Al-Awad and Harb [74] underlined the fact that the weakness of the financial sector and unstable economic growth in the Middle East are the factors that most affect sustainable economic development in the region. Gross domestic product (GDP) is a measure of total products of a country [75]. GDP is calculated in terms of purchasing power parity (PPP), and it is one of the main indicators to estimate a country’s economy. Qatar and Iraq have experienced the highest GDP growth rates in the Middle East during the period of 2011–2015. In contrast, the compound growth rate for the period of 2011–2015 in Yemen reveals a decline, and in Iran, there was no economic growth. However, the economy of Iran was estimated to grow at a mean annual rate of 4.6% for the period of 2016–2018 [76]. Silva et al. [65] discussed that the absence of investments in infrastructure could be a potential risk to FEW security in any region. For instance, food processing and production are significantly affected by infrastructure.

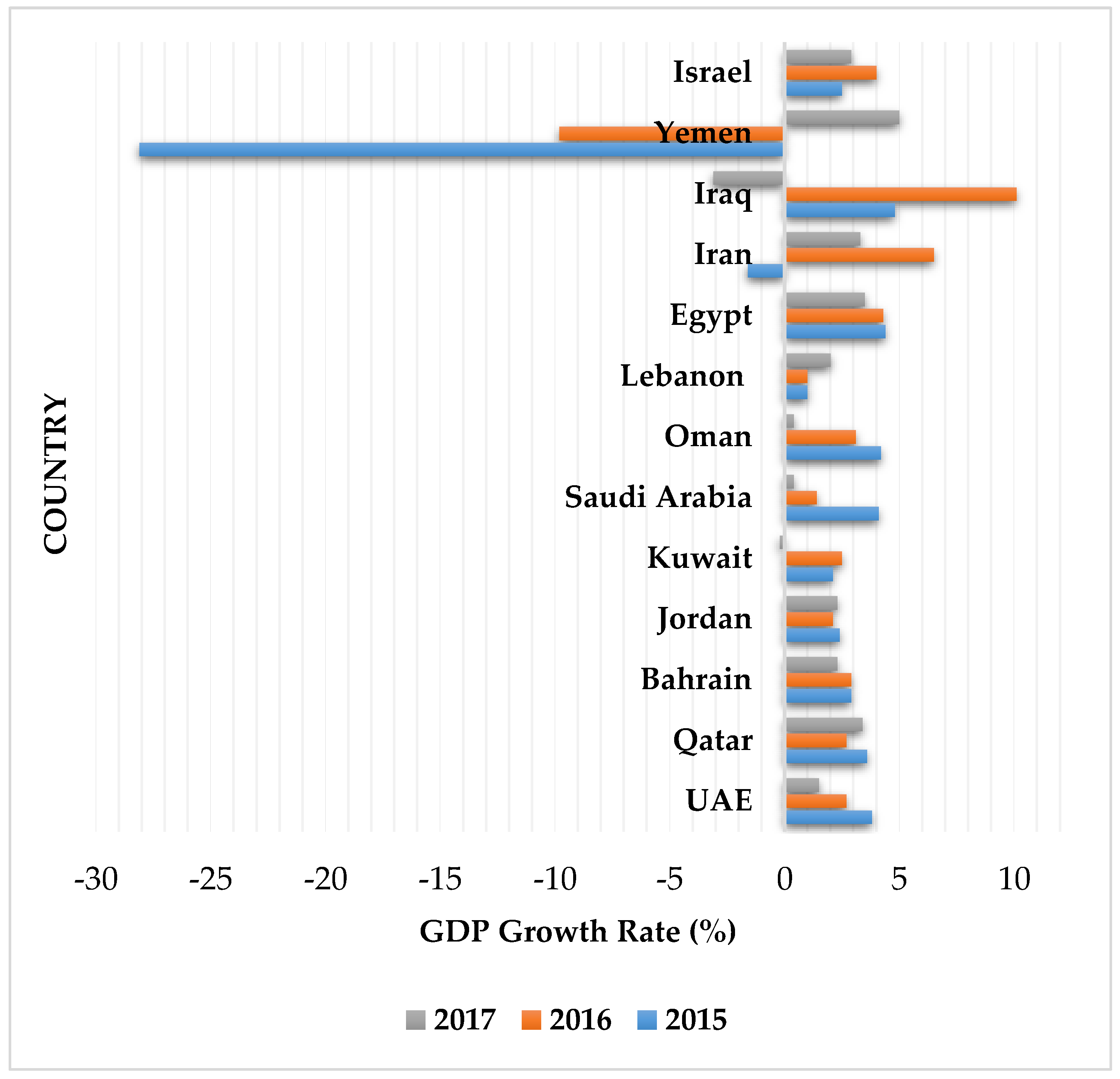

The GDP growth in the Middle East is highly connected to oil and natural gas investment. The dependency of the GCC countries on oil has increased since 2006 [76]. For instance, by mid-2014 to 2016, oil prices sharply declined affecting the economy of the oil exporting countries of MENA region [77]. Therefore, the GDP growth in the MENA region was expected to be lower in 2017 [78]. Figure 7 shows the actual GDP growth in the Middle East for the years of 2015−2017. The GDP estimates show that Yemen has faced the worst decline in 2015 and 2016 across the Middle East. The GDP growth for 2017 shows that Iraq experienced a decline in GDP in that year.

3.4. Urbanization

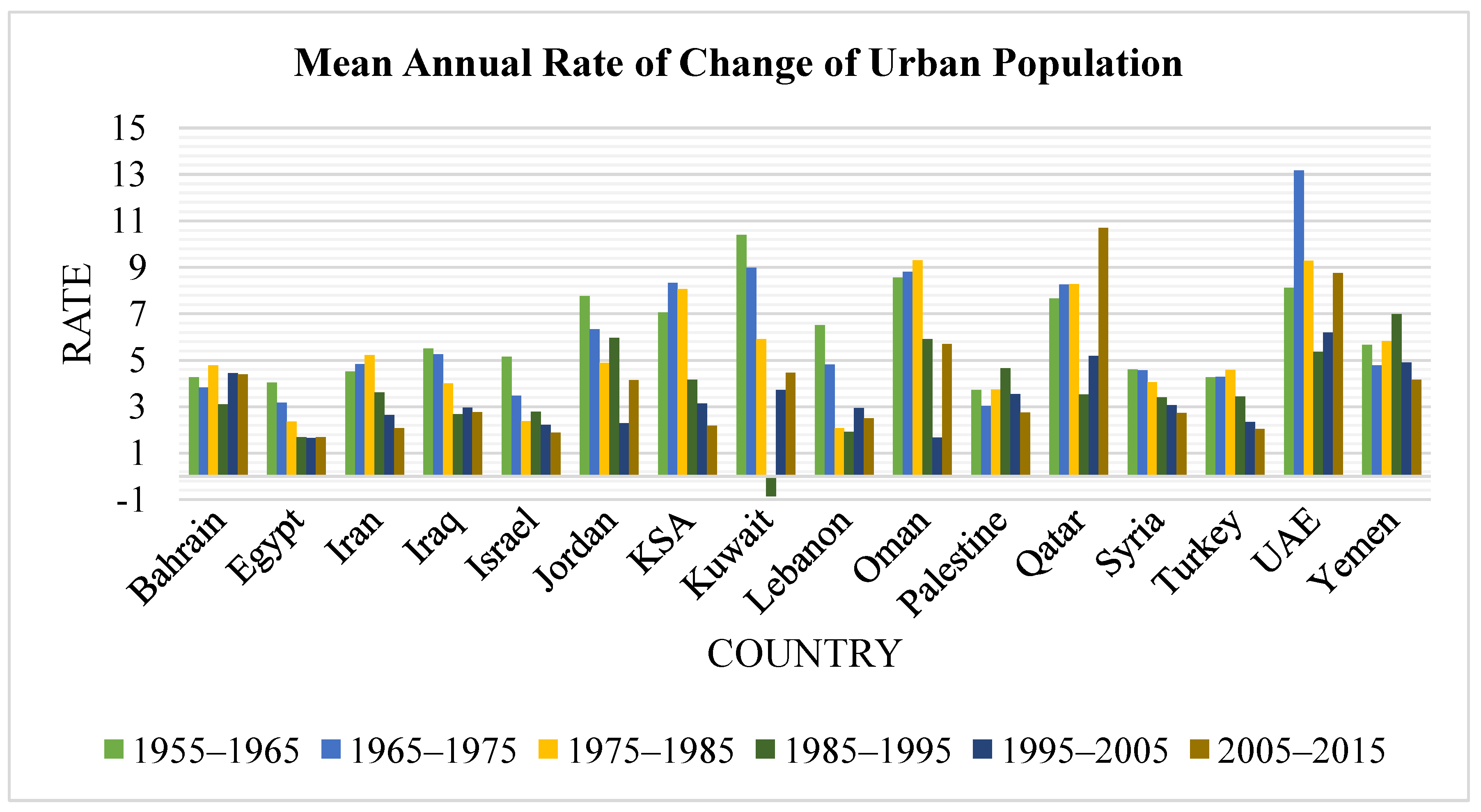

The world has witnessed relatively rapid growth in urbanization since the 1950s [79]. Such growth in the urban population has caused serious challenges related to poverty and unemployment [79]. By the beginning of the 21st century, urban population in the MENA region was about 60% of the total population, and it increased to 70% in 2015. However, urbanization in the MENA region can be a major challenge because it is unplanned [22]. Efficient urban planning and sustainable food supply system are required to achieve a healthy growing urban population [65].
The general trend of expanded urbanization and reduced agricultural share in the MENA region can have serious direct effects on water demand and indirect impacts on energy sector [27]. Qatar and Kuwait were among the ten most urbanized countries, each having about 90,000 inhabitants in 2014 estimates; they are expected to stay the same in 2050 projections [80]. Figure 8 presents the decadal mean annual rate of change of urban population in the Middle East. Overall, the increase in urban population was the highest starting from the mid-1950s to mid-1970s in the region. For the decade of 1985−1995, the urban population rate in Kuwait decreased possibly due to the First Gulf War. For the most recent decade (2005−2015), Qatar and UAE have witnessed the highest growth in urbanization [80].

3.5. Population Growth

In a world facing issues such as severe poverty, scarce water resources, and persisting hunger, rapid population growth may pose serious challenges. In terms of poverty, growing population may mitigate infrastructure, aggravate natural resources depletion, and intensify the dependency ratio [81,82]. Moreover, population growth is a main contributor to the industrial and municipal water consumption [62]. Thereby, population expansion can be a direct concern for resource exhaustion, especially in developing countries [83]. The significant modifications of population dynamics in the Arab region (e.g., population growth, urbanization, population age, and migration fluxes) have increased water demand in the region in the last three decades. For example, population increase has imposed an unsustainable strain on the agriculture sector, consequently increasing the burden on diminished freshwater resources in the Arab region.

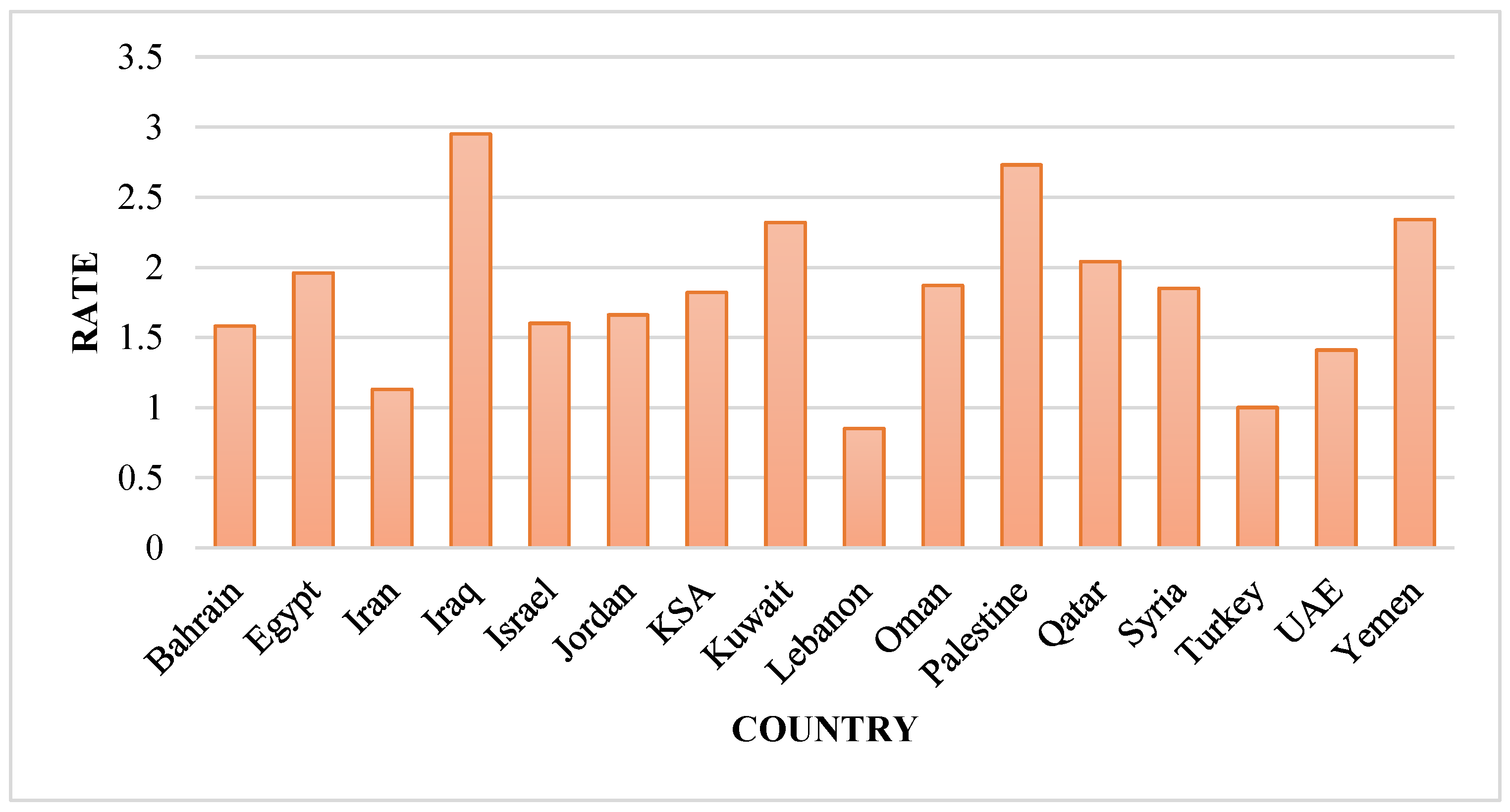

It was found that the population growth in the Arab region for the period of 1982−2012 resulted in approximately 50% reduction in the mean amount of total water resource per capita [54]. The high rate of growing population in developing countries may affect the health and education sectors that can influence poverty mitigation efforts and possible economic growth in the region [54].

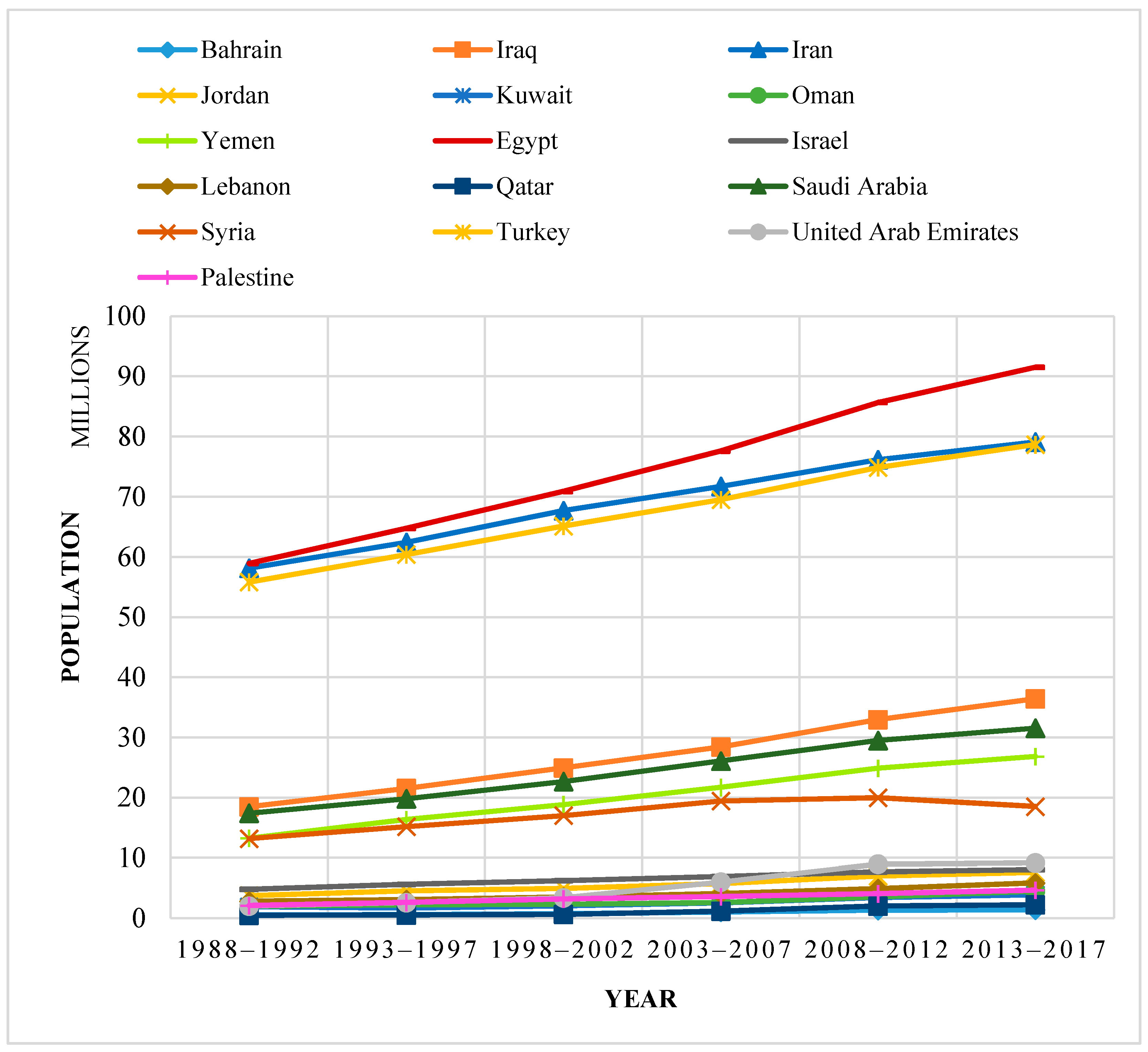

Based on the total population, the most populated countries in the Middle East are Egypt, Iran, and Turkey, respectively. Figure 9 shows a five-year average population in the Middle East countries. From the figure, the first cluster indicates that Egypt has the highest population growth considerably from the beginning of the 21st century followed by Iran and Turkey. The second cluster, including Iraq, KSA, and Yemen, has also witnessed population growth since late 1980s. In contrast, the population in Syria has declined after 2008, most likely due to the political conflict in the country. Furthermore, the World Meter (www.Worldometers.info) reported that Iraq, Palestine, Yemen, and Kuwait had the highest population growth rates in 2017, respectively, as seen in Figure 10.

3.6. Poverty

Societies with insufficient market access and scarce natural resources are characterized by communities which have been exposed to prolonged poverty. Awulachew et al. [84] studied the food-water-poverty nexus across ten countries within the Nile basin. The authors defined poverty as a composite of different elements, i.e., politics, economy, environment, socio-culture, and history. Vulnerability to poverty is very high in the MENA region, and large groups of people live around the poverty line. For instance, a large portion of population is distributed close to the poverty line in Iraq and Yemen, thereby people are at high risk of economic collapse in these countries [35]. According to FAO-AQUASTAT database, Iraq has recorded the highest number of undernourished people (8.1 million) for the period of 2013–2017. Similarly, Yemen was the second highest in terms of the number of undernourished people (6.7 million) in the Middle East. Water scarcity that impacted the agriculture sector, population growth that affected employment, and poor economic policy are among the key drivers for the high poverty rate in Yemen [78]. Figure 11 displays the percentage of population that were undernourished in the Middle East in 2005 and 2015 (data of Syria are not available from this source). From the figure, the percentage of undernourished people in 2015 is lower than in 2005. Yemen and Iraq were outliers with the highest percentages of undernourished population in 2005 and 2015.
Syria is currently the poorest country in the Middle East. The Syrian Center for Policy Research (SCPR) reported that the poverty rate in Syria has increased 14% in 2014 compared to 2010 [78]. Dramatically, the percentage of people who live in poverty in Syria reached 85.2% in 2015 compared to 64.8% in 2013, and about 35% of whom lived in extreme poverty levels (limited access to basic food) especially in the conflict zones [78].

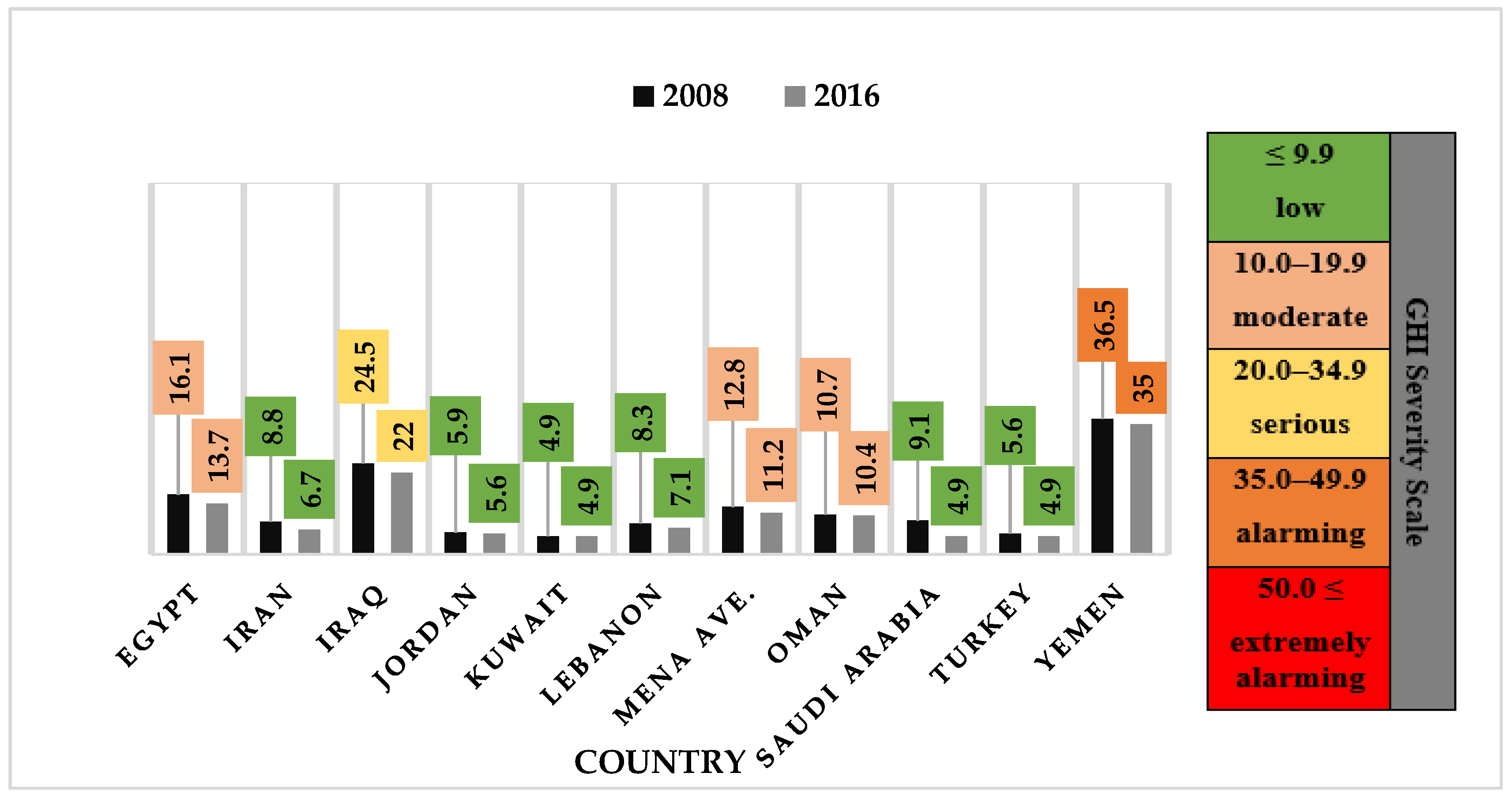

Figure 12 shows the Global Hunger Index (GHI) for the years of 2008 and 2016 over the Middle East region. The index is a tool to estimate and trace hunger at different scales, i.e., global, regional, and local levels. The GHI is generated based on four indicators including undernourishment, child wasting, child stunting, and child mortality. The range of GHI is from 0 to 100 where zero indicates no hunger [85]. Overall, the GHI in 2016 revealed less hunger levels than in 2008. However, the reduction in hunger levels were mostly insignificant within a decade. According to the GHI severity scale, Yemen is at an alarming stage of hunger, Iraq faces a serious hunger condition, and the rest of the countries are in moderate to low hunger conditions (Figure 12).

3.7. Political Stability

Political insecurity is a key feature of the Middle East [32]. Conflict and insecure conditions are among the main obstacles of progression in the MENA region in 2016, especially in Iraq, Libya, Syria, and Yemen where approximately 50% of the population (about 40 million people) demand humanitarian aid [86]. Seven years of Conflict in Syria has affected the socio-economic development of the country. The United Nations High Commissioner for Refugees (UNHCR) in September 2016 reported that the total number of Syrian refugees in neighboring countries, i.e., Egypt, Iraq, Jordan, Lebanon, and Turkey, was about 4.8 million. Moreover, in August 2016, the United Nations Office for the Coordination of Humanitarian Affairs (OCHA) reported that about 6.1 million of Syrians displaced from the conflict zones into more secure areas inside the country [87].
Evidence from the Middle East revealed that the political unrest is associated with economic inequality (income inequality), where the latter can be the main reason of civil anxiety. For example, income inequality in Egypt was counted as one of the causes of the Egyptian revolution during the Arab Spring uprisings period [88]. In Syria, the economic sector has been completely destroyed because of the Syrian civil war since 2011 [78]. In Iraq, conflict and instabilities have severe impacts on agricultural and rural environment of the country [89]. Sowers [90] discussed that the countries facing wars and civil unrest are the most vulnerable countries to water and energy systems destruction. Elasha [68] argued that climate change can be a threat in the regions experiencing political instability, and it may aggravate stress in the region especially between nations sharing hydrological, geographical, and political boundaries. Elasha [68] further explained that water scarcity may exacerbate potential anxiety in the region knowing that about 80% of surface water resources and 66% of total water resources are shared in the Arab region.

4. Discussion

The issues presented in this paper are interconnected and have either direct or indirect effects on the FEW system in the Middle East region. For instance, limited access to water resources diminishes agricultural activities, intensifies poverty, and reduces the coping capacity of poor people to face risks. Furthermore, the extreme water deficit in the Eastern Mediterranean region has affected the socio-economic potency, exacerbated land vulnerability to salinization and desertification, and increased the risk of political unrest in the Middle East. In general, political unrest for any reason can cause food instability and struggle [91]. FAO report identified Syrian people that are in need of food assistance into two categories: 9.4 million as food insecure people and about 2.7 million of them at risk of food insecurity [87].
Wars and political instability made the urbanization process more complicated in the Arab region [79]. In general, urbanization is controlled by natural urban population growth, rural to urban migration, and reduced urban mortality compared to rural [54]. For instance, the drought period of 2006−2009 in eastern Syria influenced 1.3 million people after the loss of 2008 harvest, resulting in increased migration from rural to urban areas and extreme poverty levels in the region [11].
The connection between population growth and food insecurity is evident [81]. Egypt as the most populated country in the Middle East is one of the most food insecure countries in the region. In the Middle East, food security is impacted by several current challenges, namely, political unrest, global financial crisis, poverty, growing population, corruption, parochialism, and climate change related disasters [91]. However, decreasing human fertility may play an important role in poor countries to reduce poverty, lowering the pressure on livelihoods, and expediting economic growth [83].
Despite the fact that economic growth in developing countries may reduce poverty, the rate of poverty reduction depends on how economic growth is characterized. For example, there is a significantly negative relation between economic growth and poverty when economic growth is defined in terms of consumptions. However, a non-significant relation occurs between economic growth and poverty when economic growth is measured based on the changes in GDP/capita [92]. Ncube et al. [93] supported this argument by concluding that income inequality in the MENA region can increase poverty and decrease economic growth.
Countries can make an instant improvement in their economic growth by increasing the economic freedom in the society regardless of their current level of development. The index of economic freedom provides a comprehensive evaluation of an individual well-being, i.e., health, education, environment, innovation, society development, democratic governance, and freedom in acquiring and benefitting economic resources in countries that are more economically free [75]. Figure 13 shows the economic freedom of the countries of interest within the MENA region. From the figure, it can be seen that most of the Middle East countries are moderately free countries in terms of liberty and free markets. UAE and Qatar are mostly free; Iran, Egypt, and Lebanon are mostly repressed countries.
With respect to the energy sector, it was found that energy production in the Middle East is highly constrained by water deficiency [44]. For example, drought may significantly affect electricity supplies because of high temperatures which increase electricity demand during the low water supplies [18]. Moreover, rapid growth of population and economy have contributed to intensifying energy consumption in the MENA region [94]. Therefore, energy consumption is expected to increase to 95% in the Middle East for the period from 2012 to 2040 [43].

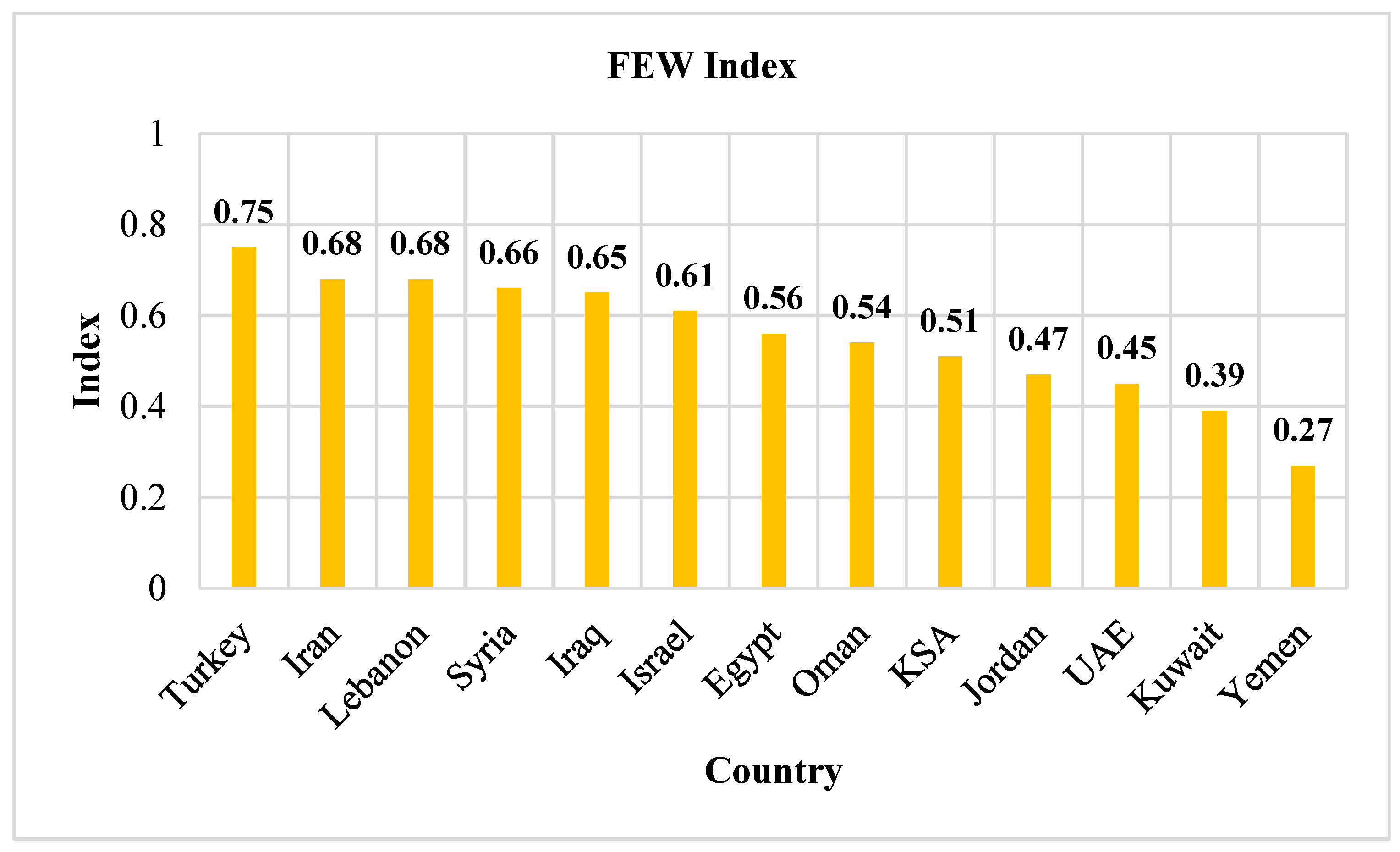

In order to better understand the differences (with regards to FEW security) among the Middle Eastern countries and to reveal the underlying influential factors affecting such a disparity, a comparison is conducted between the most FEW secure country in the Middle East (i.e., Turkey) and the least secure country (i.e., Yemen). In terms of food security, Yemen lies in an alarming stage of hunger and faces a high poverty rate, which has been exacerbated by the ongoing war and political instability. In contrast, Turkey is characterized by low hunger rate and low levels of poverty. Agriculture can be a major driver of a country’s food self-sufficiency (i.e., meeting consumption needs from own production) when suitable environment is available, i.e., appropriate land and water resources. Given that Yemen is considerably below the water poverty line (1000 m3/capita/year), the agriculture sector there is highly impacted by water scarcity. Limited agricultural area and an exceptionally warm climate aggravate the issue [95]. On the other hand, Turkey is agriculturally much more productive due to the abundance water resources (the highest in the Middle East), farmland availability, and the Mediterranean climate. Moreover, the increasing human fertility and increasing population alongside political unrest are other causes of food security in Yemen.
The other FEW component, energy, is dependent on and convoluted by water availability [96]. Since Yemen is among the arid Middle East countries with limited water availabilities, energy security there is another challenging issue, in contrast to Turkey. Furthermore, Yemen is one of the most vulnerable countries to the risks of climate change effects in the Middle East (e.g., heatwaves, floods, and landslides). The situation is quite different in Turkey, with abundant access to water and secure energy supply. Additionally, Turkey is expected to be less vulnerable to the risks of climate change, and due to its relatively higher liberty and comparatively more free market, Turkey has sustained a decent economic growth in the region.
Adaptation to scarcity in FEW nexus can be managed through reducing demands, increasing supplies, and maximizing storage and transport of resources [18]. Rainwater-harvesting techniques have been used in water scarce countries to increase the efficiency of rainwater usage [97]. Building seawater desalination plants over the Persian Gulf and the Red Sea is one of the most reliable sources of freshwater in the Gulf countries, i.e., Kuwait, KSA, Bahrain, Qatar, and the UAE. However, this solution requires substantial amounts of energy and it can affect the environment of the Persian Gulf or the Red Sea by increasing their salinity levels [98].
In summary, FEW security cannot be achieved if its components are considered as individual entities. In other words, improving one sector while ignoring others will not assist in solving issues related to other systems. A large amount of energy is needed to distribute, treat and use water and concurrently, large portion of water is required to generate and distribute energy. Food production requires intense amounts of water and energy. Fertilizers and pesticides used in agriculture may in turn impact the freshwater and aquatic ecosystems. However, food production can provide biomass energy [99].

5. Conclusions

Food, energy, and water security are emerging issues in the Middle East. It is imperative to study the dynamics behind the FEW security concerns in the region. Therefore, this study introduced the most critical challenges by retracing the FEW security problems that the Middle East has been facing recently. The evaluation suggested that most of the studied countries are facing FEW insecure resources condition. Water availability and natural hazards like drought, precipitation extremes, and heat waves contribute to the stress on water resources in the region. These factors, along with increasing population, can further impact the energy sector in the region. Meanwhile, energy production may affect climate due to greenhouse gases emission. This, in turn, may affect food production in the Middle East.
The FEW security in the Middle East can be classified into two major categories of water-energy security and water-food security. The water-energy security is directly affected by water scarcity, drought, and economic growth. Water-food security is directly impacted by water scarcity, drought, population growth, political unrest, and urbanization. Poverty and migration are the possible consequences of unsustainable FEW management; there is strong linkage and feedback among these components, and no component of FEW changes in isolation. However, water is the scarcest resource in the Middle East. Finally, the lack of consistent management combined with unsustainable use of resources in the Middle East region will probably pose critical FEW challenges in the near future.

Author Contributions

M.H. carried out the assessment and prepared the initial draft of the article. H.M. (Hamid Moradkhani) initiated and designed the study and supervised it throughout. All the authors contributed in the assessment, and drafting the paper.

Funding

This research was funded by the Center for Complex Hydrosystems Research (CCHR) at the University of Alabama. Also, the first author was supported partially by the Higher Committee for Education Development in Iraq (HCED).

Acknowledgments

We would like to acknowledge the United Nations, the USAID, the IMF Data Mapper, and the Worldometers for providing the data that were used in this study. The authors declare no competing financial interests.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Garcia, D.J.; You, F.Q. The water-energy-food nexus and process systems engineering: A new focus. Comput. Chem. Eng. 2016, 91, 49–67. [Google Scholar] [CrossRef]
  2. Hamdy, A.; Driouech, N.; Hmid, A. The Water-energy-food security nexus in the Mediterranean: Challenges and opportunities. In Proceedings of the Fifth International Scientific Agricultural Symposium (Agrosym 2014), Jahorina, Bosnia and Herzegovina, 23–26 October 2014. [Google Scholar]
  3. Endo, A.; Tsurita, I.; Burnett, K.; Orencio, P.M. A review of the current state of research on the water, energy, and food nexus. J. Hydrol. Reg. Stud. 2015, 11, 20–30. [Google Scholar] [CrossRef]
  4. Chang, Y.; Li, G.; Yao, Y.; Zhang, L.; Yu, C. Quantifying the water-energy-food nexus: Current status and trends. Energies 2016, 9, 65. [Google Scholar] [CrossRef]
  5. Gleick, P.H. Water and Energy. Annu. Rev. Energy Environ. 1994, 19, 267–299. [Google Scholar] [CrossRef]
  6. Keulertz, M.; Sowers, J.; Woertz, E.; Mohtar, R. The Water-Energy-Food Nexus in Arid Regions; Oxford University Press: Oxford, UK, 2016; Volume 1, ISBN 9780199335084. [Google Scholar]
  7. Cai, X.; Rosegrant, M.W. 10 Future Prospects for Water and Food in China and India: A Comparative Assessment. In The Dragon & The Elephant: Agricultural and Rural Reforms in China and India; International Food Policy Research Institute: Washington, DC, USA, 2007; pp. 207–233. ISBN 9780801887864. [Google Scholar]
  8. UN-Water. Climate Change Adaptation: The Pivotal Role of Water; UN-Water: Geneva, Switzerland, 2011; pp. 1–18. [Google Scholar]
  9. Howarth, C.; Monasterolo, I. Understanding barriers to decision making in the UK energy-food-water nexus: The added value of interdisciplinary approaches. Environ. Sci. Policy 2016, 61, 53–60. [Google Scholar] [CrossRef]
  10. Scanlon, B.R.; Duncan, I.; Reedy, R.C. Drought and the water-energy nexus in Texas. Environ. Res. Lett. 2013, 8. [Google Scholar] [CrossRef]
  11. Sowers, J.; Vengosh, A.; Weinthal, E. Climate change, water resources, and the politics of adaptation in the Middle East and North Africa. Clim. Chang. 2011, 104, 599–627. [Google Scholar] [CrossRef]
  12. Chenoweth, J.; Hadjinicolaou, P.; Bruggeman, A.; Lelieveld, J.; Levin, Z.; Lange, M.A.; Xoplaki, E.; Hadjikakou, M. Impact of climate change on the water resources of the eastern Mediterranean and Middle East region: Modeled 21st century changes and implications. Water Resour. Res. 2011, 47. [Google Scholar] [CrossRef]
  13. King, C.; Jaafar, H. Rapid assessment of the water-energy-food-climate nexus in six selected basins of North Africa and West Asia undergoing transitions and scarcity threats. Int. J. Water Resour. Dev. 2015, 31, 1–17. [Google Scholar] [CrossRef]
  14. Berardy, A.; Chester, M.V. Climate Change Vulnerability in the Food, Energy, and Water Nexus: Concerns for Agricultural Production in Arizona and its Urban Export Supply. Environ. Res. Lett. 2017. [Google Scholar] [CrossRef]
  15. Feitelson, E.; Tubi, A. A main driver or an intermediate variable? Climate change, water and security in the Middle East. Glob. Environ. Chang. 2017, 44, 39–48. [Google Scholar] [CrossRef]
  16. Hanjra, M.A.; Qureshi, M.E. Global water crisis and future food security in an era of climate change. Food Policy 2010, 35, 365–377. [Google Scholar] [CrossRef]
  17. Verdon-Kidd, D.C.; Scanlon, B.R.; Ren, T.; Fernando, D.N. A comparative study of historical droughts over Texas, USA and Murray-Darling Basin, Australia: Factors influencing initialization and cessation. Glob. Planet. Chang. 2017, 149, 123–138. [Google Scholar] [CrossRef]
  18. Scanlon, B.R.; Ruddell, B.L.; Reed, P.M.; Hook, R.I.; Zheng, C.; Tidwell, V.C.; Siebert, S. The food-energy-water nexus: Transforming science for society. Water Resour. Res. 2017, 1–7. [Google Scholar] [CrossRef]
  19. Lee, M.; Keller, A.A.; Chiang, P.C.; Den, W.; Wang, H.; Hou, C.H.; Wu, J.; Wang, X.; Yan, J. Water-energy nexus for urban water systems: A comparative review on energy intensity and environmental impacts in relation to global water risks. Appl. Energy 2017, 205, 589–601. [Google Scholar] [CrossRef]
  20. Dubreuil, A.; Assoumou, E.; Bouckaert, S.; Selosse, S.; Maïzi, N. Water modeling in an energy optimization framework—The water-scarce middle east context. Appl. Energy 2013, 101, 268–279. [Google Scholar] [CrossRef]
  21. Saif, O.; Mezher, T.; Arafat, H.A. Water security in the GCC countries: Challenges and opportunities. J. Environ. Stud. Sci. 2014, 4, 329–346. [Google Scholar] [CrossRef]
  22. Al-Mulali, U.; Ozturk, I. The effect of energy consumption, urbanization, trade openness, industrial output, and the political stability on the environmental degradation in the MENA (Middle East and North African) region. Energy 2015, 84, 382–389. [Google Scholar] [CrossRef]
  23. Daher, B.T.; Mohtar, R.H. Water-energy-food (WEF) Nexus Tool 2.0: Guiding integrative resource planning and decision-making. Water Int. 2015, 1–24. [Google Scholar] [CrossRef]
  24. Magazzino, C. CO2 emissions, economic growth, and energy use in the Middle East countries: A panel VAR approach. Energy Sources Part B 2016, 11, 960–968. [Google Scholar] [CrossRef]
  25. Borgomeo, E.; Jägerskog, A.; Talbi, A.; Wijnen, M.; Hejazi, M.; Wilhelm, F.M. The Water-Energy-Food Nexus in the Middle East and North Africa Scenarios for a Sustainable Future; World Bank Group: Washington, DC, USA, 2018. [Google Scholar] [CrossRef]
  26. McDonnell, R.A. Circulations and transformations of energy and water in Abu Dhabi’s hydrosocial cycle. Geoforum 2014, 57, 225–233. [Google Scholar] [CrossRef]
  27. Siddiqi, A.; Anadon, L.D. The water-energy nexus in Middle East and North Africa. Energy Policy 2011, 39, 4529–4540. [Google Scholar] [CrossRef]
  28. Nematollahi, O.; Hoghooghi, H.; Rasti, M.; Sedaghat, A. Energy demands and renewable energy resources in the Middle East. Renew. Sustain. Energy Rev. 2016, 54, 1172–1181. [Google Scholar] [CrossRef]
  29. Bekhet, H.A.; Matar, A.; Yasmin, T. CO2 emissions, energy consumption, economic growth, and financial development in GCC countries: Dynamic simultaneous equation models. Renew. Sustain. Energy Rev. 2017, 70, 117–132. [Google Scholar] [CrossRef]
  30. IEA (International Energy Agency). CO2 Emissions from Fuel Combustion 2018 Highlights; OECD/IEA: Paris, France, 2018. [Google Scholar]
  31. Khan, M.A.; Khan, M.Z.; Zaman, K.; Arif, M. Global estimates of energy-growth nexus: Application of seemingly unrelated regressions. Renew. Sustain. Energy Rev. 2014, 29, 63–71. [Google Scholar] [CrossRef]
  32. Mohtar, R.H.; Assi, A.T.; Daher, B.T. Current Water for Food Situational Analysis in the Arab Region and Expected Changes Due to Dynamic Externalities. In The Water, Energy, and Food Security Nexus in the Arab Region. Water Security in a New World; Springer: Cham, Switzerland, 2017; ISBN 978-3-319-48407-5. [Google Scholar]
  33. Willis, H.H.; Groves, D.G.; Ringel, J.S.; Mao, Z.; Efron, S.; Abbott, M. Developing the Pardee RAND Food-Energy-Water Security Index; RAND Corporation: Santa Monica, CA, USA, 2016. [Google Scholar]
  34. The World Economic Forum. The Middle East and North Africa at Risk 2010; The World Economic Forum: Cologny/Geneva, Switzerland, 2010. [Google Scholar]
  35. ESCWA (Economic and Social Commission for Western Asia). Food Security and Conflict in the ESCWA Region; ESCWA: New York, NY, USA, 2010; p. 134. [Google Scholar]
  36. Falkenmark, M.; Lundqvist, J. Towards water security: Political determination and human adaptation crucial. Nat. Resour. Forum 1998, 21, 37–51. [Google Scholar] [CrossRef]
  37. Ahmed, G.; Hamrick, D.; Gereffi, G. Shifting Governance Structures in the Wheat Value Chain: Implications for Food Security in the Middle East and North Africa; Center on Globalization, Governance & Competitiveness: Durham, NC, USA, 2014; pp. 1–28. [Google Scholar]
  38. Sewilam, H.; Nasr, P. Desalinated Water for Food Production in the Arab Region. In The Water, Energy, and Food Security Nexus in the Arab Region.Water Security in a New World.; Springer: Cham, Switzerland, 2017; ISBN 978-3-319-48407-5. [Google Scholar]
  39. EIU. Global Food Security Index 2017: Measuring Food Security and The Impact of Resource Risks; The Economist Intelligence Unit (EIU): London, UK, 2017. [Google Scholar]
  40. EIU. Global Food Security Index 2012: An Assessment of Food Affordability, Availability and Quality; The Economist Intelligence Unit (EIU): London, UK, 2012. [Google Scholar]
  41. EIU. Global Food Security Index 2014: An Annual Measure of the State of Global Food Security; The Economist Intelligence Unit (EIU): London, UK, 2014; p. 70. [Google Scholar]
  42. EIU. Global Food Security Index 2016: An Annual Measure of the State of Global Food Security Contents; The Economist Intelligence Unit (EIU): London, UK, 2016; pp. 1–42. [Google Scholar]
  43. EIA. International Energy Outlook 2016:With Projections to 2040; Energy Information Administration (EIA): Washington, DC, USA, 2016.
  44. IEA. Water Energy Nexus-Excerpt from the World Energy Outlook 2016; OECD/IEA: Paris, France, 2016. [Google Scholar]
  45. Erias, A.; Karaka, C.; Grajetzki, C.; Carton, J.; Paulos, M.; Jantunen, P.; Baral, P.; Bex, S.; Valenzuela, J.M. World Energy Resources 2016. World Energy Council, 2016; pp. 6–46. Available online: https://www.worldenergy.org/publications/2016/world-energy-resources-2016/ (accessed on 11 February 2019).
  46. IEA. Energy Efficiency 2O18: Analysis and Outlooks to 2040; OECD/IEA: Paris, France, 2018. [Google Scholar]
  47. Nejat, P.; Jomehzadeh, F.; Taheri, M.M.; Gohari, M.; Muhd, M.Z. A global review of energy consumption, CO2 emissions and policy in the residential sector (with an overview of the top ten CO2 emitting countries). Renew. Sustain. Energy Rev. 2015, 43, 843–862. [Google Scholar] [CrossRef]
  48. RCREEE. Arab Future Energy IndexTM (AFEX) Energy Efficiency 2015; The Regional Center for Renewable Energy and energy Efficiency (RCREEE): Cairo, Egypt, 2015. [Google Scholar]
  49. El-Bassam, N. Technologies and Options of Solar Energy Applications in the Middle East. In Water, Energy & Food Sustainability in the Middle East; Springer: Cham, Switzerland, 2017; ISBN 978-3-319-48919-3. [Google Scholar]
  50. Hajj, M.R. Wind Power and Potential for its Exploitation in the Arab World. In Water, Energy & Food Sustainability in the Middle East; Springer: Cham, Switzerland, 2017; ISBN 978-3-319-48919-3. [Google Scholar]
  51. UN-Water. Water Security and the Global Water Agenda; UN-Water: Geneva, Switzerland, 2013; ISBN 9789280860382. [Google Scholar]
  52. König, C. The Water, Energy and Food Security Nexus in the Arab Region; Springer: Cham, Switzerland, 2014; ISBN 978-3-319-83935-6. [Google Scholar]
  53. Saleh, W.; Jayyousi, A.F.; Almasri, M.N. State of Freshwater Ecosystems; Arab Forum for Environment and Development (AFED): Beirut, Lebanon, 2010; pp. 39–54. [Google Scholar]
  54. ESCWA. Overcoming Population Vulnerability to Water Scarcity in the Arab Region: Population and Development Report Issue No. 7; United Nations: New York, NY, USA, 2015; ISBN 9789210576222. [Google Scholar]
  55. Rodell, M.; Famiglietti, J.S.; Wiese, D.N.; Reager, J.T.; Beaudoing, H.K.; Landerer, F.W.; Lo, M.H. Emerging trends in global freshwater availability. Nature 2018, 557, 651–659. [Google Scholar] [CrossRef]
  56. Ashraf, B.; Aghakouchak, A.; Alizadeh, A.; Mousavi Baygi, M.; Moftakhari, H.R.; Mirchi, A.; Anjileli, H.; Madani, K. Quantifying Anthropogenic Stress on Groundwater Resources. Sci. Rep. 2017, 7, 1–9. [Google Scholar] [CrossRef]
  57. Sakhel, S.R.; Geissen, S.-U.; Vogelpohl, A. Virtual industrial water usage and wastewater generation in the Middle East/North African region. Hydrol. Earth Syst. Sci. Discuss. 2013, 10, 999–1039. [Google Scholar] [CrossRef]
  58. Damerau, K.; van Vliet, O.P.R.; Patt, A.G. Direct impacts of alternative energy scenarios on water demand in the Middle East and North Africa. Clim. Chang. 2015, 130, 171–183. [Google Scholar] [CrossRef]
  59. Rijsberman, F.R. Water scarcity: Fact or fiction? Agric. Water Manag. 2006, 80, 5–22. [Google Scholar] [CrossRef]
  60. Paul, P.; Al Tenaiji, A.K.; Braimah, N. A review of the water and energy sectors and the use of a nexus approach in Abu Dhabi. Int. J. Environ. Res. Public Health 2016, 13, 364. [Google Scholar] [CrossRef]
  61. Waterbury, J. Water and Water Supply in The MENA: Less of the Same. In Water, Energy & Food Sustainability in the Middle East; Springer: Cham, Switzerland, 2017; pp. 57–84. ISBN 978-3-319-48920-9. [Google Scholar]
  62. Negewo, B.D. Renewable Energy Desalination: An Emerging Solution to Close the Water Gap in the Middle Eas and North Africa; The World Bank: Washington, DC, USA, 2012; ISBN 9780821388389. [Google Scholar]
  63. Voss, K.A.; Famiglietti, J.S.; Lo, M.; De Linage, C.; Rodell, M.; Swenson, S.C. Groundwater depletion in the Middle East from GRACE with implications for transboundary water management in the Tigris-Euphrates-Western Iran region. Water Resour. Res. 2013, 49, 904–914. [Google Scholar] [CrossRef]
  64. Alborzi, A.; Mirchi, A.; Moftakhari, H.; Mallakpour, I.; Alian, S.; Nazemi, A.; Hassanzadeh, E.; Mazdiyasni, O.; Ashraf, S.; Madani, K.; et al. Climate-informed environmental inflows to revive a drying lake facing meteorological and anthropogenic droughts. Environ. Res. Lett. 2018, 13. [Google Scholar] [CrossRef]
  65. Silva, W.; Amorim, D.; Blasi, I.; Marcelo, J.; Ribeiro, P.; Guazzelli, V.; Ellen, G.; Katrina, M. The nexus between water, energy, and food in the context of the global risks: An analysis of the interactions between food, water, and energy security. Environ. Impact Assess. Rev. 2018, 72, 1–11. [Google Scholar]
  66. The World Bank. Natural Disasters in the Middle East and North Africa: A Regional Overview; The World Bank: Washington, DC, USA, 2014; pp. 1–114. [Google Scholar]
  67. Hameed, M.; Ahmadalipour, A.; Moradkhani, H. Apprehensive Drought Characteristics over Iraq: Results of a Multidecadal Spatiotemporal Assessment. Geosciences 2018, 8, 58. [Google Scholar] [CrossRef]
  68. Elasha, B.O. Mapping Climate Change Threats and Human Development Impacts in the Arab Region; Arab Human Development Report Research Paper; UNDP: New York, NY, USA, 2010; p. 51. [Google Scholar]
  69. Deng, L.; McCabe, M.F.; Stenchikov, G.; Evans, J.P.; Kucera, P.A. Simulation of Flash-Flood-Producing Storm Events in Saudi Arabia Using the Weather Research and Forecasting Model. J. Hydrometeorol. 2015, 16, 615–630. [Google Scholar] [CrossRef]
  70. Notaro, M.; Yu, Y.; Kalashnikova, O.V. Regime shift in Arabian dust activity, triggered by persistent Fertile Crescent drought. J. Geophys. Res. Atmos. 2015, 120, 10229–10249. [Google Scholar] [CrossRef]
  71. FAO. Drought Characteristics and Management in Central Asia and Turkey; FAO: Rome, Italy, 2017. [Google Scholar]
  72. Amin, M.T.; Mahmoud, S.H.; Alazba, A.A. Observations, projections and impacts of climate change on water resources in Arabian Peninsula: Current and future scenarios. Environ. Earth Sci. 2016, 75, 1–17. [Google Scholar] [CrossRef]
  73. Ozcan, B. The nexus between carbon emissions, energy consumption and economic growth in Middle East countries: A panel data analysis. Energy Policy 2013, 62, 1138–1147. [Google Scholar] [CrossRef]
  74. Al-Awad, M.; Harb, N. Financial development and economic growth in the Middle East. Appl. Financ. Econ. 2005, 15, 1041–1051. [Google Scholar] [CrossRef]
  75. Miller, T.; Kim, A.B. 2017 Index Of Economic Freedom; The Heritage Foundation: Washington, DC, USA, 2017; p. 492. [Google Scholar]
  76. Devarajan, S.; Mottaghi, L.; Do, Q.-T.; Brockmeyer, A.; Joubert, C.; Bhatia, K.; Mohamed, A.J. Economic and Social Inclusion to Prevent Violent Extremism. In World Bank Middle East and North Africa Region; World Bank: Washington, DC, USA, 2016. [Google Scholar]
  77. Griffiths, S. A review and assessment of energy policy in the Middle East and North Africa region. Energy Policy 2017, 102, 249–269. [Google Scholar] [CrossRef]
  78. Devarajan, S.; Mottaghi, L. The Economics of Post-Conflict Reconstruction in MENA. In World Bank Middle East and North Africa Region; World Bank: Washington, DC, USA, 2017. [Google Scholar]
  79. ESCWA. Urbanization and Sustainable Development in the Arab Region; United Nations: New York, NY, USA, 2015; Volume 5, pp. 1–8. [Google Scholar]
  80. United Nations. World Urbanization Prospects; United Nations: New York, NY, USA, 2015. [Google Scholar]
  81. Population Institute. Demographic Vulnerability: Where Population Growth Poses the Greatest Challenges; Population Institute: Washington, DC, USA, 2015; p. 68. [Google Scholar]
  82. Ahmadalipour, A.; Moradkhani, H.; Castelletti, A.; Magliocca, N. Future drought risk in Africa: Integrating vulnerability, climate change, and population growth. Sci. Total Environ. 2019, 662, 672–686. [Google Scholar] [CrossRef]
  83. Gupta, M. Das Population, poverty, and climate change. World Bank Res. Obs. 2014, 29, 83–108. [Google Scholar] [CrossRef]
  84. Awulachew, S.; Rebelo, L.-M.; Molden, D. The Nile Basin: Tapping the unmet agricultural potential of Nile waters. Water Int. 2010, 35, 623–654. [Google Scholar] [CrossRef]
  85. Von Grebmer, K.; Bernstein, J.; Nabarro, D.; Prasai, N.; Amin, S.; Yohannes, Y.; Sonntag, A.; Patterson, F.; Towey, O.; Thompson, J. 2016 Global Hunger Index: Getting to Zero Hunger; Food Policy Research Institute, and Concern Worldwide: Washington, DC, USA, 2016. [Google Scholar]
  86. IFPRI. 2017 Global Food Policy Report; Food Policy Research Institute, and Concern Worldwide: Washington, DC, USA, 2017. [Google Scholar]
  87. FAO. FAO/Wfp Crop and Food Security Assessment Mission to the Syrian Arab Republic; Food and Agriculture Organization of the United Nations: Rome, Italy, 2016; ISBN 978-92-5-109504-1. [Google Scholar]
  88. Ianchovichina, E.; Mottaghi, L.; Devarajan, S. Inequality, Uprisings, and Conflict in the Arab World; The World Bank: Washington, DC, USA, 2015. [Google Scholar]
  89. Ahmed, S.A.; Holloway, G.J. Calories, conflict and correlates: Redistributive food security in post-conflict Iraq. Food Policy 2017, 68, 89–99. [Google Scholar] [CrossRef]
  90. Sowers, J. Water, energy and human insecurity in the middle east. Middle East Rep. 2014, 44, 2–5. [Google Scholar]
  91. Hillman, J.R.; Baydoun, E. Food Security in an Insecure Future. In Energy & Food Sustainability in the Middle East; Springer: Cham, Switzerland, 2017; ISBN 978-3-319-48919-3. [Google Scholar]
  92. Adams, R.H. Economic growth, inequality and poverty: Estimating the growth elasticity of poverty. World Dev. 2004, 32, 1989–2014. [Google Scholar] [CrossRef]
  93. Ncube, M.; Anyanwu, J.C.; Hausken, K. Inequality, Economic Growth and Poverty in the Middle East and North Africa (MENA). Afr. Dev. Rev. 2014, 26, 435–453. [Google Scholar] [CrossRef]
  94. Dargin, J. Addressing the UAE Natural Gas Crisis: Strategies for a Rational Energy Policy; The Dubai Initiative; Harvard University: Cambridge, MA, USA, 2010. [Google Scholar]
  95. Ahmadalipour, A.; Moradkhani, H. Escalating heat-stress mortality risk due to global warming in the Middle East and North Africa (MENA). Environ. Int. 2018, 117, 215–225. [Google Scholar] [CrossRef]
  96. Denooyer, T.A.; Peschel, J.M.; Zhang, Z.; Stillwell, A.S. Integrating water resources and power generation: The energy–water nexus in Illinois Integrating power generation and water resources. Appl. Energy 2016, 162, 363–371. [Google Scholar] [CrossRef]
  97. Qadir, M.; Sharma, B.R.; Bruggeman, A.; Choukr-Allah, R.; Karajeh, F. Non-conventional water resources and opportunities for water augmentation to achieve food security in water scarce countries. Agric. Water Manag. 2007, 87, 2–22. [Google Scholar] [CrossRef]
  98. Purnama, A.; Al-Barwani, H.H.; Smith, R. Calculating the environmental cost of seawater desalination in the Arabian marginal seas. Desalination 2005, 185, 79–86. [Google Scholar] [CrossRef]
  99. Mohammed, S.; Zaidi, A.; Chandola, V.; Allen, M.R.; Sanyal, J.; Stewart, R.N.; Bhaduri, B.L.; Ryan, A.; Mohammed, S.; Zaidi, A.; et al. Machine learning for energy-water nexus: Challenges and opportunities. Big Earth Data 2018, 2, 228–267. [Google Scholar]
Water 11 00682 g001 550
Figure 1. The Pardee RAND Food-Energy-Water security index. Note: the countries not listed in the figure were not reported due to data unavailability. The data is acquired from Willis et al. [33].
Figure 1. The Pardee RAND Food-Energy-Water security index. Note: the countries not listed in the figure were not reported due to data unavailability. The data is acquired from Willis et al. [33].
Water 11 00682 g001
Water 11 00682 g002 550
Figure 2. Global Food Security Index (0–100, 100 = ideal environment). Note: the countries not listed means the GFSI was not provided by the source for these countries due to data unavailability. The data is acquired from [40,41,42].
Figure 2. Global Food Security Index (0–100, 100 = ideal environment). Note: the countries not listed means the GFSI was not provided by the source for these countries due to data unavailability. The data is acquired from [40,41,42].
Water 11 00682 g002
Water 11 00682 g003 550
Figure 3. Energy Efficiency Status in the Middle East. The higher score indicates better energy efficiency status. The data is acquired from RCREEE [48].
Figure 3. Energy Efficiency Status in the Middle East. The higher score indicates better energy efficiency status. The data is acquired from RCREEE [48].
Water 11 00682 g003
Water 11 00682 g004 550
Figure 4. Industrial water consumption in the Middle East in 2011. The data are acquired from Sakhel et al. [57].
Figure 4. Industrial water consumption in the Middle East in 2011. The data are acquired from Sakhel et al. [57].
Water 11 00682 g004
Water 11 00682 g005 550

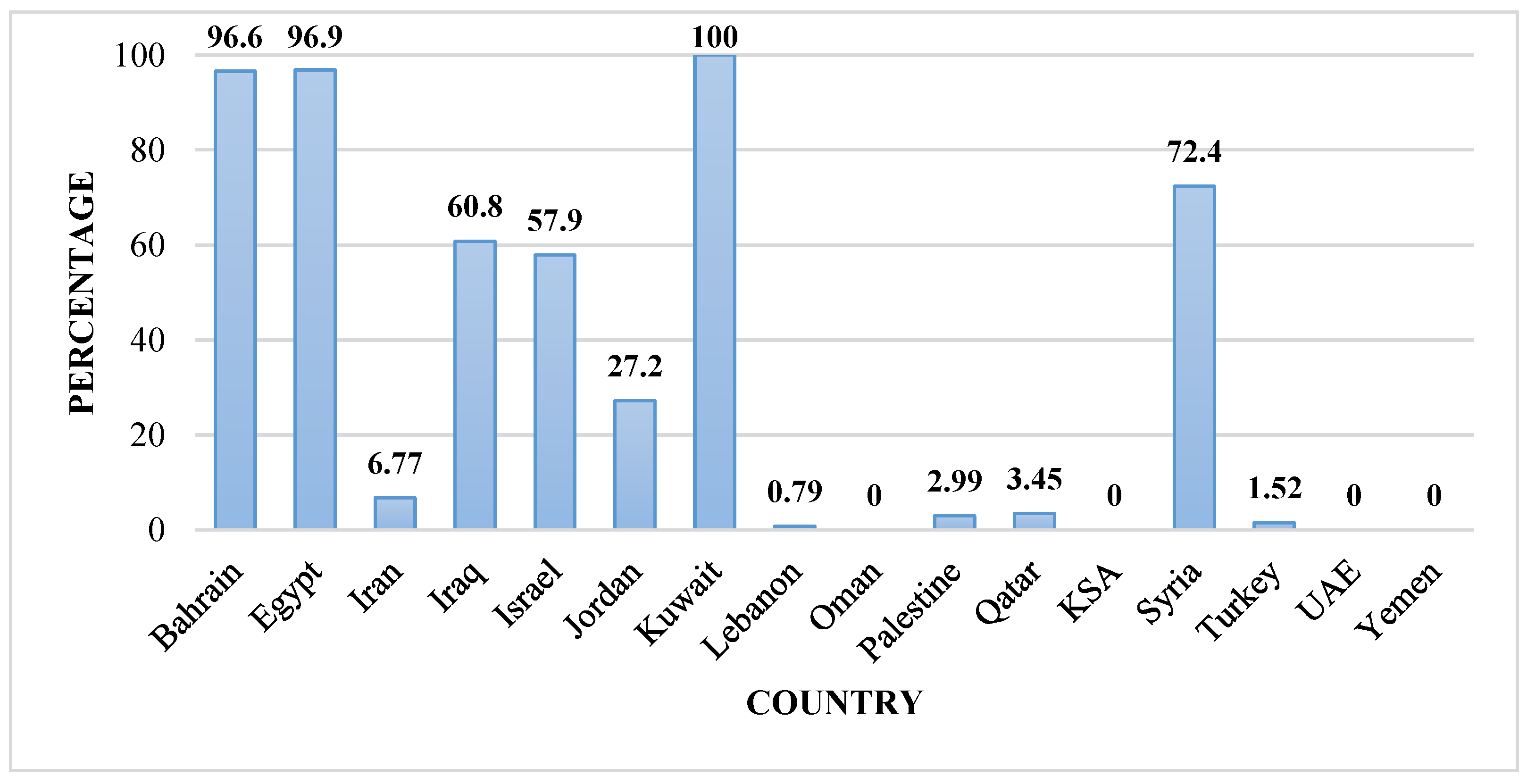

Figure 5. The percentage of the total renewable water resources originating outside a country in 2014. A country with a dependency ratio equal to 0% does not receive any water from neighboring countries, whereas a country with a dependency ratio equal to 100% receives all its renewable water resources from upstream countries. The data is acquired from: https://idea.usaid.gov.
Figure 5. The percentage of the total renewable water resources originating outside a country in 2014. A country with a dependency ratio equal to 0% does not receive any water from neighboring countries, whereas a country with a dependency ratio equal to 100% receives all its renewable water resources from upstream countries. The data is acquired from: https://idea.usaid.gov.
Water 11 00682 g005
Water 11 00682 g006 550
Figure 6. Climate Risk Index Score in the Middle East in 2015. The index is a weighted score calculated according to the following setting: Number of Deaths (weight: 1/6), Deaths per 100,000 inhabitants (weight: 1/3), losses in Purchasing Power Party (PPP) (weight: 1/6), and Losses per GDP unit (weight: 1/3). Lower score indicates a country being more at risk to climate change events. The data is acquired from: https://idea.usaid.gov.
Figure 6. Climate Risk Index Score in the Middle East in 2015. The index is a weighted score calculated according to the following setting: Number of Deaths (weight: 1/6), Deaths per 100,000 inhabitants (weight: 1/3), losses in Purchasing Power Party (PPP) (weight: 1/6), and Losses per GDP unit (weight: 1/3). Lower score indicates a country being more at risk to climate change events. The data is acquired from: https://idea.usaid.gov.
Water 11 00682 g006
Water 11 00682 g007 550
Figure 7. Actual GDP Growth rate for the years of 2015−2017. The data is acquired from: IMF Data Mapper.
Figure 7. Actual GDP Growth rate for the years of 2015−2017. The data is acquired from: IMF Data Mapper.
Water 11 00682 g007
Water 11 00682 g008 550
Figure 8. Decadal mean annual rate of change of urban population for each country. The data is acquired from the UN-Water [80].
Figure 8. Decadal mean annual rate of change of urban population for each country. The data is acquired from the UN-Water [80].
Water 11 00682 g008
Water 11 00682 g009 550
Figure 9. Five-year average population of each country in the Middle East. Source: FAO-AQUASTAT Database and Worldometers. The data is acquired from: www.Worldometers.info.
Figure 9. Five-year average population of each country in the Middle East. Source: FAO-AQUASTAT Database and Worldometers. The data is acquired from: www.Worldometers.info.
Water 11 00682 g009
Water 11 00682 g010 550
Figure 10. Annual population growth rate of the Middle Eastern countries in 2017. The data is acquired from: http://www.worldometers.info.
Figure 10. Annual population growth rate of the Middle Eastern countries in 2017. The data is acquired from: http://www.worldometers.info.
Water 11 00682 g010
Water 11 00682 g011 550

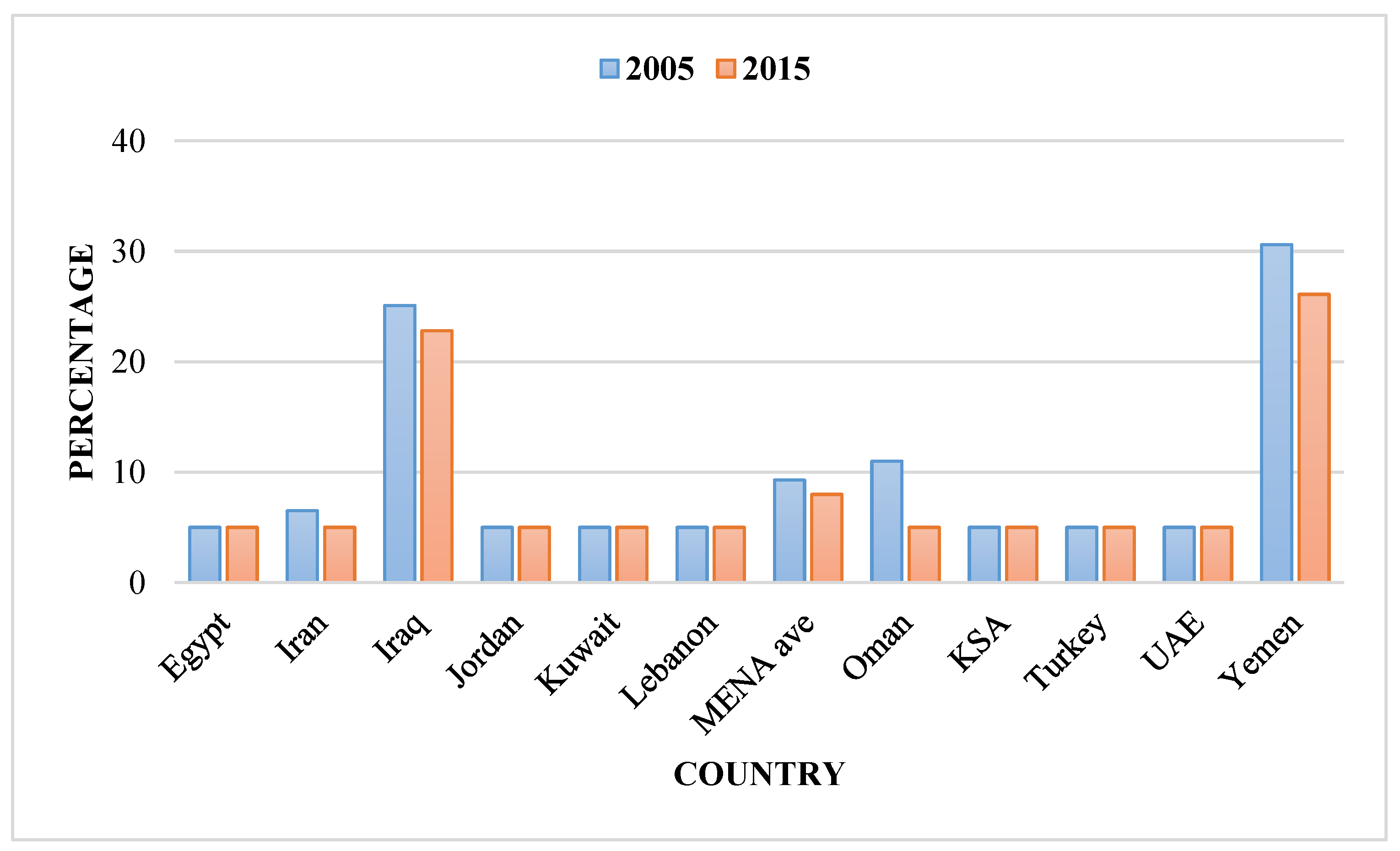

Figure 11. Percentage of undernourished population in each country of the Middle East. Note: data for Syria was not available. The data is acquired from: https://idea.usaid.gov.
Figure 11. Percentage of undernourished population in each country of the Middle East. Note: data for Syria was not available. The data is acquired from: https://idea.usaid.gov.
Water 11 00682 g011
Water 11 00682 g012 550
Figure 12. Global Hunger Index (GHI) for the Middle Eastern countries with a range of 0−100, where lower score indicates less hunger. Note: data for Syria was not available. The data is acquired from: https://idea.usaid.gov.
Figure 12. Global Hunger Index (GHI) for the Middle Eastern countries with a range of 0−100, where lower score indicates less hunger. Note: data for Syria was not available. The data is acquired from: https://idea.usaid.gov.
Water 11 00682 g012
Water 11 00682 g013 550

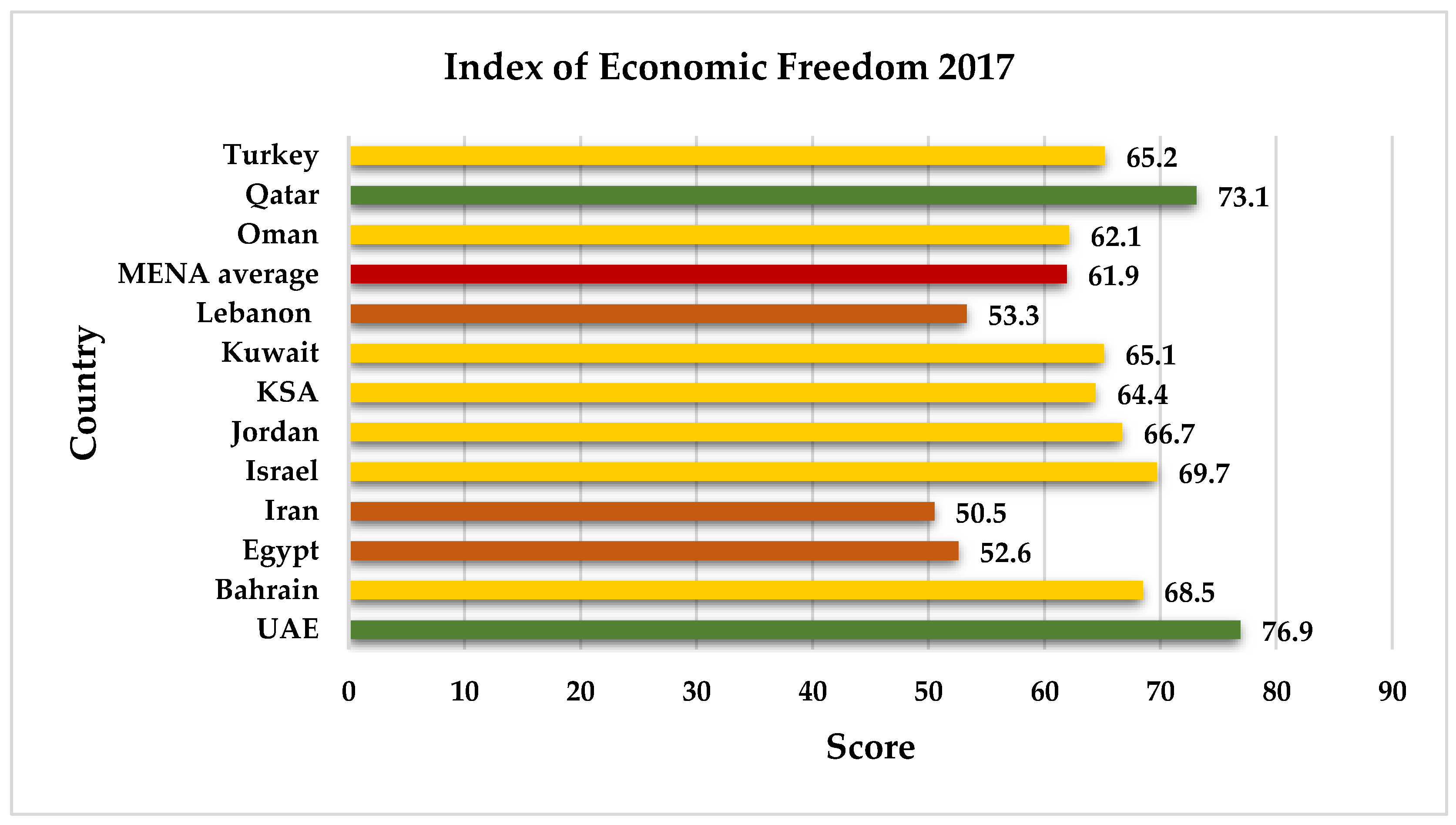

Figure 13. Index of Economic Freedom for the countries of interest within the MENA region in 2017. Countries are categorized as follows: (0–49.9) are repressed country, (50–59.9) are mostly unfree country, (60–69.9) are moderately free country, (70–79.9) are mostly free country, and (80–100) are free country. Note: not listed countries implies data unavailability. The data is acquired from Miller and Kim [75].
Figure 13. Index of Economic Freedom for the countries of interest within the MENA region in 2017. Countries are categorized as follows: (0–49.9) are repressed country, (50–59.9) are mostly unfree country, (60–69.9) are moderately free country, (70–79.9) are mostly free country, and (80–100) are free country. Note: not listed countries implies data unavailability. The data is acquired from Miller and Kim [75].
Water 11 00682 g013

Share and Cite

MDPI and ACS Style

Hameed, M.; Moradkhani, H.; Ahmadalipour, A.; Moftakhari, H.; Abbaszadeh, P.; Alipour, A. A Review of the 21st Century Challenges in the Food-Energy-Water Security in the Middle East. Water 2019, 11, 682. https://doi.org/10.3390/w11040682

AMA Style

Hameed M, Moradkhani H, Ahmadalipour A, Moftakhari H, Abbaszadeh P, Alipour A. A Review of the 21st Century Challenges in the Food-Energy-Water Security in the Middle East. Water. 2019; 11(4):682. https://doi.org/10.3390/w11040682

Chicago/Turabian Style

Hameed, Maysoun, Hamid Moradkhani, Ali Ahmadalipour, Hamed Moftakhari, Peyman Abbaszadeh, and Atieh Alipour. 2019. "A Review of the 21st Century Challenges in the Food-Energy-Water Security in the Middle East" Water 11, no. 4: 682. https://doi.org/10.3390/w11040682

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
