Systematic Analysis of Geothermal Resources in the Coastal Bedrock Area of Chunxiao Town (China) by Using Geochemistry and Geophysics Methods

Abstract

Geochemical and geophysical investigations were carried out to obtain more evidence of the potential of geothermal resources in Chunxiao Town (China). Hydrochemical data indicate the possible existence of mixing process between deep geothermal water and shallow groundwater. Analysis with SiO₂ geothermometer shows that the geothermal reservoir temperature was estimated around 40–60 °C. In addition, combination investigations with CSAMT, radioactive radon, and soil thermal-released mercury detection reveal the specific location of the conduction fractures for thermal water circulation. Furthermore, the drilling work shows the deep thermal water temperature of >55 °C and the thermal water yield of 300 m³/d. All these results could provide important guidance for the scientific exploration and effective utilization of geothermal resources in coastal area.

1. Introduction

As an important renewable clean energy, geothermal resources (including guidance and the low-to-medium temperatures) have been of extensive concern all over the world for residential and commercial purposes, such as space heating and electric power generation [1,2,3]. The low-to-medium temperature geothermal resources (i.e., below 150 °C) are widespread in the world, and represent one of the most readily-exploitable geothermal resources [4]. A systematic assessment of the low-to-medium temperature geothermal resources would provide a useful guidance for the sustainable development and utilization of thermal water.

In geothermal resource assessment, hydrogeochemistry methods are an important way to obtain some useful information, such as geothermal fluid origin, mixing processes, water–rock interactions, reservoir rock, and reservoir temperature [5]. The common hydrogeochemistry methods include hydrochemical characteristics analysis, isotopic compositions analysis, and geothermometer analysis [6,7,8,9]. By using hydrogeochemical analysis, the chemical composition differences between groundwater with natural evolution process, and that with thermal water mixed, could be identified, which could be useful for qualitatively indicating hot water leakage deep underground. With isotope composition analysis (such as strontium, oxygen, and hydrogen), the sources of the thermal fluid (rainfall or seawater) and mixing processes between thermal water and shallow groundwater can be determined [3,10] and, based on the geothermometers (such as Na–K–Ca, Na/K, Na/Li, and silica), the geothermal resource temperature can be estimated, to support the assessment of thermal resource capacity.

Geothermal resources are mostly distributed in tectonic active zones, where the lithospheric thermal activity of tectonic units is intense. By deep circulation, atmospheric precipitation could move through faults or fractures and reach the deep heat source and, finally, form geothermal resources. Therefore, after we obtain the temperature information of the thermal water, specific information, such as the depth and location of the geothermal reservoir and the fracture channels, should be investigated by using geophysical prospecting methods. Many geophysical prospecting methods have been largely used, worldwide, in the last 30 years. Generally, geophysical methods used in geothermal exploration can be divided into five main groups, depending on the physical parameters measured: potential methods, geoelectrical method [11,12,13], electromagnetic (EM) method, seismic methods, radiometric methods [14]. Electrical and electromagnetic methods, which are the most widely used, measure the electrical resistivity distribution of the ground. From the resistivity distribution in the ground, structural and stratigraphic information could be obtained, and the condition of the occurrence and circulation of the geothermal system could also be determined. So far, this method has been successfully applied in the United States, New Zealand, Turkey, Iceland, China, and other areas all over the world [15,16,17].

Generally, in geothermal resources investigation and assessment, a combined application of the geochemical and geophysical methods can provide more reliable and sufficient geological information of the geothermal reservoir.

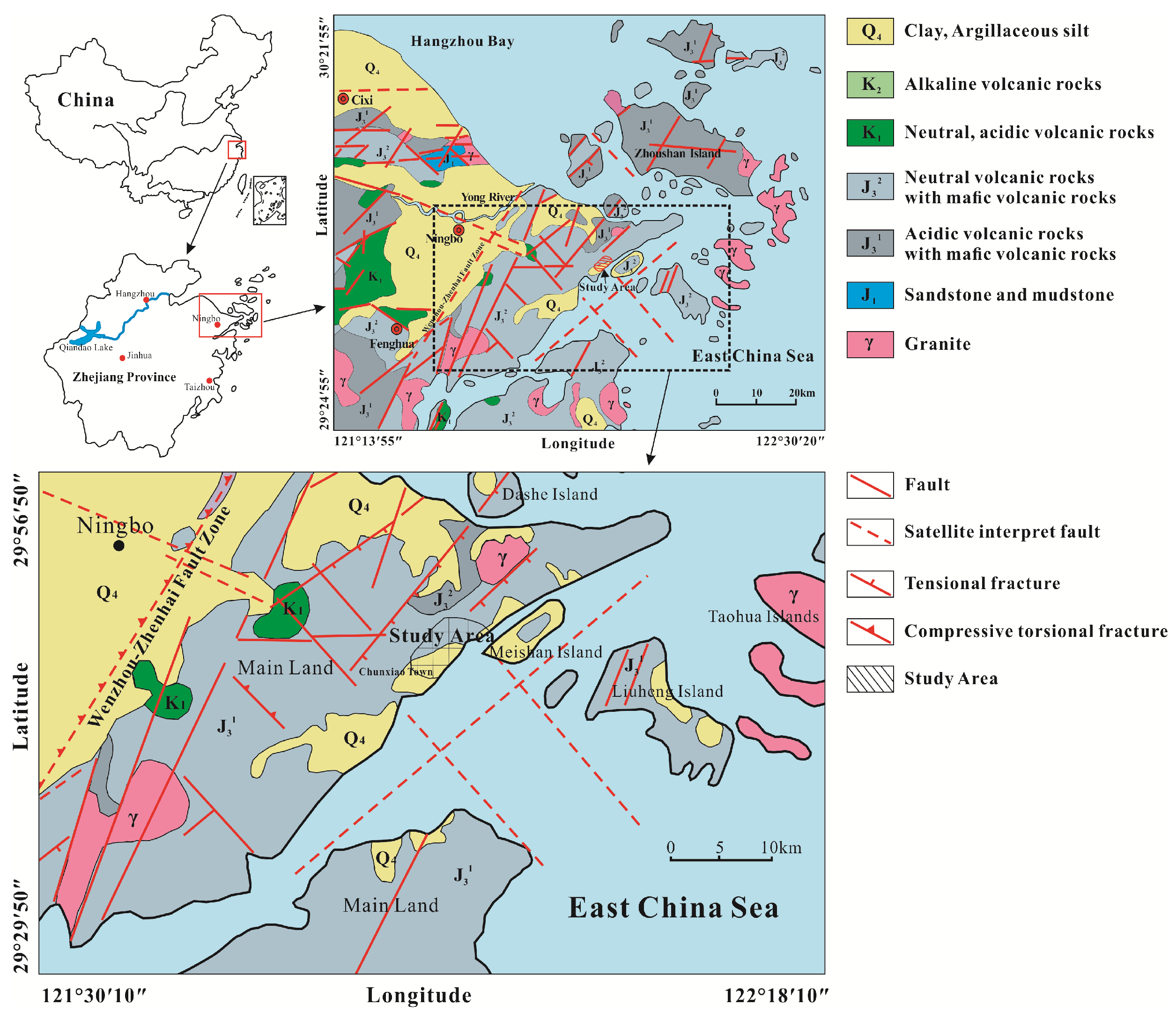

Chunxiao Town in Zhejiang Province (China) is located in a tectonic active belt in the western margin of the Pacific (Figure 1). Due to the subduction of the Pacific plate and the compression of the Philippine plate, the lithospheric thermal activity of the tectonic unit is intense, and the faults and fractures are well developed. The faults and fractures of different levels cut through the strata and formed water flowing channels in impermeable bedrocks. As long as the fracture system has reached a certain scale, it could constitute the circulation channels of geothermal water and formed geothermal resources eventually. These basic geological conditions constitute the occurrence of regional geothermal resources in this study area.

For Chunxiao Town and its surrounding area (such as Dongqianhu), there have been very few investigations on the thermal resources. Previous research [18] conducted systematic analysis with geochemistry and geophysics data in the eastern area (surrounding area of Chunxiao Town) of Ningbo city, suggesting the possibility of thermal resources in the regional area. Although Chunxiao Town is adjacent to the study area of previous research [18], it is impossible to determine the location and feature of the geothermal resource in our study area, as the geological conditions are complex (Figure 1).

Thus, it is necessary and meaningful to study more evidence of geothermal resources in Chunxiao Town for addressing sustainable urban energy needs in the future. To this end, in this study, an integrated study—with geochemical data, geophysical investigations, and drilling tests—was conducted to reveal the occurrence and feature of the geothermal resources in Chunxiao Town. We think that this systematic analysis of a low-to-medium temperature geothermal resource could be a nice example for other geothermal systems in coastal areas. Our objective was also to promote the research in low-to-medium temperature systems.

2. Materials and Methods

2.1. Geological Regional Settings of the Study Area

The basic strata in study area consists of upper Jurassic volcaniclastic rock with a thickness of 2000–3000 m, and thin Quaternary layer (<20 m) scattered along the coastline (Figure 1). Those geological strata constitute the aquifer system that includes unconfined pore water aquifer of the Quaternary sediment and fissure water aquifer of the Jurassic volcaniclastic rock. The pore water mainly occurs in the sand loam, with a shallow water table depth of 1–3 m. The yield of single well in pore water aquifer is about 16 m³/d [18]. The fissure water aquifer is mainly controlled by geological structures (such as fault and fracture), and the fissure water is generally discharged as spring. For example, in our study area, the sample M7 (Figure 2) is collected in a spring. According to the monitoring data, it is shown that the spring discharge rate is 0.16 L/s.

With the influence of multistage tectonic activities in history, the regional fault structures developed very well [19,20] (Figure 1). These regional faults were deeply cut and extended far, and different secondary fractures were also quite developed, which created the favorable conditions of water and heat conducting in deep strata [21].

The huge thick volcaniclastic rock strata have good thermal insulation properties, which could form the cap condition of geothermal reservoirs. As shown in Figure 1, the NNE compressive–torsional deep large fault, which connects the deep lithosphere, has better heat conduction characteristics and could make the groundwater obtain a relatively high temperature; and the NNW conjugated tensional–torsional faults are widely developed, which could constitute the ideal flowing channel and storage space of groundwater. These basic geological conditions laid the foundation for breeding and distribution of geothermal resources [22,23].

2.2. Methods

The methods used in this study include hydrogeochemical method and geophysical method. Hydrogeochemical method is one of the most direct and effective ways to understand the migration and evolution of hydrochemical components in a region [24]. In this study, Langelier–Ludwig graphic method and Piper three-line graphic method were used to analyze the hydrochemistry evolution characteristics of surface water and groundwater, and ratios of ion components were used to eliminate the interference from seawater to coastal water. With the hydrogeochemical analysis, the results of sign of geothermal water circulation and discharge in study area could be preliminarily obtained. Then, geothermometers and Na–K–Mg triangle diagram were used to assess the geothermal potential in this study area.

In addition, a geophysical method, controlled source audio magnetotelluric sounding (CSAMT), was used to obtain the location of geothermal reservoirs. In this geophysical investigation, two NE survey lines (Figure 6) were arranged in the study area to control NW tensional–torsional water conduction and water storage faults. By measuring the impedance resistivity ρs and impedance phase φ, the resistivity parameters could be jointly inverted, which was used for geological interpretation to determine the location of geothermal reservoirs.

Furthermore, radioactive radon and soil thermal-released mercury detection methods were used to assist in interpreting geophysical results. According to CSAMT survey results, those radioactive radon and soil thermal-released mercury detections (Figure 6) were arranged along the region where faults passed through. Combining the anomaly points of radioactive radon and soil thermal-released mercury detection on the surface with their migration characteristics along fault zones, the interpreted faults by geophysical methods could be further identified.

3. Results and Discussion

3.1. Chemical Characteristics of Water Samples

There is a significant chemical composition difference between geothermal water and shallow groundwater or surface water. These hydrochemical anomalies tend to transfer to groundwater or even surface water through water circulation [25]. By analyzing the hydrogeochemical characteristics of groundwater and surface water samples in the study area, it is possible to confirm whether there are signs of deep hot groundwater circulation. By using geochemistry indicators, the exploration potential of geothermal resources could be analyzed.

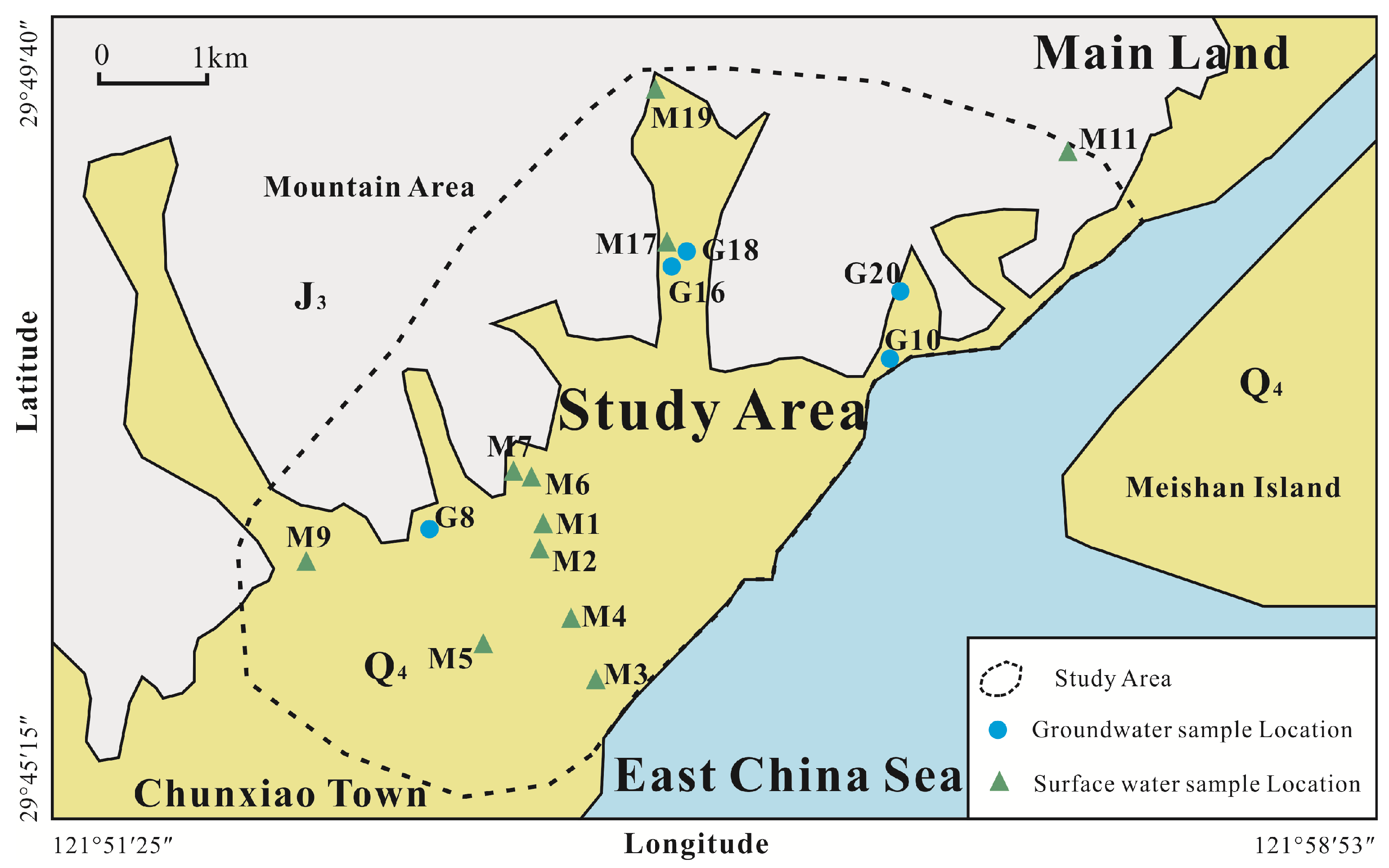

A total of 5 groundwater samples (G8, G10, G16, G18, and G20), 1 spring sample (M7), and 10 surface water samples were collected in the study area. The distribution of sample points covered from offshore to mountain foot (Figure 2). The 10 surface water samples include 7 river samples (M1, M2, M3, M4, M5, M9, and M17), 2 reservoir water samples (M11 and M19) and 1 pond water sample (M6). The 5 groundwater samples were pumped form wells which are generally bedrock wells. This means that the well water samples and spring sample can totally represent the fissure groundwater. Therefore, these 6 samples (5 groundwater samples and 1 spring sample) can be taken as representative of the water–rock interaction in our study area.

The hydrochemical types of surface water vary greatly. M3, M4, and M5 samples in offshore areas are Cl–Na type water, while the main anion and cation of other surface water samples are HCO₃⁻, SO₄²⁻, Na⁺, and Ca²⁺. The hydrochemical types of groundwater are relatively similar, anions are dominated by HCO₃⁻, SO₄²⁻, and Cl⁻, and cations are dominated by Ca²⁺, Na⁺, and Mg²⁺ (

Table 1. Hydrochemical characteristics of water samples.

ID	Ion Content (mg/L)									Hydrochemical Type
	Na+	K+	Mg2+	Ca2+	F	Cl−	SO42−	HCO3−	H2SiO3
M3	1265	70	144	146	1.1	2278	499	122	19.6	Cl–Na
M4	850	46	98.7	110	0.97	1470	350	107	19.5	Cl–Na
M5	2243	118	304	174	1.36	4244	796	120	18.2	Cl–Na
M1	177	31.4	40.1	108	0.51	231	284	259	18.8	Cl·SO4·HCO3–Na·Ca
M2	111	19.7	23.1	56.5	0.05	161	98	184	22.1	Cl·HCO3·SO4–Na·Ca
M6	20.4	3.68	5.7	23.8	0.13	23.9	15.5	87.9	26.3	HCO3·Cl–Ca·Na
M9	46.4	11.8	9.5	32.3	0.07	56.1	42.5	124	26.5	HCO3·Cl–Na·Ca
M11	8.2	0.18	1.9	5.8	0.13	5.1	10.5	14.6	21.4	HCO3·SO4–Na·Ca·Mg
M17	8.5	2.39	0.6	7	0.13	8.7	12.1	18.3	13.9	HCO3·SO4·Cl–Na·Ca
M19	8.2	1.71	3.6	6.2	0.16	9	12.6	22	15.1	HCO3·SO4–Na·Ca·Mg
G8	12.8	3.74	3	14.8	0.14	8.1	17.3	31.7	28.2	HCO3·SO4–Ca·Na
G10	28.5	16.8	6.8	24.2	0.12	39.6	20.7	72	27.7	HCO3·Cl–Na·Ca
G16	27.5	13.6	6.1	30.1	0.07	37.5	22	54.9	14.2	Cl·HCO3–Ca·Na
G18	27.2	5.1	9.1	23.8	0.16	40.8	16.8	97.6	17	HCO3·Cl–Ca·Na·Mg
G20	14.7	4.44	4.9	13	0.14	12	16.9	63.5	30.7	HCO3–Ca·Na·Mg
M7 (spring)	9.8	1.47	2.8	7	0.08	9.1	8.5	24.4	27.7	HCO3·Cl–Na·Ca·Mg

).

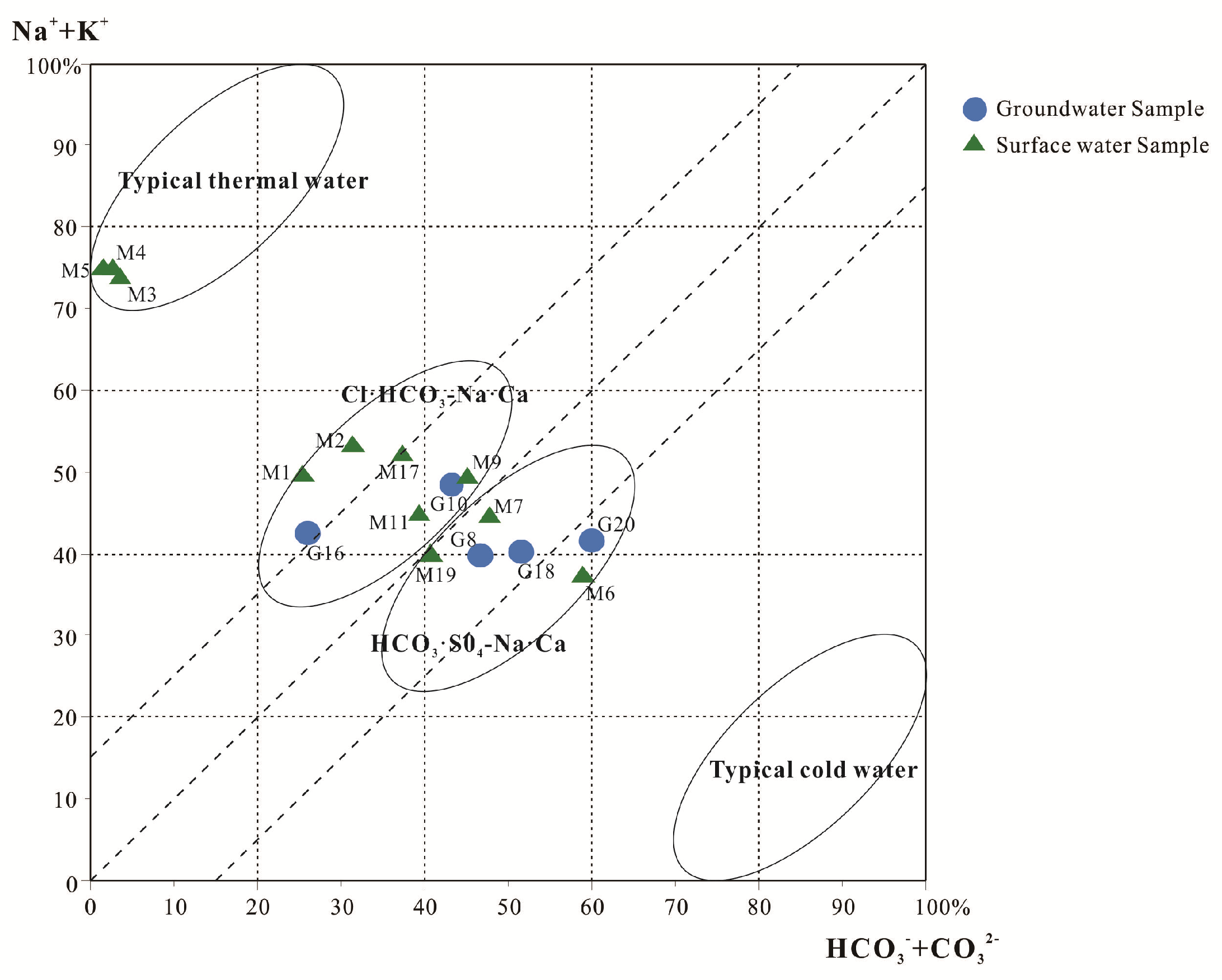

The hydrochemistry data was used to plot a Langelier–Ludwig diagram (Figure 3) to analyze the possibility of the geothermal water in this area. In the Langelier–Ludwig diagram (Figure 3), the region in upper left corner of the diagram presents typical geothermal water; the region in the bottom right corner of the diagram presents typical cold water; and the region in the center of the diagram belongs to the mixed type of cold and geothermal water with different proportions [25]. As shown in Figure 3, the M3, M4, and M5 samples are located in the geothermal anomaly region, which indicate the possibility of thermal groundwater.

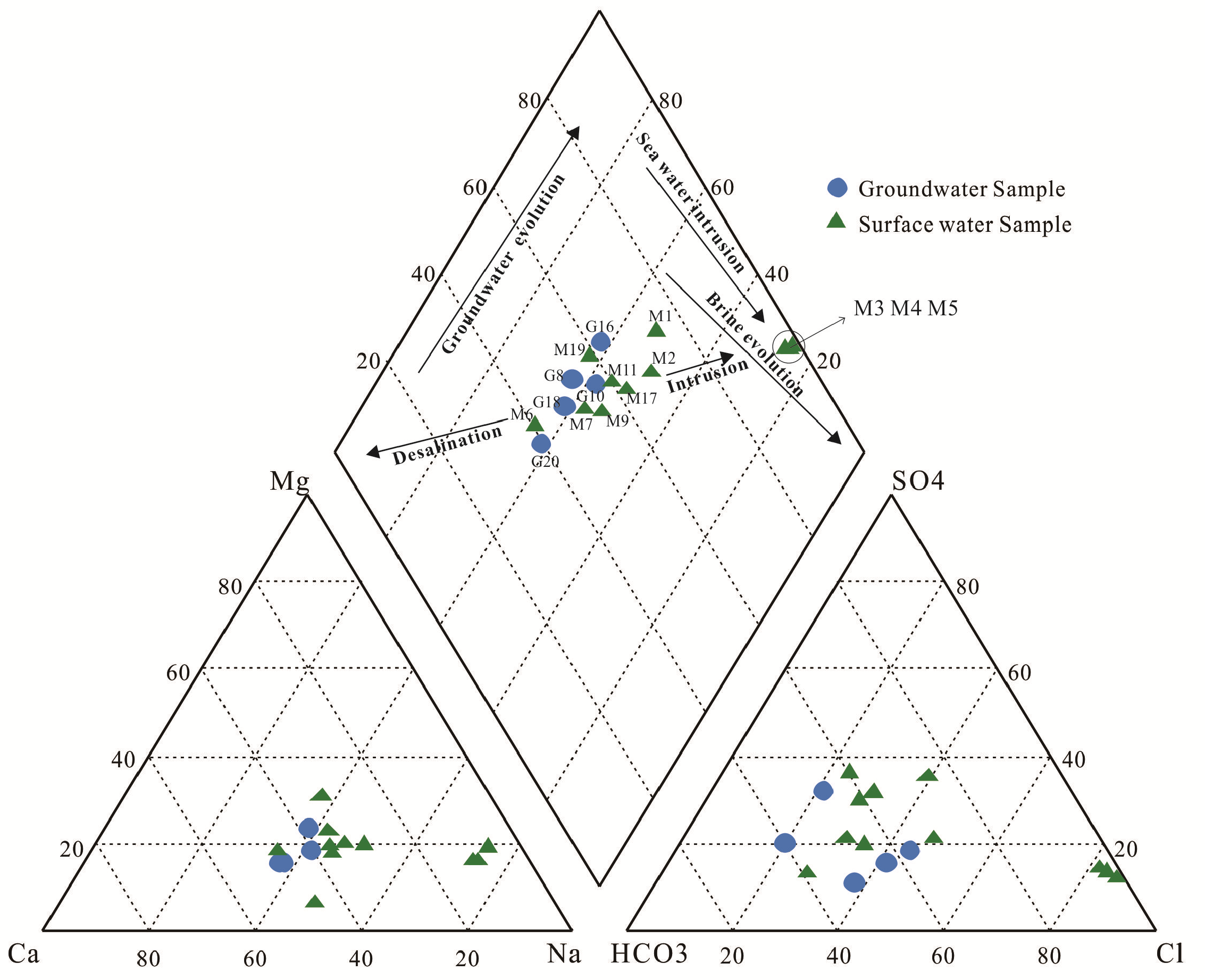

However, with the Piper plot (Figure 4), it was found that sample M3, M4, and M5 were located in the right boundary of the plot, indicating they were mixed with sea water. Meanwhile, the γNa/γCl ratio of M3, M4, and M5 is 0.856, 0.892, and 0.815, respectively, which are very close to standard seawater with γNa/γCl ratio of 0.85. Considering the spatial distribution of three samples, they are located less than 1 km from the coastline. It can be concluded that those three samples were influenced by seawater, and the above analysis also shows that the Langelier–Ludwig diagram has some limitations in determining the occurrence of geothermal water in coastal areas.

Although the three surface water samples, M3, M4, and M5, were influenced by the seawater, as shown in Figure 4 and Table 1, the other samples (including surface water and groundwater samples) have not shown a tendency to be influenced by seawater. Therefore, it can be concluded that the hydrochemical characteristics of other water samples in the study area are in a natural state without seawater influence, and those water samples (including surface water and groundwater samples) were located in the middle region of the Langelier–Ludwig diagram (Figure 3) and Piper plot (Figure 4). This result implies that water would be mixing from the geothermal water and cold water in the study area.

In addition, as shown in Table 1, the H₂SiO₃ content of water samples is generally more than 20 mg/L, which is significantly higher than the highest threshold of H₂SiO₃ content (0.65 mg/L) in natural cold groundwater. This implies the mixing process between the shallow water and deep geothermal water during the water circulation in this area.

3.2. Geochemistry Temperature Scale and Water–Rock Balance

Geothermometers could be used to estimate the water–rock equilibrium temperatures that have been reached by deep geothermal reservoirs. Classical geothermometers have their own application limitations, so using them indiscriminately to estimate reservoir temperatures might generate large deviations from the true values [26]. The study area belongs to low-medium temperature geothermal resources, and SiO₂ geothermometer was chosen to estimate the equilibrium temperature of groundwater samples [27,28].

The no evaporation loss of SiO₂ scale formula is

$$\mathrm{T}(°\mathrm{C})=1309/(5.19-\log {\mathrm{SiO}}_2)-273.15.$$

T—thermal reservoir temperature (°C), SiO₂—content of SiO₂ (mg/L).

According to the calculation results, it is preliminarily indicated that the reservoir temperature is around 40–60 °C (

Table 2. SiO₂ geochemistry temperature scale calculation of groundwater samples.

Sample	Temperature (°C)
G8	66.52
G10	65.84
G16	42.15
G18	48.20
G20	69.80
M7 (spring)	65.97

).

The SiO₂ geothermometer generally re-equilibrates during fluid flow up to the surface. Moreover, the SiO₂ geothermometer gives only the minimum temperature of the geothermal reservoir [29]. It should be noted that the SiO₂ geothermometer depends on dilution and steam loss, while the equilibrium temperatures estimated by using other geothermometry techniques, based on the chemical equilibria in Na–K–Mg systems, are less influenced by dilution and steam loss [30].

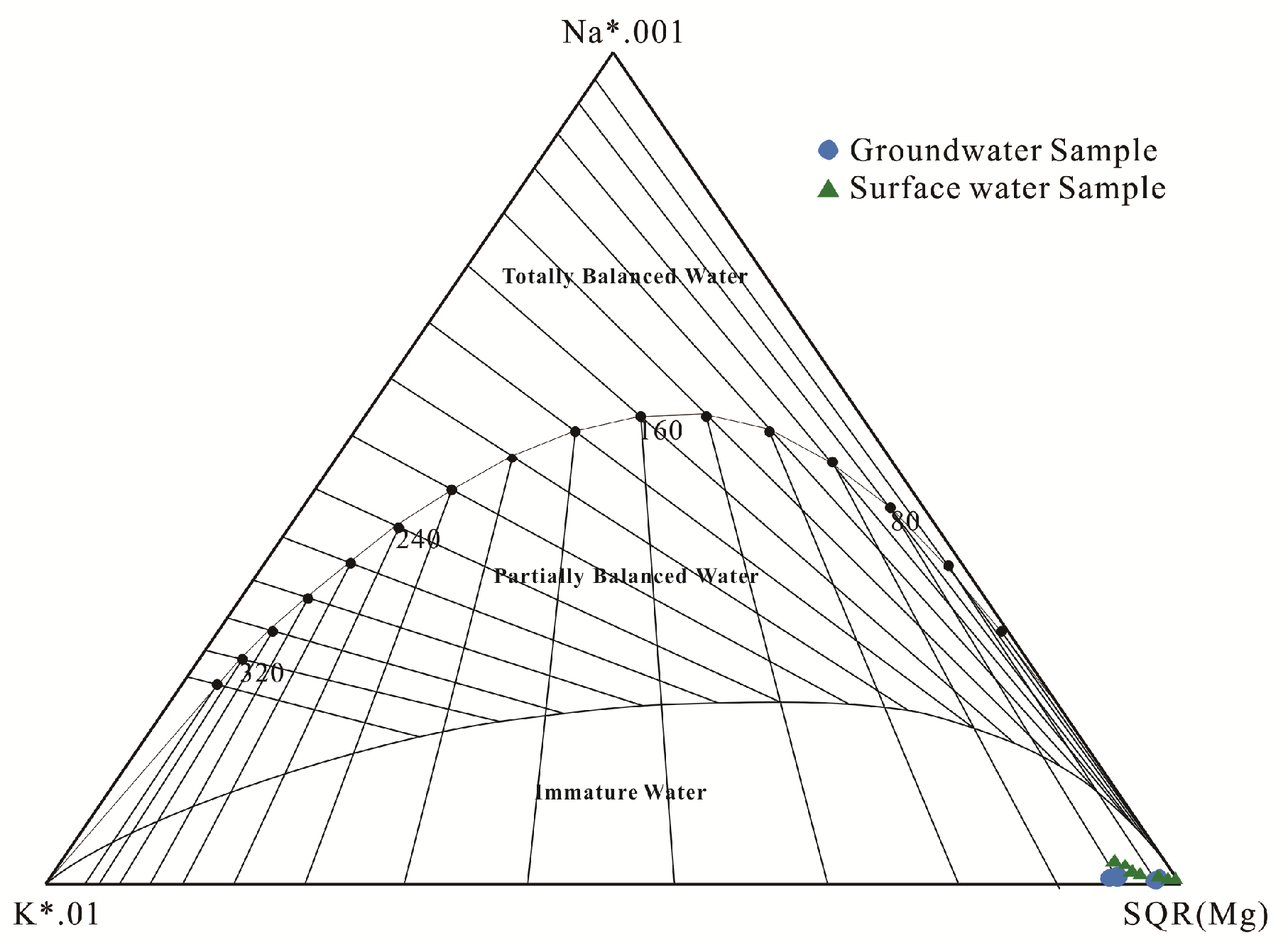

For the water samples without seawater influence, according to the Na–K and K–Mg geothermometers, the Na⁺/1000 − K⁺/10 − $\sqrt{{\mathrm{Mg}}^{2+}}$ ternary diagram was made (Figure 5). This ternary diagram could be used to evaluate water–rock balance status, to discriminate hydrochemical types, and to estimate water–rock equilibrium temperature. As shown in Figure 5, the surface water and groundwater in the study area belong to immature water, and their water–rock balance had not yet been reached. The equilibrium temperature was estimated around 70 °C, which means there had been a mixture between geothermal water and cold water (Figure 5).

Based on those above liquid phase chemical geothermometers, we deduced the geothermal temperature to be about 42–70 °C, and sort of confirmed the existence potential of geothermal resources in this study area. It should be noted that although these geothermometers are popularly used in geothermal investigation, most of these liquid phase chemical geothermometers have limitations. This is because in the chemistry of deep thermal groundwater, re-equilibration and dilution occur during flow up to the surface. Thus, sometimes, the estimated geothermal temperatures by the liquid geothermometers should be verified with other methods.

Compared to liquid phase geothermometry, gas geothermometry (such as N₂, CH₄, ³He/⁴He, Ar) is generally more reliable because dilution is less dominant. Meanwhile, gas geothermometry can also be used to analyze more information on pressure and redox conditions in the thermal water source area. In the future investigations of geothermal resources in our study area, gas geothermometry will be conducted to diagnose the geothermal resources.

In addition, the isotope geothermometric technique (especially for gas phase isotope) could be the best way for investigating the geothermal temperature, because of the strong dependency relationship between isotope fractionation and the temperature. Thus, in our future study, the isotope geothermometry, for example, carbon isotope of the CO₂–CH₄ system [31,32], will be used to obtain more accurate geothermal temperature results.

After the geothermal temperature results have been deduced, it is more meaningful for geothermal resources development to investigate the geothermal reservoir distribution. To this end, in the next section, a type of geophysical method named CSMAT (controlled source audio magnetotelluric sounding), radioactive radon, and soil thermal-released mercury detection were used to investigate the location of the fault structure geothermal reservoir.

3.3. Analysis of Geothermal Reservoirs Distribution

After we obtained the information about the occurrence of geothermal resources, geophysical method was used to determine the location of the fault structure of the geothermal reservoir. According to the geological condition of this study area (Figure 1), we know that the NNW tensional faults could constitute the ideal flowing channel and storage space of thermal groundwater. Hence, geophysical survey lines were set up along the NE direction to make sure the faults could be surveyed. Meanwhile, to determine the exact location of the fault fracture, the combination methods of CSMAT, radioactive radon (Rn), and soil thermal-released mercury (Hg) detection [33] were conducted (Figure 6).

CSAMT method could effectively detect the resistivity change in bedrock at a depth less than 3000 m. Generally, a low resistivity anomaly zone can be formed along a tensional fault, because the tensional fault area is generally filled by water and clastic rock. Thus, we can interpret the location and the direction of the tensional fault according to the distribution of low resistivity anomaly zones. Furthermore, the radioactive radon and soil thermal-released mercury anomaly can provide verification information for the geophysical interpretation of the location of the fault.

The strata in the study area are relatively simple, with the average resistivity of overlying Quaternary sediments being generally less than 100 Ω·m, while the resistivity of the underlying Jurassic volcanic clastic rock has a larger resistivity, ranging from 200 Ω·m to 7000 Ω·m (Figure 7). The reasons for the wide variation range of resistivity of the volcanic clastic rock are as follows: Firstly, different weathering degrees of bedrock at different depths and locations can lead to the resistivity differences. Secondly, faults in the bedrock can also induce a wide range of resistivity. Therefore, the existence and distribution of faults could be interpreted by examining the features of variation in resistivity.

In the survey line L1 (Figure 7), there are two distinct vertical low resistivity anomaly zones A1, A2, A3, and A4, which indicate that the lithology of those four areas has changed significantly, or that there are faults passing through. However, the strata in the study area are relatively simple and nearly horizontal, so there should not be lateral lithology changes. Therefore, the low resistivity anomaly mainly indicates the occurrence of a fault. As shown in Figure 7, the low resistivity anomaly zones of A1 and A4 deeply extend along the vertical direction. Therefore, it could be deduced that there are two large faults passing through the survey section. It should be noted that the developmental conditions of faults are different along their depth. That is because that the regional tectonic stress can become large when the depth increases, which can limit the development of fault fractures.

In survey section L2 (Figure 7), there are five relatively low resistivity anomaly zones B1, B2, B3, B4, and B5. Comparing the survey sections of L2 and L1, the locations of the low resistivity anomaly zones A1 and A4, in section L1, correspond to the relatively low resistivity anomaly zones B2 and B5 in section L2. Furthermore, below depths of 1500–2000 m, distinct low resistivity anomaly areas have been detected in section L2. It can be deduced that there are several faults around the study area, and the F1 and F2 deduced by geophysical investigation are the prominent faults in our study area.

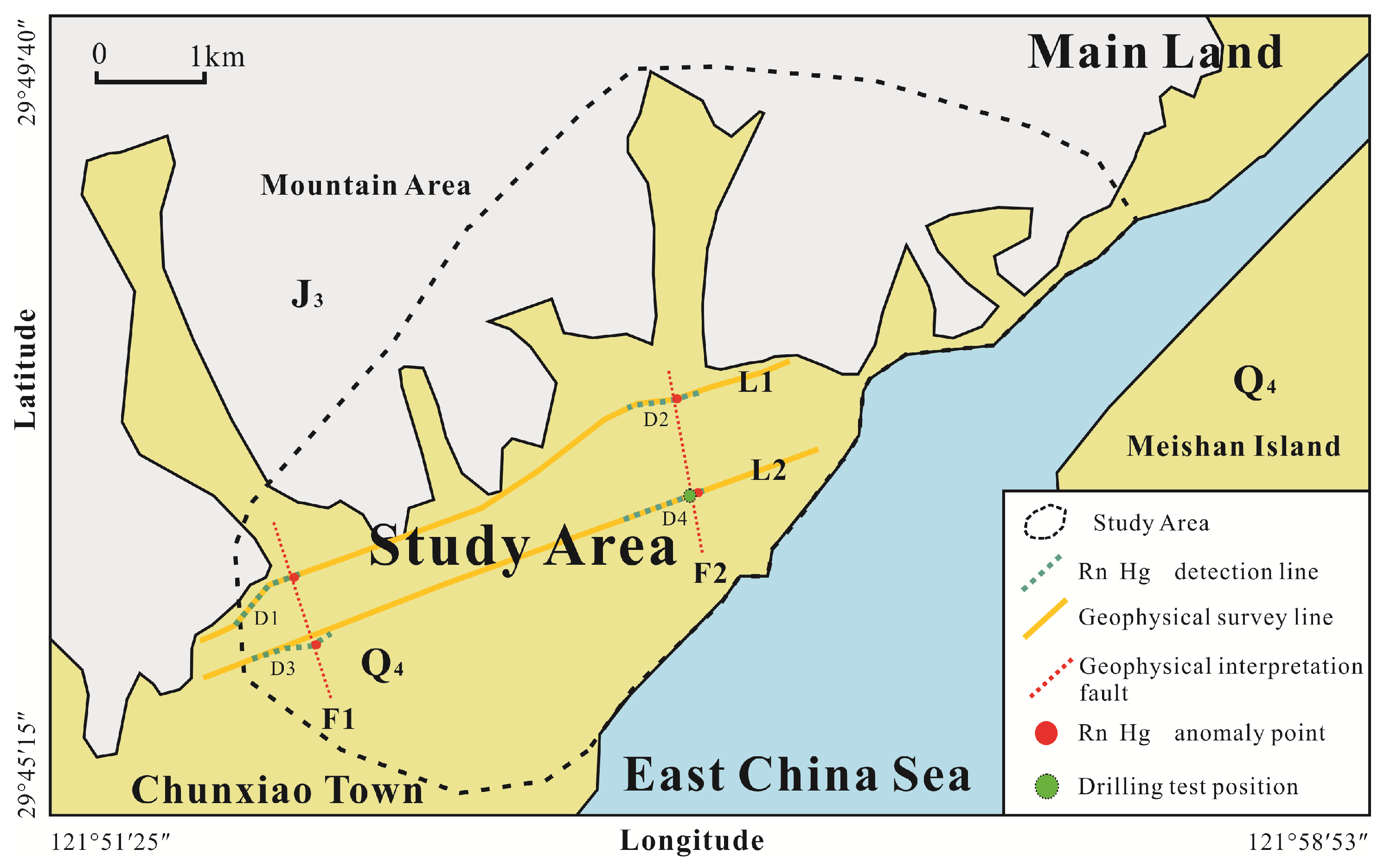

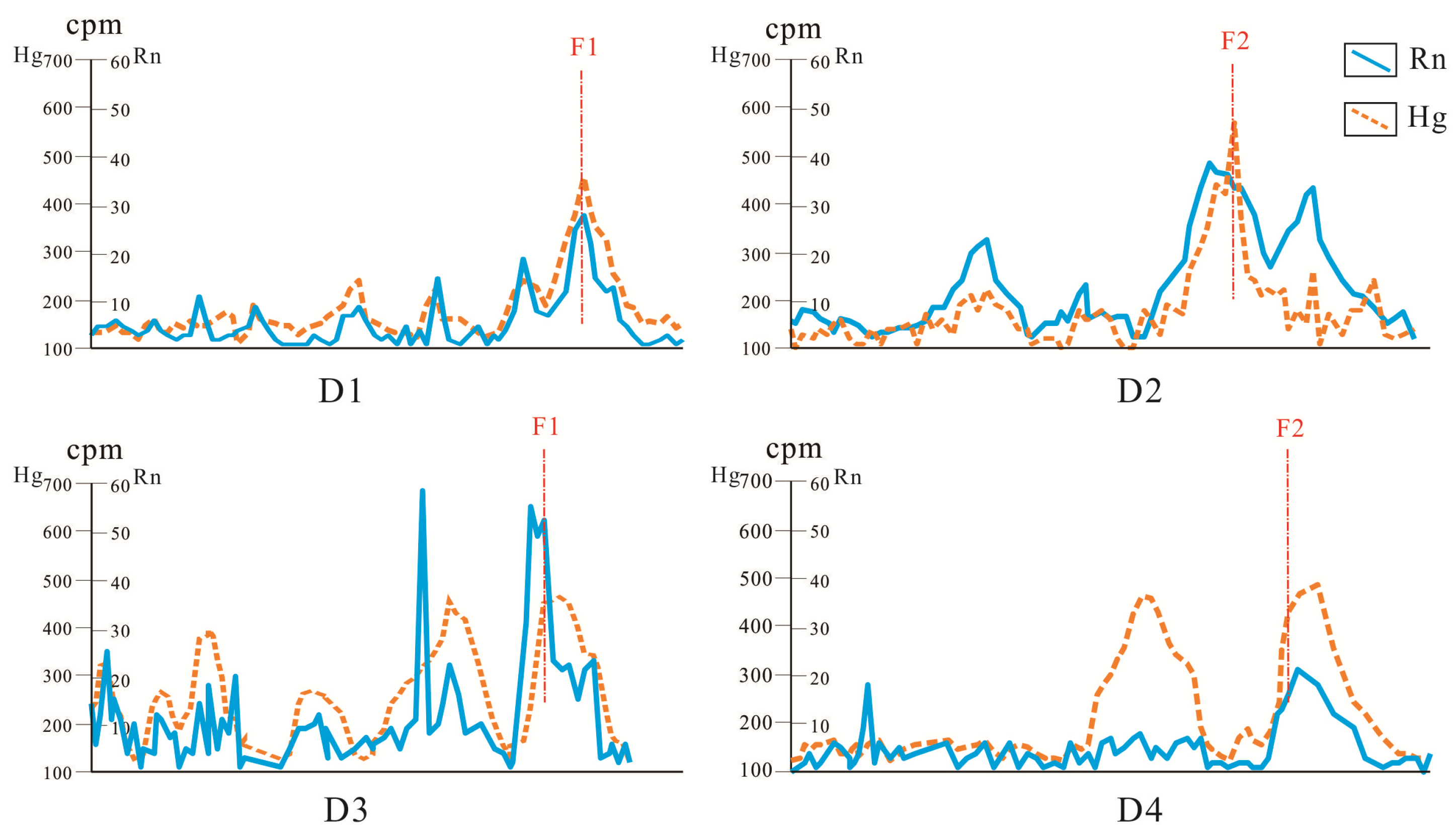

After interpreting the existence of faults using CSAMT method, radioactive radon and soil thermal-released mercury detection were used to verify the interpretation of results. As shown in Figure 8, the radioactive radon and thermal-released mercury anomalies along the fracture F1 are located in the same location of the faults. Thus, this confirms the existence of fracture F1. For the fracture F2, the interpretation result of CSAMT shows a deeply extended low resistivity anomaly zone A4 with a nearly vertical in section L1 and a nearly vertical low resistivity anomaly zone B5 in section L2.

In addition, it is noted that there is an obvious large-scale low resistivity anomaly area below a depth of 1700 m in section L2 (Figure 7), which could indicate large fault zones passing through under 1700 m. It can be guessed that there may be relatively large bedded thermal reservoirs under 1700 m. However, our guess should be verified by more drilling tests.

After confirming the existence of thermal resource and conduction fractures for thermal water circulation by hydrogeochemistry and geophysics methods, the drilling test can be conducted to verify the geothermal resources further.

3.4. Drilling Test Verification

Based on the investigative results of CSAMT detection, a drilling test was conducted in the location of fracture F2, with a drilling depth of 1800 m (Figure 6). According to the well-logging results, well temperature gradient generally increases with depth (

Table 3. Data of well temperature.

Depth (m)	Temperature (°C)	Temperature Gradient (°C/100 m)
400	32.23	-
500	33.37	1.14
600	34.58	1.21
700	35.59	1.01
800	37.66	2.07
900	39.40	1.74
1000	41.09	1.69
1100	42.77	1.68
1200	44.39	1.62
1300	46.06	1.67
1400	47.99	1.93
1500	50.38	2.39
1600	52.75	2.37
1700	55.37	2.62
1800	60.01	4.64

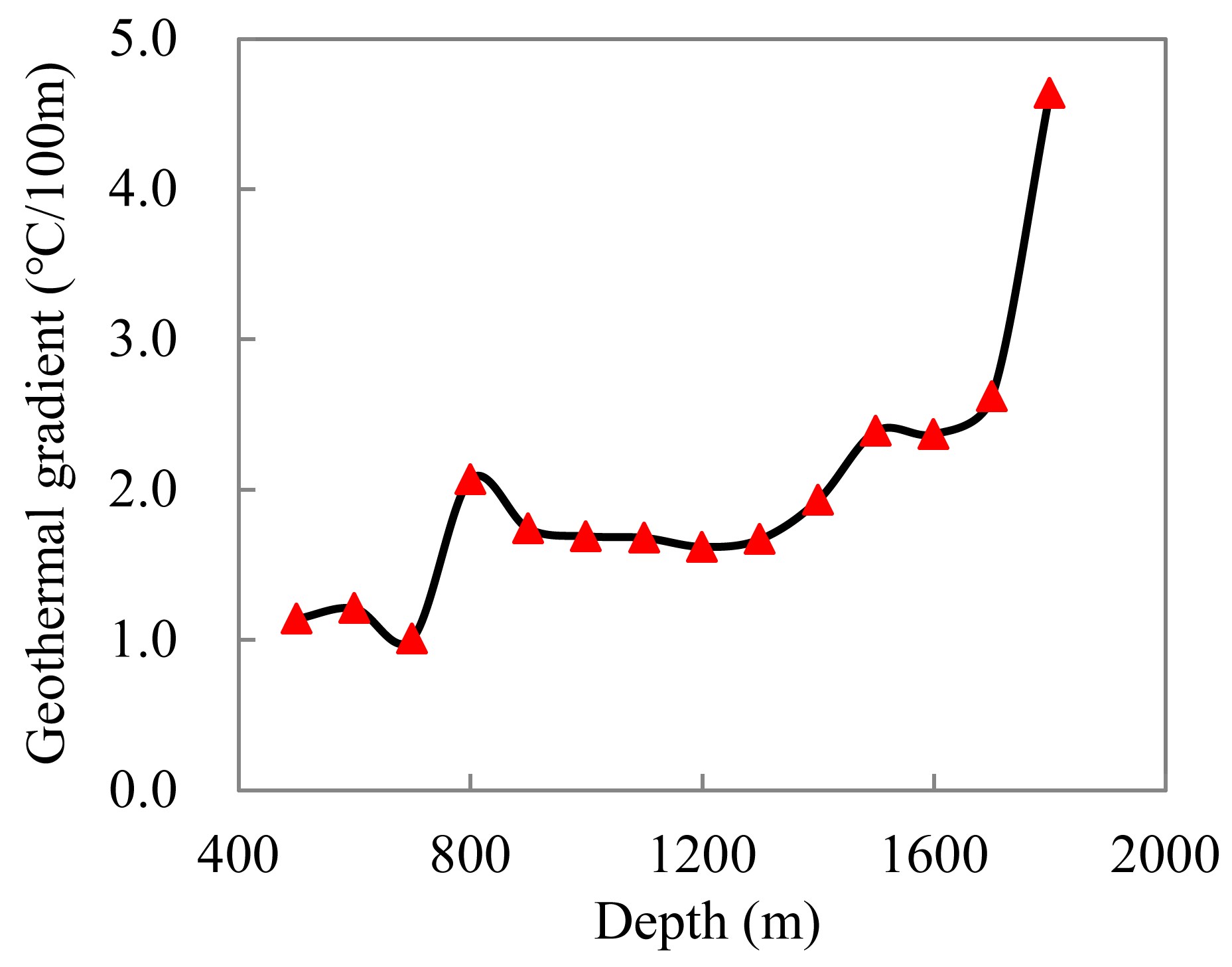

and Figure 9). Meanwhile, as shown in Figure 9, an abrupt increase of well temperature gradient occurs at depths of 1700–1800 m, which indicates the occurrence of large thermal conductive fracture structures. In addition, from depth 1200 m to 1800 m, 3 major fractured aquifers were found: (1) from depth 1273–1279 m, max porosity is 30.80%, mean porosity is 25.60%, mean permeability k is 163.8 × 10⁻³ μm²; (2) from depth 1625–1640 m, max porosity is 34.16%, mean porosity is 31.60%, mean permeability k is 359.0 × 10⁻³ μm²; and (3) from depth 1651–1663 m, max porosity is 36.40%, mean porosity is 25.30%, mean permeability k is 226.0 × 10⁻³ μm². Besides, several small-scale fractured aquifers were also found with mean porosity n > 25% and permeability k > 10⁻² μm² across the whole well length.

All of those conditions of relatively high temperature gradient (approximately 26–46 °C/km) and permeability indicated the occurrence of geothermal water resource in this area. This result is consistent with the hydrogeochemical analysis result (Table 2). At the same time, according to the hydraulic characteristics of this fissure water aquifer and condition of well formation, the water yield was estimated to be around 300m³/d after well completion.

Based on all the above geochemical, geophysical, and drilling methods, we successfully deciphered geothermal fluid occurrences in this study area. However, it should be noted that what we found is only an isolated geothermal system. It is more valuable to find a regional scale geothermal system for this area. Although it is not easy, in the future, we hope to conduct intensive hydrogeological and geochemical investigations and elaborate thermal modeling.

4. Conclusions

In order to study the geothermal resources in a coastal area of Chunxiao Town, China, we conducted synthetical investigation with hydrochemical, geophysical, and drilling methods, and we rationalized the occurrence of a valuable geothermal system in our study area. Our study could provide a great example for studying general features of low-to-medium geothermal resources in coastal areas.

In this study area, the volcaniclastic rock strata with huge thickness have good thermal insulation performance which constitute the cover conditions of the geothermal reservoir; moreover, the geological structure had created rich fractures that could constitute flowing channels and storage space for thermal water. All these geological features formed the basic condition for the existence of mid-low temperature fractured reservoirs in the study area.

By applying various hydrogeochemical methods, the possible existence of mixing processes between deep geothermal water and shallow groundwater was confirmed. According to SiO₂ geothermometer, the geothermal reservoirs temperature was estimated at around 40–60 °C. Meanwhile, based on the geophysical methods of CSAMT, radioactive radon, and soil thermal-released mercury detection, two obvious NW faults (F1 and F2) were inferred to pass through the study area, which provided a theoretical basis for confirming the location of geothermal reservoirs. In addition, a drilling test with the depth of 1800 m was carried out at the fracture site, further inferring the existence of fault F2. According to the borehole data, it was found that several fractured aquifers were developed, with mean porosity n > 25% and permeability k > 10⁻² μm², and the bottom temperature was about 60 °C. All of these results could provide important guidance for the scientific exploration and effective utilization of geothermal resources in coastal bedrock areas.
