Open AccessEditor’s ChoiceArticle

Investigating the Dynamic Influence of Hydrological Model Parameters on Runoff Simulation Using Sequential Uncertainty Fitting-2-Based Multilevel-Factorial-Analysis Method

State Key Laboratory of Eco-hydraulics in Northwest Arid Region of China, Xi’an University of Technology, Xi’an 710048, China
*
Author to whom correspondence should be addressed.
Water 2018, 10(9), 1177; https://doi.org/10.3390/w10091177
Received: 26 June 2018 / Revised: 22 July 2018 / Accepted: 23 July 2018 / Published: 3 September 2018

Abstract

Hydrological model parameters are generally considered to be simplified representations that characterize hydrologic processes. Therefore, their influence on runoff simulations varies with climate and catchment conditions. To investigate the influence, a three-step framework is proposed, i.e., a Latin hypercube sampling (LHS-OAT) method multivariate regression model is used to conduct parametric sensitivity analysis; then, the multilevel-factorial-analysis method is used to quantitatively evaluate the individual and interactive effects of parameters on the hydrologic model output. Finally, analysis of the reasons for dynamic parameter changes is performed. Results suggest that the difference in parameter sensitivity for different periods is significant. The soil bulk density (SOL_BD) is significant at all times, and the parameter Soil Convention Service (SCS) runoff curve number (CN2) is the strongest during the flood period, and the other parameters are weaker in different periods. The interaction effects of CN2 and SOL_BD, as well as effective hydraulic channel conditions (CH_K2) and SOL_BD, are obvious, indicating that soil bulk density can impact the amount of loss generated by surface runoff and river recharge to groundwater. These findings help produce the best parameter inputs and improve the applicability of the model.
Keywords: CMADS dataset; parameter sensitivity; SUFI-2; Yellow River CMADS dataset; parameter sensitivity; SUFI-2; Yellow River

1. Introduction

Hydrological models play a crucial role in simulating the hydrological process of river basins. These hydrological models are generally composed of several parameters, whose values cannot be directly determined by field observations but which can be calibrated through input/output records, which inevitably contain the basin error response [1]. Among many hydrological models, the Soil and Water Assessment Tool (SWAT) model has been widely used in many countries for its ability to completely reflect the influence of spatiotemporal heterogeneity, such as topography, soil, and land use, on the water cycle of the river basin [2,3,4]. However, the uncertainty of the SWAT model parameter is difficult to evaluate, because the model parameters are numerous and difficult to obtain. It also brings difficulties to decision-makers when the hydrological process is accurately described, as well as the regional relationship between the model parameters and the watershed characteristics. Thus, more effort is required to quantify the uncertainty in the hydrological simulation.
To date, a variety of optimization algorithms have been developed for calibration and uncertainty analysis, and good results have been achieved [5,6,7,8]. Kouchi et al. [9] use three different optimization algorithms (sequential uncertainty fitting 2 (SUFI-2), particle swarm optimization (PSO), and generalized likelihood uncertainty estimation (GLUE)), as well as eight evaluation indexes in a SWAT model for emphasizing that the combination of target functions of each optimization algorithm may lead to different optimal parameter sets, and have the same performance at the same time. Trudel et al. [10] use seven different objective functions to study hydrological model calibration and the structural uncertainty in low-flow simulations under climate change conditions. Muleta et al. [11] use comparative analysis of parameter sensitivity in the high- and low-flow period, and found that there was a significant difference in the parameter sensitivity between the high- and the low-flow periods, and the same parameters were different in different periods. However, the algorithm limitations, such as with GLUE and SUFI-2, lie in the quantitative analysis of the impact of their parameters on system performance. In fact, model parameters describing different hydrological processes have different individual effects on the model output. Factorial analysis can help study the individual and interaction effects of the parameters [12]. The factorial-analysis-of-variance method is used to diagnose the curve relationship between the parameters and the response [13,14,15]. Nevertheless, no previous study has been conducted to investigate the dynamic influence of hydrological model parameters on runoff simulation using the SUFI-2-based multilevel-factorial-analysis method.
As a case study, this study regarded the source region of the Yellow River, which is known as the “water tower” of the Yellow River basin and contributes 35% of total annual runoff from about 16.2% of the basin area [16]. More importantly, the Yellow River plays a key role in the water supply for 107 million people and for about 13% of the agricultural production of the country’s total cultivated area.
The objective of this study was to develop a SUFI-2-based multilevel-factorial-analysis method to address the dynamic influence of hydrological model parameters on runoff simulation. The main steps of the study included (i) the China Meteorological Assimilation Driving Datasets (CMADS), which were used to drive the SWAT model; (ii) a multivariate regression model to conduct parametric sensitivity analysis, which was based on the results of the Latin hypercube sampling (LHS) method; (iii) the confidence interval of each sensitive parameter, found using the SUFI-2 algorithm; and (iv) using the SUFI-2-based multilevel-factorial-analysis method, we quantitatively evaluated the individual and interactive effects of parameters on the hydrologic model output. The results of the study are helpful for improving the simulation and prediction ability of the hydrologic model for water resources.

2. Study Area

The source region of the Yellow River (Figure 1) is located in the northeast Qinghai–Tibet Plateau between longitudes 95°50′ E and 103°30′ E and latitudes 30°30′ E and 35°0′ E, covering 12.19 × 104 km2 and occupying 16.2% of the entire Yellow River basin (75.24 × 104 km2) [17,18]. The average temperature is about 5 °C, and the temperature here varies greatly between day and night. The average annual precipitation varies between 320 and 750 mm. Precipitation in June to September accounts for 80% of the total year. Alpine vegetation and alpine meadows are the major vegetation types, accounting for the total area of 70% in 2010. The major soil type in the watershed is loam, and most of the soil has poor water retention and low fertility.

3. Methodology

This paper uses the CMADS data set to drive the SWAT model. The constructed SWAT model employs parameters to depict the characteristics of the hydrological process. To identify the parameter sensitivity to the runoff simulation of the SWAT model, we applied the LHS-based multivariate regression model. Then, the SUFI-2 algorithm was used to explore the confidence interval of these identified sensitive parameters. We employed the multilevel-factorial-analysis method to quantitatively evaluate the individual and interactive effects of the parameters on the hydrological model output, i.e., the simulated discharge. Finally, the physical mechanism of the parameters involved in the hydrological process was traced.

3.1. Construction of the Soil and Water Assessment Tool Model

The inputs required for the SWAT model include a DEM (digital elevation model), land use, and soil data sets. The DEM is the Shuttle Radar Topographic Mission (SRTM) (90) DEM, which comes from the geospatial data cloud (http://www.gscloud.cn). The soil data were obtained from the China Soil Data Set (v1.0), based on the World Soil Database (HSDW). The land use data (LCC2010) of the study region were derived from the dry area scientific data center in the cold region. The China Meteorological Assimilation Driving Datasets for the SWAT model Version 1.1 (CMADS V1.1, http://www.cmads.org), which was developed by Dr. Xianyong Meng from the China Agricultural University (CAU), has received worldwide attention [19]. This data set is widely used by countries throughout the world [20,21,22,23,24,25,26]. Meng et al. [27] chose the Manas River Basin (MRB) in China as a research area, in order to verify the adaptability of the China Meteorological Assimilation Driving Datasets for the Soil and Water Assessment Tool model (CMADS); the results showed that the SWAT model could reproduce the runoff process of two stations (Kenswat and Hongshanzui) in the research area well using data from CMADS. Zhang et al. [28] used CMADS to drive the SWAT model for a runoff simulation in the Hunhe River Basin, and the results showed that both Nash-Sutcliffe efficiency coefficient (NSE) values and R2 were found to be greater than 0.74 in calibration, and are greater than 0.58 in validation. Related results indicate that CMADS performs particularly well in runoff simulation.

3.2. Parameter Sensitivity Analysis

There are many parameters in the SWAT model. Different parameters have different sensitivities to the model simulation [29,30,31]. The model can eliminate the parameters that have little influence on the model results from sensitivity analysis, and then reduce the influence of the uncertain transmissions. This study used NSEs as an objective function, defined as
NSE = 1 i = 1 n ( Q o b s , i Q s i m , i ) 2 i = 1 n ( Q o b s , i Q ¯ o b s ) 2
where Qsim,i is the ith simulated discharge, Qobs,i is the ith observed discharge, Q ¯ o b s is the mean of the observed data, and n is the simulation period.
According to the physical meaning of each parameter, we calibrated the SWAT model using the same initial parameter ranges, according to the calibration protocol presented by Abbaspour [32]. The sensitivity analysis of the parameter values is generated by LHS sampling, and the value of the target function by the multiple regression model. The calculation expression of the parameter sensitivity is written as
g = α + i = 1 m β i b i
where g is the objective function value, α is the regression constant, β is the coefficient of parameters, bi is the parameter value, and the m is the number of parameters. The t-test method is used to determine the sensitivity of each parameter.
The following method is used to deduce the confidence interval of each parameter. First, the sensitivity matrix calculation formula for the objective function is
J i j = Δ g i / Δ b j i = 1 , , C 2 n , j = 1 , , m
where C 2 n indicates the number of rows in the sensitivity matrix, j represents the number of parameters, i means the group number, Δbj is the parameter of the j rate, and Δgi represents the parameter sensitivity. The Hessian matrix calculation formula for the objective function is
H = J T J
where H indicates the haessen matrix, J represents the matrix of the number of parameter columns.
According to Kramer’s theorem, the covariance matrix C for estimating the lower limit of the parameter is calculated as
C = s g 2 ( J T J ) 1
where s g 2 is the deviation of the result of the n simulation of the target function.
The standard variance of parameter bi and its 95% confidence interval (CI) are calculated by the diagonal elements in C, as follows:
s j = C j j
b j , l o w e r = b j t ν , 0.025 S j
b j , u p p e r = b j + t ν , 0.025 S j
where b j is the optimal solution of the parameter b, v is the degree of freedom (n − m), bj,lower is the lower limit of the confidence interval, and bj,upper is the upper limit of confidence interval.

3.3. Parameter Uncertainty Evaluation Index

In order to judge the influence of parameter uncertainty on runoff simulation under different levels, this paper uses the two indexes of variation rate (VR) and the relative length of the confidence interval (RL) as the model uncertainty evaluation index. These can be expressed as
V R = A b s | Q s i m Q o b s | Q o b s
R L = Q u p p e r Q l o w e r Q o b s
where VR is the variation rate, RL is the relative length of confidence interval, Qupper is the upper limit of the runoff simulation under the 95% confidence interval, and Qlower is the lower limit of the runoff simulation under the 95% confidence interval.

3.4. Multilevel Factorial Analysis

The factorial analysis is a multivariable reasoning method. It performs excellently in testing the effects of individual variables and their interactions on the dependent variable [33,34,35]. Factors A and B have m and n levels, respectively. Thus, a full-factor factorial design contains all possible factor combinations. The factor model for this factorial experiment can be expressed as
Y i j k = μ + τ i + β j + ( τ β ) i j + ε i j k { i = 1 , 2 a j = 1 , 2 b k = 1 , 2 n
where μ is the total average effect, εijk is a random error effect, τi is the effect of factor A at the ith level, βj is the effect of factor B at the jth level, and ( τ β ) i j is the interaction effect when A is at the ith level and B is at the jth level. There is a total of abn experiments, where n is the number of repeated experiments. In order to test the influence of the parameter main effect and the interaction effect on the runoff simulation, the F-statistic can be used as follows:
F A = M S A M S E = S S A / a 1 S S E / a b ( n 1 )
F B = M S B M S E = S S B / b 1 S S E / a b ( n 1 )
F A B = M S A B M S E = S S A B / ( a 1 ) ( b 1 ) S S E / a b ( n 1 )
where MSA, MSB, MSAB, and MSE are the mean squares for factors A, B, their interaction with each other, and the error component, respectively. The SSA, SSB, SSAB, and SSE are the sum of squares for factors A and B, their interaction, and the error component, respectively. Each mean square deviation is the squared sum of the corresponding effects, divided by its degree of freedom. SST is the sum of the total effect square. This can be calculated by
S S A = 1 b n i = 1 a y i .. 2 y ... 2 a b n
S S B = 1 a n j = 1 b y . j . 2 y ... 2 a b n
S S A B = 1 n i = 1 a j = 1 b y i j . 2 y ... 2 a b n S S A S S B
S S T = i = 1 a j = 1 b k = 1 n y i j k 2 y ... 2 a b n
S S E = S S T S S A B S S A S S B
where yi.., y.i., and yij. represent the ith level of the factor A, the jth level of the factor B, and the ijth interaction between factors A and B, respectively.
In particular, there are k factors in the 3k factorial design. Each factor has three levels, so there is a total of 3k factor level combinations and 3k degrees of freedom. There is a total of k main effects, each of which is two degrees of freedom. There is an interaction effect of k factors, and the degree of freedom is 2k − 1. If n repeated tests are performed for each factor level combination, the total degree of freedom is n3k – 1, and the degree of freedom of the error is 3k(n − 1). The sum of squares for the main effects and interaction effects is usually obtained by the factorial analysis method.

4. Results and Discussion

4.1. Parameter Sensitivity Analysis, Calibration, and Verification of Model

Parameter sensitivity analysis is an indispensable part of the evaluation model, and it is helpful in developing a deep understanding of the model characteristics. Hence, this paper takes NSE as the objective function, and uses LHS-based multiple regression models to analyze the parameter sensitivity. The t-test method is used to determine the parameter sensitivity—the higher the absolute value of t, the stronger the sensitivity of the parameters. The related CI of the parameters was determined by the SUFI-2 algorithm. Parameters’ descriptions and their CIs are listed in Table 1. For the most part, specific values are given for the parameters. However, some parameters, such as the runoff curve number, can take on a variety of values. During calibrations, these parameters may be changed by increasing or reducing them by a certain percentage, until the calibration objective function is met. Thus, values of these parameters have been reported as a percentage change from a specified value. The Latin Hypercube sampling (LH-OAT) method was performed for 10 parameters, in order to screen out the most sensitive parameters of the model, and the results are illustrated in Figure 2.
As we can see from Figure 2 and Table 1, the most sensitive parameters for runoff simulation are followed by SOL_BD, CN2, ESCO, CH_K2, SOL_K, SOL_AWC, SFTMP, ALPHA_BF, HRU_SLP, and GWQMN. In order to design the experimental scheme, the four most sensitive parameters are selected: The soil bulk density (SOL_BD) was the most sensitive parameter, followed by the Soil Convention Service (SCS) runoff curve number for moisture conditions II (CN2), the soil evaporation compensation coefficient (ESCO), and effective hydraulic channel conductivity (CH_K2). A detailed interpretation of these parameters will be provided in the following section.
On the basis of CMADS (2008–2015), this paper selected years 2008–2009, 2010–2013, and 2014–2015 as warm-up, calibration, and validation periods, respectively. The NSE, R2, and the absolute value of relative error (|Re|) indicators were used to evaluate the model for calibration and validation periods. The results show that the NSE values were 0.73 and 0.81, respectively, R2 was 0.82 and 0.87, respectively, and |Re| was less than 10% for both periods. The results indicate a good performance of SWAT in describing the runoff simulation, based on the CMADS data in the source region of the Yellow River. Che [37] investigated the source area of the Yellow River, and used the SWAT model to simulate the daily runoff. The results of the study showed that both NSE values and R2 were less than 0.74 in calibration (validation), which means that CMADS data is superior to other data in watershed runoff simulation.
Figure 3 shows the simulated daily runoff from 2010–2015 (i.e., the calibration and validation periods) for the Tangnaihai hydrological station. Specifically, this figure indicates that the 95% CI width of the daily runoff simulation varies with the flow amount. To further examine the above results, three different frequencies are set, in order to identify the influence of parameter uncertainty on flow of different levels (i.e., more than 75%, between 25% and 75%, and less than 75%).
Figure 4 shows that when the flow at the high level, the variation rate and the relative length of confidence interval are small; on the contrary, as the flow reaches the lower level, the variation rate and the relative length of confidence interval are larger. Given this, we can preliminarily infer that the physical mechanism of runoff generation dynamically changes during different periods.

4.2. Multilevel Factorial Analysis and Dynamic Changes in Parameter Sensitivity

As mentioned, the physical mechanism of runoff generation varies at different periods. In the SWAT model, parameters reflect the characteristics of the hydrological processes. Thus, based on the above identified sensitive parameters, we used the analysis of variance method (ANOVA) to quantify the response of individual and interactive parameters in the runoff simulation.
Four parameters, CN2, ESCO, CH_K2, and SOL_BD, were selected as factorial experimental factors (denoted by A~D, respectively). Subsequently, we designed the 34 factorial design scheme shown in Table 2.
Figure 5 shows the parameter contributions for the hydrological responses. The results show that parameter D is significant at different times, especially in the non-flood period (November to March), when its contribution reached 0.98. The contribution of parameter A in the pre-flood period (April to May) increased, but the effect was relatively small, and D was still dominant. The contributions of A, B, and C during the flood period (June to September) gradually increased, whereas D gradually weakened. The linear individual effects of A, B, and D, as well as the AC and CD interaction effects, are thus significant for modelling runoff simulation. During the post-flood period (October), the contributions of A, B, and C weaken, while parameter D increases.

4.3. The Individual and Interactive Effects of Parameters on the Hydrologic Model Output in Different Periods

From the previous section, we find that the parameter sensitivity in different years shows similar characteristics in the non-flood, pre-flood, flood, and post-flood periods. To quantitatively evaluate the dynamic effect of the parameters on the runoff simulation, we selected 2012 as a typical year, and three consecutive days of non-flood, pre-flood, flood, and post-flood periods in a typical year. The objective is to explore the dynamic parameter individual and interaction effects on the runoff simulation. For simplicity, this article only presents the first-day results of the four periods in a typical year, and the other results are attached to Supplementary Materials.

4.3.1. The Statistically Significant Individual and Interaction Effects on Runoff Simulation in Non-Flood Period

Table 3 presents the results of variance analysis for the simulation of daily runoff in the non-flood period. In this paper, a p-value of less than 0.05 indicates that parameters A, B, and D have significant effects on the model output in the non-flood period. In particular, the influence of D is more significant. Moreover, the interaction effects of AB, AD, and BD have statistical significance.
For the non-flood period, the main effects of these parameters on the runoff simulation are shown in Figure 6. From this, we see that changes in the levels of A, B, and C have a weak effect on the runoff simulation, while changes in the level of parameter D have significant negative effects on the runoff simulation.
In essence, during the non-flood period, D is an important parameter affecting the model simulation, which is closely related to the high elevation and cold temperatures of the source region of the Yellow River, characterized by low rainfall and low temperature. Moreover, lower flow values relate to lower compensation for glaciers and snowmelt in soil water, resulting in decreased streamflow [38,39].
Figure 7 presents the parameter interaction effects in the non-flood period of the runoff simulation. Results show that the AD, BD, and CD interaction effects are significant in this period, while the others have less influence on the runoff simulation. The main reason for this is that the soil bulk density (i.e., parameter D) is the parameter that has the greatest impact on the runoff simulation.
Note that for the AD interaction plot in Figure 7 (bottom left), the red, blue, and black lines represent parameter D at low, medium, and high levels, respectively. This plot discloses that the changes differ across the three levels of parameter D, depending on the level of parameter A. When D is at the high level, A has obvious negative effects. However, when D is at the middle level, the negative effect of A is weakened. This result further indicates that A has a significant impact on the runoff simulation.

4.3.2. The Statistically Significant Individual and Interaction Effects on the Runoff Simulation in the Pre-Flood Period

The parameters and their interactions have statistically significant effects on the runoff simulation (Table 4). The linear individual effects of A, B, and D on the runoff simulation are significant in the pre-flood period, while other parameter effects (individual and interaction) have little impact on the response.
Figure 8 presents the individual effect plot for the four parameters in the pre-flood period. Results show that A has a positive effect on the runoff simulation, while D has a negative effect. Nevertheless, parameters B and C have a slight effect on the flow.
The flow value reaches 112.12 m3/s when A is at the high level. In contrast, the simulated flow value is only 96.20 m3/s. Furthermore, compared with other levels of runoff simulation, the three levels of D lead to smaller runoff simulation values. These results are attributed to a higher compensation for snow melt, and thus increased flow [40]. However, the slope of D is irregular, implying an obvious nonlinear effect on the runoff simulation, owing to the complex topography and soil characteristics of the basin.

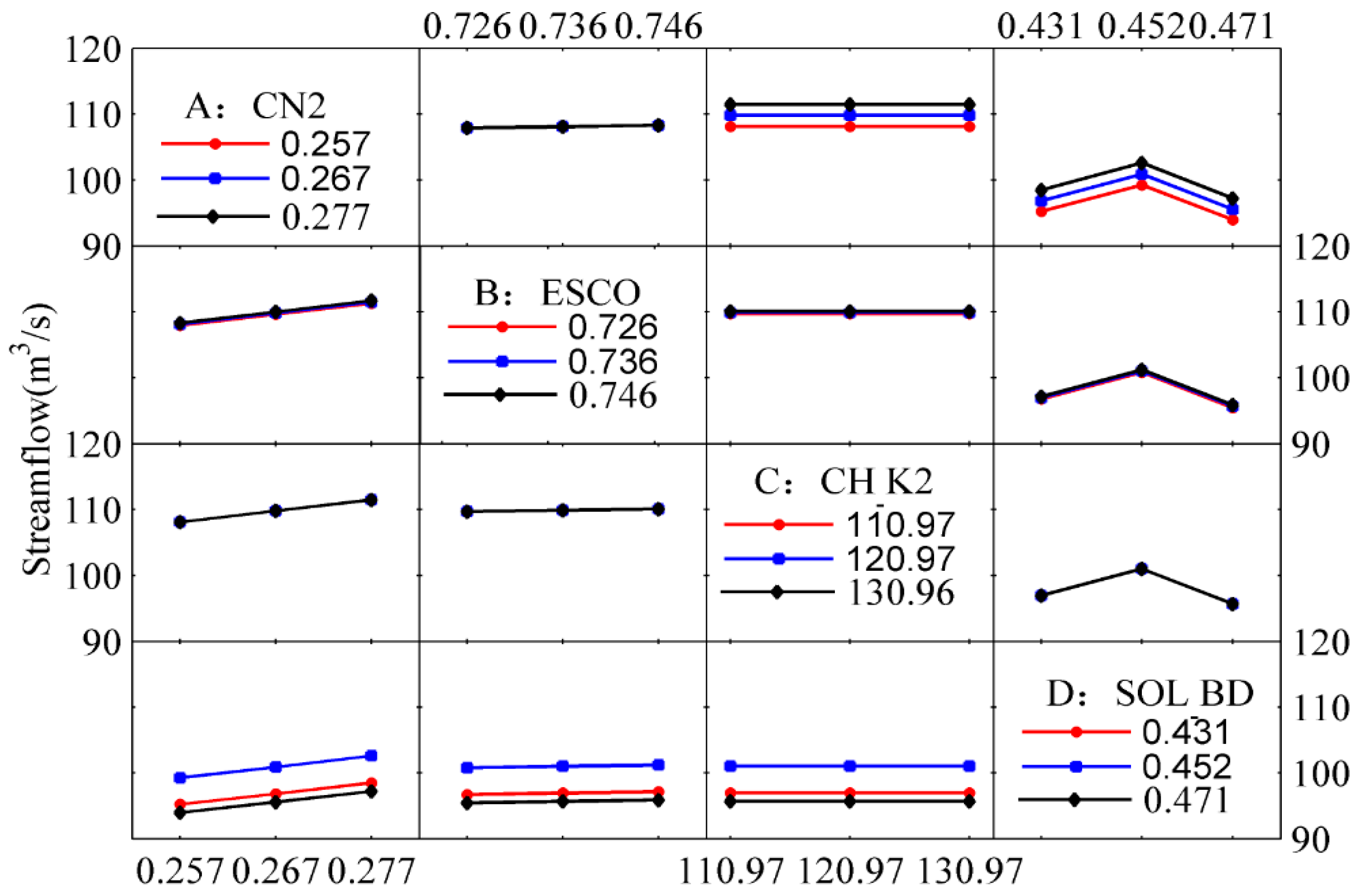

Figure 9 depicts the parameter interaction effects in the pre-flood period. If the slope of one curve differs from another, there are interactive effects between the parameters. The parallel lines in the interaction plots of parameters A, B, C, and D indicate tiny parameter interactions. Specifically, the interaction of A and B, as well as B and C, are not apparent in Figure 9.
In addition, the results indicate that parameter A has the largest nonlinear effect on the runoff simulation, while the other nonlinear effects are weak. The identical results of these plots can be used to confirm the findings in the above numerical value model.

4.3.3. The Statistically Significant Individual and Interaction Effects on the Runoff Simulation in the Flood Period

The results of ANOVA for the runoff simulation during the flood period are shown in Table 5. Results indicate that parameters A, B, C, and D have significant linear main effects on the runoff simulation. Among them, the significance of A is the strongest, followed by D, B, and C. Meanwhile, parameters AC, AD, and CD interaction effects are of important significance.

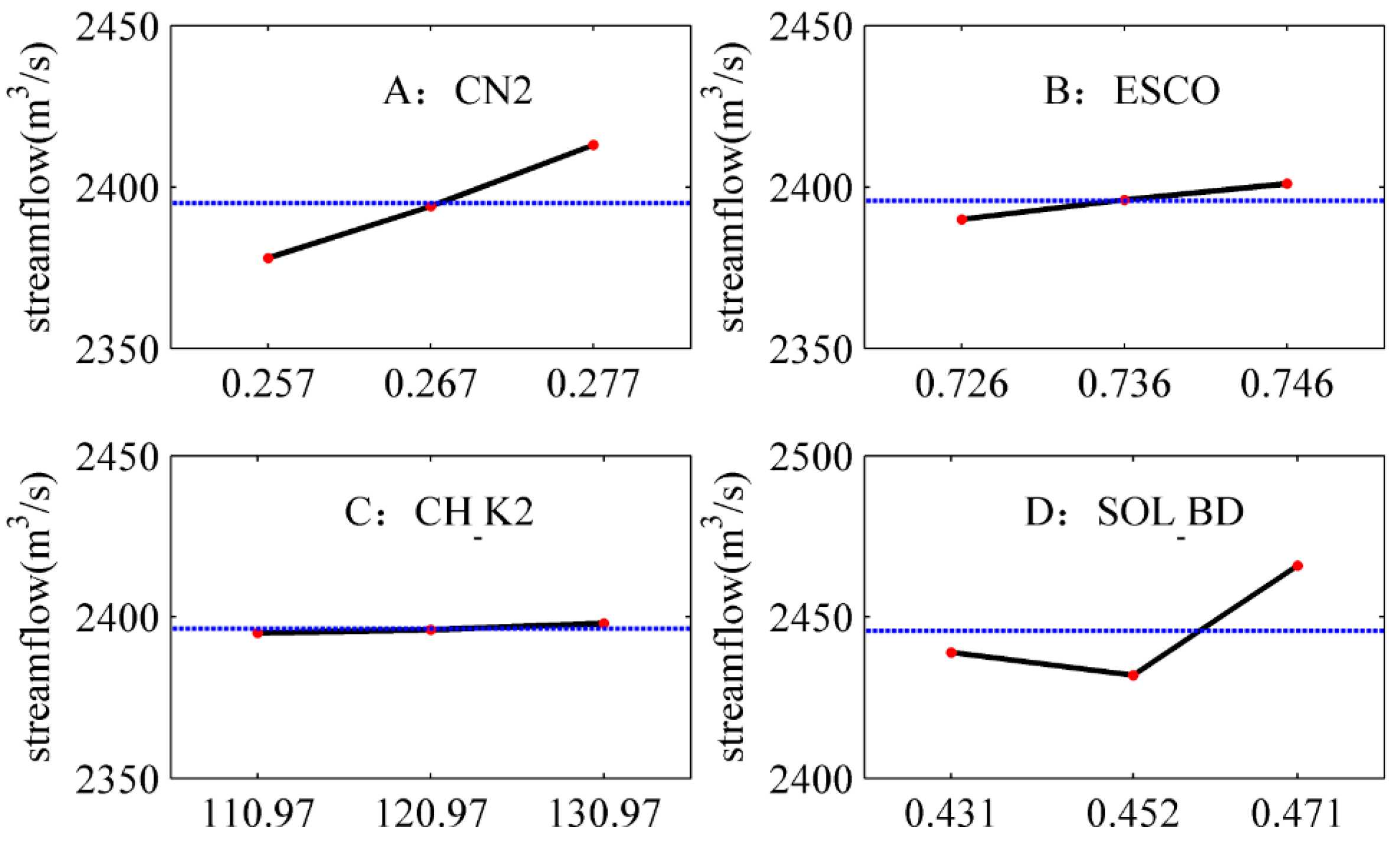

The influence of the main parameter effects on the runoff simulation during the flood period is shown in Figure 10. It shows the influence of the parameters on the runoff simulation and compares the relative size of the influence. Parameter A has the largest positive individual effect when A is at low, middle, and high levels, when the simulated flow value is 2375.24, 2398.45, and 2420.22 m3/s, respectively. Parameter A is a comprehensive reaction of the underlying surface characteristics, which directly determines the size of the flow. However, parameter D has the greatest nonlinear effect.
Therefore, the smaller the soil bulk density, the weaker the ability to resist precipitation and thus increased flow. However, with the increase of D, the ability to resist precipitation is enhanced, which aids infiltration; however, the flow is then increased, due to a sharp decrease in soil porosity [41,42].

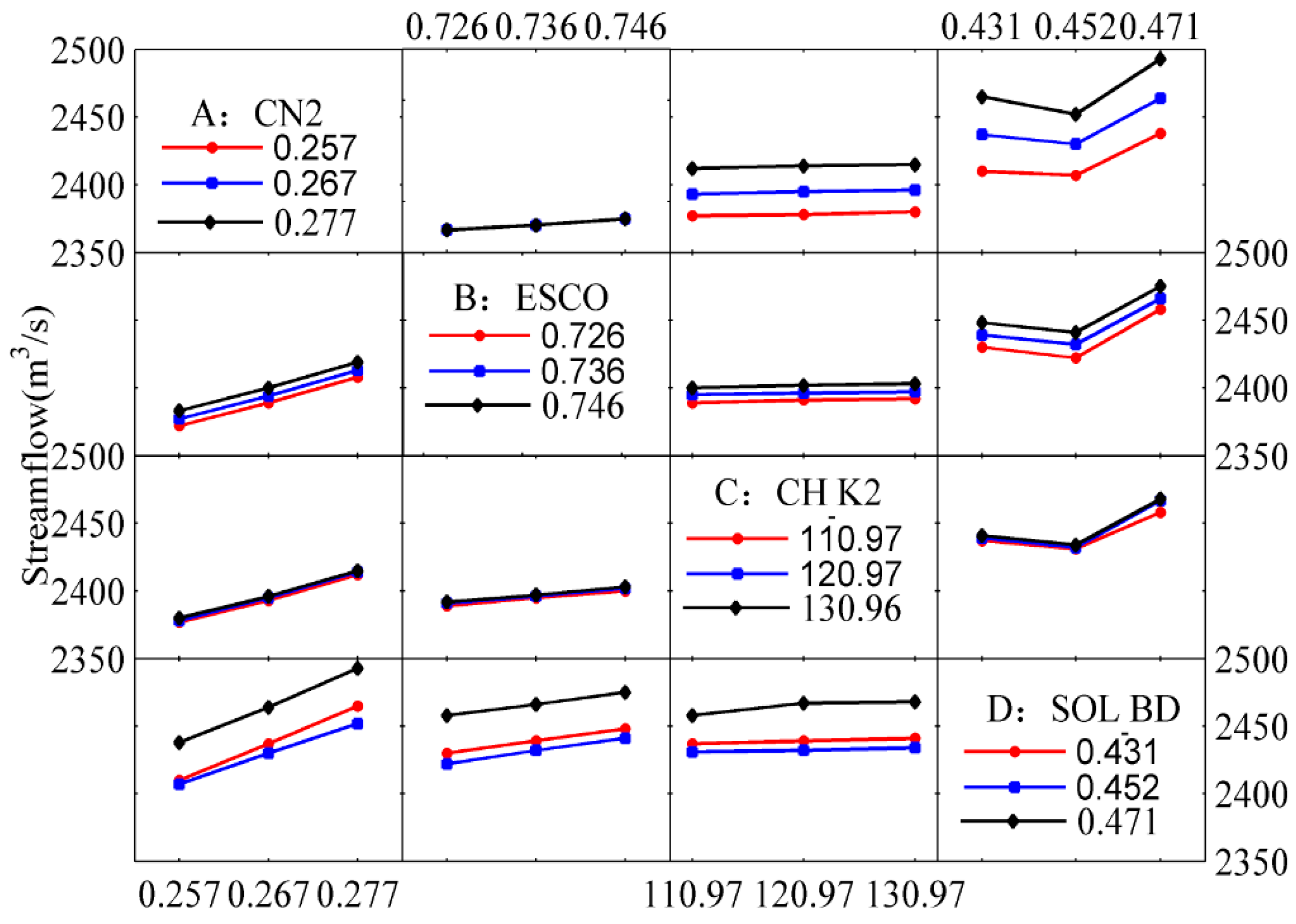

Figure 11 plots three level interaction effects of the flood period for the four parameters. Results disclose that AC, AD, and CD have noticeable interaction effects, while the others have almost no interaction effect.
Take the plot on the bottom left, with the interaction of parameters A and D as an example. The plot depicts the changes in D at its low, middle, and high levels, depending on the level of A, as well as the interaction between the low level and the middle level curve of D. This reveals the interaction of A and D has a significant influence on the runoff simulation. Therefore, the parameter interaction must be emphasized at calibration.

4.3.4. The Statistically Significant Individual and Interaction Effects on the Runoff Simulation in the Post-Flood Period

Table 6 shows the ANOVA results for the runoff simulation in the post-flood period. Results reveal that the selected parameters, A, B, and D, have a significant (p < 0.05) effect on the runoff simulation; among them, the significance of D is the strongest. Similarly, the interaction effects of A and C have an important impact on the runoff simulation (Table 6).

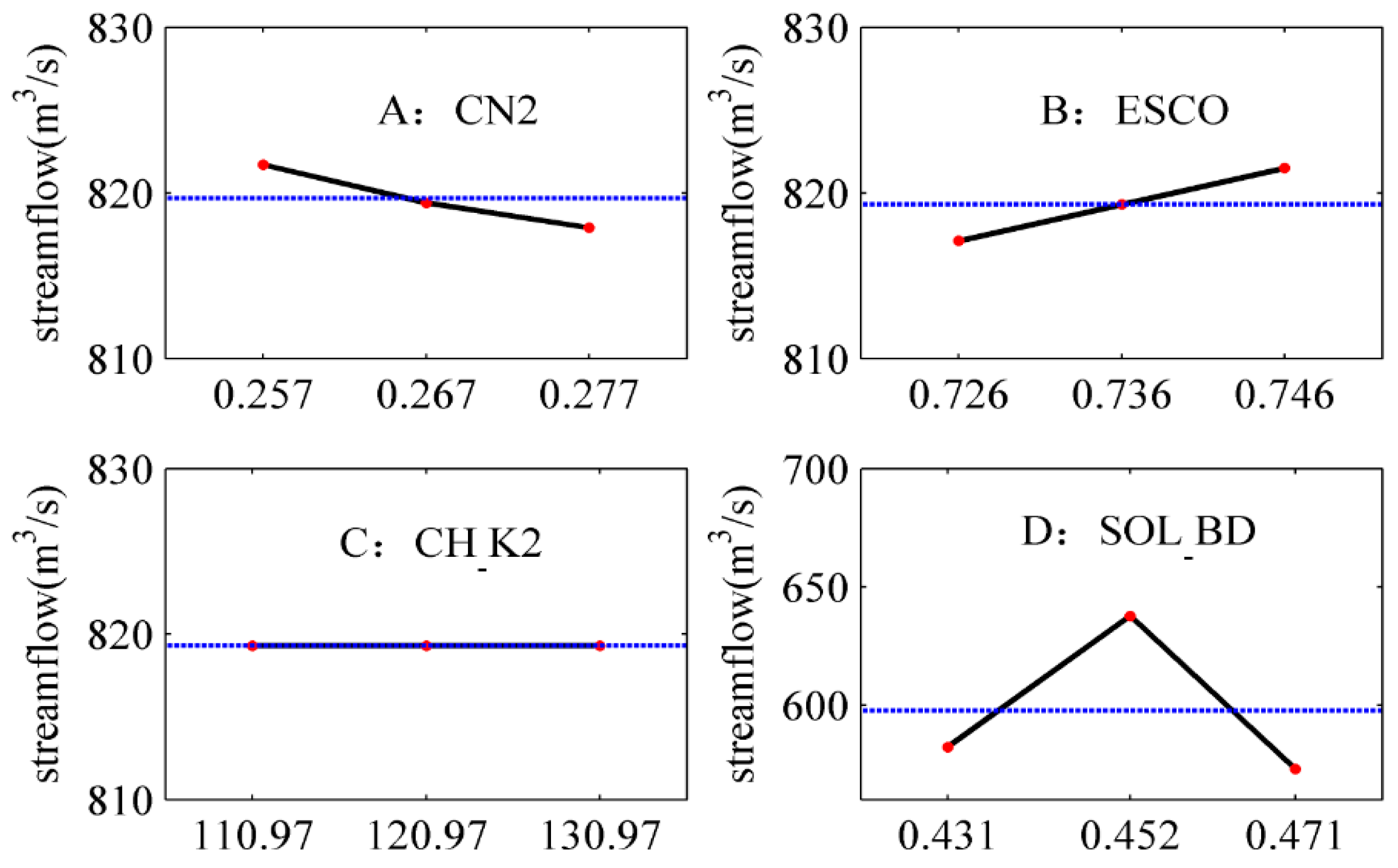

The individual parameter effects for the runoff simulation in the post-flood period are shown in Figure 12. The result shows that the level change of D has the greatest negative effect on the runoff simulation. In essence, the above results are attributable to the continuous precipitation decrease, and the river runoff mainly depends on the recharge of the interflow, e.g., the greater the A value, the less recharge in the soil. Moreover, a decrease in soil evaporation is caused by lower temperature. The nonlinear variation of the D curve is mainly due to the complex physical characteristics of soil. When D is at the low level, the soil viscosity is larger, and the interflow has less recharge for the runoff. As D reaches the high level, less precipitation and lower porosity combine to reduce runoff in the post-flood period [43].

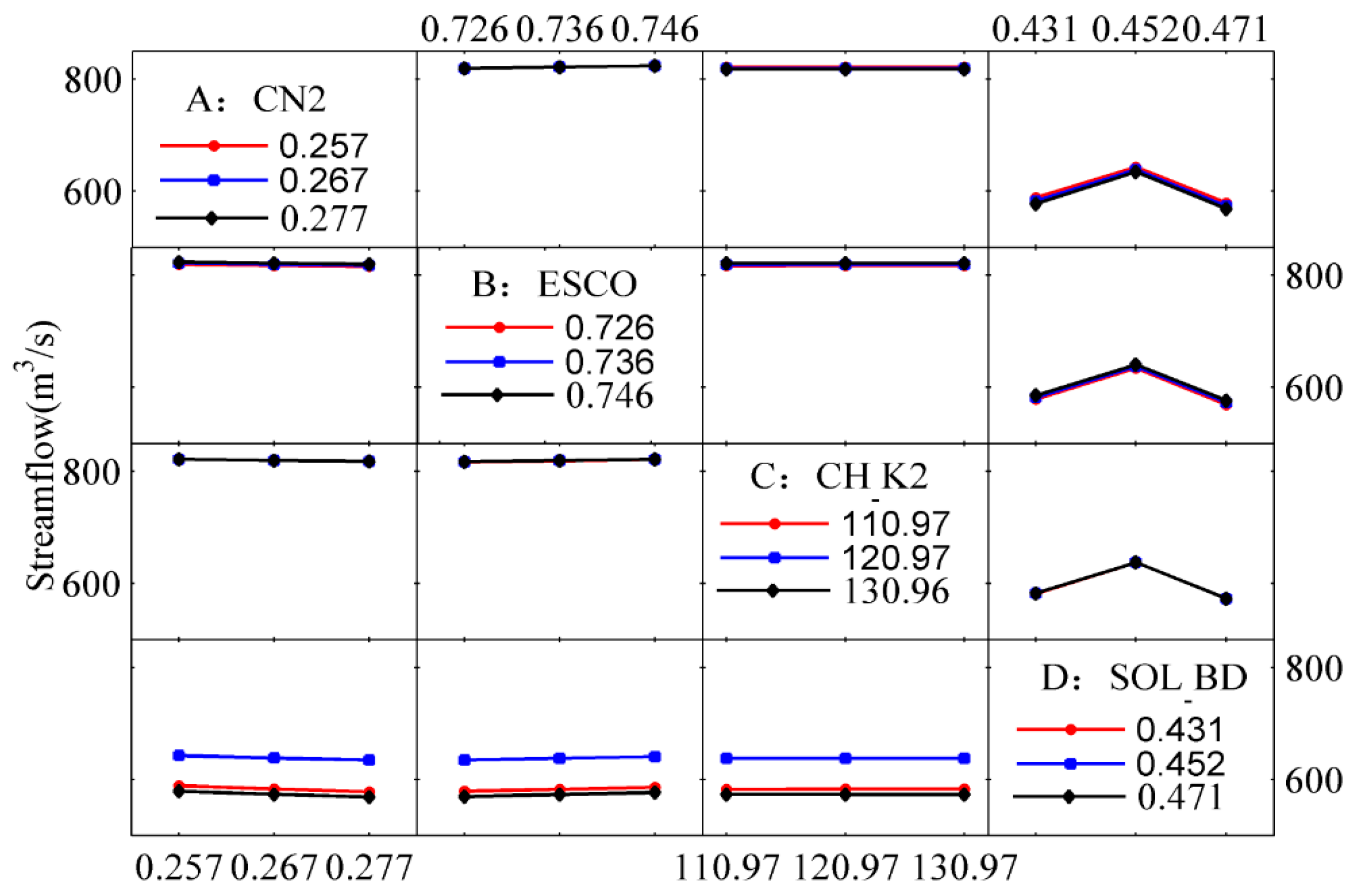

The interaction effects of parameters in the post-flood period are shown in Figure 13. The results disclose that the interaction effects of D and other parameters are negative for the runoff simulation, particularly the interaction effects of A and C.

4.3.5. Contributions of Parameter Individual and Interaction Effects for the Runoff Simulation in Four Periods

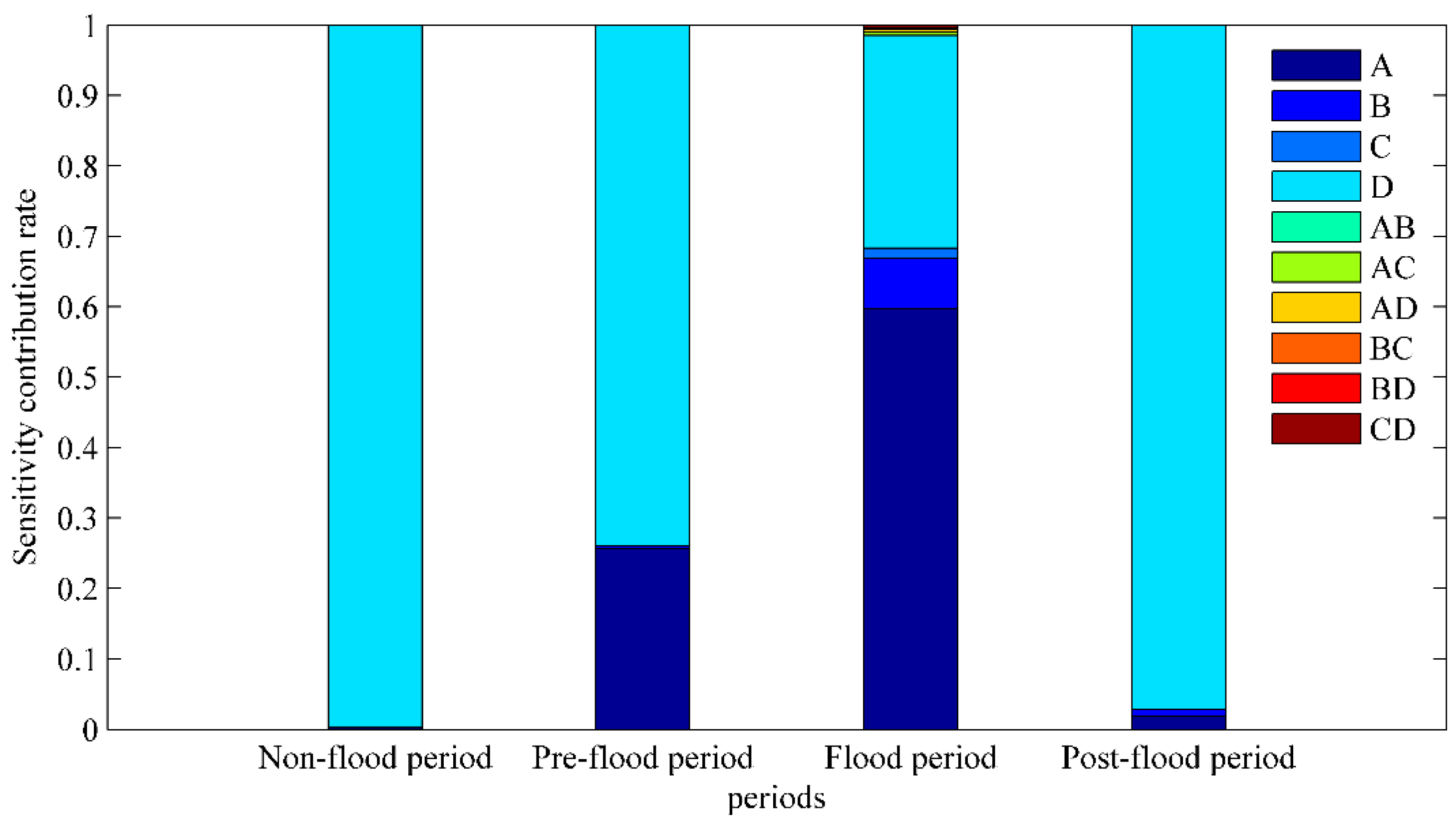

Figure 14 accurately quantifies the contribution of individual and interaction parameter effects to runoff in the four periods. The results show that the parameter contribution to the runoff simulation is significant for the different periods.
In detail, the parameter D have the greatest impact on the runoff simulation in the non-flood and post-flood period, contributing 0.99 and 0.97, respectively. The contribution of D to the runoff simulation is reduced while others increase in the pre-flood period—especially A, which contributes 0.26 (i.e., 26%). However, the contribution of A to the runoff simulation is the most significant in the flood period (0.60), implying that the infiltration-excess runoff production caused by concentrated precipitation has a great influence on this parameter, while soil porosity and soil moisture have great influence on D. The influence of temperature on B is also significant.

5. Conclusions

In this study, using CMADS to drive the SWAT model, we developed a SUFI-2-based multilevel-factorial-analysis method in order to disclose the effect of parameters in the SWAT model on runoff simulations. Here, the SUFI-2 was used to explore the CI of identified sensitive parameters.
Subsequently, we applied the multilevel-factorial-analysis method to explore the individual and interactive effects of parameters on the runoff simulation in different periods (i.e., non-flood, pre-flood, flood, and post-flood). The developed method was exemplarily applied to the source region of the Yellow River, due to its key role in water resource supply. Important conclusions drawn from this study are as follows:
(1)
The influence of parameters CN2, ESCO, CH_K2, and SOL_BD (i.e., A, B, C, and D, respectively) on the runoff simulation is significant in different periods (Figure 2, Table 3, Table 4, Table 5 and Table 6). In general, the linear individual effects of factors A, B, and D, as well as the AD interaction effects, are thus significant, while the others have little influence on the response.
(2)
The contributions of different parameters to the runoff simulation are different in different periods (Figure 14). The effect of soil bulk density (D) on the runoff simulation is significant in four periods, contributing 0.99, 0.73, 0.30, and 0.97, respectively. The effect of the initial SCS runoff curve number (A) on the runoff simulation is significant in the non-flood and flood periods, contributing 0.26 and 0.60, respectively.
(3)
The interaction effects of parameters on runoff simulation are significant in the flood period. Take parameters A and D as an example: The changes differ across the three levels of parameter D, depending on the level of parameter A. The slope curve is distinctly different between parameters A and D. This reveals the interaction of A and D has a significant influence on the runoff simulation. Therefore, the parameter interaction must be emphasized in flood periods.
(4)
In essence, the soil bulk density moisture content and infiltration-excess runoff production are important water inputs for the hydrological system in the source region of the Yellow River. It is further explained that soil bulk density will affect the loss of surface runoff and river recharge groundwater.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4441/10/9/1177/s1. Figure S1: Individual effect of non-flood period parameters for the second days, Figure S2: Individual effect of pre-flood period parameters for the second days, Figure S3: Individual effect of flood period parameters for the second days, Figure S4: Individual effect of post-flood period parameters for the second days, Figure S5: Individual effect of non-flood period parameters for the third days, Figure S6: Individual effect of pre-flood period parameters for the third days, Figure S7: Individual effect of flood period parameters for the third days, Figure S8: Individual effect of post-flood period parameters for the third days, Figure S9: Interaction effect of non-flood period parameters for the second days, Figure S10: Interaction effect of pre-flood period parameters for the second days, Figure S11: Interaction effect of flood period parameters for the second days, Figure S12: Interaction effect of post-flood period parameters for the second days, Figure S13: Interaction effect of non-flood period parameters for the third days, Figure S14: Interaction effect of pre-flood period parameters for the third days, Figure S15: Interaction effect of flood period parameters for the third days, Figure S16: Interaction effect of post-flood period parameters for the third days, Figure S17: Dynamic change characteristics of second day parameters on the time scale, Figure S18: Dynamic change characteristics of third day parameters on the time scale, Table S1: ANOVA results for the second day of the non-flood period runoff simulation, Table S2: ANOVA results for the second day of the pre-flood period runoff simulation, Table S3: ANOVA results for the second day of the flood period runoff simulation, Table S4: ANOVA results for the second day of the post-flood period runoff simulation, Table S5: ANOVA results for the third day of the non-flood period runoff simulation, Table S6: ANOVA results for the third day of the pre-flood period runoff simulation, Table S7: ANOVA results for the third day of the flood period runoff simulation, Table S8: ANOVA results for the third day of the post-flood period runoff simulation.

Author Contributions

S.Z. designed the framework and analyzed the data of this study; Y.W. and J.C. provided significant suggestions on the methodology and structure of the manuscript; A.G. and Z.L. collected the data; S.Z. wrote the paper.

Funding

This work was supported by the National Natural Science Foundation of China (grant number: 51679187, 51647112 and 51679189), the National Key R&D Program of China (2017YFC0405900, 2017YFC0404404 and 2017YFC0404406).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Joseph, J.F.; Guillaume, J.H. Using a parallelized MCMC algorithm in R to identify appropriate likelihood functions for SWAT. Environ. Model. Softw. 2013, 46, 292–298. [Google Scholar] [CrossRef]
  2. Gashaw, T.; Tulu, T.; Argaw, M.; Worqlul, A.W. Modeling the hydrological impacts of land use/land cover changes in the Andassa watershed, Blue Nile Basin, Ethiopia. Sci. Total Environ. 2018, 619, 1394–1408. [Google Scholar] [CrossRef] [PubMed]
  3. Her, Y.; Chaubey, I.; Frankenberger, J.; Jeong, J. Implications of spatial and temporal variations in effects of conservation practices on water management strategies. Water Manag. 2017, 180, 252–266. [Google Scholar] [CrossRef]
  4. Vilaysane, B.; Takara, K.; Luo, P.; Akkharath, I.; Duan, W. Hydrological Stream Flow Modelling for Calibration and Uncertainty Analysis Using SWAT Model in the Xedone River Basin, Lao PDR. Procedia Environ. Sci. 2015, 28, 380–390. [Google Scholar] [CrossRef]
  5. Li, Z.L.; Shao, Q.X.; Xu, Z.X.; Cai, X.T. Analysis of parameter uncertainty in semi-distributed hydrological models using bootstrap method: A case study of SWAT model applied to Yingluoxia watershed in northwest China. J. Hydrol. 2010, 385, 76–83. [Google Scholar] [CrossRef]
  6. Ficklin, D.L.; Barnhart, B.L. SWAT hydrologic model parameter uncertainty and its implications for hydroclimatic projections in snowmelt-dependent watersheds. J. Hydrol. 2014, 519, 2081–2090. [Google Scholar] [CrossRef]
  7. Wu, Y.; Liu, S. Automating calibration, sensitivity and uncertainty analysis of complex models using the R package Flexible Modeling Environment (FME): SWAT as an example. Environ. Model. Softw. 2012, 317, 99–109. [Google Scholar] [CrossRef]
  8. Zhang, D.; Chen, X.; Yao, H.; James, A. Moving SWAT model calibration and uncertainty analysis to an enterprise Hadoop-based cloud. Environ. Model. Softw. 2016, 84, 140–148. [Google Scholar] [CrossRef]
  9. Kouchi, D.H.; Esmaili, K.; Faridhosseini, A.; Sanaeinejad, S.H.; Khalili, D.; Abbaspour, K.C. Sensitivity of Calibrated Parameters and Water Resource Estimates on Different Objective Functions and Optimization Algorithms. Water 2017, 9, 384. [Google Scholar] [CrossRef]
  10. Trudel, M.; Doucet-Généreux, P.L.; Leconte, R. Assessing River Low-Flow Uncertainties Related to Hydrological Model Calibration and Structure under Climate Change Condition. Climate 2017, 5, 19. [Google Scholar] [CrossRef]
  11. Muleta, M.K. Improving Model Performance Using Season-Based Evaluatio. J. Hydrol. Eng. 2012, 17, 191–200. [Google Scholar] [CrossRef]
  12. Şahan, T.; Öztürk, D. Investigation of Pb (II) adsorption onto pumice samples: Application of optimization method based on fractional factorial design and response surface methodology. Clean Technol. Environ. Policy 2014, 16, 819–831. [Google Scholar] [CrossRef]
  13. Thiele, J.E.; Haaf, J.M.; Rouder, J.N. Is there variation across individuals in processing? Bayesian analysis for systems factorial technology. J. Math. Psychol. 2017, 81, 40–54. [Google Scholar] [CrossRef][Green Version]
  14. Saleh, T.A.; Tuzen, M.; Sarı, A. Polyamide magnetic palygorskite for the simultaneous removal of Hg (II) and methyl mercury; with factorial design analysis. J. Environ. Manag. 2018, 211, 323–333. [Google Scholar] [CrossRef] [PubMed]
  15. Tang, X.; Dai, Y.; Sun, P.; Meng, S. Interaction-based feature selection using Factorial Design. Neurocomputing 2018, 281, 47–54. [Google Scholar] [CrossRef]
  16. Meng, F.; Su, F.; Yang, D.; Tong, D.; Hao, Z. Impacts of recent climate change on the hydrology in the source region of the Yellow River basin. J. Hydrol. 2018, 558, 301–313. [Google Scholar] [CrossRef]
  17. Wang, T.; Yang, H.; Yang, D.; Qin, Y.; Wang, Y. Quantifying the streamflow response to frozen ground degradation in the source region of the Yellow River within the Budyko framework. J. Hydrol. 2018, 558, 301–313. [Google Scholar] [CrossRef]
  18. Lan, Y.; Zhao, G.; Zhang, Y.; Wen, J.; Hu, X. Response of runoff in the source region of the Yellow River to climate warming. Quat. Int. 2010, 226, 60–65. [Google Scholar] [CrossRef]
  19. Meng, X.; Wang, H. Significance of the China Meteorological Assimilation Driving Datasets for the SWAT Model (CMADS) of East Asia. Water 2017, 9, 765. [Google Scholar] [CrossRef]
  20. Meng, X.; Wang, H.; Cai, S.; Zhang, X.; Leng, G.; Lei, X.; Shi, C.; Liu, S.; Shang, Y. The China Meteorological Assimilation Driving Datasets for the SWAT Model (CMADS) Application in China: A Case Study in Heihe River Basin. Preprints 2016. [Google Scholar] [CrossRef]
  21. Meng, X.; Wang, H.; Wu, Y.; Long, A.; Wang, J.; Shi, C.; Ji, X. Investigating spatiotemporal changes of the land-surface processes in Xinjiang using high-resolution CLM3.5 and CLDAS: Soil temperature. Sci. Rep. 2017, 7, 13286. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Zhao, F.; Wu, Y.; Qiu, L.; Sun, Y.; Sun, L.; Li, Q.; Niu, J.; Wang, G. Parameter Uncertainty Analysis of the SWAT Model in a MountainLoess Transitional Watershed on the Chinese Loess Plateau. Water 2018, 10, 690. [Google Scholar] [CrossRef]
  23. Vu, T.T.; Li, L.; Jun, K.S. Evaluation of MultiSatellite Precipitation Products for Streamflow Simulations: A Case Study for the Han River Basin in the Korean Peninsula, East Asia. Water 2018, 10, 642. [Google Scholar] [CrossRef]
  24. Liu, J.; Shanguan, D.; Liu, S.; Ding, Y. Evaluation and Hydrological Simulation of CMADS and CFSR Reanalysis Datasets in the QinghaiTibet Plateau. Water 2018, 10, 513. [Google Scholar] [CrossRef]
  25. Cao, Y.; Zhang, J.; Yang, M.; Lei, X.; Guo, B.; Yang, L.; Zeng, Z.; Qu, J. Application of SWAT Model with CMADS Data to Estimate Hydrological Elements and Parameter Uncertainty Based on SUFI-2 Algorithm in the Lijiang River Basin, China. Water 2018, 10, 742. [Google Scholar] [CrossRef]
  26. Shao, G.; Guan, Y.; Zhang, D.; Yu, B.; Zhu, J. The Impacts of Climate Variability and Land Use Change on Streamflow in the Hailiutu River Basin. Water 2018, 10, 814. [Google Scholar] [CrossRef]
  27. Meng, X.Y.; Wang, H.; Lei, X.H.; Cai, S.Y.; Wu, H.J. Hydrological modeling in the Manas River Basin using Soil and Water Assessment Tool driven by CMADS. Tehnički Vjesnik 2017, 24, 525–534. [Google Scholar]
  28. Zhang, L.M.; Wang, H.; Meng, X.Y. Application of SWAT Model Driven by CMADS in Hunhe River Basin in Liaoning Province. J. N. China. Univ. Water Resour. Electr. Power 2017, 385, 1–9. [Google Scholar]
  29. Zuo, D.P.; Xu, Z.X. Distributed hydrological simulation using swat and sufi-2 in the wei river basin. J. Beijing Norm. Univ. 2012, 48, 490–496. [Google Scholar]
  30. Zhang, Y.Q.; Chen, C.C.; Yang, X.H.; Yin, Y.X.; Du, J.K. Application of SWAT Model Based SUFI-2Algorithm to Runoff Simulation in Xiushui Basin. Water Resour. Power 2013, 31, 24–28. [Google Scholar]
  31. Wu, H.; Chen, B. Evaluating uncertainty estimates in distributed hydrological modeling for the Wenjing River watershed in China by GLUE, SUFI-2, and ParaSol methods. Ecol. Eng. 2015, 76, 110–121. [Google Scholar] [CrossRef]
  32. Abbaspour, K.C.; Rouholahnejad, E.; Vaghefi, S.; Srinivasan, R.; Kløve, B. A continental-scale hydrology and water quality model for Europe: Calibration and uncertainty of a high-resolution large-scale SWAT model. J. Hydrol. 2015, 524, 733–752. [Google Scholar] [CrossRef]
  33. Yang, J.; Reichert, P.; Abbaspour, K.C.; Xia, J.; Yang, H. Comparing uncertainty analysis techniques for a SWAT application to the Chaohe Basin in China. J. Hydrol. 2008, 358, 1–23. [Google Scholar] [CrossRef]
  34. Zhou, Y.; Huang, G.H. Factorial two-stage stochastic programming for water resources management. Stoch. Environ. Res. Risk Assess. 2011, 25, 67–78. [Google Scholar] [CrossRef]
  35. Martens, H.; Måge, I.; Tøndel, K.; Isaeva, J.; Hoy, M.; Saebo, S. Multi-level binary replacement (MBR) design for computer experiments in high-dimensional nonlinear systems. J. Chemometr. 2010, 24, 748–756. [Google Scholar] [CrossRef]
  36. Gitau, M.W.; Chaubey, I. Regionalization of SWAT model parameters for use in ungauged watersheds. Water 2010, 2, 849–871. [Google Scholar] [CrossRef]
  37. Che, Q. Distributed Hydrological Simulation Using SWAT in Yellow River Source Region. Master’s Thesis, Lanzhou University, Lanzhou, China, 2006. [Google Scholar]
  38. Jia, D.Y.; Wen, J.; Ma, Y.M.; Liu, R.; Wang, X.; Zhou, J.; Chen, J.L. Impacts of vegetation on water and heat exchanges in the source region of Yellow River. Plateau Meteorol. 2017, 36, 424–435. [Google Scholar]
  39. Zeng, Y.N.; Feng, Z.D.; Cao, G.C.; Xue, L. The Soil Organic Carbon Storage and Its Spatial Distribution of Alpine Grassland in the Source Region of the Yellow River. Acta Geogr. Sin. 2004, 59, 497–504. [Google Scholar]
  40. Chen, X.; Song, Q.F.; Gao, M.; Sun, Y.M. Vegetation-soil-hydrology interaction and expression of parameter variations in ecohydrological models. J. Beijing Norm. Univ. 2016, 52, 362–368. [Google Scholar]
  41. Yi, X.S.; Li, G.S.; Yin, Y.Y.; Wang, B.L. Preliminary Study for the Influences of Grassland Degradation on Soil Water Retention in the Source Region of the Yellow River. J. Nat. Res. 2012, 27, 1708–1719. [Google Scholar]
  42. Liu, X.M. Effect of Soil Sample Initial State on Hydrological Process on Red Soil Slope. Master’s Thesis, Hunan University, Changsha, China, 2013. [Google Scholar]
  43. Hu, H.H. The Research on the Hydrological Cycle Based on the Synergistic Effect of Vegetation and Frozen Soil in the Source Region of Yangtze and Yellow River. Ph.D. Thesis, Lanzhou University, Lanzhou, China, 2011. [Google Scholar]

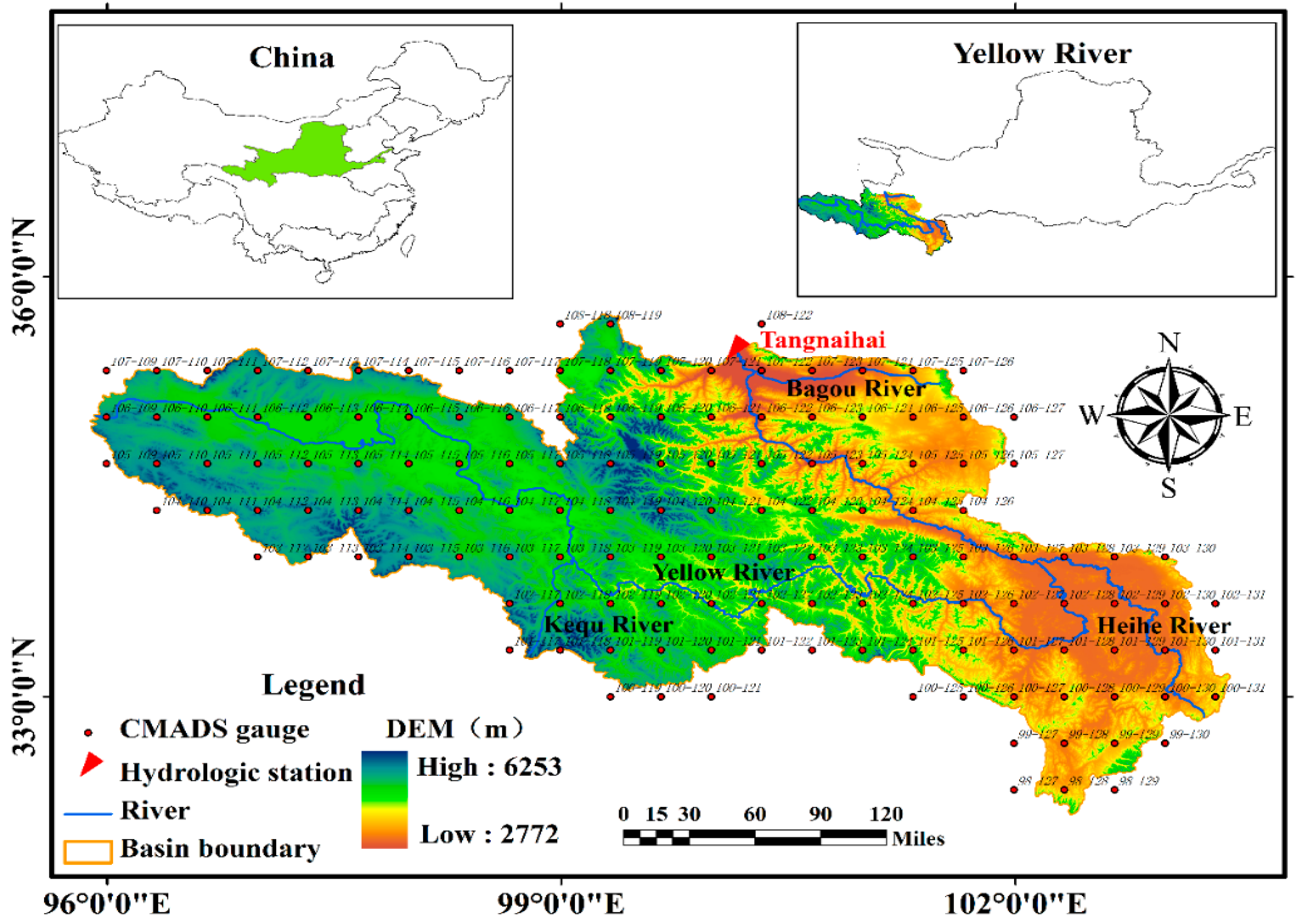

Figure 1. Locations of the Yellow River source region.
Figure 1. Locations of the Yellow River source region.
Water 10 01177 g001

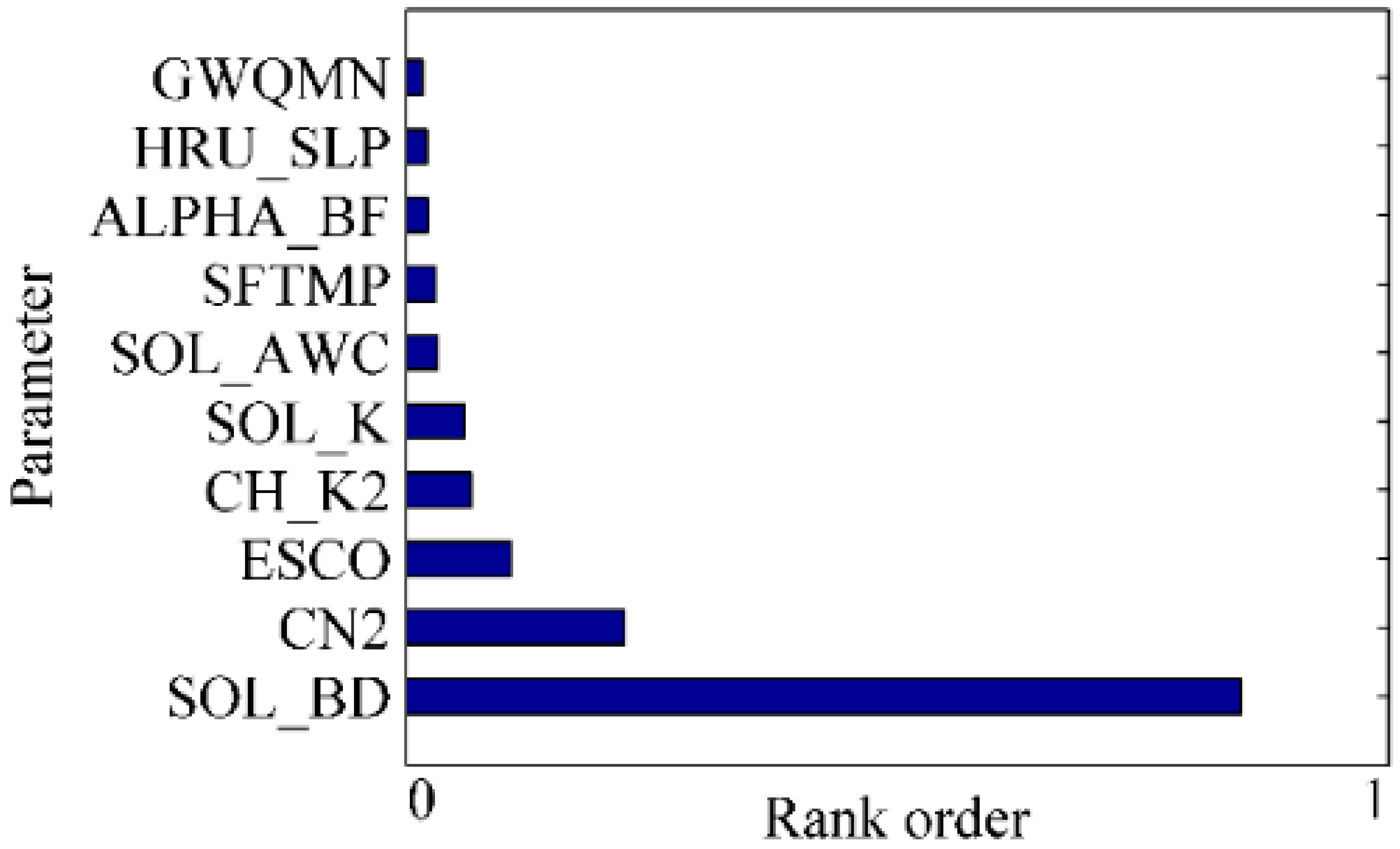

Figure 2. Graphical representation of the sensitivity ranking of the parameters (longer bars indicate greater parameter sensitivities).
Figure 2. Graphical representation of the sensitivity ranking of the parameters (longer bars indicate greater parameter sensitivities).
Water 10 01177 g002

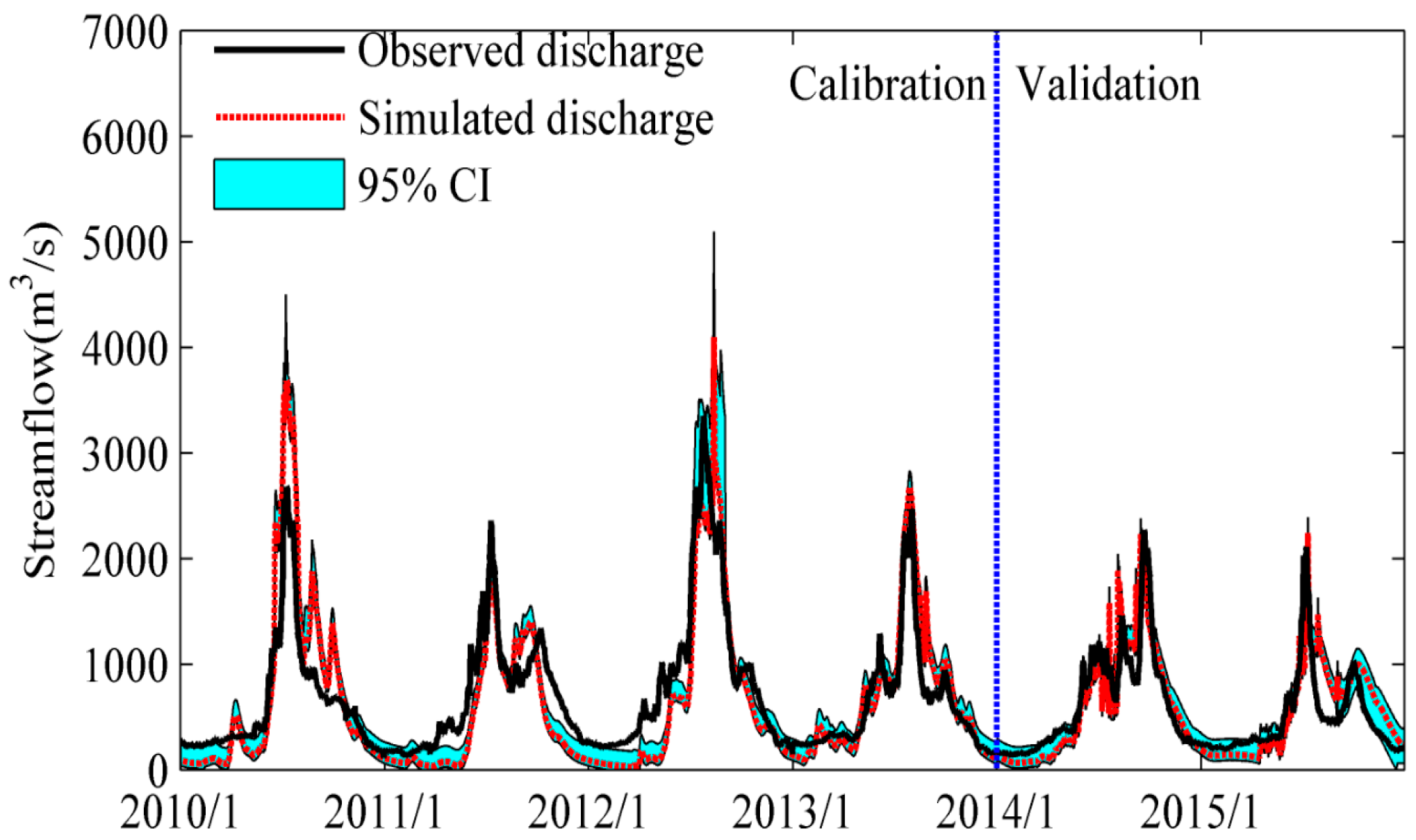

Figure 3. The 95% confidence interval (CI) for daily discharge.
Figure 3. The 95% confidence interval (CI) for daily discharge.
Water 10 01177 g003

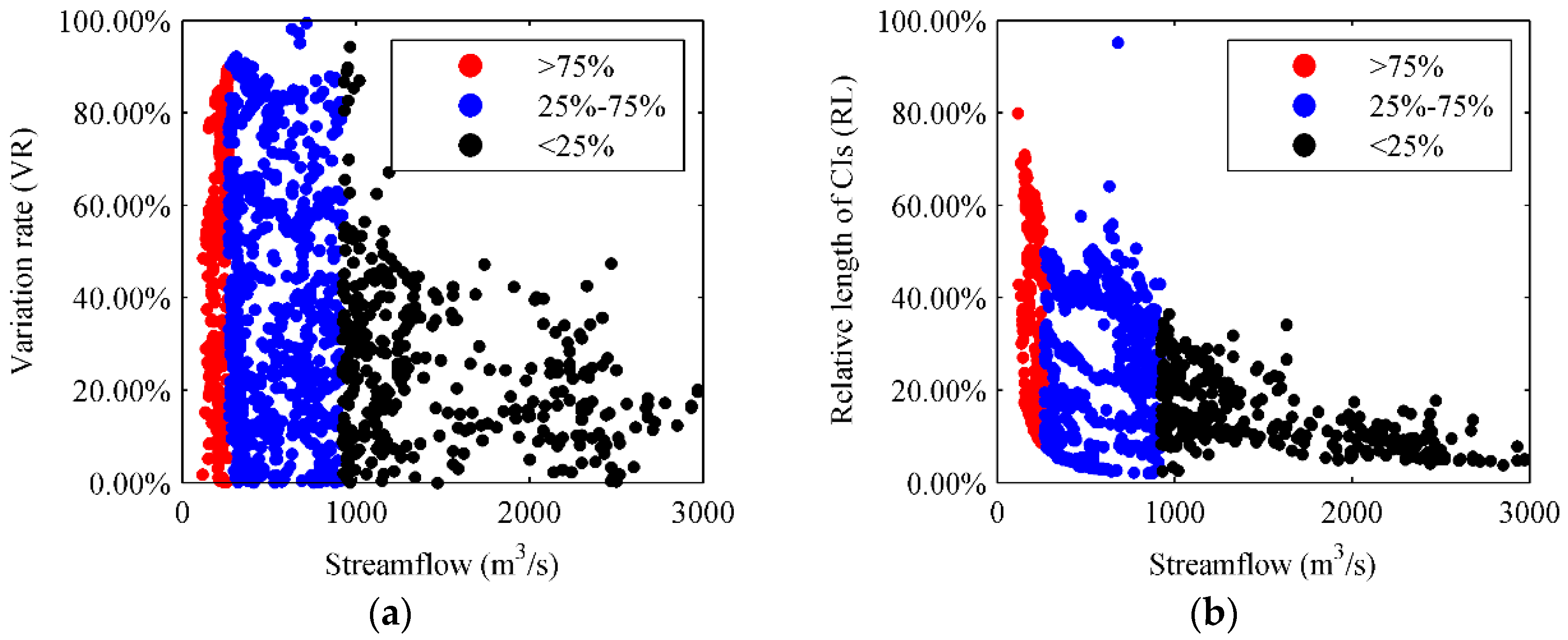

Figure 4. (a) The influence of parameter uncertainty on variable rates under different levels; (b) the influence of parameter uncertainty on the relative length of the confidence interval under different levels.
Figure 4. (a) The influence of parameter uncertainty on variable rates under different levels; (b) the influence of parameter uncertainty on the relative length of the confidence interval under different levels.
Water 10 01177 g004

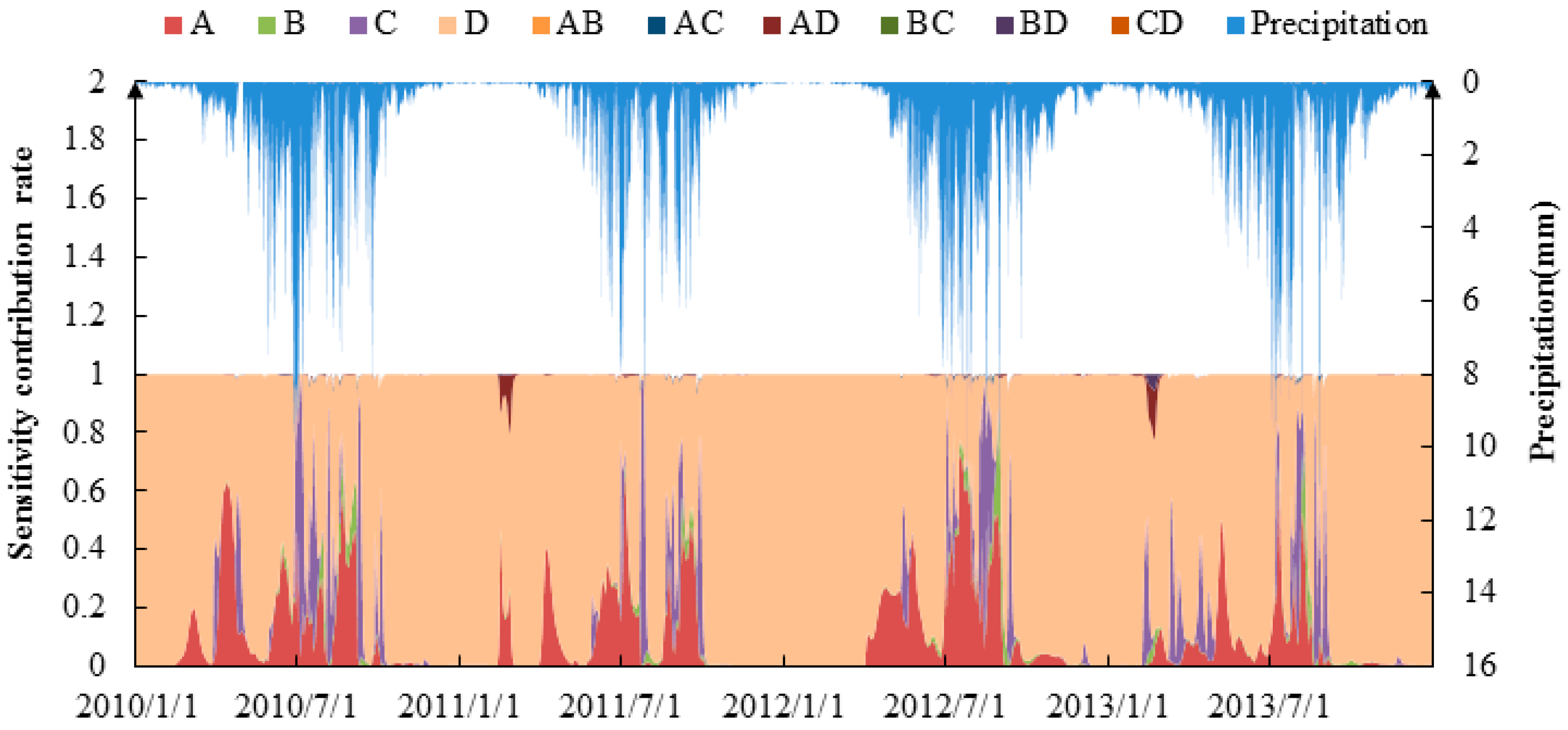

Figure 5. Dynamic characteristics of the parameter sensitivity contribution.
Figure 5. Dynamic characteristics of the parameter sensitivity contribution.
Water 10 01177 g005

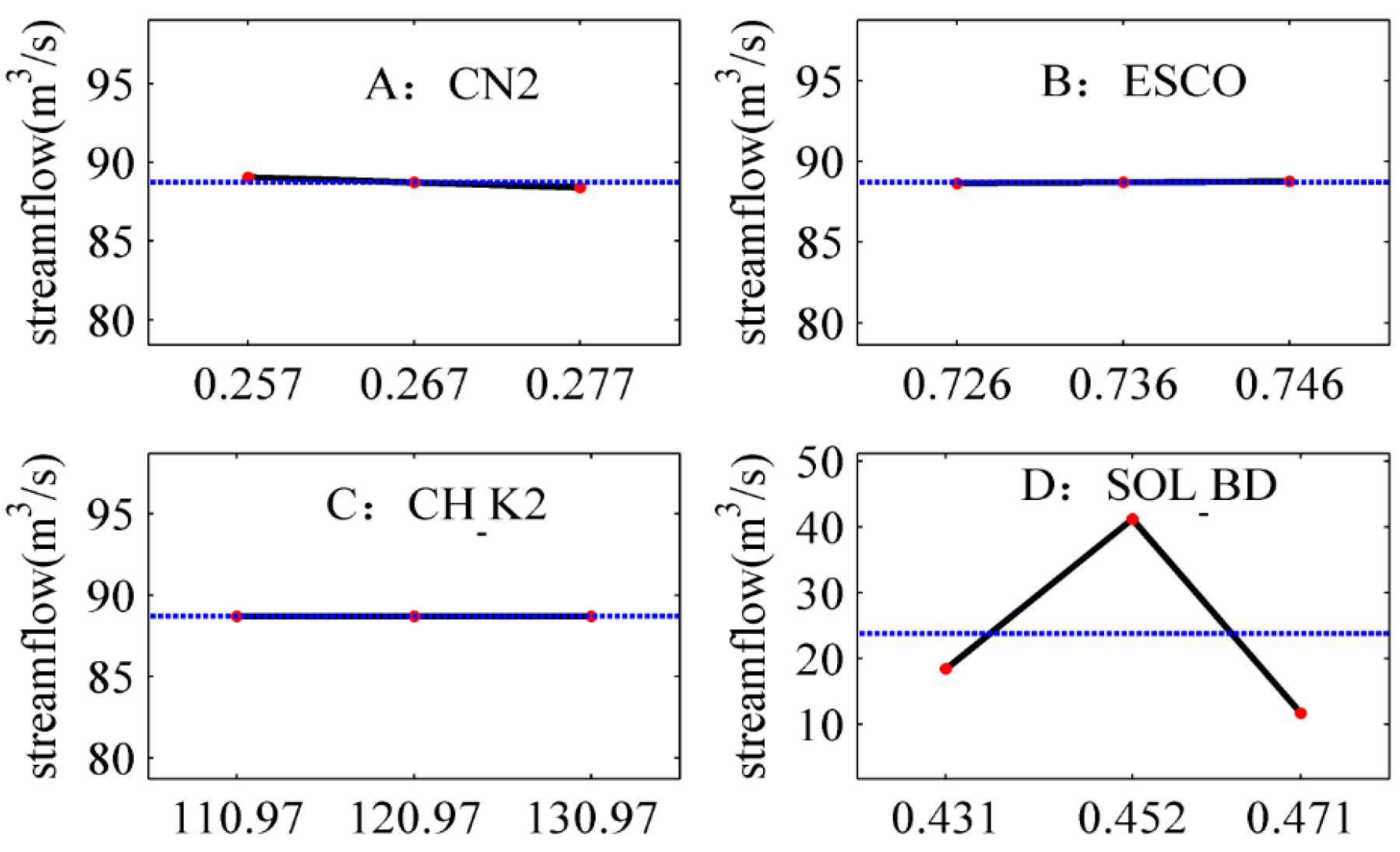

Figure 6. Individual effects of parameters in the non-flood period.
Figure 6. Individual effects of parameters in the non-flood period.
Water 10 01177 g006

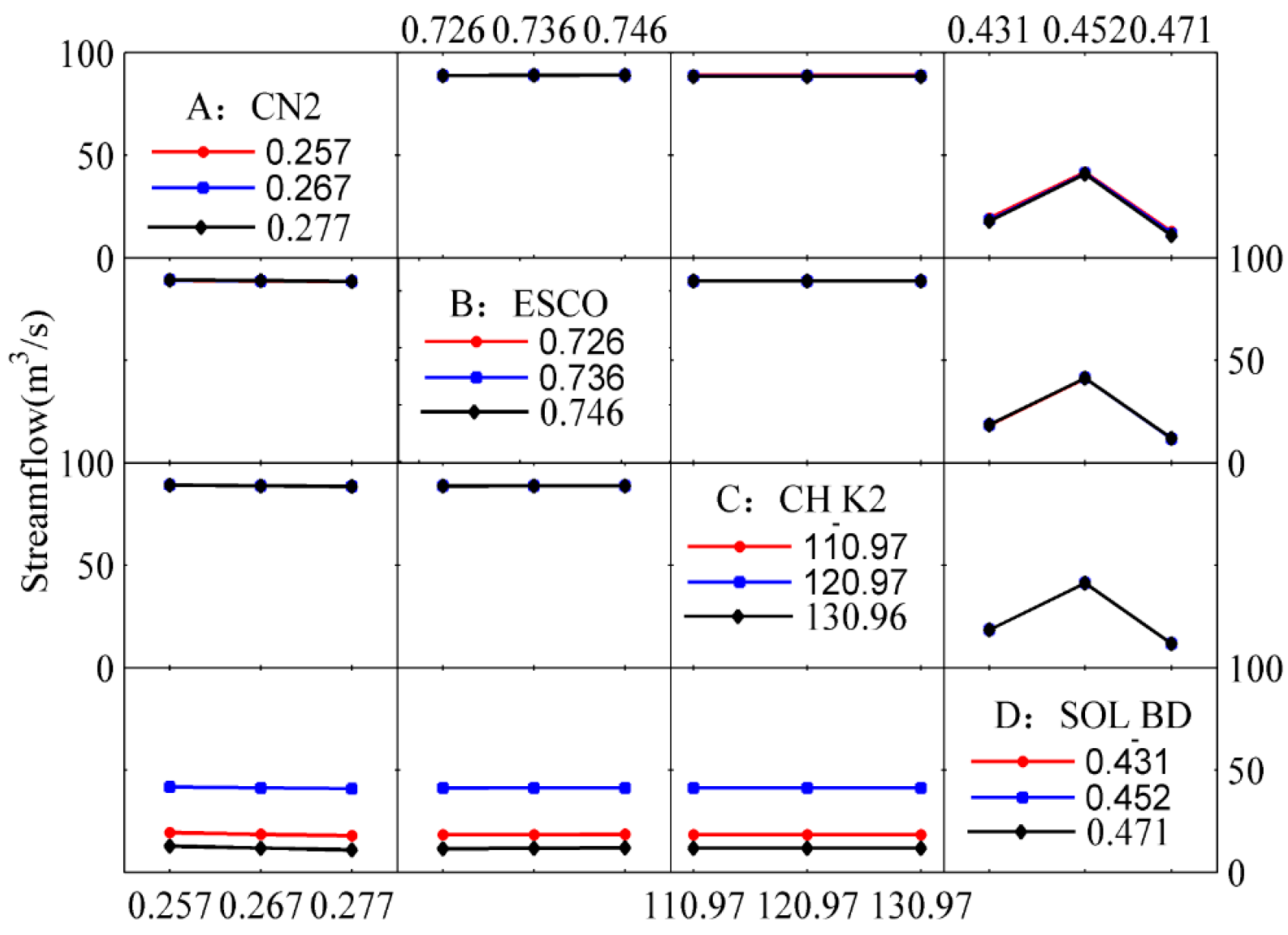

Figure 7. Interaction effects of parameters in the non-flood period.
Figure 7. Interaction effects of parameters in the non-flood period.
Water 10 01177 g007

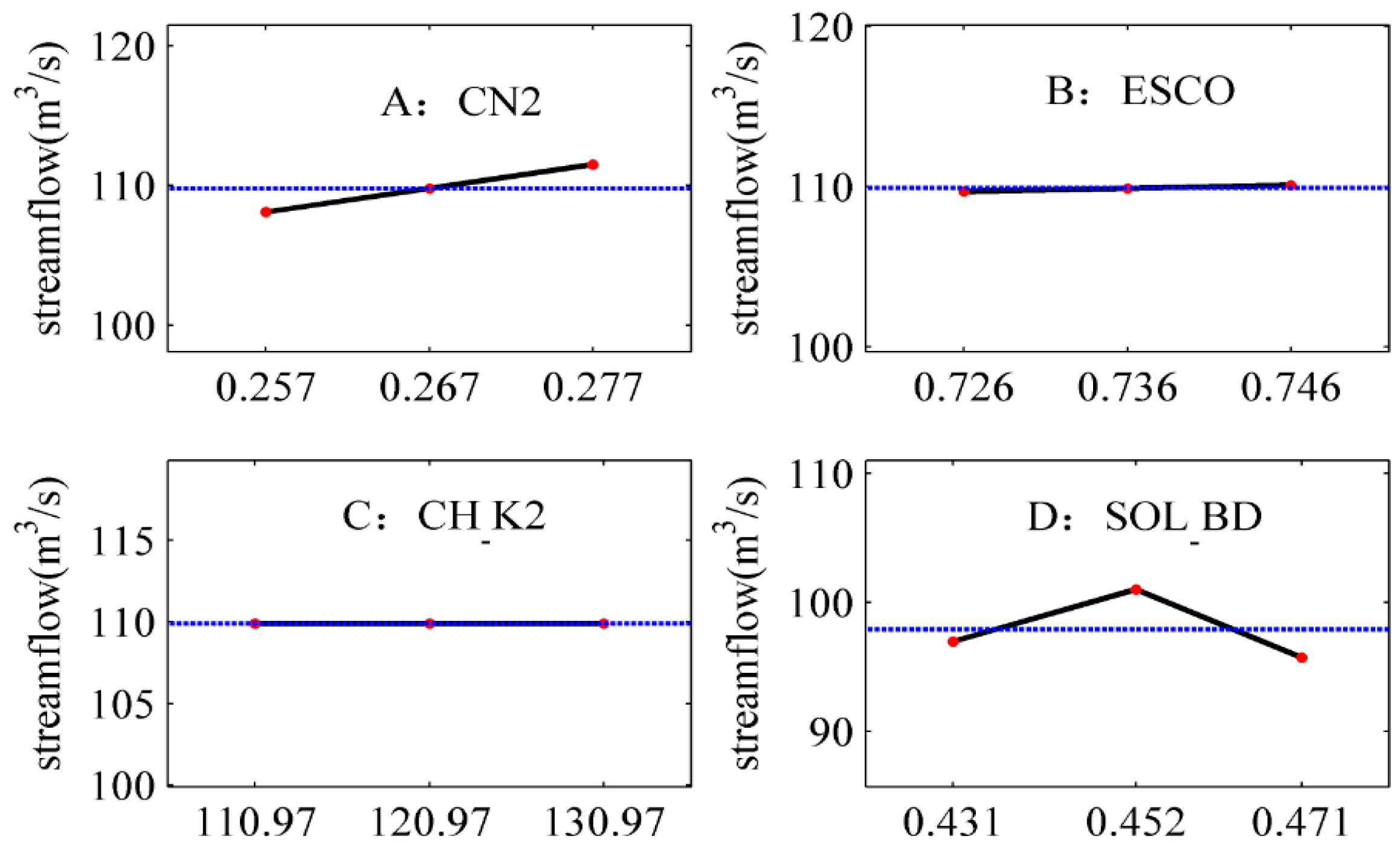

Figure 8. Individual effects of parameters in the pre-flood period.
Figure 8. Individual effects of parameters in the pre-flood period.
Water 10 01177 g008
Figure 9. Interaction effects of parameters in the pre-flood period.
Figure 9. Interaction effects of parameters in the pre-flood period.
Water 10 01177 g009
Figure 10. Individual effects of parameters in the flood period.
Figure 10. Individual effects of parameters in the flood period.
Water 10 01177 g010
Figure 11. Interaction effects of parameters in the flood period.
Figure 11. Interaction effects of parameters in the flood period.
Water 10 01177 g011
Figure 12. Individual effects of parameters in the post-flood period.
Figure 12. Individual effects of parameters in the post-flood period.
Water 10 01177 g012
Figure 13. Interaction effects of parameters in the post-flood period.
Figure 13. Interaction effects of parameters in the post-flood period.
Water 10 01177 g013
Figure 14. Contribution of individual and interaction parameters to the runoff simulation in different periods.
Figure 14. Contribution of individual and interaction parameters to the runoff simulation in different periods.
Water 10 01177 g014
Table 1. Final value range of sensitivity parameters.
Table 1. Final value range of sensitivity parameters.
ParameterDescriptionCICalibrated Valuet Value
MinMax
GWQMNThreshold depth of water in the shallow required for return flow to occur (mm)700.61780.61742.931.17
HRU_SLPAverage slope steepness (m/m)0.240.260.251.5
ALPHA_BFBaseflow regression constant (days)0.000.200.02−1.52
SFTMPSnow temperature (°C)3.433.633.45−2
SOL_AWCEffective water capacity of soil layer (mmH2O/mm soil)0.150.170.162.19
SOL_KSoil hydraulic conductivity (mm·hr−1)−0.32−0.29−0.32−4.04
CH_K2Effective hydraulic conductivity of channel (mm/h)110.97 125.97121.194.59
ESCOSoil evaporation compensation coefficient (mm/h)0.730.750.73−7.36
CN2Initial SCS runoff curve number to moisture conditions II0.260.280.26−15.28
SOL_BDSoil bulk density (g/cm3)0.450.470.46−58.26
SWAT parameter ranges (and allowable percentage changes): 0 ≤ GWQMN ≤ 5000; 0 ≤ HRU_SLP ≤ 0.6; 0 ≤ ALPHA_BF ≤ 1; −5 ≤ SFTMP ≤ 5; 0 ≤ SOL_AWC ≤ 1 (−50% ≤ SOL_AWC ≤ 50%); 0 ≤ SOL_K ≤ 2000 (−80% ≤ SOL_K ≤ 80%); 0.01 ≤ CH_K2 ≤ 150; 0 ≤ ESCO ≤ 1; 35 ≤ CN2 ≤ 98 (−50% ≤ CN2 ≤ 50%); 0.9 ≤ SOL_BD ≤ 2.5 (−50% ≤ SOL_BD ≤ 50%); reference [36].
Table 2. The 34 factorial design scheme.
Table 2. The 34 factorial design scheme.
ParameterLevel
LowMediumHigh
CN20.2570.2670.277
ESCO0.7260.7360.746
CH_K2110.97120.96130.97
SOL_BD0.4310.4520.471
Table 3. Results of ANOVA for the runoff simulation in the non-flood period.
Table 3. Results of ANOVA for the runoff simulation in the non-flood period.
Model TermSum of SquaresF Valuep-ValueSignificance
A28.4716,998.370.00**
B0.76456.160.00*
C0.000.001.00
D12,890.577,695,860.81 0.00***
AB0.1234.590.00*
AC0.000.001.00
AD2.73814.230.00*
BC0.000.001.00
BD0.1234.830.00*
CD0.000.001.00
Error0.04
Total12,922.80
Table 4. Results of ANOVA for the pre-flood period runoff simulation.
Table 4. Results of ANOVA for the pre-flood period runoff simulation.
Model TermSum of SquaresF Valuep-ValueSignificance
A145.81591,251.630.00***
B2.369586.610.00**
C0.005.420.01*
D420.671,705,827.37 0.00***
AB0.007.400.00*
AC0.000.940.45
AD0.0366.120.00*
BC0.001.390.25
BD0.001.960.12
CD0.000.460.76
Error0.01
Total568.88
Table 5. Results of ANOVA for the flood period runoff simulation.
Table 5. Results of ANOVA for the flood period runoff simulation.
Model TermSum of SquaresF Valuep-ValueSignificance
A31,490.773587.560.00***
B3800.32432.950.00**
C745.9584.980.00*
D15,926.841814.450.00***
AB1.530.090.99
AC287.4616.370.00*
AD177.2310.100.00*
BC37.232.120.09
BD26.791.530.21
CD263.1614.990.00*
Error210.67
Total52,967.95
Table 6. Results of ANOVA for the post-flood period runoff simulation.
Table 6. Results of ANOVA for the post-flood period runoff simulation.
Model TermSum of SquaresF Valuep-ValueSignificance
A1267.75258,334.540.00***
B662.22134,942.540.00**
C0.035.480.01*
D66,212.3313,492,324.58 0.00***
AB0.054.880.00*
AC0.000.350.84
AD27.182769.410.00*
BC0.000.500.73
BD4.98507.670.00*
CD0.000.500.73
Error0.12
Total68,174.67
Back to TopTop
