Open AccessArticle
Atmosphere 2018, 9(7), 256; https://doi.org/10.3390/atmos9070256

Top-of-Atmosphere Shortwave Anisotropy over Liquid Clouds: Sensitivity to Clouds’ Microphysical Structure and Cloud-Topped Moisture

1
Institute for Space Sciences, Freie Universität Berlin, Carl-Heinrich-Becker-Weg 6-10, 12065 Berlin, Germany
2
GMV Innovating Solutions, Isaac Newton 11, 28760 Tres Cantos (Madrid), Spain
*
Author to whom correspondence should be addressed.
Received: 5 June 2018 / Revised: 29 June 2018 / Accepted: 6 July 2018 / Published: 10 July 2018
(This article belongs to the Special Issue Cloud Radiative Processes and Effect)
Full-Text   |   PDF [2971 KB, uploaded 10 July 2018]   |

Abstract

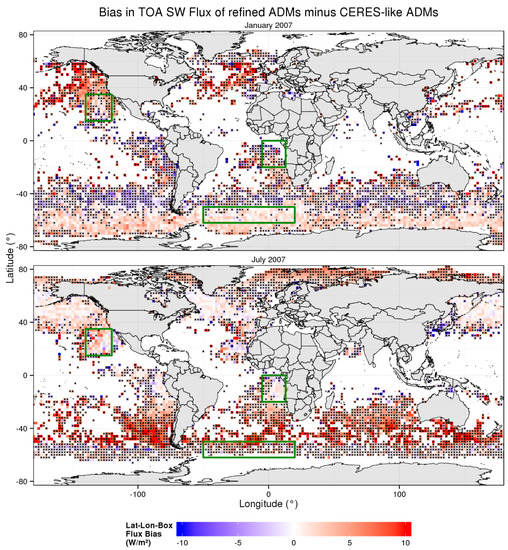

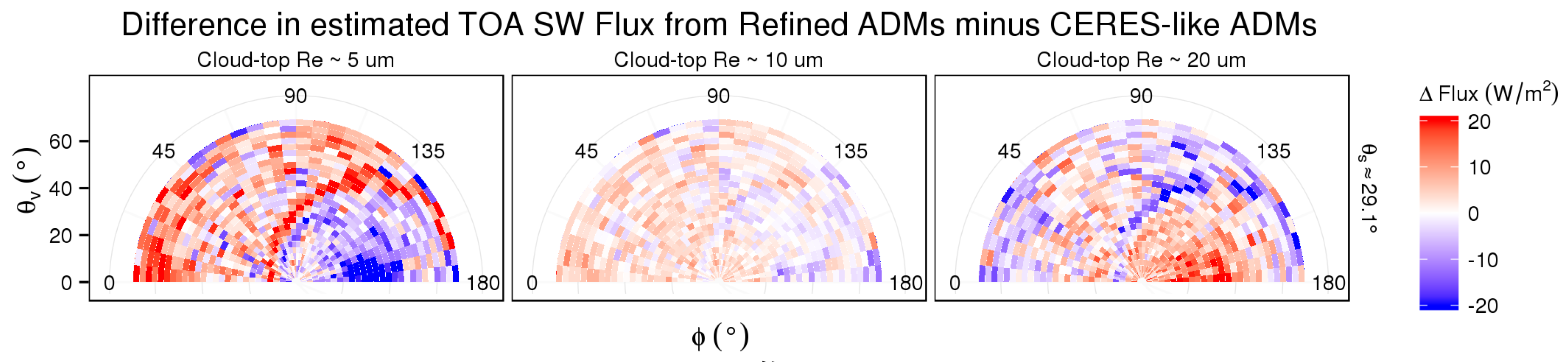

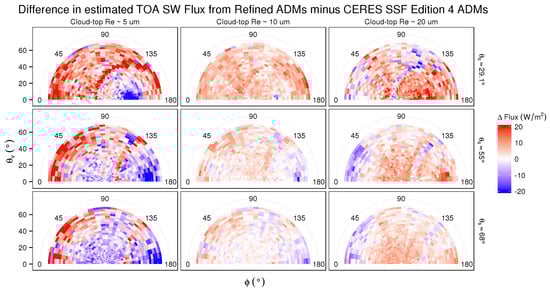

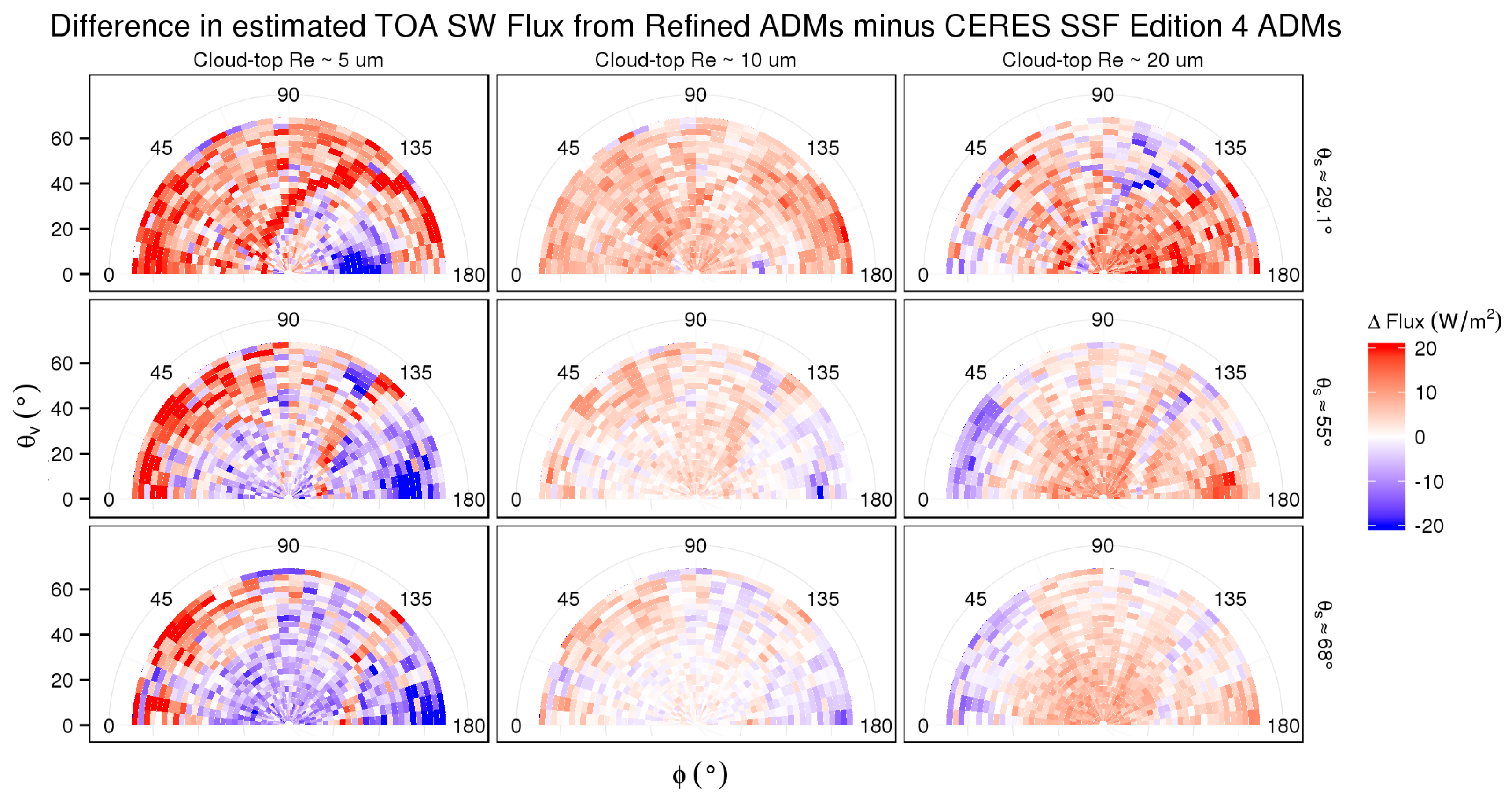

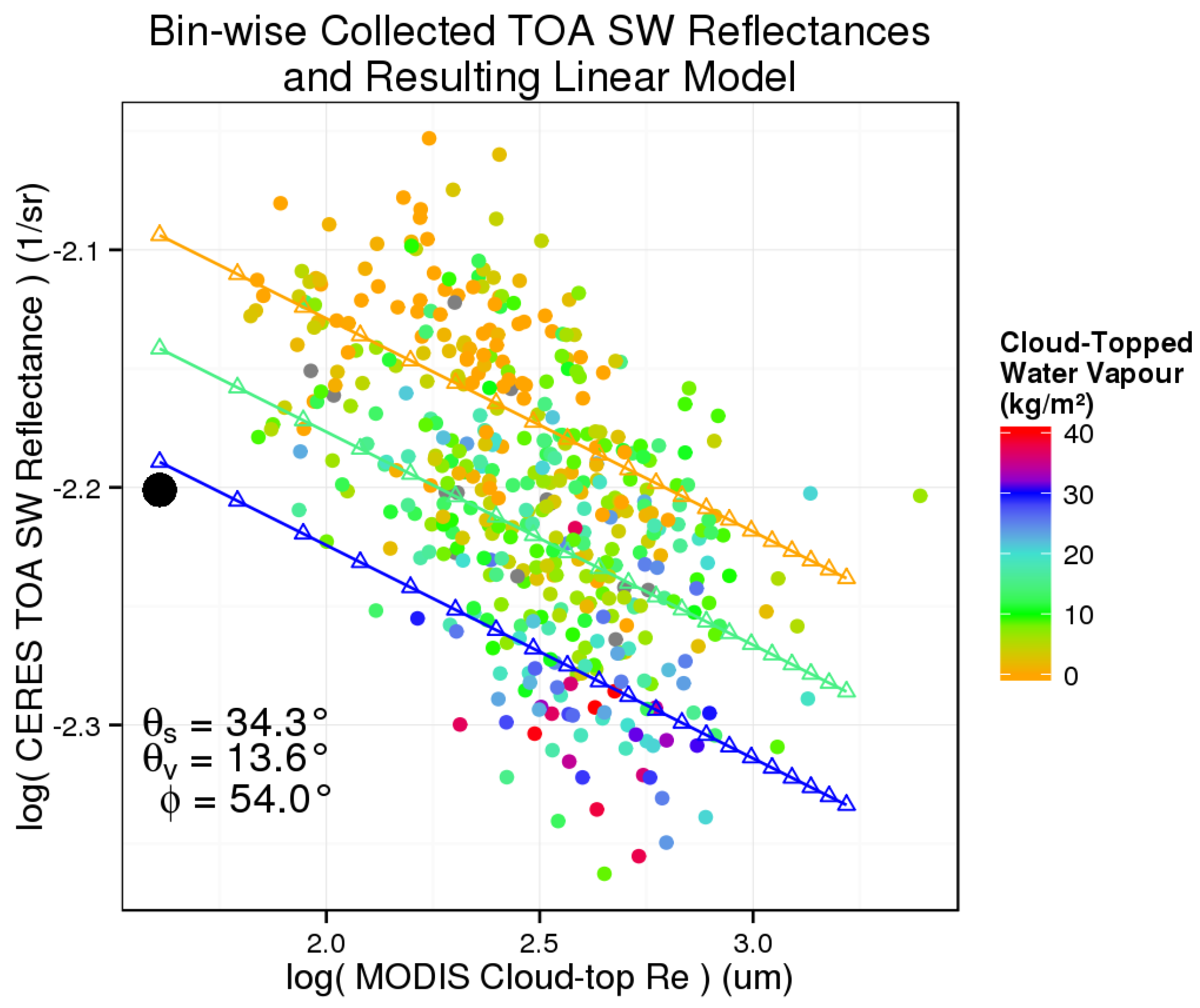

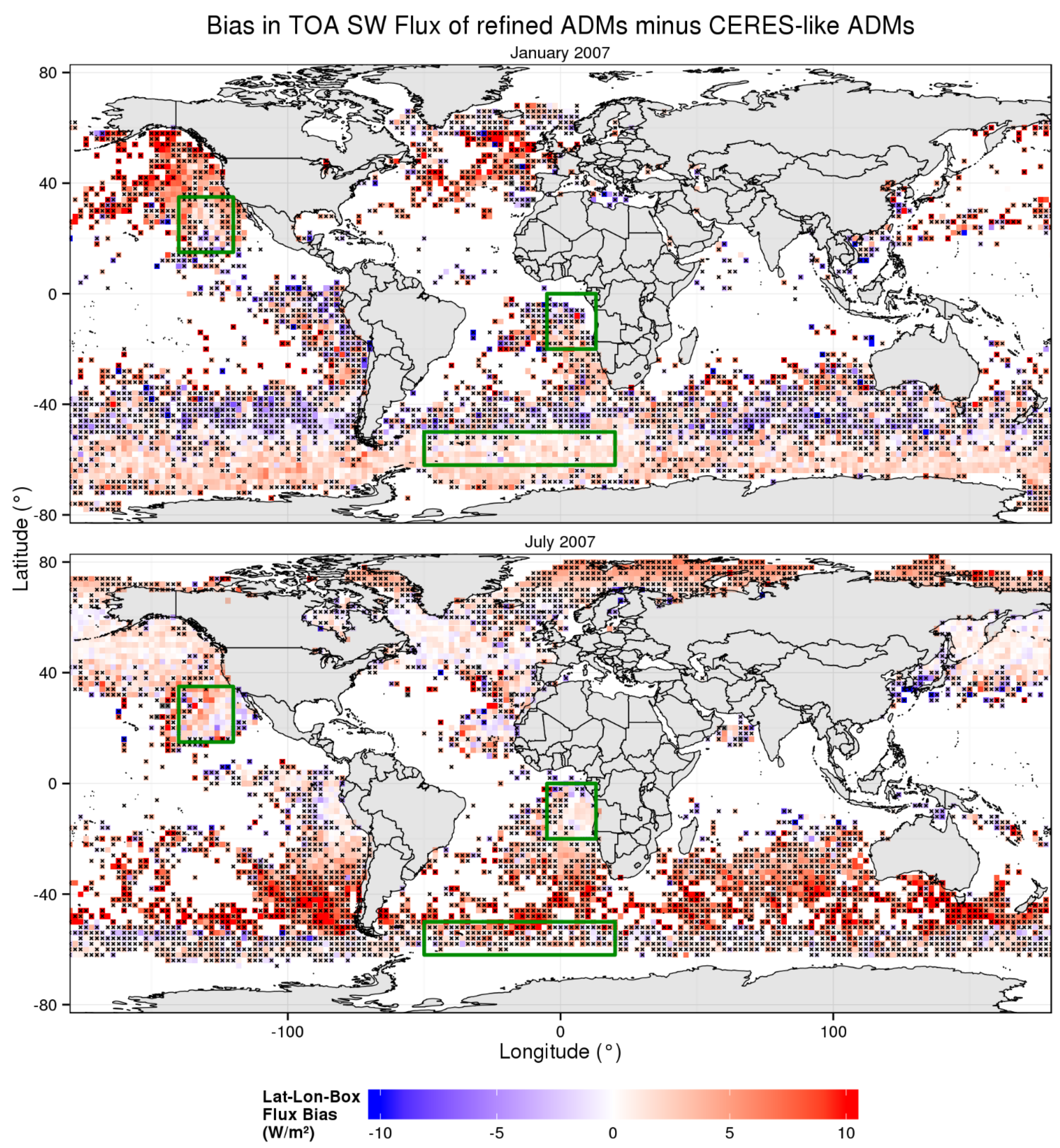

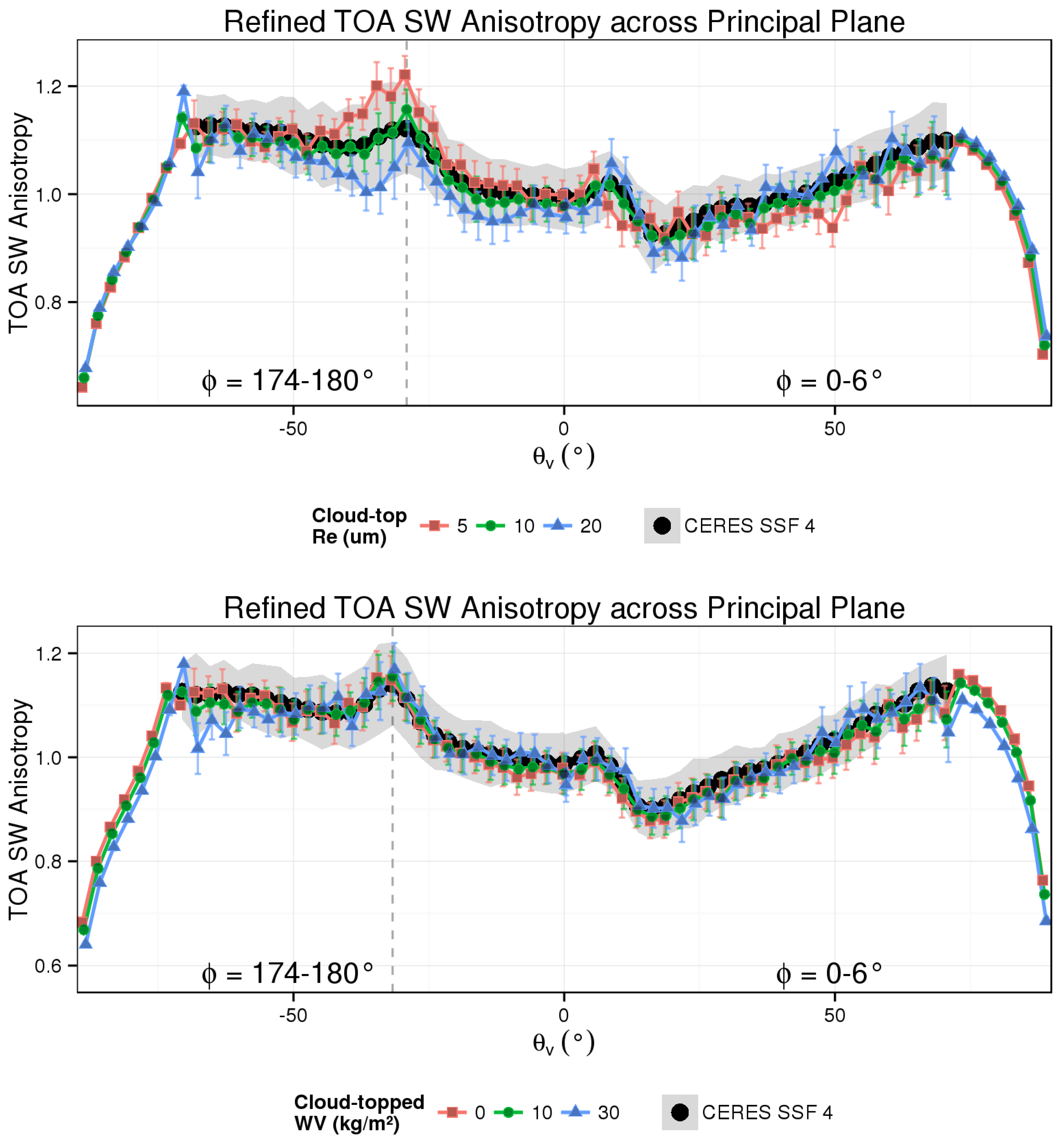

We investigated whether Top-of-Atmosphere Shortwave (TOA SW) anisotropy—essential to convert satellite-based instantaneous TOA SW radiance measurements into TOA SW fluxes—is sensitive to cloud-top effective radii and cloud-topped water vapor. Using several years of CERES SSF Edition 4 data—filtered for overcast, horizontally homogeneous, low-level and single-layer clouds of cloud optical thickness 10—as well as broadband radiative transfer simulations, we built refined empirical Angular Distribution Models (ADMs). The ADMs showed that anisotropy fluctuated particularly around the cloud bow and cloud glory (up to 2.9–8.0%) for various effective radii and at highest and lowest viewing zenith angles under varying amounts of cloud-topped moisture (up to 1.3–6.4%). As a result, flux estimates from refined ADMs differed from CERES estimates by up to 20 W m2 at particular combinations of viewing and illumination geometry. Applied to CERES cross-track observation of January and July 2007—utilized to generate global radiation budget climatologies for benchmark comparisons with global climate models—we found that such differences between refined and CERES ADMs introduced large-scale biases of 1–2 W m2 and on regional levels of up to 10 W m2. Such biases could be attributed in part to low cloud-top effective radii (about 8 μm) and low cloud-topped water vapor (1.7 kg m2) and in part to an inopportune correlation of viewing and illumination conditions with temporally varying effective radii and cloud-topped moisture, which failed to compensate towards vanishing flux bias. This work may help avoid sampling biases due to discrepancies between individual samples and the median cloud-top effective radii and cloud-top moisture conditions represented in current ADMs. View Full-Text
Keywords: CERES; energy budget; broadband radiative transfer simulations; cloud effective radius; upper-tropospheric humidity CERES; energy budget; broadband radiative transfer simulations; cloud effective radius; upper-tropospheric humidity
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Tornow, F.; Preusker, R.; Domenech, C.; Carbajal Henken, C.K.; Testorp, S.; Fischer, J. Top-of-Atmosphere Shortwave Anisotropy over Liquid Clouds: Sensitivity to Clouds’ Microphysical Structure and Cloud-Topped Moisture. Atmosphere 2018, 9, 256.
