Article

Effects of Elevated Surface Ozone Concentration on Photosynthetic Fluorescence Characteristics and Yield of Soybean Parents and Offspring

by
Shihao Cheng
1,
Yan Wang
1,
Mingyu Sun
1,
Jingyi Zheng
2,
Xianjin Zhu
1,* and
Tianhong Zhao
1,*
1
College of Agronomy, Shenyang Agricultural University, Shenyang 110866, China
2
College of Plant Science, Jilin University, Changchun 130012, China
*
Authors to whom correspondence should be addressed.
Atmosphere 2023, 14(9), 1368; https://doi.org/10.3390/atmos14091368
Submission received: 25 July 2023 / Revised: 25 August 2023 / Accepted: 28 August 2023 / Published: 30 August 2023
(This article belongs to the Special Issue Impacts of Climate Change and Agro-meteorological Disasters on Crops)
Browse Figures
Versions Notes

Abstract

:
Global climate change presents a significant threat to food security. Analyzing the effects of elevated ozone (O3) concentration on photosynthetic fluorescence characteristics and yield addresses the damage of climate change on crops, which would serve food security. With open-top chambers (OTCs) and Tiefeng-29 soybeans, we investigated the responses of chlorophyll concentration, fluorescence characteristics, net photosynthetic rate (Pn) and yield components to different O3 concentrations, which included CK (ambient concentration approximately 45 nL·L−1, T1 (80 ± 10) nL·L−1 and T2 (120 ± 10) nL·L−1 O3. The parent soybeans (S1) were planted in the current year, and O3 fumigation commenced 20 days after seedling emergence. Aeration was stopped at maturity, and the offspring soybeans (S2) were retained after harvest for further experiments. In the following year, S1 and S2 soybeans were planted, and O3 fumigation began 20 days after seedling emergence. The results show that leaf chlorophyll a (chla) and chlorophyll b (chlb) significantly decreased with longer O3 fumigation time both in parents and offspring, causing damage to the light-trapping ability while the offspring suffered an earlier decrease. The elevated O3 damaged the electron transfer process by significantly reducing the original and actual photochemical efficiencies of PSII both in parents and offspring. The electron transfer rate (ETR) of the parents and offspring decreased, while the difference between them was not significant after O3 treatment. The non-photochemical quenching coefficient (NPQ) showed an increasing trend along time but showed no significant difference between parents and offspring. An elevated concentration of O3 significantly reduced Pn, while the differences in Pn between the parents and the offspring were not significant. Elevated O3 resulted in reduced yields in both parent and offspring soybeans. Although it was found that the offspring soybeans exhibited higher yields than the parents, their reduction in yield was more significant. Therefore, elevated O3 concentration reduced soybean yield through damaging photosynthetic process and electron transfer capacity by impairing energy conversion and material accumulation capacity. The offspring had relatively higher light energy conversion efficiency than the parents, resulting in a higher yield than the parents under all treatments.

1. Introduction

In recent years, due to the swift advancement of the worldwide economy and the constant enlargement of metropolitan regions, near-surface ozone (O3) contamination has emerged as a significant contributor to atmospheric pollution. O3 is a highly reactive and potent oxidizing gas that brings about significant negative impacts on crop production and ecosystem carbon and nitrogen cycles [1,2,3,4]. It is important to explore crop sensitivity and response mechanisms to O3 [5]. Since 2013, the number of statistical days with O3 being the primary pollutant in Northeast China has been increasing yearly, and O3 has been consistently maintained at high pollution concentration levels [6]. It is estimated that the average surface O3 concentration will increase by 23% by 2050, and the superposition of extreme climatic events will further increase the damage caused by O3 [7], posing a great threat to grain production safety [8].
Soybeans, which are the world’s largest cultivated dicotyledonous plant, are the main source of fats and dietary protein for many people [9]. Climate change is the main reason for reduced soybean yields [10], and according to statistics, soybean production losses in China were about 10,900–1,840,000 metric tons during 2010–2017 [11]. Understanding the mechanism behind soybean response to elevated O3 levels is crucial for ensuring global food security, particularly in developing nations [12]. Existing studies have shown that the effects of O3 on soybeans are complex and that soybeans react differently to elevated O3 concentrations at varying developmental stages and according to soybean genotype [13]. An elevation in O3 levels triggers the rapid generation of reactive oxygen species in soybeans, inducing oxidative stress and heightened stomatal resistance, ultimately causing leaf closure [14]. These factors result in reduced photosynthesis and accelerated senescence [15]. Recent research indicates that elevated levels of O3 may also impact the interactions between soil microorganisms and plants [16]. Moreover, intracellular O3 accumulation within soybean leaves impedes gas exchange by restricting external CO2 from entering the leaf cells, thus affecting the gas exchange process of soybean leaves. When O3 fumigation was continuously carried out, the source of damage shifted from stomatal limiting factors in the pre-fumigation period to non-stomatal limiting factors, resulting in severe damage to the photosynthetic organs of soybean leaves. This led to a reduction in photosynthetic pigment content, hampering normal photosynthesis and damaging the electron transfer pathway of soybean leaves [17,18]. Elevated O3 concentration also inhibits the activity of relevant enzymes in soybean leaves, reduces the content of amino acids and proteins [19], and damages the important pathways of soybean material accumulation, energy transfer and conversion, and carbon and nitrogen element distribution, resulting in a significant decrease in plant biomass, leading to a reduction in soybean yields [20,21].
Although the impacts of elevated concentrations of O3 on crops have been extensively studied, the majority of these studies have focused solely on crop parents. Given that soybeans exhibit genetic variability between parents and offspring generations [22], and considering that soybeans are one of the most sensitive crops to changes in O3 concentration [23,24], more research is needed to examine the acclimation of offspring soybeans that have been propagated from parents grown under O3 stress. The test site of Shenyang area from June to July experienced O3 pollution for approximately 51% of the year [6]. This critical growth period coincides with the crucial development stage of spring-sown soybeans, leading to significant damage to soybeans [25]. To investigate the photosynthetic response mechanism of different generations of soybean to elevated O3 concentration, in this study, we employed open-top chambers (OTCs) to examine the effects of elevated O3 on photosynthetic and fluorescence characteristics, as well as yield-related indices of soybean parents and offspring. Our objective is to provide both theoretical and practical guidance for the sustainable growth of soybean production within the context of elevated O3 levels.

2. Materials and Methods

2.1. Selection of Test Material

The soybean cultivar “Tiefeng 29” was utilized as the parent material, with its offspring being the seeds obtained from the fumigated parent material in the first year. This cultivar has a growth period of approximately 133 days, making it well-suited for cultivation in soils with medium to high fertility levels.

2.2. Experimental Design

This experiment was conducted at the Shenyang National Field Scientific Observatory for Farmland Ecosystems, Chinese Academy of Sciences (41°31′ N, 123°24′ E). This area experiences an annual rainfall of 700 mm, a frost-free period of 147–164 days, and primarily comprises meadow brown loam soil.
In the fumigation test, OTCs fitted with a ventilation system, an O3 generator (BGY-Q8, BBL, Beijing, China), an O3 concentration sensor (S900, Aeroqual, Auckland, New Zealand), an automatic inflation control system, and an analysis system were employed. The OTCs had octagonal cross-sections with side lengths of 1.15 m and heights of 2.4 m and were made of glass walls. These chambers were arranged outdoors at intervals of 4 m and featured automatic measurement systems for temperature, wind speed, and humidity indoors and outdoors. Real-time data storage ensured that the test had a stable O3 concentration and that the environmental conditions, such as temperature, humidity, and illumination, were consistent both inside and outside the chambers.
The experiment was conducted with three O3 concentration treatments, namely CK: ambient concentration of O3 at around 45 nL·L−1, T1: O3 concentration at (80 ± 10) nL·L−1, and T2: O3 concentration at (120 ± 10) nL·L−1. PVC buckets measuring 34 cm in diameter and 30 cm in height were used for potting. The parents were sowed in 2019, with 20 potting buckets placed in each air chamber and 10 seeds sown in each bucket. After seedling emergence, five plants were retained in each potting bucket and then incubated for another 20 days and treated with O3 fumigation from 9 a.m. to 5 p.m. daily. No additional impacts were recorded due to weeds, pests, diseases, fertility, etc. during this period. Aeration was stopped when the soybeans matured, and the offspring plants (S2) were kept for subsequent experiments after harvesting.
There was simultaneous sowing of the parents (S1) and their corresponding offspring (S2) in 2020, and 10 buckets sown with 10 S1 seeds and 10 buckets sown with 10 S2 seeds were placed in each chamber. After seedling emergence, five plants were retained in each potting bucket and then incubated for another 20 days and treated with O3 fumigation from 9 a.m. to 5 p.m. daily. No additional impacts due to weeds, pests, diseases, fertility, etc. were recorded during this period.

2.3. Measurement Items and Methods

2.3.1. Determination of Chlorophyll Content

Leaf samples were taken at the branching, flowering, and podding stages, and six representative plants with uniform growth were selected from each of the parent–offspring treatments in each air chamber for the determination of chlorophyll content using the 95% ethanol method.

2.3.2. Measurement of Fluorescence Parameters

A Pulse-modulated Fluorometer (FMS-2, Hansatech, Norfolk, UK) was used to make measurements at the branching, flowering, and podding stages. On a sunny day with suitable light, six plants with uniform and representative growth were selected from 9:00 a.m. to 12:00 p.m. in each of the air chamber parent–offspring treatments. The same leaves were light-responsive and fully dark-adapted for 20 min, then the initial fluorescence (F0), maximum fluorescence (Fm), PSII primary photochemical efficiency (Fv/Fm), PSII actual photochemical efficiency ΦPSII = (Fm′ − s)/Fm′, PSII maximum photochemical efficiency (Fv′/Fm′), PSII electron transfer rate (ETR), photochemical quenching coefficient qP = (Fm′ − Fs)/(Fm′ − F0′), and non-photochemical quenching coefficient NPQ = (Fm − Fm′)/(Fm − F0′) were determined.

2.3.3. Determination of Net Photosynthetic Rate

Portable photosynthesis systems (CIRAS-3, pp systems, Amesbury, MA, USA) were utilized to ascertain the net photosynthetic rate (Pn). A suitable sunny day with adequate illumination was chosen, and the light intensity inside the leaf chamber was set to a constant rate of 1200 μmol·m−2·s−1. The temperature was maintained at 25 °C and the CO2 concentration was set at 390 μmol·mol−1, to determine Pn of the leaves. Six plants with uniform and representative growth were selected from 9:00 a.m. to 12:00 p.m. in each of the air chamber parent–offspring treatments and measured at the branching, flowering, and podding stages.

2.3.4. Determination of Yield Components

At harvest time, in each air chamber, 10 parent plants and 10 corresponding offspring plants with uniform growth were collected in mesh bags and naturally dried and considered test species, and then yield components such as pod number per plant, seed number per plant, mass per 100 seeds, and seed mass per plant were investigated [26].

2.4. Data Analysis

Data processing was conducted using Microsoft Excel 2016 and plotting was performed using Origin2021. One-way ANOVA was performed using SPSS 26.0 to analyze the effects of different treatments on Pn, chlorophyll content, fluorescence parameters, and soybean yield. The significance was determined using the least significant difference (LSD) method, and correlation analysis was conducted using the Pearson index. The experimental data are presented as mean ± standard deviation.

3. Results

3.1. Effect of Increased O3 Concentration on Soybean Leaf Chlorophyll Content

Throughout the growth stages, there was a general downward trend in the chlorophyll a (chla) content for each treatment (as shown in Figure 1a). At the branching stage, there was no significant difference between T2S1 and CKS1, while both CK and T1 treatments showed S1 < S2. Under the T2 treatment, S2 decreased significantly by 39.1% compared to S1. At the flowering stage, there was a significant decrease of 21.5% in S2 compared to CKS2 under T1 treatment. T2 treatment showed a significant decrease of 21.2% in S1 and 10.1% in S2 compared to CKS1 and CKS2, respectively. There was a significant difference between S2 and S1, where S2 had a higher value. At the podding stage, both T1S2 and T2S2 were significantly lower than CKS2, but there was no significant difference between the parents and offspring under each treatment. The high O3 concentration significantly affected chla content in soybean leaves. In terms of the differences between parents and offspring, there were significant differences under the T2 treatment at the branching and flowering stages, while there were no significant differences in the other treatment periods.
Under the T2 treatment at the branching stage, S1 > S2 but the difference was not significant (Figure 1b). At the flowering stage, there was a significant decrease of 16.4% in S2 compared to S1 under CK treatment, while under T1 treatment, there were significant decreases of 29.9% in S1 and 20.2% in S2 compared to CKS1 and CKS2, respectively. T2 treatment showed a significant decrease of 29.4% in S1 compared to CKS1. There were no significant differences between parents and offspring under any treatments at the podding stage, while S2 was significantly higher than CKS2 by 133.6% under T2 treatment. The chlorophyll b (chlb) content for S1 showed a general trend of decreasing and then increasing during all growth periods, with no significant differences observed between S1 and S2 under T1 and T2 treatments.
The ratio of chlorophyll a and b (chla/chlb) remained relatively unchanged at the branching and flowering stages (as shown in Figure 1c), and S1 < S2 under both CK and T2 treatments at the podding stage. There were no significant differences between S1 and S2 at any periods and treatments, or among treatments.
Elevated O3 concentrations caused an overall decrease in the total chlorophyll content of growing soybean (as shown in Figure 1d). At the branching stage, under T2 treatment, S1 was significantly higher than T1S1 by 46.4%, while S2 was significantly lower than CKS2 by 40.1%, and the values for offspring were significantly lower than those for parents by 62.3%. At the flowering stage, under T1 treatment, S1 and S2 were significantly lower than CKS1 and CKS2 by 20.4% and 21.1%, respectively, and the difference between S2 and S1 was not significant. Under T2 treatment, S1 was significantly lower than CKS1 by 23.9%, and S2 was lower than CKS2, but S2 was significantly higher than S1 by 16.1%. At the podding stage, there were no significant differences between S1 and S2 compared to CK under T1 treatment, while under T2 treatment, S2 was significantly greater than CKS2 by 55.5%. In all growth periods, there were significant differences between S1 and S2 under T2 treatment.

3.2. Effects of Elevated O3 Concentration on Fluorescence Parameters of Soybean Leaves

3.2.1. Primary Photochemical Efficiency of PSII and Actual Photochemical Efficiency of PSII

Throughout the growth of the soybeans, there was little overall change in the Fv/Fm of PSII (as indicated in Table 1). At the branching and flowering stages, there were no significant differences between parents and offspring, while S1 was significantly lower than S2 by 11.4% under the T1 treatment at the podding stage. There were no significant differences between the treatments of the parents and offspring at the branching stage and flowering stage, while at the podding stage, S1 was significantly lower than CKS1 by 11.7%.
Additionally, ΦPSII displayed a declining trend during the soybean developmental period, and all values were lower than Fv/Fm. In terms of parent–offspring relationships, S1 significantly differed from S2 under CK treatment at the branching stage and T1 treatment at the podding stage, and the ΦPSII of S2 was higher than S1 under all treatments throughout the branching stage. At the flowering stage, S2 showed lower values than S1 under the T1 and T2 treatments, in contrast to the results of CK treatment. At the podding stage, T1S1 was significantly lower than CKS1 by 24.5%, T1S2 was significantly higher than CKS2 by 19.9%, and S2 was significantly lower than CKS2 by 20.9% under T2 treatment.

3.2.2. Maximum Photochemical Efficiency of PSII

Table 1 reveals that Fv′/Fm′ did not significantly vary during all stages of soybean growth. At the branching and flowering stages, there were no significant differences between the parents and offspring under all treatments, while the differences between the parents and offspring were noteworthy under the T1 treatment at the podding stage. This indicates that low O3 concentration should be monitored during the podding stage, as high O3 concentration did not prove to significantly affect Fv′/Fm′.

3.2.3. Photosynthetic Electron Transfer Rate

ETR generally demonstrated a decreasing trend during all stages of soybean growth and development (as denoted in Table 1). At the branching stage, there was no significant difference in ETR between the parents and offspring under each treatment. At the flowering stage, there was no significant difference between the parents and offspring under each treatment, but T1S1 and T2S1 decreased significantly by 27.4% and 45.5%, respectively, compared with CKS1, while T1S2 and T2S2 decreased significantly by 37.3% and 48.8%, respectively, compared with CKS2. No significant difference in ETR was observed between parents and offspring under each treatment and among treatments at the podding stage. Overall, it is evident that at the flowering stage, elevated O3 concentration had a significant impact on the ETR of soybean leaves.

3.2.4. Photochemical Quenching and Non-Photochemical Quenching

From Table 1, it is evident that the overall trend of qP in leaves decreased during all stages of soybean development. At the branching stage, there were no significant differences between parents and offspring under each treatment and among treatments. At the flowering stage, there was no significant difference in qP among the parents and offspring under each treatment, while T2S1 and T2S2 showed significant decreases of 20.4% and 19.6%, respectively, compared with CKS1 and CKS2. At the podding stage, there was no significant difference between the parents and offspring under each treatment, while T2S2 was significantly lower than T1S2 by 29.4%. At the flowering stage, the qP of soybean leaves under the high-O3 treatments was significantly altered, but none of the differences between parents and offspring were significant.
In comparison, NPQ tended to gradually increase during all stages of soybean growth. However, no significant differences were observed under each treatment in each period, either between parents and offspring or between treatments.

3.3. Effects of Elevated O3 Concentration on Net Photosynthetic Rate

Elevated O3 concentration significantly decreased Pn in the branching and flowering stages with no significant difference between the parents and offspring (Figure 2). At the branching stage, S2 was lower than S1 under both T1 and T2 treatments. Specifically, under T1 treatment, S1 and S2 were significantly lower than CKS1 and CKS2 by 36.2% and 43.1%, respectively. Similarly, under T2 treatment, S1 and S2 were significantly lower than CKS1 and CKS2 by 59.1% and 71.7%, respectively. At the flowering stage, S2 was significantly higher than S1 by 35.4% under the CK treatment. Under both T1 and T2 treatments, S1 was greater than S2, but the difference was not significant under T2 treatment. At the podding stage, Pn displayed a decreasing-then-increasing trend with increasing O3 concentration. The Pn of S2 was significantly higher than that of S1 by 44.3% under CK treatment. However, under T1 and T2 treatments, the difference between the parents and offspring was not significant with regard to Pn, except for the flowering stage.

3.4. The Effect of Elevated O3 Concentration on Soybean Yield Component Factors

With the elevation of O3 concentration, the pod number per plant, seed number per plant, mass per 100 seeds, and the seed mass per soybean plant all declined, resulting in significantly lower soybean yield indicators in comparison to the CK treatment in both T1 and T2 treatments (refer to Table 2). From the point of view of the parents and offspring, the pod number per plant, seed number per plant, mass per 100 seeds, and the seed mass per plant of S2 were higher than those of S1, but the treatments did not significantly affect the pod number per plant and the seed mass per plant of the parents and offspring, and the seed number per plant of S2 was significantly higher than that of S1 by 7.3% under high O3 concentration, while only the mass per 100 seeds of S1 was significantly different from that of S2 under the T1 treatment.

3.5. Correlation Analysis of Photosynthetic and Fluorescence Parameters with Yield

Based on the findings in Figure 3, the Pn of the parent soybean leaves exhibited a significant positive correlation with the ΦPSII and ETR. Additionally, ETR displayed a significant positive correlation with Pn and chla and a highly significant positive correlation with chlb and ΦPSII. Furthermore, both Pn and ETR demonstrated a positive correlation with yield.
In Figure 4, Pn of the offspring soybean leaves displays a highly significant positive correlation with chla, a highly significant negative correlation with NPQ, and a significant positive correlation with yield. Moreover, ETR exhibited a significant positive correlation with Pn, chla, ΦPSII, and qP.

4. Discussion and Conclusions

Elevated O3 concentrations exacerbated the peroxidation of membranes in both parents and offspring soybeans, leading to damage to the membrane system and degradation of leaf chlorophyll, resulting in a significant decrease in chlorophyll content [27]. Our studies show that elevated O3 concentrations caused a declining trend in chlorophyll content in both parent and offspring soybeans, which is consistent with previous research on parent soybeans [28]. Studies on plant crops like catalpa, rice, and others also suggest a similar conclusion in relation to their response to O3 stress [29,30]. High concentrations of O3 can lead to significant damage to the leaves and cell membrane system of soybean, thereby reducing stomatal conductance and limiting stomatal movement. Our preliminary experiments of the current study and the findings of Bailey et al. [31] support this statement. Xiongfei Guo et al. [32] also found similar results in studies of autumn maple, cottonwood, and other plant seedlings.
Green plants perform energy conversion through photosynthesis and light energy absorbed by chlorophyll can drive photosynthesis and release chlorophyll fluorescence [33]. It is of significant importance to investigate the utilization, transfer, dissipation, and distribution of light energy in plants through chlorophyll fluorescence detection techniques. [34]. Fv/Fm reflects a plant’s adaption to long-term light intensity, while Fv’/Fm’ represents the actual photosynthetic reaction center’s energy transfer efficiency [35,36]. We demonstrated that O3 treatment reduced both Fv/Fm and Fv’/Fm’ in both parents and offspring generations of soybeans, probably due to the more significant effect of O3 damage on the photoreaction centers of soybean leaves. During the podding stage, the photochemical efficiencies of the offspring were found to be higher compared to the parents under the low concentration treatment. This could possibly be attributed to the fact that the low concentration of O3 damaged the PSII of the parents, but appeared to have promoted PSII of the offspring at the late stage of soybean growth. ETR, qP, and NPQ are parameters that reflect electron transfer. Both parents and offspring exhibited a decrease in ETR as the concentration of O3 increased, with high O3 concentrations having a greater impact on the offspring during the soybean podding stage. qP, which reflects the electron transfer activity of PSII, shows a gradual decrease under conditions of increasing O3 concentration. NPQ is a self-protective mechanism for photosynthetic organs and is the portion of light energy not undergoing photosynthetic electron transfer that is dissipated in the form of heat energy [37]. In the current study, there were no significant differences observed in qP and NPQ between parent and offspring soybeans. However, NPQ exhibited an increasing trend under conditions of increasing O3 concentration due to the requirement of excess light energy dissipation.
The Pn of leaves is closely related to stomatal conductance [38]. As O3 concentrations increased, the Pn of soybean leaves decreased, affecting both parents and offspring leaves. The results of our previous study indicate that non-stomatal limiting factors caused the decrease in Pn, which aligns with the findings of a study conducted by Weiwei Zhang et al. on parent soybeans [39]. The Pn of the offspring was higher than that of the parents under all periods of CK treatment, which may be attributed to the continued decrease in the expression of genes involved in photosynthesis in old leaves under O3 stress, while young leaf tissue dominated changes in the expression of defense genes [40].
The yield components of the offspring soybeans, including the seed number per plant, mass per 100 seeds, and the seed mass per plant of soybeans, all exhibited superior results compared to those of the parent generation. The high concentration of O3 had a detrimental effect on photosynthesis and electron transport pathways in soybean leaves, causing a decline in both Pn and ETR. A correlation analysis indicated a significant positive correlation between the Pn and ETR of both the parents and offspring soybeans, as well as the yield. Consequently, the various yield indices of the parents and offspring soybeans witnessed a significant decrease. These findings are consistent with previous research conducted by Ming Zhang et al., Rongjun Wu et al., Lianxin Yang et al., and others on the impact of elevated O3 concentrations on the yield of parent soybeans [41,42,43]. Under high O3 concentration treatment, the number of pods per plant of the offspring was slightly lower than that of the parents, while the number of seeds per plant was significantly higher than that of the parents. However, this could be attributed to the higher rate of empty pods produced by offspring soybeans under O3 stress.
In summary, elevated O3 concentration significantly reduces Pn and chlorophyll content of the parents and offspring soybean leaves. High O3 concentration harms the electron transfer pathway, ultimately impeding the energy conversion ability of the parents and offspring soybean leaves. Nevertheless, the offspring exhibit higher light energy conversion efficiency and a higher seed yield than the parent generation. Simultaneously, the offspring yield had a higher reduction compared to the parents under stress. The current investigation was carried out on soybeans, and additional exploration is necessary in forthcoming studies to ascertain if comparable phenomena are demonstrated in other crops. Additionally, the mechanism of genetic variation in O3 tolerance among crop varieties requires further study in multigenerational long-term experiments. Measures to mitigate the risks of grain production security caused by global climate change should continue to be pursued through agricultural practices, such as the cultivation of resilient crop varieties and the implementation of exogenous conditioning techniques.

Author Contributions

Data curation, S.C., Y.W., M.S., J.Z., X.Z. and T.Z.; investigation, S.C., Y.W., M.S., J.Z., X.Z. and T.Z.; methodology, X.Z. and T.Z.; writing—original draft, S.C.; writing—review and editing, X.Z. and T.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grants 31570404, 32071585.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AbbreviationFull Name
O3Ozone
OTCsOpen-top chambers
PnNet photosynthetic rate
chlaChlorophyll a
chlbChlorophyll b
chla/chlbRatio of Chlorophyll a and b
ETRElectron transfer rate
F0Initial fluorescence
FmMaximum fluorescence
Fv/FmPSII primary photochemical efficiency
ΦPSIIPSII actual photochemical efficiency
Fv′/Fm′PSII maximum photochemical efficiency
qPPhotochemical quenching coefficient
NPQNon-photochemical quenching coefficient

References

  1. Li, A.; Zhou, Q.; Xu, Q. Prospects for ozone pollution control in China: An epidemiological perspective. Environ. Pollut. 2021, 285, 117670. [Google Scholar] [CrossRef] [PubMed]
  2. Xu, M.; Yao, Q.; Chen, D.; Li, M.; Li, R.; Gao, B.; Zhao, B.; Chen, Z. Estimating the impact of ground ozone concentrations on crop yields across China from 2014 to 2018: A multi-model comparison. Environ. Pollut. 2021, 283, 117099. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, N.; Wang, Y.-J.; Ping, Q.; Xu, S.; Li, Y.; He, X.-Y.; Chen, W. Characteristics of leaf litter decomposition of Ginkgo biloba L. exposed to elevated O3 concentration. Chin. J. Ecol. 2021, 40, 2727–2736. [Google Scholar] [CrossRef]
  4. Jin, D.-Y.; Zhao, T.-H.; Fu, Y.; Sun, J.-W.; Huang, S. Effects of Elevated Ozone. Concentration on Soybean Photosynthesis and Yield. Soybean Sci. 2009, 28, 632–635. [Google Scholar]
  5. Ramya, A.; Dhevagi, P.; Poornima, R.; Avudainayagam, S.; Watanabe, M.; Agathokleous, E. Effect of ozone stress on crop productivity: A threat to food security. Environ. Res. 2023, 236, 116816. [Google Scholar] [CrossRef]
  6. Ren, W.H. Study on Spatial and Temporal Variation Characteristics of Ozone Pollution and Weather Classification in Shenyang. Environ. Monit. China 2021, 37, 75–82. [Google Scholar] [CrossRef]
  7. Morgan, P.B.; Mies, T.A.; Bollero, G.A.; Nelson, R.L.; Long, S.P. Season-long elevation of ozone concentration to projected 2050 levels under fully open-air conditions substantially decreases the growth and production of soybean. New Phytol. 2006, 170, 333–343. [Google Scholar] [CrossRef]
  8. Biancari, L.; Cerrotta, C.; Menendez, A.I.; Gundel, P.E.; Alejandra Martinez-Ghersa, M. Episodes of high tropospheric ozone reduce nodulation, seed production and quality in soybean (Glycine max (L.) merr.) on low fertility soils. Environ. Pollut. 2021, 269, 116117. [Google Scholar] [CrossRef]
  9. Nishinari, K.; Fang, Y.; Guo, S.; Phillips, G.O. Soy proteins: A review on composition, aggregation and emulsification. Food Hydrocoll. 2014, 39, 301–318. [Google Scholar] [CrossRef]
  10. Xu, B.; Wang, T.; Gao, L.; Ma, D.; Song, R.; Zhao, J.; Yang, X.; Li, S.; Zhuang, B.; Li, M.; et al. Impacts of meteorological factors and ozone variation on crop yields in China concerning carbon neutrality objectives in 2060. Environ. Pollut. 2023, 317, 120715. [Google Scholar] [CrossRef]
  11. Li, D.; Shindell, D.; Ding, D.; Lu, X.; Zhang, L.; Zhang, Y. Surface ozone impacts on major crop production in China from 2010 to 2017. Atmos. Chem. Phys. 2022, 22, 2625–2638. [Google Scholar] [CrossRef]
  12. Wang, Y.T.; Wang, Y.C.; Feng, Z.Z.; Yuan, X.Y.; Zhao, Y. The impacts of ambient ozone pollution on China’s wheat yield and forest production from 2010 to 2021. Environ. Pollut. 2023, 330, 121726. [Google Scholar] [CrossRef]
  13. Zentella, R.; Burkey, K.O.; Tisdale, R.H. Impact of tropospheric ozone on root proteomes of two soybean genotypes with contrasting sensitivity to ozone. Environ. Exp. Bot. 2023, 208, 105269. [Google Scholar] [CrossRef]
  14. Zhang, X.; Zhang, X.; Wang, T.; Li, C. Metabolic response of soybean leaves induced by short-term exposure of ozone. Ecotoxicol. Env. Saf. 2021, 213, 112033. [Google Scholar] [CrossRef]
  15. Montes, C.M.; Demler, H.J.; Li, S.; Martin, D.G.; Ainsworth, E.A. Approaches to investigate crop responses to ozone pollution: From O3 -FACE to satellite-enabled modeling. Plant J. 2022, 109, 432–446. [Google Scholar] [CrossRef] [PubMed]
  16. Yu, Z.S.; Gao, Q.; Guo, X.; Peng, J.L.; Qi, Q.; Chen, X.W.; Gao, M.Y.; Mo, C.H.; Feng, Z.Z.; Wong, M.H.; et al. Phylogenetic Conservation of Soil Microbial Responses to Elevated Tropospheric Ozone and Nitrogen Fertilization. Msystems 2023, 8, e00721-22. [Google Scholar] [CrossRef] [PubMed]
  17. Sun, M.-Y.; Wang, Y.; Fan, R.-X.; Mu, L.; Zhao, T.-H. Comparison of Photosynthetic Capacity and Light Response Curve Models of Soybean Under Elevated Ozone Concentration. Soybean Sci. 2021, 40, 497–503. [Google Scholar] [CrossRef]
  18. Zheng, Y.-F.; Gu, K.-L.; Wu, R.-J.; Xu, J.-X.; Shi, M.-H.; Hu, H.-F. Combination. effects of reduced radiation and enhanced O3 stress on chlorophyll fluorescence characteristics and yield of soybean. J. South. Agric. 2013, 44, 1295–1302. [Google Scholar] [CrossRef]
  19. Mu, L.; Wang, Y.; Sun, M.-Y.; Zhou, Y.-T.; Zhuang, Y.-H.; Zhao, T.-H. Effect of Ozone Concentration Increasing near the Ground on Nitrogen Metabolism and Yield of Soybean Leaves. Ecol. Environ. Sci. 2020, 29, 1395–1402. [Google Scholar] [CrossRef]
  20. Tisdale, R.H.; Zentella, R.; Burkey, K.O. Impact of elevated ozone on yield and carbon-nitrogen content in soybean cultivar ‘Jake’. Plant Sci. 2021, 306, 110855. [Google Scholar] [CrossRef] [PubMed]
  21. Pleijel, H.; Broberg, M.C.; Uddling, J. Ozone impact on wheat in Europe, Asia and North America—A comparison. Sci. Total Env. 2019, 664, 908–914. [Google Scholar] [CrossRef]
  22. Chen, S.-J.; Yang, Q.-K.; Wang, J.-L.; Hui, D.-W.; Chen, S.-Y.; Cui, R.-Z.A. RAPD Study on the genetic relationship between parents and offsprings in soybean breeding. J. Northeast Agric. Univ. 1996, 27, 137–141. [Google Scholar] [CrossRef]
  23. Khan, N.A.; Komatsu, S.; Sawada, H.; Nouri, M.-Z.; Kohno, Y. Analysis of Proteins Associated with Ozone Stress Response in Soybean Cultivars. Protein Pept. Lett. 2013, 20, 1144–1152. [Google Scholar] [CrossRef] [PubMed]
  24. Mills, G.; Sharps, K.; Simpson, D.; Pleijel, H.; Frei, M.; Burkey, K.; Emberson, L.; Uddling, J.; Broberg, M.; Feng, Z.; et al. Closing the global ozone yield gap: Quantification and cobenefits for multistress tolerance. Glob. Chang. Biol. 2018, 24, 4869–4893. [Google Scholar] [CrossRef] [PubMed]
  25. Gosselin, H.; Sagan, V.; Maimaitiyiming, M.; Fishman, J.; Belina, K.; Podleski, A.; Maimaitijiang, M.; Bashir, A.; Balakrishna, J.; Dixon, A. Using Visual Ozone Damage Scores and Spectroscopy to Quantify Soybean Responses to Background Ozone. Remote Sens. 2020, 12, 93. [Google Scholar] [CrossRef]
  26. Li, Y.-Z.; Kong, R.-M.; Li, J.-Q.; Du, X.-L.; Shao, L.; Kong, F.-K. Effect of Biochar-based Fertilizer on Growth and Yield of Soybean. Chin. J. Trop. Agric. 2021, 41, 33–37. [Google Scholar]
  27. Zhou, Y.-T.; Wang, Y.; Sun, M.-Y.; San, Y.; Yao, X.-Z.; Zhao, T.-H. Effect of Ozone Concentration Increasing Near the Ground on Antioxidant System of Parent and Offspring Soybean Leaves. Ecol. Environ. Sci. 2021, 30, 2195–2203. [Google Scholar] [CrossRef]
  28. Zhang, W.-W.; Wang, G.-H.; Wang, M.-Y.; Liu, X.-B.; Feng, Z.-Z. Responses of Soybean Cultivar Dongsheng-1 to Different O3 Concentrations in Northeast China. Environ. Sci. 2014, 35, 1473–1478. [Google Scholar] [CrossRef]
  29. Tao, H.-C.; Ma, C.-L.; Xu, -S. Effects of Ozone and Drought on Photosynthetic Pigment Contents and Chlorophyll Fluorescence Physiology of Catalpa ovata Leaves. J. Southwest For. Univ. Nat. Sci. 2018, 38, 83–88. [Google Scholar]
  30. Zheng, F.-X.; Wang, X.-K.; Zhang, W.-W.; Duan, X.-N.; Hou, P.-Q. Influences of Elevated Ozone on Rice Photosynthesis and Yield. J. Agro-Environ. Sci. 2009, 28, 2217–2223. [Google Scholar]
  31. Bailey, A.; Burkey, K.; Taggart, M.; Rufty, T. Leaf Traits That Contribute to Differential Ozone Response in Ozone-Tolerant and Sensitive Soybean Genotypes. Plants 2019, 8, 235. [Google Scholar] [CrossRef] [PubMed]
  32. Guo, X.-F.; Xu, L.-F.; Lu, G.-C.; Chen, H.-Y. Effects of Increased Ground-level Ozone Concentration on Four Species of Plant. Environ. Sci. Technol. 2014, 37, 6–10. [Google Scholar]
  33. Murchie, E.H.; Lawson, T. Chlorophyll fluorescence analysis: A guide to good practice and understanding some new applications. J. Exp. Bot. 2013, 64, 3983–3998. [Google Scholar] [CrossRef]
  34. You, X.; Gong, J. Significance and Application of Chlorophyll Fluorescence Dynamics Process Parameters. J. West China For. Sci. 2012, 41, 90–94. [Google Scholar]
  35. Shirke, P.A.; Pathre, U.V. Diurnal and Seasonal Changes in Photosynthesis and Photosystem 2 Photochemical Efficiency in Prosopis juliflora Leaves Subjected to Natural Environmental Stress. Photosynthetica 2003, 41, 83–89. [Google Scholar] [CrossRef]
  36. Demmig-Adams, B.; Adams, W.W. Xanthophyll cycle and light stress in nature: Uniform response to excess direct sunlight among higher plant species. Planta 1996, 198, 460–470. [Google Scholar] [CrossRef]
  37. Zhang, S.-R. A Discussion on Chlorophyll Fluorescence Kinetics Parameters and Their Significance. Chin. Bull. Bot. 1999, 16, 444–448. [Google Scholar]
  38. Liu, F.; Mo, X.; Zhang, S.; Chen, F.; Li, D. Gas exchange characteristics and their influencing factors for halophytic plant communities on west coast of Bohai Sea. PLoS ONE 2020, 15, e0229047. [Google Scholar] [CrossRef]
  39. Zhang, W.-W.; Zhao, T.-H.; Wang, M.-Y.; He, X.-Y.; Fu, S.-L. Effects of elevated ozone concentration on Ginkgo biloba photosynthesis. Chin. J. Ecol. 2007, 26, 645–649. [Google Scholar]
  40. Waldeck, N.; Burkey, K.; Carter, T.; Dickey, D.; Song, Q.; Taliercio, E. RNA-Seq study reveals genetic responses of diverse wild soybean accessions to increased ozone levels. BMC Genom. 2017, 18, 498. [Google Scholar] [CrossRef]
  41. Zhang, M.; Wang, Y.; Zhao, T.-H.; Wu, H.-Y.; Sun, M.-Y.; Mu, L. Effects of Straw Returning on Photosynthetic Fluorescence Characteristics and Yield of Soybean Under Elevated Ozone Concentration. Soybean Sci. 2019, 38, 754–761. [Google Scholar] [CrossRef]
  42. Wu, R.-J.; Yao, J.; Zheng, Y.-F.; Zhang, J.-E.; Liu, R.-N.; Xu, W.-M.; Hu, H.-F. Combination Effects of Elevated O3 and Enhanced UV-B Radiation on Biomass and Yield of Soybean. Chin. J. Agrometeorol. 2012, 33, 207–214. [Google Scholar] [CrossRef]
  43. Yang, L.-X.; Wang, Y.-X.; Zhao, Z.-P.; Zhu, J.-G.; Sun, J.D.; Wang, Y.-L. Responses of soybean to free-air ozone concentration enrichment: A research review. Acta Ecol. Sin. 2010, 30, 6635–6645. [Google Scholar]
Atmosphere 14 01368 g001

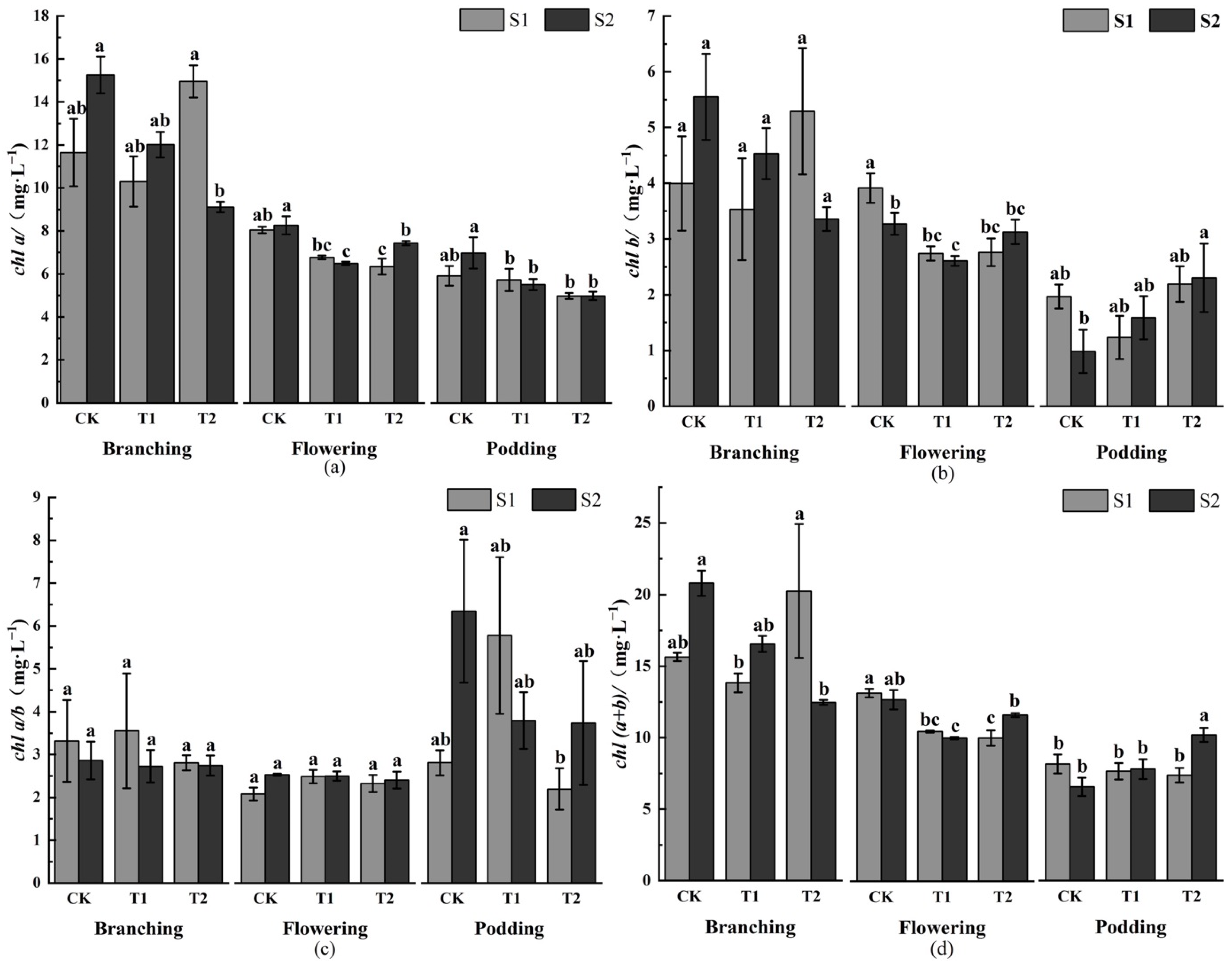

Figure 1. (a) Chlorophyll a Content in Soybean Leaves under Elevated O3 Concentration; (b) Chlorophyll b Content in Soybean Leaves Under Elevated O3 Concentration; (c) Chlorophyll a/b Ratio in Soybean Leaves under Elevated O3 Concentration; (d) Total Chlorophyll in Soybean Leaves under Elevated O3 Concentration. Different lowercase letters in the figure indicate that the difference among different treatments reaches a significant level (p < 0.05), with the same below.
Figure 1. (a) Chlorophyll a Content in Soybean Leaves under Elevated O3 Concentration; (b) Chlorophyll b Content in Soybean Leaves Under Elevated O3 Concentration; (c) Chlorophyll a/b Ratio in Soybean Leaves under Elevated O3 Concentration; (d) Total Chlorophyll in Soybean Leaves under Elevated O3 Concentration. Different lowercase letters in the figure indicate that the difference among different treatments reaches a significant level (p < 0.05), with the same below.
Atmosphere 14 01368 g001
Atmosphere 14 01368 g002

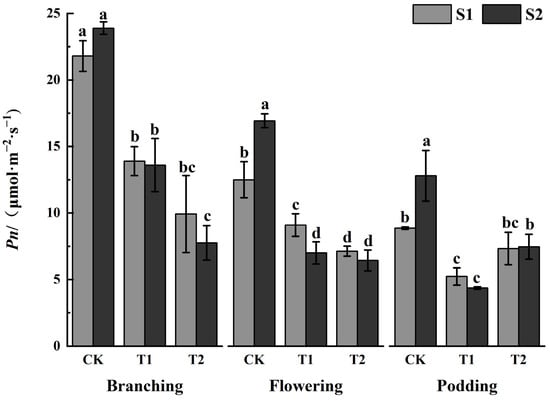

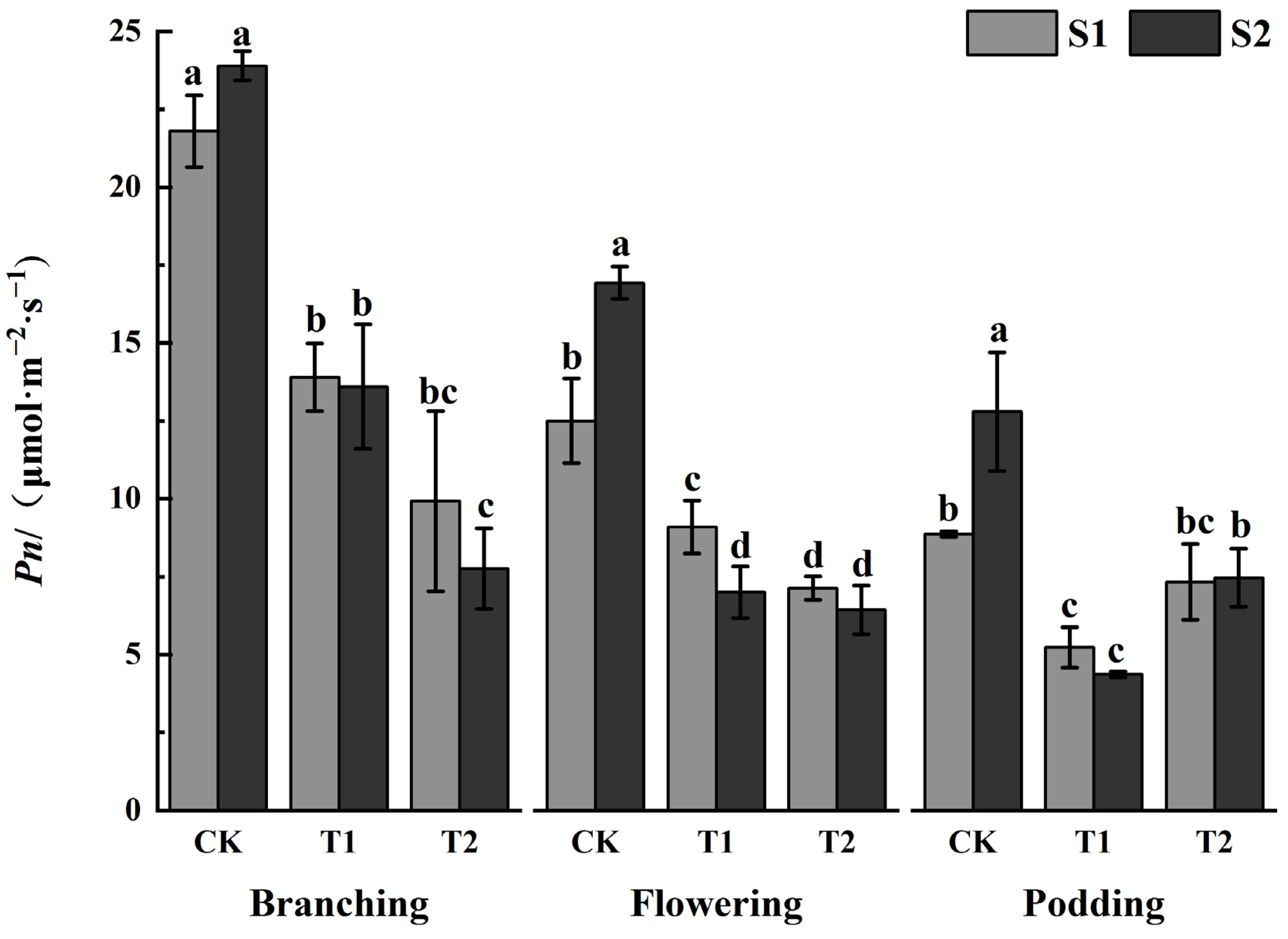

Figure 2. Net Photosynthetic Rate of Soybean Leaves under Elevated O3 Concentration.
Figure 2. Net Photosynthetic Rate of Soybean Leaves under Elevated O3 Concentration.
Atmosphere 14 01368 g002
Atmosphere 14 01368 g003

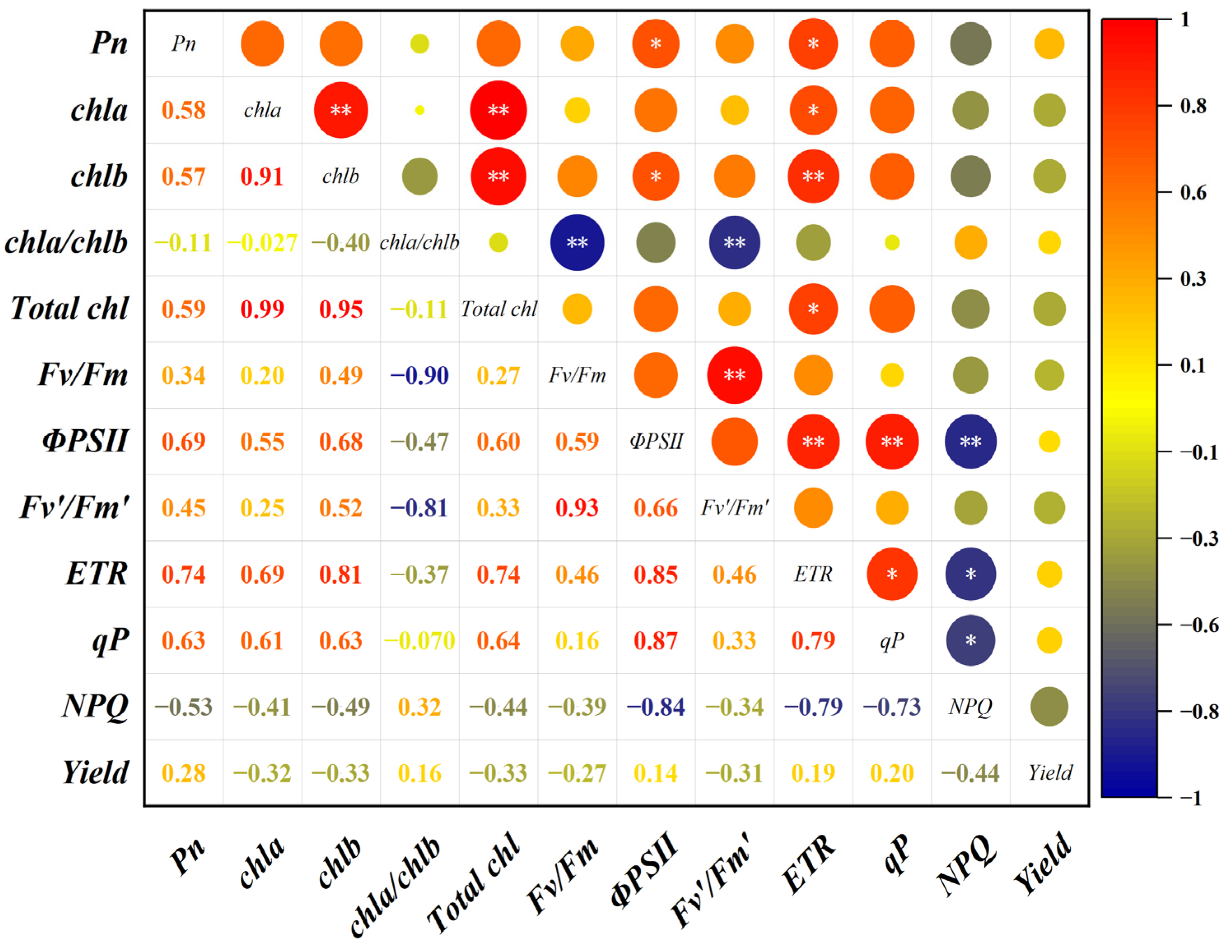

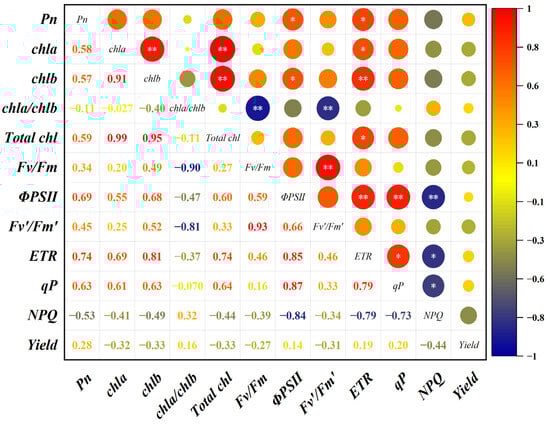

Figure 3. Correlation Analysis between Photosynthesis, Fluorescence and Yield of Parent Soybeans under Elevated O3 Concentrations. *: significant correlation at the p < 0.05 level (both sides); **: significant correlation at the p < 0.01 level (both sides).
Figure 3. Correlation Analysis between Photosynthesis, Fluorescence and Yield of Parent Soybeans under Elevated O3 Concentrations. *: significant correlation at the p < 0.05 level (both sides); **: significant correlation at the p < 0.01 level (both sides).
Atmosphere 14 01368 g003
Atmosphere 14 01368 g004

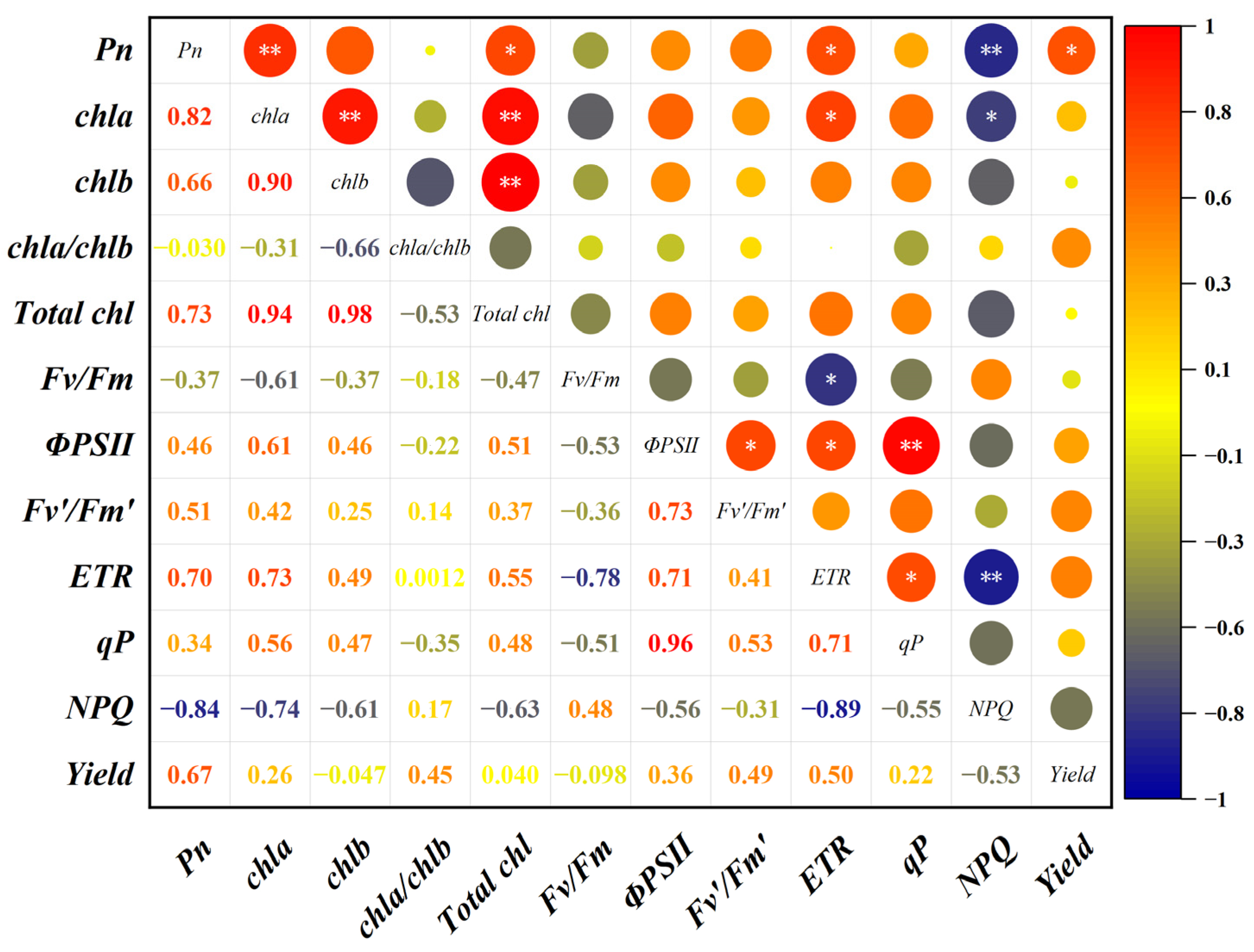

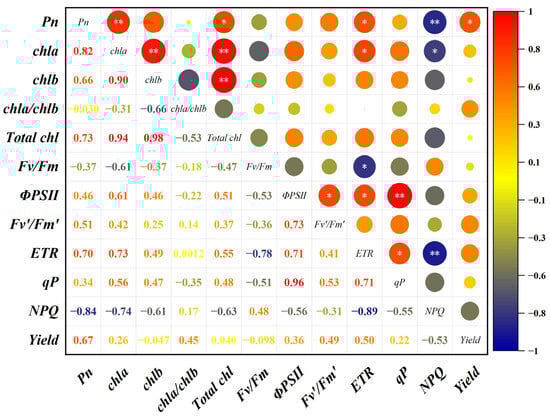

Figure 4. Correlation Analysis between Photosynthesis, Fluorescence and Yield of Offspring Soybeans under Elevated O3 Concentrations. *: significant correlation at the p < 0.05 level (both sides); **: significant correlation at the p < 0.01 level (both sides).
Figure 4. Correlation Analysis between Photosynthesis, Fluorescence and Yield of Offspring Soybeans under Elevated O3 Concentrations. *: significant correlation at the p < 0.05 level (both sides); **: significant correlation at the p < 0.01 level (both sides).
Atmosphere 14 01368 g004
Table 1. Fluorescence Kinetic Parameters of Soybean Leaves under Elevated O3 Concentration.
Table 1. Fluorescence Kinetic Parameters of Soybean Leaves under Elevated O3 Concentration.
PeriodTreatmentFv/FmΦPSIIFv’/Fm’ETRqPNPQ
Branching
stage		CKS10.788 ± 0.016 a0.510 ± 0.050 b0.662 ± 0.031 a4.861 ± 0.075 a0.761 ± 0.044 a1.087 ± 0.205 a
CKS20.738 ± 0.015 ab0.574 ± 0.024 a0.692 ± 0.016 a5.311 ± 0.095 a0.827 ± 0.018 a0.765 ± 0.081 a
T1S10.783 ± 0.019 ab0.453 ± 0.097 c0.633 ± 0.041 a4.643 ± 1.032 a0.701 ± 0.115 a1.277 ± 0.265 a
T1S20.698 ± 0.045 b0.488 ± 0.089 bc0.628 ± 0.046 a5.210 ± 0.919 a0.763 ± 0.092 a1.039 ± 0.424 a
T2S10.779 ± 0.008 ab0.469 ± 0.077 bc0.631 ± 0.051 a4.611 ± 0.939 a0.729 ± 0.074 a1.173 ± 0.265 a
T2S20.708 ± 0.046 b0.541 ± 0.029 ab0.641 ± 0.028 a5.258 ± 0.260 a0.853 ± 0.011 a0.949 ± 0.081 a
Flowering
stage		CKS10.782 ± 0.009 a0.476 ± 0.046 a0.637 ± 0.021 a5.330 ± 0.571 a0.742 ± 0.051 a1.087 ± 0.205 a
CKS20.783 ± 0.009 a0.490 ± 0.046 a0.644 ± 0.025 a5.040 ± 0.247 a0.757 ± 0.057 a0.765 ± 0.081 a
T1S10.794 ± 0.010 a0.520 ± 0.061 a0.666 ± 0.047 a3.869 ± 0.484 b0.777 ± 0.041 a1.092 ± 0.366 a
T1S20.805 ± 0.012 a0.486 ± 0.038 a0.618 ± 0.022 a3.158 ± 0.423 bc0.784 ± 0.040 a1.230 ± 0.235 a
T2S10.810 ± 0.004 a0.392 ± 0.079 b0.659 ± 0.029 a2.906 ± 0.138 bc0.590 ± 0.110 a1.293 ± 0.242 a
T2S20.802 ± 0.017 a0.348 ± 0.024 b0.572 ± 0.018 a2.582 ± 0.073 c0.609 ± 0.028 a1.265 ± 0.099 a
Podding
stage		CKS10.775 ± 0.021 a0.430 ± 0.057 b0.598 ± 0.032 ab3.654 ± 0.276 b0.629 ± 0.048 ab1.084 ± 0.172 b
CKS20.735 ± 0.025 ab0.427 ± 0.070 b0.632 ± 0.036 ab4.760 ± 0.416 a0.659 ± 0.079 ab1.050 ± 0.138 b
T1S10.683 ± 0.021 b0.324 ± 0.052 c0.535 ± 0.059 b1.972 ± 0.368 c0.635 ± 0.047 ab1.440 ± 0.196 a
T1S20.772 ± 0.031 a0.513 ± 0.044 a0.672 ± 0.025 a2.898 ± 0.205 bc0.761 ± 0.038 a1.482 ± 0.143 a
T2S10.785 ± 0.020 a0.371 ± 0.041 bc0.646 ± 0.019 ab2.291 ± 0.148 c0.574 ± 0.057 ab1.547 ± 0.884 a
T2S20.794 ± 0.027 a0.338 ± 0.032 c0.632 ± 0.034 ab1.835 ± 0.068 c0.537 ± 0.060 b1.409 ± 0.473 a
Different lowercase letters in the table indicate that the difference among different treatments reaches a significant level (p < 0.05).
Table 2. Soybean Yield under the Condition of Elevated O3 Concentration.
Table 2. Soybean Yield under the Condition of Elevated O3 Concentration.
TreatmentPods Number per PlantSeed Number per PlantMass per 100 Seeds/gSeed Mass per Plant/g
CKS138.67 ± 3.86 b58.67 ± 4.03 b25.60 ± 0.37 b15.43 ± 0.95 b
CKS258.33 ± 9.93 a76.33 ± 7.17 a30.76 ± 0.63 a23.80 ± 1.40 a
T1S129.33 ± 2.05 c42.33 ± 3.68 c23.50 ± 0.28 c12.20 ± 1.37 c
T1S235.00 ± 2.64 b60.00 ± 3.05 b23.76 ± 0.26 c15.46 ± 1.32 b
T2S125.67 ± 3.40 d36.67 ± 1.25 c23.57 ± 0.85 c9.30 ± 1.07 c
T2S222.00 ± 1.73 d39.33 ± 5.82 c26.00 ± 0.35 b10.23 ± 0.38 c
Different lowercase letters in the same line indicates significant difference (p < 0.05).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cheng, S.; Wang, Y.; Sun, M.; Zheng, J.; Zhu, X.; Zhao, T. Effects of Elevated Surface Ozone Concentration on Photosynthetic Fluorescence Characteristics and Yield of Soybean Parents and Offspring. Atmosphere 2023, 14, 1368. https://doi.org/10.3390/atmos14091368

AMA Style

Cheng S, Wang Y, Sun M, Zheng J, Zhu X, Zhao T. Effects of Elevated Surface Ozone Concentration on Photosynthetic Fluorescence Characteristics and Yield of Soybean Parents and Offspring. Atmosphere. 2023; 14(9):1368. https://doi.org/10.3390/atmos14091368

Chicago/Turabian Style

Cheng, Shihao, Yan Wang, Mingyu Sun, Jingyi Zheng, Xianjin Zhu, and Tianhong Zhao. 2023. "Effects of Elevated Surface Ozone Concentration on Photosynthetic Fluorescence Characteristics and Yield of Soybean Parents and Offspring" Atmosphere 14, no. 9: 1368. https://doi.org/10.3390/atmos14091368

APA Style

Cheng, S., Wang, Y., Sun, M., Zheng, J., Zhu, X., & Zhao, T. (2023). Effects of Elevated Surface Ozone Concentration on Photosynthetic Fluorescence Characteristics and Yield of Soybean Parents and Offspring. Atmosphere, 14(9), 1368. https://doi.org/10.3390/atmos14091368

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
