Assessment of CH₄ and CO₂ Emissions from a Gas Collection System of a Regional Non-Hazardous Waste Landfill, Harmanli, Bulgaria, Using the Interrupted Time Series ARMA Model

Abstract

Municipal solid waste (MSW) landfills are among the major sources of greenhouse gas (GHG) emissions affecting global warming and the Earth’s climate. In Bulgaria, 53 regional non-hazardous waste landfills (RNHWL) are in operation, which necessitates conducting studies to determine the environmental risk from the emitted GHGs. This study attempted to assess the CH₄ and CO₂ emissions from three gas wells of a cell (in active and closed phases, each of 2.5 years duration) in an RNHWL, Harmanli (41°54′24.29″ N; 25°53′45.17″ E), based on monthly in situ measurements by portable equipment, using the Interrupted Time Series (ITS) ARMA model. The obtained results showed a significant variation of the CH₄ and CO₂ concentrations (2.06–15.1% v/v) and of the CH₄ and CO₂ emission rates (172.81–1762.76 kg/y) by gas wells (GWs), months and years, indicating the dynamics of the biodegradation of the deposited waste in the areas of the three GWs. Throughout most of the monitoring period (2018–2022), the CH₄ concentrations were higher than the CO₂ concentrations (% v/v), while CO₂ emissions were lower than CH₄ emissions (kg/y), a fact that could be explained by the differences in the mass of the two gases. The emissions rates of both gases from GW2 dominated over those from GW1 and GW3, giving a reason to determine the zone of GW2 as a hotspot of Cell-1. On the whole, CH₄ and CO₂ emission rates were higher in the winter (December–February) and partly in the spring (March–May) compared to summer–autumn (June–November). However, the CH₄ and CO₂ concentrations and emissions decreased drastically after the Cell-1 closure. The CH₄/CO₂ ratio (0.68–2.01) by months and gas wells demonstrated a great sensitivity, making it a suitable indicator for the assessment of organic waste biodegradation level in the landfills. The ITS ARMA model confirmed the negative and significant effect of the cell closure on CH₄ and CO₂ emissions; the correlations found between predicted and observed values were strong and positive (0.739–0.896).

1. Introduction

The rapid urbanization and population growth around the world has resulted in a drastic increase of municipal solid waste (MSW) generation [1,2,3]. The MSW amount is increasing even faster than the rate of urbanization [4]. In recent years, human activities have generated approximately 2 billion tons of MSW annually with an expected growth up to 3.76 billion tons by 2050 [5], of which between 44 and 46% (by mass) will be organic waste (food, plant residues, paper, wood) [6]. Despite the different options for MSW management—prevention, minimization, reuse, recycling, energy recovery, burning, etc.—MSW landfilling is still the most common method for MSW treatment in many countries [7,8,9,10,11]. Approximately 60–85% of the global MSW is deposited in landfills of different types [2,5,12,13]. A number of studies report that MSW landfills may negatively affect the environment (pollution of air, soil, and groundwater) and human health due to the generation of landfill gas (LFG) and leachate [10,14,15,16,17,18,19,20]. Based on literature data, the emissions from the landfills can be classified into five different sources: biogas emissions; landfill leachate emissions; emissions related to the disposal of fresh waste (“fresh waste emissions”); emissions from the temporarily covered landfill surface; and emissions from the permanently covered landfill surface [21]. The correct choice of site for the construction of the landfill is of key importance. Recent research data provide evidence that multi-criteria analysis and geographic information systems are successfully used to find a suitable landfill site location. The method includes three steps: the first step is to process 15 environmental and socio-economic factors utilizing the fuzzy analytic-hierarchy process method; the second step comprises visual analysis and the selection of the most suitable locations from the synthetic convenience map; the third step involves the final ranking of sites by means of the fuzzy multi-objective analysis by ratio plus the full multiplicative form method, based on four additional beneficial and non-beneficial criteria [22]. That is why the adequate management of landfills through their whole life cycle is important to mitigate the potential environmental and human health impacts of MSW landfilling [8,23,24,25].

MSW landfills are a large source of anthropogenic greenhouse gas (GHGs) emissions with a contribution rate of between 69% and 95% in the waste sector [26] and about 3–5% of the total GHG emissions, mainly due to uncontrolled biogas emissions. All this defines landfills as prominent contributors to global warming [24,27,28]. LFG production in the landfills as specific anthropogenic ecological systems depends on many factors: type of the landfill (sanitary or unsanitary), structural features of the site, type of the landfilling (controlled or uncontrolled), amount of the deposited waste, waste type and composition, landfill daily cover, gas and leachate systems design and operation, environmental factors (temperature, moisture content, pH, inhibitory compounds, type of microorganisms—aerobic/anaerobic and their activity), etc. [11,29,30,31,32]. LFG production involves three stages—anaerobic bacterial decomposition of the organic substances, chemical reactions and volatilization or hydrolysis, acetogenesis, and methanogenesis [33,34,35]. LFG is a mixture of different gases divided into two groups; the first group comprises gases generated in large amounts (principal gases—CH₄: 55–60% v/v and CO₂: 40–45% v/v), while the second group is formed by gases present in very small amounts (minor and trace gases—N₂O, H₂S, H₂, NH₃, and non-methane volatile organic compounds/NMVOCs/, about 1–9% v/v) [3,30,36,37].

Generally, the production of CH₄ in landfill MSW dominates compared to that of CO₂ [31,32,38,39]. Moreover, the global warming potential of methane is 21–36 times higher than that of CO₂ over a 100-year time frame and ~80–84 times higher in the short-term as CH₄ is a short-lived greenhouse gas—about 12 years [24,31,40,41,42]. In addition to being a potent GHG, CH₄ is also an ozone precursor and thus has impacts on air quality, human health, and plants [43,44,45]. The relatively high percentage of CH₄ in LGE indicates active anaerobic decomposition of the biodegradable organic waste components [46], while the lower percentage of CO₂ is a result of the decomposition of substrates with a high hydrogen/oxygen ratio (e.g., fats, hemicellulose, etc.) as well as its dissolution in water/leachate within the site [27]. Some researchers propose the CH₄/CO₂ volumetric ratio as a reliable indicator for the assessment of the degradation level of the organic compounds for determination of the anaerobic “age” of the landfill [8,46,47]. Under normal condition closure, landfill sites continue to generate LFG until the organic compounds in the waste are degraded, which can last decades [29,31,46,48] and even centuries [13]. Landfill sites are estimated as the second largest source of anthropogenic CH₄ emissions [49], responsible for between 5.0 and 20% of the global methane emissions [41,50,51]; in Europe, that percentage is about 20% [52]–22% [29].

Over the last two decades, EU waste management policy has increasingly shifted the focus with regard to municipal waste from disposal methods to prevention and recycling, to reduce the pressure on the environment and create jobs [53]. In 2020, the EU-28 have generated 225 million tons of MSW—by 13.6% more compared to 1995 (198 million tons)—but the total MSW landfilled in 2020 fell by 69 million tons, or by 58 % compared to 1995 (from 121 million tons to 52 million tons). As a result, the landfilled MSW of the total generated MSW in the EU countries dropped from 61% in 1995 to 32.2% in 2020. Nevertheless, the MSW landfilling is still the most widely used practice in EU countries [54]. For the same period, the CH₄ emissions from the solid waste deposition sector also decreased by 37%—from 127 Mt CO₂eq to 80 Mt CO₂eq. Thus, EU countries contribute to climate change mitigation and air quality and human health improvement [45]. The positive trend towards CH₄ emissions reduction can be attributed to the implementation of Directive 31/1999 on landfill [55], binding Member States to reducing the amount of biodegradable municipal waste going to landfills to 35% in 2016 and to 10% until 2035. The Directive has encouraged EU countries to adopt different strategies to avoid sending the organic municipal waste fraction to landfills through composting (including fermentation), incineration, and pre-treatment, such as mechanical-biological treatments (including physical stabilization) [54].

Following the EU waste management policy, in the last decade, Bulgaria (111,000 km², population 6,520,000) has constantly reduced the amount of MSW generated (from 3572 thousand tons in 2011 to 2829 thousand tons in 2020) as well as the amount of MSW landfilled (from 72% in 2011 to 29% in 2020) [56]. One of the measures to achieve the main goal of the new National Waste Management Plan 2021–2028 [57], namely reducing the impact of harmful waste on the environment and public health, is to apply environmentally friendly practices of MSW landfilling and LFG emission control. Nowadays, 53 regional sanitary non-hazardous MSW landfills with different structures and capacities are in operation in the country. All landfills are constructed and function using a similar technology with minor modifications according to specific conditions of each site. In general, the construction and management of the landfills complies with the EU Landfill Directive [55]. The sanitary landfill construction includes four specific layers that play an important role in the entire process of waste decomposition; the first layer is at the bottom, made of compact clay and a synthetic geomembrane to protect the underground area of pollution; the second layer is a drainage system to drain away the leachate; the third layer is a gas collection system to extract the LFG and the fourth layer forms the repository in which to store the deposited waste. The biogas well-pipes collection system with LFG flaring and daily, temporary, and final covers with the available native soil of the landfill site, followed by its reclamation as the general LFG management practice. The mentioned practices are widely used to control LFG emissions from the landfills in many countries over the world [20,49,58,59]. According to the requirements of Ordinance No. 6/2013 [60], Bulgarian landfill operators are obliged to carry out monitoring on GHG emissions on their own and to report annually collected data to the National Environmental Executive Agency.

The future actions of the authorized Bulgarian institutions regarding the management of MSW and their landfilling follow the EU policy, which aims to achieve a “circular economy” and “zero waste” up to 2050. In this regard, it is planned to build installations for the separation/pretreatment of waste and installations for composting green and other biodegradable waste at all landfills. Currently, 22 bio-waste recovery plants are in operation, another 30 are in the process of implementation and one is in the process of evaluation; of the separation/pretreatment plants—25 are in operation, 21 are in the process of implementation, two are at the working project stage, one is in the process of evaluation and there is an investment intention for another one. There are also ongoing procedures for closing landfills that do not meet the regulatory requirements, as well as procedures for the reclamation of landfills whose capacity has already been filled. The intention is to carry out the technical reclamation of the landfills in the shortest possible terms to prevent the negative impact on the environment from possible self-ignition of the landfilled waste and from other incidents. The building of additional cells to landfills in regions where significant amounts of MSW are generated has been devised. All this creates more favorable and environmentally friendly conditions for landfilling and landfill management in the country [57].

With regard to a more appropriate national policy on the management of non-hazardous MSW landfills and the implementation of more appropriate measures in compliance with the local conditions in the country, it is necessary to conduct scientific research to provide reliable information about the processes in landfills in both active and closed phases. As pointed out by [48], the first step in controlling and managing LFG is to determine the quantity of CH₄ and CO₂ emissions as those gases are the basic greenhouse gases emitted from the landfills [34,61]. It is strongly suggested to collect biogas emission samples directly at the extraction wells or at the inlet of the LFG combustion facilities [21]. The aim of this study was to assess the CH₄ and CO₂ emissions from a gas collection system of a cell in a regional non-hazardous waste landfill—Harmanli, Bulgaria—on the basis of: (1) in situ measured concentrations of both gases during the active and closed phases of the cell; (2) the results from statistical and correlation analysis, using the Interrupted Time Series ARMA Model.

2. Materials and Methods

2.1. Site Description

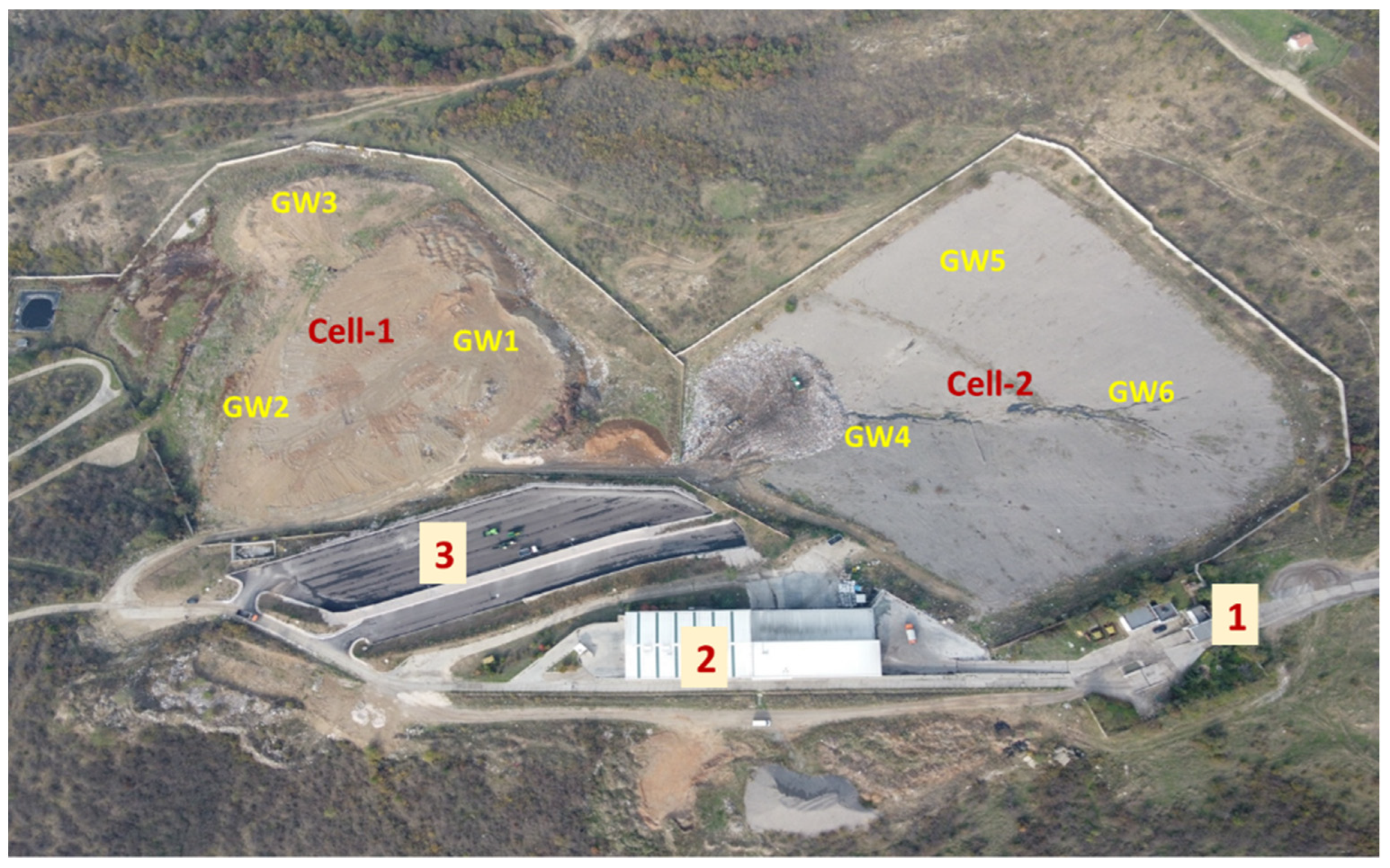

The regional non-hazardous waste landfill (RNHWL) under study is located 2.5 km south of Harmanli town (41°54′24.29″ N; 25°53′45.17″ E; 70 m asl) in Southeast Bulgaria on a surface area of 10.3 ha (Figure 1). The climate of the region is Transitional-Mediterranean—Cfa by the Köppen climate classification. The Mediterranean climatic influence is mainly expressed by the higher average annual temperatures. The micro-climate of the investigated site is characterized by an average annual air temperature of 18.4 °C (maximum average monthly temperature of 28.0 °C—August and minimum of −5.0 °C—January; average annual temperature amplitude 20–22°C), precipitation of 550–600 mm (with autumn–winter rainfall maximum and summer minimum; a secondary precipitation maximum in May), and about 2220 h of sunshine (from 59–69 h in December–January to 320–325 in July–August). The first snow cover forms in the middle of December and in recent years the average annual number of days with snow cover is about five; winter precipitation is mostly rain. Cloud cover is greatest in the winter months, with a score of 6.4 to 6.9, during which the heat flow to the Earth’s surface in the region decreases by about 67%. The average annual total cloud cover is 5.2 points. On average, there are 40.2 days per year with fog; the foggiest days are during November and December. The relative air humidity is within the range 42–77% with a minimum in July and a maximum in January, with an annual average of around 59%. The Harmanli area is characterized by a windy spring with the highest average wind speed in April. The orographic features of the region influence the direction and speed of the wind, with winds with a southern component (SE, S, SW) prevailing. The average annual wind speed is 3.3 m/s [62].

The RNHWL has been in operation since 2003 (Complex Permit No 285-H2/2018) and accepts MSW from seven municipalities with a total of 74,270 inhabitants. The landfill site is a small ravine situated on an east–west slope (23–30°) and consists of two cells for non-hazardous waste: Cell-1, 4.0 ha, capacity 292,254 t and Cell-2, 3.2 ha, capacity 157,102 t, a facility for waste separation, capacity up to 30,000 t/y and a composting facility, capacity up to 2756 t/y (Figure 2). The west borders of the two cells, their lowest parts, are formed with retaining earth dikes: Cell-1—length 41.00 m, height 6.50 m, width in the top 3.00 m and Cell-2—20.00 m, 5.00 m and 3.00 m, respectively. To prevent soil and groundwater pollution, the bottom and the side boundaries of the cells are covered with several layers: a dense and compact clay layer (0.50 m), a geomembrane of high-density polyethylene (HDPE), geotextile, and old car tires covered by sand and gravel (0.50 m, fraction 16–32 mm). Both cells are equipped with a drainage system for leachate treatment and a passive LFG collection and extraction system. The drainage system is constructed by perforated (6.00–22.00 mm) HDPE pipes (Ø 315 mm) and HDPE collector pipe (Ø 355 mm) for taking the leachate to a pumping station. The leachate collected in the pumping station is pumped back over the deposited waste in the cells, mostly during rain.

The LFG collection and extraction system of one cell includes three gas wells (GWs), each of them consisting of a vertical perforated HDPE pipe (Ø 50 mm, 4.00 m), a collector and three perforated horizontal HDPE pipes (Ø 50 mm, 25 m). The vertical pipe is fixed in the center of a cylindrical body of gravel (0.80/1.80 m, fraction 30–50 mm) built by concrete rings with a total height of 1.80 m, the maximal level of the deposited waste in the cell; 0.60 m of the pipe above this level is placed in a metal tube (d = 0.60 m) filled with gravel (fraction 30–50 mm), the rest of the pipe (1.60 m) remaining free. The collector is installed at the bottom of the well and connects the well with the horizontal pipes, placed in the drainage layer in three directions (120° apart) with an upward slope of 1% towards to the collector. The generated LFG is transported to the vertical pipe of the gas well under its own pressure and emitted in the atmosphere.

The daily accepted MSW in the landfill is disposed by layers. The waste is spread by a bulldozer (Shantui SD16, 17 t, Shantui Construction Machinery Co., Ltd., Jining, China) and compacted with a 32 t compactor machine (Hanomag GL 66 D, Hanover, Germany) until a layer with a thickness of 25–40 cm is formed. At the end of the day, the compacted waste layer is covered with native soil and other inert materials about 0.20 m thick. These operations are repeated until the designed thickness (1.80 m) of the landfill waste in the cell is reached. Finally, the temporarily covered cell is closed and prepared for reclamation.

The characteristics and composition of the deposited MSW are listed in

Table 1. Characteristic of the deposited MSW, 2003–2020.

No	Parameter	Unit
1	Daily accepted waste	83–132 m3
2	Fractional composition of the waste	0–65 mm: 32.6–45.7% 65–150 mm: 22.4–33.8% >100 mm: 13.3–20.4%
3	Moisture content of the waste	Spring: 38–58% Summer: 26–35% Autumn: 40–60% Winter: 60–78%
4	Bulk weight of accepted waste	0.183–0.252 t/m3
5	Weight of the compacted waste	0.905–0.943 t/m3
6	Degree of waste compaction	1:3.5

Source: Data from the own monitoring of the landfill presented by Annual reports of landfill’ operator to the Environmental Executive Agency at the Ministry of Environment and Water, Sofia, Bulgaria according to Ordinance No. 6 of 27 August 2013 [60].

and

Table 2. MSW composition.

Fraction	2005	2010	2015	2020
	Percentage by Weight
Food	15.61	15.30	14.42	13.88
Garden	10.62	10.28	9.35	9.74
Plastic	18.26	18.05	21.40	18.57
Paper and cardboard	14.67	14.50	15.46	15.71
Textile	3.53	3.28	2.73	2.02
Wood	2.84	3.05	2.08	3.62
Glass	3.22	4.63	4.52	3.53
Metal	2.93	2.25	1.80	2.82
Leather	0.96	1.53	0.53	0.74
Rubber	0.92	1.36	0.76	1.62
Dangerous	1.10	0.77	0.71	1.08
Inert materials	6.90	5.98	5.08	6.44
Others	18.44	19.02	21.17	20.23

Source: Data from their own monitoring of the landfill presented by annual reports of the landfill operator to the Environmental Executive Agency at the Ministry of Environment and Water, Sofia, Bulgaria according to Ordinance No. 6 of 27 August 2013 [60].

. The data in the two tables were collected from their own monitoring, which the landfill operator is obliged to carry out according to Ordinance No. 6 of 27 August 2013 [60]. Based on the methodology approved by the Ministry of the Environment and Water [63], the settlements in the territory from which the MSW is collected are distributed in two zones: Zone 1, which includes seven cities with a population of 3000 to 25,000 inhabitants and Zone 2, which includes villages with a population of up to 3000 inhabitants. All parameters, included in Table 1—fractional composition, moisture content, bulk weight of the waste, weight of compacted waste (without daily accepted waste and degree of waste compaction) were determined annually, and during the four seasons, two samples were taken for analysis—one sample from Zone 1 and one sample from Zone 2. The formation of an average sample for the analysis of these parameters goes through several stages: Stage 1—the vehicle with waste that arrived at the landfill is weighed on an electronic scale installed at the entrance to the landfill, after which it is directed to a concrete platform for unloading; date and time of arrival, air temperature, and weather conditions are recorded and the waste compaction is visually assessed; Stage 2—after unloading the waste at the site, a visual inspection is performed for the presence of non-domestic waste or hazardous waste; if there are any, they are removed; Stage 3—the obtained waste sample is mixed until a relatively uniform composition is obtained in the different points of the waste pile; Stage 4—the waste is spread in the form of a circle with a height of 30–40 cm; Stage 5—the resulting configuration is divided into four equal parts with solid wooden partitions (i.e., first quartering is carried out); Stage 6—the separated waste in the two diagonally opposite quarters is removed and deposited; the remaining amount of waste is again spread into a circle and a second quartering is carried out; Stage 7—the procedure is repeated until obtaining an average sample of about 120–150 kg. After that, the determination of individual parameters begins as follows: (a) fractional composition—the amount of the received waste sample is successively sifted through sieves with hole sizes of 150 mm and 65 mm, resulting in waste distributed in three fractions (0–65 mm, 65–150 mm and above 150 mm); (b) moisture content, %—BDS EN 15934:2012 (gravimetric) [64]; (c) bulk weight of accepted waste, kg—gravimetric, is determined by the difference in the weight of a container (1 m³) filled with waste from the sample and its weight after emptying; (d) weight of the compacted waste, kg—gravimetric, the procedure is the same as for the determination of bulk weight of the accepted waste, but an average sample of compacted waste (by compacting machine) is used.

When determining the fractional composition of the waste, an average waste sample was also prepared, and this procedure include nine stages. The first seven stages are repeated as for the above-cited parameters. Stage 8—from the average sample of waste determined in Stage 7, the large fractions of the different types of waste are manually removed and are collected in separate plastic bags; the remaining amount of waste is sifted through a sieve with a hole size of 4 mm; sifted waste is classified as inert materials; Stage 9—the bags with the different waste are weighed on an electronic scale ± 0.1 kg, and the results are recorded. Data by types of waste from all of 8 samples during the year are averaged and presented in percentages.

The study was carried out on Cell-1 of the RNHWL for a 5-year period, 2018–2022, and comprised two phases: Phase 1—active cell (from January 2018 to June 2020, when the cell was filled up and closed for operation) and Phase 2—closed cell with temporary soil cover (from July 2020 to December 2022). After Cell-1 was closed, the MSW started to be disposed in Cell-2. The amount of the annually deposited MSW in Cell-1 varied between 5333 t (2003) and 21,800 t (2013), with a total of 292,254 t for the operational period. When the monitoring started, in the sixteenth year of the landfill operation, 87.3% of Cell-1 capacity was full of MSW.

2.2. Monitoring, Sampling, Measurement

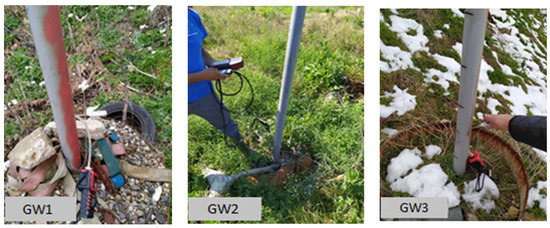

For the monitored period, the CH₄ and CO₂ concentrations in the LFG of the three gas wells of Cell-1: GW1—41°54′24.81250″ N, 25°53′40.86719″ E; GW2—41°54′24.81525″ N, 25°53′38.96831″ E and GW3—41°54′27.57308″ N, 25°53′39.56314″ E (Figure 3) were measured in situ monthly from 11:00 to 13:00 h by a portable gas-analyzer GA-21 Plus. In parallel, the air temperature (°C), atmospheric pressure (hPa), and biogas velocity (m/s) at the outlet of the corresponding GW were also measured by a digital thermometer Testo 106, ±0.1 °C, a digital barometer Testo 511, ±3 hPa, and a thermal anemometer Testo 405, respectively. The air temperature and the atmospheric pressure were measured at a height of 1.0 m above the Cell-1 surface and 0.50 m from the vertical pipe of the corresponding GW. Biogas velocity was measured by putting the positioning stick of the apparatus in the duct of the pipe of the corresponding GW for 2 min. All parameters were measured in triplicate (n = 3). CH₄ and CO₂ concentrations were presented in % v/v, kg/season and kg/y.

The conversion of the values for both gases from volume percentages to mg/m³ was carried out according to the following formulas [65]:

C_CH4 = (C_CH4(% v/v) × 10,000 × Mm _CH4)/22.4, mg/m³

(1)

C_CO2 = (C_CO2(% v/v) × 10,000 × Mm _CO2)/22.4, mg/m^3,

(2)

where:

• C_CH4—Converted amount of CH₄ from % v/v in to mg/m³;
• C_CO2—Converted amount of CO₂ from % v/v in to mg/m³;
• C_CH4(% v/v)—CH₄ concentration in % v/v;
• C_CO2(% v/v)—CO₂ concentration in % v/v;
• Mm_CH4—Molar mass of methane = 16.04 g/mol;
• Mm_CO2—Molar mass of carbon dioxide = 44.01 g/mol;
• 22.4—Conversion factor, represents the volume per mole of an ideal gas.

Rainfall data (mm) by months and years of the monitored period were provided by the database of the nearest meteorological station in the area, situated 30 km from the landfill [62].

The annual CH₄ and CO₂ emissions from the investigated gas wells were calculated by Equations (1) and (2) [66], adapted to the present study:

Q_CH4 = 365 × 24 × d_h × N_gw, kg/y

(3)

Q_CO2 = 365 × 24 × d_h × N_gw, kg/y,

(4)

where:

• Q_CH4—Annual amount (emission) of the emitted CH₄, kg/y;
• Q_CO2—Annual amount (emission) of the emitted CO₂, kg/y;
• d_h—Average flow rate per gas well, kg/h;
• N_gw—Number of the gas wells;
• 365 and 24—the annual days and daily hours, respectively.

The CH₄ and CO₂ emissions were converted to the equivalent amount of carbon dioxide equivalents (CO₂-eq) on a 100-year time horizon basis by the Greenhouse Gas Equivalencies calculator. The multiplication factors of 25 for CH₄ and 1 for CO₂ based on mass basis were used [67].

2.3. Statistical Analysis

For all statistical computing, test and graphics the software environment R version 4.2.2 was used [68]. The statistical analysis was implemented using the agricolae, forecast, lmtest and tseries packages of R. The results for investigated parameters are shown as mean value and standard deviation (SD). The Duncan multiple range test (p < 0.05) was used for the evaluation of specific differences between the pairs of CH₄ and CO₂ concentration means by gas wells and years. The Jarque-Bera test (p < 0.05) was used to check whether the data (CH₄ and CO₂ emissions, air pressure and air temperature from the three GWs) were normally distributed (H0 hypothesis) or not (H1 hypothesis). To assess the effect of the consequence of the temporary cover of the Cell-1 (after it closure) on the CH₄ and CO₂ emissions, the Interrupted Time Series ARMA Model was used.

Interrupted Time Series (ITS), the strongest and most commonly used method of statistical analysis involving tracking a period before and after an intervention at a known point in time to assess the intervention’s effects within a single group/population was applied [69,70,71].

For the purpose of the study, the following designations were adopted: y_t denoted the CH₄ or CO₂ emissions at time t (t = 1, …, n), measured by a single gas well; ¶_t^CC represents the Cell-1 closed (CC) dummy variable, which is equal to 0 for all the time points before the Cell-1 was covered (i.e., during Phase 1: from January 2018 to June 2020) and 1 afterwards (i.e., during Phase 2: from July 2020 to December 2022); the variable T = 1, …, n represents the time elapsed in months (n = 60) starting from January 2018, the first considered time point in the analysis to December 2022. The year was divided into two periods—the winter period (December, January, and February) and the non-winter period (March, April, May, June, July, August, September, October, and November). This asymmetric division of the year into two periods was based on the climate change in the country resulting from the global warming, especially in its southeastern part [72,73], where the landfill under study was located. The process was accompanied by a blurring of the boundaries between the seasons and, practically, two periods were observed—cold (winter), a shorter one, and non-winter (warm), a longer one.

To adjust for seasonality and autocorrelation in the response variable, meteorological variables are included in the model: the 1 × p vector X_t contains the values of the considered regressors referred to as day t, given by atmospheric pressure, air temperature, precipitation, and a dummy variable introduced to capture the non-winter effect (the variable is equal to 1 if month t occurred between March to November, and 0 otherwise). The non-winter season was chosen because during this temporal range, the air and soil temperatures are higher and thus greater oxidation of CH₄ and CO₂ are produced. Therefore, higher values of CH₄ and CO₂ emissions are expected [74,75].

The ITS ARMA model is defined by two equations [76,77,78]: the first Equation (5) includes the intercept, the linear effect of time and the regressors together with the dummy for Cell-1’s closed period, which is also included in the interaction term with time; the second Equation (6) instead defines the temporal structure of the regression errors.

y_t = α₀ + α₁T + α₂¶_t^CC + α₃(T¶_t^CC) + X_tβ +ε_t

(5)

ε_t = φ₁ε_t−1 + … + φ_pε_t−p + ϵ_t + θ₁ϵ_t−1 + … + θ_qϵ_t−q.

(6)

In particular, the regression error term ε_t follows an ARMA process with coefficients φ₁, …, φ_p, θ₁, …, θ_p, whereas the innovation error term ϵ_t is assumed to be a normally distributed white-noise process with zero mean and variance σ².

In the considered model, β is the p × 1 vector of coefficients for the regressors. Moreover, α₀ + X_tβ presents the baseline level of the response variable when ¶_t^CC = 0 (before the Cell-1 closure), whereas α₁ is the baseline trend slope, i.e., the expected change in y_n that occurs with each month before the Cell-1 closure. When the Cell-1 closure takes effect, the level change and the trend slope change become equal to α₂ and α₃, respectively. The final vector of parameters is given by (α, β, φ₁, …, φ_p, θ₁, …, θ_q, σ²), with α = (α₀, α₁, α₂, α₃), and the maximum likelihood approach was used for estimation [79]. In particular, a backward stepwise approach was adopted by starting from the full model and by removing the non-significant regressors (among atmospheric pressure, air temperature, precipitation, and non-winter dummy variable) according to the p-value (the considered threshold is 10%). The α coefficients were kept in the model even if not significant because they improve the model fit. Moreover, the α parameters were not removed from the model in order to discuss the effectiveness of the Cell-1 closure period in changing the level and trend slope of the time series. The best ARMA(p,q) structure for the error term was obtained using the auto.arima function in R, which chooses the model having the lowest AIC score. A residual analysis was carried out in order to assess whether the ARMA errors ϵ_t resemble a white-noise series. This was undertaken by checking the autocorrelation structure of the residues using autocorrelation function (ACF) and the Ljung–Box test. The test was applied to the residuals after fitting the ARMA model to the data. If the autocorrelations are very small, it follows that the model does not exhibit a significant lack of fit [80].

3. Results and Discussion

3.1. Variation of CH₄ and CO₂ Contents

The measured concentrations of CH₄ and CO₂ varied widely across gas wells, months, and years as follows: for CH₄—GW1 from 2.06% v/v (September 2022) to 9.73% v/v (November 2018); GW2 from 5.38% v/v (June 2019) to 15.1% (December 2019); and GW3 from 2.21% v/v (September 2022) to 8.21% v/v (December 2018). For CO₂—GW1 from 2.60% v/v (October 2022) to 12.7% v/v (March 2020); GW2 from 4.49% v/v (February 2018) to 10.2% v/v (January 2020); and GW3 from 2.19% v/v (December 2022) to 6.13% v/v (December 2018), see

Table 3. Concentration of CH₄ and CO₂ in LFG by gas wells and years, 2018–2022.

Year	Gas Well	CH4 v/v %			Cv, %	CO2, % v/v			Cv, %
		Average Mean ± SD	Min.	Max.		Average Mean ± SD	Min.	Max.
2018	GW1	9.57 ± 0.10 a	9.45	9.73	1.04	7.34 ± 0.09 a	7.12	7.45	1.22
	GW2	6.59 ± 0.07 c	6.49	6.68	1.06	4.58 ± 0.06 c	4.49	4.68	1.31
	GW3	7.94 ± 0.18 b	7.70	8.21	2.26	5.91 ± 0.14 b	5.69	6.13	2.36
		8.03 ± 0.11 A	-	-	1.36	5.94 ± 0.09 A	-	-	1.51
2019	GW1	6.39 ± 0.74 b	5.81	8.11	11.6	5.62 ± 0.37 b	4.84	6.20	6.58
	GW2	9.12 ± 3.38 a	5.38	15.1	37.1	7.69 ± 1.59 a	6.62	11.1	20.7
	GW3	6.12 ± 0.33 b	5.78	6.61	5.38	4.39 ± 0.18 c	4.07	4.70	4.10
		7.21 ± 1.19 AB	-	-	16.5	5.90 ± 0.58 A	-	-	9.83
2020	GW1	8.24 ± 3.70 b	4.37	17.3	44.9	6.24 ± 2.41 b	4.23	12.7	38.6
	GW2	10.4 ± 1.34 a	9.21	14.2	12.9	8.11 ± 1.19 a	5.72	10.2	14.7
	GW3	6.64 ± 0.89 b	5.29	8.42	13.4	4.31 ± 0.29 c	3.98	5.03	6.72
		8.41 ± 1.33 A	-	-	15.8	6.22 ± 0.62 A	-	-	9.96
2021	GW1	4.12 ± 0.60 b	3.29	5.18	14.6	4.26 ± 0.53 b	3.32	4.90	12.4
	GW2	10.3 ± 0.92 a	9.26	12.2	8.96	8.70 ± 1.05 a	5.96	9.95	12.1
	GW3	3.79 ± 0.64 b	2.56	4.86	16.9	4.03 ± 0.31 b	3.69	4.79	7.69
		6.06 ± 0.48 B	-	-	7.92	5.66 ± 0.50 A	-	-	8.83
2022	GW1	2.85 ± 0.41 b	2.06	3.48	14.4	2.92 ± 0.17 b	2.60	3.16	5.82
	GW2	8.18 ± 0.30 a	7.69	8.53	3.67	5.44 ± 0.47 a	4.86	6.27	8.64
	GW3	2.56 ± 0.22 c	2.21	2.88	8.59	2.61 ± 0.21 c	2.19	2.95	8.04
		4.53 ± 0.27 C	-	-	5.96	3.66 ± 0.25 B	-	-	6.83

Note: Different letters (a, b and c, or A, B and C) indicate significant differences at p < 0.05 according by Duncan’s multiple range test.

.

All average annual CH₄ values by gas wells were 1.14 times (GW1, 2019) to 1.54 times (GW3, 2020) higher than the CO₂ values. Exceptions were the GW1 and GW3 values in 2021 and 2022, where the concentrations of CO₂ slightly exceeded those of CH₄ (1.02–1.06 times). In previous studies, researchers usually reported higher levels of CH₄ in the LFG compared to CO₂ [8,32,66,81,82] but, although less often, inverse ratios of the two gases were also encountered [42,83,84]. The monthly CH₄ and CO₂ concentrations by gas wells among individual years of the observed period varied within more narrow limits than among individual gas wells within the same year. Based on the results obtained from Duncan’s multiple range test, the average annual CH₄ and CO₂ values by gas wells were statistically different (p < 0.05): for CH₄ between 2018 and 2022 and between GW2 from one side and GW1/GW3 from the other in 2019, 2020 and 2021; for CO₂ between all average annual values in 2018, 2019, 2020, and 2022 and between GW2 and GW1/GW3 in 2021. The average annual concentrations of the two gases from all gas wells were significantly different (p < 0.05) between 2018 and 2021/2022; between 2021 and 2018/2020/2022, and between 2022 and 2018/2019/2020/2021 for CH₄, and between 2022 and 2018/2019/2020/2021 for CO₂. Coefficients of variation (Cv) revealed slight to significant variability in the concentrations of both gases by gas wells as well as by years: for CH₄ Cv(GW1) = 1.04% (2018)–44.9% (2021), Cv(GW2) = 1.06% (2018)–37.1% (2019) and Cv(GW3) = 2.26% (2018)–16.9% (2021); for CO₂ Cv(GW1) = 1.22% (2018)–38.6% (2020), Cv(GW2) = 1.31% (2018)–20.7% (2019) and Cv(GW3) = 2.36% (2018)–8.04% (2022). By years, the coefficients of variation indicated slight to moderate variations of the content of both gases, within a broader range for CH₄ (Cv = 1.36–16.5%) than for CO₂ (Cv = 1.51–9.96%), see Table 3.

The large variability of the CH₄ and CO₂ concentrations from the three gas wells of the investigated landfill cell is not unusual as many factors can influence the LFG production. Considering that the atmospheric pressure, air temperature, and the quantity of the precipitation around the three gas wells were very close during the corresponding month of measurement (

Table 4. Meteorological parameters, 2018–2022.

Year	Parameter	Average Mean ± SD	Min.	Max.
2018	Atmospheric pressure, hPa (n = 36) *	976.12 ± 4.75	970.5	982.5
	Air temperature, T °C (n = 36)	16.28 ± 8.71	3.3	28.6
	Precipitation, mm (n = 12) **	44.533 ± 39.104	1.20	102.8
2019	Atmospheric pressure, hPa (n = 36)	978.48 ± 9.80	962.5	995.7
	Air temperature, T °C (n = 36)	17.62 ± 7.96	3.4	29.0
	Precipitation, mm (n = 12)	25.017 ± 18.306	2.20	59.3
2020	Atmospheric pressure, hPa (n = 36)	994.08 ± 7.39	982.4	1002.0
	Air temperature, T °C (n = 36)	18.58 ± 9.71	3.5	29.2
	Precipitation, mm (n = 12)	37.033 ± 33.711	5.30	123.1
2021	Atmospheric pressure, hPa (n = 36)	990.38 ± 20.85	929.1	1008.2
	Air temperature, T °C (n = 36)	18.43 ± 9.99	5.2	35.8
	Precipitation, mm (n = 12)	42.142 ± 37.989	1.30	109.4
2022	Atmospheric pressure, hPa (n = 36)	998.22 ± 5.55	991.6	1011.2
	Air temperature, T °C (n = 36)	18.03 ± 9.03	7.6	31.4
	Precipitation, mm (n = 12)	23.967 ± 23.561	1.10	89.4

Note: * n = 36—measured 12 months at the three gas wells (GW1, GW2, GW3); ** n = 12—measured 12 months.

), the most probable factor determining the significant variability and dynamics of gas concentrations was the heterogeneity of the MSW in the cell. Previous studies underlined that there were noticeable discrepancies between LFG concentrations of different sampling points of the same landfill cell due to the spatial heterogeneity of waste in the landfill, with respect to different decay rates, which was a spot-specific factor [11,13]. Because of this, varying amounts of CO₂ and CH₄ in different spots of the site [85], as well as from well to well, could be found [66].

A general trend towards decreasing CH₄ and CO₂ concentrations in produced LFG was observed during the tested period and especially after the Cell-1 closure in June 2020. The average annual content of the two gases in 2022 was lower by 25.3% and 35.3% than in 2021, by 46.1% and 41.2% compared to 2020, by 37.2% and 38.0% compared to 2019, and by 43.6% and 38.4% than in 2018, respectively. Exceptions were the average annual values at GW2 in 2021 and 2022, when CH₄ and CO₂ content remained high and comparable to those of the previous three years. The results indicated that the biodegradation of the MSW, i.e., CH₄ and CO₂ production, proceeded at a different intensity in the areas of the three gas wells of the cell both before and after its closure.

Measured concentrations of the two gases were significantly lower in comparison to the results of other studies on landfills with gas collection systems equipped with gas extraction wells: CH₄ 44.80–54.60% and CO₂ 37.50–44.60% [82]; CH₄ 14.54–65.59% and CO₂ 21.74–31.62% [8]; CH₄ 59.4–60.4% and CO₂ 39.6–40.6% [86]; CH₄ 59–67% and CO₂ 31–42% [87]; CH₄ 35–60% and CO₂ 25–40% [66]; CH₄ 36.2–49.2% and CO₂ 24.3–34.5% [34], and in the lower part of the range for a site with 47 gas extraction wells where CH₄ and CO₂ fluctuated between 1% and 68% [74]. Lower values than ours for methane concentration (0–2.14% v/v) from collection wells of a MSW landfill were also reported [88]. The potential causes that may explain the differences between our results and those of the above-cited authors are numerous and different, but two of them are of particular importance—the amount of the deposited MSW in the landfill and the content of organic matter in the deposited waste. In the present study, the amount of the deposited MSW in the monitored cell was much smaller than that in the cited papers, a fact presuming a smaller amount of organic matter in the waste, i.e., lower CH₄ and CO₂ concentrations.

3.2. CH₄/CO₂ Volumetric Ratio

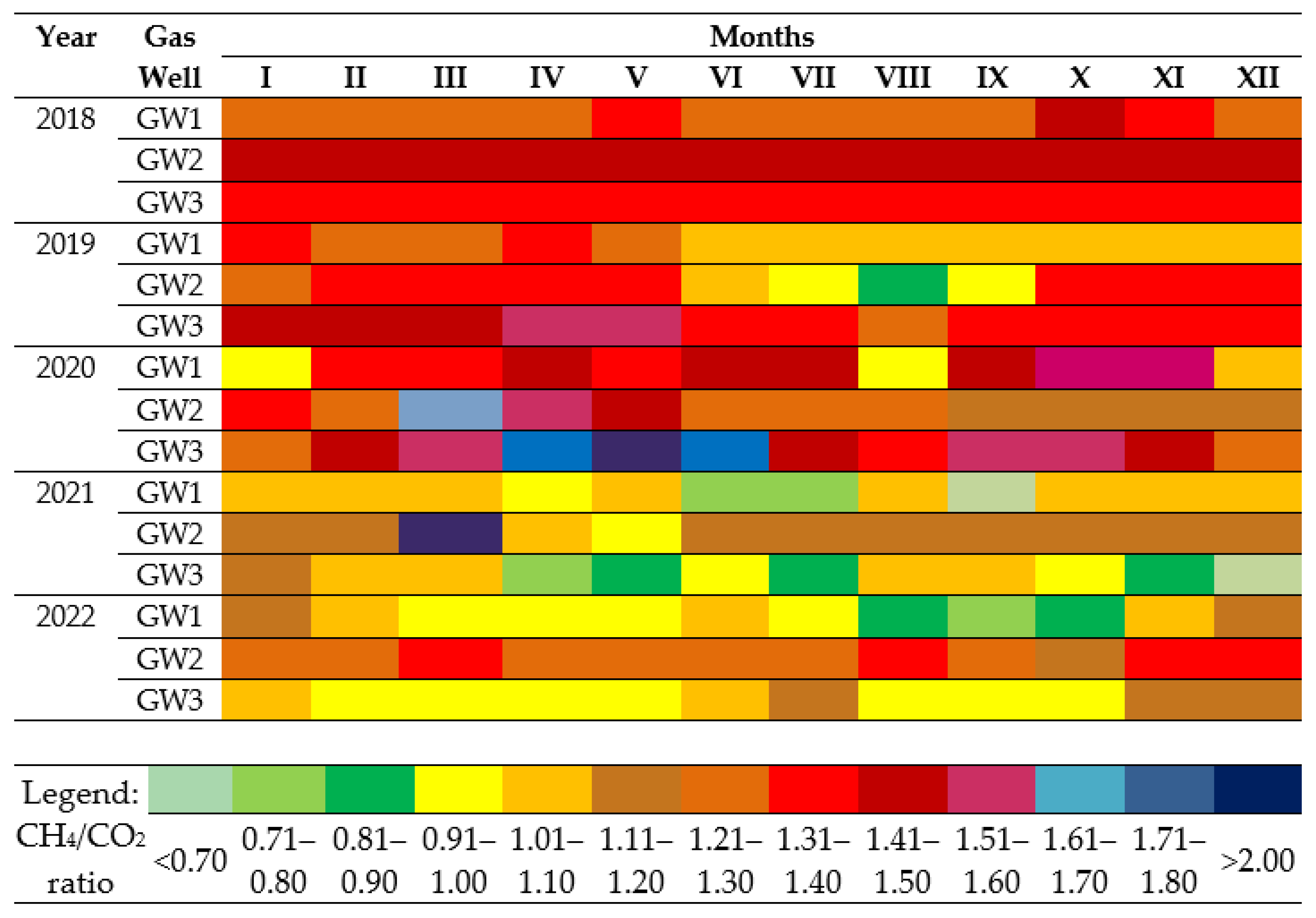

The CH₄/CO₂ volumetric ratio was calculated to provide an insight into the anaerobic reaction stage, i.e., the degree of CH₄ oxidation into the deposited MSW in Cell-1 [47,74,81,89]. The CH₄/CO₂ ratio varied significantly among the gas wells, months, and years as follows: GW1 from 0.70, September 2021 to 1.54, November 2020; GW2 from 0.90, August 2019 to 2.01, March 2021 and GW3 from 0.68, December 2021 to 2.01, May 2020 (Figure 4). Despite variable results, predominantly higher values of that ratio (>1.24) were found in 2018, 2019, and 2020 (Phase 1—active cell, January 2018–June 2020) compared to 2021 and 2022 (<1.18) (Phase 2—closed cell, July 2020–December 2022). Exceptions to the general trend were observed during both periods: at GW1 (June–December) and at GW2 (June–September) in 2019, at GW1 (January, August and December) and at GW2 (September–December) in 2020 with lower values (0.90–1.15) than those during Phase 1 of Cell-1 as well as at GW2 (March) in 2021 and at GW2 for all months of 2022 with higher values (1.18–2.01) than those during Phase 2 of Cell-1. These contradictory results revealed the fragmented nature of organic waste biodegradation processes in the investigated cell by place and by time. Overall, the CH₄/CO₂ ratio for the three gas wells was greater than 1.0 throughout most of the monitoring period (GW1—92.78%, GW2—97.78% and GW3—92.22% of the time), indicating that the MSW in Cell-1 was still in the active phase of biomethanization [46]. Some authors noted that the CH₄/CO₂ ratio increases up to typical values (≥1.50) for a mature LFG [89]. The results obtained are logical, as newer waste typically has a CH₄/CO₂ ratio of about 1.5 and higher, as was found in this study in 2018 and most of the months in 2019 and 2020, while older waste (2021–2022) had a lower CH₄/CO₂ ratio as expected [74]. The results reported by other investigations of sites of different types, capacities, and age were within our results’ range: 1.53 [46], 1.00–1.50 [74], 0.7–2.2 [8], 0.69–0.76 [90]. In conclusion, the CH₄/CO₂ ratio in the present study demonstrates a great sensitivity and enables an accurate assessment of the methane phase of organic waste decomposition in different areas of the cell.

3.3. CH₄ and CO₂ Emissions

The results showed that the CO₂ emissions were greater than CH₄ emissions during the monitoring period and that their amount by gas wells and by years varied between 491.97 kg/y (GW3, 2022) and 1762.76 kg/y (GW2, 2019), and between 172.81 kg/y (GW3, 2022) and 750.41 kg/y (GW2, 2021), respectively (

Table 5. CH₄ and CO₂ emissions by gas wells, periods, and years (2018–2022).

Gas Well	Winter Period		Non-Winter Period						Year
	December, January, February		March, April, May		June, July, August		September, October, November
	kg		kg		kg		kg		kg
	CH4	CO2	CH4	CO2	CH4	CO2	CH4	CO2	CH4	CO2
2018
GW1	131.76	278.65	149.40	311.85	122.75	257.20	116.35	247.56	520.26	1095.26
GW2	84.02	158.74	84.24	163.22	80.39	155.09	72.70	141.09	321.53	618.14
GW3	102.42	208.43	109.92	225.67	83.98	173.13	85.20	174.79	381.52	782.02
Total	318.20	645.82	343.56	700.74	287.12	585.42	274.25	563.44	1223.3	2495.42
2019
GW1	139.73	288.01	147.62	339.43	154.60	408.66	145.54	393.18	587.49	1429.28
GW2	184.85	381.45	156.60	384.62	129.53	450.41	279.07	546.28	750.05	1762.76
GW3	118.13	222.62	107.81	196.64	97.09	203.79	89.10	181.87	412.13	804.92
Total	442.71	892.08	412.03	920.69	381.22	1062.86	503.71	1121.33	1749.67	3996.96
2020
GW1	194.09	460.30	205.44	394.97	123.55	259.22	194.52	382.08	717.60	1496.57
GW2	209.47	415.01	158.42	313.90	176.01	397.42	188.54	465.41	732.44	1591.74
GW3	125.67	244.1	151.22	225.19	106.40	198.21	99.05	193.63	482.34	861.13
Total	529.23	1119.41	515.02	934.06	405.94	854.85	482.11	1041.12	1932.38	3949.44
2021
GW1	90.51	237.24	73.58	224.81	69.28	225.84	68.46	173.71	301.83	861.60
GW2	198.76	400.75	179.04	457.51	196.69	473.71	175.92	413.99	750.41	1745.96
GW3	80.73	206.76	60.43	194.35	68.43	191.47	52.22	174.41	261.81	766.99
Total	370.00	844.75	313.05	876.67	334.40	891.02	296.60	762.11	1314.05	3374.55
2022
GW1	51.31	135.84	53.14	149.26	47.91	154.49	48.52	134.66	200.88	574.25
GW2	150.38	295.78	150.60	267.84	140.62	245.23	138.35	243.51	579.95	1052.36
GW3	43.83	139.06	45.09	123.74	41.25	119.26	42.64	109.61	172.81	491.97
Total	245.52	570.68	248.83	540.84	229.78	518.98	229.51	487.78	953.64	2118.58

). Considering that the content of CH₄, measured in volumetric percentages (% v/v), was greater than that of CO₂ content (Table 3), the greater CO₂ emission rates (kg) compared to those of CH₄ could be explained by the differences in the mass of the two gases. The molecular mass of CO₂ is 2.74 times greater than that of CH₄ (44.01 vs. 16.04) and converting the values from volume percentages (% v/v) to mg/m³ resulted in higher values in mg/m³ with respect to CO₂ emissions compared to those of CH₄. Previous studies also reported that the CO₂ emission rates are usually higher than the CH₄ emission rates from landfills of different types [2,42]. The emissions of both gases demonstrated significant variability by gas wells both within the same year and among the different years of the observed period. On the whole, CH₄ and CO₂ emission rates by gas wells were higher in the winter period (December, January, and February) and in the first three months of the non-winter period (March, April, and May) compared to the last six months of the non-winter period (June–November).

According to the amount of the generated CH₄ and CO₂ emissions, the gas wells ranked differently during the individual years of the observed period. In 2018, the majority of CO₂ and CH₄ emissions were emitted from GW1, followed by GW3 and GW2, while in the remaining four years (2019–2022), the arrangement by gas wells was GW2 > GW1 > GW3. Although the spatial variability (according to the gas well location) in the emission of the two gases was very large, the quantity emitted from GW2 dominated over those from GW1 and GW3 (an exception was 2018), giving a reason to determine the zone of GW2 as a hotspot of Cell-1. Other researchers [91,92] have also identified hotspot areas of high CO₂ and CH₄ concentrations on MSW landfills, where the CO₂ and CH₄ hotspot areas have been very close.

The results for contradictory emission dynamics from the gas wells of the investigated landfill cell suggested that the factors influencing the CO₂ and CH₄ production were quite variable. Among those factors, the air temperature, atmospheric pressure, and precipitation could be highlighted. A relationship between meteorological factors and the topography of the terrain on which the landfill is located has also been reported [93]. In the literature, there are conflicting data about the influence of meteorological factors on LFG production. Some researchers found out that the LFG emission rates demonstrated a seasonal variability, with low values in summer and the highest values between September and May [94]; others reported the existence of a strong influence of atmospheric pressure on LFG CH₄ concentration, LFG flow, and CH₄ flow, while the ambient temperature was not a major meteorological parameter affecting LFG recovery [36]. The air temperature was not correlated with either CO₂ or CH₄ fluxes, despite the significant variation of that parameter [82,86]; whereas other data demonstrate that the LFG emissions generally increased as the average air temperature became higher [95]. CH₄ emissions were commonly higher during colder temperatures in winter than during warm temperatures in summer [96]; the CH₄ and CO₂ emissions were the highest during the summer season, followed by the monsoon and the winter seasons [74,90] but LGE emissions did not show a significant difference between the end of the rainy period and the end of the dry period [92]. Therefore, it can be concluded that all these results reflect the specific conditions for each of the studied landfills.

Regarding the total annual CH₄ and CO₂ emissions, a general trend was observed. The emission of both gases increased from 2018 to 2020 (by 57.96% for CH₄ and by 58.26% for CO₂) when they reached the highest levels; afterwards, the emissions decreased to 2022 (by 50.65% for CH₄ and by 46.36% for CO₂) and attained the lowest levels. This divergent trend in the emissions of both gases could be explained by the different activities occurring in Cell-1 during the tested years. From January 2018 until the end of June 2020, Cell-1 was in operation and daily new amounts of MSW, including new amounts of organic matter, had been added. Therefore, during that phase there were conditions for the production of larger amounts of LFG, leading to an increase in CH₄ and CO₂ emissions. Previously reported data revealed that the exploitation parameters have a considerable influence on the emission of LFG in an operating landfill [97]. Another reason could be the high content of rapidly degradable organic carbon in MSW combined with high moisture content, which stimulates anaerobic degradation, i.e., the production of more LFG within a short period [98]. After June 2020, Cell-1 was closed as its capacity was reached and it was temporarily covered by native soil. The discontinuation of MSW disposal in the cell led to the depletion of the organic matter reserves and, accordingly, to a decrease in the emission rates of both gases until the end of 2022. These results are in the line with previous studies reporting that operational landfills emit more LFG/CH₄ than closed landfills, since the major part of degradation occurs in the first few years following MSW disposal (during the active phase of the landfills) with emission rates decreasing with time after their closure (during the closed phase of the landfills) [50,98]. Other researchers [23,26,38,42] pointed out that, after landfill closure, LFG/methane generation decreases and the process usually lasts many years. Our results are distinguished from those of other authors by the high rates of growth (>57–58%) and the decrease (<46–50%) in CH₄ and CO₂ emissions, respectively, during the active and closed phases of the cell, each of them lasting 2.5 years. The probable reasons for this phenomenon are multiple and different but are most likely related to the amount of deposited MSW, the content of MSW organic matter, and the thickness of the deposited waste as well as the environmental conditions (atmospheric pressure, temperature, moisture, pH, microbial activities, etc.). The monitored landfill cell has a relatively small capacity (292,254 t) and a small thickness of the deposited MSW (1.80 m), while in other studies the capacity of the landfills and the thickness of the deposited MSW were much greater; therefore, the produced CH₄ and CO₂ levels were also much higher than in the present study [36,66,83,99,100,101,102]. Some authors reported that the changes in the quantity of waste affected the annual methane production from the landfill more than the changes of waste composition [103].

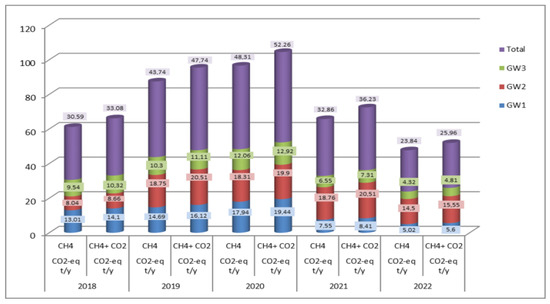

The CH₄ and CO₂ emissions from Cell-1, presented as equivalent amounts of carbon dioxide (CO₂-eq), exhibited the same dynamics over the years of the monitoring period as did the individual emissions of both gases. Carbon footprint calculations showed that, for the five tested years, the three gas wells of Cell-1 emitted between 25.96 t CO₂-eq/y (2022) and 52.26 t CO₂-eq/y (2020), see Figure 5. It turned out that the three gas wells had different contributions to those quantities: the greatest contribution was made by GW2, followed by GW1 and GW3. The annually emitted amounts of CO₂-eq from all gas wells of Cell-1 were relatively small but were multiplied for the cells of all 53 landfills in Bulgaria; therefore, the picture was dramatically different. That is why, no matter how insignificant these amounts are, an environmentally friendly solution for their reduction and utilization must be sought. Due to the low profitability of energy production from LFG (methane) produced by the investigated cell, the plan for the management of generated biogas in cells/landfills after their reclamation includes gathering and flaring LFG from all wells in a common duct.

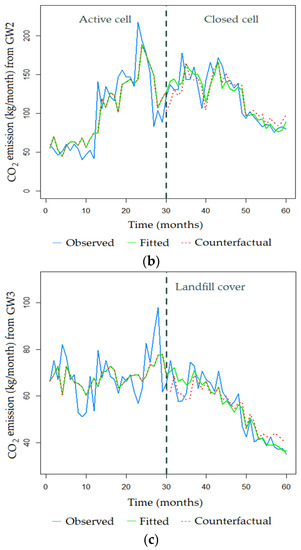

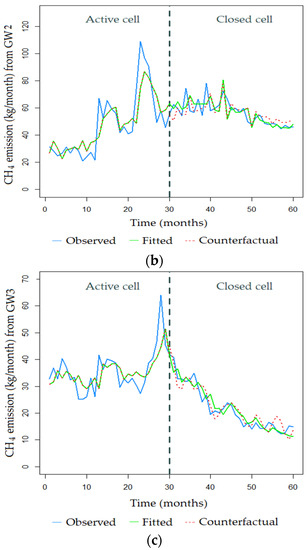

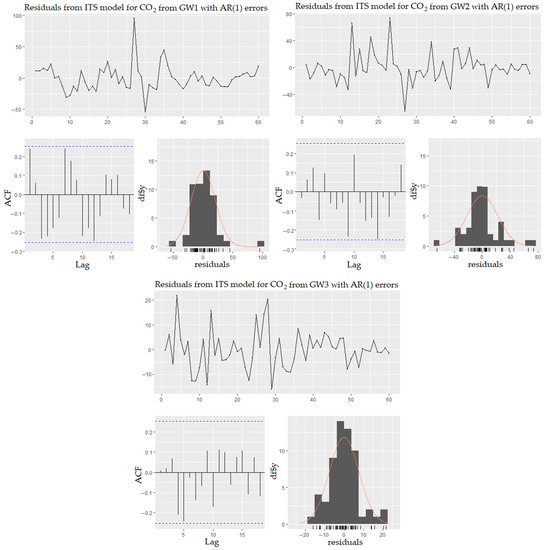

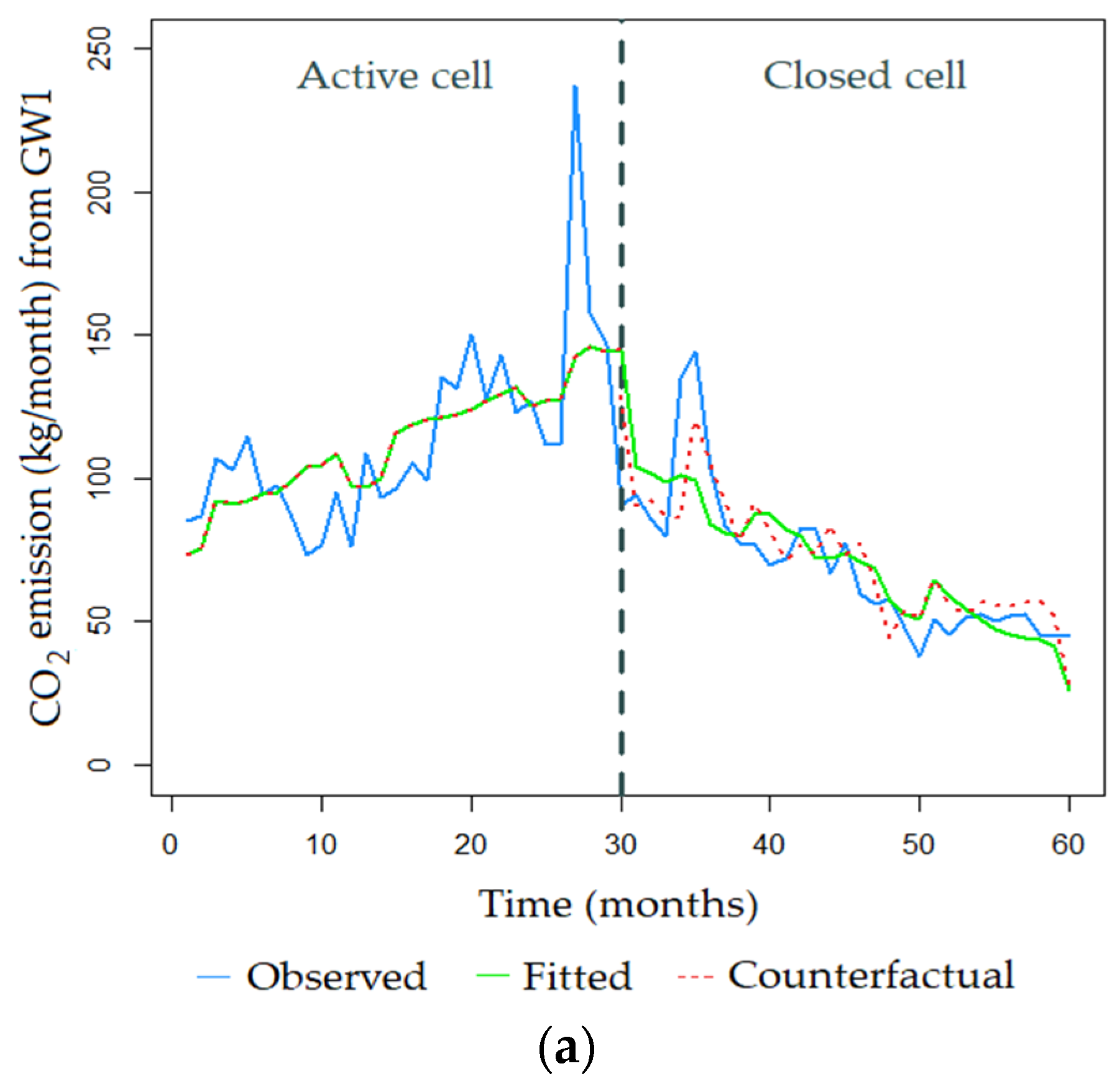

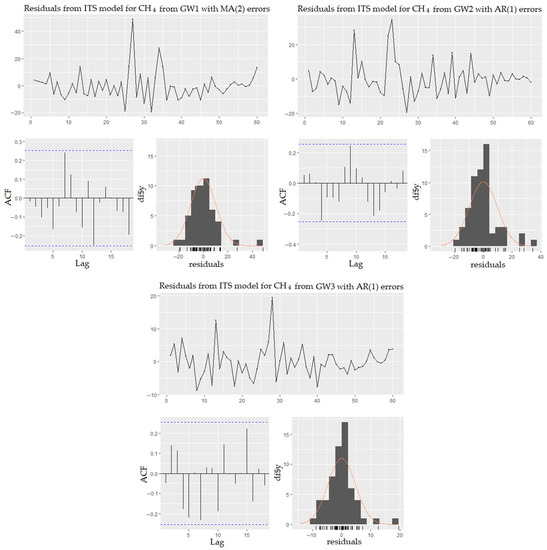

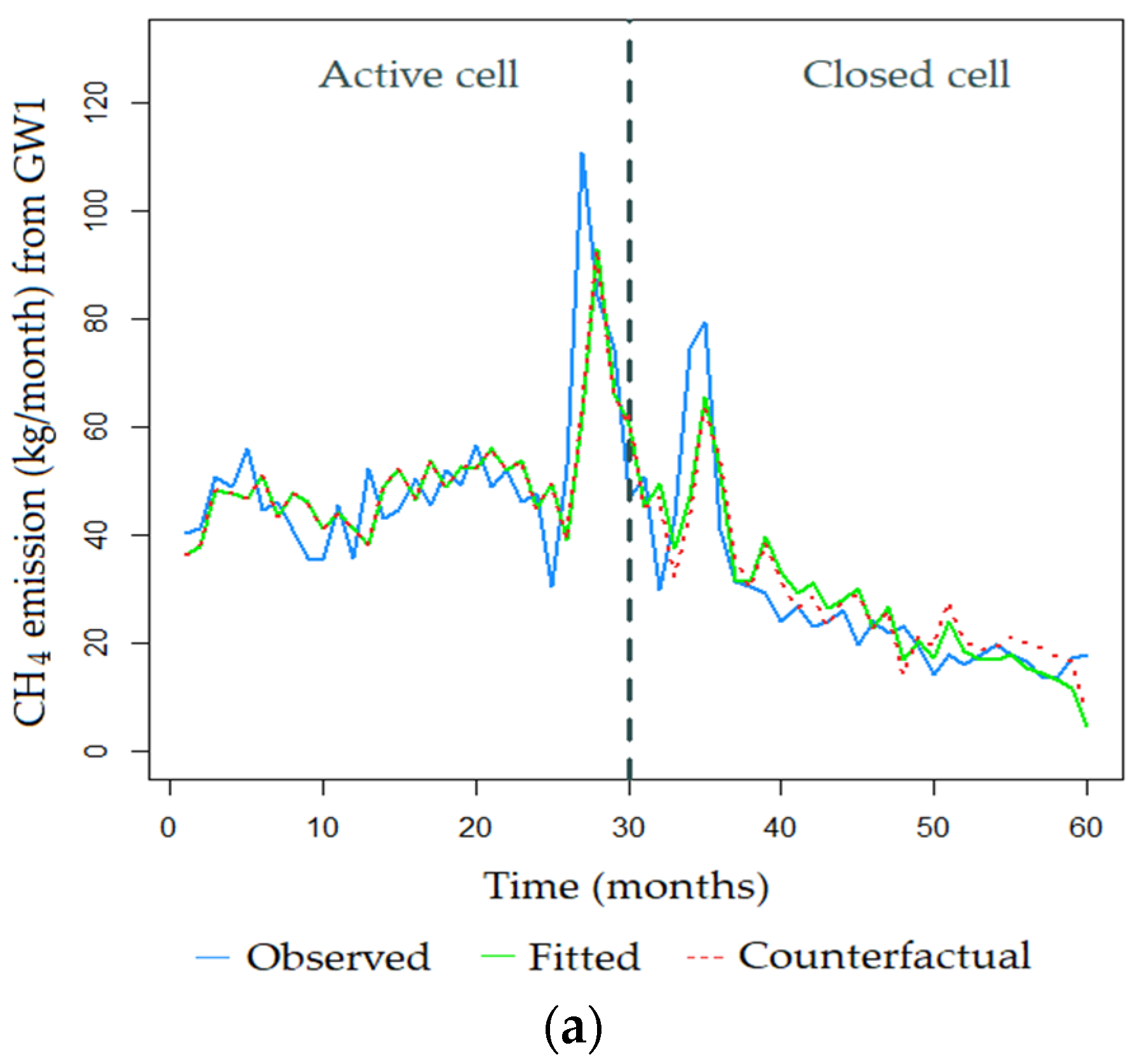

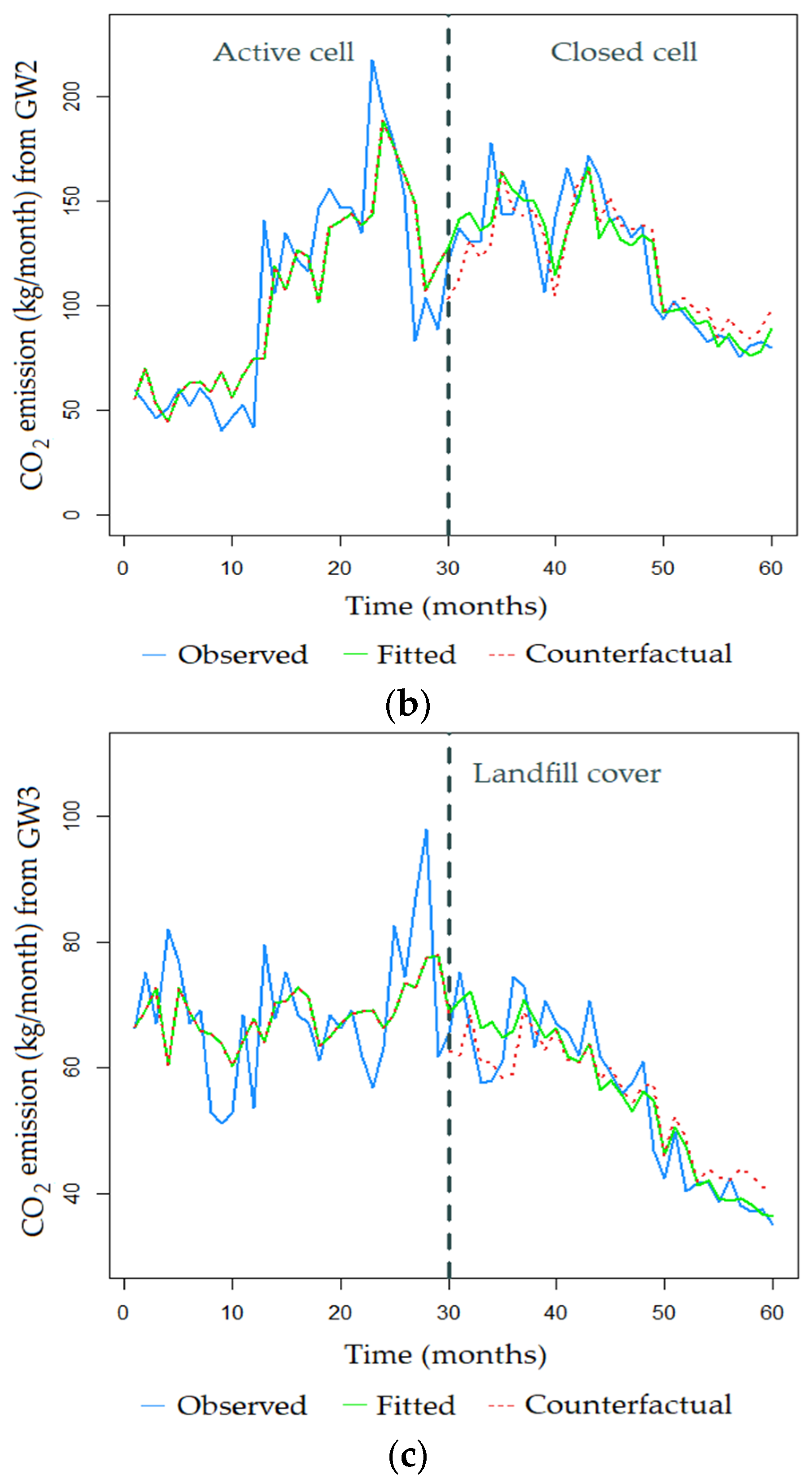

3.4. Interrupted Time Series ARMA Model Analysis

Table 6. Descriptive statistics results of the variables between January 2018 and December 2022.

Variable	Mean	St. Dev.	Max	Min	Skewness	Kurtosis	Jarque–Bera (p-Value)
Emission CH4_GW1	38.801	19.462	110.7000	13.390	1.150	2.185	21.664 (1.976 × 10−5)
Emission CO2_GW1	91.116	36.532	237.340	37.630	1.196	2.933	30.431 (2.466 × 10−7)
Air pressure_GW1	987.453	13.992	1011.200	929.100	−1.279	3.587	41.101 (1.189 × 10−9)
Air temperature_GW1	17.783	8.832	35.7000	1.500	−0.154	−0.981	2.725 (0.256)
Emission CH4_GW2	52.237	17.956	108.700	20.880	0.539	1.041	4.598 (0.100)
Emission CO2_GW2	112.849	43.177	217.440	40.320	0.046	−0.789	1.714 (0.424)
Air pressure_GW2	987.477	13.999	1011.200	929.100	−1.281	3.588	41.164 (1.152 × 10−9)
Air temperature_GW2	18.022	8.956	35.800	1.500	−0.165	−1.022	2.950 (0.229)
Emission CH4_GW3	28.560	10.632	64.080	12.240	0.475	0.548	2.558 (0.278)
Emission CO2_GW3	61.779	13.523	97.920	34.970	−0.120	−0.037	0.180 (0.914)
Air pressure_GW3	988.093	14.091	1011.200	929.100	−1.323	3.701	43.879 (2.963 × 10−10)
Air temperature_GW3	18.192	9.037	35.800	1.600	−0.179	−1.048	3.121 (0.210)
Precipitation	34.538	31.726	123.100	1.100	1.179	0.484	13.501 (0.001)

Note: GW1, GW2 and GW3 denote gas well 1, gas well 2 and gas well 3, respectively.

presents the results of the descriptive statistics of the variables. Regarding the gas wells, the CH₄ and CO₂ emissions from GW2 had the highest mean values of 52.237 and 112.849, respectively, while the CH₄ and CO₂ emissions from GW3 had the lowest mean values of 28.560 and 61.779, respectively. The highest mean values of atmospheric pressure and air temperature were found at GW3—988.093 and 18.192, respectively—while the lowest were computed at GW1—987.453 and 17.783, respectively. The mean value of the precipitation was 34.538.

The skewness of data for all gas wells was positive for CH₄ and CO₂ (except for CO₂ from GW3) and negative for the atmospheric pressure and air temperature. The highest values of 1.150 for CH₄ and 1.196 for CO₂ were for GW1, meaning that the data were skewed to the right. With regard to atmospheric pressure and air temperature, the lowest values of −1.323 and −0.179 were found at GW3. The skewness value for precipitation was positive (1.179). In assessing the kurtosis of the CH₄ and CO₂ datasets, the emissions had the highest values of 2.185 and 2.933 for GW1, respectively, while the lowest values were 0.548 for GW3 and −0.789 for GW2, respectively. The highest values were 3.701 for the atmospheric pressure of GW3 and −0.981 for the air temperature of GW1, while the lowest values were 3.587 for the atmospheric pressure of GW1 and −1.048 for the air temperature of GW3, respectively. The kurtosis value of precipitation was 0.484.

The Jarque–Bera test failed to reject the H0 hypothesis that the data were normally distributed in all variables, excluding the CH₄ and CO₂ from GW1, atmospheric pressure from all gas wells, and precipitation—the Jarque–Bera statistic was positive with a p-value of more than 0.05. Nevertheless, we can conclude that residuals of all variables were approximately normally distributed, as the skewness was between −2 and +2 and kurtosis was between −7 and +7 [104,105]. Normality is a desirable characteristic for the data analysis required.

Table 7. Estimates of α and β parameters for the ITS models implemented for CH₄ emissions from each of the three gas wells (GW1, GW2, and GW3).

	GW1		GW2		GW3
	Estimate	p-Value	Estimate	p-Value	Estimate	p-Value
α0	−0.153	0.131	364.398	0.487 × 103 ****	−1.685	0.807
α1	0.532	0.167	1.820	0.121 × 10−6 ****	0.299	0.109
α2	−6.226	0.486	0.868	0.925	−4.819	0.242
α3	−1.997	0.337 × 103 ****	−2.576	0.127 × 10−6 ****	−1.153	0.360 × 10−6 ****
βair presure	0.037	0.2058 × 10−7 ****	−0.347	0.001 ***	0.032	<0.220 × 10−17 ****
βair temperature			−0.361	0.099 *
βprecipitation
βnon-winter	9.880	0.026 **

Note: *, **, *** and **** presents significance level at 10%, 5%, 1% and 0.1%, respectively.

and

Table 8. Estimates of α and β parameters for the ITS models implemented for CO₂ emissions from each of the three gas wells (GW1, GW2 and GW3).

	GW1		GW2		GW3
	Estimate	p-Value	Estimate	p-Value	Estimate	p-Value
α0	−1.058	0.495	518.260	0.023 **	163.695	0.034 **
α1	2.124	1.260 × 10−6 ***	4.034	0.716 × 10−6 ***	0.250	0.310
α2	−38.857	0.258 × 103 ***	15.548	0.457	5.276	0.356
α3	−4.496	0.211 × 10−14 ***	−6.986	0.605 × 10−7 ***	−1.558	0.106 × 10−6 ***
βair presure	0.075	0.303 × 10−14 ***	−0.479	0.040 **
βair temperature					−0.287	0.085 *
βprecipitation
βnon-winter	14.582	0.080 *

Note: *, ** and *** presents significance level at 10%, 5% and 0.1%, respectively.

present the estimates of α and β parameters and corresponding p-values for the obtained ITS models implemented for CH₄ and CO₂ emissions from each gas well. In the case of an empty cell, meaning that the corresponding coefficient was not significantly different from zero, it was removed from the model. Besides the covariate coefficients β, the following parameters were estimated: the intercept α₀, the baseline trend slope α₁, and the post-closed Cell-1 level (trend slope) change α₂ (α₃), which are represented in Equation (1). Specifically, α₀ + α₂ + X_tβ and α₁ + α₃ described the level and the trend slope after the Cell-1 closure, to be compared with α₀ + X_tβ and α₁, respectively.

It can be noted that precipitation had no significant effect on CH₄ and CO₂ emissions, thus it was excluded from all models. The most important meteorological variable was the atmospheric pressure with a significant positive effect for CH₄ (from GW1 and GW2) and CO₂ (from GW1) emissions, and a negative effect for the emissions of both gases from GW2. Air temperature had a significant, negative effect for CH₄ (from GW2) and CO₂ (from GW3) emissions. The dummy variable related to the non-winter effect was significantly different from zero for the emissions of both gases, only from GW1 located at the top of the cell in the area last filled up with MSW and last covered with a temporary layer of soil (Figure 2).

Parameter α₁ indicates the air pollution trend before Cell-1 closure. It was significantly positive for CH₄ (from GW2) and CO₂ (from GW1 and GW2) emissions. This was perhaps associated with the approach of warmer weather and sunny days. For each passing day, the air pollution with CH₄ (from GW2) increased by 1.820 points whereas that of CO₂ (at GW1 and GW2) increased by 2.124 and 4.034 points, respectively. These trends were also evident from the observed time series represented in Figure 6 and Figure 7.

The α₂ coefficient indicates the air pollution immediately after Cell-1 closure. Its immediate effect was negative and significant only for CO₂ emissions from GW1. This result makes sense, since the decrease was not expected to be very high immediately after Cell-1 closure. In this regard, some authors reported that LFG emissions peak a year after the closure of a landfill [42].

The α₃ coefficient indicates how the trend changed after Cell-1 closure. The sustained effect was negative and significant for CH₄ and CO₂ emissions from all gas wells. Therefore, for each day after the Cell-1 closure, the air pollution of CH₄ decreased by −1.997 (from GW1), −2.576 (from GW2), and −1.153 (from GW3) points, respectively. For each passing day, the air pollution of CO₂ decreased by −4.469 (from GW1), −6.986 (from GW2), and −1.558 (from GW3) points, respectively. In previous studies, many researchers pointed out the same trends in the reduction of CH₄ and CO₂ emissions after landfill closure [23,26,42,50].

The results obtained are confirmed by the graphs on Figure 6 and Figure 7, where the observed and fitted (using the estimated parameters presented in Table 7 and Table 8) time series are presented together with the counterfactual predictions. The latter represent the expected time series in the hypothetical scenario under which the Cell-1 was not still closed, i.e., with no intervention and assuming that the time series was stationary after accounting for time-varying confounders.

Figure 6 and Figure 7 demonstrate an increase in the observed values between October and December 2020, i.e., immediately after Cell-1 closure, which may be related to the specific meteorological conditions in the area during that period, characterized by an abundance of precipitation (34.3% of total annual precipitation) and relatively high air temperatures (especially in October (20.2 °C) and November (17.1 °C). In December, the air temperature was lower (6.1 °C), as well as covering the Cell-1 with a layer of soil. The surface layer of soil limits the access of oxygen and favors the anaerobic degradation of waste organic matter. Moreover, the higher water content of the substrate acts as a diffusion barrier for the methane and oxygen that can be utilized by the oxidizing bacteria, thereby leading to increased emissions. In addition, the higher air temperatures positively affected both methane production and oxidation as these were temperature-dependent microbial processes [94]. Another study also found that CH₄ and CO₂ emissions during the wet season were approximately 1.5 times higher compared to during the dry season as higher moisture content facilitated nutrient transportation through waste layers and accelerated waste decomposition to produce more LFG [86].

Table 9. Specification of the best ARMA model estimated for CH₄ and CO₂ emissions from each of the three gas wells (GW1, GW2, and GW3).

	GW1
	CH4: MA(2) Model		CO2: AR(1) Model
Estimate	θ1= 0.594	θ2= 0.258	φ1= 0.127
p-value	0.585 × 10−5 ***	0.064 *	0.061 *
	GW2
	CH4: AR(1) Model		CO2: AR(1) Model
Estimate	φ1= 0.532		φ1= 0.607
p-value	0.315 × 10−5 ***		0.678 × 10−10 ***
	GW3
	CH4: AR(1) Model		CO2: AR(1) Model
Estimate	φ1= 0.525		φ1= 0.378
p-value	0.406 × 10−7 ***		0.002 **

Note: *, ** and *** presents significance level at 10%, 1% and 0.1%, respectively.

presents the estimates of the ARMA coefficients. Time series were characterized by the following temporal dynamics: an MA(2) structure was estimated for CH₄ from GW1, while an AR(1) was the best choice for CH₄ from GW2 and GW3, and for CO₂ from all gas wells.

Figure 8 and Figure 9 show the time plots, the ACF plots, and the histogram of the residuals from the ARMA models. The time plots show some variation over time but are otherwise relatively unremarkable. The histograms suggest that the residuals are normally distributed. The ACF plots of the residuals show that all autocorrelations were within the threshold limits. Therefore, we concluded that the residuals behaved similarly to white noise. A Ljung–Box test returned the following statistic and p-value for the residuals from CH₄ ARMA models: 17.566 (p-value = 0.541), 21.038 (p-value = 0.103), and 15.585 (p-value = 0.138), respectively; and from CO₂ ARMA models: 25.729 (p-value = 0.187), 13.643 (p-value = 0.343), and 14.360 (p-value = 0.245), respectively. These large p-values suggested that the residuals were white noise. The correlations between predicted and observed values from obtained ARMA models were strong, positive, and ranged from 0.739 to 0.896.

Future investigations of landfills, using the Interrupted Time Series ARMA model could reveal the local differences and point out the relevant factors affecting the dynamics of CH₄ and CO₂ emissions during active (before cover) and closed (after cover) phases of the landfills. That knowledge will contribute to forming effective LFG emissions management policies, aimed at air quality improvement and human health protection.

4. Conclusions

The management of greenhouse gas emissions from MSW landfills is of great importance in seeking solutions to reduce their impact on global warming and the Earth’s climate. In Bulgaria, 53 landfills for non-hazardous MSW waste are currently in operation, so the study of the processes generating greenhouse gas emissions from them will contribute to the formation of an adequate policy and the implementation of environmentally friendly solutions for the sustainable management of the landfills. This study was the first of its kind in the country to assess the CH₄ and CO₂ emissions from three gas wells (GW1, GW2, and GW3) of a landfill cell (Cell-1) during the active and closed phases (2.5 years duration for each of them) of a regional non-hazardous waste landfill—Harmanli—based on in situ measurement of the concentrations of the two gases.

The results show that the CH₄ and CO₂ concentrations varied widely by gas wells, months, and years (2.06–15.1% v/v). During most of the monitored period, the CH₄ values of gas wells were 1.14–1.54 times higher than the CO₂ values but opposite results were also observed, although less often and to a lesser extent. The monthly CH₄ and CO₂ concentrations by gas wells across individual years varied within narrower limits than among individual gas wells within the same year, which determines the month within a year as a factor with a greater impact on the concentration of both gases than the factor year. From 2018 to 2022, the concentrations of the produced LFG decreased, especially after the Cell-1 closure in June 2020, by 43.6% for CH₄ and 38.4% for CO₂ on average, indicating the rapid biodegradation of the deposited waste. The results obtained for the two gases were significantly lower than those cited in this paper, which may be affected by many factors, two of which are of key importance—the amount of MSW deposited in the landfill and the content of organic matter in the deposited waste. With respect to both parameters, the studied landfill cell ranks below the landfills from other studies.

The CH₄/CO₂ volumetric ratio values reflect the biodegradation (methanogenesis) of the deposited waste. The parameters demonstrate high variability by gas wells, months, and years (0.68–2.01), which made it a suitable indicator for assessing the level of the methane phase of organic waste decomposition in different areas of the cell. Predominantly higher values of that ratio were established during Phase 1—active cell (>1.24) compared to Phase 2—closed cell (<1.18). This is logical and corresponds with the results for CH₄ and CO₂ concentrations and emissions.

The CO₂ emissions from all GWs were greater than the CH₄ emissions and could be explained by the differences in the masses of the two gases (44.01 vs. 16.04). The conversion of the values from volumetric percentages (% v/v) to mg/m³ resulted in higher values in mg/m³, i.e., in kg/y for CO_2, compared to those of CH₄ emissions. The emissions of both gases demonstrated significant variability by gas wells, months, and years but, on the whole, the emission rates by gas wells were higher in the colder months (December–February) and partly in spring (March–May) compared to the warmer months of the year (June–November). Despite the spatial variability of the emissions in the zones of the three GWs, the quantity emitted from GW2 dominated over that from GW1 and GW3, giving a reason to determine the GW2 zone as a hotspot of Cell-1. A general trend of change in the emissions of the two gases was observed—during the active phase of the Cell-1, the emissions drastically increased by about 58% and, after the Cell-1 closure, they drastically decreased by 46–50%. This phenomenon can be explained by the different activities and the different processes that take place in the cell. During the active cell, daily new amounts of MSW are added, including new amounts of organic matter, which stimulate the generation of gas emissions. Closing the cell stops this activity and, as a result, the organic matter in the waste is decomposed and emissions decrease. The high rates of increase and decrease of the emissions are probably due to the relatively small amount of the deposited MSW as well as the specific environmental conditions in the area of Cell-1. The CH₄ and CO₂ emissions, presented as equivalent amounts of carbon dioxide (CO₂-eq), show that, for the five tested years, the three gas wells of Cell-1 emitted between 25.96 t CO₂-eq/y and 52.26 t CO₂-eq/y. The emitted amounts are relatively small and the production of energy from such quantities is not profitable. Therefore, flaring of the generated biogas is performed.

Finally, the results obtained from the Interrupted Time Series ARMA model (after adjusting for some meteorological factors and the non-winter effect) confirmed the negative and significant effect on CH₄ and CO₂ emissions immediately after the closure of Cell-1, with the exception of the CO₂ emissions from GW1. The correlations between the predicted and observed values obtained by the ARMA model were strong, positive, and ranged from 0.739 to 0.896. The Interrupted Time Series ARMA model was shown to be suitable for use in similar investigations. Therefore, the main findings of this research may become an important part of further deeper investigations and the analysis of the LFG emitted by landfills in Bulgaria.
