# Potential Vorticity Generation in Breaking Gravity Waves

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Equations

#### 2.2. Scale Analysis

#### 2.3. Numerical Approach

## 3. Results

#### 3.1. Main Simulation

#### 3.2. Sensitivity to Reynolds and Froude Numbers

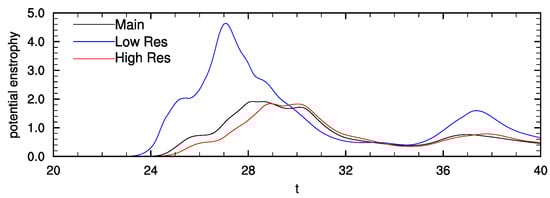

#### 3.3. Sensitivity to Numerical Resolution

## 4. Discussion

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Staquet, C.; Riley, J.J. On the Velocity Field Associated with Potential Vorticity. Dyn. Atmos. Oceans
**1989**, 14, 93–123. [Google Scholar] [CrossRef] - Lelong, M.P.; Riley, J.J. Internal Wave-Vortical Mode Interactions in Strongly Stratified Flows. J. Fluid Mech.
**1991**, 232, 1–19. [Google Scholar] [CrossRef] - Bartello, P. Geostrophic Adjustment and Inverse Cascades in Rotating Stratified Turbulence. J. Atmos. Sci.
**1995**, 52, 4410–4428. [Google Scholar] [CrossRef] - Kafiabad, H.A.; Bartello, P. Balance Dynamics in Rotating Stratified Turbulence. J. Fluid Mech.
**2016**, 795, 914–949. [Google Scholar] [CrossRef] - Lilly, D.K. Stratified Turbulence and the Mesoscale Variability of the Atmosphere. J. Atmos. Sci.
**1983**, 40, 749–761. [Google Scholar] [CrossRef] - Lindborg, E. The Energy Cascade in a Strongly Stratified Fluid. J. Fluid Mech.
**2006**, 550, 207–242. [Google Scholar] [CrossRef] - Herring, J.R. Approach of Axisymmetric Turbulence to Isotropy. Phys. Fluids
**1974**, 17, 859–872. [Google Scholar] [CrossRef] - Herring, J.R.; Métais, O. Numerical Experiments in Forced Stably Stratified Turbulence. J. Fluid Mech.
**1989**, 202, 97–115. [Google Scholar] [CrossRef] - Waite, M.L.; Bartello, P. Stratified Turbulence Dominated by Vortical Motion. J. Fluid Mech.
**2004**, 517, 281–308. [Google Scholar] [CrossRef] - Waite, M.L. Potential Enstrophy in Stratified Turbulence. J. Fluid Mech.
**2013**, 722, R4. [Google Scholar] [CrossRef] - Rosenberg, D.; Pouquet, A.; Marino, R. Correlation Between Buoyancy Flux, Dissipation and Potential Vorticity in Rotating Stratified Turbulence. Atmosphere
**2021**, 12, 157. [Google Scholar] [CrossRef] - Billant, P.; Chomaz, J.M. Self-Similarity of Strongly Stratified Inviscid Flows. Phys. Fluids
**2001**, 13, 1645–1651. [Google Scholar] [CrossRef] - Callies, J.; Bühler, O.; Ferrari, R. The Dynamics of Mesoscale Winds in the Upper Troposphere and Lower Stratosphere. J. Atmos. Sci.
**2016**, 73, 4853–4872. [Google Scholar] [CrossRef] - Li, Q.; Lindborg, E. Weakly or Strongly Nonlinear Mesoscale Dynamics Close to the Tropopause. J. Atmos. Sci.
**2018**, 75, 1215–1229. [Google Scholar] [CrossRef] - Herring, J.R.; Kerr, R.M.; Rotunno, R. Ertel’s Potential Vorticity in Unstratified Turbulence. J. Atmos. Sci.
**1994**, 51, 35–47. [Google Scholar] [CrossRef] - Kurien, S.; Smith, L.; Wingate, B. On the two-point correlation of potential vorticity in rotating and stratified turbulence. J. Fluid Mech.
**2006**, 555, 131–140. [Google Scholar] [CrossRef] - Benielli, D.; Sommeria, J. Excitation of Internal Waves and Stratified Turbulence by Parametric Instability. Dyn. Atmos. Oceans
**1996**, 23, 335–343. [Google Scholar] [CrossRef] - Bouruet-Aubertot, P.; Sommeria, J.; Staquet, C. Breaking of Standing Internal Gravity Waves Through Two-Dimensional Instabilities. J. Fluid Mech.
**1995**, 285, 265–301. [Google Scholar] [CrossRef] - Bouruet-Aubertot, P.; Sommeria, J.; Staquet, C. Stratified Turbulence Produced by Internal Wave Breaking: Two-Dimensional Numerical Experiments. Dyn. Atmos. Oceans
**1996**, 23, 357–369. [Google Scholar] [CrossRef] - Carnevale, G.F.; Briscolini, M.; Orlandi, P. Buoyancy- to Inertial-Range Transition in Forced Stratified Turbulence. J. Fluid Mech.
**2001**, 427, 205–239. [Google Scholar] [CrossRef] - Fritts, D.C.; Isler, J.R.; Andreassen, Ø. Gravity Wave Breaking in Two and Three Dimensions 2. Three-Dimensional Evolution and Instability Structure. J. Geophys. Res.
**1994**, 99, 8109–8123. [Google Scholar] [CrossRef] - Dörnbrack, A. Turbulent mixing by breaking gravity waves. J. Fluid Mech.
**1998**, 375, 113–141. [Google Scholar] [CrossRef] - Remmler, S.; Fruman, M.D.; Hickel, S. Direct Numerical Simulation of a Breaking Inertia-Gravity Wave. J. Fluid Mech.
**2013**, 722, 424–436. [Google Scholar] [CrossRef] - Pedlosky, J. Geophysical Fluid Dynamics, 2nd ed.; Springer: Berlin, Germany, 1987. [Google Scholar]
- Dougherty, J.P. The Anisotropy of Turbulence at the Meteor Level. J. Atmos. Terr. Phys.
**1961**, 21, 210–213. [Google Scholar] [CrossRef] - Ozmidov, R.V. On the Turbulent Exchange in a Stably Stratified Ocean. Izvestia Akad. Nauk. SSSR Atmospheric and Oceanic Physics Ser.
**1965**, 1, 853–860. [Google Scholar] - Davidson, P.A. Turbulence in Rotating, Stratified and Electrically Conducting Fluids; Cambridge University Press: Cambridge, UK, 2013. [Google Scholar]
- Gargett, A.E.; Osborn, T.R.; Nasmyth, P.W. Local Isotropy and the Decay of Turbulence in a Stratified Fluid. J. Fluid Mech.
**1984**, 144, 231–280. [Google Scholar] [CrossRef] - Brethouwer, G.; Billant, P.; Lindborg, E.; Chomaz, J.M. Scaling Analysis and Simulation of Strongly Stratified Turbulent Flows. J. Fluid Mech.
**2007**, 585, 343–368. [Google Scholar] [CrossRef] - Durran, D.R. Numerical Methods for Wave Equations in Geophysical Fluid Dynamics; Springer: Berlin, Germany, 1999. [Google Scholar]
- Legaspi, J.D.; Waite, M.L. Prandtl Number Dependence of Stratified Turbulence. J. Fluid Mech.
**2020**, 903, A12. [Google Scholar] [CrossRef] - Riley, J.J.; Couchman, M.M.P.; de Bruyn Kops, S.M. The Effect of Prandtl Number on Decaying Stratified Turbulence. J. Turbul.
**2023**, 1–19. [Google Scholar] [CrossRef] - Maffioli, A.; Davidson, P.A. Dynamics of Stratified Turbulence Decaying From a High Buoyancy Reynolds Number. J. Fluid Mech.
**2016**, 786, 210–233. [Google Scholar] [CrossRef]

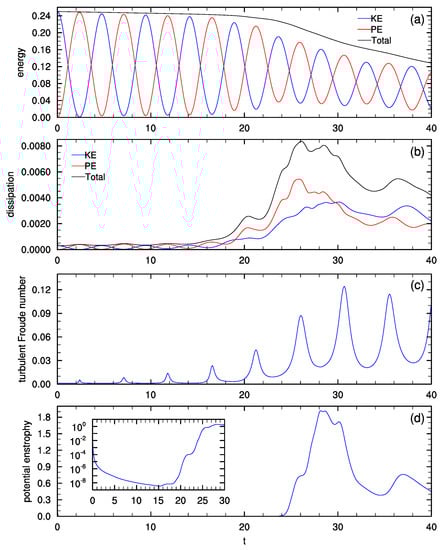

**Figure 1.**Time series from the Main simulation of (

**a**) kinetic and potential energy, (

**b**) kinetic and potential energy dissipation, (

**c**) turbulent Froude number, and (

**d**) potential enstrophy. The inset in (

**d**) shows potential enstrophy on a log scale to illustrate the decay of the initial potential enstrophy from random noise.

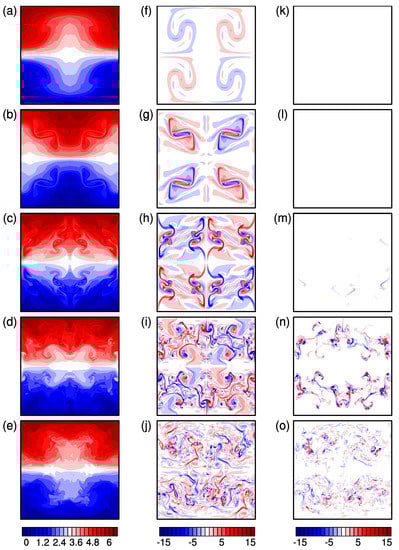

**Figure 2.**Vertical $(x,z)$ slices of (

**a**–

**e**) ${b}_{\mathrm{tot}}$, (

**f**–

**j**) ${\omega}_{y}$, and (

**k**–

**o**) q at (from top to bottom) $t=16$, 20, 24, 28, and 36 from Main simulation. All slices are shown at $y=0$.

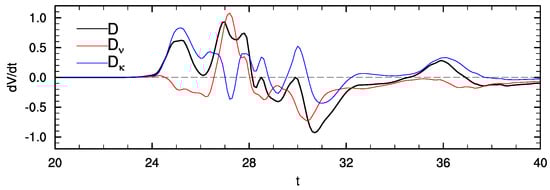

**Figure 3.**Time series of the terms in the potential enstrophy Equation (8) from the Main simulation.

**Figure 4.**(

**a**) Vertical $(x,z)$ slice of q, and horizontal $(x,y)$ slices of b through (

**b**) $z={z}_{1}$ and (

**c**) $z={z}_{2}$, for the Main simulation at $t=24$. Note that ${z}_{1}$ and ${z}_{2}$ are shown in (

**a**). The vertical line segments in (

**a**) mark the locations of significant PV along $z={z}_{1}$ and $z={z}_{2}$; these locations are marked with ticks in (

**b**) for ${z}_{1}$ and (

**c**) for ${z}_{2}$, respectively.

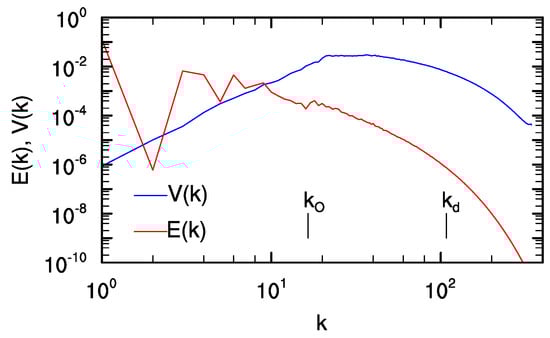

**Figure 5.**Energy and potential enstrophy spectra from the Main simulation at $t=28$. The Ozmidov and Kolmogorov wavenumbers ${k}_{O}=1/{L}_{O}$ and ${k}_{d}=1/\eta $ are shown.

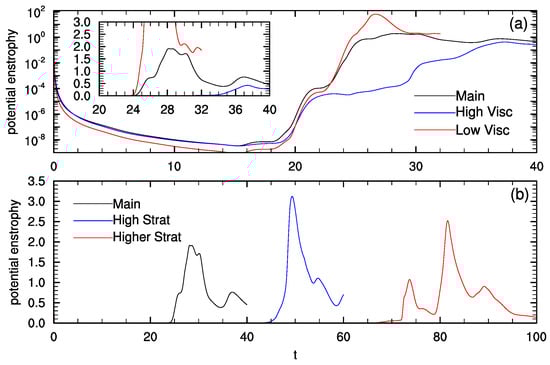

**Figure 6.**Time series of potential enstrophy from simulations with (

**a**) different $Re$ and (

**b**) different $Fr$. A log scale is used in (

**a**) with a linear scale in the inset.

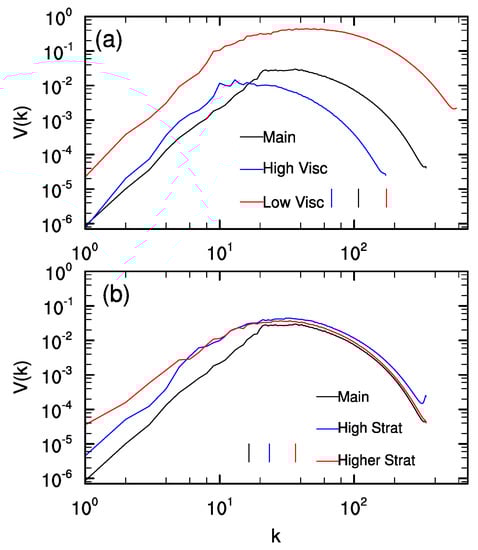

**Figure 7.**Potential enstrophy spectra from simulations with (

**a**) different $Re$ and (

**b**) different $Fr$, at the time of maximum potential enstrophy. The vertical line segments mark the Kolmogorov wavenumbers in (

**a**) and the Ozmidov wavenumbers in (

**b**).

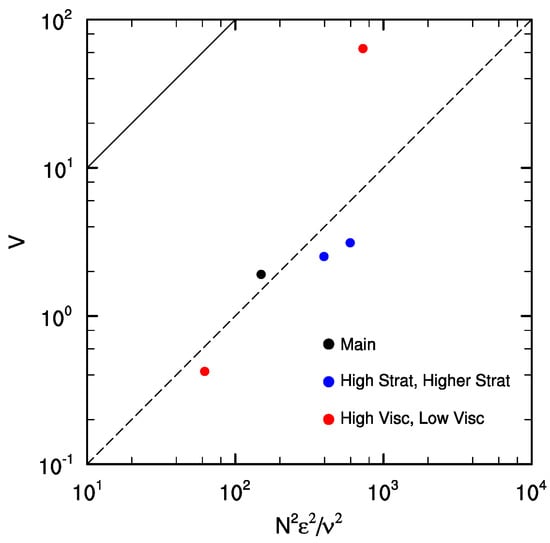

**Figure 8.**Maximum potential enstrophy V plotted against ${N}^{2}{\u03f5}^{2}/{\nu}^{2}$, where the maximum value of $\u03f5$ is used, for the Main simulation (black), simulations with different stratifications (High Strat and Higher Strat, in blue), and simulations with different viscosities (Low Visc and High Visc, in red). The reference lines are $V={N}^{2}{\u03f5}^{2}/{\nu}^{2}$ (solid) and $V=0.01{N}^{2}{\u03f5}^{2}/{\nu}^{2}$ (dashed).

Run | $\mathit{Fr}$ | $\sqrt{2}\mathit{a}/\mathit{N}$ | $\mathit{Re}$ | n | Max $\mathit{\u03f5}$ | $\mathit{\eta}{\mathit{k}}_{\mathit{T}}$ | Max ${\mathit{Re}}_{\mathit{b}}$ |
---|---|---|---|---|---|---|---|

Main | 1 | $\sqrt{2}$ | 3333 | 1024 | 0.0037 | 3.2 | 12.2 |

High Visc | 1 | $\sqrt{2}$ | 1667 | 512 | 0.0047 | 2.5 | 7.9 |

Low Visc | 1 | $\sqrt{2}$ | 4500 | 1728 | 0.0060 | 3.8 | 26.9 |

High Strat | $1/\sqrt{2}$ | 1 | 3333 | 1024 | 0.0052 | 2.9 | 8.6 |

Higher Strat | 1/2 | $1/\sqrt{2}$ | 3333 | 1034 | 0.0030 | 3.3 | 2.5 |

Low Res | 1 | $\sqrt{2}$ | 3333 | 512 | 0.0041 | 1.5 | 13.8 |

High Res | 1 | $\sqrt{2}$ | 3333 | 1536 | 0.0040 | 4.6 | 13.2 |
