Characteristics and Sources of Water-Soluble Inorganic Ions in PM_2.5 in Urban Nanjing, China

Abstract

In this study, the water-soluble inorganic ions (WSIIs) composition of fine particulate matter (PM_2.5) was measured in the northern Nanjing city from 2015 to 2021. NH₄⁺, NO₃⁻ and SO₄²⁻ concentrations dominated in total WSIIs (Na⁺, NH₄⁺, K⁺, Mg²⁺, Ca²⁺, Cl⁻, NO₃⁻ and SO₄²⁻), accounting for 87.8%. The nitrate with highest average concentration among all ions was 11.0 μg·m⁻³. Total WSIIs concentrations were higher in winter and lower in summer, with the highest levels in December (45.6 μg·m⁻³) and the lowest levels in August (15.1 μg·m⁻³). NO₃⁻/SO₄²⁻ was higher than 1, indicating the important contribution of mobile sources. The aerosols exhibited a weak acidic by the molar ratio of water-soluble anions and cations. Positive matrix factorization (PMF) analysis results showed that secondary nitrate and sulfate were the major pollution sources in December 2016 and 2020. The contribution of secondary nitrate in 2020 increased by 47.6% compared to 2016, while that of secondary sulfate decreased by 42.4%. The potential source contribution results demonstrated that for secondary aerosol concentrations, the contribution of regional transport from north of Anhui increased, while the contribution of local emissions decreased. The results from this study could contribute to the better prevention and control of regional air pollution in the future.

1. Introduction

Over the past decades, atmospheric fine particle (PM_2.5, particulate matters with aerodynamic diameters equal to or less than 2.5 μm) pollution have had a significant impact on human health, atmosphere visibility, and the ecosystem in China [1,2,3]. Water-soluble inorganic ions have been considered as major components of PM_2.5, accounting for 20% to 70% of them [4,5]. Research found that WSIIs, especially secondary inorganic aerosols (SNA, including SO₄²⁻, NO₃⁻ and NH₄⁺), have effects on the hydroscopic nature and acidity of PM_2.5 [6,7,8].

Many studies have suggested that the WSIIs of PM_2.5 were the major pollutant in Chinese cities, especially in developed coastal areas such as Beijing–Tianjin–Hebei [9,10,11], the Yangtze River Delta region [12,13], and the Pearl River Delta region [5,14]. The wide range of WSIIs’ spatial variability may be associated with differences in the PM_2.5 sources, economic development, population density, and the effect of meteorological conditions [15]. Nanjing is one of the important cities in the in Yangtze River Delta. Previous studies conducted in Nanjing have revealed the aerosol mass concentrations [16,17], chemical components [18], spatial and temporal variations [17,19], possible sources [18,20,21], chemical characteristics of haze episodes [22,23,24], the impact of aerosol on visibility [25], etc. These studies have provided knowledge for understanding the characteristics, the behavior, and the regional pollution of PM_2.5. However, there has been limited study of the long-term measurement of WSIIs variability with 1-h time resolution. Their formation mechanisms and source apportionments have seldom been reported in the Nanjing industrial zone.

In the current work, the WSIIs of PM_2.5 were monitored online in the Nanjing industrial district from 2015 to 2021. The characteristics of water-soluble components in PM_2.5 were investigated and compared with different years. The secondary formation and potential sources were explored by positive matrix factorization (PMF) and the potential source contribution function (PSCF), respectively. Results from this study are essential to understanding the chemical compositions of PM_2.5 and the potential impacts of anthropogenic sources. The unique datasets could improve the understanding of aerosol properties and thereby provide a valuable field measurement-based reference for mitigating particle pollution.

2. Materials and Methods

2.1. Site Description and Instrumentation

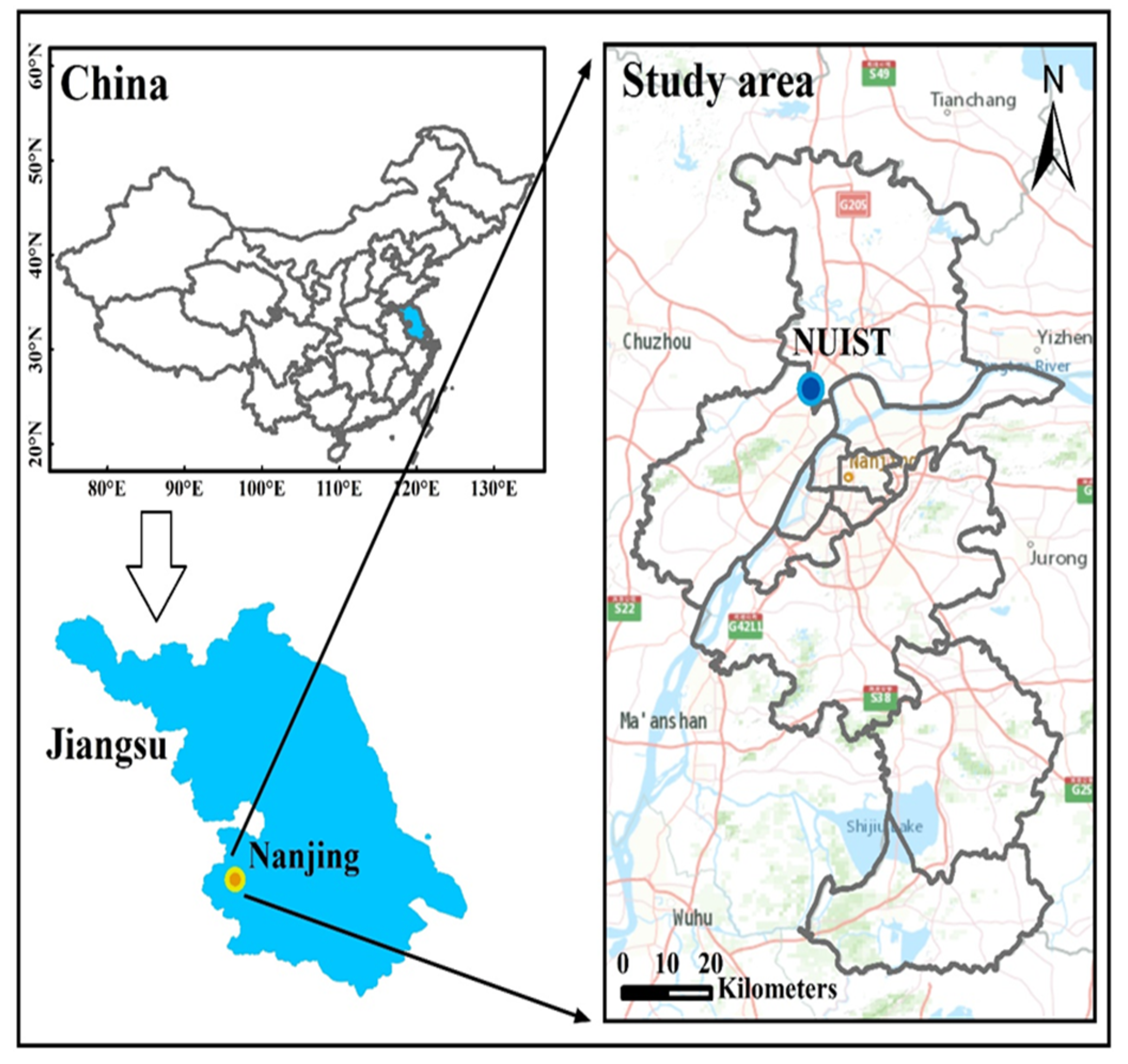

The city of Nanjing is located in the Eastern part of China, and is the capital city of Jiangsu Province. In this study, the sampling site for the measurement was set on top of the meteorological building at the Nanjing University of Information Science and Technology (NUIST, 32.21° N, 118.72° E, 62 m above ground level), northwest of Nanjing (Figure 1). The Yangtze River waterway is located approximately 12 km to the Southeast. The distance between the east and west sides of the sampling points is 1–2 km, which are the Ningliu Expressway (G205) and Hushan Highway (G40), respectively. Previous studies have found that vehicle exhaust on these roads can affect the observation location [26]. To the Southeast (approximately 5 km) of the sampling point are the Nanjing Chemical Industrial Park (NCIP), an iron and steel enterprise, and a coal-fired power plant. Thus, this region is in a mixed district of traffic and industry.

An online sampling instrument was set to measure the mass concentrations of the water-soluble inorganic ion components (Na⁺, NH₄⁺, K⁺, Mg²⁺, Ca²⁺, Cl⁻, NO₃⁻ and SO₄²⁻) at 1 h time resolution. The MARGA (Monitoring AeRosol and Gases in the ambient air, Metrohm Ltd., Switzerland) is mainly composed of three parts: a sample box, detector box, and connected pump. The sample box absorbs trace gases and collects aerosols of PM_2.5 using a horizontal wet rotating denuder (WRD) and steam jet aerosol collector (SJAC), respectively. The ambient airflow into the sample box is regulated to a rate of 1 m³·h⁻¹ by a mass flow controller. The detector box then analyzes these gases and aerosols by an ion chromatography (IC) system. The instrument is placed in an air-conditioned cabin to keep the temperature at 20–25 °C. The detection limits for Na⁺, NH₄⁺, K⁺, Mg²⁺, Ca²⁺, Cl⁻, NO₃⁻ and SO₄²⁻ were 0.05, 0.05, 0.09, 0.06, 0.09, 0.01, 0.05 and 0.04 μg·m⁻³, respectively. Details about the principles of MARGA and the comparison with other instruments can be found in the published literature [27,28]. Meteorological data (ambient temperature (T) and relative humidity (RH) were obtained from the China Meteorological Administration (CMA), Nanjing University of Information Science & Technology (NUIST) station.

2.2. Positive Matrix Factorization Model

Positive matrix factorization (PMF) is an effective receptor model, which has been widely used in the source apportionment of air pollutants [29,30,31]. In this work, the EPA (United States Environmental Protection Agency) PMF 5.0 was applied to quantify the contribution of sources to PM_2.5. The input data included the concentration data matrix of the eight species and the uncertainty data matrix. According to the published literature [32], the data uncertainty was calculated. Setting the parameters of PMF 5.0 was in accordance with the user guide and previous research [29,31,32,33,34]. The number of runs was set to twenty, and the factor number was set from three to six for testing. In addition, the diagnostic parameters were used for the selection on the best factor number.

2.3. Potential Source Contribution Function Analysis

To identify the probability of source regions, the potential source contribution function (PSCF) was calculated. The PSCF values were calculated using the following equation:

$$PSC{F}_{ij}=\frac{m_{ij}}{n_{ij}}$$

(1)

where m_ij is the number of trajectory endpoints of pollutant concentration exceeding a given criterion value and n_ij denotes the total number of trajectory endpoints in the ijth cell. The criterion values were chosen for the 70% percentile of hourly average values [35]. The spatial resolution was 0.5° × 0.5°. Furthermore, the arbitrary weight function W_ij was multiplied to reduce uncertainty in cells with small n_ij values. More detailed information on PSCF can be found in the literature [36,37,38].

3. Results and Discussion

3.1. General Patterns of WSIIs in PM_2.5

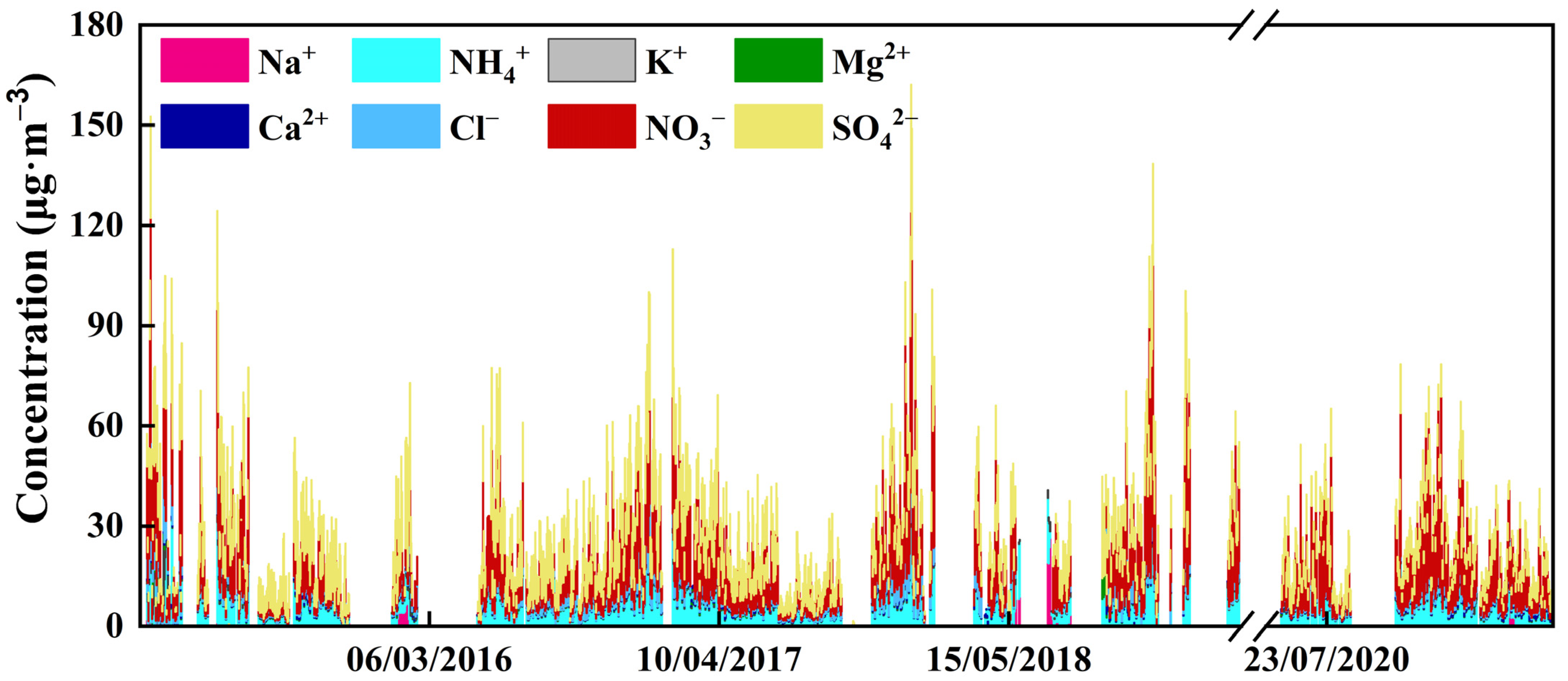

Figure 2 displays the time sequence of the concentrations of WSIIs during the observation period. The diurnal concentrations ranged from 0.96 to 162.1 μg·m⁻³, with the average value of 28.7 μg·m⁻³ (

Table 1. Statistical summary of the daily average concentrations (μg·m⁻³) of WSIIs.

	Maximum	Minimum	Median	Mean	Standard Deviation
Na+	26.4	0.05	0.18	0.75	2.21
NH4+	38.0	0.10	5.01	6.26	4.85
K+	19.7	0.09	0.28	0.50	1.09
Mg2+	6.2	0.06	0.09	0.18	0.48
Ca2+	3.6	0.09	0.25	0.34	0.29
Cl−	16.6	0.03	1.24	1.83	1.89
NO3−	75.7	0.12	8.26	10.9	9.59
SO42−	44.3	0.06	7.30	8.72	5.94
total	162.1	0.99	23.3	28.7	20.5

). Daily WSIIs concentrations changed over two orders of magnitude. The arrangement of daily average concentrations of eight ions was: NO₃⁻> SO₄²⁻> NH₄⁺> Cl⁻> Na⁺> K⁺> Ca²⁺>Mg²⁺. Among all the ions detected, nitrate, sulfate, and ammonium were the three most dominant species, accounting for 37.0%, 29.6%, and 21.2% of the total WSIIs, respectively. The large ratio of SNA (87.8%) implied that secondary formation was the prime pollution source of atmospheric particles in Nanjing.

The data of the ratio of nitrate to sulfate in this study were compared with those that had been measured in Nanjing in previously published studies (see

Table 2. Concentrations of NO₃⁻ and SO₄²⁻ and values of NO₃⁻ to SO₄²⁻ in PM_2.5 measured by different research at Nanjing (μg·m⁻³).

Study Period	Method	NO3−	SO42−	NO3−/SO42−	References	Language
February 2001–December 2001	Offline	7.5	16.3	0.46	[17]	English
January 2007–October 2007	Offline	9.1	28.0	0.33	[43]	Chinese
January 2010–December 2010	Offline	2.8	16.3	0.17	[44]	Chinese
August 2012–June 2013	Offline	10.3	30.8	0.33	[45]	Chinese
October 2013–November 2014	Online	18.9	28.3	0.67	[46]	English
December 2014–November 2015	Offline	11.8	14.9	0.79	[18]	English
December 2014–April 2015	Offline	16.3	16.6	0.98	[47]	English
July 2014–May 2015	Offline	15.0	18.0	0.83	[48]	English
December 2015–January 2016	Offline	26.5	19.0	1.39	[49]	English
March 2016–August 2017	Online	16.7	14.9	1.12	[50]	English
January 2017–December 2017	Online	12.8	9.3	1.38	[42]	English
November 2017–June 2018	Online	14.2	9.1	1.56	[51]	English
September 2018–September 2019	Offline	12.5	9.1	1.37	[52]	English
May 2019–October 2019	Offline	17.3	11.0	1.57	[53]	Chinese
February 2015–May 2021	Online	10.9	8.8	1.24	This work	English

). The mass ratio of NO₃⁻ to SO₄²⁻ has been used to evaluate the importance of mobile sources vs stationary sources [39]. Previous studies have indicated that a ratio of NO₃⁻/SO₄²⁻ greater than 1.0 suggests that mobile sources (vehicle emission) make a greater contribution [14]. It was indicated that mobile sources made more important contributions than stationary sources (coal burning) to the fine particle pollution of Nanjing in recent years. The main reasons may be the soaring number of vehicles and the operation of desulfurization engineering in the large cities [40,41]. Yu et al. [42] found that air pollution was reduced with the execution of the Air Pollution Prevention and Control Action Plan (APPCAP) in 2013.

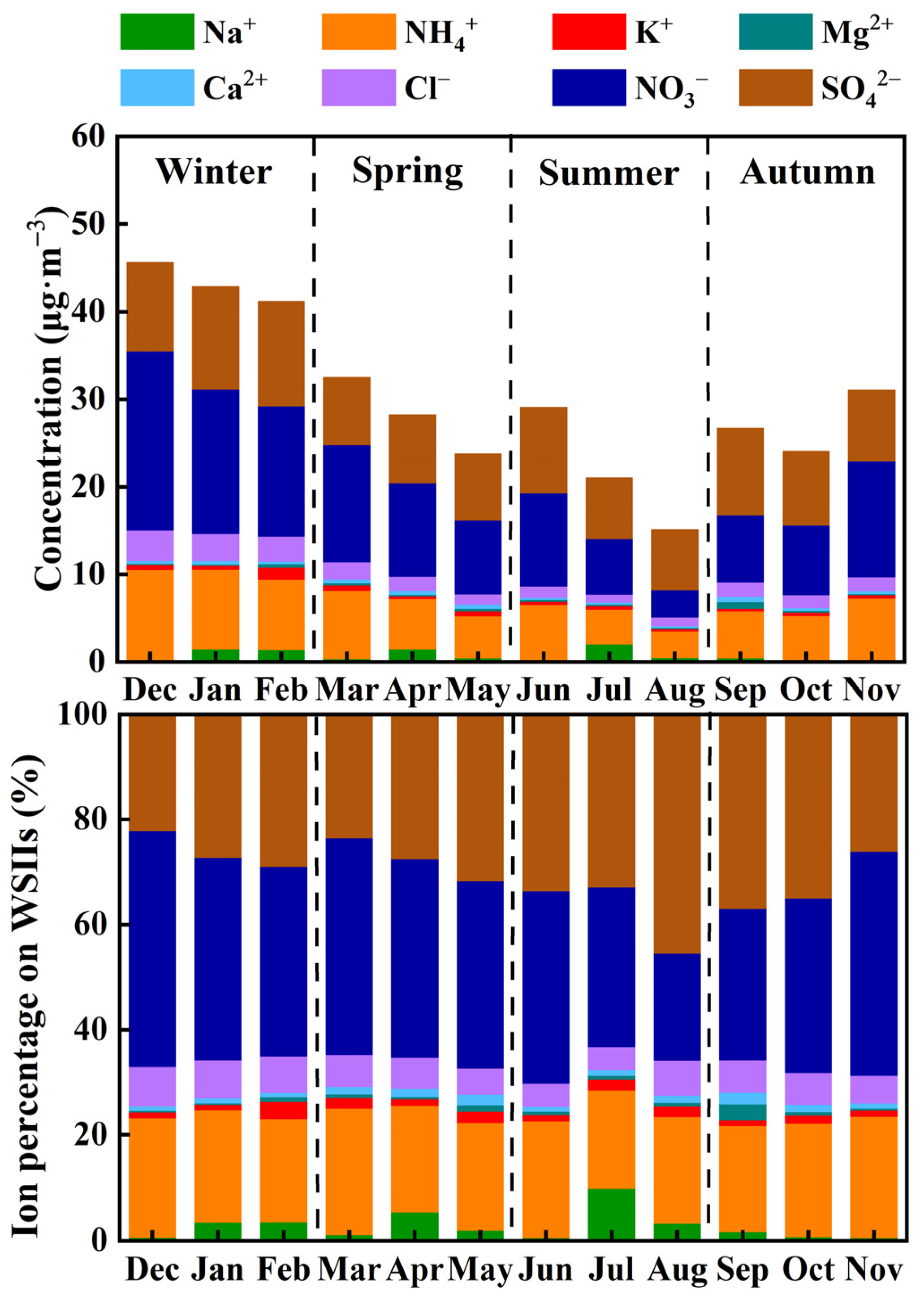

Figure 3 presents the seasonal mass concentration and proportion of eight ion components in WSIIs. The seasonal variation of WSII in this work was in the decreasing order of winter (43.2 μg·m⁻³) > spring (28.1 μg·m⁻³) > autumn (24.2 μg·m⁻³) > summer (21.7 μg·m⁻³). Monthly average concentrations of WSIIs were the highest in December (45.6 μg·m⁻³) and the lowest in August (15.1 μg·m⁻³). Compared with summer, NH₄⁺, NO₃⁻, and SO₄²⁻ concentrations in winter all increased by up to 2.05, 2.58, and 1.43 times, respectively. It was likely that enhancing the use of fossil fuels in winter led to increased concentrations of pollutants such as SO₂, NO_X, and particulate matter, etc., further raising the concentration level of SNA [54]. In addition, high temperatures in summer promotes the volatilization of ammonium in particles and reduces NH₄⁻ in PM_2.5 [55]. The seasonal variations of Cl⁻ mass concentrations were similar to that of SNA of the PM_2.5 mass concentration; those contributions were greater in winter and lower in summer. The highest chloride concentration (3.1 μg·m⁻³) was due to the high emission sources in coal combustion in winter [13]. For K⁺ produced mainly from biomass burning, its average concentration was highest in winter (0.8 μg·m⁻³).

3.2. Variability of SNA

SNA were the dominant water-soluble ions in PM_2.5 in Nanjing, accounting for more than 50%. of them Figure 4 demonstrates the average mass concentrations and percentages of SNA in December 2016 and 2020. Compared with sulfate and ammonium in 2016, the mean mass concentrations of SO₄²⁻ (6.8 μg·m⁻³) greatly decreased and NH₄⁺ (9.9 μg·m⁻³) slightly decreased in 2020. The decrease of SO₄²⁻ and NH₄⁺ proved to be the primary industrial emission reduction due to the emission reduction policy of the Chinese government [56]. Furthermore, the mean mass concentrations of NO₃⁻ (24.2 μg·m⁻³) in December 2020 was about 1.5 times higher than those in December 2016, which indicated the important contribution of nitrate ions emitted from mobile source gasoline-fueled vehicles.

3.3. Aerosol Acidity and Chemical Forms of WSIIs

The ion balance equations were usually applied to comprehend the acid-base neutralization characteristics of PM_2.5 [54]. The anion equivalent (AE) and cation equivalent (CE) were computed by converting the concentrations (μg·m⁻³) into micro equivalents (μmol·m⁻³) as follows:

$$\mathrm{AE}=\frac{C{l}^{-}}{35.5}+\frac{N{O}_3^{-}}{62}+\frac{S{O}_4^{2-}}{48}$$

(2)

$$\mathrm{CE}=\frac{{\mathrm{Na}}^{+}}{23}+\frac{N{H}_4^{+}}{18}+\frac{K^{+}}{39}+\frac{M{g}^{+}}{12}+\frac{C{a}^{2+}}{20}$$

(3)

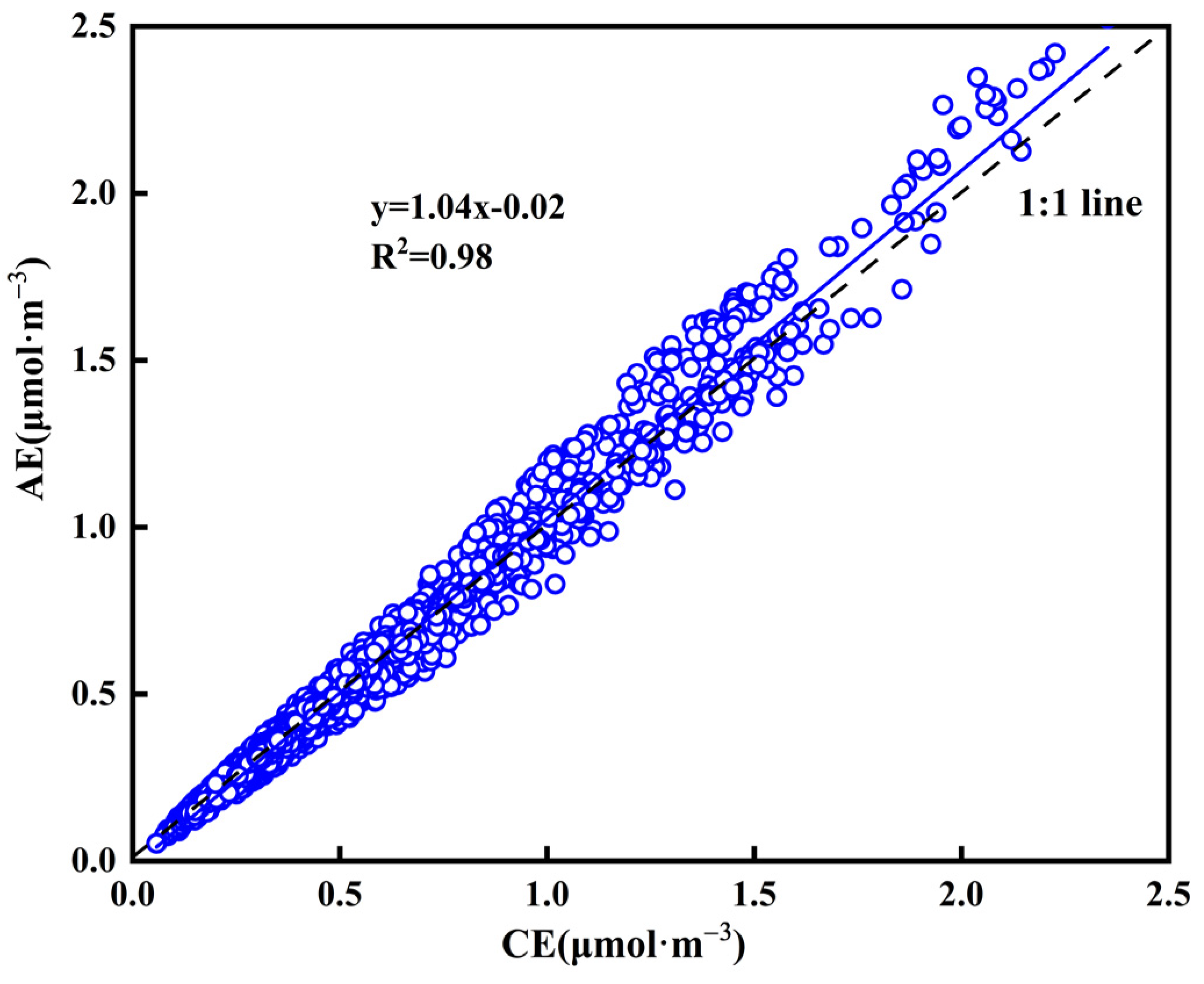

Figure 5 reveals the scatter diagram of AE vs. CE during the observation periods. There was a strong correlation between AE and CE with correlation coefficient (R² = 0.98). The slope of linear regression was slightly greater than 1, suggesting that Nanjing fine particles generally showed neutral or weak acidic characteristics. The average AE/CE value of 1.04 was similar to previous research results in Nanjing [20].

The neutralization factors (NF) are frequently used to assess the neutralization capacity of the particulate composition. The calculation of NF is based on the fact that SO₄²⁻ and NO₃⁻ are considered as the dominant acidifying anions [57]. In this study, Na⁺/Cl⁻ equivalent ratios were estimated as 0.36, lower than that in seawater (1.1) [58], indicating that the contribution of Cl⁻ in neutralization could not be neglected because it could have other sources in addition to sea salt [59]. The NFs are calculated by the following equations [15]:

$$NF\left(N{H}_4^{+}\right)=\frac{\left[N{H}_4^{+}\right]}{2\left[nssS{O}_4^{2-}\right]+\left[N{O}_3^{-}\right]+\left[C{l}^{-}\right]-\left[N{a}^{+}\right]/1.1}$$

(4)

$$NF\left(nss{K}^{+}\right)=\frac{\left[nss{K}^{+}\right]}{2\left[nssS{O}_4^{2-}\right]+\left[N{O}_3^{-}\right]+\left[C{l}^{-}\right]-\left[N{a}^{+}\right]/1.1}$$

(5)

$$NF\left(nssM{g}^{2+}\right)=\frac{\left[nssM{g}^{2+}\right]}{\left[nssS{O}_4^{2-}\right]+2\left[N{O}_3^{-}\right]+2\left[C{l}^{-}\right]-2\left[N{a}^{+}\right]/1.1}$$

(6)

$$NF\left(nssC{a}^{2+}\right)=\frac{\left[nssC{a}^{2+}\right]}{\left[nssS{O}_4^{2-}\right]+2\left[N{O}_3^{-}\right]+2\left[C{l}^{-}\right]-2\left[N{a}^{+}\right]/1.1}$$

(7)

Here, nssK⁺, nssMg²⁺, nssCa²⁺ and nssSO₄²⁻ represent the non-sea salt (nss) fractions calculated using the equation as given by earlier studies [60].

$$nssX=X_i-N{a}^{+}{}_i\times {\left(\frac{X}{N{a}^{+}}\right)}_{sea}$$

(8)

where, X_i and Na⁺_i refers to the concentration of the ion and Na⁺ in aerosol samples and (X/Na⁺) sea is the seawater ratio of the respective ion and Na⁺. The (X/Na⁺) sea ratios for K⁺, Mg²⁺, Ca²⁺, and SO₄²⁻ are 0.037, 0.120, 0.0385 and 0.2516, respectively [61,62].

Table 3. The neutralization factors (NF) calculated for NH₄⁺, nssK⁺, nssMg²⁺ and nssCa²⁺.

NF	Value (μmol·m−3)
NH4+	0.85
nssK+	0.05
nssMg2+	0.02
nssCa2+	0.03

illustrates the NFs values estimated for four cations in PM_2.5. The results revealed that the neutralization capacities of ions ranked as: NH₄⁺ > nssK⁺ > nssCa²⁺ > nssMg²⁺. The ammonium was the dominant neutralizing cation with the maximum NF value (0.85), which was similar to the previous research results [57]. The NF values of nssK⁺, and nssMg²⁺ and nssCa²⁺ were all below 0.2, suggesting the relatively small influence of these ions on the neutralization. K⁺ was the second major contributor to neutralization of aerosol acidity, possibly due to the biomass burning activities [63]. The contribution of Ca²⁺ in neutralizing the aerosol acidity may be attributed to the effect of dust [57]. Mg²⁺ contributed the least to the neutralization of aerosol acidity.

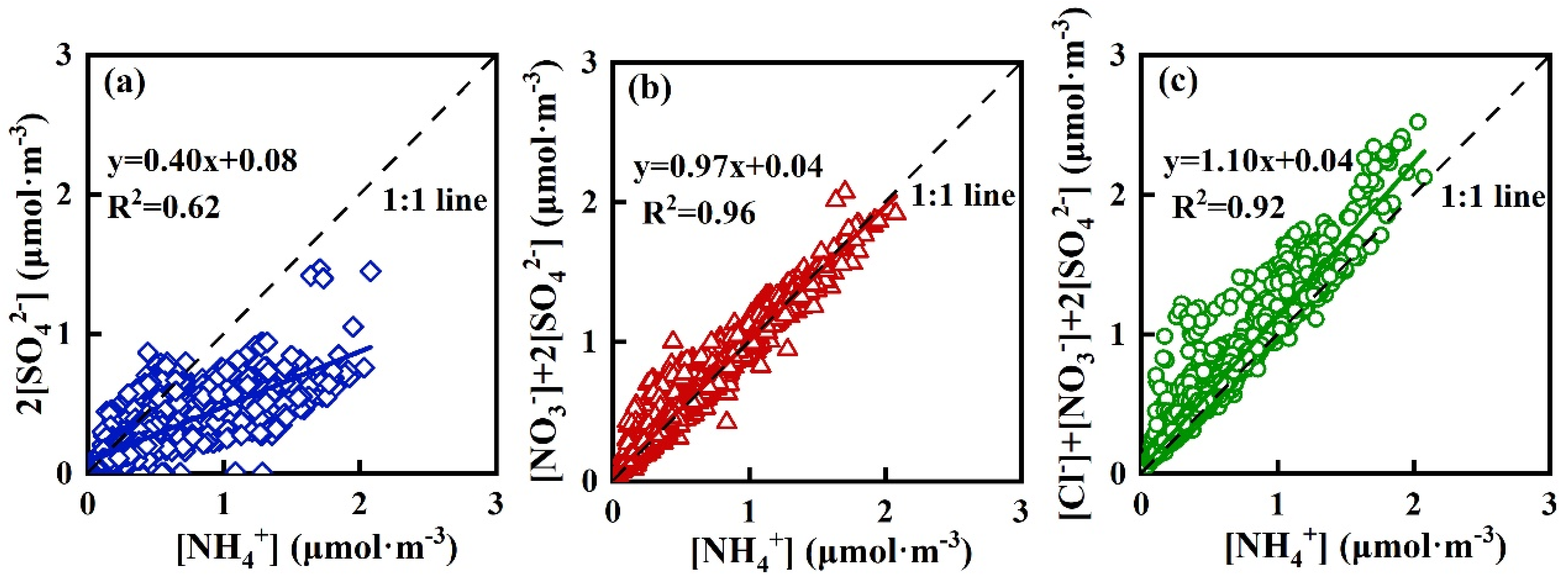

Molar concentrations of NH₄⁺ versus anions (SO₄²⁻, NO₃⁻ and Cl⁻) are exhibited in Figure 6. The slope of linear regressions between 2 × [SO₄²⁻] and [NH₄⁺] are lower than 1, which suggests that NH₄⁺ was sufficient to neutralize SO₄²⁻ to form (NH₄)₂SO₄; this means that the chemical form of sulfate radical in this study was more ammonium sulfate than ammonium bisulfate. Figure 6b shows the stoichiometry between [NO₃⁻] + 2 × [SO₄²⁻] and [NH₄⁺], and the slope of linear regressions was slightly less than 1. This result indicted that sufficient NH₄⁺ could neutralize NO₃⁻ and SO₄²⁻, which suggests that NH₄NO₃ and (NH₄)₂SO₄ may be dominant chemical forms of WSIIs in our research process. The scatter plots of [Cl⁻] + [NO₃⁻] + 2[SO₄²⁻] and [NH₄⁺] are illustrated in Figure 6c. The slope of linear regressions between [Cl⁻] + [NO₃⁻] + 2[SO₄²⁻] and [NH₄⁺] was higher than 1, which suggested that there were insufficient levels of NH₄⁺ for Cl⁻ association to form NH₄Cl. Previous researchers also found that NH₄⁺ was not sufficient to completely neutralize Cl⁻ [13]. In addition to NH₄Cl, excess Cl⁻ could combine with other cations such as K⁺.

3.4. Source Identification

Figure 7 showed the source profiles derived from the PMF model between December 2016 and 2020. The first source (Factor 1) was characterized by the high loading of NO₃⁻ and NH₄⁺, which could be identified as a secondary nitrate source. Particulate-related NO₃⁻ was formed primarily by the oxidation of nitrogen oxides derived from vehicle exhaust [64]. The second source (Factor 2) presented the industry based on the high contribution of Cl⁻. Coal combustion is a typical industrial source which plays a key role in the formation of Cl⁻ [3]. The third source (Factor 3) was dust with typical crustal components (Mg²⁺ and Ca²⁺). Those ions were considered as makers of soil dust and desert dust, and thus this factor was identified as a dust source [65]. The fourth source (Factor 4) was weighted by SO₄²⁻, and could be interpreted as a secondary sulfate source. The major source of SO₄²⁻ in the atmosphere was the oxidation of SO₂, which came from industrial combustion [66,67]. The last source (Factor 5) could be treated as a marine aerosol. This factor was closely associated with the sea salt component (Na⁺).

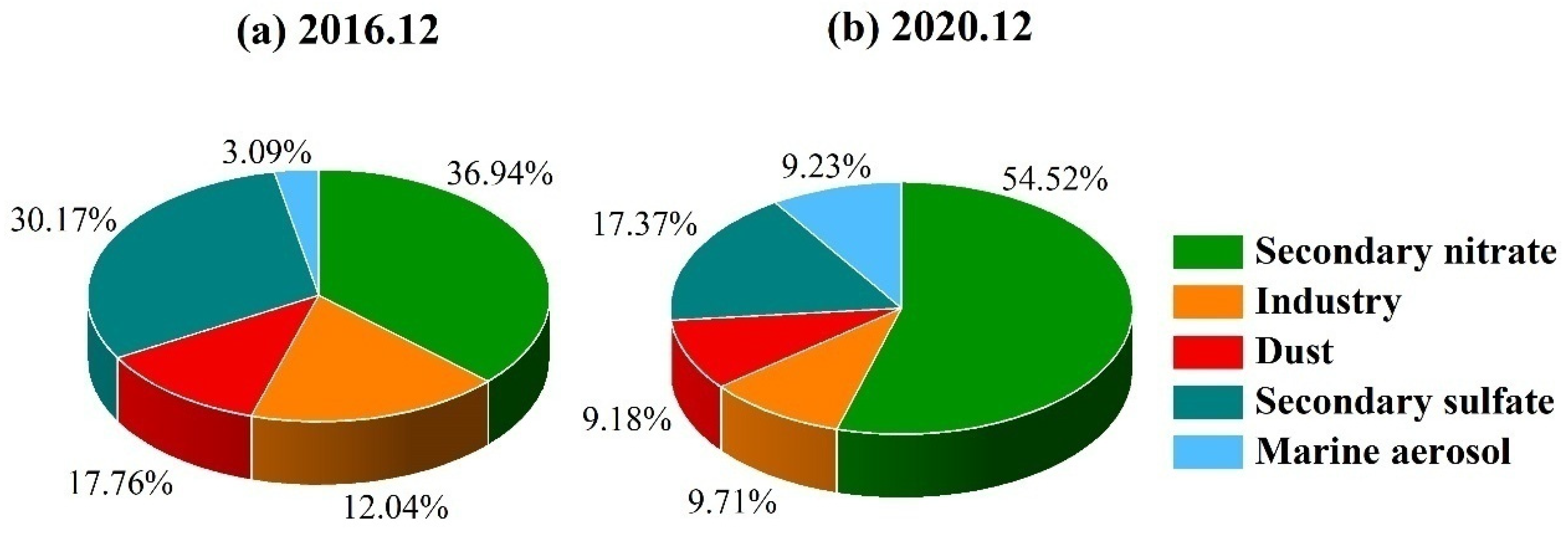

The contributions of the above sources to PM_2.5 are presented in Figure 8. In December 2016, the main pollution sources were secondary nitrate (36.94%), industry (12.04%), dust (17.76%), secondary sulfate (30.17%) and marine aerosol (3.09%). In December 2020, the contribution of secondary nitrate (54.52%) and marine aerosol (9.23%) increased. Its dense population and comparatively developed tertiary industry combined to make the air quality of Nanjing predominantly affected by traffic [47]. Therefore, the secondary nitrate accounted for the highest proportion and increased. The proportion of other sources decreased, which may be ascribed to the effectiveness of the APPCAP policy for reducing industrial emissions, particularly in removing sulfur from flue gas.

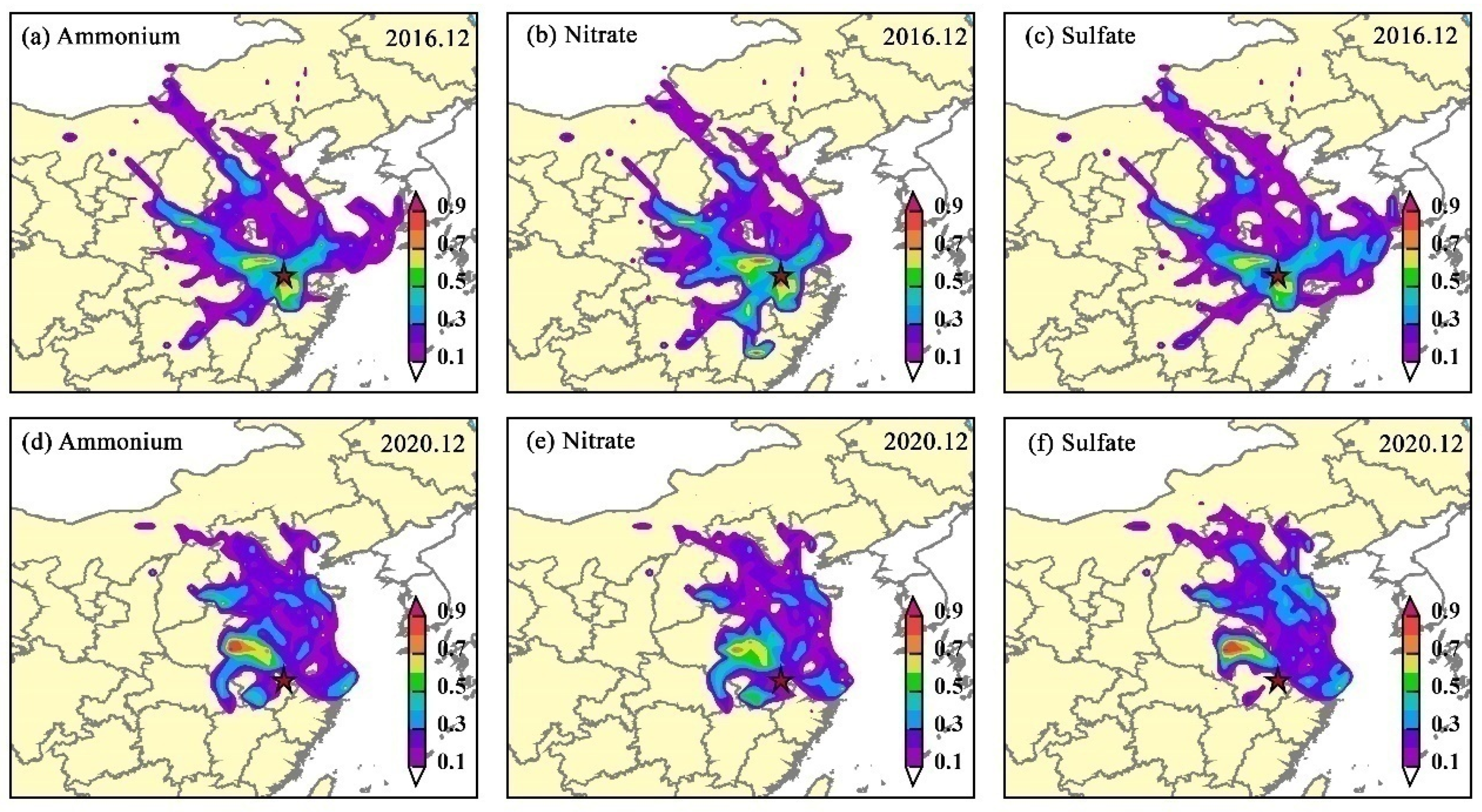

In order to determine the potential pollution source areas of secondary transformation sources in Nanjing, the PSCF analysis was used for the three main components of NH₄⁺, NO₃⁻ and SO₄²⁻ (Figure 9). In December 2016, the source contribution of the three ionic components were similar. High WPSCF values of NH₄⁺ (Figure 9a), NO₃⁻ (Figure 9b) and SO₄²⁻ (Figure 9c) were located to the South of Jiangsu, indicating that local emissions had an impact on the formation and maintenance of particle pollution. A small part was transported from North Anhui and South Shanxi, with WPSCF values above 0.6. In December 2020, the WPSCF values of NH₄⁺ (Figure 9d), NO₃⁻ (Figure 9e) and SO₄²⁻ (Figure 9f) increased the most for the air masses transported from the East of Henan, suggesting the influence of the regional transportation of secondary aerosols on air quality in Nanjing. The NH₄⁺ in Nanjing mainly came from the agricultural activities in the developed agricultural provinces of Henan. For SO₄²⁻, the high WPSCF values were located in Henan. There is heating in this area, so increased coal burning for indoor heat could produce higher SO₄²⁻ levels [68]. In addition, the increased WPSCF values in Henan were verified by recent studies indicating that the Fenwei Plain (FWP) suffered severe PM_2.5 pollution with prominent spatial clustering characteristics due to the developed iron and steel industry in recent years [69,70]. For NO₃⁻, the potential pollution source areas of NO₃⁻ mainly concentrated in the north of Anhui and the northwest Jiangsu province. This indicated that the traffic and human activities in these areas had a certain impact on the pollution accumulation in Nanjing. NH₄⁺ and SO₄²⁻ had higher WPSCF peak values than NO₃⁻, and with wider potential areas. This indicated that higher emissions and the secondary formation of ammonia and sulphate through air mass transportation from these regions were the main potential source contributions.

4. Conclusions

In this study, the variations of water-soluble ions and sources of PM_2.5 in Nanjing were investigated in detail. The major findings of the paper are as follows:

The average concentration of total WSIIs was 28.7 μg·m⁻³, dominated by NO₃⁻, and followed by SO₄²⁻ and NH₄⁺. The mean mass ratio of NO₃⁻/SO₄²⁻ was 1.59, demonstrating that mobile emission was a dominant contributor to PM_2.5. The total WSIIs showed the highest concentrations in winter (43.2 μg·m⁻³) and the lowest values in summer (21.7 μg·m⁻³) due to higher emission and unfavorable diffusion conditions in winter. High temperatures in the summer promoted the dissociation of NH₄NO₃ and consequently reduced NH₄⁺ and NO₃⁻. An ion balance analysis showed that aerosol particles were neutral or slightly acidic (AE/CE: 1.04). Among all cations, NH₄⁺ was the predominant neutralizing species, with highest NF value. (NH₄)₂SO₄, NH₄NO₃ and NH₄Cl were the dominant ion forms.

The comparison of concentrations, source contributions and potential source areas have been studied further between December 2016 and 2020. The NO₃⁻ concentration changes in December were the most significant, increasing from 16.4 μg·m⁻³ in December 2016 to 24.2 μg·m⁻³ in December2020, but SO₄²⁻ and NH₄⁺ concentrations decreased from 12.5, 10.0 μg·m⁻³ in December 2016 to 6.8, 9.9 in December 2020, respectively. Compared to the same period in 2016, the percentages of secondary nitrate increased 17.9% in December 2020 with the vehicle exhaust emission increases. The proportion of secondary sulfate, dust and industry decreased from 30.2%, 17.8%, and 12.0% to 17.4%, 9.2%, and 9.7%, respectively. Further studies should investigate the influencing factors and secondary aerosol formation processes.
