Numerical Simulation of Topography Impact on Transport and Source Apportionment on PM2.5 in a Polluted City in Fenwei Plain

by
Yanyu Li
1,2,
Xuan Wang
3,4,*,
Jie Li
1,5,6,
Lingyun Zhu
2 and
Yong Chen
1
1
State Key Laboratory of Atmospheric Boundary Layer Physics and Atmospheric Chemistry (LAPC), Institute of Atmospheric Physics, Chinese Academy of Sciences, Beijing 100029, China
2
Institute of Meteorological Science of Shanxi Province, Taiyuan 030002, China
3
Henan Key Laboratory of Environmental Monitoring Technology, Zhengzhou 450000, China
4
Henan Ecological and Environmental Monitoring Center, Zhengzhou 450000, China
5
College of Earth and Planetary Sciences, University of Chinese Academy of Sciences, Beijing 100049, China
6
Center for Excellence in Regional Atmospheric Environment, Institute of Urban Environment, Chinese Academy of Sciences, Xiamen 361021, China
*
Author to whom correspondence should be addressed.
Atmosphere 2022, 13(2), 233; https://doi.org/10.3390/atmos13020233
Submission received: 28 December 2021 / Revised: 23 January 2022 / Accepted: 26 January 2022 / Published: 29 January 2022
(This article belongs to the Section Air Quality)
Browse Figures
Versions Notes

Abstract

:
The unique energy structure, high intensity of coal production, and complex terrain, make Fenwei Plain a highly polluted region in China. In this study, we characterized the transport characteristic and sources of PM2.5 (the fraction of particulate matter ≤ 2.5 μm) in Sanmenxia, a polluted city in canyon terrain. The results showed that special topography in Sanmenxia had an important role in the transport of particulates. Sanmenxia is located between two northeast-southwest facing mountains, showing a special local circulation. The local circulation was dominated by a downslope wind at nighttime, while the cross−mountain airflow and zonal wind were dominant during the daytime in the canyon terrain. PM2.5 accumulated near Sanmenxia with the influence of downslope, zonal wind, and topography. The main regional transport paths could be summarized into an eastern path, a northern path, and a western path during the severe haze episodes. The PM2.5 source apportionment revealed by an on-line tracer-tagged of the Nested Air Quality Prediction Model System (NAQPMS) showed that the main regional sources of Sanmenxia were Yuncheng, Sanmenxia, and Weinan. The contribution to PM2.5 concentration in Sanmenxia was 39%, 25%, and 11%, respectively. The northern path had the most important impact on Sanmenxia. The results can provide scientific basis for the establishment of severe haze control in Sanmenxia and regional joint control.

1. Introduction

In recently decades, with the development of economy and the acceleration of urbanization, the problem of air pollution has become prominent in China [1,2]. The frequent occurrence of severe haze episodes has threatened human daily life and health and has attracted widespread attention [3,4]. PM2.5, the fraction of particle with an aerodynamic diameter less than 2.5 μm, is an important pollutant for environmental issues. Presently, there are many studies on the complexity mechanisms leading to the formation of haze episodes. It is beneficial to develop effective mitigation policies to reduce the pollutant concentration and the impact of pollutants on social activities and global climate [5,6,7].
The concentration of air pollution is affected by many factors, while emission, chemical transformation, meteorology, and transport play important roles. Pollutants can come from direct emissions (primary pollutants) or be formed by chemical transformation in the atmosphere (secondary pollutants). In general, local emissions are the most direct factor affecting the concentration of pollutants, and massive efforts have been made to control direct emissions. Secondary inorganic aerosol, such as sulfate, nitrate, and ammonium formed by chemical transformation, are dominant ionic components in PM2.5 [8,9]. Besides the influence of emission and chemical transformation, the pollutant concentrations are also highly impacted by meteorology factors. Wind, relative humidity, and precipitation directly affect the pollutant concentration, and the weather pattern, local circulation, and boundary layer also influence the diffusion and deposition of pollutants [10,11,12]. The combination of meteorological condition and topography leads to complex transport processes. Li et al. [13] found that the accumulation of transported PM2.5 in Beijing was related to terrain and meteorological condition. PM2.5 from southern Hebei transported northward to Beijing and encountered high mountains in northern Beijing. In stable boundary layer and weak winds situations, PM2.5 accumulated at the base of the mountains. Li et al. [14] investigated the air pollutant transport characteristics in Southern China by using a HYSPLIT model with 10 years data and found that major transport paths were mainly within the mixing layer. The probability of haze trajectories across the mixing layer was low and associated with long-distance transport and higher terrain height over Western China.
Many studies have characterized the formation and transport process during haze episodes using the observation data or numerical model. PM2.5 concentration, emission inventory, and meteorology dataset were used to analyze the spatiotemporal variations of PM2.5 in China [15,16,17]. Some on-line measurements of PM2.5 chemical components also were used to characterize the rapid formation and evolution of particles [18,19]. Satellite remote sensing image is an ideal method to analyze the column concentration of trace constituents and the aerosol optical depth on the global scale [20,21]. Another way to study the mechanism of haze episodes is to simulate the physical and chemical processes using a numerical model. Lagrangian models, such as FLEXPART and HYSPLIT, are widely used to track the transport path and potential source area of particles [22,23]. Three-dimensional Euler transmission models, which can quantify the source contributions, are also popular to research the source of pollutants [24,25]. The Community Multiscale Air Quality (CMAQ) model equipped with the Integrated Source Apportionment (ISAM) module was applied to calculate the contribution to the total PM2.5 mass of the Beijing-Tianjin-Hebei region, and the results showed that annual mean local contribution ranged from 32–63% in the BTH region [26]. Using the particulate source apportionment technology (PSAT) in comprehensive air quality model with extensions (CAMx), Yang et al. [27] found that Xi’an local emissions were dominant contributors to the surface PM2.5 during one severe haze. Wang et al. [28] applied an integrated process contribution analysis and source apportionment technology coupled with the Nested Air Quality Prediction Modeling System (NAQPMS) to analyze a regional haze episode in North China and found that PM2.5 in the south of the North China Plain mainly came from the horizontal transmission of the northern and middle area in the phase with continuous high PM2.5 concentration. The aforementioned studies mainly focused on the first-tier and second-tier cities in the North China Plain, the Yangtze River Delta region, the Pearl River Delta region, and the Sichuan Basin [29,30,31,32]. However, air quality in smaller cities of the polluted regions is also worthy of attention.
Due to the diverse types of emission sources, high emission intensity, and complex topographical characteristics, the air pollution of Fenwei Plain has become an urgent problem, and Fenwei Plain was included in the national air environment key management area in 2018 [33,34]. The comprehensive research on formation and transport mechanisms of air pollution in Fenwei Plain are relatively few. Sanmenxia is a representative city in Fenwei Plain, and it is situated in an intersectional area between the three polluted provinces of Henan, Shanxi, and Shaanxi. At the same time, Sanmenxia is bounded by Zhongtiao Mountain to the north and Qinling Mountain to the south. The local circulation and air pollution mechanism of Sanmenxia that are influenced by complex terrain are worthy of in−depth analysis. In this study, we conducted a wintertime enhanced observation in Sanmenxia from 20 December 2018 to 31 January 2019. The temporal variations of air pollutants were analyzed by the observation datasets. Then, we used the WRF, FLEXPART−WRF, and NAQPMS models to characterize the local and regional transport paths in special terrain. Furthermore, the source apportionment of different geographical locations and emission categories were studied using the on−line tracer−tagging module in NAQPMS. The results can provide scientific basis for the establishment of severe haze control in Sanmenxia and regional joint control.

2. Materials and Methods

2.1. Observation Data

The hourly concentrations of PM2.5, PM10, SO2, and NO2 at the ground surface during the enhanced observation were obtained from the China Air Quality Online Monitoring and Analysis platform (https://www.aqistudy.cn, accessed on 23 March 2019). The hourly meteorological parameters, including wind direction and wind speed, were obtained from the National Meteorological Information Centre (http://data.cma.cn, accessed on 25 March 2019). Hourly datasets of PM2.5 chemical species of EC, OM (=OC × 1.4), SO42−, NO3−, NH4+, Cl−, and metal elements were collected from Sanmenxia Environmental Monitoring Station. Ten-level wind profiles from 40 m to 320 m (40, 80, 110, 140, 170, 200, 220, 240, 280, and 320 m) were measured using a Doppler wind lidar (WindCube v1, Leosphere, France) that was installed on the seventh floor (~20 m above the ground level) of the Sanmenxia Ecological Environment Bureau. The aerosol extinction coefficient data derived from a micro pulse lidar (EV−LIDAR, 532 nm) that was also installed on the seventh floor of the Sanmenxia Ecological Environment Bureau.

2.2. Meteorological Model

The meteorological model used in this study was the Weather Research and Forecasting (WRF) version 3.6 [35], which was driven by the National Centers for Environmental Prediction (NCEP) Final Analysis (GFS−FNL) data with 6−hourly temporal resolution. We divided the whole study region into two domains: domain 1 (d01) covered East Asia with a horizontal resolution of 15 km, and domain 2 (d02) covered Fenwei Plain with a horizontal resolution of 3 km (Figure 1a). The outermost domain centered at 31° N, 102° E. We configured WRF with 30 vertical levels up to 50 hpa. The parameterization schemes used were WRF Single−Moment−3−class scheme (WSM3) for microphysics parameterization; the Rapid Radiative Transfer Model (RRTMG) scheme for longwave and shortwave radiation parameterization [36]; the Revised MM5 Monin−Obukhov scheme for surface layer scheme [37]; the Noah−MP land surface model for land surface scheme [38]; Yonsei University (YSU) scheme for planetary boundary layer parameterization [39]; New Grell (G3) scheme for cumulus parameterization [40].

2.3. Atmospheric Transport Model

A Lagrangian transport and dispersion model FLEXPART−WRF version 3.1 was used to simulate the atmospheric transport processes [41,42,43]. To optimize the accuracy of the Lagrangian trajectories, we used high−resolution WRF simulation domain 1 outputs as the input meteorological conditions for FLEXPART. The FLEXPART−WRF output was the residence time of particles in each grid cell. The residence time represented the distribution of potential source regions that contributed to the target region, which could also represent the transmission path [44,45]. During the enhanced observation, FLEXPART−WRF was configured for 72−h backward trajectories with the release of 10,000 air particles from Sanmenxia (111.16° E, 34.79° N) at 02:00, 08:00, 14:00, and 20:00 daily. We set up the release height with 0−300 m. The hourly output domain was set up with a horizontal resolution of 5 km and 21 vertical levels up to 20,000 m.
We used the residence time analysis (RTA) method [46] to analyze the distribution of the particle residence time of each grid cell. RTA is defined as:
R T A ( i , j ) = t ( i , j ) T × 100 % ,
The resident time t(i,j) at the grid (i,j) can be obtained from the FLEXPART−WRF outputs, and T is the sum of the residence time of all grids.

2.4. Air Quality Model

The air quality model used in this study was the Nested Air Quality Prediction Modeling System (NAQPMS) developed by the Institute of Atmospheric Physics, Chinese Academy of Sciences [47]. NAQPMS is a three−dimensional Euler chemical transport model with terrain-following coordinates, which includes modules of advection, diffusion, dry/wet deposition, and gaseous, aqueous, and heterogenous chemistry [48,49,50,51]. The detailed mechanisms of NAQPMS have been described in previous studies [52,53]. In order to quantify the source−receptor relationship in atmospheric particulate matter, an on−line tracer−tagging module similar to the Particulate Matter Source Apportionment Technology is implemented in NAQPMS [54,55,56]. The module attributes air pollutant concentrations to different geographical locations and emission categories at each step of the simulation without influencing standard calculations. More details of the module can be found in the previous study [57]. NAQPMS has been widely used in air quality research, and besides, the source apportionment module has been validated by the Ministry of Environmental Protection of China (Ministry of Ecology and Environment of the People’s Republic of China) [24].
In this study, we conducted a simulation from 10 December 2018 to 31 January 2019. The first 10 days were used as the spin−up time to reduce the influence of the initial conditions. The lateral and upper boundary conditions for the outmost domain were derived from the global chemistry transport model MOZART−v2.4 [58]. The meteorological field inputs to NAQPMS were provided by WRF, so the domain setting and resolution of NAQPMS were the same as those of the WRF. The vertical dimension was configured with 30 sigma layers up to 20 km. A 2018-based high spatiotemporal resolution anthropogenic emission inventory that included power plant, industry, residential, transportation, and agricultural sources for Henan province was used in this study. The emission factors and local activity data were mainly obtained from governmental statistical yearbooks. For the region outside Henan province in the simulation domain, the multi-resolution emission inventory for China (MEIC) developed by Tsinghua University was used (http://meicmodel.org, accessed on 17 October 2019). The emission inventory for the region outside of China is MIX (http://www.meicmodel.org/dataset-mix, accessed on 17 October 2019). Biomass burning emissions were provided by the Fire INventory from NCAR (FINN) version 1.5. Figure 1b shows the hourly average primary PM2.5 emission rate in domain 2 during the study period. As shown in Figure 1c, the tracer-tagging target domain 2 area consisted of 11 cities in Fenwei Plain, seven other cities of Henan Province, four other cities of Shanxi Province, the rest of Shanxi, Shaanxi and Henan province, and the rest of the area.

2.5. Model Performance

To evaluate the WRF model performance, we presented the correlation coefficient ®, root mean square error (RMSE), mean observation value (Mean−Obs), and mean simulation value (Mean−Sim) as statistical parameters. As shown in Figure 2, WRF reproduced the variations of meteorological elements during the enhanced observation. The correlation coefficients (R) between the observed and simulated values of temperature, relative humidity, and wind speed were 0.89, 0.91, and 0.7, respectively, and the root mean square error (RMSE) of all three parameters were relatively small. Besides, it can be seen from the scatter plot that the simulated values of temperature, relative humidity, and wind direction basically fell between 0.5 and 2 times those of the observed values.
Similarly, we presented the correlation coefficient (R), root mean square error (RMSE), mean observation value (Mean−Obs), and mean simulation value (Mean−Sim) to assess the NAQPMS model performance. As shown in Figure 3, NAQPMS reproduced the three severe haze episodes, but the simulation results of PM2.5 were underestimated a little compared with the observation value. This might be related to the underestimation of water-soluble ions caused by factors such as emission inventory and complex terrain [13]. The other components of PM2.5, such as BC and OC were reproduced well during the enhanced observation in Sanmenxia. In general, under the complex topography of Sanmenxia, the model could basically reproduce the distribution of the observed PM2.5 concentrations.

3. Results

3.1. Temporal Variations of Air Pollutants

Figure 4 shows the time series of pollutant concentration and wind fields during the period of enhanced observation in Sanmenxia. The average concentrations of PM2.5 and PM10 were 111.09 μg/m3 and 150.34 μg/m3, respectively. During this period, there were three severe haze episodes on 20−21 December 2018 (case1), 2−8 January 2019 (case2) and 11−14 January 2019 (case3), respectively, and the last two sustained longer. During the severe haze episodes, the average concentrations of PM2.5 and PM10 were 154.89 μg/m3 and 191.69 μg/m3, respectively. The increase of relative humidity, the decrease of wind speed, and the inverse temperature are meteorological factors that cause the peak value of particulate concentration. In addition, the increase of sulfate concentration caused by emission is also an important factor causing the peak value of particulate concentration. The evolution characteristics of particles were consistent, with ρ(PM2.5)/ρ(PM10) of 0.7, and the contribution of secondary transformation was significant. During the enhanced observation period, the horizontal wind speed was weak, and the prevailing wind direction was south winds. The vertical wind speed was also weak; the prevailing wind direction between 50–320 m was downdraft, and the vertical wind presented an obvious updraft at the stage of pollutant concentration reduction. Besides, we analyzed the hourly data of PM2.5 chemical species, i.e., EC, OM, Cl−, NO3−, SO42−, NH4+, and metal elements. Secondary water-soluble ions, i.e., SO42−, NO3−, and NH4+ were key constituents of PM2.5, accounted for 71.0%, and their contribution increased when air quality became worsened. NO3- was the primary pollutant, accounting for 37.4% of PM2.5. The results indicated that anthropogenic source emissions associated with NO3− contributed greatly to PM2.5 formation during enhanced observation; similar phenomena had been observed in Beijing [59,60] and Shanghai [61] in recent years. The control of SO2 sources and the increase of motor vehicles made NO3− become a main component of PM2.5 rather than SO42− [60].
Figure 5 shows the extinction coefficient of Sanmenxia during the enhanced observation period retrieved from lidar data. There were three obvious high values of extinction coefficient below 1.5 km on 3−8, 11−14, and 30−31 January 2019. It showed that a great deal of particulate matter was formed and accumulated below 1.5 km in Sanmenxia during these periods, and the first two periods of high extinction coefficient were consistent with the severe haze episodes of Sanmenxia. During the enhanced observation period, the high value areas of the extinction coefficient of aerosols were under 1.5 km, but they were not completely confined to the ground. Thus, we should pay more attention to the characteristics, sources, and transmission of high-altitude pollutants.

3.2. Transport Characteristics

Sanmenxia is located in canyon terrain between Zhongtiao Mountain and the Qinling Mountains. In order to explore the local circulation caused by the special terrain of Sanmenxia, WRF simulation results were used to analyze the circulation of Sanmenxia. The profile positions are shown in Figure 6. The section between A1 and A2 passed through Zhongtiao Mountain and Xiao Mountain in turn, and the section between B1 and B2 was along the southern foot of Zhongtiao Mountain. Namely, A1−A2 transect was along the lateral circulation, and B1–B2 transect was along the valley axis. The combination of two sections can well analyze the characteristics of airflow in canyon.
Based on the statistics of the hourly output wind field data during the enhanced observation of Sanmenxia, the circulation characteristics of the A1−A2 transect and the B1–B2 transect were summarized, as shown in Figure 7. The wind in Figure 7 is the wind vector synthesized by latitude wind component (u) and vertical wind component (w). Because the w was small (Figure 4), in order to reflect the variation characteristics of vertical wind, the wind vectors shown in the figure were synthesized by w × 20 and u. The contour is virtual potential temperature, which can better reflect the rising and sinking of airflow in the actual atmosphere. The virtual potential temperature (θv) could be calculated by:
θ v = T ( 1 + 0.608 q ) ( p 0 p ) k d
where T is temperature (K), q is mixing ratio (kg/kg), P0 is standard atmospheric pressure (hpa), and kd is a constant with a value of 0.286.
It can be seen from Figure 7 that along A1−A2 transect, the downslope wind prevailed at night, which was consistent with the typical lateral circulation at night. However, in the daytime, it was dominated by the cross-mountain airflow along a certain direction; that is, the airflow sank down one slope and rose up the other, and the dominant wind direction was westerly. In special atmospheric circulation, the zonal wind direction of high and low altitude was inconsistent, and there was a counterclockwise circulation that rose along the Qinling Mountain and sank along the Zhongtiao Mountain in the daytime or a clockwise circulation that rose along the Zhongtiao Mountain and sank along the Qinling Mountain. The transition of the background wind field at high and low altitudes and the coupling of the cross-mountain airflow along A1−A2 transect caused a special local circulation, which affected the transport and diffusion of pollutants in Sanmenxia. By analyzing the airflow along B1−B2 transect, it was found that the vertical wind speed was very weak and vertical wind near the surface was still dominated by downdrafts. The zonal wind was dominated. This may be due to the increase of horizontal wind speed caused by canyon terrain.
Figure 8 shows the vertical transects of averaged simulated PM2.5 of two profiles during the severe haze episodes. The concentration of PM2.5 was not homogeneous along the profiles. The polluted layer was about 500 m deeper along A1−A2 transect, and the maximum of PM2.5 concentration was near the surface. The PM2.5 concentration was higher in the south-eastern part of A1−A2 transect compared to the north−western part. It may be ascribed to the PM2.5 transported by the western wind along the A1−A2 transect was obstructed by the Qinling Mountain and downslope winds, PM2.5 accumulated at the hillside and foot of the Qinling mountain. Along the B1−B2 transect, the polluted layer was about 500−1000 m deep. Two southwest−northeast facing mountains and downdraft allowed PM2.5 to accumulate in the canyon, and the polluted layer was higher, as mentioned in the observations of the aerosol extinction coefficient. Combined with the circulation in both directions, the combination of downslope wind and downdraft near Sanmenxia at nighttime was not conducive to the diffusion of pollutants, while the combination of cross−mountain and zonal wind also plays an important role in particulates transport (Figure 9). The thermal cycle caused by special terrain produced such a special local circulation structure. The reason for the difference between the wind direction in the mountainous areas and the dominant wind in the environment was that, on the one hand, the undulation of the terrain changed the wind direction and speed of the airflow near the ground, and on the other hand, the uneven heating of the special terrain caused thermal circulation [62].
In order to analyze the particulate transport path during severe haze episodes in Sanmenxia, based on FLEXPART-WRF, the 72-h backward residence time distribution of particulates is shown in Figure 10. During this period, the major transport paths could be summarized into a northern path, a western path, and an eastern path. Along the northern path, the particulates from eastern Shanxi province could get over Zhongtiao Mountain and arrive at Sanmenxia. Along the western path, particulates from western Shaanxi province reached Sanmenxia along the Guanzhong Basin. The particulates in the eastern path were transmitted to Sanmenxia along the southern foot of Taihang Mountain through the northern Henan Province. Terrain had an important influence on the long range and local transport of particulates in Sanmenxia.

3.3. Source Apportionment

During the enhanced observation period, the concentration of pollutants in Sanmenxia was relatively high; there were three severe haze episodes, and the primary pollutant was PM2.5. In order to quantitatively identify the regional and industrial contribution to the concentration of PM2.5, an on-line tracer-tagging module was implemented in NAQPMS. Figure 11 shows the contribution of different source categories to PM2.5 concentration during the enhanced observation period in Sanmenxia using an on-line tracer-tagging module of NAQPMS. The contributions of residential, industry, power plant, and transport sources to the total PM2.5 concentration were 63%, 19%, 7%, and 12%, respectively. Residential was the largest contributor among the primary and secondary components of PM2.5, with contributions of 76% and 46%, respectively. The contribution of industry to the primary components was also important, contributing 18% during the severe haze period. Transport sources had a greater contribution to the secondary components. During the severe haze episodes, the contribution of industry and transport to the primary component increased, but for the secondary components, the contribution of industry and transport decreased slightly. To sum up, Sanmenxia should strengthen countermeasures during severe haze episodes, not only on the control of industrial and transport emissions, but they should also pay attention to the management of emissions from residential sources.
In this study, the emission area was marked into 26 regions by administrative boundary. To explain the main contributors of PM2.5 in Sanmenxia, these source regions were grouped into seven regions: SMX, YC, WN, the other of Henan Province (HN−O, included LY, ZZ, JZ, XX, KF, HB, AY, PDS, and OHN), the other of Shanxi Province (SX−O, included LF, JZ, LL, CZ, JC, YQ, TY, and OSX), the other of Shaanxi Province (SHX−O, included TC, XA, XY, BJ, and OSHX), and OT. Figure 12 shows the PM2.5 source apportionments by source regions during the enhanced observation period in Sanmenxia. The source emissions of local and adjacent areas played an important role in Sanmenxia. During the enhanced observation, YC was the largest contributor to the total PM2.5 concentration, with contributions of 39%. The local contribution of SMX accounted for 25%. WN also made a great contribution, accounting for 11%. Compared with the mean results, the self-contribution of SMX decreased 8% in case1 and 4% in case2, but it increased 2% in case3. YC was also the largest contributor during the three severe haze episodes, and the contribution of YC in case1 could reach 42%. The contribution of WN ranged from 9−16% during the severe haze episodes. Combined with Figure 10 during the severe haze episodes, the northern path had the greatest impact on Sanmenxia.
Table 1 shows the source apportionment by seven regions to the PM2.5 chemical species during the enhanced observation in SMX. For the primary components of PM2.5, YC was the largest contributor, especially in clean periods, with the contribution of 57%. Local contribution of SMX also had a great impact, and the contribution increased to 44% during the severe haze episodes. Combined with the impact of industrial sources, Sanmenxia should strengthen the control of local residents and industrial sources during the severe haze episodes. For PM2.5 secondary components, the contribution of local sources and YC decreased significantly, while the contribution of WN, HN−O, SHX−O, SX−O, and OT increased, especially during the severe haze episodes. The regional transport had an important influence on the secondary components of PM2.5. Combined with the horizontal transport path mentioned above, the northern path had the greatest impact on PM2.5 concentration in Sanmenxia, while the contribution of the western path increased during the severe haze episodes.

4. Conclusions

Based on the observation data of pollutant concentration, meteorological elements, aerosol extinction coefficient, vertical wind, PM2.5 component concentration, and numerical models of WRF, FLEXPART-WRF, and NAQPMS, this study analyzed the pollutant distribution characteristics, local and regional transport characteristics, and regional and industrial emission sources of PM2.5 during the enhanced observation period from 20 December 2018 to 31 January 2019 in Sanmenxia, a polluted city in canyon terrain. The results showed that:
During the winter enhanced observation period from December 2018 to January 2019, the diurnal variations of PM2.5, PM10, and SO2 were consistent. The proportion of SO42−, NO3−, and NH4+ in PM2.5 could reach 71%, indicating that the secondary conversion of anthropogenic emissions during the enhanced observation period became the important reasons for the growth of PM2.5 in Sanmenxia. The wind speed was weak, while the prevailing horizontal wind direction was south, and the vertical wind was dominated by the downdraft between 100–320 m. During the severe haze episodes, the aerosol extinction coefficient was higher in the whole layer of 0–1.5 km.
Sanmenxia is located between two northeast−southwest facing mountains, showing a special local circulation in canyon terrain. During the enhanced observation, the downslope prevailed at night between A1−A2 section. In the daytime, cross-mountain airflow was dominant in the A1−A2 section, and zonal wind was dominant in the B1−B2 section. Downslope flow and zonal wind allow pollutants from the sources to accumulate near Sanmenxia. The special local circulation in the canyon was mainly caused by the thermal difference produced by the uneven heating of the special terrain and the change of wind speed and direction caused by the undulation of the terrain. For regional transport, during the enhanced observation period, main transport paths of Sanmenxia could be summarized into three transport paths: northern path, western path, and eastern path. Special terrain had an important influence on the local and long-range transport of particulates in Sanmenxia.
Source apportionment results showed that the residential source was dominant, especially for the primary component of PM2.5; the contribution of resident source to Sanmenxia could reach 76%. During severe haze episodes, the contribution of industry and transport emissions to PM2.5 primary components increased. Sanmenxia should pay more attention to the control of local residential and industrial sources during severe haze episodes. According to the results of regional source apportionments, regional sources of Sanmenxia were dominated by YC, SMX, and WN during the enhanced observation period. YC was the largest contributor to SMX. For primary components of PM2.5, the contribution of YC and local sources had great impact. For PM2.5 secondary components, the contribution of WN, HN−O, SHX−O, SX−O, and OT increased, especially during the severe haze episodes. Thus, the regional transport had an important influence on the secondary components of PM2.5. Combined with the horizontal regional transport paths, the northern path had the greatest influence on PM2.5 concentration of Sanmenxia, and the influence of the western path on PM2.5 was increased during severe haze episodes.

Author Contributions

Conceptualization, J.L. and X.W.; methodology, Y.L., J.L., L.Z. and Y.C.; formal analysis, Y.L. and J.L.; writing—original draft preparation, Y.L.; writing—review and editing, Y.L., X.W., L.Z. and J.L.; visualization, Y.L.; project administration, J.L.; funding acquisition, J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work is funded by the National Key Research and Development Program of China (No. 2017YFC0212405), the Strategic Priority Research Program of the Chinese Academy of Sciences (Grant No. XDA19040202), the National Natural Science Foundation of China (Grant No. 91744203, 92044302, 41907200, 41571130034). We thank the National Key Scientific and Technological Infrastructure project “Earth System Science Numerical Simulator Facility” (EarthLab).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data and methods used in the research have been presented in sufficient detail in the paper.

Acknowledgments

We thank anonymous reviewers for their constructive suggestions that helped improve the manuscript. We thank the National Center for Atmospheric Research (NCAR) and the National Oceanic and Atmospheric Administration (represented by the National Centers for Environmental Prediction (NCEP) and the Earth System Research Laboratory) for providing free of charge WRF model (https://www.mmm.ucar.edu/weather-research-and-forecasting-model, accessed on 12 November 2018) and the Final Analysis (GFS-FNL) data (https://rda.ucar.edu, accessed on 19 March 2019). We thank the Norwegian Institute for Air Research for providing free of charge FLEXPART-WRF model (https://www.flexpart.eu, accessed on 14 April 2019).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, P.; Yan, R.; Yu, S.; Wang, S.; Liu, W.; Bao, H. Reinstate regional transport of PM2.5 as a major cause of severe haze in Beijing. Proc. Natl. Acad. Sci. USA 2015, 112, 2739–2740. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Gao, M.; Carmichael, G.R.; Wang, Y.; Saide, P.E.; Yu, M.; Xin, J.; Liu, Z.; Wang, Z. Modeling study of the 2010 regional haze event in the North China Plain. Atmos. Chem. Phys. 2016, 16, 1673–1691. [Google Scholar] [CrossRef] [Green Version]
  3. Ma, G.; Wang, J.; Yu, F.; Guo, X.; Zhang, Y.; Li, C. Assessing the premature death due to ambient particulate matter in China’s urban areas from 2004 to 2013. Front. Environ. Sci. Eng. 2016, 10, 7. [Google Scholar] [CrossRef]
  4. Xue, T.; Liu, J.; Zhang, Q.; Geng, G.; Zheng, Y.; Tong, D.; Liu, Z.; Guan, D.; Bo, Y.; Zhu, T.; et al. Rapid improvement of PM2.5 pollution and associated health benefits in China during 2013–2017. Sci. China Earth Sci. 2019, 62, 1847–1856. [Google Scholar] [CrossRef]
  5. Liao, H.; Chang, W.; Yang, Y. Climatic effects of air pollutants over china: A review. Adv. Atmos. Sci. 2015, 32, 115–139. [Google Scholar] [CrossRef]
  6. Cheng, J.; Su, J.; Cui, T.; Li, X.; Dong, X.; Sun, F.; Yang, Y.; Tong, D.; Zheng, Y.; Li, Y.; et al. Dominant role of emission reduction in PM2.5 air quality improvement in Beijing during 2013–2017: A model-based decomposition analysis. Atmos. Chem. Phys. 2019, 19, 6125–6146. [Google Scholar] [CrossRef] [Green Version]
  7. Zhang, Q.; Geng, G. Impact of clean air action on PM2.5 pollution in China. Sci. China Earth Sci. 2019, 62, 1845–1846. [Google Scholar] [CrossRef] [Green Version]
  8. Wang, Y.; Chen, J.; Wang, Q.; Qin, Q.; Ye, J.; Han, Y.; Li, L.; Zhen, W.; Zhi, Q.; Zhang, Y.; et al. Increased secondary aerosol contribution and possible processing on polluted winter days in China. Environ. Int. 2019, 127, 78–84. [Google Scholar] [CrossRef]
  9. Sun, Y.; Zhuang, G.; Tang, A.; Wang, Y.; An, Z. Chemical characteristics of PM2.5 and PM10 in haze-fog episodes in Beijing. Environ. Sci. Technol. 2006, 40, 3148–3155. [Google Scholar] [CrossRef]
  10. Hong, W.; Li, J.; Peng, Y.; Zhang, M.; Che, H.; Zhang, X. The impacts of the meteorology features on PM2.5 levels during a severe haze episode in central-east China. Atmos. Environ. 2018, 197, 177–189. [Google Scholar]
  11. Zhang, Q.; Quan, J.; Tie, X.; Li, X.; Liu, Q.; Gao, Y.; Zhao, D. Effects of meteorology and secondary particle formation on visibility during heavy haze events in Beijing, China. Sci. Total Environ. 2015, 502, 578–584. [Google Scholar] [CrossRef] [PubMed]
  12. Ye, X.; Song, Y.; Cai, X.; Zhang, H. Study on the synoptic flow patterns and boundary layer process of the severe haze events over the North China Plain in January 2013. Atmos. Environ. 2015, 124, 129–145. [Google Scholar] [CrossRef]
  13. Li, J.; Du, H.; Wang, Z.; Sun, Y.; Yang, W.; Li, J.; Tang, X.; Fu, P. Rapid formation of a severe regional winter haze episode over a mega-city cluster on the North China Plain. Environ. Pollut. 2017, 223, 605–615. [Google Scholar] [CrossRef] [PubMed]
  14. Li, T.; Deng, X.; Li, Y.; Song, Y.; Li, L.; Tan, H.; Wang, C. Transport paths and vertical exchange characteristics of haze pollution in Southern China. Sci. Total Environ. 2018, 625, 1074–1087. [Google Scholar] [CrossRef] [PubMed]
  15. Qiang, J.; Fang, X.; Bo, W.; Shan, A. Spatio-temporal variations of PM2.5 emission in China from 2005 to 2014. Chemosphere 2017, 183, 429–436. [Google Scholar]
  16. Hou, X.; Zhu, B.; Kumar, K.E.; Lu, W. Inter-annual variability in fine particulate matter pollution over China during 2013–2018: Role of meteorology. Atmos. Environ. 2019, 214, 116842. [Google Scholar] [CrossRef]
  17. Li, J.; Liao, H.; Hu, J.; Li, N. Severe particulate pollution days in China during 2013–2018 and the associated typical weather patterns in Beijing-Tianjin-Hebei and the Yangtze River Delta regions. Environ. Pollut. 2019, 248, 74–81. [Google Scholar] [CrossRef]
  18. Sun, Y.; Chen, C.; Zhang, Y.; Xu, W.; Zhou, L.; Cheng, X.; Zheng, H.; Ji, D.; Li, J.; Tang, X.; et al. Rapid formation and evolution of an extreme haze episode in Northern China during winter 2015. Sci. Rep. 2016, 6, 27151. [Google Scholar] [CrossRef] [Green Version]
  19. Wang, H.; Qiao, L.; Lou, S.; Zhou, M.; Ding, A.; Huang, H.; Chen, J.; Wang, Q.; Tao, S.; Chen, C.; et al. Chemical composition of PM2.5 and meteorological impact among three years in urban Shanghai, China. J. Clean. Prod. 2016, 112, 1302–1311. [Google Scholar] [CrossRef]
  20. Su, W.; Liu, C.; Hu, Q.; Fan, G.; Xie, Z.; Huang, X.; Zhang, T.; Chen, Z.; Dong, Y.; Ji, X.; et al. Characterization of ozone in the lower troposphere during the 2016 G20 conference in Hangzhou. Sci. Rep. 2017, 7, 17368. [Google Scholar] [CrossRef] [Green Version]
  21. Xu, Q.; Chen, X.; Yang, S.; Tang, L.; Dong, J. Spatiotemporal relationship between Himawari-8 hourly columnar Aerosol Optical Depth (AOD) and ground-level PM2.5 mass concentration in mainland China. Sci. Total Environ. 2020, 765, 144241. [Google Scholar] [CrossRef]
  22. Pan, X.; Kanaya, Y.; Wang, Z.; Komazaki, Y.; Taketani, F.; Akimoto, H.; Pochanart, P. Variations of carbonaceous aerosols from open crop residue burning with transport and its implication to estimate their lifetimes. Atmos. Environ. 2013, 74, 301–310. [Google Scholar] [CrossRef]
  23. Zheng, J.; Zhong, L.; Wang, T.; Louie, P.K.K.; Li, Z. Ground-level ozone in the Pearl River Delta region: Analysis of data from a recently established regional air quality monitoring network. Atmos. Environ. 2010, 44, 814–823. [Google Scholar] [CrossRef]
  24. Yang, W.; Chen, H.; Wang, W.; Wu, J.; Li, J.; Wang, Z.; Zheng, J.; Chen, D. Modeling study of ozone source apportionment over the Pearl River Delta in 2015. Environ. Pollut. 2019, 253, 393–402. [Google Scholar] [CrossRef] [PubMed]
  25. Yang, W.; Chen, H.; Wu, J.; Wang, W.; Zheng, J.; Chen, D.; Li, J.; Tang, X.; Wang, Z.; Zhu, L.; et al. Characteristics of the source apportionment of primary and secondary inorganic PM2.5 in the Pearl River Delta region during 2015 by numerical modeling. Environ. Pollut. 2020, 267, 115418. [Google Scholar] [CrossRef] [PubMed]
  26. Chang, X.; Wang, S.; Zhao, B.; Xing, J.; Liu, X.; Wei, L.; Song, Y.; Wu, W.; Cai, S.; Zheng, H.; et al. Contributions of inter-city and regional transport to PM2.5 concentrations in the Beijing-Tianjin-Hebei region and its implications on regional joint air pollution control. Sci. Total Environ. 2019, 660, 1191–1200. [Google Scholar] [CrossRef] [PubMed]
  27. Yang, X.; Xiao, H.; Wu, Q.; Wang, L.; Guo, Q.; Cheng, H.; Wang, R.; Tang, Z. Numerical study of air pollution over a typical basin topography: Source appointment of fine particulate matter during one severe haze in the megacity Xi’an. Sci. Total. Environ. 2019, 708, 135213. [Google Scholar] [CrossRef] [PubMed]
  28. Wang, T.; Wang, X.; Li, J.; Wang, Z.; Wang, L.; Du, H.; Wang, W.; Chen, X.; Wang, W.; Sun, Y. Quantification of different processes in the rapid formation of a regional haze episode in north China using an integrated analysis tool coupling source apportionment with process analysis. Atmos. Pollut. Res. 2021, 12, 159–172. [Google Scholar] [CrossRef]
  29. Huang, R.; Wang, Y.; Cao, J.; Lin, C.; Duan, J.; Chen, Q.; Li, Y.; Gu, Y.; Yan, J.; Xu, W.; et al. Primary emissions versus secondary formation of fine particulate matter in the most polluted city (Shijiazhuang) in North China. Atmos. Chem. Phys. 2019, 19, 2283–2298. [Google Scholar] [CrossRef] [Green Version]
  30. Yin, D.; Zhao, S.; Qu, J.; Yu, Y.; Kang, S.; Ren, X.; Zhang, J.; Zou, Y.; Dong, L.; Li, J.; et al. The vertical profiles of carbonaceous aerosols and key influencing factors during wintertime over western Sichuan Basin, China. Atmos. Environ. 2020, 223, 117269. [Google Scholar] [CrossRef]
  31. Cheng, Z.; Wang, S.; Qiao, L.; Wang, H.; Zhou, M.; Fu, X.; Lou, S.; Luo, L.; Jiang, J.; Chen, C.; et al. Insights into extinction evolution during extreme low visibility events: Case study of Shanghai, China. Sci. Total Environ. 2018, 618, 793–803. [Google Scholar] [CrossRef] [PubMed]
  32. Cui, H.; Chen, W.; Dai, W.; Liu, H.; Wang, X.; He, K. Source apportionment of PM2.5 in Guangzhou combining observation data analysis and chemical transport model simulation. Atmos. Environ. 2015, 116, 262–271. [Google Scholar] [CrossRef]
  33. Zhai, S.; Jacob, D.J.; Wang, X.; Shen, L.; Li, K.; Zhang, Y.; Gui, K.; Zhao, T.; Liao, H. Fine particulate matter (PM2.5) trends in China, 2013–2018: Separating contributions from anthropogenic emissions and meteorology. Atmos. Chem. Phys. 2019, 19, 11031–11041. [Google Scholar] [CrossRef] [Green Version]
  34. Liu, L.; Duan, Y.; Li, L.; Xu, L.; Yang, Y.; Cu, X. Spatiotemporal trends of PM2.5 concentrations and typical regional pollutant transport during 2015–2018 in China. Urban Clim. 2020, 34, 100710. [Google Scholar] [CrossRef]
  35. Skamarock, W.C.; Klemp, J.B.; Dudhia, J.; Gill, D.O.; Barker, D.; Duda, M.G.; Huang, X.-Y.; Wang, W.; Powers, J.G. A Description of the Advanced Research WRF Version 3 NCAR Tech. Note (NCAR/TN-475+STR); University Corporation for Atmospheric Research: Boulder, CO, USA, 2008; p. 113. [Google Scholar]
  36. Iacono, M.J.; Delamere, J.S.; Mlawer, E.J.; Shephard, M.W.; Clough, S.A.; Collins, W.D. Radiative forcing by long-lived greenhouse gases: Calculations with the AER radiative transfer models. Geophys. Res. Atmos. 2008, 113, D13103. [Google Scholar] [CrossRef]
  37. Jiménez, P.A.; Dudhia, J.; González-Rouco, J.F.; Navarro, J.; Montávez, J.P.; GarcíaBustamante, E. A revised scheme for the WRF surface layer formulation. Mon. Weather Rev. 2012, 140, 898–918. [Google Scholar] [CrossRef] [Green Version]
  38. Niu, G.; Yang, Z.; Mitchell, K.; Chen, F.; Ek, M.; Barlage, M.; Kumar, A.; Manning, K.; Niyogi, D.; Rosero, E.; et al. The community noah land surface model with multiparameterization options (noah-mp): 1. Model description and evaluation with local-scale measurements. J. Geophys. Res. 2011, 116, D12109. [Google Scholar] [CrossRef] [Green Version]
  39. Hong, S.; Noh, Y.; Dudhia, J. A new vertical diffusion package with an explicit treatment of entrainment processes. Mon. Weather Rev. 2006, 134, 2318–2341. [Google Scholar] [CrossRef] [Green Version]
  40. Grell, G.A.; Dévényi, D. A generalized approach to parameterizing convection combining ensemble and data assimilation techniques. Geophys. Res. Lett. 2002, 29, 1693. [Google Scholar] [CrossRef] [Green Version]
  41. Stohl, A.; Forster, C.; Frank, A.; Seibert, P.; Wotawa, G. Technical note: The Lagrangian particle dispersion model FLEXPART version 6.2. Atmos. Chem. Phys. 2005, 5, 2461–2474. [Google Scholar] [CrossRef] [Green Version]
  42. Stohl, A.; Klimont, Z.; Eckhardt, S.; Kupianen, K.; Shevchenko, V.P.; Kopeikin, V.M.; Novigatsky, A.N. Black carbon in the Arctic: The underestimated role of gas flaring and residential combustion emissions. Atmos. Chem. Phys. 2013, 13, 8833–8855. [Google Scholar] [CrossRef] [Green Version]
  43. Brioude, J.; Arnold, D.; Stohl, A.; Cassiani, M.; Morton, D.; Seibert, P.; Angevine, W.; Evan, S.; Dingwell, A.; Fast, J.D.; et al. The Lagrangian particle dispersion model FLEXPART-WRF version 3.0. Geosci. Model Dev. 2013, 6, 3615–3654. [Google Scholar] [CrossRef] [Green Version]
  44. Zhang, J.; Zhu, T.; Zhang, Q.; Li, C.; Shu, H.; Ying, Y.; Dai, Z.; Wang, X.; Liu, X.; Liang, A.; et al. The impact of circulation patterns on regional transport pathways and air quality over Beijing and its surroundings. Atmos. Chem. Phys. 2012, 11, 33465–33509. [Google Scholar] [CrossRef] [Green Version]
  45. Zhu, Q.; Liu, Y.; Jia, R.; Hua, S.; Shao, T.; Wang, B. A numerical simulation study on the impact of smoke aerosols from Russian forest fires on the air pollution over Asia. Atmos. Environ. 2018, 182, 263–274. [Google Scholar] [CrossRef]
  46. Ashbaugh, L.L.; Malm, W.C.; Sadeh, W.Z. A residence time probability analysis of sulfur concentrations at grand Canyon National Park. Atmos. Environ. 1985, 19, 1263–1270. [Google Scholar] [CrossRef]
  47. Wang, Z.; Xie, F.; Wang, X.; An, J.; Zhu, J. Development and application of nested air quality prediction modeling system. Chin. J. Atmos. Sci. 2016, 30, 778–790. [Google Scholar]
  48. Chang, J.; Brost, R.; Isaksen, I.; Madronich, S.; Middleton, P.; Stockwell, W.; Walcek, C.J. A three-dimensional eulerian acid deposition model: Physical concepts and formation. J. Geophys. Res. 1987, 92, 14681–14700. [Google Scholar] [CrossRef]
  49. Stockwell, W.R.; Middleton, P.; Chang, J.S. The second generation regional acid deposition model chemical mechanism for regional air quality modeling. J. Geophys. Res. 1990, 95, 16343. [Google Scholar] [CrossRef]
  50. Zhang, L.; Gong, S.; Padro, J. A size-segregated particle dry deposition scheme for an atmospheric aerosol module. Atmos. Environ. 2001, 35, 549–560. [Google Scholar] [CrossRef]
  51. Zaveri, R.A.; Peters, L.K. A new lumped structure photochemical mechanism for largescale applications. J. Geophys. Res. 1999, 104, 30387–30415. [Google Scholar] [CrossRef]
  52. Li, J.; Wang, Z.; Wang, X.; Yamaji, K.; Takigawa, M.; Kanaya, Y.; Pochanart, P.; Liu, Y.; Irie, H. Impacts of aerosols on summertime tropospheric photolysis frequencies and photochemistry over Central Eastern China. Atmos. Environ. 2011, 45, 1817–1829. [Google Scholar] [CrossRef]
  53. Li, J.; Wang, Z.; Zhuang, G.; Luo, G.; Sun, Y.; Wang, Q. Mixing of Asian mineral dust with anthropogenic pollutants over East Asia: A model case study of a superduststorm in March 2010. Atmos. Chem. Phys. 2012, 12, 7591–7607. [Google Scholar] [CrossRef] [Green Version]
  54. Wagstrom, K.M.; Pandis, S.N.; Yarwood, G.; Wilson, G.M.; Morris, R.E. Development and application of a computationally efficient particulate matter apportionment algorithm in a three-dimensional chemical transport model. Atmos. Environ. 2008, 42, 5650–5659. [Google Scholar] [CrossRef]
  55. Zhang, Y.; Zhao, Y.; Li, J.; Wu, Q.; Wang, H.; Du, H.; Wang, W.; Wang, Z.; Zhu, L. Modeling Ozone Source Apportionment and Performing Sensitivity Analysis in Summer on the North China Plain. Atmosphere 2020, 11, 992. [Google Scholar] [CrossRef]
  56. Wu, J.; Wang, Z.; Wang, Q.; Li, J.; Xu, J.; Chen, H.; Ge, B.; Zhou, G.; Chang, L. Development of an on-line source-tagged model for sulfate, nitrate and ammonium: A modeling study for highly polluted periods in Shanghai, China. Environ. Pollut. 2017, 221, 168–179. [Google Scholar] [CrossRef]
  57. Li, J.; Yang, W.; Wang, Z.; Chen, H.; Hu, H.; Li, J.; Sun, Y.; Huang, Y. A modeling study of source-receptor relationships in atmospheric particulate matter over Northeast Asia. Atmos. Environ. 2014, 91, 40–51. [Google Scholar] [CrossRef]
  58. Hauglustaine, D.A.; Brasseur, G.P.; Walters, S.; Rasch, P.J.; Muller, J.F.; Emmons, L.K.; Carroll, M.A. MOZART, a global chemical transport model for ozone and related chemical tracers, 2. Model results and evaluation. J. Geophys. Res. Atmos. 1998, 103, 28291–28335. [Google Scholar] [CrossRef]
  59. Xu, Q.; Wang, S.; Jiang, J.; Bhattarai, N.; Li, X.; Chang, X.; Qiu, X.; Zheng, M.; Hua, Y.; Hao, J. Nitrate dominates the chemical composition of PM2.5 during haze event in Beijing, China. Sci. Total. Environ. 2019, 689, 1293–1303. [Google Scholar] [CrossRef]
  60. Huang, X.; Tang, G.; Zhang, J.; Liu, B.; Liu, C.; Zhang, J.; Cong, L.; Cheng, M.; Yan, G.; Gao, W.; et al. Characteristics of PM2.5 pollution in Beijing after the improvement of air quality. J. Environ. Sci. 2021, 100, 1–10. [Google Scholar] [CrossRef]
  61. Ming, L.; Jin, L.; Li, J.; Fu, P.; Yang, W.; Liu, D.; Zhang, G.; Wang, Z.; Li, X. PM2.5 in the Yangtze River Delta, China: Chemical compositions, seasonal variations, and regional pollution events. Environ. Pollut. 2017, 223, 200–212. [Google Scholar] [CrossRef]
  62. Wei, N.; Wang, N.; Huang, X.; Liu, P.; Chen, L. The effects of terrain and atmospheric dynamics on cold season heavy haze in the Guanzhong Basin of China. Atmos. Pollut. Res. 2020, 11, 1805–1819. [Google Scholar] [CrossRef]
Atmosphere 13 00233 g001 550

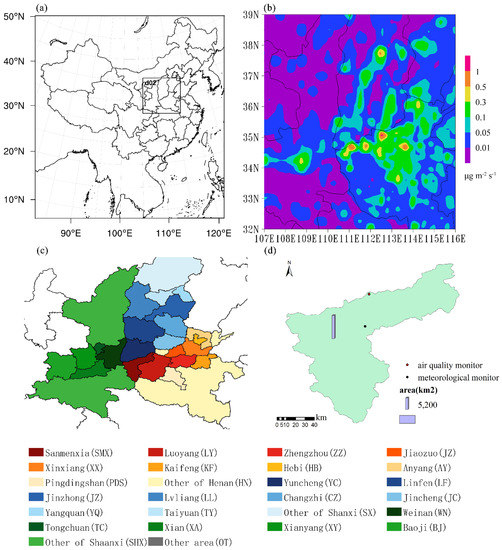

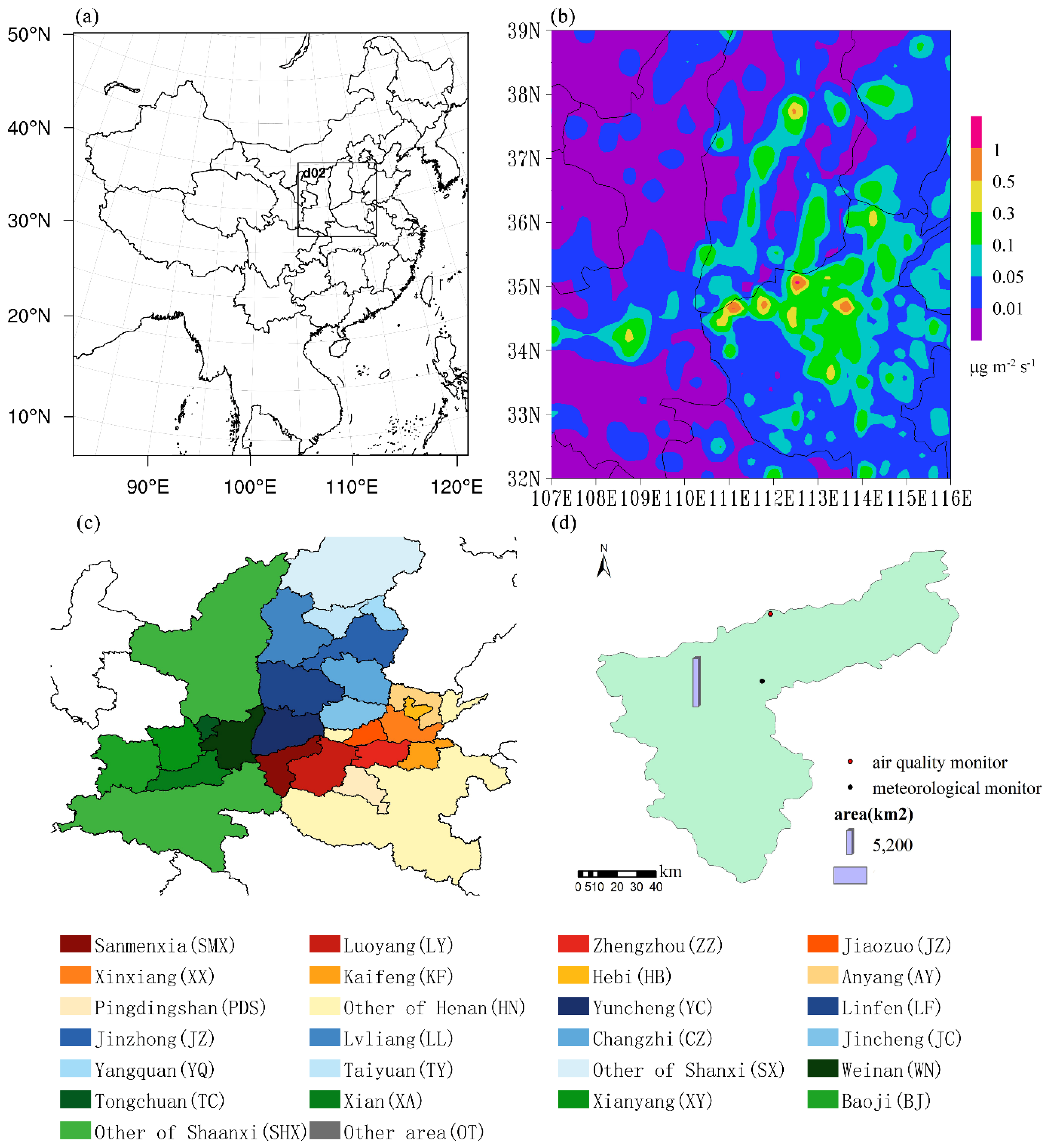

Figure 1. (a) Model domain setting. (b) Hourly averaged primary PM2.5 emission rate. (c) Domain 2 with 26 tracer−tagging regions and (d) the spatial distribution of monitor positions of Sanmenxia.
Figure 1. (a) Model domain setting. (b) Hourly averaged primary PM2.5 emission rate. (c) Domain 2 with 26 tracer−tagging regions and (d) the spatial distribution of monitor positions of Sanmenxia.
Atmosphere 13 00233 g001
Atmosphere 13 00233 g002 550

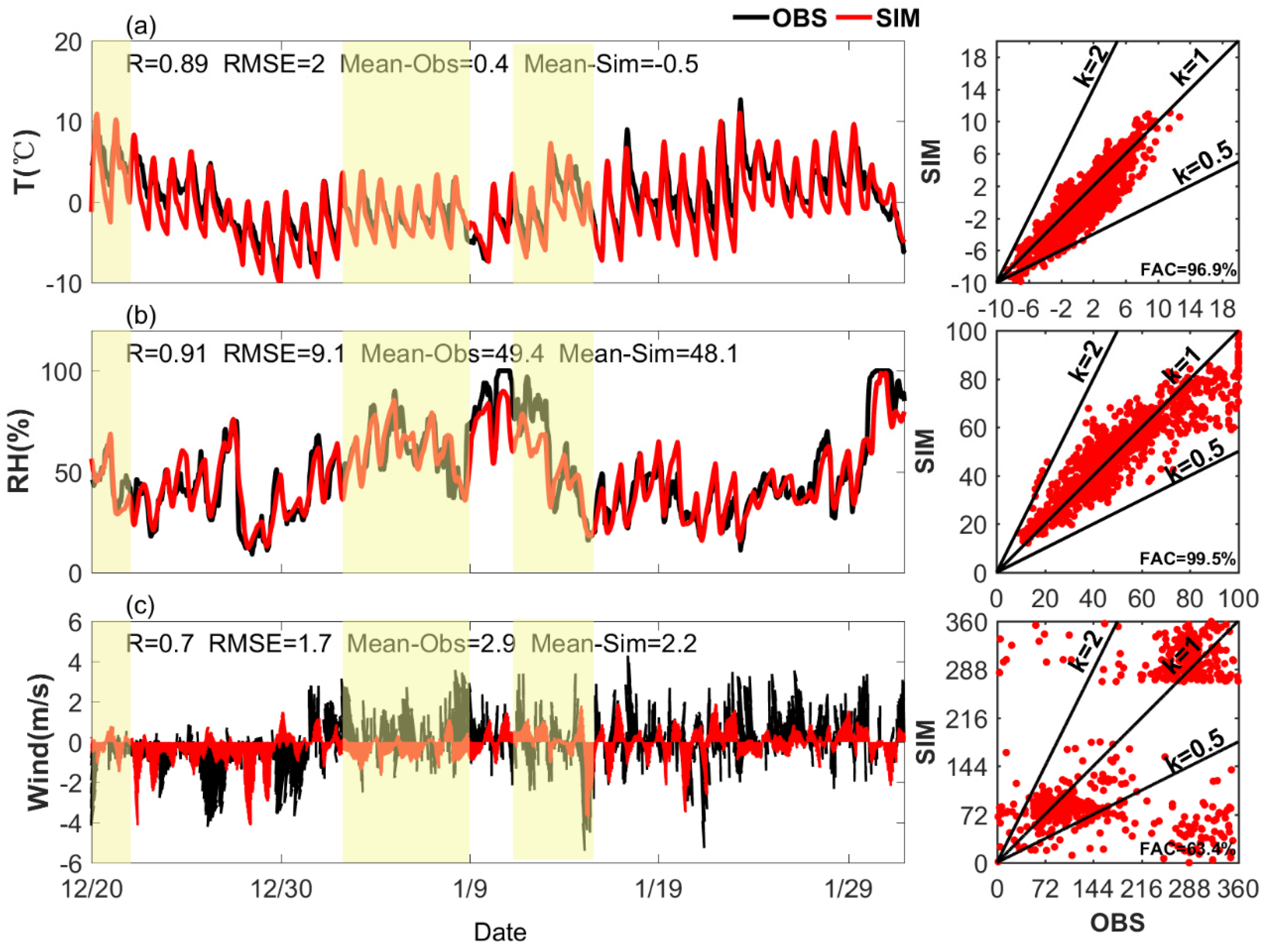

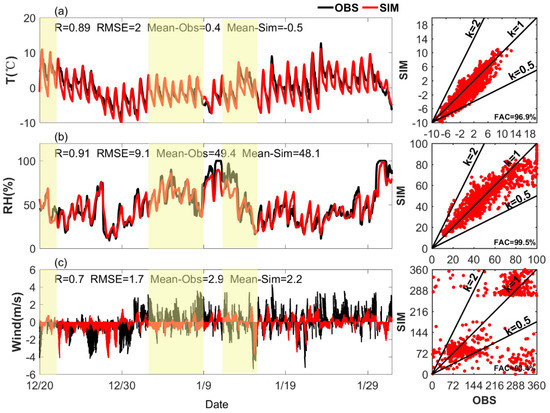

Figure 2. Comparison between the observation (black) and simulation (red) data of (a) temperature, (b) relative humidity, and (c) wind speed and wind direction in Sanmenxia during the period of enhance observation; the scatter plot in (c) was the comparison of wind direction (severe haze episodes, shaded areas).
Figure 2. Comparison between the observation (black) and simulation (red) data of (a) temperature, (b) relative humidity, and (c) wind speed and wind direction in Sanmenxia during the period of enhance observation; the scatter plot in (c) was the comparison of wind direction (severe haze episodes, shaded areas).
Atmosphere 13 00233 g002
Atmosphere 13 00233 g003 550

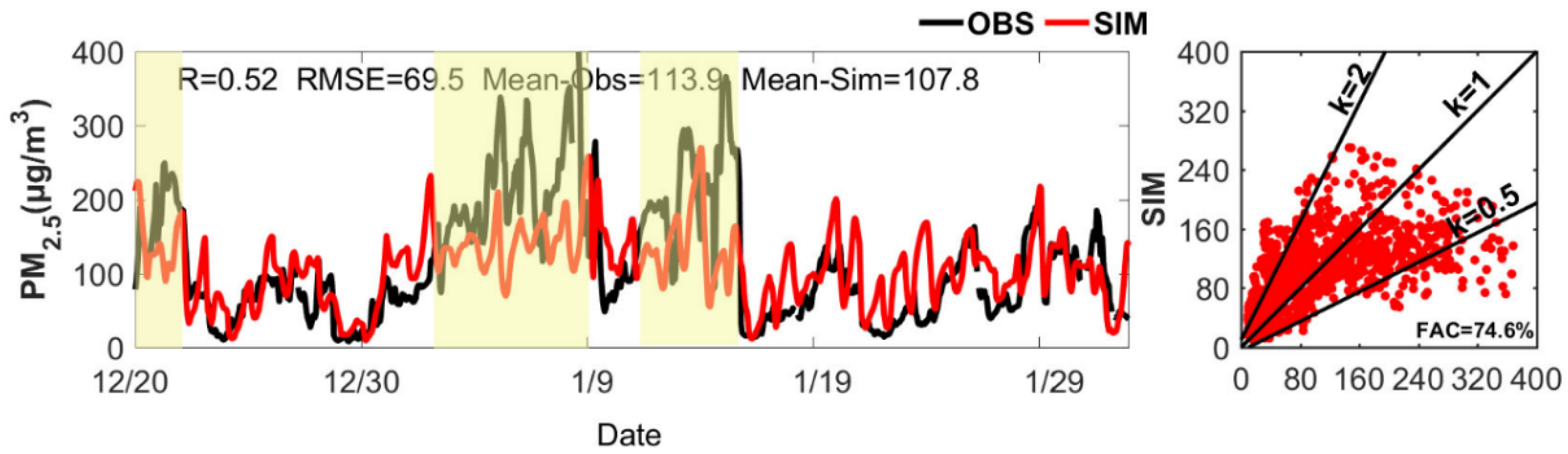

Figure 3. Comparison between the observation (black) and simulation (red) data of PM2.5 in Sanmenxia during the period of enhance observation (severe haze episodes, shaded areas).
Figure 3. Comparison between the observation (black) and simulation (red) data of PM2.5 in Sanmenxia during the period of enhance observation (severe haze episodes, shaded areas).
Atmosphere 13 00233 g003
Atmosphere 13 00233 g004 550

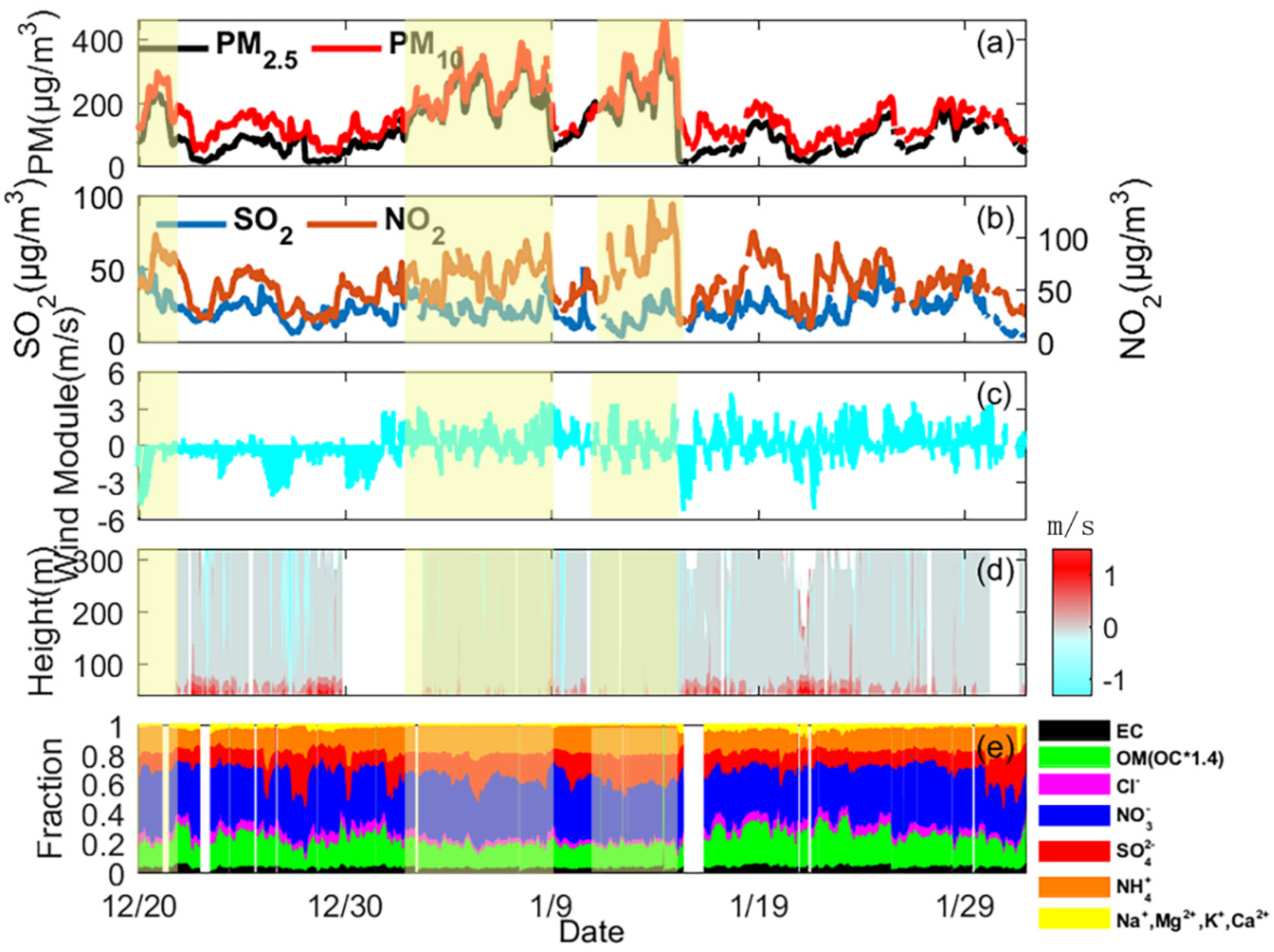

Figure 4. Time series of (a) PM2.5 and PM10, (b) SO2 and NO2, (c) horizontal wind, (d) vertical wind, and (e) PM2.5 chemical species during the period of enhanced observation (severe haze episodes, shaded areas).
Figure 4. Time series of (a) PM2.5 and PM10, (b) SO2 and NO2, (c) horizontal wind, (d) vertical wind, and (e) PM2.5 chemical species during the period of enhanced observation (severe haze episodes, shaded areas).
Atmosphere 13 00233 g004
Atmosphere 13 00233 g005 550

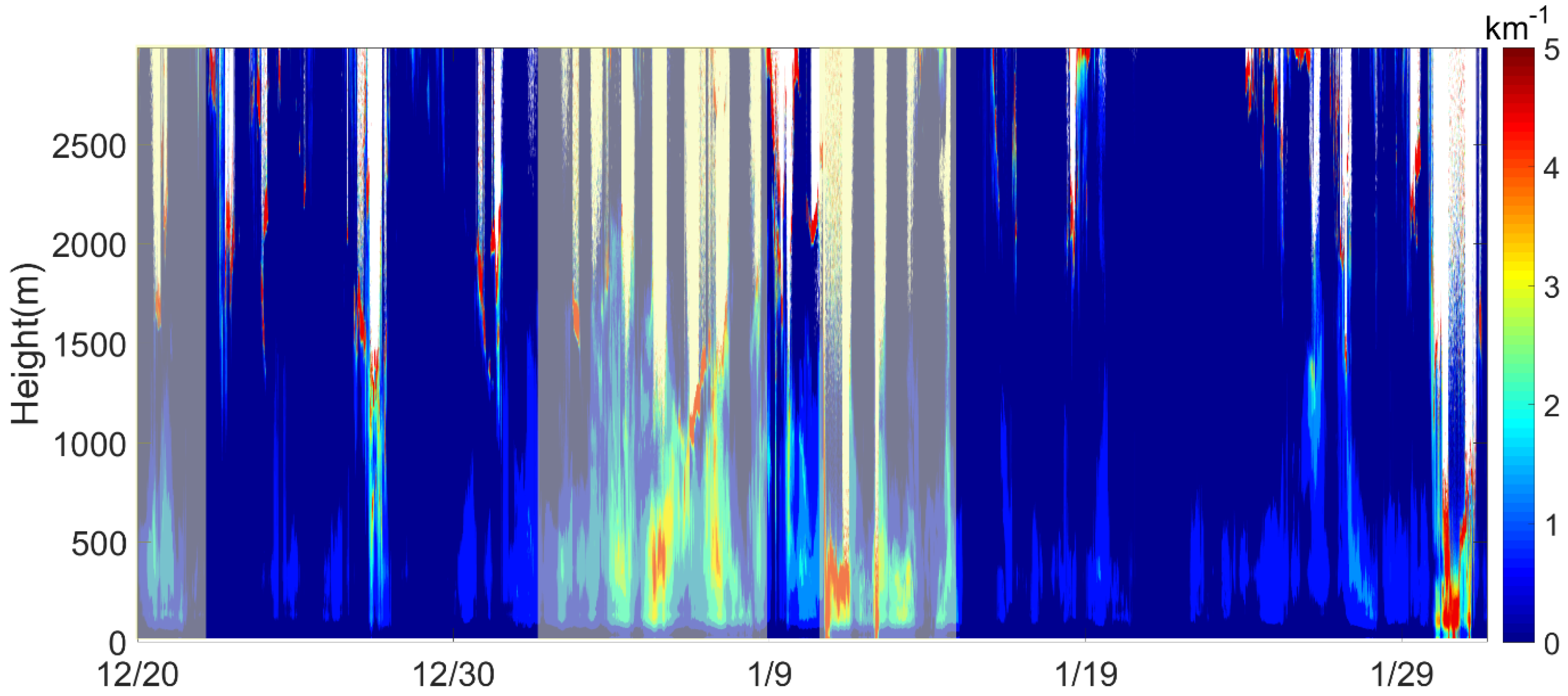

Figure 5. Time series of extinction coefficient of Sanmenxia during the period of enhanced observation (severe haze episodes, shaded areas).
Figure 5. Time series of extinction coefficient of Sanmenxia during the period of enhanced observation (severe haze episodes, shaded areas).
Atmosphere 13 00233 g005
Atmosphere 13 00233 g006 550

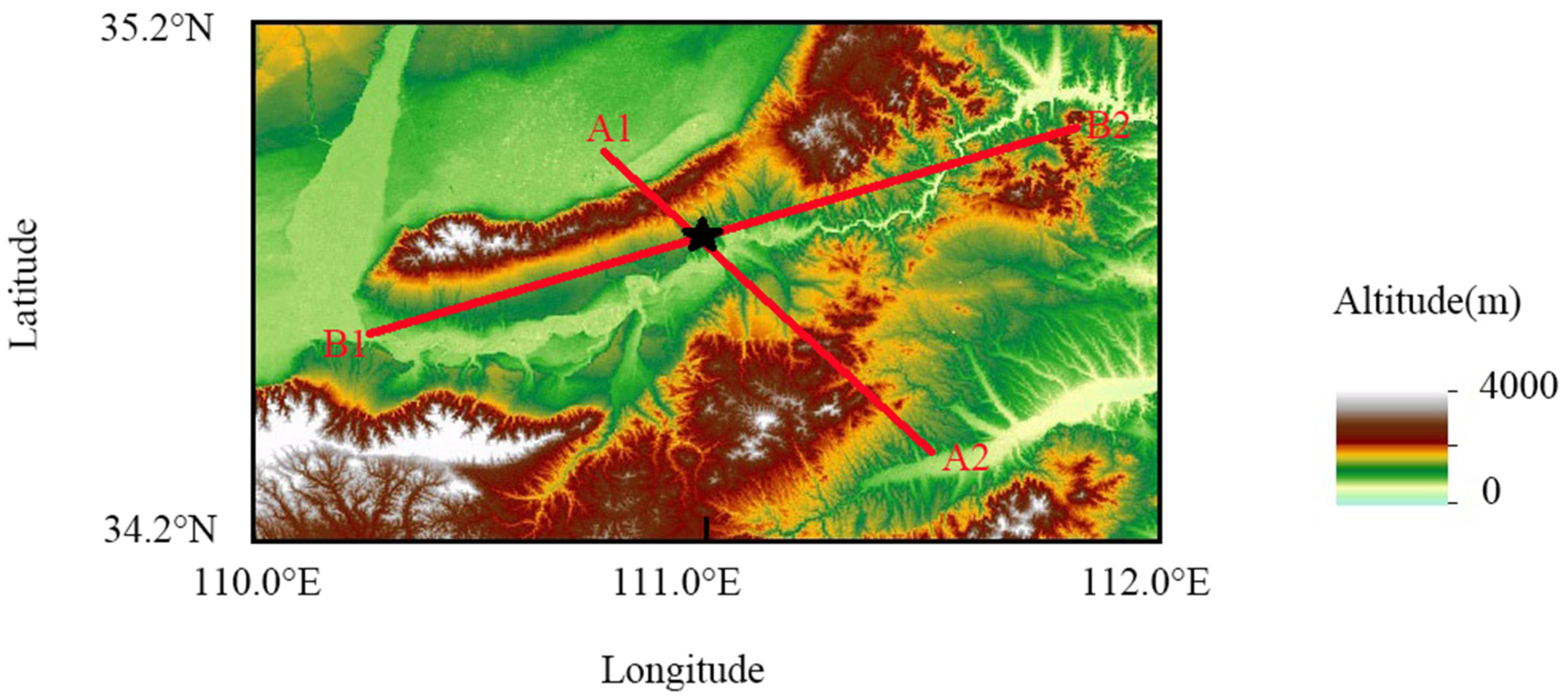

Figure 6. Topography of Sanmenxia, and the transect locations of A1−A2 and B1−B2. (black star shows the location of Sanmenxia).
Figure 6. Topography of Sanmenxia, and the transect locations of A1−A2 and B1−B2. (black star shows the location of Sanmenxia).
Atmosphere 13 00233 g006
Atmosphere 13 00233 g007 550

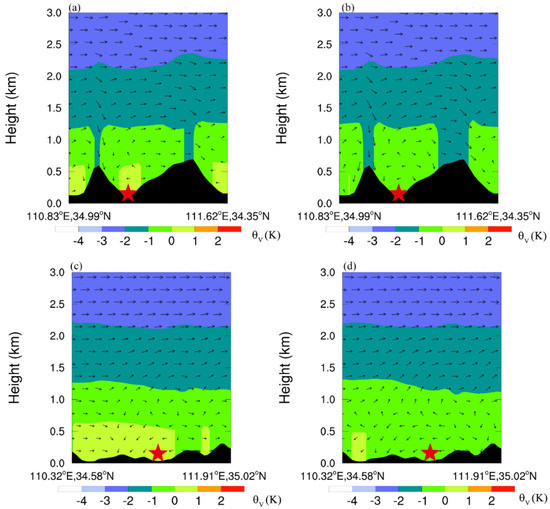

Figure 7. Circulation characteristics of (a) A1−A2 transect at daytime, (b) A1−A2 transect at nighttime, (c) B1−B2 section at daytime, and (d) B1−B2 transect at nighttime (mean results during the enhanced observation). Red star shows the location of Sanmenxia. Orography is black.
Figure 7. Circulation characteristics of (a) A1−A2 transect at daytime, (b) A1−A2 transect at nighttime, (c) B1−B2 section at daytime, and (d) B1−B2 transect at nighttime (mean results during the enhanced observation). Red star shows the location of Sanmenxia. Orography is black.
Atmosphere 13 00233 g007
Atmosphere 13 00233 g008 550

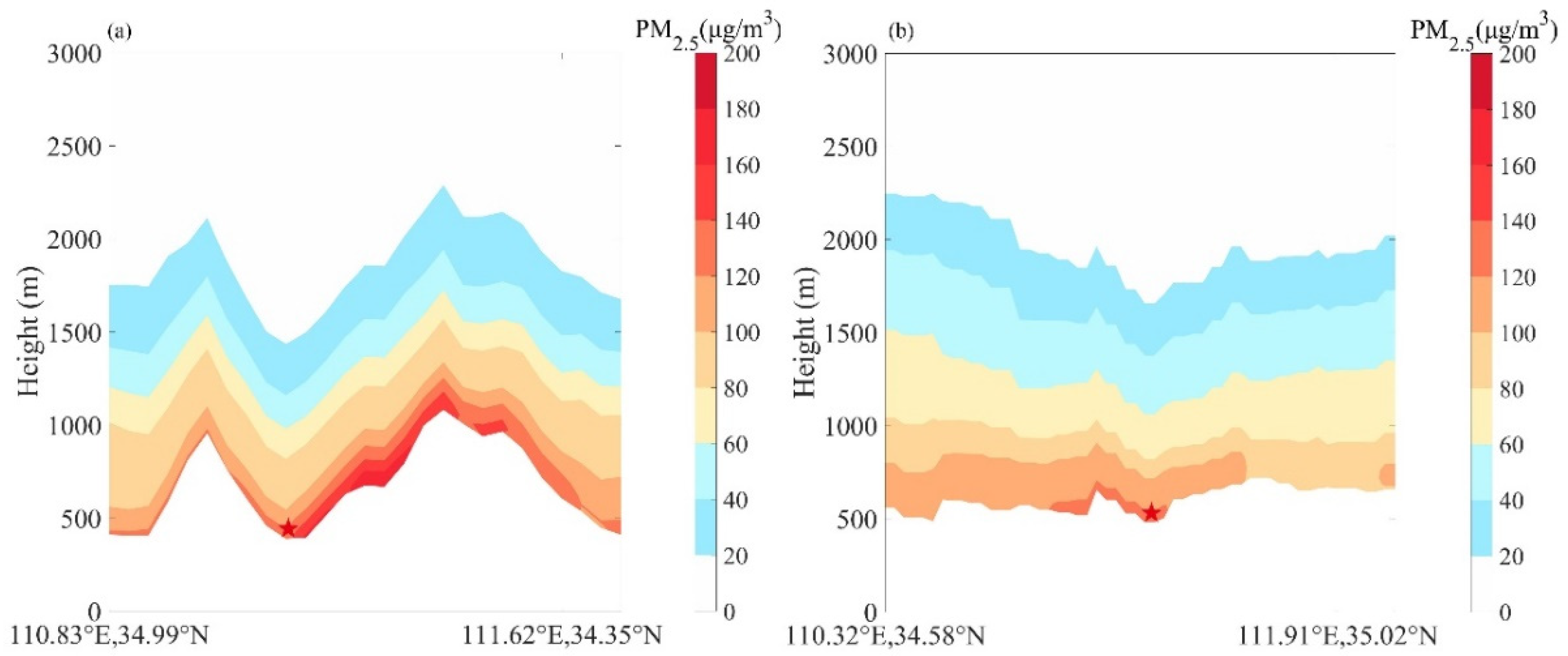

Figure 8. Vertical transects of averaged simulated PM2.5 of profile (a) A1−A2 transect and (b) B1−B2 transect during the severe haze episodes. Red star shows the location of Sanmenxia. Orography is white.
Figure 8. Vertical transects of averaged simulated PM2.5 of profile (a) A1−A2 transect and (b) B1−B2 transect during the severe haze episodes. Red star shows the location of Sanmenxia. Orography is white.
Atmosphere 13 00233 g008
Atmosphere 13 00233 g009 550

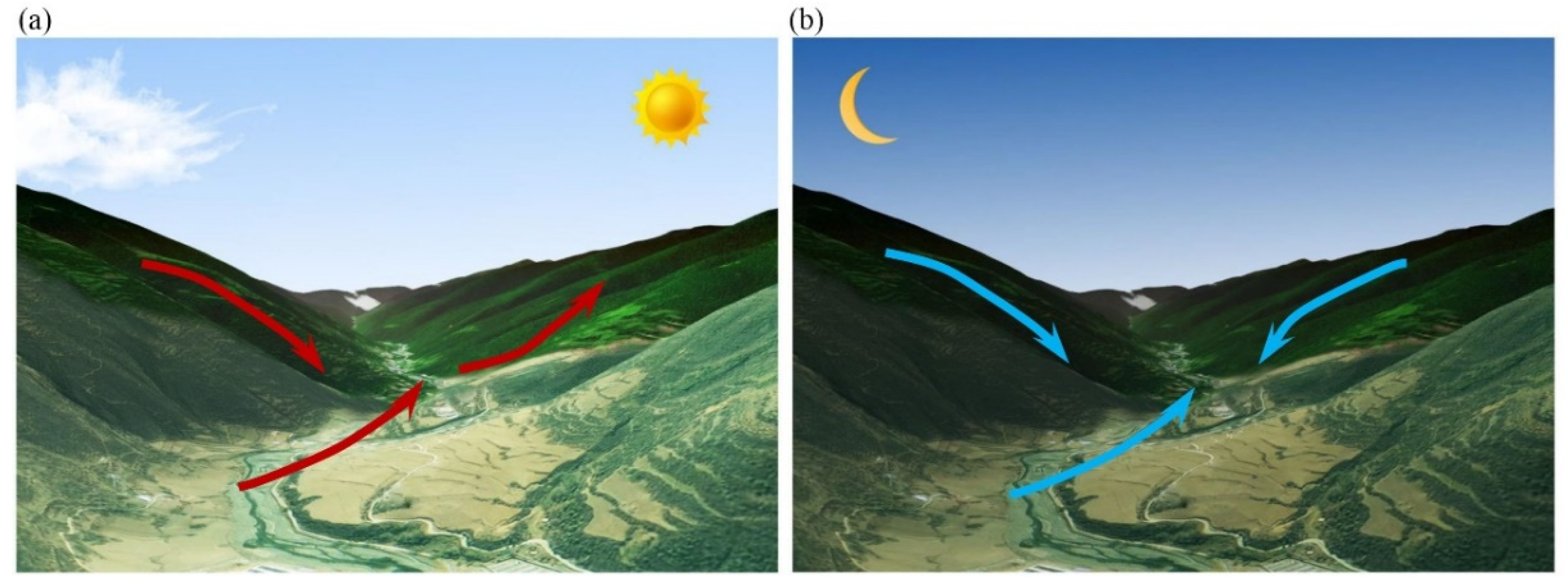

Figure 9. Schematic of two types of local circulation in Sanmenxia: (a) zonal wind at daytime, (b) downslope wind at nighttime. Arrows indicate averaged airflow.
Figure 9. Schematic of two types of local circulation in Sanmenxia: (a) zonal wind at daytime, (b) downslope wind at nighttime. Arrows indicate averaged airflow.
Atmosphere 13 00233 g009
Atmosphere 13 00233 g010 550

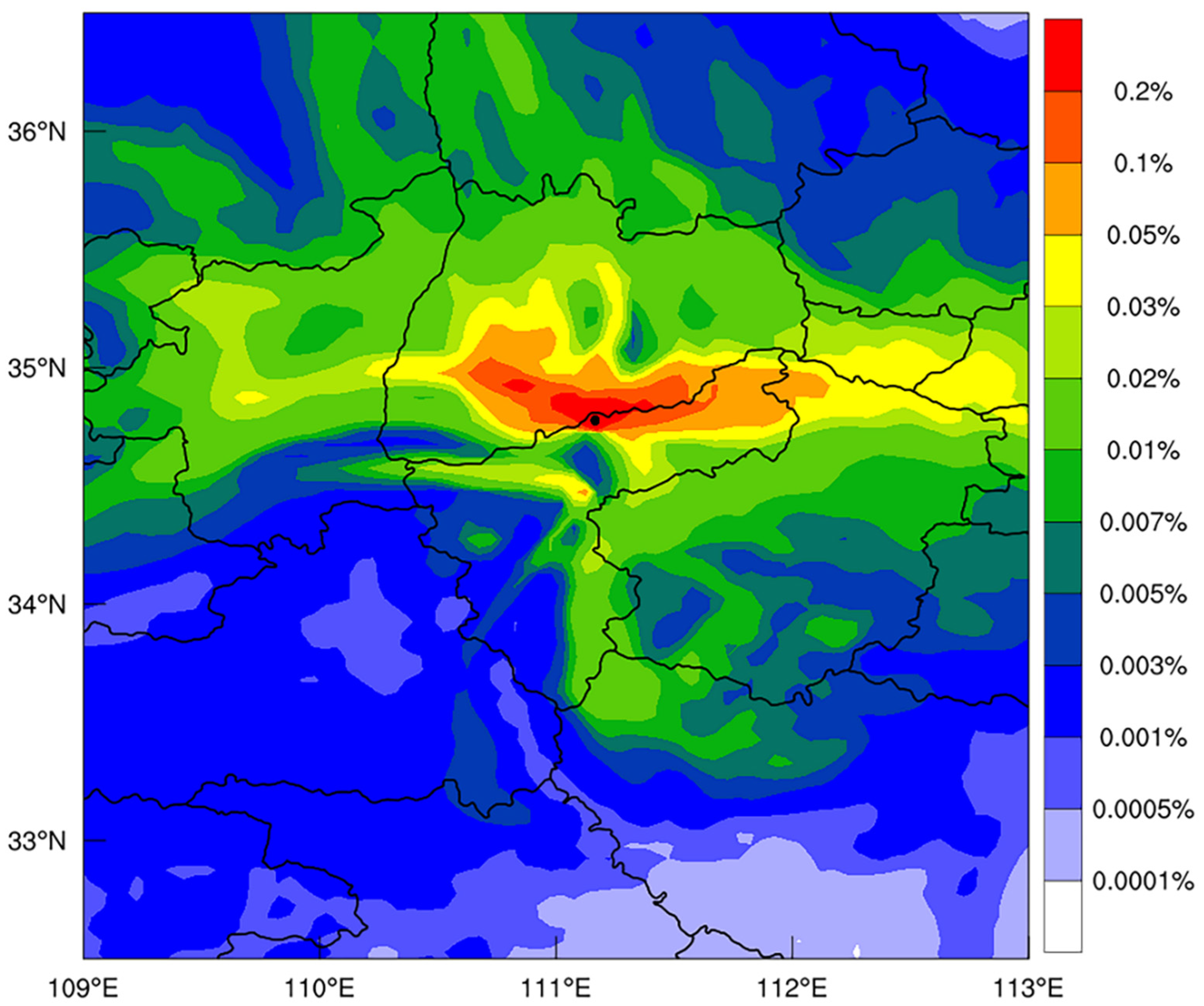

Figure 10. Horizontal transport paths of particulates in Sanmenxia during the severe haze episodes. (Black dot shows the location of Sanmenxia).
Figure 10. Horizontal transport paths of particulates in Sanmenxia during the severe haze episodes. (Black dot shows the location of Sanmenxia).
Atmosphere 13 00233 g010
Atmosphere 13 00233 g011 550

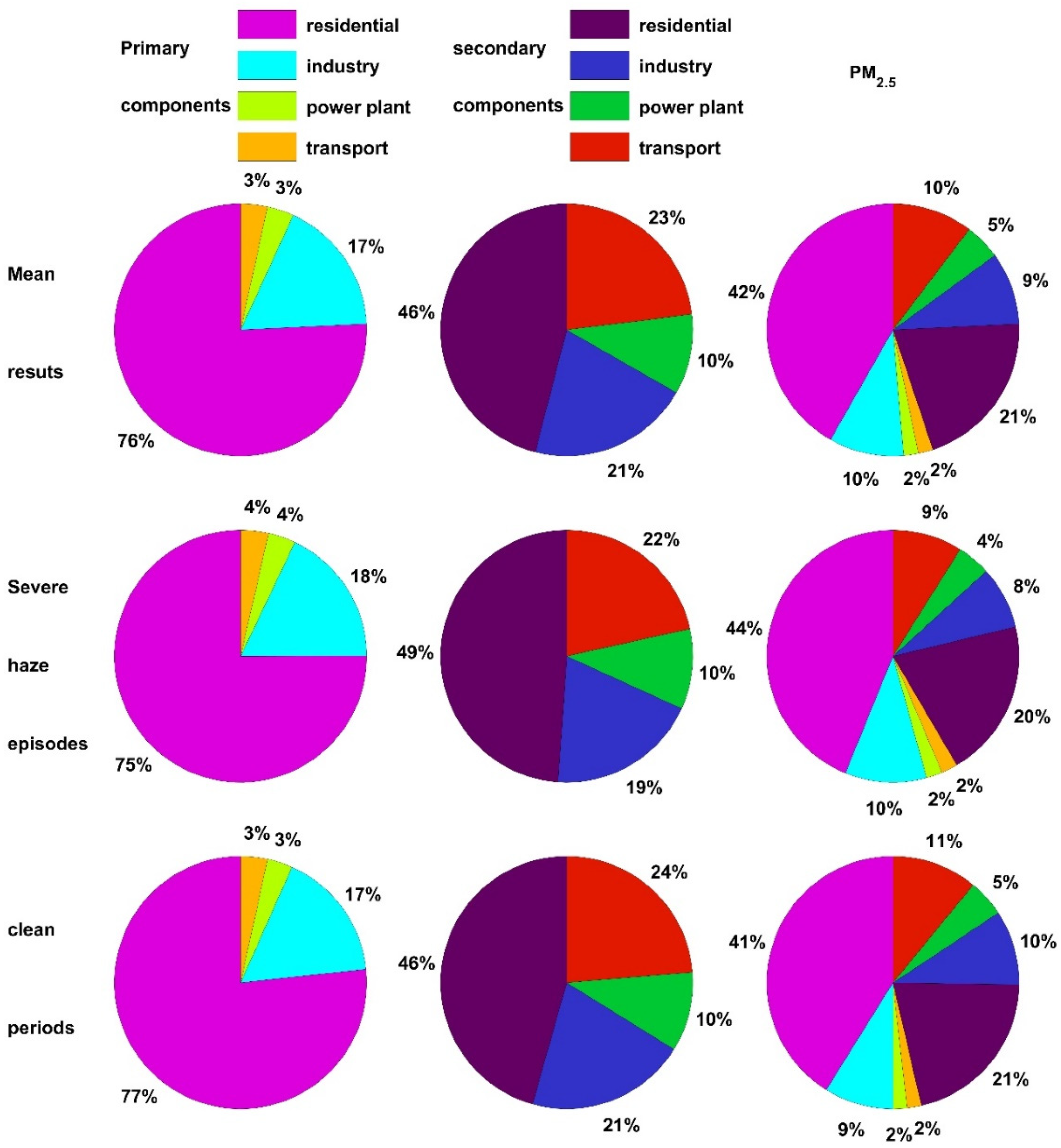

Figure 11. Mean PM2.5 source apportionments by different source categories in Sanmenxia during the enhanced observation periods.
Figure 11. Mean PM2.5 source apportionments by different source categories in Sanmenxia during the enhanced observation periods.
Atmosphere 13 00233 g011
Atmosphere 13 00233 g012 550
Figure 12. Mean PM2.5 source apportionments by different source regions in Sanmenxia of enhanced observation period and three severe haze periods.
Figure 12. Mean PM2.5 source apportionments by different source regions in Sanmenxia of enhanced observation period and three severe haze periods.
Atmosphere 13 00233 g012
Table
Table 1. Contribution of source regions to PM2.5 in Sanmenxia.
Table 1. Contribution of source regions to PM2.5 in Sanmenxia.
PrimarySecondary
Mean ResultsSevere Haze EpisodesClean PeriodsMean ResultsSevere Haze EpisodesClean Periods
SMX37%44%33%11%10%12%
YC53%48%57%24%22%25%
WN3%5%3%20%28%18%
HN-O6%2%6%16%7%16%
SHX-O1%1%1%18%24%18%
SX-O0%0%0%4%2%4%
OT0%0%0%7%7%7%
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Li, Y.; Wang, X.; Li, J.; Zhu, L.; Chen, Y. Numerical Simulation of Topography Impact on Transport and Source Apportionment on PM2.5 in a Polluted City in Fenwei Plain. Atmosphere 2022, 13, 233. https://doi.org/10.3390/atmos13020233

AMA Style

Li Y, Wang X, Li J, Zhu L, Chen Y. Numerical Simulation of Topography Impact on Transport and Source Apportionment on PM2.5 in a Polluted City in Fenwei Plain. Atmosphere. 2022; 13(2):233. https://doi.org/10.3390/atmos13020233

Chicago/Turabian Style

Li, Yanyu, Xuan Wang, Jie Li, Lingyun Zhu, and Yong Chen. 2022. "Numerical Simulation of Topography Impact on Transport and Source Apportionment on PM2.5 in a Polluted City in Fenwei Plain" Atmosphere 13, no. 2: 233. https://doi.org/10.3390/atmos13020233

APA Style

Li, Y., Wang, X., Li, J., Zhu, L., & Chen, Y. (2022). Numerical Simulation of Topography Impact on Transport and Source Apportionment on PM2.5 in a Polluted City in Fenwei Plain. Atmosphere, 13(2), 233. https://doi.org/10.3390/atmos13020233

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
