Application of 3D Embedded Discrete Fracture Model for Simulating CO₂-EOR and Geological Storage in Fractured Reservoirs

Abstract

For greenhouse gas control and environment protection, CO₂ emission reduction has become a hot spot in global research. CO₂ injection in developed oil reservoirs to enhance oil recovery is widely regarded as one of the most economical and promising measures for reducing anthropogenic CO₂ emissions into the atmosphere. In this paper, a three-dimensional embedded discrete fracture model is proposed and applied to simulate CO₂ flooding and geological storage processes in hydraulically fractured reservoirs. The gas injection is simplified as a two-phase two-component mathematical model with the varying pressure-related fluid physical properties, and its accuracy is verified by commercial software tNavigator^®. The advantage of this model is that it can deal with the complex geological conditions of three-dimensional arbitrary-inclined fracture networks and accurately assess the effects of CO₂-EOR and geological sequestration in real reservoirs. Two application cases of CO₂ huff-and-puff with a single well and inter-fracture asynchronous injection and production are demonstrated and explained in detail. The optimized technological parameters and CO₂ saturation distribution can provide key technical parameters for field operations.

1. Introduction

For more than 30 years, issues such as global climate change and global warming have been emerging in the agenda of national summits from the themes of academic papers and been hot topics in media forms such as newspapers, magazines, radio, television, and the Internet. It is now widely accepted that CO₂ is one of the major greenhouse gases that cause global warming, and global climate change is related to CO₂ emissions [1,2]. Carbon capture, utilization, and storage (CCUS) are among the key technologies to deal with global climate change, which have been highly valued by countries all over the world [3,4,5]. According to the current development of technologies, reinjection of CO₂ produced in the production process into formation is a technically feasible and environmentally safe solution [6,7,8]. Geological bodies that can be selected for utilizing and storing CO₂ include depleted oil and gas reservoirs, brine aquifers, deep ocean, coal seams that cannot be mined, and so on [9,10]. CO₂-EOR refers to capturing the carbon dioxide emitted in the production process and then injecting it into the reservoirs under development to enhance oil recovery (EOR) rather than simply storing it [11]. Compared with other methods of CO₂ geological sequestration, carbon dioxide can be recycled, which can produce economic benefits and has more practical operability. Owing to its advantage in technology and economy, CO₂-EOR becomes one of the current ideal storage technologies [12]. It not only has a large demand for CO₂ and meets the requirement of CO₂ permanent isolation but also can increase oil production. Its certain economic returns can compensate for the cost of CO₂ separation, transportation, and injection.

The proportion of low- and ultra-low-permeability reservoirs in the Ordos Basin is increasing year by year. How to develop such reserves economically and effectively has become the focus of most oilfields in China [13]. Although CO₂ injection into conventional high-permeability reservoirs has been used for many years to enhance oil recovery, the studies of CO₂-EOR and geological sequestration in low-permeability reservoirs are still quite inadequate, especially in complex fault-block reservoirs, which cannot form the regular well pattern [14]. Low-permeability reservoir refers to reservoirs with low porosity, poor fluid seepage capacity, and low natural productivity, which are difficult to develop on a large scale by conventional production approaches [15,16]. Low permeability is a relative concept. There is no unified standard for the classification of low-permeability reservoirs all over the world, which varies due to different national policies, resource status, and economic and technical conditions. For low-permeability oilfields in China, the reservoir rocks are mainly sandstone and siltstone, with porosity less than 15% and permeability less than 20 mD [17]. With the progress of staged-fractured technology of horizontal wells, the production of low-permeability reservoirs has been effectively improved. More than 90% of oil wells have produced industrial oil flow after hydraulic fracturing and other stimulation measures [18]. After hydraulic fracturing, multi-stage fractures are connected to form complex fracture networks, which increases the contact area between reservoir matrix and fractures and improves the overall permeability of reservoirs. Therefore, the precondition work of CO₂-EOR and geological sequestration in low-permeability reservoirs is making a detailed description and characterization of complex hydraulic fracture networks.

For conventional commercial numerical software, fractures are represented only through local grid refinement, which is just a simplified approach. At present, the characterization methods of complex fracture networks are mainly divided into the double-medium model and discrete fracture model. From the spatial configuration relationship between fracture and matrix, the dual-media model can be divided into the Warren–Root model [19], Kazemi model [20], and De Swaan model [21]. The second characterization method, represented by the research of Al-Ahmadi [22,23], Jones et al. [24], and Cippola et al. [25,26], explicitly characterizes the fractures and focuses on describing the fracture distribution patterns and determining the geometric morphology of each fracture. Lee et al. [27] first proposed the concept of the embedded discrete fracture model (EDFM). By explicitly embedding fractures into structured grids, the problem caused by unstructured grids is avoided. This method involves flexible mesh generation and has high solving efficiency. In addition, compared with the discrete fracture model (DFM), which uses complex unstructured grids to match the fracture geometry in space, EDFM only adopts a set of fixed structured rectangular grids, and fractures are separated from the grids and explicitly described in the preprocessing, which is the key advantage of EDFM over DFM. Moinfar et al. [28,29] developed EDFM into a three-dimensional (3D) form and considered the influence of fracture dynamic change on oil well productivity. Tene et al. [30] pointed out that EDFM cannot deal with situations in which fracture permeability is lower than matrix permeability and proposed pEDFM to solve this problem. Rao et al. [31] improved pEDFM by making it three-dimensional and improved the accuracy of solving. However, the application of 3D-EDFM for simulating CO₂-EOR and geological storage in fractured low-permeability reservoirs is rarely studied.

In this paper, a 3D-EDFM framework is built and deals with complex fracture networks in hydraulically fractured reservoirs. On this basis, a simplified two-phase two-component mathematical model with the varying pressure-related fluid physical properties is adopted to simulate CO₂ injection in low-permeability reservoirs. The accuracy of the proposed model is verified by commercial software tNavigator^®. This paper is a theoretical attempt to discuss the simulation method of CO₂-EOR and geological sequestration by 3D-EDFM. The obtained CO₂ reserves and saturation distribution can provide key technical parameters for field operations.

2. Methodology

2.1. Basic Assumptions and Governing Equations

Considering the true formation conditions of fractured reservoirs, in order to better establish the 3D-EDFM, the basic assumptions are as follows: (1) Reservoirs are homogeneous, isotropic, and isopachous; (2) The reservoir fluid flow is isothermal seepage of oil and gas two-phase; (3) Gravity effects are considered; (4) Reservoir boundary is closed; (5) Fractures are finite in conductivity, that is, the discrete fracture is composed of multiple fracture elements, and there is a pressure gradient along the fracture strike.

Oil component governing equation is as follows [32]:

$$\nabla \cdot \left\{\frac{k{k}_{ro}}{B_o{\mu }_o}\left[\nabla p_o-\nabla \left({\gamma }_{o}D\right)\right]\right\}+q_o=\frac{\partial }{\partial t}\left(\frac{\varphi S_o}{B_o}\right)$$

(1)

where ${\gamma }_o={\rho }_{osi}g/B_o$, and ${\rho }_{osi}$ is oil-phase density under standard surface conditions. Therefore, the equation can be rewritten as:

$$\nabla \cdot \left\{\frac{k{k}_{ro}}{B_o{\mu }_o}\left[\nabla p_o-{\rho }_{osi}g\nabla \left(\frac{D}{B_o}\right)\right]\right\}+q_o=\frac{\partial }{\partial t}\left(\frac{\varphi S_o}{B_o}\right)$$

(2)

Similarly, the gas component equation can be written as:

$$\nabla \cdot \left\{\frac{k{k}_{rg}}{B_g{\mu }_g}\left[\nabla p_g-{\rho }_{gsi}g\nabla \left(\frac{D}{B_g}\right)\right]+\frac{R_{s}k{k}_{ro}}{B_o{\mu }_o}\left[\nabla p_o-{\rho }_{osi}g\nabla \left(\frac{D}{B_o}\right)\right]\right\}+q_g+R_s{q}_o=\frac{\partial }{\partial t}\left(\frac{\varphi S_g}{B_g}+\frac{\varphi R_s{S}_o}{B_o}\right)$$

(3)

where ${\gamma }_g={\rho }_{gsi}g/B_g$, and ${\rho }_{gsi}$ is gas-phase density under standard surface conditions.

2.2. Finite Volume Discretization of Flow Equations for 3D-EDFM

For 3D-EDFM, rectangular parallelepiped grids are generally chosen to solve the geometrical parameters between the fracture surface and the matrix [33]. In this set of grid systems, the finite volume method that satisfies the local mass balance and has clear physical meaning is the preferred choice. Therefore, the finite volume method is used to discretize the flow equation for the cuboid matrix grid. The details are as follows:

We take the oil component equation as an example to illustrate the finite volume discrete scheme of flow equations. In this paper, the block-center finite volume method is adopted. The block-center control volume is the volume of gridblock where the block center is located. Integrating the time and control volume on both sides of the oil-phase equation above, and using the divergence theorem, the following is obtained:

$${\displaystyle {\int }_t^{t+\Delta t}{\displaystyle \int \left\{\frac{k{k}_{ro}}{B_o{\mu }_o}\left[\nabla p_o-\nabla \left({\gamma }_{o}D\right)\right]\right\}}}\cdot \mathbf{n}\mathrm{d}s\mathrm{d}t+q_o={\displaystyle {\int }_{\Delta V}{\displaystyle {\int }_t^{t+\Delta t}\left[\frac{\partial }{\partial t}\left(\frac{\varphi S_o}{B_o}\right)\right]}}\mathrm{d}t\mathrm{d}V$$

(4)

The area integral in the left side of Equation (4) can be approximated by the sum of normal flow rates between adjacent gridblocks that conform to physical significance. For the integration of time on the right side of the above equation, it can be solved accurately, which is why the finite volume method has high precision. Equation (4) can be rewritten as:

$${\displaystyle \sum _{j=1}^n\left\{T_{ij}\left[\left(p_{oi}-p_{oj}\right)+\left({\gamma }_{oi}{D}_{oi}-{\gamma }_{oj}{D}_{oj}\right)\right]\right\}}+q_{sc}^{n+1}=\frac{\Delta V_i}{\Delta t}\left[{\left(\frac{\varphi S_o}{B_o}\right)}^{t+\Delta t}-{\left(\frac{\varphi S_o}{B_o}\right)}^t\right]$$

(5)

where n is the number of other gridblocks adjacent to this gridblock; ΔV_i is the volume of the gridblock; Δt is the time interval of two adjacent time steps; and T_ij is the transmissibility of adjacent gridblocks, which is the product of the mobility λ_ij and the geometric factor G_ij.

The mobility λ_ij can be expressed as:

$${\lambda }_{ij}=\frac{k_{ro}}{{\mu }_o{B}_o}$$

(6)

In this equation, the upstream scheme is used for the value of the physical quantity k_ro subject to saturation. For physical quantities μ_o and B_o subject to pressure, the values are in the arithmetic average scheme as:

$$k_{ro}=\{\begin{array}{ll}{\left(k_{ro}\right)}_i& p_{o,i}\ge p_{o,j}\\ {\left(k_{ro}\right)}_j& p_{o,i}<p_{o,j}\end{array}$$

(7)

$${\mu }_o=\frac{{\mu }_{o,i}+{\mu }_{o,j}}{2}$$

(8)

$$B_o=\frac{B_{o,i}+B_{o,j}}{2}$$

(9)

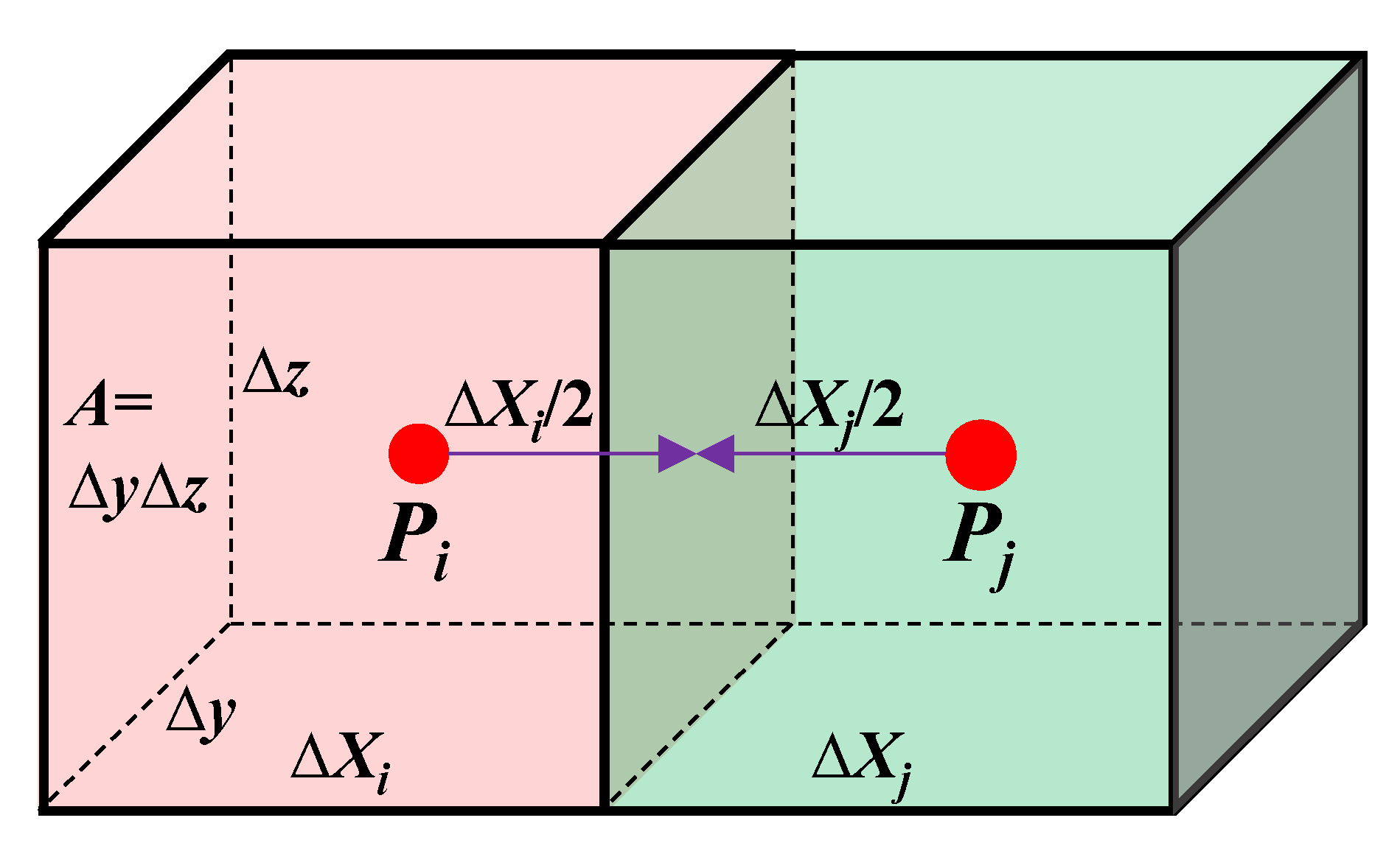

The geometric factor G_ij of mass transfer between two adjacent matrix grids is equal to half of the harmonic average of geometric factors G_i and G_j in two separate grids, as shown in Figure 1. For 3D box mesh, taking the X direction as an example, we can obtain:

$$G_{ij}={\left(G_i^{-1}+G_j^{-1}\right)}^{-1}$$

(10)

$$G_i=\frac{k_{i}A}{2\Delta x_i}$$

(11)

$$G_j=\frac{k_{j}A}{2\Delta x_j}$$

(12)

Similar to the oil component equation, the block-center finite volume discrete scheme of the gas component flow equation in the matrix grid is:

$$\begin{array}{l}{{\displaystyle \sum _{j=1}^n\left[G_{ij}{\lambda }_{g,ij}\left(p_{o,i}-p_{o,j}+p_{cgo,i}-p_{cgo,j}\right)+R_{s,ij}{G}_{ij}{\lambda }_{o,ij}\left(p_{o,i}-p_{o,j}\right)+\left({\gamma }_{oi}{D}_{oi}-{\gamma }_{oj}{D}_{oj}\right)\right]}}^{n+1}+q_{gsc}^{n+1}\\ +R_{s,i}{q}_{osc}^{n+1}=\frac{\Delta V_i}{\Delta t}\left[{\left(\frac{\varphi S_{g,i}}{B_g}\right)}^{n+1}-{\left(\frac{\varphi S_{g,i}}{B_g}\right)}^n+{\left(\frac{R_s\varphi \left(1-S_{g,i}-S_{w,i}\right)}{B_o}\right)}^{t+\Delta t}-{\left(\frac{R_s\varphi \left(1-S_{g,i}-S_{w,i}\right)}{B_o}\right)}^t\right]\end{array}$$

(13)

In this paper, for flow between fracture units, the block-center finite volume method is still used to discretize the flow equation. Taking the oil component equation as an example, the discrete scheme can be obtained as follows:

$${\displaystyle \sum _{j=1}^n\left\{T_{fij}\left[\left(p_{ofi}-p_{ofj}\right)+\left({\gamma }_{ofi}{D}_{ofi}-{\gamma }_{ofj}{D}_{ofj}\right)\right]\right\}}+q_{omf}=\frac{\Delta V_i}{\Delta t}\left[{\left(\frac{{\varphi }_f{S}_{of,i}}{B_o}\right)}^{t+\Delta t}-{\left(\frac{{\varphi }_f{S}_{of,i}}{B_o}\right)}^t\right]$$

(14)

where n is the number of fracture units adjacent to the ith fracture unit; T_fij is the transmissibility of the ith and jth fracture units; p_ofi, p_ofj are the oil-phase pressure at the center of ith and jth fracture units; γ_ofi, γ_ofj are the oil-phase gravity at the center of ith and jth fracture units; D_ofi, D_ofj are the depths at which the centers of ith and jth fracture units are located (negative number); q_omf is the transfer flux term of the matrix grid to the fracture unit; ΔV_i is the volume of the ith fracture unit; Δt is the time increment; φ_f, S_oj,i are the porosity and saturation of the ith fracture unit; and B_o is the oil-phase volume factor corresponding to the ith fracture unit.

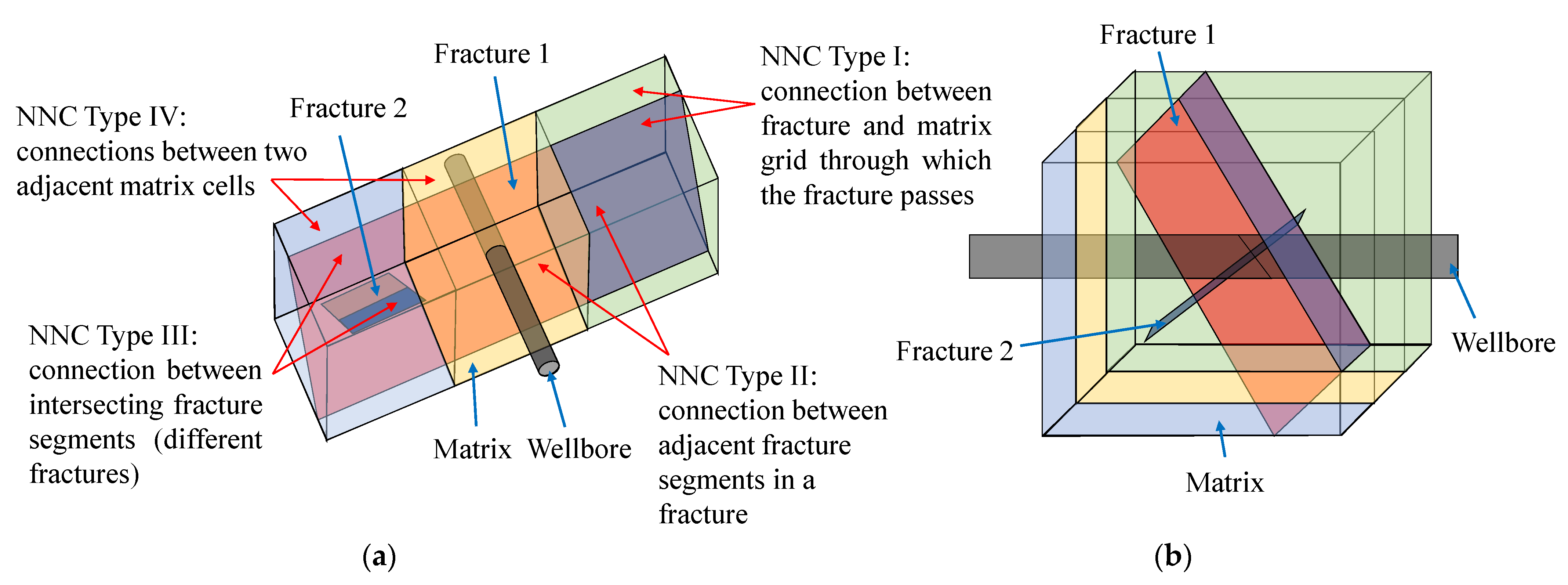

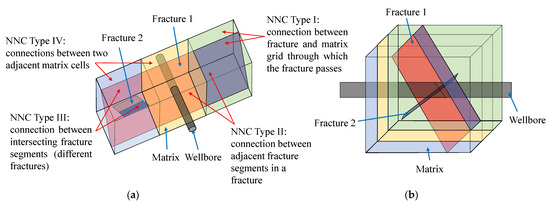

It can be seen from Equations (5) and (13) that the key to determining the specific discrete scheme of the flow equation of fracture units is to determine the transmissibility T_fij of fracture units, and the calculation of the geometric factor G_fij in the transmissibility is related to the connection relationship between fracture units. As shown in Figure 2, after dividing the fracture by matrix grid boundary, four types of Non-Neighboring Connection (NNC) in 3D-EDFM are formed, which are the connection between the fracture segment and the matrix grid through which the fracture section passes (NNC Type I), the connection between adjacent fracture segments in a fracture (NNC Type II), the connection between intersecting fracture segments (different fractures, NNC Type III), and the connection between two adjacent matrix cells (NNC Type IV). Introducing NNC pairs enables flow exchange between grids that are not only adjacent in the physical model but also adjacent in the computational model. The general calculation equation of the transmissibility coefficient of NNC is:

$$T_{NNC}=\frac{K_{NNC}{A}_{NNC}}{d_{NNC}}$$

(15)

where K_NNC is the permeability of NNC, i.e., the effective permeability, mD; A_NNC is the contact area of NNC, i.e., the open area, m²; and d_NNC is the characteristic distance associated with NNC, m.

2.3. Characterization of CO₂ Physical Properties Change

Ordos Basin may be the most favorable and suitable place for CCUS in China. This paper studies the Chang-7 reservoir of Changqing Oilfield, which is located in the south of Ordos Basin, as shown in Figure 3. Due to the low reservoir pressure, it is difficult for oil and gas to reach the miscible state after CO₂ injection, and the component change is not violent. Therefore, gas injection into oil reservoirs can be simplified as a two-phase two-component problem, which can be treated by the black oil model.

To evaluate the effect of injected gas, it is necessary to accurately calculate the PVT properties of CO₂. The main oil recovery mechanism of CO₂ immiscible flooding is to reduce the viscosity of crude oil, expand the volume of crude oil, extract and vaporize light hydrocarbons in crude oil, and reduce interfacial tension. This kind of CO₂-EOR is usually characterized by the changing of CO₂ physical properties. According to the D-A-K method introduced by Dranchuk et al. [35], the properties of CO₂ under different reservoir pressures can be obtained as shown in Equation (16).

$$B_g=\frac{V}{V_{sc}}=\frac{ZT{P}_{sc}}{T_{sc}P}=Z\cdot \frac{273+t}{273}\cdot \frac{P_{sc}}{P}$$

(16)

The Lee–Gonzalez–Eakin equations [36], such as Equations (17) and (18), are used for a semi-empirical method to calculate gas viscosity as:

$${\mu }_g={10}^{-4}K\cdot \exp \left(X{\rho }_g^Y\right)$$

(17)

$$K=\frac{{10}^{-4}\exp \left(X{\rho }_g^Y\right)}{209.2+19.26M_g+1.8T}$$

(18)

It is well known that the molecular weight of CO₂ is 44. According to the above method, the PVT properties of CO₂ are calculated iteratively, and the results are shown in

Table 1. The PVT property of CO₂.

Reservoir Pressure, MPa	The Volume Coefficient of CO2, m3/m3	The Viscosity of CO2, mPa·s
3.45	0.030	0.012
6.90	0.012	0.016
10.34	0.007	0.026
15.17	0.005	0.041
17.93	0.005	0.047
20.69	0.005	0.052
23.45	0.004	0.057
25.52	0.004	0.061
27.03	0.004	0.063
28.97	0.004	0.066

. With the increase in reservoir pressure, the volume coefficient of CO₂ gradually decreases, but the viscosity of CO₂ increases. The effect of CO₂ injection can be approximated by introducing the pressure-dependent physical properties of CO₂ into the black oil model.

3. Model Validation

In our previous research [37], the accuracy of the proposed embedded discrete fracture modeling has been verified. Combined with the varying pressure-related fluid physical properties, the accuracy of the improved black oil model in this paper is compared with the compositional model from the advanced reservoir simulation software named tNavigator^® for evaluating the injection of CO₂. The values of parameters used in the simulation are shown in

Table 2. Parameters of the numerical simulation case.

Properties	Value	Properties	Value
Grid size, m	1 × 1 × 10	Initial reservoir pressure, MPa	14.1
Number of grids	100 × 100 × 1	CO2 density (SC), g/L	1.96
Initial oil saturation, fraction	0.8	Initial gas–oil ratio, m3/m3	68.17
Reservoir depth, m	1600	Oil density (SC), kg/m3	820
Layer thickness, m	10	Rock compressibility, MPa −1	1.07 × 10−4
Injection pressure, MPa	25	Production pressure, MPa	10

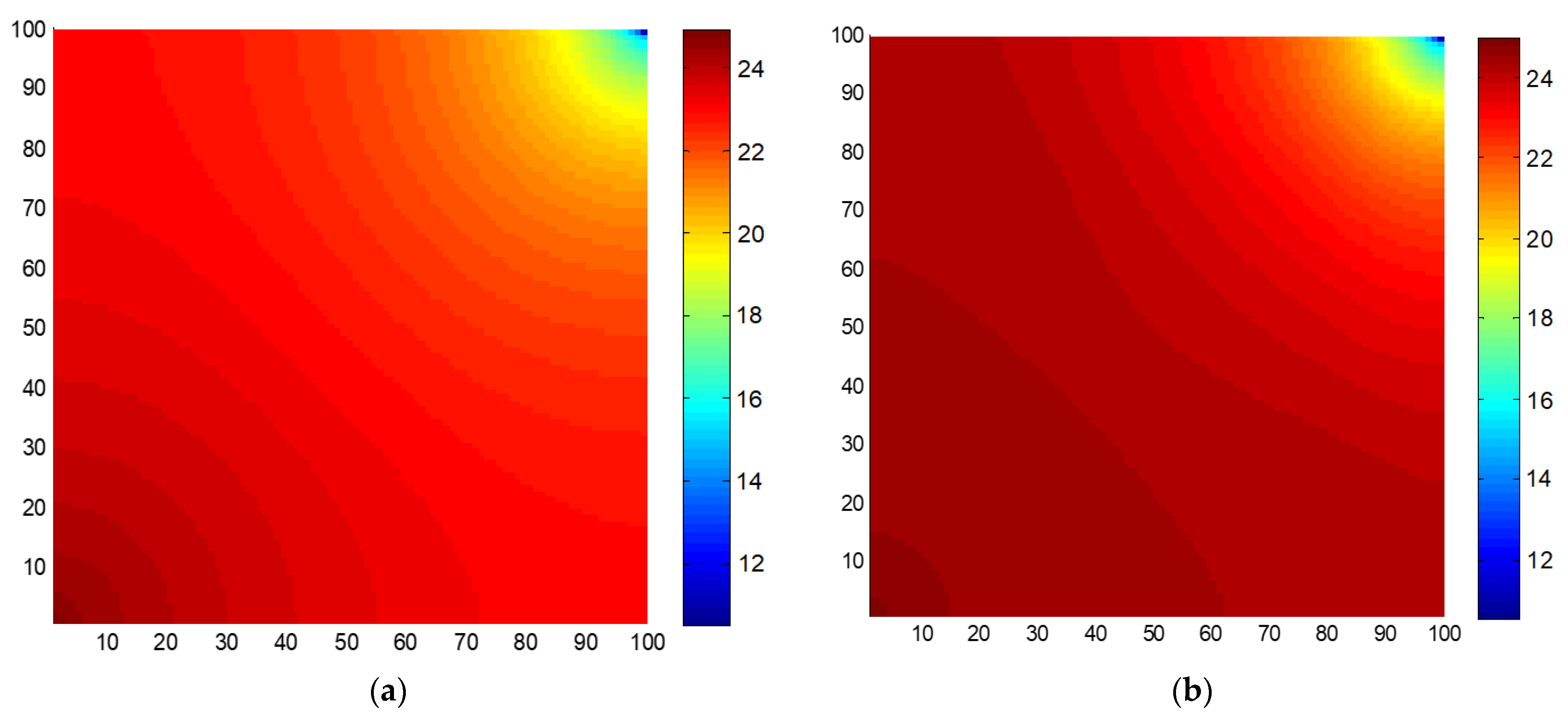

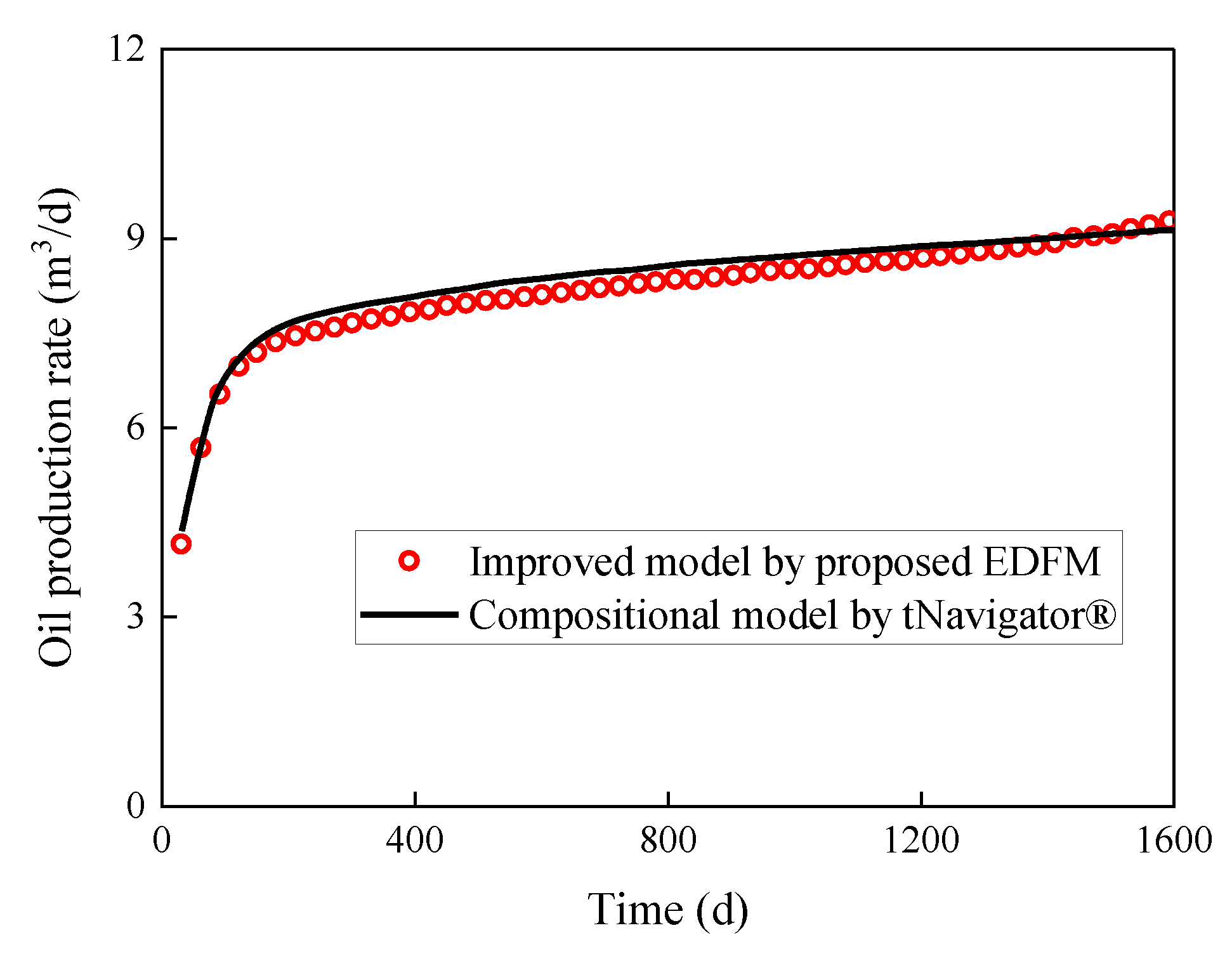

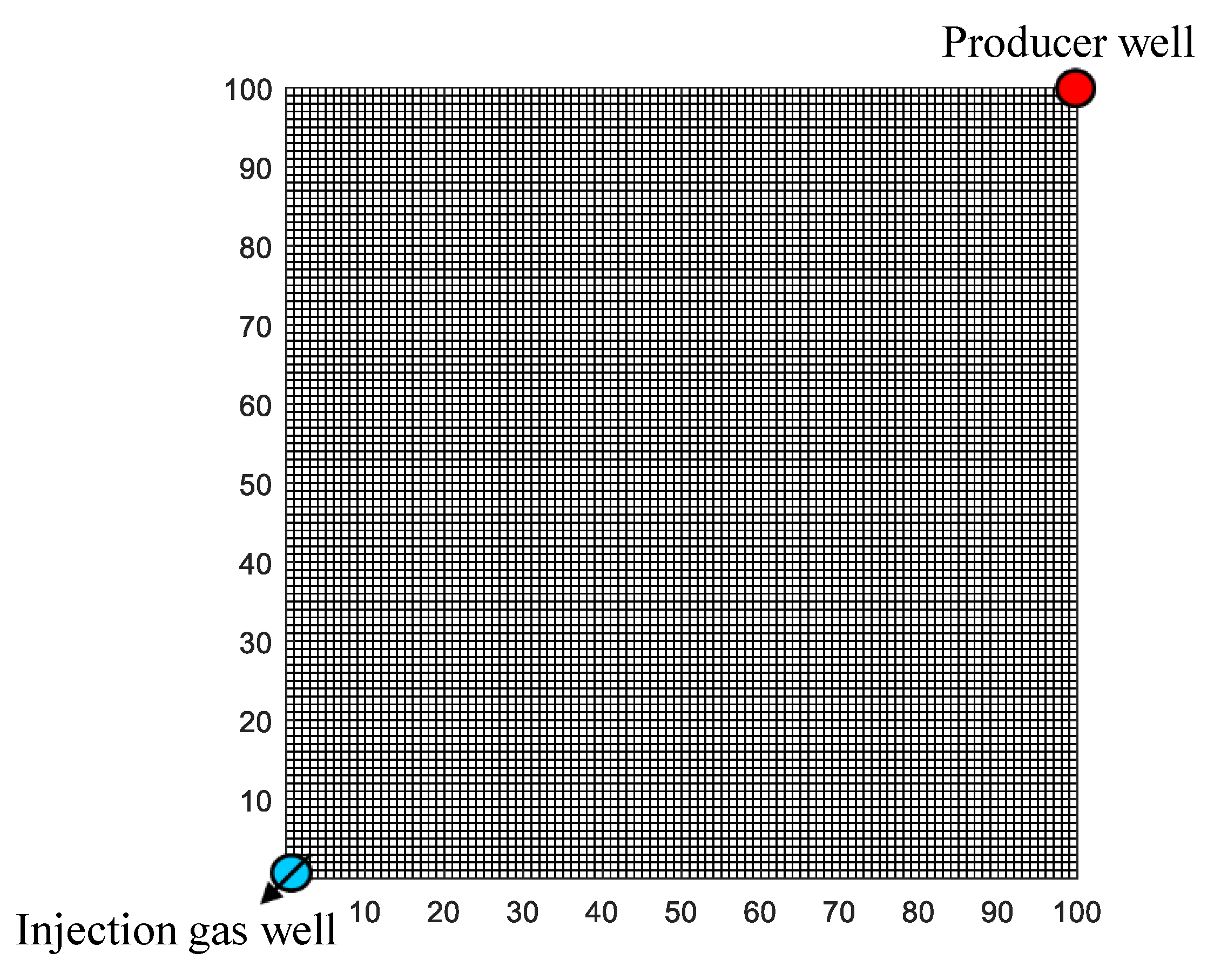

. Based on the physical scenario of one-well injection and one-well production (as shown in Figure 4), the reservoir pressure distribution of the improved model by our EDFM is consistent with that of the compositional model by tNavigator^®, as indicated in Figure 5. Similarly, the results of well production performance between the two simulators are remarkably similar, as illustrated in Figure 6. The above verification shows that the model proposed in this paper can reflect dynamic characteristics affected by injecting CO₂.

4. Application Cases

In this section, two numerical examples of single-well multicycle CO₂ huff-and-puff and multi-well inter-fracture CO₂ flooding are introduced to demonstrate the engineering application of the proposed model in CO₂-EOR and carbon sequestration. Both examples are aimed at the Chang-7 reservoir in Ordos Basin, and basic parameters are consistent.

Table 3. Physical properties of the reservoir and fluids.

Properties	Value	Properties	Value
Reservoir volume, m	1000 × 500 × 30	Grid number	100 × 50 × 3
Reservoir depth, m	1500	Initial reservoir pressure, MPa	30
Well diameter, m	0.178	Skin factor, fraction	0.1
Rock compressibility, MPa−1	1.07 × 10−4	Fracture aperture, m	0.01
Matrix porosity, fraction	0.17	Fracture porosity, fraction	0.4
Matrix permeability, mD	1	Fracture permeability, mD	20,000
CO2 density (SC), g/L	1.96	Oil density (SC), kg/m3	820
Oil viscosity, mPa·s	2	Oil compressibility, MPa−1	3.02 × 10−3

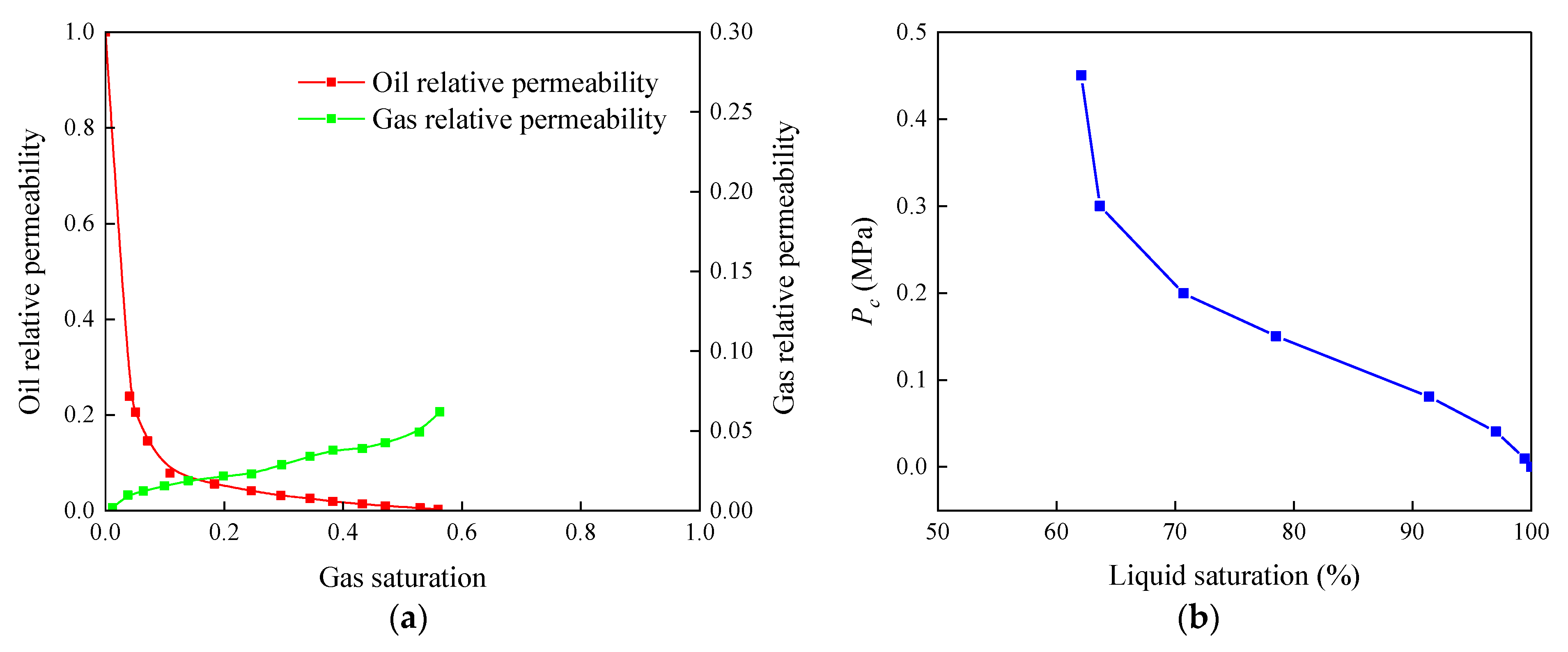

summarizes the model physical properties of the reservoir and fluids, such as rock, fracture, injection gas (CO₂), and crude oil. As shown in Figure 7, there are relative permeability and capillary pressure curves in matrix, which reflects the flowability of oil and gas in reservoirs.

4.1. Multicycle CO₂ Huff-and-Puff in a Multistage Fractured Horizontal Well

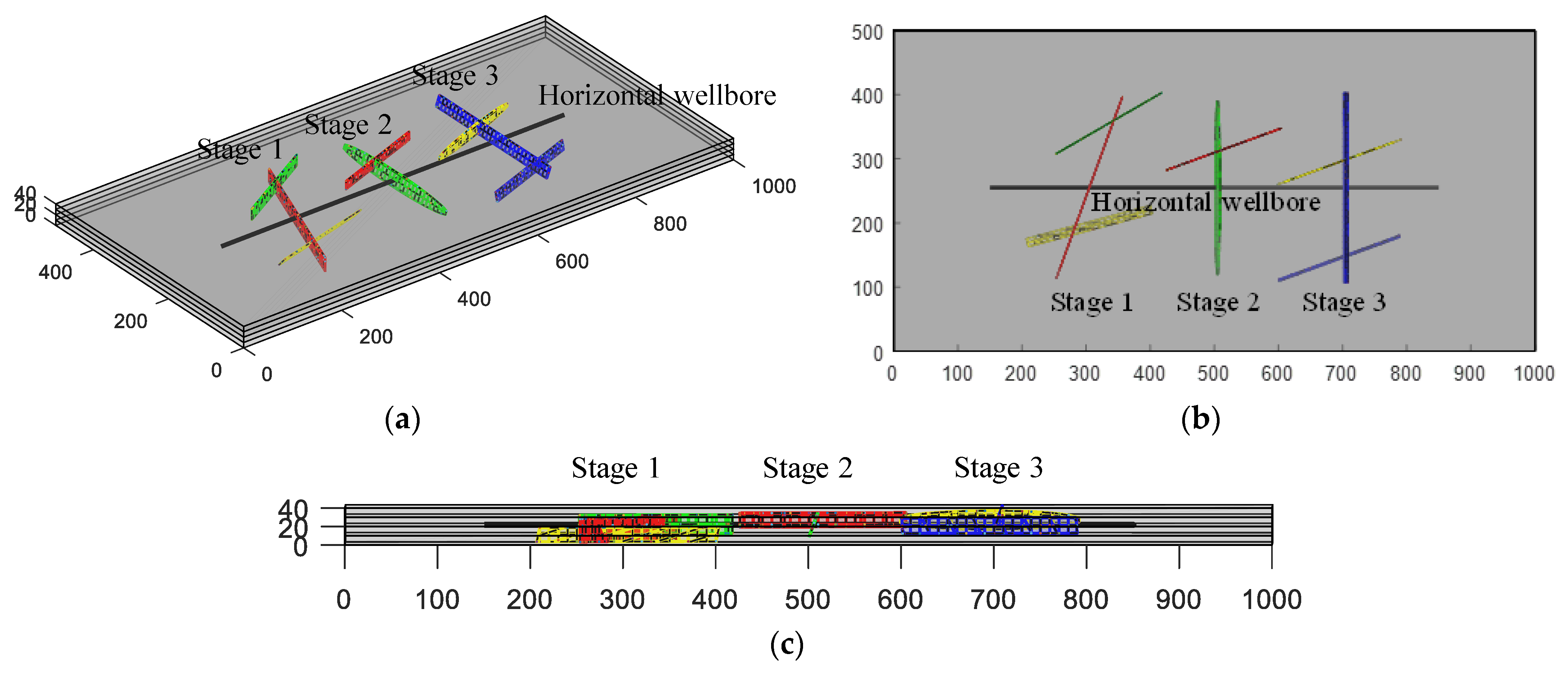

In this example, 3D-EDFM is applied for the production simulation of multicycle CO2 huff-and-puff in a multistage fractured horizontal well. Figure 8 shows the front view, overhead view, and 3D view of the reservoir model for a three-stage fractured horizontal well. The biggest difference between 3D-EDFM and 2D-EDFM is that the 3D model can capture the characteristics of arbitrary-placed inclined fractures with arbitrary shapes. It can be seen that our simulator can efficiently calibrate the hydraulic fracture networks using given information and characterize more complex spatial positions and fracture shapes, which is hardly achieved by commercial software such as tNavigator^® that only can handle situations in which fractures are aligned with axes.

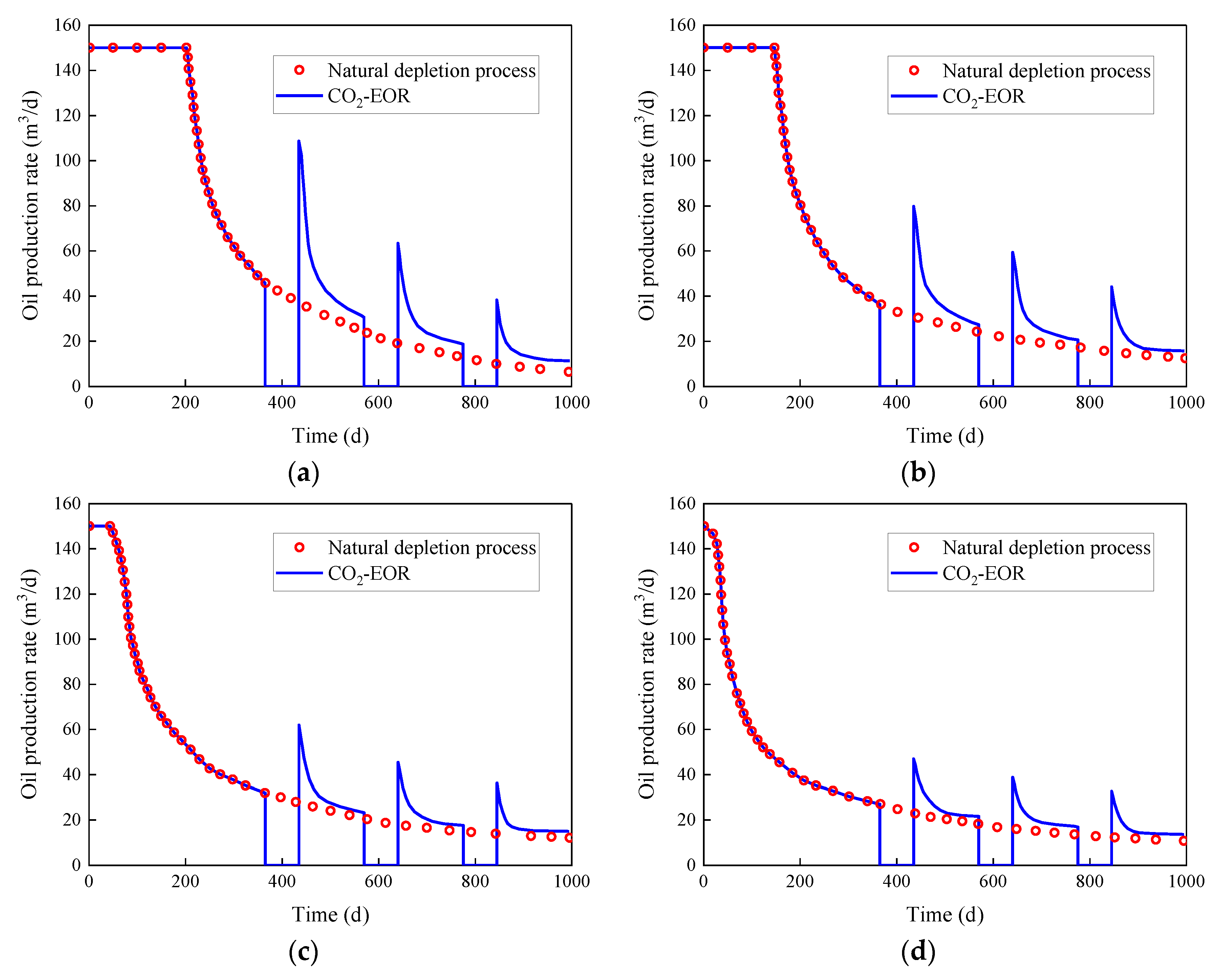

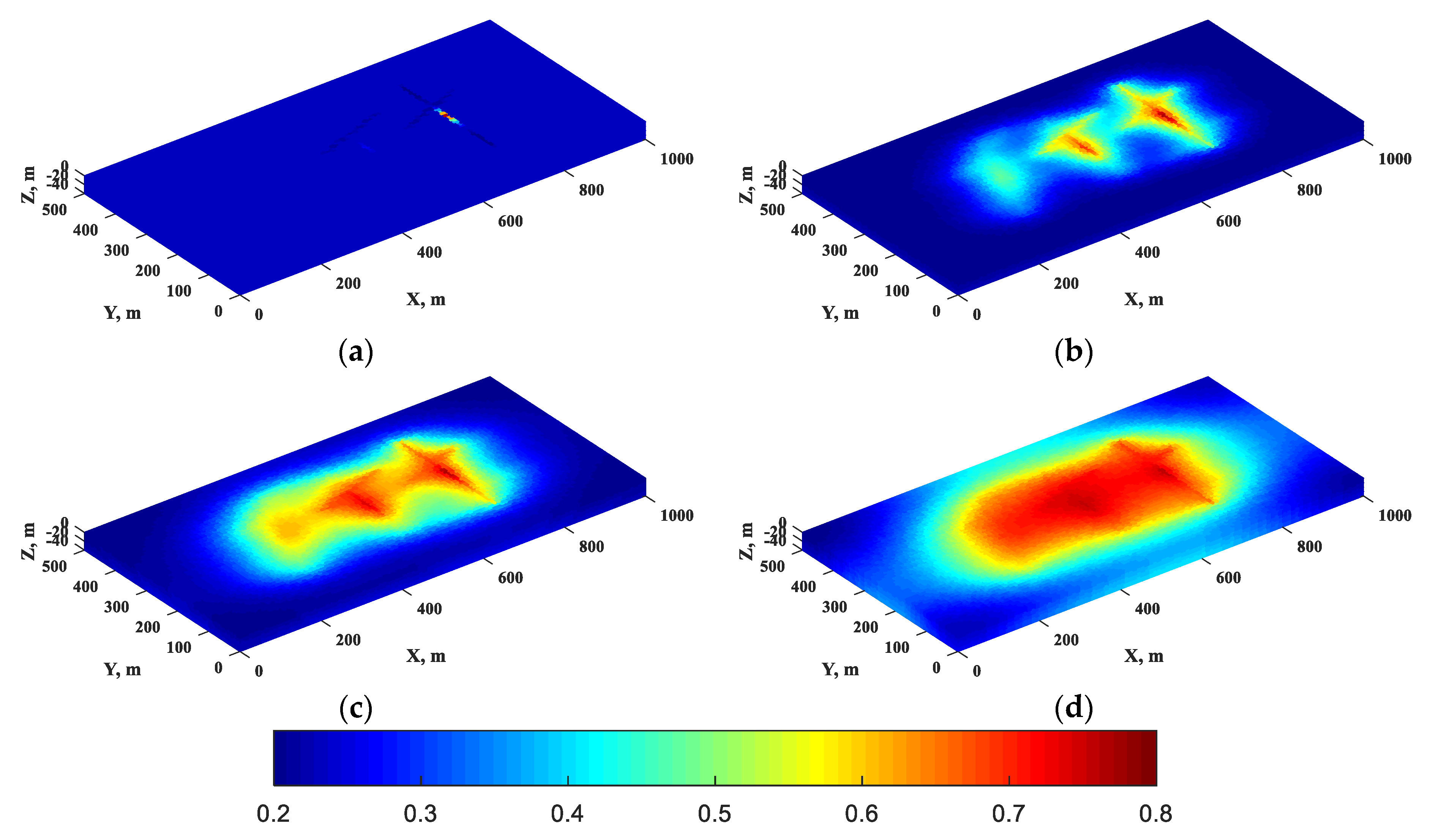

The fractured horizontal well of this model is controlled at a fixed oil production of 150 m³/d. When the reservoir pressure is lower than the economic limit pressure, the production well will be transformed into a CO₂ huff-and-puff huff working system. The cycle of CO₂ huff-and-puff is 135 days, and the interval between cycles is 70 days. The injection pressure of CO₂ is set at a fixed 30 MPa. Figure 9 shows the production dynamic curves of multicycle CO₂ huff-and-puff with varying matrix permeability. It can be concluded that multicycle CO₂ injection can indeed improve oil recovery in low-permeability reservoirs, which is significantly related to the matrix permeability. The higher the matrix permeability, the greater the degree of CO₂-EOR. It shows, as another aspect, that hydraulic fracturing is an important prerequisite for CO₂-EOR in low-permeability unconventional reservoirs. Figure 10 shows the CO₂ saturation distribution map at different stages of multicycle CO₂ huff-and-puff. The free CO₂ accumulates near the fracture networks and gradually flows from the fracture to the matrix.

4.2. Inter-Fracture CO₂ Flooding between Multi-Wells

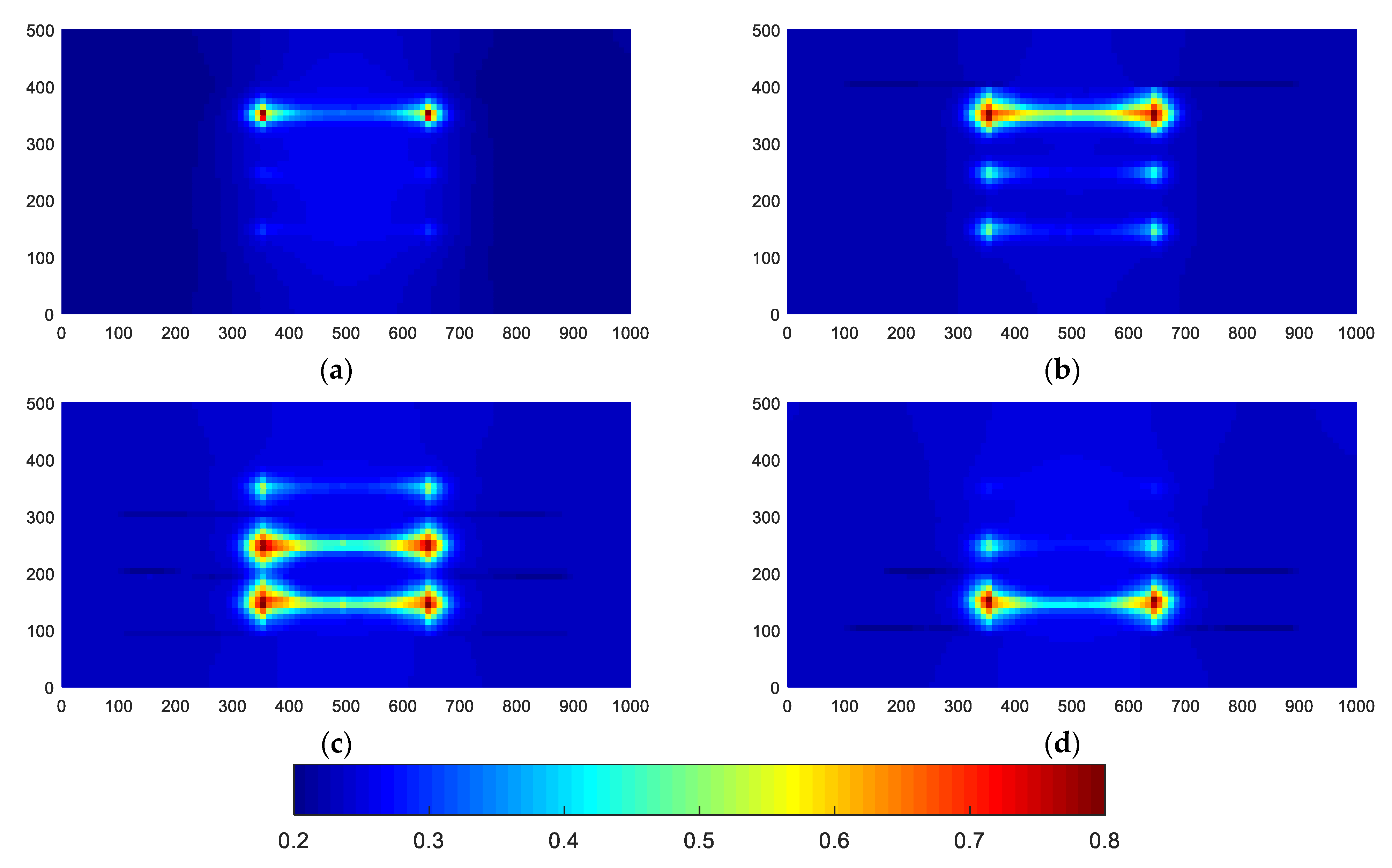

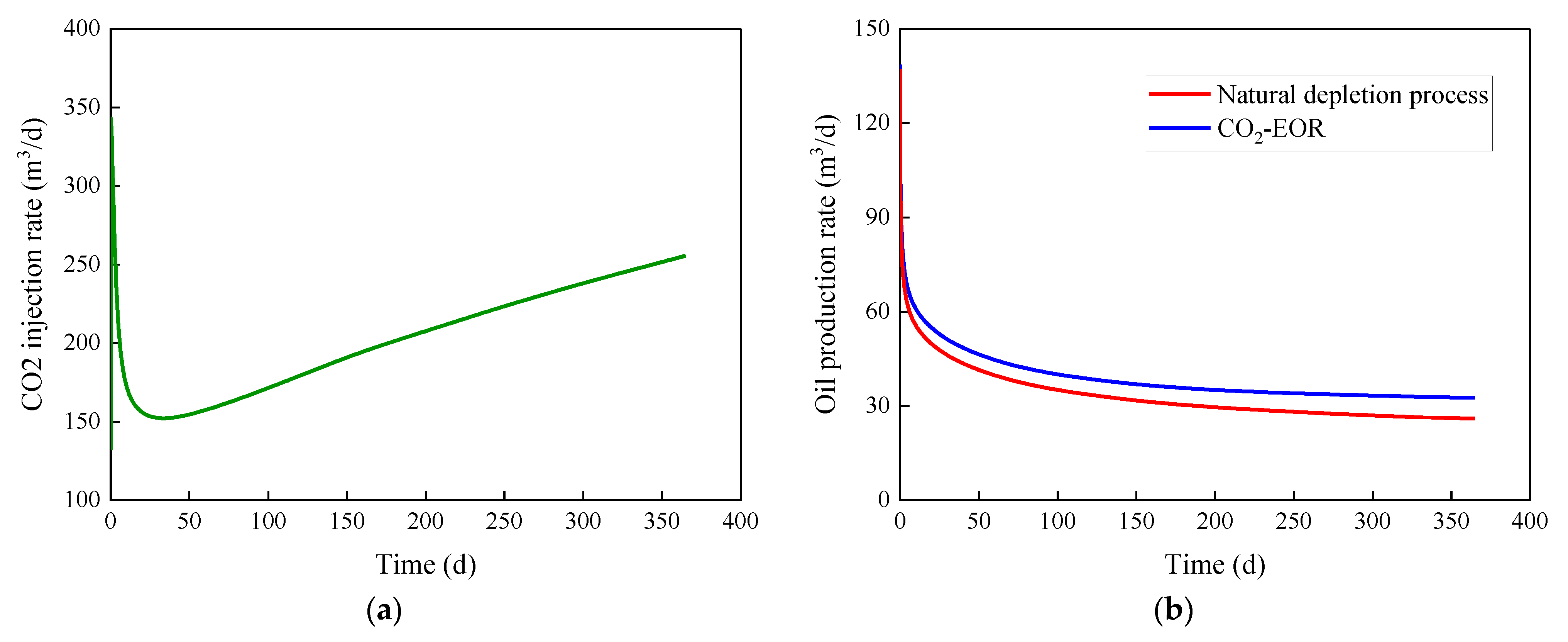

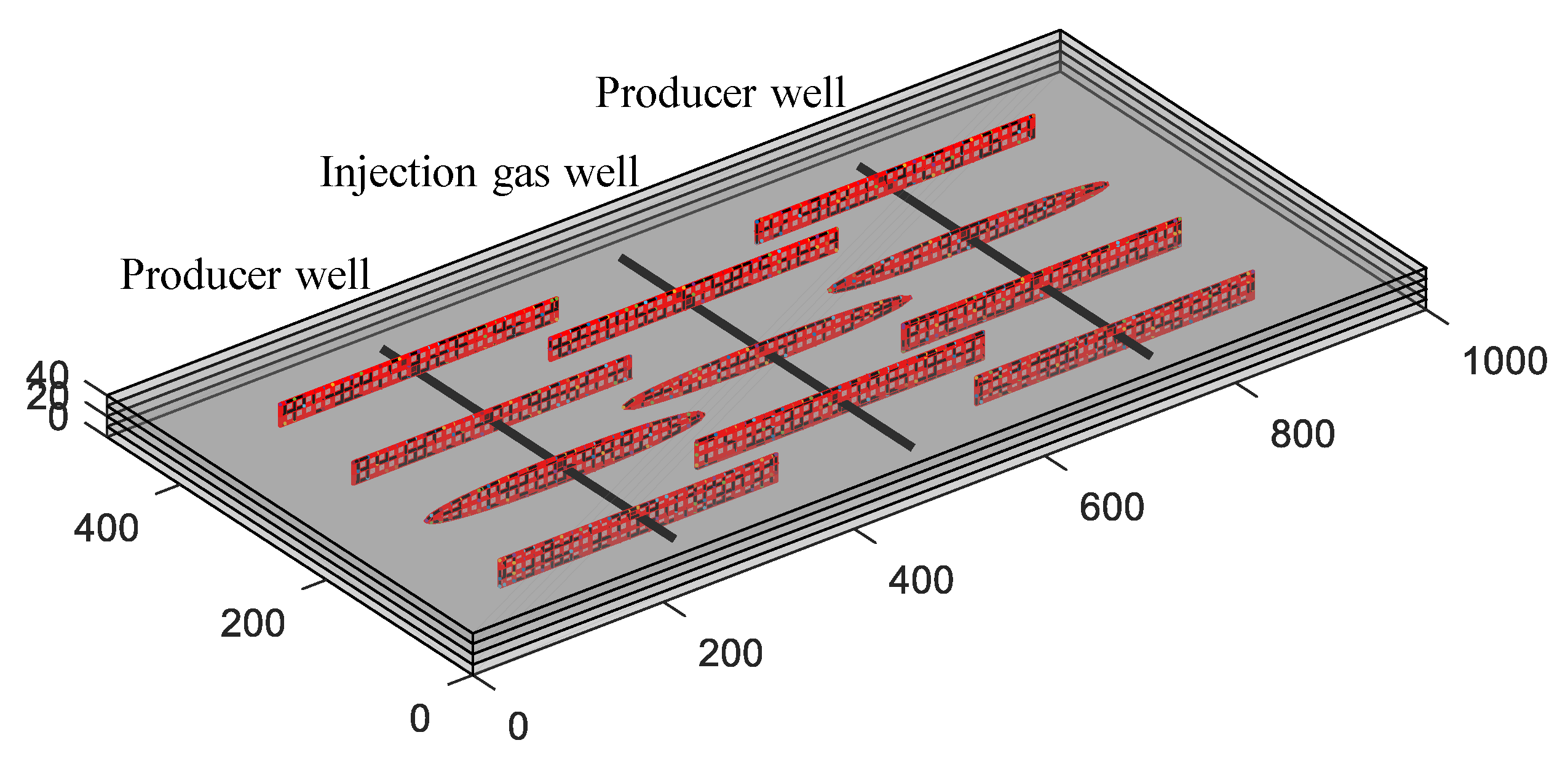

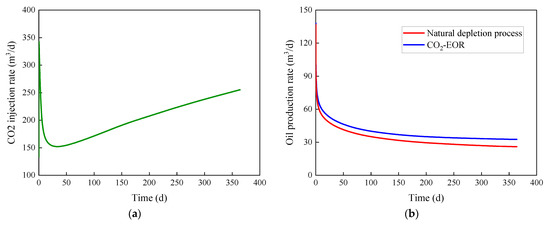

In this case, 3D-EDFM is applied for simulating the inter-fracture CO₂ flooding between multiple wells. Figure 11 shows the sketch of three horizontal wells, of which one injection well is located in the middle of two production wells. The oil production and gas injection are carried out simultaneously. The bottom hole pressure is constantly controlled at 10 MPa and 30 MPa when it is producing and injecting, respectively. Figure 12 summarizes the plot of production dynamic curves of simulation of 1 year, and Figure 12a shows the dynamic change of gas injection rate. Figure 12b illustrates that the daily oil production considered CO₂ flooding is higher than that of the natural depletion process without the effect of CO₂ injection. In this model, the first fracture of the injection gas well is located in the first and second layers, and the second and third fractures are located in the third and fourth layers. The proposed 3D-EDFM can also be used to model the location of fractures in different layers, which is more consistent with the actual formation and engineering conditions. Figure 13 shows the CO₂ saturation distribution map of simulation of 1 year at different layers. It can be seen that the injected CO₂ will preferentially diffuse along the fracture and the diffusion area is not large enough because the simulated production time is relatively short. The effect of CO₂ geological sequestration can be assessed by prolonging the production time because it is a long-term process. The extra significance of this model is that the asynchronous injection and production process can be stimulated by further controlling the open–shut time of wells, which is also worthy of attention in engineering applications.

5. Conclusions

This paper presents a CO₂-EOR evaluation model based on 3D-EDFM. The model can effectively describe the three-dimensional fractured geological conditions of low-permeability reservoirs, which cannot be effectively handled by general business software. Practical applications of this model in simulating the CO2 huff-and-puff in single-well and inter-fracture CO₂ flooding between multi-wells are illustrated. The results of simulations show that the proposed model can handle the complex shapes of fractures and arbitrary spatial positions distribution in 3D reservoirs and can be adopted to evaluate CO₂-EOR and geological sequestration problems. This paper is a preliminary theoretical attempt to discuss the modeling techniques for green energy transition, and we will explore more possibilities for this model in the future.
