Study of Absorbing CO₂ from Emissions Using a Spray Tower

Abstract

In order to reduce the environmental impact caused by CO₂ emissions from ships and achieve the goal of green shipping, a spray tower using NaOH solution for the absorption of CO₂ has been established in this paper. Using the characteristics of a 6135G128ZCa marine diesel engine, the CO₂ absorption system was designed and mathematical models of CO₂ absorption efficiency were developed. The effects of the variation in engine exhaust gas temperature, the concentration of NaOH solution, the exhaust gas velocity, different load conditions, and different nozzle types on the absorption efficiency of CO₂ were thoroughly investigated experimentally. Moreover, the mechanism of CO₂ absorption was analyzed. The developed model was verified by comparing the test results with the simulation results. The results of the study proved that using NaOH solution to absorb CO₂ from ship exhausts could reduce the level of CO₂ emissions from ships by more than 20%, which indicates that this technology could be used in the future to reduce the level of CO₂ emissions from ships.

1. Introduction

Global interest in the greenhouse effect is continuing to rise [1]. As CO₂ is one of the main greenhouse gases, reducing its emissions has become an important goal worldwide. The shipping industry has a significant impact on the environment [2]. Increased attention is being paid to reducing shipping emissions [3,4]. According to statistics, ships have become the second-largest greenhouse gas emission source in the transportation industry [5,6]. According to data from the International Maritime Organization (IMO) research report, the global shipping carbon dioxide emissions reached 833 million tons at the end of 2021, which was a year-on-year increase of 4.9% compared with 794 million tons in 2020. IMO has implemented various emission restrictions on ships that are equipped with washing devices. Regulations MEPC.2529 (68) stipulate that the pH value of washing wastewater excreted by the ship at 4 m out of the water outlet must not be less than 6.5.

In order to reduce CO₂ emissions and control global warming, at its 62nd meeting in July 2011, the IMO Marine Environment Protection Committee (MEPC) approved the Energy Efficiency Design (EEDI), the Ship Energy Efficiency Management Plan (SEEMP), and other ship energy efficiency standards. The convention was amended and enforced in 2015, and strict restrictions have been imposed on CO₂ emissions caused by ships [7]. These regulations outlined that by 2020, CO₂ emissions from ships should be reduced by 20% from the existing levels and by 50% by 2050. Contrary to the Energy Efficiency Design Index (EEDI), which is solely used for new ships, the energy efficiency existing ship index (EEXI) addresses the energy efficiency of existing ships and is set to become formally applicable in 2023. In order to comply with the new IMO environmental regulations, ships may be forced to slow down to reduce carbon emissions. When speed is decreased by 10%, the amount of fuel can be reduced by nearly 30% [8]. Therefore, scholars worldwide are working hard to develop technologies for carbon emissions abatement.

The treatment methods of CO₂ emissions are mainly recovery methods, which include the physical method, the chemical method, and the physicochemical method [9,10,11]. The physical separation of CO₂ refers to the adsorption of CO₂ with absorbent alone, and no changes to the physical properties of CO₂ are made [12,13]. The chemical absorption method is the most common and mature capturing method. Compared with the physical absorption method, the most important aspect of the chemical absorption method is that the chemical reaction between CO₂ and the absorbent can occur rapidly [14,15,16]. The physical and chemical complementary method is a hybrid CO₂ treatment method that makes use of the advantages of the physical method and the chemical method. The most representative method of this type is the membrane absorption method, which uses the osmotic principle of the microporous membrane and mainly depends on the selective absorption of the absorption liquid on the other side of the membrane to realize the separation of CO₂ gas. The membrane only enables the isolation of the gas and liquid and does not participate in the chemical reaction [17,18,19].

Lin et al. [20] studied the use of a high-gravity rotating packed bed to absorb CO₂, using centrifugal force to increase the contact area of the gas–liquid and enhance its mass transfer. However, it was shown that the stability of the rotating packed bed needs to be improved. Many researchers have studied the use of membrane absorption technology to remove CO₂ emissions [21,22,23]. However, because the organic solution is soaked for a long time, the membrane material is wetted, which reduces the absorption efficiency. Therefore, the properties and the chemical stability of the membrane materials need to be further improved [24,25]. The absorption of CO₂ using a molecular sieve has been investigated by many scholars [26,27]. In this method, some amine-based substances are adsorbed with a molecular sieve to absorb CO₂. The use of the grafted amino group in mesoporous molecular sieves has become a new line of research for the removal of CO₂, but most of these studies are still in the initial stages. Buvik et al. [28] analyzed the advantages and disadvantages of different MEA solutions for CO₂ absorption, and the technical route for onboard application was studied. Jayakumar et al. [29] used K₂CO₃ to absorb CO₂, and some problems such as a slower reaction speed were reported.

Elto et al. [30] studied the loading of K₂CO₃ on porous alumina as an adsorbent, which was shown to reduce maritime CO₂ emissions by 30%. Wang et al. [31] researched the use of a NaOH solution to absorb CO₂ from ships. It is known from the literature that the ship CO₂ emission reduction technology is not mature, and the efficiency of this technology is low. In this paper, we mainly studied the use of a NaOH solution to absorb CO₂ from ships’ exhaust gas; it was shown that this method, which can reduce the levels of CO₂ in ships’ exhaust gas by more than 20%, meets the SEEMP emission index and lays a solid foundation for green sea transportation.

Flagiello et al. [32] experimentally studied the use of a pilot-scale seawater scrubber to treat the SOx emissions from a 4-stroke marine diesel engine and reported that the addition of NaOH reached a water-saving range of 25–33% compared to the use of pure seawater in a De-SOx scrubber.

In this paper and in order to reduce the environmental impact caused by CO₂ emissions, a CO₂ absorption system was designed based on a 6135G128ZCa marine diesel engine. The mathematical models of CO₂ absorption efficiency were developed. Moreover, the effects of the variation in engine exhaust gas temperature, the concentration of NaOH solution, the exhaust gas velocity, different load conditions, and different nozzle types on the absorption efficiency of CO₂ were thoroughly investigated experimentally.

2. Mechanism of Decarbonization by Alkali Method

2.1. Mechanism of CO₂ Absorption

According to Henry’s law, electrochemical equation, and equilibrium equation before and after CO₂ absorption via the NaOH solution, the mechanism of CO₂ absorption is mainly the neutralization reaction of NaOH and CO₂. During the process of CO₂ absorption from ships using a NaOH solution, flue gas containing CO₂ enters a decarbonization tower from the bottom and is mixed with NaOH solution from top to bottom. Once the gas is dissolved into the NaOH solution, the electrolysis reaction occurs. During the process of using NaOH solution to absorb the CO₂ in the emissions of the ship and when the NaOH solution exchanges energy with CO₂, the ionization balance in the solution shall be satisfied in addition to the dynamic mass transfer balance between gas and liquid phases.

$${\mathrm{CO}}_{2\left(\mathrm{g}\right)}+{\mathrm{H}}_2{\mathrm{O}}_{\left(\mathrm{l}\right)}\leftrightarrow {\mathrm{H}}_2{\mathrm{CO}}_3$$

(1)

$${\mathrm{H}}_2{\mathrm{CO}}_3\leftrightarrow {\mathrm{H}}^{+}{+\mathrm{HCO}}_3{}^{-}$$

(2)

$${\mathrm{HCO}}_3{}^{-}\leftrightarrow {\mathrm{H}}^{+}{+\mathrm{CO}}_3{}^{2-}$$

(3)

$${\mathrm{H}}_2\mathrm{O}\leftrightarrow {\mathrm{H}}^{+}{+\mathrm{OH}}^{-}$$

(4)

The main reaction of ${\mathrm{CO}}_2$ in an aqueous solution containing ${\mathrm{OH}}^{-}$ ions can be expressed as shown in Equations (5) and (6):

$${\mathrm{CO}}_{2\left(\mathrm{aq}\right)}+{\mathrm{OH}}^{-}\leftrightarrow {\mathrm{HCO}}_3^{-}.$$

(5)

$${\mathrm{HCO}}_3^{-}+{\mathrm{OH}}^{-}\leftrightarrow {\mathrm{CO}}_3^{2-}+{\mathrm{H}}_2\mathrm{O}.$$

(6)

The reacted CO₂ electrolyzed products and dissolved products rapidly transfer mass to the liquid phase. During this process, the electrolytic products and the dissolved products continuously electrochemically react with the active components in the NaOH solution. The H⁺ is electrolyzed in the NaOH solution and then neutralized with the NaOH solution. Therefore, the reaction equations of CO₂ are shown below:

$${\mathrm{CO}}_2\left(\mathrm{aq}\right)+{\mathrm{H}}_2\mathrm{O}+{\mathrm{HCO}}_3{}^{-}{=\mathrm{HCO}}_3{}^{-}+{\mathrm{H}}_2{\mathrm{CO}}_3.$$

(7)

$${\mathrm{H}}_2{\mathrm{CO}}_{3\left(\mathrm{aq}\right)}+{\mathrm{CO}}_3^{2-}\leftrightarrow {\mathrm{HCO}}_3^{-}+{\mathrm{HCO}}_3^{-}$$

(8)

$${\mathrm{H}}_2{\mathrm{CO}}_3^{-}+{\mathrm{CO}}_3^{2-}\leftrightarrow {\mathrm{CO}}_3^{2-}+{\mathrm{HCO}}_3^{-}$$

(9)

$${2\mathrm{CO}}_2\left(\mathrm{aq}\right)+2{\mathrm{H}}_2\mathrm{O}+{\mathrm{CO}}_3{}^{2-}=2{\mathrm{HCO}}_3{}^{-}+{\mathrm{H}}_2{\mathrm{CO}}_3$$

(10)

From the reaction above, it can be seen that Equations (1)–(10) are the results of the reaction between ions in the liquid film, and the reaction is completed instantaneously and is irreversible. The CO₂ absorption reaction is shown in Equation (11).

$$2\mathrm{NaOH}\left(\mathrm{l}\right)+{\mathrm{CO}}_2\left(\mathrm{g}\right)={\mathrm{Na}}_2{\mathrm{CO}}_3\left(\mathrm{l}\right)+{\mathrm{H}}_2\mathrm{O}\left(\mathrm{l}\right)$$

(11)

2.2. The Mathematical Model of CO₂ Absorptivity

The absorptivity of CO₂ is defined as the ratio of the amount of CO₂ absorbed by the spray tower to the amount of CO₂ present before the spray tower is utilized. In this study, the absorptivity of the CO₂ from the ship was taken as an average value. The CO₂ in the ship’s exhaust gas was assumed to be an ideal gas. Based on the thermodynamic theory, the models can be expressed as shown below:

$$\mathrm{PV}=\mathrm{nRT}$$

(12)

where P is the gas pressure inside the absorption tower, Pa; V is the volume of gas, m³; R is the ideal gas constant,$\mathrm{R}=8.314$ Pa·m³/(mol·K); T is the gas temperature, K; n is the molar number of the exhaust gas:

$$\mathrm{n}=\mathrm{m}/\mathrm{M}$$

(13)

where m is the mass of the gas, kg and M is the molecular mass, kg/kmol. As a result, the mass of CO₂ can be expressed by Equation (14).

$${\mathrm{m}}_{{\mathrm{CO}}_2}={\mathrm{nM}}_{{\mathrm{CO}}_2}=\frac{\mathrm{PV}}{\mathrm{RT}}{\mathrm{M}}_{{\mathrm{CO}}_2}$$

(14)

3. Engine CO₂ Absorption Test

3.1. CO₂ absorption Cycle System

In order to investigate the CO₂ absorption mechanism, using the characteristics of a 6135G128ZCa engine, an engine CO₂ recovery system was designed as shown in Figure 1.

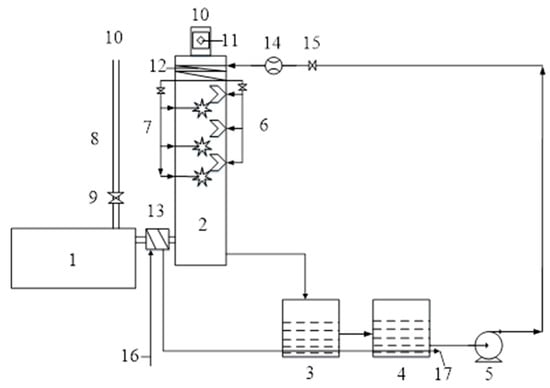

Figure 1. System for the recovery of ship’s CO₂. 1—6135G128ZCa marine diesel engine; 2—spray tower; 3—mixing tank; 4—dosing tank; 5—dosing pump; 6—direct injection nozzle; 7—spiral nozzle system; 8—exhaust pipe; 9—bypass valve; 10—diesel exhaust out; 11—measurement pointing position; 12—demister; 13—cooler; 14—liquid flow meter; 15—shut-off valve; 16—cooling water inlet; 17—cooling water outlet.

The marine diesel engine (1) operates in accordance with the load characteristic conditions, and the engine exhaust gas enters the exhaust pipe (8) and the spray tower (2). The exhaust pipe (8) is connected directly to the atmosphere. A freshwater cooler (13) is installed in front of the spray tower to cool down the exhaust gas temperature of the diesel engine. The exhaust gas temperature can be adjusted in the range of 25~400 °C. A bypass valve (9) is installed on the exhaust pipe to adjust the backpressure of the diesel engine and to prevent an excessive increase in the back pressure, which would affect the combustion performance. A concentrated NaOH solution is stored in the dosing tank (4) and pumped into the nozzle system (6 or 7) through the pump (5). The NaOH solution enters the demister (12) first to cool and condense the water vapor formed during the decarbonization process before entering the direct nozzles (6) or the spiral nozzle system (7), therefore reducing the volatilization of the NaOH solution. The NaOH solution circulates and flows back to the mixing cabinet (3) along the closed circulation system. The exhaust gas is sampled at point 11 on the exhaust pipe, which is 5 m from the spray tower. The spray tower is made of 316 stainless steels. Three spiral nozzles are installed in upper, middle, and lower positions in the tower center.

3.2. Experiment Equipment and Chemicals

3.2.1. Marine Diesel Engine

The 6135G128ZCa marine diesel engine is often used as the main engine or as the prime mover of the generator on ships. Its parameters are shown in Table 1. The power output was measured using a hydraulic dynamometer with a maximum power capacity of 440 kW, a maximum rotational speed of 5000 rpm, and a maximum torque of 1800 Nm.

Table 1. 6135G128ZCa diesel engine parameters.

Term	Value	Term	Value
Cylinder bore/mm	135	Internal diameter of flange connection of exhaust pipe/mm	80/83
Piston stroke/mm	140	Temperature at 25% rated engine speed/°C	327
Compression ratio/number	16	Temperature at 50% rated engine speed/°C	390
Piston swept volume/L	12.9	Temperature at 75% rated engine speed/°C	450
Continuous power/kW Rotational speed/rpm	146 1500	Temperature at 100% rated engine speed/°C 12-h power Lub. oil consumption rate/g·(kW·h)−1	535 1.65
Exhaust temperature/°C	<580
Lubricating oil temperature/°C	95	12-h power fuel consumption rate/g·(kW·h)−1	225.8
Cooling water temperature/°C	60/95	Starting mode	Electric-start
Firing sequence	1-5-3-6-2-4	Cooling method	Water-cooling
Size/mm	1530 × 844 × 1630	Weight/kg	1300

3.2.2. Model 6135 Spray Tower

The model 6135 spray tower used in the test was designed and manufactured using the exhaust parameters of the 6135G128ZCa marine diesel engine as shown in Figure 2.

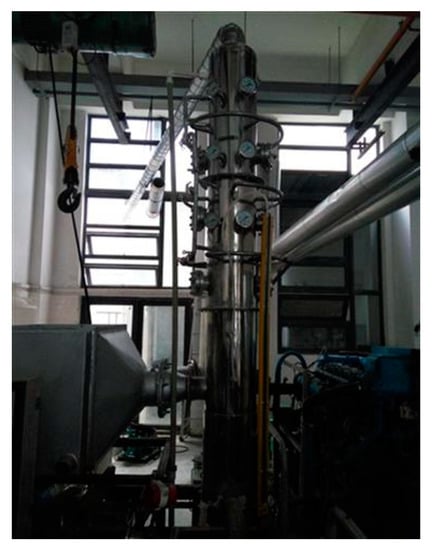

Figure 2. The 6135-type spray tower.

The height and the inner diameter of the 6135-type spray tower are 3000 mm and 400 mm, respectively. The exhaust gas outlet height and the inner diameter of the decarbonizing tower are 100 mm and 125 mm, respectively. The tower body is composed of three sections, the height of each section is 1000 mm, and the exhaust gas is redistributed with wire mesh between each section. The nozzles are distributed into three layers, and the height of each of these layers from the bottom of the decarbonizing tower is 2500 mm, 2000 mm, and 1500 mm. Moreover, the height of the inlet duct is 620 mm and its inner diameter is 125 mm. The liquid outlet is located at the bottom of the tower with an inner diameter of 70 mm. The top of the spray tower is equipped with a demister, which traps water vapor and NaOH. There are three liquid storage tanks with 0.5 m³ volumes for each. These tanks are connected in series and placed at different heights to meet the dosing and circulation requirements.

3.2.3. Exhaust Gas Cooler

In order to study the effect of exhaust gas temperature on CO₂ absorption efficiency, a freshwater cooler was installed on the engine exhaust pipe as shown in Figure 3.

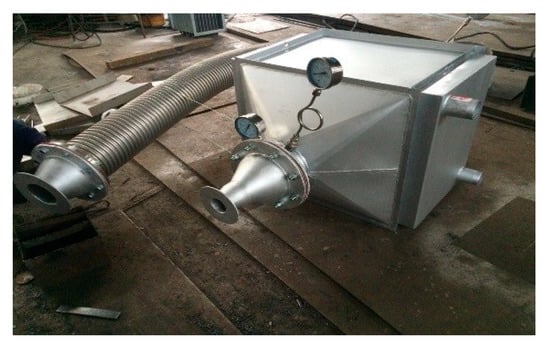

Figure 3. Exhaust gas cooler.

The exhaust gas cooler was designed in-house and manufactured by an external heat exchanger manufacturer. The cooler is made of carbon steel and aluminum and can control the exhaust gas temperature between 25 °C and 400 °C. Table 2 shows the operational parameters of the exhaust gas cooler.

Table 2. Operation parameters of exhaust gas cooler.

Term	Value
Medium Name	Gas on Shell Side	Liquid Inside Tube
Design pressure/Mpa	0.2	2.0
Work pressure/Mpa	0.12	0.5
Design temperature/°C	500	150
Inlet temperature/°C	450	30
Outlet temperature/°C	40	36
Flow rate/(kg/h)	1911	2947
Pressure loss/kPa	0.037	59.7
Heat exchanged/kW	205
Size/mm	1500 × 1220 × 740
Weight/kg	480

3.2.4. Engine Fuel Oil and Chemicals Used

Marine gas oil provided by a local fuel supplier was used during the experiment. Its physical and chemical properties are shown in Table 3.

Table 3. Properties of engine fuel oil.

Term	Quality Index	Measured Value	Test Method
Kinematic viscosity (40 °C)/mm2·s−1	2.0~6.0	2.962	GB/T 265-88(2004)
Density (20 °C)/kg·m−3	≤860.0	840.3	SH/T 0604-2000
Colority/number	≤3.0	<1.5	GB/T5540-86(2004)
Close flash point/°C	≥60	77.0	GB/T 261-2008
Cetane index/number	≥42	51	GB/T1139-89
Mass fraction of sulfur/%	≤0.15	0.00970	GB/T1140-2008
Pour point/°C	≤0	−9	GB/T3535-2006
Acidity (mgKOH/100 mL)/mg	≤7	3.65	GB/T261-1997(2004)
Oxidation stability (in terms of total insoluble matter)/number	≤2.5	0.5	SH/T 0175-2004
Ash (mass fraction)/%	≤0.01	0.002	GB/T 508-85(2004)
Moisture (volume fraction)/%	≤Mark	Transparent, no suspended or deposited moisture	Visual observation
Mechanical impurities	None	None	Visual observation
Carbon residue on 10% residual (mass fraction)/%	≤0.3	<0.10	GB/T17144-1997
Abrasion diameter (60 °C)/µm	≤460	376	SH/0765-2005

Note: implementation standard is Q/SH PRD0573-2014.

In order to reduce the chemical (NaOH) cost, industrial NaOH was used as a decarburizer during the laboratory experiment. Its physical and chemical properties are shown in Table 4.

Table 4. Properties of NaOH.

NaOH Solid (Flake)
Clarity Test	Qualified	AL/%	≦0.002
Total nitrogen (N)/%	≦0.001	K/%	≦0.05
Chloride (Cl)/%	≦0.005	Ca/%	≦0.01
Sulfate (SOX)/%	≦0.005	Fe/%	≦0.001
Phosphate (POX)/%	≦0.001	Carbonate (calculated by Na2CO3)/%	≦1.5
Heavy metal (calculated by Pb)/%	≦0.003	Content (NaOH)/%	≦96

3.2.5. Test Equipment

An enhanced Testo 350 analyzer was used for the analysis of the diesel engine exhaust gas. The measuring accuracy is shown in Table 5.

Table 5. Testo 350 gas analyzer.

Term	T/°C	O2/%	CO/10−6	CO2/%	NO/10−6	NO2/10−6	SO2/10−6
Accuracy	±1	±0.8	±5% (200~2000) ±10% (>2000) 10 (≤199)	±0.3 (≤25) ±0.5 (>25)	±5% (≥100) ±5 (<99)	±5% (≥100) ±5 (<99.9)	±5% (≥100) ±5 (<99)
Resolution	0.1	0.01	1	0.01 (≤25) 0.1 (>25)	1	0.1	1

4. Numerical Simulation of Decarburization Process

The absorption of CO₂ was carried out by using the NaOH solution to wash the engine exhaust gas. First, the exhaust gas produced by the diesel engine passed through the cooler and then entered the spray tower from the bottom. The exhaust gas mixed and reacted with the NaOH solution in the spray tower and then discharged to the atmosphere through the top of the spray tower. The NaOH solution was discharged from the bottom of the spray tower and entered the tank to cool. After that, CaO was added to the alkaline decarburization solution. Ca(OH)₂ was generated immediately after the solid CaO particles reacted with water. NaOH can be regenerated, and therefore the NaOH solution was recycled, while CaCO₃ was simultaneously precipitated. After entering the sedimentation tank and the rehydration tank, the NaOH solution was circulated by the pump to the spray tower to be sprayed again. Aspen plus software was used to simulate the process, and the simulation flow chart is shown in Figure 4.

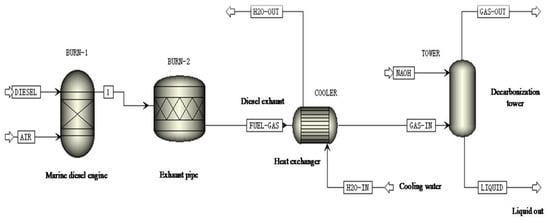

Figure 4. Simulation flow chart of decarburization process.

The composition and content of the gas in the simulation were taken from the marine 6135G128ZCa diesel engine exhaust gas. In addition, the exhaust gas flow rate and temperature were selected as the theoretical data of the 100% load of the diesel engine under the propulsion characteristic condition. The exhaust gas composition mainly included N₂, O₂, NO, NO₂, CO, CO₂, and SO₂. The concentration of the absorbent NaOH solution was 2 mol/L, with a temperature of 25 °C. The parameters of the flue gas and NaOH solution entering the spray tower were set as shown in Table 6.

Table 6. Parameters of flue gas and NaOH solution entering the spray tower.

		FLUE GAS	NaOH-IN
T/°C		535	25
P/kPa		104.3	500
Flow rate		3414.574/(m3/h)	4/(m3/h)
Component mole%	NaOH		3.536
	H2O		96.464
	N2	81.9958
	O2	10.6
	NO	0.0964
	NO2	2.97
	CO	0.0066
	CO2	4.3
	SO2	0.0312

Figure 5 shows the absorption efficiency of CO₂ obtained from the numerical simulation. The absorption efficiency is 20.63%, 21.67%, 23.94%, and 29.15% at 100% load, 75% load, 50% load, and 25% load, respectively. The absorption efficiency of CO₂ increases gradually with the decrease of the engine load. This may be because the gas flow velocity is reduced as the engine load decreases. The gas–liquid contact time increases when the diesel engine load is reduced, which increases the mass transfer time and thus improves the absorption efficiency. Furthermore, the exhaust gas temperature decreases with the decrease of the engine load. The decarbonization reaction is a typical acid–base neutralization reaction and exothermic reaction. The low temperature of the exhaust gas aids the absorption reaction in the positive direction. Therefore, the absorption efficiency increases with the decrease in engine load.

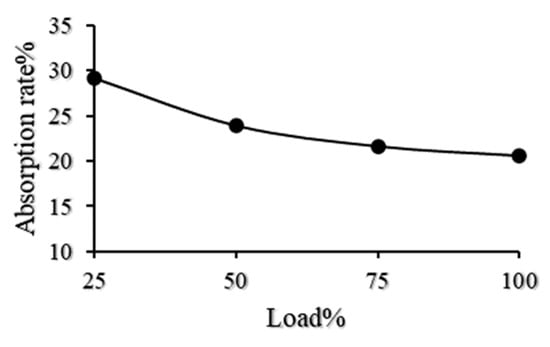

Figure 5. CO₂ absorption rate of the simulation.

5. Test Results and Analysis

The test engine operated according to the load characteristics, the engine operating points, and the theoretical exhaust gas quantity as shown in Table 7.

Table 7. Diesel engine load characteristics of 6135G128ZCa.

Operating Point	Speed n = 1500/(r/min)	Fuel Consumption Rate/(g/(kW·h))	Power/kW	Torque/(N·m)
1	100% load	225.8	162.0	1031.40
2	75% load	227.0	121.5	773.55
3	50% load	236.0	81.0	515.70
4	25% load	252.0	40.5	257.85

In the analysis of the decarburization efficiency, it was necessary to carry out a theoretical calculation of the quantity of NaOH needed in the test process. Table 8 displays the quality of NaOH required when the test engine ran at 100%, 75%, 50%, and 25% loads. The quantity of the NaOH used in the test was set according to this calculation.

Table 8. Quantity of NaOH required in the experiment.

Load/n = 1500 (r/min)	Theoretical Exhaust/(m3/h)	CO2/(kg/h)	NaOH/(kg/h)
100%	3414.57	100.29	182.41
75%	2814.05	83.93	152.65
50%	1950.45	58.19	105.84
25%	1040.73	31.02	56.42

5.1. Effect of Exhaust Temperature on the CO₂ Absorption Rate

The effect of the initial reaction temperature on the absorptivity of pure CO₂ [31] was determined in a chemical laboratory. On this basis, a 2 mol/L NaOH solution was used in the experiment. The temperature of the solution was 25 °C and the flow rate of the pump was 4 m³/h. The diesel engine was operated according to the constant speed load condition. Table 9 presents the test data and the absorptivity rate of CO₂.

Table 9. Experimental data at n = 1500 rpm.

Load	Location	Flue Gas Flow Rate/(m/s)	Flue Gas Temperature/°C	CO2 Content/(g/min)	The Amount of CO2 Absorbed/(g/min)	Absorptivity/%
100%	Before	18.9	114.2	2105.89	144.80	6.88
	After	16.1	60.0	1961.09
75%	Before	18.6	99.8	1796.08	232.42	12.94
	After	16.0	53.3	1563.67
50%	Before	16.5	129.2	1163.92	86.41	7.42
	After	14.0	53.3	1077.51
25%	Before	13.8	90.8	687.05	89.65	13.05
	After	12.0	50.0	597.40

In Table 9, CO₂/% is the percentage of CO₂ in the exhaust gas; CO₂(g/min) is the content of CO₂ per unit time in the exhaust gas flow.

Table 9 shows that the absorption rate of CO₂ is 13.05% when the exhaust gas temperature of the marine diesel engine is 90.8 °C at 25% engine load. This becomes 12.94% when the exhaust gas temperature is 99.8 °C at 75% engine load. In addition, the absorption rate decreases exponentially to 6.88% at 100% engine load when the gas temperature rises to 114.2 °C. This is because when the temperature is over 100 °C, part of the liquid is vaporized in the spray tower, which decreases the absorption reaction.

In order to investigate the effect of gas temperature on the absorptivity of CO₂ when the engine ran at the idle speed, the exhaust gas cooled down to 25 °C, 45 °C, and 65 °C before entering the spray tower. Figure 6 shows the effect of exhaust gas temperature on the CO₂ absorption rate.

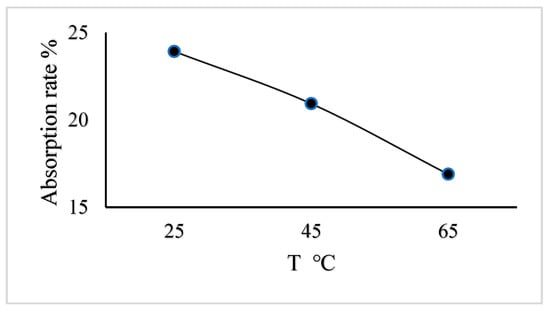

Figure 6. Reaction temperature effect on the CO₂ absorption rate.

From Figure 6, the absorptivity of CO₂ is at its maximum of 23.92% when the reaction temperature is 25 °C. With the increase in the reaction temperature, the absorptivity rate of CO₂ decreases to reach 16.89% at 65 °C. This is because the high temperature is not conducive to the CO₂ absorption reaction.

5.2. Effect of the Concentration of NaOH Solution on CO₂ Absorptivity

The test was carried out with different concentrations of the NaOH solution, namely 1 mol/L, 2 mol/L, and 8 mol/L. The other conditions remained unchanged and the reaction temperature was controlled at 25 °C. Moreover, the engine operated at the idle speed. The results are shown in Figure 7.

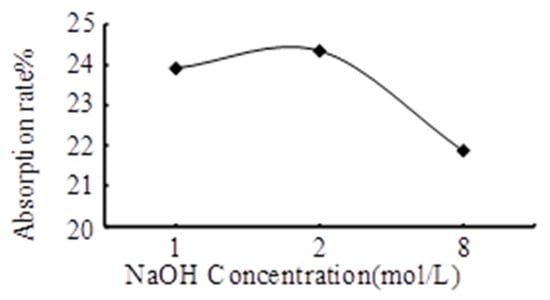

Figure 7. Effect of concentration of NaOH solution on the CO₂ absorption rate.

Figure 7 shows that the absorptivity reaches 23.92%, 24.35%, and 21.87% when the concentration of the NaOH solution is 1 mol/L, 2 mol/L, and 8 mol/L, respectively. With the increase of NaOH concentration, the absorption rate of CO₂ increases first and then decreases. When the concentration of the NaOH solution increases from 1 mol/L to 2 mol/L, the absorptivity rate increases by 0.43%. In addition, the absorptivity decreases by 2.48% when the concentration of the NaOH solution increases from 2 mol/L to 8 mol/L. The results also shows that when the concentration of the NaOH solution is 2 mol/L, the absorptivity rate is the highest. The main reason for the drop in absorption rate at 8 mol/L is that the viscosity coefficient of the solution at a high concentration is large, which is not conducive to the gas–liquid mixing reaction.

5.3. Effect of Exhaust Gas Velocity on CO₂ Absorptivity

The effect of engine exhaust gas velocity on the absorptivity of CO₂ is essentially determined by the contact time and the relative concentration between the exhaust gas and the NaOH solution. The results discussed in Section 5.2 show that the absorptivity of CO₂ was the highest under the idle speed condition when the concentration of the NaOH solution was 2 mol/L. Therefore, the 2 mol/L concentration of the NaOH solution was used in the experiment with the spiral nozzle. Furthermore, other conditions remained unchanged. Table 10 presents the results.

Table 10. Effect of exhaust gas velocity on CO₂ absorption rate (spiral nozzle).

Load	Position	v/(m/s)	CO2/%	vΔ (m/s)	CO2 (g/min)	Absorptivity/%
100%	Before	18.9	7.19	2.8	2008.03	20.84
	After	16.1	6.56		1589.61
75%	Before	18.6	6.02	2.6	1659.46	21.16
	After	16.0	5.44		1308.28
50%	Before	16.5	4.58	2.5	1124.77	22.47
	After	14.0	4.13		871.98
25%	Before	13.8	2.85	1.8	586.15	22.48
	After	12.0	2.52		454.38

In Table 10, CO₂/% is the percentage of CO₂ in the exhaust gas; CO₂(g/min) is the content of CO₂ per unit time in the exhaust gas flow.

It can be seen from the results in Table 10 that when the diesel engine operates from a high load to a low load according to the constant speed characteristic condition, the flow rate of the exhaust gas decreases continuously from 18.9 m/s at 100% load to 13.8 m/s at 25% load. Under each condition, the exhaust gas velocity before and after the CO₂ absorption tower also changes. Specifically, the velocity of the gas after absorption is lower than that before absorption, while the change in the gas pressure difference before and after the absorption is very small, which remains at 0.001 m of water height. This shows that the NaOH solution brought resistance to the gas flow. The resistance is increased by 0.01 kpa and the absorptivity of CO₂ increases from 20.84 to 22.48%. When the concentration of the NaOH solution was 2 mol/L, the circulating flow rate of the pump was 4 m³/h for all the loads, which meant the lower the flow rate of the exhaust gas, the higher was the liquid-to-gas ratio and the higher was the absorption rate of CO₂. At idle speed, the absorption rate could reach 24.35%.

5.4. CO₂ Absorptivity under Engine Different Load Conditions

During this experiment, the 2 mol/L NaOH solution was selected for use in the full engine load testing, and the engine exhaust temperature inside the spray tower was controlled at 25 °C through the cooler. The test results are shown in Figure 8.

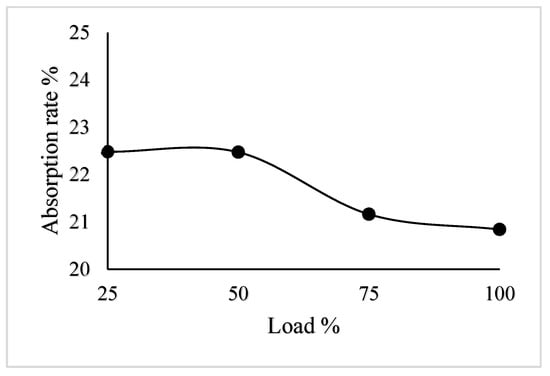

Figure 8. Experimental results at different load conditions.

Figure 8 shows that the average absorptivity of CO₂ could reach 21.74% with the 2 mol/L NaOH solution and an initial temperature of 25 °C under the full load condition. The absorptivity of CO₂ is higher when the diesel engine runs at low loads. As the exhaust gas temperature could not be controlled accurately in the experiment, it has little influence on the test results, but the general trend is consistent.

5.5. Comparison of Results Obtained between Experiment and Numerical Simulation

It can be seen from Figure 8 that when the engine ran according to its load characteristics, the CO₂ absorptivity of the 6135-type spray tower reached 20.84%, 21.16%, 22.47%, and 22.48% at 100% load, 75% load, 50% load, and 25% load, respectively. In addition, Figure 5 shows that the absorption efficiency of CO₂ in the performance simulation was 20.63%, 21.67%, 23.94%, and 29.15% when the load of the diesel engine was 100% load, 75% load, 50% load, and 25% load, respectively. The CO₂ absorption efficiency of the 6135G128ZCa diesel engine under different loads was compared with the CO₂ absorption efficiency calculated in the performance simulation as shown in Figure 9.

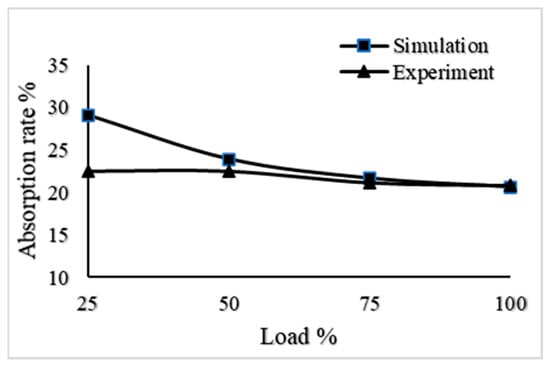

Figure 9. The CO₂ absorption rate of the experiment compared with the simulation.

The 6135G128ZCa diesel engine was designed according to standard working conditions; most of these engines run under 100% loads. The input of exhaust gas during the simulation was based on the CO₂ generated during the operation of a 6135G128ZCa diesel engine at 100% load. Therefore, at 25% load, there is a certain discrepancy between the experimental results and the simulation results as shown in Figure 9. This is because the 6135G128ZCa diesel engine is driven by a pressure camshaft injector. When running at a low 25% load, the fuel combustion is not sufficient and the CO₂ content in the tail gas will be reduced. However, the overall variation trend of the experimental results is consistent with that of the simulation results. The CO₂ absorption efficiency in other load ranges shows good consistency and accuracy, which means that the mathematical model established in this paper is accurate.

5.6. Effect of Different Nozzle Types on CO₂ Absorptivity

The distance between the nozzle layers was set at 500 mm. In order to compare the effects of different nozzle types on CO₂ absorption efficiency, two types of nozzles were selected. One is a spiral nozzle with an external thread connection made of 316L stainless steel with an injection angle of 150° and working pressure of 4000 kpa. The other is a direct injection nozzle with an external thread connection made of 316L stainless steel with an injection angle of 90° and working pressure of 4000 kpa. Figure 10 shows the nozzle types and their atomization effect.

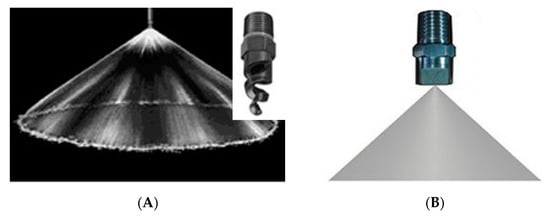

Figure 10. Types and atomization effect of nozzles. (A)—Spiral nozzle. (B)—Direct nozzle.

The nozzles were installed in three layers inside the spray tower. The spiral nozzles were installed in the center of the spray tower at the upper, middle, and lower parts of it. In addition, four direct injection nozzles were installed on the wall of the tower, as shown in Figure 11.

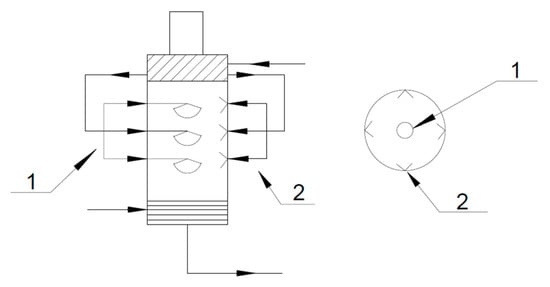

Figure 11. Nozzle installation layout. 1—Spiral nozzle system. 2—Direct injection nozzle.

Additionally, a 2 mol/L NaOH solution concentration was selected for the experiment with the direct nozzle while the other conditions remained unchanged. Table 11 presents the results.

Table 11. Effect of exhaust gas velocity on CO₂ absorption rate (direct nozzle).

Load	Position	v/(m/s)	CO2/%	vΔ (m/s)	CO2 (g/min)	Absorptivity/%
100%	Before	18.9	7.19	2.8	2008.03	23.68
	After	16.1	6.33		1532.56
75%	Before	18.6	6.02	2.6	1659.46	26.39
	After	16.0	5.44		1221.58
50%	Before	16.5	4.58	2.5	1124.77	26.61
	After	14.0	4.13		825.45
25%	Before	13.8	2.85	1.8	586.15	27.09
	After	12.0	2.52		427.33

Figure 12 shows the CO₂ absorption rate with different types of nozzles. The changing trend in CO₂ absorptivity is the same for both types of the nozzle as it decreases slightly with the increased engine load. Moreover, the direct injection nozzle distribution covers a large area, which provides a large gas–liquid contact area. Therefore, a higher CO₂ absorption rate is observed when using the direct injection nozzle.

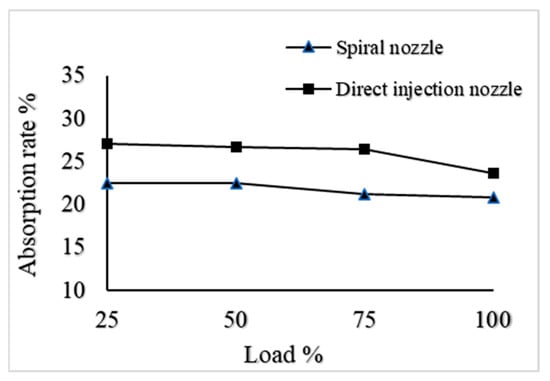

Figure 12. CO₂ absorption rate with different types of nozzles.

6. Conclusions

In this paper, an alkaline NaOH solution was used to absorb CO₂ in a diesel engine exhaust gas system. A novel spray tower and system was established and the Mathematical models were developed. In addition, the experiment was carried out using an engine’s constant speed characteristics, and a numerical simulation was performed based on the test engine’s operational parameters. The experiment and numerical simulation results showed that it is feasible to use a NaOH solution to absorb CO₂ from marine engine exhaust gas in order to meet the EEDI stipulated by IMO. The main conclusions are as follows:

(1)

The temperature of the engine exhaust gas is a key factor that affects the absorption efficiency of CO₂. With the increase in engine exhaust gas temperature, the absorption rate of CO₂ decreased gradually, and the reaction temperature should be controlled at 25 °C using a cooling system.

(2)

The concentration of the NaOH solution affected the absorption efficiency of CO₂. The results proved that the most suitable concentration of NaOH solution was 2 mol/L, which is capable of meeting the requirement of reducing the emissions of CO₂ by 20%.

(3)

Although the concentration of the NaOH solution had a certain effect on the absorption efficiency of CO₂, the absorption efficiency was not directly proportional to the concentration of the NaOH solution. The effect of the concentration of the NaOH solution on the CO₂ absorption rate mainly depends on the intrinsic phase equilibrium reaction constant of the NaOH chemical and CO₂ itself. Further studies are needed to determine how the reaction coefficients can be increased and how the absorption efficiency can be improved.

(4)

Direct injection nozzles had a better atomization effect on liquid solutions, which provided a large contact area between the gas and the liquid. In addition, the large contact area enhanced the mass transfer between the gas and the liquid.

(5)

The experimental results showed good agreement with those of the numerical simulation. This demonstrates that the theoretically developed models are accurate, which provides a strong theoretical basis for the design of spray towers for engine exhaust gas in the future.

(6)

The newly developed system proved that using NaOH solution to absorb CO₂ from ship exhausts could reduce the level of CO₂ emissions from ships by more than 20%, which makes it a suitable technology to reduce the level of CO₂ emissions from ships in the future. Moreover, by combining the work of this paper with that of Flagiello et al. [32], a simultaneous scrubbing system of SO₂ and CO₂ can be obtained through dosing the NaOH reagent appropriately following the dosages found in both papers.
