Quantifying the Effect of Building Shadowing and Cloudiness on Mean Radiant Temperature in Singapore

Abstract

Improving the quality of life in urban areas has become a major concern in the last few decades. With a constantly increasing urban population and in a climate change context, detailed knowledge of the impact of urban elements on the outdoor thermal environment is relevant. In this work, we present the results of several climatic campaigns carried out in Singapore aiming to evaluate local urban climate variables. Sensors were deployed simultaneously in different sites. The effect of building shadowing in the diurnal cycle of mean radiant temperature (T_mrt) is evaluated in different seasons. Although during the Inter-Monsoon season, mean T_mrt reduction due to building shadow is ≈19 °C, during clear skies days, it can be reduced by ≈30 °C. The T_mrt difference between sites is analyzed based on the weather conditions, the sky view factor (SVF), and the type of surrounding urban elements. Under building shadow conditions, higher SVF showed higher T_mrt values, although no correlation was found between T_mrt and diffuse solar radiation (measured above the urban canopy). The results suggest a relevant contribution of other radiation components (e.g., longwave radiation). The quantitative analysis of the T_mrt provided in this work is relevant for outdoor thermal comfort strategies in tropical areas such as Singapore.

1. Introduction

With the aim of improving outdoor thermal comfort (OTC) in urban areas, research and studies have been increasingly carried out during the last decades. One of the main drivers is the necessity of adapting urban areas to climate change where the population will continue to grow in the future [1]. Urban heat mitigation strategies can help minimize the increase of air temperature inside the urban fabric [2,3,4,5], but they do not in all cases improve OTC [6,7,8].

Outdoor thermal comfort in urban areas is highly governed by the urban morphology. Many studies have pointed to street orientation and street aspect ratio as the most relevant parameters to determine outdoor thermal comfort levels [9,10,11,12,13,14]. However, other urban characteristics can also play an important role. Urban materials [15,16], the presence of vegetation [17,18,19], and anthropogenic heat emissions [20,21] can modify significantly OTC levels inside the urban area.

Several meteorological parameters (air temperature, humidity, wind speed, and radiation) influence thermal comfort levels. Between these variables, radiation has a relevant impact in outdoor thermal comfort [22]. However, the heat exchange by radiation between the human being and the outdoor spaces is complex due to the existence of heterogeneous longwave and shortwave radiant flux densities [23], which are influenced by the surrounding landscape. Mean radiant temperature (T_mrt) is a measure of how human beings experience radiation. It is defined as “the uniform temperature of an imaginary enclosure in which the radiant heat transfer from the human body equals the radiant heat transfer in the actual non-uniform enclosure” [24]. Different studies have shown and quantified the influence of T_mrt in human thermal comfort in outdoor spaces [25,26,27,28]. While different methods to estimate outdoor T_mrt are available [27], a common and simple approach to measure T_mrt is the use of the globe thermometer [29,30].

Urban morphology has an important influence on T_mrt at the pedestrian level [31,32,33]. T_mrt spatial and temporal variations are highly conditioned by shortwave radiation variations, although the longwave radiation (particularly the lateral flux) contributes the majority of T_mrt magnitude at all times of the day and sites [22,34].

Similarly to Middel and Krayenhoff [34], in Arizona, Tan et al. [28] reported a correlation between sky view factor and T_mrt in Singapore. Higher SVF was associated to higher T_mrt values. For clear sunny days, differences in daily T_mrt peak between several urban spaces could reach 25 °C, with the highest T_mrt peak value reaching approximately 68 °C (SVF = 0.671 and solar irradiance slightly lower than 900 Watt/m²) [28]. Similar values were reported in Chandigarh (India) with maximum peak values of 69.3 °C on a clear sky day [23], and in Taiwan, 70.9 °C [35]. In Tempe (Arizona), maximum values reached 84.9 °C, and maximum differences between shaded and sun-exposed sites were close to 40 °C. Results highlighted the influence of urban forms, sky view factors, and solar radiation regimens on T_mrt [34,36].

In addition to the effect of urban morphology on T_mrt (e.g., by means of building shadowing), weather conditions also influence T_mrt at the pedestrian level. Specifically, cloud cover can reduce incoming solar radiation up to 80–90%. Generally, higher cloud cover will reduce the direct solar radiation while the diffuse solar radiation component will increase [37,38]. Additionally, solar elevation also influences the amount of diffuse solar radiation. Lower solar elevations will tend to increase the diffuse component due to the larger path of the radiation through the atmosphere [39,40]. Since the SVF influences the amount of direct and diffuse solar radiation components inside an urban canyon, the alteration of these radiation components (e.g., due to cloud cover) will further condition T_mrt levels [36].

This study seeks to analyze the influence of urban geometry and incoming solar radiation on mean radiant temperature to support climate-conscious urban planning and design in a hot and humid environment similar to Singapore. Both high-rise and low-rise urban developments are considered. Based on extensive measurement campaigns, the impact of building shadow and sky view factor on T_mrt is evaluated under different weather conditions and in different climatic seasons.

2. Regional Climate

Singapore is a highly populated island (712 km²) where 5.6 million people live [41]. It is located (1°18′52.79″ N and 103°50′43.47″ E) at the south of the Malayan Peninsula. Its climate is classified as tropical rainforest (Koppen climate classification Af) characterized by uniform high temperatures along the year (≈27.5 °C), high relative humidity, and significant precipitation ≈2190 mm [42].

Regional climate throughout the year is mostly governed by Asian monsoons. They influence cloudiness, surface wind speed, and wind direction [43]. The northeast (NE) monsoon season (December to March) presents higher precipitation levels (>250 mm/month) and surface wind speeds. In the southwest (SW) monsoon season, between June and September, lower precipitation occurs (≈150 mm/month) and surface winds are generally from south to southwest, mostly opposite to the NE-Monsoon. Between these two seasons, periods of low winds occur (close to calm situations, especially inland) with variable wind direction. These are the Inter-Monsoon season. The October and November period is called the wet Inter-Monsoon because higher precipitation occurs compared to the dry Inter-Monsoon (April and May). During these periods, sea breezes can develop and affect Singapore.

3. Materials and Methods

To evaluate the impact of urban planning and design on OTC in Singapore, several measurement campaigns were carried out in two areas during 2019 and 2020 [44]. In each area, 4–5 sites with different thermal characteristics were selected. In each site, a set of sensors were deployed to measure local climate variables. This paper is focused on the effect of building shadowing and SVF on mean radiant temperature (T_mrt) in different solar radiation conditions, so we will present only the measuring sites relevant for this purpose (Section 3.1). A complete description of the campaigns is presented in Acero et al. [44].

3.1. Measurement Campaigns

Two campaigns of several months were carried out in two different urban areas of Singapore. In each area, several sets of instruments were deployed to measure simultaneously the microclimate conditions at specific sites (see Section 3.2). Sensors operated continuously throughout the campaign. The following climate variables were measured: air temperature (T_a), relative humidity (RH), wind speed (WS), wind direction (WD), precipitation (R_a), and globe temperature (T_g). For the first five variables the Weather Transmitter WXT520 of Vaisala was used. Vapor pressure (e) was derived from T_a, RH, and the saturation vapor pressure of water [45]. T_g measurements were carried out with the black globe radiant temperature device (150 mm of diameter) of Scientific Campbell.

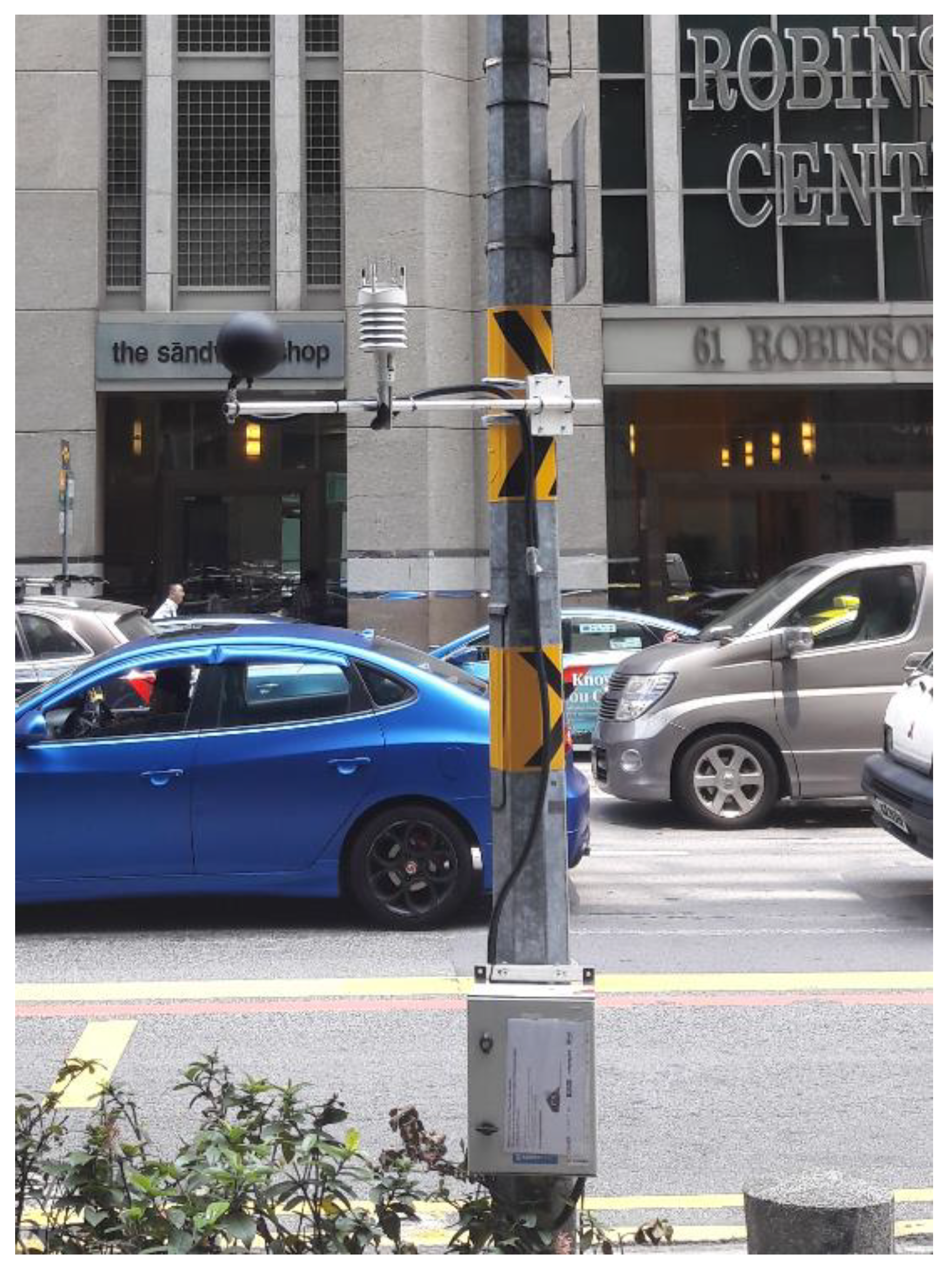

At each site, both sensors were mounted on a reinforced metallic arm and attached to a lamp post (Figure 1). The metallic arm extended around 1.2 m away from the lamp post to avoid wind obstructions. All sensors were between 2.2 and 2.4 m above the ground level to comply with governmental agencies’ requirements.

A data logger (Scientific Campbell CR300) was used to store 1-min average values recorded by the sensors. Together with the necessary battery (18 Amph at 12 V) to power all the instruments at each site, the data logger was secured in a waterproof enclosure attached to the same lamp post.

The sensors provided the following accuracy for the measurements: ±0.3 °C for T_a and T_g, ±3% for RH, ±3% for WS, ±3° for WD, and <5% for rainfall.

T_mrt was derived from measurements using Formula (1) where a mean convection coefficient [24] is specifically defined for Singapore [46]:

$${\mathrm{T}}_{\mathrm{mrt}}={\left[{\left({\mathrm{T}}_{\mathrm{g}}+273.15\right)}^4+\frac{0.82\times {10}^8{\mathrm{WS}}^{0.46}}{\in {\mathrm{D}}^{0.4}}\left({\mathrm{T}}_{\mathrm{g}}-{\mathrm{T}}_{\mathrm{a}}\right)\right]}^{1/4}-273.15$$

(1)

where T_g is the globe temperature (°C), WS is the wind speed (ms⁻¹), T_a is the air temperature (°C), D is the globe diameter (m), and ϵ is the globe emissivity. In our case, ϵ = 0.95 (for black globe).

Additionally, 10-min values of global solar irradiance measured in station 322 of the Solar Energy Research Institute in Singapore (SERIS) were used to evaluate the level of cloudiness during the measurement campaign. This station is located on a roof (above the urban canopy) close to the two areas (Section 3.2) where sensors were deployed. Although cloudiness in Singapore can vary significantly in short distances, it is considered that the measured global and diffuse solar radiation in station 322 is representative of the areas of study. The uncertainty of the irradiance sensors is 5% [47].

3.2. Areas and Sites of Measurements

Two different areas of Singapore (Duxton Park and the Commercial and Business District (CBD)) were selected to deploy several sensors simultaneously (Figure 2). Specific measuring sites inside each area were selected to provide relevant and representative data to analyze the impact on T_mrt of building shadowing and cloudiness in different types of urban developments.

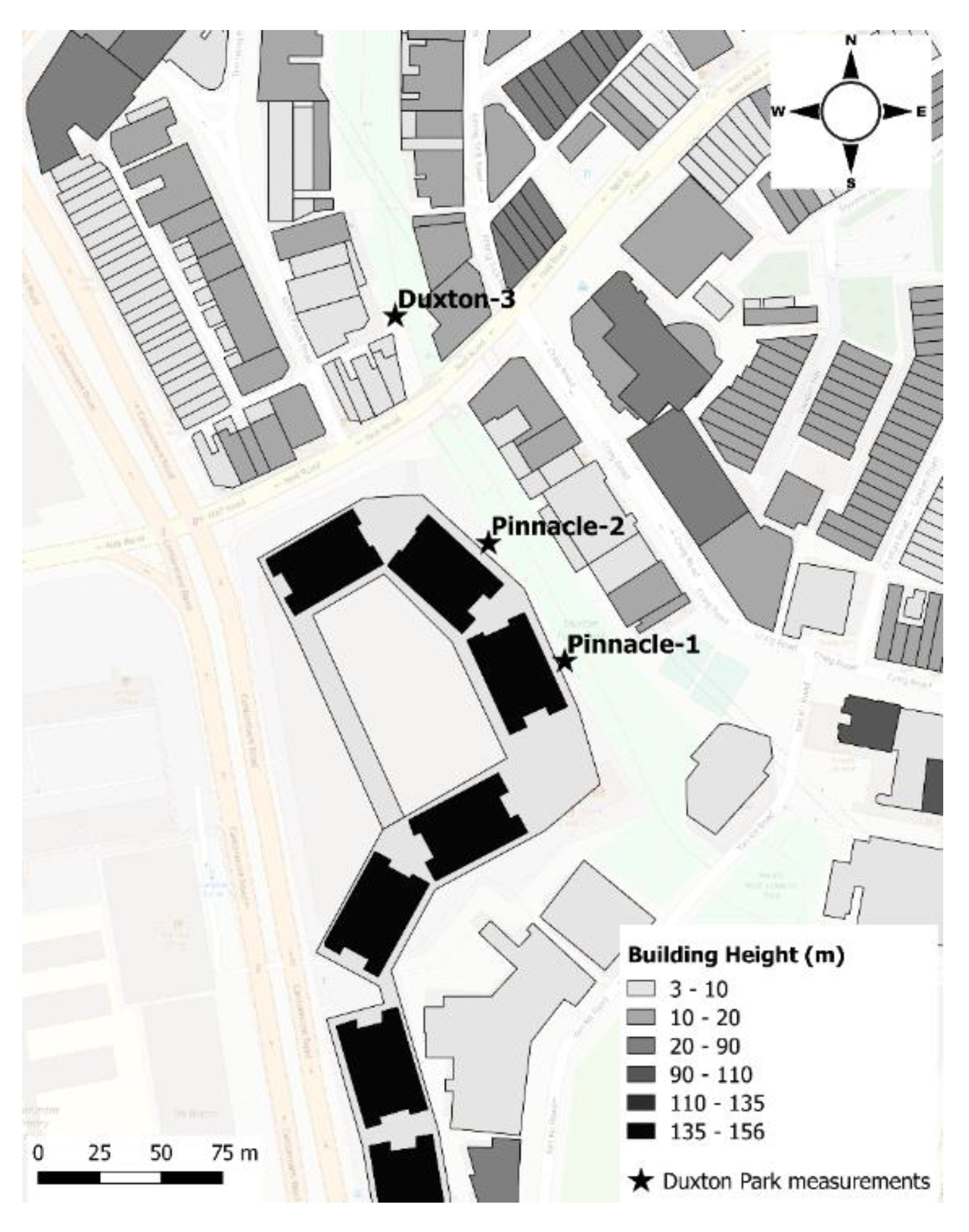

3.2.1. Duxton Park Area

The Duxton Park area is of particular interest because of its location and nature. Located close to the CDB, the high-rise developed area of Singapore, it is mostly used by residents. It is a short, narrow, and green corridor that offers an alternative route compared to the more heavy trafficked nearby streets. In addition, the area combines different urban typologies (Figure 3). Different street canyon aspect ratios (the ratio between the street width and the aside averaged building height) and building height asymmetry (e.g., Pinnacle high-rise building versus low-rise shop-houses) can be found.

Three sites (Pinnacle1, Pinnacle2, and Duxton3) have been selected to analyse the impact of urban typologies, building shadowing and cloud cover on T_mrt. In these sites, simultaneous measurements were carried out between 4 July and 23 October 2019 (3.5 months), including the SW-Monsoon season and part of the wet Inter-Monsoon season (see Section 2). A description of the specific sites where the sensors were located is presented in

Table 1. Description of the sites in the Duxton Park area where measurements were carried out.

Site	Description	Picture	SVF (1)
Pinnacle1	Asymmetrical street canyon (high-rise buildings on one side and low-rise development on the other). NW street orientation. Shadow of high-rise building in the afternoon and trees in the morning.
Pinnacle2	Asymmetrical street canyon (high-rise towers on one side and low-rise development on the other). NW street orientation. Shadow of high-rise building in the afternoon. Influence of nearby low height trees and bushes.
Duxton3	Low-rise development area. Buildings on both sides of the canyon are not higher than 10 m. Ground mostly covered with grass. NNW street orientation. Most relevant shadow provided by some tall palm trees (high transmissivity) before noon. Site with highest sky view factor.

⁽¹⁾ Calculations were carried out with Rayman software [48,49].

.

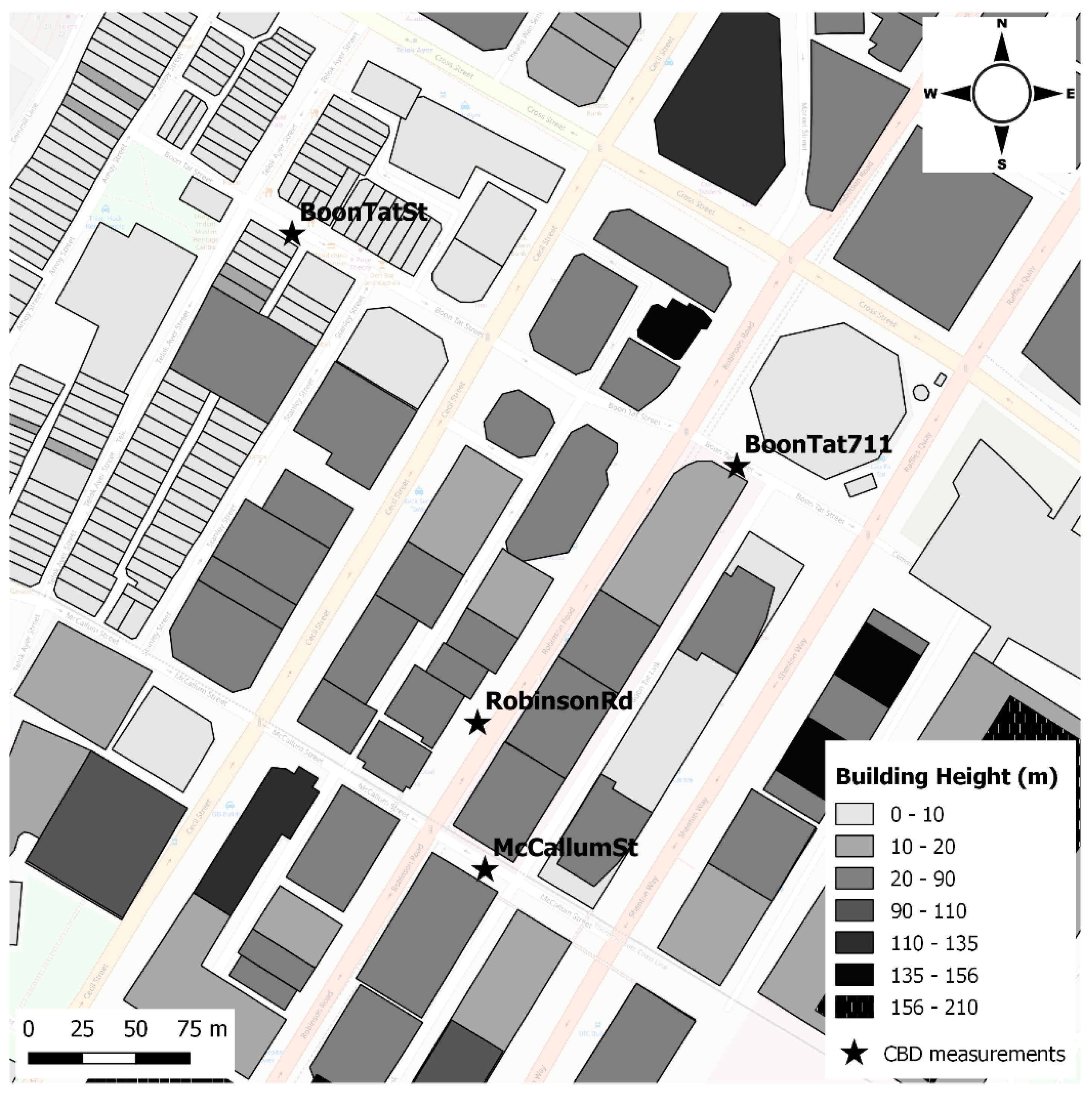

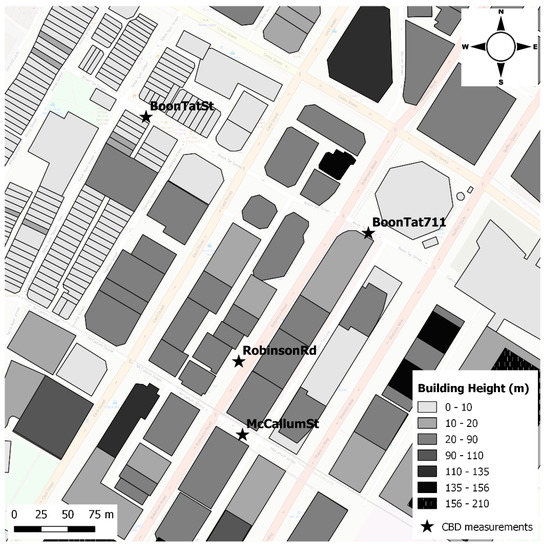

3.2.2. CBD Area

The high-rise CBD of Singapore is different to Duxton Park (Section 3.2.1) not only because of the type of urban development but also the activities carried out. It is the heart of Singapore’s financial activities and is currently mostly used by office worker commuters. The area where the sensors were deployed is less than 0.3 km² (Figure 4), around Robinson Road, and between Boon Tat Street and McCallum Street. It includes streets with different aspect ratios, street orientations (NE-SW and NW-SE), and building height asymmetry (e.g., BoonTat711 site), as described in

Table 2. Description of the sites in the CBD area were measurements were carried out.

Site	Description	Picture	SVF (1)
BoonTat711	Asymmetrical street canyon (high-rise buildings on one side and Telok Ayer Market (low-rise development) on the other). Street with NW-SE orientation. Shadow in the afternoon due to high-rise building. Site with unusual high SVF due to openness and low-rise development in one side.
RobinsonRd	High-rise development with street aspect ratio ≈2.5 (low sky view factor) and NE-SW orientation. Only a short period (≈2 h) of direct solar radiation around midday/afternoon.
BoonTatSt	Low-rise development with street aspect ratio ≈1 (high sky view factor), and NW-SE orientation. Shadow during the afternoon. Farthest site from the shore line.
McCallumSt	High-rise development with street aspect ratio ≈2.5 (low sky view factor), and NW-SE orientation. Shadow of high-rise building in the afternoon.

⁽¹⁾ Calculations were carried out with Rayman software [48,49].

.

At four outdoor sites (BoonTat711, BoonTatSt, RobinsonRd, and McCallumSt), measurements were carried out simultaneously between 15 November 2019 and 13 January 2020 (2 months), which includes the last part of the wet Inter-Monsoon season and the wet NE-Monsoon season (see Section 2). A description of the specific sites is presented in Table 2.

3.3. Analysis of Climate Variables

At each site, 10-min mean climatic values were calculated from 1-min records stored in the data logger (see Section 3.1).

With the aim of analyzing the impact of high-rise buildings’ shadow and cloud cover on T_mrt, diurnal cycles for different time periods (e.g., climatic seasons) were calculated. In addition, average values during the midday/afternoon period (11:10 to 16:00) were extracted to compare the daily highest T_mrt values between different sites. The analysis was carried out for different climatic seasons as well as for specific days.

In Pinnacle1 and Pinnacle2 (Duxton Park area), two days (13 July and 11 October 2019) with clear skies were selected. At each site, WS, T_a and e mean afternoon values were similar during both days, although Pinnacle1 always registered higher WS and lower T_a values (

Table 3. Mean midday/afternoon climatic values (11–16 h) registered in Pinnacle1 and Pinnacle2 on 13 July and 11 October 2019.

Day	Site	WS (ms−1)	Ta (°C)	e (hPa)
13 July	Pinnacle1	1.7	31.1	24.9
	Pinnacle2	1.0	32.2	25.3
11 October	Pinnacle1	1.4	31.1	25.3
	Pinnacle2	0.8	31.6	25.4

). When building shadow started to affect both sites, global radiation was 720 Watt/m² and 1002 Watt/m² on 13 July and 11 October, respectively.

To analyze the influence of cloudiness and solar radiation in T_mrt, hourly values were evaluated against the clearness index defined as:

$${\mathrm{K}}_{\mathrm{t}}=\frac{\mathrm{GHI}}{{\mathrm{GHI}}_{\mathrm{CS}}}$$

(2)

where GHI is the global horizontal irradiance and GHI_CS is the clear skies global horizontal irradiance.

Thus, K_t represents a dimensionless number between 0 and 1, which is defined as the surface global radiation divided by the surface global radiation when conditions of clear skies occur (i.e., maximum transmission of solar radiation through the atmosphere).

For Singapore, Dazhi et al. [50] defined the GHI_CS as:

$${\mathrm{GHI}}_{\mathrm{CS}}=0.8277 · {\mathrm{E}}_0 · {\mathrm{I}}_{\mathrm{SC}} · {\left({\cos \mathsf{\theta }}_{\mathrm{z}}\right)}^{1.3644} · {\mathrm{e}}^{-0.0013·\left(90-{\mathsf{\theta }}_{\mathrm{z}}\right)}$$

(3)

where E₀ is an eccentricity correction factor of Earth, I_sc is the solar constant (1366.1 Watt/m²), and θ_z is the solar zenith angle.

Correlation analysis between T_mrt and K_t have been undertaken for August 2019 at 10:30 and 17:00 for different sites (shaded and non-shaded).

Additionally, the diurnal cycle of T_mrt was analyzed on a clear skies day and a cloudy day. Two days in the SW-Monsoon season (25 July and 1 August) were selected. These selected days were close to one another to avoid significant difference in the solar elevation (and the timing of T_mrt peak values). In addition, no precipitation occurred during these days. On 25 July, the sky was covered with clouds throughout the day, with different levels of incoming solar radiation. On the contrary, 1 August presented during most of the day clear skies (high solar radiation), although some periods of clouds occurred before midday.

Table 4. Mean and maximum solar irradiance values (Watt/m²) registered in station 322 of SERIS (close to Duxton Park) during different periods of the day on 25 July and 1 August 2019.

Date		Morning (7:00 to 10:00)	Midday/ Afternoon (11:00 to 16:00)	Evening (17:00 to 19:00)
25 July (cloudy day)	Mean	141	599	155
	Max.	371	833	238
1 August (clear skies day)	Mean	207	738	188
	Max.	593	987	361

shows the mean and maximum solar irradiance registered in the area during different periods of the day. The mean wind conditions were very similar throughout the day, but the temperature was higher on 1 August (clear sky day).

4. Results and Discussion

4.1. Impact of Building Shadow

In this section, the influence of the shadow of a high-rise building on T_mrt is presented. Results are analyzed at the pedestrian level. The analysis is presented for different climatic seasons (mean values) and for two clear skies days when the impact of building shadow on T_mrt is highest. Data registered both in Duxton Park and CBD (Section 3.2) are used to discuss the findings.

4.1.1. Differences between Climatic Seasons

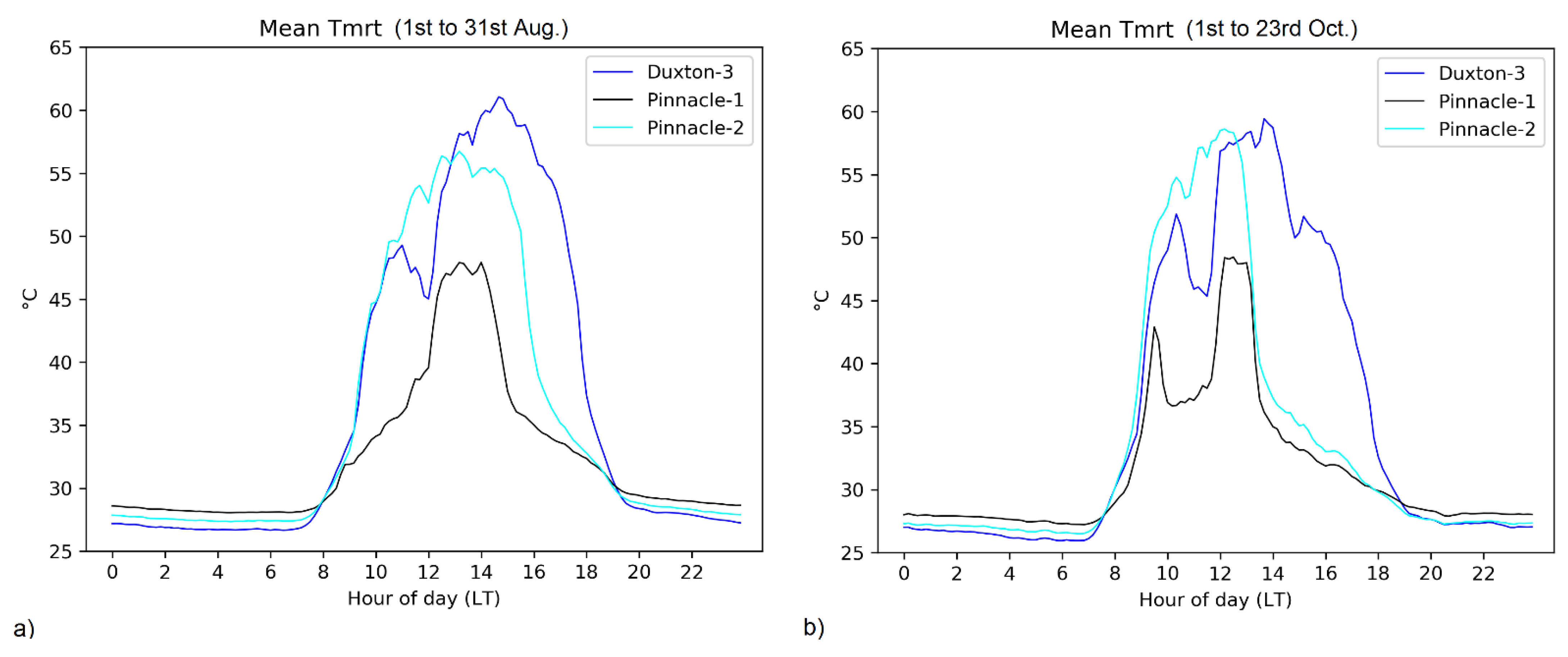

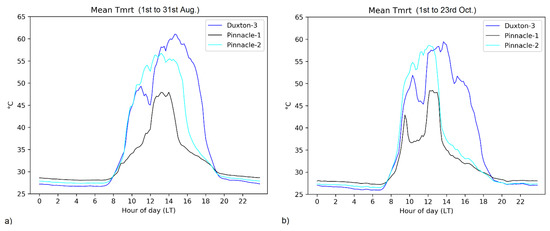

Figure 5 presents the mean diurnal profile in Pinnacle1, Pinnacle2, and Duxton3 (Duxton Park area) during the SW-Monsoon and the wet Inter-Monsoon seasons. In all sites, T_mrt peaks tend to occur later in time during the SW-Monsoon season. This can mostly be explained by the elevation of sun and the interference of the different urban elements/features with the incoming solar radiation. Although Duxton3 is not affected by building shadow, the influence on T_mrt of some tall palm trees at 11:30–12:00 is notable [44]. Maximum mean T_mrt values in Duxton3 reach 59.4 °C and 61.5 °C in the wet Inter-Monsoon and SW-Monsoon seasons, respectively.

The influence of the nearby high-rise buildings’ shadow (Figure 3) is clearly noticed in Pinnacle1 and Pinnacle2 in the afternoon. In the Inter-Monsoon season, T_mrt drops sharply at 12:40 in Pinnacle 2 and at 13:10 in Pinnacle1, with reductions mean T_mrt of ≈19 °C and ≈11 °C, respectively. Time differences between sites are attributed to different orientation (21°) of the buildings providing shadow. However, during the SW-Monsoon, the effect of building shadow is delayed ≈1.5 h with respect to the Inter-Monsoon in both sites due to the variation of the sun elevation and sun path between seasons.

The effect of building shadow (i.e., reduction of T_mrt) is much higher in Pinnacle2 than in Pinnacle1. Pinnacle2 drops ≈8 °C more than Pinnacle1 in the Inter-Monsoon season. The reason for this difference between sites is that the Pinnacle1 measuring site is already (before the shadow of the building) under the influence of trees that partly block solar radiation.

After the sharp drop in mean T_mrt, under the building shadow, T_mrt levels remain higher in Pinnacle2. This is best shown in the Inter-Monsoon season. During the afternoon (14:00 to 16:00), the difference between both sites can reach 2.5 °C. During this period of the day (both sites are under building shadow), the T_mrt difference is due to lower levels of radiation in Pinnacle1. As commented previously, the latter is partly covered by trees that limit the access of diffuse solar radiation but also the surrounding surfaces are colder (e.g., leaves), reducing longwave irradiance in Pinnacle1.

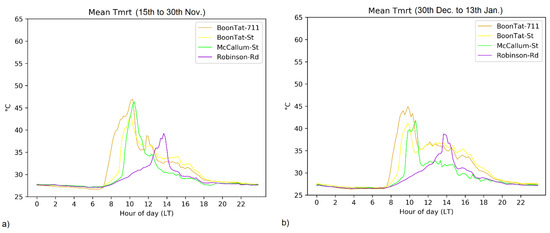

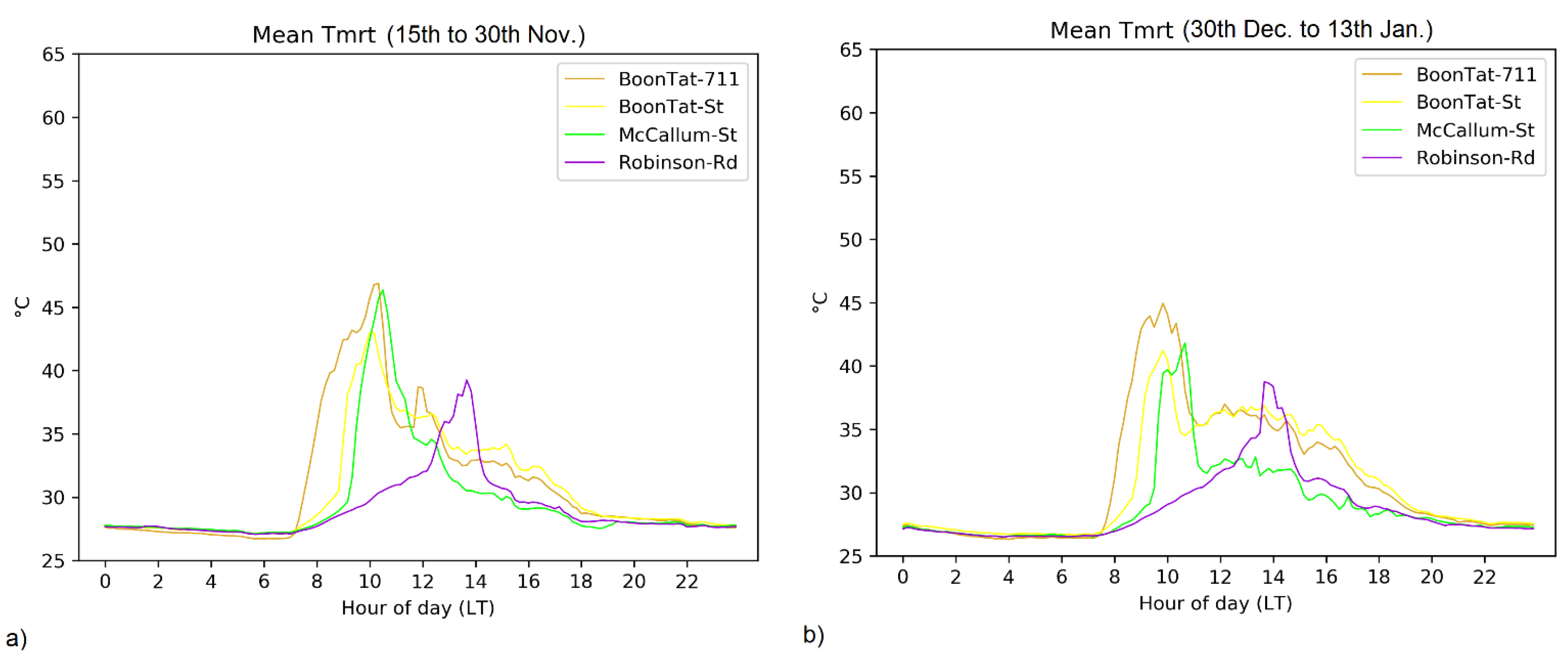

Similar effects are observed in McCallumSt, BoonTatSt, BoonTat711, and RobinsonRd (CBD area). Figure 6 shows the different mean T_mrt diurnal profile for a two-week period in the wet Inter-Monsoon (last half of November 2019) and in the wet NE-Monsoon (first half of January 2020). In this case, the timing of the peak values in each site is conditioned by the street orientation. McCallumSt, BoonTatSt, and BoonTat711 are all NW-oriented streets and have the peak at ≈10:10 in the Wet Inter-Monsoon season, while for RobinsonRd (a NE-oriented street), the peak happens 3.5 h later (at 13:40). In the wet NE-Monsoon period, the time lag between the two street orientations increases to 4 h due to the variation in the sun path (elevation and azimuth) with respect to the wet Inter-Monsoon.

Peak mean values in these two periods (wet Inter-Monsson and wet NE-Monsoon) are significantly lower than the ones measured in Duxton Park during the SW-Monsoon season, which was mainly due to a lower precipitation (less cloud cover) in the SW-monsoon season and especially in August 2019. In addition, RobinsonRd shows lower mean peak values than the other three sites in the CBD, which can be explained by higher cloud cover and showers during the afternoon that reduce solar incoming radiation at the time when T_mrt peak occurs.

4.1.2. T_mrt Evaluation on Clear Skies Conditions

Two specific days were selected to quantify the impact of building shadow on clear skies days: 13 July and 11 October 2019 in the SW-Monsoon and Inter-Monsoon, respectively (Section 3.3). On 13 July, there are some clouds during the morning period, but in the afternoon, clear skies are present (Figure 7). In contrast, 11 October was a clear sky day for Singapore. Both days show similar T_a, WS, and e mean afternoon values (Table 3), but incoming solar radiation differs by 280 Watt/m² (at the time of the building shadow), which is mostly due to the different time (due to the season) at which the building shadow reaches the sites.

On 11 October, the maximum T_mrt values reach 65.6 °C at 12:40. Similar values were reported by Tan et al. [28] in Singapore when T_mrt was estimated on a roof top from six individual measurements/directions of the shortwave radiation and longwave radiation fluxes on a clear sky day. Values were ≈69.5 °C when the shortwave radiation from the sky was 1150 Watt/m².

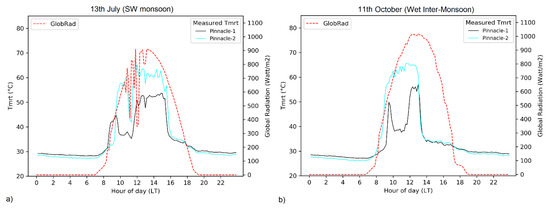

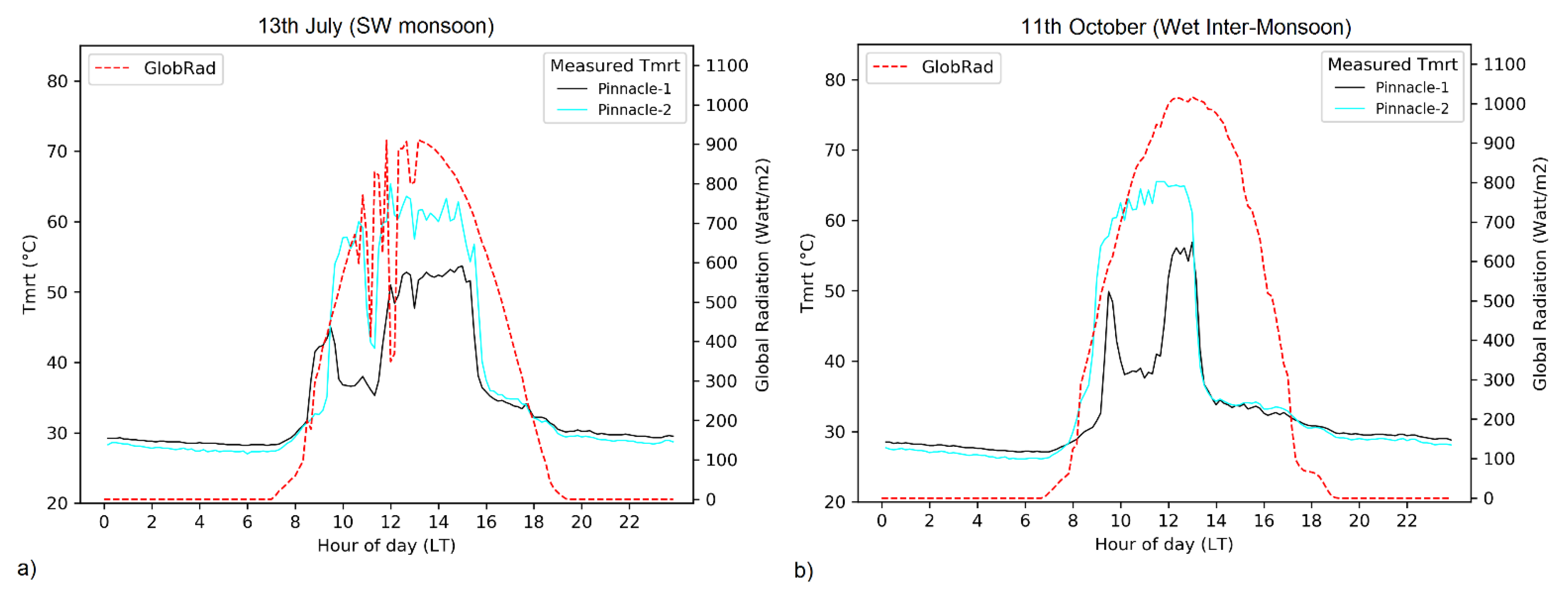

Figure 7 shows the T_mrt diurnal profile for both days. A common result in both days is that the T_mrt drop due to building shadow is higher in Pinnacle2 since, as commented in Section 4.1.1, Pinnacle 1 is partly affected by tree shadowing before the building effect starts. While in Pinnacle2 T_mrt is reduced ≈25 °C, Pinnacle1′s drop is ≈16°C (for the case of 13 July). However, higher incoming solar radiation (as on 11 October) causes higher reductions on T_mrt due to building shadow: ≈30 °C and ≈20 °C for Pinnacle2 and Pinnacle1, respectively.

The solar trajectory again affects the time when the building shadow reaches each measuring site. A sharp reduction in T_mrt happens at ≈12:45 on 11 October (Inter-Monsoon) and at ≈15:15 h on 13 July (SW-Monsoon). This two-hour difference is 30 min more than the mean difference between August and October presented in Section 4.1.1.

These results are important to gain an understanding of the benefit of shadowing under clear skies conditions.

4.2. Effect of Cloudiness

4.2.1. T_mrt Versus the Clearness Index

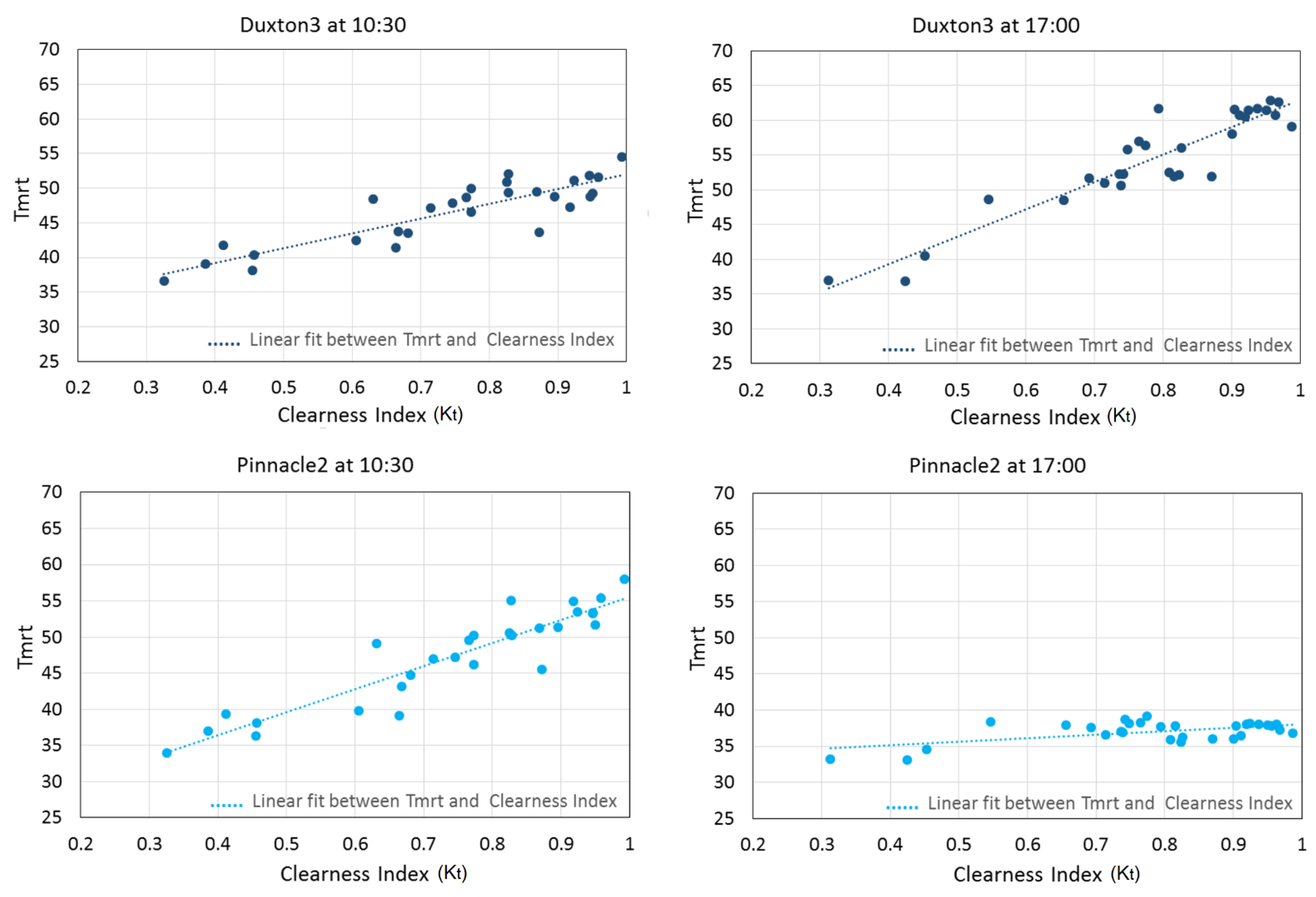

T_mrt values were analyzed based on the levels of cloudiness. Figure 8 shows the relation between the T_mrt and the clearness index (K_t) as defined in (2). Two different hours (10:30 and 17:00) are used to represent the morning and late afternoon period in Duxton3 and Pinnacle2. Duxton3 is non-shaded at both hours, while Pinnacle2 only at 10:30. At 17:00, Pinnacle2 is shaded by the near high-rise building (Figure 3).

Under non-shaded conditions, T_mrt and K_t show a good linear relationship (e.g., in Pinnacle2 at 10:30, r = 0.924 (p < 0.001)). The effect of cloudiness on T_mrt has been presented in other studies (Kántor et al., 2015; Thorsson et al., 2007). However, in the shaded site (17:00 in Pinnacle2), K_t and T_mrt have low correlation (r = 0.558 (p < 0.001)) (Figure 8), and thus, the level of cloudiness produces low variation in T_mrt values. In this sense, results highlight the importance of direct solar radiation to govern the variability of T_mrt levels in Singapore.

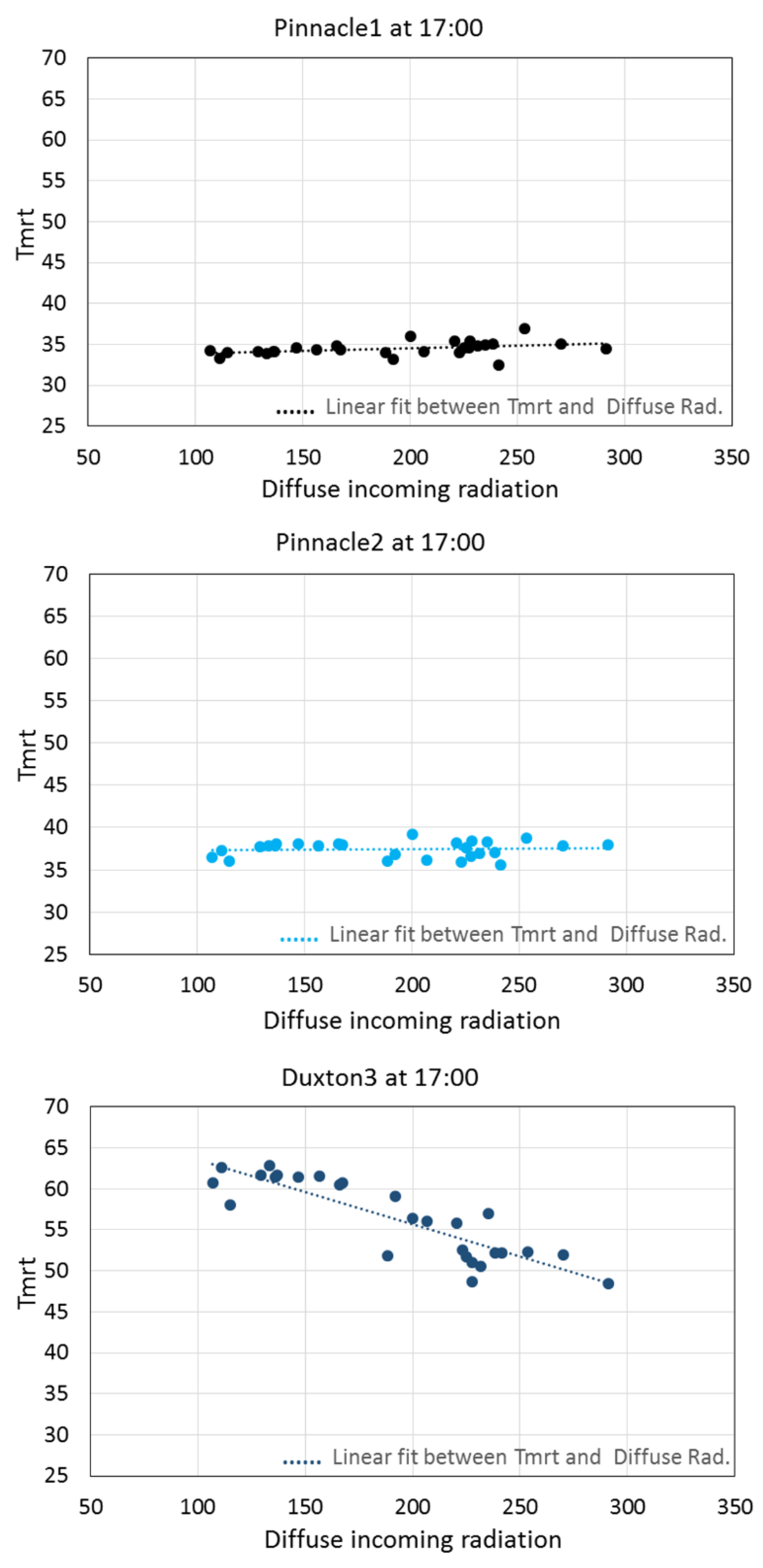

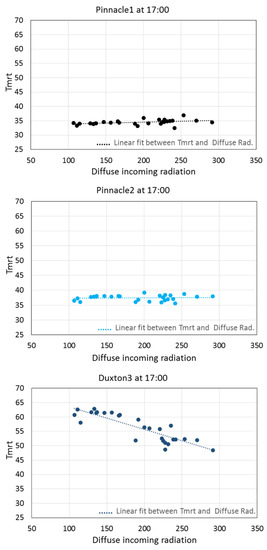

Further analysis on the influence of diffuse solar radiation on T_mrt shows a low relationship between these two variables in shaded sites (Pinnacle2 and Pinnacle1 at 17:00 have r = 0.041 (p < 0.001) and r = 0.297 (p < 0.001) respectively) (Figure 9), suggesting the contribution to T_mrt of other radiation components (i.e., longwave radiation). The importance of longwave radiation (especially lateral fluxes) to T_mrt has already been reported in the literature [22,34], which in shaded sites should be higher. On the contrary, in non-shaded sites (Duxton3) at the same hour, diffuse solar radiation and T_mrt show a negative correlation (r = −0.520 (p < 0.001)). Since higher diffuse radiation is associated with lower direct solar radiation, the results again highlight the role of direct solar radiation in the variability of T_mrt levels in non-shaded sites.

4.2.2. Difference between Cloudy and Clear Skies Days

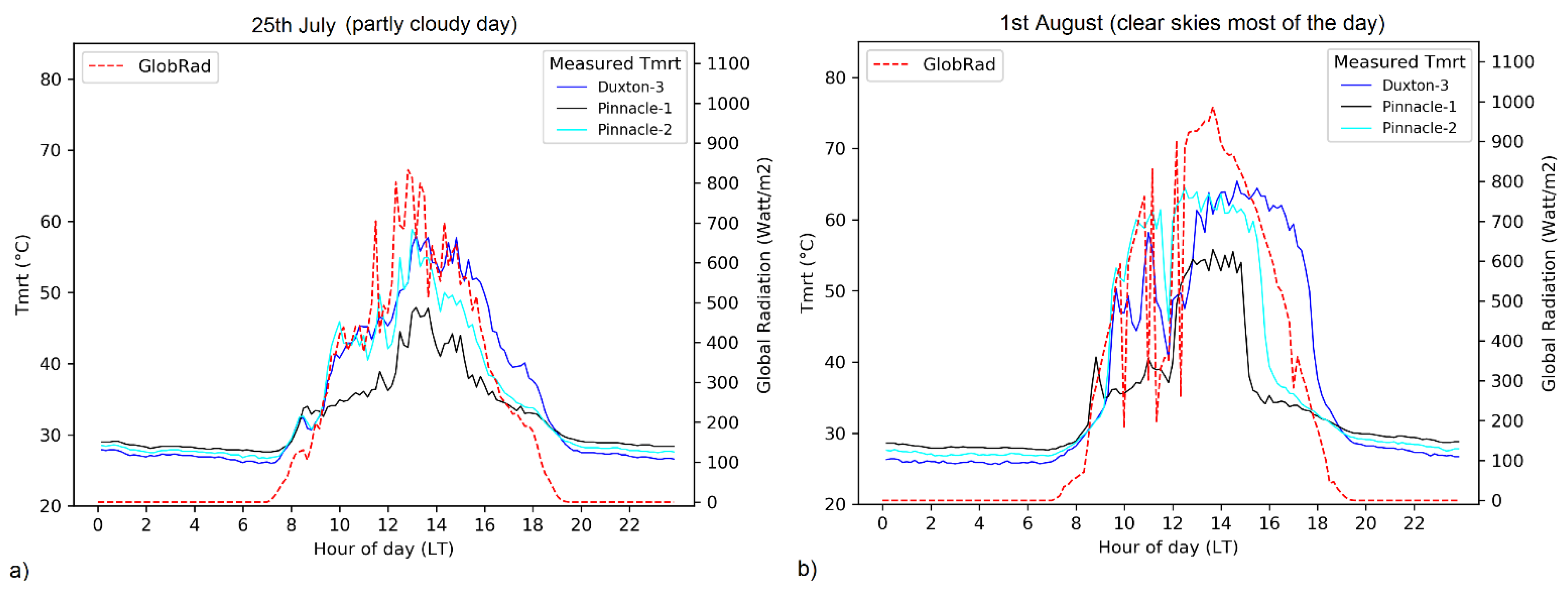

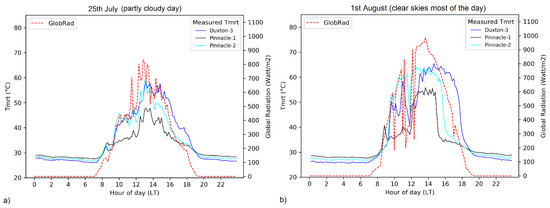

Analysis of two close non-rainy days in the SW-Monsoon season (25 July and 1 August) has shown the influence of solar radiation levels on T_mrt. On 1 August (clear skies day), T_mrt values in the three sites (Duxton3, Pinnacle1, and Pinnacle2) show a similar diurnal cycle (Figure 10) to the mean values presented for the SW-Monsoon season (Section 4.1.1), especially in the afternoon (high solar radiation conditions). The effect of building shadowing is clearly noticed in Pinnacle1 and Pinnacle2, starting at 14:50 and 15.20, respectively. However, on 25 July (cloudy day), this effect is not as relevant as on a clear skies day (1 August).

In general, clouds significantly change the T_mrt diurnal cycle. During the afternoon, cloud cover can reduce T_mrt values significantly in sites exposed to direct solar radiation. Between 25 July and 1 August, incoming solar radiation in the 30 min before the building shadow affected Pinnacle1 differed by 217 Watt/m² (mean value). During this period (before the building shadow effect), T_mrt values were lower in the cloudy day (aligned with outcomes in Section 4.1). T_mrt differences between the two days (cloudy vs. clear day) were 7.8 °C, 11.1 °C, and 12.5 °C in Duxton3, Pinnacle 1, and Pinnacle2 respectively. The lower difference in Duxton3 is associated with a higher sky view factor of the site that allows a higher impact of diffuse radiation under cloudy days.

As expected, a higher decrease in incoming solar radiation causes a higher T_mrt reduction. In Pinnacle2, before noon (11:00), the T_mrt difference between the two days (cloudy vs. clear day) reaches 14.2 °C due to a 400 Watt/m² difference in the incoming solar radiation.

4.2.3. Urban Development and Diffuse Radiation

As commented in the previous section, during cloudy conditions, sites with a higher sky view factor were associated with higher T_mrt values due to higher levels of solar diffuse radiation. This was the case in low-rise areas such as Duxton3.

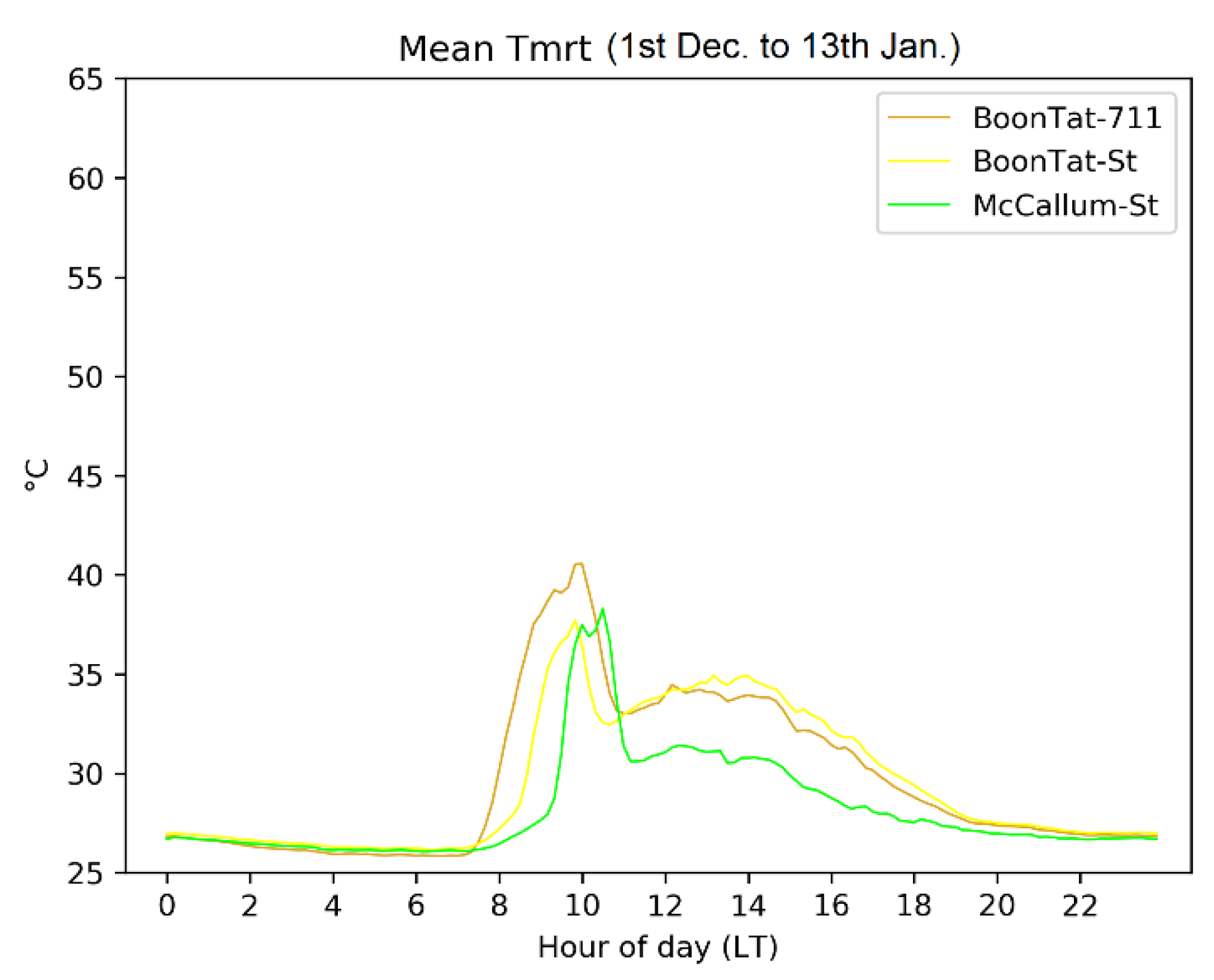

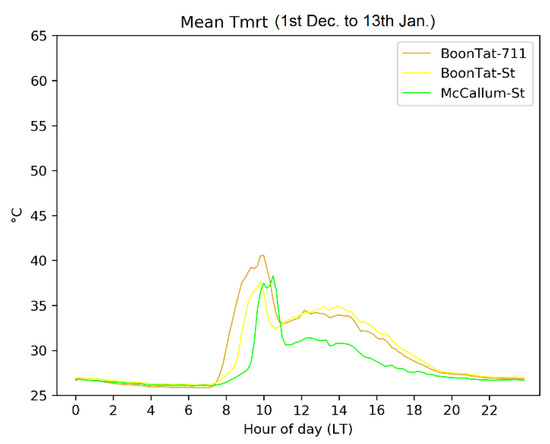

Figure 11 shows the mean T_mrt values during most of the wet NE-Monsoon season (1 December 2019 to 13 January 2020), when precipitation and cloudiness is highest in Singapore. All sites considered (BoonTatSt, BoonTat711, and McCallumSt) are in NW oriented streets, which causes maximum T_mrt values to occur at ≈10:00 am (see Section 4.1.1). During the morning period (until ≈9:30am), T_mrt values are highest in BoonTat711 (partly open urban area and asymmetrical aspect ratio) due to high exposure to solar radiation. At this time of the day, the lowest values are in McCallumSt due to lowest SVF (higher in BoonTat711 and BoonTatSt). After the morning peak (≈10:00am), T_mrt values in all three sites drop ≈8 °C. In the midday/afternoon period (11:00 to 16:00), without the direct solar radiation, BoonTatSt and BoonTat711 register similar results. The difference of these two sites with McCallumSt remains quite stable throughout the afternoon. Mean T_mrt values in McCallumSt are 3.4 °C and 2.9 °C lower than BoonTatSt and BoonTat711, respectively. These results are influenced by a lower SVF in McCallum that reduces solar radiation (at this time of the day, only reflected and diffuse radiation) reaching the site in comparison to BoonTatSt and BoonTat711 and are in agreement with previous studies that reported higher radiant fluxes inside street canyons with higher SVF. Du et al. [51] showed a positive correlation between SVF and both shortwave and longwave radiation in a severely cold region (Dwa climate type). In a hot and dry region, Middel and Krayenhoff [34] reported that access to solar radiation dominated on T_mrt together with a positive effect of impervious overheated surfaces on longwave contributions. Although a positive correlation between SVF and T_mrt during the daytime under direct solar radiation is expected to be found [22,28,52], on shaded sites and with clear skies, SVF can have a weak explanatory power for variations in shortwave fluxes, and T_mrt can show a negative correlation with SVF; i.e., higher SVF can facilitate a release of longwave radiation and thus decrease T_mrt in shaded sites [53]. This is not the case in our study area where under building shadow conditions, lower SVF showed lower T_mrt values. Differences with the study of Lai et al. [53] could be attributed to the frequent cloudy conditions in Singapore that increase the diffuse solar radiation component and thus the solar radiation fluxes in shaded areas. This interpretation is supported by a study from Chatzipoulka et al. [54] analyzing solar radiation in different façade orientations, which found a consistent strong relationship between the SVF and diffuse irradiance and that higher urban openness could increase average diffuse and reflected solar radiation.

During the evening, T_mrt difference between BoonTat sites and McCallum slowly reduces. By sunset (≈19:00), when incoming solar radiation is negligible, all three sites register similar T_mrt values.

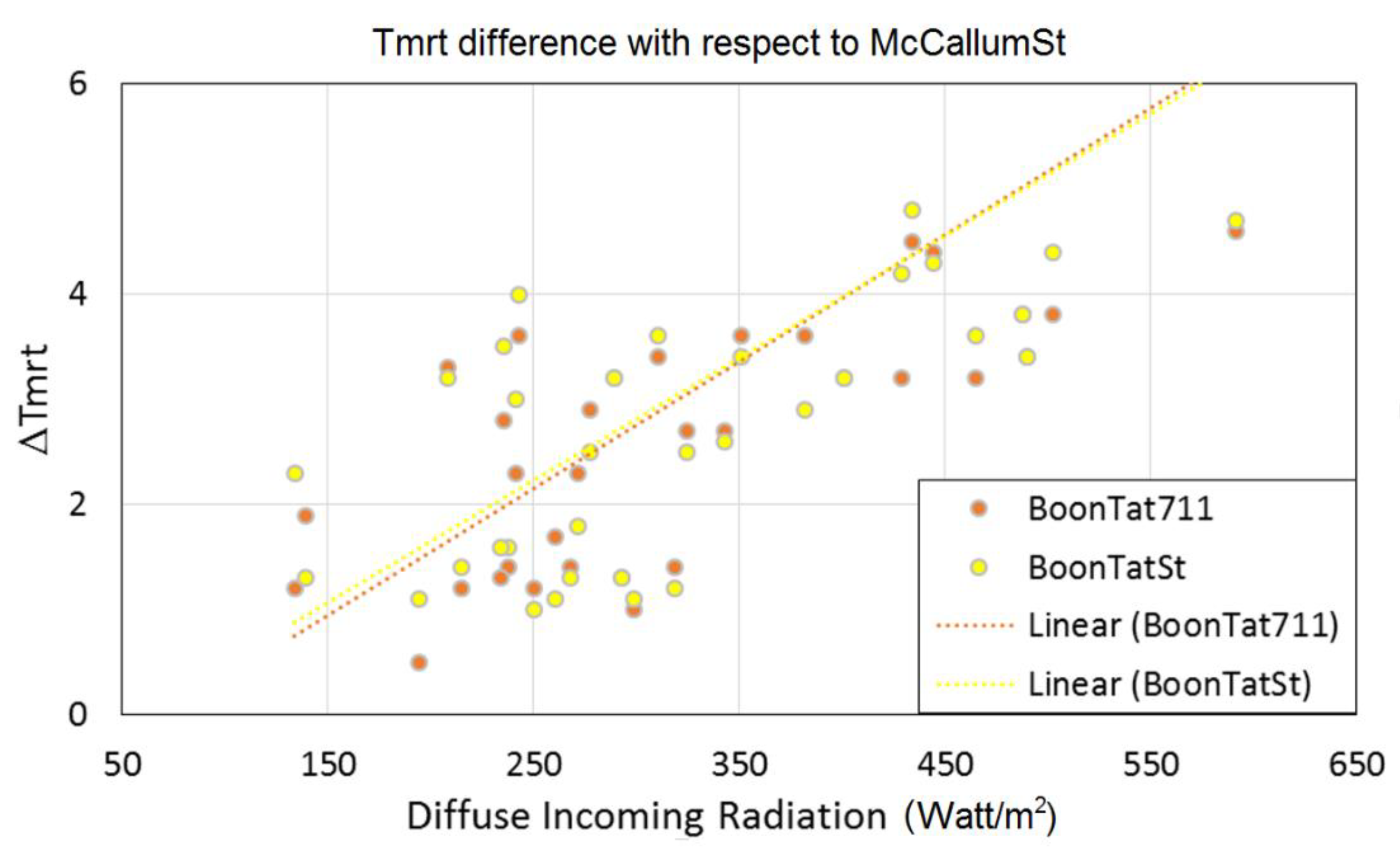

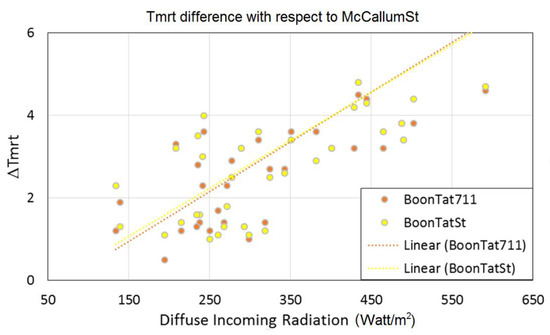

Figure 12 represents the effect of increasing the diffuse solar radiation (above the urban canopy) on the T_mrt difference between a high SVF site (BoonTatSt/BoonTat711) and a low SVF site (McCallumSt) in the absence of direct solar radiation. The diffuse solar radiation is measured at a nearby roof top. Results show that under higher incoming diffuse radiation, the T_mrt difference between a low SVF and a high SVF site also tends to increase, which is influenced by higher levels of diffuse radiation reaching the pedestrian level in the high SVF site. This outcome is aligned with the result presented in a previous paragraph showing that under shadow conditions, low SVF street canyons reduce radiative fluxes at the pedestrian level and thus show lower T_mrt.

5. Conclusions

In this study, we have analyzed the impact of the shadow of high-rise buildings on T_mrt as well as the effect of cloudiness and sky view factor in the hot and humid tropical city of Singapore.

Based on measurement campaigns with sensors deployed simultaneously in different sites, the results are presented for different seasons and for specific days (with different level of cloudiness), providing representative T_mrt values in the selected sites.

Street orientation and aspect ratio have shown an important impact on T_mrt due to their influence in solar access at pedestrian level. The street orientation conditions the time when T_mrt peak values occur (up to 4 h difference between a NE and a NW-oriented street in the wet NE-Monsoon). The street aspect ratio affects the width of T_mrt peak (i.e., period of time with highest T_mrt levels). Compared to high-rise developments, wider (in time) T_mrt peaks are expected in low-rise and partly open urban areas due to higher exposure to solar radiation. Additionally, T_mrt diurnal cycles at each site have shown a different pattern throughout the year. Not only can levels of cloudiness vary between seasons but also the change in solar elevation is responsible for T_mrt peaks occurring at different times and with different intensity throughout the year.

Under clear skies days, the effect of high-rise building shadow produced a T_mrt reduction of ≈25 °C and ≈30 °C in the SW-Monsoon and wet Inter-Monsoon seasons, respectively. Differences between seasons were conditioned by the solar elevation and thus the time when the building produced shadow on the analyzed site.

On the other hand, cloudiness has a clear effect on T_mrt in Singapore. On non-shaded sites (after midday), when incoming solar radiation (above the urban canopy) is reduced ≈217 Watt/m², T_mrt levels can be reduced between 7.8 and 12.5 °C (depending on the sky view factor and surrounding elements).

On shaded sites, the level of diffuse solar radiation (above the urban canopy) does not show a relevant impact on T_mrt, suggesting the influence of longwave radiative fluxes. However, under shaded conditions, the influence of SVF can still be noticed in T_mrt values at the pedestrian level. In these conditions, a low sky view factor can reduce diffuse the solar radiation reaching the pedestrian level, and thus, T_mrt is expected to be lower than in sites with higher sky view factors. This effect is emphasized for high levels of diffuse solar radiation (above the urban canopy), which are frequent in Singapore. For the same street orientation and during the wet NE-Monsoon, mean afternoon T_mrt values were ≈3.4 °C higher in low-rise/partly open urban sites than in high-rise development sites.

We consider that these results bring relevant information on T_mrt values regarding the interaction of incoming radiative fluxes and urban development, and we justify the necessity of a detailed analysis and proper quantification of the effects that govern T_mrt in different climate contexts as well as the reduction that certain urban features can achieve. This is especially useful for urban planning due to the influence of T_mrt in outdoor thermal comfort levels.

The measurements presented in this work will serve as a reliable database to evaluate the performance of microscale models to estimate T_mrt. Further work should be focused on the analysis of the contribution of different radiative components (shortwave, longwave) on the T_mrt levels in different urban developments both on shaded and non-shaded sites. Integral radiation measurements at the pedestrian level would allow improving the radiation schemes of models and thus the estimations and detailed spatial distribution of T_mrt in the urban area.
