Identification of High Personal PM2.5 Exposure during Real Time Commuting in the Taipei Metropolitan Area

by
Cheng-Yi Wang
1,
Biing-Suan Lim
2,
Ya-Hui Wang
3 and
Yuh-Chin T. Huang
4,*
1
Department of Internal Medicine, Cardinal Tien Hospital and School of Medicine, Fu-Jen Catholic University, New Taipei City 23148, Taiwan
2
Department of Education and Research, Cardinal Tien Hospital, New Taipei City 23148, Taiwan
3
Medical Research Center, Cardinal Tien Hospital and School of Medicine, Fu-Jen Catholic University, New Taipei City 23148, Taiwan
4
Department of Medicine, Duke University Medical Center, Durham, NC 27710, USA
*
Author to whom correspondence should be addressed.
Atmosphere 2021, 12(3), 396; https://doi.org/10.3390/atmos12030396
Submission received: 4 February 2021 / Revised: 11 March 2021 / Accepted: 12 March 2021 / Published: 19 March 2021
(This article belongs to the Special Issue Contributions of Aerosol Sources to Health Impacts)
Browse Figures
Review Reports Versions Notes

Abstract

:
There has been an increase in the network of mass rapid transit (MRT) and the number of automobiles over the past decades in the Taipei metropolitan area, Taiwan. The effects of these changes on PM2.5 exposure for the residents using different modes of transportation are unclear. Volunteers measured PM2.5 concentrations while commuting in different modes of transportation using a portable PM2.5 detector. Exposure to PM2.5 (median (range)) was higher when walking along the streets (40 (10–275) µg/m3) compared to riding the buses (35 (13–65) µg/m3) and the cars (15 (8–80) µg/m3). PM2.5 concentrations were higher in underground MRT stations (80 (30–210) µg/m3) and inside MRT cars running in underground sections (80 (55–185) µg/m3) than those in elevated MRT stations (33 (15–35) µg/m3) and inside MRT cars running in elevated sections (28 (13–68) µg/m3) (p < 0.0001). Riding motorcycle also was associated with high PM2.5 exposure (75 (60–105 µg/m3), p < 0.0001 vs. walking). High PM2.5 concentrations were noted near the temples (588 ± 271 µg/m3) and in the underground food court of a night market (405 ± 238 µg/m3) where the eatery stalls stir-fried and grilled food (p < 0.0001 vs. walking). We conclude that residents in the Taipei metropolitan area may still be exposed to high PM2.5 during some forms of commuting, including riding underground MRT.

1. Introduction

Epidemiologic studies have established an association between exposures to air pollution particles from mobile and stationary sources and human mortality and morbidity at concentrations of particles currently found in major metropolitan areas [1]. This association has been documented in numerous investigations around the world and is remarkably consistent [1,2,3,4,5,6,7,8]. The adverse effects of particulate matter (PM) include both pulmonary and extrapulmonary morbidity and mortality [9,10,11]. It is estimated that the daily cardiopulmonary mortality rose by 0.3% for each 10-µg/m3 increase in PM10 (particulate matter < 10 µm in aerodynamic diameter). For long term cardiopulmonary mortality, the estimate was 6% for each 10-µg/m3 increase in annual average exposure to PM2.5 (PM < 2.5 µm) [5]. The risk is especially high in the elderly and patients with chronic obstructive lung disease, asthma, coronary artery disease, congestive heart failure and cardiac arrhythmias [12,13,14,15,16,17]. The adverse pulmonary effects after PM exposure include greater hospital admissions, pulmonary infections, asthma attacks, and exacerbations of chronic obstructive pulmonary disease [12,18]. The extrapulmonary adverse effects of PM are primarily cardiac diseases [1,5,19,20] and vascular diseases (e.g., ischemic stroke) [21,22,23,24].
Most modern cities have significant air pollution issues related to particle emissions from road traffic and other anthropogenic sources. City residents are exposed to ground level fine particulate matter (PM2.5) from mobile sources during commuting. The ground level PM2.5 concentrations are known to be higher than those reported by the fixed-site monitoring stations, which are 10–15 m above the ground [25,26,27,28,29]. Outdoor PM2.5 concentrations below the height of 10-m buildings (three-story) were 10 to 20 times greater than those found at higher high-rise buildings, especially near busy roads [30]. Inhaled black carbon concentrations may be underestimated by the monitoring sites by as much as four to nine times [31]. Concentrations of black carbon while walking and riding a bicycle to work were up to six times those while riding a bus [32].
There have been studies on personal PM2.5 exposure measured by portable light scattering or gravimetric detectors during commuting in different transportation modes in different cities, but the results were variable [27,29,32,33,34,35,36,37,38]. Multiple factors may explain the variabilities. The climate of the city can be a factor affecting how people choose their transportation mode. In tropical cities where the weather is more humid, rainy and hot year-round, people may be inclined to choose the transportation modes that involve the least outdoor exposure. In cities with moderate climate, residents may use more outdoor transportation modes, and thus potentially are exposed to more roadside air pollutants. The availability of air-conditioned buses and socioeconomic status of the population also affect people’s preference. The traffic patterns, traffic volumes and driving conditions may also explain part of the variabilities. For example, driving a car was exposed to higher PM, but if the windows were closed with air conditioning on, the PM concentration inside the car decreased [27,34,37]. When biking routes shared the road with car lanes, especially when the traffic volumes were high, the bikers had higher PM exposure [32,34].
The Taipei metropolitan area in Taiwan has a subtropical climate. A study in 2008 showed higher personal PM2.5 exposure for motorcycle commuters compared to riders of mass rapid transit (MRT), buses and cars [29]. Over the past decade, more MRT lines have been added and the ridership has been increasing. The average daily transport ridership in 2019 has reached over 2 million [39]. With trains running more frequently, PM produced from abrasion and wear of rail tracks, wheels and braking pads during the motion of the trains will increase [40,41,42]. In addition, the number of automobiles and motorcycles has continued to rise, despite the expansion of the MRT network, worsening PM produced from automobile traffic. These changes indicate that residents in the Taipei metropolitan area may continue to be exposed to higher PM2.5 during commuting and an updated study to quantify the exposure is needed.
Although there have been studies on personal PM2.5 exposure in cities that have different transportation infrastructures [32,43,44,45,46,47], these cities are located in different geographic regions with different climates. Their citizens have different lifestyles and cultures and tend to use modes of transport that are most convenient and economical. Therefore, it is essential to characterize the exposure to air pollutants in a specific urban environment so the health risk can be more accurately assessed.
In this study, we hypothesized that MRT riders in the Taipei metropolitan area were exposed to high PM2.5 during commuting. We measured personal PM2.5 exposure during commuting in different modes of transportation in the greater Taipei metropolitan area. The main goal was to provide an updated estimate of personal PM2.5 exposure. The results can help identify high risk subpopulations that can be the focus of future studies on PM2.5- associated health effects.

2. Materials and Methods

The greater Taipei metropolitan area includes Taipei City and New Taipei City (Figure 1). The Metro routes have six lines: Wenhu line (brown), Tamsui-Xinyi line (red), Songshan-Xindian line (green), Zhonghe-Xinlu line (orange), Bannan line (blue), and Circular line Phase I (yellow). The size of the area is 2325 km2 (Taipei City: 272 km2 and New Taipei City: 2053 km2). As of 31 March 2019, the populations of Taipei City and New Taipei City were 2,663,425 and 3,998,883, respectively, or slightly more than one quarter of the population of Taiwan [48].
PM2.5 concentrations to which a commuter was exposed were measured using a portable PM2.5 detector (Temtop P600 Air Quality Laser Particle Detector, Elitech Technology, Inc., Milpitas, CA, USA). The detector is equipped with a laser particle sensor, and its operating environments include a temperature range: 0–50 °C; relative humidity range: 0–90%; atmospheric pressure: 1 atm; PM2.5 measurement range: 0–999 µg/m3 with a resolution of 0.1 µg/m3. The time resolution is 1 min. The laser sensor used in this detector was that same as the one used in another detector (Temtop LKC-1000S+). The sensor was evaluated in the laboratory and in the field with the Federal Equivalent Method (FEM)-Grimm as the standard [49,50]. Taking the average of the three linear equations from the field test for the three detectors like ours, one may derive the following linear equation to make correction: [Adjusted PM2.5] = 0.678 × [measured PM2.5] + 3.298 (average R2 = 0.915) [49]. Based on this equation, the measured PM2.5 concentrations will need to be adjusted downward by about 30% [49]. The precision was very good with low intra-modal variability (~7%). The climate condition had minimal effect on the sensors’ precision up to a relative humidity of 65%. We recorded 3 readings per measurement and took the average. The detector was not calibrated against FEM-GRIMM or Tapered Element Oscillating MicroBalance (TEOM) since they were not available to us. Instead, we recorded PM2.5 concentrations in a small air-conditioned room before each trip to ensure that the readings were consistent. The field test showed that this detector had low intra-model variability (~7%) [49]. The PM2.5 concentrations in the room were 5–10 µg/m3. We used the basic Quality Assurance/Quality Control (QA/QC) method to validate the collected data. Negative values and invalid data-points were eliminated from the dataset. Five volunteers were recruited to take the trips and perform the PM2.5 measurements. We used a small number of volunteers to decrease the interobserver variability. The same detector was used for the entire study to minimize the variability among different units, [49,50]. We measured PM2.5 concentrations at only low wind condition.
The study was conducted between April and July 2019. The months from April to July usually have the lowest ambient PM2.5 in northern Taiwan, as ambient air quality during these months tends to better and is least influenced by cross-border pollution from China [51]. Volunteers were recruited and asked to hold the detector at the midchest level parallel to the ground with the sensor facing away from the body during the measurements.
Ambient PM2.5 data were obtained from the nearest monitoring stations set up by Taiwan Environmental Protection Agency [52]. The sampling ports of these stations are located at a height of 15–20 m above the ground. Ambient PM2.5 concentrations reported by the monitoring stations are measured using the β-ray attenuation method and Tapered Element Oscillating Microbalance Technology (TEOM). The particulate analysis instrument automatically measures the concentrations of PM10 and PM2.5 with a screening device and a mass calculation system [53].

2.1. MRT

The MRT system in the Taipei metropolitan area consists of five lines covering 131.1 km at the time of the study. The volunteers took trips crossing the Taipei metropolitan area. The trips lasted between 30–90 min and were taken during the morning (7:00 a.m.–9:00 a.m.) and afternoon (5:00 p.m.–7:00 p.m.) rush hours as well as off-peak times (10:00 a.m.–4:00 p.m.).

2.2. Walking

The volunteers measured PM2.5 while walking along the streets and inside a night market. This night market in the Taipei region consists of a street level section and an underground quarter with individual stalls that sell clothing, drinks and a great range of snacks and food that are grilled or fried on site.

2.3. Bus

There is an extensive bus system in the Taipei metropolitan area. The volunteers rode buses to and from work or as connectors to the MRT stations. All buses in the metropolitan Taipei area have air conditioning and the air conditioning was on when the study was conducted (between April and July).

2.4. Motorcycle

The volunteers rode a motorcycle to and from work and to other destinations. For safety reasons, PM2.5 concentrations were measured only when the motorcycle was idle, for example, waiting for red lights.

2.5. Private Car

The volunteers drove cars to and from work and to other destinations. The volunteers were asked to turn on the air conditioning and set the ventilation in the re-circulation mode with the windows closed while driving.

2.6. Recording of Environmental Conditions

Each volunteer also recorded the time of the day, details of the routes including street names, names of the MRT stations and any environmental characteristics that may affect PM2.5 concentrations, including temples, roadworks, crowdedness and food vendors. The weather conditions at the time of the measurements including humidity, temperature and rain precipitation from the Central Weather Bureau of Taiwan were also recorded.

2.7. Statistical Analysis

All data were expressed as median and range or mean and standard deviation (SD). Comparisons among different conditions were performed using non-parametric multiple comparisons Wilcoxon rank sum test (JMP 13, SAS Inc., Cary, NC, USA). p < 0.05 was statistically significant.

3. Results

Ambient PM2.5 concentrations reported by nearby monitoring stations during the study period ranged from 2–38 µg/m3 with a median of 14 µg/m3. Monthly average PM2.5 concentrations for April, May, June, and July of 2019 from 10 monitoring stations in the Taipei metropolitan area were 19, 14, 12 and 12 µg/m3, respectively.
Street level PM2.5 concentrations near the monitoring stations were measured by the portable detector. Ambient PM2.5 concentrations reported by the monitoring stations were recorded simultaneously. A total of 24 pairs of measurements were performed on different days at five different stations. The scattered graph is shown in Figure 2. The dotted line represents linear regression. The linear equation is S = 0.958 M + 23.353, where S is street level PM2.5 concentrations and M is monitoring station PM2.5 concentrations (R2 = 0.275, p = 0.006). The poor association was likely due to the difference in the measurement of PM2.5 reported by the monitoring station at a height of 10–15 m and those measured at the ground level. PM2.5 concentrations near the ground could be 10–20 times higher than those found 10 m above the ground [30]. The discrepancy could also be due to the different methods used to measure PM2.5. The personal PM2.5 levels were measured by the light scattering method while the ambient PM2.5 levels were measured at each monitoring station by the TOEM method by Taiwan EPA.
The median PM2.5 concentration when walking on the sidewalks of the city streets was 40 µg/m3 (range 10–275 µg/m3, n = 216 measurements). Table 1 shows an example of a short walk from home to the workplace (hospital) on a sunny day with a reported temperature of 26 °C and relative humidity of 69%. Ambient PM2.5 was 21 µg/m3. Note the concentration rose at the intersections of major roads. The concentration increased at the intersection in part because of the increased automobile traffic that generated more exhaust and road dust. Table 2 shows an example of a longer walk from the workplace to home on a rainy day with a reported temperature of 24 °C and relative humidity of 77%. Ambient PM2.5 was 5 µg/m3. Note that PM2.5 concentrations spiked near a temple. Table 3 shows a walking trip through the Shilin night market. The shaded area indicates locations inside the underground food court. Figure 3 shows the route map. The capital letters represent measurement points. The ambient PM2.5 concentration was 5 µg/m3. The Shilin night market is one of the largest night markets in Taiwan. It has many vendors and shops for durable goods and clothing as well as a famous food section with many eatery stalls. PM2.5 concentrations in general were higher near food vendors and stalls (15:20 and 15:25 time points). The concentrations of PM2.5 were especially high near a temple and in the underground food court where there are food stalls serving stir-fried and grilled food. Average PM2.5 concentrations near the temple and inside the underground food court were 588 ± 271 µg/m3 and 405 ± 238 µg/m3 respectively.
A total of 34 MRT trips were taken. In the underground MRT sections, the median concentrations of PM2.5 in the stations and in the metro cars were 75 µg/m3 (range: 30–210 µg/m3, n = 92 measurements) and 80 µg/m3 (range: 53–185 µg/m3, n = 188 measurements), respectively. Both were higher than the PM2.5 concentration when walking along the streets (p < 0.0001). Figure 4 shows PM2.5 concentrations during a trip that used two different underground MRT lines. Red dots are PM2.5 concentrations reported by the nearest monitoring stations: Xindian (2 µg/m3) and Guting (6 µg/m3).
When the trains were traveling in the elevated MRT sections that were about 10–15 m above the ground, the concentrations of PM2.5 in the stations were lower than those in underground stations (median: 33 µg/m3; range: 15–35 µg/m3, n = 10 measurements, p < 0.0001 vs. PM2.5 in underground MRT stations) and in trains running in the elevated sections (median: 20 µg/m3; range: 13–68 µg/m3, n = 52 measurements, p < 0.0001 vs. PM2.5 in underground MRT trains). Both were also lower than the PM2.5 concentrations when walking along the streets (p = 0.0025 for elevated MRT stations and p < 0.0001 for elevated MRT cars). Figure 5 shows PM2.5 concentrations during a trip on an MRT line with both underground and elevated sections. Red dots are PM2.5 concentrations reported by the nearest monitoring stations—Songshan (16 µg/m3), Zhongshan (17 µg/m3), Shilin (10 µg/m3) and Tamsui (9 µg/m3). It was evident that when the train emerged from the underground section, the PM2.5 concentrations inside the train decreased.
The median PM2.5 concentration inside the buses was 35 µg/m3 (range: 13–65 µg/m3, n = 38 measurements), lower than that of walking (p = 0.0025). At the time of the measurements, all buses were running air conditioning. Figure 6 shows a representative trip by bus. Red dots are PM2.5 concentrations reported by the nearest monitoring stations: Xindian (4 µg/m3), Yonghe (7 µg/m3), Banqiao (7 µg/m3), Wanhua (6), Cailiao (10 µg/m3) and Sanchong (5 µg/m3). At the bus stops (on the roadside), the PM2.5 concentrations were higher than those inside the bus.
A total of three motorcycle trips were taken. The median PM2.5 concentration was 75 µg/m3 (range: 60–105 µg/m3, n = 21 measurements, p = 0.0011 vs. walking). Figure 7 shows a typical trip. Red dots are PM2.5 concentrations reported by the nearest monitoring stations—Datong (20 µg/m3) and Songshan (17 µg/m3). The PM2.5 concentration increased quickly by several fold after the ride began. Throughout the trip, the PM2.5 concentrations remained high. In Taiwan, motorcyclists frequently ride on the car lanes. Therefore, they would be exposed to exhaust from the cars and motorcycles more directly than pedestrians and bus riders.
There were five car trips. The PM2.5 concentrations were lower compared to those during walking (median: 15 µg/m3; range: 8–80 µg/m3, n = 111 measurements, p < 0.0001 vs. walking).
Figure 8 shows the comparison of personal PM2.5 concentrations among different modes of transport. MRT station (underground), MRT car (underground) and motorcycle were higher than walking along roadside (*). MRT station (underground) and MRT car (underground) are higher than MRT station (elevated) and MRT car (elevated) (#). Private cars and buses are lower than walking along the roadside (§).

4. Discussion

Our study showed high PM2.5 concentrations inside the underground MRT platforms and the trains (75 µg/m3 and 80 µg/m3). With the 30% downward adjustment for the PM2.5 concentrations measured by our portable detector, these results were slightly lower than those from a previous study that showed an average PM2.5 concentrations of 75.4 µg/m3 in the winter and 56.2 µg/m3 in the summer on the platforms of 10 most populous underground MRT stations in Taipei [54]. Assuming an MRT rider has a minute ventilation of 5 L/min and spends an average of 1 h/day in MRT, the rider may inhale more than 8 mg of PM2.5 a year from MRT alone [55]. A resting minute ventilation is used for the calculation because when the PM2.5 concentrations were measured, the MRT riders were stationary. The minute ventilation can increase when the riders walk around increasing the inhalation dose. MRT is built for convenient and efficient travel and has a goal of reducing automobile traffic and air pollutants produced by mobile sources. Although electric-powered, MRT generates its own air pollutants due to abrasion and wear of rail tracks, wheels and braking pads caused during the motion of the trains. The concentrations of PM in the MRT system were found to be higher than those measured by ambient monitors [43,44,45]. High levels of PM2.5 had been shown in European and South Korean cities, especially in the underground subway systems [41,44,45,46,56]. Such PM contains abundant elemental iron, total carbon, crustal matter, secondary inorganic compounds, insoluble sulphate, halite and trace elements [43,44,46,56] and has similar toxic effects to health compared to PM from other mobile or fixed sources [46].
The high PM2.5 concentration in MRT has two potential implications. First, it may discourage the residents to use the MRT in favor of other modes of transportation associated with lower PM2.5, such as cars. In Taipei metropolitan area, the number of automobiles and motorcycles has increased over the past decade despite the expansion of the MRT network. While there are multiple reasons for this phenomenon, improving air quality in the MRT would be a good incentive for car drivers and motorcyclists to switch to riding MRT. This should be a major focus for city managers. Second, the MRT riders who spend a long time every day commuting to work can have significant cumulative exposure to high PM2.5. This would increase their risk for chronic cardiopulmonary diseases associated with PM2.5, such as coronary artery disease, chronic obstructive pulmonary disease (COPD), asthma and lung cancer (in particular adenocarcinoma) [5,9,57].
Walking is a basic mode of transportation and is promoted in many cities. In some European cities, walking has been associated with lower PM2.5 exposure compared to taking cars or buses [33,35]. However, in Salt Lake City, Utah, USA, pedestrians received a higher PM2.5 dose and had higher rates of exposure than commuters using automobiles or public transportation [34]. Our study showed walking along the streets was exposed to higher PM2.5 concentrations than riding air-conditioned cars and buses. The differences among these studies may be due to traffic density and the use of air conditioning in the automobiles and public transportation. The nearby environment for the pedestrians is also important. For example, if one walks by temples, the PM2.5 concentration can increase many folds due to incent burning. Our study also showed when one was inside the food court of a night market where stir frying and grilling are used to prepare food, exposure to PM2.5 can be quite significant due to inadequate ventilation. The health effects from exposure to high PM2.5 generated from the temples are well documented [58,59,60,61]. The cardiopulmonary health impact from exposure to high PM2.5 concentration in cooks and waiter/waitresses who work in the eatery stalls deserves further study.
Motorcycle is a common mode of transportation in many tropical and subtropical Asian countries, including Taiwan. Motorcycle traffic contributes to roadside PM2.5 [28,29,62]. At the same time, motorcyclists are exposed to exhaust from other motor vehicles as well as their own motorcycles, especially during busy traffic hours [27,29,63]. In our study, there were three trips taken with 21 measurements performed at different stops during the trips. All routes were on the thoroughfares in the Taipei metropolitan area. The PM2.5 concentrations were consistently high during the three trips (as shown by the relatively small spread of the data in Figure 8). So, we think the data are representative for the motorcycle rides on the roads. In the Taipei metropolitan area, the number of motorcycles over the past decade has increased steadily despite a more extensive MRT network. According to the data from Taiwan Ministry of Traffic and Communication, as of 31 May 2019, there are more than 3 million motorcycles in the metropolitan Taipei area (Taipei City and New Taipei City) [64]. More workers employed by the emerging service industry, for example, Black Cat Delivery Services, Food Panda and UberEATS, use motorcycles to deliver mails, packages, or food and thus may be at higher risk for PM-associated health effects since they can be riding long mileage [65]. For an UberEATS delivery person who spends 8 h a day, 5 days a week on a motorcycle, the person may inhale the cumulative exposure to PM2.5 a year would be more than 46 mg a year, assuming a minute ventilation of 5 L/min [55]. It is difficult to measure accurately the PM2.5 exposure during the moving moment. Many factors may affect the exposure intensity, including the wind generated during the ride and the density of the vehicles on the road. A reasonable assumption would be that when the motorcycles are moving, the riders are probably exposure to lower PM2.5 than when the motorcycles are idle at the intersections. So, the estimated cumulative exposure could be less than what is calculated here using the concentration measured when the motorcycle is idle, but the exposure remains high.
A previous study from 2008 by Tsai et al. that compared PM2.5 exposure in different modes of transportation showed motorcyclists had the highest exposure (67.5 µg/m3) followed by bus riders (38.5 µg/m3), MRT riders (35 µg/m3) and car drivers (22.1 µg/m3) [29]. The order of the exposure dose was like ours, except for the MRT riders. The study did not report PM2.5 concentrations for underground and elevated MRT separately. It is possible that the PM2.5 concentration for MRT riders reported in that study included those on the elevated sections of the tracks. The major sources for PM2.5 for different modes of transportation include automobiles (walking, riding motorcycle, bus, car and elevated MRT) and MRT (underground MRT). The cross-border sources tend to be insignificant in the summertime in Taiwan. Air-conditioning in the bus and the car decreases the PM2.5 concentration. The observation that PM2.5 in the underground MRT is high in the train and on the platform and lower in the elevated MRT suggests that inadequate ventilation plays an important role. Also note that most PM2.5 measurements during commuting were higher than the ambient concentrations (Figure 3, Figure 4 and Figure 5). The discrepancy, in addition to the overestimation by the personal PM2.5 detector, could be due to vertical gradient between the ground level PM2.5 and the ambient PM2.5 measured by the monitoring stations at a height of 10–15 m [30,49,50]. Overall, despite the expansion of the MRT network in the Taipei metropolitan area over the past decades, it seems that commuting with motorcycle and MRT can still be exposed to high concentrations of PM2.5. The increasing numbers of motorcycles and MRT ridership raise the concern that the number of people who have high exposure is larger.
One limitation of this study is related to the hand-held detector that used an optical method to detect PM2.5. These sensor measurements may be influenced by co-responsive pollutants, environmental conditions (e.g., humidity) and sensor component production variations [66]. High relative humidity (>80%) may result in overestimation of PM2.5 concentration [67]. The sensor used in this study was tested in the laboratory and the field [49,50]. The results showed the climate condition had minimal effect on the precision of the sensor. We measured PM2.5 concentrations at low wind condition. The sensor was shown to overestimate PM2.5 concentrations. Taking the average of the three linear equations from the field test for the three detectors like ours, one may derive the following linear equation to make correction: [Adjusted PM2.5] = 0.678 × [measured PM2.5] + 3.298 [49]. Based on this equation, the measured PM2.5 concentrations will need to be adjusted downward by about 30% [49]. The precision, however, was very good with low intra-modal variability (~7%) Therefore, although our detector could overestimate the absolute values of PM2.5, the relative changes and the direction of the changes would not be affected. Our detector has also not been used in previous transportation-related studies, but other low cost light scattering sensors have been evaluated in the field for long-term monitoring up to 320 days, such as Plantower PMS 1003, PMS 5003 [68,69]. In general, the results showed good correlation with reference monitors, but there could be long-term drift in the sensor. Our study was a relatively short term one. So, the effect of drift should be minimum.
In summary, our study found subgroups of residents in the Taipei metropolitan area who may be exposed to high concentrations of PM2.5. The exposure for the motorcyclists remained high compared to a previous study in 2008, despite the expansion of the MRT network since then. The exposure for the motorcyclists is also higher compare to the MRT riders when the train on the elevated outdoor tracks. The increase in the MRT ridership indicates more people are potentially exposed to high PM2.5 concentrations during commuting. The very high concentration of PM2.5 in the underground food court puts the full-time workers in high risk for PM-induced health effects. There have been no health studies on these subpopulations. Epidemiological and filed studies to assess the PM2.5-associated health risks in these subpopulations need to be conducted in the future.

Author Contributions

Conceptualization, Y.-C.T.H.; methodology, C.-Y.W., B.-S.L. and Y.-H.W.; investigation, C.-Y.W., B.-S.L., Y.-C.T.H. and Y.-H.W.; resources, C.-Y.W. and Y.-C.T.H.; data curation, B.-S.L. and Y.-H.W.; writing-original draft preparation, C.-Y.W., B.-S.L. and Y.-C.T.H.; writing-review and editing, Y.-C.T.H.; supervision, Y.-C.T.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data are available upon request.

Acknowledgments

The authors would like to thank all volunteers who participated in the study and Cardinal Tien Hospital for the logistic and funding support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Samet, J.M.; Dominici, F.; Curriero, F.C.; Coursac, I.; Zeger, S.L. Fine particulate air pollution and mortality in 20 U.S. cities, 1987–1994. N. Engl. J. Med. 2000, 343, 1742–1749. [Google Scholar] [CrossRef]
  2. Borja-Aburto, V.H.; Castillejos, M.; Gold, D.R.; Bierzwinski, S.; Loomis, D. Mortality and ambient fine particles in southwest Mexico City, 1993–1995. Environ. Health Perspect. 1998, 106, 849–855. [Google Scholar] [CrossRef] [PubMed]
  3. Dockery, D.W.; Pope, A.C.d.; Xu, X.; Spengler, J.D.; Ware, J.H.; Fay, M.E.; Ferris, B.G., Jr.; Speizer, F.E. An association between air pollution and mortality in six U.S. cities. N. Engl. J Med. 1993, 329, 1753–1759. [Google Scholar] [CrossRef] [Green Version]
  4. Michelozzi, P.; Forastiere, F.; Fusco, D.; Perucci, C.A.; Ostro, B.; Ancona, C.; Pallotti, G. Air pollution and daily mortality in Rome, Italy. Occup. Environ. Med. 1998, 55, 605–610. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Pope, C.A., 3rd; Burnett, R.T.; Thun, M.J.; Calle, E.E.; Krewski, D.; Ito, K.; Thurston, G.D. Lung cancer, cardiopulmonary mortality, and long-term exposure to fine particulate air pollution. JAMA 2002, 287, 1132–1141. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Schwarze, P.E.; Ovrevik, J.; Lag, M.; Refsnes, M.; Nafstad, P.; Hetland, R.B.; Dybing, E. Particulate matter properties and health effects: Consistency of epidemiological and toxicological studies. Hum. Exp. Toxicol. 2006, 25, 559–579. [Google Scholar] [CrossRef] [PubMed]
  7. Thurston, G.D.; Ito, K.; Hayes, C.G.; Bates, D.V.; Lippmann, M. Respiratory hospital admissions and summertime haze air pollution in Toronto, Ontario: Consideration of the role of acid aerosols. Environ. Res. 1994, 65, 271–290. [Google Scholar] [CrossRef]
  8. Franklin, M.; Zeka, A.; Schwartz, J. Association between PM2.5 and all-cause and specific-cause mortality in 27 US communities. J. Expo. Sci Environ. Epidemiol. 2007, 17, 279–287. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Chen, J.; Hoek, G. Long-term exposure to PM and all-cause and cause-specific mortality: A systematic review and meta-analysis. Environ. Int. 2020, 143, 105974. [Google Scholar] [CrossRef]
  10. Hoek, G.; Krishnan, R.M.; Beelen, R.; Peters, A.; Ostro, B.; Brunekreef, B.; Kaufman, J.D. Long-term air pollution exposure and cardio- respiratory mortality: A review. Environ. Health 2013, 12, 43. [Google Scholar] [CrossRef] [Green Version]
  11. Chen, H.; Goldberg, M.S.; Villeneuve, P.J. A systematic review of the relation between long-term exposure to ambient air pollution and chronic diseases. Rev. Environ. Health 2008, 23, 243–297. [Google Scholar] [CrossRef] [PubMed]
  12. Committee of the Environmental and Occupational Health Assembly of the American Thoracic Society Health effects of outdoor air pollution. Am. J. Respir. Crit. Care Med. 1996, 153, 3–50. [CrossRef]
  13. Brunekreef, B.; Forsberg, B. Epidemiological evidence of effects of coarse airborne particles on health. Eur. Respir. J. 2005, 26, 309–318. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, L.J.; Box, M.; Kalman, D.; Kaufman, J.; Koenig, J.; Larson, T.; Lumley, T.; Sheppard, L.; Wallace, L. Exposure assessment of particulate matter for susceptible populations in Seattle. Environ. Health Perspect. 2003, 111, 909–918. [Google Scholar] [CrossRef] [Green Version]
  15. Trasande, L.; Thurston, G.D. The role of air pollution in asthma and other pediatric morbidities. J. Allergy Clin. Immunol. 2005, 115, 689–699. [Google Scholar] [CrossRef]
  16. Pope, C.A., 3rd; Thun, M.J.; Namboodiri, M.M.; Dockery, D.W.; Evans, J.S.; Speizer, F.E.; Heath, C.W., Jr. Particulate air pollution as a predictor of mortality in a prospective study of U.S. adults. Am. J. Respir. Crit. Care Med. 1995, 151, 669–674. [Google Scholar] [CrossRef]
  17. Goldberg, M.S.; Burnett, R.T.; Bailar, J.C., 3rd; Tamblyn, R.; Ernst, P.; Flegel, K.; Brook, J.; Bonvalot, Y.; Singh, R.; Valois, M.F.; et al. Identification of persons with cardiorespiratory conditions who are at risk of dying from the acute effects of ambient air particles. Environ. Health Perspect. 2001, 109 (Suppl. S4), 487–494. [Google Scholar]
  18. Pope, C.A., 3rd; Dockery, D.W.; Spengler, J.D.; Raizenne, M.E. Respiratory health and PM10 pollution. A daily time series analysis. Am. Rev. Respir. Dis. 1991, 144, 668–674. [Google Scholar] [CrossRef]
  19. Pope, C.A., 3rd; Burnett, R.T.; Thurston, G.D.; Thun, M.J.; Calle, E.E.; Krewski, D.; Godleski, J.J. Cardiovascular mortality and long-term exposure to particulate air pollution: Epidemiological evidence of general pathophysiological pathways of disease. Circulation 2004, 109, 71–77. [Google Scholar] [CrossRef] [Green Version]
  20. Mann, J.K.; Tager, I.B.; Lurmann, F.; Segal, M.; Quesenberry, C.P., Jr.; Lugg, M.M.; Shan, J.; Van Den Eeden, S.K. Air pollution and hospital admissions for ischemic heart disease in persons with congestive heart failure or arrhythmia. Environ. Health Perspect. 2002, 110, 1247–1252. [Google Scholar] [CrossRef] [Green Version]
  21. Kettunen, J.; Lanki, T.; Tiittanen, P.; Aalto, P.P.; Koskentalo, T.; Kulmala, M.; Salomaa, V.; Pekkanen, J. Associations of fine and ultrafine particulate air pollution with stroke mortality in an area of low air pollution levels. Stroke 2007, 38, 918–922. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Low, R.B.; Bielory, L.; Qureshi, A.I.; Dunn, V.; Stuhlmiller, D.F.; Dickey, D.A. The relation of stroke admissions to recent weather, airborne allergens, air pollution, seasons, upper respiratory infections, and asthma incidence, September 11, 2001, and day of the week. Stroke 2006, 37, 951–957. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Tsai, S.S.; Goggins, W.B.; Chiu, H.F.; Yang, C.Y. Evidence for an association between air pollution and daily stroke admissions in Kaohsiung, Taiwan. Stroke 2003, 34, 2612–2616. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Wellenius, G.A.; Schwartz, J.; Mittleman, M.A. Air pollution and hospital admissions for ischemic and hemorrhagic stroke among medicare beneficiaries. Stroke 2005, 36, 2549–2553. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Zuurbier, M.; Hoek, G.; Oldenwening, M.; Lenters, V.; Meliefste, K.; Van den Hazel, P.; Brunekreef, B. Commuters’ exposure to particulate matter air pollution is affected by mode of transport, fuel type, and route. Environ. Health Perspect. 2010, 118, 783–789. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Rojas-Rueda, D.; De Nazelle, A.; Teixido, O.; Nieuwenhuijsen, M.J. Replacing car trips by increasing bike and public transport in the greater Barcelona metropolitan area: A health impact assessment study. Environ. Int. 2012, 49, 100–109. [Google Scholar] [CrossRef]
  27. Cepeda, M.; Schoufour, J.; Freak-Poli, R.; Koolhaas, C.M.; Dhana, K.; Bramer, W.M.; Franco, O.H. Levels of ambient air pollution according to mode of transport: A systematic review. Lancet Public Health 2017, 2, e23–e34. [Google Scholar] [CrossRef] [Green Version]
  28. Peace, H.; Owen, B.; Raper, D.W. Identifying the contribution of different urban highway air pollution sources. Sci. Total Environ. 2004, 334–335, 347–357. [Google Scholar] [CrossRef]
  29. Tsai, D.H.; Wu, Y.H.; Chan, C.C. Comparisons of commuter’s exposure to particulate matters while using different transportation modes. Sci. Total Environ. 2008, 405, 71–77. [Google Scholar] [CrossRef]
  30. Wu, C.F.; Lin, H.I.; Ho, C.C.; Yang, T.H.; Chen, C.C.; Chan, C.C. Modeling horizontal and vertical variation in intraurban exposure to PM2.5 concentrations and compositions. Environ. Res. 2014, 133, 96–102. [Google Scholar] [CrossRef]
  31. Carvalho, A.M.; Krecl, P.; Targino, A.C. Variations in individuals’ exposure to black carbon particles during their daily activities: A screening study in Brazil. Environ. Sci. Pollut. Res. Int. 2018, 25, 18412–18423. [Google Scholar] [CrossRef] [PubMed]
  32. Targino, A.C.; Rodrigues, M.V.C.; Krecl, P.; Cipoli, Y.A.; Ribeiro, J.P.M. Commuter exposure to black carbon particles on diesel buses, on bicycles and on foot: A case study in a Brazilian city. Environ. Sci. Pollut. Res. Int. 2018, 25, 1132–1146. [Google Scholar] [CrossRef] [PubMed]
  33. De Nazelle, A.; Bode, O.; Orjuela, J.P. Comparison of air pollution exposures in active vs. passive travel modes in European cities: A quantitative review. Environ. Int. 2017, 99, 151–160. [Google Scholar] [CrossRef] [PubMed]
  34. Chaney, R.A.; Sloan, C.D.; Cooper, V.C.; Robinson, D.R.; Hendrickson, N.R.; McCord, T.A.; Johnston, J.D. Personal exposure to fine particulate air pollution while commuting: An examination of six transport modes on an urban arterial roadway. PLoS ONE 2017, 12, e0188053. [Google Scholar] [CrossRef] [PubMed]
  35. Karanasiou, A.; Viana, M.; Querol, X.; Moreno, T.; De Leeuw, F. Assessment of personal exposure to particulate air pollution during commuting in European cities--recommendations and policy implications. Sci. Total Environ. 2014, 490, 785–797. [Google Scholar] [CrossRef]
  36. Liu, Y.; Lan, B.; Shirai, J.; Austin, E.; Yang, C.; Seto, E. Exposures to Air Pollution and Noise from Multi-Modal Commuting in a Chinese City. Int. J. Environ. Res. Public Health 2019, 16, 2539. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Okokon, E.O.; Yli-Tuomi, T.; Turunen, A.W.; Taimisto, P.; Pennanen, A.; Vouitsis, I.; Samaras, Z.; Voogt, M.; Keuken, M.; Lanki, T. Particulates and noise exposure during bicycle, bus and car commuting: A study in three European cities. Environ. Res. 2017, 154, 181–189. [Google Scholar] [CrossRef]
  38. Suarez, L.; Mesias, S.; Iglesias, V.; Silva, C.; Caceres, D.D.; Ruiz-Rudolph, P. Personal exposure to particulate matter in commuters using different transport modes (bus, bicycle, car and subway) in an assigned route in downtown Santiago, Chile. Environ. Sci. Process Impacts 2014, 16, 1309–1317. [Google Scholar] [CrossRef]
  39. Transport Volume Statistics. Available online: https://web.metro.taipei/RidershipCounts/E/10806e.htm (accessed on 20 June 2019).
  40. Martins, V.; Moreno, T.; Minguillon, M.C.; van Drooge, B.L.; Reche, C.; Amato, F.; De Miguel, E.; Capdevila, M.; Centelles, S.; Querol, X. Origin of inorganic and organic components of PM2.5 in subway stations of Barcelona, Spain. Environ. Pollut. 2016, 208, 125–136. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Minguillon, M.C.; Reche, C.; Martins, V.; Amato, F.; De Miguel, E.; Capdevila, M.; Centelles, S.; Querol, X.; Moreno, T. Aerosol sources in subway environments. Environ. Res. 2018, 167, 314–328. [Google Scholar] [CrossRef]
  42. Moreno, T.; Querol, X.; Martins, V.; Minguillon, M.C.; Reche, C.; Ku, L.H.; Eun, H.R.; Ahn, K.H.; Capdevila, M.; De Miguel, E. Formation and alteration of airborne particles in the subway environment. Environ. Sci Process. Impacts 2017, 19, 59–64. [Google Scholar] [CrossRef] [PubMed]
  43. Martins, V.; Moreno, T.; Mendes, L.; Eleftheriadis, K.; Diapouli, E.; Alves, C.A.; Duarte, M.; De Miguel, E.; Capdevila, M.; Querol, X.; et al. Factors controlling air quality in different European subway systems. Environ. Res. 2016, 146, 35–46. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Martins, V.; Moreno, T.; Minguillon, M.C.; Amato, F.; De Miguel, E.; Capdevila, M.; Querol, X. Exposure to airborne particulate matter in the subway system. Sci. Total Environ. 2015, 511, 711–722. [Google Scholar] [CrossRef] [Green Version]
  45. Park, D.U.; Ha, K.C. Characteristics of PM10, PM2.5, CO2 and CO monitored in interiors and platforms of subway train in Seoul, Korea. Environ. Int. 2008, 34, 629–634. [Google Scholar] [CrossRef]
  46. Zheng, H.L.; Deng, W.J.; Cheng, Y.; Guo, W. Characteristics of PM2.5, CO2 and particle-number concentration in mass transit railway carriages in Hong Kong. Environ. Geochem. Health 2017, 39, 739–750. [Google Scholar] [CrossRef] [PubMed]
  47. Velasco, E.; Retama, A.; Segovia, E.; Ramos, R. Particle exposure and inhaled dose while commuting by public transport in Mexico City. Atmos. Environ. 2019, 219, 117044. [Google Scholar] [CrossRef]
  48. Ministry of the Interior, Republic of China. Demography Quarterly. Available online: https://www.ris.gov.tw/documents/data/en/3/Demographic-Quarterly(Spring-2019).pdf (accessed on 20 June 2019).
  49. Elitech. Field Evaluation, Elitech Temtop LKC-1000S+. Available online: http://www.aqmd.gov/docs/default-source/aq-spec/field-evaluations/elitech-temtop-lkc-1000s---field-evaluation.pdf?sfvrsn=14 (accessed on 2 January 2021).
  50. Elitech. Laboratory Evaluation: Elitech Temtop LKC-1000S+. Available online: http://www.aqmd.gov/docs/default-source/aq-spec/laboratory-evaluations/elitech-temtop-lkc-1000s---lab-evaluation.pdf?sfvrsn=8 (accessed on 3 January 2021).
  51. Yang, G.-L. Spatial and seasonal variation of PM10 massconcentrations in Taiwan. Atmos. Environ. 2002, 36, 3403–3411. [Google Scholar] [CrossRef]
  52. Environmental Protection Administration, R.T. Manual Monitoring of Fine Suspended Particulates. Available online: https://airtw.epa.gov.tw/ENG/EnvMonitoring/Central/spm.aspx (accessed on 20 June 2019).
  53. Environmental Protection Administration, R.T. Introduction and Background of Quality Assurance. Available online: https://airtw.epa.gov.tw/ENG/Information/QualityAssurance/QAIntro.aspx (accessed on 20 June 2019).
  54. Chen, Y.Y.; Sung, F.C.; Chen, M.L.; Mao, I.F.; Lu, C.Y. Indoor Air Quality in the Metro System in North Taiwan. Int. J. Environ. Res. Public Health 2016, 13, 1200. [Google Scholar] [CrossRef] [Green Version]
  55. EPA, U. Exposure Assessment Tools by Routes—Inhalation. Available online: https://www.epa.gov/expobox/exposure-assessment-tools-routes-inhalation (accessed on 10 March 2020).
  56. Moreno, T.; Martins, V.; Querol, X.; Jones, T.; BeruBe, K.; Minguillon, M.C.; Amato, F.; Capdevila, M.; De Miguel, E.; Centelles, S.; et al. A new look at inhalable metalliferous airborne particles on rail subway platforms. Sci. Total Environ. 2015, 505, 367–375. [Google Scholar] [CrossRef] [Green Version]
  57. Costa, S.; Ferreira, J.; Silveira, C.; Costa, C.; Lopes, D.; Relvas, H.; Borrego, C.; Roebeling, P.; Miranda, A.I.; Teixeira, J.P. Integrating health on air quality assessment–Review report on health risks of two major European outdoor air pollutants: PM and NO(2). J. Toxicol. Environ. Health B Crit. Rev. 2014, 17, 307–340. [Google Scholar] [CrossRef] [PubMed]
  58. Chiang, K.C.; Liao, C.M. Heavy incense burning in temples promotes exposure risk from airborne PMs and carcinogenic PAHs. Sci. Total Environ. 2006, 372, 64–75. [Google Scholar] [CrossRef]
  59. Liao, C.M.; Chen, S.C.; Chen, J.W.; Liang, H.M. Contributions of Chinese-style cooking and incense burning to personal exposure and residential PM concentrations in Taiwan region. Sci. Total Environ. 2006, 358, 72–84. [Google Scholar] [CrossRef]
  60. Lui, K.H.; Bandowe, B.A.M.; Ho, S.S.H.; Chuang, H.C.; Cao, J.J.; Chuang, K.J.; Lee, S.C.; Hu, D.; Ho, K.F. Characterization of chemical components and bioreactivity of fine particulate matter (PM2.5) during incense burning. Environ. Pollut. 2016, 213, 524–532. [Google Scholar] [CrossRef] [PubMed]
  61. Wang, B.; Lee, S.C.; Ho, K.F.; Kang, Y.M. Characteristics of emissions of air pollutants from burning of incense in temples, Hong Kong. Sci. Total Environ. 2007, 377, 52–60. [Google Scholar] [CrossRef]
  62. Font, A.; Guiseppin, L.; Blangiardo, M.; Ghersi, V.; Fuller, G.W. A tale of two cities: Is air pollution improving in Paris and London? Environ. Pollut. 2019, 249, 1–12. [Google Scholar] [CrossRef]
  63. Li, H.C.; Chiueh, P.T.; Liu, S.P.; Huang, Y.Y. Assessment of different route choice on commuters’ exposure to air pollution in Taipei, Taiwan. Environ. Sci. Pollut. Res. Int. 2017, 24, 3163–3171. [Google Scholar] [CrossRef] [PubMed]
  64. Number of Motor Vehicles in Taiwan. Ministry of Transportation and Communications ROC (Taiwan). Available online: https://stat.motc.gov.tw/mocdb/stmain.jsp?sys=100&funid=b3301 (accessed on 20 June 2019).
  65. Lin, Y.C.; Chou, F.C.; Li, Y.C.; Jhang, S.R.; Shangdiar, S. Effect of air pollutants and toxic emissions from various mileage of motorcycles and aerosol related carcinogenicity and mutagenicity assessment. J. Hazard. Mater. 2019, 365, 771–777. [Google Scholar] [CrossRef] [PubMed]
  66. Woodall, G.M.; Hoover, M.D.; Williams, R.; Benedict, K.; Harper, M.; Soo, J.C.; Jarabek, A.M.; Stewart, M.J.; Brown, J.S.; Hulla, J.E.; et al. Interpreting Mobile and Handheld Air Sensor Readings in Relation to Air Quality Standards and Health Effect Reference Values: Tackling the Challenges. Atmosphere 2017, 8, 182. [Google Scholar] [CrossRef] [Green Version]
  67. Badura, M.; Batog, P.; Drzeniecka-Osiadacz, A.; Modzel, P. Evaluation of Low-Cost Sensors for Ambient PM2.5 Monitoring. J. Sens. 2018, 2018, 5096540. [Google Scholar] [CrossRef] [Green Version]
  68. Sayahi, T.; Butterfield, A.; Kelly, K.E. Long-term field evaluation of the Plantower PMS low-cost particulate matter sensors. Environ. Pollut. 2019, 245, 932–940. [Google Scholar] [CrossRef] [PubMed]
  69. Liu, X.; Jayaratne, R.; Thai, P.; Kuhn, T.; Zing, I.; Christensen, B.; Lamont, R.; Dunbabin, M.; Zhu, S.; Gao, J.; et al. Low-cost sensors as an alternative for long-term air quality monitoring. Environ. Res. 2020, 185, 109438. [Google Scholar] [CrossRef] [PubMed]
Atmosphere 12 00396 g001 550
Figure 1. A map of northern Taiwan showing the location of Taipei City and New Taipei City. The inset is an enlarged map of the Metro lines. The black dots are the approximate locations of the EPA monitoring stations.
Figure 1. A map of northern Taiwan showing the location of Taipei City and New Taipei City. The inset is an enlarged map of the Metro lines. The black dots are the approximate locations of the EPA monitoring stations.
Atmosphere 12 00396 g001
Atmosphere 12 00396 g002 550

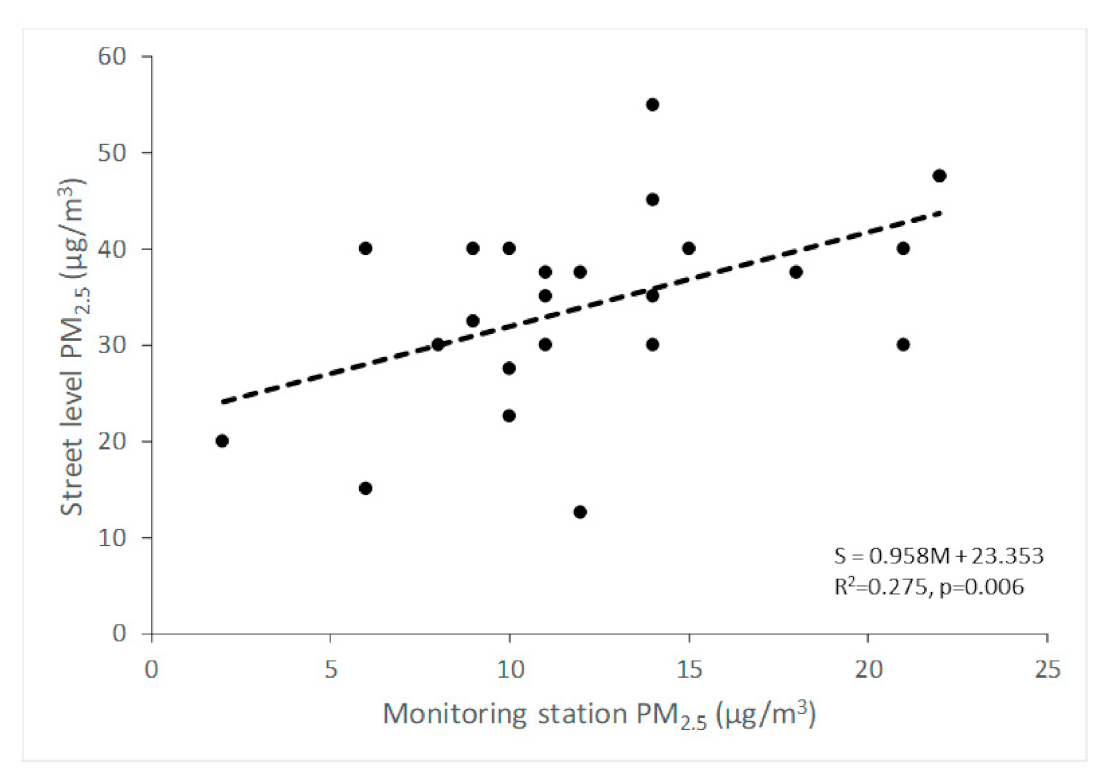

Figure 2. Correlation between PM2.5 concentrations at the street level measured by the hand-held detector and those measured by the nearest monitoring stations.
Figure 2. Correlation between PM2.5 concentrations at the street level measured by the hand-held detector and those measured by the nearest monitoring stations.
Atmosphere 12 00396 g002
Atmosphere 12 00396 g003 550
Figure 3. PM2.5 concentrations during a walk across a business district that includes a night market and a temple on 27 April 2019.
Figure 3. PM2.5 concentrations during a walk across a business district that includes a night market and a temple on 27 April 2019.
Atmosphere 12 00396 g003
Atmosphere 12 00396 g004 550

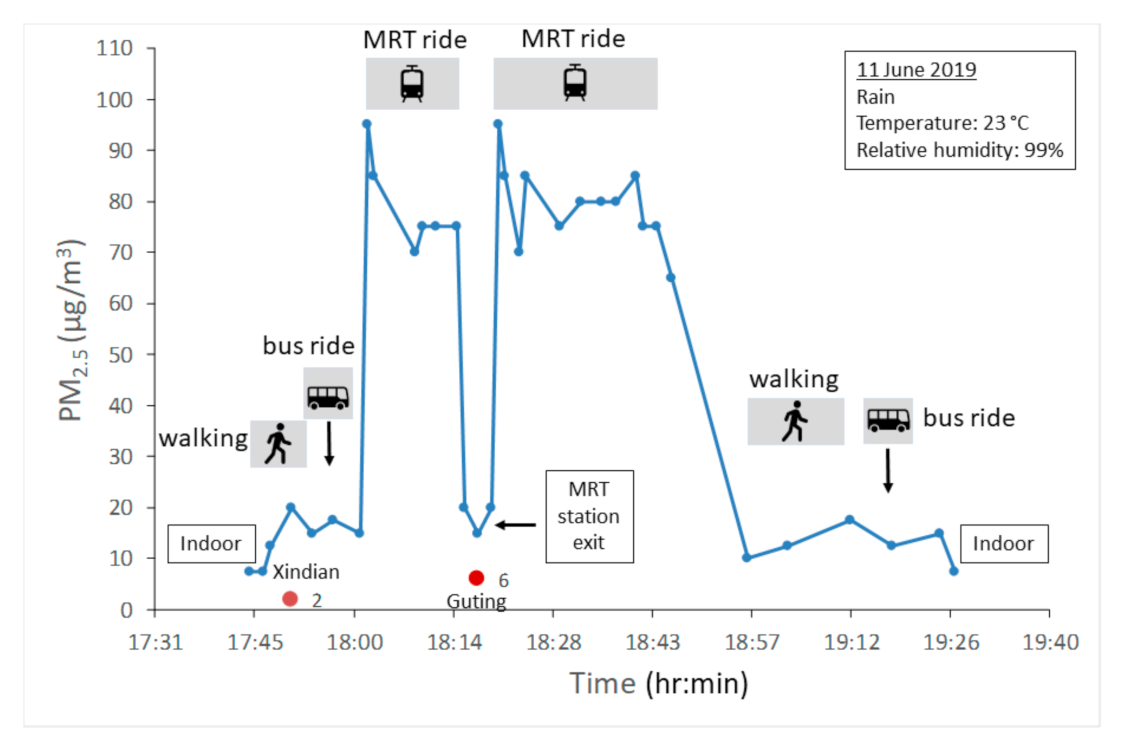

Figure 4. PM2.5 concentrations during a trip from home to the workplace that used primarily two underground mass rapid transit (MRT) lines. MRT: mass rapid transit.
Figure 4. PM2.5 concentrations during a trip from home to the workplace that used primarily two underground mass rapid transit (MRT) lines. MRT: mass rapid transit.
Atmosphere 12 00396 g004
Atmosphere 12 00396 g005 550

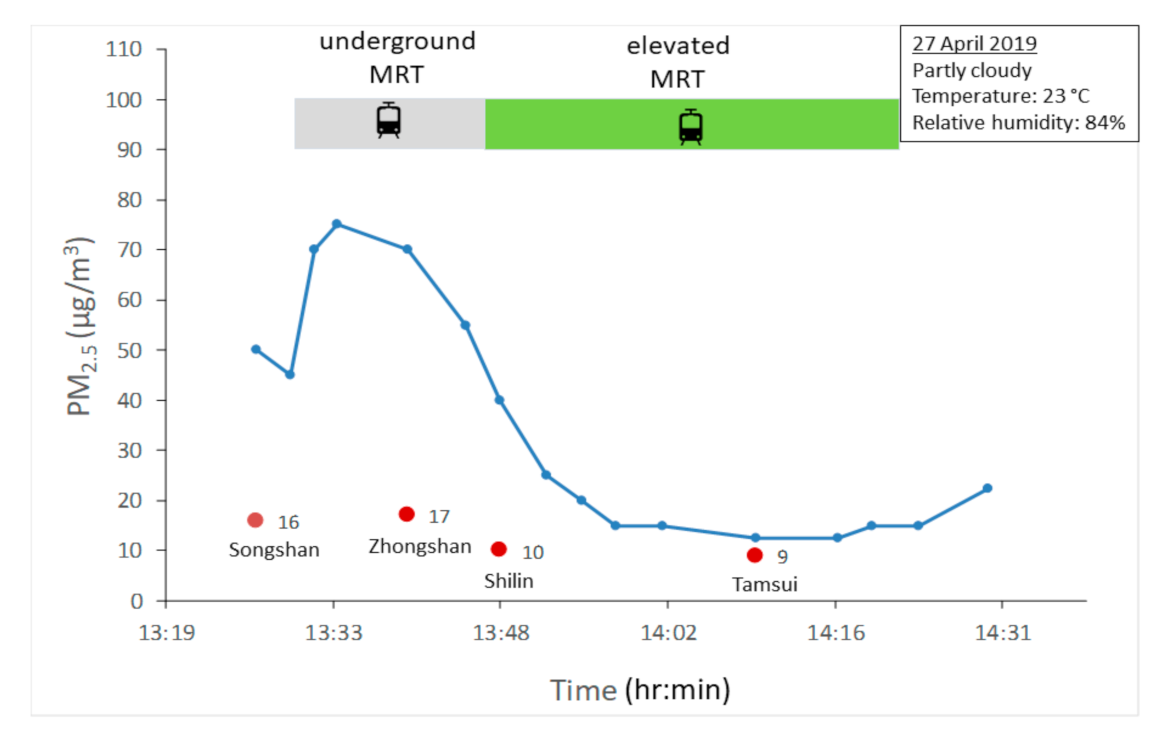

Figure 5. PM2.5 concentrations during a trip that used an MRT line with underground and elevated sections.
Figure 5. PM2.5 concentrations during a trip that used an MRT line with underground and elevated sections.
Atmosphere 12 00396 g005
Atmosphere 12 00396 g006 550

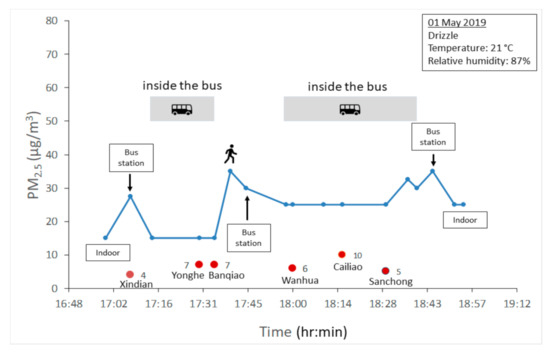

Figure 6. PM2.5 concentrations during a bus ride.
Figure 6. PM2.5 concentrations during a bus ride.
Atmosphere 12 00396 g006
Atmosphere 12 00396 g007 550

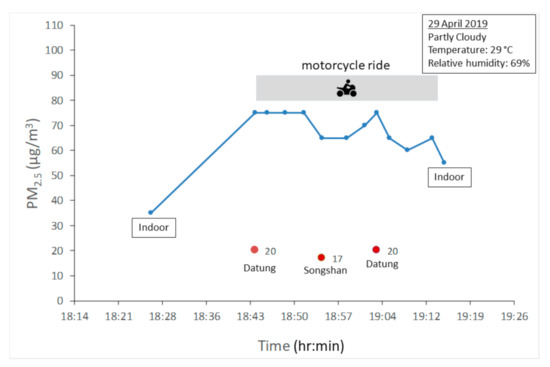

Figure 7. PM2.5 concentrations during a motorcycle ride on a major road.
Figure 7. PM2.5 concentrations during a motorcycle ride on a major road.
Atmosphere 12 00396 g007
Atmosphere 12 00396 g008 550

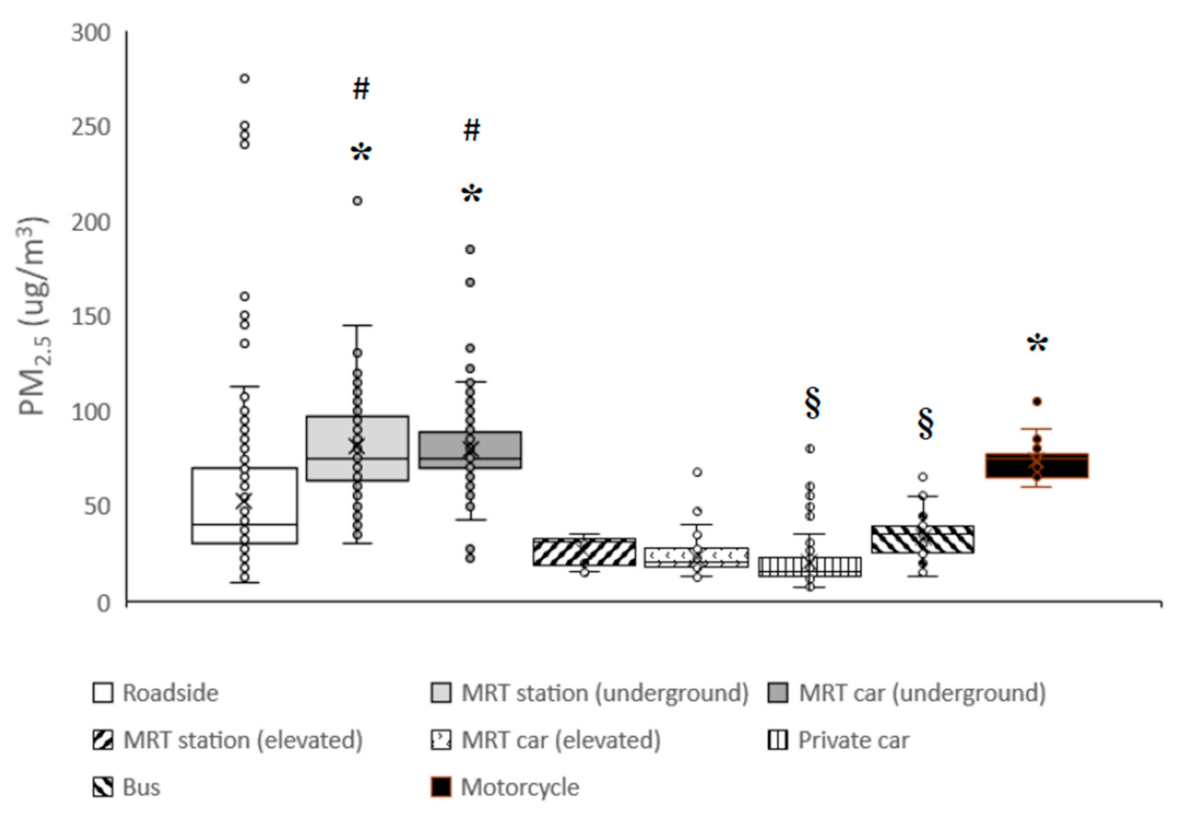

Figure 8. Comparison of PM2.5 concentrations among different modes of transportation.
Figure 8. Comparison of PM2.5 concentrations among different modes of transportation.
Atmosphere 12 00396 g008
Table
Table 1. An example of a short walk from home to work (hospital) on 10 April 2019.
Table 1. An example of a short walk from home to work (hospital) on 10 April 2019.
Time of the Day (hr:min) LocationPM2.5 (µg/m3)
8:07In the alley65
8:10Intersection of major roads95
8:15Intersection of major roads100
8:17Hospital 1st floor65
8:20Office in the hospital57.5
Table
Table 2. An example of a longer walk from the hospital to home on 10 April 2019.
Table 2. An example of a longer walk from the hospital to home on 10 April 2019.
Time of the Day (hr:min)LocationPM2.5 (µg/m3)
14:21In front of the hospital24
14:25Bus stop by a major road36
14:36Bus stop by a major road22.5
14:40Crossing the road45
14:42Walking by a temple85
14:46At family courtyard42.5
14:48Inside the house20
Table
Table 3. PM2.5 concentrations during a walk across a business district.
Table 3. PM2.5 concentrations during a walk across a business district.
Time of the Day (hr:min)LocationPM2.5 (µg/m3)
16:32A (Fude Rd/Daxi Rd intersection)30
16:35 B (Daxi Rd/Dabei Rd intersection)40
16:38C (Danan Rd)35
16:57D (Outside a Mazu temple)700
17:05 E Night market entrance40
17:10F (Fried oyster cake stand)400
17:15F Fried chicken patty stand150
17:17F Grilled steak stand95
17:20G (Road by the night market)85
17:25H (night market/Jihe Rd Intersection)80
17:27I (Jihe Rd/Chengde Rd intersection)50
17:30J (Jihe Rd/Xiaoshi St intersection)30
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, C.-Y.; Lim, B.-S.; Wang, Y.-H.; Huang, Y.-C.T. Identification of High Personal PM2.5 Exposure during Real Time Commuting in the Taipei Metropolitan Area. Atmosphere 2021, 12, 396. https://doi.org/10.3390/atmos12030396

AMA Style

Wang C-Y, Lim B-S, Wang Y-H, Huang Y-CT. Identification of High Personal PM2.5 Exposure during Real Time Commuting in the Taipei Metropolitan Area. Atmosphere. 2021; 12(3):396. https://doi.org/10.3390/atmos12030396

Chicago/Turabian Style

Wang, Cheng-Yi, Biing-Suan Lim, Ya-Hui Wang, and Yuh-Chin T. Huang. 2021. "Identification of High Personal PM2.5 Exposure during Real Time Commuting in the Taipei Metropolitan Area" Atmosphere 12, no. 3: 396. https://doi.org/10.3390/atmos12030396

APA Style

Wang, C. -Y., Lim, B. -S., Wang, Y. -H., & Huang, Y. -C. T. (2021). Identification of High Personal PM2.5 Exposure during Real Time Commuting in the Taipei Metropolitan Area. Atmosphere, 12(3), 396. https://doi.org/10.3390/atmos12030396

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
