Assembly of the Boechera retrofracta Genome and Evolutionary Analysis of Apomixis-Associated Genes
Abstract
:1. Introduction
2. Materials and Methods
2.1. Sample Information
2.2. Sequencing Strategy
2.3. Raw Data Filtration and Pre-Processing
2.4. Genome Size Estimation
2.5. Genome Assembly and Quality Evaluation
2.6. Repeats Analysis
2.7. Variants Calling and Genotyping
2.8. Prediction of Protein-Coding Genes and Non-Coding RNA
2.9. Phylogenetic Analysis
2.10. APOLLO Evolution Analysis
2.11. Whole-Genome Comparison
3. Results

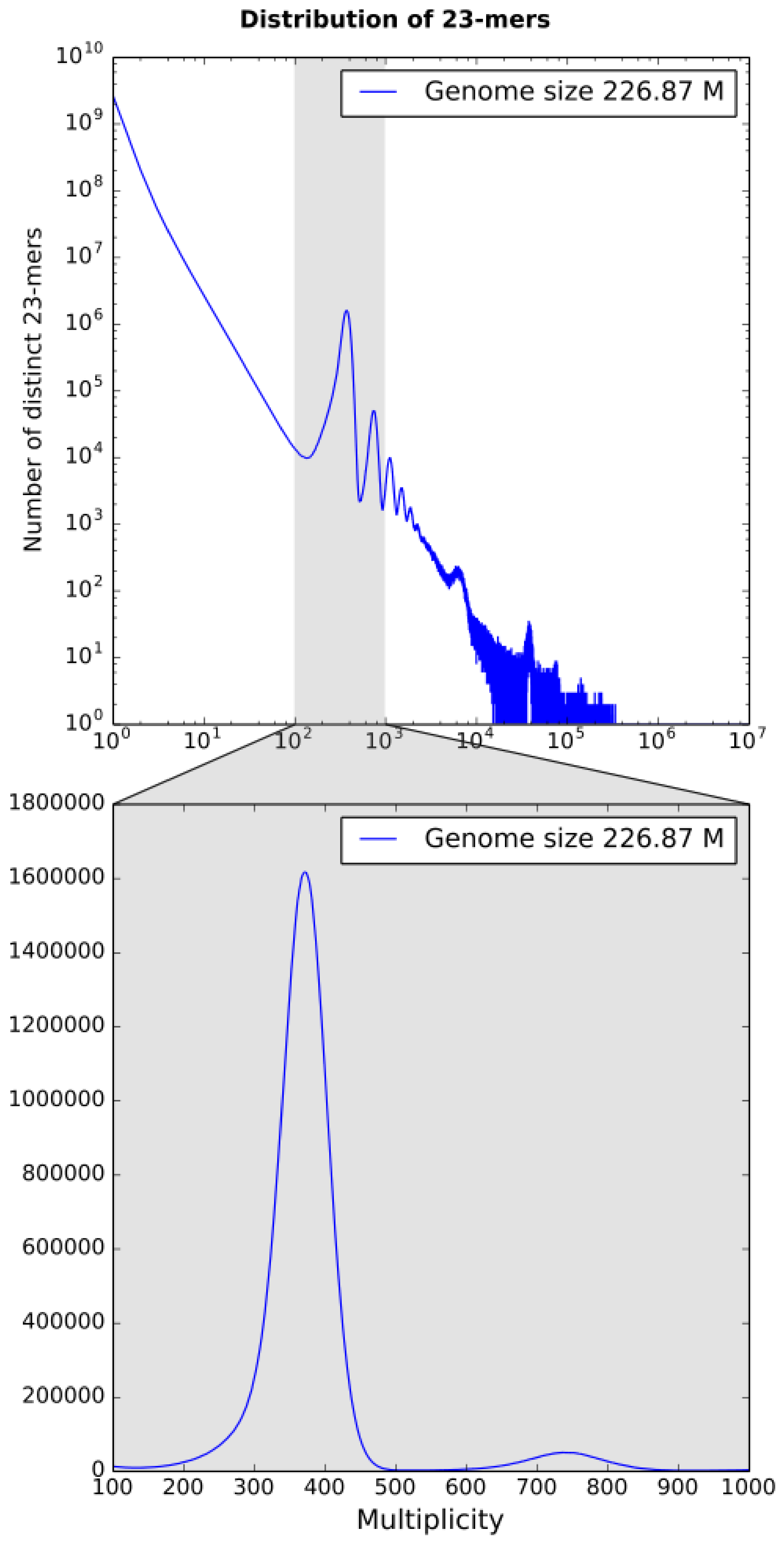

3.1. k-mer Based Statistics

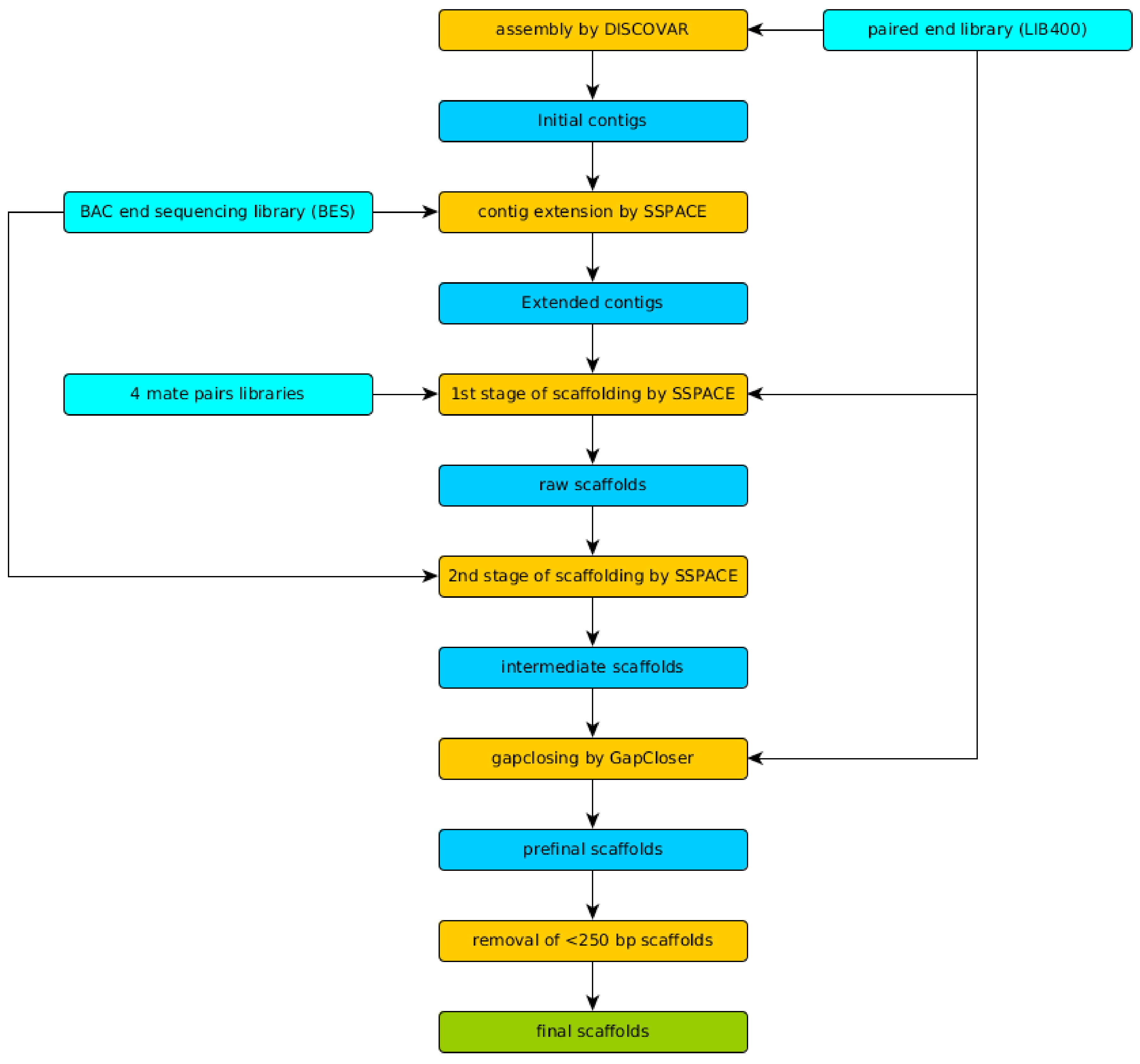

3.2. Genome Assembly and Evaluation
3.3. Repeats Annotation
3.4. Variant Calling and Genotyping
3.5. Prediction of Protein-Coding Genes and Non-Coding RNAs

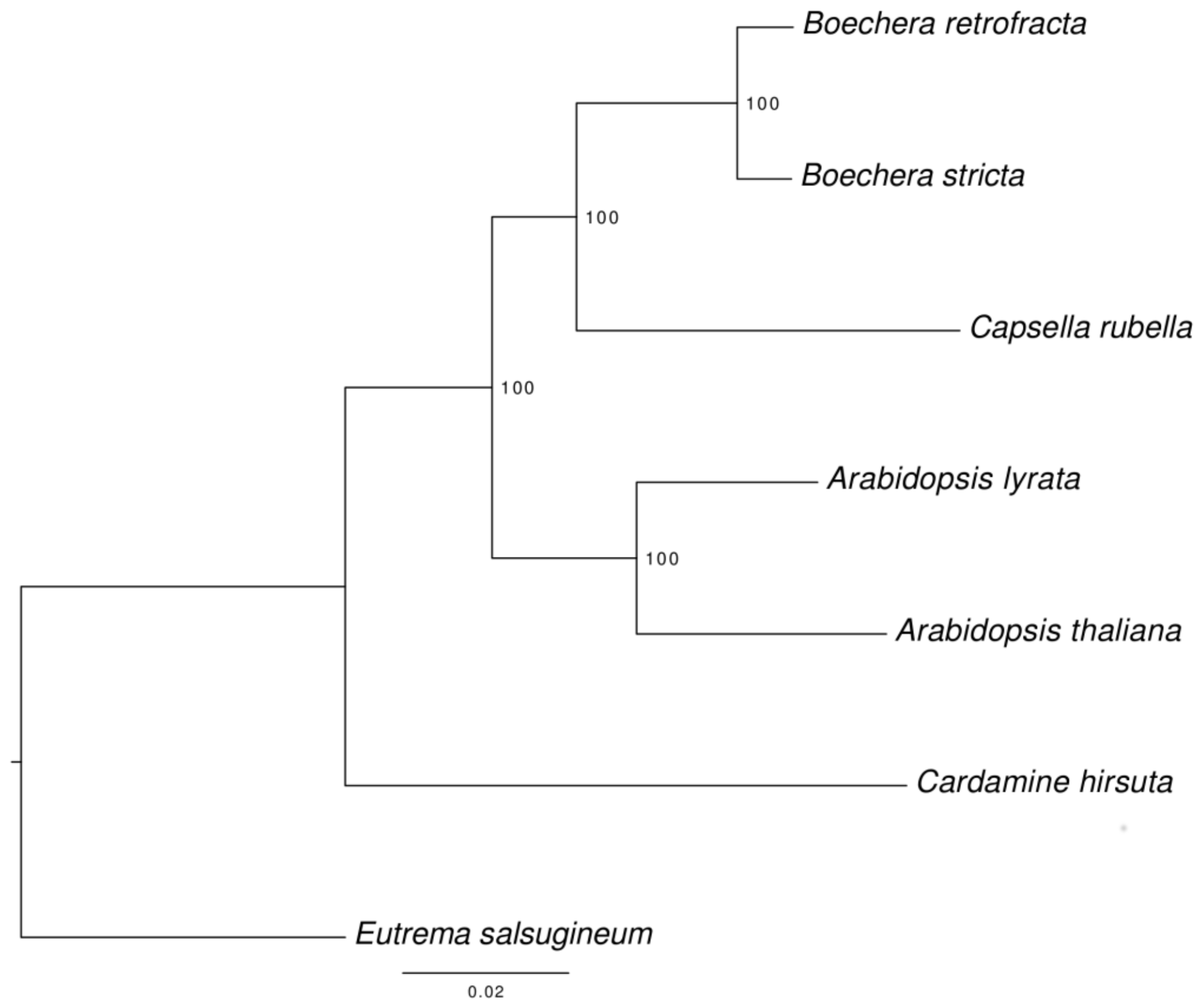

3.6. Species Tree Reconstruction

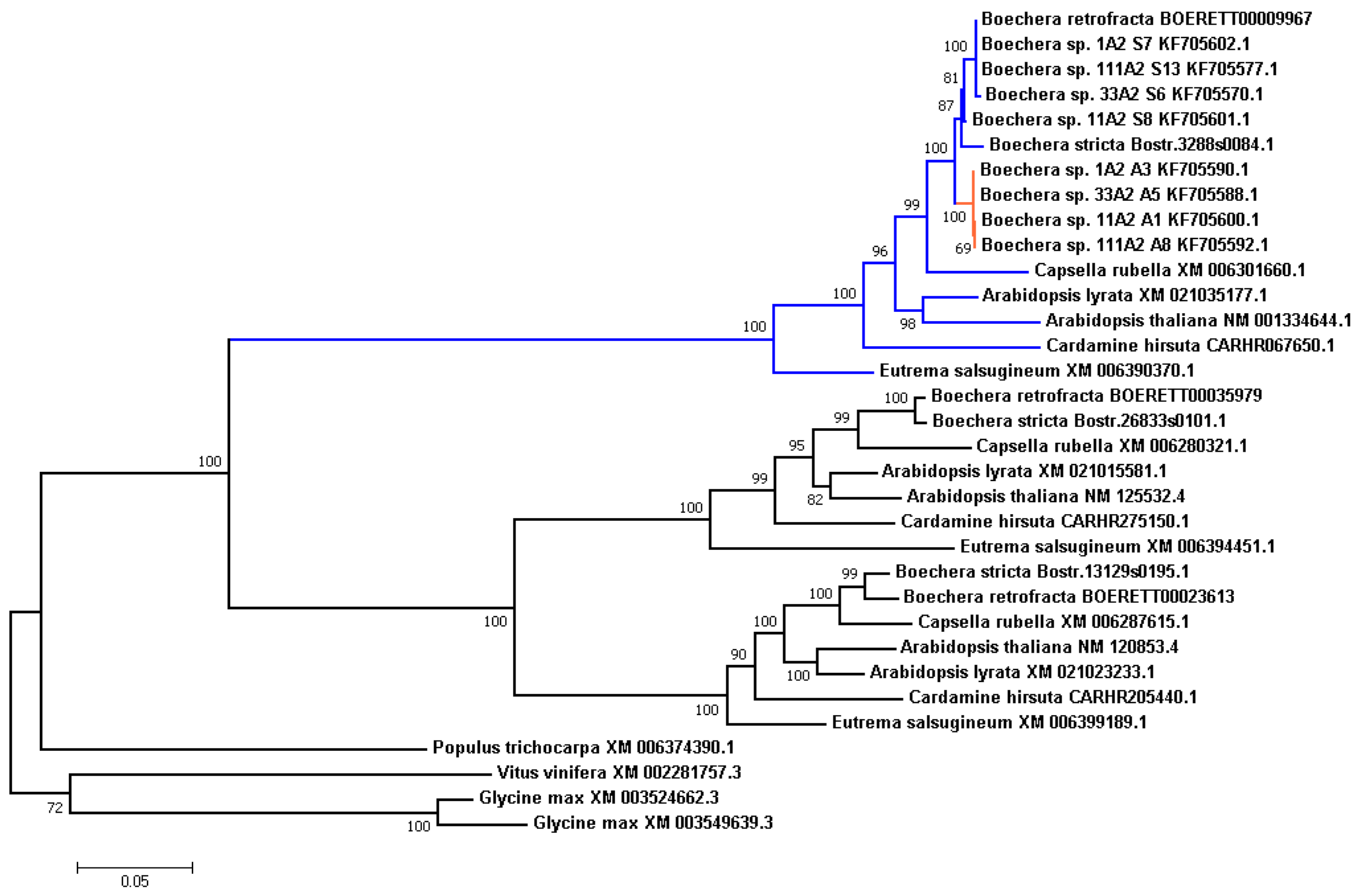

3.7. Analysis of Evolution of the APOLLO Locus

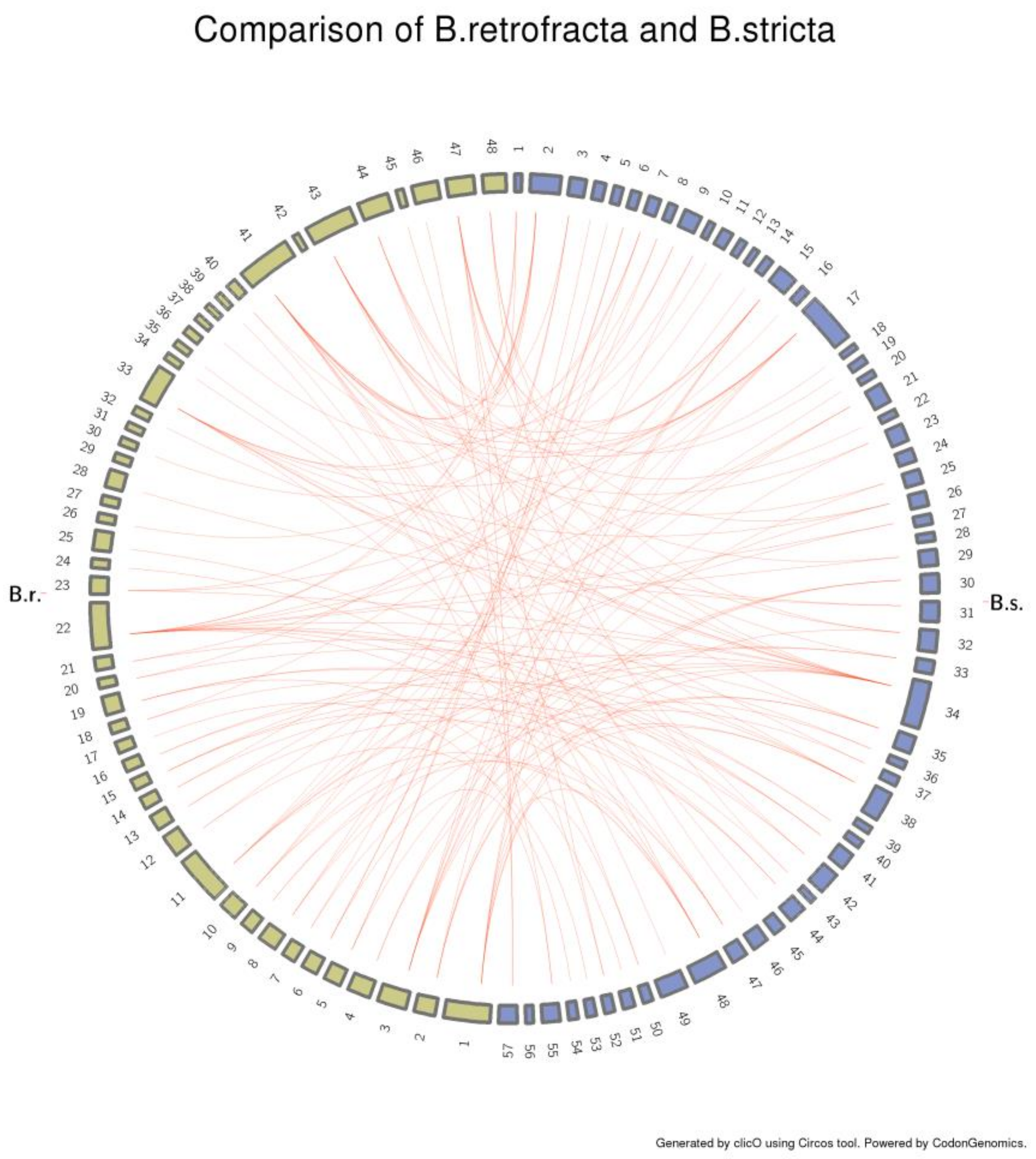

3.8. Whole-Genome Comparison
4. Discussion
Acknowledgments
Author Contributions
Conflicts of Interest
Appendix A
ID | Library Type | Platform | Read Length | Mean Insert Size (bp) | Number of Reads Pairs |
---|---|---|---|---|---|
LIB400 | paired ends | Illumina | 250 | 402 | 189788627 |
LIB4000R | mate pairs | Roche | - | 4014 | 3259085 |
LIB5000 | mate pairs | Illumina | 150 | 4877 | 19083787 |
LIB7000 | mate pairs | Illumina | 150 | 6882 | 34066282 |
LIB24000R | mate pairs | Roche | - | 24,332 | 672098 |
BES | BAC end sequencing | Sanger | - | 147,708 | 17775 |
Appendix B
Appendix C
References
- Sharbel, T.F.; Mitchell-Olds, T. Recurrent polyploid origins and chloroplast phylogeography in the Arabis holboellii complex (Brassicaceae). Heredity 2001, 87, 59–68. [Google Scholar] [CrossRef] [PubMed]
- Schranz, M.E.; Dobes, C.; Koch, M.A.; Mitchell-Olds, T. Sexual reproduction, hybridization, apomixis and polyploidization in the genus Boechera (Brassicaceae). Am. J. Bot. 2005, 92, 1797–1810. [Google Scholar] [CrossRef] [PubMed]
- Naumova, T.N. Apomixis and amphimixis in flowering plants. Cytol. Genet. 2008, 3, 51–63. [Google Scholar] [CrossRef]
- Aliyu, O.M.; Schranz, M.E.; Sharbel, T.F. Quantitative variation for apomictic reproduction in the genus Boechera (Brassicaceae). Am. J. Bot. 2010, 97, 1719–1731. [Google Scholar] [CrossRef] [PubMed]
- Koltunow, A.M.; Grossniklaus, U. Apomixis: A developmental perspective. Annu. Rev. Plant Biol. 2003, 54, 547–574. [Google Scholar] [CrossRef] [PubMed]
- Rodríguez-Leal, D.; Vielle-Calzada, J.P. Regulation of apomixis: Learning from sexual experience. Curr. Opin. Plant Biol. 2012, 15, 549–555. [Google Scholar] [CrossRef] [PubMed]
- Brukhin, V. Molecular and genetic regulation of apomixis. Russ. J. Genet. 2017, 53, 943–964. [Google Scholar] [CrossRef]
- Windham, M.D.; Al-Shehbaz, I.A. New and noteworthy species of Boechera (Brassicaceae) II: Apomictic hybrids. Harv. Pap. Bot. 2007, 11, 257–274. [Google Scholar] [CrossRef]
- Windham, M.D.; Al-Shehbaz, I.A. New and noteworthy species of Boechera (Brassicaceae) III: Additional sexual diploids and apomictic hybrids. Harv. Pap. Bot. 2007, 12, 235–257. [Google Scholar] [CrossRef]
- Lovell, J.T.; Williamson, R.J.; Wright, S.I.; McKay, J.K.; Sharbel, T.F. Mutation Accumulation in an Asexual Relative of Arabidopsis. PLoS Genet. 2017, 13, e1006550. [Google Scholar] [CrossRef] [PubMed]
- Rushworth, C.A.; Song, B.H.; Lee, C.R.; Mitchell-Olds, T. Boechera, a model system for ecological genomics. Mol. Ecol. 2011, 20, 4843–4857. [Google Scholar] [CrossRef] [PubMed]
- Beck, J.B.; Alexander, P.J.; Allphin, L.; Al-Shehbaz, I.A.; Rushworth, C.; Bailey, C.D.; Windham, M.D. Does hybridization drive the transition to asexuality in diploid Boechera? Evolution 2011, 66, 985–995. [Google Scholar] [CrossRef] [PubMed]
- Kantama, L.; Sharbel, T.F.; Schranz, M.E.; Mitchell-Olds, T.; de Vries, S.; de Jong, H. Diploid apomicts of the Boechera holboellii complex display large-scale chromosome substitutions and aberrant chromosomes. Proc. Natl. Acad. Sci. USA 2007, 104, 14026–14031. [Google Scholar] [CrossRef] [PubMed]
- Mandáková, T.; Schranz, M.E.; Sharbel, T.F.; de Jong, H.; Lysak, M.A. Karyotype evolution in apomictic Boechera and the origin of the aberrant chromosomes. Plant J. 2015, 82, 785–793. [Google Scholar] [CrossRef] [PubMed]
- Windham, M.D.; Al-Shehbaz, I.A. New and noteworthy species of Boechera I: Sexual diploids. Harv. Pap. Bot. 2006, 11, 61–88. [Google Scholar] [CrossRef]
- Lee, C.R.; Wang, B.; Mojica, J.P.; Mandáková, T.; Prasad, K.V.S.K.; Goicoechea, J.L.; Perera, N.; Hellsten, U.; Hundley, H.N.; Johnson, J.; Grimwood, J.; et al. Young inversion with multiple linked QTLs under selection in a hybrid zone. Nat. Ecol. Evol. 2017, 1, 0119. [Google Scholar] [CrossRef] [PubMed]
- Why Sequence Boechera holboellii? Available online: http://jgi.doe.gov/why-sequence-boechera-holboellii/ (accessed on 1 November 2017).
- Weisenfeld, N.I.; Yin, S.; Sharpe, T.; Lau, B.; Hegarty, R.; Holmes, L.; Sogoloff, B.; Tabbaa, D.; Williams, L.; Russ, C.; Nusbaum, C.; et al. Comprehensive variation discovery in single human genomes. Nat. Genet. 2014, 46, 1350–1355. [Google Scholar] [CrossRef] [PubMed]
- Starostina, E.; Tamazian, G.; Dobrynin, P.; O’Brien, S.; Komissarov, A. Cookiecutter: A tool for kmer-based read filtering and extraction. bioRxiv 2015. [Google Scholar] [CrossRef]
- Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef] [PubMed]
- Leggett, R.M.; Clavijo, B.J.; Clissold, L.; Clark, M.D.; Caccamo, M. NextClip: An analysis and read preparation tool for Nextera Long Mate Pair libraries. Bioinformatics 2013, 30, 566–568. [Google Scholar] [CrossRef] [PubMed]
- Kliver, S. CreClip. Available online: https://github.com/mahajrod/CreClip (accessed on 1 July 2016).
- Kliver, S.; Tamazian, G.; O’Brien, S.J.; Brukhin, V.; Komissarov, A. KrATER (K-mer Analysis Tool Easy to Run). Available online: https://github.com/mahajrod/KrATER (accessed on 1 November 2017).
- Anderson, J.T.; Willis, J.H.; Mitchell-Olds, T. Evolutionary genetics of plant adaptation. Trends Genet. 2011, 27, 258–266. [Google Scholar] [CrossRef] [PubMed]
- Boetzer, M.; Henkel, C.V.; Jansen, H.J.; Butler, D.; Pirovano, W. Scaffolding pre-assembled contigs using SSPACE. Bioinformatics 2010, 27, 578–579. [Google Scholar] [CrossRef] [PubMed]
- Li, H.; Durbin, R. Fast and accurate short read alignment with Burrows–Wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef] [PubMed]
- Luo, R.; Liu, B.; Xie, Y.; Li, Z.; Huang, W.; Yuan, J.; Tang, J. SOAPdenovo2: An empirically improved memory-efficient short-read de novo assembler. GigaScience 2012, 1, 18. [Google Scholar] [CrossRef] [PubMed]
- Parra, G.; Bradnam, K.; Korf, I. CEGMA: A pipeline to accurately annotate core genes in eukaryotic genomes. Bioinformatics 2007, 23, 1061–1067. [Google Scholar] [CrossRef] [PubMed]
- Simão, F.A.; Waterhouse, R.M.; Ioannidis, P.; Kriventseva, E.V.; Zdobnov, E.M. BUSCO: Assessing genome assembly and annotation completeness with single-copy orthologs. Bioinformatics 2015, 31, 3210–3212. [Google Scholar] [CrossRef] [PubMed]
- Smit, A.F.A.; Hubley, R. RepeatModeler Open, version 1.0; Institute for Systems Biology: Seattle, WA, USA, 2008. [Google Scholar]
- Bao, W.; Kojima, K.K.; Kohany, O. Repbase Update a database of repetitive elements in eukaryotic genomes. Mob. DNA 2015, 6, 11. [Google Scholar] [CrossRef] [PubMed]
- Smit, A.F.A.; Hubley, R.; Green, P. RepeatMasker Open, version 4.0; Institute for Systems Biology: Seattle, WA, USA, 2013. [Google Scholar]
- Quinlan, A.R.; Hall, I.M. BEDTools: A flexible suite of utilities for comparing genomic features. Bioinformatics 2010, 26, 841–842. [Google Scholar] [CrossRef] [PubMed]
- Benson, G. Tandem repeats finder: A program to analyze DNA sequences. Nucleic Acids Res. 1999, 27, 573–580. [Google Scholar] [CrossRef] [PubMed]
- Morgulis, A.; Gertz, E.M.; Schäffer, A.A.; Agarwala, R. WindowMasker: Window-based masker for sequenced genomes. Bioinformatics 2005, 22, 134–141. [Google Scholar] [CrossRef] [PubMed]
- Van der Auwera, G.A.; Carneiro, M.O.; Hartl, C.; Poplin, R.; del Angel, G.; Levy-Moonshine, A.; Jordan, T.; Shakir, K.; Roazen, D.; Thibault, J.; et al. From FastQ data to high-confidence variant calls: The genome analysis toolkit best practices pipeline. Curr. Protoc. Bioinform. 2013, 43. [Google Scholar] [CrossRef]
- Slater, G.; Birney, E. Automated generation of heuristics for biological sequence comparison. BMC Bioinform. 2005, 6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Stanke, M.; Keller, O.; Gunduz, I.; Hayes, A.; Waack, S.; Morgenstern, B. AUGUSTUS: Ab initio prediction of alternative transcripts. Nucleic Acids Res. 2006, 34. [Google Scholar] [CrossRef] [PubMed]
- Johnson, L.S.; Eddy, S.R.; Portugaly, E. Hidden Markov model speed heuristic and iterative HMM search procedure. BMC Bioinform. 2010, 11, 431. [Google Scholar] [CrossRef] [PubMed]
- Altschul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic local alignment search tool. J. Mol. Biol. 1990, 215, 403–410. [Google Scholar] [CrossRef]
- Bateman, A.; Coin, L.; Durbin, R.; Finn, R.D.; Hollich, V.; Griffiths-Jones, S.; Khanna, A.; Marshall, M.; Moxon, S.; Sonnhammer, E.L.; et al. The Pfam protein families database. Nucleic Acids Res. 2004, 32 (Suppl. 1), D138–D141. [Google Scholar] [CrossRef] [PubMed]
- UniProt Consortium. UniProt: The universal protein knowledgebase. Nucleic Acids Res. 2017, 45, D158–D169. [Google Scholar] [CrossRef]
- Lowe, T.M.; Eddy, S.R. tRNAscan-SE: A program for improved detection of transfer RNA genes in genomic sequence. Nucleic Acids Res. 1997, 25, 955–964. [Google Scholar] [CrossRef] [PubMed]
- Victorian Bioinformatics Consortium. Barrnap. Available online: http://www.vicbioinformatics.com/software.barrnap.shtml (accessed on 1 November 2017).
- Huerta-Cepas, J.; Szklarczyk, D.; Forslund, K.; Cook, H.; Heller, D.; Walter, M.C.; Rattei, T.; Mende, D.R.; Sunagawa, S.; Kuhn, M.; et al. eggNOG 4.5: A hierarchical orthology framework with improved functional annotations for eukaryotic, prokaryotic and viral sequences. Nucleic Acids Res. 2015, 44, D286–D293. [Google Scholar] [CrossRef] [PubMed]
- Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [PubMed]
- Stamatakis, A. RAxML version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 2014, 30, 1312–1313. [Google Scholar] [CrossRef] [PubMed]
- FigTree. Available online: http://tree.bio.ed.ac.uk/software/figtree/ (accessed on 1 November 2017).
- Löytynoja, A. Phylogeny-aware alignment with PRANK. Methods Mol. Biol. 2014, 1079, 155–170. [Google Scholar] [CrossRef] [PubMed]
- Talavera, G.; Castresana, J. Improvement of phylogenies after removing divergent and ambiguously aligned blocks from protein sequence alignments. Syst. Biol. 2007, 56, 564–577. [Google Scholar] [CrossRef] [PubMed]
- Tamura, K.; Nei, M. Estimation of the number of nucleotide substitutions in the control region of mitochondrial DNA in humans and chimpanzees. Mol. Biol. Evol. 1993, 10, 512–526. [Google Scholar] [CrossRef] [PubMed]
- Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [PubMed]
- Paten, B.; Earl, D.; Nguyen, N.; Diekhans, M.; Zerbino, D.; Haussler, D. Cactus: Algorithms for genome multiple sequence alignment. Genome Res. 2011, 21, 1512–1528. [Google Scholar] [CrossRef] [PubMed]
- Cheong, W.H.; Tan, Y.C.; Yap, S.J.; Ng, K.P. ClicO FS: An interactive web-based service of Circos. Bioinformatics 2015, 31, 3685–3687. [Google Scholar] [CrossRef] [PubMed]
- Krzywinski, M.; Schein, J.E.; Birol, I.; Connors, J.; Gascoyne, R.; Horsman, D.; Jones, S.J.; Marra, M.A. Circos: An Information Aesthetic for Comparative Genomics. Genome Res. 2009, 19, 1639–1645. [Google Scholar] [CrossRef] [PubMed]
- Corral, J.M.; Vogel, H.; Aliyu, O.M.; Hensel, G.; Thiel, T.; Kumlehn, J.; Sharbel, T.F. A conserved apomixis-specific polymorphism is correlated with exclusive exonuclease expression in premeiotic ovules of apomictic Boechera species. Plant Physiol. 2013, 163, 1660–1672. [Google Scholar] [CrossRef] [PubMed]
- Phytozome v12.1 Database. Available online: https://phytozome.jgi.doe.gov/pz/portal.html (accessed on 30 January 2018).
Parameter | Contigs | Extended Contigs | Raw Scaffolds | Intermediate Scaffolfs | Gap Closed Scaffolds | Final Scaffolds |
---|---|---|---|---|---|---|
Longest contig | 791,985 | 792,340 | 8,101,256 | 9,045,706 | 9,049,080 | 9,049,080 |
Ns | 28,100 | 28,100 | 11,890,519 | 16,366,994 | 12,409,189 | 12,409,189 |
Total length | 225,649 216 | 226,402,628 | 236,469,041 | 240,945,496 | 241,014,839 | 222,253,471 |
Scaffold Length Cutoff | Contigs | Extended Contigs | Raw Scaffolds | Intermediate Scaffolfs | Gap Closed Scaffolds | Final Scaffolds |
---|---|---|---|---|---|---|
all | 85,286 | 84,648 | 1,256,534 | 1,898,006 | 1,898,985 | 2,297,899 |
≥100 | 85,286 | 84,648 | 1,256,534 | 1,898,006 | 1,898,985 | 2,297,899 |
≥250 | 101,388 | 100,393 | 1,442,421 | 2,296,484 | 2,297,899 | 2,297,899 |
≥500 | 115,732 | 115,486 | 1,538,795 | 2,678,857 | 2,680,941 | 2,680,941 |
≥1000 | 122,300 | 121,678 | 1,704,064 | 2,678,857 | 2,680,941 | 2,680,941 |
Class | Number of Elements | Total Length (bp) | Fraction of Assembly (%) |
---|---|---|---|
SINEs | 577 | 125,298 | 0.06 |
LINEs | 7075 | 4,351,241 | 1.96 |
LTR elements | 51,040 | 40,608,195 | 18.27 |
DNA elements | 31,638 | 12,868,684 | 5.79 |
Unclassified | 82,693 | 24,363,135 | 10.96 |
Total interspersed repeats | - | 82,316,553 | 37.04 |
Small RNA | 5461 | 1,599,354 | 0.72 |
Satellites | 1541 | 573,026 | 0.26 |
Simple repeats | 2044 | 363,642 | 0.16 |
Low complexity | 56 | 7456 | 0 |
Tool | Number of Repeats | Total Length (Mbp) |
---|---|---|
RepeatMasker | 173,023 | 82.31 |
TRF | 100,593 | 17.41 |
Windowmasker | 1,104,650 | 64.20 |
tRNA Type | Number |
---|---|
tRNAs decoding standard 20 AA | 1126 |
Selenocysteine tRNAs (TCA) | 0 |
Possible suppressor tRNAs (CTA,TTA) | 3 |
tRNAs with undetermined isotypes | 5 |
Resolution of Brassicaceae Phylogeny Using Nuclear Genes Uncovers Nested Radiations and Supports Convergent Morphological Evolution Predicted pseudogenes | 32 |
Total tRNAs | 1166 |
rRNA | Complete (≥80% of Expected Length) | Partial (<80% of Expected Length) |
---|---|---|
5.8S | 178 | 53 |
5S | 601 | 104 |
28S | 0 | 1782 |
18S | 1 | 1458 |
12S | 0 | 173 |
16S | 0 | 607 |
Boechera retrofracta | Boechera stricta v.1.2 | Arabidopsis lyrata v2.1 | Arabidopsis thaliana TAIR10 | |
---|---|---|---|---|
Total length | 227 M | 184 M | 207 Mb | 135 Mb |
Chromosomes | n = 7 | n = 7 | n = 8 | n = 5 |
Protein-coding loci | 27,048 | 27,416 | 31,073 | 27,416 |
Transcripts | 28,269 | 29,812 | 33,132 | 35,386 |
