Article

Synergistic and Pharmacotherapeutic Effects of Gemcitabine and Cisplatin Combined Administration on Biliary Tract Cancer Cell Lines

by
Yasunari Sakamoto
1,2,
Seri Yamagishi
3,
Takuji Okusaka
1 and
Hidenori Ojima
3,4,*
1
Department of Hepatobiliary and Pancreatic Oncology, National Cancer Center Hospital, Tokyo 104-0045, Japan
2
Department of Gastroenterology and Hepatology, International University of Health and Welfare Atami Hospital, Shizuoka 413-0012, Japan
3
Division of Cancer Genomics, National Cancer Center Research Institute, Tokyo 104-0045, Japan
4
Department of Pathology, Keio University School of Medicine, Tokyo 160-0016, Japan
*
Author to whom correspondence should be addressed.
Cells 2019, 8(9), 1026; https://doi.org/10.3390/cells8091026
Submission received: 30 May 2019 / Revised: 29 August 2019 / Accepted: 31 August 2019 / Published: 3 September 2019
(This article belongs to the Special Issue Patient-Derived Cancer Models from Basic Study to Clinical Application)
Browse Figures
Versions Notes

Abstract

Gemcitabine (GEM) and cisplatin (CDDP) combination therapy (GC) is the standard chemotherapy for advanced biliary tract cancer (BTC); however, its pharmacotherapeutic efficacy remains unclear. To investigate the effects of GC, we selected 11 from 17 BTC cell lines, according to their GEM sensitivity, to be assessed using the MTS assay. The presence of synergistic effects of GC was determined using the Bliss additivism model (BM) and the combination index (CI) at a GEM:CDDP molar ratio of 7:1; this ratio was based on the respective human renal clearances of the two drugs. The pharmacotherapeutic effects were evaluated by comparing the IC50 values for administrations of GEM alone and GC in combination. All cell lines showed synergistic effects when analyzed using the BM. Based on the CI values, strong synergism, synergism, and additive effects were seen in four, five, and two cell lines, respectively. For all four GEM-resistant cell lines, on which GC had strong synergistic effects, the pharmacotherapeutic effects of GC were disappointing, with all IC50 values > 1 µM. For the GEM-effective cell lines, on which GC had synergistic or additive effects, the IC50 values were all <1 µM, and the differences were small between the IC50s for administration of GEM alone and GC in combination. Our results suggest that GC has synergistic effects on BTC cell lines but that its pharmacotherapeutic effects are inadequate.

1. Introduction

Biliary tract cancer (BTC) is a highly malignant disease for which surgical resection is the only curative therapy. Moreover, there is no effective chemotherapy for recurrent or inoperable cases. Consequently, the development of new therapeutic anticancer drugs for BTC is eagerly anticipated. Recently, several studies on potential new therapeutic molecular targets for BTC, including tumors with genomic alterations, were described [1,2,3,4,5,6]. Since 2010, gemcitabine (GEM) and cisplatin (cis-diamminedichloroplatinum, CDDP) combination therapy (GC) has been shown to significantly extend the median overall survival in BTC patients compared with GEM monotherapy [7]. Currently, GC therapy is the only standard chemotherapy regimen accepted worldwide. However, for some patients the clinical efficacy of GC is not satisfactory.
The synergistic mechanism of combined GC therapy is considered to be the ability of GEM to become incorporated into DNA, thereby promoting an increase in the accumulation of platinum compounds, such as CDDP, and the formation of CDDP–DNA adducts. Subsequently, GEM is converted to 2’-deoxy-5-azacytidine, and the CDDP–DNA adducts reduce cells’ ability to repair DNA [8,9]. However, the specific mechanism of the synergistic effect and the true therapeutic impact of combined GC administration remain unclear. To understand the synergistic effects of GC therapy and to improve outcomes for patients with advanced or recurrent BTC, we consider that the efficacy of GC should first be elucidated in a preclinical-style study. The synergistic effects of GC administration in vitro have been reported for ovarian cancer, head and neck cancer, lung cancer, neuroblastoma, and bladder carcinoma [8,9,10,11,12,13,14]. However, as far as we know, there have been no detailed studies on the pharmacotherapeutic activity, synergistic effect, and plasma clearance of GC. In our previous work, we established a number of BTC cell lines and performed in vitro sensitivity studies for several anticancer drugs, including GEM [15,16]. Some of our BTC cell lines showed resistance to GEM. Therefore, these BTC-related bioresources can be used to examine in detail the validity and pharmacotherapeutic activity of GC in highly practical preclinical-style studies.
The aim of this study was to clarify both the synergistic effect of CDDP administration in combination with GEM and its real pharmacotherapeutic activity on BTC cell lines and to demonstrate the basic premise of the efficacy of GC in the clinical setting.

2. Materials and Methods

2.1. Cell Culture

In the current study, we used 17 BTC cell lines: seven extrahepatic BTC cell lines, nine intrahepatic BTC cell lines, and one gallbladder carcinoma cell line. Of these cell lines, 13 were our established cell lines: five were derived from extrahepatic BTC (NCC-BD1, NCC-BD2, NCC-BD3, NCC-BD4-1, and NCC-BD4-2) and eight were derived from intrahepatic BTC (NCC-CC1, NCC-CC3-1, NCC-CC3-2, NCC-CC4-1, NCC-CC4-2, NCC-CC4-3 (NCC-CC5), NCC-CC6-1, and NCC-CC6-2). Further information regarding these cell lines is presented in Table 1 [15,16]. Of the other four cell lines, three (HuCCT1, TKKK, and TGBC24TKB) were obtained from Riken Bio Resource Center (Tsukuba, Japan) and one (OZ) was obtained from the Japanese Collection of Research Bioresources (Osaka, Japan). The HuCCT1 and OZ cell lines were derived from extrahepatic cholangiocarcinoma, the TKKK cell line was derived from intrahepatic bile duct carcinoma, and the TGBC24TKB cell line was derived from gallbladder carcinoma. Our 13 established BTC cell lines and HuCCT1 were cultured in RPMI-1640 medium (Sigma-Aldrich; St. Louis, MO, USA), whereas OZ, TKKK, and TGBC-24TKB were cultured in Dulbecco’s Modified Eagle’s Medium (Sigma-Aldrich). In both media, fetal bovine serum (Thermo Fisher Scientific, Waltham, MA, USA) and penicillin–streptomycin–glutamine (Thermo Fisher Scientific) were added to make concentrations of 10% and 1%, respectively. All cell lines were cultured in an incubator at 37 °C at 5% CO2.

2.2. Chemicals and Reagents

GEM (gemcitabine hydrochloride), which was obtained from Eli Lilly Japan K.K. (Kobe, Japan), was dissolved in Dulbecco’s phosphate buffered saline (Sigma-Aldrich). Cisplatin (Wako-Junyaku, Osaka, Japan) was dissolved in dimethyl sulfoxide (DMSO; Sigma-Aldrich). Solutions of cisplatin in DMSO were freshly prepared before use. The concentration of DMSO in medium was adjusted so as not to exceed 0.2%, which was ascertained as the concentration that had no influence on any cell line.

2.3. Chemosensitivity Examination

2.3.1. Single-Agent Examination and Stratification

The effects of GEM and/or CDDP on 17 BTC cell lines were evaluated using the 3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium (MTS) cell viability assay. Cells were placed in each well of a 96-well plate at 3.0 × 103/ well in 100 μL culture medium. After 24 h, the medium was removed and replaced with GEM and/or CDDP at concentrations in the range 0–100 µM. The data for GEM administration for our 13 established cell lines were obtained from our previous report [15,16]. For HuCCT1, TKKK, OZ, and TGBC24TKB, the same concentrations in the range 0–100 μM (0, 0.0001, 0.00033, 0.00067, 0.001, 0.0033, 0.0067, 0.01, 0.033, 0.067, 0.1, 0.33, 0.67, 1, 3.3, 6.7, 10, 33, 67, and 100 μM) as those in our previous reports were used [15,16]. The CDDP concentrations for addition to all cell lines were also set in the range 0–100 μM (0, 0.001, 0.01, 0.1, 1, 10, 20, 30, 50, 75, and 100 μM). These concentrations were considered appropriate with reference to previous reports regarding the IC50 values of CDDP [9,12]. After 72 h of drug administration, we used CellTiter 96 (Promega Corporation, Madison, WI, USA) and then measured the absorbance by the MTS assay using the AQueous One Solution Cell Proliferation Assay (Promega Corporation, Madison, WI, USA) according to the manufacturer’s protocol. To ensure the reproducibility of cell viability data after administration of GEM alone and CDDP alone, we seeded cell lines to nine and six wells, respectively, for each concentration. The data were averaged for each concentration. To confirm that the condition of the cell lines was acceptable, and to allow data from previous studies to be validly imported into the current study, we compared the cell proliferation data after GEM single administration with the equivalent data recorded in earlier studies and found them to be consistent.
For GEM, the cell viability curves and the 50%, 60%, 70%, and 80% inhibitory concentrations (IC50–80) were then calculated for each cell line; for CDDP, the cell viability curves and the 50% inhibitory concentrations (IC50) were calculated for a subset of cell lines (Table 1 and Table 2). The BTC cell lines were stratified according to their GEM sensitivity into three groups: effective (IC50 < 1 µM and IC70 was calculable), resistant (IC50 could not be determined), and intermediate (IC60 and/or IC50 could be determined, but IC70 could not be determined). For CDDP, cell lines with IC50 ≤ 50 µM were stratified as effective because we assessed that drug toxicity was superior to drug efficacy at high concentrations of CDDP [17].

2.3.2. Analysis of the Efficacy of GC Using the Bliss Additivism Model

We evaluated the efficacy of GC using the Bliss additivism model (BM). The experimental method was adjusted from that used for the single administrations of GEM and CDDP: following the placement of cells into 96-well plates, an amount of medium similar to that administered in the single-agent experiments was removed from each well. Consequently, 50 μL of each drug was prepared at double concentrations to make up 100 μL of GC. The GEM concentrations were set in the range 0–10 μM (0, 0.001, 0.01, 0.1, 1, and 10), and the CDDP concentrations were set in the range 0–50 μM (0, 0.01, 0.1, 1, 10, and 50). Each combination of concentrations of GEM and CDDP were tested. After 72 h of drug administration, we measured absorbances using the MTS assay in a manner similar to that for single-agent administration. The degree of efficacy of GC was determined using the BM [18,19,20,21] by applying the values obtained from the MTS assay. To ensure the reproducibility of the GC cell viability data used for BM analysis after administration of GEM and CDDP in combination, we seeded cell lines to three wells for each combination of concentrations. These three values were then averaged. To assess the condition of the cell line, we compared the cell proliferation data after the administration of GEM alone with the equivalent data recorded in earlier studies and found them to be acceptable.
The BM was calculated for each combination of concentration of drugs A and B using the following expression: Ebliss = EA + EB − (EA × EB). EA and EB are the fraction depression effects caused by drugs A and B separately at each concentration (fractional inhibitory effects), and Ebliss is the inhibition ratio expected if the two drugs exhibited only an additive effect. The BM value is the difference between the observed cell viability data and that expected if the effects of combined administration are purely additive (the latter being the Ebliss value). A BM of 0 indicates additive effects, BM < 0 indicates antagonistic effects, and BM > 0 indicates synergistic effects. To evaluate the effects of GC over the whole concentration range, we carried out experiments for all 36 concentration combinations for each cell line. However, to avoid the influence on the apparent drug efficacy of drug toxicity in the high concentration range of CDDP, we focused on data near the concentration range for which the IC50 of CDDP was calculable. These concentration ranges for each cell line are those inside the black lines in in the BM matrices.

2.3.3. Analysis of the Efficacy of GEM–CDDP at a Molar Ratio of 7:1

Combination Study
For advanced BTC, based on the drug package inserts, the clinical dose of GC treatment is GEM 1000 mg/m2 and CDDP 25 mg/m2, giving a dose ratio of 40:1. The human plasma clearances of GEM and CDDP are 85.6 and 15 L/h/m2, respectively, giving a plasma concentration ratio for GEM:CDDP of 5.6:1 [22,23,24]. Therefore, we examined the efficacy of GC treatment using an adjusted dose of GEM:CDDP giving a molar ratio of approximately 7:1, which was close to the clinical plasma ratio for CDDP administration in combination with GEM. After cells had been conditioned in wells for 24 h, we removed an amount of medium similar to that for single-agent administration and replaced it with GEM and CDDP at a molar ratio of 7:1 based on GEM concentrations in the range 0–100 μM (0, 0.001, 0.01, 0.05, 0.1, 0.5, 1, 5, 10, and 100 μM). At 72 h after drug administration, we conducted absorbance measurement for the MTS assay. To ensure the reproducibility of the cell viability data that were used for combination index (CI) analysis after administration of GC at a molar ratio of 7:1, nine wells were used for each concentration of GC. The data for each concentration were then averaged. To assess the condition of the cell lines, we also obtained cell proliferation data for the administration of GEM alone using three wells for each concentration. The results indicated that the cell lines were in an acceptable condition. To calculate the CI, data are required for the effects of administration of CDDP alone. Consequently, we used single-administration CDDP data at concentrations of 0, 0.001, 0.01, 0.1, 1, 10, 20, 30, 50, and 100 μM. We evaluated the efficacy of GC administration by using the CI [25], which was calculated using CalcuSyn software (Biosoft, Cambridge, UK). For the CI calculation, growth inhibition values (fraction affected, Fa) were used. There are several definitions of CI, and we used that given in “Drug combination studies and their synergy quantification using the Chou–Talalay method” [25]. The average CI was determined only when Fa was greater than or equal to 0.2. We considered that CI ≤ 0.3 indicated strong synergism, 0.3 < CI ≤ 0.7 indicated synergism, 0.7 < CI ≤ 1.25 indicated an additive effect only, and 1.25 < CI indicated antagonism [26] (Table 2). After calculation, we constructed dose–response curves for GC and for GEM alone for each cell line and stratified the cell lines into three groups based on their sensitivity to GEM. We then evaluated the variability among the cell line groups of the differences in drug effects between GC at a molar ratio of 7:1 and GEM single administration using the mean data from multiple experiments at each concentration.
Statistical Analysis
Student’s t-test was performed using Microsoft Excel 2016 for Windows (Microsoft Corporation; Redmond, WA, USA) to test the statistical significance of the differences between the dose–response curves of GC and GEM at each concentration for all cell lines. Statistical significance was set at P < 0.05.

2.4. Ethics

This study was approved by the ethics committee of the National Cancer Center (ID: 2007-022).

3. Results

3.1. Evaluation of GEM and CDDP Single-Agent Administration

The dose–response analysis for single administrations of GEM and CDDP are given for all BTC cell lines in Table 1 and Figure 1 and the IC50 values of CDDP are shown in Table 2. Based on the IC50 values, GEM single administration was considered to be effective for cell lines NCC-BD4-1, BD4-2, CC3-1, CC3-2, NCC-CC4-3 (NCC-CC5), CC6-1, HuCCT1, and TGBC24TKB. Cell lines NCC-BD2, BD3, OZ, and TKKK were resistant to GEM, and cell lines NCC-BD1, CC1, CC4-1, CC4-2, and CC6-2 showed intermediate effects. CDDP was effective for 16 cell lines (94%), with IC50 values of 3.49 to 35.94 µM, but TGBC24TKB was resistant to CDDP (Figure 1 and Table 2). The cell line TGBC24TKB was resistant to CDDP, but GEM was effective against it. In contrast, cell lines NCC-BD2 and NCC-BD3 were resistant to GEM, but CDDP was effective against them. Based on these results, we selected 11 representative BTC cell lines for further study: NCC-BD4-2, CC6-1, HuCCT1, and TGBC24TKB as lines for which GEM is effective; NCC-BD2, NCC-BD3, OZ, and TKKK as GEM resistant; and NCC-BD1, CC1, and CC4-1 as intermediate.

3.2. Evaluation of GC Combination Using the Bliss Additivism Model

The results of BM analysis for each cell line are shown in Figure 2. As mentioned in Section 2.4, we evaluated the synergy for each cell line using the BM matrix by focusing on the concentration ranges for which the IC50 for CDDP was calculable (data within the black frames). GC had synergistic effects against all 11 cell lines, including four GEM-resistant cell lines (Figure 2, Table 2).

3.3. Synergy or Additivism for GEM:CDDP Combination at a Molar Ratio of 7:1

The dose–response curves for combined administration of GEM and CDDP at a molar ratio of 7:1 and for GEM single administration against all BTC cell lines are shown in Figure 3; the graphs are stratified based on the cell lines’ sensitivity to GEM alone. Strong synergism was seen in four cell lines (36%; NCC-BD2, BD3, OZ, and TKKK) that were all GEM resistant. Synergism was seen in five cell lines (45%; NCC-BD4-2, CC1, CC4-1, HuCCT1, and TGBC24TKB) and additive effects were seen in two cell lines (18%; NCC-BD1 and CC6-1). For no cell line was there an antagonistic effect of combined GEM and CDDP (Table 2).

3.4. The True Pharmacotherapeutic Effect of GC Compared with That of GEM Single Administration

To evaluate the true pharmacotherapeutic effects of GC, we compared the IC50 values between GEM single administration and GC at a molar ratio of 7:1. All four GEM-resistant cell lines showed measurable IC50 values for GC at a 7:1 molar ratio, but all four IC50 values were >1 µM. In contrast, all four GEM-effective cell lines had measurable IC50 values for GC at a 7:1 molar ratio, but all four IC50 values were <1 µM. In the three GEM-intermediate cell lines, GC at 7:1 molar ratio showed either synergistic or additive effects, with IC50 values in the range 0.04–1.53 (Table 2).

4. Discussion

In the present study, we used 11 representative BTC cell lines and multiple methods to measure drug efficacy, allowing us to examine the relationship between the synergistic effects and pharmacotherapeutic activity of combined GC administration. Our results showed a synergistic effect of GC administration in most of the BTC cell lines, even for GEM-resistant cell lines. These results suggested that the addition of CDDP to GEM represents an effective and valuable therapy for BTC. However, interestingly, although GC at a molar ratio of 7:1 showed strong synergism in all four GEM-resistant cell lines, the IC50 values of GC were relatively high (>1 µM). In addition, the average IC50 value for GEM alone was low (0.06 µM) for the GEM-effective cell lines in our study; studies on other types of cancer cell lines have found IC50s for GEM in the range 0.0025–50 µM [9,12,27,28]. The IC50 values of the four GEM-resistant cell lines that showed synergism by GC combination administration were higher than those of the GEM-effective cell lines. Therefore, we believe that the pharmacotherapeutic effects of GC at a 7:1 molar ratio were insufficient in GEM-resistant cells. Moreover, in GEM-effective cell lines, only slight differences were observed in the dose–response curves or IC50 values of GEM single administration and GC at a 7:1 molar ratio. Therefore, the presence of synergistic effects may not always mean effective pharmacotherapeutic activity, and pharmacotherapeutic activity should not be evaluated by the presence of synergistic effects alone.
Although synergistic effects of GC for other cancer cell lines have been reported [9,11,12,14], the methodologies, drug concentrations, and other quantitations were different among the reports. In the current study, we examined the synergistic effects of GEM and CDDP using two assessment methods, BM and CI. BM has merit in terms of its ability to evaluate the synergistic effects of all the combinations of concentrations of each drug without calculating IC50 values [18,19,20,21]. We selected the IC50 value range from the CDDP-based GEM concentration range while avoiding the high CDDP concentration range because we considered that the cells would likely be influenced by the high-grade cell toxicity of CDDP within the high concentration range. GC evaluation based on BM indicated synergistic effects in all cell lines, and evaluation of GC at a 7:1 molar ratio based on the CI revealed that all cell lines exhibited either synergistic or additive effects. One possible reason for this difference could be that the effects were not necessarily associated with the drug concentration [14,29]. These facts suggested the possibility of complex pharmacological factors in drug combinations. Therefore, the differences in the synergistic or additive effects probably depend on the measurement or calculation methodologies used. Nevertheless, our results showed synergistic or additive effects for combined GC administration. Furthermore, the locations of the tumors on which our established cell lines were based were classified as extrahepatic (including distal BD and hilar BD) or intrahepatic. The histologic types of the original cell line tumors were all moderately differentiated adenocarcinoma (Table 1). There were no definite correlations between the locations of the original tumors and the sensitivity of the cell lines to GEM or CDDP. Therefore, we suggest that the differences in drug sensitivities between cell lines may also depend on other factors, e.g., gene expression, drug metabolism, and biological behavior. We consider that further detailed study is needed.
In the current study, most of the BTC cell lines showed synergistic effects of GC compared with GEM single administration. However, in the ABC-02 study of 410 patients with locally advanced or metastatic cholangiocarcinoma, gallbladder cancer, or ampullary cancer, the clinical response rates were 26.1% for GC therapy and 15.5% for GEM monotherapy [7]. As shown in our results, although GC at 7:1 showed strong synergism in GEM-resistant cell lines compared with GEM single administration, and the IC50 values all became measurable, the effects of GC administration were seen only with high drug concentrations. Furthermore, in the cell lines that showed little synergistic effect (i.e., GEM intermediate and effective cell lines), the differences were small between the IC50s for administration of GEM alone and GC in combination. According to our statistical analysis for each concentration for all cell lines, at concentrations close the IC50 value of GC, no significant differences of drug effects between GC and GEM alone were evident in two of the four GEM-effective cell lines (Figure 3). This implied that even if GC administration had synergistic effects, its pharmacotherapeutic effects were not consistent. These results suggested one of the pharmacological reasons for the inadequate clinical efficacy of GC. Based on our results, enhancing the therapeutic performance of GC in resistant cases would require the addition of a third therapeutic agent to the GC combination. A combination of GEM, CDDP, and S-1, which is an oral 5-fluorouracil derivative, (GCS) was demonstrated to have survival benefits over GC for advanced BTC in the KHBO1401-MITSUBA trial [30]. Moreover, if the discrepancy between the synergistic and pharmacotherapeutic effects of GC can be further clarified, selection of GEM-resistant cases could have important implications. Ultimately, the active use of more highly sensitive GEM efficacy markers, such as hENT1 [31], RRM1 [32], and MAGEH1 [16], as diagnostic adjuncts may improve the outcomes of patients with BTC.
To account for the differences between in vitro and in vivo drug metabolism, we adopted a GC molar ratio of 7:1, taking into consideration the human plasma clearances of GEM and CDDP. However, in the clinical setting, liver and/or kidney drug metabolism may vary because of individual differences. Moreover, we carried out several repeat experiments with the same cell lines, and the dose–response curves were almost identical, although the IC50 values sometimes varied a little. However, the IC50 for NCC-CC1 was different between our in house data for GEM and for GEM single administration carried out as part of the combination study, despite the two dose–response curves being similar in shape and position. Therefore, further detailed studies, such as in vivo studies using xenograft models, are necessary. Such investigations may show synergistic effects of GEM and CDDP under conditions that more closely resemble those in humans.
In conclusion, the synergistic effects of GC were examined in vitro in this preliminary report using 11 BTC cell lines and two different methodologies. In one approach, we considered the GEM and CDDP plasma clearances and used a molar ratio of 7:1 to reproduce the respective concentrations in the clinical setting as much as possible. GC had synergistic or additive effects for all cell lines. However, in some cell lines for which GEM single administration was effective, the pharmacotherapeutic efficacy of GC did not show much improvement. Furthermore, in cell lines for which GEM single administration was ineffective, GC showed strong synergy but insufficient pharmacotherapeutic activity. We believe that these preclinical-style findings are important to help improve the chemotherapeutic treatment strategy for advanced and recurrent BTC.

Author Contributions

Conceptualization, Y.S., H.O.; data curation, Y.S., S.Y., H.O.; formal analysis, Y.S., S.Y., H.O.; writing—original draft preparation, Y.S.; writing—review and editing, H.O., S.Y.; project administration, T.O.; funding acquisition, H.O.

Funding

This research received no external funding.

Acknowledgments

The authors thank Gakuto Ogawa (Biostatistics Division, Center for Research Administration and Support, National Cancer Center) for his assistance with statistical analysis and Mr. David Smallbones for detailed English editing and valuable advice. This work was supported by JSPS KAKENHI Grant number JP26460501.

Conflicts of Interest

Ojima received research funding outside of this work from Eli Lilly Co., Ltd. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Nakamura, H.; Arai, Y.; Totoki, Y.; Shirota, T.; Elzawahry, A.; Kato, M.; Hama, M.; Hosoda, F.; Urushidate, T.; Ohashi, S.; et al. Genomic spectra of biliary tract cancer. Nat. Genet. 2015, 47, 1003–1010. [Google Scholar] [CrossRef] [PubMed]
  2. Arai, Y.; Totoki, Y.; Hosoda, F.; Shirota, T.; Hama, N.; Nakamura, H.; Ojima, H.; Furuta, K.; Shimada, K.; Okusaka, T.; et al. Fibroblast growth factor receptor 2 tyrosine kinase fusions define a unique molecular subtype of cholangiocarcinoma. Hepatology 2014, 59, 1427–1434. [Google Scholar] [CrossRef] [PubMed]
  3. Faiz, G.M.; Neeraja, N.; Yuhree, K.; Qingfeng, Z.; Lan, L.; Feriyl, B.; Robert, A.A.; Timothy, M.P. Program Death 1 immune checkpoint and tumor microenvironment: Implications for patients with intrahepatic cholangiocarcinoma. Ann. Surg. Oncol. 2016, 23, 2610–2617. [Google Scholar]
  4. Liau, J.Y.; Tsai, J.H.; Yuan, R.H.; Chang, C.N.; Lee, H.J.; Jeng, Y.M. Morphological subclassification of intrahepatic cholangiocarcinoma: Etiological, clinicopathological, and molecular features. Mod. Pathol. 2014, 27, 1163–1173. [Google Scholar] [CrossRef] [PubMed]
  5. Meng, X.; Huang, Z.; Teng, F.; Xing, L.; Yu, J. Predictive biomarkers in PD-1/PD-L1 checkpoint blockade immunotherapy. Cancer Treat. Rev. 2015, 41, 868–876. [Google Scholar] [CrossRef]
  6. Ruzzennente, A.; Fassan, M.; Conci, S.; Simbolo, M.; Lawlor, R.T.; Pedrazzani, C.; Capelli, P.; D’Onofrio, M.; Iacono, C.; Scarpa, A.; et al. Cholangiocarcinoma heterogeneity revealed by multigene mutational profiling: Clinical and prognostic relevance in surgically resected patients. Ann. Surg. Oncol. 2016, 23, 1699–1707. [Google Scholar] [CrossRef] [PubMed]
  7. Valle, J.; Wasan, H.; Palmer, D.H.; Cunningham, D.; Anthoney, A.; Maraveyas, A.; Madhusudan, S.; Iveson, T.; Hughes, S.; Pereira, S.P.; et al. Cisplatin plus gemcitabine versus gemcitabine for biliary tract cancer. N. Engl. J. Med. 2010, 362, 1273–1281. [Google Scholar] [CrossRef]
  8. Bergman, A.M.; van Haperen, R.V.W.; Veerman, G.; Kuiper, C.M.; Peters, G.J. Synergistic interaction between cisplatin and gemcitabine in vitro. Clin. Cancer. Res. 1996, 2, 521–530. [Google Scholar]
  9. Van Moorsel, C.J.; Pinedo, H.M.; Veerman, G.; Bergman, A.M.; Kuiper, C.M.; Vermorken, J.B.; van der Vijgh, W.J.F.; Peters, A.G. Mechanisms of synergism between cisplatin and gemcitabine in ovarian and non-small-cell lung cancer cell lines. Br. J. Cancer 1999, 80, 981–990. [Google Scholar] [CrossRef]
  10. Mazin, A.; Moufarij, D.R.P.; Cullinane, C. Gemcitabine potentiates cisplatin cytotoxicity and inhibits repair of cisplatin-DNA damage in ovarian cancer cell lines. Mol. Pharmacol. 2003, 63, 862–869. [Google Scholar]
  11. Braakhuis, B.J.; van Haperen, R.V.W.; Welters, M.J.; Peters, G.J. Schedule-dependent therapeutic efficacy of the combination of gemcitabine and cisplatin in head and neck cancer xenografts. Eur. J. Cancer 1995, 31A, 2335–2340. [Google Scholar] [CrossRef]
  12. Kanzawa, F.; Akiyama, Y.; Saijo, N.; Nishio, K. In vitro effects of combinations of cis-amminedichloro (2-methylpyridine) platinum (II) (ZD0473) with other novel anticancer drugs on the growth of SBC-3, a human small cell lung cancer cell line. Lung Cancer 2003, 40, 325–332. [Google Scholar] [CrossRef]
  13. Besancon, O.G.; Tytgat, G.A.M.; Meinsma, R.; Leen, R.; Hoebink, J.; Kalayda, G.V.; Jaehde, U.; Caron, H.N.; van Kuilenburg, A.B.P. Synergistic interaction between cisplatin and gemcitabine in neuroblastoma cell lines and multicellular tumor spheroids. Cancer Lett. 2012, 319, 23–30. [Google Scholar] [CrossRef] [PubMed]
  14. Da Silva, G.N.; de Camargo, E.A.; Savio, A.L.; Salvadori, D.M. MRE11A and SKP2 genes are associated with the increased cytotoxicity induced by the synergistic effects of cisplatin and gemcitabine in bladder cancer cells. Mol Biol Rep. 2014, 41, 4613–4621. [Google Scholar] [CrossRef] [PubMed]
  15. Ojima, H.; Yamagishi, S.; Shimada, K.; Shibata, T. Establishment of various biliary tract carcinoma cell lines and xenograft models for appropriate preclinical studies. World J. Gastroenterol. 2016, 22, 9035–9038. [Google Scholar] [CrossRef] [PubMed]
  16. Ojima, H.; Yoshikawa, D.; Ino, Y.; Shimizu, H.; Miyamoto, M.; Kokubu, A.; Hiraoka, N.; Morofuji, N.; Kondo, T.; Onaya, H.; et al. Establishment of six new human biliary tract carcinoma cell lines and identification of MAGEH1 as a candidate biomarker for predicting the efficacy of gemcitabine treatment. Cancer Sci. 2010, 101, 882–888. [Google Scholar] [CrossRef] [PubMed]
  17. Barry, M.A.; Behnke, C.A.; Eastman, A. Activation of programmed cell death (apoptosis) by cisplatin, other anticancer drugs, toxins and hyperthermia. Biochem. Pharmacol. 1990, 40, 2353–2362. [Google Scholar] [CrossRef]
  18. Borisy, A.A.; Elliott, P.J.; Hurst, N.W.; Lee, M.S.; Lehar, J.; Price, E.R.; Serbedzija, G.; Zimmermann, G.R.; Foley, M.A.; Stockwell, B.R.; et al. Systematic discovery of multicomponent therapeutics. Proc. Natl. Acad. Sci. USA 2003, 100, 7977–7982. [Google Scholar] [CrossRef]
  19. Zhao, W.; Sachsenmeier, K.; Zhang, L.; Sult, E.; Hollingsworth, R.E.; Yang, H. A new bliss independence model to analyze drug combination data. J. Biomol. Screen. 2014, 19, 817–821. [Google Scholar] [CrossRef]
  20. Okabe, T.; Okamoto, I.; Tsukioka, S.; Uchida, J.; Iwasa, T.; Yoshida, T.; Hatashita, E.; Yamada, Y.; Satoh, T.; Tamura, K.; et al. Synergistic antitumor effect of S-1 and the epidermal growth factor receptor inhibitor gefitinib in non-small cell lung cancer cell lines: role of gefitinib-induced down-regulation of thymidylate synthase. Mol. Cancer Ther. 2008, 7, 599–606. [Google Scholar] [CrossRef]
  21. Wong, M.; Tan, N.; Zha, J.; Peale, F.V.; Yue, P.; Fairbrother, W.J.; Belmont, L.D. Navitoclax (ABT-263) reduces Bcl-x(L)-mediated chemoresistance in ovarian cancer models. Mol. Cancer Ther. 2012, 11, 1026–1035. [Google Scholar] [CrossRef] [PubMed]
  22. Bristol-Myers Squibb Company. PLATINOL®CISplatin for Injection, USP, Bristol-Myers Squibb Company: Princeton, NJ, USA, 2010.
  23. Eli Lilly Japan K.K. IYAKUHIN Interview form Gemzar® Injection, Japanese; Eli Lilly Japan K.K.: Kobe, Japan, 2019.
  24. Lilly USA. HIGHLIGHTS of PRESCRIBING INFORMATION GEMZAR (Gemcitabine) for Injection, for Intravenous Use Initial U.S. Lilly USA: Indianapolis, IN, USA, 1996.
  25. Chou, T.C. Drug combination studies and their synergy quantification using the Chou-Talalay method. Cancer Res. 2010, 70, 440–446. [Google Scholar] [CrossRef] [PubMed]
  26. Gozgit, J.M.; Squillace, R.M.; Wongchenko, M.J.; Miller, D.; Wardwell, S.; Mohemmad, Q.; Narasimhan, N.I.; Wang, F.; Clackson, T.; Rivera, V.M. Combined targeting of FGFR2 and mTOR by ponatinib and ridaforolimus results in synergistic antitumor activity in FGFR2 mutant endometrial cancer models. Cancer Chemother Pharmacol. 2013, 71, 1315–1323. [Google Scholar] [CrossRef] [PubMed]
  27. Bepler, G.; Kusmartseva, I.; Sharma, S.; Gautam, A.; Cantor, A.; Sharma, A.; Simon, G. RRM1 modulated in vitro and in vivo efficacy of gemcitabine and platinum in non-small-cell lung cancer. J. Clin. Oncol. Off. J. Am. Soc. Clin. Oncol. 2006, 24, 4731–4737. [Google Scholar] [CrossRef] [PubMed]
  28. Hagmann, W.; Jesnowski, R.; Lohr, J.M. Interdependence of gemcitabine treatment, transporter expression, and resistance in human pancreatic carcinoma cells. Neoplasia 2010, 12, 740–747. [Google Scholar] [CrossRef] [PubMed]
  29. Peters, G.J.; Berman, A.M.; Ruiz van Haperen, V.W.; Veerman, G.; Kuiper, C.M.; Braakhuis, B.J. Interaction between cisplatin and gemcitabine in vitro and in vivo. Semin Oncol. 1995, 22, 72–79. [Google Scholar]
  30. Sakai, D.; Kanai, M.; Kobayashi, S.; Eguchi, H.; Baba, H.; Seo, S.; Taketomi, A.; Takayama, T.; Yamaue, H.; Ishioka, C.; et al. Randomized phase III study of gemcitabine, cisplatin plus S-1 (GCS) versus gemcitabine, cisplatin (GC) for advanced biliary tract cancer (KHBO1401-MITSUBA). In Proceedings of the ESMO 2018 Congress, Munich, Germany, 19–23 October 2018. [Google Scholar]
  31. Borbath, I.; Verbrugghe, L.; Lai, R.; Gigot, J.F.; Humblet, Y.; Piessevaux, H.; Sempoux, C. Human equilibrative nucleoside transporter 1 (hENT1) expression is a potential predictive tool for response to gemcitabine in patients with advanced cholangiocarcinoma. Eur. J. Cancer. 2012, 48, 990–996. [Google Scholar] [CrossRef]
  32. Ohtaka, K.; Kohya, N.; Sato, K.; Kitajima, Y.; Ide, T.; Mitsuno, M.; Miyazaki, K. Ribonucleotide reductase subunit M1 is a possible chemoresistance marker to gemcitabine in biliary tract carcinoma. Oncol. Rep. 2008, 20, 279–286. [Google Scholar]
Cells 08 01026 g001

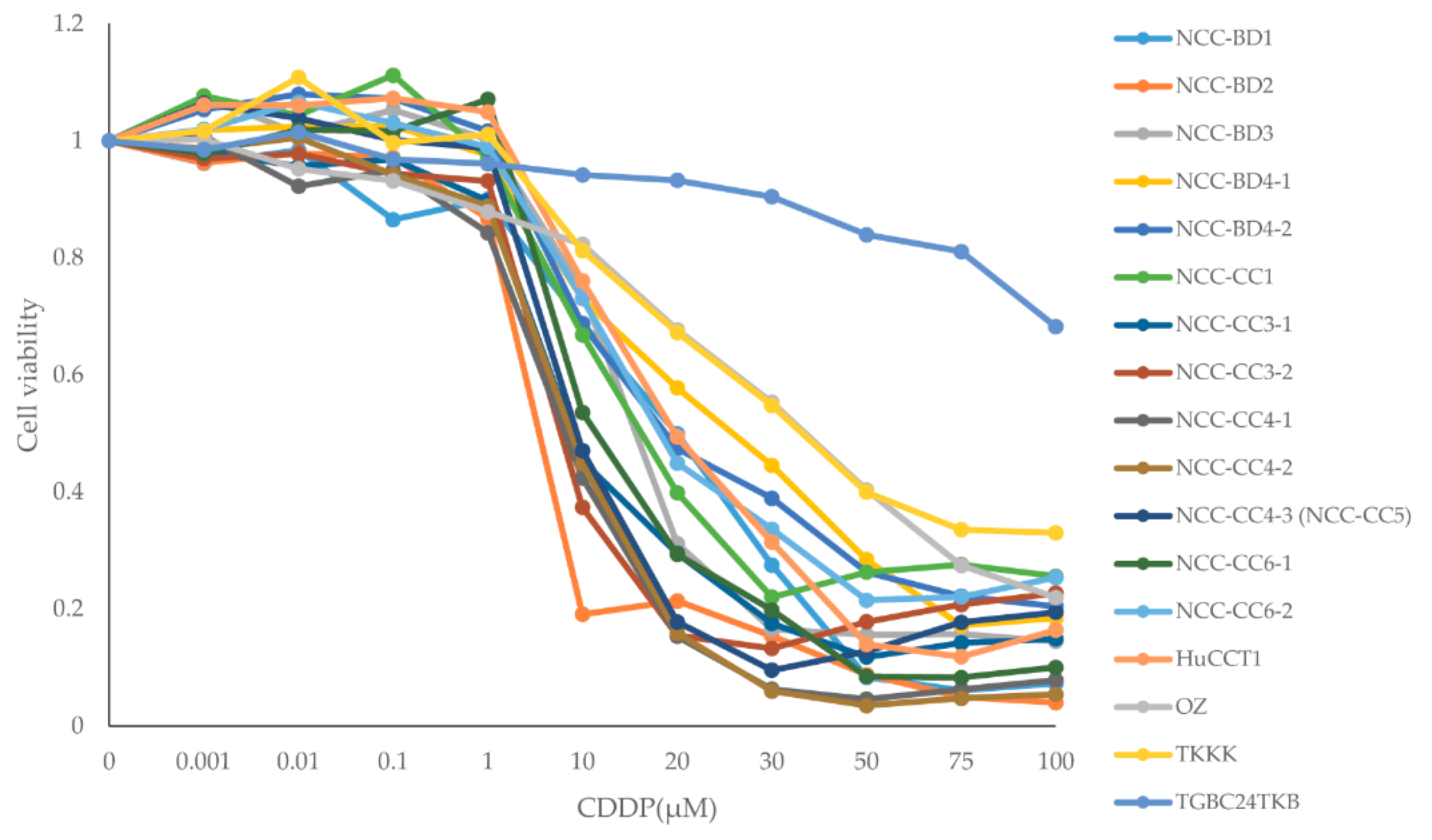

Figure 1. Dose–response curves of biliary tract carcinoma cell lines for cisplatin (CDDP) single administration. The dose–response curves for each cell line were used to calculate IC50 values.
Figure 1. Dose–response curves of biliary tract carcinoma cell lines for cisplatin (CDDP) single administration. The dose–response curves for each cell line were used to calculate IC50 values.
Cells 08 01026 g001
Cells 08 01026 g002

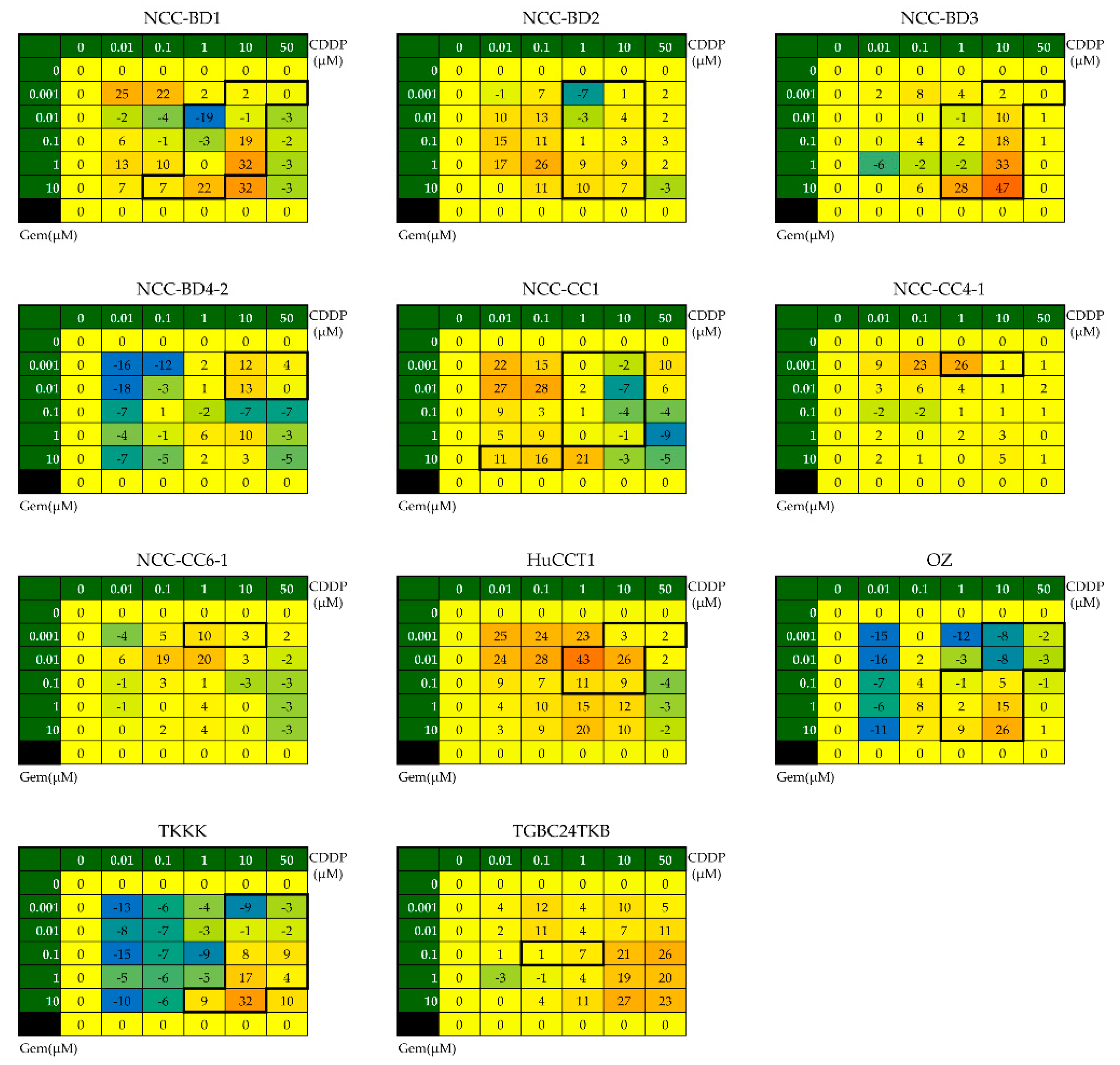

Figure 2. Evaluation of the combined effects of GC administration using the Bliss additivism model (BM). We determined the BM matrices to evaluate synergistic effects, focusing on the concentration ranges for which IC50 for CDDP was calculable. These concentration ranges are enclosed in the black frames on the heat maps of the BM matrices for each cell line. The mean value of the sum of the data for each cell in the matrices was calculated; a value of >1 was designated as BM positive (i.e., there was a synergistic effect).
Figure 2. Evaluation of the combined effects of GC administration using the Bliss additivism model (BM). We determined the BM matrices to evaluate synergistic effects, focusing on the concentration ranges for which IC50 for CDDP was calculable. These concentration ranges are enclosed in the black frames on the heat maps of the BM matrices for each cell line. The mean value of the sum of the data for each cell in the matrices was calculated; a value of >1 was designated as BM positive (i.e., there was a synergistic effect).
Cells 08 01026 g002
Cells 08 01026 g003

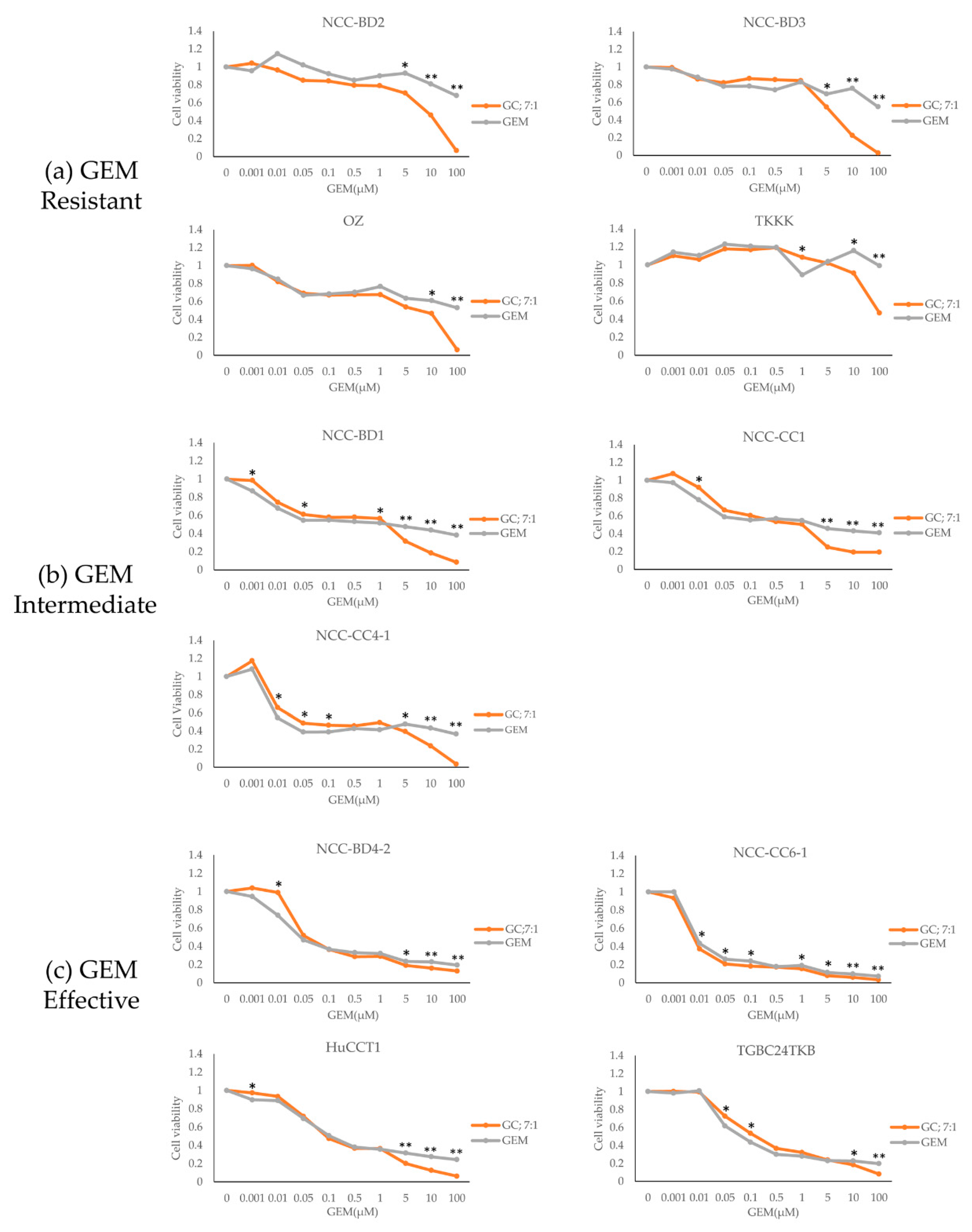

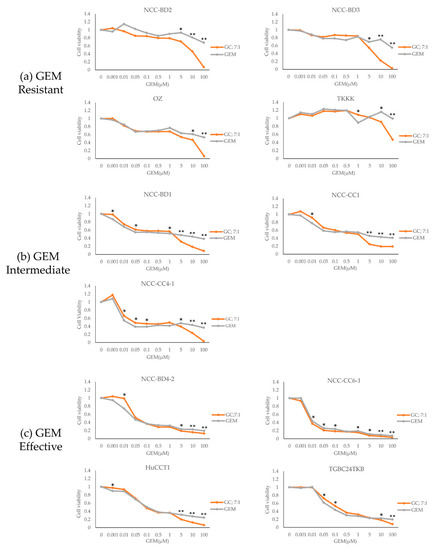

Figure 3. The dose–response curves for combined administration of GEM–CDDP at a molar ratio of 7:1 and administration of GEM alone. Cell lines are stratified into three groups based on their sensitivity to GEM: (a) GEM resistant group, (b) GEM intermediate group, and (c) GEM effective group. There was a difference between the IC50 levels for GC and GEM alone for the four GEM-resistant cell lines. The dose–response curves for GC and GEM alone were compared. * P < 0.05 and ** P < 0.0001 by Student’s t-test. Statistical significance was set at P < 0.05.
Figure 3. The dose–response curves for combined administration of GEM–CDDP at a molar ratio of 7:1 and administration of GEM alone. Cell lines are stratified into three groups based on their sensitivity to GEM: (a) GEM resistant group, (b) GEM intermediate group, and (c) GEM effective group. There was a difference between the IC50 levels for GC and GEM alone for the four GEM-resistant cell lines. The dose–response curves for GC and GEM alone were compared. * P < 0.05 and ** P < 0.0001 by Student’s t-test. Statistical significance was set at P < 0.05.
Cells 08 01026 g003
Table 1. IC50–IC80 values for GEM administration for each BTC cell line.
Table 1. IC50–IC80 values for GEM administration for each BTC cell line.
Cell LinePathological Diagnosis of Original TumorLocation of Original TumorHistologic Type of Original Tumor GEM SensitivityIC50 (µM)IC60 (µM)IC70 (µM)IC80 (µM)
NCC-BD1 *EHCCDistal BDAdeno, mod †Int7.66 58.00 N/AN/A
NCC-BD2 *EHCCDistal BDAdeno, modResN/AN/AN/AN/A
NCC-BD3 *EHCCDistal BDAdeno, modResN/AN/AN/AN/A
NCC-BD4-1 *EHCCHilar BDAdeno, modEff0.04 0.06 0.09 2.93
NCC-BD4-2 *EHCCHilar BDAdeno, modEff0.06 0.07 0.19 5.37
NCC-CC1 *IHCCIntrahepaticAdeno, modInt86.78 N/AN/AN/A
NCC-CC3-1 *IHCCIntrahepaticAdeno, modEff0.04 1.82 9.31 85.21
NCC-CC3-2 *IHCCIntrahepaticAdeno, modEff0.10 1.92 43.83 N/A
NCC-CC4-1 *IHCCIntrahepaticAdeno, modInt0.05 4.08 N/AN/A
NCC-CC4-2 *IHCCIntrahepaticAdeno, modInt0.03 11.53 N/AN/A
NCC-CC4-3
(NCC-CC5) *		IHCCIntrahepaticAdeno, modEff0.06 4.92 95.10 N/A
NCC-CC6-1 *IHCCIntrahepaticAdeno, modEff0.01 0.02 0.06 3.76
NCC-CC6-2 *IHCCIntrahepaticAdeno, modInt10.98 35.67 N/AN/A
HuCCT1EHCCN/AN/AEff0.090.25 2.16 8.13
OZEHCCN/AN/AResN/AN/AN/AN/A
TKKKIHCCIntrahepaticN/AResN/AN/AN/AN/A
TGBC24TKBGB CaGBN/AEff0.05 0.07 1.23 N/A
* Data from a previous report [15]; † moderately differentiated adenocarcinoma; IC50, 50% inhibitory concentration; IC60, 60% inhibitory concentration; IC70, 70% inhibitory concentration; IC80, 80% inhibitory concentration; EHCC, extrahepatic cholangiocellular carcinoma; IHCC, intrahepatic cholangiocellular carcinoma; GB Ca, gallbladder carcinoma; BD, bile duct; GB, gallbladder; N/A, not available, i.e., could not be determined; Eff, effective; Res, resistant; Int, intermediate.
Table 2. IC50 values and the effects of combination GC chemotherapy based on the Bliss index and the combination index.
Table 2. IC50 values and the effects of combination GC chemotherapy based on the Bliss index and the combination index.
Cell LineGEM SensitivityGEM SingleCDDP SingleGEM:CDDP Combination
GEM:CDDP; 7:1 molar ratioBliss additivism model
IC50 (µM)IC50 (µM)IC50 (µM)CI valueDecisionBM Decision
NCC-BD1Int18.62 19.94 1.53 1.03 +/−59.17 +
NCC-BD2ResN/A3.49 8.97 0.24 2+34.40 +
NCC-BD3ResN/A14.78 5.53 0.13 2+136.18 +
NCC-BD4-2Eff0.04 18.39 0.05 0.38 +11.85 +
NCC-CC1Int2.3815.41 1.04 0.58 +13.80 +
NCC-CC4-1Int0.02 6.58 0.04 0.46 +27.23 +
NCC-CC6-1Eff0.01 11.07 0.01 0.71+/−12.42 +
HuCCT1Eff0.11 19.680.09 0.48 +93.17 +
OZResN/A35.94 7.21 0.20 2+36.27 +
TKKKResN/A35.34 84.66 0.09 2+64.60 +
TGBC24TKBEff0.08 N/A0.14 0.70 +8.40 +
IC50, 50% inhibitory concentration; CI, combination index; BM, Bliss additivism model; N/A, could not be determined; Eff, effective; Res, resistant; Int, intermediate; 2+, strong synergism; +, synergism; +/−, additive.
