Deep Sequencing Reveals Central Nervous System Compartmentalization in Multiple Transmitted/Founder Virus Acute HIV-1 Infection
Abstract
:1. Introduction
2. Materials and Methods
2.1. Study Participants and Sample Collection
2.2. Laboratory Methods
2.2.1. Single-Genome Amplification and Sequencing of HIV-1 Viruses
2.2.2. Targeted Genome Region Next-Generation Sequencing
2.3. Data Analysis
2.3.1. Single-Genome Amplification-Derived Sequence Analysis
2.3.2. Next-Generation Sequencing Data Analysis
3. Results
3.1. Study Participants
3.2. Single-Genome Amplification and Sequencing Analysis
3.3. Next-Generation Sequencing

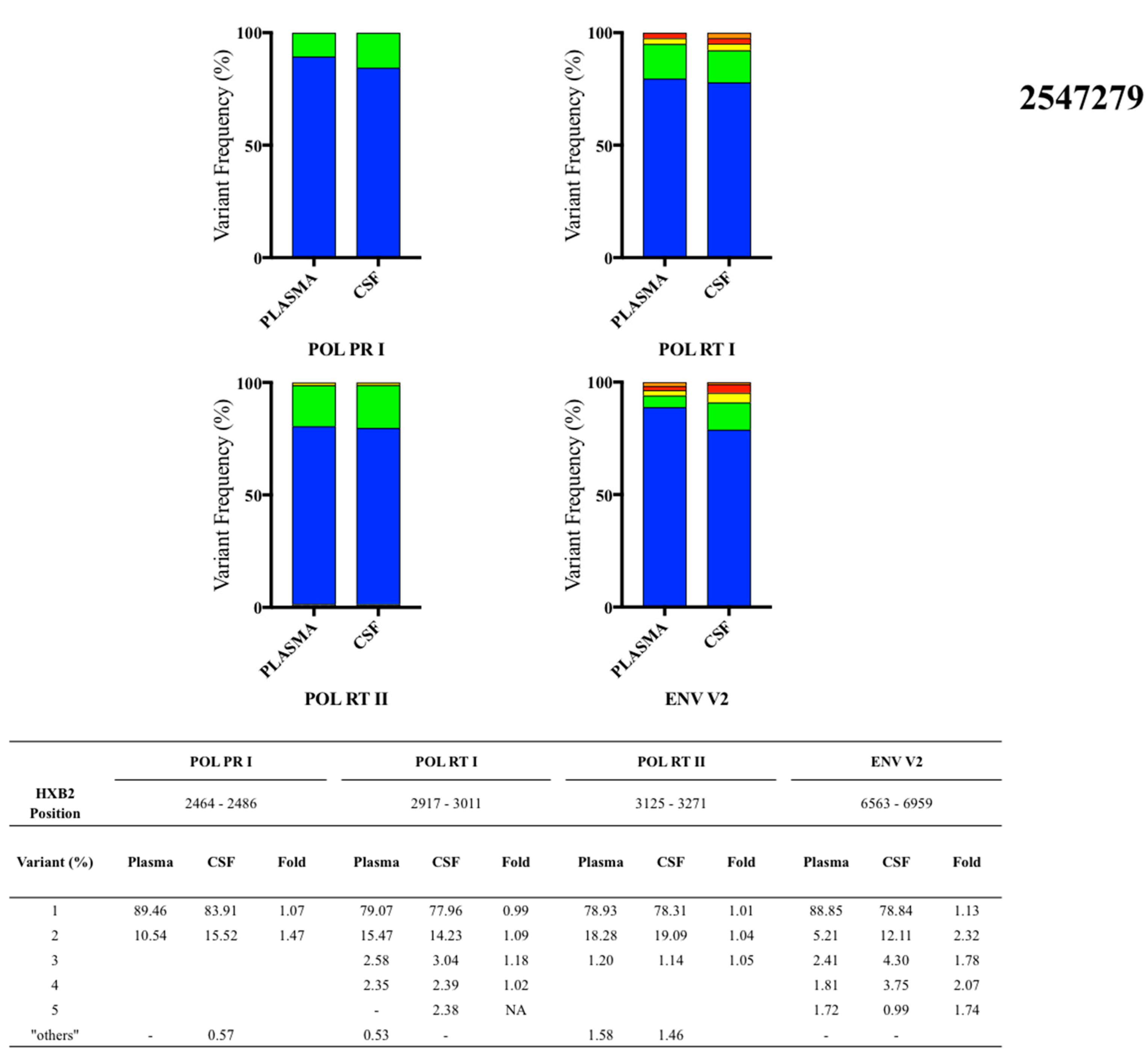

3.4. Participant 2547279

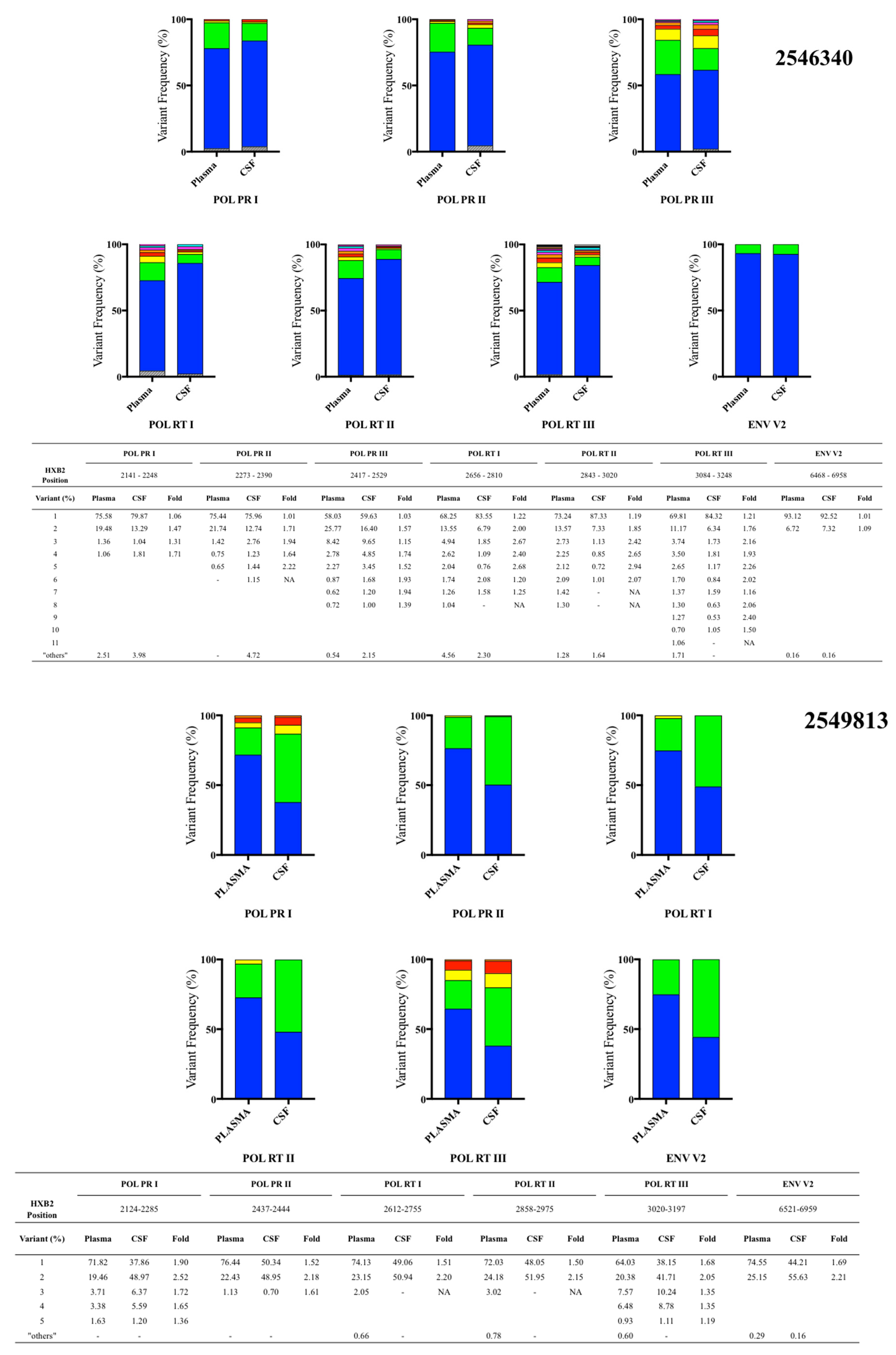

3.5. Participant 2546340
3.6. Participant 2549813
4. Discussion
Supplementary Materials
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Disclaimer
References
- Ananworanich, J.; Schuetz, A.; Vandergeeten, C.; Sereti, I.; de Souza, M.; Rerknimitr, R.; Dewar, R.; Marovich, M.; van Griensven, F.; Sekaly, R.; et al. Impact of multi-targeted antiretroviral treatment on gut T cell depletion and HIV reservoir seeding during acute HIV infection. PLoS ONE 2012, 7, e33948. [Google Scholar] [CrossRef] [PubMed]
- Valcour, V.; Chalermchai, T.; Sailasuta, N.; Marovich, M.; Lerdlum, S.; Suttichom, D.; Suwanwela, N.C.; Jagodzinski, L.; Michael, N.; Spudich, S.; et al. Central nervous system viral invasion and inflammation during acute HIV infection. J. Infect. Dis. 2012, 206, 275–282. [Google Scholar] [CrossRef] [PubMed]
- Saksena, N.K.; Wang, B.; Zhou, L.; Soedjono, M.; Ho, Y.S.; Conceicao, V. HIV reservoirs in vivo and new strategies for possible eradication of HIV from the reservoir sites. HIV/AIDS 2010, 2, 103–122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Fletcher, C.V.; Staskus, K.; Wietgrefe, S.W.; Rothenberger, M.; Reilly, C.; Chipman, J.G.; Beilman, G.J.; Khoruts, A.; Thorkelson, A.; Schmidt, T.E.; et al. Persistent HIV-1 replication is associated with lower antiretroviral drug concentrations in lymphatic tissues. Proc. Natl. Acad. Sci. USA 2014, 111, 2307–2312. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Peluso, M.J.; Ferretti, F.; Peterson, J.; Lee, E.; Fuchs, D.; Boschini, A.; Gisslen, M.; Angoff, N.; Price, R.W.; Cinque, P.; et al. Cerebrospinal fluid HIV escape associated with progressive neurologic dysfunction in patients on antiretroviral therapy with well controlled plasma viral load. AIDS 2012, 26, 1765–1774. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Bednar, M.M.; Sturdevant, C.B.; Tompkins, L.A.; Arrildt, K.T.; Dukhovlinova, E.; Kincer, L.P.; Swanstrom, R. Compartmentalization, Viral Evolution, and Viral Latency of HIV in the CNS. Curr. HIV/AIDS Rep. 2015, 12, 262–271. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Svicher, V.; Ceccherini-Silberstein, F.; Antinori, A.; Aquaro, S.; Perno, C.F. Understanding HIV compartments and reservoirs. Curr. HIV/AIDS Rep. 2014, 11, 186–194. [Google Scholar] [CrossRef] [PubMed]
- Klein, K.; Nickel, G.; Nankya, I.; Kyeyune, F.; Demers, K.; Ndashimye, E.; Kwok, C.; Chen, P.L.; Rwambuya, S.; Poon, A.; et al. Higher sequence diversity in the vaginal tract than in blood at early HIV-1 infection. PLoS Pathog. 2018, 14, e1006754. [Google Scholar] [CrossRef]
- Yuan, Z.; Ma, F.; Demers, A.J.; Wang, D.; Xu, J.; Lewis, M.G.; Li, Q. Characterization of founder viruses in very early SIV rectal transmission. Virology 2017, 502, 97–105. [Google Scholar] [CrossRef] [PubMed]
- Gonzalez-Scarano, F.; Martin-Garcia, J. The neuropathogenesis of AIDS. Nat. Rev. Immunol. 2005, 5, 69–81. [Google Scholar] [CrossRef] [PubMed]
- Schnell, G.; Joseph, S.; Spudich, S.; Price, R.W.; Swanstrom, R. HIV-1 replication in the central nervous system occurs in two distinct cell types. PLoS Pathog. 2011, 7, e1002286. [Google Scholar] [CrossRef] [PubMed]
- Ritola, K.; Robertson, K.; Fiscus, S.A.; Hall, C.; Swanstrom, R. Increased human immunodeficiency virus type 1 (HIV-1) env compartmentalization in the presence of HIV-1-associated dementia. J. Virol. 2005, 79, 10830–10834. [Google Scholar] [CrossRef] [PubMed]
- Heaton, R.K.; Clifford, D.B.; Franklin, D.R., Jr.; Woods, S.P.; Ake, C.; Vaida, F.; Ellis, R.J.; Letendre, S.L.; Marcotte, T.D.; Atkinson, J.H.; et al. HIV-associated neurocognitive disorders persist in the era of potent antiretroviral therapy: CHARTER Study. Neurology 2010, 75, 2087–2096. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Harrington, P.R.; Schnell, G.; Letendre, S.L.; Ritola, K.; Robertson, K.; Hall, C.; Burch, C.L.; Jabara, C.B.; Moore, D.T.; Ellis, R.J.; et al. Cross-sectional characterization of HIV-1 env compartmentalization in cerebrospinal fluid over the full disease course. AIDS 2009, 23, 907–915. [Google Scholar] [CrossRef] [PubMed]
- Sturdevant, C.B.; Dow, A.; Jabara, C.B.; Joseph, S.B.; Schnell, G.; Takamune, N.; Mallewa, M.; Heyderman, R.S.; Van Rie, A.; Swanstrom, R. Central nervous system compartmentalization of HIV-1 subtype C variants early and late in infection in young children. PLoS Pathog. 2012, 8, e1003094. [Google Scholar] [CrossRef] [PubMed]
- Sturdevant, C.B.; Joseph, S.B.; Schnell, G.; Price, R.W.; Swanstrom, R.; Spudich, S. Compartmentalized replication of R5 T cell-tropic HIV-1 in the central nervous system early in the course of infection. PLoS Pathog. 2015, 11, e1004720. [Google Scholar] [CrossRef] [PubMed]
- Dahl, V.; Gisslen, M.; Hagberg, L.; Peterson, J.; Shao, W.; Spudich, S.; Price, R.W.; Palmer, S. An example of genetically distinct HIV type 1 variants in cerebrospinal fluid and plasma during suppressive therapy. J. Infect. Dis. 2014, 209, 1618–1622. [Google Scholar] [CrossRef]
- Kijak, G.H.; Sanders-Buell, E.; Chenine, A.L.; Eller, M.A.; Goonetilleke, N.; Thomas, R.; Leviyang, S.; Harbolick, E.A.; Bose, M.; Pham, P.; et al. Rare HIV-1 transmitted/founder lineages identified by deep viral sequencing contribute to rapid shifts in dominant quasispecies during acute and early infection. PLoS Pathog. 2017, 13, e1006510. [Google Scholar] [CrossRef]
- Poss, M.; Rodrigo, A.G.; Gosink, J.J.; Learn, G.H.; de Vange Panteleeff, D.; Martin, H.L., Jr.; Bwayo, J.; Kreiss, J.K.; Overbaugh, J. Evolution of envelope sequences from the genital tract and peripheral blood of women infected with clade A human immunodeficiency virus type 1. J. Virol. 1998, 72, 8240–8251. [Google Scholar]
- Salazar-Gonzalez, J.F.; Bailes, E.; Pham, K.T.; Salazar, M.G.; Guffey, M.B.; Keele, B.F.; Derdeyn, C.A.; Farmer, P.; Hunter, E.; Allen, S.; et al. Deciphering human immunodeficiency virus type 1 transmission and early envelope diversification by single-genome amplification and sequencing. J. Virol. 2008, 82, 3952–3970. [Google Scholar] [CrossRef]
- Kijak, G.H.; Sanders-Buell, E.; Harbolick, E.A.; Pham, P.; Chenine, A.L.; Eller, L.A.; Rono, K.; Robb, M.L.; Michael, N.L.; Kim, J.H.; et al. Targeted deep sequencing of HIV-1 using the IonTorrentPGM platform. J. Virol. Methods 2014, 205, 7–16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- HIV Databases. Available online: https://www.hiv.lanl.gov/ (accessed on 18 July 2019).
- Keele, B.F.; Giorgi, E.E.; Salazar-Gonzalez, J.F.; Decker, J.M.; Pham, K.T.; Salazar, M.G.; Sun, C.; Grayson, T.; Wang, S.; Li, H.; et al. Identification and characterization of transmitted and early founder virus envelopes in primary HIV-1 infection. Proc. Natl. Acad. Sci. USA 2008, 105, 7552–7557. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Rozanov, M.; Plikat, U.; Chappey, C.; Kochergin, A.; Tatusova, T. A web-based genotyping resource for viral sequences. Nucleic Acids Res. 2004, 32, W654–W659. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evo. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [PubMed]
- Lassmann, T.; Hayashizaki, Y.; Daub, C.O. SAMStat: Monitoring biases in next generation sequencing data. Bioinformatics 2011, 27, 130–131. [Google Scholar] [CrossRef] [PubMed]
- Kijak, G.H.; Pham, P.; Sanders-Buell, E.; Harbolick, E.A.; Eller, L.A.; Robb, M.L.; Michael, N.L.; Kim, J.H.; Tovanabutra, S. Nautilus: A bioinformatics package for the analysis of HIV type 1 targeted deep sequencing data. AIDS Res. Hum. Retrovir. 2013, 29, 1361–1364. [Google Scholar] [CrossRef] [PubMed]
- Milne, I.; Stephen, G.; Bayer, M.; Cock, P.J.; Pritchard, L.; Cardle, L.; Shaw, P.D.; Marshall, D. Using Tablet for visual exploration of second-generation sequencing data. Brief. Bioinform. 2013, 14, 193–202. [Google Scholar] [CrossRef] [PubMed]
- Sedlazeck, F.J.; Rescheneder, P.; Smolka, M.; Fang, H.; Nattestad, M.; von Haeseler, A.; Schatz, M.C. Accurate detection of complex structural variations using single-molecule sequencing. Nat. Methods 2018, 15, 461–468. [Google Scholar] [CrossRef] [Green Version]
- Pacific Biosciences MinorSeq. Available online: https://github.com/pacificbiosciences/minorseq (accessed on 18 July 2019).
- Li, H.; Durbin, R. Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef] [Green Version]
- Kimura, M. A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences. J. Mol. Evol. 1980, 16, 111–120. [Google Scholar] [CrossRef]
- Willey, R.L.; Rutledge, R.A.; Dias, S.; Folks, T.; Theodore, T.; Buckler, C.E.; Martin, M.A. Identification of conserved and divergent domains within the envelope gene of the acquired immunodeficiency syndrome retrovirus. Proc. Natl. Acad. Sci. USA 1986, 83, 5038–5042. [Google Scholar] [CrossRef] [PubMed]
- Davis, L.E.; Hjelle, B.L.; Miller, V.E.; Palmer, D.L.; Llewellyn, A.L.; Merlin, T.L.; Young, S.A.; Mills, R.G.; Wachsman, W.; Wiley, C.A. Early viral brain invasion in iatrogenic human immunodeficiency virus infection. Neurology 1992, 42, 1736–1739. [Google Scholar] [CrossRef] [PubMed]
- Pilcher, C.D.; Shugars, D.C.; Fiscus, S.A.; Miller, W.C.; Menezes, P.; Giner, J.; Dean, B.; Robertson, K.; Hart, C.E.; Lennox, J.L.; et al. HIV in body fluids during primary HIV infection: Implications for pathogenesis, treatment and public health. AIDS 2001, 15, 837–845. [Google Scholar] [CrossRef] [PubMed]
- Kaul, M. HIV-1 associated dementia: Update on pathological mechanisms and therapeutic approaches. Curr. Opin. Neurol. 2009, 22, 315–320. [Google Scholar] [CrossRef] [PubMed]
- Lamers, S.L.; Rose, R.; Ndhlovu, L.C.; Nolan, D.J.; Salemi, M.; Maidji, E.; Stoddart, C.A.; McGrath, M.S. The meningeal lymphatic system: A route for HIV brain migration? J. Neurovirol. 2016, 22, 275–281. [Google Scholar] [CrossRef] [PubMed]
- Campbell, J.H.; Ratai, E.M.; Autissier, P.; Nolan, D.J.; Tse, S.; Miller, A.D.; Gonzalez, R.G.; Salemi, M.; Burdo, T.H.; Williams, K.C. Anti-alpha4 antibody treatment blocks virus traffic to the brain and gut early, and stabilizes CNS injury late in infection. PLoS Pathog. 2014, 10, e1004533. [Google Scholar] [CrossRef]
- Joseph, S.B.; Arrildt, K.T.; Swanstrom, A.E.; Schnell, G.; Lee, B.; Hoxie, J.A.; Swanstrom, R. Quantification of entry phenotypes of macrophage-tropic HIV-1 across a wide range of CD4 densities. J. Virol. 2014, 88, 1858–1869. [Google Scholar] [CrossRef] [PubMed]
- Evering, T.H.; Kamau, E.; St Bernard, L.; Farmer, C.B.; Kong, X.P.; Markowitz, M. Single genome analysis reveals genetic characteristics of Neuroadaptation across HIV-1 envelope. Retrovirology 2014, 11, 65. [Google Scholar] [CrossRef]
- Holman, A.G.; Gabuzda, D. A machine learning approach for identifying amino acid signatures in the HIV env gene predictive of dementia. PLoS ONE 2012, 7, e49538. [Google Scholar] [CrossRef]
- Balinang, J.; Chang, D.; Jobe, O.; Sanders-Buell, E.; Chenine, A.; Mann, B.; Merbah, M.; Alvarez-Carbonell, D.; Bose, M.; Barrows, B.; et al. Differential Infection of Cultured Peripheral and CNS Cells by Distinct Transmitted/Founder HIV-1 Infectious Molecular Clones. In Proceedings of the HIV Research for Prevention (HIVR4P 2018), Madrid, Spain, 21–25 October 2018. [Google Scholar]
- Evans, D.T.; O’Connor, D.H.; Jing, P.; Dzuris, J.L.; Sidney, J.; da Silva, J.; Allen, T.M.; Horton, H.; Venham, J.E.; Rudersdorf, R.A.; et al. Virus-specific cytotoxic T-lymphocyte responses select for amino-acid variation in simian immunodeficiency virus Env and Nef. Nat. Med. 1999, 5, 1270–1276. [Google Scholar] [CrossRef]
- Ho, E.L.; Ronquillo, R.; Altmeppen, H.; Spudich, S.S.; Price, R.W.; Sinclair, E. Cellular Composition of Cerebrospinal Fluid in HIV-1 Infected and Uninfected Subjects. PLoS ONE 2013, 8, e66188. [Google Scholar] [CrossRef] [PubMed]
- Kessing, C.F.; Spudich, S.; Valcour, V.; Cartwright, P.; Chalermchai, T.; Fletcher, J.L.; Takata, H.; Nichols, C.; Josey, B.J.; Slike, B.; et al. High Number of Activated CD8+ T Cells Targeting HIV Antigens Are Present in Cerebrospinal Fluid in Acute HIV Infection. J. Acquir. Immune Defic. Syndr. 2017, 75, 108–117. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Cinque, P.; Brew, B.J.; Gisslen, M.; Hagberg, L.; Price, R.W. Cerebrospinal fluid markers in central nervous system HIV infection and AIDS dementia complex. Handb. Clin. Neurol. 2007, 85, 261–300. [Google Scholar] [CrossRef] [PubMed]
Participant ID | Sex/Age (Years) | Transmitted/Founder (T/F) Infection | Subtype | Fiebig Stage 1 | CD4 Cells/mL | Plasma HIV RNA log10 Copies/mL | CSF HIV RNA log10 Copies/mL | CSF WBC Cells/mL | Sample Time (Estimated Days Post Infection) | Number of Sequences (Plasma:CSF) | Env Genetic Diversity | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mean (SD) | P-Value 2 | ||||||||||||||
Plasma | CSF | Intra Plasma | Intra CSF | Inter Plasma/CSF | Intra Plasma vs. Intra CSF | ||||||||||
2545573 | M/28 | Single | CRF01_AE | II | 426 | 6.50 | 4.13 | 10 | 14 | 15 | 26:23 | 0.062% (0.054%) | 0.071% (0.053%) | 0.066% (0.055%) | 0.001 |
2546083 | F/29 | Single | CRF01_AE | IV | 463 | 5.76 | 4.64 | 50 | 32 | 35 | 12:10 | 0.026% (0.033%) | 0.047% (0.048%) | 0.036% (0.043%) | 0.026 |
2549583 | M/30 | Single | CRF01_AE | III | 293 | 5.59 | 5.39 | 0 | 26 | 27 | 23:23 | 0.03% (0.03%) | 0.023% (0.033%) | 0.027% (0.032%) | 0.002 |
2543832 | M/36 | Single | CRF01_AE | II | 269 | 7.56 | 4.07 | 0 | 18 | 27 | 11:10 | 0.021% (0.032%) | 0.023% (0.024%) | 0.022% (0.03%) | 0.25 |
2545436 | M/32 | Single | CRF01_AE | III | 621 | 7.49 | 4.04 | 160 | 16 | 19 | 10:11 | 0.047% (0.035%) | 0.062% (0.046%) | 0.054% (0.042%) | 0.22 |
2543625 | M/21 | Multiple | CRF01_AE | III | 181 | 5.52 | 5.41 | 110 | 22 | 27 | 10:10 | 0.42% (0.615%) | 0.079 % (0.079%) | 0.252% (0.46%) | <0.0001 |
2543733 | M/30 | Single | CRF01_AE | II | 569 | 5.07 | 4.64 | 4 | 15 | 16 | 24:24 | 0.01% (0.018%) | 0.055% (0.045%) | 0.033% (0.035%) | <0.0001 |
2549844 | M/24 | Single | CRF01_AE | V | 231 | 6.12 | 5.20 | 7 | 16 | 19 | 10:10 | 0.063% (0.04%) | 0.102% (0.067%) | 0.082% (0.058%) | 0.013 |
2546609 | M/29 | Multiple | CRF01_AE | III | 206 | 6.61 | 4.41 | 3 | 28 | 29 | 29:29 | 1.897% (3.811%) | 0.674% (2.131%) | 1.286% (3.157%) | <0.0001 |
2546340 | M/29 | Multiple | CRF01_AE | IV | 338 | 7.37 | 5.55 | 0 | 23 | 24 | 27:43 | 1.315% (3.175%) | 0.191% (0.188%) | 0.773% (2.366%) | 0.0002 |
2548123 | F/45 | Single | CRF01_AE | III | 132 | 7.41 | 5.3 | 0 | 22 | 23 | 10:NA | 0.054% (0.033%) | NA | NA | NA |
2547279 | M/27 | Multiple | CRF01_AE | IV | 234 | 6.86 | 5.08 | 0 | 28 | 28 | 11:NA | 0.221% (0.259%) | NA | NA | NA |
2545383 | M/37 | Multiple | CRF01_AE | III | 252 | 7.41 | 5.54 | 0 | 20 | 20 | 10:NA | 0.301% (0.497%) | NA | NA | NA |
2548105 | M/40 | Multiple | CRF01_AE | V | 374 | 5.84 | 4.07 | 0 | 25 | 26 | 10:NA | 2.317% (2.121%) | NA | NA | NA |
2549813 | M/22 | Multiple | CRF01_AE | II | 165 | 6.71 | 6.61 | 0 | 19 | 20 | 10:NA | 0.374% (0.620%) | NA | NA | NA |
2547268 | M/23 | Multiple | CRF01_AE | III | 334 | 6.95 | 5.22 | 0 | 32 | 33 | 10:NA | 1.263% (2.093%) | NA | NA | NA |
2544636 | M/29 | Single | B/CRF01_AE | II | 453 | 5.41 | 5.17 | 0 | 25 | 25 | 8:NA | 0.000% (0.000%) | NA | NA | NA |
2548522 | M/29 | Single | CRF01_AE | III | 265 | 7.75 | 4.22 | 0 | 17 | 18 | 10:NA | 0.024% (0.024%) | NA | NA | NA |
Compartmentalization of Variant Sequences (Ratio of Variants in Plasma:CSF > 1.5) * | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
pol protease | pol reverse transcriptase | env | ||||||||||||||||||
POL PR I | POL PR II | POL PR III | POL RT I | POL RT II | POL RT III | ENV V2 | ||||||||||||||
Participant ID | Major | Minor | Major | Minor | Major | Minor | Major | Minor | Major | Minor | Major | Minor | Major | Minor | ||||||
2546609 | No | - | - | - | - | - | No | - | No | - | No | - | No | - | ||||||
2547279† | No | No | - | - | - | - | No | No | No | No | - | - | No | Yes | ||||||
2543625† | No | Yes | No | Yes | - | - | - | - | - | - | - | - | No | No | ||||||
2545383† | - | - | - | - | - | - | No | Yes | No | Yes | - | - | No | Yes | ||||||
2546340 | No | No | No | Yes | No | Yes | No | Yes | No | Yes | No | Yes | No | No | ||||||
2548105† | No | Yes | No | Yes | No | Yes | No | Yes | No | Yes | No | Yes | No | Yes | ||||||
2547268† | No | Yes | No | Yes | - | - | No | Yes | No | Yes | - | - | No | Yes | ||||||
2549813 | Yes | Yes | Yes | Yes | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
