Article

Resource Use Efficiencies of C3 and C4 Cereals under Split Nitrogen Regimes

1
Faculty of Agricultural Sciences and Technology, Bahauddin Zakariya University, Multan 60800, Pakistan
2
PARC, Research and Training Station, Bahauddin Zakariya University, Multan 60800, Pakistan
3
PMAS, Arid Agriculture University, Rawalpindi 46300, Pakistan
4
In-service Agriculture Training Institute, Sargodha 40100, Pakistan
*
Author to whom correspondence should be addressed.
Agronomy 2018, 8(5), 69; https://doi.org/10.3390/agronomy8050069
Received: 8 April 2018 / Revised: 5 May 2018 / Accepted: 7 May 2018 / Published: 9 May 2018
(This article belongs to the Special Issue Role of Plant Nutrients in Agronomic Crops)

Abstract

Resources are limited, thus improving resource use efficiency is a key objective for cereal-based cropping systems. This field study was carried out to quantify resource use efficiencies in selected C3 and C4 cereals under split nitrogen (N) application regimes. The study included the following treatments: six cereals (three C3: wheat, oat, and barley; and three C4: maize, millet, and sorghum) and four split N application regimes (NS1 = full amount of N at sowing; NS2 = half N at sowing + half N at first irrigation; NS3 = ⅓ N at sowing + ⅓ N at first irrigation + ⅓ N at second irrigation; NS4 = ¼ N at sowing + ¼ N at first irrigation + ¼ N at second irrigation + ¼ N at third irrigation). Results revealed that C4 cereals out-yielded C3 cereals in terms of biomass production, grain yield, and resource use efficiencies (i.e., radiation use efficiency (RUE) and nitrogen use efficiency (NUE)), while splitting N into three applications proved to be a better strategy for all of the selected winter and summer cereals. The results suggest that C4 cereals should be added into existing cereal-based cropping systems and N application done in three installments to boost productivity and higher resource use efficiency to ensure food security for the burgeoning population.
Keywords: barley; maize; millet; oat; radiation use efficiency; sorghum; wheat barley; maize; millet; oat; radiation use efficiency; sorghum; wheat

1. Introduction

Cereals constitute a large proportion of food supplements. These are used in diets as end-products and provide greater than 70% of the worldwide caloric intake. Wheat (Triticum aestivum L.), oat (Avena sativa L.), barley (Hordeum vulgare L.), maize (Zea mays L.), millet (Pennisetum americanum L.), and sorghum (Sorghum bicolor L.) are the main C3 winter and C4 summer cereals being grown in Asia [1,2,3,4]. The classification and physiological characteristics of cereals are presented in Table 1 [5]. The historical area and production of first-, second-, and third-order cereals in Pakistan is presented in Figure 1 [6]. Currently, productivity and resource use efficiency of C3 winter and C4 summer cereals are low in Pakistan compared to other countries in the region [7,8,9,10,11,12,13,14,15,16,17], indicating a substantial potential to increase resource use efficiencies [6,18,19,20,21,22,23,24,25,26].
The world nitrogen-use efficiency (NUE) for cereal production is around 33% [27,28]. Reported N losses (Figure 2) are presented in Table 2 [29,30,31,32,33,34,35,36,37,38]. Lower production is due to the meager use of all available resources along with climate variability and change [3,39,40,41,42]. Paradoxically, growers growing C3 and C4 cereals adopt conventional practices instead of approved practices that make more efficient use of resources [43,44,45,46,47,48,49,50]. Nitrogen is the key constituent of agricultural inputs to maintain production of these cereals throughout their lifecycle [51,52,53,54] (Figure 3). Surplus N and/or N applied without splitting can be lost through pathways such as nitrification and volatilization [8,40,41] (Figure 1). Principally, it is essential to boost NUE through better approaches to increase RUE. So, split N application regimes result in considerable boost in NUE, production, and resultantly RUE by reducing losses and improving uptake [41]. It is a rising concern that most of the available or applied N is lost, thereby reducing NUE, which is just 29% for cereals in developing agrarian economies [55,56]. This research study was carried out to validate the influence of split N application on biomass accumulation, grain yields, and resource use efficiencies such as NUE and RUE for C3 winter and C4 summer cereals.

2. Materials and Methods

2.1. Site and Experiment Description

Research experiments were carried out at the Agronomic Research Area at Bahauddin Zakariya University, Pakistan (30°15′ N latitude, 71°30′ E longitude, and 126.6 m a.s.l.). The research site was situated under irrigated conditions in an arid environment of a silt clay loam textural class. The detailed description of the physical and chemical features of the soil has been published previously [1,10]. The meteorological conditions for C3 winter and C4 summer cereal seasons are presented in Figure 4, and the treatments and experimental details are outlined in Table 3. There were three replications and net plot size has been mentioned in Table 3.

2.2. Data Collection

Common techniques were employed to record growth data. The leaf-area index (LAI) of a sample (10 g) of fully expanded fresh leaves for C3 winter and C4 summer cereal crops were taken, and leaf-area was recorded by means of a leaf-area meter. LAI was recorded using the methodology of Watson [57].
LAI (C3, C4 Cereals) = Leaf area (C3, C4 Cereals)/Land area (C3, C4 Cereals)
The RUE was computed for C3 winter and C4 summer cereal crops as follows:
RUE TDM (C3, C4 Cereals) = TDM (C3, C4 Cereals)/∑Sa (C3, C4 Cereals)
where ∑Sa is the cumulative photosynthetically active radiation PAR for C3 winter and C4 summer cereal crops that was anticipated to be half of the total daily instance radiation, and TDM is total aboveground biomass [58] and calculated using the following equation:
Sa (C3, C4 Cereals) = Fi (C3, C4 Cereals) × Si (C3, C4 Cereals)
where Si is the incident PAR for C3 winter and C4 summer cereal crops, and Fi was appraised from corresponding cereal crop LAIs by means of the Monteith and Elston [59] equation.
Fi (C3, C4 Cereals) = 1 − exp (−k (C3, C4 Cereals) × LAI (C3, C4 Cereals))
where Fi is the fraction of intercepted radiation, k is an extinction coefficient for the total solar radiation, and the LAI is for C3 winter and C4 summer cereal crops [60]. The standards of k for wheat, oat, barley, maize, sorghum, and millet were 0.70, 0.63, 0.74, 0.65, 0.63, and 0.52, respectively [61,62,63,64]. Multiplying the totals by proper estimates of Fi plus Si produced the quantity of intercepted radiation (Sa) for C3 winter plus C4 summer cereals.
The NUE was calculated as the ratio of grain yield (GY) to quantity of N application [1,10,65]:
NUE (C3, C4 Cereals) = Grain yield (NX (C3, C4 Cereals))/N application rate (C3, C4 Cereals)

2.3. Statistical Analysis

Data thus collected after field experiments were analyzed by Statistix 8.1 (Tallahassee, FL, USA) for ANOVA. Treatment differences were addressed through the methodology of Steel et al. [66].

3. Results

3.1. Biomass

Seasonal differential accumulation of biomass occurred throughout the life cycle (including vegetative and reproductive stages till maturity) in all C3 winter and C4 summer cereals (Figure 5). Almost half of the biomass was accumulated till anthesis by all the C3 and C4 cereal crops. Overall, C4 cereals performed better than C3 cereals. Across winter and summer cereals and split N regimes, average biomass varied from 425 to 703 g/m2 and 1083 to 1660 g/m2 among C3 and C4 cereals, respectively (Figure 5). Among these cereals, wheat and maize produced higher biomass compared to other C3 and C4 crops, respectively. The biomass productivity of these cereal crops was higher when N was applied in three equal doses compared to other regimes. The lowest biomass was recorded when N was applied in four splits. These selected C3 winter and C4 summer cereals reached peak LAI just before the anthesis stage, which varied substantially among crops and split N application regimes (statistics not given).

3.2. Grain Yield (GY)

The data for GY for these winter and summer cereals significantly differed among crops with split N application regimes (Figure 6). Overall, GY ranged from 198 to 883 g/m2 in the case of cereals and split N application regimes. The C4 cereals also out-yielded C3 in terms of GY, and it varied from 198 to 338 g/m2 and 205 to 883 g/m2 for the C3 winter and C4 summer cereals, respectively. Among winter and summer cereal wheat (338 g/m2) and maize (883 g/m2), crops produced higher GY, respectively, compared to other cereal crops. However, in all C3 winter and C4 summer cereals, higher GY was recorded when N was applied in three splits compared to other regimes. The lowest GY was observed for oat (198 to 253 g/m2) and millet (205 to 266 g/m2) crops. Among N application regimes, the lowest GY was recorded when N was applied in four splits.

3.3. Radiation Use Efficiency (RUE)

The RUE for wheat, oat, barley, maize, sorghum, and millet crops and split N application regimes significantly differed (Figure 7). Overall, among all these cereal crops, C4 summer cereals also out-yielded C3 winter cereals in terms of capturing photosynthetically active radiation. The RUE varied from 0.90 to 1.42 g MJ−1 and 1.95 to 2.31 g MJ−1 in the case of C3 and C4 cereals, respectively. Among split N application regimes, the maximum RUE (2.31 g MJ−1) was found in the treatment where N was applied in three splits, and the lowest (0.90 g MJ−1) was recorded for the four splits condition.

3.4. Nitrogen Use Efficiency (NUE)

The NUE for C3 (wheat, oat, barley) and C4 (maize, millet, sorghum) cereal crops and split N application regimes differed significantly (Figure 8). Overall, among all these cereal crops, C4 summer cereals also out-yielded C3 winter cereals in terms of NUE, varying from 17.84 to 38.88 kg kg−1 and 17.18 to 51.86 kg kg−1 in the case of C3 plus C4 cereals. Among split N application regimes, the highest NUE (51.86 kg kg−1) was found in the treatment where N was applied in three splits, while the lowest (17.84 kg kg−1) was recorded for four splits. The 1:1 lines between the RUE and NUE of C3 and C4 cereals are presented in Figure 9.

4. Discussion

C4 summer cereals (maize, millet, and sorghum) having C4 carbon metabolism were found to be superior in accumulating biomass to C3 winter cereals at different split N application regimes. The C4 cereals produce higher biomass and grain yields as compared to C3 cereal crops. This variation for biomass and grain yield was possibly due to the supremacy of C4 cereals as compared to C3 cereal crops towards harnessing higher resource use efficiencies for N [67,68].
The N application in three splits proved to be an effective strategy for all six C4 and C3 cereal crops as compared to other split application regimes. N application at sowing without splitting likely increases the losses through volatilization, nitrification, denitrification, and leaching (Figure 1). However, N application in four splits creates hidden hunger and did not fulfil the optimum nutrient requirements of all C4 and C3 summer and winter cereals during the crop lifetime. This deficiency is reflected in the form of low biomass, grain yields, NUE, and RUE in this study as well as elsewhere [69,70].
Growth dilution effect with variations in N in C4 and C3 cereal crops necessitate the splitting of N. The N is directly linked with leaf photosynthesis as well as higher NUE [40,71]. Variation in N dynamics as well as NUE has substantial effects on photosynthetic efficiency and growth [72].
In this study, C4 summer cereals out-yielded C3 winter cereal in terms of RUE and NUE. The RUE and NUE varied from 0.90 to 2.31 g MJ−1 and 17.84 to 51.86 kg kg−1 for the C3 and C4 cereals. Among split N application regimes, the highest RUE and NUE were found in the treatment in which N was applied in three splits, possibly due to the continuous and optimum availability of resources. It is a well-established fact that at optimum availability of N, the RUE of C3 and C4 cereals is enhanced, producing more height, LAI, light interception, and canopy development [1,10,73,74,75]. Similar trends of RUE against applied N in C4 cereals indicated that RUE might be even somewhat better on a total biomass basis. The C4 cereals displayed additional LAI compared to C3. Conversely, it seems inadequate for C3 cereals to accrue leaf N to obtain the level of C4 cereals. Splitting N approach for C3 and C4 crops will increase productivity in the form of grain yield, then likewise increase NUE as well as biological harvest. The strategies in which the N losses of C3 and C4 crops are reduced will boost the C3 and C4 crop productivity in future.

5. Conclusions

Reduced resource use efficiencies, such as NUE and RUE, in selected C3 winter (wheat, oat, barley) and C4 summer (maize, millet, sorghum) cereal crops could be augmented through splitting N fertilizer in irrigated arid conditions. The poor resource use efficiencies are due to lesser NUE in cereal crops and its possible losses by nitrification and runoff as well as leaching. Therefore, N application in three splits (at sowing time and first irrigation as well as second irrigation) to C3 winter (wheat, oat, barley) and C4 summer (maize, millet, sorghum) cereals may be considered as a substitute strategy to enhance resource use efficiencies by decreasing N losses in irrigated arid conditions.

Author Contributions

The authors contributed in the study in the following ways: S.H., M.A.A., A.A.K., M.A. and M.A.K. conceptualized the study; Q.A., M.I., M.I.S., M.N., U.F. and S.U.K. did field experimentation and related work; A.K., H.Y. and S.N. analyzed data using Software; K.J. did figure work; Z.F. and G.A. write first draft; S.A. did Supervision and overall Project Administration. All authors read the final draft before submission to journal.

Acknowledgments

The authors acknowledge funding by the Higher Education Commission (HEC), Islamabad (HEC-NRPU-4511), and Bahauddin Zakariya University, Multan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ahmad, S.; Ali, H.; Ismail, M.; Shahzad, M.I.; Nadeem, M.; Anjum, M.A.; Zia-Ul-Haq, M.; Firdous, N.; Khan, M.A. Radiation and nitrogen use efficiencies of C3 winter cereals to nitrogen split application. Pak. J. Bot. 2012, 44, 139–149. [Google Scholar]
  2. Ahmad, S.; Hussain, S.; Fatima, Z.; Abbas, G.; Ur Rehman, A.; Khan, M.R.; Younis, H.; Naz, S.; Sohail, M.; Ajmal, M.; et al. Application of DSSAT model for sowing date management of C4 summer cereals for fodder and grain crops under irrigated arid environment. Pak. J. Life Soc. Sci. 2016, 14, 104–114. [Google Scholar]
  3. Hussain, M.; Ahmad, S.; Hussain, S.; Lal, R.; Ul-Allah, S.; Nawaz, A. Rice in saline soils: Physiology, biochemistry, genetics and management. Adv. Agron. 2018, 148, 231–287. [Google Scholar]
  4. Rehman, A.; Ashfaq, M.; Naqvi, S.A.A.; Adil, S.A.; Bashir, K.; Ahmad, A.; Ahmad, S.; Ali, A.; Imran, A. Is climate change worsening the poverty of maize growers? Evidence from Punjab province of Pakistan. Cienci. Tec. Vitivinic. 2015, 30, 105–116. [Google Scholar]
  5. Nazir, M.S.; Bashir, E.; Bantel, R. Crop Production; Bashir, E., Bantel, R., Eds.; National Book Foundation: Islamabad, Pakistan, 1994; pp. 234–274. [Google Scholar]
  6. Government of Pakistan. Economic Survey of Pakistan, 2016–2017; Economic Wing, Finance Division, Government of Pakistan: Islamabad, Pakistan, 2017; pp. 19–40.
  7. Ahmed, M.; Hassan, F.U.; Razzaq, A.; Akram, M.N.; Aslam, M.; Ahmad, S.; Zia-ul-Haq, M. Is photothermal quotient determinant factor for spring wheat yield. Pak. J. Bot. 2011, 43, 1621–1627. [Google Scholar]
  8. Ahmad, S.; Ahmad, A.; Soler, C.M.T.; Ali, H.; Zia-ul-Haq, M.; Anothai, J.; Hussain, A.; Hoogenboom, G.; Hasanuzzaman, M. Application of the CSM-CERES-Rice model for evaluation of plant density and nitrogen management of fine transplanted rice for an irrigated semiarid environment. Precis. Agric. 2012, 13, 200–218. [Google Scholar] [CrossRef]
  9. Ahmad, S.; Ahmad, A.; Ali, H.; Hussain, A.; Garcia y Garcia, A.; Khan, M.A.; Zia-ul-Haq, M.; Hasanuzzaman, M.; Hoogenboom, G. Application of the CSM-CERES-Rice model for evaluation of plant density and irrigation management of transplanted rice for an irrigated semiarid environment. Irrig. Sci. 2013, 31, 491–506. [Google Scholar] [CrossRef]
  10. Ahmad, S.; Ali, H.; Farooq, U.; Khan, S.U.; Rehman, A.U.; Sarwar, N.; Shahzad, A.N.; Dogan, H.; Hussain, S.; Sultan, M.T.; et al. Improving nitrogen and radiation-use-efficiencies of C4 summer cereals by split nitrogen applications under irrigated arid environment. Turk. J. Agric. For. 2016, 40, 280–289. [Google Scholar] [CrossRef]
  11. Ahmad, S.; Abbas, Q.; Abbas, G.; Fatima, Z.; Rehman, A.U.; Naz, S.; Younis, H.; Khan, R.J.; Nasim, W.; Habib ur Rehman, M.; et al. Quantification of climate warming and crop management impacts on cotton phenology. Plants 2017, 6, 7. [Google Scholar] [CrossRef] [PubMed]
  12. Ahmad, S.; Hasanuzzaman, M. Integrated effect of plant density, N rates and irrigation regimes on the biomass production, N content, PAR use efficiencies and water productivity of rice under irrigated semiarid environment. Not. Bot. Horti Agrobot. Cluj-Napoca 2012, 40, 201–211. [Google Scholar] [CrossRef]
  13. Ali, H.; Iqbal, N.; Shahzad, A.N.; Ahmad, S.; Khan, Z.M.; Sarwar, N. Agro-management practices for sustainable wheat production under scarce water condition of arid climate. Turk. J. Field Crops. 2014, 19, 70–78. [Google Scholar] [CrossRef]
  14. Ali, H.; Sarwar, N.; Hasnain, Z.; Ahmad, S.; Hussain, A. Zinc fertilization under optimum soil moisture condition improved the aromatic rice productivity. Philipp. J. Crop Sci. 2016, 41, 71–78. [Google Scholar]
  15. Shabbir, R.N.; Waraich, E.A.; Ali, H.; Nawaz, F.; Ashraf, M.Y.; Ahmad, R.; Awan, M.I.; Ahmad, S.; Irfan, M.; Hussain, S.; et al. Supplemental exogenous NPK application alters biochemical processes to improve yield and drought tolerance in wheat (Triticum aestivum L.). Environ. Sci. Pollut. Res. 2016, 23, 2651–2662. [Google Scholar] [CrossRef] [PubMed]
  16. Shahzad, A.N.; Fatima, A.; Sarwar, N.; Bashir, S.; Rizwan, M.; Qayyum, M.F.; Qureshi, M.K.; Javaid, M.H.; Ahmad, S. Foliar application of potassium sulphate partially alleviates drought-induced kernel abortion in maize. Int. J. Agric. Biol. 2017, 19, 495–501. [Google Scholar] [CrossRef]
  17. Noreen, S.; Fatima, K.; Athar, H.U.R.; Ahmad, S.; Hussain, K. Enhancement of physio-biochemical parameters of wheat through exogenous application of salicylic acid under drought stress. J. Anim. Plant Sci. 2017, 27, 153–163. [Google Scholar]
  18. Ahmad, S.; Zia-ul-Haq, M.; Ali, H.; Shad, S.A.; Ammad, A.; Maqsood, M.; Khan, M.B.; Mehmood, S.; Hussain, A. Water and radiation use efficiencies of transplanted rice (Oryza sativa L.) at different plant densities and irrigation regimes under semi-arid environment. Pak. J. Bot. 2008, 40, 199–209. [Google Scholar]
  19. Ahmad, S.; Zia-ul-Haq, M.; Imran, M.; Iqbal, S.; Ahmad, M. Determination of residual contents of pesticides in rice (Oryza sativa L.) crop from different regions of Pakistan. Pak. J. Bot. 2008, 40, 1253–1257. [Google Scholar]
  20. Ahmad, A.; Iqbal, S.; Ahmad, S.; Khaliq, T.; Nasim, W.; Husnain, Z.; Hussain, A.; Zia-ul-Haq, M.; Hoogenboom, G. Seasonal growth, radiation interception, its conversion efficiency and biomass production of Oryza sativa L. under diverse agro-environments in Pakistan. Pak. J. Bot. 2009, 41, 1241–1257. [Google Scholar]
  21. Ahmad, S.; Ahmad, A.; Zia-Ul-Haq, M.; Ali, H.; Khaliq, T.; Anjum, M.A.; Khan, M.A.; Hussain, A.; Hoogenboom, G. Resources use efficiency of field grown transplanted rice (Oryza sativa L.) under irrigated semiarid environment. J. Food Agric. Environ. 2009, 7, 487–492. [Google Scholar]
  22. Ahmad, S.; Zia-ul-Haq, M.; Ali, H.; Ahmad, A.; Khan, M.A.; Khaliq, T.; Husnain, Z.; Hussain, A.; Hoogenboom, G. Morphological and quality parameters of Oryza sativa L. as affected by population dynamics, nitrogen fertilization and irrigation regimes. Pak. J. Bot. 2009, 41, 1259–1269. [Google Scholar]
  23. Sarwar, N.; Ali, H.; Ahmad, A.; Ullah, E.; Ahmad, S.; Mubeen, K.; Hill, J.E. Water wise rice cultivation on calcareous soil with the addition of essential micronutrients. J. Anim. Plant Sci. 2013, 23, 244–250. [Google Scholar]
  24. Sarwar, N.; Ali, H.; Maqsood, M.; Ullah, E.; Shahzad, A.N.; Shahzad, M.; Mubeen, K.; Shahid, M.A.; Ahmad, S. Phenological response of rice plants to different micronutrients application under water saving paddy fields on calcareous soil. Turk. J. Field Crops. 2013, 18, 52–57. [Google Scholar]
  25. Sultana, S.R.; Ali, A.; Ahmad, A.; Mubeen, M.; Zia-Ul-Haq, M.; Ahmad, S.; Ercisli, S.; Jaafar, H.Z.E. Normalized difference vegetation index as a tool for wheat yield estimation: A case study from Faisalabad, Pakistan. Sci. World J. 2014, 2014, 725326. [Google Scholar] [CrossRef] [PubMed]
  26. Mubeen, M.; Ahmad, A.; Wajid, A.; Khaliq, T.; Hammad, H.M.; Sultana, S.R.; Ahmad, S.; Fahad, S.; Nasim, W. Application of CSM-CERES-Maize model in optimizing irrigated conditions. Outlook Agric. 2016, 45, 173–184. [Google Scholar] [CrossRef]
  27. Raun, W.R.; Johnson, G.V. Improving nitrogen use efficiency for cereal production. Agron. J. 1999, 91, 357–363. [Google Scholar] [CrossRef]
  28. Raun, W.R.; Solie, J.B.; Johnson, G.V.; Stone, M.L.; Mullen, R.W.; Freeman, K.W.; Thomason, W.E.; Lukina, E.V. Improving Nitrogen Use Efficiency in Cereal Grain Production with Optical Sensing and Variable Rate Application. Agron. J. 2002, 94, 815–820. [Google Scholar] [CrossRef]
  29. Francis, D.D.; Schepers, J.S.; Vigil, M.F. Post-anthesis nitrogen loss from corn. Agron. J. 1993, 85, 659–663. [Google Scholar] [CrossRef]
  30. Harper, L.A.; Sharpe, R.R.; Langdale, G.W.; Giddens, J.E. Nitrogen cycling in a wheat crop: Soil, plant, and aerial nitrogen transport. Agron. J. 1987, 79, 965–973. [Google Scholar] [CrossRef]
  31. Aulakh, M.S.; Rennie, D.A.; Paul, E.A. Gaseous nitrogen losses from cropped and summer fallowed soils. Can. J. Soil Sci. 1982, 62, 187–195. [Google Scholar] [CrossRef]
  32. DeDatta, S.K.; Buresh, R.J.; Samsom, M.I.; Obcemea, W.N.; Real, J.G. Direct measurement of ammonia and denitrification fluxes from urea applied to rice. Soil Sci. Soc. Am. J. 1991, 55, 543–548. [Google Scholar] [CrossRef]
  33. Hilton, B.R.; Fixen, P.E.; Woodward, H.J. Effects of tillage, nitrogen placement, and wheel compaction on denitrification rates in the corn cycle of a corn–oats rotation. J. Plant Nutr. 1994, 17, 1341–1357. [Google Scholar] [CrossRef]
  34. Blevins, D.W.; Wilkison, D.H.; Kelly, B.P.; Silva, S.R. Movement of nitrate fertilizer to glacial till and runoff from a claypan soil. J. Environ. Qual. 1996, 25, 584–593. [Google Scholar] [CrossRef]
  35. Chichester, F.W.; Richardson, C.W. Sediment and nutrient loss from clay soils as affected by tillage. J. Environ. Qual. 1992, 21, 587–590. [Google Scholar] [CrossRef]
  36. Fowler, D.B.; Brydon, J. No-till winter wheat production on the Canadian prairies: Placement of urea and ammoniumnitrate fertilizers. Agron. J. 1989, 81, 518–524. [Google Scholar] [CrossRef]
  37. Hargrove, W.L.; Kissel, D.E.; Fenn, L.B. Field measurements of ammonia volatilization from surface applications of ammonium salts to a calcareous soil. Agron. J. 1977, 69, 473–476. [Google Scholar] [CrossRef]
  38. Drury, C.F.; Tan, C.S.; Gaynor, J.D.; Oloya, T.O.; Welacky, T.W. Influence of controlled drainage-subirrigation on surface and tile drainage nitrate loss. J. Environ. Qual. 1996, 25, 317–324. [Google Scholar] [CrossRef]
  39. Mahmood, M.; Ullah, H.; Shahzad, A.N.; Ali, H.; Ahmad, S.; Zia-Ul-Haq, M.; Honermeier, B.; Hasanuzzaman, M. Dry matter yield and chemical composition of sorghum cultivars with varying planting density and sowing date. Sains Malays. 2013, 42, 1529–1538. [Google Scholar]
  40. Ahmad, S.; Ali, H.; Rehman, A.U.; Khan, R.J.; Ahmad, W.; Fatima, Z.; Abbas, G.; Irfan, M.; Ali, H.; Khan, M.A.; et al. Measuring leaf area of winter cereals by different techniques: A comparison. Pak. J. Life Soc. Sci. 2015, 13, 117–125. [Google Scholar]
  41. Ahmad, S.; Raza, I.; Muhammad, D.; Ali, H.; Hussain, S.; Dogan, H.; Zia-Ul-Haq, M. Radiation, water and nitrogen use efficiencies of Gossypium hirsutum L. Turk. J. Agric. For. 2015, 39, 825–837. [Google Scholar] [CrossRef]
  42. Abbas, G.; Ahmad, S.; Ahmad, A.; Nasim, W.; Fatima, Z.; Hussain, S.; Habib ur Rehman, M.; Khan, M.A.; Hasanuzzaman, M.; Fahad, S.; et al. Quantification the impacts of climate change and crop management on phenology of maize-based cropping system in Punjab, Pakistan. Agric. For. Meteorol. 2017, 247, 42–55. [Google Scholar] [CrossRef]
  43. Ali, E.A. Impact of nitrogen application time on grain and protein yields as well as nitrogen use efficiency of some two-row barley cultivars in sandy soil. Am. Eurasian J. Agric. Environ. Sci. 2011, 10, 425–433. [Google Scholar]
  44. Ali, H.; Riaz, M.; Zahoor, A.; Ahmad, S. Response of sunflower hybrids to management practices under irrigated arid-environment. Afr. J. Biotechnol. 2011, 10, 2248–2257. [Google Scholar]
  45. Ali, H.; Sarwar, N.; Ahmad, S.; Tariq, A.W.; Shahzad, A.N. Response of wheat crop to phosphorus fertilizers and application methods grown under agro-climatic conditions of Southern Punjab. Pak. J. Agric. Sci. 2012, 49, 485–489. [Google Scholar]
  46. Ali, H.; Tariq, N.; Ahmad, S.; Chattha, T.H.; Hussain, A. Effect of irrigation at different growth stages and phosphorus application methods on agronomic traits of wheat (Triticum aestivum L.). J. Food Agric. Environ. 2012, 10, 1371–1375. [Google Scholar]
  47. Ali, H.; Tariq, N.; Ahmad, S.; Rasheed, M.; Chattha, T.H.; Hussain, A. Growth and radiation use efficiency of wheat as affected by different irrigations levels and phosphorus application methods. J. Anim. Plant Sci. 2012, 22, 1118–1125. [Google Scholar]
  48. Ali, H.; Tariq, N.; Zia-Ul-Haq, M.; Ali, A.; Ahmad, S. Effect of phosphorus application methods and zinc on agronomic traits and radiation use efficiency of wheat (Triticum aestivum L.). J. Food Agric. Environ. 2012, 10, 757–763. [Google Scholar]
  49. Rehim, A.; Hussain, M.; Abid, M.; Zia-Ul-Haq, M.; Ahmad, S. Phosphorus use efficiency of Triticum aestivum L. as affected by band placement of phosphorus and farmyard manure on calcareous soils. Pak. J. Bot. 2012, 44, 1391–1398. [Google Scholar]
  50. Rehim, A.; Hussain, M.; Hussain, S.; Noreen, S.; Dogan, H.; Zia-ul-Haq, M.; Ahmad, S. Band application of phosphorus with farm manure improves phosphorus use efficiency, productivity and net returns of wheat on sandy clay loam soil. Turk. J. Agric. For. 2016, 40, 319–326. [Google Scholar] [CrossRef]
  51. Ali, A.; Iqbal, Z.; Hassan, S.W.; Yasin, M.; Khaliq, T.; Ahmad, S. Effect of nitrogen and sulphur on phenology, growth and yield parameters of maize crop. Sci. Int. (Lahore) 2013, 25, 363–366. [Google Scholar]
  52. Ali, H.; Iqbal, N.; Ahmad, S.; Shahzad, A.N.; Sarwar, N. Performance of late sown wheat crop under different planting geometries and irrigation regimes in arid climate. Soil Tillage Res. 2013, 130, 109–119. [Google Scholar] [CrossRef]
  53. Ali, H.; Iqbal, N.; Shahzad, A.N.; Sarwar, N.; Ahmad, S.; Mehmood, A. Seed priming improves irrigation water use efficiency, yield and yield components of late-sown wheat under limited water conditions. Turk. J. Agric. For. 2013, 37, 534–544. [Google Scholar] [CrossRef]
  54. Hirel, B.; Le Gouis, J.; Ney, B.; Gallais, A. The challenge of improving nitrogen use efficiency in crop plants: Towards a more central role for genetic variability and quantitative genetics within integrated approaches. J. Exp. Bot. 2007, 58, 2369–2387. [Google Scholar] [CrossRef] [PubMed]
  55. Dawson, J.C.; Huggins, D.R.; Jones, S.S. Characterizing nitrogen use efficiency in natural and agricultural ecosystems to improve the performance of cereal crops in low-input and organic agricultural systems. Field Crops Res. 2008, 107, 89–101. [Google Scholar] [CrossRef]
  56. Beatty, P.H.; Anbessa, Y.; Juskiw, P.; Carroll, R.T.; Wang, J.; Good, A.G. Nitrogen use efficiencies of spring barley grown under varying nitrogen conditions in the field and growth chamber. Ann. Bot. 2010, 105, 1171–1182. [Google Scholar] [CrossRef] [PubMed]
  57. Watson, D.J. Comparative physiological studies ongrowth of field crops. 1. Variation in net assimilation rateand leaf area between species and varieties and within andbetween years. Ann. Bot. 1947, 11, 41–76. [Google Scholar] [CrossRef]
  58. Szcicz, G. Solar radiation for plant growth. J. Appl. Ecol. 1974, 11, 617–636. [Google Scholar] [CrossRef]
  59. Monteith, J.L.; Elston, L.F. Performance and productivity of foliage in the field. In The Growth and Functioning of Leaves; Dale, J.E., Milthorpe, F.L., Eds.; Cambridge University Press: London, UK, 1983; pp. 499–518. [Google Scholar]
  60. Monteith, J.L. Climate and the efficiency of crop production in Britain. Philos. Trans. R. Soc. Lond. B 1977, 281, 277–294. [Google Scholar] [CrossRef]
  61. Monteith, J.L. Light interception and radiative exchange in crop stands. In Physiological Aspects of Crop Yield; Eastin, J.D., Ed.; ASA: Madison, WI, USA, 1969; pp. 89–111. [Google Scholar]
  62. Anten, N.P.R.; Schieving, F.; Werger, M.J.A. Patterns of light and nitrogendistribution in relation to whole canopy carbon gain in C3 and C4 mono- anddicotyledonous species. Oecologia 1995, 101, 504–513. [Google Scholar] [CrossRef] [PubMed]
  63. Ong, C.K.; Monteith, J.L. Response of pearl millet to light and temperature. Field Crops Res. 1985, 11, 141–160. [Google Scholar] [CrossRef]
  64. Muurinen, S.; Peltonen-Sainio, P. Radiation-use efficiency of modern and old spring cereal cultivars and its response to nitrogen in northern growing conditions. Field Crops Res. 2006, 96, 363–373. [Google Scholar] [CrossRef]
  65. Rahimizadeh, M.; Kashani, A.; Zare-Feizabadi, A.; Koocheki, A.R.; Nassiri-Mahallati, M. Nitrogen useefficiency of wheat as affected by preceding crop, application rate of nitrogen and crop residues. Aust. J. Crop Sci. 2010, 4, 363–368. [Google Scholar]
  66. Steel, R.G.D.; Torrie, J.H.; Dickey, D.A. Principles and Procedures of Statistics: A Biometrical Approach, 3rd ed.; McGraw-Hill: New York, NY, USA, 1997; pp. 400–428. [Google Scholar]
  67. Reich, P.B.; Walters, M.B.; Ellsworth, D.S.; Vose, J.M.; Volin, J.C.; Gresham, C.; Bowman, W.D. Relationships of leaf dark respiration to leaf nitrogen, specific leaf area and leaf life-span: A test across biomes and functional groups. Oecologia 1998, 114, 471–482. [Google Scholar] [CrossRef] [PubMed]
  68. Niu, S.L.; Jiang, G.M.; Li, Y.G.; Gao, L.M.; Liu, M.Z. Diurnal gas exchange and superior resources use efficiencyof typical C4 species in HunshandakSandland, China. Photosynthetica 2003, 41, 221–226. [Google Scholar] [CrossRef]
  69. Sogbedji, J.M.; van Es, H.M.; Yang, C.L.; Geohring, L.D.; Magdoff, F.R. Nitrate leaching and nitrogen budget as affected by maize nitrogen rate and soil type. J. Environ. Qual. 2000, 29, 1813–1820. [Google Scholar] [CrossRef]
  70. Greenwood, D.J.; Lemaire, G.; Gosse, G.; Cruz, P.; Draycott, A.; Neeteson, J.J. Decline in percentage N of C3 and C4 crops with increasing plant mass. Ann. Bot. 1990, 66, 425–436. [Google Scholar] [CrossRef]
  71. Foulkes, M.J.; Hawkesford, M.J.; Barraclough, P.B.; Holdsworth, M.J.; Kerr, S.; Kightley, S.; Shewry, P.R. Identifying traits to improve the nitrogen economy of wheat: Recent advances and future prospects. Field Crops Res. 2009, 114, 329–342. [Google Scholar] [CrossRef]
  72. Yuan, Z.; Liu, W.; Niu, S.; Wan, S. Plant nitrogen dynamics and nitrogen-use strategies under altered nitrogen seasonality and competition. Ann. Bot. 2007, 100, 821–830. [Google Scholar] [CrossRef] [PubMed]
  73. Muchow, R.C.; Davis, R. Effect of nitrogen supply on thecomparative productivity of maize and sorghum in a semi-aridtropical environment. II. Radiation interception and biomassaccumulation. Field Crops Res. 1988, 18, 17–30. [Google Scholar] [CrossRef]
  74. Lemcoff, J.H.; Loomis, R.S. Nitrogen influences on yield determination in maize. Crop Sci. 1986, 26, 1017–1022. [Google Scholar] [CrossRef]
  75. Zahoor, A.; Riaz, M.; Ahmad, S.; Ali, H.; Khan, M.B.; Javed, K.; Anjum, M.A.; Zia-Ul-Haq, M.; Khan, M.A. Ontogeny growth and radiation use efficiency of Helianthus annuus L. as affected by hybrids, nitrogenous regimes and planting geometry under irrigated arid conditions. Pak. J. Bot. 2010, 42, 3197–3207. [Google Scholar]

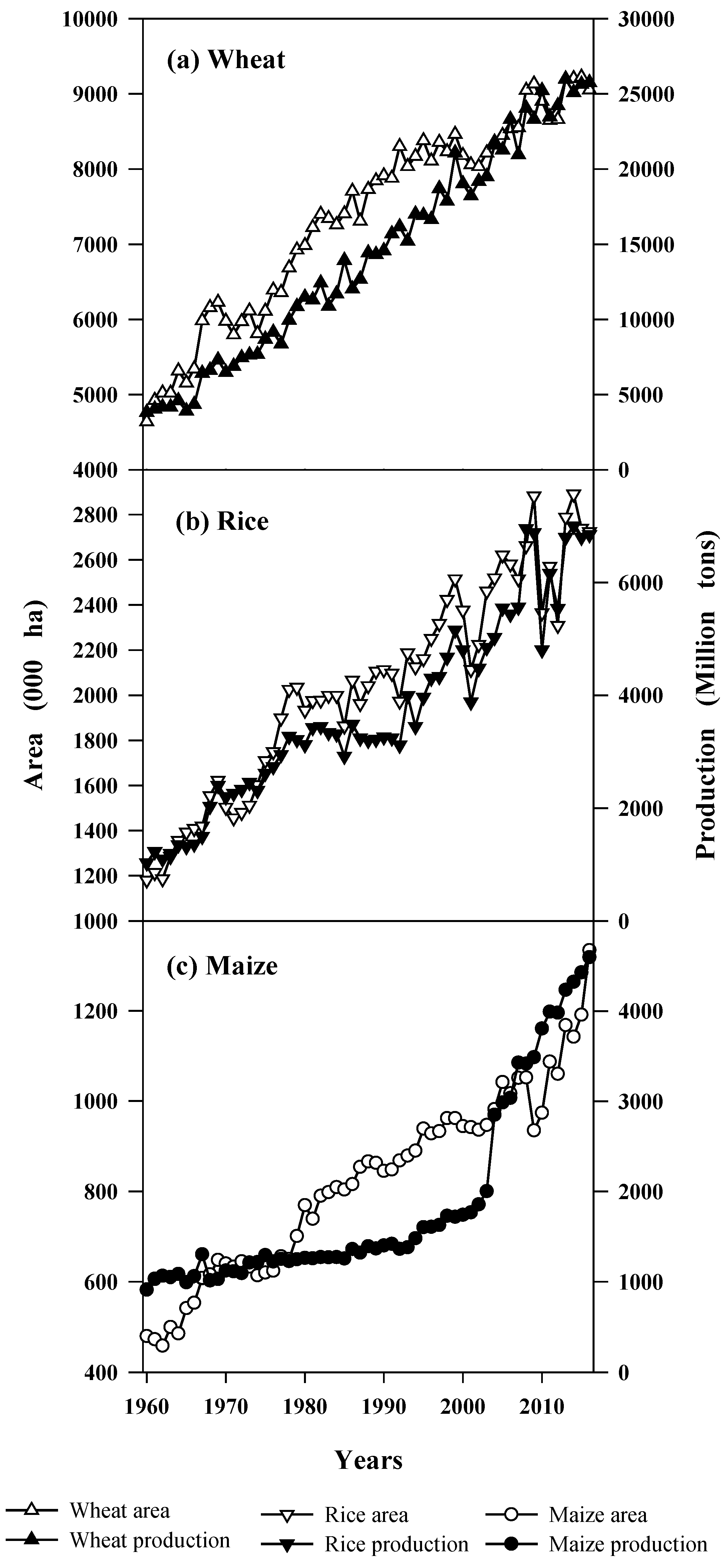

Figure 1. Wheat, rice, and maize area and production in Pakistan from 1960 to 2016. Source: Government of Pakistan [7].
Figure 1. Wheat, rice, and maize area and production in Pakistan from 1960 to 2016. Source: Government of Pakistan [7].
Agronomy 08 00069 g001

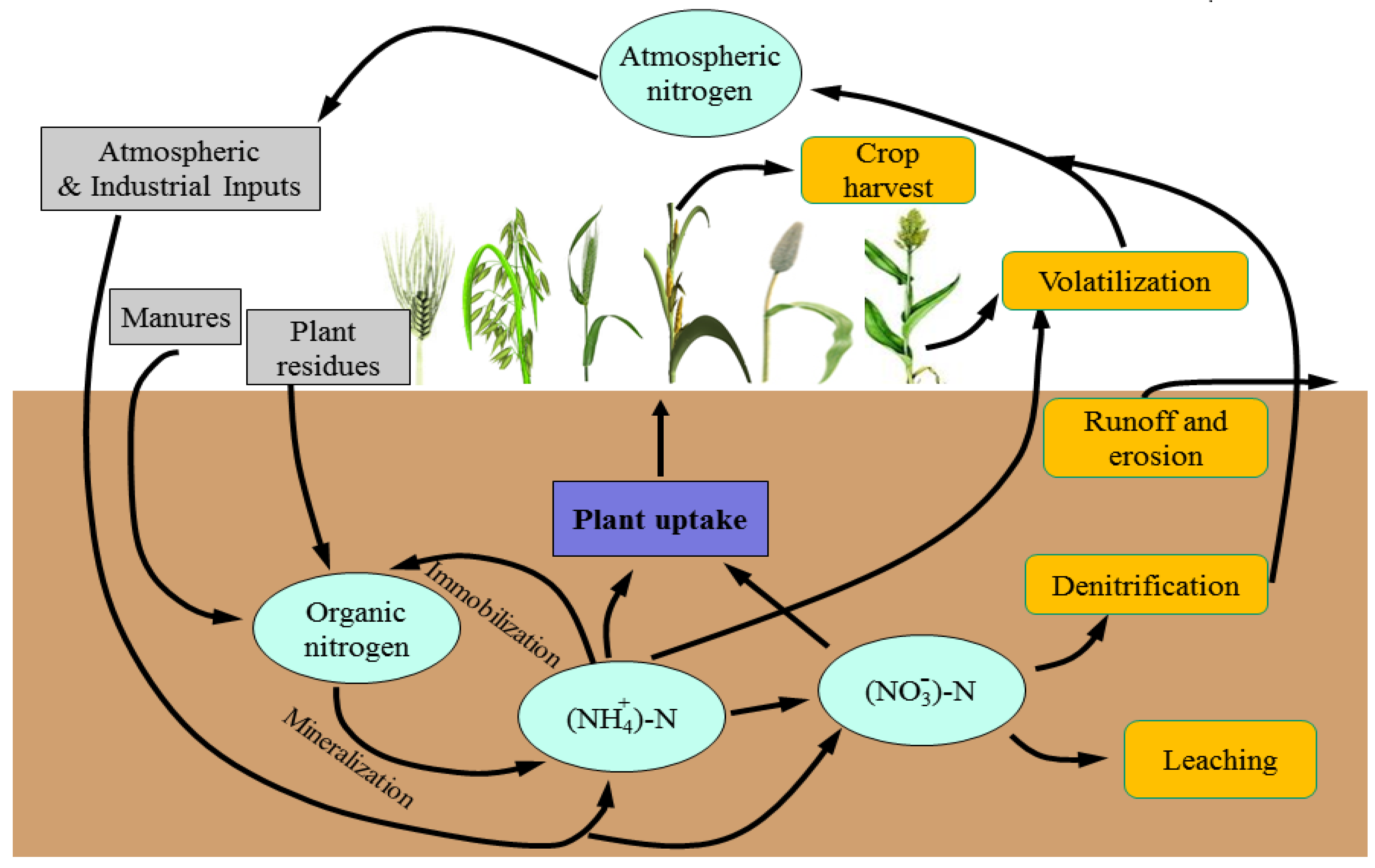

Figure 2. Generalized N cycle representing different inputs, losses, and plant uptakes for C3 and C4 cereal crops.
Figure 2. Generalized N cycle representing different inputs, losses, and plant uptakes for C3 and C4 cereal crops.
Agronomy 08 00069 g002
Figure 3. A simplistic schematic chart of N in C3 and C4 cereal crop plants representing different transformations that occur during the life span from sowing to harvesting of C3 and C4 cereal crops. The N uptake, absorption, remobilization, and redistribution are represented with different lines in relation to various growth stages. (Source: Modified and adapted from [54].)
Figure 3. A simplistic schematic chart of N in C3 and C4 cereal crop plants representing different transformations that occur during the life span from sowing to harvesting of C3 and C4 cereal crops. The N uptake, absorption, remobilization, and redistribution are represented with different lines in relation to various growth stages. (Source: Modified and adapted from [54].)
Agronomy 08 00069 g003

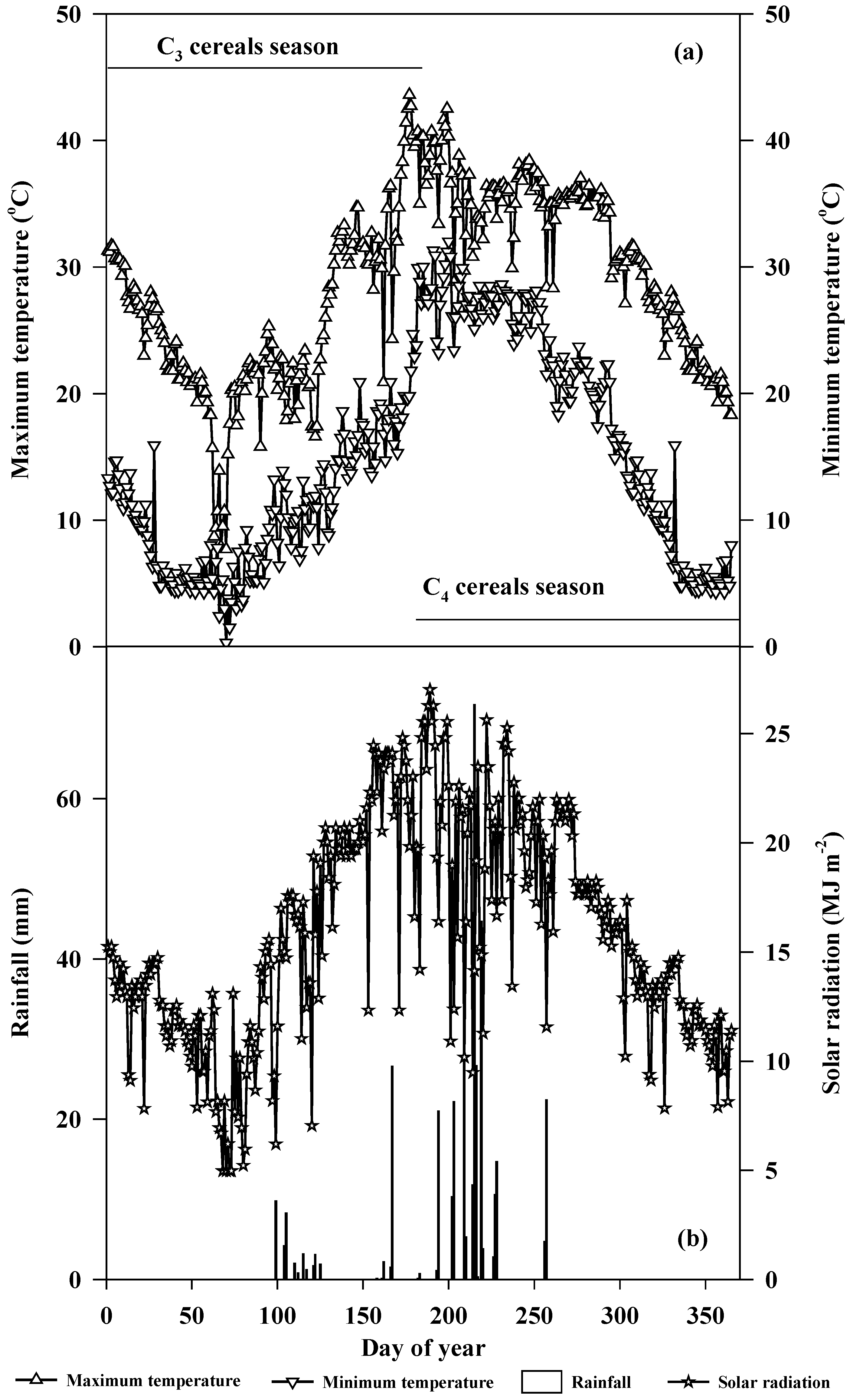

Figure 4. (a) Daily maximum (upward triangles) and minimum (downward triangles) temperatures, precipitation (unfilled bars), and solar radiation (unfilled stars) (b) during C3 and C4 cereal seasons (represented by lines) at Multan, Pakistan.
Figure 4. (a) Daily maximum (upward triangles) and minimum (downward triangles) temperatures, precipitation (unfilled bars), and solar radiation (unfilled stars) (b) during C3 and C4 cereal seasons (represented by lines) at Multan, Pakistan.
Agronomy 08 00069 g004
Figure 5. Total biomass production of winter C3 (AC) and summer C4 (DF) cereals under split N application regimes. Bars and letters represent standard error and significance, respectively.
Figure 5. Total biomass production of winter C3 (AC) and summer C4 (DF) cereals under split N application regimes. Bars and letters represent standard error and significance, respectively.
Agronomy 08 00069 g005

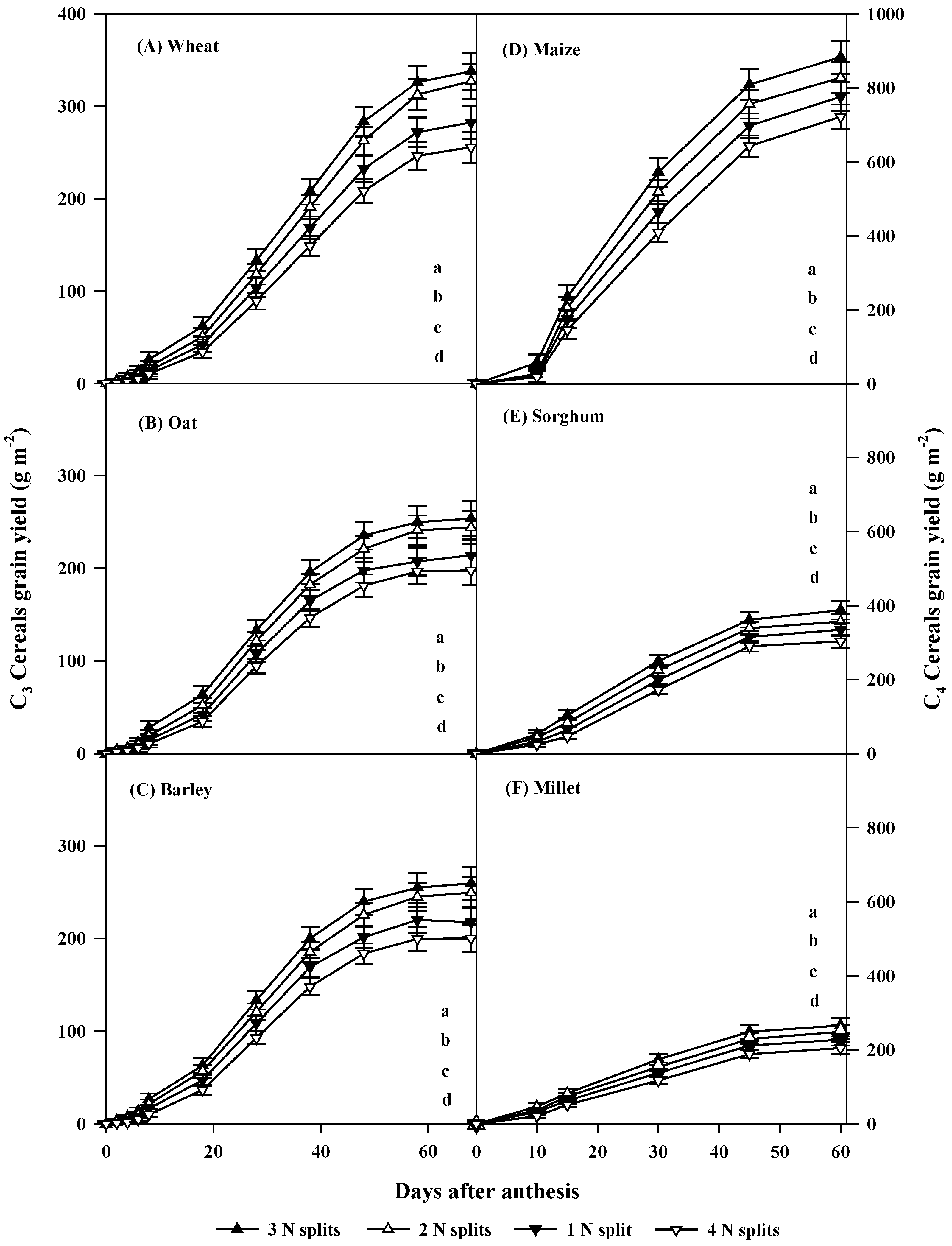

Figure 6. Grain yield of winter C3 (AC) and summer C4 (DF) cereals under split N application regimes. Bars and letters represent standard error and significance, respectively.
Figure 6. Grain yield of winter C3 (AC) and summer C4 (DF) cereals under split N application regimes. Bars and letters represent standard error and significance, respectively.
Agronomy 08 00069 g006
Figure 7. Radiation use efficiency of C3 winter ((A) wheat, oat, and barley) and C4 summer ((B) maize, millet, and sorghum) cereals under split N application regimes. Bars represent standard error.
Figure 7. Radiation use efficiency of C3 winter ((A) wheat, oat, and barley) and C4 summer ((B) maize, millet, and sorghum) cereals under split N application regimes. Bars represent standard error.
Agronomy 08 00069 g007

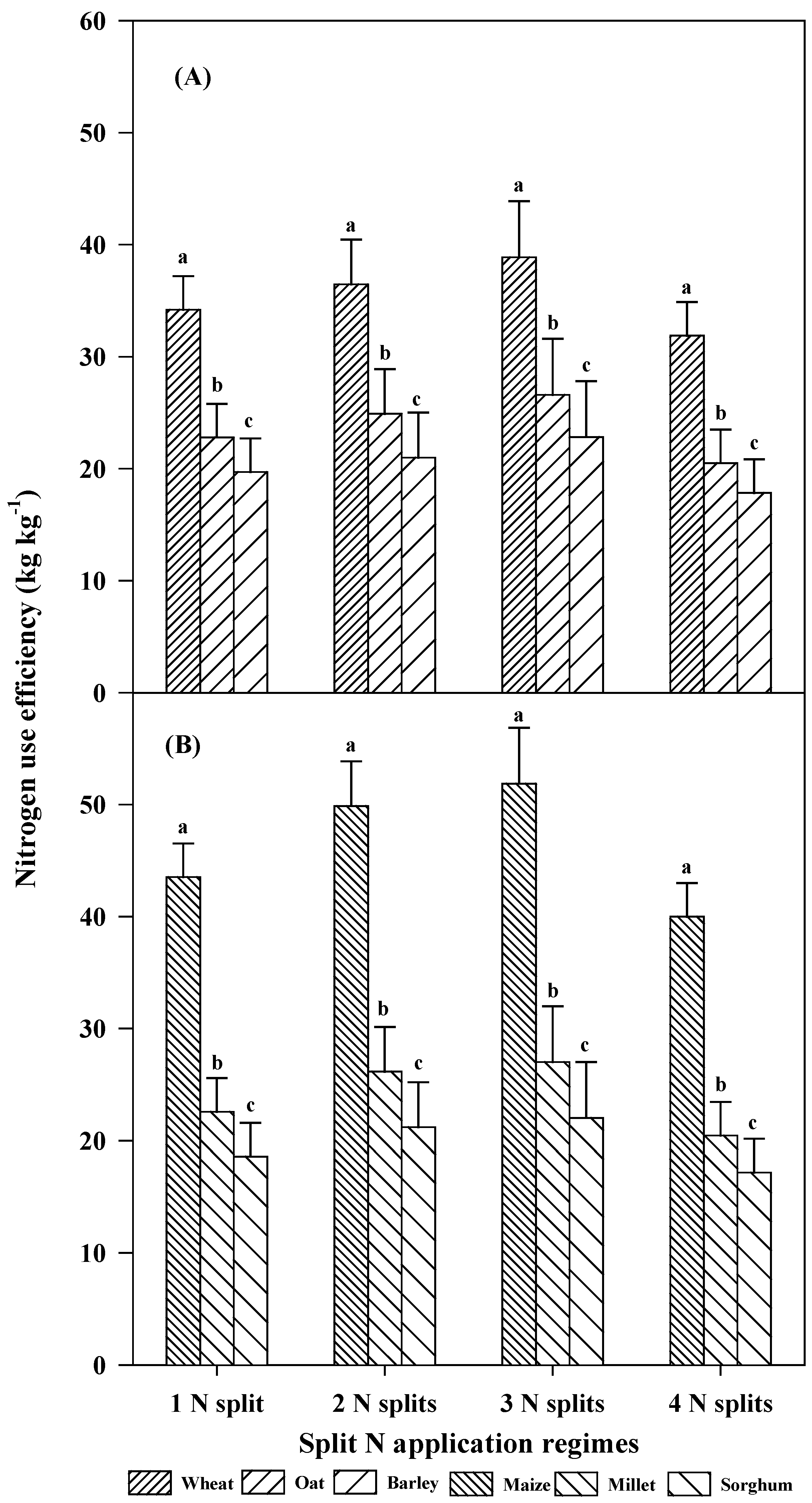

Figure 8. Nitrogen use efficiency (NUE) of C3 winter ((A) wheat, oat, and barley) and C4 summer ((B) maize, millet, and sorghum) cereals under split N application regimes. Bars represent standard error.
Figure 8. Nitrogen use efficiency (NUE) of C3 winter ((A) wheat, oat, and barley) and C4 summer ((B) maize, millet, and sorghum) cereals under split N application regimes. Bars represent standard error.
Agronomy 08 00069 g008
Figure 9. Relationship between RUE and NUE of C3 winter (ac) and C4 summer (df) cereals at Multan, Pakistan.
Figure 9. Relationship between RUE and NUE of C3 winter (ac) and C4 summer (df) cereals at Multan, Pakistan.
Agronomy 08 00069 g009
Table 1. Classification of commonly grown C3 and C4 cereal crops in Asia.
Table 1. Classification of commonly grown C3 and C4 cereal crops in Asia.
Crop/Botanical NameFamilyLife cycleSeasonPhotoperiodGrowth habitPollinationPropagationPhotosynthesisNutrient uptakeRoot system
Wheat (Triticum aestivum L.)PoaceaeAnnualWinterLong-dayDeterminateSelf-pollinatedSeedC3ExhaustiveFibrous
Oat (Avena sativa L.)
Barley (Hordeum vulgare L.)
Maize (Zea mays L.)SummerDay-neutralCross-pollinatedC4
Millet (Pennisetum americanum L.)Short-day
Sorghum (Sorghum bicolor L.)Self-pollinated
Rice (Oryza sativa L.)C3
Source: Nazir et al. [5].
Table 2. Losses of N fertilizer in cereal crops.
Table 2. Losses of N fertilizer in cereal crops.
N lossesLoss (%)Crop/ConditionReference
Nitrate52–73Corn[30]
>21Winter wheat[31]
Denitrification9.5Winter wheat[32]
10Rice[33]
>10Corn[34]
Runoff1–13 [35,36]
Volatilization40Without incorporated[37,38]
Drainage 23Tile[39]
Source: Raun et al. [28].
Table 3. Agronomic practices for C3 winter (wheat, oat, and barley) and C4 summer (maize, millet, and sorghum) cereals.
Table 3. Agronomic practices for C3 winter (wheat, oat, and barley) and C4 summer (maize, millet, and sorghum) cereals.
Crops/Cultural PracticesWheatOatBarleyMaizeMilletSorghum
C3 CerealsC4 Cereals
Sowing dateNovember 14August 18
N (kg ha−1)12511550227170100
IrrigationsDecember 7, January 14, February 1, March 11September 12, September 28, October 17, October 31
Fertilizer datesNovember 14, December 10, January 17, February 3August 18, September 12, September 28, October 31
Split N treatmentsNS1 = whole N at sowing; NS2 = ½ N at sowing + ½ N at first irrigation;
NS3 = ⅓ N at sowing + ⅓ N at first irrigation + ⅓ N at second irrigation; NS4 = ¼ N at sowing + ¼ N at first irrigation + ¼ N at second irrigation + ¼ N at third irrigation
Net plot size2 m × 5 m2 m × 5 m2 m × 5 m8 m × 10 m6 m × 10 m3.5 m × 10 m
Soil propertiesSand 28%, silt 52%, and clay 20%, pH 9.6, EC 3.42 ds m−1, OM 0.74%, total N 0.033%, P 4.92 ppm, and K 255 ppmpH 8.02, EC 2.3 ds m−1, Corg 0.76%, Ntot 0.039%, POlsen 5.1 mg kg−1, and Kext 110 mg kg−1
Harvest date24 April26 April22 April11 December6 December14 December
EC = Electrical conductivity; OM = Organic matter; Ntot = Nitrogen total; POlsen = Phosphorus Olsen; Kext = Potassium extractable.
Back to TopTop
