Article

High-Voltage Electrostatic Fields Adversely Affect the Performance of Diamondback Moths over Five Consecutive Generations

Shaanxi Engineering and Technological Research Center for Conversation and Utilization of Regional Biological Resources, College of Life Science, Yan’an University, Yan’an 716000, China
*
Author to whom correspondence should be addressed.
Agronomy 2023, 13(4), 1008; https://doi.org/10.3390/agronomy13041008
Submission received: 18 February 2023 / Revised: 26 March 2023 / Accepted: 28 March 2023 / Published: 29 March 2023

Abstract

:
Changing electrical environments can influence the performance of herbivorous insects and adversely affect their control strategies. The diamondback moth, Plutella xylostella (L.), is a pest that devastates cruciferous vegetables. An age–stage, two-sex life table of P. xylostella over multiple generations was established to describe the effect of varying high-voltage electrostatic field (HVEF) exposure on their performance after the age-cohort eggs were exposed to HVEF at an intensity of 5.0 kV/cm for different durations. The results show that direct HVEF exposure adversely affected the population dynamics parameters of P. xylostella over multiple generations. In particular, the net reproduction rate, intrinsic natural increase rate, and finite increase rate of the P. xylostella population significantly decreased in the third and fifth generations under HVEF exposure for 10 min, while the mean generation time and doubling time significantly increased. Similarly, HVEF exposure for 10 min rapidly reduced the survival rate of adult P. xylostella in the first generation, and subsequently, it declined evenly and slowly. Meanwhile, the fecundity parameters of P. xylostella revealed that HVEF exposure for 10 min had the strongest inhibition effect on reproduction over five consecutive generations. In addition, HVEF exposure significantly increased the superoxide dismutase activity to produce extra hydrogen peroxide; however, increased catalase and peroxidase activity or reduced peroxidase activity triggered the accumulation of malondialdehyde in instar P. xylostella, especially after 10 min of treatment. The present findings provide experimental evidence and a theoretical basis for developing control strategies for P. xylostella under new HVEF environments.

1. Introduction

The diamondback moth, Plutella xylostella Linnaeus (Lepidoptera: Plutellidae), is a pest that devastates cruciferous vegetables such as pakchoi Brassica chinensis Linnaeus [1,2,3]. During the larval stage, especially the third and fourth instars, larvae gnaw on fresh leaves, severely damaging the leaves and causing significant yield losses in cruciferous vegetable production [4]. To effectively suppress the damage and keep it below the economic threshold, chemical spraying is still a crucial measure for managing the population dynamics of P. xylostella in agricultural production [5]. However, in recent decades, the economically irrational frequent spraying of several kinds of pesticides has significantly accelerated the development of pests’ resistance to diverse chemicals [6,7]. It has been demonstrated that P. xylostella has already developed resistance to approximately 50 kinds of insecticides [8,9,10,11]. This is likely because its genetic plasticity stimulates an accumulating increase in resistance to such chemicals, which would serve as a genetic basis for it to adapt to the altered environment, and this poses a serious challenge to cruciferous vegetable production worldwide.
In addition, the artificial electric fields derived from modern industrial civilization have greatly increased the intensity of the natural electric fields to which organisms are directly exposed [12,13,14]. Previous studies have demonstrated that dramatic alterations in the electric environment affect the performance of plants and animals [15,16]. Similarly, insects are extremely sensitive to environmental changes, and can develop certain adaptive strategies owing to their high evolutionary rate, short growth cycle, small body size, and poor migration of larvae [17]. For instance, direct exposure of the cereal aphid Sitobion avenae Fabricius (Hemiptera: Aphididae), a prevalent and economically important wheat pest worldwide, to a high-voltage electrostatic field (HVEF) for 20 min at an intensity of 4 kV/cm had strong adverse effects on the population dynamics parameters of the aphids. However, using the same treatment on S. avenae over multiple generations, it was revealed that the aphids gradually recovered from the adverse effects of direct HVEF exposure over the generations, suggesting that the aphids’ bodies changed in response to stress [18,19,20]. Moreover, when S. avenae were directly exposed to and fed on plant seeds exposed to the same intensity of HVEF, their antioxidative enzyme activity was affected, which supports the results of previous studies [21]. Similar findings were reported in many other insects, such as Bombyx mori (Lepidoptera: Bombycidae) [22], Drosophila melanogaster (Diptera: Drosophilidae) [23], and Myzus persicae (Hemiptera: Aphididae) [18,24]. Therefore, the rapid adaptation of insects, especially species with high genetic plasticity, to novel electrical environment alternations could make it more difficult to develop environmentally friendly pest control strategies.
To develop an alternative method that uses a more effective and sustainable pest management strategy to control P. xylostella larvae, we determined the effects of direct exposure to HVEF on P. xylostella larvae. In the field, P. xylostella typically passes through multiple generations during the plant growth period. To simulate high-voltage HVEF stress, we directly exposed newborn P. xylostella eggs (within 24 h after birth) to an HVEF field for five consecutive generations. An age–stage, two-sex life table of P. xylostella was established to determine the effects of direct HVEF exposure on the growth, development, and reproduction of P. xylostella over multiple generations. Meanwhile, the antioxidative enzyme activity and malondialdehyde (MDA) levels of fourth-instar P. xylostella were evaluated to characterize the physiological alterations after HVEF treatment. The results of the current study have increased our understanding of the performance of P. xylostella under HVEF stress, and have provided experimental data and a theoretical basis for the development of P. xylostella control strategies in novel HVEF environments.

2. Materials and Methods

2.1. Insect Specimens and Rearing Conditions

Larvae of P. xylostella were collected from a vegetable greenhouse in Yan’an (109°35′ E, 36°63′ N), Shaanxi Province, China. The larvae were taken to the Insect Physiology and Ecology Laboratory of Yan’an University. After five generations of stable reproduction with an artificial diet, they were used as test specimens. In order to avoid biotic and abiotic effects on the P. xylostella population, they were maintained on an artificial diet and placed in an artificial climate chamber with a constant temperature of 25 ± 1 °C, relative humidity of 55 ± 10%, and a photoperiod of 12:12 (L:D) until pupation. The preparation of the artificial diet and its main components and proportions was carried out according to the China Invention Patent (Publication No. CN103478486A, 1 January 2014). To attract the moth larvae, the linseed oil in the formulation was exchanged for canola oil [25]. A newly prepared artificial diet was exchanged with the old one every two days. To produce eggs, the pupae of P. xylostella were transferred to oviposition cages for adult emergence, and the adults were fed with 10% honey solution until egg laying and death. The cage was covered with a black cloth and maintained in the growth chamber. Newborn larvae of P. xylostella were reared in the same manner until a sufficient number was obtained for experiments. To obtain the age-cohort eggs of P. xylostella for HVEF treatment, a multitude of male and female diamondback moths were transferred to the oviposition cage, and a piece of spawning paper was suspended in the middle of the cage. After 24 h, the spawning paper with the age-cohort eggs of P. xylostella was removed from the oviposition cage. These newly laid eggs were used in the following experiments within 24 h.

2.2. HVEF Treatment

The HVEF generator used in this study (WJ-II, 0–100 kV output voltage) was purchased from Wuxi Boya Electronic Technology Co., Jiangsu Province, China. Two parallel rectangular aluminum plates (area, 50 × 50 cm2; distance between two plates, 8.0 cm) were installed in a wooden frame to form an electrical field. The output wires from the HVEF generator were connected to the aluminum plates, while a ground wire was connected to the field to avoid electrostatic damage. For each treatment, 100 newly laid eggs of P. xylostella (within 24 h after birth) were collected and placed in uncovered Petri dishes, which were directly exposed to HVEF with an intensity of 5.0 kV/cm (as determined prior to the experiment, this treatment intensity was appropriate) for 5, 10, 15, and 20 min. Another 100 newborn eggs without HVEF exposure were used as controls (Figure 1). There were three biological replicates for each treatment.

2.3. Life Table Analysis

The following experiments were conducted in controlled greenhouse conditions, as described previously. After HVEF treatment, the eggs were individually placed in feeder boxes and transferred to feeder cups (50 mL) containing feed for single rearing after they hatched. A freshly prepared artificial diet was exchanged with the old one every 1 to 2 days during the experimental period. Daily individual observations of larval mortality, larval molt, pupation time, and adult emergence were recorded. The survival rate and development time were obtained for all stages. When the larvae pupated, the artificial diet was removed to keep the inside of the bearing cups dry. When the pupae became adults, males and females that emerged on the same day in each treatment group were paired, and each pair was placed in a plastic oviposition container (14 mL). Each oviposition container also included a small cotton ball soaked in a 10% honey solution on which the adults were able to to feed, and a 3 × 4 cm2 rectangular piece of spawning paper was hung inside the cup to collect the eggs. The number of newborn eggs was recorded, and the eggs were removed daily until all female diamondback moths died.
To determine the effects of HVEF on multiple generations of P. xylostella, the newly laid eggs produced by the adults in each test group were collected within 24 h for five consecutive generations. They were directly exposed to HVEF for the same treatment time using the physical method described previously. From the onset of reproduction for each female, the number of newborn eggs was recorded daily, and the life data and parameters of the first (F1), third (F3), and fifth (F5) generations of P. xylostella were analyzed in the present study. The life table parameters of the population growth of P. xylostella, including net reproductive rate (R0), intrinsic natural increase rate (r), mean generation time (T), finite increase rate (λ), and doubling time (dt), were evaluated to determine the effects of direct HVEF exposure on performance. The life table parameters for each moth cohort were calculated using the equations below [26]. The stage-specific survival rate (lx) describes the probability of survival of the individuals in a given population under treatment, and the stage-specific fecundity of the total population (mx) reflects the average number of offspring born to each individual. The parameters lx and mx were calculated as follows:
l x = j = 1 m s x j
m x = ( j = 1 m s x j f x j ) / j = 1 m s x j
where Sxj is the age- and stage-specific survival, including both the survival situation and the stage differentiation, and fxj is the age- and stage-specific fecundity.
The net reproductive rate was defined as the age-specific survival rate and fecundity for each individual during its lifetime, including females, males, and individuals that died in immature stages, using the following equation:
R 0 = x = 0 j = 1 m s x j f x j = x = 0 l x m x
In addition, the parameter r was considered to describe the maximum instantaneous growth rate of the population under stable conditions, and was calculated as shown in Equation (4):
x = 0 e r ( x + 1 ) l x m x = 1
Meanwhile, other parameters of the population dynamics, T, λ, and dt, were calculated based on the above two parameters; T describes the time required for the population to develop for a whole generation, and was calculated using Equation (5). Parameters λ and dt represent the population growth relative to the population size, and were calculated using Equations (6) and (7):
T = ( ln R 0 ) / r
λ = e r
d t = ln 2 / r
Furthermore, to estimate the effects of direct HVEF exposure on P. xylostella reproduction, the relevant data from the life tables were employed to calculate the fecundity parameters, including the adult preoviposition period (APOP), oviposition period (OP), oviposition day (OD), and eggs per day during the oviposition period.

2.4. Oxidative Stress Assessment

To determine whether direct HVEF exposure affected physiological alterations in herbivores, the antioxidative enzyme activity and malondialdehyde (MDA) levels of fourth-instar P. xylostella were evaluated for each treatment. In parallel with the life table data collection, when eggs reached the fourth instar within 24 h after HVEF stress, the samples from the first and third generations were collected individually in 1.5 mL centrifuge tubes (6 fourth-instar larvae per tube). Then, the collected samples were snap-frozen using liquid nitrogen and stored in an ultra-low-temperature refrigerator at −80 °C for enzyme activity assessment. The superoxide dismutase (SOD), catalase (CAT), and peroxidase (POD) activity, as well as the MDA level of fourth-instar P. xylostella, were determined according to commercial assay kits purchased from Nanjing Jiancheng Bioengineering Institute (SOD: item no. A001-3-2; CAT: A007-2-1, POD: A084-3-1, MDA: A003-1-2). The reaction mixture of fourth-instar P. xylostella tissue was prepared according to the reference manuals, and the absorbance of the mixture of all samples was determined within 10 min. The antioxidative enzyme activity in P. xylostella was expressed as U/mgprot, and the MDA level was expressed as nmol/mgprot. Three biological replicates were performed per treatment.

2.5. Statistical Analysis

The population parameters for all P. xylostella individuals in the study were analyzed according to an age–stage, two-sex life table using TWOSEX-MSChart software [27]. Based on the TWOSEX-MSChart software, the bootstrap technique with 100,000 resamplings was employed to simulate the effects of the sex ratio on the population parameters of P. xylostella and to estimate the standard error (SE). In addition, output files of bootstrap studies on the population parameters of P. xylostella relative to reproduction and population growth were used to compare the differences between treatments through one-way analysis of variance (ANOVA), and multiple comparisons among treatments were performed using the Student–Newman–Keuls (SNK) test. Meanwhile, the antioxidative enzyme activity and MDA levels in P. xylostella were calculated using Excel software (version 2010; Microsoft, Redmond, WA, USA). Similarly, one-way ANOVA was employed to compare the differences between HVEF exposure durations, and multiple comparisons of enzyme activity were made using the SNK test. All analyses were performed using SPSS 26.0 software (SPSS Inc., Chicago, IL, USA). The level of significance was set to p-value < 0.05. All graphs were prepared using GraphPad Prism 8.0 software (GraphPad Software, San Diego, CA, USA).

3. Results

3.1. HVEF Treatment Adversely Affected Net Reproduction Rate (R0) of P. xylostella

Direct exposure of P. xylostella eggs to HVEF at 5.0 kV/cm adversely affected R0, and the adverse effects exhibited different profiles at different time points. In particular, for the first generation of P. xylostella, although no significant difference in R0 was detected when compared to the control group under HVEF stress (p > 0.05), HVEF treatment resulted in a reduced R0 value, with the lowest value observed for the 5 min treatment (Figure 2A). When the stress continued to the third generation, R0 decreased significantly with treatment times other than 5 min compared to the control, with the most significant decrease observed when the treatment time was 20 min (p < 0.05). In the fifth generation, 5 and 10 min treatments resulted in reduced R0, and 10 min treatment resulted in significantly decreased R0, whereas the R0 values for 15 and 20 min treatments were close to the controls. In addition, under controlled greenhouse conditions, the presence of HVEF stress resulted in a significantly reduced R0 in the third generation, especially with 10, 15, and 20 min treatments, while the R0 values for fifth-generation P. xylostella showed an increasing trend with 15 and 20 min treatments (Figure 2B).

3.2. HVEF Stress Significantly Affected the r of P. xylostella in All Generations

To better evaluate the effect of direct exposure of P. xylostella to HVEF on population growth, we determined the value of r. The results showed that in the first generation, although r did not exhibit a significant decrease under HVEF treatment compared to the controls (p > 0.05), it showed significant differences between treatment durations (p < 0.05); the lowest and highest values were found for the 5 and 15 min treatment times, respectively (Figure 3A). In the third generation, except for the 5 min treatment group, r decreased significantly in the experimental groups compared to the control, and the most significant decrease was found with the 20 min treatment (p < 0.05). For the fifth generation, r showed a similar decreasing tendency to the first generation; there was a significant decrease between the 5 and 10 min treatments and the control, and the other treatments did not show a significant decrease. Regarding the multigenerational effects, r was significantly decreased at different treatment times, especially at 10, 15, and 20 min (Figure 3B). These results suggest that the reproductive capacity of the P. xylostella populations was affected by the reduced r and its derived parameters in the novel HVEF environment.

3.3. HVEF Treatment Gradually Prolonged the T of P. xylostella

In the first generation, the T of P. xylostella was decreased after HVEF exposure, with significant decreases at 15 and 20 min (Figure 4A). However, in the third and fifth generations, T was significantly increased by HVEF stress compared to the control (p < 0.05). In particular, the T values of P. xylostella in the third generation showed an increasing trend at all treatment times, with the most significant increase at 15 min (p < 0.05), and a significant increasing trend was also observed at 5 and 10 min in the fifth generation (Figure 4A). Regarding the effects of HVEF on multiple generations of P. xylostella, HVEF stress significantly prolonged T as the number of generations increased; the longest T was found for the 5 min treatment in the fifth generation (Figure 4B).

3.4. HVEF Stress Exerted a Suppressive Effect on Population Growth of P. xylostella

As shown in Table 1, similarly to the tendency of r described above, the value of λ for P. xylostella was significantly reduced under HVEF treatment. In the first generation, there was no significant difference between HVEF exposure and the control group (p > 0.05). Compared with the control group, the value of λ in third-generation P. xylostella was significantly decreased after HVEF exposure, with the lowest value observed at 20 min. In the fifth generation, the value of λ showed a significant decrease with shorter 5 and 10 min treatment times (p < 0.05), and no significant decrease was observed with longer times. In addition, the value of λ in each treatment was the greatest for the first generation of P. xylostella, and the lowest for the fifth generation.
In comparison with the control, in the first generation, the population doubling time decreased significantly in the 15 min treatment group (p < 0.05), while the other treatment groups were not significantly affected by HVEF stress (p > 0.05). In the third generation, the population doubling time increased significantly with each treatment duration (p < 0.05), and the largest value of dt was observed for the 20 min treatment group. For the fifth generation, the largest value was found with the 10 min treatment time, and was significantly increased compared to the control (p < 0.05). When considering the multigenerational effects, the population doubling time of P. xylostella significantly increased as the number of generations increased, and direct exposure of eggs to HVEF at 5.0 kV/cm for 10 min resulted in the greatest increase in dt in the fifth generation. These results suggest that 10 min of HVEF exposure exerted a more suppressive effect on population growth.

3.5. Effect of HVEF Exposure on Survival and Oviposition Parameters of P. xylostella

To more accurately describe the survival probability among individuals, the age–stage survival rate of P. xylostella from egg to adult was investigated. The lx curve showed that the survival duration of P. xylostella adults increased as the number of generations increased, and the longest life span was detected in the fifth generation (Figure 5). Under HVEF stress, although the survival rate of each treatment group was higher than that of the control group, the survival rate rapidly declined compared with the control group in the first generation, with the fastest decrease observed for the 20 min treatment time. In addition, the life spans of females were significantly shorter than those of males, and females who received 15 min of treatment had the shortest life spans. With continued HVEF exposure, the survival rates of third-generation P. xylostella in the larval and pupal stages were still higher than that those of the control group, and declined rapidly at the pupal and adult stages with 10 min of treatment. In the fifth generation, the survival rate in the pupal stage after HVEF exposure was lower than that of the control group, and it declined evenly and slowly. Meanwhile, the survival times were longer than those of the first and third generations. Notably, the difference in survival rates between females and males in the first and third generations was not significant; however, in the fifth generation, the survival rates of the females were significantly higher than those of the males (Figure 5).
In addition, direct exposure to HVEF had an adverse effect on the adult preoviposition period (APOP) in P. xylostella, and the APOP gradually extended in the same generation with increased exposure time. As shown in Table 2, the APOP under 15 min of treatment was significantly longer than the control and the other treatment groups in all generations, except for the fifth. In the fifth generation, the APOP with 15 min of HVEF exposure decreased suddenly compared to other treatments, and was close to that of the control group, while the APOP at 10 min was significantly higher than in the other groups (p < 0.05). Although the oviposition period (OP) and oviposition days (OD) of female P. xylostella were not significantly affected by direct HVEF exposure, they showed an increasing trend in the generations, with the longest OP and OD detected in the fifth generation after all treatments. The shortest OD and OP were observed with 10 min of treatment. Moreover, although this was not observed in the first generation, HVEF exposure resulted in a decreased number of eggs per day during oviposition in the third and fifth generations compared to the controls, with the lowest number found after 10 min of treatment in all test generations. The fecundity of the females showed a similar trend to the number of eggs per day during oviposition in each treatment group over multiple generations. These results suggest that direct HVEF exposure has an adverse effect on the survival and oviposition of P. xylostella.

3.6. HVEF Exposure Led to Significant Oxidative Damage to Fourth-Instar P. xylostella

Based on one-way ANOVA, HVEF stress significantly affected the antioxidative enzyme activity, subsequently increasing the MDA level of instar P. xylostella. In particular, total SOD activity exhibited an increasing trend after HVEF treatment (G1: F = 16.171, d.f. = 4, p < 0.05; G3: F = 38.938, d.f. = 4, p < 0.05), except for the 20 min treatment in the third generation, when compared with the controls (Figure 6A). The first and third generations exhibited the greatest increase in total SOD activity at 10 min. Similarly, when compared with the controls, the CAT (G1: F = 29.482, d.f. = 4, p < 0.05; G3: F = 35.861, d.f. = 4, p < 0.05) and POD (G1: F = 85.530, d.f. = 4, p < 0.05; G3: F = 27.839, d.f. = 4, p < 0.05) activity under most treatment durations showed an increasing trend, while a suppressive effect on POD activity was found with other treatment durations, including 15 min in the first generation and 10 min in the third generation, and the lowest POD activity in each generation was found with these durations (Figure 6B,C). Moreover, alterations in the activity of these antioxidative enzymes induced a significantly increased MDA level in fourth-instar P. xylostella (G1: F = 3.988, d.f. = 4, p < 0.05; G3: F = 5.521, d.f. = 4, p < 0.05). The highest MDA level was found after 20 min in the first generation and after 10 min in the third generation, while the controls exhibited the lowest MDA levels (Figure 6D).

4. Discussion

In the present study, direct exposure of P. xylostella eggs to HVEF resulted in oxidative damage and adversely affected parameters associated with growth, and development, and reproduction in multiple consecutive generations. Interestingly, the 10 min treatment time had the most significant effect on all studied parameters when compared with the controls. These results were consistent with our previous study on direct and indirect exposure of first-instar cereal aphid nymphs to HVEF [19,28,29]. For instance, the results showed that exposure of either cereal aphids or wheat seeds to HVEF at 4 kV/cm for 20 min significantly affected the growth and reproductive parameters of aphid populations, and that the antioxidant enzyme activity was altered under stress [21,28,29]. In addition, in studies of other types of abiotic stress, we found that treating P. xylostella at different temperatures had a reproductive impact, with further evidence of reproductive compensation [30,31]. Furthermore, direct exposure of P. xylostella to 60Co-γ radiation resulted in significantly reduced nymphal fecundity and postfecundity, as well as reduced adult longevity and fecundity, suggesting that either HVEF or other abiotic stresses adversely affect the performance of P. xylostella [32,33].
Previous studies have demonstrated that exposing cereal aphids to HVEF immediately affected their performance, and that they gradually exhibited adaptability to electric field stress when the treatment was continued for 10 more generations [19,29,34]. Interestingly, the growth and development, fecundity, and population growth of P. xylostella were not immediately inhibited in the first generation; when the treatment was continued up to the fifth generation, more serious adverse effects on their performance under electric field stress were observed. This is probably because the external eggshells of P. xylostella eggs can partially suppress the adverse effects of HVEF exposure, and as a result, some of the population dynamics parameters did not rapidly exhibit significant effects. Meanwhile, some of the parameters, such as r, could be determined by R0 and T; a higher value of R0 and a lower T can lead to a higher value of r in the first generation than subsequent generations. The curve of the age–stage survival rate of P. xylostella supports this. For instance, direct HVEF exposure rapidly reduced the survival rate of P. xylostella in the first and third generations; when the treatment was continued up to the fifth generation, they adapted to HVEF, which eventually allowed them to survive and persist under electric field stress. Accordingly, the growth cycle of P. xylostella is longer than that of cereal aphids, and they recover rapidly from the adverse effects of HVEF exposure. Moreover, it is well known that when the environment is suitable, aphids generally undergo parthenogenesis, while P. xylostella is oviparous, producing eggs [35]. Thus, more work is required to unravel the exact nature of the damage to P. xylostella that is caused by HVEF exposure.
In addition, the current study suggests that the dose-dependent effects of different intensities of HVEF exposure on P. xylostella eggs produce different stress effects. Previous studies have shown that electric or magnetic fields of moderate intensity have the greatest inhibitory effect on the biological performance of different species of organisms [36,37,38]. For instance, static magnetic field (SMF) exposure at a moderate intensity of 0.2–0.4 T was found to maximally affect leukemia cell proliferation and the cell cycle [39]. Meanwhile, by treating rats with static magnetic fields of different intensities, it was demonstrated that static magnetic fields of moderate intensity inhibited osteocalcin secretion and human osteoblast-like cell proliferation [40]. The same results were reported in a study which attempted to enhance sorghum seed viability by using HVEF [41].
In this study, the life table parameters R0 and r of the first generation of P. xylostella subjected to HVEF stress decreased significantly under moderate treatment durations, but other parameters were not significantly altered compared to the control group. It is possible that electrostatic damage is repaired within the organism by its own defense system, or that the population is maintained by reducing reproductive capacity. Nevertheless, as the number of generations exposed to HVEF treatment increased, the damage caused by HVEF gradually accumulated and reached a threshold where it could be repaired by the moths themselves. Therefore, in the third and fifth generations, there were significant changes in vital phenotypes compared with the first generation; for example, the population doubling time increased significantly with increased treatment generations, but between generations, it showed a dose effect, i.e., longer population doubling times with shorter treatment durations. In contrast, both reproduction-related parameters, R0 and r, were significantly lower in the 10 min treatment group than in the control. This proves that different radiation durations can have different toxic effects on insects, but not that a longer duration will produce a more pronounced effect.
In agreement with previous studies, the current study suggests that direct exposure of organisms to different environmental stressors, such as heavy metals, UV radiation, or HVEF, could cause the production of large amounts of reactive oxygen species (ROS). ROS cause an imbalance in the normal oxygen-consuming metabolic processes in the body, and have toxic effects; for example, they cause changes in cell structure and protein function, even causing structural changes in DNA, and, thus, its function [42,43,44,45]. For instance, direct exposure of P. xylostella eggs to HVEF for 10 min resulted in the greatest oxidative stress and the most significant adverse effects on performance. A similar result was found in Thitarodes xiaojinensis (Lepidoptera: Hepialidae) after using heat stress, which indicates that a large number of oxygen radicals were produced. This caused structural and functional damage to mitochondria, resulting in a series of cellular dysfunctions which led to cell and tissue death, and, ultimately, to irreversible damage to the insects, causing them to live longer [46].
In response to various adverse environmental changes, insects have evolved complex antioxidant enzyme protection mechanisms to mitigate the harmful effects of oxidative damage [46,47,48,49]. SOD, CAT, and POD play important roles in eliminating extra ROS compounds [50,51], and changes in their gene expression levels or enzyme activity can reflect the state of environmental stress and the degree of oxidative damage to the organism. For example, treating P. xylostella eggs with 60Co-γ radiation caused significant changes in SOD, CAT, and POD gene expression and enzyme activity [51,52]. Apart from that, the results showed that P. xylostella midgut microbes encode for large amounts of SOD, CAT, and POD, which helps the host to reduce ROS to nontoxic compounds [53]. Although symbiotic bacteria are also present in aphids, they have completely different roles; for example, the obligate species Buchnera aphidicola can transform nonessential amino acids into amino acids that aphids cannot synthesize, and some species of secondary endosymbionts provide energy materials and some detoxification functions. This might be an important reason why HVEF exposure was shown to have a stronger adverse effect on aphids than P. xylostella [29,54,55].
In addition, direct exposure of P. xylostella eggs to 60Co-γ radiation at 200 Gy resulted in significantly upregulated expression of the heat-stimulated protein (HSP) 70 genes [51]. It was demonstrated that some species of HSP have antioxidant capacity, which means that they can inhibit or scavenge the excess free radicals produced by organisms. Exposure to different external adverse environmental stressors (such as high temperature, low temperature, and UV radiation) impairs regular protein function and disrupts cellular homeostasis. Thereafter, large numbers of HSPs are expressed to help organisms to withstand external stresses and to enhance their resilience [53,56,57]. UV-A irradiation of Ostrinia furnacalis resulted in a slow decrease, then a rapid increase, and then a sudden decrease in the expression of vitellogenin receptor (VgR), a gene related to reproduction, and a corresponding change in fertility occurred in response to the effects of the external environment [58]. Furthermore, in the present study, a significant increase in malondialdehyde (MDA) content was detected after HVEF exposure, which may be a crucial marker of oxidative damage. This may be because MDA can easily bind to proteins and DNA and damage the structure and function of biomolecules [48,59]. Therefore, in subsequent experiments, we can further explore the biological roles of important proteins, such as HSP and reproduction-related proteins, in the adaptation of organisms to new HVEF environments.
In summary, direct exposure of P. xylostella eggs to HVEF at an intensity of 5.0 kV/cm for 10 min had the strongest inhibition effects on their performance, possibly resulting in longer growth cycles and increased population doubling time, as well as reduced reproductive capacity. The results of this study will help us to understand the effects of HVEF stress on the performance of P. xylostella and its adaptation mechanisms, and will provide experimental data and a theoretical basis for control strategies in the new HVEF environment (Figure 7).

Author Contributions

L.J.: investigation, writing—original draft, data curation. S.X.: conceptualization, data curation, writing—review and editing. H.S.: writing—original draft, data curation, investigation. J.G.: writing—original draft, investigation. X.Y.: investigation, data curation. C.L.: writing—review and editing, data curation. G.L.: writing—review and editing, data curation. K.L.: conceptualization, writing—review and editing, supervision, data curation, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Research Fund for the Doctoral Starting up Foundation of Yan’an University, China (No. YDBK2019-65), the Educational Innovation Program of Graduate Students of Yan’an University (YCX2021075), and the Innovation and Entrepreneurship Training Program for College Student of Yan’an University (D2020095).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding authors.

Conflicts of Interest

The authors have no conflict of interest to declare.

References

  1. Furlong, M.J.; Wright, D.J.; Dosdall, L.M. Diamondback moth ecology and management: Problems, progress, and prospects. Annu. Rev. Entomol. 2013, 58, 517–541. [Google Scholar] [CrossRef]
  2. Gautam, M.P.; Singh, H.; Kumar, S.; Kumar, V.; Singh, S.N. Diamondback moth, Plutella xylostella (Linnaeus) (Insecta: Lepidoptera: Plutellidae) a major insect of cabbage in India: A review. J. Entomol. Zool. Stud. 2018, 6, 1394–1399. [Google Scholar]
  3. Jaleel, W.; Saeed, S.; Naqqash, M.N.; Sial, M.U.; Ali, M.; Zaka, S.M.; Sarwar, Z.M.; Ishtiaq, M.; Qayyum, M.A.; Aine, Q.U.; et al. Effects of temperature on baseline susceptibility and stability of insecticide resistance against Plutella xylostella (Lepidoptera: Plutellidae) in the absence of selection pressure. Saudi J. Biol. Sci. 2020, 27, 1–5. [Google Scholar] [CrossRef]
  4. Zalucki, M.P.; Shabbir, A.; Silva, R.; Adamson, D.; Shu-Sheng, L.; Furlong, M.J. Estimating the economic cost of one of the world’s major insect pests, Plutella xylostella (Lepidoptera: Plutellidae): Just how long is a piece of string? J. Econ. Entomol. 2012, 105, 1115–1129. [Google Scholar] [CrossRef]
  5. Wang, J.; Zheng, X.B.; Yuan, J.J.; Wang, S.Y.; Xu, B.Y.; Wang, S.L.; Zhang, Y.J.; Wu, Q.J. Insecticide resistance monitoring of the diamondback moth (Lepidoptera: Plutellidae) populations in China. J. Econ. Entomol. 2021, 114, 1282–1290. [Google Scholar] [CrossRef] [PubMed]
  6. You, S.; Liu, Z.; Xiong, L.; Liao, J.; He, W.Y.; You, M.S. Advances in research on the resistance of Plutella xylostella to Bacillus thuringiensis (Bt). Chin. J. Appl. Entomoloy 2018, 55, 951–962. [Google Scholar]
  7. Li, Z.Y.; Xiao, Y.; Wu, Q.J.; Shen, A.D.; Wang, X.L.; Zhang, J.M.; Feng, X. Progress in research on diamondback moth (Plutella xylostella) outbreaks and the management of resistance in this pest. Chin. J. Appl. Entomol. 2020, 57, 549–567. [Google Scholar]
  8. Talekar, N.S.; Shelton, A.M. Biology, ecology, and management of the diamondback moth. Annu. Rev. Entomol. 2003, 38, 275–301. [Google Scholar] [CrossRef]
  9. Luo, Y.J.; Wu, W.W.; Yang, Z.B.; Pu, E.T.; Guo, Z.X.; Yin, K.S.; He, C.X. Advances in insecticide resistance of diamondback moth (Plutella xylostella L.) in Yunnan. J. Yunnan Univ. 2008, 30, 178–182. [Google Scholar]
  10. Santos, V.C.; Haa, D.S.; Da, S.J.; Mjdc, D.F. Insecticide resistance in populations of the diamondback moth, Plutella xylostella (L.) (Lepidoptera: Plutellidae), from the state of Pernambuco, Brazil. Neotrop. Entomol. 2011, 40, 264–270. [Google Scholar] [CrossRef] [Green Version]
  11. Gao, D.L.; Liu, Y.; Wang, L.L.; Xu, N.N.; Zhuang, Z.G.; Xu, Y.; Hu, Z.J.; Zhuang, Z.X. Insecticides against resistance population of Plutella xylostella: Toxicity analysis and field control efficacy. Chin. Agric. Sci. Bull. 2018, 34, 145–149. [Google Scholar]
  12. Bai, Y.; Hu, Y. Original mechanism of biological effects of electrostatic field on crop seeds. Trans. Chin. Soc. Agric. Eng. 2003, 19, 49–51. [Google Scholar] [CrossRef]
  13. Wu, C.Y.; Zhang, L.; Zhen, S. Biological effect mechanism and application of high voltage electrostatic field on animal body. Prog. Vet. Med. 2004, 25, 7–9. [Google Scholar] [CrossRef]
  14. Lee, J.Y.; Kang, S.W.; Yoon, C.S.; Kim, J.J.; Choi, D.R.; Kim, S.W. Verticillium lecanii spore formulation using UV protectant and wetting agent and the biocontrol of cotton aphids. Biotechnol. Lett. 2006, 28, 1041–1045. [Google Scholar] [CrossRef] [PubMed]
  15. Yang, X.S.; Sun, H.; Liang, C.Y.; Yi, T.G.; Sun, F. Effect of high voltage electrostatic field on physiological and biochemistry indexes in developmental mice. J. Jilin Univ. 2005, 31, 839–842. [Google Scholar] [CrossRef]
  16. Wang, G.; Huang, J.; Gao, W.; Lu, J.; Li, J.; Liao, R.; Jaleel, C.A. The effect of high-voltage electrostatic field (HVEF) on aged rice (Oryza sativa L.) seeds vigor and lipid peroxidation of seedlings. J. Electrost. 2009, 67, 759–764. [Google Scholar] [CrossRef]
  17. Lu, K.; Song, Y.; Zeng, R. The role of cytochrome P450-mediated detoxification in insect adaptation to xenobiotics. Curr. Opin. Insect Sci. 2021, 43, 103–107. [Google Scholar] [CrossRef]
  18. Cakmak, T.; Cakmak, Z.E.; Dumlupinar, R.; Tekinay, T. Analysis of apoplastic and symplastic antioxidant system in shallot leaves: Impacts of weak static electric and magnetic field. J. Plant Physiol. 2012, 169, 1066–1073. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. He, J.; Cao, Z.; Yang, J.; Zhao, H.; Pan, W. Effects of static electric fields on growth and development of wheat aphid Sitobion aveanae (Hemiptera: Aphididae) through multiple generations. Electromagn. Biol. Med. 2016, 35, 1–7. [Google Scholar] [CrossRef]
  20. Cao, Z.; Li, G.Y.; He, J.; Zhao, H.Y.; Piyaratne, M.; Hu, Z.Q.; Hu, X.S. Effects of high voltage electrostatic fields on protective enzyme activity in wheat plants and on the population dynamics of Sitobion avenae Fabricius (Hemiptera: Aphididae). Acta Ecol. Sin. 2016, 36, 1001–1009. [Google Scholar]
  21. Luo, K.; Luo, C.; Li, G.Y.; Xin, J.Y.; Gao, R.; Hu, Z.Q.; Zhang, G.S.; Zhao, H.Y. High-voltage electrostatic field-induced oxidative stress: Characterization of the physiological effects in Sitobion avenae (Hemiptera: Aphididae) across multiple generations. Bioelectromagnetics 2019, 40, 52–61. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Zhang, H.L.; Zhao, B.G.; Xia, L.Q.; Xu, J.T. Effects of Bombyx mori eggs under the treatment of high voltage electrostatic field on dietary efficiency and larva growth and development. J. Shandong Agric. Univ. 2006, 37, 505–508. [Google Scholar]
  23. Diebolt, J.R. The influence of electrostatic and magnetic fields on mutation in Drosophila melanogaster spermatozoa. Mutat. Res. 1978, 57, 169–174. [Google Scholar] [CrossRef] [PubMed]
  24. Harutyunyan, H.; Artsruni, G. Biological effects of static electric field: Plasma/serum proteome analysis of rats. J. Bioelectr. 2013, 32, 79–94. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, Z.Q.; Miao, S.; Luo, K.J. Mass rearing techniques of diamondback moth. Entomol. Knowl. 2001, 38, 68–70. [Google Scholar] [CrossRef]
  26. Chi, H.; Liu, H. Two new methods for the study of insect population ecology. Bull. Inst. Zool. Acad. Sin. 1985, 24, 225–240. [Google Scholar]
  27. Chi, H.; Fu, J.W.; You, M.S. Age-stage, two-sex life table and its application in population ecology and integrated pest management. Acta Entomol. Sin. 2019, 62, 255–262. [Google Scholar] [CrossRef]
  28. Li, G.Y.; Gao, R.; He, J.; Cao, Z.; Hu, Z.Q.; Hu, X.S.; Zhao, H.Y. Effect of high-voltage electrostatic field (HVEF) on the growth and fecundity of Sitobion avenae Fabricius (Hemiptera: Aphididae). Acta Ecol. Sin. 2016, 36, 3987–3994. [Google Scholar]
  29. Luo, K.; Cao, Z.; Gao, R.; He, J.; Li, G.Y.; Gao, H.H.; Zhang, G.S.; Zhao, H.Y. Direct exposure of wheat seeds to high-voltage electrostatic fields adversely affects the performance of Sitobion avenae (Hemiptera: Aphididae). J. Econ. Entomol. 2016, 109, 2418–2423. [Google Scholar] [CrossRef]
  30. Marchioro, C.A.; Foerster, L.A. Development and survival of the diamondback moth, Plutella xylostella (L.) (Lepidoptera: Yponomeutidae) as a function of temperature: Effect on the number of generations in tropical and subtropical regions. Neotrop. Entomol. 2011, 40, 533–541. [Google Scholar]
  31. Zheng, Z.S.; Xing, K.; Zhao, F.; Wang, J.M.; Wen, X.D.; Yang, F. Effects of short hot stress and its duration on longevity and fecundity of diamondback moth adults. China Plant Prot. 2015, 35, 15–20. [Google Scholar]
  32. Luo, L.Y.; Zhang, X.F.; Wei, X.Q.; Zhang, K.; Weng, Q.F. Effect of 60Co-γ radiation on inherited sterility of Plutella xylostella (Lepidoptera: Plutellidae). J. Northwest AF Univ. 2018, 46, 149–154. [Google Scholar] [CrossRef]
  33. Li, X.; Zhang, K.; Deng, Y.K.; He, R.K.; Zhang, X.F.; Zhong, G.H.; Hu, Q.B.; Weng, Q.F. Effects of 60Co-γ radiation on testis physiological aspects of Plutella xylostella (Linnaeus). Ecotoxicol. Environ. Saf. 2019, 169, 937–943. [Google Scholar] [CrossRef] [PubMed]
  34. Kim, H.; Seunghwan, L.; Yikweon, J. Macroevolutionary patterns in the Aphidini Aphids (Hemiptera: Aphididae): Diversification, host association, and biogeographic origins. PLoS ONE 2011, 6, e24749. [Google Scholar] [CrossRef]
  35. Hori, T.; Inoue, N.; Suzuki, H.; Harakawa, S. Exposure to 50 Hz electric fields reduces stress-induced glucocorticoid levels in BALB/c mice in a kV/m- and duration-dependent manner. Bioelectromagnetics 2015, 36, 302–308. [Google Scholar] [CrossRef] [PubMed]
  36. Kim, E.; Park, J.; Noh, G.; Park, S.; Noh, K.; Kwon, I.; Ahn, S. Effects of moderate intensity static magnetic fields on osteoclastic differentiation in mouse bone marrow cells. Bioelectromagnetics 2018, 39, 394–404. [Google Scholar] [CrossRef] [PubMed]
  37. Wang, D.; Wang, Z.; Zhang, L.; Li, Z.; Tian, X.; Fang, J.; Lu, Q.; Zhang, X. Cellular ATP levels are affected by moderate and strong static magnetic fields. Bioelectromagnetics 2018, 39, 352–360. [Google Scholar] [CrossRef]
  38. Hu, L.F.; Qian, A.R.; Yang, P.F.; Zhang, W.; Xie, L.; Shang, P. Effects of moderate static magnetic field on cell proliferation and cell cycle of leukem ia cells. J. Fourth Mil. Med. Univ. 2009, 30, 397–400. [Google Scholar] [CrossRef]
  39. Cunha, C.; Panseri, S.; Marcacci, M.; Tampieri, A. Evaluation of the effects of a moderate intensity static magnetic field application on human Osteoblast-Like cells. Am. J. Biomed. Eng. 2012, 2, 263–268. [Google Scholar] [CrossRef] [Green Version]
  40. Hu, J.F.; Chen, J.; Wang, Y.G.; Du, H.L. Optimization of condition for improving sorghum seed vigor by high voltage electric field. Trans. CSAE 2015, 31, 253–259. [Google Scholar] [CrossRef]
  41. Gruijl, F.; Longstreth, A.J.; Norval, B.M.; Cullen, C.; Slaper, D.H. Health effects from stratospheric ozone depletion and interactions with climate change. Photochem. Photobiol. Sci. 2003, 2, 16–28. [Google Scholar] [CrossRef]
  42. Zhaorigetu, S.; Yanaka, N.; Sasaki, M.; Watanabe, H.; Kato, N. Inhibitory effects of silk protein, sericin on UVB-induced acute damage and tumor promotion by reducing oxidative stress in the skin of hairless mouse. J. Photochem. Photobiol. B Biol. 2003, 71, 11–17. [Google Scholar] [CrossRef] [PubMed]
  43. Meng, J.Y.; Zhang, C.Y.; Lei, C.L. A proteomic analysis of Helicoverpa armigera adults after exposure to UV light irradiation. J. Insect Physiol. 2010, 56, 405–411. [Google Scholar] [CrossRef] [PubMed]
  44. Ute, W.; Esser, P.R.; Birgit, S.H.; Martin, S.F.; Jürgen, L.; Schempp, C.M. UVB-induced DNA damage, generation of reactive oxygen species, and inflammation are effectively attenuated by the flavonoid luteolin in vitro and in vivo. Free. Radic. Biol. Med. 2015, 50, 1081–1093. [Google Scholar] [CrossRef]
  45. Packer, L.; Wirtz, K.W.A. Signalling Mechanisms—from Transcription Factors to Oxidative Stress; Springer: Berlin/Heidelberg, Germany, 1995. [Google Scholar]
  46. Wang, M.L.; Zhu, W.; Zhang, J.H.; Xu, A.; Wang, H.T.; Li, X.; Zhou, G.L.; Zhang, H.; Qin, Q.L. Oxidative damage is one of the most important causes of death of Thitarodes xiaojinensis (Lepidoptera: Hepialidae) larvae under heat stress. Acta Entomol. Sin. 2014, 57, 769–776. [Google Scholar] [CrossRef]
  47. Nguyen, T.; Michaud, D.; Cloutier, C. A proteomic analysis of the aphid Macrosiphum euphorbiae under heat and radiation stress. Insect Biochem. Mol. Biol. 2009, 39, 20–30. [Google Scholar] [CrossRef]
  48. Dharshini, L.C.P.; Vishnupriya, S.; Sakthivel, K.M.; Rasmi, R.R. Oxidative stress responsive transcription factors in cellular signalling transduction mechanisms. Cell. Signal. 2020, 72, 109670. [Google Scholar] [CrossRef]
  49. Blagojevi, D.P.; Grubor-Laji, G. Multifunctionality of antioxidant system in insects. Arch. Biol. Sci. 2000, 52, 185–194. [Google Scholar]
  50. Ray, G.; Batra, S.; Shukla, N.K.; Suryanarayan, D.; Raina, V.; Ashok, S.; Husain, S.A. Lipid peroxidation, free radical production and antioxidant status in breast cancer. Breast Cancer Res. Treat. 2000, 59, 163–170. [Google Scholar] [CrossRef]
  51. Li, X.; Luo, L.; Karthi, S.; Zhang, K.; Luo, J.J.; Hu, Q.B.; Weng, Q.F. Effects of 200 Gy 60Co-γ radiation on the regulation of antioxidant enzymes, Hsp70 genes, and serum molecules of Plutella xylostella (Linnaeus). Molecules 2018, 23, 1011. [Google Scholar] [CrossRef] [Green Version]
  52. Xia, X.F.; Lin, H.L.; Zheng, D.D.; Guang, Y.; Sheng, Y.M. Identification and expression patterns of heat shock protein genes in the diamondback moth, Plutella xylostella (Lepidoptera: Yponomeutidae). Acta Entomol. Sin. 2013, 56, 457–464. [Google Scholar] [CrossRef]
  53. Alkhedir, H.; Karlovsky, P.; Mashaly, M.A.A.; Vidal, S. Phylogenetic relationships of the symbiotic bacteria in the aphid Sitobion avenae (Hemiptera: Aphididae). Environ. Entomol. 2015, 44, 1358–1366. [Google Scholar] [CrossRef] [PubMed]
  54. Luo, C.; Luo, K.; Meng, L.Q.; Wan, B.; Zhao, H.Y.; Hu, Z.Q. Ecological impact of a secondary bacterial symbiont on the clones of Sitobion avenae (Fabricius) (Hemiptera: Aphididae). Sci. Rep. 2017, 7, 40754. [Google Scholar] [CrossRef] [Green Version]
  55. Yang, C.; Meng, J.Y.; Su, L.; Zhang, C.Y. Cloning of heat shock protein gene MpHsp70 and its expression analysis under UV-B stress in Myzus persicae (Hemiptera: Aphididae). Acta Entomol. Sin. 2019, 62, 133–140. [Google Scholar] [CrossRef]
  56. Ding, C.Y.; Zhao, L.; Liu, S.; Li, M.Y. Molecular characterization of heat shock protein 70 (HSP70) genes from Pieris rapae (Lepidoptera: Pieridae) and their responses to insecticide stress. Acta Entomol. Sin. 2021, 64, 1407–1416. [Google Scholar] [CrossRef]
  57. Liu, F.; Meng, J.Y.; Su, L.; Zhang, C.Y. Cloning of the vitellogenin receptor gene and its expression under UV-A stress in Ostrinia furnacalis. Chin. J. Appl. Entomol. 2021, 58, 96–107. [Google Scholar]
  58. Seal, J.R.; Havrilla, C.M.; Porter, N.A.; Hachey, D.L. Analysis of unsaturated compounds by Ag+ coordination ionspray mass spectrometry: Studies of the formation of the Ag+/lipid complex. J. Am. Soc. Mass Spectrom. 2003, 14, 872–880. [Google Scholar] [CrossRef] [Green Version]
  59. Wang, Z.J.; Niu, C.Y. Influence of ultraviolet light irradiation on HMG-CoA reductase, vitellogenin mRNA expression and oviposition of Helicoverpa armigera. J. Huazhong Agric. Univ. 2014, 33, 46–50. [Google Scholar] [CrossRef]

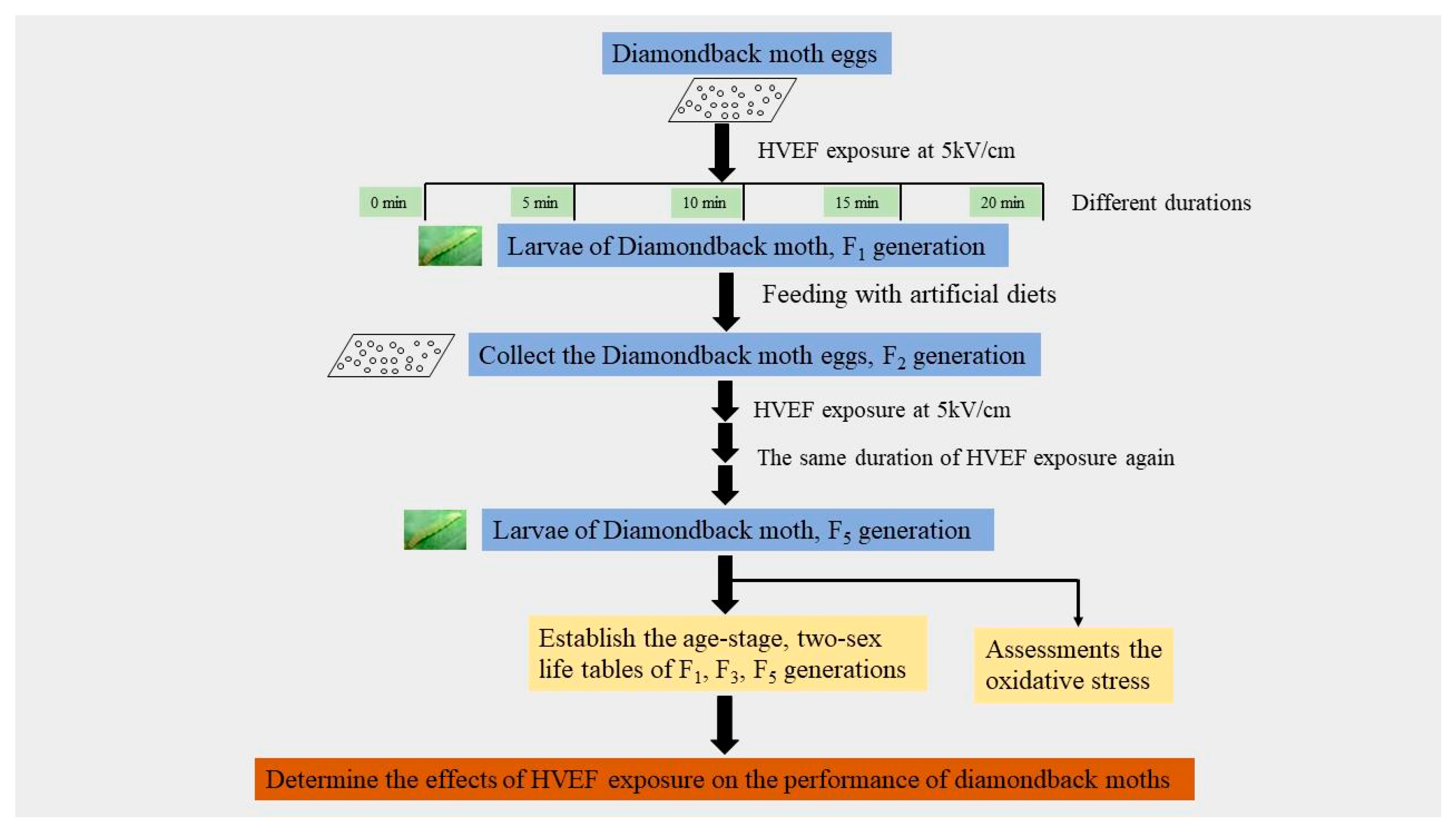

Figure 1. Experimental design for investigating suppression of P. xylostella performance over five generations, in response to direct exposure of eggs to HVEF at 5 kV/cm for different durations. The blue rectangles represent the different stages and generations of P. xylostella concerned in this study. F1 to F5 generation represent the first to the fifth generation of P. xylostella. The golden yellow rectangles represent the methods that employed into this study. The orange rectangles represent the main purpose of this study.
Figure 1. Experimental design for investigating suppression of P. xylostella performance over five generations, in response to direct exposure of eggs to HVEF at 5 kV/cm for different durations. The blue rectangles represent the different stages and generations of P. xylostella concerned in this study. F1 to F5 generation represent the first to the fifth generation of P. xylostella. The golden yellow rectangles represent the methods that employed into this study. The orange rectangles represent the main purpose of this study.
Agronomy 13 01008 g001

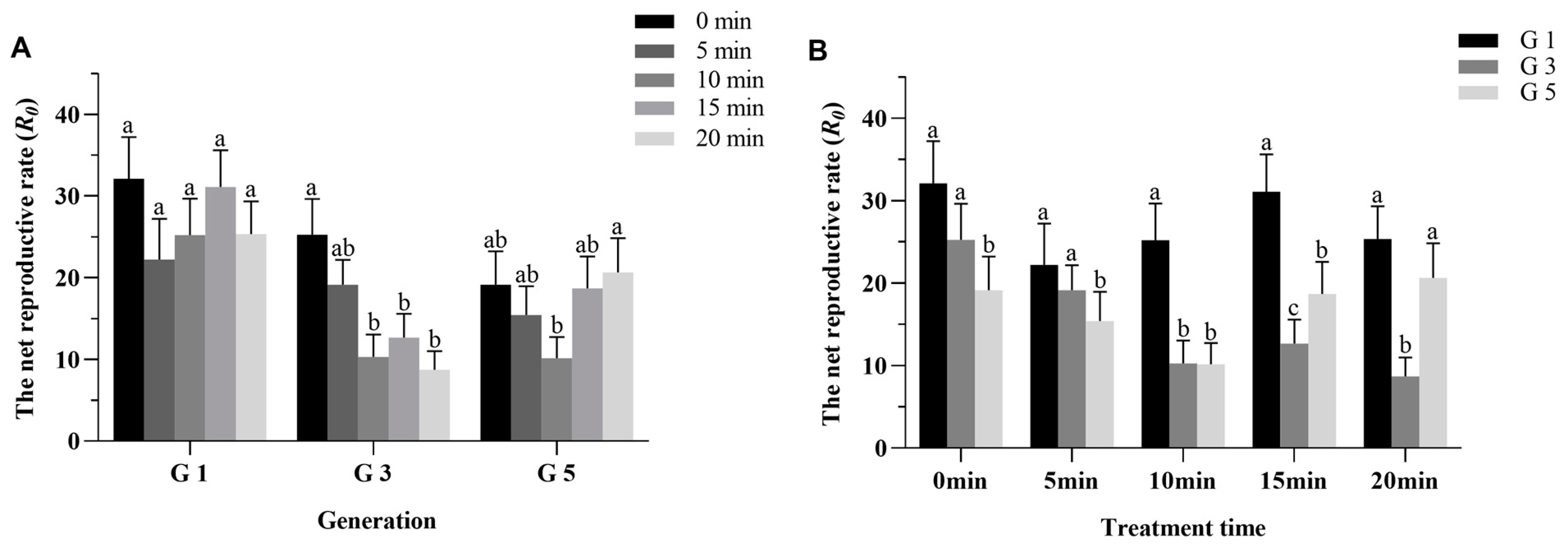

Figure 2. Net reproductive rate (R0) of the first, third, and fifth generations of P. xylostella under HVEF stress. Note: Values are expressed as mean ± standard error (SE). (A) The different lowercase letters indicates a significant difference at p < 0.05 between generations for groups exposed to electrostatic fields (0, 5, 10, 15, and 20 min). (B) The different lowercase letters indicates significant differences at p < 0.05 between treatments for 3 generations (G1, G3, and G5). Differences were compared using the paired bootstrap test.
Figure 2. Net reproductive rate (R0) of the first, third, and fifth generations of P. xylostella under HVEF stress. Note: Values are expressed as mean ± standard error (SE). (A) The different lowercase letters indicates a significant difference at p < 0.05 between generations for groups exposed to electrostatic fields (0, 5, 10, 15, and 20 min). (B) The different lowercase letters indicates significant differences at p < 0.05 between treatments for 3 generations (G1, G3, and G5). Differences were compared using the paired bootstrap test.
Agronomy 13 01008 g002

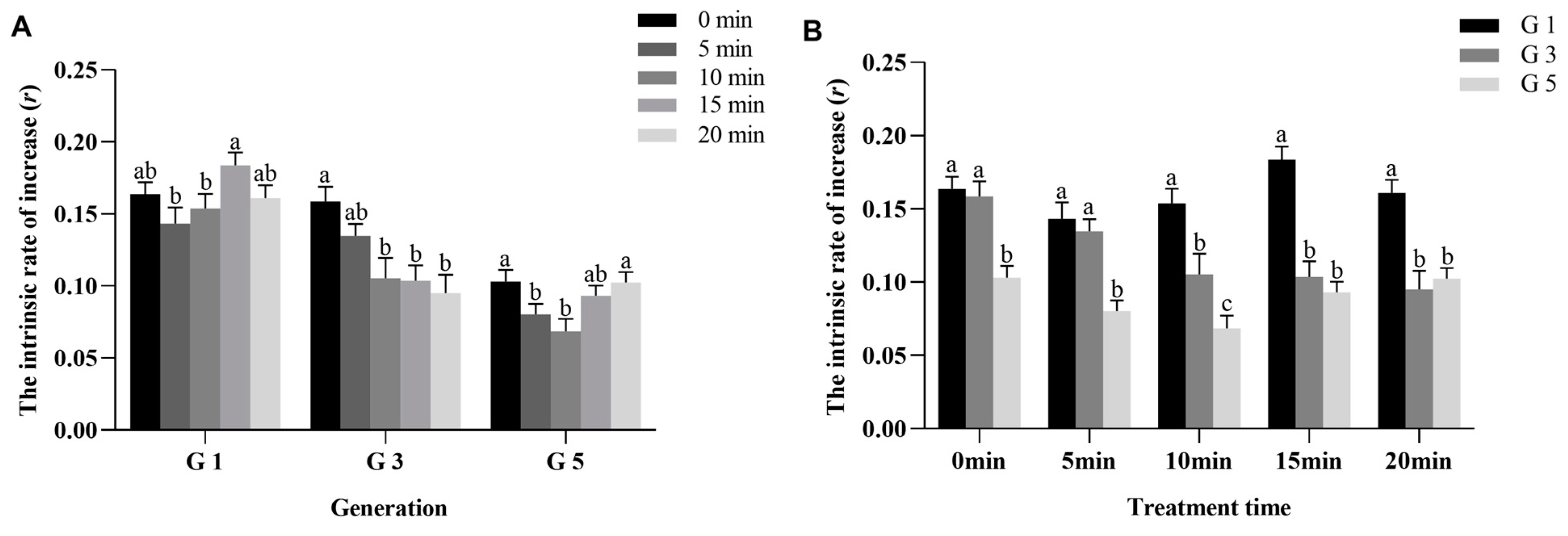

Figure 3. Intrinsic natural increase rate (r) of the first, third, and fifth generations of P. xylostella under HVEF stress. Note: Values are expressed as mean ± standard error (SE). (A) The different lowercase letters indicates a significant difference at p < 0.05 between generations for groups exposed to electrostatic fields (0, 5, 10, 15, and 20 min). (B) The different lowercase letters indicates significant differences at p < 0.05 between treatments for 3 generations (G1, G3, and G5). Differences were compared using the paired bootstrap test.
Figure 3. Intrinsic natural increase rate (r) of the first, third, and fifth generations of P. xylostella under HVEF stress. Note: Values are expressed as mean ± standard error (SE). (A) The different lowercase letters indicates a significant difference at p < 0.05 between generations for groups exposed to electrostatic fields (0, 5, 10, 15, and 20 min). (B) The different lowercase letters indicates significant differences at p < 0.05 between treatments for 3 generations (G1, G3, and G5). Differences were compared using the paired bootstrap test.
Agronomy 13 01008 g003

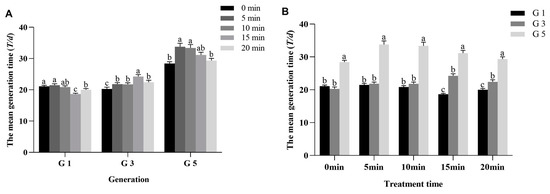

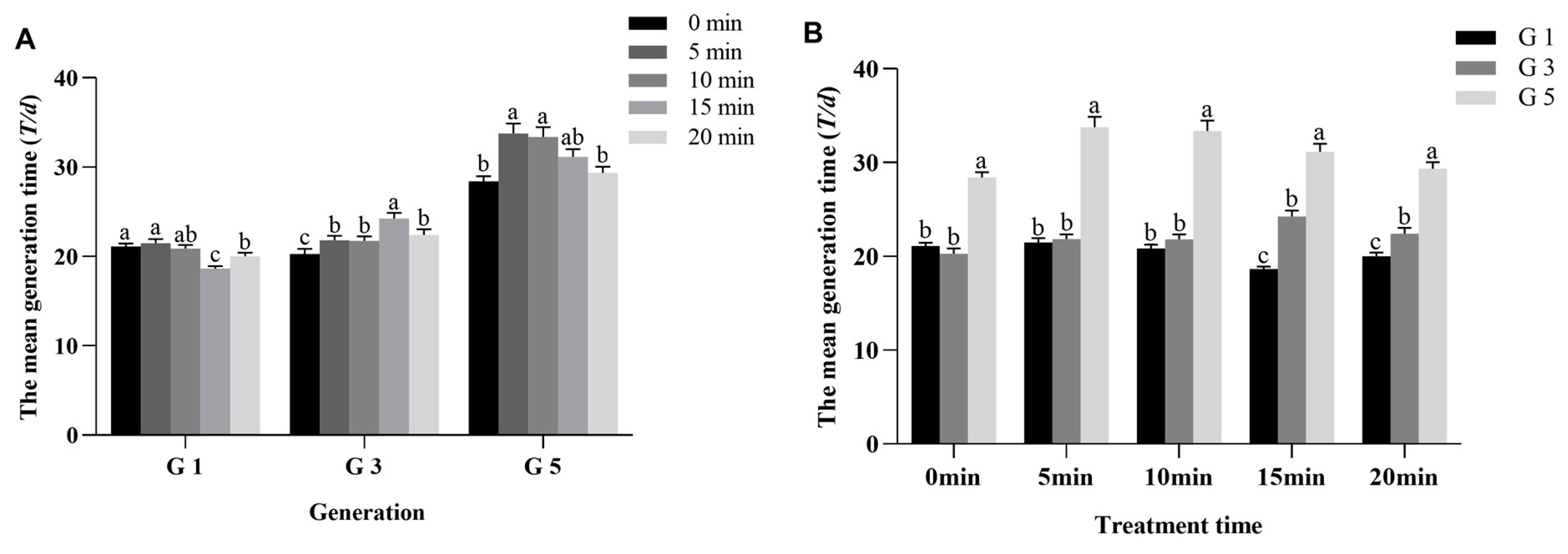

Figure 4. Mean generation time (T) of the first, third, and fifth generations of P. xylostella eggs in 5 successive generations after HVEF treatment. Values are expressed as mean ± standard error (SE). (A) The different lowercase letters indicates a significant difference at p < 0.05 between generations for groups exposed to electrostatic fields (0, 5, 10, 15, and 20 min). (B) The different lowercase letters indicates significant differences at p < 0.05 between treatments for 3 generations (G1, G3, and G5). Differences were compared using the paired bootstrap test.
Figure 4. Mean generation time (T) of the first, third, and fifth generations of P. xylostella eggs in 5 successive generations after HVEF treatment. Values are expressed as mean ± standard error (SE). (A) The different lowercase letters indicates a significant difference at p < 0.05 between generations for groups exposed to electrostatic fields (0, 5, 10, 15, and 20 min). (B) The different lowercase letters indicates significant differences at p < 0.05 between treatments for 3 generations (G1, G3, and G5). Differences were compared using the paired bootstrap test.
Agronomy 13 01008 g004

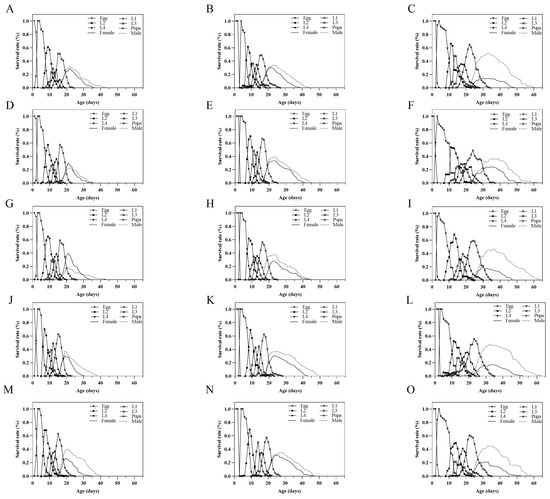

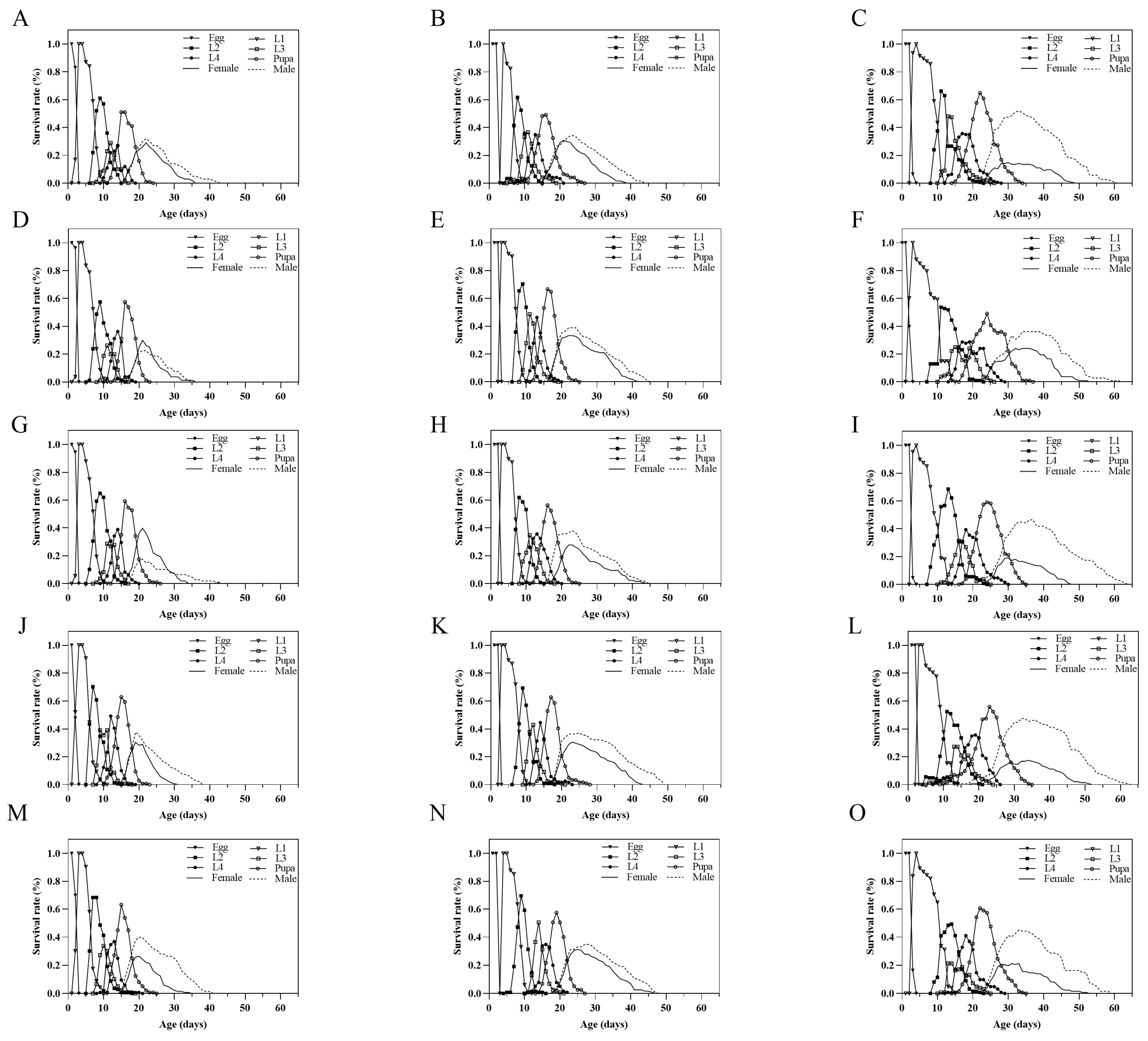

Figure 5. Age-specific survival rates (lx) at each life stage of the first, third, and fifth generations of P. xylostella, with 5 consecutive generations treated with HVEF at 5.0 kV/cm for 0, 5, 10, 15, and 20 min. For each generation, the control group received 0 min of treatment. (A,D,G,J,M) The first column represents the survival rate of each stage at 0, 5, 10, 15, and 20 min for the first generation. (B,E,H,K,N) The second column represents the survival rate with each treatment time for the third generation. (C,F,I,L,O) The last column represents the survival rate of the fifth generation after HVEF stress at each stage.
Figure 5. Age-specific survival rates (lx) at each life stage of the first, third, and fifth generations of P. xylostella, with 5 consecutive generations treated with HVEF at 5.0 kV/cm for 0, 5, 10, 15, and 20 min. For each generation, the control group received 0 min of treatment. (A,D,G,J,M) The first column represents the survival rate of each stage at 0, 5, 10, 15, and 20 min for the first generation. (B,E,H,K,N) The second column represents the survival rate with each treatment time for the third generation. (C,F,I,L,O) The last column represents the survival rate of the fifth generation after HVEF stress at each stage.
Agronomy 13 01008 g005

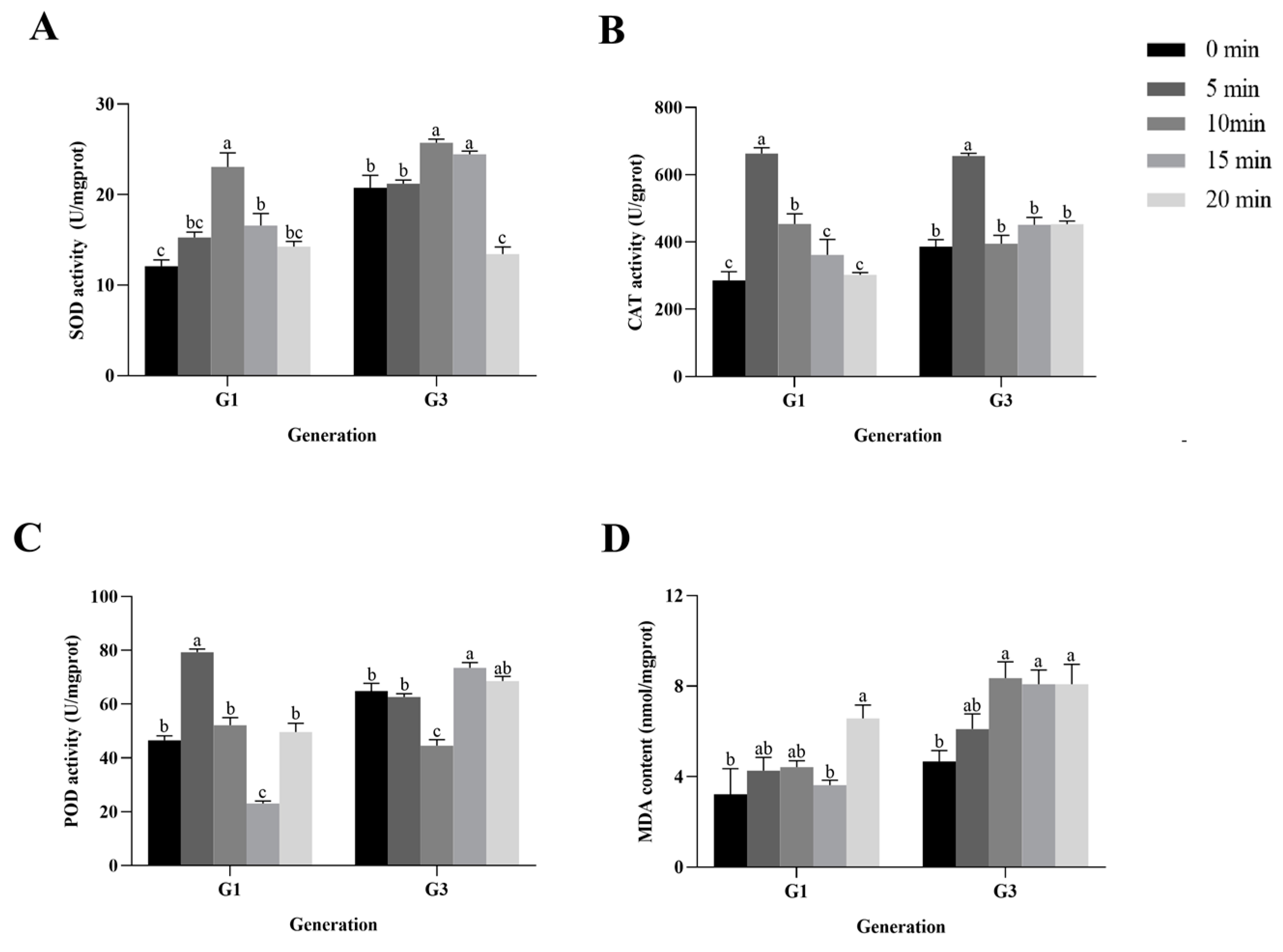

Figure 6. Effects of different durations of HVEF exposure on antioxidative enzyme activity and malondialdehyde levels of fourth-instar P. xylostella. Values are expressed as mean ± standard error (SE). (A) Superoxide dismutase (SOD), (B) catalase (CAT), (C) peroxidase (POD), (D) malondialdehyde (MDA). Different lowercase letters indicate significant differences (p < 0.05).
Figure 6. Effects of different durations of HVEF exposure on antioxidative enzyme activity and malondialdehyde levels of fourth-instar P. xylostella. Values are expressed as mean ± standard error (SE). (A) Superoxide dismutase (SOD), (B) catalase (CAT), (C) peroxidase (POD), (D) malondialdehyde (MDA). Different lowercase letters indicate significant differences (p < 0.05).
Agronomy 13 01008 g006

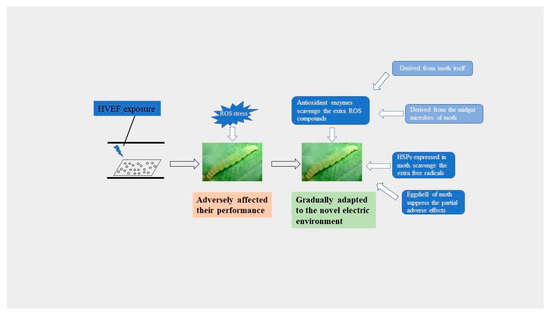

Figure 7. Proposed alterations in P. xylostella after exposure to HVEF stress based on findings obtained in or deduced from this study. Solid arrows represent pathways supported by experimental evidence from the present study; dotted arrows represent potential physiological alterations predicted from the literature.
Figure 7. Proposed alterations in P. xylostella after exposure to HVEF stress based on findings obtained in or deduced from this study. Solid arrows represent pathways supported by experimental evidence from the present study; dotted arrows represent potential physiological alterations predicted from the literature.
Agronomy 13 01008 g007
Table 1. λ and dt parameters of P. xylostella for each generation under HVEF at an intensity of 5.0 kV/cm for different durations.
Table 1. λ and dt parameters of P. xylostella for each generation under HVEF at an intensity of 5.0 kV/cm for different durations.
StatisticGeneration0 min5 min10 min15 min20 min
λG11.180 ± 0.006 bXY1.164 ± 0.009 bX1.192 ± 0.011 aX1.223 ± 0.004 abX1.190 ± 0.013 abX
G31.208 ± 0.011 aX1.178 ± 0.001 bX1.160 ± 0.009 bY1.155 ± 0.007 bY1.121 ± 0.009 cY
G51.156 ± 0.010 aY1.104 ± 0.003 bY1.092 ± 0.005 bZ1.137 ± 0.008 aY1.139 ± 0.008 aY
dtG14.191 ± 0.116 abXY4.600 ± 0.237 aY3.974 ± 0.212 abY3.450 ± 0.053 bY4.025 ± 0.280 abY
G33.686 ± 0.167 cY4.230 ± 0.024 bcY4.706 ± 0.236 bY4.832 ± 0.201 bX6.101 ± 0.388 aX
G54.819 ± 0.284 bX7.014 ± 0.196 aX7.944 ± 0.417 aX5.415 ± 0.286 bX5.341 ± 0.277 bX
Note: λ and dt represent the finite rate of increase and population doubling time, respectively. Values are expressed as mean ± standard error (SE). SE was estimated by using the bootstrap technique with 100,000 resamplings. Means followed by letters a–c in the same row are significantly different between treatment times in the same generation, according to paired bootstrap tests based on confidence intervals of differences at the 5% significance level, while letters X–Z indicate significant differences between generations (G1, G3, and G5) for the same HVEF duration.
Table 2. Fecundity parameters of each generation under different treatment times.
Table 2. Fecundity parameters of each generation under different treatment times.
GenerationTreatment Time (min)Adult Preoviposition Period (APOP) (d)Oviposition Period (OP) (d)Oviposition Days (OD) (d) Eggs per Day during Oviposition PeriodFecundity per Female
G100.77 ± 0.184 aX5.66 ± 0.502 aY5.23 ± 0.440 aX18.866 ± 1.680 abX91.714 ± 7.650 aX
51.19 ± 0.184 aX4.83 ± 0.557 aZ4.25 ± 0.501 aY16.550 ± 2.272 abX74.125 ± 10.856 abX
101.13 ± 0.229 aY4.30 ± 0.379 aY3.83 ± 0.335 aY13.339 ± 1.715 bX57.957 ± 8.162 bX
151.24 ± 0.297 aY4.51 ± 0.330 aZ4.09 ± 0.291 aY22.432 ± 2.099 aX95.378 ± 7.606 aX
201.04 ± 0.217 aX5.12 ± 0.435 aY5.23 ± 0.440 aX18.145 ± 1.613 abX84.049 ± 7.580 abX
G301.42 ± 0.433 aX6.36 ± 0.526 aY5.28 ± 0.457 aX13.504 ± 1.281 aY84.167 ± 8.912 aX
52.09 ± 0.401 aX7.84 ± 0.709 aY5.98 ± 0.504 aXY10.156 ± 1.141 abY68.911 ± 6.734 abX
102.22 ± 0.462 aXY5.70 ± 0.658 aY4.91 ± 0.579 aXY9.140 ± 1.329 abX56.348 ± 10.946 abX
152.52 ± 0.862 aX7.52 ± 0.996 aY5.87 ± 0.695 aX11.087 ± 2.087 abY66.565 ± 9.159 abX
201.82 ± 0.440 aX5.73 ± 0.715 aXY4.64 ± 0.605 aX7.608 ± 0.885 bZ45.591 ± 8.294 bY
G500.25 ± 0.083 bX8.36 ± 0.853 aX6.57 ± 0.791 aX13.253 ± 1.609 aY105.143 ± 13.774 aX
51.33 ± 0.211 bX10.52 ± 1.133 aX7.24 ± 0.828 aX8.446 ± 0.857 aY79.476 ± 9.600 aX
102.95 ± 0.671 aX7.50 ± 0.947 aX5.70 ± 0.758 aX8.688 ± 1.256 aX64.500 ± 9.876 aX
150.60 ± 0.212 bY9.77 ± 0.956 aX7.27 ± 0.733 aX9.467 ± 1.369 aY89.000 ± 12.100 aX
201.55 ± 0.652 bX7.4 ± 0.868 aX6.21 ± 0.609 aX12.240 ± 1.280 aY87.000 ± 10.787 aX
Note: Values are expressed as mean ± standard error (SE). SE was estimated using the bootstrap technique with 100,000 resamplings. Means followed by letters a–c in the same row were significantly different between treatment times in the same generation according to the paired bootstrap test, which is based on a confidence interval of differences at the 5% significance level, while letters X–Z indicate significant differences between generations (G1, G3, and G5) for the same HVEF duration.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jia, L.; Xu, S.; Shang, H.; Guo, J.; Yan, X.; Liu, C.; Li, G.; Luo, K. High-Voltage Electrostatic Fields Adversely Affect the Performance of Diamondback Moths over Five Consecutive Generations. Agronomy 2023, 13, 1008. https://doi.org/10.3390/agronomy13041008

AMA Style

Jia L, Xu S, Shang H, Guo J, Yan X, Liu C, Li G, Luo K. High-Voltage Electrostatic Fields Adversely Affect the Performance of Diamondback Moths over Five Consecutive Generations. Agronomy. 2023; 13(4):1008. https://doi.org/10.3390/agronomy13041008

Chicago/Turabian Style

Jia, Li, Shicai Xu, Huanzhang Shang, Jiao Guo, Xia Yan, Changhai Liu, Guangwei Li, and Kun Luo. 2023. "High-Voltage Electrostatic Fields Adversely Affect the Performance of Diamondback Moths over Five Consecutive Generations" Agronomy 13, no. 4: 1008. https://doi.org/10.3390/agronomy13041008

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
