Genetic Diversity and Population Structure of Serbian Barley (Hordeum vulgare L.) Collection during a 40-Year Long Breeding Period

Ljiljana Brbaklić
Dragana Trkulja
Sanja Mikić
Milan Mirosavljević
Vojislava Momčilović
Branislav Dudić
Lenka Procházková
2 and
Vladimir Aćin
Institute of Field and Vegetable Crops, Maksima Gorkog 30, 21000 Novi Sad, Serbia
Faculty of Management, Comenius University in Bratislava, 82005 Bratislava, Slovakia
Faculty of Economics and Engineering Management, University Business Academy, 21000 Novi Sad, Serbia
Authors to whom correspondence should be addressed.
Agronomy 2021, 11(1), 118;
Submission received: 8 November 2020 / Revised: 30 December 2020 / Accepted: 7 January 2021 / Published: 9 January 2021


Determination of genetic diversity and population structure of breeding material is an important prerequisite for discovering novel and valuable alleles aimed at crop improvement. This study’s main objective was to characterize genetic diversity and population structure of a collection representing a 40-year long historical period of barley (Hordeum vulgare L.) breeding, using microsatellites, pedigree, and phenotypic data. The set of 90 barley genotypes was phenotyped during three growing seasons and genotyped with 338 polymorphic alleles. The indicators of genetic diversity showed differentiation changes throughout the breeding periods. The population structure discriminated the breeding material into three distinctive groups. The principal coordinate analysis grouped the genotypes according to their growth habit and row type. An analysis of phenotypic variance (ANOVA) showed that almost all investigated traits varied significantly between row types, seasons, and breeding periods. A positive effect on yield progress during the 40-year long breeding period could be partly attributed to breeding for shorter plants, which reduced lodging and thus provided higher yield stability. The breeding material revealed a considerable diversity level based on microsatellite and phenotypic data without a tendency of genetic erosion throughout the breeding history and implied dynamic changes in genetic backgrounds, providing a great gene pool suitable for further barley improvement.

1. Introduction

Cultivated barley (Hordeum vulgare L.) is one of the most important crops, ranking as the fourth most produced cereal, after wheat, maize, and rice. It is one of the most adapted crops to an exceptionally wide range of diverse environmental conditions, grown in more than 100 countries worldwide [1]. A recent stagnation of barley production in Europe has primarily been caused by climate change, socio-economic reasons, and agronomic reasons. Unchanged barley production could be a result of a 15% decline in area, offset by moderate yield growth and increased yield variability ( Some of these trends over Europe may have been caused by recent climate changes. Nevertheless, it is unlikely that the barley production has reached its maximum genetic yield potential. However, the frequent use of narrow genetic pools in breeding programs could aggravate this phenomenon.
Plant breeding is based on the effective shuffling of genetic variation aimed at generating new and improved combinations of alleles, and assembling them in a single superior genetic background. A sufficient level of genetic diversity is a critical component in successful breeding programs. Nonetheless, modern intensive plant breeding practices led to a reduction of genetic diversity and formation of a genetic bottleneck as a consequence of relatively narrow germplasm pools used throughout breeding processes [2]. Aside from modern breeding, the long-term domestication history also greatly impacted the trend of the loss of genetic diversity [3]. This huge decrement of genetic variability could hinder breeding endeavors in coping with current and future challenges of biotic and abiotic stresses [4].
Numerous studies revealed different levels of genetic diversity in accessions from various geographic origins [5,6,7,8,9,10]. A considerably higher level of genetic diversity and the number of haplotypes was found in wild barley accessions and landraces compared to present-day cultivated barley genotypes [11,12,13]. The level of genetic diversity considering allelic richness, gene diversity, and percentage of unique alleles in cultivated barley genotypes ranged from very low in regions of Europe [14] to extremely high compared to other continents [7,15,16]. In addition, barley genotypes can be divided into groups according to the spike morphology, intended use, and seasonal growth habit, which is the result of strong selection for different target traits such as yield, malting quality, resistance to diseases, and tolerance to abiotic stresses [17,18]. The factors with the largest effects on population structure in plants were determined as mutations, human and/or environmental selection, genetic drift, mating system, and growth habit [19]. In the case of barley, these factors were manifested in a mutation of an ancestral wild-type two-rowed barley resulting in a recessive six-rowed type after domestication [20], geographical segregation and separate breeding of the two- and six-rowed types, and their adaptation to different environments leading to differentiation of the spring and winter forms [21].
The knowledge of allelic composition of parental lines could facilitate breeding for certain agroclimatic regions [10]. Among various methods based on morphological, physiological, and biochemical information in the last decades, DNA-based markers are routinely used for detection of polymorphism, marker-assisted selection, fingerprinting, diversity studies, and many other molecular and genetic analyses [22]. The level of genetic diversity can be estimated with pedigree data; however, one of its major deficiencies is a lack of reliability of pedigree information due to insufficient, faulty, or incorrect data in the available literature. Assessment of genetic diversity directly on the DNA level by estimation of the proportion of alleles identical by state [19] could be of great assistance during the transfer of desired combinations of disease resistance, quality, or yield-related traits into the existent modern genotypes [23]. After several decades of applying molecular markers in different genetic studies, microsatellites are still being used for crop improvement in breeding programs due to their high levels of polymorphisms, codominant and multiallelic nature, an unambiguous designation of alleles, relative assay simplicity, high reproducibility, and stability [21,22,24,25]. The value of simple sequence repeats (SSRs), as a powerful means for genome mapping, variety identification, and genetic analyses in barley breeding, has been highlighted in many studies [6,7,8,23,26,27,28]. Estimation of genetic diversity by SSR markers associated with specific traits may reveal the real effects of selection during modern breeding compared to detecting polymorphism in non-coding genomic regions [29,30]. The discovery of highly sophisticated breeding tools and access to a broad genetic diversity of barley are two main cornerstones for increasing gain from selection and will probably remain the major key factors for further breeding progress.
Although the presence of valuable genetic diversity in breeding material is one of the main prerequisites for creation of superior yield varieties with high-quality characteristics, limited information is available on genetic diversity of barley genotypes from central and southeast Europe that are widely used in Serbian breeding programs, and it is mostly based on morphological and physiological traits. The use of these genetic resources in barley breeding started more than 70 years ago with collecting local landraces, followed by the introduction of foreign varieties well-adapted to the local agroecological conditions and development of modern varieties [31]. In addition to the considerable achievements during barley breeding history, better insight into genetic diversity on a phenotypic and, especially, on a molecular level is crucial for further breeding improvements.
The main aims of this study are to determine genetic diversity and population structure of a representative barley germplasm using SSR markers, pedigree, and phenotypic data, to compare genetic diversity of three main historical breeding periods, including the diversity between different groups of varieties, and to validate the suitability of the collection for further quantitative trait studies.

2. Materials and Methods

The barley collection of the Institute of Field and Vegetable Crops (IFVCNS) in Novi Sad, Serbia, comprises more than 700 winter and 400 spring barley varieties and elite breeding lines. From this collection, a core set of representative 90 genotypes, originating from Bulgaria, Czech Republic, Croatia, France, Germany, Hungary, Romania, and Serbia, was selected based on their row type, seasonal growth habit, and good adaptability to environmental conditions of central and southeastern Europe, for phenotypic and molecular characterization. All the genetic materials were obtained from the IFVCNS collection, which were adapted to wide geographical regions across the country (Table 1). This representative panel consisted of varieties released from the early 1970s until 2012. The spring barley varieties NS Vujan, NS Marko, and NS Mile were included in the field trials in 2011 and 2012 as experimental lines, before their official release in fall 2012. Based on growth habit and row type, the panel represented 36 winter two-rowed, 35 winter six-rowed, and 19 spring two-rowed barley genotypes. The spring six-rowed genotypes were not represented in the panel. The lack of industrial need for the spring six-rowed barley in this part of southeast Europe has led to its absence on the market and subsequently in breeding programs and commercial production.
For molecular analyses, total genomic DNA was extracted from a young leaf seedling of each of the 90 genotypes using a modified Cetyl trimethylammonium bromide (CTAB) method [32]. PCR amplifications were performed according to the protocol outlined by Röder et al. [33]. Fifty SSR markers with their primers and annealing temperatures were obtained from the GrainGenes database (Table S1). The selection of markers was made based on their associations with important agronomic traits and their even distribution along all seven chromosomes: 1H (7), 2H (8), 3H (6), 4H (7), 5H (7), 6H (7), and 7H (8). PCR was performed in a reaction mixture of 10 µL containing 30 ng of template DNA, 1 × PCR buffer, 2 mM MgCl2, 0.2 mM of each deoxynucleotide, 5 pmol of each fluorescently labelled forward and unlabeled reverse primers, and 1 unit of Taq polymerase (Applied Biosystems, Foster City, CA, USA). The amplification protocol included initial denaturation step, 5 min at 94 °C, followed by 35 cycles with 30 s at 94 °C, 45 s at annealing temperature (55, 58, 60 or 62 °C) and an extension for 45 s at 72 °C, with a final extension step of 10 min at 72 °C. After PCR procedure optimization, the obtained products were determined using fragment analysis on Genetic Analyzer 3130 (Applied Biosystems, Foster City, CA, USA) and analyzed in Gene Mapper software version 4.0 (Applied Biosystems, Foster City, CA, USA). The reaction volume of 10 µL consisted of 2 µL of mixed differently-labelled PCR products, 0.2 µL GeneScan 500 LIZ as a size standard and 7.8 µL of Hi-Di. For each microsatellite and barley group, the parameters of genetic diversity were obtained in GeneAlEx software 6.5 (The Australian National University, Canberra, Australia) [34], namely, the number of detected alleles per locus, the number of effective alleles, Shannon’s information index, the number of private alleles, polymorphic information content (PIC), observed heterozygosity, unbiased expected heterozygosity, Wright fixation index, and allelic richness. The PIC value of the individual markers was used to evaluate the diversity level of each SSR marker using formula: PIC = 1 − ∑(pij)2, where pi represents frequency of jth allele for marker i. Allelic richness was calculated as the total allele count within the group divided by the group size. The number of private alleles represented the number of alleles unique to a single group.
The population structure of 90 barley genotypes was inferred by Bayesian statistics model implemented in the program Structure v.2.3.4 (Stanford University, Stanford, CA, USA) [35]. The algorithm was performed using admixture model with 10 runs for 2 to 10 assumed groups using 100,000 Markov chain repetitions after a burn-in period of 100,000 iterations. The most probable number of clusters was estimated by plotting the estimated likelihood values the Ln Pr(X|K) and by calculating the delta K (ΔK) model, as an ad hoc statistic based on the rate of change in the log probabilities between successive assumed number of groups (K) developed by Evanno et al. [36]. To determine the true number of groups that best fit the data, likelihood values across multiple values of K were compared and visualized by the software Structure harvester v.0.6.94 [37] and reported as multiple modes from Clumpak results within replicate runs for given K [38]. A cut-off limit of 50% was used to assign each genotype to an individual cluster. In order to verify the results obtained with Structure and examine the genetic relationships among the genotypes, a principal coordinate analysis (PCoA) based on molecular data was performed using covariance matrix with standardized data in the program GeneAlex 6.5 (The Australian National University, Canberra, Australia) [34], considering the whole population and the row type groups individually. An analysis of molecular variance (AMOVA) was performed on the clusters obtained in the program Structure to assess the population differentiation in the software GeneAlex 6.5 (The Australian National University, Canberra, Australia) [34].
The pedigree data were obtained from the Barley pedigree catalogue ( and from available breeders’ records (Table 1). For pedigree analysis, the coefficient of co-ancestry between genotypes was calculated using the Winkin2 program (Agriculture and Agrifood Canada, Ottawa, ON, Canada) [39] obtained from the authors upon request. The coefficient of co-ancestry was assumed to range from 0, in the absence of any degree of relatedness, to 1, which explained the maximum degree of kinship. The obtained kinship matrix was transformed into a distance matrix. The Mantel test was used to determine a correlation between the genetic similarity matrix based on SSRs and the pedigree matrix in the program GeneAlex 6.5 (The Australian National University, Canberra, Australia) [34].
The field experiment was performed at the experimental site Rimski šančevi (45°20′ N, 19°51′ E, 84 m a.s.l.), Serbia. The experimental trials were conducted in a randomized complete block design, sowing in three replications (blocks). The sowing date was conducted on 5, 8, and 10 October for winter varieties, and on 16, 8, and 20 March for spring varieties, during three growing seasons of 2010-11, 2011-12, and 2012-13, respectively. The plot size was 1 m wide and 5 m long with 0.2 m spacing between rows. The block sizes were 215 m2, 209 m2, and 113 m2, for two-rowed winter, sixed-rowed winter, and two-rowed spring barley varieties, respectively, with 1 m between each block. Eight morphological and agronomical important traits were evaluated, namely heading date (HD), flowering time (FT), stem height (SH), spike length (SL), grains number per m2 (GN), hectoliter weight (HW), thousand grain weight (TGW), and yield (YLD). Heading date and flowering time were recorded as the number of days from the seedling’s emergence until spikes emerged out of the flag leaf sheaths and the first anthers were visible, respectively, on 50% of plants on the plot. Stem height was measured from the ground to the spike base, while spike length was measured without the awns. Multivariate (MANOVA), univariate analysis of phenotypic variance (ANOVA) and Tukey’s multiple comparison test were performed in the statistical software R project [40]. Non-sample size dependent type III ANOVA was used to address the unequal number of observations in each group. The partial eta-square was used as a measure of effect size for MANOVA and ANOVA [41]. The Mantel test was used to determine the correlation between SSRs and phenotypic similarity matrices in the program GeneAlex 6.5 (The Australian National University, Canberra, Australia) [34].

3. Results

Out of 50 primer pairs used to evaluate genetic diversity of 90 varieties, 48 microsatellites produced a clear and polymorphic band pattern covering all linkage groups, while two were monomorphic. Allelic variants with allele frequencies below 1% were excluded from further analysis. The molecular diversity parameters implied a considerable variability in the barley collection. A total of 338 polymorphic alleles were detected with an average of 6.76 alleles per locus. The average number of alleles per locus ranged from 1, for locus Bmac0030 and Bmag0223, to 16, for Bmag0225 (Table S2). The chromosome 4H had the highest number of detected allelic variations. The number of effective alleles varied from 1 to 9.5, with a mean of 3.6. The Shannon’s information index was the highest in locus AWBMS56 and the lowest in locus GBM1164. Observed heterozygosity ranged from 0 to 0.067. The smallest PIC value except monomorphic loci (0.166) was observed in the locus GBM1164, while the highest PIC value (0.895) was determined in the locus AWBMS56. The average PIC was 0.625 in all analyzed loci, while only seven loci had the PIC value less than 0.5. Wright fixation index values were high, ranging from 0.868 to 1.000. The presence of null alleles was observed in two loci (Bmag0120 and Bmag0613). Structure runs were performed for K = 2 to K = 10 based on the 50 SSR data. Ln Pr(X|K) values increased sharply until K = 4, following which the increase was slow without reaching the plateau. The Clumpak identified the highest ln Pr(X|K) value for K = 9 as the most appropriate number of clusters in this collection (Figure S1). The primary division at K = 2 was observed mainly between winter (orange) and spring type (bright blue) (Figure 1). The third group (K = 3) comprised of genotypes differing in growth habit and row type marked with orange (W2R), bright blue (W6R), and purple (S2R) colors. Within K = 4, the genotypes mostly originating from France, Germany, and Hungary were separated in a distinct cluster (dark green). These genotypes were additionally divided into two new clusters generally based on the row type (K = 5). The next clusters were obtained from the spring genotypes, where varieties mostly from the third breeding period were singled out into a new sixth group (K = 6). The seventh (K = 7) emerged from the two-rowed winter group, comprising some varieties from the first breeding period. Several six-rowed varieties mostly from the second breeding period were further differentiated into a new cluster (K = 8). The ninth subcluster (K = 9) could be explained by the first, second, and third breeding periods detected in spring varieties, although the division was imprecise and not clear-cut. The results of population structure obtained with Evanno’s principal model showed that analyzed genotypes could be distributed into three separated clusters (Figure S2), which correspond to the classification based on their seasonal growth habit and row type.
The PCoA revealed genetic differentiation of the barley genotypes also into three clusters clearly divided according to their row type and growth habit (Figure 2). The first two main coordinates accounted for over 35% of total molecular variation. The first coordinate separated most of the winter two-rowed barley genotypes from the other two groups, whereas the second principal coordinate additionally split winter six-rowed barley from the spring two-rowed genotypes. The clustering of the barley genotypes by the PCoA corresponded to the groups determined by the structure analysis.
Taking into account different year of release of the analyzed varieties, three partly overlapping groups could be noticed, reflecting three different breeding periods (Figure 3). The first group consisted of 24 varieties released from 1973 to 1990. The second group comprised 28 varieties released from 1991 to 2004 and in the third group contained 38 modern genotypes developed from 2005 to 2012. The shifts in genetic diversity throughout the breeding periods could also be observed by PCoA, which showed broader genetic diversity of the genotypes that contributed to the second and the third periods in comparison to those that represented the first breeding period. The first group of genotypes released from 1970s to 1990 displayed significantly narrower molecular variability and was separated by the first coordinate from the other groups. The genotypes from the third breeding period were more distant from the barley genotypes from the first period, and the varieties from this breeding period were the most dispersed on the PCoA biplot and markedly overlapped with the second breeding period clusters.
The level of molecular diversity was compared between the groups of barley genotypes based on the historical breeding periods, the row type, and growth habit (Table 2). The highest number of alleles per locus (5.80), private alleles (1.4), unbiased expected heterozygosity (0.66), PIC value (0.65), and total number of detected alleles (290) were detected in the genotypes released in the last breeding period (2005–2012). This barley group was characterized by the highest values of all molecular diversity parameters, except for the allele richness. The varieties from the second breeding period (1991–2004) demonstrated less molecular diversity, whereas the barley varieties developed during the first breeding period (1973–1990) proved to be the least diverse.
Considering the grouping based on spike architecture and seasonal growth habit, the spring two-rowed barley manifested the highest values for all molecular diversity parameters, although this group comprised the smallest number of genotypes (Table 2). The winter two-rowed varieties were more diverse than winter six-rowed types, taking into account all diversity parameters.
The AMOVA analysis showed that 37% of the total molecular variance attributed to genetic variation among populations, the main proportion of the total molecular variation (62%) was explained by variation among individuals within the groups, while only 1% of the total variance was associated with differentiations within individuals (Table 3). Pairwise Nei genetic distances between groups ranged from 0.309 (between W2R and W6R) to 0.499 (W6R and S2R).
In order to examine the correlation between molecular and pedigrees data, the genetic distances matrices based on the microsatellite and pedigree data were compared. The comparison of SSR and pedigree distance matrices using Mantel test showed a significant and a moderately low positive correlation (r = 0.53, p < 0.001) (Figure 4a). In addition, the correlation between the molecular and phenotypic data (Figure 4b) were also positive and slightly higher (r = 0.66, p < 0.001) than the correlation between molecular and pedigrees data.
In order to test if the combination of the independent variables simultaneously explained a significant amount of variance in the dependent variables, MANOVA was performed (Table S3). The multivariate Wilk’s lambda test showed significant main effects of the season, row type, breeding period, and their interactions. Partial eta-square values were used to indicate the proportion of the variation in the dependent variables associated with the main effects and their interaction. The results showed that 50.7% and 83.7% of the variance is accounted for by the season and the row type, respectively, while the breeding period and the interactions accounted for much less.
The ANOVA for each trait separately showed that most of the investigated traits varied significantly between seasons, row types, and breeding periods (Table 4, Tables S4–S11). The effect of the season was not significant for hectoliter weight, whereas the effect of breeding period was not significant for spike length and hectoliter weight. In addition to individual main effects, the mutual interactions for most of the analyzed traits were also significant (Table 4, Tables S4–S11). The season by breeding period interaction was not significant only for spike length. The interactions between row types were not significant for plant height, spike length, and thousand grain weight. The significant season by row type by breeding period interactions were determined for all traits but spike length and thousand grain weight. For all traits, the partial eta-square values were the highest for the row type, followed by the season (Tables S4–S11).
Comparison of three groups with different row types revealed that two-rowed winter barley had earlier heading and flowering time than six-rowed types. Furthermore, the two-rowed winter group showed shorter stems, longer spikes, less grain number per m2, greater thousand grain weight, greater hectoliter weight, and greater yield than the six-rowed types. Most of the yield-related traits had the lowest values for the spring two-rowed barley group. Yield and grain number per m2 had the highest coefficients of variation ranging from 21.9% to 26.4% and from 19.3% to 28.9%, respectively. The smallest variation was observed for the heading and flowering time with coefficients of variation varying from 2.8% to 7% and from 2.9% to 7.1%, respectively (Table 4).
The varieties that belonged to different historical breeding periods significantly differed with respect to almost all of the investigated traits. The earliest heading and flowering time were observed in the third historical period for the six-rowed barley varieties, and in the second and third period for the two-rowed winter barley group. The average value of plant height significantly decreased in the last two breeding periods compared to the first period in the two- and six-rowed winter varieties. The significant increase of spike length during the breeding periods was noticed in two-rowed winter and spring barley, while the changes for the six-rowed barley over time was not detected. Both two- and six-rowed winter varieties showed an increase in grain numbers per m2 over time. Thousand grain weight significantly increased throughout the investigated historical periods, especially in the two last for all three barley groups. For both winter and spring two-rowed varieties, there was a significant increase in hectoliter weight in the third period. No significant changes of hectoliter weight over 40 years were observed for the six-rowed type. Yield, as one of the most important agronomic traits, improved significantly over time. This trend of a graduate increase was more pronounced in six-rowed winter types, with the mean values ranging from 6.7 tha−1 over 7.25 tha−1 to 7.66 tha−1. The yield was also considerably improved in the second and the third period in two-rowed winter barley, with the average values of this trait increasing from 7.09 tha−1 to 8.06 tha−1 (Table 4).

4. Discussion

Globally, the breeding of modern cereals caused a rapid decrease of genetic diversity level over time due to focused selections on targeted genes or quantitative trait loci (QTLs) [42]. Therefore, the information of the current state of genetic diversity and the level of a potential genetic reduction in European germplasm could be of great importance for barley breeding in effectively improving important traits and accurately estimating genetic relationships and diversity [43]. Gougerdchi et al. [8] emphasized the assessment of genetic diversity based on molecular markers as one of the primary and essential steps in the modern breeding strategy. Considering the significance of revealing allelic changes and population structure over time [44,45], the aim of our study was to detect changes that occurred during several decades of breeding efforts at IFVCNS. The molecular diversity parameters implied a considerable variability in our barley collection. Among 90 analyzed barley genotypes, the chosen set of 50 markers amplified 6.76 alleles per locus, with a range from 1 to 16 alleles and mean PIC of 0.62. The results were comparable with the findings of Varshney et al. [46], who reported an average PIC value of 0.58 in barley lines from six countries using 28 microsatellites. Our results also agreed with the mean PIC value of 0.57 in Brazilian genotypes obtained with 34 SSR loci [10]. In other diversity studies, mean PIC values were somewhat lower than those presented in this study, ranging from 0.28 to 0.46 [8,47,48], which could probably be due to a relatively small area of the genotypes’ origin [5]. Rajala et al. [9], however, demonstrated a satisfactory level of variability in northern European barley genotypes, hence contesting the effect of genetic erosion implicated by geographical frontiers and complying with a high level of genetic diversity found in our barley collection.
The introduction of new breeding material had great importance for improving the most important selection traits. In this study, two-rowed spring and winter varieties had higher values of genetic diversity parameters than the six-rowed varieties, which is in agreement with the findings of Surlan-Momirovic et al. [49] and could be explained with the use of more diverse breeding material for developing two-rowed varieties and more intensive germplasm exchange of two-rowed barley than that of the analyzed six-rowed barley. Therefore, the introduction of novel germplasm and a more comprehensive usage of genetic resources led to the enlargement of variability with new alleles in the Serbian breeding program, which was especially evident in the second and third breeding periods.
Genetic relatedness among the barley varieties was estimated using Bayesian clustering, PCoA, and analysis of molecular variance. The results of both methods outlined by Pritchard et al. [35] and by Evanno et al. [36], as well as biological factors that could influence the choice of K [50], were considered when selecting the appropriate number of clusters (in our case K = 3). To avoid underestimating population structure using only one method to only two clusters as the top level of hierarchical structure and to ensure reproducibility of structure results, we performed a hierarchical analysis, including structure bar plots for multiple values of K according to the Janes et al. [51]. In our study, although the maximum value of Ln (Pr(X|K) was reached for nine clusters, this result did not have its full biological and agronomical justification. On the other hand, the results based on Evanno method in our case did not underestimate the number of groups and the obtained three clusters best defined the studied barley collection according to growth habit and row type. The division of the genotypes into more groups was not clear and could be only partially explained by different breeding periods, row types, and the counties of origin. Many studies of the worldwide [52], European [53], American [54], and Nordic [9,55] barley germplasm confirmed that population structure was largely conditioned by differences in row type. Moreover, Mathies et al. [56] in a genome wide association study of malting and kernel quality showed that grouping of European barley according to seasonal growth habit and row number could be achieved more preciously and accurately with fewer SSR markers than with more Diversity arrays technology (DArT) markers, which was also confirmed in the studies that compared SSRs with other types of markers [57,58].
The AMOVA results supported the PCoA and structure analysis. The partitioning of molecular variation showed that highest variation was determined among individuals within the same group, implicating differentiation of both seasonal growth habit and ear row type. Similarly, Khodayari et al. [16] reported the highest diversity (60.7%) among Iranian accessions detected within the same row type, while Koebner et al. [44] noted a significant part of molecular variance attributed to the seasonal group. Malysheva et al. [45] accounted for 17% and 19.5% of variation between spring and winter, and between two-rowed and six-rowed varieties, respectively, which was similar to the variance share observed between the groups in our study.
The presence of moderately low correlation (r = 0.53) between microsatellites and pedigree data was comparative to the correlation (r = 0.46) between the pedigree data of 92 Canadian barley varieties and 50 SSR markers [19]. The relatively low correlation between microsatellites and pedigree data could be a consequence of pedigree errors which are common in breeding. Moreover, inaccurate pedigrees could also be due to incomplete data, as a lack of some ancestry information could prevent pedigrees from being traced back for several generations. Since breeding is a complex multistep process, the presence of incorrect pedigrees could subsequently lead to inadequate estimates of genetic parameters such as additive variance, heritability, genetic correlations, and breeding value [21]. This deficiency in pedigree data could be corrected by simultaneous genotyping parents and progeny applying dense panel of molecular markers [59]. A stronger correlation could be obtained with more markers that would allow more precise estimation of actual relationships between related genotypes and identification of the genome regions that were inherited from a common ancestor [60]. A slightly higher correlation was determined between molecular and phenotypic data (r = 0.66). This was considerably lower than the correlation (0.82) found between similarity distances of 21 microsatellites and 21 morphological traits in the study of Koebner et al. [44]. It is possible that the agronomic traits used in our study had less discriminative power, which was, in turn, reflected in a lower correction. A positive effect on observed yield progress during the 40-year long breeding period could be partly attributed to breeding for shorter plants, which reduced lodging and thus provided higher yield stability. This is in agreement with Ortiz et al. [61], who observed a reduction of stem height in Nordic spring barley varieties by 0.20 cm per year from 1948 to 1988. The observed effect of the season on plant height is in accordance with [3,62] who demonstrated a large influence of environmental factors on the expression of stem height. The shift from later heading and flowering varieties from the first and the second breeding periods towards earlier heading and flowering genotypes from the third period could be interpreted as a strategy to avoid drought [63], which is in the Pannonian Basin and other European countries one of the main limiting factors for agriculture production [64]. The increase in thousand grain weight of both two- and six-rowed types during the breeding periods was in accordance with the findings of Schwarz et al. [65] who detected consistent, although not significant, improvement of thousand grain weight from 1910 to 1990. Both two- and six-rowed varieties developed during the most recent period showed improved yield-related traits, such as thousand kernel weight and grain numbers per plot, reflecting an enlargement of genotypic diversity, which was also confirmed by the molecular analysis.
The selected microsatellites revealed a considerable level of genetic diversity, proving suitable for the characterization of barley germplasm and its more efficient use in barley selection process. Unlike the barley breeding in some countries that underwent a decline in genetic diversity [3,66], molecular and phenotypic analyses in our study indicated no genetic erosion in barley genotypes from central and southeast Europe used over the last several decades. A considerable molecular and phenotypic diversity of the analyzed barley varieties implied their great potential for further barley improvement and quantitative trait studies.

5. Conclusions

The introduction of novel germplasm and more comprehensive use of genetic resources could be of great importance in increasing the variability with new alleles in Serbian breeding program, which was especially evident in the second and the third breeding periods. The relatively low correlation between microsatellites and pedigree data could be a consequence of unavailable pedigree or pedigree errors, which are common in most breeding programs. Yield progress during the 40-year long breeding tradition could be partly attributed to breeding for shorter plants, which reduced lodging and thus provided higher yield adaptability and stability. The selection of earlier heading and flowering genotypes from the third period could be interpreted as a strategy to avoid drought as one of the main limiting factors for agriculture production in the Pannonian Basin and other European countries.

Supplementary Materials

The following are available online at, Figure S1: Estimation of the number of subpopulations (∆K) calculated by Evanno′ s approach (2005) obtained in program Structure harvester and Clumpak program. Figure S2: Probability of data (Ln) for number of clusters (K) ranging from 2 to 10 obtained by Structure harvester and Clumpak program. Table S1: The name of markers, their forward and backward primer sequences, annealing temperatures, and repeat motifs. Table S2: The name of markers, their position on the chromosome, size range of detected alleles, and basic molecular diversity parameters. Table S3: Multivariate analysis of variance (MANOVA) using Wilks’ Lambda test differences between group means for a combination of the analyzed agronomical traits. Table S4: Analysis of variance for heading time with partial eta-square. Table S5: Analysis of variance for flowering time with partial eta-square. Table S6: Analysis of variance for plant height with partial eta-square. Table S7: Analysis of variance for spike length with partial eta-square. Table S8: Analysis of variance for grain number per square meter with partial eta-square. Table S9: Analysis of variance for thousand grain weight with partial eta-square. Table S10: Analysis of variance for hectoliter weight with partial eta-square. Table S11: Analysis of variance for yield with partial eta-square.

Author Contributions

Conceptualization, M.M. and L.B.; methodology, M.M. and V.A.; software, S.M.; validation, D.T., V.A., and V.M.; formal analysis, L.B., S.M., and V.M.; investigation, M.M. and D.T.; resources, S.M. and L.P.; data curation, D.T.; writing—original draft preparation, L.B. and S.M.; writing—review and editing, all authors; visualization, L.B. and V.A.; supervision, B.D., V.A., and L.P.; project administration, B.D.; funding acquisition, B.D. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


This research was supported by the Ministry of Education, Science and Technological Development of the Republic of Serbia, grant number: 451-03-68/2020-14/200032.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Ingvordsen, C.H.; Backes, G.; Lyngkjær, M.F.; Peltonen-Sainio, P.; Jahoor, A.; Mikkelsen, T.N.; Jørgensen, R.B. Genome-Wide Association Study of Production and Stability Traits in Barley Cultivated under Future Climate Scenarios. Mol. Breed. 2015, 35, 84. [Google Scholar] [CrossRef]
  2. Laidò, G.; Mangini, G.; Taranto, F.; Gadaleta, A.; Blanco, A.; Cattivelli, L.; Marone, D.; Mastrangelo, A.M.; Papa, R.; De Vita, P. Genetic Diversity and Population Structure of Tetraploid Wheats (Triticum turgidum L.) Estimated by SSR, DArT and Pedigree Data. PLoS ONE 2013, 8, e67280. [Google Scholar] [CrossRef] [Green Version]
  3. Kolodinska Brantestam, A.; Von Bothmer, R.; Dayteg, C.; Rashal, I.; Tuvesson, S.; Weibull, J. Genetic Diversity Changes and Relationships in Spring Barley (Hordeum vulgare L.) Germplasm of Nordic and Baltic Areas as Shown by SSR Markers. Genet. Resour. Crop Evol. 2007, 54, 749–758. [Google Scholar] [CrossRef]
  4. Mir, R.R.; Kumar, J.; Balyan, H.S.; Gupta, P.K. A Study of Genetic Diversity among Indian Bread Wheat (Triticum aestivum L.) Cultivars Released during Last 100 Years. Genet. Resour. Crop Evol. 2012, 59, 717–726. [Google Scholar] [CrossRef] [Green Version]
  5. Hamza, S.; Wafa, B.; Rebai, A.; Harrabi, M. SSR-Based Genetic Diversity Assessment among Tunisian Winter Barley and Relationship with Morphological Traits. Euphytica 2004, 135, 107–118. [Google Scholar] [CrossRef]
  6. Elakhdar, A.; Kumamaru, T.; Qualset, C.O.; Brueggeman, R.S.; Amer, K.; Capo-chichi, L. Assessment of genetic diversity in Egyptian barley (Hordeum vulgare L.) genotypes using SSR and SNP markers. Genet. Resour. Crop Evol. 2018, 65, 1937–1951. [Google Scholar] [CrossRef]
  7. Yahiaoui, S.; Igartua, E.; Moralejo, M.; Ramsay, L.; Molina-Cano, J.L.; Ciudad, F.J.; Lasa, J.M.; Gracia, M.P.; Casas, A.M. Patterns of Genetic and Eco-Geographical Diversity in Spanish Barleys. Theor. Appl. Genet. 2008, 116, 271–282. [Google Scholar] [CrossRef] [Green Version]
  8. Gougerdchi, V.; Dezhsetan, S.; Ebrahimi, M.A.; Sadeghzadeh, B.; Savari, S. Using SSR Markers for Assessment Genetic Diversity And Detection Drought Escape Candidate Genes In Barley Lines (Hordeum vulgare L.). Plant Breed. Seed Sci. 2018, 70, 3–14. [Google Scholar] [CrossRef] [Green Version]
  9. Rajala, A.; Peltonen-Sainio, P.; Jalli, M.; Jauhiainen, L.; Hannukkala, A.; Tenhola-Roininen, T.; Ramsay, L.; Manninen, O. One Century of Nordic Barley Breeding: Nitrogen Use Efficiency, Agronomic Traits and Genetic Diversity. J. Agric. Sci. 2017, 155, 582–598. [Google Scholar] [CrossRef]
  10. Ferreira, J.R.; Pereira, J.F.; Turchetto, C.; Minella, E.; Consoli, L.; Delatorre, C.A. Assessment of Genetic Diversity in Brazilian Barley Using SSR Markers. Genet. Mol. Biol. 2016, 39, 86–96. [Google Scholar] [CrossRef] [Green Version]
  11. Russell, J.; Booth, A.; Fuller, J.; Harrower, B.; Hedley, P.; Machray, G.; Powell, W. A Comparison of Sequence-Based Polymorphism and Haplotype Content in Transcribed and Anonymous Regions of the Barley Genome. Genome 2004, 47, 389–398. [Google Scholar] [CrossRef] [PubMed]
  12. Ledovskoy, Y.; Abugalieva, S.; Turuspekov, Y. Comparative Assessment of the Genetic Variation in Wild and Cultivated Barley Based on SSR Markers. Asian Australas. J. Plant Sci. Biotechnol. 2010, 4, 21–26. [Google Scholar]
  13. Nandha, P.S.; Singh, J. Comparative Assessment of Genetic Diversity between Wild and Cultivated Barley Using GSSR and EST-SSR Markers. Plant Breed. 2014, 133, 28–35. [Google Scholar] [CrossRef]
  14. Flint-Garcia, S.A.; Thornsberry, J.M.; Buckler, E.S. Structure of Linkage Disequilibrium in Plants. Annu. Rev. Plant Biol. 2003, 54, 357–374. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Baik, B.K.; Ullrich, S.E. Barley for Food: Characteristics, Improvement, and Renewed Interest. J. Cereal Sci. 2008, 48, 233–242. [Google Scholar] [CrossRef]
  16. Khodayari, H.; Saeidi, H.; Roofigar, A.A.; Rahiminejad, M.R.; Pourkheirandish, M.; Komatsuda, T. Genetic Diversity of Cultivated Barley Landraces in Iran Measured Using Microsatellites. Int. J. Biosci. Biochem. Bioinf. 2012, 2, 287–290. [Google Scholar] [CrossRef] [Green Version]
  17. Newton, A.C.; Flavell, A.J.; George, T.S.; Leat, P.; Mullholland, B.; Ramsay, L.; Revoredo-Giha, C.; Russell, J.; Steffenson, B.J.; Swanston, J.S.; et al. Crops That Feed the World 4. Barley: A Resilient Crop? Strengths and Weaknesses in the Context of Food Security. Food Secur. 2011, 3, 141. [Google Scholar] [CrossRef]
  18. Zhou, G.; Zhang, Q.; Zhang, X.Q.; Tan, C.; Li, C. Construction of High-Density Genetic Map in Barley through Restriction-Site Associated DNA Sequencing. PLoS ONE 2015, 10, e0133161. [Google Scholar] [CrossRef]
  19. Lamara, M.; Zhang, L.Y.; Marchand, S.; Tinker, N.A.; Belzile, F. Comparative Analysis of Genetic Diversity in Canadian Barley Assessed by SSR, DarT, and Pedigree Data. Genome 2013, 56, 351–358. [Google Scholar] [CrossRef]
  20. Komatsuda, T.; Pourkheirandish, M.; He, C.; Azhaguvel, P.; Kanamori, K.; Perovic, D.; Stein, N.; Graner, A.; Wicker, T.; Tagiri, A.; et al. Six-Rowed Barley Originated from a Mutation in a Homeodomain-Leucine Zipper I-Class Homeobox Gene. Proc. Natl. Acad. Sci. USA 2007, 104, 1424–1429. [Google Scholar] [CrossRef] [Green Version]
  21. Muñoz-Amatriaín, M.; Cuesta-Marcos, A.; Endelman, J.B.; Comadran, J.; Bonman, J.M.; Bockelman, H.E.; Chao, S.; Russell, J.; Waugh, R.; Hayes, P.M.; et al. The USDA Barley Core Collection: Genetic Diversity, Population Structure, and Potential for Genome-Wide Association Studies. PLoS ONE 2014, 9, e94688. [Google Scholar] [CrossRef] [Green Version]
  22. Grover, A.; Sharma, P.C. Development and Use of Molecular Markers: Past and Present. Crit. Rev. Biotechnol. 2016, 36, 290–302. [Google Scholar] [CrossRef] [PubMed]
  23. Friedt, W.; Horsley, R.D.; Harvey, B.L.; Poulsen, D.M.E.; Lance, R.C.M.; Ceccarelli, S.; Grando, S.; Capettini, F. Barley Breeding History, Progress, Objectives, and Technology; Ullrich, S.E., Ed.; Wiley-Blackwell: Hoboken, NJ, USA, 2010; pp. 160–222. [Google Scholar]
  24. Mikić, S.; Kondić-Špika, A.; Brbaklić, L.; Stanisavljević, D.; Ćeran, M.; Trkulja, D.; Mitrović, B. Molecular and Phenotypic Characterisation of Diverse Temperate Maize Inbred Lines in Southeast Europe. Zemdirbyste 2017, 104, 31–40. [Google Scholar] [CrossRef] [Green Version]
  25. Hwang, T.Y.; Gwak, B.S.; Sung, J.; Kim, H.S. Genetic diversity patterns and discrimination of 172 korean soybean (Glycine max (L.) merrill) varieties based on SSR analysis. Agriculture 2020, 10, 77. [Google Scholar] [CrossRef] [Green Version]
  26. Vieira, M.L.C.; Santini, L.; Diniz, A.L.; Munhoz, C.d.F. Microsatellite Markers: What They Mean and Why They Are so Useful. Genet. Mol. Biol. 2016, 39, 312–328. [Google Scholar] [CrossRef]
  27. Liu, Y.; Ge, Y.; Zhan, R.; Lin, X.; Zang, X.; Li, Y.; Yang, Y.; Ma, W. Molecular markers and a quality trait evaluation for assessing the genetic diversity of avocado landraces from china. Agriculture 2020, 10, 102. [Google Scholar] [CrossRef] [Green Version]
  28. Feng, Z.; Zhang, Y.; Ling, H. Microsatellite Markers and Applications in the Barley Genome. Yi Chuan Hered. 2002, 24, 727–733. [Google Scholar]
  29. Karakousis, A.; Barr, A.R.; Chalmers, K.J.; Ablett, G.A.; Holton, T.A.; Henry, R.J.; Lim, P.; Langridge, P. Potential of SSR Markers for Plant Breeding and Variety Identification in Australian Barley Germplasm. Aust. J. Agric. Res. 2003, 54, 1197–1210. [Google Scholar] [CrossRef]
  30. Kandemir, N.; Ahmet, Y.; Rahime, G. Determining the Levels of Genetic Variation Using SSR Markers in Three Turkish Barley Materials Known as Tokak. Turk. J. Agric. For. 2010, 34, 17–23. [Google Scholar] [CrossRef]
  31. Mirosavljević, M.; Momčilović, V.; Pržulj, N.; Hristov, N.; Aćin, V.; Čanak, P.; Denčić, S. The Variation of Agronomic Traits Associated with Breeding Progress in Winter Barley Cultivars. Zemdirb.-Agric. 2016, 103, 267–272. [Google Scholar] [CrossRef] [Green Version]
  32. Doyle, J.J.; Doyle, J.L. Isolation of plant DNA from fresh tissue. Focus 1990, 12, 39–40. [Google Scholar]
  33. Röder, M.S.; Korzun, V.; Wendehake, K.; Plaschke, J.; Tixier, M.H.; Leroy, P.; Ganal, M.W. A microsatellite map of wheat. Genetics 1998, 149, 2007–2023. [Google Scholar] [PubMed]
  34. Peakall, R.; Smouse, P.E. GenALEx 6.5: Genetic Analysis in Excel. Population Genetic Software for Teaching and Research-an Update. Bioinformatics 2012, 28, 2537–2539. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Pritchard, J.K.; Stephens, M.; Donnelly, P. Inference of Population Structure Using Multilocus Genotype Data. Genetics 2000, 155, 945–959. [Google Scholar]
  36. Evanno, G.; Regnaut, S.; Goudet, J. Detecting the Number of Clusters of Individuals Using the Software STRUCTURE: A Simulation Study. Mol. Ecol. 2005, 14, 2611–2620. [Google Scholar] [CrossRef] [Green Version]
  37. Earl, D.A.; von Holdt, B.M. STRUCTURE HARVESTER: A Website and Program for Visualizing STRUCTURE Output and Implementing the Evanno Method. Conserv. Genet. Resour. 2012, 4, 359–361. [Google Scholar] [CrossRef]
  38. Kopelman, N.M.; Mayzel, J.; Jakobsson, M.; Rosenberg, N.A.; Mayrose, I. CLUMPAK: A program for identifying clustering modes and packaging population structure inferences across K. Mol. Ecol. Resour. 2015, 15, 1179–1191. [Google Scholar] [CrossRef] [Green Version]
  39. Tinker, N.A.; Mather, D.E. KIN: Software for Computing Kinship Coefficients. J. Hered. 1993, 84, 238. [Google Scholar] [CrossRef]
  40. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2020; Available online: (accessed on 10 October 2020).
  41. Goss-Sampson, M.A. Statistical Analysis in JASP: A Guide for Students. Version 2. October 2018. Available online: (accessed on 8 October 2020).
  42. Nevo, E. Evolution of Wild Wheat and Barley and Crop Improvement: Studies at the Institute of Evolution. Isr. J. Plant Sci. Isr. J. Plant Sci. 2007, 55, 251–262. [Google Scholar] [CrossRef]
  43. Meszaros, K.; Karsai, I.; Kuti, C.; Banyai, J.; Lang, L.; Bedo, Z. Efficiency of Different Marker Systems for Genotype Fingerprinting and for Genetic Diversity Studies in Barley (Hordeum vulgare L.). S. Afr. J. Bot. 2007, 73, 43–48. [Google Scholar] [CrossRef] [Green Version]
  44. Koebner, R.M.D.; Donini, P.; Reeves, J.C.; Cooke, R.J.; Law, J.R. Temporal Flux in the Morphological and Molecular Diversity of UK Barley. Theor. Appl. Genet. 2003, 106, 550–558. [Google Scholar] [CrossRef]
  45. Malysheva-Otto, L.; Ganal, M.W.; Law, J.R.; Reeves, J.C.; Röder, M.S. Temporal Trends of Genetic Diversity in European Barley Cultivars (Hordeum vulgare L.). Mol. Breed. 2007, 20, 309–322. [Google Scholar] [CrossRef]
  46. Varshney, R.K.; Salem, K.F.M.; Baum, M.; Roder, M.S.; Graner, A.; Börner, A. SSR and SNP Diversity in a Barley Germplasm Collection. Plant Genet. Resour. Charact. Util. 2008, 6, 167–174. [Google Scholar] [CrossRef] [Green Version]
  47. Pandey, M.; Wagner, C.; Friedt, W.; Ordon, F. Genetic Relatedness and Population Differentiation of Himalayan Hulless Barley (Hordeum vulgare L.) Landraces Inferred with SSRs. Theor. Appl. Genet. 2006, 113, 715–729. [Google Scholar] [CrossRef] [PubMed]
  48. Zhang, M.; Mao, W.; Zhang, G.; Wu, F. Development and Characterization of Polymorphic ESTSSR and Genomic SSR Markers for Tibetan Annual Wild Barley. PLoS ONE 2014, 9, e94881. [Google Scholar] [CrossRef] [Green Version]
  49. Surlan-Momirovic, G.; Krämer, I.; Bratkovic, K.; Zoric, M.; Momirovic, U.; Brankovic, G.; Calic, I.; Kandic, V.; Przulj, N.; Ordon, F.; et al. Molecular Characterization of Barley (Hordeum vulgare L.) Accessions of the Serbian Genebank by SSR Fingerprinting. Genetika 2013, 45, 167–180. [Google Scholar] [CrossRef]
  50. Gilbert, K.J.; Andrew, R.L.; Bock, D.G.; Franklin, M.T.; Kane, N.C.; Moore, J.S.; Moyers, B.T.; Renaut, S.; Rennison, D.J.; Veen, T.; et al. Recommendations for utilizing and reporting population genetic analyses: The reproducibility of genetic clustering using the program STRUCTURE. Mol. Ecol. 2012, 21, 4925–4930. [Google Scholar] [CrossRef] [PubMed]
  51. Janes, J.K.; Miller, J.M.; Dupuis, J.R.; Malenfant, R.M.; Gorrell, J.C.; Cullingham, C.I.; Andrew, R.L. The K = 2 conundrum. Mol. Ecol. 2017, 26, 3594–3602. [Google Scholar] [CrossRef] [Green Version]
  52. Malysheva-Otto, L.V.; Ganal, M.W.; Röder, M.S. Analysis of Molecular Diversity, Population Structure and Linkage Disequilibrium in a Worldwide Survey of Cultivated Barley Germplasm (Hordeum vulgare L.). BMC Genet. 2006, 7, 6. [Google Scholar] [CrossRef] [Green Version]
  53. Rostoks, N.; Ramsay, L.; MacKenzie, K.; Cardle, L.; Bhat, P.R.; Roose, M.L.; Svensson, J.T.; Stein, N.; Varshney, R.K.; Marshall, D.F.; et al. Recent History of Artificial Outcrossing Facilitates Whole-Genome Association Mapping in Elite Inbred Crop Varietes. Proc. Natl. Acad. Sci. USA 2006, 103, 18656–18661. [Google Scholar] [CrossRef] [Green Version]
  54. Hamblin, M.T.; Close, T.J.; Bhat, P.R.; Chao, S.; Kling, J.G.; Abraham, K.J.; Blake, T.; Brooks, W.S.; Cooper, B.; Griffey, C.A.; et al. Population Structure and Linkage Disequilibrium in U.S. Barley Germplasm: Implications for Association Mapping. Crop Sci. 2010, 50, 556–566. [Google Scholar] [CrossRef] [Green Version]
  55. Bengtsson, T.; Åhman, I.; Bengtsson, T.; Manninen, O.; Veteläinen, M.; Reitan, L.; Alsheikh, M.; Gertsson, B.; Tuvesson, S.; Jalli, M.; et al. Genetic Diversity, Population Structure and Linkage Disequilibrium in Nordic Spring Barley (Hordeum vulgare L. Subsp. vulgare). Genet. Resour. Crop Evol. 2017, 64, 2021–2033. [Google Scholar] [CrossRef] [Green Version]
  56. Matthies, I.E.; van Hintum, T.; Weise, S.; Röder, M.S. Population Structure Revealed by Different Marker Types (SSR or DArT) Has an Impact on the Results of Genome-Wide Association Mapping in European Barley Cultivars. Mol. Breed. 2012, 30, 951–966. [Google Scholar] [CrossRef]
  57. van Inghelandt, D.; Melchinger, A.E.; Lebreton, C.; Stich, B. Population Structure and Genetic Diversity in a Commercial Maize Breeding Program Assessed with SSR and SNP Markers. Theor. Appl. Genet. 2010, 120, 1289–1299. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Amar, M.H.; Biswas, M.K.; Zhang, Z.; Guo, W.W. Exploitation of SSR, SRAP and CAPS-SNP Markers for Genetic Diversity of Citrus Germplasm Collection. Sci. Hortic. 2011, 128, 220–227. [Google Scholar] [CrossRef]
  59. Cappa, E.P.; El-Kassaby, Y.A.; Muñoz, F.; Garcia, M.N.; Villalba, P.V.; Klápště, J.; Marcucci Poltri, S.N. Improving Accuracy of Breeding Values by Incorporating Genomic Information in Spatial-Competition Mixed Models. Mol. Breed. 2017, 37. [Google Scholar] [CrossRef]
  60. Powell, J.E.; Visscher, P.M.; Goddard, M.E. Reconciling the Analysis of IBD and IBS in Complex Trait Studies. Nat. Rev. Genet. 2010, 11, 800–805. [Google Scholar] [CrossRef]
  61. Ortiz, R.; Nurminiemi, M.; Madsen, S.; Rognli, O.A.; Bjørnstad, Å. Genetic Gains in Nordic Spring Barley Breeding over Sixty Years. Euphytica 2002, 126, 283–289. [Google Scholar] [CrossRef]
  62. Madic, M.; Paunovic, A.; Djurovic, D.; Knezevic, D.; Tanaskovic, S. Breeding Barley (Hordeum vulgare L.) for Abiotic and Biotic Limiting Factors. In Proceedings of the Third International Scientific Symposium “Agrosym 2012”, Jahorina, Bosnia and Herzegovina, 15–17 November 2012; Faculty of Agriculture, University of East Sarajevo: Istočno Sarajevo, Serbia, 2012; pp. 257–262. [Google Scholar]
  63. Shavrukov, Y.; Kurishbayev, A.; Jatayev, S.; Shvidchenko, V.; Zotova, L.; Koekemoer, F.; De Groot, S.; Soole, K.; Langridge, P. Early Flowering as a Drought Escape Mechanism in Plants: How Can It Aid Wheat Production? Front. Plant Sci. 2017, 8, 1950. [Google Scholar] [CrossRef]
  64. Daničić, M.; Zekić, V.; Mirosavljević, M.; Lalić, B.; Putnik-Delić, M.; Maksimović, I.; Marta, A.D. The Response of Spring Barley (Hordeum vulgare L.) to Climate Change in Northern Serbia. Atmosphere 2019, 10, 14. [Google Scholar] [CrossRef] [Green Version]
  65. Schwarz, P.B.; Horsley, R.D.; Schwarz, P.B.; Science, C.; Technology, F.; Horsley, R.D. Malt Quality Improvement in North American Six-Rowed Barley Cultivars Since 1910. J. Am. Soc. Brew. Chem. 1995, 53. [Google Scholar] [CrossRef]
  66. Russell, J.R.; Ellis, R.P.; Thomas, W.T.B.; Waugh, R.; Provan, J.; Booth, A.; Fuller, J.; Lawrence, P.; Young, G.; Powell, W. A Retrospective Analysis of Spring Barley Germplasm Development from “foundation Genotypes” to Currently Successful Cultivars. Mol. Breed. 2000, 6, 553–568. [Google Scholar] [CrossRef]

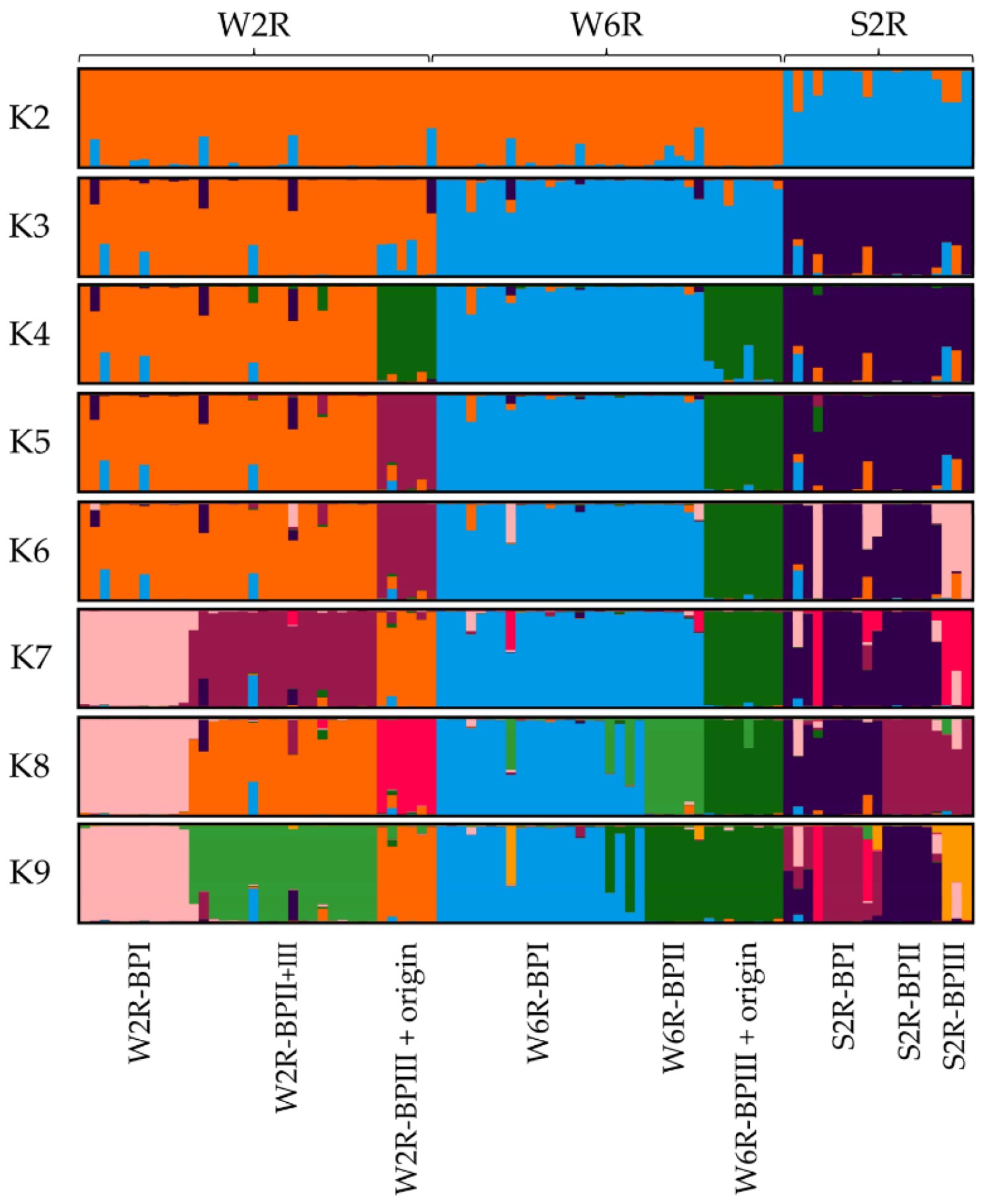

Figure 1. Inferred structure of 90 barley genotypes estimated with Clumpak distruct analysis. Each variety is represented by a vertical line which is divided into K colored segments proportional to the likelihood of its membership to the assigned cluster from K = 2 to K = 9. W2R—two-rowed winter genotypes, W6R—six-rowed winter genotypes, S2R—two-rowed spring genotypes, BPI—the first breeding period, BPII—the second breeding period, BPIII—the third breeding period.
Figure 1. Inferred structure of 90 barley genotypes estimated with Clumpak distruct analysis. Each variety is represented by a vertical line which is divided into K colored segments proportional to the likelihood of its membership to the assigned cluster from K = 2 to K = 9. W2R—two-rowed winter genotypes, W6R—six-rowed winter genotypes, S2R—two-rowed spring genotypes, BPI—the first breeding period, BPII—the second breeding period, BPIII—the third breeding period.
Agronomy 11 00118 g001

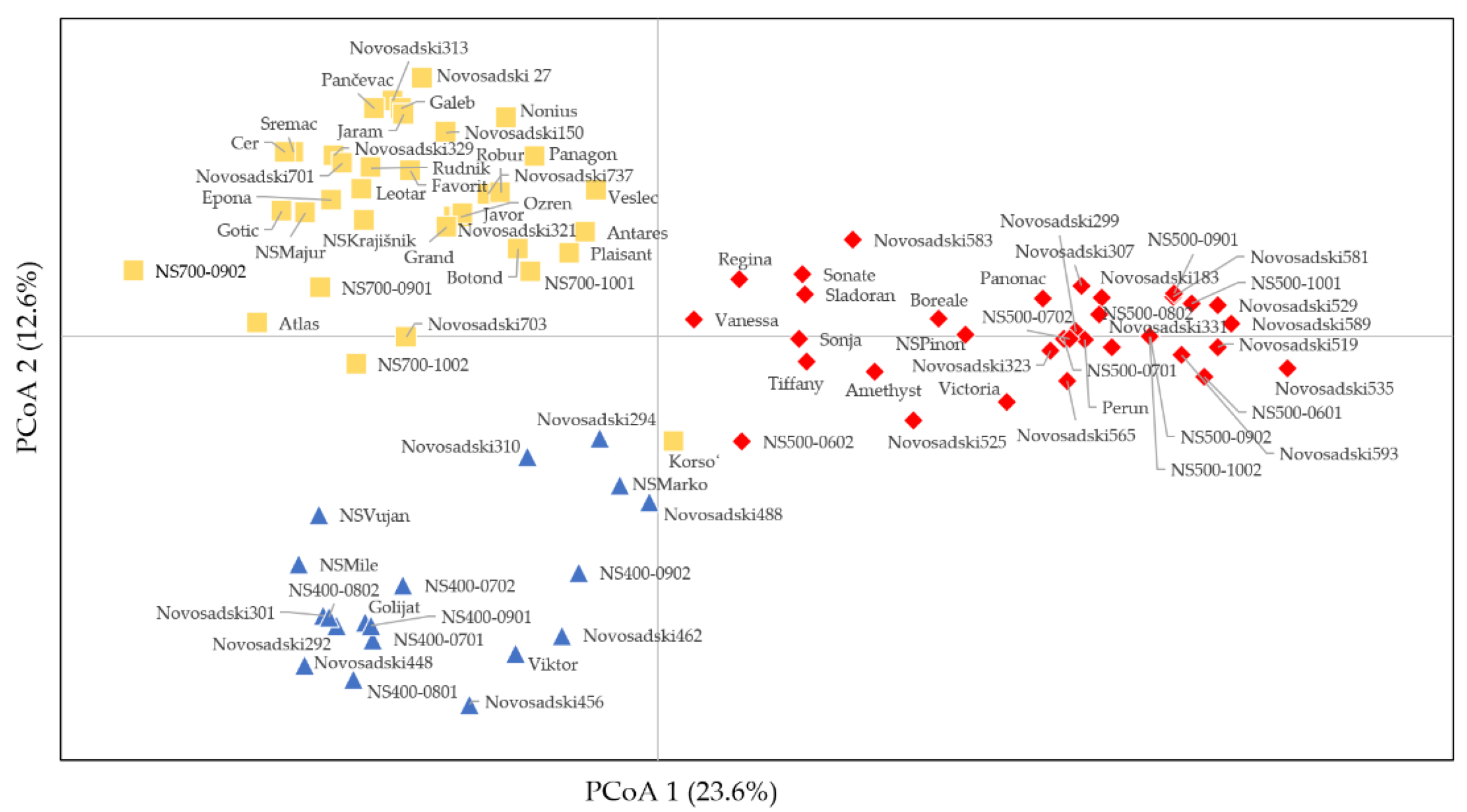

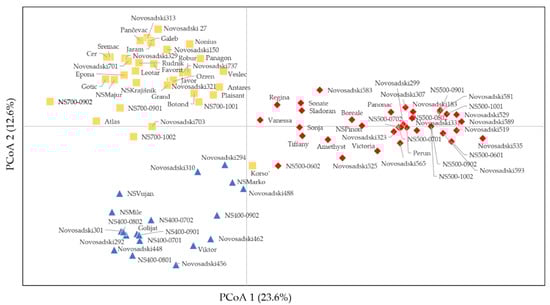

Figure 2. Principal coordinate analysis of 90 barley genotypes based on microsatellite data. Red diamond—winter two-rowed barley; yellow square—winter six-rowed barley; blue triangle—spring two-rowed barley.
Figure 2. Principal coordinate analysis of 90 barley genotypes based on microsatellite data. Red diamond—winter two-rowed barley; yellow square—winter six-rowed barley; blue triangle—spring two-rowed barley.
Agronomy 11 00118 g002

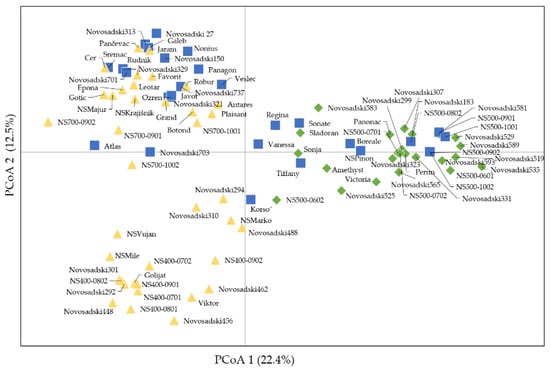

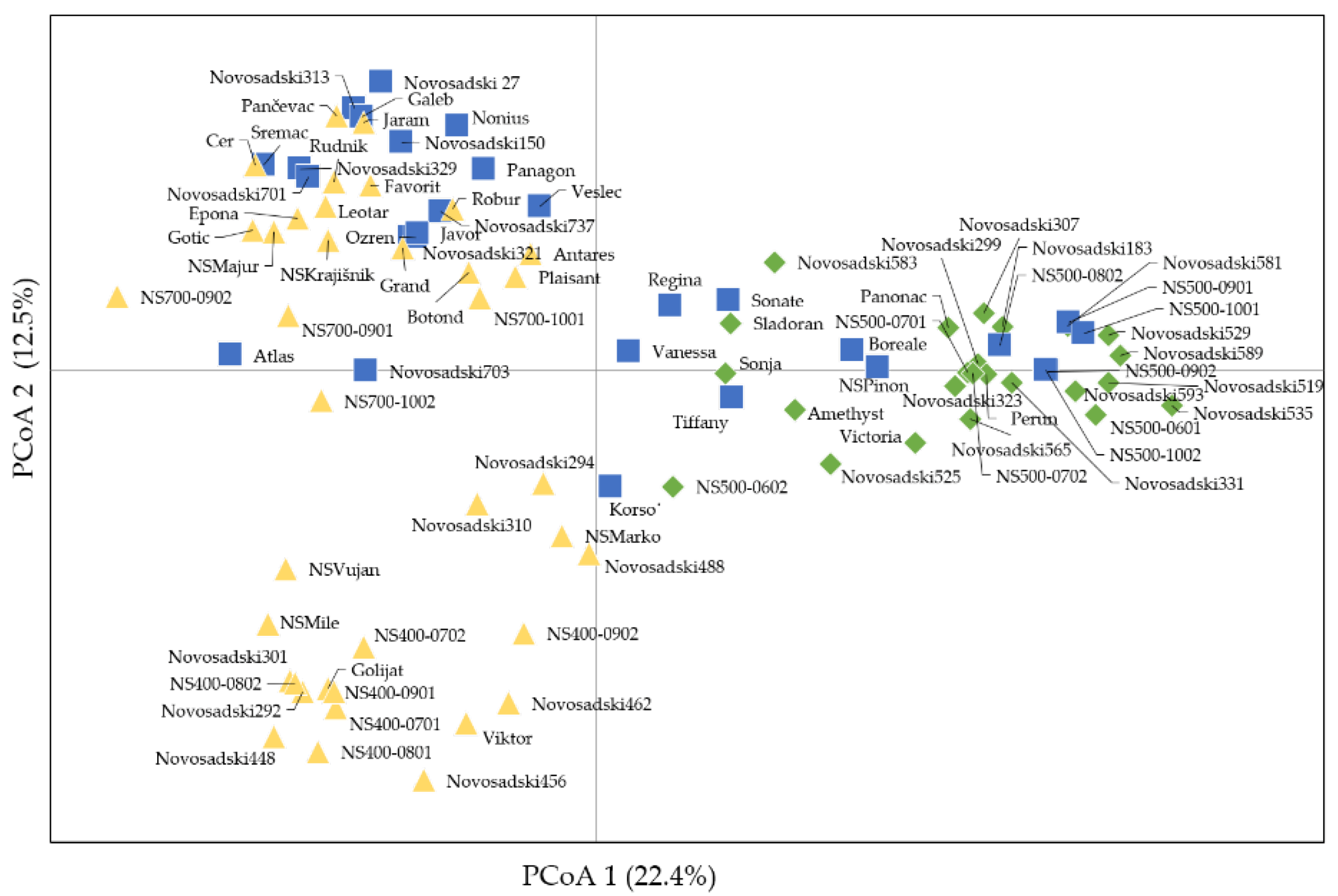

Figure 3. Principal coordinate analysis of 90 barley genotypes based on microsatellite data and the year of release. The historical period of release: green diamond—group I of varieties released from 1973 to 1990; blue square—group II of varieties released from 1991 to 2004; yellow triangle—group III of varieties released from 2005 to 2012.
Figure 3. Principal coordinate analysis of 90 barley genotypes based on microsatellite data and the year of release. The historical period of release: green diamond—group I of varieties released from 1973 to 1990; blue square—group II of varieties released from 1991 to 2004; yellow triangle—group III of varieties released from 2005 to 2012.
Agronomy 11 00118 g003

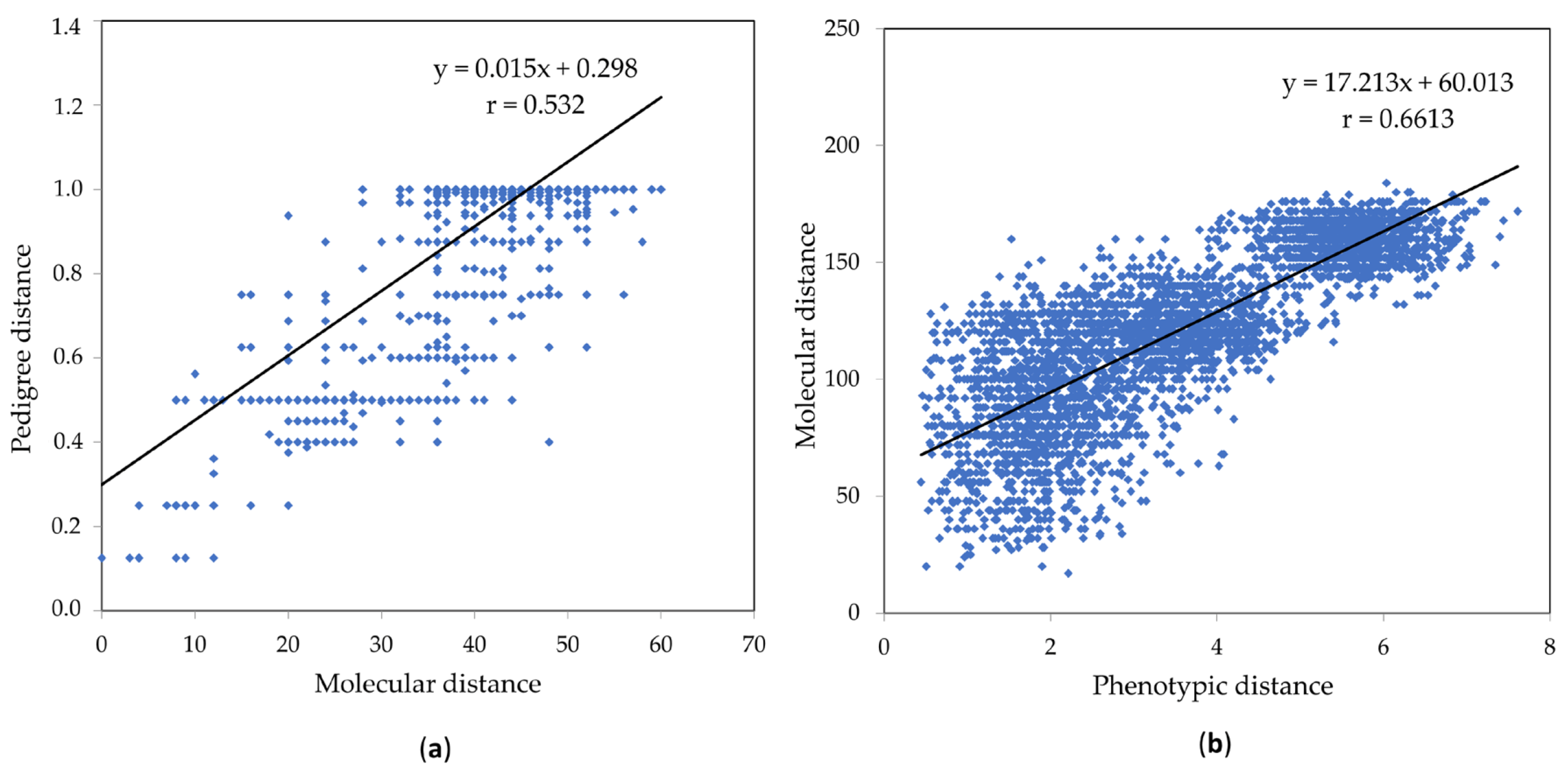

Figure 4. Correlations between molecular and pedigree similarity matrices (a) and between phenotypic and molecular similarity matrices (b) by Mantel test in GeneAlex 6.5 program.
Figure 4. Correlations between molecular and pedigree similarity matrices (a) and between phenotypic and molecular similarity matrices (b) by Mantel test in GeneAlex 6.5 program.
Agronomy 11 00118 g004
Table 1. Names, pedigrees, country of origin, row type, growth habit, and the year of release of the 90 barley genotypes.
Table 1. Names, pedigrees, country of origin, row type, growth habit, and the year of release of the 90 barley genotypes.
NoGenotypePedigree DataOriginRTGHYear
3Novosadski 183Ager/EmirSRB2W1977
4VictoriaN/A 1ROM2W1977
5Novosadski 299Fr33/NS.190SRB2W1983
6SonateSonja/Firlbeck StrainDEU2W1983
8Novosadski 307Fr33/NS.185-2SRB2W1984
9PerunHE 1728/KaratCZE2W1987
10PanonacAlpha/Osk. 3.145–77CRO2W1987
11Novosadski 323NS.185-2/Fr33//Osj.goli/3/NS.185-2/4/SonjaSRB2W1988
12Novosadski 331NS.185-2/2*Fr33SRB2W1989
15Novosadski 519Rodnik/CoronaSRB2W1998
16Novosadski 525NS Ranij-1/Novo.293//NS.327/3/SladoranSRB2W1999
17KH KorsóKA-386-007/RexHUN2W1999
18Novosadski 529OJK 8-82/Novo.293//SladoranSRB2W1999
20Novosadski 535L.107-87/SladoranSRB2W2000
22Novosadski 565Sonate/OSK.5.197–10.85SRB2W2003
23Novosadski 581Sonate/Novo.331SRB2W2005
24Novosadski 583NS.327/Kaskade//Novo.295SRB2W2005
25Novosadski 589Sonate/NS.525SRB2W2006
26Novosadski 593Nov225/ZoneSRB2W2007
27NS 500–0601NS150/NS.525SRB2W2008
28NS 500–0602Irla/NS.525SRB2W2008
29NS 500–0701Novo.525/KM.914SRB2W2009
30NS 500–0702N/ASRB2W2009
31NS PinonN/ASRB2W2010
32NS 500–0802Marylin/Sonate//Novosadski 525SRB2W2010
33NS 500–0901KG.8-4/Novo.299//Novosadski 183SRB2W2010
34NS 500–0902Novosadski 525/KorsoSRB2W2010
35NS 500–1001Novo.293//Sonate/NS.525SRB2W2010
36NS 500–1002NS.151/NS.27SRB2W2010
38Novosadski 27Ceres/JumboSRB6W1973
41Novosadski 150Ceres/Engelen Dea//LeonSRB6W1976
43Novosadski 313Dura/2*NS.150SRB6W1987
44Novosadski 321NS.272/Novosadski 27SRB6W1988
45Novosadski 329Novo.4082/3*Novosadski 27SRB6W1990
48Novosadski 701Aksamit/NS.185-2//N027SRB6W1991
49Novosadski 703Novo.150/Riso Mutant 1508//Novo.27SRB6W1992
55Novosadski 737Plaisant/GalebSRB6W2002
58JavorNS 27/Novo.313SRB6W2004
59AtlasNS 717/BotondSRB6W2005
65PančevacGotic/NS.721//Novosadski 313SRB6W2010
66NS KrajišnikGotic/TamarisSRB6W2010
67NS MajurGotic/NS.721SRB6W2010
68NS 700–0901Gotic/TamarisSRB6W2010
69NS 700–0902NS.723//Radical/BirgitSRB6W2010
70NS 700–1001Robur/NS.717SRB6W2010
71NS 700–1002Gotic/TamarisSRB6W2010
72Novosadski 292NS.38/Emir//UnionSRB2S1980
73Novosadski 294NS.39/Emir//UnionSRB2S1983
74Novosadski 301NS.127/UnionSRB2S1985
75Novosadski 310NS.96/Emir//Fr 33SRB2S1994
77Novosadski 448Cork/HindSRB2S2001
78Novosadski 456Osk.5.241-1-83/Menuet//ViktorSRB2S2002
79Novosadski 488Novosadski 294/Alva//NS 316SRB2S2003
80Novosadski 462Fj.8168-85/MenuetSRB2S2006
81GolijatCondor/CDC DownSRB2S2009
82NS 400–0701N/ASRB2S2009
83NS 400–0702N/ASRB2S2010
84NS 400–0801N/ASRB2S2010
85NS 400–0802N/ASRB2S2010
86NS 400–0901N/ASRB2S2010
87NS 400–0902N/ASRB2S2010
88NS VujanNS 434/AlexisSRB2S2012
89NS MarkoJelen/TP 129SRB2S2012
90NS MileNS 422/Alexis//Gimpel/PekSRB2S2012
1 N/A—not available, RT—row type, GH—growth habit. 2*—two backcrosses with the following genotype, 3*—three backcrosses with the following genotype. CZE—Czech Republic, DEU—Germany, SRB —Serbia, ROM—Romania, CRO—Croatia, HUN—Hungary, FRA—France, BLG—Bulgaria; W—winter, S—spring.
Table 2. Molecular diversity parameters in barley groups according to the breeding period, growth habit, and row type.
Table 2. Molecular diversity parameters in barley groups according to the breeding period, growth habit, and row type.
Breeding period
1977–1990 (I group)3.720.820.282.190.430.431867.75
1991–2004 (II group)4.461.070.482.770.560.552237.96
2005–2012 (III group)5.801.351.403.580.660.652907.63
Growth habit and row type
W2R 14.801.050.702.620.530.532406.67
1 W2R—winter two-rowed type, W6R—winter six-rowed type, S2R—spring two-rowed type, Na—number of detected alleles per locus, I—Shannon’s information index, Np—number of private alleles, Ne—number of effective alleles, He—unbiased expected heterozygosity, PIC—polymorphism information content, TNa—total number of alleles, AR—allelic richness.
Table 3. Analysis of molecular variance among and within barley groups.
Table 3. Analysis of molecular variance among and within barley groups.
Source of Variationdf 1MSEst. Var.VarNeiPhiPTp Value
Among groups2407.56.6537%0.309 (W2R vs. W6R)
0.472 (W2R vs. S2R)
0.499 (W6R vs. S2R)
Among individuals8722.0110.9462%
Within individuals900.120.121%
Total179 17.71
1 df—degrees of freedom; MS—mean square; Est. var—estimated variance; Var—the percentage of total molecular variance attributed to variance among populations, among individuals and within individuals; Nei—pairwise population Nei’s genetic distance, PhiPT—population differentiation value, W2R—winter two-rowed type, W6R—winter six-rowed type, S2R—spring two-rowed type.
Table 4. Comparison of means for eight agronomical traits of two-rowed winter, two-rowed spring, and six-rowed varieties for different breeding periods and summary ANOVA.
Table 4. Comparison of means for eight agronomical traits of two-rowed winter, two-rowed spring, and six-rowed varieties for different breeding periods and summary ANOVA.
Groups (No of Genotypes)Breeding PeriodsHT 1 (Days)FT (Days)PH (cm)SL (cm)GNTGW (g)HW (g)YLD (tha−1)
W2R (36)I 203 b206 b89.4 b9.3 a17,352 a42.0 a72.4 a7.09 a
II201 a204 a85.6 a10.2 b18,009 ab44.4 b72.5 a7.86 b
III201 a204 a85.0 a10.3 b18,390 b45.1 b74.1 b8.06 b
CV (%)2.82.912.813.519.311.23.321.9
S2R (19)I72 a74 a70.3 ab8.7 a11,961 a31.9 a66.8 a4.14 a
II73 a75 a68.7 a9.4 ab12,047 a36.2 b67.8 a4.31 a
III72 a74 a72.4 b9.6 b13,377 a37.0 b69.2 b4.46 a
CV (%)2.01.913.012.620.314.85.521.9
W6R (35)I209 c211 c92.0 b6.5 a18,787 a34.9 a68.0 a6.70 a
II206 b209 b87.1 a6.7 a19,000 a38.6 b68.2 a7.25 b
III204 a207 a87.5 a6.9 a20,067 b39.2 b68.7 a7.66 c
CV (%)
Row type************************
Breeding period********ns*****ns***
Season × row type******************
Season × breeding period*********ns**********
Row type × breeding period**nsns***ns***
Season × row type × breeding period*******ns***ns***
1 HD—heading date, FT—flowering time, SH—stem height, SL—spike length, HW—hectoliter weight, TGW—thousand grain weight, YLD—yield, GN—grain number per 1 m2; W2R—winter two-rowed type, S2R—spring two-rowed type, W6R—winter six-rowed type; I, II, III—breeding periods. CV—coefficient of variation. Different letters indicate significant differences (p < 0.05) between mean values obtained by Tukey’s multiple comparison test. *** significance at 0.001 probability level, ** significance at 0.01 probability level, * significance at 0.05 probability level, ns—non significant.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Brbaklić, L.; Trkulja, D.; Mikić, S.; Mirosavljević, M.; Momčilović, V.; Dudić, B.; Procházková, L.; Aćin, V. Genetic Diversity and Population Structure of Serbian Barley (Hordeum vulgare L.) Collection during a 40-Year Long Breeding Period. Agronomy 2021, 11, 118.

AMA Style

Brbaklić L, Trkulja D, Mikić S, Mirosavljević M, Momčilović V, Dudić B, Procházková L, Aćin V. Genetic Diversity and Population Structure of Serbian Barley (Hordeum vulgare L.) Collection during a 40-Year Long Breeding Period. Agronomy. 2021; 11(1):118.

Chicago/Turabian Style

Brbaklić, Ljiljana, Dragana Trkulja, Sanja Mikić, Milan Mirosavljević, Vojislava Momčilović, Branislav Dudić, Lenka Procházková, and Vladimir Aćin. 2021. "Genetic Diversity and Population Structure of Serbian Barley (Hordeum vulgare L.) Collection during a 40-Year Long Breeding Period" Agronomy 11, no. 1: 118.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
