Foliar Application of Humic-Stabilized Nanoferrihydrite Resulted in an Increase in the Content of Iron in Wheat Leaves

Abstract

The objective of this study was to synthesize iron (hydr)oxide nanoparticles (IONPs) stabilized by humic substances, and to estimate the feasibility of their use for foliar application on iron deficient plants. The IONPs were synthesized by rapid hydrolysis of iron(III) nitrate in a solution of potassium humate. The iron speciation and nanoparticle morphologies were characterized using X-ray diffraction, transmission electron microscopy, and Mössbauer spectroscopy. The obtained sample of IONPs was applied at concentrations of 1- and 10-mM Fe, and 0.2% urea was used as an adjuvant. Wheat plants (Triticum aestivum L. cv. L15) were used for the iron uptake test. For both of the concentrations tested, spraying the nanoparticles resulted in a 70–75% higher iron content in wheat leaves compared to ferric ammonium salt of ethylenediaminetetraacetic acid (Fe-EDTA). The synergistic effect of humic substances acting as a surfactant seemed to promote an increase in the iron uptake of the ferrihydrite nanoparticles compared to the aqueous Fe-EDTA solution used in this study. We concluded that humic-stabilized IONPs are much better suited to foliar application as compared to soil amendment when applied as a source of iron for plants. This is because humic substances act as a capping agent for nanoparticles and the surfactants enhance iron penetration into the leaf.

1. Introduction

Fe deficiency is a frequent issue in numerous crops, particularly in calcareous soils [1,2]. This is because of the poor bioavailability of Fe, which produces insoluble Fe(III) oxides and oxohydroxides in soil [3,4]. At the same time, iron (hydr)oxide nanoparticles (IONPs) measuring < 5–20 nm are the most frequently used as iron-containing nanofertilizers [5,6,7,8]. Bare IONPs are prone to aggregation due to their high surface energy; this tendency is more pronounced near the point of zero charge (PZC), which usually ranges between pH 7 and 9 for synthetic iron oxides [9], and at elevated salt concentrations [10]. Among the different ligands used for nanoparticle stabilization, humic substances (HS) deserve particular attention as they are eco-friendly natural polyelectrolytes. HS stabilize iron (hydr)oxides in soils [11,12,13], and they are widely used for stabilization of synthetic IONPs [10,14,15,16]. Substantial efforts have been undertaken in the last decade to combine the benefits of HS and IONPs in designing eco-friendly nanofertilizers [6,8,17,18,19,20] that meet the demands of sustainable chemistry [21]. Despite the progress made in this area, and well documented increases in iron uptake by plants, the efficacy of HS-based iron nanofertilizers remains much lower compared to that of iron chelates. The main reason is aggregation of HS-stabilized IONPs on the root surface upon soil application as well as interaction with soil particles [22,23].

Foliar application of micronutrients, including their nano-forms is an advanced fertilization technology that has great potential for the production of nutritious and safe foods [24,25,26,27,28,29,30,31]. It also provides a more efficient route for the application of nanoparticles, whose bioavailability is much higher when applied via leaf sprays as compared to soil amendments, as has been shown in two recent reviews [22,23]. Comparative investigations of nanoparticle delivery to plants by foliar versus soil applications have indicated that leaf spraying has significant advantages for nanoscale nutrient uptake [32,33]. This effect was consistent for different crops including brown rice [34], wheat grain [35], soybean (Glycine max (L.) Merr.) [32], and black-eyed peas [36].

Numerous reports have shown the benefits of foliar application for both soluble forms of micronutrients and for nanoparticles [37,38,39,40,41]. HS were used for improving iron uptake upon foliar application of Fe-chelates [42,43]. Moreover, complexes of Fe-HS [44] and Fe-lignosulfonate [45] were successfully tested as foliar iron fertilizers. However, so far, we have not found reports on the foliar application of HS-stabilized IONPs. The combination of surface-active HS and IONPs is expected to be particularly beneficial for the foliar spray, which requires improved wettability of a moderately hydrophobic leaf surface and strong adhesion of the fertilizing component. According to a recent study [46], the combined particle-and-surfactant systems exhibited (i) a decreasing contact angle along with increasing nanoparticle concentration, and (ii) a much lower wetting angle than that of the only-surfactant system at the same surfactant concentration (in the whole range of nanoparticle concentrations studied). Mixtures of surface-active nanoparticles and surfactants also stabilize the liquid–liquid interface in emulsions [47] applied in the oil industry [48] and commercial formulations including agrochemical suspoemulsions [49]. Therefore, humic-stabilized IONPs might be suited for the droplet design of foliar spraying.

The objective of this study was to synthesize humic-stabilized IONPs and to estimate iron uptake as compared to ferric ammonium salt of ethylenediaminetetraacetic acid (Fe-EDTA) upon foliar application on wheat plants (Triticum aestivum L. cv. L15).

2. Materials and Methods

2.1. Humic Material Characterization

Potassium humate (“Sakhalin Humate”, Moscow, Russia) was used as the humic source material and designated as CHS-K. The elemental composition of CHS-K was determined using a Vario MicroCube elemental analyzer (Elementar, Langenselbold, Germany). The contents of the elements were (%, mass): C—32, H—2.8, N—1.3. The ash content was 22.9%. The contents of the elements on an ash-free basis were (% wt): C—47.1, H—3.63, N—1.69, O—47.58. The corresponding atomic ratios were: H/C—1.05, O/C—0.76, C/N—28.8. The values of H/C and O/C ratios obtained for CHS-K are indicative of a low degree of condensation and high oxidation of this humic material, which is typical for the low-ranked oxidized coal used for its extraction. The structural-group composition of CHS-K was determined using a ¹³C NMR spectrometer Avance 400 (Bruker, Ettlingen, Germany) operating at ¹³C nuclei frequency of 100 MHz. A weight of 40 mg of CHS-K was dissolved in 0.6 mL of 0.3 M NaOD/D₂O. The conditions for quantitative measurement of the C distribution as well as the spectral assignments were made as described elsewhere [50,51]. The content of C in different chemical environments was as follows (% of total C): aliphatic non-substituted C (C_alk)—11.9; aliphatic (O,N)-substituted C (C_Alk-O,N)—6.9; aromatic non-substituted C (C_Ar)—43.6; aromatic O,N -substituted C (C_Ar-O,N)—9.7; carboxyl and ester groups (C_COO-H,R)—19.5; C of quinone and ketone groups (C_C=O)—6.8. The measured values agreed well with the literature data for coal HS, which are enriched with aromatic carbon and carboxyl groups [52]. The molecular weight distribution of CHS-K was determined using size exclusion chromatography (SEC) as described by Perminova et al. (1998) [53]. The chromatography system Abimed (Gilson, Paris, France) included an HPLC pump, an autosampler, a glass column (diameter of 15 mm, length of 25 cm), a UV spectrophotometric detector, and a recording computer. The column was filled with a Toyopearl TSK HW-55S gel (Toso-Haas, Tokyo, Japan) with a fractionation range of 1–200 kDa (as for polydextrans). A phosphate buffer (0.03 M, pH 6.8) was used as a mobile phase. The determined number-averaged (M_n) and weight-averaged (M_w) molecular weights and M_w/M_n ratio (polydispersity) were 3.2 kDa, 12.0 kDa, and 3.7, respectively. They are in good agreement with the MW data obtained with the use of SEC for the other coal HS [54].

2.2. The Iron Sources

Ethylenediaminetetraacetic acid iron chelate (Fe-EDTA) (BASF AG, Ludwigshafen, Germany) was used as a reference iron chelate. Ferrihydrite NPs (FH) were prepared as follows. A weight of 3.5 g of CHS-K was dissolved in 400 mL of deionized water in a round-bottom flask and 1–2 mL of 3 M KOH was added to improve humate dissolution; the final pH was 11.2. A weight of 2.53 g of Fe(NO₃)₃⋅9H₂O was dissolved in 25 mL of deionized water. The obtained 0.25 M Fe(NO₃)₃ solution was added as droplets to the humate solution under continuous stirring until a pH of 10 was attained. Then, 3 M KOH was added simultaneously with Fe(NO₃)₃ to maintain pH 10. The pH fluctuations during the synthesis were in the range of 9.7 to 10.3. After the addition of the full volume of Fe(NO₃)₃ solution, the reaction mixture was diluted up to 500 mL by deionized water and the pH set to 10. The final solution contained 7 g/L of humate and 25 mM of Fe in the form of ferrihydrite (FH) (~10% Fe (wt) on the dry weight of FH). For the bioassay, the obtained FH solution was diluted to achieve 1 mM and 10 mM Fe concentrations. As described below, urea (0.2% wt.) was added to the FH solution before its application to the plants.

2.3. Characterization of the Iron Source (FH) Used in This Study

Mössbauer spectroscopy was used to study speciation of Fe in the obtained sample of FH (10 mM Fe). Two FH aliquots (25–30 mL, with or without urea) were dried at 45 °C until a constant weight. The obtained dry product was ground and placed in an evacuated cryostat using a plastic cuvette. Mössbauer spectra were obtained using a MS1104EM Express Mössbauer spectrometer (Cordon GmbH, Rostov-on-Don, Russia). The radiation source was ⁵⁷Co in a metal rhodium matrix with an activity of 2 mCi (RITVERC GmbH, St. Petersburg, Russia). The spectra were obtained both at room temperature (298 ± 3 K), and at a liquid N₂ temperature (77.5 ± 0.5 K). The spectra were collected until the noise/signal ratio decreased down to ≤1%. The high-resolution (1024 points) experimental Mössbauer spectra were processed using SpectrRelax 2.4 software (Lomonosov MSU, Moscow, Russia). The isomer shifts were determined relative to α-Fe.

Transmission electron microscopy (TEM) was performed using a Zeiss Libra 200 MC microscope (Zeiss, Oberkochen, Switzerland), equipped with a monochromator and an Omega-filter. The suspension of FH sample was prepared in distilled water by sonication for 3 min and dripped onto the lacey-carbon-coated TEM grid. After 1 min, the excess solution was removed to reduce the amount of soluble mineral salts. The electron diffraction (ED) patterns of raw potassium humate and the synthesized IONPs were subjected to radial integration using Gwyddion software v. 2.52 [55] followed by polynomial background removal using in-house Python scripts.

To measure the contact angles, the wheat leaves fragments (ca. 2 × 2 cm) were horizontally fixed on the microscope slide glass, a droplet of 20 µL of either distilled water, or Fe-EDTA, or CHS-K, or FH solutions, were placed onto the leaf surface (the FH suspension was rigorously shaken for several minutes before this procedure). All solutions contained urea adjuvant (0.2% wt.). The contact angles were measured by the static sessile drop method. Two µL colloid or distilled water droplets were placed on the horizontally fixed wheat leaf. The images of droplets were captured after 3 s by a horizontal microscope (controlled by iuVCR v. 0.14.0.63 software) and then analyzed using Promer, a custom software designed by the Chair of Colloid Chemistry, Department of Chemistry, Lomonosov MSU. The contact angles were measured at both sides of three droplets and the values were averaged. For each type of solution, measurements were made for five samples.

Surface tension measurements were carried out at room temperature by a maximum bubble pressure method using MP-1 maximum pressure detector. Distilled water was used as a reference fluid. Three measurements were averaged for each sample. For each type of solution, measurements were made for six samples.

2.4. Experiments with Plants

Wheat plants were cultivated from seeds, Triticum aestivum L. cv. L15, which originated from the Russian State Agrarian University, Moscow Timiryazev Agricultural Academy. The seeds were surface-sterilized by immersion in 8% hydrogen peroxide for 15 min in the light. After rinsing 5 times with triple-distilled water according to [56], the wheat seeds were left for germination in the dark at 24 °C for 72 h. Then, the germinated seedlings were transferred into 0.5 L polyethylene tanks containing Fe-free Knop nutrient solution (0.14 g·L⁻¹ KH₂PO₄, 0.1 g·L⁻¹ KCl, 0.14 g·L⁻¹ KNO₃, 1.42 g·L⁻¹ MgSO₄·7H₂O, 4.88 g·L⁻¹ Ca(NO₃)₂·12H₂O, pH 5.5) and cultivated in a growth chamber (12 h light/12 h dark photoperiod, illumination 200 μmol m⁻² s⁻¹; 24 °C) for 21 d.

In this study, Fe-EDTA and FH solutions were used as the iron sources for the foliar treatment at two Fe concentrations: 1 mM Fe and 10 mM Fe. Urea was added to all solutions at a concentration of 0.2% wt. as an adjuvant for increasing the penetration of Fe into the plant based on the literature reports [57,58]. The wheat seedlings (21 d old) were transferred into 0.5 L polyethylene tanks containing Fe-free Knop nutrient solution. Iron was supplied to plants by spraying 5 mL of each iron source solution onto the leaves of 15 wheat plants. Distilled water and the parent potassium humate (with urea) were applied as a control treatment. Clear glass sprayer with aluminum fine mist nozzle pump (Hydior, China) was used for spraying. Seven days after the treatment, the roots and shoots were gently separated; caryopsis and the lower 1.5 cm part were also removed from the shoots. To remove adsorbed iron form the leave surfaces, the shoots were washed for 30 s with the solution of (0.1% HCl/0.01% non-ionic detergent solution, Brij 35) as proposed in [57] and rinsed twice with triple-distilled water. The washed biomass was dried at 24 °C for 14 days (until the weight was constant), weighted, and then subjected to a mineral profile analysis. The washing solutions were analyzed for iron content. All experiments were run in a five-fold biological repetition.

Inductively coupled plasma atomic emission spectroscopy (ICP-AES) was employed to analyze the element content in the iron fertilizers. An axial ICP-AES 5100 spectrometer with an SPS4 autosampler (Agilent Technologies, Santa Clara, CA, USA) was used for the liquid sample analysis. For the iron content analysis, the working solution of the FH fertilizer was dried at 45 °C until a constant weight was achieved. Then, 50.00 ± 0.1 mg was placed into a polypropylene flask with a volume of 50.00 ± 0.12 mL, deionized water was added, and mixed. The obtained FH suspensions were treated in a GRAD 28–35 ultrasonic bath (Grad-Technology, Dzerzhinsk, Russia) for 0.5 h. These solutions were analyzed directly. For the acid digestion of plants, dried leaf biomass was placed into a digestion tube of a Velp DK 20 digestor (Velp, Madrid, Spain) with 5 mL of H₂SO₄ (98%, ACS-ISO grade, Panreac, Barcelona, Spain) and 4 mL of H₂O₂ (33% USP, pharma grade, AppliChem, Darmstadt, Germany). The tubes were heated for 30 min at 200 °C, then1 mL of H₂O₂ was added and heated for 30 min at 300 °C. Then, the content of the tubes was transferred into 50 mL polypropylene Sarstedt tubes, diluted with deionized water to a 25 mL mark, and analyzed.

Statistical data treatment included testing the differences between the average values with a one-way analysis of variance (ANOVA). A least significant difference test (LSD) was used for comparisons between means at p < 0.05.

3. Results and Discussion

3.1. Characterization of the Synthesized Iron-Containing Nanoparticles

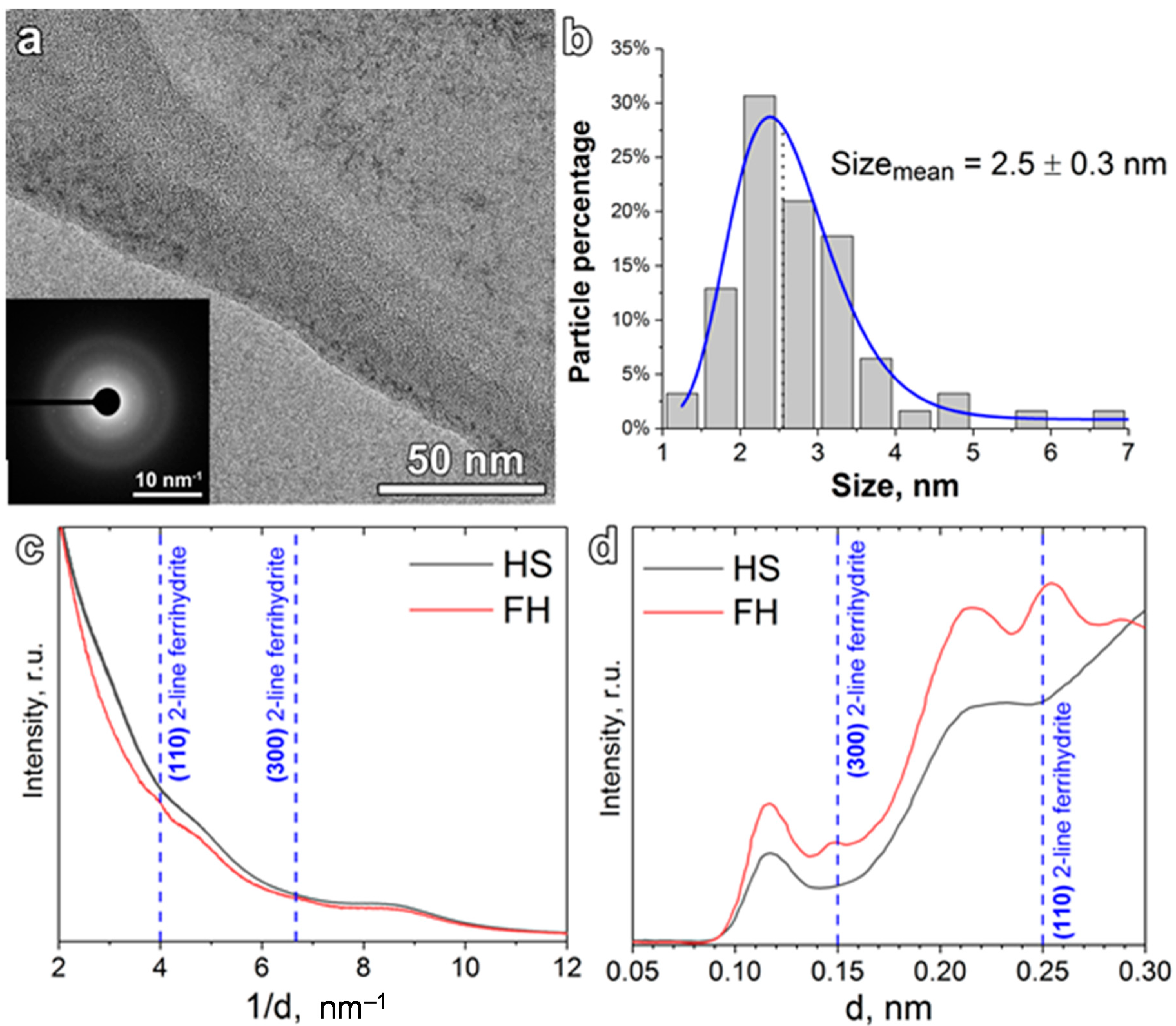

TEM images of the HS-stabilized IONPs synthesized in this study are shown in Figure 1. The numerous ultrafine nanoparticles can be seen within darker regions, which correspond to the amorphous background of HS (Figure 1a). It should be noted that no NPs were detected outside these HS-related areas. This might be indicative of encapsulation of the synthesized ultra-dispersed NPs by the HS matrix. This is feasible, given both the significant excess of potassium humate over the iron precursor (ca. 1:10 Fe/HS mass ratio) used for the reaction and the reported high HS affinity to the surface of iron (hydr)oxides [59]. The size of NPs ranged from 1 to 7 nm with a mean value of (2.5 ± 0.3) nm (Figure 1b), which is typical for HS-stabilized ferrihydrites [19]. For identification of the iron phase in the detected NPs, the normalized plots of integrated ED and background-subtracted ED were calculated as shown in Figure 1c and Figure 1d, respectively. The presence of peaks at 0.15 nm and 0.25 nm in ED of the synthesized FH samples is indicative of nanocrystalline two-line ferrihydrite [60,61]. The two-line ferrihydrite is the least crystalline variety of ferrihydrite family, which falls between the well-defined phases of crystalline iron oxides and short-range ordered ferric polymers [62,63]. Given that a 2-nm ferrihydrite NP is composed of just ~30-unit cells, its lattice is prone to surface relaxation, strain, and disorder [64]. The poor crystallinity of two-line ferrihydrite and high distortion of the lattice make it more amenable to iron release, which is important for the iron source for plant nutrition.

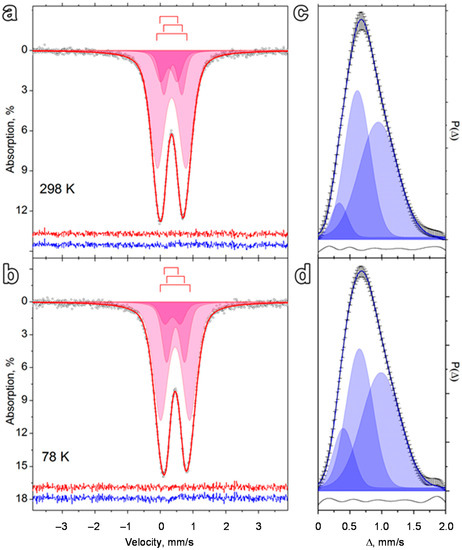

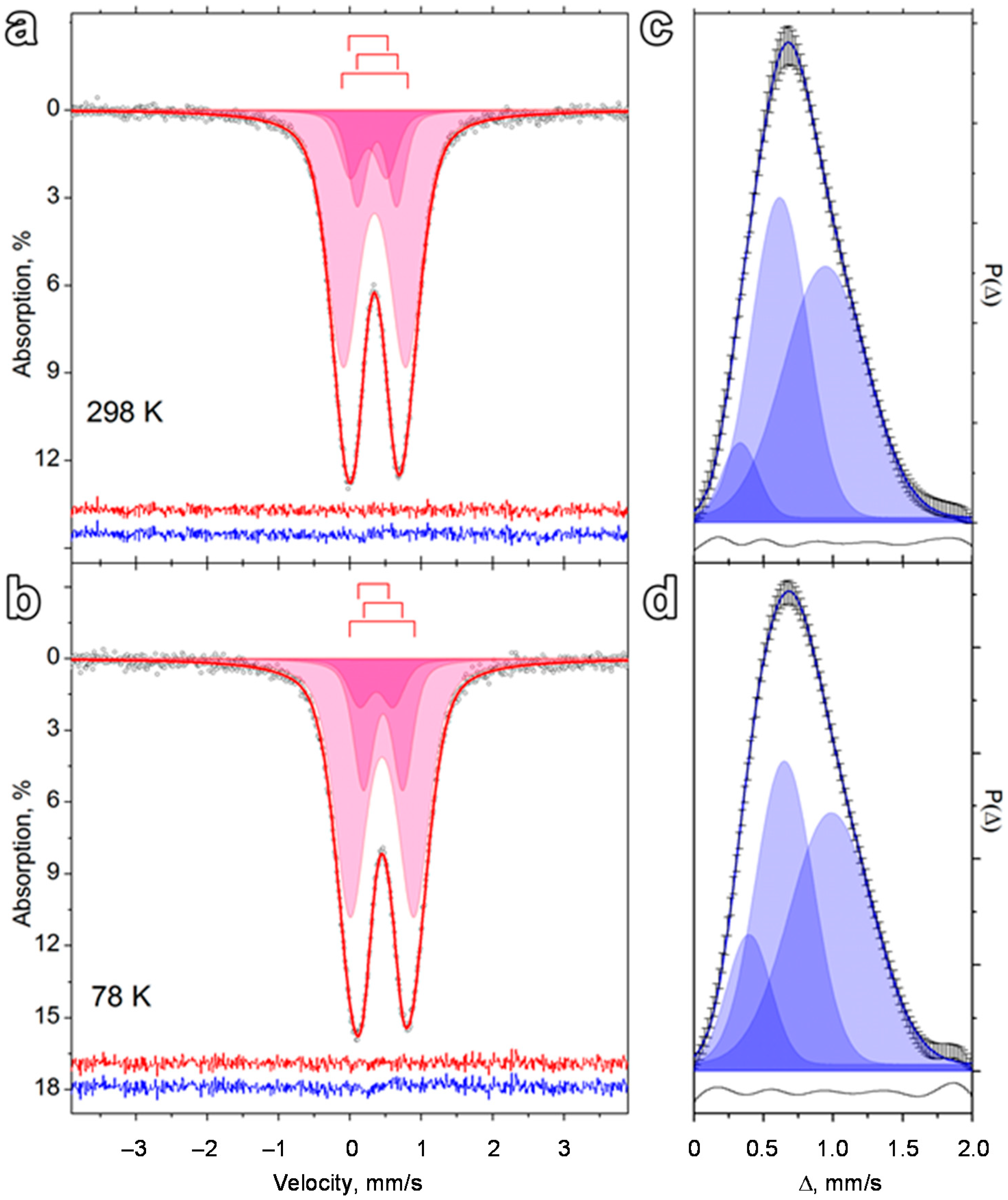

The Mössbauer spectra of the dried FH sample were characterized by an asymmetric shape and broadened doublet lines at both room temperature and the boiling point of liquid N₂ (Figure 2a,b). From a non-model description of these spectra, we obtained the probability distribution functions for isomeric shifts and quadrupole splitting (Figure 2c,d). These distributions were characterized by an asymmetric monomodal shape and high dispersion. Both spectra could be satisfactorily fitted with a set of three modes of different width and intensity (Figure 2c,d). This provided the justification for model fitting of the experimental spectra with a set of only three dublet subspectra (Figure 2a,b;

Table 1. The Mössbauer spectroscopy data for the ferrihydrite (FH) nanoparticles in the absence and presence of urea recorded at 298 K and 78 K.

Temperature, K		Fe Site *	298				78
Sample	Subspectrum		Δ **	Δ	Γexp	S	δ	Δ	Γexp	S
			mm/s			%	mm/s			%
FH NP	1	Fe1	0.35 ± 0.02	0.92 ± 0.08	0.52 ± 0.02	60 ± 17	0.45 ± 0.01	0.91 ± 0.09	0.54 ± 0.02	71 ± 18
	2	Fe2	0.39 ± 0.01	0.57 ± 0.03	0.34 ± 0.05	23 ± 16	0.47 ± 0.01	0.54 ± 0.03	0.34 ± 0.06	23 ± 17
	3	Fe3	0.26 ± 0.04	0.54 ± 0.04	0.38 ± 0.03	17 ± 7	0.33 ± 0.07	0.42 ± 0.08	0.38 ± 0.10	6 ± 3
FH NP + urea	1	Fe1	0.35 ± 0.01	0.92 ± 0.09	0.50 ± 0.02	60 ± 18	0.45 ± 0.01	0.89 ± 0.07	0.52 ± 0.02	68 ± 14
	2	Fe2	0.38 ± 0.01	0.57 ± 0.02	0.33 ± 0.05	24 ± 18	0.47 ± 0.01	0.55 ± 0.03	0.34 ± 0.05	23 ± 15
	3	Fe3	0.27 ± 0.05	0.51 ± 0.06	0.39 ± 0.03	17 ± 7	0.38 ± 0.06	0.47 ± 0.06	0.38 ± 0.05	9 ± 8

* according to the designations reported in [65]; ** δ, isomer shift; Δ, quadrupole splitting; Γ^exp, line width; S, relative area of a subspectrum.

).

Two doublets with the room-temperature isomeric shift within 0.35–0.39 mm/s range were ascribed to the Fe⁺³ ions in the octahedral oxygen environment [65]. The doublet with the highest relative area has an isomeric shift of 0.35 mm/s and the largest quadrupole splitting (0.92 mm/s) (Table 1, subspectrum 1). It was designated as Fe³⁺ ions within the {Fe(O,OH)₆} octahedra connected into layers referring to Fe1 sites as described in [66]. Subspectrum 2 (Table 1) with the largest isomeric shift (0.39 mm/s) and a quadrupole splitting of 0.57 mm/s corresponds to Fe³⁺ ions in "isolated" oxygen octahedra was designated as Fe2 sites as assigned in [66]. Intercorrelation, which can be clearly seen between the values of the quadrupole splitting and the width of the resonance lines of subspectra 1 and 2 (Table 1) has been reported elsewhere [67]. This indicates that the oxygen-containing molecular/ion species (H₂O/OH^–/O^2–), which surround iron atoms in ferrihydrite lattice, make a partial contribution to the Mössbauer parameters related to their dynamic properties and electromagnetic interactions.

The third doublet with the lowest relative area had the smallest quadrupole splitting (0.54 mm/s) and isomeric shift (0.26 mm/s), which corresponds to Fe³⁺ ions in a tetrahedral oxygen environment [65]. A small quadrupole splitting of this doublet indicates a higher symmetry of the environment (leading to a smaller electric field gradient for the corresponding iron atoms) and associates subspectrum 3 (Table 1) with Fe³⁺ ions in the Fe3 position [66]. The ratio of subspectrum areas in the room-temperature spectrum is close to the theoretically expected one from the structural data: Fe1:Fe2:Fe3 = 60:20:20 [68]. The observed change in this ratio at 78 K (Table 1) may be indicative of the deformation of the crystal lattice, which causes the consequent change in the Mössbauer factor of the corresponding iron atoms. Of interest is that the Fe ions in tetrahedral positions are rarely identified in ultra-dispersed ferrihydrite samples by room-temperature Mössbauer spectroscopy (e.g., compared with the reported data [18]). This is only possible for the ferrihydrite species with higher crystallinity, which might be the case in this study. It is feasible given that the synthesis of the FH sample was conducted at pH 10, thus causing the higher hydrolysis rate of Fe precursor as compared to that at pH 9 described by Cieschi et al. [18]. The quadrupole splitting and line widths of all the subspectra are temperature-independent (Table 1). This suggests the absence of magnetic ordering in the temperature range studied, which indicates rather small iron-containing particles [69]. The Mössbauer spectra of the FH sample treated with urea before the foliar application are shown in Figure 2.

The probability distribution functions for the isomeric shifts and quadrupole splitting were also fitted with three peaks, however the peak positions and widths of all modes increased markedly (Figure 2c,d). This is indicative of an increased relative content of inhomogeneities in the local environment of Fe³⁺ ions, e.g., some surface etching of the NPs after the addition of urea. Meanwhile, the fitting parameters of the experimental spectra of FH nanoparticles in the presence and absence of urea (Figure S2a,b) remain the same within the measurement accuracy (Table 1). Summarizing the Mössbauer data, it can be concluded that the synthesized FH nanofertilizer contains small ferrihydrite NPs of enhanced crystallinity as compared to the previously reported analogues synthesized at pH 9 [18]. Addition of urea does not significantly change the state of ferrihydrite NPs leading to a slight increase in the heterogeneity of the local environment of Fe³⁺ atoms.

3.2. Foliar Application of the FH Iron Source to Wheat Plants: Iron Uptake and Its Physical-Chemical Justification

The obtained FH iron source was applied as a foliar spray to the iron-deficient wheat plants and compared with the positive control, Fe-EDTA treatment, and with the blank treatments using distilled water and the parent potassium humate. All treatments contained urea (0.2% wt.) as an effective adjuvant that increases the translocation of iron from the leaf surface into the shoot interior by improving permeation of ionic solutes from the water-based solutions into the aqueous pores in leaf cuticles [57,58]. After 7 days of cultivation, the wheat shoots were separated from the roots, thoroughly washed with Brij/HCl solution, as suggested by Rodríguez-Lucena et al. [57] to ensure the removal of IONPs, which did not penetrate the leave pores, from the leaf surface. The content of iron in the leaves after the treatments are shown in Figure 3.

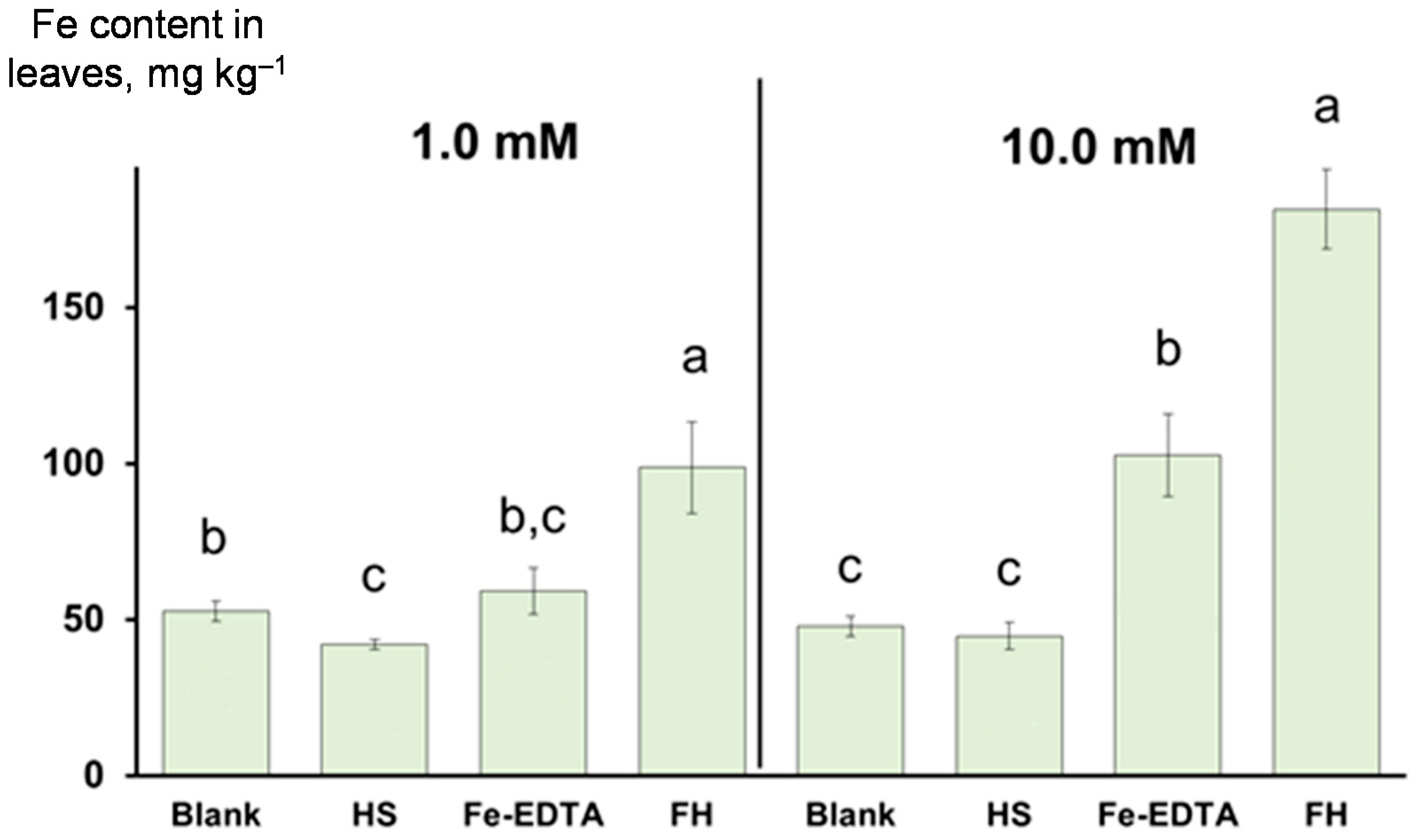

The use of 1 mM Fe solutions resulted in the higher iron content in the leaves in both the case of the FH sample and Fe-EDTA, moreover, the increase in the FH sample was larger than the Fe-EDTA sample (left panel of Figure 3). The treatment using the higher Fe dosage (10 mM) gave even more impressive results (right panel of Figure 3): in the case of the FH sample, the content of Fe in the leaves was 280% of the control (distilled-water treated leaves), whereas in the case of Fe-EDTA the corresponding increase was 115% of the control. Thus, the FH treatment was ca. 70–75% more efficient compared to Fe-EDTA at the higher concentration used in this study. The potassium humate treatment did not increase Fe content in the leaves as compared to the blank experiments. The data on the iron content in the shoot-washing solutions corroborate the obtained results: for both concentrations (1 and 10 mM), consistently higher iron content was observed for Fe-EDTA and a lower content was found for FH. So, the solution used to wash the leaves treated with 1 mM Fe-EDTA and FH spray contained 55 ± 13 and 12 ± 1 µg·L⁻¹ of Fe, respectively (Table S1, Supplementary Materials). The same trend was observed for the treatment with 10 mM Fe: an iron content of 400 ± 150 and 100 ± 30 µg·L⁻¹, were found in the shoot-washing solution used in the Fe-EDTA and FH treatments, respectively. Of importance is that almost no iron (significantly below 10 µg·L⁻¹) was found in the distilled water washing solution used after Brij 35/HCl washing of the leaves treated with FH spray at concentrations of 1- and 10-mM Fe (Table S1, Supplementary Materials). The higher Fe content in the washed leaves and the lower iron content in the “after-treatment” washing solutions for the FH sample, as well as the opposite trend for the Fe-EDTA treatment suggest that there was higher penetration of IONPs in the leaves in the case of the FH sample compared to Fe-EDTA.

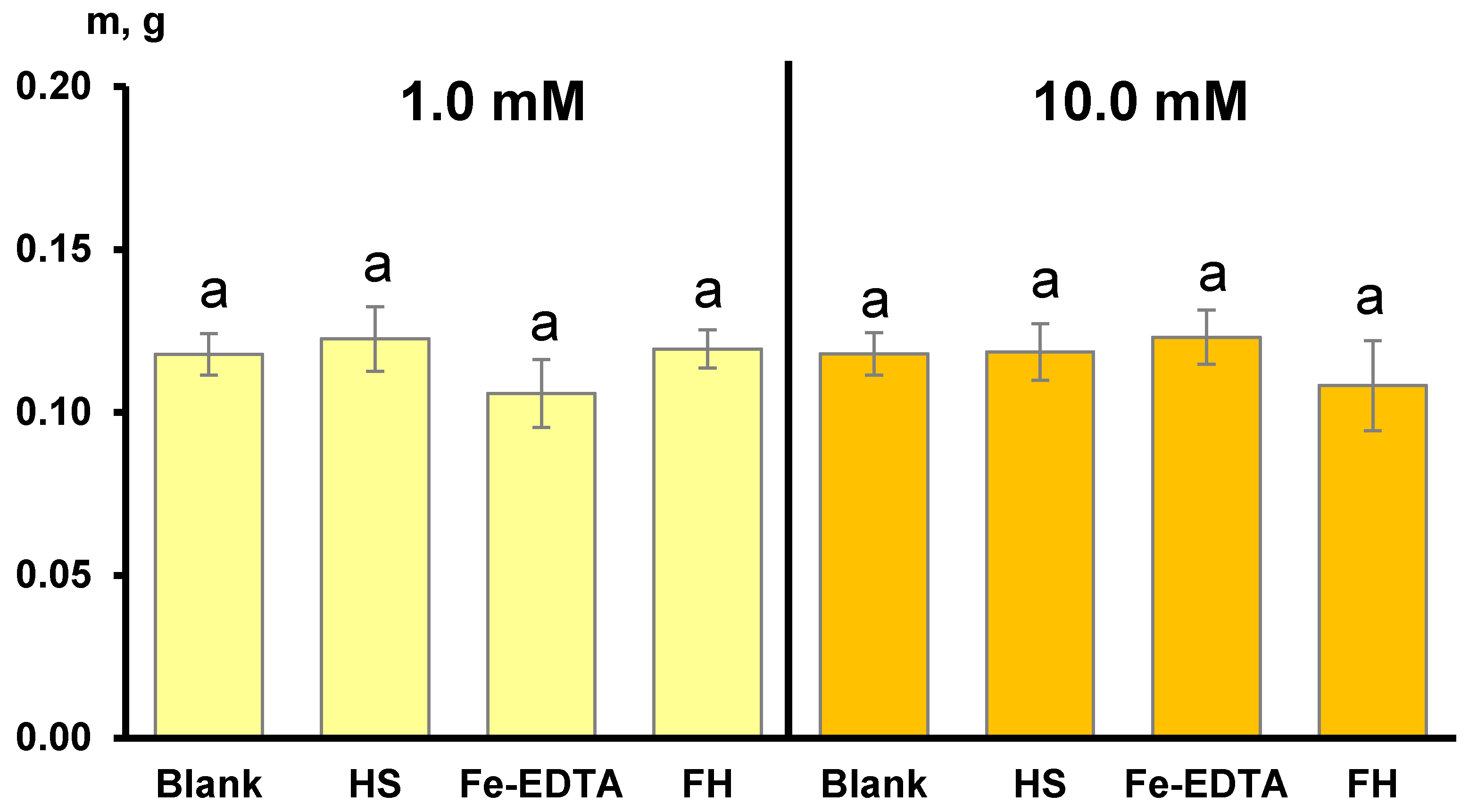

Along with the iron content, we measured the dry biomass of the shoots of the plants treated with the iron sources under study. The results are given in Figure 4. None of the treatments resulted in a statistically significant increase in shoot biomass. Our results are consistent with data obtained by Bastani et al. [70] who studied the effects of nano and bulk Fe complex (Fe(III)-EDTA) on hydroponically-grown Fe-deficient tobacco (Nicotiana rustica L.). They demonstrated that the plant biomass was not affected by Fe foliar fertilization one week after treatment, although a statistically significant increase in iron content was observed. This is due to the lag period in the plants’ response to the iron supply. The increase in the soil plant analysis development (SPAD) values related to chlorophyll content only begins 4–5 days after treatment [70], and in general, ten days are believed to be enough to see the re-greening of Fe-deficient plants after Fe foliar fertilization [71]. This is why the obtained data do not provide definite confirmation of the participation of the up taken iron in the relevant physiological processes. We can only comment on the corresponding trend. More extended studies are needed and more sensitive parameters should be measured (e.g., the photosynthetic activity of the plants).

To exploring the physical-chemical phenomena that underlie the observed increase in Fe uptake by wheat leaves after the FH spray as compared to the Fe-EDTA, we measured the surface tension of the HS solution and of both the iron-containing solutions applied for foliar fertilization. We also measured the contact angle of the corresponding spray droplets on the wheat leaves. We wanted to investigate whether the observed enhancement in Fe uptake was connected to the surface activity of HS, which could the lower surface tension of the urea-FH solution. This seemed feasible given that the HS sample used in this study had about 40% of C atoms in the hydrophilic functional groups, and the other 60% of C atoms in the hydrophobic carbon skeleton. The results obtained for the surface tension and contact angle are shown in

Table 2. Contact angles of the foliar spray droplets deposited on the surface of the wheat leaf and the surface tension of the corresponding solution.

Solution *	Surface Tension, mN/m (at 20 °C)	Contact Angle, (at 20 °C)
distilled water	73.6 ± 0.4 b, c	110.2 ± 0.2 a **
solution of HS	73.7 ± 0.1 b	93.3 ± 0.4 c
Fe-EDTA	74.2 ± 0.2 a	95.2 ± 0.4 b
FH	73.2 ± 0.1 c	87.0 ± 0.5 d

* all solutions contained urea adjuvant (0.2% wt.), HS—potassium humate, FH—ferrihydrite; ** ± stands for a standard deviation for the surface tension (n = 5) and contact angle (n = 6). Values with different letters within a column are significantly different at p < 0.05.

and Figure 5, respectively.

Table 2 shows that in the presence of 0.2% urea, all tested solutions had a surface tension similar to distilled water. At the same time, the FH solution exhibited a lower (87^o) contact angle on the surface of wheat leaf (Figure 5) as compared to Fe-EDTA (95.2^o) and compared to both controls (water and humate solution). The FH solution showed the smallest contact angle, which resulted in the highest wettability of wheat leaves among all of the tested solutions. Of particular interest is that the contact angle for the FH solution was lower than that of the HS solution of the same concentration (Figure 5, Table 2). This observation agrees well with the report by Harikrishnan et al. [46] on enhanced wettability of hydrophobic and hydrophilic surfaces by complex fluids containing both surfactants and nanoparticles as compared to particle-free surfactant solutions. A study on emulsification [47] has shown that the addition of particles to a surfactant-stabilized emulsion results in the appearance of a small population of large drops due to coalescence, possibly by bridging of adsorbed particles. The addition of surfactant to a particle-stabilized emulsion surprisingly led to increased coalescence as well [47]. In our study, the larger drops, which were observed for the FH solution, might result from the higher wettability of the leaf surface due to accumulation of nanoparticles on the droplet/leaf surface. Since only residual iron from the IONPs spray was found in the after-treatment washing solution, it was assumed that the major portion had entered the leaf through its different-sized pores (stomatal pores, pores in the cell walls, etc.). Given that HS can promote the physiological mechanisms involved in Fe acquisition acting at the transcriptional and post-transcriptional level [72], the observed increased uptake of iron NPs stabilized by HS might be an eco-friendly and affordable tool for biofortification of crops, in particular, of wheat and rice.

4. Conclusions

In this study, ultrasmall ferrihydrite nanoparticles (with a mean size of 2.5 ± 0.3 nm) stabilized by potassium humate (HS) were synthesized and used in the form of a spray as an iron source for foliar application on wheat plants (Triticum aestivum L.) grown under iron-deficient conditions. This resulted in a 70–75% higher iron content in washed and dried wheat shoots compared to a coordination complex of ferric ions and ethylenediaminetetraacetic acid (Fe-EDTA). The higher uptake of iron from the ferrihydrite (FeH) stabilized with HS was related to the enhanced wettability of the wheat leaves. The obtained results are promising with regard to developing humic-stabilized nanofertilizers. Additional benefits are provided by the eco-friendly properties and plentiful resources of humic substances.
