Urethane Macromonomers: Key Components for the Development of Light-Cured High-Impact Denture Bases

Abstract

The development of high-impact denture base formulations that are suitable for digital light processing (DLP) 3D printing is demanding. Indeed, a combination of high flexural strength/modulus and high fracture toughness is required. In this contribution, eight urethane macromonomers (UMs1-8) were synthesized in a one-pot, two-step procedure. Several rigid diols were first reacted with two equivalents of trimethylhexamethylene diisocyanate. The resulting diisocyanates were subsequently end-capped with a free-radically polymerizable monomer bearing a hydroxy group. UMs1-8 were combined with the monofunctional monomer (octahydro-4,7-methano-1H-indenyl)methyl acrylate and a poly(ε-caprolactone)-polydimethylsiloxane-poly(ε-caprolactone) (PCL-PDMS-PCL) triblock copolymer (BCP1) as a toughening agent. The double-bond conversion, glass transition temperature (T_g), and mechanical properties (flexural strength/modulus, fracture toughness) of corresponding light-cured materials were measured (cured in a mold using a light-curing unit). The results showed that the incorporation of BCP1 was highly efficient at significantly increasing the fracture toughness, as long as the obtained networks exhibited a low crosslink density. The structure of the urethane macromonomer (nature of the rigid group in the spacer; nature and number of polymerizable groups) was demonstrated to be crucial to reach the desired properties (balance between flexural strength/modulus and fracture toughness). Amongst the evaluated macromonomers, UM1 and UM2 were particularly promising. By correctly adjusting the BCP1 content, light-cured formulations based on those two urethane dimethacrylates were able to fulfill ISO20795-1:2013 standard requirements regarding high-impact materials. These formulations are therefore suitable for the development of 3D printable high-impact denture bases.

1. Introduction

Additive manufacturing of dental materials brings several advantages for dentists and dental technicians. Using this technology, personalized materials can be easily prepared following a fast and cost-effective workflow [1,2,3,4,5,6,7,8]. The digital light processing (DLP) technology, which employs a projector as a light source to cure a resin layer by layer, is mainly used for 3D printing of dental materials. 3D printing dental materials including temporary crowns, models, surgical guides, splints, digital dentures (base and teeth materials), and night guards are currently available on the market. 3D printing of high-impact denture bases is particularly challenging. Indeed, such materials must exhibit high flexural strength/modulus and be fracture-tough. Due to improved durability and fracture resistance in case of accidental dropping, high-impact denture bases are superior to conventional denture bases. According to the international ISO20795-1:2013 standard, heat-cured and light-activated denture bases must exhibit flexural strength and modulus values above 65 MPa and 2000 MPa, respectively (measured in water at 37 °C) [9]. Additionally, particularly high maximum stress intensity factor (K_max ≥ 1.9 MPa m^1/2) and total fracture work (W_f ≥ 900 J m⁻²) values must be reached for high-impact materials [9].

Following the traditional workflow, complete dentures are manufactured using compression and injection molding techniques [10]. Heat-cured denture bases are typically used for this workflow. These materials mostly contain crosslinked poly(methyl methacrylate) (PMMA). They are commonly obtained by thermal polymerization of a methyl methacrylate (MMA)-based resin, which is prepared by mixing a liquid (containing MMA and low amounts of dimethacrylates), and a powder (mainly containing beads of PMMA and a thermal initiator such as benzoyl peroxide) [10,11]. Contrary to conventional denture bases, high-impact materials additionally contain toughening agents (e.g., core–shell particles). The toughening of thermoplastic polymers such as PMMA with core–shell particles is highly efficient and leads to excellent fracture toughness. Unfortunately, this technology cannot be easily transferred to DLP 3D printing. Indeed, MMA is a volatile monomer and presents an unsuitable reactivity. For these reasons, mixtures of di(meth)acrylates are typically used for 3D printing of denture bases. As a result of their high crosslink density, printed di(meth)acrylate materials are brittle. Geiger et al. showed that these materials exhibit rather low fracture toughness [12]. Moreover, it has been clearly demonstrated that well-known toughening strategies, such as the incorporation of block copolymers (BCPs) or core–shell particles, are quite inefficient for high crosslink density di(meth)acrylate networks [13,14,15]. Indeed, only a moderate fracture toughness increase was observed upon addition of these toughening agents. To the best of our knowledge, no commercially available 3D printing denture bases fulfill the ISO20795-1:2013 standard requirements regarding high-impact materials [9]. There is consequently a strong need for efficient toughening technologies that would be suitable for 3D printing of (meth)acrylate based materials.

In this context, we recently proposed an approach based on the addition of BCPs to low crosslink density di(meth)acrylate-based networks [16,17,18,19,20]. A poly(ε-caprolactone)-polydimethylsiloxane-poly(ε-caprolactone) (PCL-PDMS-PCL) triblock copolymer was typically added to a monofunctional (meth)acrylate/urethane dimethacrylate macromonomer mixture. Using this strategy, materials presenting excellent flexural strength/modulus and high fracture toughness values were successfully prepared. These resins met the requirements for DLP 3D printing (non-volatile monomers, high reactivity, low viscosity, etc.). It was demonstrated that the structure of the urethane dimethacrylate macromonomer strongly influences the flexural strength/modulus and the fracture toughness of the cured materials [17,19]. The presence of multiple urethane moieties results in the formation of strong hydrogen bonds that beneficially affect the mechanical properties of the network. Most of the urethane macromonomers that we have evaluated so far were synthesized via the reaction of isophorone diisocyanate (IPDI, 2.0 eq.) with a diol (1.0 eq.), followed by an end-capping with 2-hydroxyethyl methacrylate. Longer spacer lengths as well as the use of a flexible diol were demonstrated to be advantageous in order to obtain high fracture toughness. Unfortunately, materials exhibiting higher fracture toughness often presented lower flexural strength/modulus. Using IPDI-based macromonomers, ISO20795-1:2013 standard requirements for high-impact materials could not be fulfilled [9]. Quite recently, we were able for the first time to develop a 3D printable high-impact denture base material [20]. One of the key compounds of this formulation is the promising urethane macromonomer UM1 (Figure 1). Contrary to the IPDI-based urethane dimethacrylates, UM1 was prepared via the reaction of a flexible disocyanate (trimethylhexamethylene diisocyanate) with a rigid diol (tricyclo [5.2.1.0(2,6)]decanedimethanol) (similar end-capping, Figure 1). As this strategy seems to be more efficient to find the right balance between fracture toughness and flexural strength/modulus, the objective of this work was to synthesize and evaluate UM1 derivatives by changing either the nature of the rigid diol or of the end-capping group. In this contribution, seven new urethane macromonomers, UMs2-8, were evaluated for the formulation of light-cured high-impact denture bases (Figure 1 and Figure 2). Each macromonomer was combined with the monofunctional monomer (octahydro-4,7-methano-1H-indenyl)methyl acrylate (OMIMA, Figure 2), and a PCL-PDMS-PCL BCP was added as a toughening agent. BCP1 (PCL-PDMS-PCL: 1000 g mol⁻¹–2000 g mol⁻¹–1000 g mol⁻¹) was selected as it was demonstrated to be highly efficient in combination with UM1 and OMIMA [20]. In this contribution, the influence of the urethane macromonomer’s nature on the flexural strength, flexural modulus, and fracture toughness of the corresponding photocured materials (cured in a mold using a light-curing unit) is discussed.

2. Materials and Methods

2.1. Materials

The monomer (octahydro-4,7-methano-1H-indenyl)methyl acrylate (OMIMA) and Dianol 320 HP were provided by Arkema (Colombes, France) and the initiator Genocure TPO by Rahn AG (Zürich, Switzerland). 1,3-Bis(3-aminopropyl)tetramethyldisiloxane, octamethylcyclotetrasiloxane, ε-caprolactone (CL), and tin(II) 2-ethylhexanoate (Sn(EH)₂) were purchased from abcr GmbH (Karlsruhe, Germany). Tricyclo [5.2.1.0(2,6)]decanedimethanol was purchased from OQ Chemicals GmbH (Monheim, Germany). Trimethylhexamethylene diisocyanate (TMDI; 2,2,4- and 2,4,4-mixture) was provided by Evonik (Essen, Germany) and 2-hydroxyethyl methacrylate (HEMA) by Nordmann Switzerland AG (Zürich, Switzerland). Isosorbide was purchased from Thermo Scientific GmbH (Reinach, Switzerland) and 2,2-bis(4-hydroxycyclohexyl)propane from TCI Europe N.V (Zwijndrecht, Belgium). Glycerol dimethacrylate (GDMA, isomeric mixture) was provided by Evonik (Essen, Germany) and purified by column chromatography before use. As a result, GDMA was obtained as a pure isomeric mixture of glycerol 1,2-dimethacrylate and glycerol 1,3-dimethacrylate (ratio 24/76: mol/mol). All other reagents were purchased from Sigma-Aldrich (Darmstadt, Germany) and were used without further purification. 2,2’-([1,1’-biphenyl]-2,2’-diylbis(oxy))bis(ethan-1-ol) was synthesized according to the literature [21]. DMA1 and UM1 were prepared according to a procedure reported in the literature [16,20]. The synthesis of BCP1 is described in a previous article [20]. Column chromatography was conducted on silica gel (FlashPure ID Silica, particle size: 35–45 μm) using Pure C-815 Flash from BÜCHI Labortechnik AG (Flawil, Switzerland).

2.2. Synthesis of Urethane Macromonomers UMs2-8

2.2.1. UM2

General procedure: A mixture of Dianol 320 HP (671.92 g, 1.95 mol) and dibutyltin dilaurate (1.19 g, 1.88 mmol) was heated to 40 °C. TMDI (820.39 g, 3.90 mol) was added, and the reaction mixture was stirred at 100 °C for 1 h. Subsequently, BHT (0.37 g, 1.7 mmol) and HEMA (515.35 g, 3.96 mol) were added, and the resulting mixture was stirred for 1 h, affording the desired product in quantitative yield.

• Aspect: colorless viscous resin.

¹H NMR (CDCl₃, 400 MHz): δ = 0.80–0.99 (m, 18H; CH₃); 1.00–1.76 (m, 22H; CH, CH₂, CH₃); 1.95 (s, 6H; CH₃); 2.75–3.28 (m, 8H; NCH₂); 3.85–4.09 (m, 4H; OCH₂); 4.10–4.41 (m, 8H; OCH₂); 4.43–5.29 (m, 6H; CHO, NH); 5.58 (s, 2H; =CH); 6.13 (s, 2H; =CH); 6.71–6.86 (m, 4H, ArH), 7.03–7.18 (m, 4H, ArH).

2.2.2. UM3

According to the procedure described for UM1, UM3 was prepared from 2,2’-([1,1’-biphenyl]-2,2’-diylbis(oxy))bis(ethan-1-ol) (30.00 g, 109.4 mmol), dibutyltin dilaurate (0.06 g, 0.10 mmol), TMDI (45.99 g, 218.7 mmol), and HEMA (28.46 g, 218.7 mmol), affording UM3 in quantitative yield.

• Aspect: colorless viscous resin.

¹H NMR (CDCl₃, 400 MHz): δ = 0.80–0.98 (m, 18H; CH₃); 1.00–1.78 (m, 10H; CH, CH₂); 1.91–1.98 (m, 6H; CH₃); 2.71–3.31 (m, 8H; NCH₂); 3.98–4.44 (m, 16H; OCH₂); 4.45–5.48 (m, 4H; NH); 5.51–5.64 (m, 2H; =CH); 6.08–6.18 (m, 2H; =CH); 6.87–7.06 (m, 4H, ArH), 7.14–7.37 (m, 4H, ArH).

2.2.3. UM4

According to the procedure described for UM1, UM4 was prepared from cyclohexane-1,4-diyldimethanol (80.00 g, 554.7 mmol), dibutyltin dilaurate (0.292 g, 0.46 mmol), TMDI (233.30 g, 1.11 mol), and HEMA (148.00 g, 1.14 mol), affording UM4 in quantitative yield.

• Aspect: colorless resin.

¹H NMR (CDCl₃, 400 MHz): δ = 0.81–0.97 (m, 18H; CH₃); 0.98–1.89 (m, 20H; CH, CH₂); 1.93–1.97 (m, 6H; CH₃); 2.77–3.28 (m, 8H; NCH₂); 3.82–4.05 (m, 4H; OCH₂); 4.19–4.47 (m, 8H; OCH₂); 4.47–5.20 (m, 4H; NH); 5.57–5.62 (m, 2H; =CH); 6.11–6.17 (m, 2H; =CH).

2.2.4. UM5

According to the procedure described for UM1, UM5 was prepared from isosorbide (17.67 g, 120.192 mmol), dibutyltin dilaurate (0.06 g, 0.10 mmol), TMDI (50.85 g, 241.84 mmol), and HEMA (31.47 g, 241.84 mol), affording UM5 in quantitative yield.

• Aspect: colorless resin.

¹H NMR (CDCl₃, 400 MHz): δ = 0.80–0.98 (m, 18H; CH₃); 0.99–1.77 (m, 10H; CH, CH₂); 1.88–1.99 (m, 6H; CH₃); 2.79–3.29 (m, 8H; NCH₂); 3.62–4.09 (m, 4H; OCH₂); 4.25–4.43 (m, 8H; OCH₂); 4.44–5.29 (m, 8H; NH, OCH); 5.55–5.64 (m, 2H; =CH); 6.09–6.19 (m, 2H; =CH).

2.2.5. UM6

According to the procedure described for UM1, UM6 was prepared from 2,2-bis(4-hydroxycyclohexyl)propane (39.14 g, 162.83 mmol), dibutyltin dilaurate (0.06 g, 0.10 mmol), TMDI (68.48 g, 325.66 mmol), and HEMA (43.02 g, 330.54 mmol), affording UM6 in quantitative yield.

• Aspect: colorless viscous resin.

¹H NMR (CDCl₃, 400 MHz): δ = 0.67–0.80 (m, 6H; CH₃); 0.82–0.99 (m, 18H; CH₃); 1.00–1.83 (m, 24H; CH, CH₂); 1.86–2.15 (m, 10H; CH₂, CH₃); 2.75–3.29 (m, 8H; NCH₂); 4.24–4.42 (m, 8H; OCH₂); 4.43–5.15 (m, 6H; NH, OCH); 5.55–5.64 (m, 2H; =CH); 6.09–6.19 (m, 2H; =CH).

2.2.6. UM7

According to the procedure described for UM1, UM7 was prepared from tricyclo [5.2.1.0(2,6)]decanedimethanol (11.65 g, 59.37 mmol), dibutyltin dilaurate (0.05 g, 0.08 mmol), TMDI (24.97 g, 118.70 mmol), and glycerol dimethacrylate (GDMA) (27.10 g, 118.70 mol), affording UM7 in quantitative yield.

• Aspect: colorless resin.

¹H NMR (CDCl₃, 400 MHz): δ = 0.83–0.98 (m, 18H; CH₃); 1.00–1.83 (m, 18H; CH, CH₂); 1.95 (s, 12H; CH₃); 1.99–2.58 (m, 6H; CH, CH₂); 2.78–3.26 (m, 8H; NCH₂); 3.71–4.06 (m, 4H; OCH₂); 4.17–4.45 (m, 8H; OCH₂); 4.53–5.19 (m, 4H; NH); 5.20–5.50 (m, 2H, OCH); 5.54–5.66 (m, 4H; =CH); 6.05–6.19 (m, 4H; =CH).

2.2.7. UM8

According to the procedure described for UM1, UM8 was prepared from tricyclo [5.2.1.0(2,6)]decanedimethanol (22.38 g, 114.00 mmol), dibutyltin dilaurate (0.06 g, 0.10 mmol), TMDI (47.95 g, 228.00 mol), and 2-hydroxyethyl acrylate (26.46 g, 228.00 mol), affording UM8 in quantitative yield.

• Aspect: colorless resin.

¹H NMR (CDCl₃, 400 MHz): δ = 0.83–0.98 (m, 18H; CH₃); 1.00–1.85 (m, 18H; CH, CH₂); 1.91–2.58 (m, 6H; CH, CH₂); 2.78–3.26 (m, 8H; NCH₂); 3.74–4.00 (m, 4H; OCH₂); 4.25–4.45 (m, 8H; OCH₂); 4.51–5.29 (m, 4H; NH); 5.81–5.91 (m, 2H; =CH); 6.08–6.22 (m, 2H; =CH); 6.39–6.50 (m, 2H; =CH).

2.3. Formulation of Photopolymerizable BCP-Based Monomer Mixtures

UMs1-8 and DMA1 were firstly mixed with the monofunctional monomer OMIMA. BCP1 and 1.0 wt% TPO were subsequently added. The mixture was stirred at 50 °C until full solubilization of the BCP.

2.4. Measurements

2.4.1. Nuclear Magnetic Resonance (NMR) Spectroscopy

NMR measurements were performed on a DPX-400 (Bruker Biospin, Fällanden, Switzerland) in deuterated solvents with tetramethylsilane (TMS) as standard. Data are displayed in the following order: chemical shift in ppm, multiplicity (bs, broad singlet; s, singlet; t, triplet; q, quadruplet; m, multiplet), coupling constant in Hertz (Hz), and assignment.

2.4.2. Fourier Transform Infrared Spectroscopy (FT-IR)

IR spectroscopy was conducted using a Perkin Elmer FT-IR Spectrum Two (UATR Two) spectrometer (8 scans, 4 cm⁻¹ resolution, 600–4000 cm⁻¹) in ATR mode. The decrease in the absorption of the isocyanate stretching vibration (2270 cm⁻¹) was traced for the determination of the isocyanate conversion.

2.4.3. Flexural Strength and Flexural Modulus

Flexural strength was measured according to ISO20795-1:2013 [9]. Specimens (3.3 mm × 10 mm × 64 mm) were prepared using stainless-steel molds (n = 6). The molds were filled with the photopolymerizable monomer mixture and covered with polyester film (50 µm) to avoid oxygen inhibition. After light-curing for 10 min from both sides in a PrograPrint Cure LED curing unit (120 mW cm⁻² @ 405 nm and 100 mW cm⁻² @ 465 nm), the specimens were removed from the mold and stored in water at 37 °C for 50 h. Measurement of flexural strength and modulus was carried out in a three-point bending test (span: 50 mm) with a cross-head speed of 5 mm min⁻¹ using a Z2.5/TS universal testing machine (ZwickRoell, Ulm, Germany). The measurement was carried out in water at 37 °C (the specimens were immersed in a tempered water bath during the measurement).

2.4.4. Fracture Toughness

Fracture toughness was measured using a modified bending test described in ISO 20795-1:2013 [9]. Both the maximum stress intensity factor (K_max) and work of fracture (W_f) were determined using single-edge notched beam (SENB) specimens (n = 6). A stainless-steel mold (4 mm × 8 mm × 40 mm) was filled with a photopolymerizable monomer mixture. The mold was covered with a polyester film (50 µm) to avoid oxygen inhibition. After light-curing for 10 min from both sides in a PrograPrint Cure LED curing unit (120 mW cm⁻² @ 405 nm and 100 mW cm⁻² @ 465 nm), cured specimens were removed from the mold and a 3.0 mm deep notch was prepared using a circular saw with diamond blade and the initial crack was prepared by striking a razorblade with gentle pressure to a depth of 0.3 mm. Specimens were stored in water for 24 h at 37 °C, dabbed with paper and subsequently loaded to break at RT with a span of 32 mm and at a crosshead speed of 1.0 mm/min using a universal testing machine (Zwick Z2.5, ZwickRoell, Ulm, Germany).

K_max (in MPa m^1/2) was calculated as follows:

$$K_{max}={\displaystyle \frac{f\left(x\right)P_{max}{l}_t}{\left(b_t{h}_t^{\raisebox{1ex}{$3$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}\right)}}\times \sqrt{{10}^{-3}}MPa{m}^{{\displaystyle \raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}}$$

(1)

where f(x) is a geometrical function dependent on x:

$$f(x)={3x}^{{\displaystyle \raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}}[1.99-x(1-x)(2.15-3.93x+2.7x^2)]/[2(1+2x){(1-x)}^{{\displaystyle \raisebox{1ex}{$3$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}}]$$

(2)

with x = (a/h_t) and h_t as the height of the specimen (8 mm), b_t its width (4 mm), l_t the span length (32 mm), a the crack length (3 mm + crack depth with razor blade), and P_max the maximum load exerted on the specimens (in N).

The total fracture work W_f (in J m⁻²) was calculated as follows:

$$W_f={\displaystyle \frac{U}{\left[2b_t\right(h_t-a\left)\right]}}\times 1000$$

(3)

where U is the recorded area under the load/deflection curve.

2.4.5. Viscosity

The viscosity of the photopolymerizable monomer mixtures was measured in a rheometer (MCR302, Anton-Paar, Graz, Austria) at 23 °C with cone-plate setup (CP25-2, 53 µm gap) in rotational mode at a shear rate of 100 s⁻¹.

2.4.6. Measurement of T_g Using Dynamic Mechanical Thermal Analysis (DMTA)

DMTA specimens were prepared using a stainless-steel mold (5 mm × 2 mm × 40 mm) with polyester film (50 µm) as cover to avoid oxygen inhibition. After light-curing for 10 min from both sides in a PrograPrint Cure LED curing unit (120 mW cm⁻² @ 405 nm and 100 mW cm⁻² @ 465 nm), specimens were removed from the mold. DMTA measurements were performed on an Anton Paar MCR 301 device with a CTD 600 oven and a SRF 5 fixture. The measurements were carried out in torsion mode with a frequency of 1 Hz, a normal force (FN) of–1 N, and a strain of 0.05%. A temperature spectrum was monitored from 25 °C to 250 °C with a heating rate of 2 °C min⁻¹. The glass transition temperature (T_g) was defined as the temperature corresponding to the maximum of the loss factor (tan δ) curve.

2.4.7. Near-Infrared (NIR) Spectrometry (Measurement of the Double Bond Conversion)

Circular specimens (d = 15 mm, h = 1 mm, n = 3) were prepared using stainless-steel molds. The molds were filled with the photopolymerizable monomer mixture and covered with a polyester film (50 µm) to avoid oxygen inhibition. After light-curing for 10 min from both sides in a PrograPrint Cure LED curing unit (120 mW cm⁻² @ 405 nm and 100 mW cm⁻² @ 465 nm), the specimens were removed from the molds and stored in distilled water at 37 °C for 24 h before the evaluation of the DBC. To obtain the double bond conversion, the spectra of the uncured and cured material were measured by NIR spectroscopy using the Invenio R spectrometer (Bruker, 16 Scans, 8 cm⁻¹ Resolution, 3000–10,000 cm⁻¹) at a film thickness of 1.0 mm. The (meth)acrylate overtone peak at 6165 cm⁻¹ was integrated for both spectra. DBC was calculated by the following equation:

$$DBC=\left(1-\left({\displaystyle \frac{A_{cured}}{A_{uncured}}}\right)\right)\ast 100$$

(4)

A_cured and A_uncured correspond to the integrated area in the NIR spectrum (A_cured: area of the (meth)acrylate peak of the cured material, A_uncured: area of the (meth)acrylate peak of the uncured material).

2.4.8. Scanning Transmission Electron Microscopy (STEM)

Samples of 70 nm thickness were prepared by ultramicrotomy (Leica model EM UC7) at room temperature and deposited on the surface of high-resolution copper grids. In order to visualize the areas containing block copolymer, the sections were stained at 20 °C for 24 h with osmium tetroxide (OsO₄) vapor. As the staining was found to be rather selective on the block copolymer, no further treatment of the sections was necessary. It should be noted that the staining of aromatic groups is very low compared with the block copolymer. Observations were made using a JEOL ARM-200F (JEOL, Tokyo, Japan) transmission microscope operating at an accelerating voltage of 200 kV.

3. Results

3.1. Synthesis of Urethane Macromonomers UMs2-8 and of BCP1

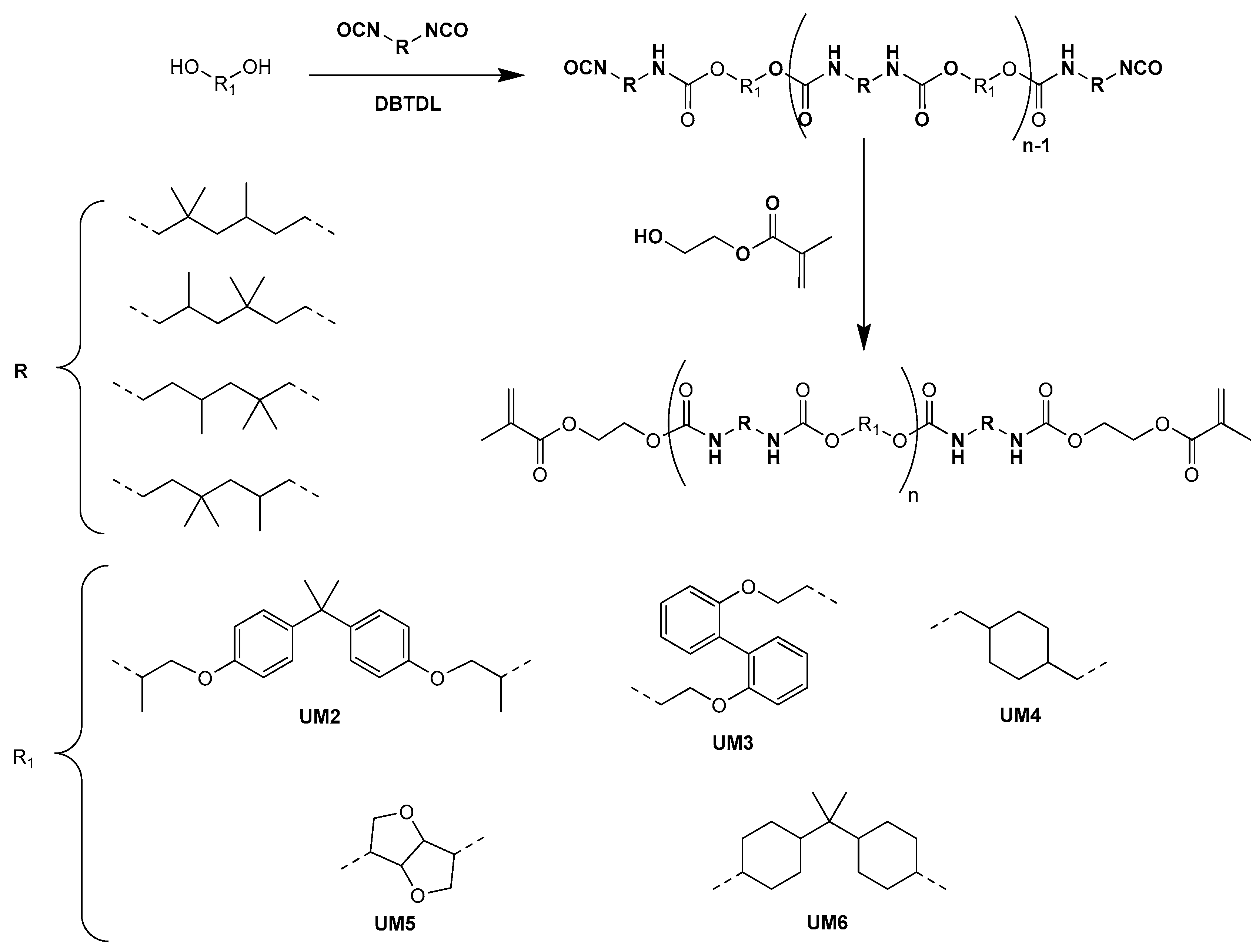

For the preparation of UMs2-6, a two-step one-pot synthesis was performed (Figure 3). In the first step, the selected diol was reacted with two equivalents of trimethylhexamethylene diisocyanate (TMDI; 2,2,4- and 2,4,4-mixture of isomers) in the presence of a catalytic amount of dibutyltin dilaurate (DBTDL), affording a mixture of urethane oligomers bearing isocyanate end groups. Subsequently, the remaining isocyanate moieties were quenched with 2-hydroxyethyl methacrylate (HEMA). This reaction step was monitored by FT-IR and was stopped after complete consumption of the isocyanate groups. Macromonomers UMs2-6 were obtained as viscous resins.

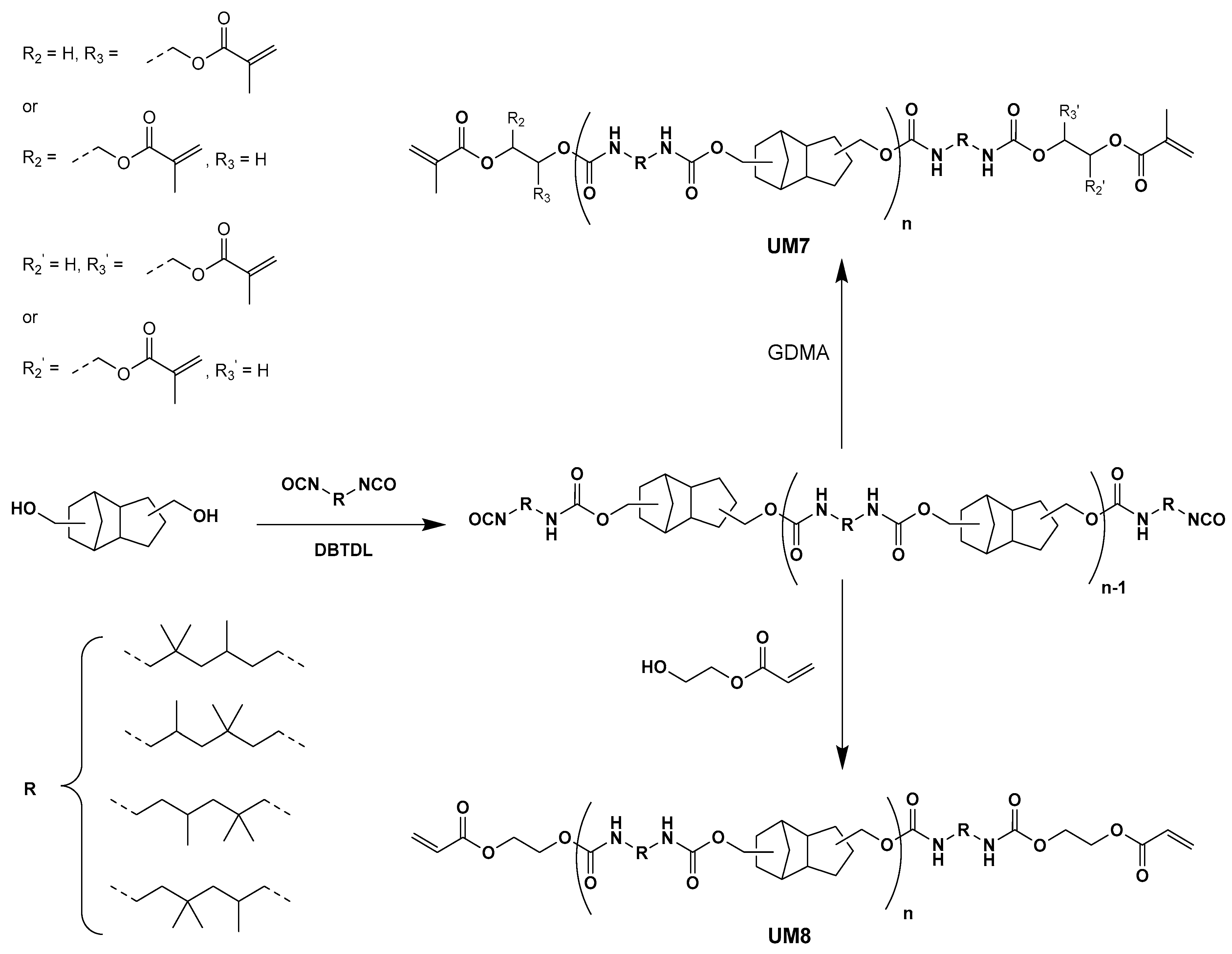

UM7 and UM8 were prepared according to a similar synthetic pathway (Figure 4). However, 2-hydroxyethyl acrylate (HEA) and glycerol dimethacrylate (GDMA) were used for the end-capping step instead of HEMA. UMs2-8 were characterized by ¹H NMR spectroscopy and by gel permeation chromatography (GPC). The NMR spectra and GPC results can be found in the Supporting Information. Owing to the lack of selectivity of the isocyanate moieties, a mixture of urethane oligomers exhibiting different lengths and of bis-[(2-methacryloyloxyethoxy-carbonyl)-amino]-2,2,4-trimethylhexane (UDMA, n = 0) was obtained for each urethane macromonomer synthesis. This behavior was previously observed and described by Fässler et al. for UM1 [21]. UMs2-8 were used without further purification for the formulation of BCP1-based resins.

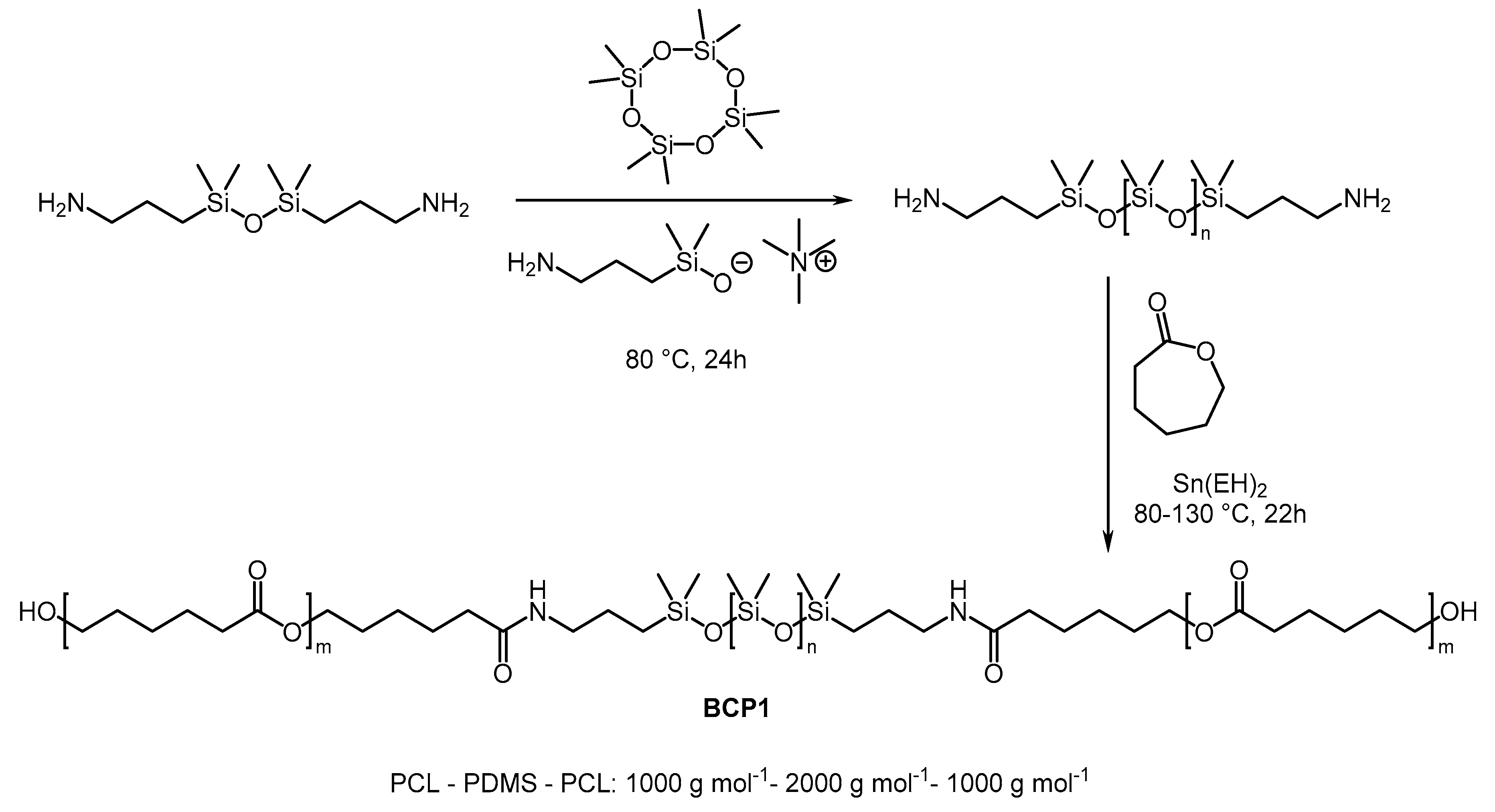

BCP1 was prepared in two steps, according to a procedure described in the literature (Figure 5) [20].

3.2. Evaluation of Novel Urethane Dimethacrylate Macromonomers: Variation of the Nature of the Diol

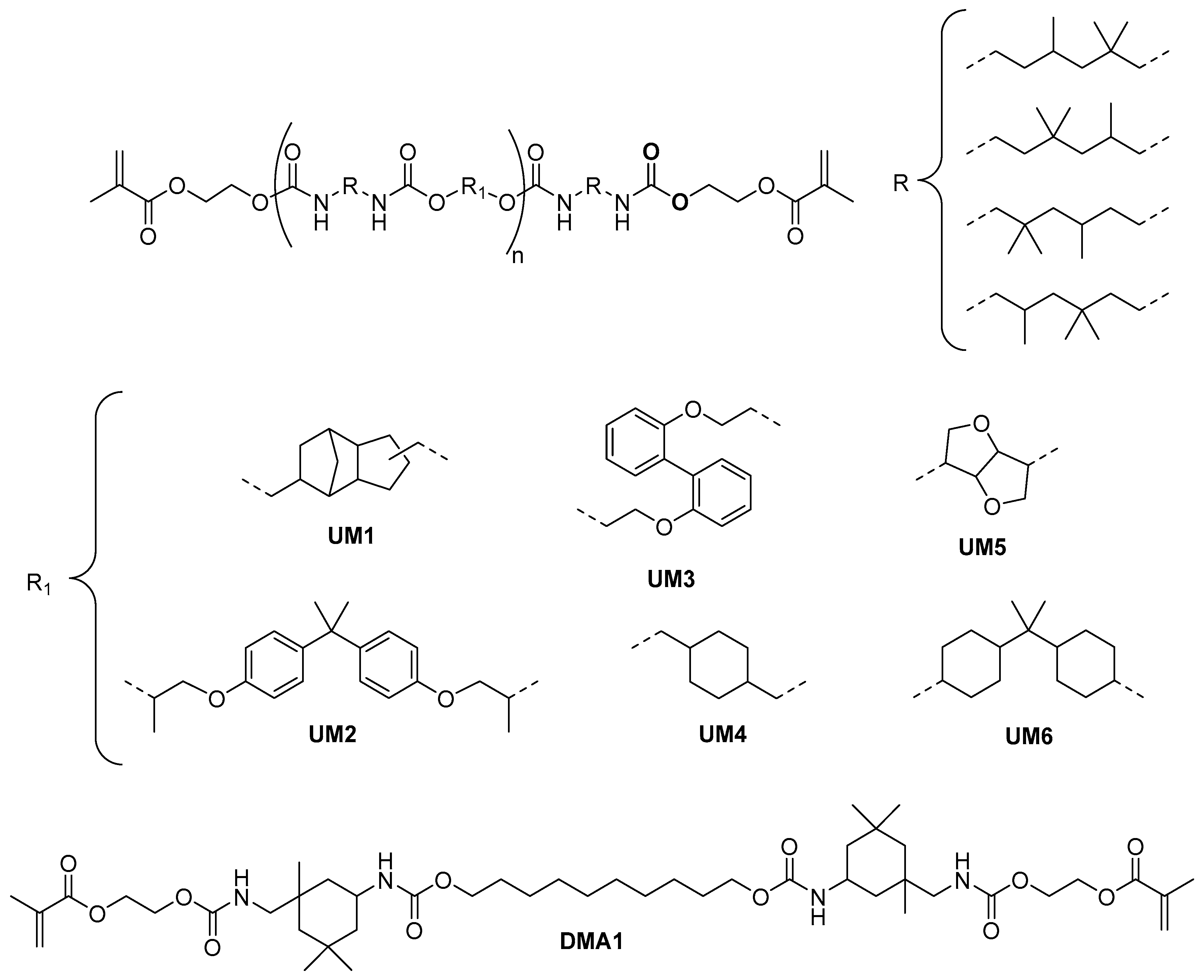

UMs1-6 were mixed with the monofunctional monomer OMIMA (ratio: 1/1: wt/wt) and BCP1 (5.0 wt%) was added. DMA1, a dimethacrylate that was evaluated in a previous work, was selected as a reference [16]. The viscosity of each formulation was determined (

Table 1. Viscosity of BCP1-based UMs1-6/OMIMA and DMA1/OMIMA formulations as well as T_g and DBC of the corresponding light-cured materials.

Resin	Viscosity (Pa s)	DBC (%)	Tg (°C)
UM1/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	3.38	100	84
UM2/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	6.09	100	78
UM3/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	3.07	100	72
UM4/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	3.12	100	79
UM5/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	6.60	100	89
UM6/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	8.02	100	87
DMA1/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	2.27	100	101

). The nature of the urethane macromonomer was shown to have a strong influence on this property. Mixtures based on DMA1 and UM1 exhibited the lowest viscosity values, whereas the formulation containing UM6 was the most viscous one. Nevertheless, the viscosity of each formulation was suitable for DLP 3D printing application. Indeed, the viscosity of commercially available DLP 3D printing resins typically lies in the range of 0.5 to 10.0 Pa s. TPO (1.0 wt%) was added as a photoinitiator and each formulation was photocured. DBC and T_g were measured. Interestingly, the photocuring of each formulation led to full DBC (see Supporting Information). T_g values varied from 72 °C (UM3/OMIMA) to 101 °C (DMA1/OMIMA) (the corresponding curves can be found in the Supporting Information).

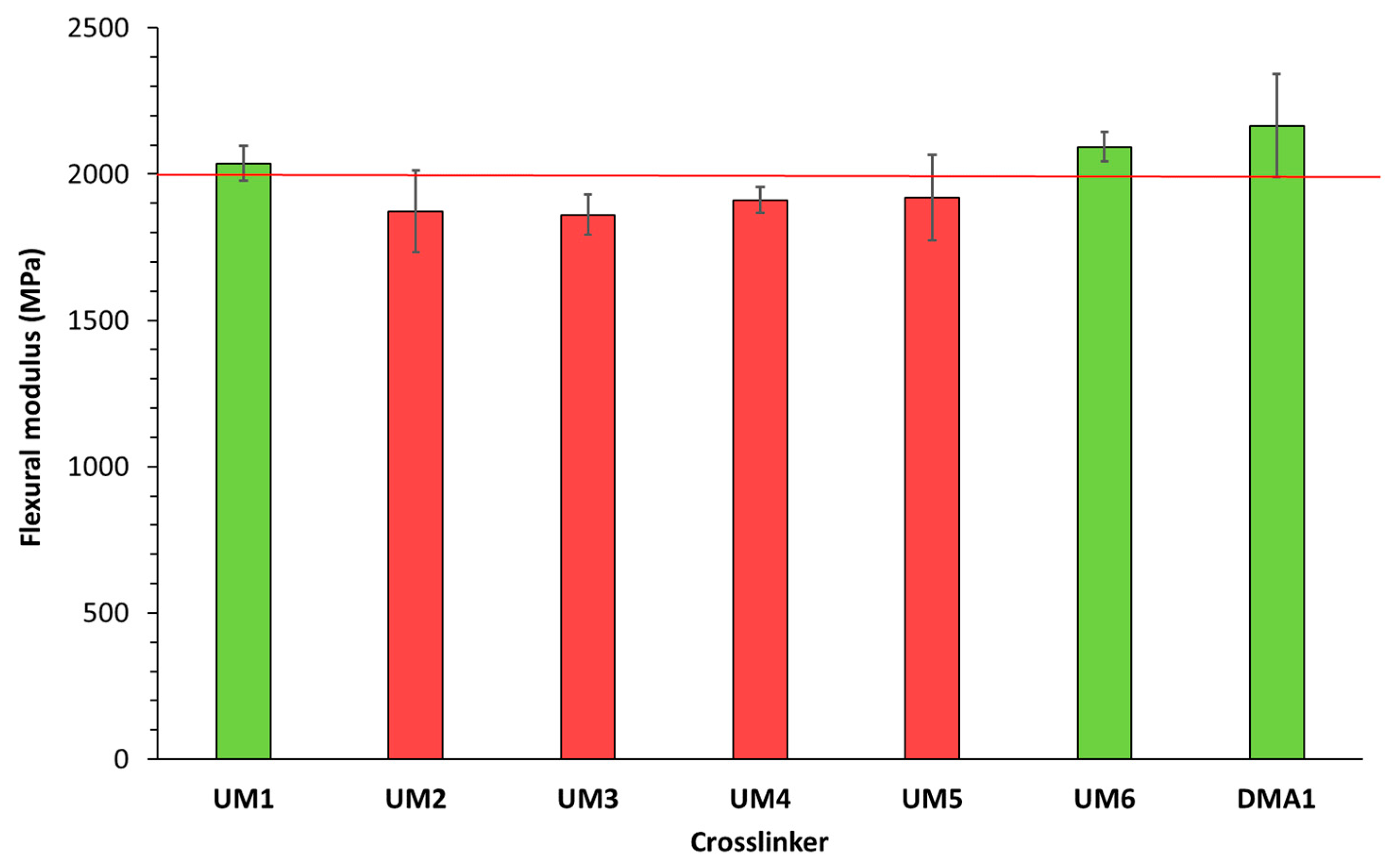

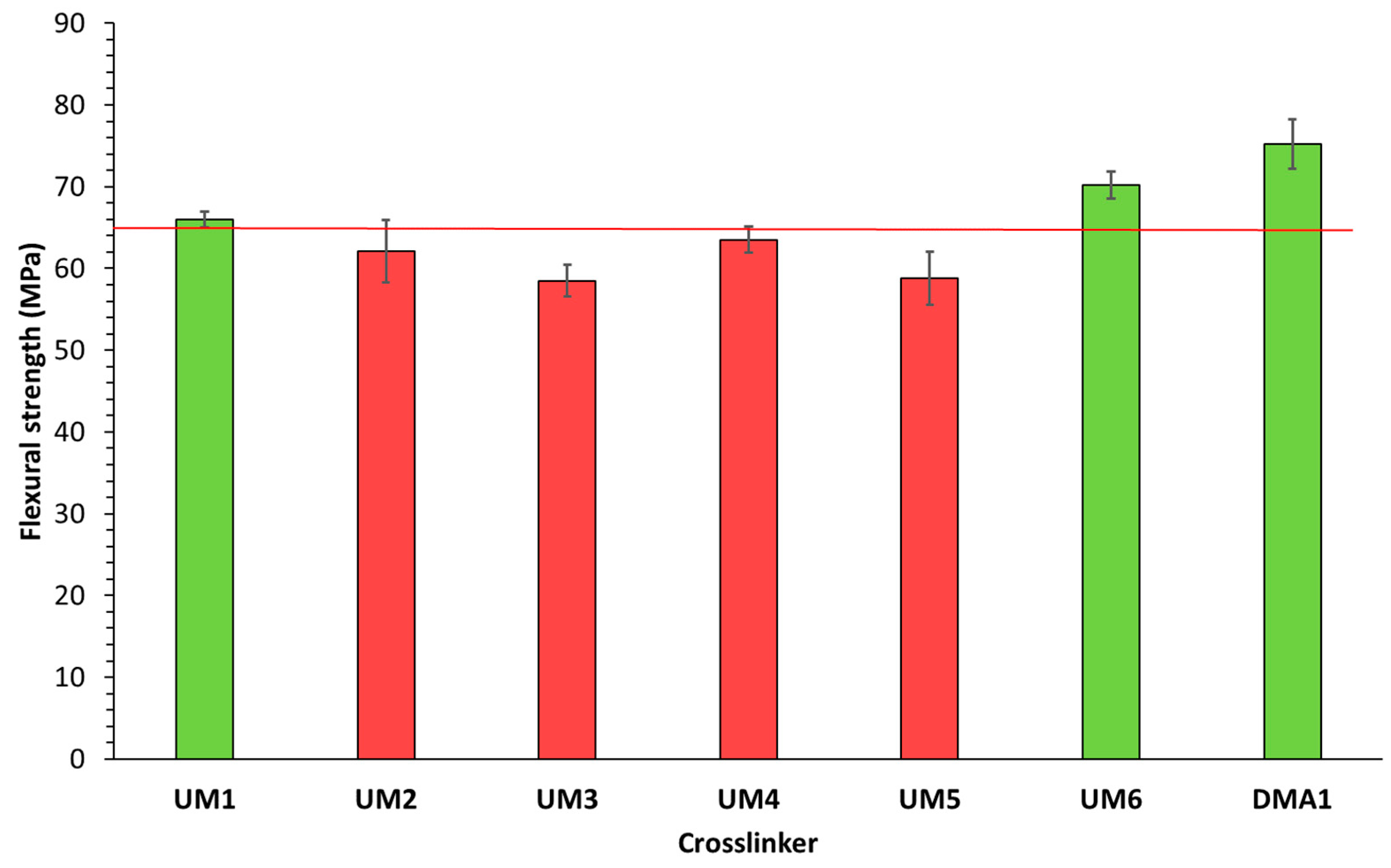

The flexural strength and modulus of these light-cured materials (cured in a mold using a light-curing unit) were subsequently determined (Figure 6 and Figure 7). Results showed that three materials were able to fulfill the ISO20795-1:2013 requirements for high-impact denture base materials: UM1/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1, UM6/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1, and DMA1/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1. UM2- and UM4-based materials almost reached the desired flexural strength value. The fracture toughness was also measured (Figure 8 and Figure 9). For each material, the maximum stress intensity factor (K_max) was higher than the minimally required value for high-impact denture bases. On the other hand, the desired total fracture work (W_f) was not reached for all materials. Indeed, significantly lower values were obtained for materials containing DMA1, UM4, and UM6. As a whole, only the UM1-containing formulation was suitable for the preparation of light-cured high-impact denture bases.

It is well-known that the amount of added BCP has a strong influence on both the flexural strength/modulus and the fracture toughness. The formulations based on UM2, UM3, and DMA1 almost reached the desired properties. In order to further evaluate the potential of these urethane macromonomers, formulations containing various amounts of BCP1 were prepared and tested (UM1/OMIMA was used as comparison). Results are presented in

Table 2. Flexural strength and flexural modulus of light-cured UM1/OMIMA, UM2/OMIMA, UM3/OMIMA, and DMA1/OMIMA materials containing various amounts of BCP1.

Resin	BCP1 (wt%)	Flexural Strength (MPa)	Flexural Modulus (MPa)
UM1/OMIMA (1/1: wt/wt)	5.0	65.9 ± 1.0	2037 ± 60
UM1/OMIMA (1/1: wt/wt)	4.0	70.1 ± 2.0	2171 ± 56
UM2/OMIMA (1/1: wt/wt)	5.0	62.1 ± 3.8	1872 ± 140
UM2/OMIMA (1/1: wt/wt)	4.0	72.0 ± 1.9	2250 ± 80
UM3/OMIMA (1/1: wt/wt)	5.0	58.5 ± 1.9	1861 ± 70
UM3/OMIMA (1/1: wt/wt)	4.0	60.7 ± 1.5	1857 ± 57
UM3/OMIMA (1/1: wt/wt)	3.0	63.9 ± 4.9	1963 ± 216
DMA1/OMIMA (1/1: wt/wt)	5.0	75.2 ± 3.0	2166 ± 175
DMA1/OMIMA (1/1: wt/wt)	6.0	67.0 ± 1.5	2009 ± 50
DMA1/OMIMA (1/1: wt/wt)	7.0	61.6 ± 1.7	1900 ± 106

and

Table 3. Maximum stress intensity factor (K_max) and total fracture work (W_f) of light-cured UM1/OMIMA, UM2/OMIMA, UM3/OMIMA, and DMA1/OMIMA materials containing various amounts of BCP1.

Resin	BCP1 (wt%)	Kmax (MPa m1/2)	Wf (J m−2)
UM1/OMIMA (1/1: wt/wt)	5.0	2.477 ± 0.142	1478 ± 51
UM1/OMIMA (1/1: wt/wt)	4.0	2.285 ± 0.123	844 ± 18
UM2/OMIMA (1/1: wt/wt)	5.0	2.303 ± 0.124	1695 ± 43
UM2/OMIMA (1/1: wt/wt)	4.0	2.531 ± 0.075	963 ± 33
UM3/OMIMA (1/1: wt/wt)	5.0	2.466 ± 0.042	1623 ± 19
UM3/OMIMA (1/1: wt/wt)	4.0	2.561 ± 0.044	1512 ± 220
UM3/OMIMA (1/1: wt/wt)	3.0	2.443 ± 0.086	834 ± 21
DMA1/OMIMA (1/1: wt/wt)	5.0	2.318 ± 0.065	781 ± 21
DMA1/OMIMA (1/1: wt/wt)	6.0	2.329 ± 0.073	893 ± 43
DMA1/OMIMA (1/1: wt/wt)	7.0	2.240 ± 0.090	1264 ± 147

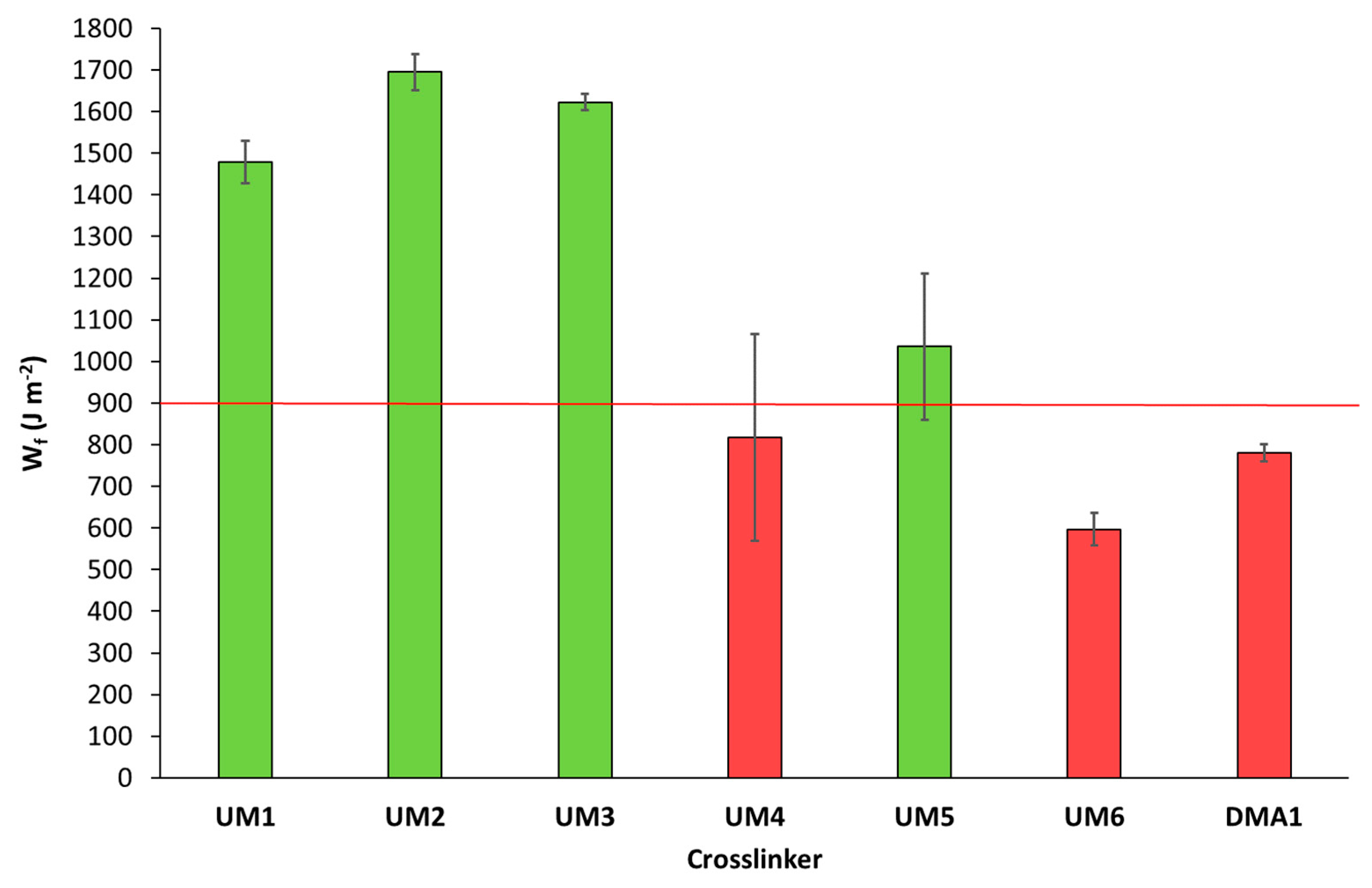

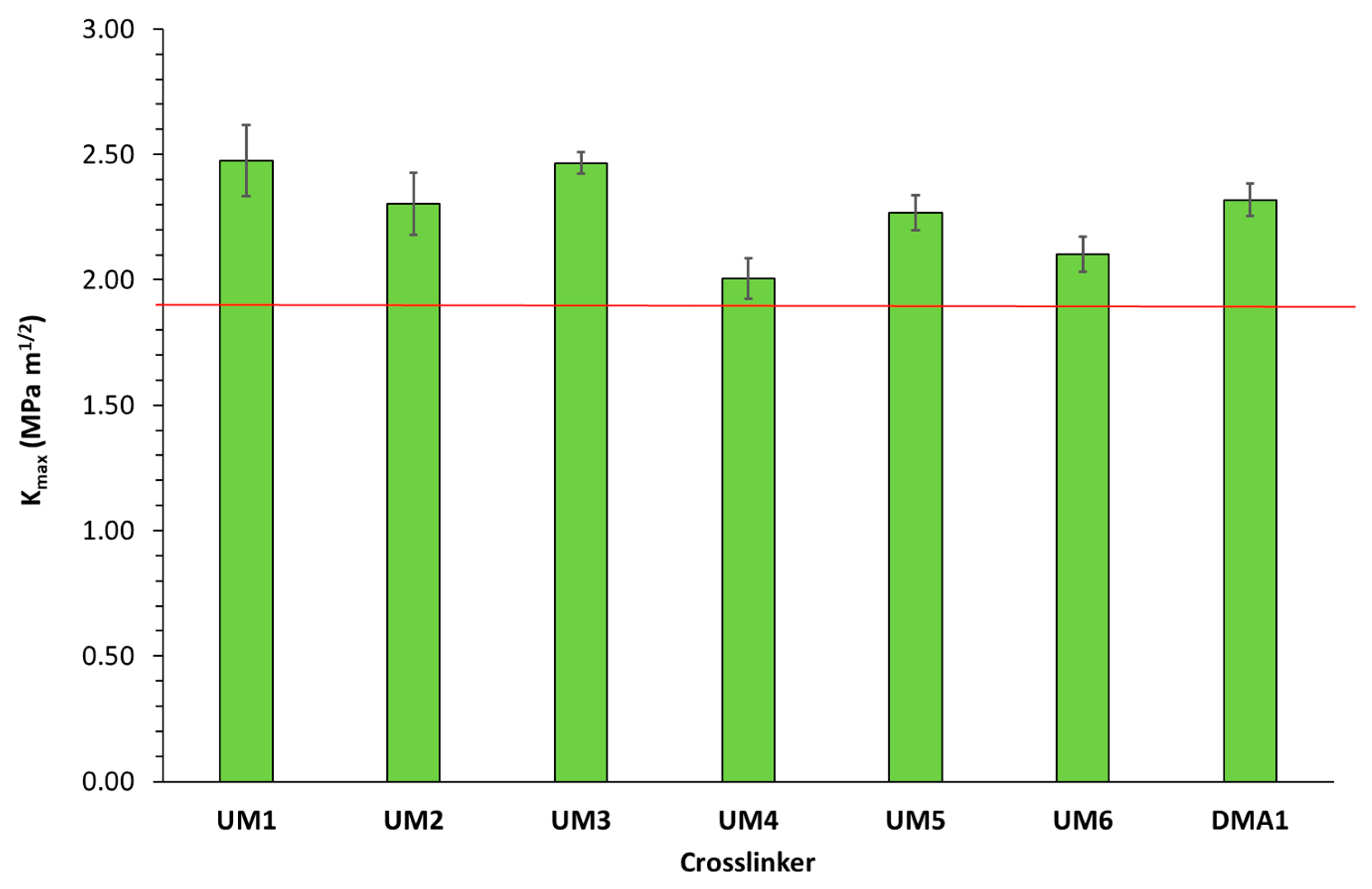

. The reduction of the BCP1 content in UM1/OMIMA and UM2/OMIMA formulations led to a significant increase in both flexural strength and modulus. Interestingly, it was not the case with UM3/OMIMA. Indeed, only a moderate improvement of the mechanical properties was obtained. Regarding the fracture toughness, lower BCP1 amounts provided lower K_max and W_f values. Indeed, 4.0 wt% BCP1 was not sufficient to reach the ISO20795-1:2013 requirements in terms of W_f for the UM1-based material. On the other hand, this strategy worked for the UM2/OMIMA formulation. Indeed, UM2/OMIMA + 4.0wt% BCP1 was also found to be a suitable resin for high-impact denture bases (ISO20795-1:2013 requirements in terms of flexural strength/modulus and fracture toughness are fulfilled). The results obtained with UM3 were not satisfactory: The addition of 3.0 wt% BCP1 led to an insufficient toughening effect (W_f was too low) combined with unsuitable flexural strength and modulus. Contrary to the UMs1-3-containing formulations, the amount of BCP1 in DMA1/OMIMA was increased. As expected, the higher the BCP1 content, the higher the W_f value. Indeed, 7.0wt% BCP1 was sufficient to exceed the targeted W_f value of 900 J m⁻². However, this material did not meet the ISO20795-1:2013 requirements concerning flexural strength and modulus [9].

STEM measurements of the materials containing 5.0 wt% BCP1 were carried out. The STEM micrographs highlighted the presence of well-dispersed nano-objects (Figure 10). No significant differences were observed between the materials.

3.3. Evaluation of Novel Urethane Dimethacrylate Macromonomers: Variation of the Nature of the Macromonomer Polymerizable End Groups

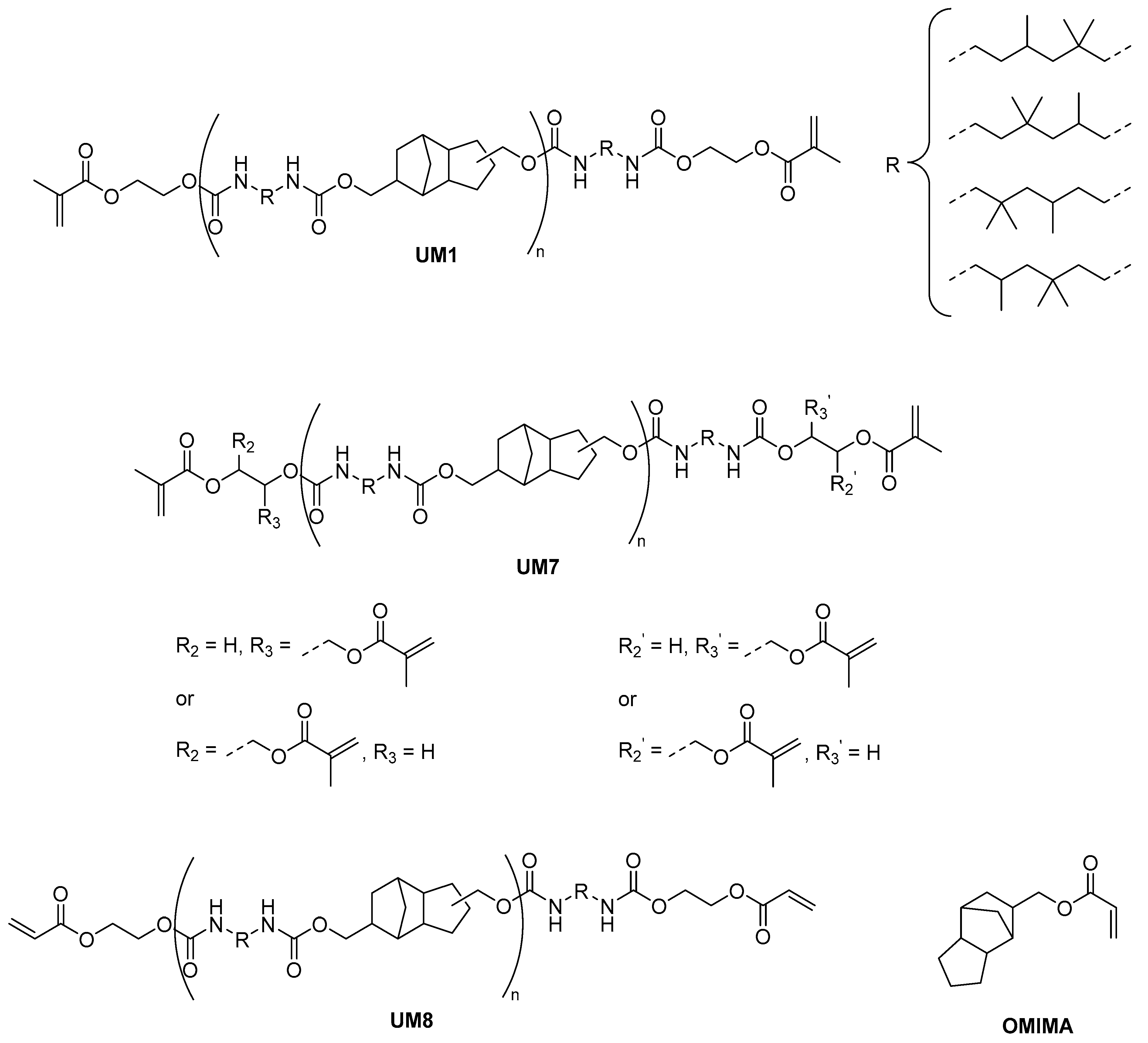

UM1 was shown to be a highly promising urethane macromonomer for the formulation of high-impact materials. The diol used for its synthesis is therefore particularly attractive. For this reason, it was selected for the preparation of UM7 and UM8. The objective was to vary the nature of the polymerizable end group and to evaluate its influence on the mechanical properties of the corresponding cured materials. DBC and T_g of photocured UM7/OMIMA and UM8/OMIMA materials containing 5.0 wt% BCP1 were assessed (

Table 4. Viscosity of BCP1-based UM1/OMIMA and UMs7-8/OMIMA formulations as well as T_g and DBC of the corresponding light-cured materials.

Resin	Viscosity (Pa s)	DBC (%)	Tg (°C)
UM1/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	3.38	100	84
UM7/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	3.35	93 ± 1	107
UM8/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	4.35	100	72

). It was shown that the T_g of the UM7-based material was significantly higher than for the other cured resins. UM8/OMIMA provided the lowest T_g value. Due to the presence of additional methacrylate moieties, light-curing of the UM7-containing formulation did not lead to a full DBC (see Supporting Information).

The mechanical properties were assessed (

Table 5. Flexural strength and flexural modulus of light-cured UM1/OMIMA and UMs7-8/OMIMA materials containing 5.0 wt% of BCP1.

Resin	Flexural Strength (MPa)	Flexural Modulus (MPa)
UM1/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	65.9 ± 1.0	2037 ± 60
UM7/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	71.2 ± 9.1	2496 ± 125
UM8/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	58.8 ± 2.1	1836 ± 114

and

Table 6. Maximum stress intensity factor (K_max) and total fracture work (W_f) of light-cured UM1/OMIMA and UMs7-8/OMIMA materials containing 5.0 wt% of BCP1.

Resin	Kmax (MPa m1/2)	Wf (J m−2)
UM1/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	2.477 ± 0.142	1478 ± 51
UM7/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	1.081 ± 0.045	135 ± 8
UM8/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1	2.108 ± 0.028	1161 ± 183

). High flexural strength and modulus were obtained with the UM7-based material. However, extremely low K_max and W_f values were measured. This material was brittle. The use of a urethane diacrylate macromonomer (UM8) instead of a dimethacrylate (UM1) was also not advantageous: A decrease in flexural strength/modulus, K_max, and W_f was clearly observed.

4. Discussion

The development of 3D printing of high-impact denture bases is highly attractive. However, the formulation of materials exhibiting high flexural strength/modulus as well as high fracture toughness is challenging. Moreover, such formulations must meet specific requirements in order to be suitable for DLP 3D printing: low viscosity, non-volatile monomers, high reactivity, etc. For this reason, the well-known PMMA-based fracture-tough materials are not appropriate for DLP 3D printing. Quite recently, we identified an efficient technology for the preparation of fracture-tough photocurable materials. This technology consists in the incorporation of a block copolymer to a mixture containing a urethane dimethacrylate macromonomer and a monofunctional monomer [16,17,18,19,20]. Our approach was inspired by the pioneering work of Bates, F. S. et al. and by the additional contributions of other research groups regarding the toughening of epoxy materials using BCPs [22,23,24,25,26,27,28,29,30,31,32]. The high efficiency of diblock and triblock copolymers significantly increasing the fracture toughness of crosslinked epoxy materials was indeed clearly demonstrated. Each component of the methacrylate-based formulations has a strong influence on the mechanical properties (flexural strength/modulus and fracture toughness). The challenge in the quest for 3D-printable high-impact denture bases consists in finding the right balance between flexural strength and fracture toughness. Indeed, the addition of BCP as a toughening agent typically leads to a strong increase in the fracture toughness (as long as the crosslink density remains quite low) as well as to a decrease in both flexural strength and modulus. Although it would be quite straightforward to obtain high fracture toughness values via the addition of a BCP to a flexible material, the required flexural strength and modulus would not be reached. A wide range of urethane macromonomers and monofunctional monomers were recently evaluated in formulations containing PCL-PDMS-PCL triblock copolymers [16,17,18,19,20]. For the first time, it was reported that the macromonomer UM1, combined with OMIMA, was efficient for the formulation of high-impact denture bases [20]. The use of a flexible diisocyanate (TMDI) combined with a rigid diol for the synthesis of UM1 is probably paramount for the efficiency of this macromonomer. In this contribution, various urethane macromonomers were synthesized according to the same strategy that was developed for UM1: several rigid diols were reacted with an excess of TMDI and the resulting diisocyanate was end-capped with HEMA. UMs2-6 were efficiently prepared according to this pathway. Resins containing these urethane macromonomers, combined with OMIMA and a PCL-PDMS-PCL BCP, were then evaluated for the development of photocurable high-impact dental bases. The viscosity of these formulations was perfectly suitable for DLP 3D printing. Moreover, full DBC was measured for each cured material. This can be attributed to the high amount of monofunctional monomer in the formulations. This property is highly attractive, as it will prevent any leaching of unreacted monomer from the cured materials. STEM results clearly showed that the incorporation of BCP1 into the UMs1-6/OMIMA mixtures led to the formation of nano-objects. The PCL block is miscible in the monomer mixture, whereas the PDMS middle block is immiscible. It was demonstrated that, in the case of UM1/OMIMA, BCP1 efficiently self-assembles in the uncured mixture, leading thereby to the observed nano-objects in the cured samples [20]. It is highly probable that the nature of the synthesized urethane macromonomers did not strongly affect this phenomenon, and that the nano-objects observed for UMs2-6-based materials are also formed via self-assembly. As hypothesized, the nature of the urethane macromonomer structure was demonstrated to have a strong influence on the mechanical properties of the cured materials (light-cured in a mold using a light-curing unit). By correctly adapting the BCP1 amount in the formulations, UM2 was also identified as a suitable macromonomer for the preparation of high-impact materials. Indeed, the ISO20795-1:2013 requirements were fulfilled with the UM2/OMIMA (1/1: wt/wt) + 4.0 wt% BCP1 formulation [9]. UM2 was particularly interesting, as the measured flexural strength/modulus values were significantly above the lower limits that are given by the ISO20795-1:2013 standard. On the other hand, UMs3-6 did not provide the required properties. The fracture toughness increase obtained with UM4- and UM6-based materials was not high enough. This result might be due to the specific conformation of the cyclohexyl rings. Excellent fracture toughness values were measured using UM3- and UM5-containing formulations. Unfortunately, the flexural strength and modulus were not high enough. These macromonomers are therefore too flexible for the aimed application. The comparison of UMs1-6 with DMA1 is worth discussing. DMA1 was identified as a promising urethane dimethacrylate for the preparation of fracture-tough materials in a previous work [16]. Contrary to UMs1-6, DMA1 was synthesized via the reaction of a rigid diisocyanate (IPDI) with a flexible diol. This structure therefore also presents a balance between rigidity and flexibility. The material DMA1/OMIMA (1/1: wt/wt) + 5.0 wt% BCP1 exhibited flexural strength and modulus above the minimally required values for high-impact denture bases. However, K_max and W_f were too low. The amount of BCP1 was then increased until the desired fracture toughness was obtained. Such property was reached with 7.0 wt% BCP1. Unfortunately, in these conditions, the flexural strength and modulus were lower than the aimed 65 MPa and 2000 MPa, respectively. Therefore, the strategy using TMDI and a rigid diol seems more efficient for the macromonomer synthesis.

Two additional UM1 alternatives were also considered in this study. UM7 and UM8 were prepared by modifying the nature of the polymerizable end-group. UM8 is a diacrylate monomer, whereas UM7 bears four methacrylate moieties. The UM7/OMIMA + 5.0 wt% BCP1 material was brittle: it exhibited high flexural strength and modulus combined with low fracture toughness. The incorporation of BCP1 did not lead to high fracture toughness values. This result can probably be explained by the crosslink density differences. It was indeed demonstrated that the crosslink density plays a significant role in the BCP’s toughening ability. As an example, the addition of BCP to dimethacrylate mixtures is an inefficient toughening strategy [15]. Moreover, concerning the nature of the urethane macromonomers, the following trend was identified: the longer the spacer, the higher the fracture toughness [19]. The presence of four methacrylate groups (instead of two) clearly increases the crosslink density of the cured material, which suppresses the efficiency of the toughening. The replacement of the dimethacrylate macromonomer UM1 with the corresponding diacrylate UM8 was also shown to be disadvantageous. A lower T_g was obtained, which probably results in a weakening of the material. Indeed, lower flexural strength and modulus values were obtained. The increased flexibility of the material did not lead to higher fracture toughness values. K_max and W_f were even lower than for the UM1-based material.

5. Conclusions

The nature of the synthesized urethane macromonomers was shown to have a strong influence on the mechanical properties of light-cured BCP1-based materials. UM1 and UM2 were identified to be the most interesting compounds. Indeed, the combination of those macromonomers with OMIMA and the right amount of BCP1 successfully enabled the formulation of light-cured high-impact denture bases. DLP 3D printing is a multi-step process. The mechanical properties of printed materials can be affected by several process parameters (e.g., amount/nature of the photoinitiator, layer thickness, nature of the cleaning and post-processing steps, etc.). The next step of this work will be to print the UM1- and UM2-based formulations and to optimize the parameters in order to obtain similar mechanical properties to bulk-cured materials.
