Recycled Poly(Ethylene Terephthalate) from Waste Textiles with Improved Thermal and Rheological Properties by Chain Extension

by
Wen-Jun Wu
1,2,
Xiao-Li Sun
1,2,*,
Qinghua Chen
1,2,* and
Qingrong Qian
1,2
1
College of Environmental Science and Engineering, Fujian Normal University, Fuzhou 350007, China
2
Engineering Research Center of Polymer Green Recycling of Ministry of Education, Fujian Normal University, Fuzhou 350007, China
*
Authors to whom correspondence should be addressed.
Polymers 2022, 14(3), 510; https://doi.org/10.3390/polym14030510
Submission received: 9 January 2022 / Revised: 20 January 2022 / Accepted: 25 January 2022 / Published: 27 January 2022
(This article belongs to the Special Issue Polymer Waste Recycling and Management II)
Browse Figures
Versions Notes

Abstract

:
Annual production of textile fibers is continuing to rise and the substantial discharge of undegradable waste polyester fibers can cause serious environmental and even health problems. Thus, the recycling and reuse of recycled poly(ethylene terephthalate) from waste textiles (rPET-F) is highly desirable but still challenging. Here, five chain extenders with a different number of epoxy groups per molecules were used to blend with discarded PET fibers and improve its viscosity and quality loss in the recycling process. The molecule weight, thermal properties, rheological properties and macromolecular architecture of modified r-PET were investigated. It was found that all modified rPET-F samples show higher viscosities and better thermal properties. rPET-F modified by difunctional EXOP molecules show linear structure and improved rheological properties. rPET-F modified by polyfunctional commercial ADR and synthesized copolymers exhibit a long chain branched structure and better crystallization. This study reveals a deeper understanding of the chain extension and opens an avenue for the recycling of PET textiles.

1. Introduction

Polyester fabrics, with poly(ethylene terephthalate) (PET) as the main ingredient, are the largest variety of chemical fibers, accounting for more than 80% of total chemical fibers [1,2,3,4]. With the development of the textile industry, the amount of waste polyester generated every year continues to increase significantly [5,6,7,8]. PET is a non-renewable petroleum resource, and it is difficult to degrade naturally in the natural environment. A large amount of waste polyester fabrics not only causes a waste of resources, but it also leads to a greater impact on the environment [9,10,11,12,13]. Therefore, the recycling and reuse of waste polyester fabrics is highly desired [14,15].
However, compared with PET bottles and food packaging, recycling PET fibers through mechanical recycling is still a great challenge due to its poor processability. The main problem in the recycling process of discard PET fiber is the lower inherent viscosity and viscosity loss caused by thermal and hydrolytic degradation. In addition, textile products often contain many additives, e.g., pigments, dyes, dispersants, etc., which also limit the recycling and reuse of PET fibers. Therefore, reused PET fibers are normally applied in lower value uses, e.g., reinforced fibers and fillers. In 2018, textile recovery in China was only 15% [16]. The mechanical recycling process has been well established for PET bottles. Substantial research has been carried out to upcycle PET flakes, and the most commonly used method is to add a chain extender during melt processing, which provides a reasonable solution for the recycling of discarded PET fibers [17].
The chain extender is an additive containing at least two functional groups that can react with the groups of macromolecular segments to generate new covalent bonds, which produce polymers with high molecular weight and recovery properties. As far as PET is concerned, the commonly used chain extenders with functional groups that can react with PET end groups include oxazolines [18,19], pyromellitic anhydride [20,21,22,23,24], organic phosphites [25,26,27,28] and epoxides [29,30]. Among them, the epoxides chain extenders are extensive, economical and efficient, offering great application prospects. Bikiaris and Karayannidis found that the excess epoxy groups would react with the hydroxyl end groups and react with the new hydroxyl groups created by the bonding of epoxides and carboxyl groups [31]. Haralabakopoulos [30] used five commercial diepoxides as chain extenders to extend PET molecules and they found the modified PET exhibited higher intrinsic viscosities than the unprocessed PET. Moreover, it is proved that the cyclic diepoxides have better chain extension effects than diglycidyl ether.
Polyfunctional chain extenders could also enhance the processability of recycled polyesters. One of the most common representative commercial chain extenders is the Joncryl® ADR series of BASF, with a number average functionality of fn > 4, which are introduced in various polymers to enhance the rheological properties, melt strength and molecular weight [32]. Xiao li-ren et al. studied the effects of Joncryl® ADR 4370s on the relative molecular mass, distribution, branching and gel structure of recycled PET [33]. Supawee Makkam and Wanlop Harnnarongchai studied the effect of Joncryl® ADR 4380 on the improvement of molecular structure and elongation properties of rPET [34]. Additionally, all found that the modified PET has a long chain branched structure and increased molecular weight after modified by ADR, which can cause a significant change in its rheological properties and improving properties.
In order to achieve better recovery properties of rPET, a series of copolymers with epoxy functional groups were also synthesized [35,36,37,38]. Benvenuta Tapia et al. synthesized a series of copolymers, e.g., a triblock polymers with middle block of poly(styrene-acrylonitrile) and two end blocks of poly(styrene-glycidyl methacrylate) (SGMA-SAN-SGMA), a triblock polymer with a middle block of poly(butyl acrylate) and extreme blocks of poly(styrene-glycidyl methacrylate) (SGMA-BA-SGMA) and a random copolymer of glycidyl methacrylate and styrene (GMS-ran-S) as a chain extender for polyester via reversible addition-fragmentation transfer (RAFT) and nitroxide mediated polymerization (NMP), respectively [39,40,41,42,43,44,45]. Moreover, the application of copolymers in the processing of polyester greatly improved the molecular weight and rheological properties of polyester.
However, the chain extension and its effect on the properties of waste PET fibers was rarely investigated. Herein, 1,4-Butanediol diglycidyl ether (EPOX) with 2 epoxy groups, Joncryl® ADR-4468 with about 9–15 epoxy groups and three synthesized poly(glycidyl methacrylate-co-methyl methacrylate-co-styrene) (P(GMA-co-MMA-co-S)) with 38–132 epoxy groups per molecule, were used as a chain extender of discarded PET fibers. In this study, we present a comprehensive analysis of these five chain extenders with a different number of epoxy groups in order to obtain a deeper understanding of the influence on the molecule weight, molecular architecture and thermal properties of r-PET fibers. This study opens an avenue for the recycling of PET textiles.

2. Materials and Methods

2.1. Materials

Waste PET fibers from polyester textile wastes (referred to as rPET-F) and waste PET bottle flakes from discarded drink bottles (referred to as rPET-B) were supplied by Fujian Baichuan Resources Recycling Science and Company, Quanzhou, Fujian Province, China. rPET-F were exposed to a granulator to produce densified particles before use. Fiber-grade virgin PET particles (vPET) were purchased from DuPont Company, Wilmington, Delaware, USA. 2,2-Azobis(isobutyronitrile) (AIBN, initiator), glycidyl methacrylate (GMA, 99+%), methyl methacrylate (MMA, 99%) and styrene (St, 99%) were provided by Macklin, Shanghai, China. To remove the inhibitor and to obtain epichlorhydrin-free, GMA, MMA and St were passed through the basic alumina column. Tetrahydrofuran (THF, 99%), phenol and 1,1,2,2-tetrachloroethane were provided by Aladdin, Shanghai, China. The chain-transfer agent, S-1-odecyl-S-(α,α′-dimethyl-α″-acetic acid) trithiocarbonate (TC), was synthesized according to the literature [46]. EPOX with 2 epoxy functional groups was purchased from Aldrich and used as received. Joncryl® ADR-4468, a styrene-acrylic multi-functional epoxide oligomeric agent with about 9–15 epoxy functional groups per molecule were purchased by BASF and used as received.

2.2. Synthesis of Copolymers

The block copolymers P(GMA-co-MMA-co-S) (PGMS) were synthesized via RAFT polymerization in a schlenk tube. The copolymers were prepared by the RAFT polymerization of GMA MMA and St. AIBN as the initiator, TC as the chain transfer agent and monomers and THF as the solvent were subsequently added to the tube. The solution was degassed using freeze-pump-thaw techniques (3 cycles) and the tube was immersed in an oil bath at 80 °C. Polymerization proceeded for 24 h under magnetic stirring and then stopped by cold water. The copolymer was purified by precipitation in methanol and filtration. The light-yellow powder was obtained after drying in a vacuum oven at room temperature for 2 days. PGMS with different content of GMA (defined as PGMS1, PGMS2 and PGMS3) were prepared by adjusting the feeding molar ratio of GMA/MMA/St from 9/2/1, 7/2/1 to 5/2/1.

2.3. Blending Process of PET with Chain Extenders

EPOX, Joncryl® ADR-4468 and synthesized copolymers (PGMS1, PGMS2 and PGMS3) were used as the chain extender for rPET-F. The rPET-F was kept for 24 h in a 110 °C pre-heated oven before the blending process. Mixing of rPET-F with the chain extenders was performed in a RM-200B torque rheometer with a 50 mL internal chamber at 260 °C and 40 rpm for 7 min. 60 g of rPET-F and fixed amount of chain extender (0.5 wt%–1.5 wt% of rPET-F) were added in the intensive mixer. The melted samples after blending were cooled at room temperature.

2.4. The Melt Flow Rate

The melt flow rate (MFR) of PET samples were determined by a MFI452-A melt flow module, using an overhead weight of 2.16 kg at 257 °C. The tests of MFR were in accordance with GB/T 3682-2000.

2.5. Intrinsic Viscosity

The rPET-F, rPET-B, vPET and chain extended rPET-F were dissolved in 50/50 1,1,2,2-tetrachloroethane/phenol solution (w/w) and intrinsic viscosity (IV) values were measured by the Ubbelohde viscometer at 25 °C. The molecular weight was calculated in Equation (1) as follows [47]:
IV = 2.1 × 10−4 × (Mn)0.82
The insoluble content of the chain extended rPET-F were determined according to Xiao et al. [33].

2.6. Gel Permeation Chromatography

The molecular weights of the copolymers were monitored by gel permeation chromatography (GPC), using Agilent 1260 infinity Ⅱ equipped with a G7110B isocratic pump and G7162A refractive index detector at a temperature of 50 °C at a flow rate of 1 mL/min with polystyrene standards. The samples dissolved in DMF at room temperature and filtrated by 0.2μm PTFE filter prior to GPC test.

2.7. Nuclear Magnetic Resonance Spectroscopy

Proton nuclear magnetic resonance spectroscopy, 1H NMR (400.13 MHz), was performed on a Bruker 400 MHz spectrometer to measure the copolymer composition. About 10 mg of copolymer samples were dissolved in tritiated chloroform and scanned 32 times at room temperature.

2.8. Thermal Gravimetric Analysis

Thermal gravimetric analysis (TGA) was conducted in an analyzer (Q50, TA Instruments, New Castle, DE, USA) to measure the thermal stability of PLA. Approximately 8 mg of samples were heated from 30 to 600 °C with a heating ramp of 10 °C/min in an inert atmosphere (N2).

2.9. Differential Scanning Calorimetry

The melting and crystallization behaviors of the PET samples were recorded on a TA Instruments Q20 differential scanning calorimeter (DSC). The samples (6–8 mg by weight) were sealed in aluminum hermetic pans and subjected to a heat/cool/heat cycle over the temperature range 30–280 °C with a linear heating and cooling rate of 10 °C/min. The glass transition temperature (Tg), crystallization and melting behavior of the polymer were determined from the second heating curve and analyzed using the commercially available Universal Analysis software (TA Instruments).

2.10. Dynamic Rheological Measurements

The complex viscosity and modulus were measured in a TA DHR-2 rheometer using standard 25 mm parallel plates. When the temperature stabilized at 265 °C for about 5 min, the sample was loaded between the parallel plates and melted at 265 °C for 1 min. Before each test, the parallel plate compressed the sample to a thickness of 1.00 mm. The stability of samples was checked through the dynamic time sweep test at 1 Hz and 265 °C with the stain amplitude of 1%. Frequency sweeps were performed in the range of 0.01–100 rad/s with a given strain amplitude of 1% within the linear viscoelastic region.

3. Results

3.1. Properties of the rPET-F, rPET-B and vPET

Compared with rPET-B, the recycling of rPET-F is still a challenge and rarely reported. Firstly, the rheological properties, thermal properties and chemical structure of rPET-B, rPET-F and vPET were investigated and compared. The IV value is an important index to measure the quality of polyester and it is also the most commonly used parameter to guide the actual production process. IV and MFR values of three PET samples are summarized in Table 1. The IV values of rPET-F is 0.58 dL/g, lower than rPET-B and vPET. At the same time, the MFR value obtained for rPET-F, rPET-B and vPET were 48.8 g/10 min, 18.6 g/10 min and 14.6 g/10 min. The lower IV value and higher MFR value of rPET-F implied that the decreased molecular weight and higher impurities during its use and recycling procedure [48].
Table 1 and Figure 1a present the thermal behaviors. The thermal crystallization temperature (Tc) of rPET-F is 209.4 °C, higher than that of rPET-B and vPET, which is attributed to the additives introduced during spinning (e.g., pigments, dyes, spinning oil, etc.). These impurities serve as nucleation sites to increase the crystallization temperature. In addition, the rPET-F shows a rather broad melting peak, which corresponds to the wide distribution of lamellae thickness caused by a wider molecular weight distribution [49]. Figure 1b displays the TGA trace of the rPET-F, rPET-B and vPET. As shown in Figure 1b and Table 1, the Tonset of rPET-B decreases 2 °C compared with vPET. It can also be seen that the Tonset of rPET-F reduces 14.8 °C in relation to vPET, which means the thermal stability rPET-F is worse than rPET-B and vPET. Such a result is related to the broken molecular chain mentioned above.
Figure 1c presents the FT-IR spectra of the PETs signals. The absorption peaks at 721 cm−1, 871 cm−1 and 1238 cm−1 indicate the presence of the aromatic ring. The absorption peaks at 3100 cm−1 and 3500 cm−1 are signed to hydroxyl groups (-OH). The peak of methylene oxy (-OCH2) appears at 1116 cm−1. One can observe that no significant difference in the infrared spectra of the three kinds of PET. This indicates that the chemical structure of the three PETs have basically not changed.
Rheological behavior can well quantify the changes in the molecular weight and structure of polymers. Figure 1d displays complex viscosity as a function of angular frequency for rPET-F, rPET-B and vPET. All the samples show the Newtonian behavior throughout the whole frequency range, which indicates linear chains [50]. It also can be seen that the rheological curve for rPET-F is characterized to be the lowest complex viscosity throughout the whole frequency range. Such behavior is associated with the results observed in the intrinsic viscosity, the melt flow rate and thermal properties, where the rPET-F present a lower molecular weight and more impurities than rPET-B and vPET.
To achieve the upcycling of rPET from waste textiles, the improvement of lower viscosity and worse thermal stability of rPET-F were highly needed. Here, the chain extension of rPET-F was designed to improve their properties. Additionally, the effect of chain extenders with different structure and functional group numbers on the property improvement were investigated in detail.

3.2. Synthesis and Characterization of Chain Extender

To investigate the influence of epoxy groups on the properties and structure of the modified rPET, EPOX, ADR-4468 and PGMSx, copolymers with different GMA content were chose as chain extenders. EPOX is a small molecule, which contains 2 epoxy groups capable of reacting with the carboxyl end of the PET segment (and to a lesser extent, the hydroxyl groups). Additionally, ADR-4468 has 5–9 epoxy groups and the number average molecular weight (Mn) is –2000. In addition, RAFT polymerization was introduced to synthesis the copolymers PGMS with controlled molecular weight and chemical composition. Figure 2 left shows the 1H NMR spectrum for PGMS, which presents significant chemical shifts of the phenyl protons of St in the 6.8–7.4 ppm region and the methyl ester group of MMA at 3.6 ppm. Meanwhile, the chemical shifts of the methyl protons and methylene oxy (-OCH2) protons of GMA at 0.5–1.2 and 3.7–4.5 ppm, respectively. These results suggests that the PGMS copolymers are successfully synthesized.
To investigate the influence of epoxy group in PGMS on the structure of the modified PET, PGMSx with different GMA content, PGMS1 with 76.0%, PGMS2 with 70.4%, and PGMS3 with 60.6%, were synthesized. The GPC traces of PGMS1, PGMS2, and PGMS3 are shown in Figure 2 right. The GPC curves of PGMSx are unimodal and symmetric. Furthermore, Table 2 presents the number-average molecular weight (Mn), weight-average molecular weight (Mw) and polymer dispersity index (PDI) of PGMSx from GPC, revealing the Mn in the range of 28,000–63,000 g/mol, the Mw in the range of 51,000–99,000 g/mol and the PDI ranged from 1.58 to 1.80. Meanwhile, the contents of each segment of the PGMSx are listed in Table 2. The average number of epoxy groups per molecule (Nepoxy) for PGMS1, PGMS2, and PGMS3 is 38, 70 and 152, respectively. Epoxide number of PGMS1, PGMS2, and PGMS3 is calculated as 0.24, 0.18, and 0.14 mol/100 g, which is lower than ADR (0.17–0.3 mol/100 g) and EXOP (0.99 mol/100 g). Multifunctional epoxide moieties in PGMS play important roles in the chain extension of PET.

3.3. IV and MFI of the Chain Extended PET Samples

The chain extension of rPET-F samples was performed in a torque rheometer and x% EPOX/rPET-F, x% ADR/rPET-F and x% PGMSx/rPET-F present the extended rPET-F samples with x% EPOX, ADR and PGMSx as chain extender, respectively. IV and MFR of chain extended rPET-F samples are shown in Table 3. As observed in Table 1, the MFR value of rPET-F is 48.8 g/10 min. It is obvious that with the addition of the chain extender, the MFR of all modified PET samples decrease. The higher the chain extender content is, the higher the MFR values of modified PET. After the chain was extended by EPOX, the MFR of 1.5%EPOX/rPET-F decreases to 24.2 g/10 min since EPOX have a slight effect on molecular weight in the specified blending time. It also could be found that the MFR of 1.5%ADR/rPET-F obviously decreases to 13.4 g/10 min, informing the successful reaction between ADR and rPET-F. Furthermore, the best result of MFR was obtained with the addition of 1.5% PGMS1, which decreases to 10.4 g/10 min. Compared with ADR-4468, PGMS contains more epoxide moieties per chain, which increases the molecular weight and more branched chains of the modified PET chain. In addition, for chain extended rPET-F modified by copolymers, 1.5%PGMS3/rPET-F shows a lower MFR value of 13.2 g/10 min due to the only 38 epoxy groups per chain. Therefore, the epoxy numbers per chain greatly influence the MFI values of modified PETs.
Due to the multifunctional groups of chain extenders, crosslinking structure are inevitably formed in the melting expansion process. It was found that rPET samples modified by PGMS are partly insoluble in the solvent during the IV measurements. Thus, an estimation of the crosslinking content of the insoluble samples was conducted and the results are shown in Table 3. It is found that both higher epoxy numbers per chain and higher content of the chain extender significantly increased the insoluble content of the sample.

3.4. Thermal Characterization of the PET Samples

The thermal behaviors of PET samples were investigated, and the results are shown in Figure 3 and Table 4. For the difunctional EPOX, the thermal crystallization temperature (Tc) of 1.5%EPOX/rPET-F reduces to 198.7 °C, 10.7 °C lower than that of rPET-F. Moreover, the Tg of EPOX/rPET-F system decrease as increasing the content of EPOX. This result could be explained by the chain growth of rPET, which hinder the mobility of macromolecules and increase intermolecular entanglement. Such increased molecular entanglement reduces the crystallization rate, the degree of crystallinity, the crystallite size of the formed crystals and the amorphous regions, which increase segmental mobility leading to the lower Tg and Tc.
The polyfunctional chain extenders, ADR-4468 and PGMSx, were also added as a chain extender to rPET-F. Interestingly, the results of PGMS/rPET-F and ADR/rPET-F exhibit completely opposite thermal behaviors and properties. As seen, Tc of PGMS/rPET-F and ADR/rPET-F do not decrease as EPOX/rPET-F. Tc of ADR/rPET-F is lower than that of rPET-F, which decreases from 208.0 °C to 204.5 °C with the increase in ADR addition. Additionally, all PGMS/rPET-F samples show higher Tc than rPET-F, ranged from 213.4 °C to 215.7 °C, which is less related with the content of PGMS. Compared with rPET-F, PGMS/rPET-F and ADR/rPET-F show a slight decrease in Tg, from 80.1 °C to 77–79 °C. It has been demonstrated that the content of polyfunctional chain extenders within an appropriate value which did not suppress the crystallization as reported [51,52,53]. The addition of polyfunctional chain extender induces a branched structure, which restricts the movement of PET chains and suppresses the crystallization. Meanwhile, the branched sites could act as crystal nucleation regions which promote the crystallization of PET [51,54]. Moreover, it is interesting to note that the PS segment in the chain extender could also act as nucleating agents to promote crystallization, as previously reported [55]. In addition, the transition from linear to branched chains increases the number of free chain ends and disrupts the packing of the polymer chains, thereby reducing the impediment to segment mobility resulting in a decrease in Tg. These things work together to generate minor changes in Tc and Tg. The inhibiting effect is obvious for ADR and the positive effect is dominant for PGMS/rPET-F. Therefore, via tuning the chemical structure and Nepoxy of the chain extender molecule, the chain extended rPET-F samples with different thermal properties and macromolecular structures could be prepared for further applications.

3.5. Rheological Behavior of the PET Samples

The dynamic rheological frequency sweep was conducted to investigate the structures of the chain extended rPET-F samples which were modified by different chain extenders. Figure 4 shows the dynamic time sweep of modified rPET-F for a time period of 30 min at 265 °C and a frequency of 6.28 rad/s, normalized by their initial values at t = 0. It is clear that the viscosity of rPET-F exhibits significant reductions with increasing test time, given that a loss in molecular weight caused by the accelerated chain-scission reactions at 265 °C.
The chain extension of rPET-F increases its complex viscosity as shown in Figure 4. Obviously, complex viscosity of extended rPET-F by 1.5% EPOX continues increasing from 39 Pa.s to 1800 Pa.s in the dynamic rheological frequency sweep, which indicates 1.5% EPOX/rPET-F presents an insufficient reaction in the torque rheometer, and EPOX needs a long time to react with rPET-F, even under high temperature and shear force, which is caused by higher epoxide number (0.99 mol/100 g for EPOX) and more epoxy group addition. To obtain the reliable rheological date of EPOX/rPET-F, the samples were annealed at 250 °C for 30 min to accelerate the chain-extension reaction. It should be noted that in the actual processing, the extrusion in the production process of factory could not provide sufficient time for reaction of rPET-F with EPOX. The residual epoxy group continues to react and influences the properties during use.
As shown in Figure 4, the complex viscosity of 1.5% ADR/rPET-F increases only 4% over 25 min, indicating the 1.5% ADR/rPET-F maintains a stable viscoelastic response. The slight increase in complex viscosity of 1.5% ADR/rPET-F also reflected that the ADR reacted fully with rPET-F in the torque rheometer. The PGMSx/rPET-F show roughly similar results to ADR/rPET-F, which demonstrated that the rPET-F have a rapid chain extension reaction with polyfunctional chain extenders.
In order to gain a clear idea of the final polymer topology, we conducted the dynamic strain sweep tests. Figure 5 shows the linear viscoelastic functions (η*) of chain extended rPET-F versus the frequency. It can be seen that rPET-F presents typical Newtonian behavior throughout the whole frequency range, which is characteristic of linear polymers. After 30 min annealing, EPOX/rPET-F samples show an obvious increase in the complex viscosity compared with rPET-F throughout the whole frequency region, which means the molecular chain growth. Meanwhile, for polyfunctional chain extenders, extended rPET-F shows about 5 to 300 times of complex viscosity higher than that of rPET-F in the low frequency area. Additionally, the complex viscosity of ADR/rPET-F and PGMSx/rPET-F gradually decreases with increasing frequency, which is a typical shear thinning behavior. Such behavior is due to the change in polymer chain entanglement and the enhancement of the relaxation mechanism [21,56].
In particular, 1.5% PGMS1/rPET-F presents the highest complex viscosity in the low frequency area and the highest shear sensitivity and non-Newtonian behavior as shown in Figure 5c,d, which is the result of the highest level long-chain branches (LCB) caused by higher Nepoxy [57]. At the same time, the increase in the shear thinning make processability more efficient at high rates.
The ADR/rPET-F exhibits a different shape of the viscosity functions, which shows a smaller decrease in complex viscosity with increasing frequency and higher complex viscosity system in a high frequency region compared to PGMSx/rPET-F. It was reported that the value of η* reflected the different branch structures of modified r-PET, especially at low frequencies [57]. Thus, the above results of ADR/rPET-F might be caused by the lower branched segments [58]. Thus, Nepoxy significantly influences the molecular architecture of the modified rPET-F. At the same time, insoluble chains in PGMSx/rPET-F also reveal that the highly branched structure and crosslinking structure was formed, which is consistent with the complex viscosity results.
Figure 6a shows the Han plots of rPET-F and modified rPET-F, the loss modulus (G″) as a function of storage modulus (G′). It can be seen that the curves are shifting toward to right with the increase in the amount of chain extender and number of epoxy groups on the chain extender molecule, which demonstrates that the extent of the G′ change is slightly higher than that of the G″ change with the frequency. The increase in G′ reveals that the behavior of modified PET by polyfunctional chain extenders transformed from liquid-like to solid-like with better melt elasticity. It is well known that melt elasticity is directly related to melt strength, which means that the chain extender improves the melt strength of the r-PET [39]. Figure 6b presents the damping factor (tan δ) of all samples, which referred to the angle that the strain lagged behind the stress. It is obvious that tan δ of rPET-F is much higher than that of modified rPET-F by polyfunctional chain extenders, which demonstrated that rPET-F exhibit more viscous than elastic. On the other hand, the tan δ of modified rPET-F decrease with the increase in the amount of chain extender and number of epoxy groups present on the chain extender molecule, which ascribes to the formation of a more branched structure [58,59,60].
To further distinguish the differences in the molecular structure of rPET-F modified by different chain extenders, the van Gurp-Palmen (vGP) plot and the Cole-Cole plot were drawn. By plotting phase angle verse complex modulus, the van Gurp-Palmen (vGP) plot is frequently used to characterize the topology of polymers [61,62,63]. It was known from the literature that the lower phase angle indicates the higher level of LCB [64]. As shown in Figure 6c, the rPET-F exhibits the typical behavior of a linear polymer, with a plateau of 90° in the whole |G*| range. For the 0.5% ADR/rPET-F, the vGP plots shows the same trend as rPET-F, suggesting that ADR/rPET-F system with the 0.5% ADR-4468 is a linear polymer. Moreover, the 1.0% ADR/rPET-F and 1.5% ADR/rPET-F present a lower δ in the higher value interval, which indicates that the existence of LCB with high content of ADR-4468. The vGP plots of the PGMS/rPET-F system deviate from the curve of the rPET-F and moves to a lower phase angle position. Therefore, 1.5% PGMS/rPET-F presents the highest LCB degree.
Previous research [58,60,65] has shown that the Cole-Cole plots of a linear chain is semi-circular and the diameter of the semicircle become larger as the molecular weight increases. The Cole-Cole plots of r-PET samples are shown in Figure 6d, and it can be seen that the Cole-Cole plots deviate from the semi-circular shape and gradually rise in the low-frequency region, which is due to the rheological changes in the longer relaxation time in the low frequency region, which is caused by the appearance of long-branched structures [66,67,68]. The irregular shape of the semicircle is caused by the low viscosity of rPET-F. The radius of the PGMS/rPET-F curve gradually increases, and the upward warping trend becomes more obvious with the increase in the amount of chain extender and Nepoxy, which demonstrates an increase in the long-branched structure. However, the radius of the Cole-Cole curve of the ADR/rPET-F increased without the upward warping trend, indicating a lower degree of branching. Based on the results above, it can be seen that more functional groups lead to a more branched chain of the modified rPET-F.
According to the rheological behavior results of modified rPET-F, the average number of epoxy groups, as the paramount reaction site in chain extension, plays a pivotal role in the branch structures formation in modified rPET-F samples. Hence, branching is more likely to happen when ADR and copolymers are used with a high number of epoxy groups, as shown in Scheme 1. The above results show that the addition of chain extenders increases the complex viscosity of rPET-F. Moreover, the van Gurp-Palmen plot and Cole-Cole plot of modified rPET-F indicate higher levels of branching in the chain extender with more epoxy groups.

4. Conclusions

In this study, in order to achieve the upcycling of rPET-F, we synthesized a series of reactive copolymers PGMS with a high content of epoxy groups via RAFT polymerization as the chain extender of rPET-F, and compared this with EPOX and ADR-4468, which contain 2 and 5–9 epoxy groups, respectively. The effect of the number of epoxy groups on the thermal properties, rheological properties, and molecular structure changes of modified rPET-F were explored. Chain extension obviously improves MFR and IV values, and the crystallization temperature of EPOX/rPET-F and ADR-4468/rPET-F shifts to lower temperature, but PGMS addition leads to a higher crystallization rate compared to rPET-F. The rheological analysis shows that ADR-4468 and PGMS present faster reactive rates than EPOX, implying that ADR-4468 and PGMS possess better prospects in the actual production process in a factory setting. ADR-4468/rPET-F exhibit slight shear thinning behavior and a low degree of branching rheological results. On the other hand, the PGMS/rPET-F present more pronounced shear thinning behavior with higher LCB levels, resulting from more epoxy groups per chain. The study provides an effective strategy for the high-value utilization of rPET from waste textiles, suggesting that rPET-F with different qualities can be modified by chain extenders with a different number of epoxy groups, and can be used in a wide range of applications, such as spinning, film and foam materials, etc.

Author Contributions

Methodology, validation and formal analysis, W.-J.W. and X.-L.S.; writing—original draft preparation, W.-J.W. and X.-L.S.; writing—review and editing, X.-L.S., Q.Q. and Q.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program of China (grant number 2019YFC1904500), National Natural Science Foundation of China (grant number 21801251), Natural Science Foundation of Fujian Province (grant number 2021J01199) and Key Project of Science and Technology Innovation of Fujian Province (grant number 2021G02022).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Damayanti, D.; Wulandari, L.A.; Bagaskoro, A.; Rianjanu, A.; Wu, H.S. Possibility routes for textile recycling technology. Polymers 2021, 13, 3834. [Google Scholar] [CrossRef] [PubMed]
  2. Al-Salem, S.M.; Lettieri, P.; Baeyens, J. Recycling and recovery routes of plastic solid waste (PSW): A review. Waste Manag. 2009, 29, 2625–2643. [Google Scholar] [CrossRef] [PubMed]
  3. Aizenshtein, E.M. Polyester fibres in the post-crisis period. Fibre Chem. 2011, 42, 341–349. [Google Scholar] [CrossRef]
  4. Zou, Y.; Reddy, N.; Yang, Y. Reusing polyester/cotton blend fabrics for composites. Compos. Part B Eng. 2011, 42, 763–770. [Google Scholar] [CrossRef]
  5. Mäkelä, M.; Rissanen, M.; Sixta, H. Machine vision estimates the polyester content in recyclable waste textiles. Resour. Conserv. Recycl. 2020, 161, 105007. [Google Scholar] [CrossRef]
  6. Sandin, G.; Peters, G.M. Environmental impact of textile reuse and recycling—A review. J. Clean. Prod. 2018, 184, 353–365. [Google Scholar] [CrossRef]
  7. Harmsen, P.; Scheffer, M.; Bos, H. Textiles for circular fashion: The logic behind recycling options. Sustainability 2021, 13, 9714. [Google Scholar] [CrossRef]
  8. Keßler, L.; Matlin, S.A.; Kümmerer, K. The contribution of material circularity to sustainability—Recycling and reuse of textiles. Curr. Opin. Green Sustain. Chem. 2021, 32, 100535. [Google Scholar] [CrossRef]
  9. Taniguchi, I.; Yoshida, S.; Hiraga, K.; Miyamoto, K.; Kimura, Y.; Oda, K. Biodegradation of PET: Current status and application aspects. ACS Catal. 2019, 9, 4089–4105. [Google Scholar] [CrossRef]
  10. Fortuna, L.M.; Diyamandoglu, V. Optimization of greenhouse gas emissions in second-hand consumer product recovery through reuse platforms. Waste Manag. 2017, 66, 178–189. [Google Scholar] [CrossRef]
  11. Thiounn, T.; Smith, R.C. Advances and approaches for chemical recycling of plastic waste. J. Polym. Sci. 2020, 58, 1347–1364. [Google Scholar] [CrossRef] [Green Version]
  12. Shamsi, R.; Abdouss, M.; Sadeghi, G.M.M.; Taromi, F.A. Synthesis and characterization of novel polyurethanes based on aminolysis of poly(ethylene terephthalate) wastes, and evaluation of their thermal and mechanical properties. Polym. Int. 2009, 58, 22–30. [Google Scholar] [CrossRef]
  13. Burgess, S.K.; Leisen, J.E.; Kraftschik, B.E.; Mubarak, C.R.; Kriegel, R.M.; Koros, W.J. Chain mobility, thermal, and mechanical properties of poly(ethylene furanoate) ccompared to poly(ethylene terephthalate). Macromolecules 2014, 47, 1383–1391. [Google Scholar] [CrossRef]
  14. Ghisellini, P.; Cialani, C.; Ulgiati, S. A review on circular economy: The expected transition to a balanced interplay of environmental and economic systems. J. Clean. Prod. 2016, 114, 11–32. [Google Scholar] [CrossRef]
  15. Mao, Y.; Li, Q.; Wu, C. Surface modification of PET fiber with hybrid coating and its effect on the properties of PP composites. Polymers 2019, 11, 1726. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Zhu, X.O. The circular economy opportunity for urban & industrial innovation in China. Circ. Econ. Perspect. Ser. 2018. Available online: https://ellenmacarthurfoundation.org/urban-and-industrial-innovation-in-china (accessed on 18 September 2018).
  17. Standau, T.; Nofar, M.; Dörr, D.; Ruckdäschel, H.; Altstädt, V. A review on multifunctional epoxy-based Joncryl® ADR chain extended thermoplastics. Polym. Rev. 2021, 1–55. [Google Scholar] [CrossRef]
  18. Cardi, N.; Po, R.; Giannotta, G.; Occhiello, E.; Garbassi, F.; Messina, G. Chain extension of recycled poly(ethylene terephthalate) with 2,2′-Bis (2-oxazoline). J. Appl. Polym. Sci. 1993, 50, 1501–1509. [Google Scholar] [CrossRef]
  19. Karayannidis, G.P.; Psalida, E.A. Chain extension of recycled poly(ethylene terephthalate) with 2,2′-(1,4-phenylene) Bis (2-oxazoline). J. Appl. Polym. Sci. 2000, 77, 2206–2211. [Google Scholar] [CrossRef]
  20. Kruse, M.; Wagner, M.H. Rheological and molecular characterization of long-chain branched poly(ethylene terephthalate). Rheol. Acta 2017, 56, 887–904. [Google Scholar] [CrossRef]
  21. Härth, M.; Kaschta, J.; Schubert, D.W. Shear and elongational flow properties of long-chain branched poly(ethylene terephthalates) and correlations to their molecular structure. Macromolecules 2014, 47, 4471–4478. [Google Scholar] [CrossRef]
  22. Kruse, M.; Wang, P.; Shah, R.S.; Wagner, M.H. Analysis of high melt-strength poly(ethylene terephthalate) produced by reactive processing by shear and elongational rheology. Polym. Eng. Sci. 2019, 59, 396–410. [Google Scholar] [CrossRef]
  23. Forsythe, J.S.; Cheah, K.; Nisbet, D.R.; Gupta, R.K.; Lau, A.; Donovan, A.R.; O’Shea, M.S.; Moad, G. Rheological properties of high melt strength poly(ethylene terephthalate) formed by reactive extrusion. J. Appl. Polym. Sci. 2006, 100, 3646–3652. [Google Scholar] [CrossRef]
  24. Daver, F.; Gupta, R.; Kosior, E. Rheological characterisation of recycled poly(ethylene terephthalate) modified by reactive extrusion. J. Mater. Process. Technol. 2008, 204, 397–402. [Google Scholar] [CrossRef]
  25. Jacques, B.; Devaux, J.; Legras, R.; Nield, E. Investigation on model molecules of the reactions induced by triphenyl phosphite addition during polyester processing. Macromolecules 1996, 29, 3129–3138. [Google Scholar] [CrossRef]
  26. Bimestre, B.H.; Saron, C. Chain extension of poly(ethylene terephthalate) by reactive extrusion with secondary stabilizer. Mater. Res. 2012, 15, 467–472. [Google Scholar] [CrossRef]
  27. Cicero, J.A.; Dorgan, J.R.; Dec, S.F.; Knauss, D.M. Phosphite stabilization effects on two-step melt-spun fibers of polylactide. Polym. Degrad. Stab. 2002, 78, 95–105. [Google Scholar] [CrossRef]
  28. Jacques, B.; Devaux, J.; Legras, R.; Nield, E. Reactions induced by triphenyl phosphite addition during melt mixing of PET/PBT blends: Chromatographic evidence of a molecular weight increase due to the creation of bonds of two different natures. Polymer 1997, 38, 5367–5377. [Google Scholar] [CrossRef]
  29. Guo, B.; Chan, C. Chain Extension of Poly(butylene terephthalate) by reactive extrusion. J. Appl. Polym. Sci. 1999, 71, 1827–1834. [Google Scholar] [CrossRef]
  30. Haralabakopoulos, A.A.; Tsiourvas, D.; Paleos, C.M. Chain extension of poly(ethylene terephthalate) by reactive blending using diepoxides. J. Appl. Polym. Sci. 1999, 71, 2121–2127. [Google Scholar] [CrossRef]
  31. Achilias, D.S.; Bikiaris, D.N.; Karavelidis, V.; Karayannidis, G.P. Effect of silica nanoparticles on solid state polymerization of poly(ethylene terephthalate). Eur. Polym. J. 2008, 44, 3096–3107. [Google Scholar] [CrossRef]
  32. Villalobos, M.; Awojulu, A.; Greeley, T.; Turco, G.; Deeter, G. Oligomeric chain extenders for economic reprocessing and recycling of condensation plastics. Energy 2006, 31, 3227–3234. [Google Scholar] [CrossRef]
  33. Xiao, L.; Wang, H.; Qian, Q.; Jiang, X.; Liu, X.; Huang, B.; Chen, Q. Molecular and structural analysis of epoxide-modified recycled poly(ethylene terephthalate) from rheological data. Polym. Eng. Sci. 2012, 52, 2127–2133. [Google Scholar] [CrossRef]
  34. Makkam, S.; Harnnarongchai, W. Rheological and mechanical properties of recycled PET modified BY reactive extrusion. Energy Procedia 2014, 56, 547–553. [Google Scholar] [CrossRef] [Green Version]
  35. Awaja, F.; Pavel, D. Recycling of PET. Eur. Polym. J. 2005, 41, 1453–1477. [Google Scholar] [CrossRef]
  36. Chen, C.W.; Liu, P.H.; Lin, F.J.; Cho, C.J.; Wang, L.Y.; Mao, H.I.; Chiu, Y.C.; Chang, S.H.; Rwei, S.P.; Kuo, C.C. Influence of different molecular weights and concentrations of poly(glycidyl methacrylate) on recycled poly(ethylene terephthalate): A thermal, mechanical, and rheological study. J. Polym. Environ. 2020, 28, 2880–2892. [Google Scholar] [CrossRef]
  37. Tan, Z.; Liu, S.; Cui, X.; Sun, S.; Zhang, H. Application of macromolecular chain extender and contribution to the toughening of poly(ethylene terephthalate). J. Thermoplast. Compos. Mater. 2016, 29, 833–849. [Google Scholar] [CrossRef]
  38. Montava-Jorda, S.; Lascano, D.; Quiles-Carrillo, L.; Montanes, N.; Boronat, T.; Martinez-Sanz, A.V.; Ferrandiz-Bou, S.; Torres-Giner, S. Mechanical recycling of partially bio-based and recycled polyethylene terephthalate blends by reactive extrusion with poly(styrene-co-glycidyl methacrylate). Polymers 2020, 12, 174. [Google Scholar] [CrossRef] [Green Version]
  39. Benvenuta Tapia, J.J.; Tenorio-López, J.A.; Martínez-Estrada, A.; Guerrero-Sánchez, C. Application of RAFT-synthesized reactive tri-block copolymers for the recycling of post-consumer R-PET by melt processing. Mater. Chem. Phys. 2019, 229, 474–481. [Google Scholar] [CrossRef]
  40. Benvenuta-Tapia, J.J.; González-Coronel, V.J.; Soriano-Moro, G.; Martínez-De la Luz, I.; Vivaldo-Lima, E. Recycling of poly(ethylene terephthalate) by chain extension during reactive extrusion using functionalized block copolymers synthesized by RAFT polymerization. J. Appl. Polym. Sci. 2018, 135, 46771. [Google Scholar] [CrossRef]
  41. Benvenuta-Tapia, J.J.; Vivaldo-Lima, E.; Guerrero-Santos, R. Effect of copolymers synthesized by nitroxide-mediated polymerization as chain extenders of postconsumer poly(ethylene terephthalate) waste. Polym. Eng. Sci. 2019, 59, 2255–2264. [Google Scholar] [CrossRef]
  42. Benvenuta-Tapia, J.J.; Vivaldo-Lima, E. Reduction of molar mass loss and enhancement of thermal and rheological properties of recycled poly(lactic acid) by using chain extenders obtained from RAFT chemistry. React. Funct. Polym. 2020, 153, 104628. [Google Scholar] [CrossRef]
  43. Benvenuta Tapia, J.J.; Hernández Valdez, M.; Cerna Cortez, J.; Díaz García, V.M.; Landeros Barrios, H. Improving the rheological and mechanical properties of recycled PET modified by macromolecular chain extenders synthesized by controlled radical polymerization. J. Polym. Environ. 2018, 26, 4221–4232. [Google Scholar] [CrossRef]
  44. Vargas, M.A.; Benvenuta Tapia, J.J.; Sánchez, A.; Manero, O. Asphalt modified with reactive tri-block polymers obtained by via reversible addition-fragmentation chain transfer polymerization. J. Appl. Polym. Sci. 2019, 136, 47201. [Google Scholar] [CrossRef]
  45. Benvenuta-Tapia, J.J.; Champagne, P.; Tenorio-López, J.A.; Vivaldo-Lima, E.; Guerrero-Santos, R. Improving recycled poly(Lactic acid) biopolymer properties by chain extension using block copolymers synthesized by nitroxide-mediated polymerization (nmp). Polymers 2021, 13, 2791. [Google Scholar] [CrossRef] [PubMed]
  46. Lai, J.T.; Filla, D.; Shea, R. Functional polymers from novel carboxyl-terminated trithiocarbonates as highly efficient RAFT agents. Macromolecules 2002, 35, 6754–6756. [Google Scholar] [CrossRef]
  47. Allen, N.S.; Edge, M.; Mohammadian, M.; Jones, K. Physicochemical aspects of the environmental degradation of poly(ethylene terephthalate). Polym. Degrad. Stab. 1994, 43, 229–237. [Google Scholar] [CrossRef]
  48. Bremner, T.; Rudin, A.; Cook, D.G. Melt flow index values and molecular weight distributions of commercial thermoplastics. J. Appl. Polym. Sci. 1990, 41, 1617–1627. [Google Scholar] [CrossRef]
  49. Włochowicz, A.; Eder, M. Distribution of lamella thicknesses in isothermally crystallized polypropylene and polyethylene by differential scanning calorimetry. Polymer 1984, 25, 1268–1270. [Google Scholar] [CrossRef]
  50. Wood-Adams, P.M.; Dealy, J.M.; DeGroot, A.W.; Redwine, O.D. Effect of molecular structure on the linear viscoelastic behavior of polyethylene. Macromolecules 2000, 33, 7489–7499. [Google Scholar] [CrossRef]
  51. Nofar, M.; Zhu, W.; Park, C.B.; Randall, J. Crystallization kinetics of linear and long-chain-branched polylactide. Ind. Eng. Chem. Res. 2011, 50, 13789–13798. [Google Scholar] [CrossRef]
  52. Nofar, M.; Zhu, W.; Park, C.B. Effect of dissolved CO2 on the crystallization behavior of linear and branched PLA. Polymer 2012, 53, 3341–3353. [Google Scholar] [CrossRef]
  53. Nofar, M. Synergistic effects of chain extender and nanoclay on the crystallization behaviour of polylactide. Int. J. Mater. Sci. Res. 2018, 1, 1–8. [Google Scholar] [CrossRef]
  54. Nofar, M.; Oğuz, H. Development of PBT/recycled-PET blends and the influence of using chain extender. J. Polym. Environ. 2019, 27, 1404–1417. [Google Scholar] [CrossRef]
  55. Hung, C.Y.; Wang, C.C.; Chen, C.Y. Enhanced the thermal stability and crystallinity of polylactic acid (PLA) by incorporated reactive PS-b-PMMA-b-PGMA and PS-b-PGMA block copolymers as chain extenders. Polymer 2013, 54, 1860–1866. [Google Scholar] [CrossRef]
  56. Härth, M.; Dörnhöfer, A.; Kaschta, J.; Münstedt, H.; Schubert, D.W. Molecular structure and rheological properties of a poly(ethylene terephthalate) modified by two different chain extenders. J. Appl. Polym. Sci. 2021, 138, 1–14. [Google Scholar] [CrossRef]
  57. Arayesh, H.; Golshan Ebrahimi, N.; Khaledi, B.; Khabazian Esfahani, M. Introducing four different branch structures in PET by reactive processing––A rheological investigation. J. Appl. Polym. Sci. 2020, 137, 49243. [Google Scholar] [CrossRef]
  58. Chen, J.; Wei, W.; Qian, Q.; Xiao, L.; Liu, X.; Xu, J.; Huang, B.; Chen, Q. The structure and properties of long-chain branching poly(trimethylene terephthalate). Rheol. Acta 2014, 53, 67–74. [Google Scholar] [CrossRef]
  59. Graebling, D. Synthesis of branched polypropylene by a reactive extrusion process. Macromolecules 2002, 35, 4602–4610. [Google Scholar] [CrossRef]
  60. Tian, J.; Yu, W.; Zhou, C. The preparation and rheology characterization of long chain branching polypropylene. Polymer 2006, 47, 7962–7969. [Google Scholar] [CrossRef]
  61. Trinkle, S.; Friedrich, C. Van Gurp-Palmen-plot: A way to characterize polydispersity of linear polymers. Rheol. Acta 2001, 40, 322–328. [Google Scholar] [CrossRef]
  62. Trinkle, S.; Walter, P.; Friedrich, C. Van Gurp-Palmen plot II—Classification of long chain branched polymers by their topology. Rheol. Acta 2002, 41, 103–113. [Google Scholar] [CrossRef]
  63. Yang, Z.; Xin, C.; Mughal, W.; Li, X.; He, Y. High-melt-elasticity poly(ethylene terephthalate) produced by reactive extrusion with a multi-functional epoxide for foaming. J. Appl. Polym. Sci. 2018, 135, 45805. [Google Scholar] [CrossRef]
  64. Liu, J.; Lou, L.; Yu, W.; Liao, R.; Li, R.; Zhou, C. Long chain branching polylactide: Structures and properties. Polymer 2010, 51, 5186–5197. [Google Scholar] [CrossRef]
  65. García-Franco, C.A.; Srinivas, S.; Lohse, D.J.; Brant, P. Similarities between gelation and long chain branching viscoelastic behavior. Macromolecules 2001, 34, 3115–3117. [Google Scholar] [CrossRef]
  66. Hao, Y.; Yang, H.; Pan, H.; Ran, X.; Zhang, H. The effect of MBS on the heat resistant, mechanical properties, thermal behavior and rheological properties of PLA/EVOH blend. J. Polym. Res. 2018, 25, 1–9. [Google Scholar] [CrossRef]
  67. Vargas, M.A.; Herrera, R.; Manero, O. Modeling of the linear viscoelastic behavior of partially hydrogenated polymer-modified asphalts. Rubber Chem. Technol. 2007, 80, 340–364. [Google Scholar] [CrossRef]
  68. Li, Y.; Jia, S.; Du, S.; Wang, Y.; Lv, L.; Zhang, J. Improved properties of recycled polypropylene by introducing the long chain branched structure through reactive extrusion. Waste Manag. 2018, 76, 172–179. [Google Scholar] [CrossRef]
Polymers 14 00510 g001 550

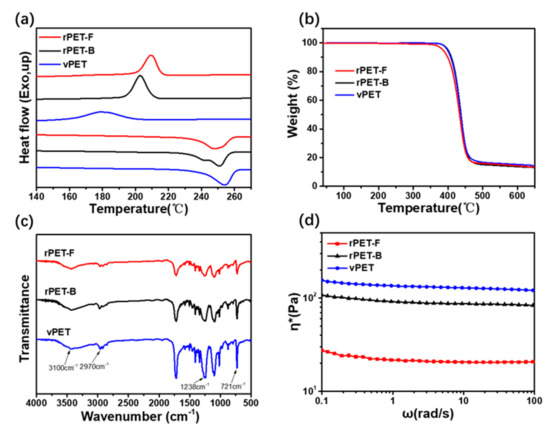

Figure 1. (a) DSC curves, (b)TGA curves, (c) FTIR spectra and (d) complex viscosity as function of frequency of rPET-F, rPET-B and vPET.
Figure 1. (a) DSC curves, (b)TGA curves, (c) FTIR spectra and (d) complex viscosity as function of frequency of rPET-F, rPET-B and vPET.
Polymers 14 00510 g001
Polymers 14 00510 g002 550

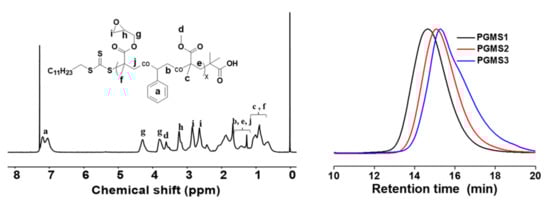

Figure 2. The 1H NMR spectrum of PGMS in CDCl3 (left) and the GPC curves of PGMS copolymers (right).
Figure 2. The 1H NMR spectrum of PGMS in CDCl3 (left) and the GPC curves of PGMS copolymers (right).
Polymers 14 00510 g002
Polymers 14 00510 g003 550

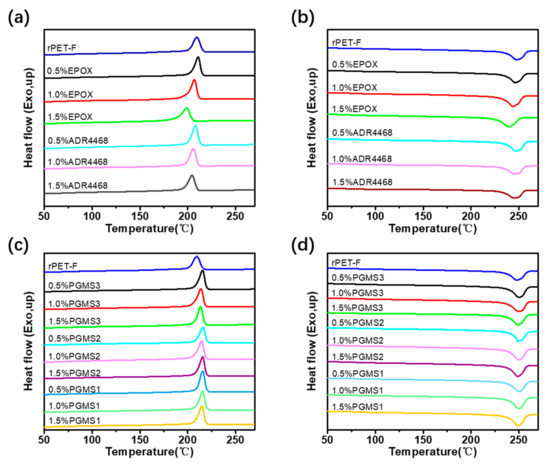

Figure 3. DSC curves for rPET-F modified by EPOX and ADR-4468, (a) cooling scan, (b) heating scan; DSC curves for rPET-F modified by different PGMS, (c) cooling scan, (d) heating scan.
Figure 3. DSC curves for rPET-F modified by EPOX and ADR-4468, (a) cooling scan, (b) heating scan; DSC curves for rPET-F modified by different PGMS, (c) cooling scan, (d) heating scan.
Polymers 14 00510 g003
Polymers 14 00510 g004 550

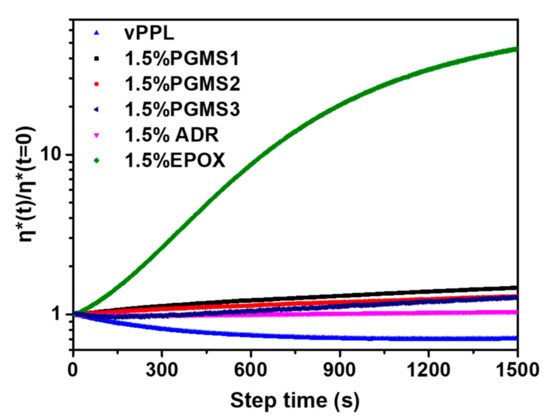

Figure 4. Dynamic time sweeps of various modified rPETs.
Figure 4. Dynamic time sweeps of various modified rPETs.
Polymers 14 00510 g004
Polymers 14 00510 g005 550

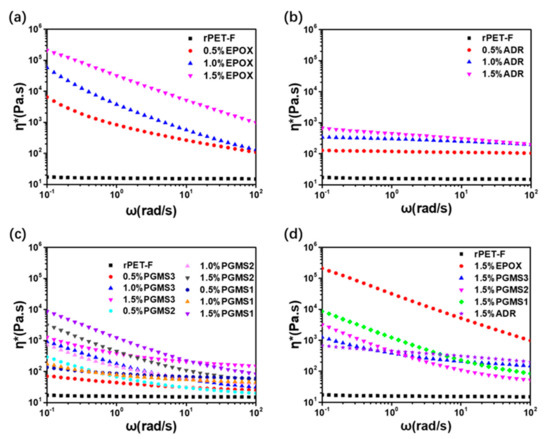

Figure 5. Complex viscosity (η*) vs. angular frequency (ω) for various modified PETs by (a) EPOX, (b) ADR-4468, (c) PGMSx and (d) different chain extender at in the same concentration.
Figure 5. Complex viscosity (η*) vs. angular frequency (ω) for various modified PETs by (a) EPOX, (b) ADR-4468, (c) PGMSx and (d) different chain extender at in the same concentration.
Polymers 14 00510 g005
Polymers 14 00510 g006 550

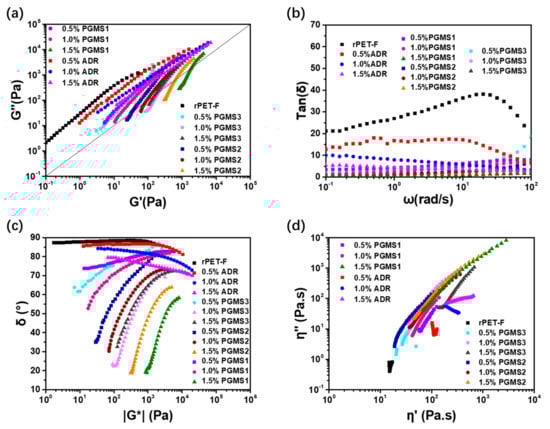

Figure 6. Han plots for various modified PETs (a), dynamic loss tangent (tan δ) as a function of ω for various modified PETs (b), vGP plots for various modified PETs (c) and Cole–Cole plots for various modified PETs (d).
Figure 6. Han plots for various modified PETs (a), dynamic loss tangent (tan δ) as a function of ω for various modified PETs (b), vGP plots for various modified PETs (c) and Cole–Cole plots for various modified PETs (d).
Polymers 14 00510 g006
Polymers 14 00510 sch001 550

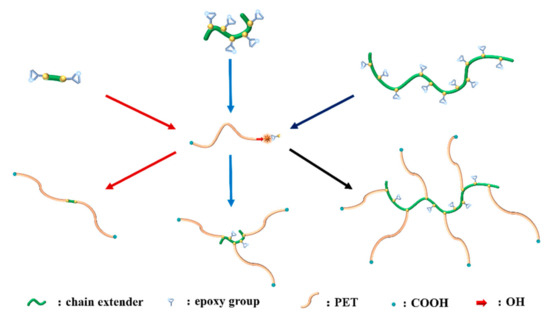

Scheme 1. Schematic representation of chain extended rPET-F in this study.
Scheme 1. Schematic representation of chain extended rPET-F in this study.
Polymers 14 00510 sch001
Table
Table 1. The IV, the MFR and thermal properties of PET samples.
Table 1. The IV, the MFR and thermal properties of PET samples.
SamplesIV (dL/g)MFR (g/10 min)Tg (°C)Tm (°C)Tc (°C)Tonset (°C)
rPET-F0.5848.880.1248.1209.4385.8
rPET-B0.6618.680.7251.0202.1398.7
vPET0.6814.683.9254.9179.0400.6
Table
Table 2. Chemical composition, molecular weights, and PDIs of five chain extenders.
Table 2. Chemical composition, molecular weights, and PDIs of five chain extenders.
SamplesGMA (mol%)S (mol%)MMA (mol%)NepoxyMn (g/mol)Mw (g/mol)Epoxide Number (mol/100 g)PDI
PGMS176.0 111.0 113.0 115263,000 299,000 20.241.58 2
PGMS270.4 114.1 115.5 17038,000 261,000 20.181.59 2
PGMS360.6 119.4 120.0 13828,000 251,000 20.141.80 2
ADR-446830–50--5–9<250072500.17–0.3>3
EPOX---2202-0.99-
1 Determined from NMR analysis. 2 Determined from GPC analysis.
Table
Table 3. The IV and the MFR of chain extended rPET-F samples.
Table 3. The IV and the MFR of chain extended rPET-F samples.
SamplesMFR (g/10 min)IV (dL/g)Mn (g/mol)Insoluble Content (%)
0.5%EPOX/rPET-F50.20.6217,100-
1.0%EPOX/rPET-F44.60.6618,400-
1.5%EPOX/rPET-F24.20.7019,800-
0.5%ADR/rPET-F18.60.7220,500-
1.0%ADR/rPET-F15.50.7822,600-
1.5%ADR/rPET-F13.40.8625,400-
0.5%PGMS1/rPET-F16.3-6.7
1.0%PGMS1/rPET-F13.6-10.7
1.5%PGMS1/rPET-F10.4-14.7
0.5%PGMS2/rPET-F16.4-5.3
1.0%PGMS2/rPET-F14.8-10.4
1.5%PGMS2/rPET-F11.0-13.1
0.5%PGMS3/rPET-F16.3-4.0
1.0%PGMS3/rPET-F13.3-8.9
1.5%PGMS3/rPET-F13.2-10.6
Table
Table 4. The crystallization temperature, melting point and glass transition temperature of modified rPET-F blends.
Table 4. The crystallization temperature, melting point and glass transition temperature of modified rPET-F blends.
SamplesTc (°C)Tm (°C)Tg (°C)
0.5%EPOX/rPET-F210.7246.475.7
1.0%EPOX/rPET-F206.9244.573.7
1.5%EPOX/rPET-F198.7240.272.1
0.5%ADR/rPET-F208.0247.277.5
1.0%ADR/rPET-F205.8245.578.1
1.5%ADR/rPET-F204.5245.777.5
0.5%PGMS1/rPET-F215.5250.478.5
1.0%PGMS1/rPET-F215.5249.977.5
1.5%PGMS1/rPET-F214.7249.577.9
0.5%PGMS2/rPET-F215.7248.977.3
1.0%PGMS2/rPET-F214.5250.279.1
1.5%PGMS2/rPET-F214.3249.077.5
0.5%PGMS3/rPET-F215.5250.476.9
1.0%PGMS3/rPET-F213.8249.778.1
1.5%PGMS3/rPET-F213.4249.077.6
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wu, W.-J.; Sun, X.-L.; Chen, Q.; Qian, Q. Recycled Poly(Ethylene Terephthalate) from Waste Textiles with Improved Thermal and Rheological Properties by Chain Extension. Polymers 2022, 14, 510. https://doi.org/10.3390/polym14030510

AMA Style

Wu W-J, Sun X-L, Chen Q, Qian Q. Recycled Poly(Ethylene Terephthalate) from Waste Textiles with Improved Thermal and Rheological Properties by Chain Extension. Polymers. 2022; 14(3):510. https://doi.org/10.3390/polym14030510

Chicago/Turabian Style

Wu, Wen-Jun, Xiao-Li Sun, Qinghua Chen, and Qingrong Qian. 2022. "Recycled Poly(Ethylene Terephthalate) from Waste Textiles with Improved Thermal and Rheological Properties by Chain Extension" Polymers 14, no. 3: 510. https://doi.org/10.3390/polym14030510

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
