Suppression of Smoldering of Calcium Alginate Flame-Retardant Paper by Flame-Retardant Polyamide-66

by
Kai Xu
1,2,
Xing Tian
1,
Ying Cao
2,
Yaqi He
2,
Yanzhi Xia
1 and
Fengyu Quan
1,2,*
1
State Key Laboratory of Bio-Fibers and Eco-Textiles, Collaborative Innovation Center of Marine Biobased Fiber and Ecological Textile Technology, Institute of Marine Biobased Materials, Qingdao University, Qingdao 266071, China
2
College of Materials Science and Engineering, Qingdao University, Qingdao 266071, China
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(3), 430; https://doi.org/10.3390/polym13030430
Submission received: 23 December 2020 / Revised: 20 January 2021 / Accepted: 25 January 2021 / Published: 29 January 2021
(This article belongs to the Special Issue Advances in Flame Retardant Polymeric Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Calcium alginate (Ca-Alg) fibers are renewable fibers obtained from the ocean with essential flame retardancy, which have recently been applied as components of flame-retardant paper. However, the application of Ca-Alg fibers is limited because of their tendency to smolder. Therefore, composites papers were fabricated by blending using flame-retardant polyamide-66 (FR-PA), with a 5 wt% content of phosphorous flame retardant, which will form molten carbon during combustion. When the FR-PA content is 30% of the composite paper, FR-PA forms a compact carbon layer on the surface of the Ca-Alg fibers during combustion, which isolates the mass/heat transfer and effectively suppresses the smoldering of Ca-Alg. This consists of a condensed flame retardant mechanism. Furthermore, the combustion and thermal degradation behavior of paper were analyzed by cone calorimetry (CONE), TG and TG-IR. Ca-Alg in the composite paper decomposed and released CO2 before ignition, which delayed the ignition time. Simultaneously, the FR-PA contained in the composite paper effectively inhibited the combustion of volatile combustibles in the gas phase. Overall, FR-PA and Ca-Alg improve the thermal stability of the composite paper in different temperature regions under air atmosphere. Ca-Alg reduces the formation of aromatic products and NH3 in the composite paper under N2 atmosphere. Ca-Alg-based paper with excellent flame retardancy was successfully prepared.

Graphical Abstract

1. Introduction

In modern society, wallpapers are becoming increasingly popular as decoration materials because of their variety of patterns that meet individual needs. However, most wallpaper consists of cellulose and lignin [1], which have great security risks, and their flame can easily spread along the paper, resulting in the loss of human life and property in the case of fire [2,3,4,5,6]. At present, flame-retardant paper is prepared by the impregnation, coating, or addition of flame retardants to the pulp. Halogen flame retardants have been gradually replaced by phosphorus and nitrogen-based flame retardants due to their environmental hazard. Phosphorus-based flame retardants can promote the formation of a carbon layer and the NH3 generated by nitrogen-based flame retardants can dilute the concentration of combustible gases. The influence of inorganic flame retardants (such as Al(OH)3 and Mg(OH)2) on the flame retardancy characteristics of products has been studied, and it was revealed that their incorporation affects the mechanical strength of the material [4,7,8,9,10,11,12]. In order to improve the flame retardancy of pulp fiber-based paper, Zhang et al. [4] synthesized cellulose nanofibril-based flame retardants by combining phosphorylated cellulose nanofibril and ionic bonding melamine. Mao et al. [13] prepared polyaniline-deposited functional cellulose paper by doping with organic sulfonic acid, which improved the oxygen index of cellulose paper. Pan et al. [14] prepared a zinc-coordinated multi-coated flame-retardant paper by layer-by-layer self-assembly, and the peak of heat release rate (pHRR) and total heat release (THR) values of treated paper were significantly reduced.
At present, products containing flame retardants are widely used in living and working places in items such as furniture, curtains, wallpaper, among others. Flame retardants are released from discarded products, causing severe environmental pollution [15]. Therefore, reducing the use of flame retardants is a direct way to reduce their harm to the environment. Calcium alginate (Ca-Alg) fiber is a renewable fiber derived from algae and prepared by the wet spinning of sodium alginate, which has the characteristics of inherent flame retardancy and potential bioactivity [16,17]. Zhang et al. [17] determined the flame-retardant mechanism of Ca-Alg fibers. In comparison with viscose fibers, which are also derived from biomass, the calcium ion can catalyze the degradation process of the alginate fiber and produce more residues containing carbonaceous char and carbonate. In addition, the molecular chain of the Ca-Alg fiber contains a large number of -COOH and -OH groups, which can be dehydrated to form cyclic lactide when heated. This dilutes the concentration of combustible gas and inhibits heat transfer [18,19,20]. Therefore, the application of Ca-Alg fibers to flame-retardant paper has a great application prospect. However, it was found that although Ca-Alg fibers cannot be ignited, smoldering limits their application [21]. Polyamide fibers have been widely used as a synthetic fiber in the military and civilian fields [22,23]. However, polyamides containing aliphatic components are often flammable and have a low carbon residue because they are easily transformed into volatile fuel [24]. At present, the main flame retardants used in polyamide fabrics are brominated ones, thiourea formaldehyde resin, and cyclic phosphoryl chloride derivatives [23,25,26,27]. Unfortunately, flame-retardant polyamide (FR-PA) fibers melt easily, which may cause secondary injuries such as scalding [28].
Blending is a low-cost and high-efficiency method of mixing two or more kinds of materials to maximize their respective advantages [29]. Studies have confirmed that the flame retardancy of materials can be improved by blending different components in a certain proportion, such as flame-retardant viscose/alginate fibers, flame-retardant cotton/alginate fibers, and flame-retardant vinylon/poly(m-phenylene isophthalamide) fibers, among others [21,29,30,31,32,33]. However, not all fibers can improve their flame retardancy by blending, but it depends on whether there is a condensed or gas phase interaction between the blended fiber components during combustion [32,34]. Zhang et al. [21] stated that Ca-Alg fibers are prone to smoldering due to their low initial degradation temperature, and proposed that the smoldering of Ca-Alg fibers can be inhibited by blending with flame-retardant viscose fibers. In the composite, the carbon in the flame-retardant viscose fibers can prevent heat transmission, further inhibiting the smoldering of the Ca-Alg fibers. In addition, the flame-retardant properties of polyamide/alginate (PA/Ca-Alg) non-woven fabrics have been studied, and it was revealed that the molten PA is restricted to the carbon residue area of Ca-Alg, which improves the flame-retardant properties of the non-woven fabrics [33]. Therefore, it can be hypothesized that molten PA forms a compact carbon layer that may inhibit the smoldering of the Ca-Alg fibers.
This article explores the interaction between Ca-Alg fibers and flame-retardant polyamide-66 (FR-PA) fibers during combustion, to explore their application in the field of flame-retardant paper. It is hypothesized that the smoldering of Ca-Alg fibers or the melting-drop of the FR-PA fibers can be inhibited by blending. It is also worth exploring whether the FR-PA/Ca-Alg composite paper can meet the flame-retardant requirements of flame-retardant paper, which, according to GB/T 14656-2009, is determined by an after-flame time lower than 5 s, an afterglow time lower than 60 s, and a damaged length lower than 115 mm. FR-PA/Ca-Alg composite papers were prepared by blending FR-PA pulp fibers with Ca-Alg pulp fibers. Furthermore, the flame retardancy and combustion behavior of the composite flame-retardant papers were studied, and the results were compared with commercial wood pulp paper

2. Materials and Methods

2.1. Materials

Ca-Alg fibers were obtained from Qingdao Yuanhai New Material Technology Co., Ltd. (Qingdao, China). FR-PA fibers were supplied by Huafeng Group Co., Ltd. (Wenzhou, China). The flame retardant contained in FR-PA is phosphorus-based, with a 5 wt% content, and the structural formula is shown in Figure S1. Bleaching Eucalyptus pulp was purchased from Shandong Daoxin New Material Co., Ltd. (Jinan, China). Deionized water was prepared by a reverse osmosis pure water equipment (Sihai Water Treatment Equipment Co., Ltd., Weifang, China).

2.2. Preparation of FR-PA/Ca-Alg Papers

The composite papers were prepared using the Rapid Kothen method [35,36], and the process is shown in Figure 1. First, the FR-PA or Ca-Alg fibers (500 g) and deionized water (30 L) were put into a Varley beater (AT-WD, Shandong Anmt Instrument Co., Ltd., Jinan, China) to make into pulp by beating the fibers for 2 h. Then, the obtained FR-PA and Ca-Alg pulps were weighed to prepare mixtures with a mass ratio of 0:100, 10:90, 20:80, 30:70, and 40:60 (w/w). The mixed pulp (10 g) and deionized water (2.5 L) was subsequently placed in a standard fiber dissociator (AT-XW, Shandong Anmt Instrument Co., Ltd.) at 1000 rpm for 20 min for dispersion. Then, the homogeneous slurry was quickly transferred to a sheet former (AT-CZ-3, Shandong Anmt Instrument Co., Ltd.) for papermaking. Finally, the obtained paper was dried in a hot-oven at 70 °C for 1 h. The thickness of the paper was 0.4 mm and the area was 314 cm2. The obtained papers were noted as Ca-Alg, FR-PA/Ca-Alg (10/90), FR-PA/Ca-Alg (20/80), FR-PA/Ca-Alg (30/70), and FR-PA/Ca-Alg (40/60). The preparation process of wood pulp paper is the same as that of composite paper. The composition of the prepared paper is shown in Table S1, and the grammage of the prepared paper was approximately 305 ± 3 g/m2.

2.3. Characterization

2.3.1. Physical Properties of the Prepared Paper

The Bendtsen roughness of the prepared paper was tested according to ISO 8791-2:1990, and its air permeability was analyzed according to GB/T 22819-2008. The tensile strength of the material was tested by a computer control electronic universal tester (Jinan Heng Rui Jin Testing Machine Co., Ltd., Jinan, China) according to ISO 1924-2:2008.

2.3.2. Limiting Oxygen Index (LOI) Test

The LOI values for all paper samples were measured using an HC-2 type instrument ((Nanjing Jiangning Analytical Instrument Co., Ltd., Nanjing, China) based on GB/T 5454-1997.

2.3.3. Vertical Flammability (VF) Test

The VF test was carried out according to GB/T 14656-2009. The composite papers to be tested were 70 mm × 150 mm. The paper was continuously ignited for 12 s with a 4 cm flame height. The humidity of the papers was adjusted according to GB/T 10739-2002 before the VF tests.

2.3.4. Scanning Electron Microscopy (SEM) Analysis

The residues after the VF tests were investigated using a scanning electron microscope (SEM, Quanta 250 FEG, FEI, Hillsboro, OR, USA) at a beam voltage of 5.0 kV. Previously, the samples were coated with a conductive layer of platinum.

2.3.5. Raman Spectroscopy Analysis

The Raman spectra of the residues after the VF tests were obtained from a Raman spectrometer (Thermo Scientific DXR2, Waltham, MA, USA) with a 785 nm excitation line with an Ar ion laser source.

2.3.6. Cone Calorimetry (CONE) Analysis

According to the ISO Standard 5660-1, the combustion properties of the samples were analyzed using a Dual Cone Calorimeter (CONE, Fire Testing Technology, UK) at a heat flux of 35 kW/m2. The specimen (10 ± 0.1 g) size was 100 × 100 × 2 mm3.

2.3.7. Thermogravimetric (TG) Analysis

TG analysis (TG209F3, NETZSCH Group, Selb, Germany) was performed from 50 to 800 °C at a heating rate of 20 °C/min in air. The mass of each sample was approximately 5 mg. The samples were dried in an electrothermal blast drying box at 70 °C for 6 h before testing.

2.3.8. Thermogravimetric Analysis Coupled with Fourier Transformed Infrared Analysis (TG-FTIR) in N2

The thermal stability and gas emissions of FR-PA, Ca-Alg, and FR-PA/Ca-Alg (30/70) composite paper were investigated by TG analysis in a TG209F3 instrument (Germany) connected with a Nicolet iS 50 FTIR spectrometer, from 50 to 800 °C, in a N2 atmosphere with a heating rate of 20 °C/min and a N2 flow rate of 50 mL/min. The samples were dried in an electrothermal blast drying box at 70 °C for 6 h before testing.

3. Results and Discussion

3.1. Physical Properties of the Prepared Paper

The surface micromorphology of the paper samples was studied by SEM, and the photographs are shown in Figure S2. The surface of Ca-Alg and FR-PA/Ca-Alg composite papers are similar, indicating that FR-PA and Ca-Alg can be mixed evenly in the papermaking process. The thickness of the prepared papers is almost the same for samples with the same absolute dry pulp weight (see Figure S3a). As shown in Figure S3b,c, the surface properties of the prepared paper were studied. The Bendtsen roughness and air permeability of the prepared paper samples are comparable, which is consistent with the similar morphology observed from the SEM analysis. The high roughness of the prepared paper is due to the periodic dent on the surface of the paper caused by the mold in the papermaking process. Furthermore, as shown in Figure S3d, the tensile index of the composite paper decreased with increasing FR-PA content, indicating that the introduction of FR-PA causes a slight reduction in the strength of the composite paper, but its strength was not related to its flame-retardancy properties as suggested by the subsequent VF tests.

3.2. Vertical Flammability (VF) and Limiting Oxygen Index (LOI) Analysis

VF and LOI are typically used to evaluate the flame-retardant properties of materials. Photographs of the samples captured at a certain time during VF tests are shown in Figure 2, and the related data are presented in Table 1. As shown in Figure 2, commercial wood pulp paper is very flammable, with an LOI value of 18.6%. The Ca-Alg paper cannot be ignited, but significant smoldering occurs with a long afterglow time of 540 s, resulting in complete damage to the sample. When the FR-PA content is 10%, the after-flame time of the composite paper is 0 s, and smoldering is self-extinguished although it still has a long after-flame time of 125 s. In addition, the damaged length (51 mm) is greatly reduced, indicating that the addition of FR-PA was beneficial to inhibit the smoldering of Ca-Alg. Furthermore, when the FR-PA content is 20% or 30%, although the after-flame time (0.4 s, 1.4 s) and damaged length (65 mm, 63 mm) of the composite paper are slightly increased, the afterglow time is significantly shortened (74 s and 53 s, respectively). Particularly, the FR-PA/Ca-Alg (30/70) composite paper meets the standard of flame-retardant paper, and FR-PA/Ca-Alg (20/80) composite paper is also very close to this standard. However, when the content of FR-PA is 40%, the composite paper combusted completely, which may be due to the excess heat generated by the excessive content of FR-PA. Specifically, as shown in Table 2, the combustion of FR-PA produces a considerable amount of heat: 27.76 MJ/m2. As shown in Table 1, the LOI values of FR-PA/Ca-Alg (10/90), FR-PA/Ca-Alg (20/80), and FR-PA/Ca-Alg (30/70) composite papers (30.3%, 28.7%, and 29.0%, respectively) were higher than those of pure Ca-Alg paper (27.3%), while that of the FR-PA/Ca-Alg (40/60) composite paper (25.5%) was lower. These results show that the addition of an appropriate amount of FR-PA can effectively inhibit the smoldering of Ca-Alg-based composite papers and improve their flame retardancy.

3.3. SEM Analysis

The SEM images of the composite papers after the VF tests are presented in Figure 3. When heated, Ca-Alg degrades easily and forms pores on the surface (Figure 3A) due to its low initial thermal degradation temperature. The resulting pores result in contact between oxygen and the incompletely degraded area inside the fiber, resulting in the smoldering of the pure Ca-Alg paper. As expected, when the content of FR-PA is 10–30% (Figure 3B–D), the pores on the surface of the Ca-Alg fiber residue decrease significantly or disappear due to a carbon layer of FR-PA covering the fiber surface. The carbon layer formed by FR-PA isolates the contact between oxygen and the inner layer of the materials, inhibiting the smoldering of Ca-Alg. On the contrary, when the FR-PA content is 40% (Figure 3E), the surface of the Ca-Alg fibers presents a porous morphology again, and adhesion occurs between the fibers, which may be because the excess heat generated by the combustion of FR-PA fiber makes the Ca-Alg fiber burn more fully.
In general, a compact and graphitic carbon layer can prevent mass/heat transfer between the gas and the condensed phase [37]. The carbonaceous char quality of the samples tested after VF was characterized by Raman spectroscopy. The peaks at 1568 cm−1 (G band) and 1302 cm−1 (D band) are caused by the first-order scattering of the E2g phonon of the sp2 carbon atom and the activation of the first-order scattering process of the sp3 carbon atom, respectively. The graphitization degree of the char residues was evaluated by an integrated area ratio of the D and G bands (ID/IG). Low ID/IG values of char translate into a high graphitization degree [37]. The char residue of FR-PA/Ca-Alg (20/80) shows the highest graphitization degree, followed by FR-PA/Ca-Alg (10/90) and FR-PA/Ca-Alg (30/70). On the other hand, the char residue of Ca-Alg and FR-PA/Ca-Alg (40/60) shows a lower graphitization degree. These results demonstrate that a proper FR-PA content can form a compact carbon layer on the surface of the Ca-Alg fibers during combustion.
As shown in Figure 3a–e, the peak at 1083 cm−1 is attributed to the symmetric C–O stretching mode for calcite, the peak at 711 cm−1 is ascribed to the O–C–O bending (in-plane deformation) mode for calcite, and the peak at 267 cm−1 is assigned to the libration mode of CO3 for calcite [38,39]. Calcite is the product of thermal degradation of Ca-Alg. It can be observed from Figure 3a–d that the intensity of the characteristic peak of calcite decreases with increasing FR-PA content, which also proves that the carbon layer formed by FR-PA can inhibit the further degradation of Ca-Alg. When the content of FR-PA is 40%, the intensity of calcite increases again, which is because the heat generated by excessive FR-PA combustion makes Ca-Alg degrade more completely and produce more CaCO3. These results show that the flame-retardant mechanism of the composite paper is of the condensed phase flame-retardant type, and confirms that the addition of a proper content of FR-PA can inhibit the smoldering of the Ca-Alg fibers.

3.4. CONE Analysis

CONE is an important testing method that can capture comprehensive information on the flame-retardancy performance of materials [40,41,42,43], such as time to ignition (TTI), pHRR, the peak of smoke production rate (pSPR), THR, and total smoke production (TSP), among others. The data obtained from this analysis are shown in Table 2 and Figure 4. It can be observed that the TTI of commercial wood pulp paper is only 17 s, and the pHRR (176.92 kW/m2) is reached in a short time (34 s). On the contrary, the TTI (58 s) of the Ca-Alg paper is more than three times that of wood pulp paper, and the pHRR (135.83 kW/m2) and THR of the Ca-Alg paper are lower than those of wood pulp paper, as well as the pSPR and TSP, which confirms that Ca-Alg fiber can potentially be used for the fabrication of flame-retardant paper. However, the smoldering of Ca-Alg paper cannot be neglected, as shown in the VF tests. Therefore, it is necessary to study the combustion behavior of the FR-PA/Ca-Alg composite paper. In the composite papers, TTI decreases with increasing FR-PA content (the TTI of FR-PA/Ca-Alg (10/90), FR-PA/Ca-Alg (20/80) and FR-PA/Ca-Alg (30/70) is 52 s, 50 s, and 37 s, respectively), because the FR-PA melts and covers the surface of the Ca-Alg before ignition, increasing the surface temperature of the Ca-Alg, further resulting in the composite papers being ignited ahead of time. Specifically, FR-PA/Ca-Alg (30/70) has two HRR peaks, which are located at 55 and 80 s, respectively. This phenomenon is due to the fact that the dense carbon layer formed by the melting of FR-PA weakens the transfer of heat to the inner layer of the material and blocks part of the volatiles from entering the combustion zone at the initial stage of combustion so that the HRR tends to decrease after the first peak.
The combustion of polymers is a complex process, so it is not rigorous to evaluate the flame retardancy of materials by a single parameter (such as TTI, pHRR, or THR). The fire growth index [44] (FGI), which is defined as the ratio of pHRR to t-pHRR, reflects the flame diffusion rate after the material is ignited. The larger the FGI, the easier the flame spreads and the greater the potential fire hazard of the material. The fire performance index [45] (FPI), that is, the ratio of TTI to pHRR, has been an important parameter to describe the flashover propensity of materials. The higher the value of FPI, the better the flame retardancy of the materials. In addition, Henri et al. proposed a simple and general dimensionless criterion, the flame-retardant index (FRI) [46], which can be used to quantify the flame retardancy of different polymer composites. The value of FRI in the range of “0–1”, “1–10”, “10–100” corresponds to “poor”, “good”, and “excellent” flame-retardant properties of the material, respectively. The FGI, FPI, and FRI values of the samples are shown in Figure 4e. Compared with commercial wood pulp paper, the FGI values of the composite papers are lower, the FPI values are higher, and the FRI values are in the “good” range. These excellent results show that the fire risk of composite paper is lower than that of commercial wood pulp paper.
Smoke is a non-negligible factor in fires and the main cause of death [47]. As shown in Figure 4b, the TSP of composite paper is higher than that of commercial wood pulp paper, which is caused by the addition of different contents of FR-PA. However, compared with FR-PA, the TSP of the composite papers FR-PA/Ca-Alg (10/90), FR-PA/Ca-Alg (20/80), and FR-PA/Ca-Alg (30/70) decreased by 88%, 87%, and 93%, respectively, indicating that Ca-Alg changed the combustion process of FR-PA and reduced smoke production. The effective heat of combustion (EHC) represents the heat released by the combustion of the components in the volatiles formed by the thermal decomposition of the material, which is helpful to analyze its flame-retardant mechanism. The average EHC (av-EHC) of the composite papers is lower than that of Ca-Alg paper, which may be due to the fact that the flame retardant contained in FR-PA inhibits the further combustion of volatile gas. Simultaneously, the amount of residue of the composite papers is higher than that of Ca-Alg paper, which indicates that FR-PA also plays a flame-retardant role in the condensed phase.
It is worth noting that carbon monoxide production (COP) within 100–300 s (Figure 4c) is caused by the smoldering of Ca-Alg, and the decreased peak intensity of the composite papers shows that the addition of FR-PA can effectively inhibit the smoldering of Ca-Alg. Carbon dioxide is produced (CO2P) both in the Ca-Alg and composite papers before ignition (Figure 4d), which is attributed to the decarboxylation of Ca-Alg which dilutes the concentration of the combustible gas and delays the ignition of the material.
Overall, compared with wood pulp paper, the FR-PA/Ca-Alg (30/70) composite paper has a lower FGI value and higher FPI and FRI values, indicating that composite paper has a lower fire risk. Compared with Ca-Alg paper, the smoldering of FR-PA/Ca-Alg (30/70) composite paper is self-extinguishing, and the afterglow time is 53 s, which reduces possible harm caused by smoldering.

3.5. TG Analysis in N2 and Air

The thermal stability of the composites in N2 was analyzed, and the results are shown in Figure 5 and Table 3. Specifically, the temperature of 5% weightlessness (T5%) is considered to be the initial degradation temperature of the materials [48]. The T5% of FR-PA is 375 °C, indicating that the fibers have excellent heat resistance. In contrast, the T5% of Ca-Alg is 104 °C, because of the hygroscopic behavior of the Ca-Alg fibers, which releases water vapor at the initial stage of heating to inhibit the ignition of fibers [18]. The thermal degradation of FR-PA is violent and occurs at 375–500 °C, with a maximum thermal degradation temperature (Tmax-C) of 427 °C, and final residual char of 3.99%. The thermal degradation of Ca-Alg can be divided into three stages: stage A (50–205 °C), where the weight loss is of approximately 12% attributed to the release of water in the fibers, stage B (205–600 °C), where the weight loss is approximately 41% and is attributed to the fracture of glycosidic groups, dehydration, and decarboxylation, and stage D (600–800 °C), where the weight loss is 6% due to the decomposition of calcium carbonate to form calcium oxide and calcium hydroxide [20].
Compared with the control samples, the thermal degradation process of the composite papers can be divided into four stages: stage A (50–205 °C), stage B (205–350 °C), stage C (350–600 °C), and stage D (600–800 °C). Stages A, B, and D are mainly attributed to the thermal degradation of Ca-Alg, and FR-PA plays no significant role. The weight loss rate at Tmax (Rmax) is directly proportional to the content of Ca-Alg fibers in the sample. A small difference can be observed in stage C compared with the control sample, and Tmaxs of the composite papers (for FR-PA/Ca-Alg (30/70) and FR-PA/Ca-Alg (20/80) it was 420 and 419 °C, respectively,) which occurred earlier than that of FR-PA (427 °C). However, Rmax decreased, which may be attributed to the fact that the intermediate products of the thermal degradation of Ca-Alg slow down the degradation process of FR-PA.
The thermal oxidative degradation behavior of the samples in air was also studied. The TG and DTG curves and related data are shown in Figure 6 and Table 4, respectively. It is worth noting that the incorporation of FR-PA improved the thermal oxygen stability of the composite papers in the low-temperature range of 50 to 350 °C, which is due to the high thermal stability of FR-PA in this temperature zone. In addition, the thermal oxidative degradation of the composite paper was relatively mild in the medium temperature range (350–500 °C). The Ca-Alg fiber affected the thermal-oxidative degradation process of FR-PA and greatly reduced the Rmax (at 429 °C) of FR-PA. This may be related to the fact that calcium ions in Ca-Alg fibers catalyze specific chemical reactions during thermal oxidative degradation, such as carbonization, dehydration, and cyclization, thus reducing the rate of thermal degradation [18,19,29,49]. In the high-temperature region (500–800 °C), the Rmax (about at 552 °C) of composite paper was lower than that of Ca-Alg paper, Tmaxs occurred earlier, and the char residues increased. Assuming that there is no interaction between Ca-Alg and FR-PA in the process of thermal oxidative degradation, the char residues of FR-PA/Ca-Alg (30/70) and FR-PA/Ca-Alg (20/80) composite papers should be 7.94% and 8.95% respectively, but the char residues of both were higher than their theoretical values. This phenomenon may be attributed to the fused carbon formed by FR-PA, which protects the Ca-Alg fiber from mass and heat transfer, further inhibiting the smoldering of Ca-Alg.

3.6. Infrared Spectrum Analysis of Gaseous Volatiles Acquired from TG Test

FTIR of the gaseous volatiles produced in the TG test of the specimens was conducted [50]. Three-dimensional diagrams of the FTIR absorption of the gases evolved for the thermal degradation are shown in Figure 7, and the FTIR spectra at Tmaxs and other specific products are further compared in Figure 8a and b, respectively. As shown in Figure 8a, in the second stage of thermal degradation (205–350 °C, Tmax is 259 °C) of FR-PA/Ca-Alg (30/70) composite paper, the formation of CO2 is attributed to the decarboxylation of Ca-Alg, while the FR-PA has no absorption peak at this stage, indicating that the FR-PA has no effect on the thermal degradation of Ca-Alg. Specifically, the bands at 2356 and 2313 cm−1 are attributed to CO2 vibrations. The CO2 formed at the initial stage of thermal degradation is beneficial to decrease the concentration of the combustible gas and inhibit the ignition of the composite paper.
In the third stage of thermal degradation (350–600 °C, Tmax is 420 °C) of the FR-PA/Ca-Alg (30/70) composite paper, the peak at 2935 cm−1 is attributed to the vibration of aliphatic C–H groups, the bands at 1763 and 1706 cm−1 are ascribed to the C=O vibration of aldehydes and ketones, respectively, and the bands at 1625, 1505 and 1452 cm−1 are attributed to the C=C stretching vibration of the aromatic ring. In addition, the band at 1141 cm−1 is assigned to C–O–C vibration, while the peaks at 963 and 927 cm−1 are ascribed to NH3, which is a specific pyrolysis gas of FR-PA [29]. Compared with FR-PA, the peaks at 1625 and 1452 cm−1 decreased and the peak at 1763 cm−1 increased for the FR-PA/Ca-Alg composite paper, indicating that Ca-Alg changed the degradation process of FR-PA, reduced the formation of NH3 and aromatic products, and increased the formation of aldehyde products. It is possible that the Ca2+ ions from the Ca-Alg fibers catalyze the char formation of FR-PA [18,19,29,49], reduce the generation of volatile combustibles, and the resulting char deposited on the surface of the Ca-Alg fibers inhibits the smoldering of Ca-Alg. Moreover, the absorption intensity of hydrocarbons, ether components and NH3 for FR-PA/Ca-Alg are lower and the absorption intensities of CO2 are higher than those of FR-PA. According to the Lambert–Beer law [29], this means that the degradation of the composite paper produces more non-combustible gases and less combustible gases, which inhibits the spread of flame after ignition.

4. Conclusions

FR-PA/Ca-Alg composite papers with low flame-retardant content were prepared by blending. When the content of FR-PA is 30%, FR-PA effectively suppresses the smoldering of Ca-Alg and increases the LOI values. The afterglow time is 53 s, which meets the requirements of flame-retardant paper. SEM images and Raman spectroscopy confirmed that the molten FR-PA forms a compact carbon layer on the surface of the Ca-Alg, which isolates the mass/heat transfer and inhibits the smoldering of Ca-Alg. The CONE results showed that composite paper has a low fire risk (lower FGI value, and higher FPI and FRI values compared with Wood pulp paper). TG and TG-FTIR analysis indicated that Ca-Alg effectively inhibits the formation of aromatic products and NH3, and the CO2 produced by the degradation of Ca-Alg showed gas-phase flame-retardant activity on the combustion of composite paper. In addition, for FR-PA/Ca-Alg (30/70) paper, the flame-retardant content is only 1.5 wt%, and this low flame-retardant usage is in line with environmental protection efforts. Benefiting from this work, a method to inhibit the smoldering of Ca-Alg fibers is proposed and a new type of material is developed, which can be used as flame-retardant paper.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/13/3/430/s1, Figure S1. Structural formula of phosphorus flame retardant in FR-PA fiber, Figure S2. SEM photographs of Ca-Alg paper (A1,A2), FR-PA/Ca-Alg (10/90) paper (B1,B2), FR-PA/Ca-Alg (20/80) paper (C1,C2), FR-PA/Ca-Alg (30/70) paper (D1,D2) and FR-PA/Ca-Alg (40/60) paper (E1,E2) at different magnification (×500, ×1000), Figure S3. Physical properties of prepared paper: (a) thickness, (b) Bendtsen roughness, (c) air permeability and (d) tensile index of Ca-Alg and composite papers, Table S1. Composition of the prepared paper samples.

Author Contributions

Conceptualization, methodology, K.X., X.T. and F.Q.; Investigation, Data analysis, K.X., Y.C. and Y.H.; Formal analysis, K.X., X.T.; Resources, Y.X.; Writing—original draft preparation, K.X.; Writing—review and editing, X.T., F.Q.; Supervision, Project administration, Funding acquisition, F.Q., Y.X. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key Research and Development Program of China (Project No. 2017YFB0309000, Task No. 2017YFB0309005).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors thank Meilong Wang and BinBin Wang for the SEM measurements, Qingdao Yuanhai New Material Technology Co., Ltd. and Huafeng Group Co., Ltd. for providing materials.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Xu, F.; Zhong, L.; Xu, Y.; Feng, S.; Zhang, C.; Zhang, F.; Zhang, G. Highly efficient flame-retardant kraft paper. J. Mater. Sci. 2018, 54, 1884–1897. [Google Scholar] [CrossRef]
  2. Choi, Y.; Joe, I.; Lee, S.E.; Oh, K.H. An experimental study on the ignition and emissions characteristics of wallpapers. J. Mech. Sci. Technol. 2009, 23, 2839–2847. [Google Scholar] [CrossRef]
  3. Li, W.; Zhao, L.; Zhang, Q.; Zhao, G. Flame retardance and antibacterial performance of wooden wallpaper treated with compasite modifying agent. Wood Res. 2016, 61, 423–432. [Google Scholar]
  4. Zhang, T.; Wu, M.; Kuga, S.; Ewulonu, C.M.; Huang, Y. Cellulose Nanofibril-Based Flame Retardant and Its Application to Paper. ACS Sustain. Chem. Eng. 2020, 8, 10222–10229. [Google Scholar] [CrossRef]
  5. Wang, N.; Liu, Y.; Liu, Y.; Wang, Q. Properties and mechanisms of different guanidine flame retardant wood pulp paper. J. Anal. Appl. Pyrolysis 2017, 128, 224–231. [Google Scholar] [CrossRef]
  6. Si, Y.; Guo, Z. Eco-friendly functionalized superhydrophobic recycled paper with enhanced flame-retardancy. J. Colloid Interface Sci. 2016, 477, 74–82. [Google Scholar] [CrossRef]
  7. Sha, L.; Chen, K. Surface modification of ammonium polyphosphate-diatomaceous earth composite filler and its application in flame-retardant paper. J. Therm. Anal. Calorim. 2015, 123, 339–347. [Google Scholar] [CrossRef]
  8. Wang, S.; Huang, J.; Chen, F. Study on Mg–Al hydrotalcites in flame-retardant paper preparation. BioResources 2012, 7, 997–1007. [Google Scholar]
  9. Zhou, H.; Liu, Z.; Wei, Y. Preparation of fire-retardant paper using magnesium hydroxide as flame retardant. China Pulp Pap. 2009, 28, 13–16. [Google Scholar]
  10. Cui, J.; Guo, H.; Yang, B.; Zhou, Y. Investigation and preparation of sizing agent with waterborne epoxy bromine carbon resin for flame retardant paper. J. Lanzhou Univ. Technol. 2010, 36, 62–65. [Google Scholar]
  11. Qiu, X.; Li, Z.; Li, X.; Zhang, Z. Flame retardant coatings prepared using layer by layer assembly: A review. Chem. Eng. J. 2018, 334, 108–122. [Google Scholar] [CrossRef]
  12. Yasin, S.; Curti, M.; Behary, N.; Perwuelz, A.; Giraud, S.; Rovero, G.; Guan, J.; Chen, G. Process Optimization of Eco-Friendly Flame Retardant Finish for Cotton Fabric: A Response Surface Methodology Approach. Surf. Rev. Lett. 2017, 24, 1750114. [Google Scholar] [CrossRef]
  13. Mao, H.; Wu, X.; Qian, X.; An, X. Conductivity and flame retardancy of polyaniline-deposited functional cellulosic paper doped with organic sulfonic acids. Cellulose 2013, 21, 697–704. [Google Scholar] [CrossRef]
  14. Pan, Y.; Liu, L.; Zhao, H. Recyclable flame retardant paper made from layer-by-layer assembly of zinc coordinated multi-layered coatings. Cellulose 2018, 25, 5309–5321. [Google Scholar] [CrossRef]
  15. Yasin, S.; Behary, N.; Curti, M.; Rovero, G. Global Consumption of Flame Retardants and Related Environmental Concerns: A Study on Possible Mechanical Recycling of Flame Retardant Textiles. Fibers 2016, 4, 16. [Google Scholar] [CrossRef] [Green Version]
  16. Lee, K.Y.; Mooney, D.J. Alginate: Properties and biomedical applications. Prog. Polym. Sci. 2012, 37, 106–126. [Google Scholar] [CrossRef] [Green Version]
  17. Zhang, J.; Ji, Q.; Shen, X.; Xia, Y.; Tan, L.; Kong, Q. Pyrolysis products and thermal degradation mechanism of intrinsically flame-retardant calcium alginate fibre. Polym. Degrad. Stabil. 2011, 96, 936–942. [Google Scholar] [CrossRef]
  18. Zhang, J.; Ji, Q.; Wang, F.; Tan, L.; Xia, Y. Effects of divalent metal ions on the flame retardancy and pyrolysis products of alginate fibres. Polym. Degrad. Stabil. 2012, 97, 1034–1040. [Google Scholar] [CrossRef]
  19. Shi, R.; Tan, L.; Zong, L.; Ji, Q.; Li, X.; Zhang, K.; Cheng, L.; Xia, Y. Influence of Na(+) and Ca(2+) on flame retardancy, thermal degradation, and pyrolysis behavior of cellulose fibers. Carbohydr. Polym. 2017, 157, 1594–1603. [Google Scholar] [CrossRef]
  20. Kong, Q.; Wang, B.; Ji, Q.; Xia, Y.; Guo, Z.; Yu, J. Thermal degradation and flame retardancy of calcuim alginate fibers. Chin. J. Polym. Sci. 2009, 6, 807–812. [Google Scholar] [CrossRef]
  21. Zhang, X.; Xia, Y.; Shi, M.; Yan, X. The flame retardancy of alginate/flame retardant viscose fibers investigated by vertical burning test and cone calorimeter. Chin. Chem. Lett. 2018, 29, 489–492. [Google Scholar] [CrossRef]
  22. Stockmann, P.N.; van Opdenbosch, D.; Poethig, A.; Pastoetter, D.L.; Hoehenberger, M.; Lessig, S.; Raab, J.; Woelbing, M.; Falcke, C.; Winnacker, M.; et al. Biobased chiral semi-crystalline or amorphous high-performance polyamides and their scalable stereoselective synthesis. Nat. Commun. 2020, 11, 1–12. [Google Scholar] [CrossRef] [PubMed]
  23. Li, L.; Chen, G.; Liu, W.; Li, J.; Zhang, S. The anti-dripping intumescent flame retardant finishing for nylon-6,6 fabric. Polym. Degrad. Stabil. 2009, 94, 996–1000. [Google Scholar] [CrossRef]
  24. Weil, E.D.; Levchik, S. Current Practice and Recent Commercial Developments in Flame Retardancy of Polyamides. J. Fire Sci. 2004, 22, 251–264. [Google Scholar] [CrossRef]
  25. Horrocks, A.R.; Kandola, B.K.; Davies, P.J.; Zhang, S.; Padbury, S.A. Developments in flame retardant textiles—A review. Polym. Degrad. Stabil. 2005, 88, 3–12. [Google Scholar] [CrossRef]
  26. Horrocks, A.R.; Zhang, S. Char Formation in Polyamides (Nylons 6 and 6.6) and Wool Keratin Phosphorylated by Polyol Phosphoryl Chlorides. Text. Res. J. 2004, 74, 433–441. [Google Scholar] [CrossRef]
  27. Stoddard, J.W.; Pickett, O.A.; Cicero, C.J. Flame-retarded nylon carpets. Text. Res. J. 1975, 45, 474–483. [Google Scholar] [CrossRef]
  28. Parker, E.M.; Gielen, A.C.; McDonald, E.M.; Shields, W.C.; Trump, A.R.; Koon, K.M.; Jones, V. Fire and scald burn risks in urban communities: Who is at risk and what do they believe about home safety? Health Educ. Res. 2013, 28, 599–611. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Liu, Y.; Tao, Y.; Wang, B.; Li, P.; Xu, Y.; Jiang, Z.; Dong, C.; Zhu, P. Fully bio-based fire-safety viscose/alginate blended nonwoven fabrics: Thermal degradation behavior, flammability, and smoke suppression. Cellulose 2020, 27, 6037–6053. [Google Scholar] [CrossRef]
  30. Zhang, X.; Xia, Y.; Yan, X.; Shi, M. Efficient suppression of flammability in flame retardant viscose fiber through incorporating with alginate fiber. Mater. Lett. 2018, 215, 106–109. [Google Scholar] [CrossRef]
  31. Wang, B.; Li, P.; Xu, Y.; Jiang, Z.; Dong, C.; Liu, Y.; Zhu, P. Bio-based, nontoxic and flame-retardant cotton/alginate blended fibres as filling materials: Thermal degradation properties, flammability and flame-retardant mechanism. Compos. Part B Eng. 2020, 194, 108038. [Google Scholar] [CrossRef]
  32. Zhang, X.; Shi, M. Flame retardant vinylon/poly(m-phenylene isophthalamide) blended fibers with synergistic flame retardancy for advanced fireproof textiles. J. Hazard. Mater. 2019, 365, 9–15. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, F.; Wang, B.; Xu, Y.; Li, P.; Liu, Y.; Zhu, P. Convenient blending of alginate fibers with polyamide fibers for flame-retardant non-woven fabrics. Cellulose 2020, 27, 8341–8349. [Google Scholar] [CrossRef]
  34. Fukatsu, K. Thermal degradation behaviour of aromatic polyamide fiber blended with cotton fiber. Polym. Degrad. Stabil. 2002, 75, 479–484. [Google Scholar] [CrossRef]
  35. Sehaqui, H.; Liu, A.; Zhou, Q.; Berglund, L.A. Fast Preparation Procedure for Large, Flat Cellulose and Cellulose/Inorganic Nanopaper Structures. Biomacromolecules 2010, 11, 2195–2198. [Google Scholar] [CrossRef] [PubMed]
  36. Tan, L.; Li, Z.; Shi, R.; Quan, F.; Wang, B.; Ma, X.; Ji, Q.; Tian, X.; Xia, Y. Preparation and Properties of an Alginate-Based Fiber Separator for Lithium-Ion Batteries. ACS Appl. Mater. Interfaces 2020, 12, 38175–38182. [Google Scholar] [CrossRef] [PubMed]
  37. Shi, Y.; Liu, C.; Duan, Z.; Yu, B.; Liu, M.; Song, P. Interface engineering of MXene towards super-tough and strong polymer nanocomposites with high ductility and excellent fire safety. Chem. Eng. J. 2020, 399, 125829. [Google Scholar] [CrossRef]
  38. Dufresne, W.J.B.; Rufledt, C.J.; Marshall, C.P. Raman spectroscopy of the eight natural carbonate minerals of calcite structure. J. Raman Spectrosc. 2018, 49, 1999–2007. [Google Scholar] [CrossRef]
  39. Maruyama, K.; Kagi, H.; Komatsu, K.; Yoshino, T.; Nakano, S. Pressure-induced phase transitions of vaterite, a metastable phase of CaCO3. J. Raman Spectrosc. 2017, 48, 1449–1453. [Google Scholar] [CrossRef]
  40. Keshavarzian, A.; Haghighi, M.N.; Taromi, F.A.; Abedini, H. Phosphorus-based flame retardant poly (butylene terephthalate): Synthesis, flame retardancy and thermal behavior. Polym. Degrad. Stabil. 2020, 180, 109310. [Google Scholar] [CrossRef]
  41. Luo, H.; Rao, W.; Zhao, P.; Wang, L.; Liu, Y.; Yu, C. An efficient organic/inorganic phosphorus–nitrogen–silicon flame retardant towards low-flammability epoxy resin. Polym. Degrad. Stabil. 2020, 178, 109195. [Google Scholar] [CrossRef]
  42. Cui, M.; Li, J.; Qin, D.; Sun, J.; Chen, Y.; Xiang, J.; Yan, J.; Fan, H. Intumescent flame retardant behavior of triazine group and ammonium polyphosphate in waterborne polyurethane. Polym. Degrad. Stabil. 2021, 183, 109439. [Google Scholar] [CrossRef]
  43. Yu, B.; Xing, W.; Guo, W.; Qiu, S.; Wang, X.; Lo, S.; Hu, Y. Thermal exfoliation of hexagonal boron nitride for effective enhancements on thermal stability, flame retardancy and smoke suppression of epoxy resin nanocomposites via sol–gel process. J. Mater. Chem. A 2016, 4, 7330–7340. [Google Scholar] [CrossRef]
  44. Huang, Y.; Zhou, T.; He, S.; Xiao, H.; Dai, H.; Yuan, B.; Chen, X.; Yang, X. Flame-retardant polyvinyl alcohol/cellulose nanofibers hybrid carbon aerogel by freeze drying with ultra-low phosphorus. Appl. Surf. Sci. 2019, 497, 143775. [Google Scholar] [CrossRef]
  45. Hirschler, M.M. Poly(vinyl chloride) and its fire properties. Fire Mater. 2017, 41, 993–1006. [Google Scholar] [CrossRef]
  46. Vahabi, H.; Kandola, B.K.; Saeb, M.R. Flame Retardancy Index for Thermoplastic Composites. Polymers 2019, 11, 407. [Google Scholar] [CrossRef] [Green Version]
  47. Ma, J. Analysis on the Fire Risk Existing in the Storage of Textile Materials and Textile Goods. Procedia Eng. 2014, 71, 271–275. [Google Scholar] [CrossRef]
  48. Maqsood, M.; Langensiepen, F.; Seide, G. The Efficiency of Biobased Carbonization Agent and Intumescent Flame Retardant on Flame Retardancy of Biopolymer Composites and Investigation of their Melt-Spinnability. Molecules 2019, 24, 1513. [Google Scholar] [CrossRef] [Green Version]
  49. Li, W.; Qi, S.; Liu, Q.; Gao, H.; Liang, S.; Feng, W.; Jiang, M. Thermal degradation and flame retardant mechanism of sulfonated polyoxadiazole fibers modified by metal ions. J. Polym. Res. 2020, 27, 12. [Google Scholar] [CrossRef]
  50. Yu, B.; Yuen, A.C.Y.; Xu, X.; Zhang, Z.C.; Yang, W.; Lu, H.; Fei, B.; Yeoh, G.H.; Song, P.; Wang, H. Engineering MXene surface with POSS for reducing fire hazards of polystyrene with enhanced thermal stability. J. Hazard. Mater. 2021, 401, 123342. [Google Scholar] [CrossRef]
Polymers 13 00430 g001 550

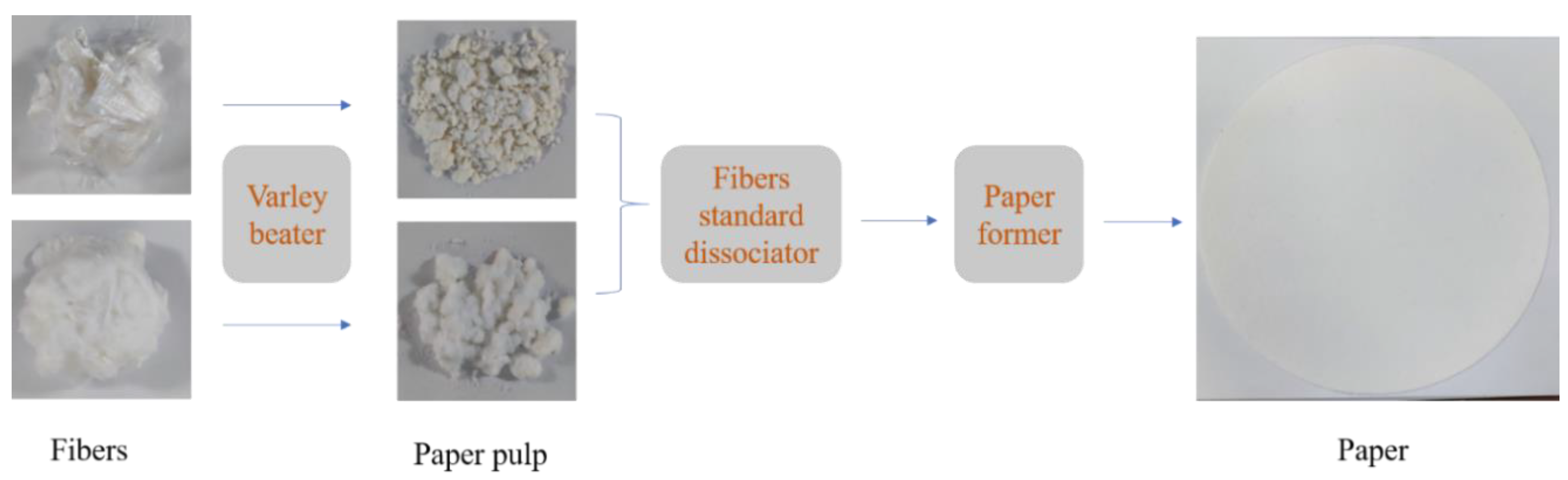

Figure 1. Preparation process of paper.
Figure 1. Preparation process of paper.
Polymers 13 00430 g001
Polymers 13 00430 g002 550

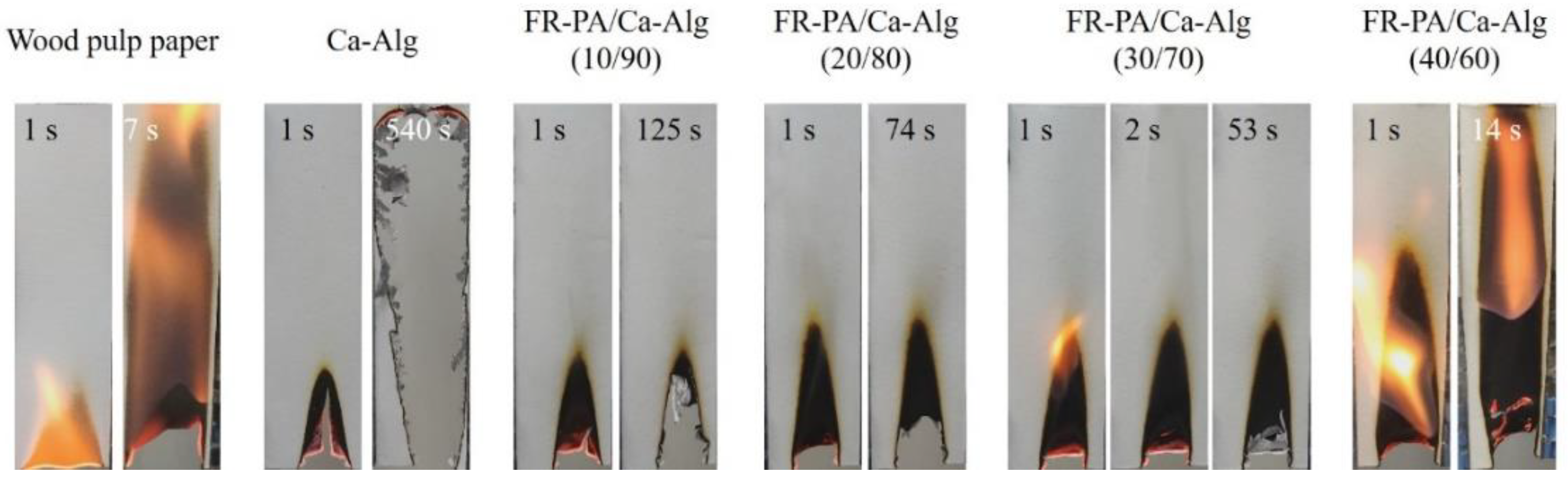

Figure 2. Digital photo of composite papers at different times during the Vertical Flammability (VF) tests. For all papers, the photos of the fire source leaving the sample for 1 s are shown; photos of the sample being completely destroyed are shown for wood pulp paper (7 s), Ca-Alg paper (540 s) and flame-retardant polyamide (FR-PA)/Ca-Alg (40/60) paper (14 s); and photos after smoldering is extinguished are shown for FR-PA/Ca-Alg (10/90) paper (125 s), FR-PA/Ca-Alg (20/80) paper (74 s), and FR-PA/Ca-Alg (30/70) paper (53 s). In addition, the photo after the flame of the paper is extinguished is shown for FR-PA/Ca-Alg (30/70) paper (2 s).
Figure 2. Digital photo of composite papers at different times during the Vertical Flammability (VF) tests. For all papers, the photos of the fire source leaving the sample for 1 s are shown; photos of the sample being completely destroyed are shown for wood pulp paper (7 s), Ca-Alg paper (540 s) and flame-retardant polyamide (FR-PA)/Ca-Alg (40/60) paper (14 s); and photos after smoldering is extinguished are shown for FR-PA/Ca-Alg (10/90) paper (125 s), FR-PA/Ca-Alg (20/80) paper (74 s), and FR-PA/Ca-Alg (30/70) paper (53 s). In addition, the photo after the flame of the paper is extinguished is shown for FR-PA/Ca-Alg (30/70) paper (2 s).
Polymers 13 00430 g002
Polymers 13 00430 g003 550

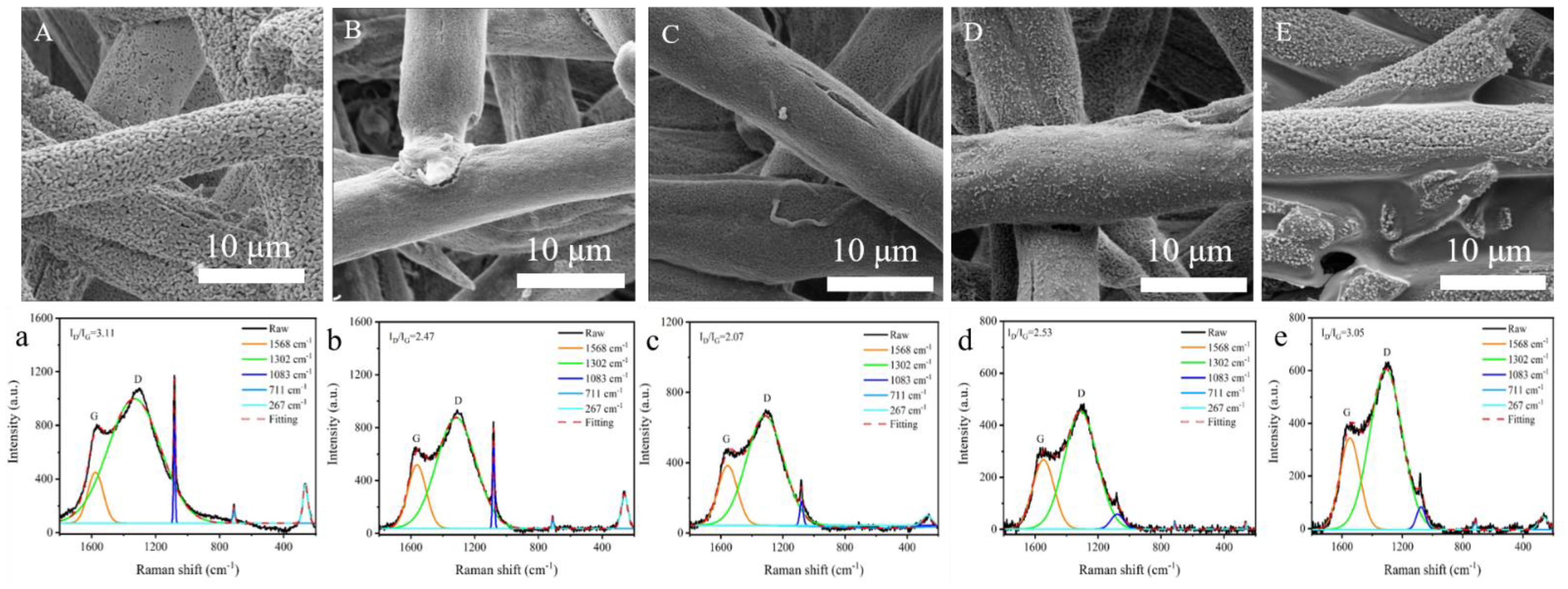

Figure 3. SEM images of composite paper after VF test: (A) Ca-Alg, (B) FR-PA/Ca-Alg (10/90), (C) FR-PA/Ca-Alg (20/80), (D) FR-PA/Ca-Alg (30/70), and (E) FR-PA/Ca-Alg (40/60); Raman spectra of char residues of (a) Ca-Alg, (b) FR-PA/Ca-Alg (10/90), (c) FR-PA/Ca-Alg (20/80), (d) FR-PA/Ca-Alg (30/70), and (e) FR-PA/Ca-Alg (40/60) after VF test.
Figure 3. SEM images of composite paper after VF test: (A) Ca-Alg, (B) FR-PA/Ca-Alg (10/90), (C) FR-PA/Ca-Alg (20/80), (D) FR-PA/Ca-Alg (30/70), and (E) FR-PA/Ca-Alg (40/60); Raman spectra of char residues of (a) Ca-Alg, (b) FR-PA/Ca-Alg (10/90), (c) FR-PA/Ca-Alg (20/80), (d) FR-PA/Ca-Alg (30/70), and (e) FR-PA/Ca-Alg (40/60) after VF test.
Polymers 13 00430 g003
Polymers 13 00430 g004 550

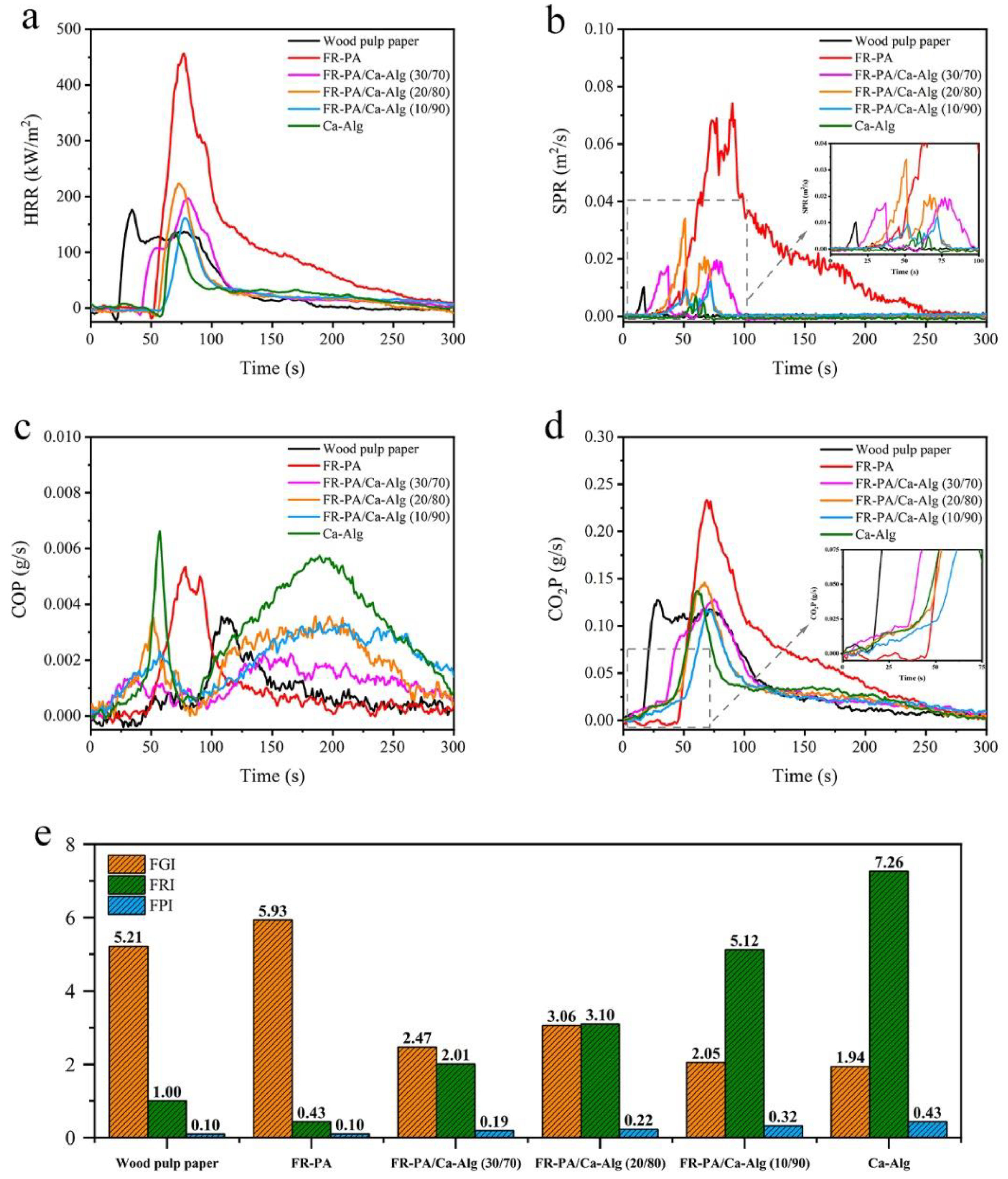

Figure 4. (a) Heat release rate (HRR), (b) smoke production rate (SPR), (c) carbon monoxide production (COP) and (d) CO2P of samples acquired from CONE; (e) the fire growth index (FGI), fire performance index (FPI) and flame-retardant index (FRI) values of samples.
Figure 4. (a) Heat release rate (HRR), (b) smoke production rate (SPR), (c) carbon monoxide production (COP) and (d) CO2P of samples acquired from CONE; (e) the fire growth index (FGI), fire performance index (FPI) and flame-retardant index (FRI) values of samples.
Polymers 13 00430 g004
Polymers 13 00430 g005 550

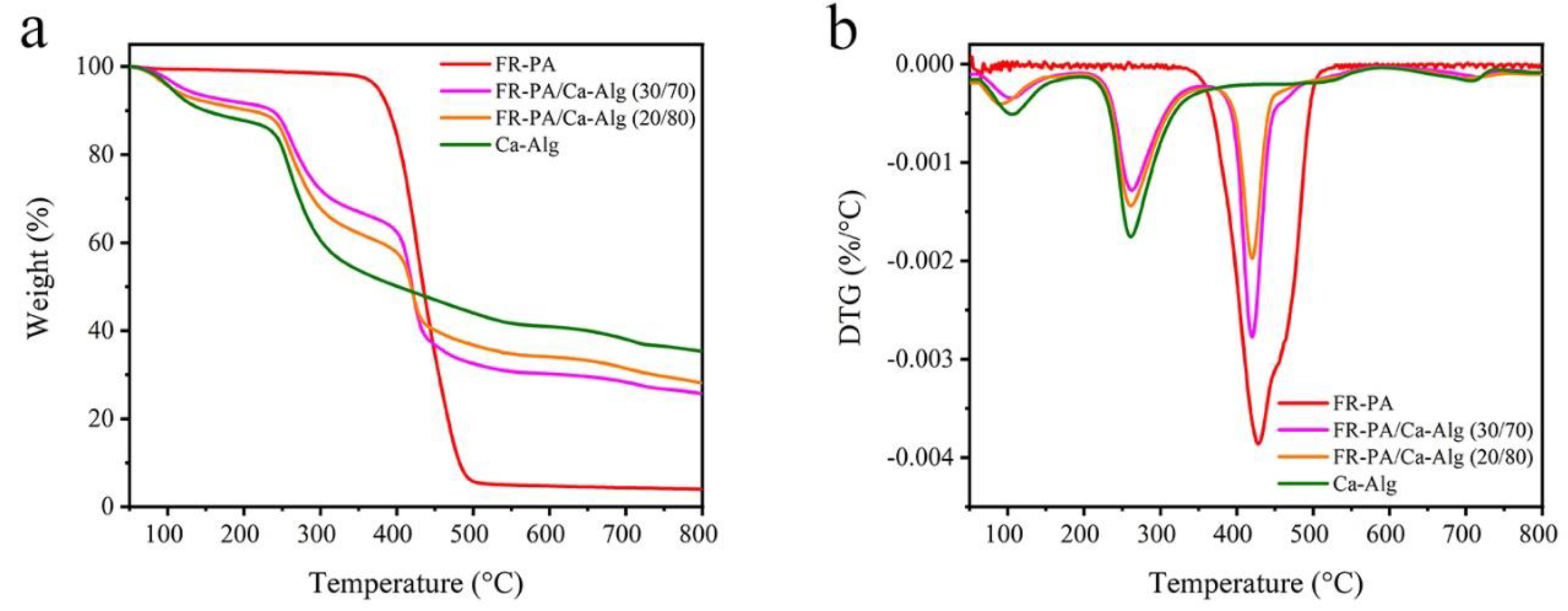

Figure 5. Thermogravimetric (TG) (a) and differential thermogravimetric (DTG) (b) curves in N2 for samples.
Figure 5. Thermogravimetric (TG) (a) and differential thermogravimetric (DTG) (b) curves in N2 for samples.
Polymers 13 00430 g005
Polymers 13 00430 g006 550

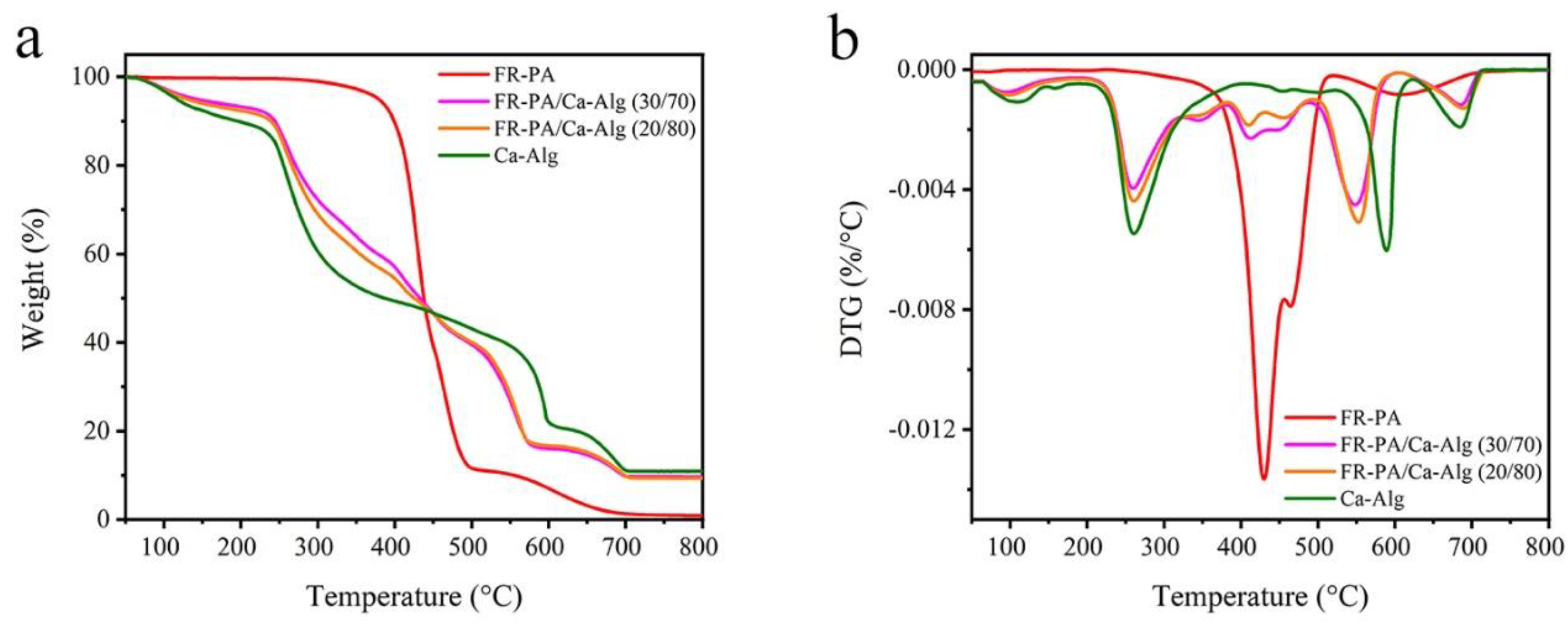

Figure 6. TG (a) and DTG (b) curves in air for samples.
Figure 6. TG (a) and DTG (b) curves in air for samples.
Polymers 13 00430 g006
Polymers 13 00430 g007 550

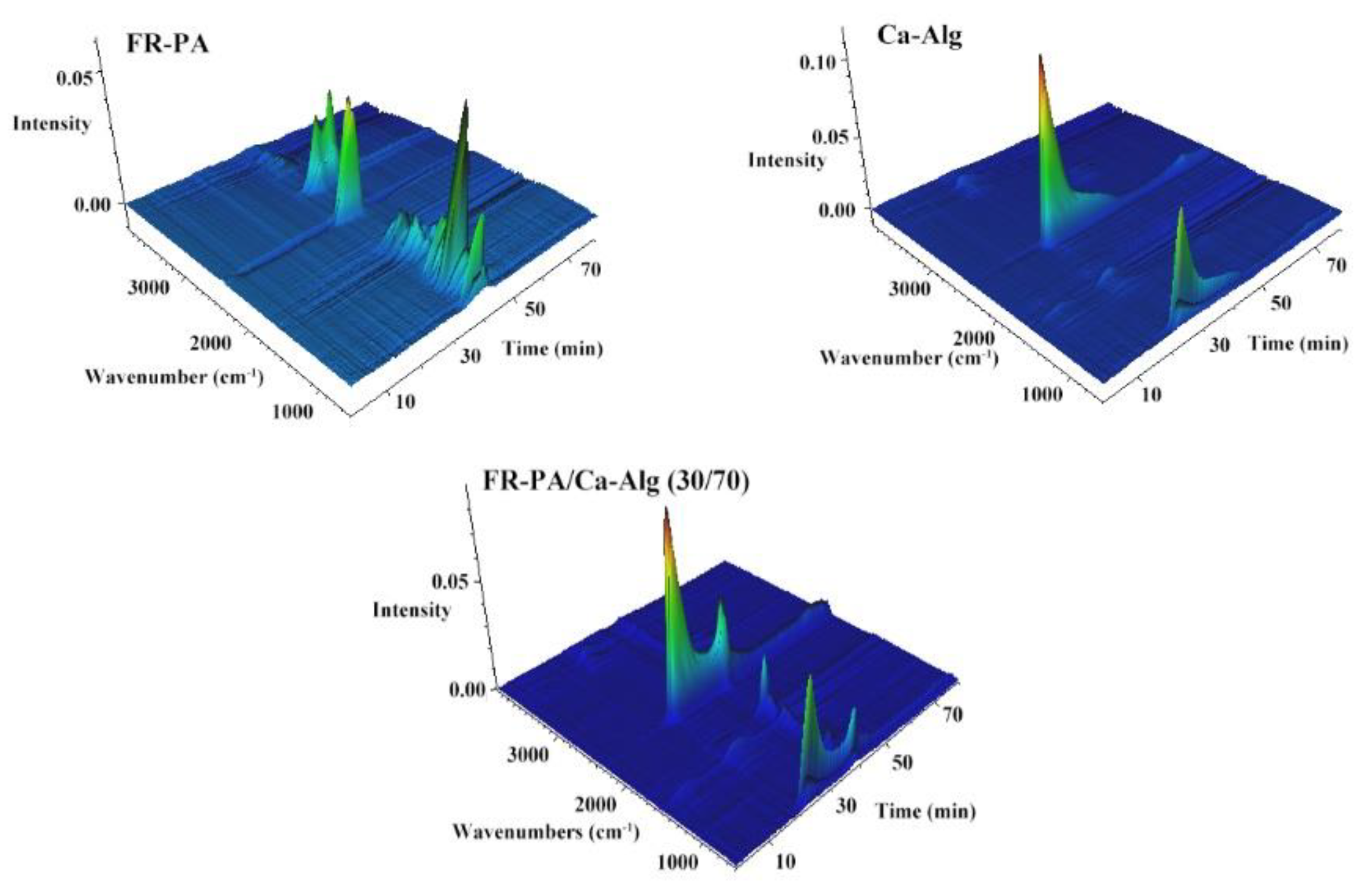

Figure 7. 3D diagrams of FTIR absorption of the thermal degradation of specimens.
Figure 7. 3D diagrams of FTIR absorption of the thermal degradation of specimens.
Polymers 13 00430 g007
Polymers 13 00430 g008 550

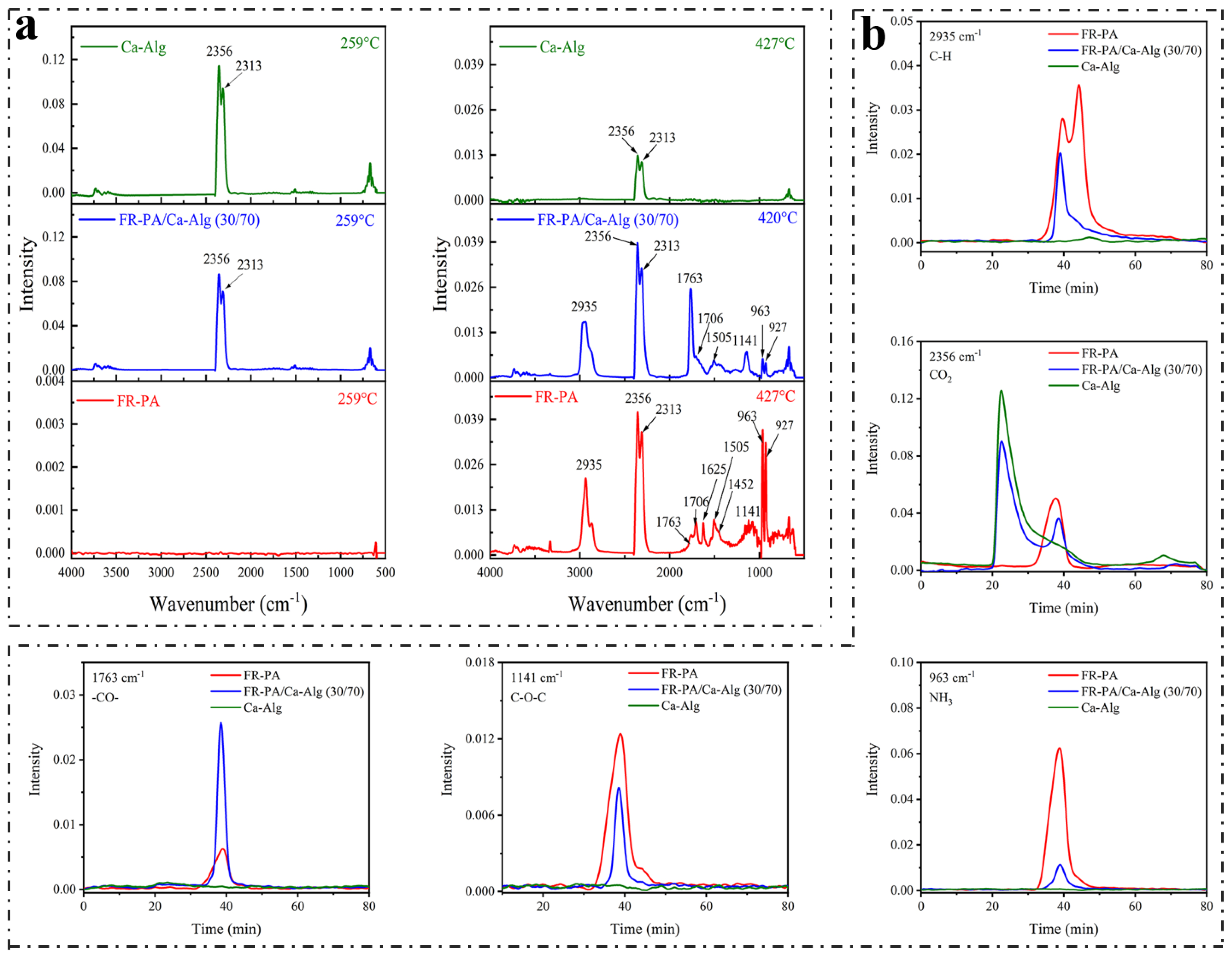

Figure 8. (a) FTIR spectra at Tmax of specimens studied; (b) several specific products versus time are compared.
Figure 8. (a) FTIR spectra at Tmax of specimens studied; (b) several specific products versus time are compared.
Polymers 13 00430 g008
Table
Table 1. Data corresponding to the limiting oxygen index (LOI) and VF tests.
Table 1. Data corresponding to the limiting oxygen index (LOI) and VF tests.
SamplesLOI (%)After-Flame Time a (s)Afterglow Time a (s)Damaged Length a (mm)
Wood pulp paper18.5 (0.17) b7.5 ± 1-All damaged
Ca-Alg27.3 (0.17)0540 ± 10All damaged
FR-PA/Ca-Alg (10/90)30.3 (0.17)0125 ± 551 ± 5
FR-PA/Ca-Alg (20/80)28.7 (0.28)0.4 ± 0.274 ± 665 ± 4
FR-PA/Ca-Alg (30/70)29.0 (0.22)1.4 ± 0.353 ± 563 ± 4
FR-PA/Ca-Alg (40/60)25.5 (0.35)14.2 ± 0.6-All damaged
a: Average value of four repeated tests. b: The values in the parenthesis indicate standard deviation.
Table
Table 2. Parameters acquired from cone calorimetry (CONE) of specimens.
Table 2. Parameters acquired from cone calorimetry (CONE) of specimens.
SamplesTTI
(s)		pHRR
(kW/m2)		t-pHRR
(s)		THR
(MJ/m2)		TSP
(m2/m2)		av-EHC
(MJ/kg)		Residue
(%)
Wood pulp paper17176.923411.630.1112.3120.90
FR-PA45456.547727.764.9227.123.35
FR-PA/Ca-Alg (30/70)37197.318011.270.5715.0613.25
FR-PA/Ca-Alg (20/80)50223.17738.770.6114.2114.08
FR-PA/Ca-Alg (10/90)52161.63797.610.3212.1614.98
Ca-Alg58135.83707.120.0516.5312.15
Table
Table 3. The TG and DTG data in N2 of specimens.
Table 3. The TG and DTG data in N2 of specimens.
SamplesT5%
(°C)		Tmax−A
(°C)		Rmax−A
(%/°C)		Tmax−B
(°C)		Rmax−B
(%/°C)		Tmax−C
(°C)		Rmax−C
(%/°C)		Tmax−D
(°C)		Rmax−D
(%/°C)		W f
(%)
FR-PA375----427−0.0039--3.99
FR-PA/Ca-Alg (30/70)120103−0.0003259−0.0013420−0.0028720−0.000125.72
FR-PA/Ca-Alg (20/80)105104−0.0004259−0.0014419−0.0019719−0.000128.20
Ca-Alg104103−0.0005259−0.0018--712−0.000135.34
Table
Table 4. The TG and DTG data in air of specimens.
Table 4. The TG and DTG data in air of specimens.
SamplesT5%
(°C)		Tmax−1
(°C)		Rmax−1
(%/°C)		Tmax−2
(°C)		Rmax−2
(%/°C)		Tmax−3
(°C)		Rmax−3
(%/°C)		Tmax−4
(°C)		Rmax−4
(%/°C)		Tmax−5
(°C)		Rmax−5
(%/°C)		W f
(%)
FR-PA379----429−0.0137607−0.0008--0.89
FR-PA/Ca-Alg (30/70)14194−0.0007259−0.0040412−0.0023550−0.0045687−0.00129.64
FR-PA/Ca-Alg (20/80)12898−0.0008260−0.0044412−0.0018552−0.0051689−0.00139.33
Ca-Alg116109−0.0011260−0.0055--589−0.0060685−0.001910.96
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Xu, K.; Tian, X.; Cao, Y.; He, Y.; Xia, Y.; Quan, F. Suppression of Smoldering of Calcium Alginate Flame-Retardant Paper by Flame-Retardant Polyamide-66. Polymers 2021, 13, 430. https://doi.org/10.3390/polym13030430

AMA Style

Xu K, Tian X, Cao Y, He Y, Xia Y, Quan F. Suppression of Smoldering of Calcium Alginate Flame-Retardant Paper by Flame-Retardant Polyamide-66. Polymers. 2021; 13(3):430. https://doi.org/10.3390/polym13030430

Chicago/Turabian Style

Xu, Kai, Xing Tian, Ying Cao, Yaqi He, Yanzhi Xia, and Fengyu Quan. 2021. "Suppression of Smoldering of Calcium Alginate Flame-Retardant Paper by Flame-Retardant Polyamide-66" Polymers 13, no. 3: 430. https://doi.org/10.3390/polym13030430

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
