Next Article in Journal
Nanoparticles Functionalized by Conducting Polymers and Their Electrorheological and Magnetorheological Applications
Previous Article in Journal
Characterizing Distributions of Tensile Strength and Crack Precursor Size to Evaluate Filler Dispersion Effects and Reliability of Rubber
Previous Article in Special Issue
Polyamide 6/Poly(vinylidene fluoride) Blend-Based Nanocomposites with Enhanced Rigidity: Selective Localization of Carbon Nanotube and Organoclay
Open AccessArticle

Cellulose Nanocrystal Reinforced Chitosan Based UV Barrier Composite Films for Sustainable Packaging

1
Department of Chemical and Materials Engineering, Chang Gung University, Taoyuan 333, Taiwan
2
Department of Chemistry, Prof. Rajendra Singh Institute of Physical Sciences for Study and Research, V.B.S Purvanchal University Jaunpur, Siddikpur U.P. 222002, India
3
Department of General Dentistry, Chang Gung Memorial Hospital, Taoyuan 333, Taiwan
4
Graduate Institute of Dental and Craniofacial Science, Chang Gung University, Taoyuan 333, Taiwan
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(1), 202; https://doi.org/10.3390/polym12010202 (registering DOI)
Received: 15 December 2019 / Revised: 8 January 2020 / Accepted: 10 January 2020 / Published: 13 January 2020
(This article belongs to the Special Issue Carbon Materials Modified Polymeric Composites)

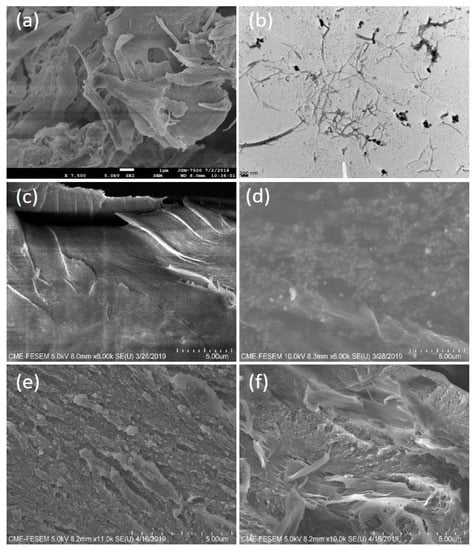

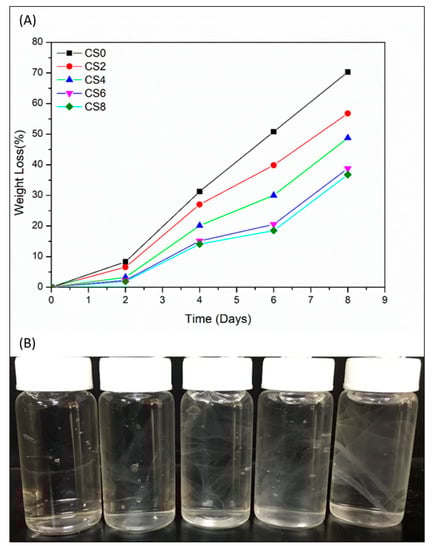

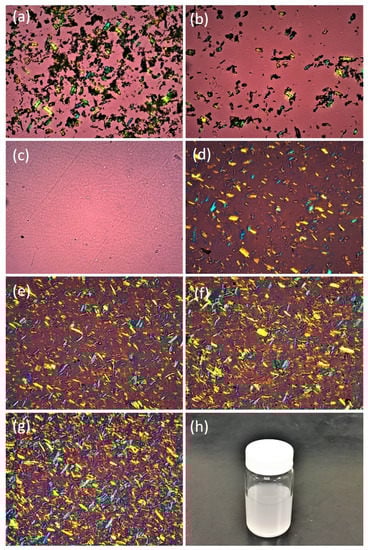

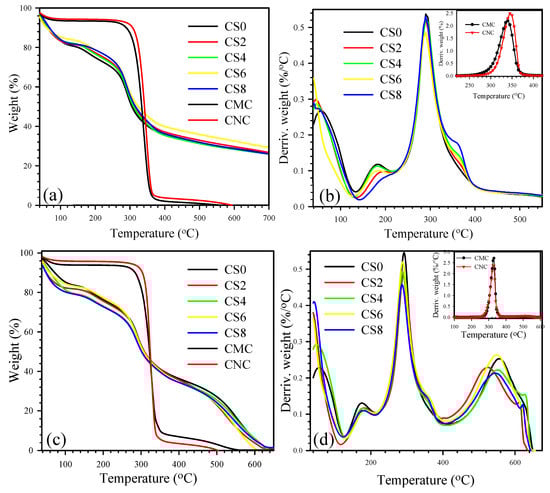

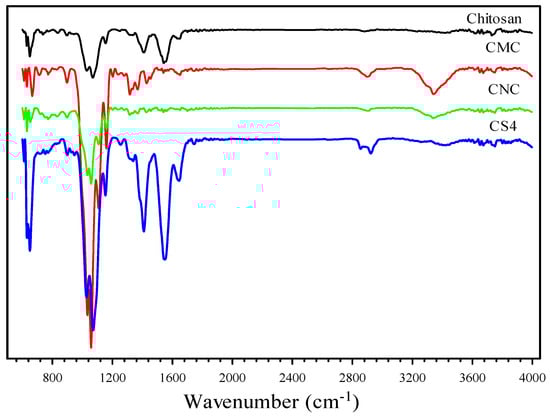

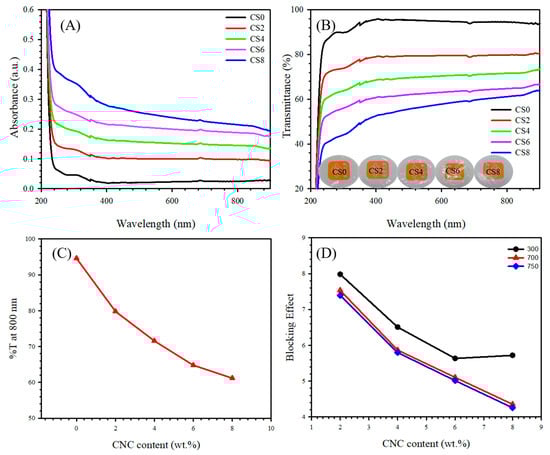

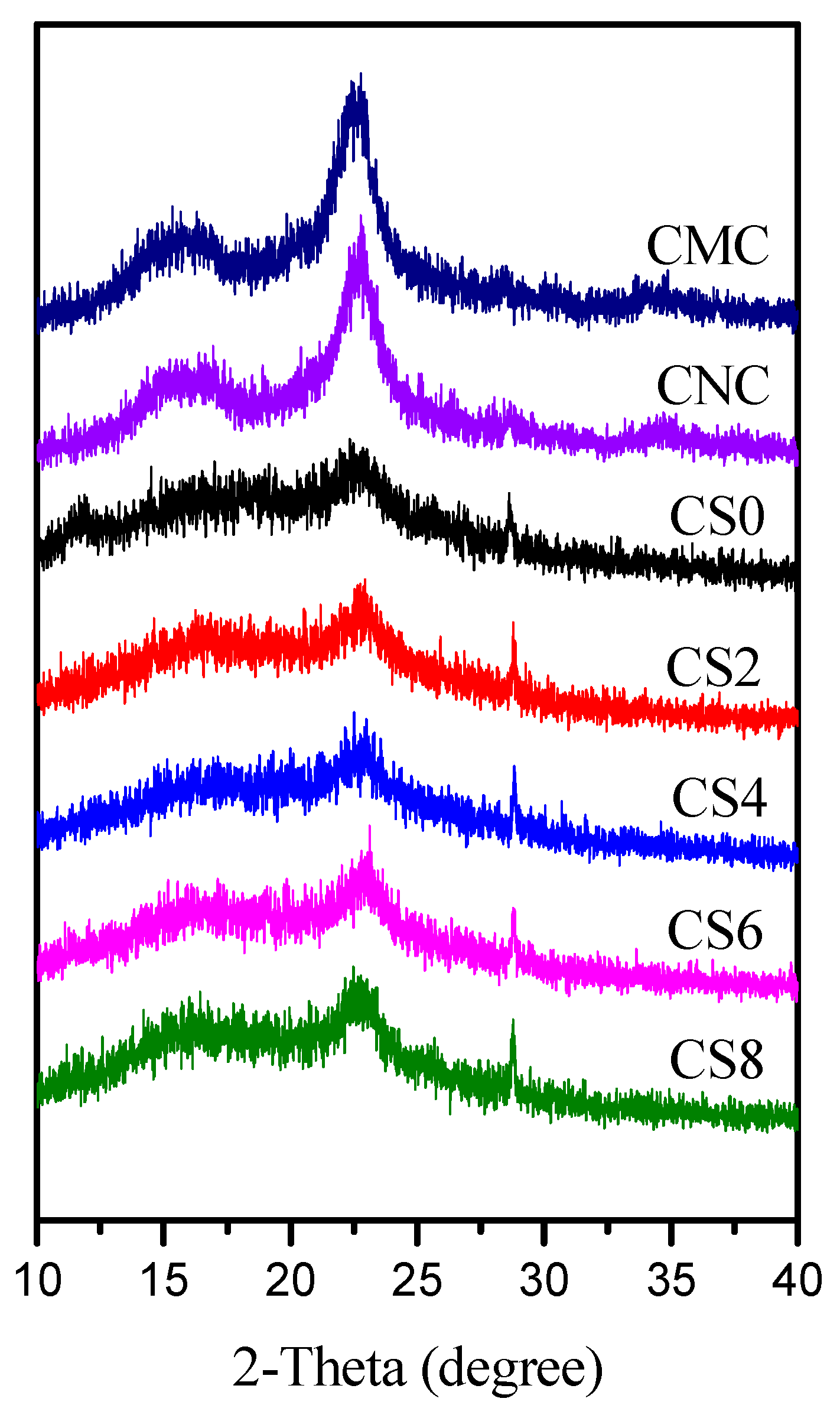

In this study, green composite films based on cellulose nanocrystal/chitosan (CNC/CS) were fabricated by solution casting. FTIR, XRD, SEM, and TEM characterizations were conducted to determine the structure and morphology of the prepared films. The addition of only 4 wt.% CNC in the CS film improved the tensile strength and Young’s modulus by up to 39% and 78%, respectively. Depending on CNC content, the moisture absorption decreased by 34.1–24.2% and the water solubility decreased by 35.7–26.5% for the composite films compared with neat CS film. The water vapor permeation decreased from 3.83 × 10−11 to 2.41 × 10−11 gm−1 s−1Pa−1 in the CS-based films loaded with (0–8 wt.%) CNC. The water and UV barrier properties of the composite films showed better performance than those of neat CS film. Results suggested that CNC/CS nanocomposite films can be used as a sustainable packaging material in the food industry. View Full-Text
Keywords: nanocomposite; chitosan; cellulose nanocrystal; UV barrier; mechanical properties nanocomposite; chitosan; cellulose nanocrystal; UV barrier; mechanical properties
Show Figures

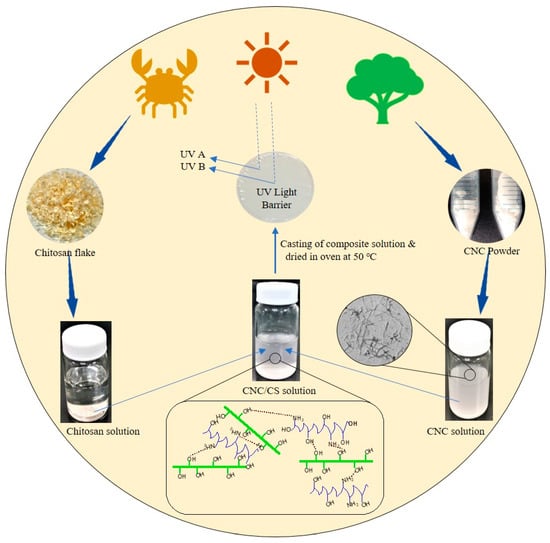

Graphical abstract

MDPI and ACS Style

Yadav, M.; Behera, K.; Chang, Y.-H.; Chiu, F.-C. Cellulose Nanocrystal Reinforced Chitosan Based UV Barrier Composite Films for Sustainable Packaging. Polymers 2020, 12, 202.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
