One-Step Photocontrolled Polymerization-Induced Self-Assembly (Photo-PISA) by Using In Situ Bromine-Iodine Transformation Reversible-Deactivation Radical Polymerization

by
Haihui Li
†,
Qinghua Xu
†,
Xiang Xu
†,
Lifen Zhang
*,
Zhenping Cheng
* and
Xiulin Zhu
State and Local Joint Engineering Laboratory for Novel Functional Polymeric Materials, Jiangsu Key Laboratory of Advanced Functional Polymer Design and Application, Suzhou Key Laboratory of Macromolecular Design and Precision Synthesis, College of Chemistry, Chemical Engineering and Materials Science, Soochow University, 199 Ren-ai Road, Suzhou 215123, China
*
Authors to whom correspondence should be addressed.
†
Haihui Li, Qinghua Xu and Xiang Xu contributed equally to this work.
Polymers 2020, 12(1), 150; https://doi.org/10.3390/polym12010150
Submission received: 10 December 2019 / Revised: 31 December 2019 / Accepted: 6 January 2020 / Published: 7 January 2020
(This article belongs to the Section Polymer Chemistry)
Browse Figures
Versions Notes

Abstract

:
Polymerization-induced self-assembly (PISA) has become an effective strategy to synthesize high solid content polymeric nanoparticles with various morphologies in situ. In this work, one-step PISA was achieved by in situ photocontrolled bromine-iodine transformation reversible-deactivation radical polymerization (hereinafter referred to as Photo-BIT-RDRP). The water-soluble macroinitiator precursor α-bromophenylacetate polyethylene glycol monomethyl ether ester (mPEG1k-BPA) was synthesized in advance, and then the polymer nanomicelles (mPEG1k-b-PBnMA and mPEG1k-b-PHPMA, where BnMA means benzyl methacrylate and HPMA is hydroxypropyl methacrylate) were successfully formed from a PISA process of hydrophobic monomer of BnMA or HPMA under irradiation with blue LED light at room temperature. In addition, the typical living features of the photocontrolled PISA process were confirmed by the linear increase of molecular weights of the resultant amphiphilic block copolymers with monomer conversions and narrow molecular weight distributions (Mw/Mn < 1.20). Importantly, the photocontrolled PISA process is realized by only one-step method by using in situ photo-BIT-RDRP, which avoids the use of transition metal catalysts in the traditional ATRP system, and simplifies the synthesis steps of nanomicelles. This strategy provides a promising pathway to solve the problem of active chain end (C-I) functionality loss in two-step polymerization of BIT-RDRP.

Graphical Abstract

1. Introduction

In the past 20 years, the development of polymer synthesis technology has brought convenience to the preparation of polymers with different topologies, such as linear, grafted, branched, and ring-shaped. Intensive studies have shown that under certain conditions, existing polymers with different structures can self-assemble to form structured aggregates. Among these polymers, the linear block copolymer has the simplest structure, so the investigation of its self-assembly behaviour is the most extensive and in-depth [1,2]. The self-assembly of block copolymers has a wide range of applications in materials, chemistry, nanoscience, and biomedicine [3,4]. However, in the conventional method, in order to obtain a better nanostructure morphology, the concentration of the block copolymer solution needs to be highly diluted [5,6], which limits its potential application. In recent years, polymerization-induced self-assembly (PISA) has attracted great attention [7]. In a PISA, the polymerization and the self-assembly processes are performed simultaneously, so the synthesis steps are greatly simplified compared to the conventional self-assembly method [8,9]. In addition, PISA has many advantages over traditional methods, such as rich assembly morphologies [7], high solid content [10], and suitability for various solvents [11,12], and the morphologies of the nanostructures can be controlled by adjusting the molar ratio of hydrophilic and hydrophobic segments during PISA process [13]. PISA is theoretically suitable for all reversible-deactivation radical polymerization (RDRP) such as atom transfer radical polymerization (ATRP), reversible addition-fragmentation chain transfer (RAFT) polymerization and iodine transfer radical polymerization (ITP) [7,14,15,16,17]. However, the more in-depth study of PISA is currently carried out by RAFT polymerization due to the absence of transition metal during PISA process [7,18,19,20,21].
Alkyl iodides (R-I) are usually used as initiators and regulators in iodine-mediated RDRP [22,23,24,25]. However, the bond dissociation energy of the C-I bond is relatively low, so alkyl iodides are usually unstable and need special storage conditions, which limits the practical application of this polymerization method [26]. Recently, Goto’s group [26] and our group [27] reported thermal-initiated and photocontrolled in situ bromine-iodine transformation RDRP (BIT-RDRP) strategies, respectively. This method generates R-I in situ in a polymerization system by a nucleophilic substitution reaction of a relatively stable atom transfer radical polymerization (ATRP) initiator alkyl bromide (R-Br) with NaI (Scheme 1). Since commercially available ATRP R-Br initiators are used as the precursors in a BIT-RDRP process, this strategy avoids the introduction of transition metal catalysts usually used in a transition metal-mediated ATRP system. On the other hand, a PISA usually requires a two-step procedure. Generally, the solvent-soluble block is obtained in the first step, and then it is used as a macroinitiator to initiate the polymerization of the nucleating monomer to form an amphiphilic block copolymer in situ [28]. Very recently, our group introduced the first photo-BIT-RDRP into a two-step PISA process, and different micelle morphologies (spherical micelles and vesicle aggregates) were controllably generated by the two-step photo-BIT-RDRP-PISA method using polyethylene glycol methacrylate (PEGMA) and benzyl methacrylate (BnMA) as hydrophilic and hydrophobic monomer, respectively [29]. Through this strategy, we have successfully established a new PISA method by combination the advantages of both ATRP and iodine-mediated RDRP, which avoiding the use of transition metals in the ATRP and overcoming the shortcomings of the unstability of alkyl iodide initiator in the iodine-mediated RDRP method [29].
It is well-known that the functional chain end of the polymer-I (C-I bond) is relatively active and easy to cause an unavoidable functionality loss during the process of conventional polymerization post-treatment. Therefore, there is a drawback of functionality loss of the macroinitiator polymer-I obtained in the first step for the two-step photo-BIT-RDRP-PISA mentioned above. Therefore, it is highly desired to construct a one-step in situ bromine-iodine transformation RDRP-PISA (BIT-RDRP-PISA) system, especially photo-BIT-RDRP-PISA system, which will simplify the polymerization procedure and reduce the loss of active C-I chain ends significantly. Based on this purpose, in this work, we first focused on the synthesis of a water-soluble alkyl bromide as a macroinitiator precursor (mPEG1k-BPA) instead of R-Br in the two-step photo-BIT-RDRP-PISA. Subsequently, the one-step photo-BIT-RDRP-PISA process (Scheme 2) was smoothly carried out by using mPEG1k-IPA, a product of in situ bromine-iodine transformation nucleophilic substitution of mPEG1k-BPA with NaI [27,29], as the alkyl iodide macroinitiator to initiate a PISA process in methanol in the presence of the hydrophobic monomer (BnMA or hydroxypropyl methacrylate (HPMA)) under irradiation with blue LED light at room temperature.

2. Experimental

2.1. Materials

Benzyl methacrylate (BnMA, 98%, J&K, Shanghai, China) and hydroxypropyl methacrylate (HPMA, 99%, Energy Chemical, Shanghai, China) were passed through an alumina column to remove the inhibitor. Polyethylene glycol monomethyl ether (mPEG1k, Mn = 1000 g/mol, 97%) was purchased from TCI (Shanghai, China). 2-Bromo-2-phenylacetic acid (98%), sodium iodide (97%) and triethylamine (99.5%) were also purchased from TCI (Shanghai, China). Dichlorosulfane (98%), anhydrous methanol (99.5%), anhydrous ether, tetrahydrofuran (99.5%) and all other chemicals were obtained from Shanghai Chemical Reagents Co. Ltd. (Shanghai, China) and used as received unless otherwise mentioned.

2.2. Characterization

The number average molecular weight (Mn,GPC) and molecular weight distribution (Mw/Mn) values of the resulting polymers were determined using a HLC-8320 gel permeation chromatograph (GPC, TOSOH, Kyoto, Japan) equipped with a refractive-index detector (TOSOH), using a TSKgel guard column SuperMP-N (4.6 × 20 mm) and two TSKgel SupermultiporeHZ-N (4.6 × 150 mm), with measurable molecular weights ranging from 5 × 102 to 5 × 105 g/mol. THF was used as an eluent at a flow rate of 0.35 mL/min operated at 40 °C. GPC samples were injected using a TOSOH plus autosampler and calibrated with polymethyl methacrylate (PMMA) standards purchased from TOSOH. 1H NMR spectra of the polymers were recorded on a Bruker (Beijing, China) 300 MHz nuclear magnetic resonance (NMR) instrument using CDCl3 or DMSO-d6 as the solvent and tetramethylsilane (TMS) as an internal standard at ambient temperature. The UV-visible absorption spectrum was measured by a UV-2600 UV-Vis spectrophotometer (Shimadzu, Kyoto, Japan) with methanol as the solvent. The morphology of the polymeric nanoparticles was obtained by a TecnaiG22 transmission electron microscope (TEM, FEI, Hillsboro, OH, USA) with an accelerating voltage of 120 kV. Take 4 μL of the polymer mixture solution in a dry and clean ampule, dilute with 5 mL of methanol solvent, and then pipet 10 μL of the solution (0.5 mg/mL) onto a 200 mesh carbon-coated copper mesh. After standing for 40 s, filter paper was used to remove excess solvent from under the copper mesh. In order to facilitate the observation of the morphology of the polymer nanoparticles, it is necessary to dye the aqueous solution with a concentration of 1.0% w/w of phosphotungstic acid. Therefore, 10 μL of an aqueous solution of phosphotungstic acid was pipetted onto a copper mesh to which polymeric nanoparticles had been dropped. After standing for 20 s, filter paper was used to remove excess solvent from under the copper mesh. Dynamic light scattering (DLS) measurements were conducted using a NanoBrook 90 Plus instrument (BIC, Huntsville, NY, USA). The intensity weighted mean hydrodynamic diameter and the particle size distribution were obtained from the analysis of the autocorrelation functions using the cumulants method. At least three measurements at 25 °C were made for each sample (0.10% w/w dispersions) with an equilibrium time of 2 min before starting the measurement.

2.3. Synthesis and Characterization of mPEG1k-BPA

The polyethylene glycol monomethyl ether 2-bromo-2-phenylacetate (mPEG1k-BPA) was synthesized according to the method in the reference [30]. The typical procedure is shown in Scheme 3. Firstly, 20 mL of dichlorosulfane and 8.6 g of 2-bromo-2-phenylacetic acid (40 mmol) were added to a 50 mL three-necked flask. The temperature was raised to 70 °C under magnetic stirring and refluxed for 6 h. After cooling to room temperature, the remaining dichlorosulfane was removed by rotary evaporation to obtain 2-bromo-2-phenylacetyl chloride (1). Its structure was clearly characterized by NMR spectroscopy (1H-NMR (300 MHz, CDCl3, TMS, δ, ppm): 7.59–7.32 (m, 5H), 5.94 (s, 1H).
Then, in a 250 mL three-necked flask, 8.1 g of mPEG1k, 0.5 mL of triethylamine and 150 mL of anhydrous dichloromethane were added. 5 g of (1) was added dropwise with a constant pressure dropping funnel under ice bath (0 °C). After the addition was completed, increasing temperature to 30 °C for 36 h. The dichloromethane was removed by rotary evaporation. The product was dissolved with a small amount of tetrahydrofuran (THF) and then precipitated in anhydrous ether. This process was repeated three times. Then a white solid (mPEG1k-BPA) was collected by suction filtration. Its structure was verified by NMR spectroscopy (1H-NMR, 300 MHz, CDCl3, TMS, δ, ppm): 7.60–7.31 (m, 5H), 5.39 (s, 1H), 4.34 (d, 2H), 3.98–3.51(m, 90H), 3.38 (s, 3H), 2.10 (s, 2H).

2.4. General Procedure for the Polymerization of BnMA or HPMA

We conducted the polymerization in ampules under an argon (Ar) atmosphere, and the light source is blue light-emitting diode (LED) light strip (λmax = 464 nm, 0.15 mW/cm2). A typical polymerization procedure for the molar ratio of [BnMA]0/[mPEG1k-BPA]0/[NaI]0/[TEA]0 = 20/1/2/0.5 is shown as follows: a mixture of mPEG1k-BPA (14.8 mg, 0.015 mmol), NaI (4.4 mg, 0.03 mmol), BnMA (50 μL, 0.30 mmol), TEA (1.0 μL, 0.0075 mmol), and methanol (0.50 mL) was added to a dried ampule (2 mL) with a stir bar. The mixed solution was a pale yellow homogeneous solution. After three freeze-pump-thaw cycles to eliminate the dissolved oxygen and provide an Ar atmosphere, the ampule was flame-sealed. The mixture was transferred to a stirring device equipped with a blue LED strip, cooling with an electric fan to remove heat from the LED strip. The polymerization was maintained at room temperature (25 °C). After a desired polymerization time, the ampule was moved to a dark place, and 20 μL of the polymer solution was pipetted into a solvent of DMSO-d6 and subjected to 1H-NMR characterization for monomer conversion. For the polymerization of HPMA, a mixture of polymerization solution was obtained with the molar ratio of [HPMA]0/[mPEG1k-BPA]0/[NaI]0/[TEA]0 = 300/1/2/1 (PEG1k-BPA: 14.8 mg, 0.015 mmol; NaI: 4.4 mg, 0.03 mmol; HPMA: 0.5 mL, 3.5 mmol; TEA: 1.72 μL, 0.012 mmol) in a mixed solvent of 1.67 mL of methanol and 0.83 mL of water, and the rest procedure was the same as that for the polymerization of BnMA mentioned above.

3. Results and Discussion

3.1. Polymerization Mechanism

Firstly, blue light plays a vital role in the photo-BIT-RDRP system. Our previous research demonstrated that the type of light source has a significant effect on the monomer conversion, molecular weight, and molecular weight distribution of the resultant polymers [27]. Compared with light sources of other wavelengths, the blue light we selected has relatively good control over the polymerization process. On the other hand, the occurrence and stop of the polymerization reaction strictly follow the light on and off, which makes the polymerization method have excellent spatiotemporal controllability [27,29].
As reported by our previous work, the photo-BIT-RDRP process will result in the formation of a small amount of iodine [27]. Therefore, the UV-vis absorption spectra were used to verify whether I2 was generated during the polymerization. We measured the UV-visible absorption spectra of TEA, mPEG1k-BPA and the reaction solution after 7 h of polymerization ([BnMA]0/[mPEG1k-BPA]0/[NaI]0/[TEA]0 = 20/1/2/0.5) (Figure 1). TEA and mPEG1k-BPA have absorption in the wavelength range of 200–300 nm, and no absorption in the wavelength range of more than 300 nm. However, after 7 h of polymerization, absorption peaks appeared at 365 nm and 297 nm. In comparison to the UV-vis absorption spectra of the I2 and I2-TEA complexes, there actually exists the absorption peak of the resulting I2-TEA complex. This proves that there is indeed a small amount of I2 formation during the polymerization. On the other hand, the polymerization solution was pale yellow before irradiation with blue LED light. However, after irradiation, the color of polymerization solution gradually became darker, which proved the formation of a small amount of iodine again. Therefore, we can propose the polymerization mechanism of this one-step photo-BIT-RDRP, which is similar with that of typical reversible complexation mediated polymerization (RCMP) as reported previously [31,32,33,34], and is shown in Scheme 4. The ATRP macroinitiator mPEG1k-BPA (PEG-Br) was first transferred into mPEG1k-IPA (PEG-I) in the presence of NaI under irradiation with blue LED light. The in situ generated PEG-I was used as the starting RCMP macroinitiator to initiate the monomer polymerization and therefore to form the propagating polymer chains Pn-I. It should be noted that the halogen bond interaction can be formed between TEA and iodine in the presence of catalyst TEA [17,35]. Thereby the C-I bond can be cleaved easily under irradiation with blue LED light to generate the carbon-centered propagating radicals (Pn•) and iodine radical/H2O complex (I•/H2O complex). At the same time Pn• can reversibly combine the iodine radical to form a dormant species Pn-I, and a small amount of the free iodine radicals can also combine to form I2 during the polymerization process as observed in Figure 1.

3.2. In Situ Photo-BIT-RDRP of BnMA and Its Self-Assembly Behavior

We investigated the polymerization behaviors of BnMA using mPEG1k-BPA as the macroinitiator under irradiation with blue LED light at room temperature. As can be seen from Figure 2a, ln([M]0/[M]) grows very slowly over time in 0 to 5 h, indicating that the increase in the polymerization degree of PBnMA before 5 h is not enough to achieve micelle nucleation. However, after 5 h, ln([M]0/[M]) increases linearly with polymerization time. It is due to the increase in viscosity after micelle nucleation, and the monomer is encapsulated inside mPEG1k-b-PBnMA, resulting in an increase in local monomer concentration. Therefore, the polymerization rate is significantly accelerated. From Figure 2b, the molecular weights of the resultant amphiphilic block copolymers increase linearly with monomer conversion, and the molecular weight distributions keep narrow (Mw/Mn < 1.20). It is noted that there are some deviations in molecular weights measured by GPC (Mn,GPC) from the theoretical ones (Mn,th) since PMMA was used as the standard for calibration in GPC; however, the molecular weights determined by NMR spectra (Mn,NMR) was close to their corresponding Mn,th values. In addition, as shown in Figure 2c, there is an obvious peak shift after block polymerization with BnMA. These facts indicate that the photo-BIT-RDRP of BnMA is consistent with the typical feature of RDRP. The self-assembly morphology of the mPEG1k-b-PBnMAx (x = 3, 8, and 15) at different degrees of polymerization is shown in Figure 3 (the detailed information is shown in Table 1). Figure 3A is a topographical view of the block PBnMA with the degree of polymerization (DP) of 3. At this time, the insoluble segments are shorter, so that the particle size of the micelles formed is small (about 12.8 nm). In Figure 3B, for DP 8, the particle size increases to 43.2 nm. As shown in Figure 3C, the particle size of the assembled spherical polymer micelles increased to 177.1 nm correspondingly.

3.3. In Situ Photo-BIT-RDRP of HPMA and Its Self-Assembly Behavior

HPMA has considerable solubility in methanol or water, while PHPMA has poor solubility, especially for high molecular weight PHPMA in water. Therefore, HPMA is also an ideal monomer for a PISA process. We chose a mixed solution of methanol and water as the solvent. Figure 4 is a topographical view of the assembly of mPEG1k-b-PHPMAx (x = 75, 105, 181) with different degrees of polymerization observed by TEM (polymerization information is shown in Table 2). When the DP is 75, the particle size of the self-assembled nanoparticles is about 34.2 nm. Increasing DP to 105, the particle size of the nanoparticles increased to 50.1 nm. Further increasing the DP to 181, the nanoparticles correspondingly increased to 102.9 nm. Therefore, the size of the resultant nanoparticles can be easily controlled by adjusting the degree of polymerization during the photo-BIT-RDRP-PISA process.

4. Conclusions

In summary, we have synthesized a water-soluble macroinitiator mPEG1k-BPA and realized a one-step in situ photo-BIT-RDRP-PISA process under irradiation with blue LED light at room temperature, successfully obtaining mPEG1k-b-PBnMA and mPEG1k-b-PHPMA amphiphilic block copolymer micelles in situ. This strategy effectively improves the problem of the active chain end (C-I) loss caused by two-step bromine-iodine transformation RDRP-PISA process, and also greatly simplifies the synthesis step, which provides a promising method for the synthesis of polymeric nanoparticles by photo-BIT-RDRP-PISA strategy.

Author Contributions

Conceptualization, L.Z., Z.C. and X.Z.; Investigation, H.L., Q.X. and X.X.; Writing, H.L.; Supervision, L.Z. and Z.C. All authors have read and agreed to the published version of the manuscript.

Acknowledgments

Financial support from the National Natural Science Foundation of China (Nos. 21774082 and 21871201, and 21925107), the Nature Science Key Basic Research of Jiangsu Province for Higher Education (No. 16KJA150003), and the Project Funded by the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD) is gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Riess, G. Micellization of block copolymers. Prog. Polym. Sci. 2003, 28, 1107–1170. [Google Scholar] [CrossRef] [Green Version]
  2. Mai, Y.; Eisenberg, A. Self-assembly of block copolymers. Chem. Soc. Rev. 2012, 41, 5969–5985. [Google Scholar] [CrossRef] [PubMed]
  3. Tseng, Y.C.; Darling, S.B. Block Copolymer Nanostructures for Technology. Polymers 2010, 2, 470–489. [Google Scholar] [CrossRef] [Green Version]
  4. Venkatesan, S.; Liu, I.P.; Li, C.W.; Tseng-Shan, C.M.; Lee, Y.L. Quasi-Solid-State Dye-Sensitized Solar Cells for Efficient and Stable Power Generation under Room Light Conditions. ACS Sustain. Chem. Eng. 2019, 7, 7403–7411. [Google Scholar] [CrossRef]
  5. Bagheri, A.; Boyer, C.; Lim, M. Synthesis of Light-Responsive Pyrene-Based Polymer Nanoparticles via Polymerization-Induced Self-Assembly. Macromol. Rapid Commun. 2019, 40, 1800510. [Google Scholar] [CrossRef] [PubMed]
  6. Darling, S.B. Directing the self-assembly of block copolymers. Prog. Polym. Sci. 2007, 32, 1152–1204. [Google Scholar] [CrossRef]
  7. Derry, M.J.; Fielding, L.A.; Armes, S.P. Polymerization-induced self-assembly of block copolymer nanoparticles via RAFT non-aqueous dispersion polymerization. Prog. Polym. Sci. 2016, 52, 1–18. [Google Scholar] [CrossRef] [Green Version]
  8. Tan, J.B.; Liu, D.D.; Bai, Y.H.; Huang, C.D.; Li, X.L.; He, J.; Xu, Q.; Zhang, X.C.; Zhang, L. An insight into aqueous photoinitiated polymerization-induced self-assembly (photo-PISA) for the preparation of diblock copolymer nano-objects. Polym. Chem. 2017, 8, 1315–1327. [Google Scholar] [CrossRef]
  9. Mellot, G.; Guigner, J.M.; Bouteiller, L.; Stoffelbach, F.; Rieger, J. Templated PISA: Driving Polymerization-Induced Self-Assembly towards Fibre Morphology. Angew. Chem. Int. Ed. 2019, 58, 3173–3177. [Google Scholar] [CrossRef]
  10. Wu, J.J.; Tian, C.; Zhang, L.F.; Cheng, Z.P.; Zhu, X.L. Synthesis of soap-free emulsion with high solid content by differential dripping RAFT polymerization-induced self-assembly. RSC Adv. 2017, 7, 6559–6564. [Google Scholar] [CrossRef] [Green Version]
  11. Gao, C.Q.; Wu, J.P.; Zhou, H.; Qu, Y.Q.; Li, B.H.; Zhang, W.Q. Self-Assembled Blends of AB/BAB Block Copolymers Prepared through Dispersion RAFT Polymerization. Macromolecules 2016, 49, 4490–4500. [Google Scholar] [CrossRef]
  12. Jennings, J.; Beija, M.; Richez, A.P.; Cooper, S.D.; Mignot, P.E.; Thurecht, K.J.; Jack, K.S.; Howdle, S.M. One-Pot Synthesis of Block Copolymers in Supercritical Carbon Dioxide: A Simple Versatile Route to Nanostructured Microparticles. J. Am. Chem. Soc. 2012, 134, 4772–4781. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, Y.M.; Filipczak, P.; He, G.P.; Nowaczyk, G.; Witczak, L.; Raj, W.; Kozanecki, M.; Matyjaszewski, K.; Pietrasik, J. Synthesis and characterization of Ag NPs templated via polymerization induced self-assembly. Polymer 2017, 129, 144–150. [Google Scholar] [CrossRef]
  14. Alzahrani, A.; Zhou, D.W.; Kuchel, R.P.; Zetterlund, P.B.; Aldabbagh, F. Polymerization-induced self-assembly based on ATRP in supercritical carbon dioxide. Polym. Chem. 2019, 10, 2658–2665. [Google Scholar] [CrossRef]
  15. Qiao, X.D.; Lansalot, M.; Bourgeat-Lami, E.; Charleux, B. Nitroxide-Mediated Polymerization-Induced Self-Assembly of Poly(poly(ethylene oxide) methyl ether methacrylate-co-styrene)-b-poly(n-butyl methacrylate-co-styrene) Amphiphilic Block Copolymers. Macromolecules 2013, 46, 4285–4295. [Google Scholar] [CrossRef]
  16. Tan, J.; Dai, X.; Zhang, Y.; Yu, L.; Sun, H.; Zhang, L. Photoinitiated Polymerization-Induced Self-Assembly via Visible Light-Induced RAFT-Mediated Emulsion Polymerization. ACS Macro Lett. 2019, 8, 205–212. [Google Scholar] [CrossRef]
  17. Ni, Y.Y.; Tian, C.; Zhang, L.F.; Cheng, Z.P.; Zhu, X.L. Photocontrolled Iodine-Mediated Green Reversible-Deactivation Radical Polymerization of Methacrylates: Effect of Water in the Polymerization System. ACS Macro Lett. 2019, 8, 1419–1425. [Google Scholar] [CrossRef]
  18. Yeow, J.; Boyer, C. Photoinitiated Polymerization-Induced Self-Assembly (Photo-PISA): New Insights and Opportunities. Adv. Sci. 2017, 4, 1700137. [Google Scholar] [CrossRef]
  19. Docherty, P.J.; Derry, M.J.; Armes, S.P. RAFT dispersion polymerization of glycidyl methacrylate for the synthesis of epoxy-functional block copolymer nanoparticles in mineral oil. Polym. Chem. 2019, 10, 603–611. [Google Scholar] [CrossRef] [Green Version]
  20. Hatton, F.L.; Lovett, J.R.; Armes, S.P. Synthesis of well-defined epoxy-functional spherical nanoparticles by RAFT aqueous emulsion polymerization. Polym. Chem. 2017, 8, 4856–4868. [Google Scholar] [CrossRef] [Green Version]
  21. Liu, Z.Z.; Zhang, G.J.; Lu, W.; Huang, Y.J.; Zhang, J.W.; Chen, T. UV light-initiated RAFT polymerization induced self-assembly. Polym. Chem. 2015, 6, 6129–6132. [Google Scholar] [CrossRef]
  22. David, G.; Boyer, C.; Tonnar, J.; Ameduri, B.; Lacroix-Desmazes, P.; Boutevin, B. Use of iodocompounds in radical polymerization. Chem. Rev. 2006, 106, 3936–3962. [Google Scholar] [CrossRef] [PubMed]
  23. Bai, L.J.; Zhang, L.F.; Liu, Y.; Pan, X.Q.; Cheng, Z.P.; Zhu, X.L. Triphenylphosphine as phosphorus catalyst for reversible chain-transfer catalyzed polymerization (RTCP). Polym. Chem. 2013, 4, 3069–3076. [Google Scholar] [CrossRef]
  24. Tonnar, J.; Lacroix-Desmazes, P. Controlled radical polymerization of styrene by iodine transfer polymerization (ITP) in ab initio emulsion polymerization. Polymer 2016, 106, 267–274. [Google Scholar] [CrossRef]
  25. Ni, Y.Y.; Zhang, L.F.; Cheng, Z.P.; Zhu, X.L. 1 Iodine-mediated reversible-deactivation radical polymerization: A powerful strategy for polymer synthesis. Polym. Chem. 2019, 10, 2504–2515. [Google Scholar] [CrossRef]
  26. Xiao, Q.L.; Sakakibara, K.; Tsujii, Y.; Goto, A. Organocatalyzed Living Radical Polymerization via in Situ Halogen Exchange of Alkyl Bromides to Alkyl Iodides. Macromolecules 2017, 50, 1882–1891. [Google Scholar] [CrossRef]
  27. Liu, X.D.; Xu, Q.H.; Zhang, L.F.; Cheng, Z.P.; Zhu, X.L. Visible-light-induced living radical polymerization using in situ bromine-iodine transformation as an internal boost. Polym. Chem. 2017, 8, 2538–2551. [Google Scholar] [CrossRef]
  28. Blackman, L.D.; Varlas, S.; Arno, M.C.; Fayter, A.; Gibson, M.I.; O’Reilly, R.K. Permeable Protein-Loaded Polymersome Cascade Nanoreactors by Polymerization-Induced Self-Assembly. ACS Macro Lett. 2017, 6, 1263–1267. [Google Scholar] [CrossRef]
  29. Xu, Q.H.; Tian, C.; Zhang, L.F.; Cheng, Z.P.; Zhu, X.L. Photo-Controlled Polymerization-Induced Self-Assembly (Photo-PISA): A Novel Strategy Using In Situ Bromine-Iodine Transformation Living Radical Polymerization. Macromol. Rapid Commun. 2019, 40, 18004327. [Google Scholar] [CrossRef]
  30. Wang, Z.H.; Pan, X.C.; Fu, L.Y.; Lathwal, S.; Olszewski, M.; Yan, J.J.; Enciso, A.E.; Wang, Z.T.; Xia, H.S.; Matyjaszewski, K. Ultrasonication-Induced Aqueous Atom Transfer Radical Polymerization. ACS Macro Lett. 2018, 7, 275–280. [Google Scholar] [CrossRef]
  31. Goto, A.; Suzuki, T.; Ohfuji, H.; Tanishima, M.; Fukuda, T.; Tsujii, Y.; Kaji, H. Reversible Complexation Mediated Living Radical Polymerization (RCMP) Using Organic Catalysts. Macromolecules 2011, 44, 8709–8715. [Google Scholar] [CrossRef]
  32. Goto, A.; Ohtsuki, A.; Ohfuji, H.; Tanishima, M.; Kaji, H. Reversible Generation of a Carbon-Centered Radical from Alkyl Iodide Using Organic Salts and Their Application as Organic Catalysts in Living Radical Polymerization. J. Am. Chem. Soc. 2013, 135, 11131–11139. [Google Scholar] [CrossRef] [PubMed]
  33. Liu, X.D.; Zhang, L.F.; Cheng, Z.P.; Zhu, X.L. Catalyst-free iodine-mediated living radical polymerization under irradiation over a wide visible-light spectral scope. Polym. Chem. 2016, 7, 3576–3588. [Google Scholar] [CrossRef]
  34. Liu, X.D.; Zhang, L.F.; Cheng, Z.P.; Zhu, X.L. Straightforward catalyst/solvent-free iodine-mediated living radical polymerization of functional monomers driven by visible light irradiation. Chem. Commun. 2016, 52, 10850–10853. [Google Scholar] [CrossRef]
  35. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The Halogen Bond. Chem. Rev. 2016, 116, 2478–2601. [Google Scholar] [CrossRef] [Green Version]
Polymers 12 00150 sch001 550

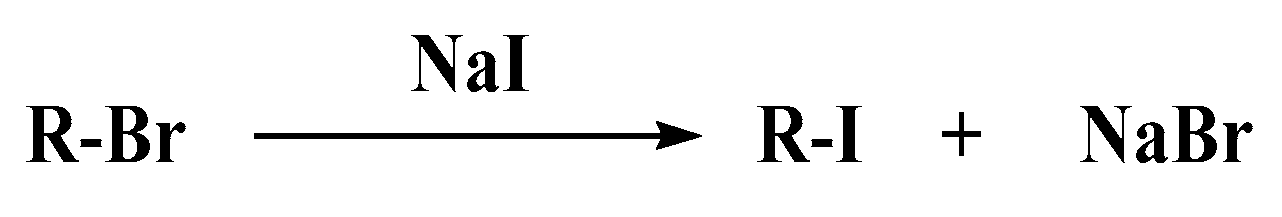

Scheme 1. In situ nucleophilic substitution reaction.
Scheme 1. In situ nucleophilic substitution reaction.
Polymers 12 00150 sch001
Polymers 12 00150 sch002 550

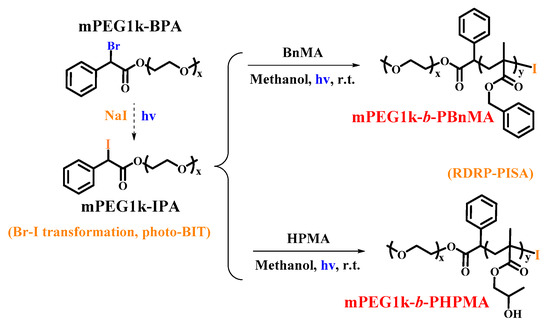

Scheme 2. Synthetic routes of mPEG1k-b-PBnMA and mPEG1k-b-PHPMA nanoparticles by using one-step photo-BIT-RDRP-PISA strategy.
Scheme 2. Synthetic routes of mPEG1k-b-PBnMA and mPEG1k-b-PHPMA nanoparticles by using one-step photo-BIT-RDRP-PISA strategy.
Polymers 12 00150 sch002
Polymers 12 00150 sch003 550

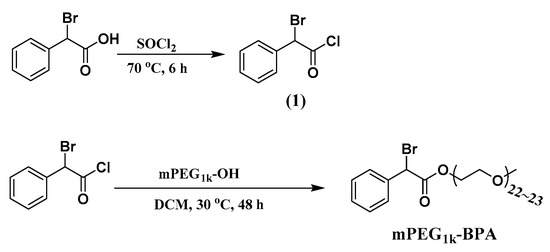

Scheme 3. The synthetic route of mPEG1k-BPA.
Scheme 3. The synthetic route of mPEG1k-BPA.
Polymers 12 00150 sch003
Polymers 12 00150 g001 550
Figure 1. UV-vis absorption spectra of the (1) TEA, (2) mPEG1k-BPA, (3) polymerization conditions: [BnMA]0/[mPEG1k-BPA]0/[NaI]0/[TEA]0 = 20/1/2/0.5, VBnMA = 50 μL, under irradiation with blue LED light (λmax = 464 nm, 0.15 mW cm−2) at room temperature (25 °C) after 7 h, (4) I2, (5) TEA/I2 = 4:1. The samples were diluted with methanol before measurement.
Figure 1. UV-vis absorption spectra of the (1) TEA, (2) mPEG1k-BPA, (3) polymerization conditions: [BnMA]0/[mPEG1k-BPA]0/[NaI]0/[TEA]0 = 20/1/2/0.5, VBnMA = 50 μL, under irradiation with blue LED light (λmax = 464 nm, 0.15 mW cm−2) at room temperature (25 °C) after 7 h, (4) I2, (5) TEA/I2 = 4:1. The samples were diluted with methanol before measurement.
Polymers 12 00150 g001
Polymers 12 00150 sch004 550

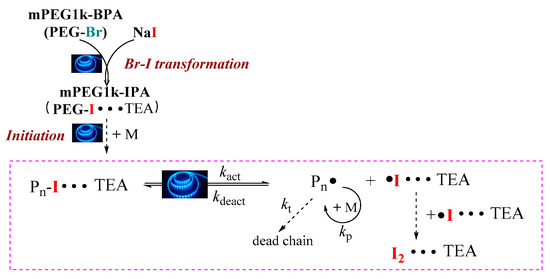

Scheme 4. Proposed polymerization mechanism by using one-step photo-BIT-RDRP strategy.
Scheme 4. Proposed polymerization mechanism by using one-step photo-BIT-RDRP strategy.
Polymers 12 00150 sch004
Polymers 12 00150 g002 550

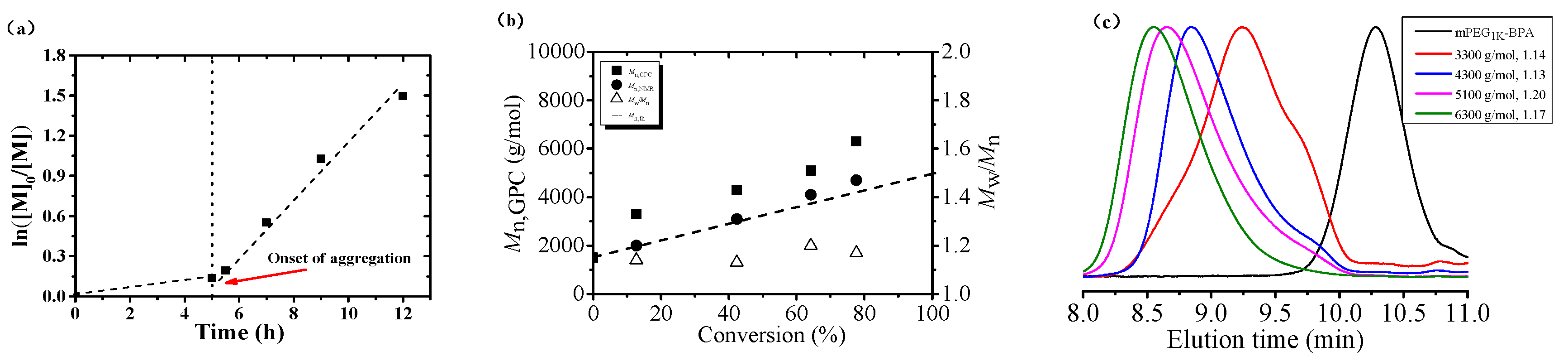

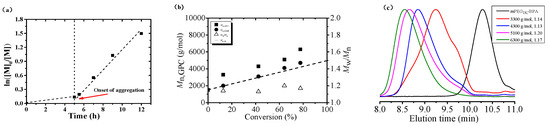

Figure 2. ln([M]0/[M]) as a function of time (a), number-average molecular weight (Mn,GPC) and molecular weight distribution (Mw/Mn) versus monomer conversion (b) and GPC elution curves (c) for photo-BIT-RDRPof BnMA. Polymerization conditions: [BnMA]0/[mPEG1k-BPA]0/[NaI]0/[TEA]0 = 20/1/2/0.5, VBnMA = 50 μL, Vmethanol = 0.5 mL, under irradiation with blue LED light (λmax = 464 nm, 0.15 mW/cm2) at room temperature (25 °C); BnMA concentration at 20.0 wt %.
Figure 2. ln([M]0/[M]) as a function of time (a), number-average molecular weight (Mn,GPC) and molecular weight distribution (Mw/Mn) versus monomer conversion (b) and GPC elution curves (c) for photo-BIT-RDRPof BnMA. Polymerization conditions: [BnMA]0/[mPEG1k-BPA]0/[NaI]0/[TEA]0 = 20/1/2/0.5, VBnMA = 50 μL, Vmethanol = 0.5 mL, under irradiation with blue LED light (λmax = 464 nm, 0.15 mW/cm2) at room temperature (25 °C); BnMA concentration at 20.0 wt %.
Polymers 12 00150 g002
Polymers 12 00150 g003 550

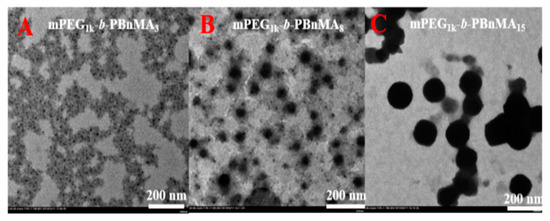

Figure 3. TEM images (A–C) of micelles from mPEG1k-b-PBnMAx (x = 3, 8, and 15, respectively) via one-step photo-BIT-RDRP-PISA using BnMA as the monomer. The samples obtained by the BnMA concentration at 20.0 wt %.
Figure 3. TEM images (A–C) of micelles from mPEG1k-b-PBnMAx (x = 3, 8, and 15, respectively) via one-step photo-BIT-RDRP-PISA using BnMA as the monomer. The samples obtained by the BnMA concentration at 20.0 wt %.
Polymers 12 00150 g003
Polymers 12 00150 g004 550

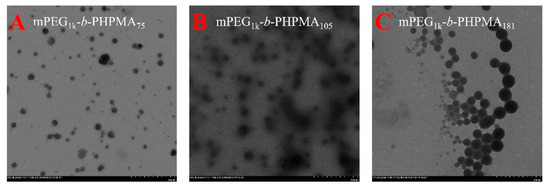

Figure 4. TEM images (A–C) of micelles from mPEG1k-b-PHPMAx (x = 75, 105, and 181, respectively) via one-step photo-BIT-RDRP-PISA using HPMA as the monomer. The samples obtained by the HPMA concentration at 20.0 wt %.
Figure 4. TEM images (A–C) of micelles from mPEG1k-b-PHPMAx (x = 75, 105, and 181, respectively) via one-step photo-BIT-RDRP-PISA using HPMA as the monomer. The samples obtained by the HPMA concentration at 20.0 wt %.
Polymers 12 00150 g004
Table
Table 1. Polymerization of BnMA via photo-BIT-RDRP.
Table 1. Polymerization of BnMA via photo-BIT-RDRP.
EntryTime(h)Conv. a (%)Mn,thb (g/mol)Mn,NMRc (g/mol)Mn,GPC (g/mol)Mw/MnDP dParticle Size (nm) e
A5.512.82000200033001.14312.8 ± 2.4
B742.43000310043001.13843.2 ± 2.0
C1277.64200470063001.1715177.1 ± 2.7
Polymerization conditions: [BnMA]0/[mPEG1k-BPA]0/[NaI]0/[TEA]0 = 20/1/2/0.5, VBnMA = 50 μL, Vmethanol = 0.5 mL, under irradiation with blue LED light (λmax = 464 nm, 0.15 mW cm−2) at room temperature (25 °C). a Monomer conversion was calculated from 1H NMR spectra results. b Mn,th = [BnMA]0/[mPEG1k-BPA]0 × MBnMA × Conv.% + Mn,mPEG1k-BPA. c Molecular weight calculated from 1H NMR spectra results. d Degree of polymerization calculated from Conv.%. e Obtained from TEM images.
Table
Table 2. Polymerization of HPMA via photo-BIT-RDRP.
Table 2. Polymerization of HPMA via photo-BIT-RDRP.
EntryTime
(h)		Conv. a
(%)		Mn,thb
(g/mol)		Mn,GPC
(g/mol)		Mw/MnDP cParticle Size (Ð) d
A62512,30017,2001.347534.2 (0.208)
B835.116,70022,3001.2810550.1 (0.163)
C1260.427,60033,5001.28181102.9 (0.260)
Polymerization conditions: [HPMA]0/[mPEG1k-BPA]0/[NaI]0/[TEA]0 = 300/1/2/1, VHPMA = 0.5 mL, Vmethanol = 1.67 mL, Vwater = 0.83 mL, under irradiation with blue LED light (λmax = 464 nm, 0.15 mW cm−2) at room temperature (25 °C). a Monomer conversion was calculated from 1H NMR spectra results. b Mn,th = [HPMA]0/[mPEG1k-BPA]0 × MHPMA × Conv.% + Mn,mPEG1k-BPA. c Degree of polymerization calculated from Conv.%. d Obtained by DLS.
