A Porous Polymer-Based Solid Acid Catalyst with Excellent Amphiphilicity: An Active and Environmentally Friendly Catalyst for the Hydration of Alkynes

by
Yizhu Lei
*,
Maomin Zhang
,
Qian Li
,
Yu Xia
and
Guojun Leng
School of Chemistry and Materials Engineering, Liupanshui Normal University, Liupanshui 553004, China
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(12), 2091; https://doi.org/10.3390/polym11122091
Submission received: 16 November 2019 / Revised: 11 December 2019 / Accepted: 12 December 2019 / Published: 13 December 2019
(This article belongs to the Section Polymer Applications)
Browse Figures
Versions Notes

Abstract

:
Developing efficient solid acid catalysts for aqueous organic reactions is of great importance for the development of sustainable chemistry. In this work, a porous polymeric acid catalyst was synthesized via a solvothermal copolymerization and a successive ion-exchange method. Physicochemical characterizations suggested that the prepared polymers possessed large Brunauer-Emmett-Teller (BET) surface areas, a hierarchically porous structure, excellent surface amphiphilicity, and nice swelling properties. Notably, an activity test in phenylacetylene hydration indicated that the prepared solid acid exhibited high catalytic activity in water, which outperformed commercial amberlyst-15, sulfuric acid, and benzenesulfonic acid. Moreover, the prepared solid acid can be easily recovered and reused at least four times. Additionally, a variety of aromatic and aliphatic alkynes could be effectively transformed into corresponding ketones under optimal reaction conditions.

Graphical Abstract

1. Introduction

The increasing environmental concerns about harmful solvent waste has led to a considerable interest in using water as a solvent for synthetic organic chemistry [1,2]. Brønsted acids have been widely used in many water-mediated organic syntheses, such as hydrolysis and hydration reactions [3,4,5]. However, performing an organic reaction with liquid Brønsted acid suffers from inherent drawbacks, such as strong corrosivity and high-volume wastes [6,7]. Towards this end, heterogeneous switching of homogeneous Brønsted acids has been developed and attracted a lot of interest [8,9,10].
The hydration of alkynes represents one of the most straightforward and efficient ways for the synthesis of carbonyl compounds [11]. The traditional reaction system over a catalytic amount of mercury salts has been known for more than a century. However, mercury salts are highly toxic. Therefore, many low-toxic metal catalysts, such as Au [12,13,14], Ag [15,16], Pt [17,18], and Ru [19] salts, as well as Brønsted acid (e.g., trifluoromethanesulfonic acid (TfOH), Triflimide (HNTf2) catalysts have been developed for replacing the toxic mercury salts [20,21]. Among these catalysts, liquid Brønsted acids are inexpensive, and to some extent, environmentally friendly [20]. Therefore, they are more appealing for practical application. However, the inherent drawbacks, such as strong corrosivity, high-volume wastes, and difficulty in separating and recycling, limit their practical applications. Hence, it is desirable to develop highly efficient and water-compatible solid acid catalysts for alkyne hydration.
Porous organic polymers (POPs), which feature designable chemical functionalities and large surface areas, have recently received great research interest in the field of catalysis, due to their potential to combine the advantages of heterogeneous and homogeneous catalysis [22,23,24,25]. To date, a considerable number of porous polymeric acids have been successfully developed for various acid-catalyzed reactions [26,27,28]. Generally, for solid catalysts in water, the catalysts should be designed to be amphiphilic, thus allowing the nice contact between organic substrates, water, and the solid catalyst [29,30,31]. However, most porous polymeric acids are mainly composed of aromatic frameworks, endowing the catalyst with hydrophobic surface wettability [26,27,32], and thus, restricting their catalytic applications in water. Porous ionic polymers (PiPs) [33,34], which represent a new kind of porous organic polymer (POP) [33,34,35], could be easily prepared from the free radical polymerization of vinyl-functionalized organic salts. When used as the catalytic supports, PiPs can exhibit not only the features of POPs, but also some additional advantages, such as allowing easy functionalization via ion-exchange reactions and easy adjustment of surface wettability of the polymer [35,36,37,38].
To develop an efficient and solid acid catalyst for the hydration of alkynes in water, herein, we initiate the synthesis of amphiphilic porous polymeric acids containing both the sulfonic and phosphonium salt groups (P(QPOTf-BSA)) and study their catalytic performances in water- mediated alkyne hydration. The amphiphilic and hyper-cross-linked P(QPOTf-BSA) was facilely synthesized through the free-radical copolymerization of 4-vinylbenzyl-tris-(4-vinylphenyl)- phosphonium chloride (QP) and sodium p-styrene sulfonate, followed by ion-exchange with HSO3CF3, as shown in Scheme 1. An activity test in phenylacetylene hydration suggested that the obtained P(QPOTf-BSA) exhibited excellent activity, outperforming the activities of heterogeneous amberlyst-15, as well as homogeneous sulfuric acid and benzenesulfonic acid. Furthermore, P(QPOTf-BSA) could be easily recovered and reused at least four times.

2. Materials and Methods

2.1. Materials

4-Vinylbenzyl chloride (90%), sodium p-styrene sulfonate (SBS), 2,2′-azobis(2-methylpropionitrile) (AIBN), alkynes, N,N-dimethylformamide, and benzenesulfonic acid were supplied by Energy Chemical Company (Shanghai, China). Amberlyst-15 and trifluoromethanesulfonic acid (HOTf) were purchased from Sigma-Aldrich Company (Shanghai, China). Sulfuric acid (98%) was obtained from Tianjin Guangfu Chemical Reagent (Tianjin, China). Tris(4-vinylphenyl)phosphine (TVP) was prepared as our previous report [39]. 4-Vinylbenzyl-tris-(4-vinylphenyl)-phosphonium chloride (QP) was prepared by a simple reaction of TVP and 4-vinylbenzyl chloride [40]. QP, 1H NMR (400 MHz, CDCl3): δ = 7.66–7.50 (m, 12H), 7.08–7.02 (m, 4H), 6.69–6.62 (m, 3H), 6.61–6.57 (m, 1H), 5.85 (d, J = 17.6 Hz, 3H), 5.59 (d, J = 17.6 Hz, 1H), 5.43–5.38 (m, 5H), 5.15 (d, J = 10.9 Hz, 1H) ppm.

2.2. Catalyst Preparation

SO3Na-functionalized porous ionic polymer, P(QP-SBS)-x, where x refers to the mole fraction of SBS monomer to the total monomers, was solvothermally synthesized via the copolymerization of SBS and QP. Taking the preparation of P(QP-SBS)-0.5 as an example, QP (1.41 g, 2.86 mmol), SBS (0.59 g, 2.86 mmol), and AIBN (50 mg) were dissolved in 20 mL DMF in a 100 mL autoclave. After replacing air in the autoclave with nitrogen, the mixture was magnetically stirred at room temperature for 2 h. Then, the autoclave was heated in an oven at 100 °C for 24 h. After cooling to room temperature, the resulting monolith solid was extracted with ethanol and dried in vacuum. Thus, P(QP-SBS)-0.5 (2.03 g) was obtained as a white solid. Changing the mole fraction of SBS and keeping the total mass of the monomers at 2.0 g, the other two samples, P(QP-SBS)-0.25 and P(QP-SBS)-0.75, were also prepared according to the above procedures. Furthermore, the prepared P(QP-SBS)-x samples were treated by ionic exchange using a solution containing 50 mL of toluene and 5 mL of HSO3CF3 for 12 h at room temperature. After repeating the ionic exchange treatment three times, the solid was filtered, washed with CH2Cl2 and water, and then dried under vacuum (60 °C). After grinding in agate mortar, a light grey solid was obtained and donated as P(QPOTf-BSA)-x. The acid amount of the sample was measured by a reverse acid–base titration method using 0.1 M HCl solution. Specifically, 2 mL of NaOH (1 M) was added to 0.2 g of catalyst. After stirring at room temperature for 1 h, the solution was filtered and washed with deionized water until the filtrate was neutral. Then, the filtered solution was titrated with HCl using phenolphthalein as an indicator.

2.3. Catalytic Activity

The synthesis of ketones via alkyne hydration was conducted in a 10 mL pressure-resistant reaction tube. Typically, alkyne (2.0 mmol) was added to 4 mL of deionized water in the reaction tube. Then, the P(QPOTf-BSA)-0.5 (H+, 15 mol%; 0.256 g) powder was added into the mixture. The resulting mixture was heated in a preheated oil bath at 120 °C for 7 h. After the reaction, the mixture was separated by centrifugation and the obtained liquid was quantitatively analyzed on gas chromatography (GC) using N,N-dimethylacetamide as an internal standard. For the recycling experiments, the recovered catalyst was washed with ethanol and water, and then used directly for the next catalytic run.

2.4. Adsorption Capacity

Adsorption capacities of P(QPOTf-BSA)-x samples for phenyl acetylene were measured in the H2O-phenyl acetylene mixture. Generally, P(QPOTf-BSA)-x (0.15 g) was added into the mixture containing water (5.0 g) and phenyl acetylene (2.0 g). After stirring at room temperature for 30 min, the mixture was separated by centrifugation. The solid was extracted with ethanol, and the resulting liquid was quantitatively analyzed on gas chromatography (GC).

2.5. Characterization

The N2 adsorption and pore size distribution were recorded on a Micrometrics ASAP 2020 ((Micromeritics Instrument Co., Norcross, GA, USA) at 77 K. Scanning electron microscopy (SEM and SEM-mapping images were viewed on a Hitachi-S4800 instrument (Hitachi Ltd., Tokyo, Japan). Transmission electron microscopy (TEM) images were collected on a Philips Tecnai G2 F30 instrument (Philips-FEI Co., Amsterdam, Netherlands). FT-IR spectroscopy was recorded on a Bruker Equinox 55 FT-IR spectrophotometer (Bruker Corp., Rheinstetten, Germany). 13C and 31P solid-state NMR experiments were performed on a Bruker AVANCE III 600 Bruker spectrometer (Bruker Corp., Rheinstetten, Germany). X-ray photoelectron spectroscopy (XPS) measurements were carried out on a VG MultiLab 2000 X-ray photoelectron spectrometer (Thermo Electron Corporation, Waltham, MA, USA). The thermogravimetric analysis (TGA) was measured on a NETZSCH STA 449 F5 instrument (Netzsch, Serb, Germany) under a dynamic argon atmosphere, and the sample was analyzed from room temperature to 600 °C with a heating rate of 10 K min−1. Contact angle measurement was performed on a DataPhysics OCA 20 contact angle system (Data-Physics, Filderstadt, Germany). Quantitative analysis of the reaction liquid was performed on a gas chromatograph (Scientific™ TRACE™ 1310, Thermo Electron Corporation, Waltham, MA, USA) equipped with a FID detector and a capillary column (TRACE TR-WAX, Thermo Electron Corporation, Waltham, MA, USA).

3. Results

3.1. Characterization

P(QPOTf-BSA)-x, where x refers to the mole fraction of SBS to the total monomers, were successfully prepared in quantitative yields via the solvothermal copolymerization of QP and SBS, followed by ion-exchange with HSO3CF3. The structure and properties of the prepared samples were characterized by N2 adsorption–desorption, SEM, TEM, FT-IR, XPS, solid-state 13C NMR spectra, SEM-mapping, and contact angle measurement.
The surface areas, pore volumes and pore radius of P(QPOTf-BSA)-x samples are shown in Table 1. BET surface areas of P(QPOTf-BSA)-0.25, P(QPOTf-BSA)-0.5, and P(QPOTf-BSA)-0.75 were 392, 204, and 130 m2/g, respectively. With the increment of the mole fraction of the SBS monomer, surface areas of the samples decreased gradually. This could be reasonably assigned to the decreased cross-linking degrees of the polymer frameworks. The N2 adsorption–desorption isotherms of the samples are depicted in Figure 1a. The three samples featured the combined sorption behavior of type I and type IV by International Union of Pure and Applied Chemistry (IUPAC) classifications. The adsorption behavior of the three samples below P/P0 < 0.01 suggested that P(QPOTf-BSA)-0.25 had more micropores than P(QPOTf-BSA)-0.50, and P(QPOTf-BSA)-0.75 had the least. While the slopes in the regions of P/P0 = 0.8–1.0 revealed that P(QPOTf-BSA)-0.25 had less macropores than P(QPOTf-BSA)-0.50, and P(QPOTf-BSA)-0.75 had the most. All of the three samples showed the hysteresis loops at P/P0 in the range 0.7–1.0, reflecting the presence of mesopores. These results were consistent with the pore size distribution curves of the samples, as shown in Figure 1b. P(QPOTf-BSA)-0.25 mainly consisted of micropores and mesopores, while P(QPOTf-BSA)-0.5 and P(QPOTf-BSA)-0.75 had the broader pore size distribution, comprising of micropores, mesopores, and macropores.
SEM analysis was used to view the morphology of P(QPOTf-BSA)-x samples. The results, as shown in Figure 2a–c, suggested that the samples showed an irregular porous structure that was comprised of small particles. TEM images, as shown in Figure 2d, of the representative P(QPOTf-BSA)-0.5 sample confirmed the existence of mesopores between the agglomerated small particles. Thus, SEM and TEM images further proved the existence of hierarchical porosities. For the solid catalyst, the hierarchical pore structure with abundant micropores and mesopores would be beneficial for heterogeneous catalysis by accelerating the mass transport of reactants and products [41].
FT-IR spectra of P(QPOTf-BSA)-x samples are shown in Figure 3. The three samples showed similar absorption bands, indicating their analogous composition. The vibration at around 1260 and 1034 cm−1 could be associated with the S=O and C–S vibrations [28]. The peaks at 1175 cm−1 could be attributed to the C–F and S–O vibrations [28,42]. Figure 4 showed the 13C solid-state NMR spectrum of a representative sample of P(QPOTf-BSA)-0.5. The signal at around 130.7 ppm associated with the aromatic carbons could be observed [40,43]. The peak at 43.5 ppm associated with the polymerized vinyl groups could also be observed [40,43]. The solid-state 31P NMR spectrum of P(QPOTf-BSA)-0.5 displayed a single peak at around 21 ppm, as shown in Figure S1 from Supplementary Materials. This peak could be assignable to phosphonium salt in the framework [40]. Thus, these results verified the successful preparation of the polymer samples containing sulfonate groups.
Figure 5 shows X-ray photoelectron spectroscopy (XPS) of the prepared samples. The XPS full spectra in Figure 5a confirmed the presence of C, O, P, S, and F elements, and the absence of Na and Cl elements in the three samples, suggesting that the ion exchange between P(QP-SBS)-x and CF3SO3H was finished. The S2p peaks at around 168.3 and 169.3 eV associated with the sulfur atoms of –SO3H and CF3SO3¯ groups could be observed [26,44]. The signals of C1s peaks at around 284.8, 285.7, and 292.0 eV were attributed to C–C, C–S, and C–F bonds, respectively [26]. The O1s peaks at around 531.6 and 532.7 eV were assigned to the oxygen atoms of –SO3H and OTf¯ groups [45]. These results further confirmed the successful introduction of –SO3H and OTf¯ groups in the P(QPOTf-BSA) samples. The element distribution of a representative sample of P(QPOTf-BSA)-0.5 was characterized by SEM-mapping analysis. As depicted in Figure 6, the O, F, P, and S elements were clearly observed and well-distributed in the representative sample. Thermogravimetric analyses (TGA) of the representative P(QPOTf-BSA)-0.5 sample, as shown in Figure S2 from Supplementary Materials, showed that the main weight loss occurred above 200 °C, suggesting that the prepared samples could be stable up to 200 °C. A little weight loss around 4 wt % could be also observed below 100 °C; this weight loss could be mainly ascribed to the removal of trapped guest molecules, which is common for porous materials.
For catalytic reactions in water with hydrophobic organic substrates, surface wettability of the solid catalyst is vitally important for achieving high catalytic performance [29,30,31]. To test the surface wettability of the obtained samples, contact angle measurements were carried out. The representative photographs are depicted in Figure 7. For all of the three samples, water or phenyl acetylene drops were totally absorbed by the samples without any residue, indicating the excellent amphiphilicity of the prepared samples. Adsorption capacities of the samples for hydrophobic phenyl acetylene in water were also measured. Under the given adsorption conditions, P(QPOTf-BSA)-0.25, P(QPOTf-BSA)-0.5, and P(QPOTf-BSA)-0.75 showed high absorption capacities of 8.6, 6.5, and 4.1 g/g, respectively, as shown in Table 1. It was worth noting that the adsorption capacities were much higher than that of their pore volumes. Indeed, these high adsorption capacities could reasonably be attributed to the excellent swelling properties of the samples. Therefore, the above experimental results revealed that the prepared samples had excellent surface amphiphilicity and high adsorption capacity for hydrophobic substrates. For the solid catalyst in water, the excellent hydrophilicity enables the catalyst to disperse well in water, while the excellent lipophilicity and swelling property could enrich organic substrates in the porous framework of the catalyst, and thus accelerating the reaction rate [30]. Hence, it is not unreasonable to expect that the prepared solid could be a promising heterogeneous catalyst for the hydration of alkynes in water due to its excellent surface amphiphilicity, hierarchically porous structure, and nice swelling property.

3.2. Catalytic Activity

With the prepared solid acids in hand, we then tested their catalytic performances for the hydration of alkynes in water. Firstly, the hydration of phenyl acetylene was chosen as a model reaction to optimize the catalyst. As shown in Table 2, among the prepared catalysts, P(QPOTf-BSA)-0.5 showed the highest catalytic activity, affording an 83% yield of acetophenone with 10 mol% of acid dosage (entry 2). For comparison, catalytic activities of amberlyst-15, H2SO4, and PhSO3H were also examined (entries 4-6). The results revealed that P(QPOTf-BSA)-0.5 showed higher catalytic activity than that of these commercial solid and liquid acids. The above results indicated that P(QPOTf-BSA)-0.5 was an active solid acid for hydration of phenylacetylene in water.
Next, the effects of reaction parameters, including reaction temperature, catalyst loading, and reaction time, on the yield of acetophenone were investigated. It can be seen from Figure 8 that the reaction temperature had a significant effect on the hydration reaction. When the temperature varied from 80 to 120 °C, the yields of acetophenone rapidly rose from 5% to 95%. Further increasing the temperature to 140 °C led to a slight lower yield of acetophenone. Thus, 120 °C is the optimal reaction temperature for the following hydration experiments.
Then, the effect of catalyst loading was investigated under the optimal reaction temperature. As depicted in Figure 9, it was apparent that the yields of acetophenone were increased with the increment of acid loading, and an almost quantitative yield of acetophenone was obtained with 20 mol% of P(QPOTf-BSA)-0.5. Interestingly, the turnover numbers (TON) of P(QPOTf-BSA)-0.5 showed a volcano-type behavior, reaching the maximum yield at a 15 mol% catalyst loading. The turnover number of a 15 mol% catalyst loading was about 2.5 times higher than that of a 2.5 mol% catalyst loading. This difference could be attributed to the agglomeration of the catalyst at low catalyst loading, as seen clearly during the catalytic tests, as shown in the inset of Figure 9. With a low catalyst loading, the amphiphilic and swelling catalyst adsorbed a large number of hydrophobic substrates, thus agglomerating together to form large agglomerates. Meanwhile, the large hydrophobic agglomerates decreased the interface between the solid catalysts and water, resulting in an inferior catalytic activity. With a high catalyst loading, most hydrophobic substrates adsorbed in the inner pores of the catalyst, and the catalyst could be well dispersed in water, thus retaining a high reaction interface between water and phenylacetylene. In view of the catalytic activity, 15 mol% was taken as the optimum catalyst loading.
Next, the effect of the reaction time was examined. It can be seen from Figure 10 that the yield of acetophenone gradually increased to 97% within 7 h and kept no obvious change after prolonging the reaction time. For comparison, the effects of the reaction time on the catalytic activities of P(QPOTf-BSA)-0.25 and P(QPOTf-BSA)-0.75 were tested. As shown in Figure S3 from Supplementary Materials the results further verified the higher catalytic activity of P(QPOTf-BSA)-0.5.
In addition to catalytic activity, the reusability and stability of the solid catalyst are also key influential factors for its practical application. After the completion of a reaction, the reaction mixture was separated by centrifugation. The recycled catalyst was washed with ethanol and water, and then used directly for the next catalytic run. The recycling operation was repeated four times to examine its stability. As shown in Figure 11, P(QPOTf-BSA)-0.5 showed good reusability and could be reused four times with only a slight decrease in its activity. The structure and morphology of the P(QPOTf-BSA)-0.5 after four recycling tests were studied by FT-IR, BET, SEM, and TEM. As depicted in Figure 12a, the recovered catalyst showed similar FT-IR spectrum to the fresh one, as shown in Figure 3, indicating no obvious structure change during the recycling operation. The BET result in Figure 12b suggested that a relatively big surface area of 192.3 m2 g−1 was still preserved. SEM and TEM analyses in Figure 12c,d also revealed no obvious change of morphology during the recycling process. To investigate the stability further, the acid content of the recovered P(QPOTf-BSA)-0.5 was also tested. The result suggested that the recovered P(QPOTf-BSA)-0.5 had an acid content of 1.03 mmol/g, indicating that about 88% of acid was still preserved after reusing four times.
Having the optimal reaction conditions in hand, we next explored the scope and generality of the catalytic system. As presented in Table 3, phenylacetylene substituted with various functional groups, such as 4-Me, 3-Me, 2-Me, 4-OMe, and 4-Cl, were well tolerated, affording corresponding methyl ketones in moderate to excellent yields (entries 1-5). 4-(Trifluoromethyl)phenylacetylene, an inactive substrate for hydration reactions in water [9], also reacted smoothly, and afforded an 82% yield of corresponding ketones at a prolonged reaction time (entry 6). Besides aromatic alkynes, the hydration of aliphatic alkynes was also examined. As two representative examples, 1-octyne and 4-phenyl-1-butyne could also afford corresponding methyl ketones in moderate yields (entries 7 and 8). Thus, this study offers an active and heterogeneous catalyst for the hydration of alkynes in water.

4. Conclusions

In summary, a porous polymer-based solid acid catalyst with excellent amphiphilicity was successfully prepared via a solvothermal copolymerization and a successive ion-exchange method. The prepared material possessed large BET surface areas, a hierarchically porous structure, and excellent amphiphilic and swelling properties. These unique properties allowed the prepared material to disperse well in water and enrich large amounts of hydrophobic alkynes in its porous frameworks. Thus, in pure water, the solid acid exhibited high catalytic performances for the hydration of alkynes, which outperformed commercial amberlyst-15, sulfuric acid, and benzenesulfonic acid. Moreover, the prepared solid acid can be easily recovered and reused at least four times. This protocol provides not only an efficient solid acid for environmentally friendly hydration of alkynes, but also some clues for the preparation of water-compatible solid acids.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/12/2091/s1, Figure S1: Solid-state 31P NMR spectrum of P(QPOTf-BSA)-0.5, Figure S2: Thermogravimetric analyses (TGA) of P(QPOTf-BSA)-0.5 sample, Figure S3: Effect of the reaction time on the catalytic activities of the P(QPOTf-BSA)-x. Reaction conditions: phenylacetylene (2.0 mmol), P(QPOTf-BSA)-x (H+, 15 mol%), H2O (4 mL), 120 °C, 800 rpm.

Author Contributions

Y.L. and M.Z. conceived and designed the experiments; Y.L. prepared the draft manuscript; M.Z. and Q.L. performed the experiments; Y.X. and G.L. contributed the monomers and analysis tools.

Funding

This research was funded by the National Natural Science Foundation of China (21763017), the Science and Technology Fund Project of Guizhou Province (qian ke he ji chu [2018]1414]), the Youth Talent Growth Project of Educational Department of Guizhou Province (qian jiao he KY [2016]264), the Scientific and Technological Innovation Platform of Liupanshui (52020-2018-03-02 and 52020-2017-02-02), the Academician Workstation of Liupanshui Normal University (qiankehepingtairencai [2019]5604 hao), and the Fund of Liupanshui Normal University (LPSSYZDXK201602).

Acknowledgments

We thank Youming Ni at the Dalian Institute of Chemical Physics for beneficial discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kitanosono, T.; Masuda, K.; Xu, P.; Kobayashi, S. Catalytic organic reactions in water toward sustainable society. Chem. Rev. 2017, 118, 679–746. [Google Scholar] [CrossRef]
  2. Simon, M.O.; Li, C.J. Green chemistry oriented organic synthesis in water. Chem. Soc. Rev. 2012, 41, 1415–1427. [Google Scholar] [CrossRef]
  3. Nairoukh, Z.; Avnir, D.; Blum, J. Acid-Catalyzed Hydration of Alkynes in Aqueous Microemulsions. ChemSusChem 2013, 6, 430–432. [Google Scholar] [CrossRef]
  4. Liu, Y.; Liu, W.; Wang, L.; Su, M.; Liu, F. Efficient Hydrolysis of Cyclohexyl Acetate to Cyclohexanol Catalyzed by Dual-SO3H-Functionalized Heteropolyacid-Based Solid Acids. Ind. Eng. Chem. Res. 2018, 57, 5207–5214. [Google Scholar] [CrossRef]
  5. Shimizu, K.I.; Furukawa, H.; Kobayashi, N.; Itaya, Y.; Satsuma, A. Effects of Brønsted and Lewis acidities on activity and selectivity of heteropolyacid-based catalysts for hydrolysis of cellobiose and cellulose. Green Chem. 2009, 11, 1627–1632. [Google Scholar] [CrossRef]
  6. Guo, F.; Fang, Z.; Xu, C.C.; Smith, R.L., Jr. Solid acid mediated hydrolysis of biomass for producing biofuels. Prog. Energy Combust. Sci. 2012, 38, 672–690. [Google Scholar] [CrossRef]
  7. Vilcocq, L.; Castilho, P.C.; Carvalheiro, F.; Duarte, L.C. Hydrolysis of oligosaccharides over solid acid catalysts: A review. ChemSusChem 2014, 7, 1010–1019. [Google Scholar] [CrossRef] [Green Version]
  8. Zhang, M.; Wei, L.; Chen, H.; Du, Z.; Binks, B.P.; Yang, H. Compartmentalized droplets for continuous flow liquid–liquid interface catalysis. J. Am. Chem. Soc. 2016, 138, 10173–10183. [Google Scholar] [CrossRef]
  9. Tanemura, K.; Suzuki, T. Hydration of aromatic terminal alkynes catalyzed by sulfonated condensed polynuclear aromatic (S-COPNA) resin in water. Tetrahedron Lett. 2017, 58, 955–958. [Google Scholar] [CrossRef]
  10. Huang, Y.B.; Fu, Y. Hydrolysis of cellulose to glucose by solid acid catalysts. Green Chem. 2013, 15, 1095–1111. [Google Scholar] [CrossRef]
  11. Alonso, F.; Beletskaya, I.P.; Yus, M. Transition-metal-catalyzed addition of heteroatom−hydrogen bonds to alkynes. Chem. Rev. 2004, 104, 3079–3160. [Google Scholar] [CrossRef]
  12. Das, A.K.; Park, S.; Muthaiah, S.; Hong, S.H. Ligand-and Acid-Free Gold (I) Chloride Catalyzed Hydration of Terminal Alkynes. Synlett 2015, 26, 2517–2520. [Google Scholar]
  13. Mizushima, E.; Sato, K.; Hayashi, T.; Tanaka, M. Highly Efficient AuI-Catalyzed Hydration of Alkynes. Angew. Chem. Int. Ed. 2002, 41, 4563–4565. [Google Scholar] [CrossRef]
  14. Xu, Y.; Hu, X.; Shao, J.; Yang, G.; Wu, Y.; Zhang, Z. Hydration of alkynes at room temperature catalyzed by gold (I) isocyanide compounds. Green Chem. 2015, 17, 532–537. [Google Scholar] [CrossRef]
  15. Das, R.; Chakraborty, D. AgOTf catalyzed hydration of terminal alkynes. Appl. Organomet. Chem. 2012, 26, 722–726. [Google Scholar] [CrossRef]
  16. Mann, A.; Wagner, A. Mild chemo-selective hydration of terminal alkynes catalysed by AgSbF6. Chem. Commun. 2012, 48, 434–436. [Google Scholar]
  17. Hartman, J.W.; Hiscox, W.C.; Jennings, P.W. Catalytic hydration of alkynes with platinum (II) complexes. J. Org. Chem. 1993, 58, 7613–7614. [Google Scholar] [CrossRef]
  18. Hiscox, W.; Jennings, P.W. Catalytic hydration of alkynes with Zeise’s dimer. Organometallics 1990, 9, 1997–1999. [Google Scholar] [CrossRef]
  19. Tokunaga, M.; Wakatsuki, Y. The First Anti-Markovnikov Hydration of Terminal Alkynes: Formation of Aldehydes Catalyzed by a Ruthenium (II)/Phosphane Mixture. Angew. Chem. Int. Ed. 1998, 37, 2867–2869. [Google Scholar] [CrossRef]
  20. Liu, H.; Wei, Y.; Cai, C. A Combination System of p-Toluenesulfonic Acid and Acetic Acid for the Hydration of Alkynes. Synlett 2016, 27, 2378–2383. [Google Scholar]
  21. Liu, W.; Wang, H.; Li, C.J. Metal-free markovnikov-type alkyne hydration under mild conditions. Org. Lett. 2016, 9, 2184–2187. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Rose, M. Nanoporous polymers: Bridging the gap between molecular and solid catalysts? ChemCatChem 2014, 6, 1166–1182. [Google Scholar] [CrossRef]
  23. Kramer, S.; Bennedsen, N.R.; Kegnæs, S. Porous organic polymers containing active metal centers as catalysts for synthetic organic chemistry. ACS Catal. 2018, 8, 6961–6982. [Google Scholar] [CrossRef]
  24. Sun, Q.; Dai, Z.; Meng, X.; Wang, L.; Xiao, F.S. Task-specific design of porous polymer heterogeneous catalysts beyond homogeneous counterparts. ACS Catal. 2015, 5, 4556–4567. [Google Scholar] [CrossRef]
  25. Tan, L.; Tan, B. Hypercrosslinked porous polymer materials: Design, synthesis, and applications. Chem. Soc. Rev. 2017, 46, 3322–3356. [Google Scholar] [CrossRef]
  26. Liu, F.; Wang, L.; Sun, Q.; Zhu, L.; Meng, X.; Xiao, F.S. Transesterification catalyzed by ionic liquids on superhydrophobic mesoporous polymers: Heterogeneous catalysts that are faster than homogeneous catalysts. J. Am. Chem. Soc. 2012, 134, 16948–16950. [Google Scholar] [CrossRef]
  27. Liu, F.; Kong, W.; Qi, C.; Zhu, L.; Xiao, F.S. Design and synthesis of mesoporous polymer-based solid acid catalysts with excellent hydrophobicity and extraordinary catalytic activity. ACS Catal. 2012, 2, 565–572. [Google Scholar] [CrossRef]
  28. Tao, D.J.; Liu, F.; Wang, L.; Jiang, L. A green and efficient hydration of alkynes catalyzed by hierarchically porous poly (ionic liquid) s solid strong acids. Appl. Catal. A Gen. 2018, 564, 56–63. [Google Scholar] [CrossRef]
  29. Karimi, B.; Mobaraki, A.; Mirzaei, H.M.; Zareyee, D.; Vali, H. Improving the Selectivity toward Three-Component Biginelli versus Hantzsch Reactions by Controlling the Catalyst Hydrophobic/Hydrophilic Surface Balance. ChemCatChem 2014, 6, 212–219. [Google Scholar] [CrossRef]
  30. Lei, Y.; Wan, Y.; Li, G.; Zhou, X.Y.; Gu, Y.; Feng, J.; Wang, R. Palladium supported on an amphiphilic porous organic polymer: A highly efficient catalyst for aminocarbonylation reactions in water. Mater. Chem. Front. 2017, 1, 1541–1549. [Google Scholar] [CrossRef]
  31. Lai, B.; Mei, F.; Gu, Y. Bifunctional Solid Catalyst for Organic Reactions in Water: Simultaneous Anchoring of Acetylacetone Ligands and Amphiphilic Ionic Liquid “Tags” by Using a Dihydropyran Linker. Chem. Asian J. 2018, 13, 2529–2542. [Google Scholar] [CrossRef] [PubMed]
  32. Dawson, R.; Laybourn, A.; Clowes, R.; Khimyak, Y.Z.; Adams, D.J.; Cooper, A.I. Functionalized conjugated microporous polymers. Macromolecules 2009, 42, 8809–8816. [Google Scholar] [CrossRef]
  33. Xu, D.; Guo, J.; Yan, F. Porous ionic polymers: Design, synthesis, and applications. Prog. Polym. Sci. 2018, 79, 121–143. [Google Scholar] [CrossRef]
  34. Zhang, S.; Dokko, K.; Watanabe, M. Porous ionic liquids: Synthesis and application. Chem. Sci. 2015, 6, 3684–3691. [Google Scholar] [CrossRef] [Green Version]
  35. Wang, Q.; Cai, X.; Liu, Y.; Xie, J.; Zhou, Y.; Wang, J. Pd nanoparticles encapsulated into mesoporous ionic copolymer: Efficient and recyclable catalyst for the oxidation of benzyl alcohol with O2 balloon in water. Appl. Catal. B Environ. 2016, 189, 242–251. [Google Scholar] [CrossRef]
  36. Manojkumar, K.; Sivaramakrishna, A.; Vijayakrishna, K. A short review on stable metal nanoparticles using ionic liquids, supported ionic liquids, and poly (ionic liquids). J. Nanopart. Res. 2016, 18, 103. [Google Scholar] [CrossRef]
  37. Qian, W.; Texter, J.; Yan, F. Frontiers in poly (ionic liquid) s: Syntheses and applications. Chem. Soc. Rev. 2017, 46, 1124–1159. [Google Scholar] [CrossRef]
  38. Huang, M.; Cao, J.; Hong, Y.; Su, Y.; Wang, H.; Li, J. Sorption and Separation of CO2 from Syngas by a Quaternary Ammonium-based Poly (ionic liquid). Ind. Eng. Chem. Res. 2019, 58, 8317–8322. [Google Scholar] [CrossRef]
  39. Wan, Y.; Song, F.; Ye, T.; Li, G.; Liu, D.; Lei, Y. Carbonylative Suzuki coupling and alkoxycarbonylation of aryl halides using palladium supported on phosphorus-doped porous organic polymer as an active and robust catalyst. Appl. Organometal. Chem. 2019, 33, e4714. [Google Scholar] [CrossRef]
  40. Sun, Q.; Ma, S.; Dai, Z.; Meng, X.; Xiao, F.S. A hierarchical porous ionic organic polymer as a new platform for heterogeneous phase transfer catalysis. J. Mater. Chem. A 2015, 3, 23871–23875. [Google Scholar] [CrossRef]
  41. Sun, Q.; Dai, Z.; Meng, X.; Xiao, F.S. Porous polymer catalysts with hierarchical structures. Chem. Soc. Rev. 2015, 44, 6018–6034. [Google Scholar] [CrossRef] [PubMed]
  42. Li, W.; Jiang, Z.; Ma, F.; Su, F.; Chen, L.; Zhang, S.; Guo, Y. Design of mesoporous SO42−/ZrO2–SiO2(Et) hybrid material as an efficient and reusable heterogeneous acid catalyst for biodiesel production. Green Chem. 2010, 12, 2135–2138. [Google Scholar] [CrossRef]
  43. Wan, Y.; Lei, Y.; Lan, G.; Liu, D.; Li, G.; Bai, R. Synthesis of glycerol carbonate from glycerol and dimethyl carbonate over DABCO embedded porous organic polymer as a bifunctional and robust catalyst. Appl. Catal. A Gen. 2018, 562, 267–275. [Google Scholar] [CrossRef]
  44. Heo, Y.; Im, H.; Kim, J. The effect of sulfonated graphene oxide on sulfonated poly (ether ether ketone) membrane for direct methanol fuel cells. J. Membr. Sci. 2013, 425, 11–22. [Google Scholar] [CrossRef]
  45. Setiawan, L.D.; Baumann, H.; Gribbin, D. Surface studies of keratin fibers and related model compounds using ESCA. I—intermediate oxidation products of the model compound 1-cystine and their hydrolytical behaviour. Surf. Interface Anal. 1985, 7, 188–195. [Google Scholar] [CrossRef]
Polymers 11 02091 sch001 550

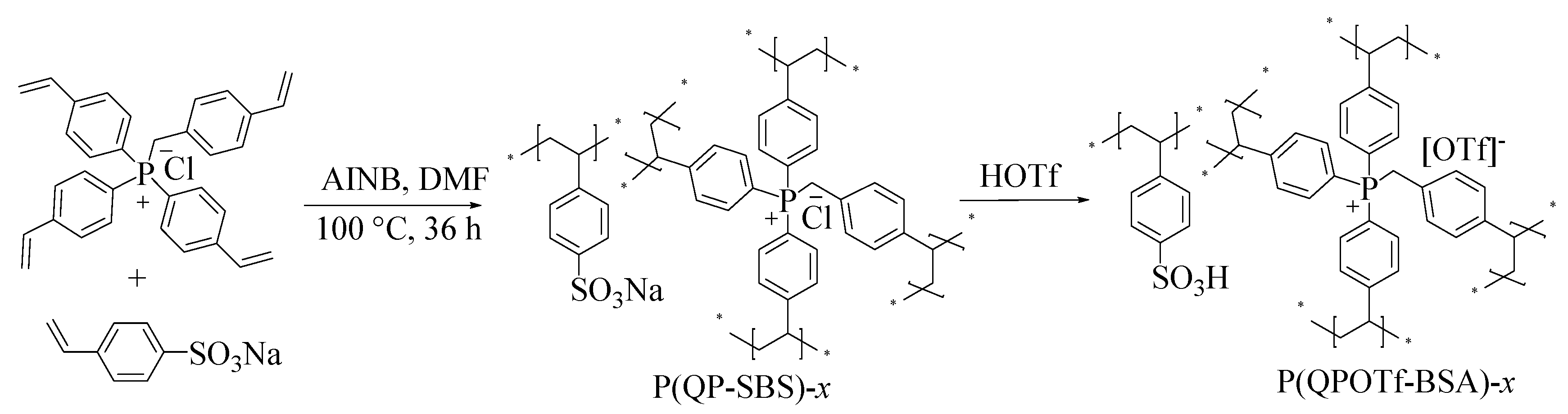

Scheme 1. Preparation of the solid acid catalysts.
Scheme 1. Preparation of the solid acid catalysts.
Polymers 11 02091 sch001
Polymers 11 02091 g001 550
Figure 1. N2 absorption–desorption isotherms (a) and pore size distribution curves (b) of the P(QPOTf-BSA)-x samples.
Figure 1. N2 absorption–desorption isotherms (a) and pore size distribution curves (b) of the P(QPOTf-BSA)-x samples.
Polymers 11 02091 g001
Polymers 11 02091 g002 550
Figure 2. SEM images of the prepared samples: (a) P(QPOTf-BSA)-0.25, (b) P(QPOTf-BSA)-0.5, (c) P(QPOTf-BSA)-0.75, (d) TEM image of P(QPOTf-BSA)-0.5.
Figure 2. SEM images of the prepared samples: (a) P(QPOTf-BSA)-0.25, (b) P(QPOTf-BSA)-0.5, (c) P(QPOTf-BSA)-0.75, (d) TEM image of P(QPOTf-BSA)-0.5.
Polymers 11 02091 g002
Polymers 11 02091 g003 550
Figure 3. FT-IR spectra of P(QPOTf-BSA) samples.
Figure 3. FT-IR spectra of P(QPOTf-BSA) samples.
Polymers 11 02091 g003
Polymers 11 02091 g004 550

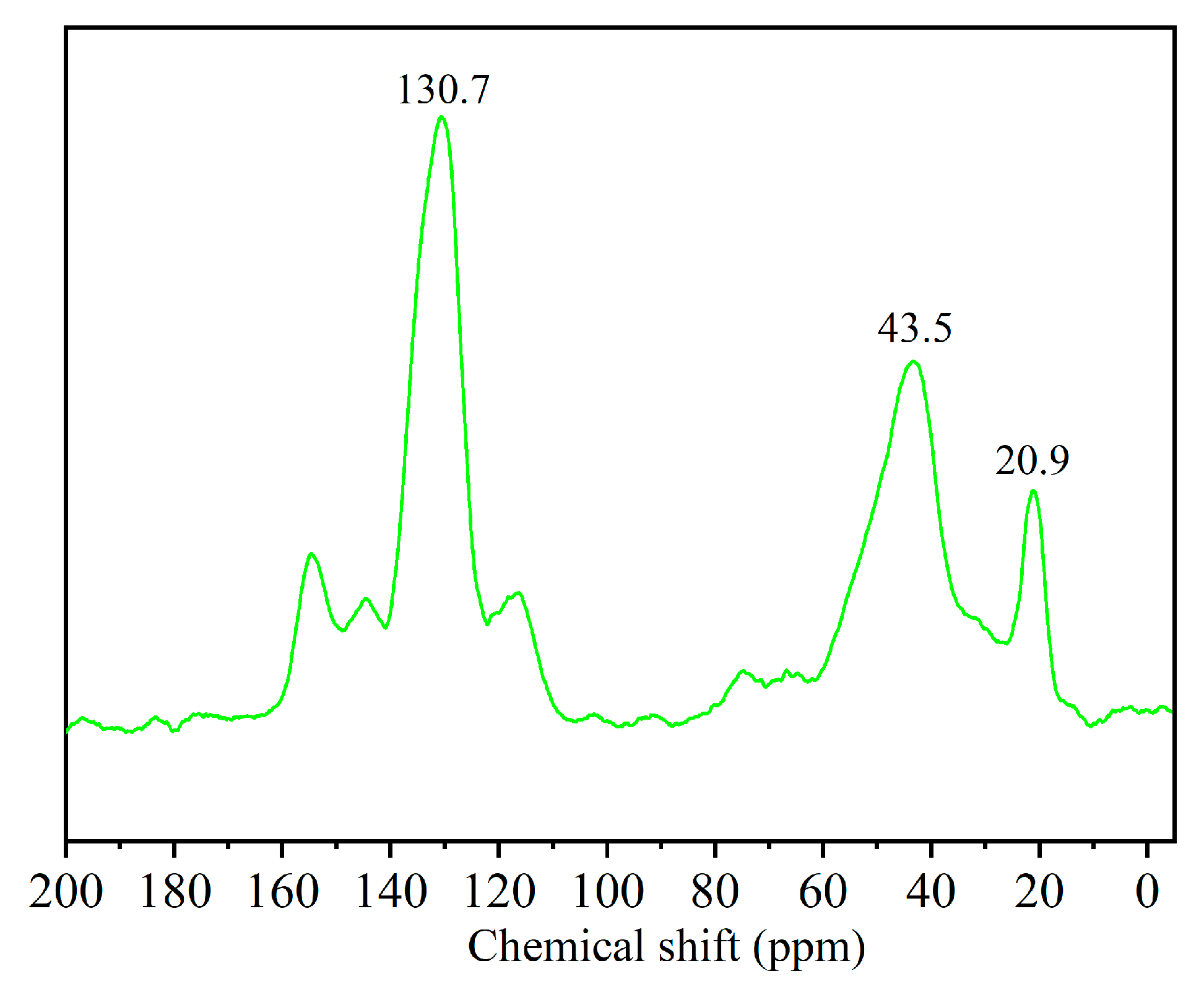

Figure 4. Solid-state 13C NMR spectrum of P(QPOTf-BSA)-0.5.
Figure 4. Solid-state 13C NMR spectrum of P(QPOTf-BSA)-0.5.
Polymers 11 02091 g004
Polymers 11 02091 g005 550
Figure 5. X-ray photoelectron spectroscopy (XPS) spectra of the prepared samples: (a) P(QPOTf-BSA)-0.25, (b) P(QPOTf-BSA)-0.5, (c) P(QPOTf-BSA)-0.75.
Figure 5. X-ray photoelectron spectroscopy (XPS) spectra of the prepared samples: (a) P(QPOTf-BSA)-0.25, (b) P(QPOTf-BSA)-0.5, (c) P(QPOTf-BSA)-0.75.
Polymers 11 02091 g005
Polymers 11 02091 g006 550
Figure 6. SEM-mapping analysis of P(QPOTf-BSA)-0.5.
Figure 6. SEM-mapping analysis of P(QPOTf-BSA)-0.5.
Polymers 11 02091 g006
Polymers 11 02091 g007 550
Figure 7. Images of contact angle measurements: (a) P(QPOTf-BSA)-0.25 for water, (b) P(QPOTf-BSA)-0.5 for water, (c) P(QPOTf-BSA)-0.75 for water; (d) P(QPOTf-BSA)-0.25 for phenyl acetylene, (e) P(QPOTf-BSA)-0.5 for phenyl acetylene, (f) P(QPOTf-BSA)-0.75 for phenyl acetylene.
Figure 7. Images of contact angle measurements: (a) P(QPOTf-BSA)-0.25 for water, (b) P(QPOTf-BSA)-0.5 for water, (c) P(QPOTf-BSA)-0.75 for water; (d) P(QPOTf-BSA)-0.25 for phenyl acetylene, (e) P(QPOTf-BSA)-0.5 for phenyl acetylene, (f) P(QPOTf-BSA)-0.75 for phenyl acetylene.
Polymers 11 02091 g007
Polymers 11 02091 g008 550
Figure 8. Effect of reaction temperature. Reaction conditions: phenylacetylene (2.0 mmol), P(QPOTf-BSA)-0.5 (10 mol%), H2O (4 mL), 120 °C, 10 h, 800 rpm.
Figure 8. Effect of reaction temperature. Reaction conditions: phenylacetylene (2.0 mmol), P(QPOTf-BSA)-0.5 (10 mol%), H2O (4 mL), 120 °C, 10 h, 800 rpm.
Polymers 11 02091 g008
Polymers 11 02091 g009 550
Figure 9. Effect of catalyst loading. Reaction conditions: phenylacetylene (2.0 mmol), P(QPOTf-BSA)-0.5, H2O (4 m L), 120 °C, 5 h, 800 rpm. The blue curve indicates the TON numbers, while the arrows point to the y-coordinate of the curve.
Figure 9. Effect of catalyst loading. Reaction conditions: phenylacetylene (2.0 mmol), P(QPOTf-BSA)-0.5, H2O (4 m L), 120 °C, 5 h, 800 rpm. The blue curve indicates the TON numbers, while the arrows point to the y-coordinate of the curve.
Polymers 11 02091 g009
Polymers 11 02091 g010 550
Figure 10. Effect of reaction time. Reaction conditions: phenylacetylene (2.0 mmol), P(QPOTf-BSA)-0.5 (H+, 15 mol%), H2O (4 mL), 120 °C, 800 rpm.
Figure 10. Effect of reaction time. Reaction conditions: phenylacetylene (2.0 mmol), P(QPOTf-BSA)-0.5 (H+, 15 mol%), H2O (4 mL), 120 °C, 800 rpm.
Polymers 11 02091 g010
Polymers 11 02091 g011 550
Figure 11. Recycling of the catalyst. Reaction conditions: phenylacetylene (2.0 mmol), P(QPOTf-BSA)-0.5 (H+, 15 mol%), H2O (4 mL), 120 °C, 7 h, 800 rpm.
Figure 11. Recycling of the catalyst. Reaction conditions: phenylacetylene (2.0 mmol), P(QPOTf-BSA)-0.5 (H+, 15 mol%), H2O (4 mL), 120 °C, 7 h, 800 rpm.
Polymers 11 02091 g011
Polymers 11 02091 g012 550
Figure 12. Characterization of P(QPOTf-BSA)-0.5 after four recycling tests. (a) FT-IR, (b) N2 absorption-desorption isotherm, (c) SEM, (d) TEM.
Figure 12. Characterization of P(QPOTf-BSA)-0.5 after four recycling tests. (a) FT-IR, (b) N2 absorption-desorption isotherm, (c) SEM, (d) TEM.
Polymers 11 02091 g012
Table
Table 1. Textural properties, acid content, and adsorption capabilities of the prepared samples.
Table 1. Textural properties, acid content, and adsorption capabilities of the prepared samples.
SamplesSBET (m2 g−1) aVp (cm3 g−1) bDave (nm) cAcid Content (mmol/g) dAdsorption Capability (g/g) e
P(QPOTf-BSA)-0.253920.563.20.458.6
P(QPOTf-BSA)-0.52040.685.11.176.5
P(QPOTf-BSA)-0.751300.618.82.344.1
a BET surface area. b Single point adsorption total pore volume of pores at P/Po = 0.95. c Barrett-Joyner-Halenda (BJH) adsorption average pore radius (2V/A). d Measured by acid–base titration. e Adsorption capability for phenyl acetylene in water.
Table
Table 2. Optimization of the hydration of phenyl acetylene.
Table 2. Optimization of the hydration of phenyl acetylene.
Polymers 11 02091 i001
EntryCatalystConversion (mol%) bYield (mol%) b
1P(QPOTf-BSA)-0.257575
2P(QPOTf-BSA)-0.58483
3P(QPOTf-BSA)-0.756767
4Amberlyst-153230
5 cH2SO455
6PhSO3H1413
a Reaction conditions: phenylacetylene (2.0 mmol), catalyst (H+, 10 mol%), H2O (4 m L), 120 °C, 8 h, 800 rpm. b Determined by gas chromatography (GC). c H2SO4 (0.2 mmol).
Table
Table 3. Hydration of various alkynes catalyzed by P(QPOTf-BSA)-0.5 a.
Table 3. Hydration of various alkynes catalyzed by P(QPOTf-BSA)-0.5 a.
EntryAlkyneProductYield (mol%) b
1 Polymers 11 02091 i002 Polymers 11 02091 i00395
2 Polymers 11 02091 i004 Polymers 11 02091 i00595
3 Polymers 11 02091 i006 Polymers 11 02091 i00786
4 Polymers 11 02091 i008 Polymers 11 02091 i00991
5 Polymers 11 02091 i010 Polymers 11 02091 i01192
6 c Polymers 11 02091 i012 Polymers 11 02091 i01382
7 c Polymers 11 02091 i014 Polymers 11 02091 i01573
8 c Polymers 11 02091 i016 Polymers 11 02091 i01767
a Reaction conditions: alkyne (2.0 mmol), P(QPOTf-BSA)-0.5 (H+, 15 mol%), H2O (4 mL), 120 °C, 7 h, 800 rpm. b GC yields. c 20 h.
