Next Article in Journal
Characterization of the PB2 Cap Binding Domain Accelerates Inhibitor Design
Next Article in Special Issue
Lattice Correspondence and Growth Structures of Monoclinic Mg4Zn7 Phase Growing on an Icosahedral Quasicrystal
Previous Article in Journal
Effect of the Ultrasonic Substrate Vibration on Nucleation and Crystallization of PbI2 Crystals and Thin Films
Previous Article in Special Issue
Defects in Static Elasticity of Quasicrystals
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessArticle
Crystals 2018, 8(2), 61;

Formation of Quasicrystalline Phases and Their Close Approximants in Cast Al-Mn Base Alloys Modified by Transition Metals

Institute of Metallurgy and Materials Science, Polish Academy of Sciences, Reymonta 25, 30-059 Kraków, Poland
Received: 31 December 2017 / Revised: 20 January 2018 / Accepted: 22 January 2018 / Published: 27 January 2018
(This article belongs to the Special Issue Structure and Properties of Quasicrystalline Materials)
Full-Text   |   PDF [21472 KB, uploaded 29 January 2018]   |

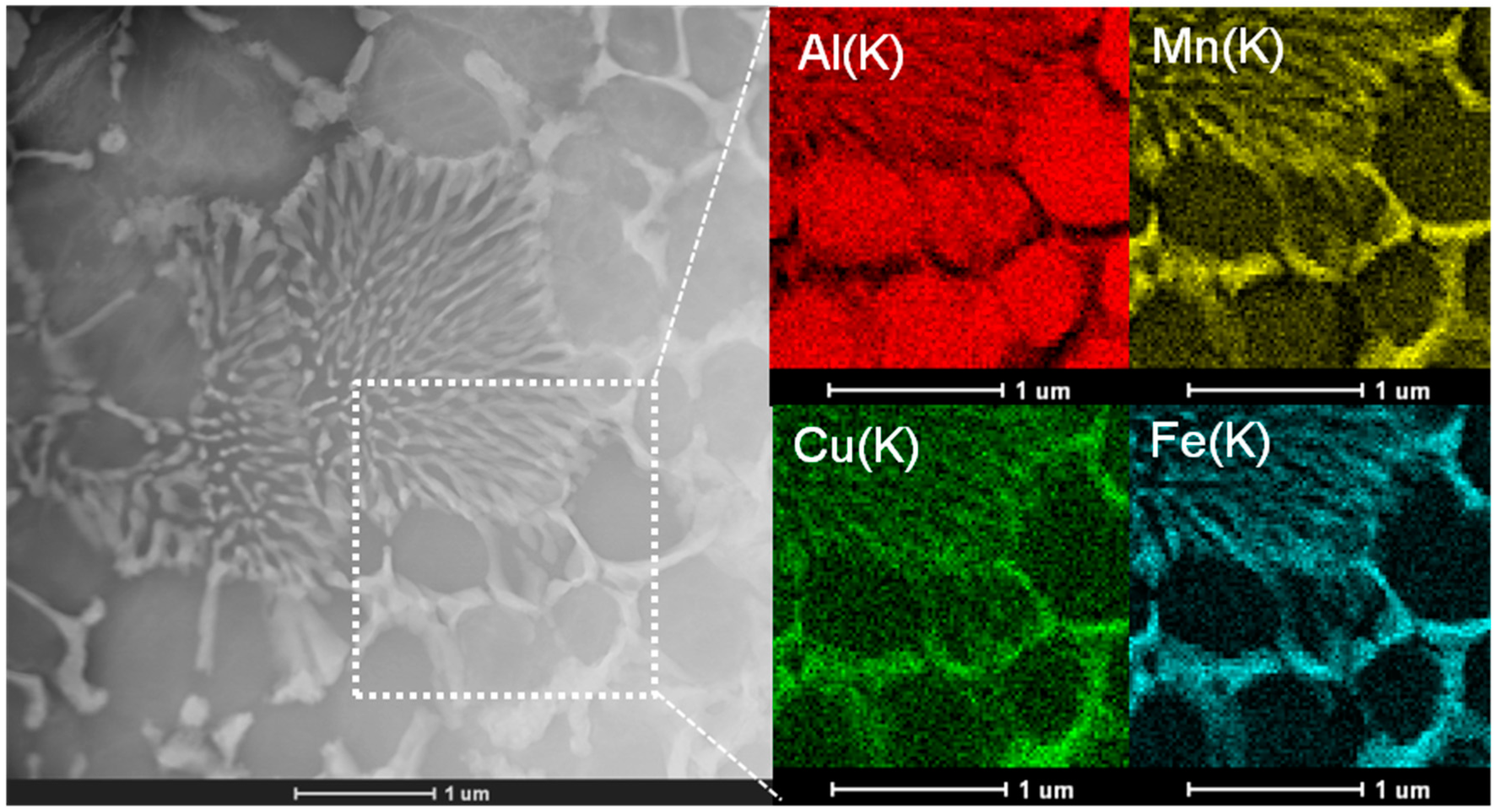

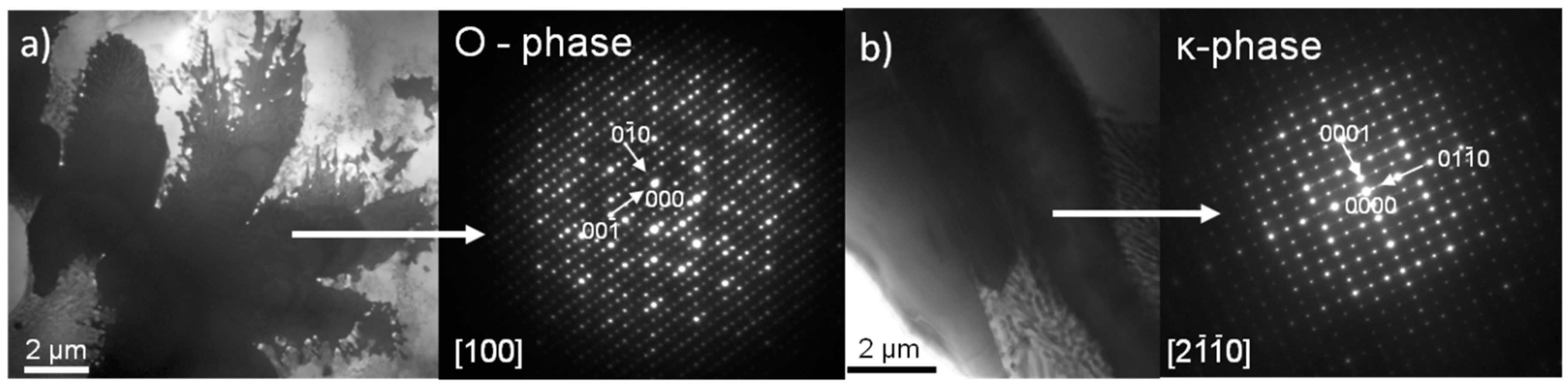

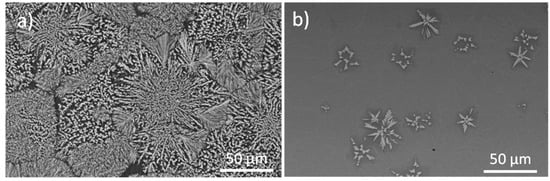

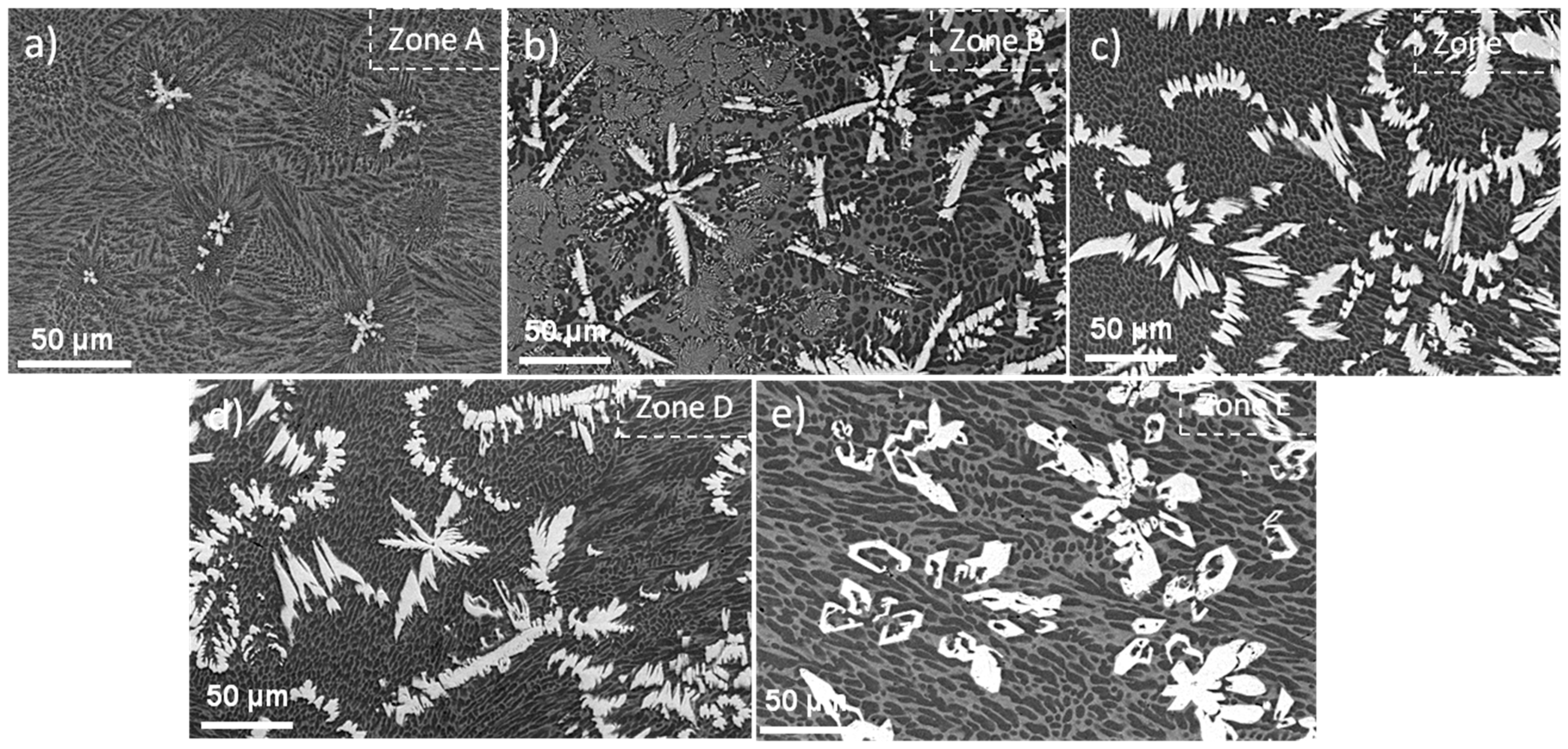

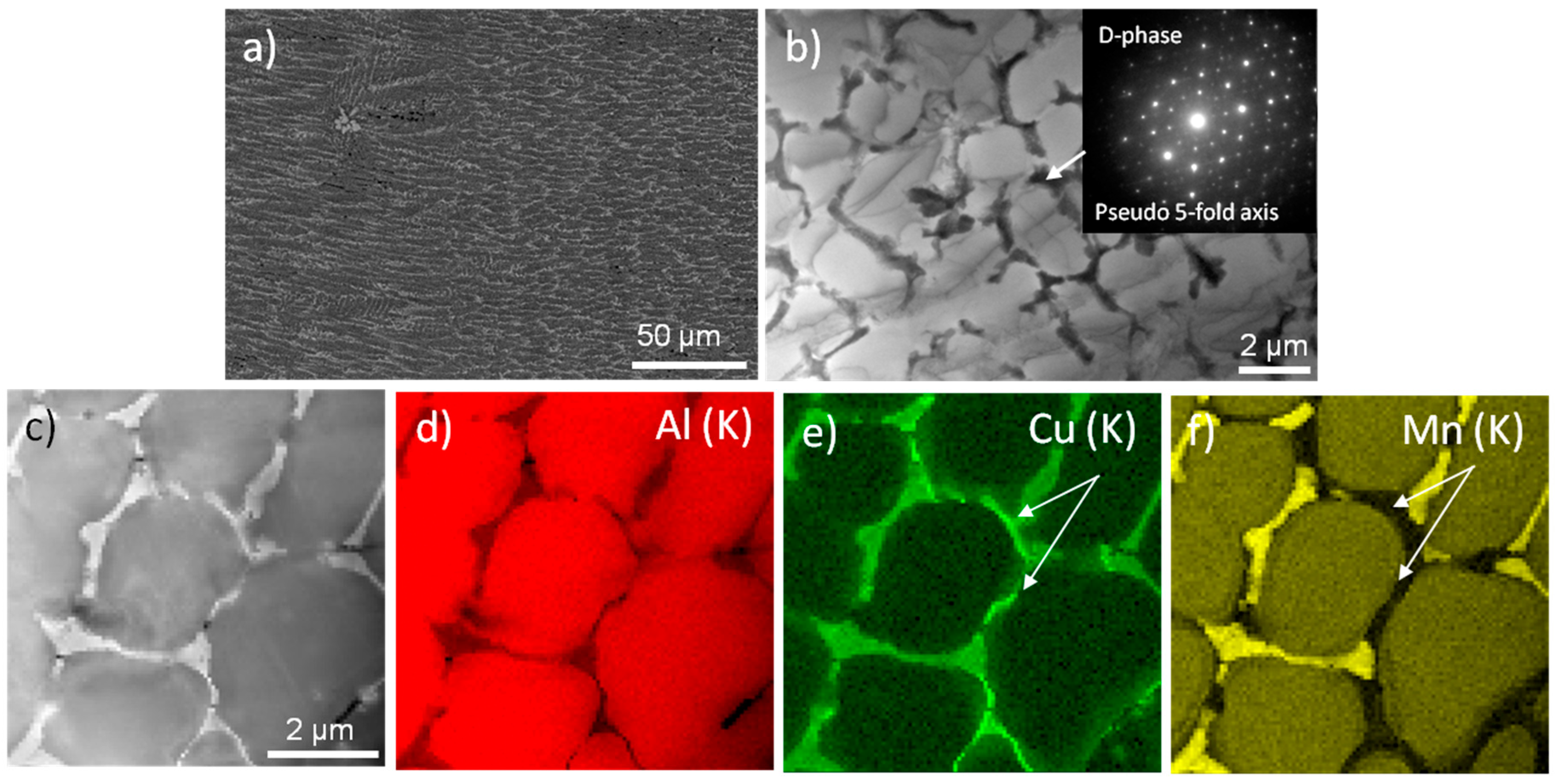

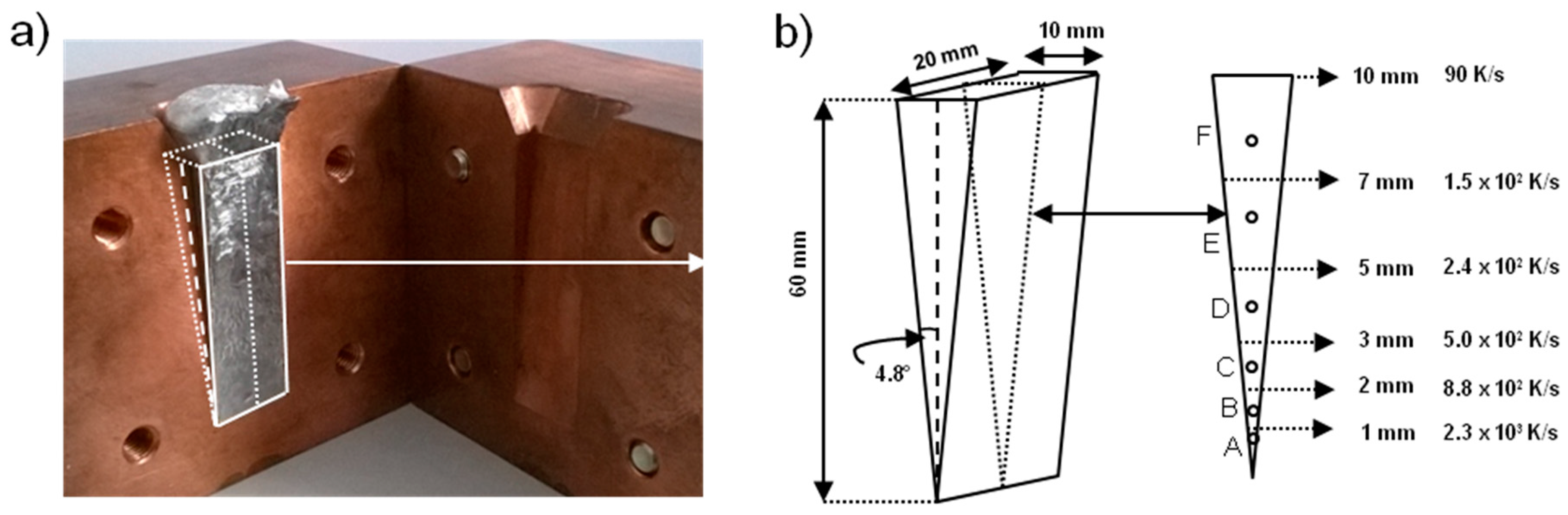

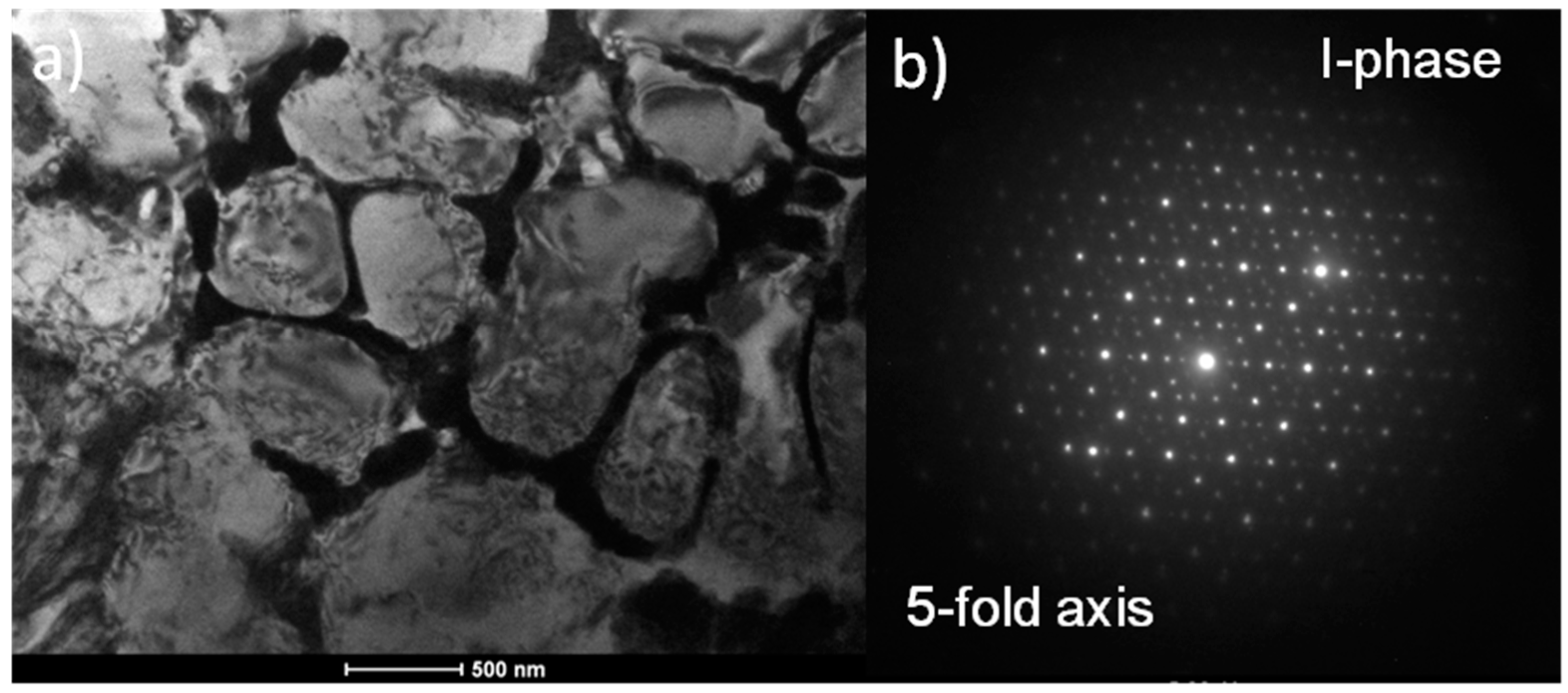

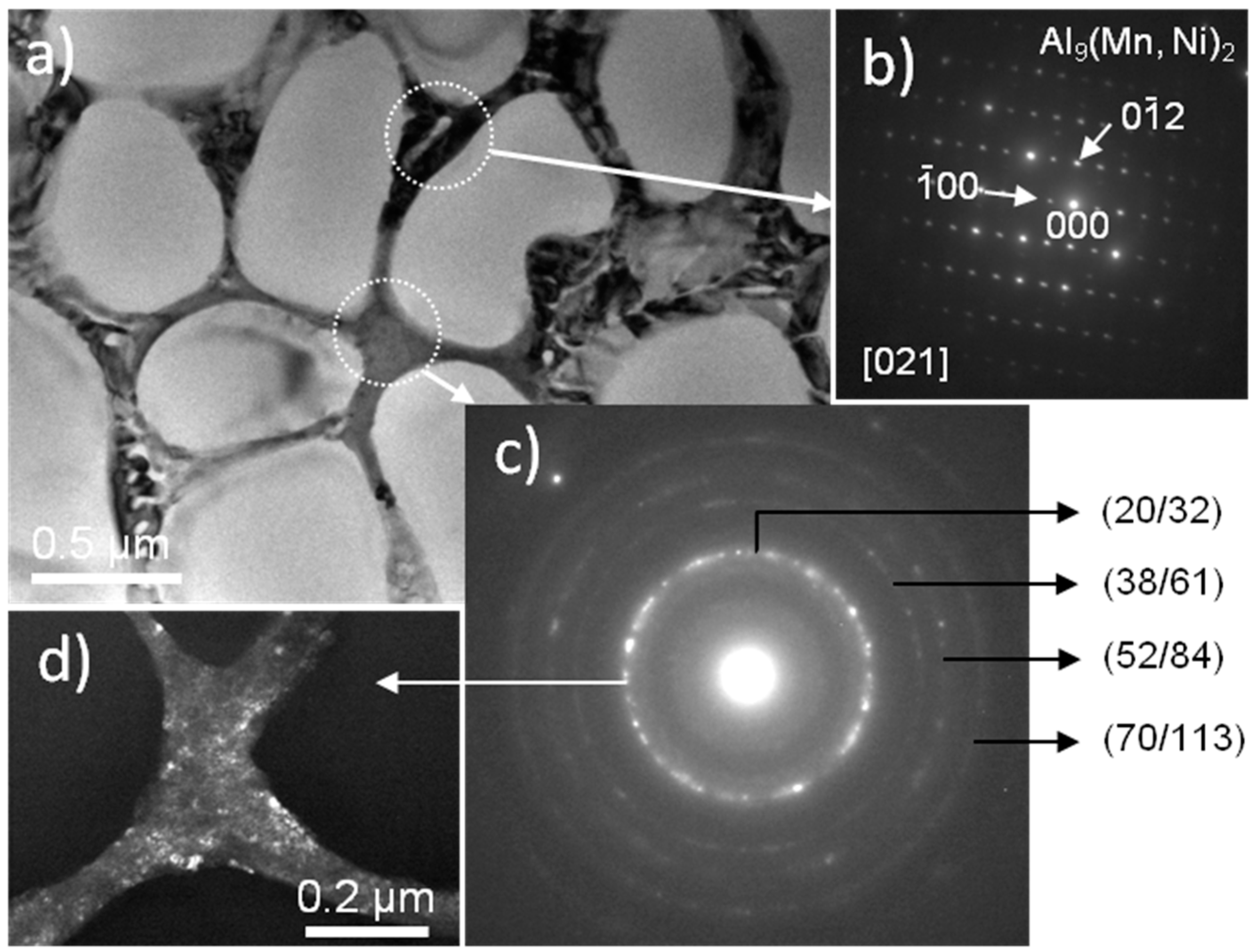

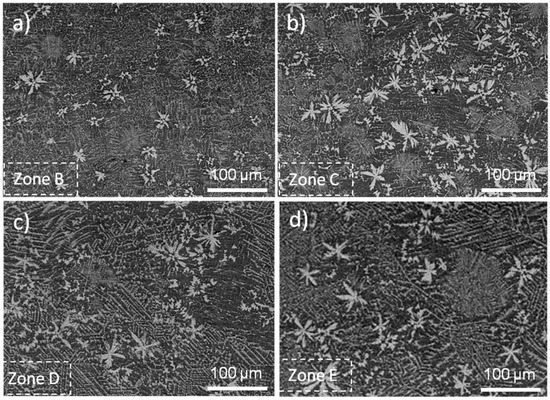

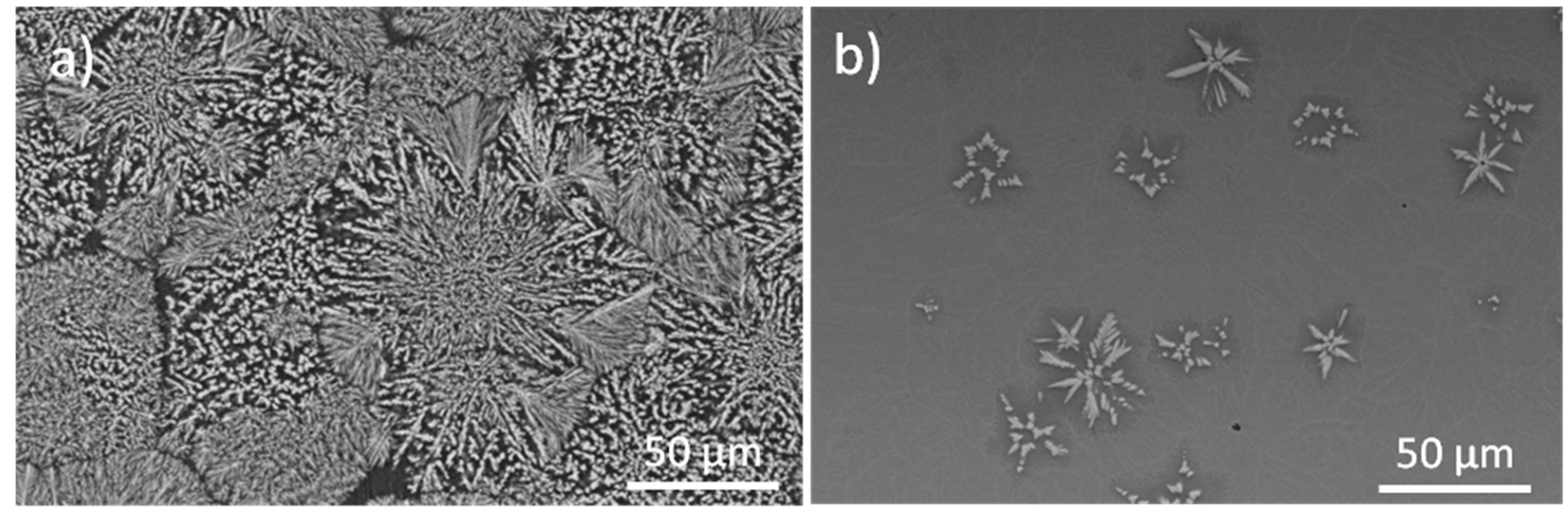

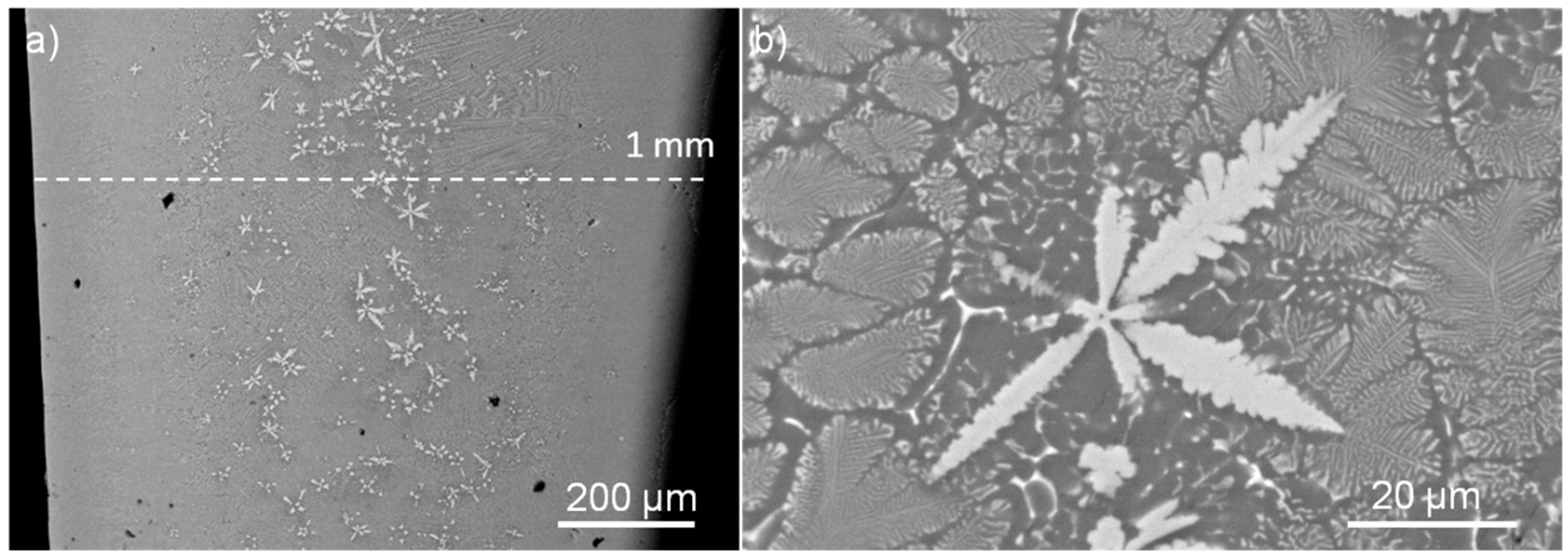

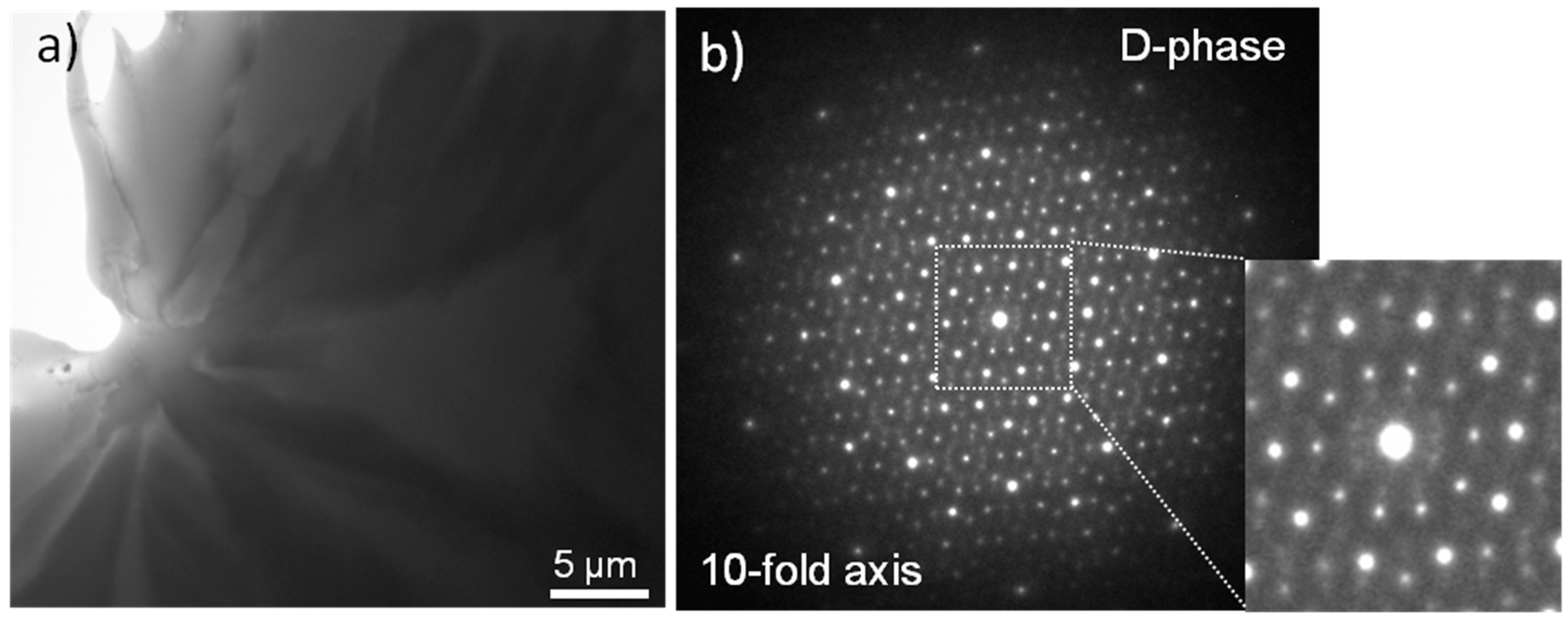

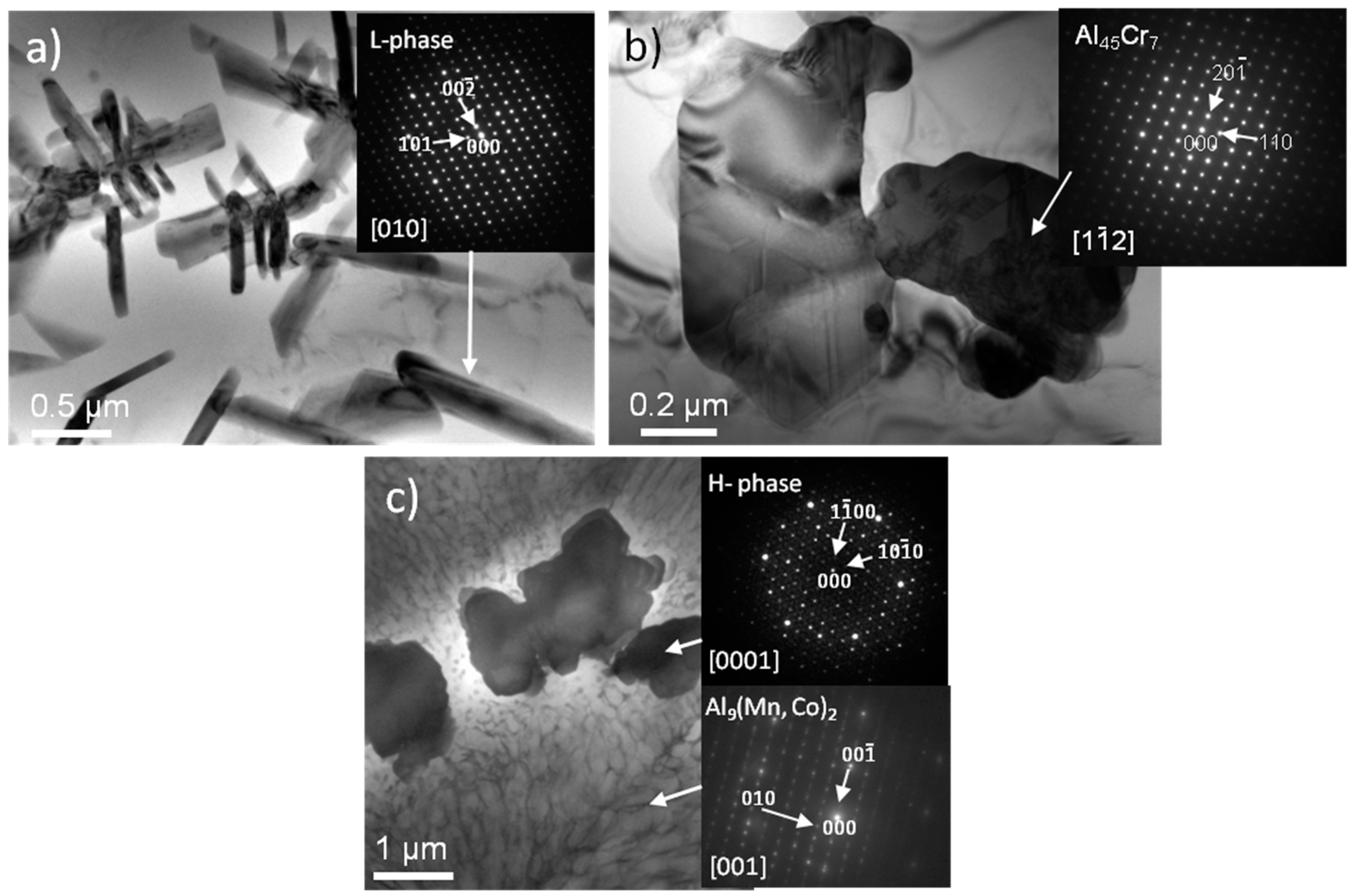

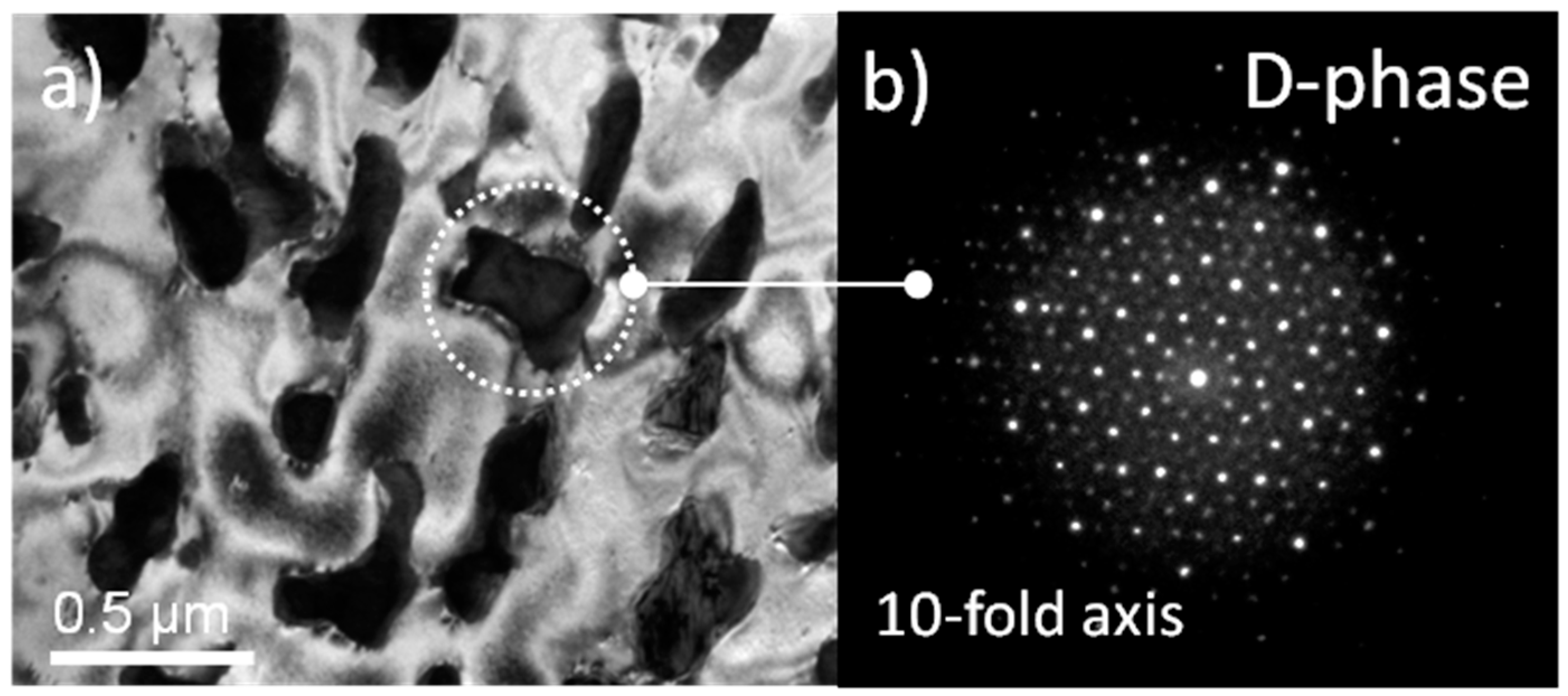

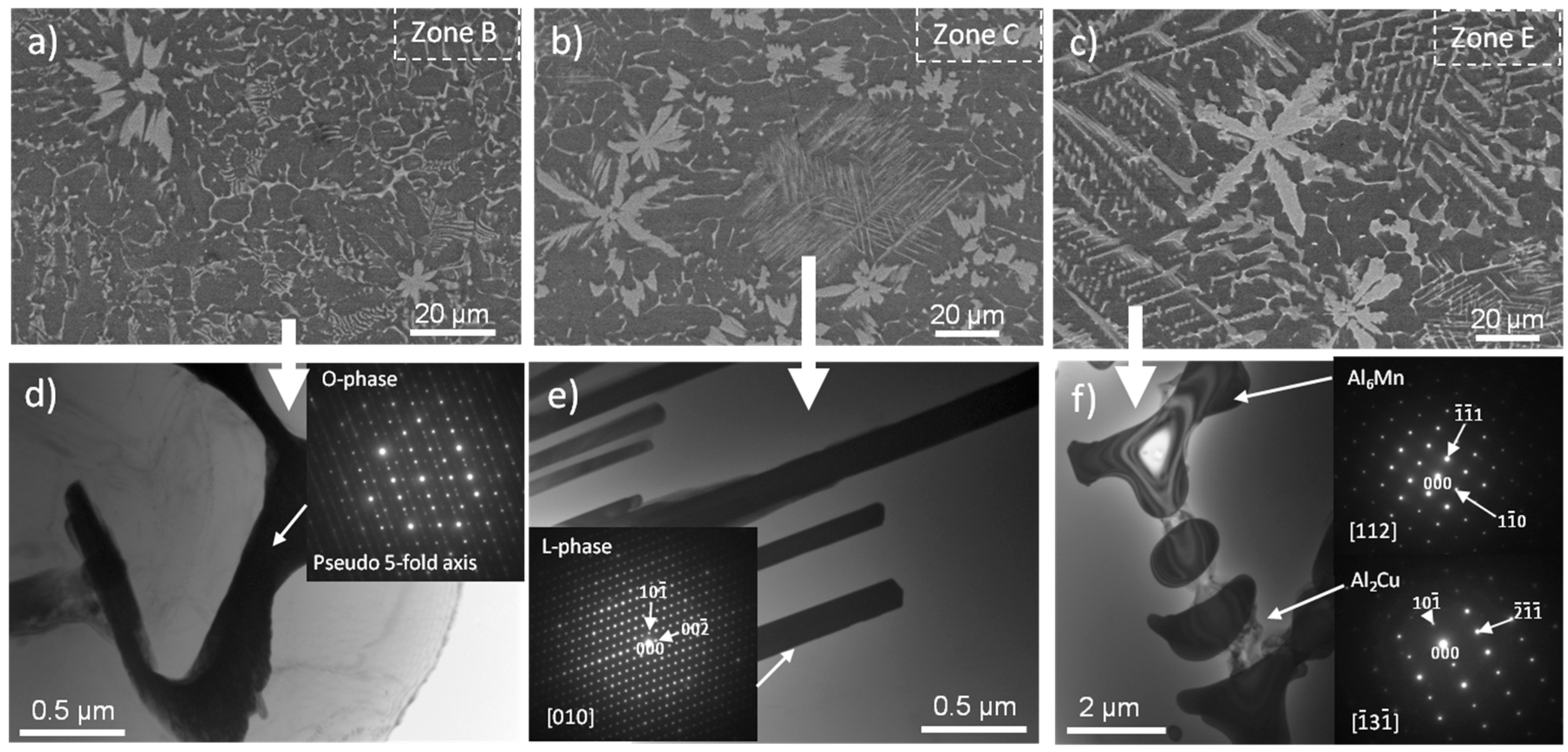

The aim of the presented research was to study the influence of Cr, Co, Ni, and Cu additions on the formation of quasicrystalline particles in the 94Al-6Mn base alloy during casting at intermediate cooling rates. Based on the obtained results, Cu and Ni enhance quasicrystalline phase nucleation compared to the unmodified binary composition. In the case of Cu addition, formation of a quasicrystalline phase takes place along whole thickness of the prepared casting, but its fraction and morphology depends on the cooling rates present in different parts of the sample. Based on the previous works on the beneficial effect of Fe addition, a quaternary alloy containing both Fe and Cu was prepared to evaluate the effect of the simultaneous presence of these elements on the microstructure of the obtained castings. View Full-Text
Keywords: quasicrystals; approximants; TEM quasicrystals; approximants; TEM

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Stan-Głowińska, K. Formation of Quasicrystalline Phases and Their Close Approximants in Cast Al-Mn Base Alloys Modified by Transition Metals. Crystals 2018, 8, 61.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
