Open AccessArticle
Crystals 2018, 8(12), 470; https://doi.org/10.3390/cryst8120470

Two 1-D Coordination Polymers Containing Zinc(II) Hexaborates: [Zn(en){B6O7(OH)6}]·2H2O (en = 1,2-diaminoethane) and [Zn(pn){B6O7(OH)6}]·1.5H2O (pn = 1,2-diaminopropane)

1
School of Natural Sciences, Bangor University, Bangor LL57 2UW, UK
2
Chemistry Department, College of Science, Thi-Qar University, Nasiriyah, Iraq
3
Chemistry, University of Southampton, Southampton SO17 1BG, UK
*
Author to whom correspondence should be addressed.
Received: 27 November 2018 / Revised: 7 December 2018 / Accepted: 9 December 2018 / Published: 14 December 2018
(This article belongs to the Special Issue Self-Assembled Supramolecular Polymers via Strong H Bonding)
Full-Text   |   PDF [2076 KB, uploaded 14 December 2018]   |

Abstract

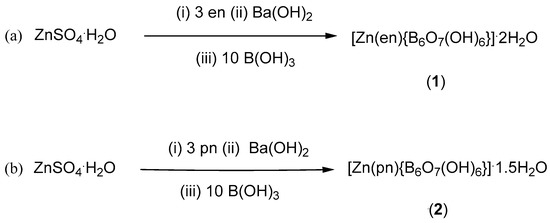

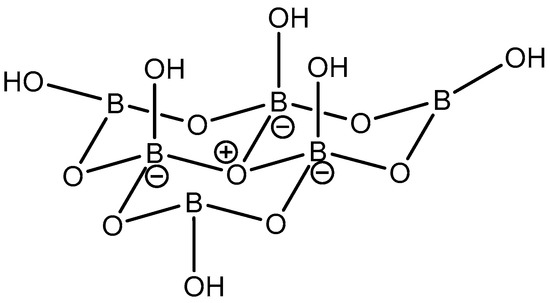

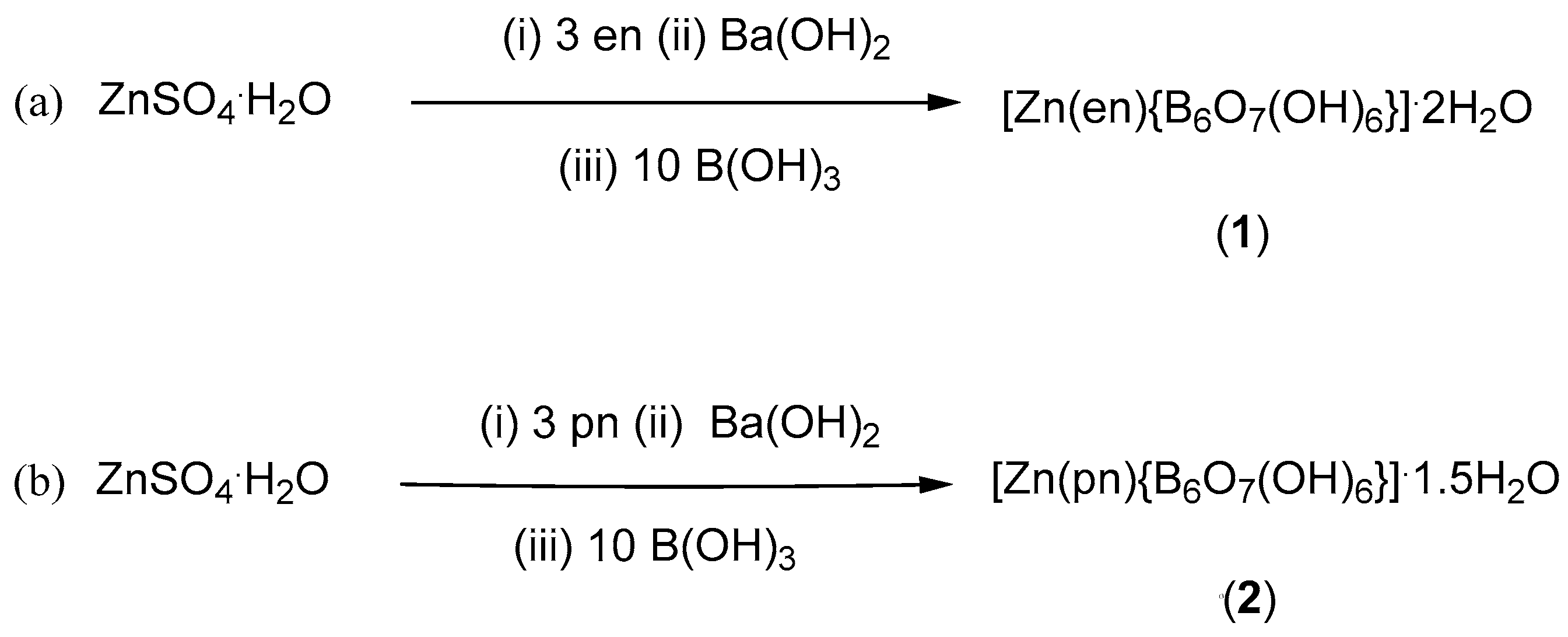

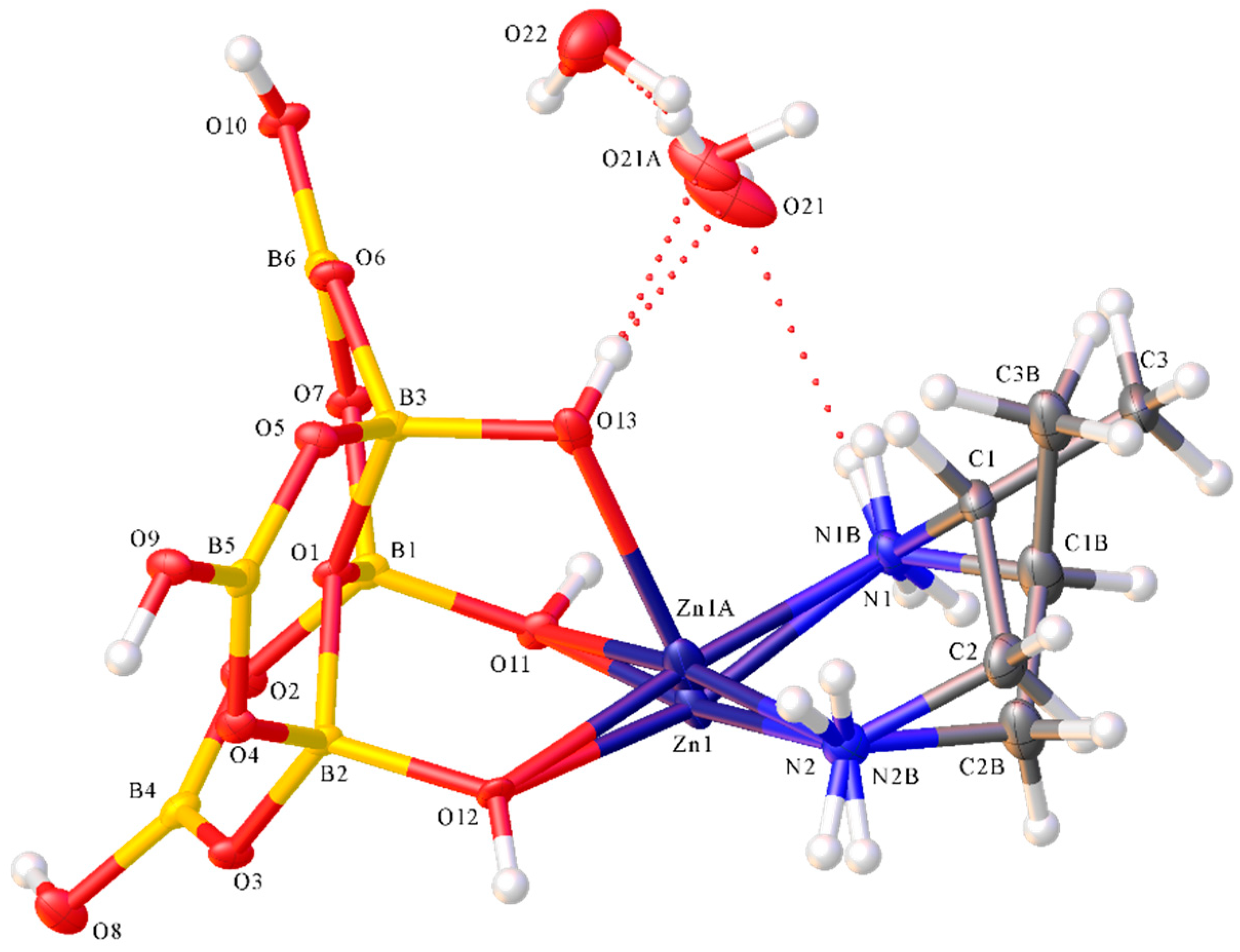

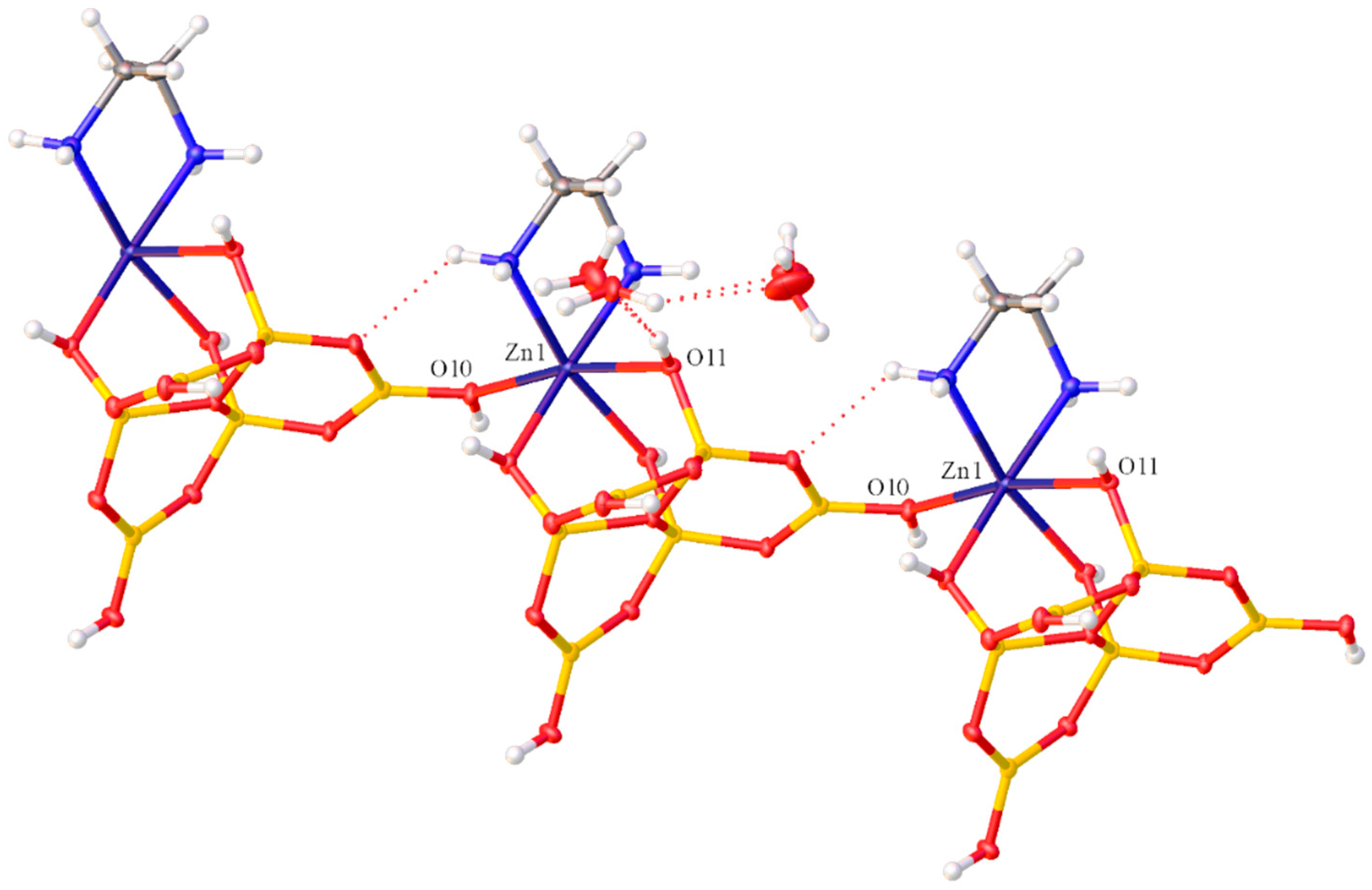

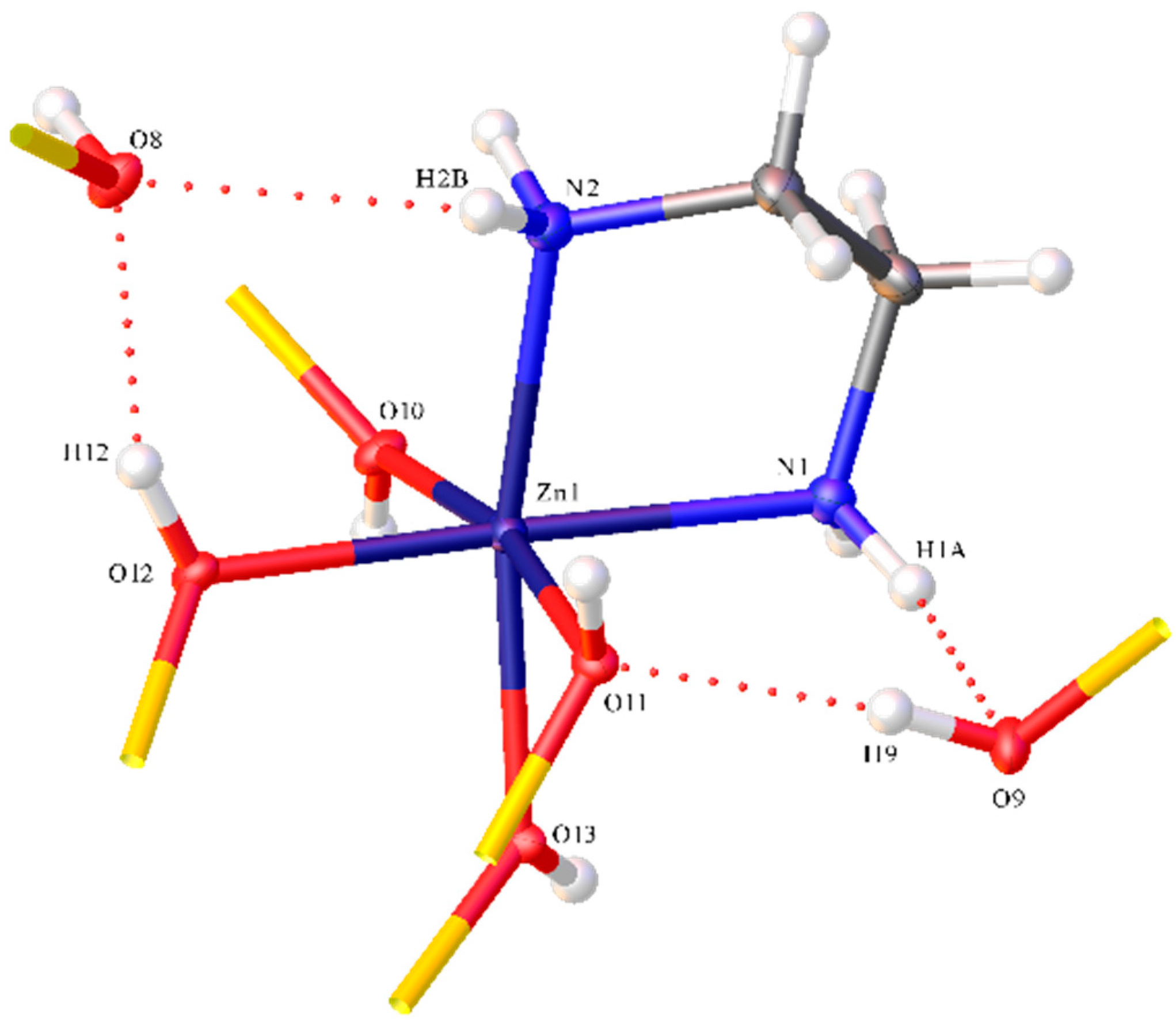

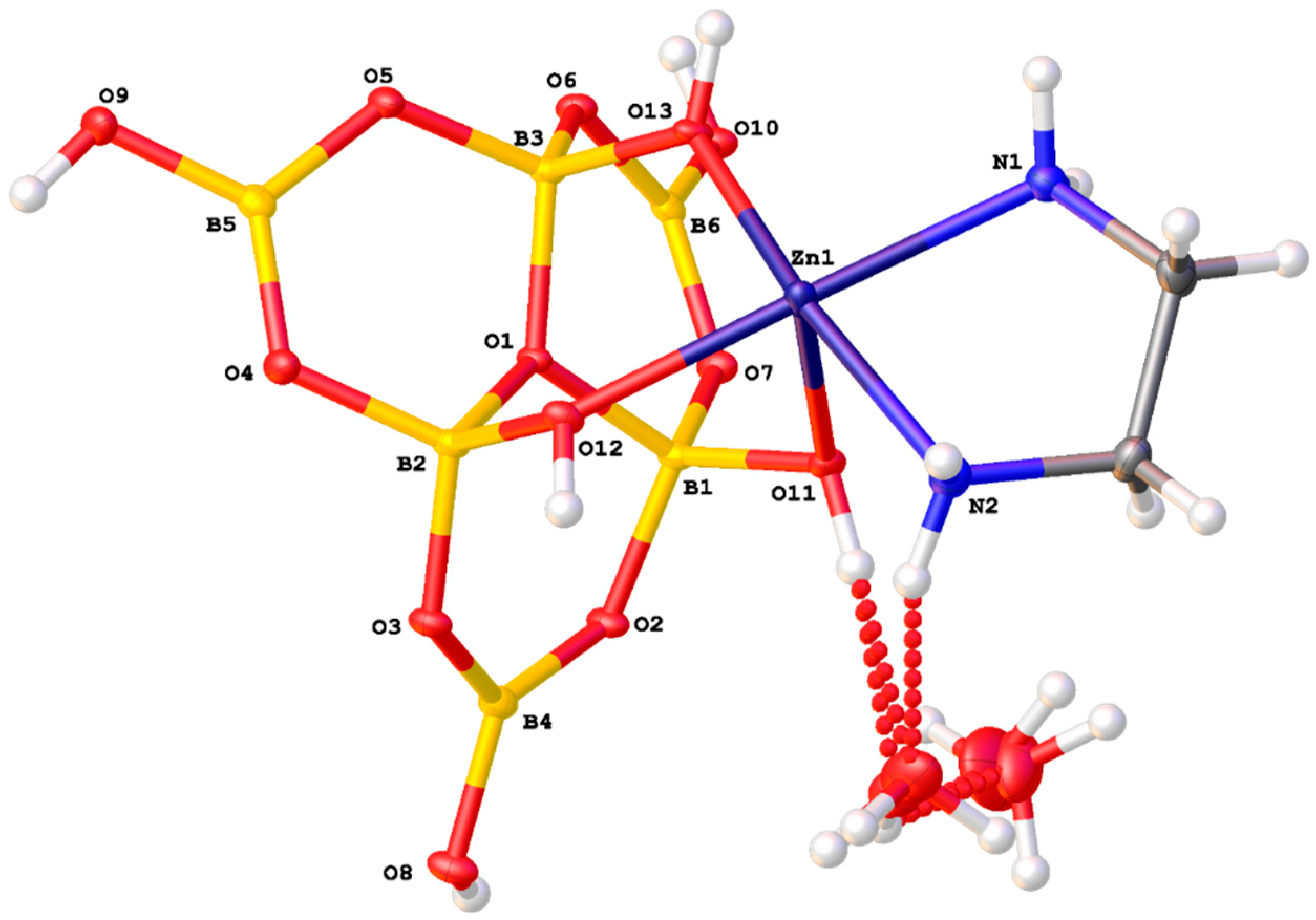

The synthesis and characterization by single-crystal X-ray diffraction (XRD) studies of two new zinc(II) hexaborate(2−) complexes, [Zn(en){B6O7(OH)6}]·2H2O (en = 1,2-diaminoethane) (1) and [Zn(pn){B6O7(OH)6}]·1.5H2O (pn = 1,2-diaminopropane) (2), are reported. These complexes crystallize from aqueous solutions containing 10:1 ratios of B(OH)3 and the appropriate Zn(II) amine complexes ([Zn(en)3][OH]2 or [Zn(pn)3][OH]2) through self-assembly processes. The hexaborate(2−) anions in 1 and 2 are coordinated to two Zn(II) centers and form one-dimensional (1-D) polymeric coordination chains. R22(8) and R22(6) inter-chain H-bond interactions play an important role in these self-assembly processes and are discussed. View Full-Text
Keywords: coordination polymer (1-D); H-bond; hexaborate(2−); oxidoborate; polyborate; self-assembly; X-ray structure; zinc(II) complex coordination polymer (1-D); H-bond; hexaborate(2−); oxidoborate; polyborate; self-assembly; X-ray structure; zinc(II) complex
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Altahan, M.A.; Beckett, M.A.; Coles, S.J.; Horton, P.N. Two 1-D Coordination Polymers Containing Zinc(II) Hexaborates: [Zn(en){B6O7(OH)6}]·2H2O (en = 1,2-diaminoethane) and [Zn(pn){B6O7(OH)6}]·1.5H2O (pn = 1,2-diaminopropane). Crystals 2018, 8, 470.
