Extremely Fast and Efficient Removal of Congo Red Using Cationic-Incorporated Hydroxyapatite Nanoparticles (HAp: X (X = Fe, Ni, Zn, Co, and Ag))

Abstract

Congo red (CR) is a stable anionic diazo dye that causes allergic reactions with carcinogenic properties. The rapid removal of CR using cation-incorporated nanohydroxyapatite (pristine HAp: X (X = Fe, Ni, Zn, Co, and Ag)) was investigated. The pristine and cation ion-doped HAp adsorbents were coprecipitated and subjected to hydrothermal and ultrasound treatments and subsequent microwave drying. The dopant ions significantly engineered the crystallite size, crystallinity, particle size (decreased 38–77%), shape (a rod to sphere modification by the incorporation of Ag⁺, Ni²⁺, and Co²⁺ ions), and colloidal stability (CS) of the adsorbent. These modifications aided in the rapid removal of the CR dye (98%) within one minute, and the CR adsorption rate was found to be significantly higher (93–99%) compared to previously reported rates. Furthermore, the kinetic, Langmuir, Freundlich, and DKR isotherms and thermodynamic results confirmed that the CR adsorption on the HAp was due to the strong chemical adsorption process. The order of the maximum CR adsorption capacity was Fe-HAp > HAp > Ag-HAp > Co-HAp > Zn-HAp. Whereas the CR regeneration efficiency was Fe-HAp (92%) > Ag-HAp (42%) > Ni-HAp (30%), with the other adsorbents exhibiting a poor recycling efficiency (1–16%). These results reveal Fe-HAp as a potential adsorbent for removing CR without the formation of byproducts.

1. Introduction

Over the last few decades, water pollution and drinking water shortages have become more prevalent due to the proliferation of industries and their pollutants. Among them, organic effluent has been improperly discharged into wastewater from the textile, printer, paper, soap, rubber mill, plastic, and paint industries [1,2,3]. Consequently, dye pollution is a major environmental crisis, as over 7 × 10⁵ tons of dyes are produced annually. Synthetic azo dyes are the most prevalent dye contaminants, which discharge 100 tons of waste annually into wastewater streams [4,5,6]. Accordingly, CR is the most common and highly stable industrial dye containing aromatic rings, making it an arduous challenge to degrade or remediate [1,4,5]. Moreover, even very small amounts of dyes in water cause a significant reduction in sunlight penetration, thereby disrupting the biochemical activity of aquatic organisms. In addition, dye contamination poses carcinogenic, mutagenic, and hazardous effects on living systems. Hence, their removal becomes paramount to safeguarding the environment and public health from their toxicities [7,8,9,10].

A variety of methods have been used to remove CR effluent from water, including photocatalytic (redox reaction), flocculation, coagulation, ion exchange, reverse osmosis, membrane filtration, and adsorption [2,3,11,12]. Compared to other techniques, the adsorption technique is best suited for practical applications, since it is simple, cheap, easy to reuse, and has a high adsorption capacity [8,13,14]. In addition, other methods have more significant disadvantages, including increased operating and maintenance costs, need for trained technicians, and production of second-hand toxic waste. However, choosing an absorbent that suits practical purposes is vital, since the absorption technique is highly dependent on adsorbent characteristics. Accordingly, hydroxyapatite (HAp) is a promising adsorbent because of its low cost and ability to be easily modified to meet the desired properties. In addition, it has a hydrophilic nature and porous structure, is insoluble in water, and can easily alter the surface charge and particle morphology [11,13,15].

HAp belongs to the apatite family, and the generalized formula for apatite is M₁₀ (XO₄)₆Y₂. M is a divalent metal ion, such as Ca²⁺, Fe²⁺, Mg²⁺, Zn²⁺, Cd²⁺, and Pb²⁺; XO₄³⁻ is represented by a trivalent anion, such as PO₄³⁻, AsO₄³⁻, and VO₄³⁻; and Y is a monovalent anion, which can be occupied by OH⁻, F⁻, Cl⁻, etc. Synthetic HAp has a similar chemical composition to natural dental and bone minerals, and its generalized form is Ca₁₀(PO₄)₆(OH)₂ [16,17,18]. Several studies have reported that HAp has excellent biocompatibility, making it a promising material for use in a wide range of biomedical applications. These include bone and tooth replacements, drug delivery systems, and tissue engineering [11,19,20]. HAp is a well-known water purification material, having excellent properties for removing industrial effluents from wastewater. Furthermore, HAp has been modified using numerous techniques, among which the incorporation of ions is a simple and efficient approach for improving HAp’s adsorption efficiency [17,19].

Therefore, we explored different cationic ions incorporated into HAp lattices to modify the adsorbent’s characteristic behavior in the present work. In addition, the pristine and modified HAp were used to examine the adsorption of CR dye from water using batch adsorption techniques. Variables such as the effect of the conduct time, concentration, pH, temperature, and regeneration of the CR adsorption were examined. The adsorption mechanism was analyzed by different isotherms: Lagergren pseudo-first and second-order kinetics; Langmuir; Freundlich; and Dubinin–Kaganer–Raduskevich (DKR) isotherm. In addition, the Gibbs free energy, entropy, and enthalpy involved in the adsorption process were determined.

2. Materials and Methods

The following chemicals were used in the present study: calcium nitrate tetrahydrate (Ca(NO₃)₂·4H₂O ≥ 99%), di-ammonium hydrogen orthophosphate ((NH₄)₂HPO₄ ≥ 98%), iron (II) chloride (FeCl₂ ≥ 99%), nickel (II) nitrate hexahydrate (Ni(NO₃)₂·6H₂O ≥ 98.5%), zinc nitrate hexahydrate (Zn(NO₃)₂·6H₂O ≥ 99%), cobalt (II) nitrate hexahydrate (Co(NO₃)₂·6H₂O ≥ 98%), silver nitrate (AgNO₃ ≥ 99%), hydrochloric acid (HCL; 0.1 Normality), sodium hydroxide (NaOH ≥ 98%), and ammonia solution (NH₄OH, 30%). In this experiment, all reagents used were of analytical grade and were purchased from Sigma Aldrich (St. Louis, MO, USA). The adsorbent and adsorbate were prepared with triple-distilled water.

2.1. Synthesis of HAp and Ion-Doped HAp Nanoparticles

A total of 100 mL of 1 mole of calcium was added dropwise into 100 mL of 0.6 mole of phosphate while the ammonia solution was added to maintain the precipitate pH at 12 and stirred for 2 h. The precipitate slurry was transferred into a 100 mL Teflon-lined stainless-steel autoclave and kept in an oven at 150 °C for 12 h. Subsequently, the slurry was further treated with ultrasonication for 15 min to obtain uniformly distributed nanoparticles. The final product was collected by centrifugation, and triple-distilled water was used to remove the unreacted ions. Finally, the collected product was dried in a microwave for 10 min. The ion-doped HAp: X (X = Fe, Ag, Ni, Zn, and Co) was obtained by mixing 0.1 mole of dopant ion solution with 1 mole of calcium solution, and the rest of the procedure mimicked the HAp synthesis.

2.2. Characterization

The Rigaku Ultima IV (PANalytical, AH Almelo, The Netherlands) was used to record the X-ray diffraction patterns of the synthesized adsorbents using monochromatic Cu Kα radiation (λ = 0.154 nm). The KBr pellet technique was used to analyze the HAp functional group using Fourier transform infrared spectrometers (FTIR-JASCO-6300, JASCO International Co. Ltd., Tokyo, Japan). The adsorbent particle size and morphology were analyzed using a high-resolution scanning electron microscope (FEI Quanta FEG 200, FEI Company, Hillsboro, OR, USA) and a high-resolution transmission electron microscope (Talos F200S, Thermo Fisher Scientific Inc, Waltham, MA, USA). The zeta potential of the adsorbent was examined by dynamic light scattering (Malvern Zeta-sizer Nano-ZS, Malvern instruments limited, Malvern, UK). The CR adsorption capacity and ion leaching tests were used to measure the absorption spectra by utilizing a UV-Vis spectrometer (JASCO V-730, JASCO International Co. Ltd., Tokyo, Japan). A Eu-Tech pH meter was used to determine the adsorbate pH.

2.3. Batch Adsorption Study

All adsorption experiments were carried out with a 40 mg adsorbent dosage immersed in 40 mL of CR effluent at the required concentration and stirred at 200 rpm. The 500 mg/L stock solution of the CR was prepared, and the required concentration was obtained by serial dilution. The adsorption kinetics were conducted at periodic time intervals of 0–60 min. The equilibrium adsorption isotherm was carried out for various initial concentrations (pH 7), with an equilibrium conduct time of 1 min. The CR removal efficiency was investigated at different pH (3 to 11) values using the equilibrium concentration (200 mg/L) and time (1 min). Finally, the temperature effect (303 to 333 K) was examined at 200 mg/L at pH 7 for 1 min. All batch adsorption measurements were carried out in triplicate, and the average values were taken for use in this work. The CR adsorption capacity and removal efficiency of the HAp and modified HAp were calculated using Equations (1) and (2).

$$Adsorptioncapcity(Q_e)=(C_o-C_f)\times (\frac{V}{M})$$

(1)

$$Removal\left(\%\right)=\left(\frac{C_o-C_f}{C_o}\right)\times 100\%$$

(2)

where Q_e is the equilibrium adsorption capacity (mg/g); C_o and C_f are the initial and final concentrations of CR (mg/L), respectively; and V (L) and M (g) are the volume of the CR solution and the mass of the adsorbent dosage [3,5].

3. Results and Discussion

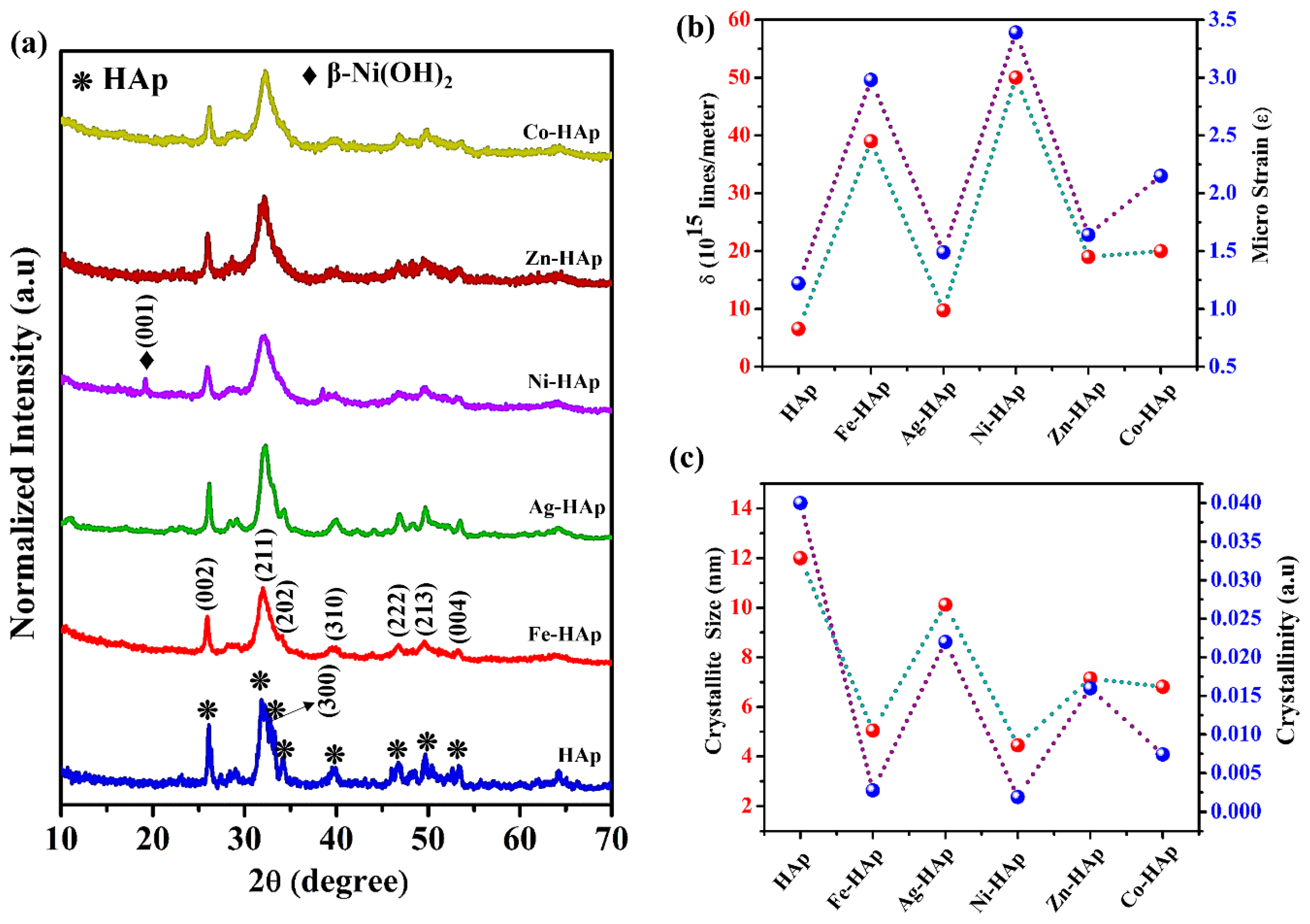

The X-ray diffraction patterns of the HAp and cation-doped HAp reveal that the synthesized adsorbents were crystalline in nature and in good agreement with the HAp phase (JCPDS No. 09-0432), as shown in Figure 1a [21,22]. However, the incorporated Ni²⁺ ion in the HAp structure could replace the Ca²⁺ ions at Ca^II sites, which could form β-Ni(OH)₂. The minor peak at (001) was well matched with JCPDS No. 14-0117 [23,24], corresponding to β-Ni(OH)₂ (Figure 1a). Since HAp has two distinct Ca²⁺ sites based on Ca²⁺ coordination: Ca^I site (bonds only of the PO₄³⁻ group) and Ca^II site (bonds both of the OH⁻ and PO₄³⁻ groups). In addition, the Ni²⁺ ions had high electroactivity and low hydration ionic radii compared to Ca²⁺ and other metal ions (Fe²⁺, Ag⁺, Zn²⁺, and Co²⁺). In addition, the dopant did not show any other apparent peaks, implying the absence of any other secondary phases. The absence of peak shifts confirms that the dopant ions did not replace the Ca²⁺ ion in the HAp lattice. The crystalline parameters, crystallite size, crystallinity, microstrain, and dislocation density were calculated from Equations (3)–(6) [25,26,27].

$$Crystallite-Size(D_c)=\frac{K_B\lambda }{\beta \cos \mathrm{\theta }}$$

(3)

$$Crystallinity(X_c)=(\frac{K_c}{\beta }{)}^3$$

(4)

$$Dislocation-density(\delta )=\frac{1}{(D_c{)}^2}$$

(5)

$$Microstrain(\epsilon )=(\frac{\beta }{4\tan \mathrm{\theta }})$$

(6)

where β, λ, and K_B are the full width half maximum (FWHM), wavelength of the X-ray (Cu Kα, λ = 0.154 nm), and broadening constant (0.9), respectively, and K_c is the constant at 0.24 [28]. The dislocation density and microstrain in the crystalline lattice were increased by the incorporation of dopant ions (Figure 1b). Accordingly, the HAp major peaks showed a broadening after the ion doping, which indicates a decrease in the crystallite size and crystallinity (Figure 1c). Hence, these two factors strongly affected the periodic arrangement, resulting in the crystallinity and crystallite size being decreased drastically compared to the pristine HAp nanoparticles.

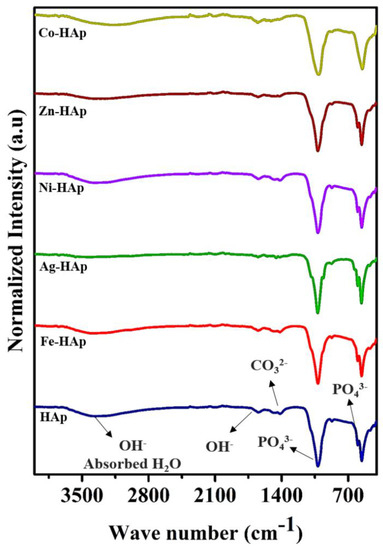

The FTIR spectra of the synthesized adsorbent exhibited the constituent molecular vibrational peaks of the HAp (Figure 2). The broad vibrational bond at 3750–3550 cm⁻¹ indicates the stretching vibration of the absorbed water molecules [29]. The characteristic vibration of HAp occurred at 1650 cm⁻¹, which is attributed to the bending vibration of OH⁻ ions. The phosphate groups in the HAp exhibited three vibrational modes: symmetric stretching, asymmetric stretching, and bending, which occurred at 980, 580, and 1020–1100 cm⁻¹ [30]. Furthermore, an additional bond at 1390 cm⁻¹ represented the C-O stretching vibration due to the absorption of CO₃²⁻ from the atmosphere, which replaced the PO₄³⁻ sites [30,31].

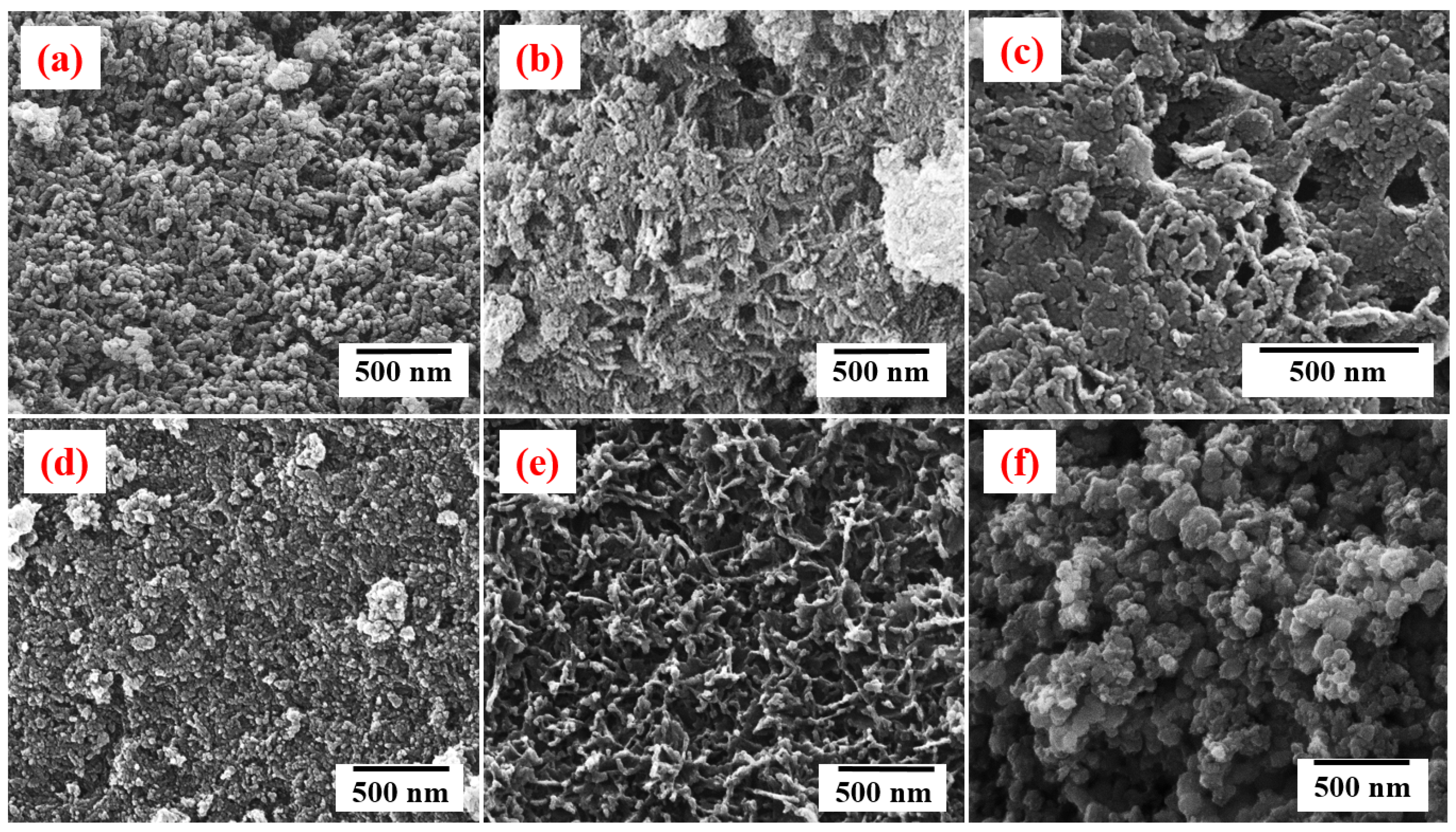

The influence of the dopant ion on the morphology of the HAp and particle size were revealed by the FE-SEM micrographs (Figure 3). The HAp exhibited uniformly distributed nanorods with an average particle size of 65 × 25 ± 5 nm. The particle morphology and size were significantly changed after ion doping. Accordingly, the Fe-HAp and Zn-HAp exhibited a nanorod-like morphology with an average particle size of 40 × 18 ± 5 nm and 100 × 30 ± 5 nm, respectively. However, the morphology changed from rod to sphere for the Ag-HAp, Ni-HAp, and Co-HAp, and the average particle size of the Ag-HAp, Ni-HAp, and Co-HAp were 35 ± 5, 15 ± 5, and 175 ± 5 nm, respectively.

3.1. Adsorption of CR

3.1.1. Effect of Contact Time and Kinetic Isotherm

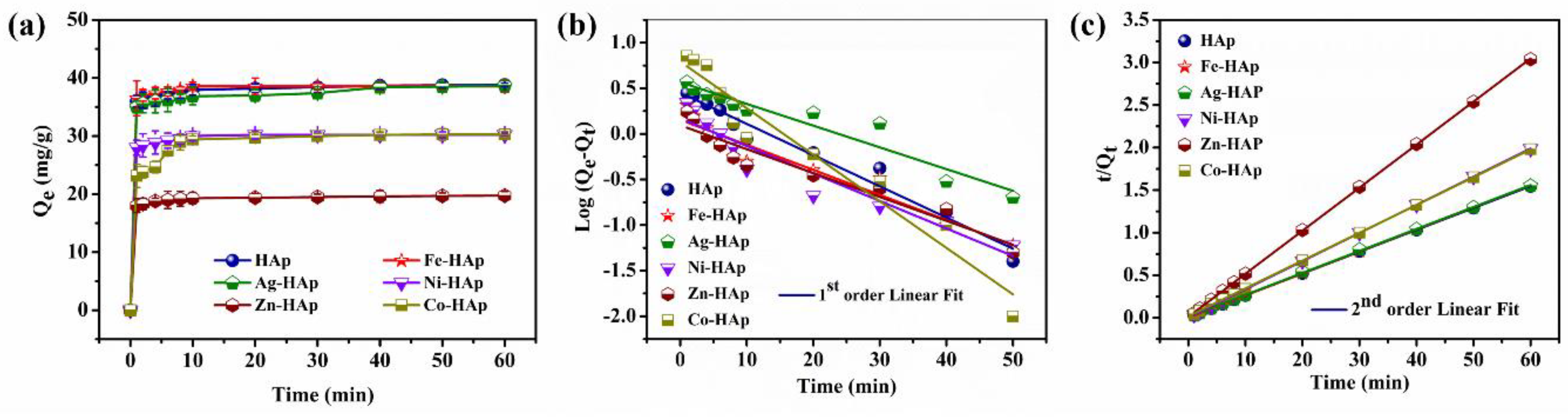

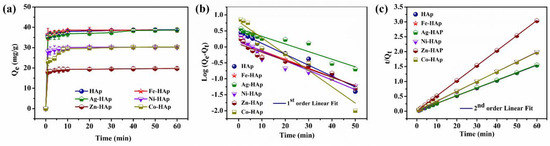

The adsorption kinetics was the most significant factor for determining the minimum operational time to reach the equilibrium adsorption state. Accordingly, the adsorption kinetics was carried out for 0 to 60 min. A total of 40 mg of the adsorbent dosage was mixed in 40 mL of 40 mg/L of CR concentration (pH 7) at ambient room temperature (303 K). Figure 4a shows the adsorption kinetics of the HAp and ion-doped HAp nanoparticles, which indicated a highly rapid CR adsorption (98%) within 1 min by the HAp, Fe-HAp, and Ag-HAp, whereas 75% and 50% CR adsorptions were observed using the Ni-HAp (1 min), Co-HAp (1 min), and Zn-HAp (10 min), respectively. To the best of our knowledge, the rapid CR adsorption within 1 min is the lowest adsorption time reported so far. Lagergren pseudo-first and second-order kinetics were fitted with the experimental kinetic data to identify the adsorption mechanism and their rate. The linear expression is given in Equations (7) and (8) [32,33].

$$Log(Q_e-Q_t)=Log(Q_e)-(\frac{K_1}{2.303})t$$

(7)

$$\frac{t}{Q_t}=\frac{1}{(K_2\times Q{e}^2)}+(\frac{1}{Q_t})t$$

(8)

where Q_e and Q_t indicate the equilibrium and periodic time interval adsorption capacity (mg/g), respectively. K₁ (min⁻¹) and K₂ (g/mg min⁻¹) are the pseudo-first and second-order rate constants, respectively. The values of Q_e and K₁ were calculated from the intercept and slope in the linear fit of log (Q_e − Q_t) vs. time (t) (Figure 4b). The values of K₂ and Q_e were measured from the intercept and slope in a linear plot of 1/Q_t vs. time (t) (Figure 4c) [34]. The correlation coefficient (R²) and the experimental and theoretical data were more well matched with the pseudo-second order kinetics than the first-order kinetics (

Table 1. Kinetic isotherms of CR adsorption using HAp and cationic-modified HAp nanoparticles.

Adsorbent	Qexp (mg/g)	First-Order Kinetics			Second-Order Kinetics
		Qm (mg/g)	K1 (min−1)	R2	Qm (mg/g)	K2 (mg/g·min−1)	R2
HAp	38.52	2.83	0.0342	0.9659	38.29	0.0259	0.9999
Fe-HAp	38.86	1.42	0.0274	0.9213	38.92	0.0253	0.9999
Ag-HAp	38.67	3.69	0.0238	0.9162	38.45	0.0257	0.9997
Ni-HAp	30.21	1.47	0.0301	0.9061	30.21	0.0310	0.9999
Zn-HAp	19.75	1.24	0.0261	0.9236	19.49	0.0505	0.9999
Co-HAp	30.3	6.20	0.0510	0.9393	30.86	0.0326	0.9999

). Consequently, the kinetic isotherm results suggest that the CR adsorption was via chemisorption rather than physisorption. Furthermore, the rapid absorption rate (K₂) was in the order of Fe-HAp > A-HAp > HAp > Ni-HAp > Co-HAp > Zn-HAp. Based on these results, the equilibrium adsorption contact time of 1 min was fixed for the subsequent analysis.

3.1.2. Effect of Initial Concentration and Adsorption Isotherm

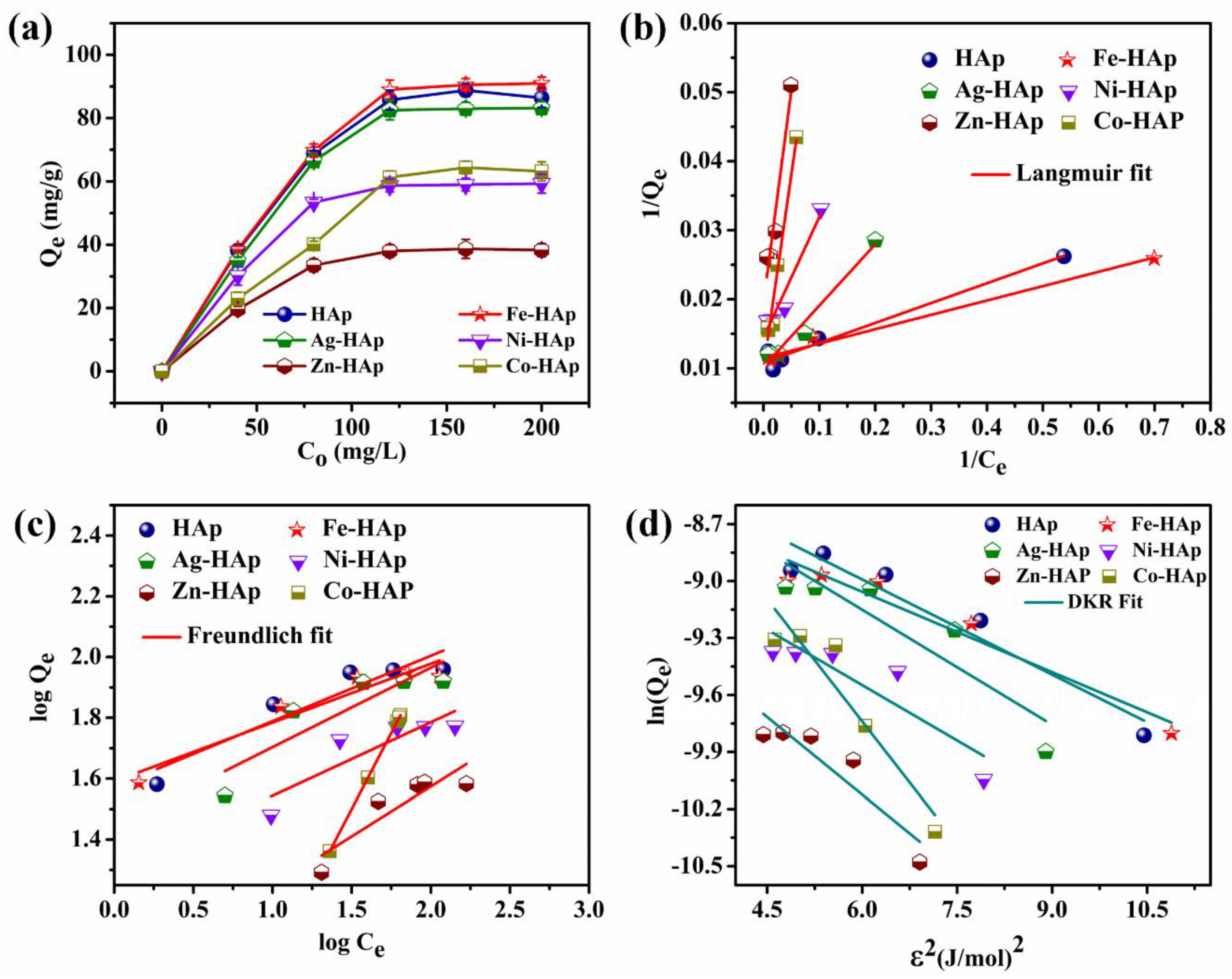

Figure 5a exhibits the maximum CR adsorption capacities of the HAp and modified HAp, with the different initial concentrations (40 to 200 mg/L). A total of 40 mg of the adsorbent was mixed at various CR concentrations at pH 7. The adsorption capacity was enhanced synergistically with an increase in the concentration of CR. Thus, the results indicate that the higher concentration provided a low resistance path and high driving force between the adsorbate and adsorbent, respectively. Accordingly, the maximum adsorption capacity increased from 38 to 86 mg/g for HAp, 39 to 91 mg/g for Fe-HAp, 35 to 83 mg/g for Ag-HAp, 30 to 59 mg/g for Ni-HAp, 20 to 38 mg/g for Zn-HAp, and 23 to 63 mg/g for Co-HAp. The maximum CR adsorption capacity of Ni-HAp, Zn-HAp, and Co-HAp was lower compared to HAp, Fe-HAp, and Ag-HAp. The higher adsorption capacity possessed by Fe-HAp qualified it as a potential adsorbent for removing CR from water compared to the other reports (

Table 2. The CR adsorption capacity of the present work was compared with other adsorbents reported in the literature.

Adsorbents	pH	Time (min)	Qe (mg/g)	No of Cycles/RCE%	Ref.
Ag NPs-functionalized hydroxyapatite	2	90	48	3/80	[8]
Tea Waste	7	720	23	--	[10]
Ca-bentonite	7	480	85	--	[12]
B93-HAp	5.5	20	122	6/64	[13]
Sugarcane bagasse	7	1440	38	--	[14]
Silver nanoparticles loaded on activated carbon (Ag-NPs-AC)	4–7	14	67	--	[35]
Activated carbon	8	40	7	--	[41]
Egg shell membrane	4.5	180	117	--	[42]
Activated carbon-Pomegranante (AC-PG)	7	90	19	--	[43]
Neem leaf powder (NLP)	6.7	300	72	--	[44]
HAp	7	1	87	7/1	This work
Fe-HAp			91	7/92
Ag-HAp			83	7/42
Ni-HAp			60	7/30
Zn-HAp			39	7/3
Co-HAp			64	7/16

RCE—recycling efficiency.

). The equilibrium adsorption data were fitted to different isotherms of Langmuir, Freundlich, and DKR. These isotherm results explore the adsorption mechanism and type of the adsorption (i.e., monolayer or multilayer). The linear expression of the Langmuir, Freundlich, and DKR isotherms is given in Equations (9)–(11) [35,36,37,38]. In addition, the dimensionless Langmuir constant (R_L), expressed in Equation (12), can be used to explore the adsorption favorability. The value of R_L specifies the shape of the isotherm, such as if the CR adsorption is linear (R_L = 1), disagreeable (R_L > 1), agreeable (0 < R_L > 1), or irreversible (R_L = 0) [39,40].

$$\frac{C_e}{Q_e}=\frac{1}{Q_m{K}_L}+\frac{C_e}{Q_m}$$

(9)

$$Log{Q}_e=Log{K}_F+\frac{Log{C}_e}{n}$$

(10)

$$\ln Q_e=\ln Q_m-\beta {\epsilon }^2$$

(11)

$${\mathrm{R}}_{\mathrm{L}}=\frac{1}{(1+K_L{C}_o)}$$

(12)

$$\epsilon =RT\ln (1+\frac{1}{C_e})$$

(13)

$$E=\frac{1}{\sqrt{-2\beta }}$$

(14)

where C_e is the equilibrium concentration (mg/L), and Q_m and K_F are the maximum Langmuir and Freundlich adsorption capacities (mg/g), respectively. K_L (L/mg) and 1/n are the Langmuir and Freundlich constants, respectively. The 1/n exhibiting nature of the Freundlich adsorption: if the adsorption was linear ((1/n) = 1), agreeable (0.1< (1/n) > 1), disagreeable ((1/n) > 1), or irreversible ((1/n) = 0) [42]. β is the DKR adsorption mean energy (mol/J)⁻²; ε is the Polanyi potential (Equation (13)); R is the universal gas constant of 8.314 (J/mol K); and T is the absolute temperature (K). Furthermore, E is the Gaussian energy distribution (Equation (14)) from the DKR isotherm, which suggests the adsorption was via physisorption (E < 8 kJ/mol), chemical ion exchange (8 kJ/mol ≤ E ≤ 16 kJ/mol), or a strong chemical adsorption process (E > 16 kJ/mol).

The values of Q_m and K_L, K_F and 1/n, and Q_m and β were calculated from the intercept and slope in the liner fits of the Langmuir, Freundlich, and DKR isotherms, respectively (Figure 5b–d) [45,46,47]. The isotherms confirmed that the adsorption of CR was by monolayer and chemisorption mechanisms due to the fact of their linear regression R² values, and the maximum adsorption capacity of the experimental and theoretical values were a better match for the Langmuir isotherms than the Freundlich and DKR isotherms (

Table 3. Adsorption isotherms of CR adsorption using pristine and cationic modified HAp nanoparticles.

Isotherm		Adsorbents
		HAp	Fe-HAp	Ag-HAp	Ni-HAp	Zn-HAp	Co-HAp
	Qexp (mg/g)	86	91	83	59	38	63
Langmuir	Qm (mg/g)	86.95	92.59	85.03	59.44	39.28	64.23
	KL (mg/L)	0.0287	0.0208	0.0886	0.1749	0.6176	0.5625
	RL	0.1483	0.1937	0.0534	0.0277	0.0081	0.0088
	R2	0.9769	0.9835	0.9893	0.9883	0.9799	0.9869
Freundlich	KF (mg/g)	37.15	38.90	27.54	19.95	8.12	1.00
	1/n	4.65	5.18	3.83	4.14	3.05	9.45
	R2	0.84447	0.88927	0.72296	0.70921	0.73481	1
DKR	Qm (mg/g)	79.89	84.53	76.12	58.91	37.73	59.99
	β (mol/J)2	−1.67 × 10−9	−1.41 × 10−9	−2.02 × 10−9	−1.94 × 10−9	−2.71 × 10−9	−4.27 × 10−9
	E (kJ/mol)	17.6	18.8	15.8	16.2	13.6	10.9
	R2	0.9039	0.9263	0.7677	0.7467	0.7958	0.8610

). Furthermore, the R_L values obtained the adsorption favorability for the Langmuir isotherms, whereas the 1/n value of the Freundlich suggested an unfavorable adsorption of CR. In addition, the calculated Gaussian energy distribution from the DKR isotherm signified that the CR adsorption was via a chemical ion exchange process while using Ag-HAp, Zn-HAp, and Co-HAp, whereas CR adsorption occurred via strong chemisorption rather than the chemical ion exchange process while using HAp, Fe-HAp, and Ni-HAp.

3.1.3. Effect of pH

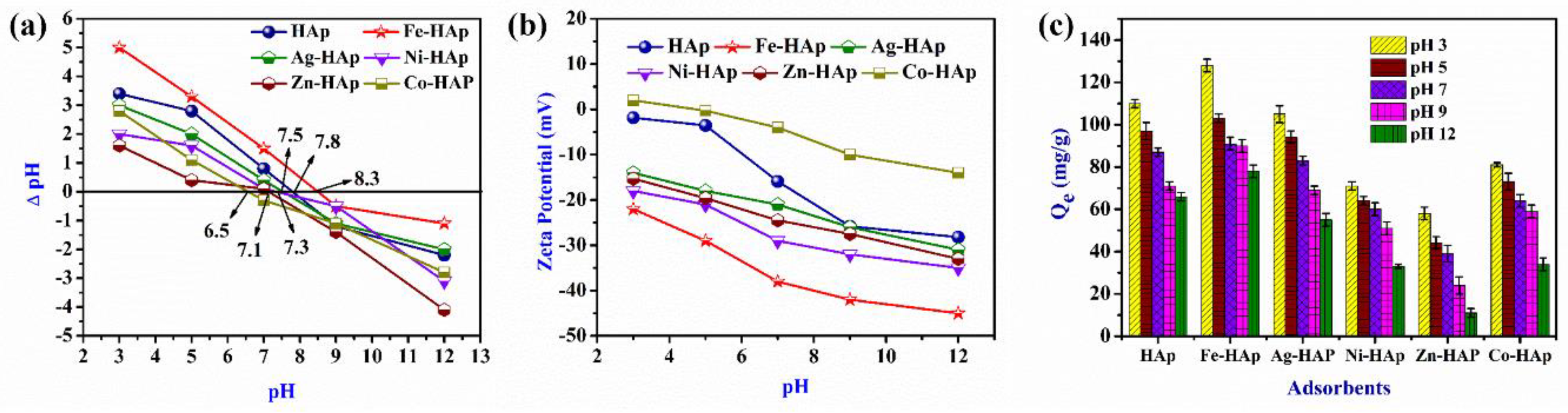

A study of the influence of pH on the effects is essential to find the maximum adsorption capacity and the adsorption behavior at different pH levels. The solution pH value strongly affects the adsorbent characteristics of the surface charge and CS. The adsorbent surface charge at different pH values was calculated from the pH drift method, as shown in Figure 6a [48,49,50,51]. The adsorbent’s zero-point charge (pH_pzc) was effectively changed by incorporating different ions in the HAp lattice. Accordingly, the pH_pzc of HAp, Fe-HAp, Ag-HAp, Ni-HAp, Zn-HAp, and Co-HAp were 7.5, 7.8, 8.3, 7.3, 7.1, and 6.5, respectively. Therefore, the Fe²⁺ and Ag⁺ ion incorporation prominently extended a positive surface charge, which increased the electrostatic interaction between the adsorbent and CR molecules compared to the other adsorbents. In addition, the cationic modification significantly improved the CS (excluding the Co²⁺ ion), and it was calculated from the zeta potential (ζ). A higher ζ represents a high CS and vice versa (Figure 6b). Accordingly, the Fe-HAp (−38 mV) obtained a higher ζ than the rest of the adsorbents (−16 mV for HAp, −21 mV for Ag-HAp, −29 mV for Ni-HAp, −25 mV for Zn-HAp, and −4 mV for Co-HAp), causing an increase in the uniform particle distribution, which led to the enhancement of the accessibility of the active sites for CR adsorption. Hence, the CR adsorption was enhanced in a wide range of pH values while using Fe-HAp compared to other adsorbents (Figure 6c). However, all of the adsorbents exhibited a decreasing CR adsorption trend at an alkaline pH, which indicates that the increase in the electrostatic repulsive force between the adsorbent and CR molecules was due to the fact of a similar charge. Whereas in acidic medium, the adsorbent and CR molecules had opposite charges, which increased the electrostatic interaction leading to an enhancement in the adsorption capacity.

3.1.4. Effect of Temperature

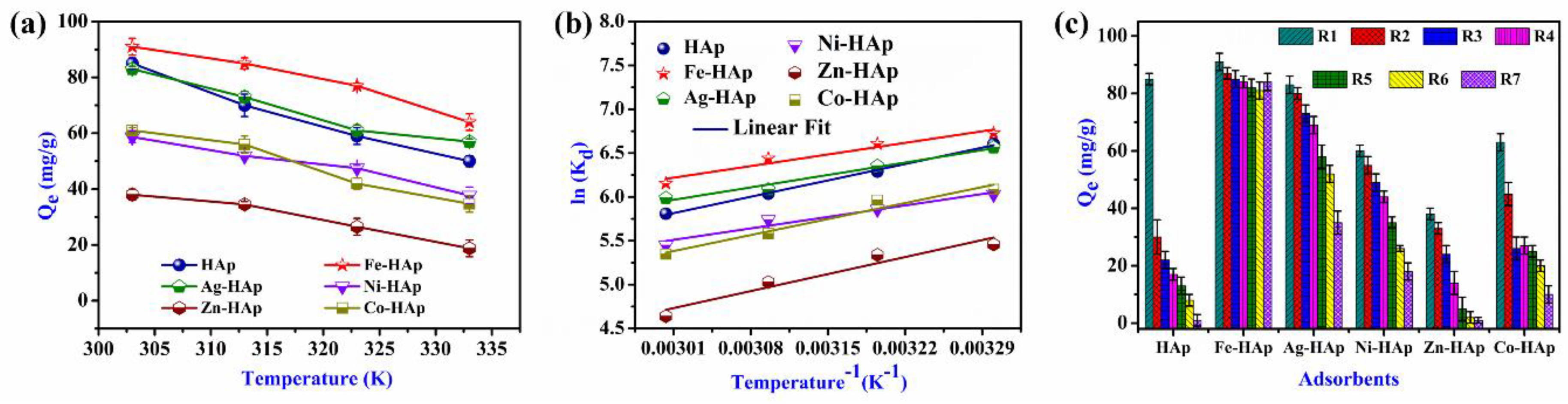

Figure 7a presents the CR adsorption at different isothermal temperatures (303, 313, 323, and 333 K). The thermodynamic parameter of the adsorption-free energy (∆G°) was calculated from Equations (15)–(17) [14,52].

$$∆G°=-RT\ln K_d$$

(15)

$$K_d=\frac{\rho Q_e}{C_e}$$

(16)

$$∆G°=∆H°-T∆S°$$

(17)

where K_d is the dimensionless constant, ρ is the density of water (1000 g/L), ∆H° is the enthalpy, and ∆S° is the entropy. All adsorbents had a low adsorption capacity while the temperature increased from 303 to 333 K. The adsorbents acquired sufficient energy to aggregate the particles between them at higher isothermal temperatures. Consequently, the number of available active sites decreased, and the interaction between the CR and adsorbent was inhibited significantly, which drastically reduced the adsorption capacity. Furthermore, the negative value of ∆G° indicates that the adsorption of CR was spontaneous; nevertheless, the adsorption spontaneity was increased in the order of Fe-HAp > Ag-HAp > HAp > Co-HAp > Ni-HAp > Zn-HAp. However, the adsorption spontaneity increased with the increase in the temperature for Fe-HAp and Ni-HAp, whereas in the case of the other adsorbents, the adsorption spontaneity decreased significantly. The entropy (∆S°) and enthalpy (∆H°) of the given system were calculated from the van’t Hoff linear plot’s intercept and slope, respectively (Figure 7b,

Table 4. Thermodynamic parameters of CR adsorption by HAp and cationic-modified HAp nanoparticles.

Adsorbents	∆G° (kJ/mol)				∆H° (kJ/mol)	∆S° (kJ/mol)
	303 K	313 K	323 K	333 K
HAp	−16.44	−16.36	−16.21	−16.08	266	−2.218
Fe-HAp	−16.94	−17.18	−17.29	−17.38	189	−0.526
Ag-HAp	−16.53	−16.53	−16.33	−16.27	202	−0.122
Ni-HAp	−15.18	−15.24	−15.41	−15.58	186	−0.111
Zn-HAP	−13.94	−13.89	−13.59	−12.84	277	−3.608
Co-HAp	−15.52	−15.31	−14.98	−14.81	260	−2.463

) [14,41]. The positive value of ∆H° suggests that the CR adsorption was endothermic, which indicates that the particle absorbed the energy from its surroundings while the temperature increased. Accordingly, the absorbed energy significantly improved the particles’ interaction with each other, resulting in an increase in the particle aggregation, which caused a decrease in the adsorption capacity. In general, physisorption occurs when ∆H°, which indicates that the energy involved in the adsorption is less than 84 kJ/mol, and chemisorption occurs when the energy involved is between 84 and 420 kJ/mol [12]. Accordingly, for the CR adsorption on the HAp and cation-modified HAp, ∆H° exhibiting chemisorption was confirmed. Furthermore, the negative ∆S° point to the insignificant changes in the internal structures of the HAp and cationic-modified HAp, which ensured that the adsorption occurred by chemisorption rather than the chemical ion-exchange process. These two results are well consistent with the adsorption isotherm analyses.

3.2. Regeneration

The recycling efficiency is the most significant factor for practical applications. Accordingly, NaOH was used to regenerate the CR-adsorbed HAp and cation-modified HAp by ultrasonication treatment for 1 h. Subsequently, the regenerated samples were centrifuged with triple-distilled water. The adsorption of CR was determined for seven successive recycles (Figure 7c), and the recycling efficiency of Fe-HAp maintained 92% of the adsorption capacity compared to the 1st cycle, whereas the recycling efficiencies of the HAp, Ag-HAp, Ni-HAp, Zn-HAp, and Co-HAp were low (1–42%). Among the ion-incorporated HAp, the Fe-HAp displayed sustained adsorbent characteristics. The CR adsorption by the HAp was due to (i) the replacement of sulfate (SO₃²⁻) ions by the phosphate/carbonate ion (PO₄³⁻/CO₃²⁻) in the HAp lattice; (ii) the surface complexation between NH₃⁺ and OH⁻/PO₄³⁻ sites; (iii) the surface complexation between sulfate ions ($O=S-O^{-}$) and Ca²⁺ sites [3,53]. Accordingly, the CR adsorption by the HAp and Co-HAp was reduced drastically after the first cycle because of the low CS of the adsorbents. The other metal ion-doped HAp (Fe-HAp Ag-HAp, Ni-HAp, and Zn-HAp) exhibited a gradual decrease in the removal efficiency in the subsequent cycles of regeneration, which indicates that the cation dopant inhibited the ion exchange activity as well as favored the surface complexation process. The high colloidal stability of the Fe-HAp boosted the desorption of CR, thereby improving the recycling efficiency compared to the other adsorbents.

3.3. Structural Analysis after CR Adsorption

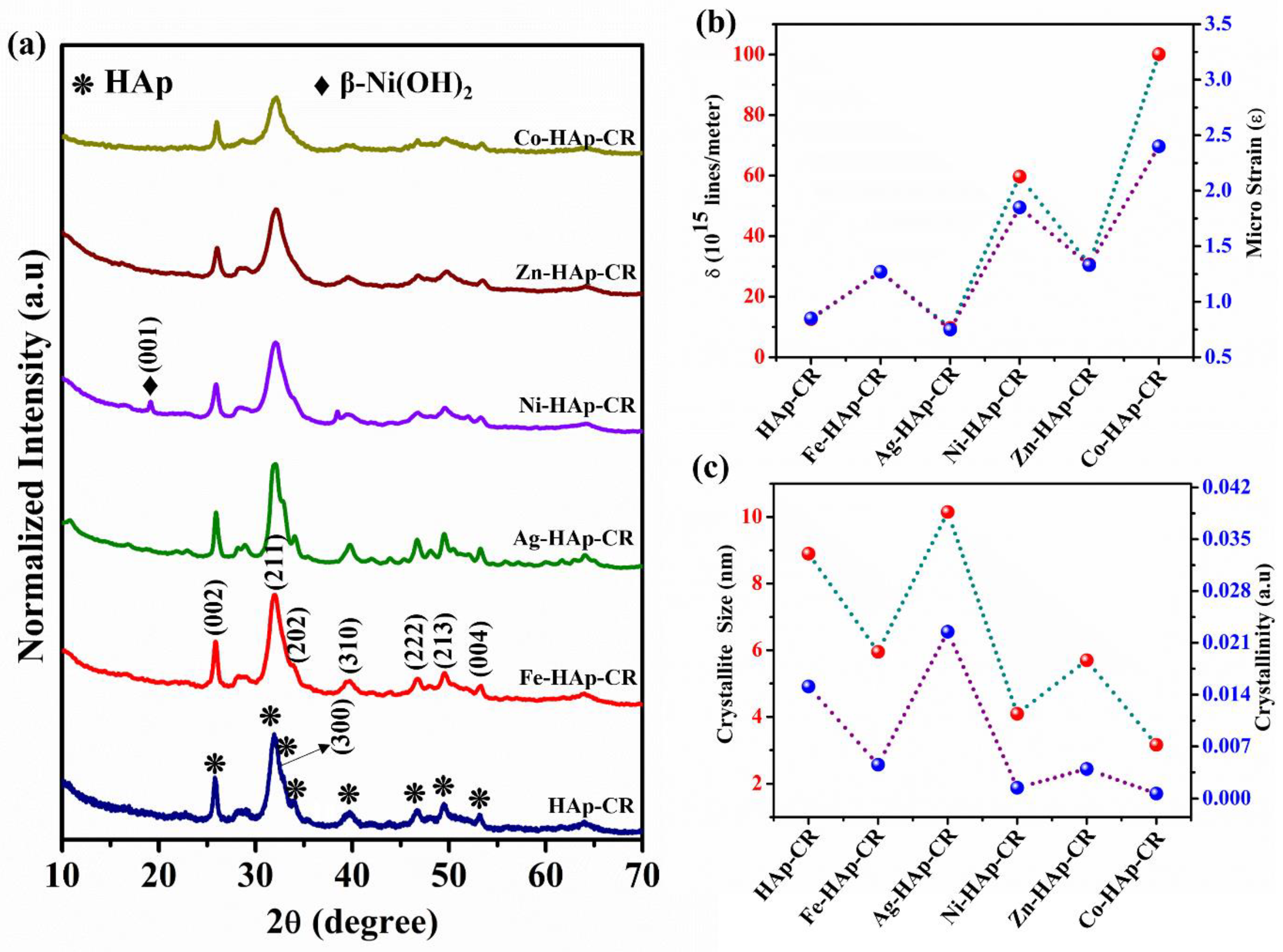

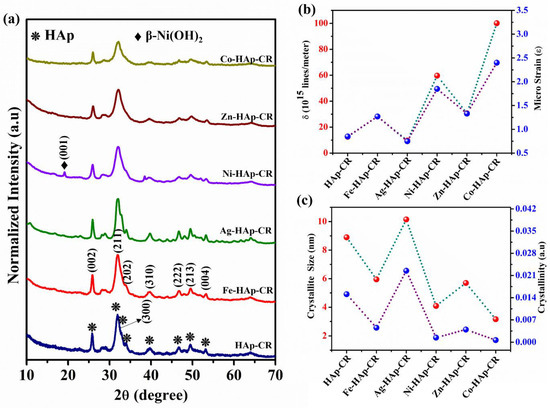

The XRD patterns of the CR-adsorbed pristine HAp and cation-incorporated HAp nanoparticles exhibited a similar HAp phase and were well matched with JCPDS No. 09-0432 (Figure 8a). In addition, the impurity phase of β-Ni(OH)₂ in Ni-HAp was observed at 2θ = 19.04°. The calculated crystallite size, crystallinity, dislocation density, and microstrain after the CR adsorption of both the pristine HAp and cation-incorporated HAp nanoparticles did not show any significant variation (excluding Co-HAp). However, after CR adsorption, the Co-HAp exhibited a low crystallinity and crystallite size along with a high dislocation density and microstrain due to adsorption by the chemical ion exchange process (Figure 8b,c).

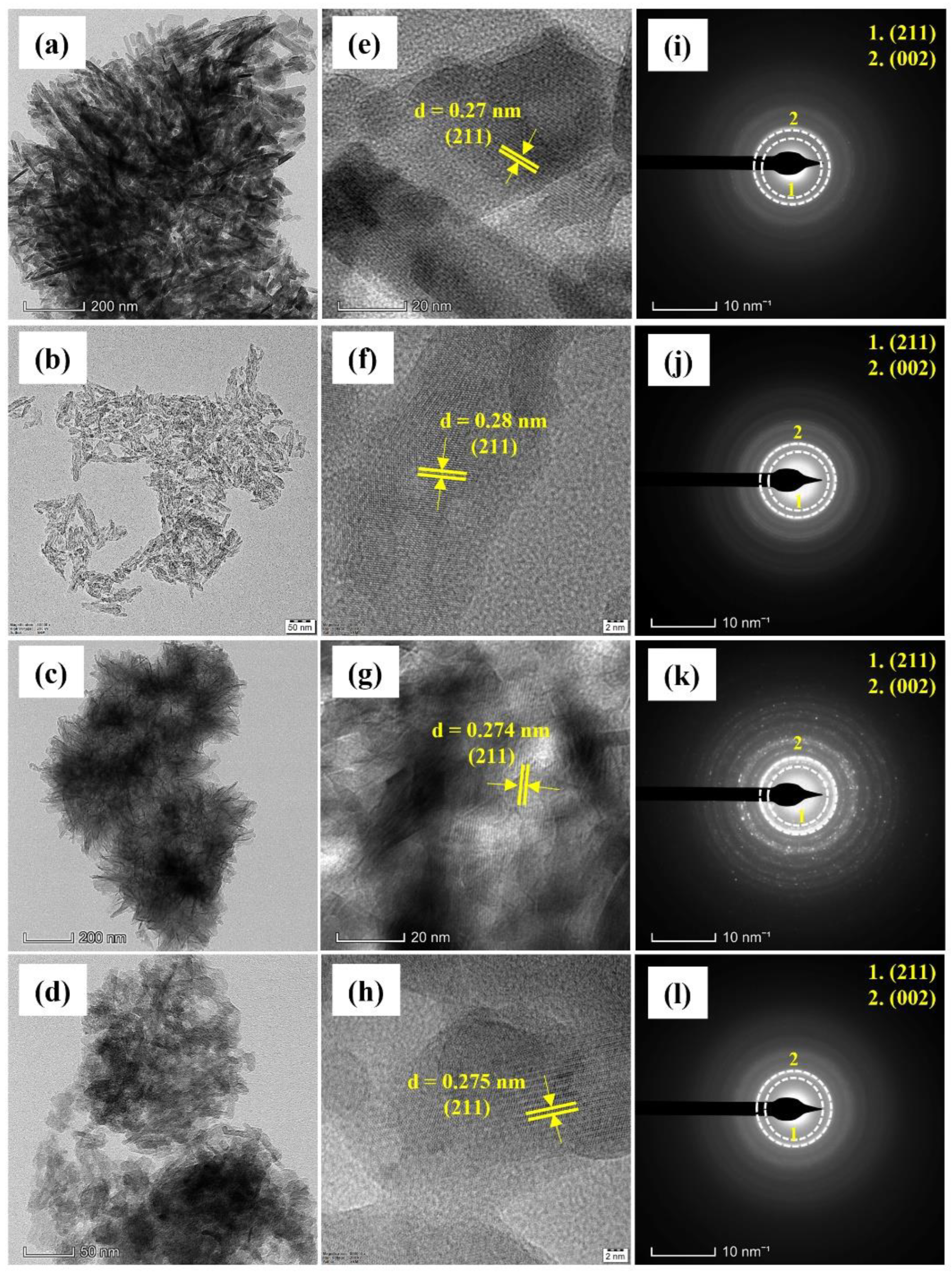

HR-TEM micrographs were used to investigate the morphological and microstructural changes before and after the CR-adsorbed HAp and Fe-HAp (Figure 9). The HR-TEM micrographs of the HAp and Fe-HAp before and after adsorption showed a uniform distribution with a rod-like morphology; the particle size of the HAp was 75 nm × 32 nm and that of Fe-HAp was 25 nm × 13 nm (Figure 9a,b). However, the CR-adsorbed HAp had flower-like agglomerates (200 nm × 20 nm) (Figure 9c), leading to a decrease in the recycling efficiency, whereas similar flower-like agglomerates were observed in the CR-adsorbed Fe-HAp (33 × 14 nm) (Figure 9d). The microstructural analysis of the HAp, Fe-HAp, HAp-CR, and Fe-HAp-CR exhibited well-resolved lattice fringes with a d-space of 0.275 nm, which are attributed to the (211) plane of the HAp phase (Figure 9e–h). Furthermore, the selective electron diffraction patterns of the HAp, Fe-HAp, HAp-CR, and Fe-HAp-CR indicate that the (211) and (002) planes’ corresponding interplanar distances were 0.27 and 0.34 nm, respectively (Figure 9i–l). These results indicate that the HAp and Fe-HAp phases were stable and did not show any significant modification in the HAp phase before and after CR adsorption, which were in good agreement with XRD analysis.

3.4. Quantification of Dopant Cations for before and after CR Adsorption

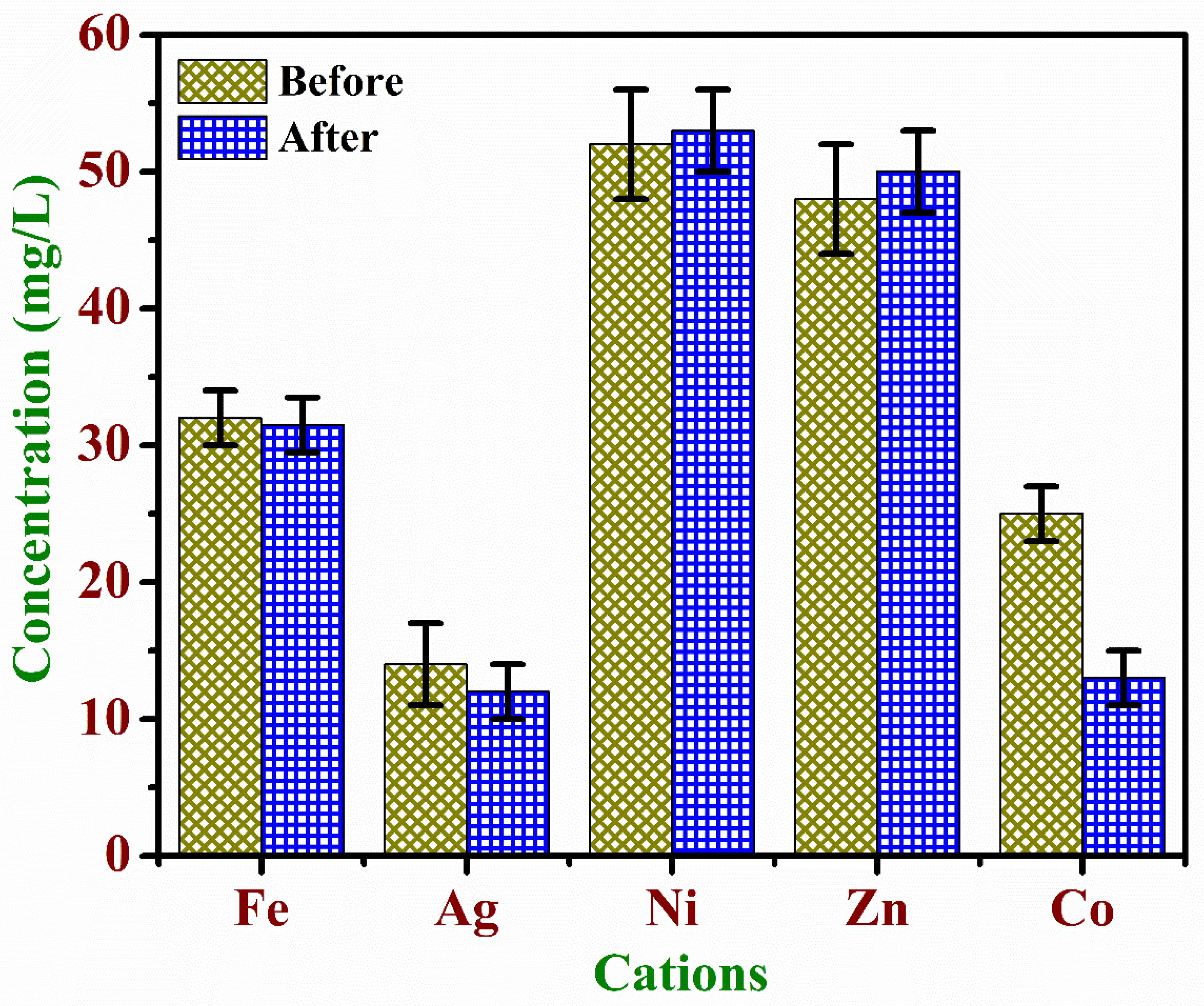

The leaching of cations before and after the adsorption of CR is shown in Figure 10. The estimated incorporation of metallic ions before adsorption in the Fe-HAp, Ag-HAp, Ni-HAp, Zn-HAp, and Co-HAp was 32, 14, 52, 48, and 25 mg/L, respectively. Accordingly, the amount of ion incorporated, in ascending order, is Ni-HAp > Zn-HAp > Fe-HAp > Co-HAp > Ag-HAp. Moreover, after the CR adsorption, apart from Ag-HAp and Co-HAp, all of the adsorbents exhibited insignificant leaching (<2%). The Ag-HAp and Co-HAp had low colloidal stability, which increased the ion exchange process during the CR adsorption process. Hence, 14% of Ag⁺ (2 mg/L) and 52% of Co²⁺ (12 mg/L) ions were leached out from the Ag-HAp and Co-HAp particles, respectively.

4. Conclusions

This work elucidated the synthesis of colloidally stable HAp nanoparticles using a combination of hydrothermal and ultrasonication treatments followed by microwave drying. The presence of dopant ions enhanced the adsorbent properties without any change of phase, as confirmed by XRD, FTIR, and SEM analyses. The incorporation of cations (Fe^2+, Ag⁺, Ni²⁺, and Zn²⁺) in the HAp lattice enhanced the CS (31–138%), whereas the particle size was reduced compared to the pristine HAp. Moreover, the particle morphology was modified from rod to sphere by the incorporation of Ag⁺, Ni²⁺, and Co²⁺ ions. The equilibrium adsorption was achieved within 1 min, and the maximum CR adsorption capacities of HAp, Fe-HAp, Ag-HAp, Ni-HAp, Zn-HAp, and Co-HAp were 110, 128, 105, 71, 58, and 81 mg/g, respectively. The adsorption process was due to the strong chemical adsorption rather than an ion-exchange process, and the adsorbed CR on the HAp surface was a monolayer. The thermodynamic results suggest that the CR adsorption process was spontaneous and endothermic. Hence, the CR adsorption capacity and rate were dramatically increased compared to previous reports. Furthermore, the Fe-HAp exhibited a consistent recycling efficiency (92%) over seven cycles, when compared to other ion-doped HAp particles (1% to 42%). The overall results of this study demonstrate that the Fe-HAp has a highly stable adsorption over a wide pH range, multiple recycling efficiencies, and rapid adsorption within 1 min. The Fe-HAp is a potential, cost-effective, and alternative adsorbent for removing CR from water without the formation of secondary byproducts.
