Hydroxyapatite Based Materials for Bone Tissue Engineering: A Brief and Comprehensive Introduction

by 1,2, 1,2, 1,2, 1,2, 1,2,* and 1,2,*
School of Stomatology, Nanchang University, Nanchang 330006, Jiangxi, China
The Key Laboratory of Oral Biomedicine, Nanchang 330006, Jiangxi, China
Authors to whom correspondence should be addressed.
Crystals 2021, 11(2), 149;
Received: 13 December 2020 / Revised: 20 January 2021 / Accepted: 26 January 2021 / Published: 1 February 2021
(This article belongs to the Special Issue Hydroxyapatite Base Nanocomposites)


Hydroxyapatite (HA) is widely used in bone tissue engineering for its bioactivity and biocompatibility, and a growing number of researchers are exploring ways to improve the physical properties and biological functions of hydroxyapatite. Up to now, HA has been used as inorganic building blocks for tissue engineering or as nanofillers to blend with polymers, furthermore, various methods such as ion doping or surface modification have been also reported to prepare functionalized HA. In this review, we try to give a brief and comprehensive introduction about HA-based materials, including ion-doped HA, HA/polymer composites and surface modified HA and their applications in bone tissue engineering. In addition, the prospective of HA is also discussed. This review may be helpful for researchers to get a general understanding about the development of hydroxyapatite based materials.

1. Introduction

Bone defects resulting from tumors, trauma or abnormal development frequently require surgical intervention requiring bone grafts. Autografts present important osteogenic characteristics that represent the “gold standard” [1]. However, this method has been associated with various drawbacks, such as donor site morbidity in the way of infection, pain, and hematoma formation. The limited supply of autograft tissue and the potential risks with allografts have inspired surgeons and engineers to explore new methods to repair bone defects. Among all the reported methods, tissue engineering [2], which is a comprehensive application of multidisciplinary methods to improve or replace biological tissues, has provided a new choice for the treatment of bone defects. There are several factors that have critical effects in the process of tissue engineering; the tissue engineering scaffolds are the primary factor in bone tissue engineering [3]. Furthermore, the ideal materials used for bone tissue engineering should have good bone conductivity and inductivity properties [4,5].
Hydroxyapatite (Ca10(PO4)6(OH)2, HA), as one of the main components of natural bone, can increase the concentration of local Ca2+, which can activate the proliferation of osteoblasts and promote the growth and differentiation of mesenchymal stem cells (MSC) [6]. Due to its non-immunogenic properties, biocompatibility, bioactivity and good bone conductivity, HA has been widely used in bone repair [7,8,9,10]. Up to now, various types of HA-based materials such as pure HA, ion-doped HA, and HA/polymer composites, have been designed and investigated, however, some disadvantages of hydroxyapatite, such as brittleness and easy aggregation still exist [11]; therefore, there is still a long way to go to prepare satisfying HA-based materials.
In recent years, many reviews on hydroxyapatite have been published, and most of them focus on the application and preparation of HA [12,13,14,15]. Both physicians and materials scientists have paid much attention to the investigation and application of HA-based materials. In our opinion, it is a simple and effective method for new researchers to quickly get a whole understanding about HA by reading review works. Thus, in this review, we try to give a brief and comprehensive summary about HA-based materials, which includes ion-doped hydroxyapatite, hydroxyapatite polymer composites and surface modified hydroxyapatite; meanwhile, their applications in bone tissue engineering will also be introduced. Furthermore, the perspective and challenges will also be addressed. This review may be helpful for researchers who are interested in bone tissue engineering to get a quick glance on HA-based materials, and then help them to select the proper materials according to their interest or requirements.

2. Ion-Doped Hydroxyapatite

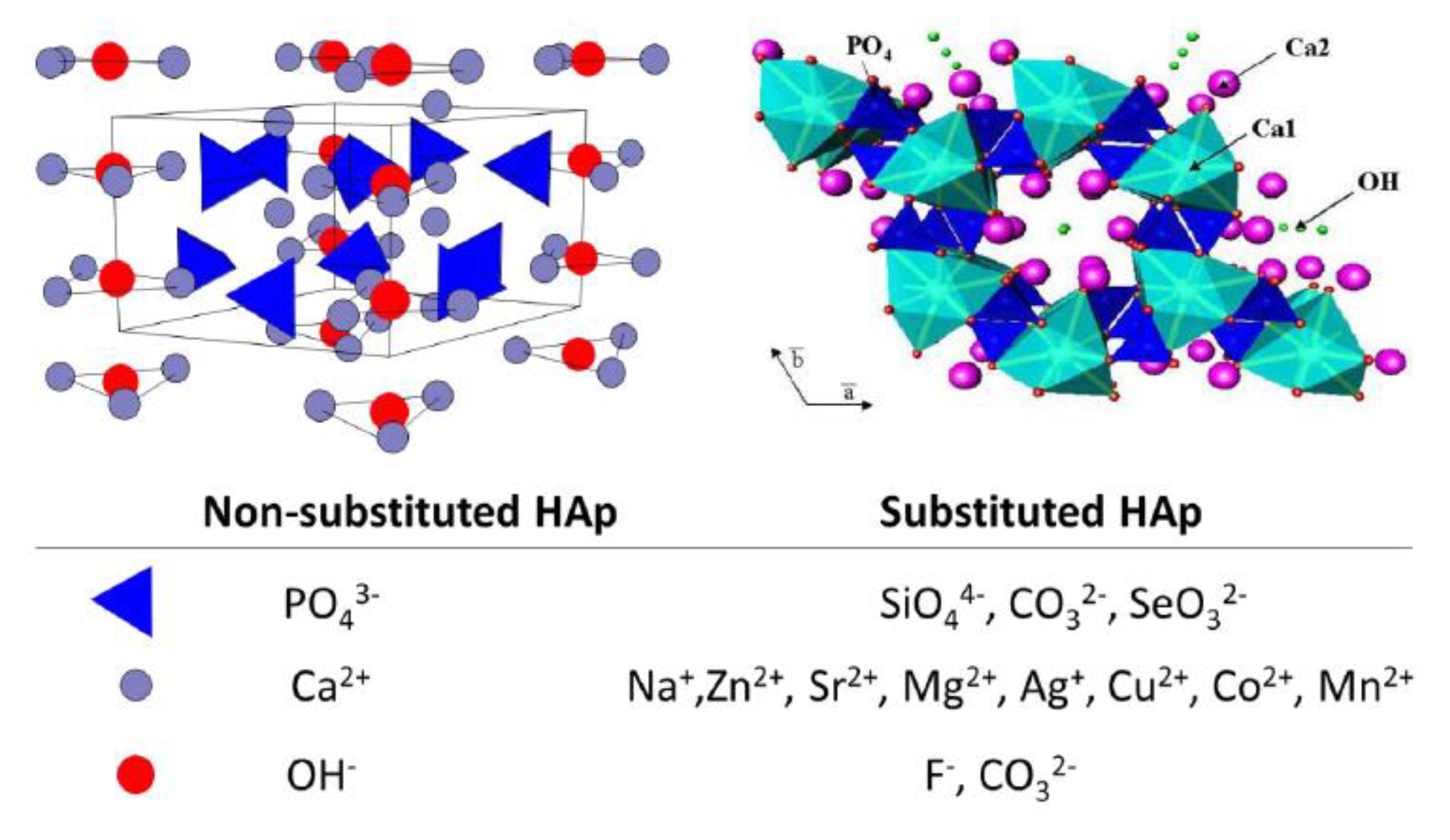

In the crystal structure of hydroxyapatite, the Ca2+, PO43− and OH can be replaced by other ions [12,16]. OH is easily replaced by a small amount of F and CO32−; Ca2+ can be easily replaced by Sr2+, Mg2+ and Zn2+; and PO43− can be replaced by CO32− and SiO44− and thus ion doped hydroxyapatite is formed (Figure 1) [12]. The existence of these ions may affect the crystallization, mechanical properties, degradation and biological activity of apatite, and then affect the physiological function of hard tissue in the organism [12,17,18,19,20]. In order to obtain biomimetic materials which are similar to the natural apatite in composition, structure and function, ion doped hydroxyapatite has been extensively investigated.

2.1. Strontium Doped Hydroxyapatite (Sr-HA)

Strontium is one of the essential trace elements in the human body; it was noticed that strontium in the human body had the same physiological pathway as calcium, and preferentially deposited in bone and teeth [21]. Low dose strontium can inhibit osteoclast activity, reduce bone absorption, promote osteoblast proliferation and promote bone formation [22,23,24]. When Sr2+ is incorporated into the HA lattice, Sr2+ replaces Ca2+ and forms Ca10−nSrn(PO4)6(OH)2 (Sr-HA), and then the crystallization rate and crystal size of HA decreases, and the lattice constant changes [25].
The mechanical properties of HA can be improved by doping of Sr into HA [26,27,28]. When the molar ratio of Sr/(Sr + Ca) is 5%, the compressive strength of Sr-HA can be improved to 66.57 MPa, which matches the value of human bones, and is expected to apply in clinical applications [26]. In addition, Sr-HA has attractive biocompatibility. HA nanoparticles with higher Sr loading can promote osteosarcoma cell proliferation, while the cell morphology remains nearly the same [27]. When Sr-HA was used as a coating on titanium, the Sr-HA enhanced cell attachment much better than the HA coating did [28].
Sr-HA promotes osteogenic differentiation by activating the Wnt β—Catenin pathway, especially in osteoporosis [29,30]. After culturing MG63 cells in vitro, it was found that the expressions of osteogenesis related genes (alkaline phosphatase (ALP), runt-related transcription factor 2 (RUNX2), osteopontin (OPN), osterix, osteocalcin (OCN), and collagen I (Col-I)) increased with the extension of the culture time. In the case of HA coating with relatively high strontium content (3–7%), the positive effect of ions on osteocytes was especially obvious [31,32,33]. Compared with uncoated titanium implants, Sr-HA coated implants formed osteoid 7 weeks after implantation. 12 weeks after implantation, osteoid new bone formed on the HA implant, while Sr-HA began to mineralize. After 16 weeks of implantation, the bone on the Sr-HA was completely mineralized [30]. In vivo studies confirmed that after implantation of the Sr-HA scaffold in the bone defect area, extracellular matrix accumulated, and histology and computed tomography scanning showed significant enhancement of bone formation and an increase in mature and remodeled bone [34].
Strontium was shown to inhibit the activity of osteoclasts; Sr-HA may evoke a specific cellular response, thus exhibiting promising characteristics to assist in new bone formation, especially if bone turnover is impaired as a result of metabolic diseases such as osteoporosis. Strontium ranelate has been used in the treatment of osteoporosis [35].

2.2. Zinc Doped Hydroxyapatite (Zn-HA)

Zn mainly exists in bone in vivo and is closely related to bone metabolism. It stimulates bone development and mineralization, promotes osteoblast proliferation and osteocalcin production, accelerates bone matrix maturation and inhibits osteoclast activity [36,37,38]. When Zinc is doped into HA, it will endow many functions to HA. Zn-HA can show excellent bioactivity, osteogenesis ability, anti-inflammatory effect and antibacterial ability [39,40,41]. Thus, Zn-HA has been widely investigated and applied.
Zn-HA has good bioactivity. When Zn-HA was immersed in simulated body fluid (SBF), the apatite layer formed on the surface of the material, and the thickness of the apatite layer became thicker with the increase of Zn content, indicating that Zn was conducive to mineralization and could improve the bioactivity of HA [42].
Zn-HA has a good antibacterial effect; HA doped with less than 1% of zinc ions has effective antibacterial properties [43]. The maximum inhibitory concentration of Zn 2%-HA to Gram-positive bacteria and Gram-negative bacteria was 50 ± 5% and 77 ± 5%, respectively [44]. The antimicrobial effect of Zn-HA layer on the growth of candida albicans showed that even after 8 h of incubation, the growth of fungal cells was inhibited and weakened with time [45]. Therefore, the use of Zn-HA in bone tissue engineering scaffolds has the effect of antibacterial and regulating immune cells, which can increase the value of scaffold materials.

2.3. Silver Doped Hydroxyapatite (Ag-HA)

Silver is an inorganic antibacterial agent, which interferes with the electron transfer process on the bacterial plasma membrane, and it affects the ATP synthesis in the bacterial cells; additionally, it promotes the production of ROS and causes cell damage. Silver-based antibacterial agents have attracted much attention due to their excellent antibacterial activity [46,47]. The radius of Ag+ is close to the radius of Ca2+, so silver can replace the calcium in the HA lattice under specific circumstances and forms silver doped HA (Ag-HA), which may improve the clinical and biological application of HA.
Generally, HA itself does not have antibacterial properties. While Ag-HA may have exciting antibacterial properties, however, the silver content may have great affection on its biosafety; low silver content doped hydroxyapatite may have excellent antibacterial activity [48,49]. It was demonstrated that both Escherichia coli and Staphylococcus aureus are sensitive to Ag-HA, and thus Ag-HA have been widely used as functional coatings on various materials, which resulted in the significantly reduction of bacterial adhesion when exposed to the composite Ca10−xAgx(PO4)6(OH)2 [50,51,52]. Briefly, the antibacterial activity of Ag-HA are greatly associated with the ratio of Ag to Ca; even the Ag to Ca ratio was only 0.005, therefore the antibacterial activity of HA can be significantly enhanced [53]. Although a small amount of silver plays an antibacterial role, a large amount of silver may be toxic [54]. Cytotoxicity tests using osteoblasts showed that the samples containing 6.5 wt% silver had negative effects on the reaction, proliferation and apoptosis of osteoblasts, as well as the production of protein and osteocalcin [51].

2.4. Silicon Doped Hydroxyapatite (Si-HA)

Silicon plays an important role in the development of bone and cartilage [55]; the bioactivity and biocompatibility of bioceramics, such as bioglass, calcium silicate and wollastonite, are significantly improved after adding silicon. In addition, silicon has a good ability to promote the adhesion, proliferation and differentiation of bone cells; it can up regulate the gene expression of osteoblasts and increase the osteointegration activity [56].
Si-HA has similar structure as HA, while part of PO43− is replaced by SiO44−. Si–HA can enhance the formation of crystalline apatite layers in simulated body fluid (SBF), demonstrating its exciting bioactivity [57,58]. Si-HA improved the rate and amount of bone apposition over pure HA in vivo. The proliferation rate of osteoblasts on the Si-HA coating was faster than that of HA, and biomineralization with a higher level was observed on the Si-HA samples [59]. Many apatite microspheres were observed near the Si-HA implant after 12 weeks in vivo, and the morphology of these aggregates was rather similar to those observed in mineralized cartilage [60]. The bone growth rate of Si-HA (37.5 ± 5.9%) was significantly higher than that of HA (22.0 ± 6.5%), and the bone/implant coverage of Si-HA (59.8 ± 7.3%) was significantly greater than that of HA (47.1 ± 3.6%) in vivo [61]. These results indicated that Si-HA can significantly improve osteogenesis, making Si-HA an attractive alternative to conventional HA materials for bone tissue engineering.

2.5. Fluorine Doped Hydroxyapatite (F-HA)

Fluoride is essential for human health, such as neuromodulation and caries prevention and it plays an active role in maintaining bone structure and function [62]. Fluoride can promote the proliferation of osteoblasts and low levels of fluoride can enhance bone formation in vivo [63]. In addition, it inhibits the activation and differentiation of osteoclasts by reducing the expression of matrix metalloproteinase-9 and tartrate resistant acid phosphatase [64].
F-HA is a kind of doped calcium phosphate with biological activity. Because the a-axis lattice parameters of F-HA are smaller than those of HA, the addition of fluorine can increase the stability of HA and decrease the solubility of HA [65,66]. F-HA showed good apatite-like layer deposition ability [67], can promote cell adhesion and protein adsorption, and improved ALP activity in cell culture [68]. It can obviously prevent the decrease of bone mineral density caused by osteoporosis [69,70], and inhibit bacteria growth [71,72].
Compared with HA, F-HA has superior bioactivity. When immersed in SBF for 21 days, there was almost no apatite on the surface of the HA scaffold, while after 7 days of culture, the whole surface of F-HA was covered with a thick phosphorite layer [69], demonstrating that F-HA has excellent bioactivity and may have great potential for bone regeneration. In addition, F-HA has obvious antibacterial activity. Wang et al. blended 40 wt% nano F-HA and polyetheretherketone (PEEK) powder and prepared F-HA/PEEK composite; the antibacterial test indicated that F-HA/PEEK effectively inhibited the adhesion and proliferation of Streptococcus mutans [73]. When F-HA was coated on the surface of other materials, the F-HA coatings also showed great antibacterial effect to Streptococcus mutans, Escherichia coli and Porphyromonas gingivalis [74]. Some research demonstrated that even a small amount of F-HA can show enough antibacterial activity [28], suggesting their potential in oral and other biomedical applications [73].
F-HA can effectively promote osteogenesis and inhibit osteoclast differentiation; the in vivo results of F-HA/PEEK used for bone repair showed direct fusion of bone to F-HA/PEEK composite surface, and no inflammation or necrosis was observed. In particular, more bones were found around the F-HA/PEEK implants than around those of the PEEK control (Figure 2) [73]. Kim et al. compared the osteogenesis of F-HA/PCL and HA/PCL composites, and found that F-HA contained materials that could significantly improve the ALP activity and osteocalcin expression of osteoblasts [75]. The material containing F-HA increased the initial adhesion of osteoblasts, promoted cell proliferation and mineralization, and significantly increased the amount of new bone formation in vivo. These findings demonstrated that F-HA might be a promising candidate for bone tissue engineering.

2.6. Other Ion Doped Hydroxyapatite

There are also many other types of ion doped hydroxyapatites, which can improve the biological properties of HA via ion doping. For example, magnesium doped hydroxyapatite (Mg-HA) promotes new bone formation on the implant material, controls the initial degradation rate and guides bone regeneration [76]. Mg-HA can significantly inhibit Staphylococcus aureus, Pseudomonas aeruginosa and Escherichia coli [77,78]. Copper doped hydroxyapatite (Cu-HA) showed proper cell proliferation, osteogenic activity [79], and antibacterial properties, resulting in significant reductions of Escherichia coli and Staphylococcus aureus biofilms [80]. Manganese doped hydroxyapatite (Mn-HA) is able to regulate the osteoblast differentiation, control the bone resorption, and promote the cell adhesion and synthesis of extracellular matrix proteins [81]. Cobalt doped hydroxyapatite (Co-HA) promotes the neovascularization and the angiogenesis of the newly formed bone tissues [82].
Table 1 summarizes some relevant studies on ion doped hydroxyapatite and its enhanced biological function. The investigation of these ion-doped hydroxyapatites can help us know more about the natural hard tissues’ structure and excellent biological activity, and then help us to design novel implant materials with unique structure and performance. However, because of the low bending strength, high brittleness, and easy fracturing, HA and various ion-doped HA can only be used in non-load bearing parts. In addition, the elastic modulus of these inorganic materials are much higher than that of natural bone, and its mechanical properties do not match with human bone, and thus their application in clinical applications were limited [83]. To solve this problem, HA has been combined with various polymers to form various HA/polymer composites, which have been widely used in bone tissue engineering.

3. Hydroxyapatite/Biodegradable Polymer Composites Used for Bone Tissue Engineering

In principle, biodegradable polymers with sufficient mechanical strength, optimized structure and appropriate degradation rate are desirable scaffold materials for bone tissue engineering [84,85]. The scaffold material should also be osteoconductive so that osteoblasts can adhere to the scaffold and migrate, differentiate, and eventually form new bone; thus various polymers have been blended with HA to combine the advantages of both polymer and HA. Biodegradable polymers, such as poly(lactic acid) (PLA) [86], poly(glycolic acid) (PGA), poly(lactide-co-glycolide) (PLGA) [87], and chitosan (CS) [88,89] have been widely used to develop hydroxyapatite/polymer biodegradable scaffolds for bone regeneration.

3.1. Hydroxyapatite/Polylactic Acid (HA/PLA) Composites

Polylactic acid (PLA) is a kind of linear aliphatic thermoplastic biodegradable polyester with good mechanical properties, thermoplastic and biocompatibility, and is easy to prepare [90]. It has become a promising polymer for various applications in the biomedical field. Since the 1980s, the research on HA/PLA composites has aroused much attention. In the recent ten years, the mechanical properties, biocompatibility and osteogenic properties of HA/PLA composites have been well investigated [91,92,93].
The content of HA will affect the mechanical properties of HA/PLA composites; furthermore, the HA/PLA composites have been prepared into various bone repair medical devices, such as the miniscrew and microplate. Y. Shikinami’s group used PLA composites with 30 wt% HA content for the miniscrew and 40 wt% HA for the microplate, respectively. It was found that although the mechanical property of the composite device was slightly lower than that of natural cortical bone, its strength was much higher than that of pure PLA, and it had excellent fatigue resistance. It can maintain 70% of the initial strength even after alternating bending 60 times, without any damage, while the metal device fully broke off 8 times [94]. There were also many other types of HA/PLA composites, for example, to mimic the nano-fribrous structure of natural extracellular matrix, nano-fibrous HA/PLA porous scaffold was fabricated by thermally induced phase separation (TIPS) method; the compressive modulus of pure PLA scaffold was only 0.2 MPa, while that of HA/PLA composite scaffold at 20:80 (weight ratio) was as high as 0.63 MPa, which was about three times that of pure PLA [95].
HA/PLA showed good biocompatibility in cell adhesion and proliferation towards MC3T3-E1 osteoblast precursor cells, MG-63 osteosarcoma cell and L929 fibroblast cells, and the expression of bone specific marker (osteocalcin) was increased [96,97,98]. Cell survival and adhesion can be regulated by protein preadsorption on the substrates [99]. The protein adsorption of HA/PLA composite scaffolds was studied by incubating the scaffolds in FBS/PBS solution. The addition of HA increased the adsorption capacity of protein. Compared with the PLA scaffold, HA/PLA 50:50 and HA/PLA 70:30 composite scaffolds absorbed 2.4 and 3.2 times serum protein, respectively [100].
HA/PLA composites can improve osteogenic response in vitro and osteogenesis in vivo [101,102,103]. In pure PLA scaffolds, osteoblasts mainly adhered to the outer surface of the polymer. In contrast, osteoblasts were embedded into HA/PLA scaffolds and distributed evenly, and when cultured in vitro for 6 weeks, the expression of bone specific markers (coding bone sialoprotein and osteocalcin) was more abundant in HA/PLA [104]. The ALP of the HA/PLA composite fiber was significantly higher than that of the pure PLA fiber after 7 days culture [101]. Based on these in vitro results, HA/PLA nanocomposite fibers are believed to promote the adhesion and growth of osteoblasts and stimulate them to play the functional activities of bone related cells.
HA/PLA composite has been widely investigated. However, the biodegradable acid product of PLA may have a negative effect; while HA can effectively neutralize the acidic products, creating a microenvironment conducive to wound healing and bone formation, some in vivo results have demonstrated that HA/PLA scaffolds had good osteogenic capability showing their potential as bone graft substitutes in reconstructive surgery [105]. In order to fulfil improving the functions of HA/PLA scaffolds, other materials such as collagen or growth factors may be blended with HA/PLA; for example, PLA/HA/collagen scaffold loaded with recombinant human bone morphogenetic protein 2 (rh-BMP 2) was implanted into the defect site of rabbit radius. After 12 weeks, the scaffold was completely fused with the defect area, showing the replacement of new bone (trabecular) tissue [106], and demonstrating the bone regeneration of HA/PLA composite materials.

3.2. Hydroxyapatite/Poly (Lactic Acid-co-Glycolic Acid) (HA/PLGA) Composites

In view of the good biocompatibility and mechanical properties, PLGA has been widely used in drug delivery, and skin, nerve and bone tissue regeneration [107,108,109,110]. The compressive strength of PLGA is not enough for any load bearing application; HA can reinforce the mechanical properties of PLGA. Fisher et al. prepared HA/PLGA composites and found that composites with 30% wt HA showed much better mechanical properties than that of PLGA; the strength of the composite was three times that of the polymer, and the compression modulus was also increased by six times. By injecting the injectable HA/PLGA scaffold material into the femoral head model, the compress modulus and strength of the trabecular increased from 3.5 MPa to 5.9 MPa and from 81 to 180 MPa, respectively [111].
HA/PLGA had better biocompatibility than pure PLGA. MTT assay was used to detect the metabolic activity of MC3T3-E1 cells at 1 d, 4 d and 7 d. It was found that cell proliferation in the HA/PLGA group was significantly higher than that of the PLGA group on day 4 and 7 [112]. Compared with PLGA scaffold, HA/PLGA scaffold co-cultured with MSC had better cell adhesion, increasing cell proliferation ability and stronger ALP activity [113].
HA/PLGA has improved osteogenic compared with PLGA. MC3T3-E1 cells were inoculated on PLGA/HA/GO nanofibers; after 7 days of culture, the expression of Runx-2 in HA/PLGA nanofiber matrix was significantly higher than that in the PLGA nanofiber group. After 21 days of culture, the amount of ALP and calcium deposition in the HA/PLGA group was 1.5 and 2.3 times higher than that in the PLGA group, respectively [112]. Petrica and colleagues produced HA/PLGA composites and found that 30% HA added into the polymer would maximize the material osteoconductivity [114]. In the animal experiment of mandibular defect, HA/PLGA scaffold showed a small amount of trabecular bone formed by osteoblasts at 6 weeks, and transformed into mature bone tissue at the end of 12 weeks, but it took 48 weeks for the PLGA control scaffold to form mature bone tissue to fill the defect [115]. The mechanism may be related to the addition of hydroxyapatite, which is more favorable to the deposition of calcium and phosphorus ions, and the fact that HA can reduce the degradation rate of PLGA and control the pH value during degradation.

3.3. Hydroxyapatite/Chitosan (HA/CS) Composite

Chitosan (CS) is a copolymer of D-glucosamine and N-acetyl-D-glucosamine [116]. Due to its biodegradable, non-toxic, antibacterial and biocompatible properties, CS can be used as a scaffold material or growth factor carrier in bone tissue engineering, and has attracted much attention [117,118]. Unfortunately, pure chitosan scaffolds have poor mechanical properties, and lack osteoconductivity. HA nanoparticles can be blended into the chitosan matrix to prepare chitosan-based composites with the potential of bionic natural bone [119,120].
The introduction of HA into chitosan can improve the mechanical properties of CS composite, and has been reported to be used in bone-filling paste and bone tissue engineering [121,122]. The aggregation of HA nanoparticles is a drawback of this kind of material, however, Hu et al. proposed a simple in situ hybridization method to prepare HA/CS nanocomposites, which can solve the aggregation problem. The initial mechanical properties of bending strength and modulus of the composite are 86 MPa and 3.4 Gpa, which are much higher than those of bone cement, demonstrating their potential application for internal fixation of long bone fractures [123]. HA/CS scaffold also possesses quite good biocompatibility. Compared with pure chitosan scaffold, HA/CS composite enhanced cell adhesion, spreading and proliferation of human mesenchymal stem cells (hMSCs) [124,125].
HA/CS biocomposites can induce osteoinduction and osseointegration, and promoted bone formation in different bone defects [126,127]. HA/CS and pure chitosan were implanted into the left femoral condyle of 43 adult New Zealand white rabbits to repair the femoral condyle defect (6 mm diameter, 10 mm length). The results showed that after 12 weeks of surgery, complete healing of the segmental bone defects was observed in rabbits implanted with the HA/CS scaffold, while the defects were still observed in the pure chitosan group [128]. HA/CS composite can also be used as a functional coating on other implants to produce biomaterials with excellent ossteoinduction properties. For example, Wang et al. coated HA/CS on a titanium surface (denoted as: cTi) and used them under diabetic conditions [129]. The histological analysis at the bone/implant interface showed that after 4 weeks, little regenerative bone was integrated into Ti or cTi. However, after 12 weeks, more bone contact was observed and a larger amount of new bone grew into the cTi implant than it did into the Ti implants (Figure 3) [129].

3.4. Hydroxyapatite/Other Degradable Polymers

There are many other HA/degradable polymer composites, such as HA/collagen, HA/gelatin and HA/PCL; these are widely investigated in bone tissue engineering. All these composites have proper mechanical and exciting bioproperties. HA/collagen was improved in term of adhesion, proliferation and differentiation of seeded MSCs [130]. HA/gelatin composite can increase the elastic modulus and decrease the toughness of the scaffold with increasing HA content; the compressive modulus was about 180 MPa which was very similar to that of natural sponge bone [131]. As for hydroxyapatite polycaprolactone (HA/PCL) composite, when the volume ratio of HA increased from 0% to 30%, the elastic modulus of HA/PCL scaffold increased from 299.3 to 498.3 MPa, and the compressive modulus was 2.4 times that of PCL [132]. Furthermore, the porous HA/PCL scaffolds could improve the proliferation and cell viability of primary fetal bovine osteoblasts more effectively than PCL scaffolds [133].
These composites can make full use of the advantages of different biodegradable materials and have broad prospects in bone tissue engineering. However, during the preparation of composites, HA nanoparticles may agglomerate easily, which induce early failure at the interface, limiting the application of the composites [134]. Therefore, it is of great significance to study the dispersion of nanoparticles in the polymer matrix, and thus many works have been carried out to tune the surface properties of HA and improve its phase compatibility with the polymer matrix.

4. Surface Modified HA and Its Polymer Composites

4.1. Surface Modification of HA Nanoparticles

The surface of HA can be modified to have unique properties by selecting different functional composites. The most important methods of surface modification can be divided into “grafting to” or “grafting from’’ approaches [135,136].
One of the most important reactions for surface modification of HA is the condensation reaction, such as esterification and amidation. In 1996, Liu et al. developed a method to modify the surface of hydroxyapatite with polyelectrolyte polyacrylic acid (PAA) in an aqueous solution, and then the modified HA was used as fillers to blend with polyactive TM70/30. The elongation at break, tensile strength and elastic modulus of the composite can be significantly improved by this method [137]. In addition, the research group also used poly(ethylene-co-maleic acid) (PEMA) to tune the surface properties of HA. The mechanical properties of the composites can be significantly improved in both dry and wet states. Fracture analysis showed that the surface modified hydroxyapatite particles maintained good contact at the fracture site [138].
PLLA can be grafted onto the surface of HA nanoparticles via the polycondensation method and form PLLA grafted HA (p-HA) [139]. The surface grafted PLLA may increase the compatibility between HA and the polymer matrix, and thus the mechanical properties of p-HA/PLLA were improved. The tensile strength of p-HA/PLLA is 68.7 MPa, while that of HA/PLLA is only 43 MPa [139]. Hong and colleagues prepared p-HA nanoparticles via the Ring-opening polymerization of L-lactide [140]; p-HA can be dispersed more homogeneously in chloroform. Compared with HA/PLLA composites, p-HA/PLLA composites have better mechanical properties. When the content of p-HA was 4 wt%, the tensile strength was about 75 MPa, about 13% higher than that of PLLA [140,141].
Organic coupling agent can also be used to tune the surface of hydroxyapatite nanoparticles; the functional groups of the coupling agent can react with other materials, and thus it is an effective method to prepare surface modified HA via the coupling agent as a bridge molecule. For example, 3-aminopropyltriethoxysilane (APES) can react with carboxyl containing polymers or other organic molecules by amidation, and then graft onto inorganic particles by condensation of the silane alcohol groups [142]. Chen’s group prepared a novel HA hybrid material by surface modification with electroactive aniline tetramers [143]. The method is simple, and can be used widely in the grafting of other functional groups or polymers on the surface of HA. Rakmae et al. reported that APES or 3-methacryloyloxypropyltrimethoxysilane could be used to modify the surface of HA particles to increase the compatibility between inorganic fillers and the polymer matrix, and significantly improve the mechanical and thermal properties of the composites [144]. In addition, 2-carboxyethylphosphonic acid (CEPA) is another coupling agent and can be used to modify the surface of HA particles. When CEPA modified HA(C-HA) was blended with PLA, the results showed that C-HA dispersed homogeneously in the PLLA matrix, which can improve the interfacial interaction between the PLA matrix and the nanoparticles. The tensile strength and modulus of C-HA/PLA scaffold containing 20% C-HA were 1.4 and 2.79 times higher, respectively, than those of HA/PLA [145].
HA can also be chemically modified by drugs, proteins and growth factors through various technologies, which may greatly improve the applications of HA. Huang et al. proposed a simple method to graft bone morphogenetic protein-2 (BMP-2) on the surface of HA nanoparticles, which may preserve the bioactivity and slow release of BMP-2 [146]. When the BMP-2 modified HA (HA-BMP) was blended with gelatin methacrylamide and four-armed PEG methacrylamide, the BMP-2 may also increase the phase interaction between HA and polymer chains via hydrogen bounding; more importantly, when the composite was implanted in a rat skull defect model, the new bone volume and osteogenesis rate were as high as 50.54 ± 13.51 mm and 64.38 ± 17.22%, respectively, showing great potential in bone regeneration therapy [146].

4.2. Application of Surface Modified HA in Bone Tissue Engineering

The surface modification of HA can adjust its surface properties, and may improve the phase compatibility between HA and polymers, and thus the modified HA/polymer composites may show much better mechanical properties than that of pure HA/polymer, which may promote their application in bone tissue engineering. Zhang et al. prepared 3-D porous scaffold with PLA grafted HA/PLGA (p-HA/PLGA) composite and investigated the mineralization and osteogenesis properties via in vivo rabbit radius repair experiments. The results showed that p-HA/PLGA scaffold was more stable than PLGA, and the biodegradability and degree of mineralization were similar to those of HA/PLGA. The in vivo results showed that the p-HA/PLGA scaffolds loaded with BMP-2 have much better osteogenesis properties than PLGA; after 4 and 8 weeks post-surgery, the bone bridges were more perfect and smooth than those in the PLGA group (Figure 4) [147]. Cui et al. also prepared a p-HA/PLGA scaffold with various p-HA content, and used it for bone repair experiments. Their in vivo results showed that the scaffolds could promote bone healing very well [148]. Song et al. used p-HA as nanofiller to prepare a p-HA/PLGA nanofiber membrane via the electrospinning method, and investigated their mechanical and invitro bioproperties. The results demonstrated that the surface modification of HA improved the dispersion of HA particles in the PLGA matrix; furthermore, the bioactivity test and biocompatibility test suggested that the bioresorbable p-HA//PLGA composite fiber membranes could be utilized for guided bone regeneration [149]. Wei et al. prepared poly (γ-benzyl-L-glutamate) modified hydroxyapatite/(poly (L-lactic acid)) (PBLG-g-HA/PLLA) composite scaffolds, and their osteogenic properties were investigated by analyzing new bone formation in 3 mm bilateral femur defects in 18 Wistar female rats in vivo. The results showed that the PBLG-g-HA/PLLA scaffold had good osteogenic properties and may have broad applications in bone tissue engineering [150]. Up to now, the research and application of polymer modified HA and their composites are still very limited, however, due to their merits in improving the mechanical and biological properties, this kind of composite should arouse increasing attention in engineering bone tissue scaffolds.

5. Prospective

Bone tissue engineering is a promising method to realize the construction of new bone tissue and to rebuild bone functions. HA, due to its similarity to natural bone’s composition, showed great potential applications. In this review, HA-based materials were briefly introduced; the content covered inorganic materials and polymer composites, which may be helpful for readers to get a comprehensive understanding about HA. We think it may fall in the interest points of material science or clinic investigators who are interested in bone tissue engineering or bone regeneration.
Although many works have been done, in particular, substantial progress has been made in developing materials with sufficient mechanical strength, there are still great challenges to prepare ideal tissue engineering scaffolds with HA as the nano-building block. With the understanding of natural bone structure and the microenvironment for bone regeneration, an increasing number of biomimetic structure scaffolds based on HA will be investigated. Furthermore, new biomimetic or bioinspired methods will be proposed to prepare various HA based scaffolds. The use of HA particles as a key building block serves as a basis for multifunctional HA particles which can satisfy the tissue microenvironment or conquer clinical challenges and will arouse increasing attention.

Author Contributions

Conceptualization, J.W. and H.S.; writing-original draft preparation, H.S., Z.Z. and W.L.; writing—review and editing, J.W. and Y.F.; supervision, Z.L.; project administration, Z.L. and J.W.; funding acquisition, Z.L. and J.W. All authors have read and agreed to the published version of the manuscript.


This research was funded by the National Natural Science Foundation of China (No. 51663017&81960205) and Jiangxi Key Research and Development Program (20202BBG73012).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Balogh, Z.J.; Reumann, M.K.; Gruen, R.L.; Mayer-Kuckuk, P.; Schuetz, M.A.; Harris, I.A.; Gabbe, B.J.; Bhandari, M. Advances and future directions for management of trauma patients with musculoskeletal injuries. Lancet 2012, 380, 1109–1119. [Google Scholar] [CrossRef]
  2. Langer, R.; Vacanti, J.P. Tissue Engineering. Science 1993, 260, 920–926. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Pegg, D.E. Principles of Tissue Engineering. Cryobiology 1999, 39, 378–379. [Google Scholar] [CrossRef]
  4. Burg, K.J.; Porter, S.; Kellam, J.F. Biomaterial developments for bone tissue engineering. Biomaterials 2000, 21, 2347–2359. [Google Scholar] [CrossRef]
  5. Shah, N.J.; Mao, A.S.; Shih, T.Y.; Kerr, M.D.; Sharda, A.; Raimondo, T.M.; Weaver, J.C.; Vrbanac, V.D.; Deruaz, M.; Tager, A.M.; et al. An injectable bone marrow-like scaffold enhances T cell immunity after hematopoietic stem cell transplantation. Nat. Biotechnol. 2019, 37, 293–302. [Google Scholar] [CrossRef] [PubMed]
  6. Zhao, R.; Xie, P.; Zhang, K.; Tang, Z.; Chen, X.; Zhu, X.; Fan, Y.; Yang, X.; Zhang, X. Selective effectof hydroxyapatite nanoparticles on osteoporotic and healthy bone formation correlates with intracellular calcium homeostasis regulation. Acta Biomater. 2017, 59, 338–350. [Google Scholar] [CrossRef] [PubMed]
  7. Murugan, R.; Ramakrishna, S. Bioresorbable composite bone paste using polysaccharide based nano hydroxyapatite. Biomaterials 2004, 25, 3829–3835. [Google Scholar] [CrossRef]
  8. LeGeros, R.Z. Calcium phosphate-based osteoinductive materials. Chem. Rev. 2008, 108, 4742–4753. [Google Scholar] [CrossRef] [PubMed]
  9. Oliveira, H.L.; Da Rosa, W.L.O.; Cuevas-Suárez, C.E.; Carre, O.N.L.V.; Da Silva, A.F.; Guim, T.N.; Dellagostin, O.A.; Piva, E. Histological Evaluation of Bone Repair with Hydroxyapatite: A Systematic Review. Calcified. Tissue Int. 2017, 101, 314–325. [Google Scholar] [CrossRef]
  10. Szczes, A.; Holysz, L.; Chibowski, E. Synthesis of hydroxyapatite for biomedical applications. Adv. Colloid Interface Sci. 2017, 249, 321–330. [Google Scholar] [CrossRef]
  11. Koons, G.L.; Diba, M.; Mikos, A.G. Materials design for bone-tissue engineering. Nat. Rev. Mater. 2020, 5, 584–603. [Google Scholar] [CrossRef]
  12. Arcos, D.; Vallet-Regi, M. Substituted hydroxyapatite coatings of bone implants. J. Mater. Chem. B 2020, 8, 1781–1800. [Google Scholar] [CrossRef] [PubMed]
  13. Molino, G.; Palmieri, M.C.; Montalbano, G.; Fiorilli, S.; Vitale-Brovarone, C. Biomimetic and mesoporous nano-hydroxyapatite for bone tissue application: A short review. Biomed. Mater. 2020, 15, 22001. [Google Scholar] [CrossRef] [PubMed]
  14. Choi, G.; Choi, A.H.; Evans, L.A.; Akyol, S.; Ben-Nissan, B. A review: Recent advances in sol-gel-derived hydroxyapatite nanocoatings for clinical applications. J. Am. Ceram. Soc. 2020, 103, 5442–5453. [Google Scholar] [CrossRef]
  15. Awasthi, S.; Pandey, S.K.; Arunan, E.; Srivastava, C. A review on hydroxyapatite coatings for the biomedical applications: Experimental and theoretical perspectives. J. Mat. Chem. B 2021. [Google Scholar] [CrossRef]
  16. Safarzadeh, M.; Ramesh, S.; Tan, C.Y.; Chandran, H.; Noor, A.F.M.; Krishnasamy, S.; Alengaram, U.J.; Ramesh, S. Effect of multi-ions doping on the properties of carbonated hydroxyapatite bioceramic. Ceram. Int. 2019, 45, 3473–3477. [Google Scholar] [CrossRef]
  17. Driessens, F.C.; Boltong, M.G.; de Maeyer, E.A.; Wenz, R.; Nies, B.; Planell, J.A. The Ca/P range of nanoapatitic calcium phosphate cements. Biomaterials 2002, 23, 4011–4017. [Google Scholar] [CrossRef]
  18. Webster, T.J.; Ergun, C.; Doremus, R.H.; Bizios, R. Hydroxyapatite with substituted magnesium, zinc, cadmium, and yttrium. II. Mechanisms of osteoblast adhesion. J. Biomed. Mater. Res. 2002, 59, 312–317. [Google Scholar] [CrossRef]
  19. Porter, A.E.; Patel, N.; Skepper, J.N.; Best, S.M.; Bonfield, W. Comparison of in vivo dissolution processes in hydroxyapatite and silicon-substituted hydroxyapatite bioceramics. Biomaterials 2003, 24, 4609–4620. [Google Scholar]
  20. Luo, X.; Barbieri, D.; Davison, N.; Yan, Y.; de Bruijn, J.D.; Yuan, H. Zinc in calcium phosphate mediates bone induction: In vitro and in vivo model. Acta Biomater. 2014, 10, 477–485. [Google Scholar] [CrossRef]
  21. Rachner, T.D.; Khosla, S.; Hofbauer, L.C. Osteoporosis: Now and the future. Lancet 2011, 377, 1276–1287. [Google Scholar] [CrossRef][Green Version]
  22. Canalis, E.; Hott, M.; Deloffre, P.; Tsouderos, Y.; Marie, P.J. The divalent strontium salt S12911 enhances bone cell replication and bone formation in vitro. Bone 1996, 18, 517–523. [Google Scholar] [CrossRef]
  23. Ammann, P.; Shen, V.; Robin, B.; Mauras, Y.; Bonjour, J.P.; Rizzoli, R. Strontium ranelate improves bone resistance by increasing bone mass and improving architecture in intact female rats. J. Bone. Miner. Res. 2004, 19, 2012–2020. [Google Scholar] [CrossRef] [PubMed]
  24. Maciel, P.P.; Pessa, J.A.M.; Medeiros, E.L.G.D.; Batista, A.U.D.; Bonan, P.R.F. Use of strontium doping glass-ceramic material for bone regeneration in critical defect: In vitro and in vivo analyses. Ceram. Int. 2020, 46, 24940–24954. [Google Scholar] [CrossRef]
  25. Koutsoukos, P.G.; Nancollas, G.H. Influence of strontium ion on the crystallization of hydroxyapatite from aqueous solution. J. Phys. Chem. 1981, 85, 62–71. [Google Scholar] [CrossRef]
  26. Guo, D.; Xu, K.; Zhao, X.; Han, Y. Development of a strontium-containing hydroxyapatite bone cement. Biomaterials 2005, 26, 4073–4083. [Google Scholar] [CrossRef]
  27. Frasnelli, M.; Cristofaro, F.; Sglavo, V.M.; Dirè, S.; Visai, L. Synthesis and characterization of strontium-substituted hydroxyapatite nanoparticles for bone regeneration. Mater. Sci. Eng. C Mater. Biol. Appl. 2017, 71, 653–662. [Google Scholar] [CrossRef]
  28. Wang, Q.; Li, P.; Tang, P.; Ge, X.; Ren, F.; Zhao, C.; Fang, J.; Wang, K.; Fang, L.; Li, Y.; et al. Experimental and simulation studies of strontium/fluoride-codoped hydroxyapatite nanoparticles with osteogenic and antibacterial activities. Colloids Surf. B Biointerfaces 2019, 182, 110359. [Google Scholar] [CrossRef]
  29. Bianchi, M.; Degli Esposti, L.; Ballardini, A.; Liscio, F.; Berni, M.; Gambardella, A.; Leeuwenburgh, S.C.G.; Sprio, S.; Tampieri, A.; Iafisco, M. Strontium doped calcium phosphate coatings on poly(etheretherketone) (PEEK) by pulsed electron deposition. Surf. Coat. Tech. 2017, 319, 191–199. [Google Scholar] [CrossRef]
  30. Yang, F.; Yang, D.; Tu, J.; Zheng, Q.; Cai, L.; Wang, L. Strontium enhances osteogenic differentiation of mesenchymal stem cells and in vivo bone formation by activating Wnt/catenin signaling. Stem Cells 2011, 29, 981–991. [Google Scholar] [CrossRef]
  31. Capuccini, C.; Torricelli, P.; Sima, F.; Boanini, E.; Ristoscu, C.; Bracci, B.; Socol, G.; Fini, M.; Mihailescu, I.N.; Bigi, A. Strontium-substituted hydroxyapatite coatings synthesized by pulsed-laser deposition: In vitro osteoblast and osteoclast response. Acta Biomater. 2008, 4, 1885–1893. [Google Scholar] [CrossRef] [PubMed]
  32. Zhou, J.; Li, B.; Lu, S.; Zhang, L.; Han, Y. Regulation of osteoblast proliferation and differentiation by interrod spacing of Sr-HA nanorods on microporous titania coatings. ACS Appl. Mater. Interfaces 2013, 5, 5358–5365. [Google Scholar] [CrossRef] [PubMed]
  33. Gao, L.; Huang, Z.; Yan, S.; Zhang, K.; Xu, S.; Li, G.; Cui, L.; Yin, J. Sr-HA-graft-Poly(gamma-benzyl-l-glutamate) Nanocomposite Microcarriers: Controllable Sr2+ Release for Accelerating Osteogenenisis and Bony Nonunion Repair. Biomacromolecules 2017, 18, 3742–3752. [Google Scholar] [CrossRef] [PubMed]
  34. Ni, G.X.; Lu, W.W.; Chiu, K.Y.; Li, Z.Y.; Fong, D.Y.; Luk, K.D. Strontium-containing hydroxyapatite (Sr-HA) bioactive cement for primary hip replacement: An in vivo study. J. Biomed. Mater. Res. Part B 2006, 77, 409–415. [Google Scholar] [CrossRef] [PubMed]
  35. Busse, B.; Jobke, B.; Hahn, M.; Priemel, M.; Niecke, M.; Seitz, S.; Zustin, J.; Semler, J.; Amling, M. Effects of strontium ranelate administration on bisphosphonate-altered hydroxyapatite: Matrix incorporation of strontium is accompanied by changes in mineralization and microstructure. Acta Biomater. 2010, 6, 4513–4521. [Google Scholar] [CrossRef] [PubMed]
  36. Kabir, H.; Munir, K.; Wen, C.; Li, Y. Recent research and progress of biodegradable zinc alloys and composites for biomedical applications: Biomechanical and biocorrosion perspectives. Bioact. Mater. 2021, 6, 836–879. [Google Scholar] [CrossRef]
  37. Coleman, J.E. Zinc proteins: Enzymes, storage proteins, transcription factors, and replication proteins. Annu. Rev. Biochem. 1992, 61, 897–946. [Google Scholar] [CrossRef]
  38. Hoppe, A.; Guldal, N.S.; Boccaccini, A.R. A review of the biological response to ionic dissolution products from bioactive glasses and glass-ceramics. Biomaterials 2011, 32, 2757–2774. [Google Scholar] [CrossRef]
  39. Chopra, V.; Thomas, J.; Sharma, A.; Panwar, V.; Kaushik, S.; Sharma, S.; Porwal, K.; Kulkarni, C.; Rajput, S.; Singh, H.; et al. Synthesis and Evaluation of a Zinc Eluting rGO/Hydroxyapatite Nanocomposite Optimized for Bone Augmentation. ACS Biomater. Sci. Eng. 2020, 6, 6710–6725. [Google Scholar] [CrossRef]
  40. Toledano, M.; Osorio, R.; Vallecillo-Rivas, M.; Osorio, E.; Lynch, C.D.; Aguilera, F.S.; Toledano, R.; Sauro, S. Zn-doping of silicate and hydroxyapatite-based cements: Dentin mechanobiology and bioactivity. J. Mech. Behav. Biomed. Mater. 2020, 114, 104232. [Google Scholar] [CrossRef]
  41. Martinez-Zelaya, V.R.; Zarranz, L.; Herrera, E.Z.; Alves, A.T.; Uzeda, M.J.; Mavropoulos, E.; Rossi, A.L.; Mello, A.; Granjeiro, J.M.; Calasans-Maia, M.D.; et al. In vitro and in vivo evaluations of nanocrystalline Zn-doped carbonated hydroxyapatite/alginate microspheres: Zinc and calcium bioavailability and bone regeneration. Int. J. Nanomed. 2019, 14, 3471–3490. [Google Scholar] [CrossRef] [PubMed][Green Version]
  42. Jallot, E.; Nedelec, J.M.; Grimault, A.S.; Chassot, E.; Grandjean-Laquerriere, A.; Laquerriere, P.; Laurent-Maquin, D. STEM and EDXS characterisation of physico-chemical reactions at the periphery of sol-gel derived Zn-substituted hydroxyapatites during interactions with biological fluids. Colloids Surf. B Biointerfaces 2005, 42, 205–210. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Rachele, S.; Devis, B.; Candidato, R.T.; Luca, L.; Giovanni, B.; Lech, P.; Gabriele, C.; Lina, A.; Luigi, D.N.; Valeria, C. Bioactive Zn-doped hydroxyapatite coatings and their antibacterial efficacy against Escherichia coli and Staphylococcus aureus. Surf. Coat. Tech. 2018, 352, 84–91. [Google Scholar]
  44. de Lima, C.O.; de Oliveira, A.; Chantelle, L.; Silva, F.E.; Jaber, M.; Fonseca, M.G. Zn-doped mesoporous hydroxyapatites and their antimicrobial properties. Colloids Surf. B Biointerfaces 2020, 111471. [Google Scholar] [CrossRef] [PubMed]
  45. Predoi, D.; Iconaru, S.; Predoi, M.; Buton, N.; Motelica-Heino, M. Zinc Doped Hydroxyapatite Thin Films Prepared by Sol–Gel Spin Coating Procedure. Coatings 2019, 9, 156. [Google Scholar] [CrossRef][Green Version]
  46. Kim, J.S.; Kuk, E.; Yu, K.N.; Kim, J.H.; Park, S.J.; Lee, H.J.; Kim, S.H.; Park, Y.K.; Park, Y.H.; Hwang, C.Y.; et al. Antimicrobial effects of silver nanoparticles. Nanomedicine 2007, 3, 95–101. [Google Scholar] [CrossRef]
  47. Rai, M.; Yadav, A.; Gade, A. Silver nanoparticles as a new generation of antimicrobials. Biotechnol. Adv. 2009, 27, 76–83. [Google Scholar] [CrossRef]
  48. Mirzaee, M.; Vaezi, M.; Palizdar, Y. Synthesis and characterization of silver doped hydroxyapatite nanocomposite coatings and evaluation of their antibacterial and corrosion resistance properties in simulated body fluid. Mater. Sci. Eng. C-Mater. Biol. Appl. 2016, 69, 675–684. [Google Scholar] [CrossRef]
  49. Roy, M.; Fielding, G.A.; Beyenal, H.; Bandyopadhyay, A.; Bose, S. Mechanical, in vitro antimicrobial, and biological properties of plasma-sprayed silver-doped hydroxyapatite coating. ACS Appl. Mater. Interfaces 2012, 4, 1341–1349. [Google Scholar] [CrossRef][Green Version]
  50. Ciobanu, C.S.; Massuyeau, F.; Constantin, L.V.; Predoi, D. Structural and physical properties of antibacterial Ag-doped nano-hydroxyapatite synthesized at 100 degrees. Nanoscale Res. Lett. 2011, 6, 613. [Google Scholar] [CrossRef][Green Version]
  51. Bai, X.; Sandukas, S.; Appleford, M.; Ong, J.L.; Rabiei, A. Antibacterial effect and cytotoxicity of Ag-doped functionally graded hydroxyapatite coatings. J. Biomed. Mater. Res. Part B 2012, 100, 553–561. [Google Scholar] [CrossRef] [PubMed]
  52. Jelinek, M.; Kocourek, T.; Jurek, K.; Remsa, J.; Miksovsky, J.; Weiserova, M.; Strnad, J.; Luxbacher, T. Antibacterial properties of Ag-doped hydroxyapatite layers prepared by PLD method. Appl. Phys. A 2010, 101, 615–620. [Google Scholar] [CrossRef]
  53. Qiuhua, Y.; Anping, X.; Ziqiang, Z.; Zehui, C.; Lei, W.; Xin, S.; Songxin, L.; Zhiyang, Y.; Libo, D. Bioactive silver doped hydroxyapatite composite coatings on metal substrates: Synthesis and characterization. Mater. Chem. Phys. 2018, 218, 130–139. [Google Scholar]
  54. Chen, W.; Liu, Y.; Courtney, H.S.; Bettenga, M.; Agrawal, C.M.; Bumgardner, J.D.; Ong, J.L. In vitro anti-bacterial and biological properties of magnetron co-sputtered silver-containing hydroxyapatite coating. Biomaterials 2006, 27, 5512–5517. [Google Scholar] [CrossRef]
  55. Carlisle, E.M. Silicon: A possible factor in bone calcification. Science 1970, 167, 279–280. [Google Scholar] [CrossRef]
  56. Gotz, W.; Tobiasch, E.; Witzleben, S.; Schulze, M. Effects of Silicon Compounds on Biomineralization, Osteogenesis, and Hard Tissue Formation. Pharmaceutics 2019, 11, 117. [Google Scholar] [CrossRef][Green Version]
  57. Fu, X.; Liu, P.; Zhao, D.; Yuan, B.; Xiao, Z.; Zhou, Y.; Yang, X.; Zhu, X.; Tu, C.; Zhang, X. Effects of Nanotopography Regulation and Silicon Doping on Angiogenic and Osteogenic Activities of Hydroxyapatite Coating on Titanium Implant. Int. J. Nanomed. 2020, 15, 4171–4189. [Google Scholar] [CrossRef]
  58. Thian, E.S.; Huang, J.; Best, S.M.; Barber, Z.H.; Bonfield, W. Magnetron co-sputtered silicon-containing hydroxyapatite thin films--an in vitro study. Biomaterials 2005, 26, 2947–2956. [Google Scholar] [CrossRef]
  59. Thian, E.S.; Huang, J.; Best, S.M.; Barber, Z.H.; Bonfield, W. Silicon-substituted hydroxyapatite: The next generation of bioactive coatings. Mater. Sci. Eng. C-Mater. Biol. Appl. 2007, 27, 251–256. [Google Scholar] [CrossRef]
  60. Porter, A.E.; Patel, N.; Skepper, J.N.; Best, S.M.; Bonfield, W. Effect of sintered silicate-substituted hydroxyapatite on remodelling processes at the bone-implant interface. Biomaterials 2004, 25, 3303–3314. [Google Scholar] [CrossRef]
  61. Patel, N.; Best, S.M.; Bonfield, W.; Gibson, I.R.; Hing, K.A.; Damien, E.; Revell, P.A. A comparative study on the in vivo behavior of hydroxyapatite and silicon substituted hydroxyapatite granules. J. Mater. Sci. Mater. Med. 2002, 13, 1199–1206. [Google Scholar] [CrossRef] [PubMed]
  62. Stanic, V.; Dimitrijevic, S.; Antonovic, D.G.; Jokic, B.M.; Zec, S.P.; Tanaskovic, S.T.; Raicevic, S. Synthesis of fluorine substituted hydroxyapatite nanopowders and application of the central composite design for determination of its antimicrobial effects. Appl. Surf. Sci. 2014, 290, 346–352. [Google Scholar] [CrossRef]
  63. Pak, C.Y.; Zerwekh, J.E.; Antich, P. Anabolic effects of fluoride on bone. Trends Endocrinol. Metab. 1995, 6, 229–234. [Google Scholar] [CrossRef]
  64. Farley, J.R.; Tarbaux, N.; Hall, S.; Baylink, D.J. Evidence that fluoride-stimulated 3[H]-thymidine incorporation in embryonic chick calvarial cell cultures is dependent on the presence of a bone cell mitogen, sensitive to changes in the phosphate concentration, and modulated by systemic skeletal effectors. Metabolism 1988, 37, 988–995. [Google Scholar] [CrossRef]
  65. Hashimoto, Y.; Ueda, M.; Kohiga, Y.; Imura, K.; Hontsu, S. Application of fluoridated hydroxyapatite thin film coatings using KrF pulsed laser deposition. Dent. Mater. J. 2018, 37, 408–413. [Google Scholar] [CrossRef] [PubMed][Green Version]
  66. Bakhsheshi-Rad, H.R.; Hamzah, E.; Daroonparvar, M.; Ebrahimi-Kahrizsangi, R.; Medraj, M. In-vitro corrosion inhibition mechanism of fluorine-doped hydroxyapatite and brushite coated Mg–Ca alloys for biomedical applications. Ceram. Int. 2014, 40, 7971–7982. [Google Scholar] [CrossRef]
  67. Pajor, K.; Pajchel, L.; Kolmas, J. Hydroxyapatite and Fluorapatite in Conservative Dentistry and Oral Implantology-A Review. Materials 2019, 12, 2683. [Google Scholar] [CrossRef][Green Version]
  68. Li, J.; Han, P.; Ji, W.; Song, Y.; Zhang, S.; Chen, Y.; Zhao, C.; Zhang, F.; Zhang, X.; Jiang, Y. The in vitro indirect cytotoxicity test and in vivo interface bioactivity evaluation of biodegradable FHA coated Mg–Zn alloys. Acta Biomater. 2011, 176, 1785–1788. [Google Scholar] [CrossRef]
  69. Rao, Q.; Guo, X.; Fan, X.; Dai, B.; Wu, J.; Gong, M.; Wu, C. Fluoridation of synthetic apatite: Effect on the formation of calcium-deficient hydroxyapatite and the properties of porous scaffold. Ceram. Int. 2016, 42, 3442–3451. [Google Scholar] [CrossRef]
  70. Li, Z.; Huang, B.; Mai, S.; Wu, X.; Zhang, H.; Qiao, W.; Luo, X.; Chen, Z. Effects of fluoridation of porcine hydroxyapatite on osteoblastic activity of human MG63 cells. Sci. Technol. Adv. Mater. 2015, 16, 35006. [Google Scholar] [CrossRef]
  71. Faidt, T.; Zeitz, C.; Grandthyll, S.; Hans, M.; Müller, F. Time Dependence of Fluoride Uptake in Hydroxyapatite. ACS Biomater. Sci. Eng. 2017, 3, 1822–1826. [Google Scholar] [CrossRef] [PubMed]
  72. Yin, X.; Bai, Y.; Zhou, S.; Ma, W.; Bai, X.; Chen, W. Solubility, Mechanical and Biological Properties of Fluoridated Hydroxyapatite/Calcium Silicate Gradient Coatings for Orthopedic and Dental Applications. J. Therm. Spray Techn. 2020, 29, 471–488. [Google Scholar] [CrossRef]
  73. Wang, L.; He, S.; Wu, X.; Liang, S.; Mu, Z.; Wei, J.; Deng, F.; Deng, Y.; Wei, S. Polyetheretherketone/nano-fluorohydroxyapatite composite with antimicrobial activity and osseointegration properties. Biomaterials 2014, 35, 6758–6775. [Google Scholar] [CrossRef]
  74. Ge, X.; Leng, Y.; Bao, C.; Xu, S.L.; Wang, R.; Ren, F. Antibacterial coatings of fluoridated hydroxyapatite for percutaneous implants. J. Biomed. Mater. Res. Part A 2010, 95, 588–599. [Google Scholar] [CrossRef] [PubMed]
  75. Kim, H.W.; Lee, E.J.; Kim, H.E.; Salih, V.; Knowles, J.C. Effect of fluoridation of hydroxyapatite in hydroxyapatite-polycaprolactone composites on osteoblast activity. Biomaterials 2005, 26, 4395–4404. [Google Scholar] [CrossRef]
  76. Sartori, M.; Giavaresi, G.; Tschon, M.; Martini, L.; Dolcini, L.; Fiorini, M.; Pressato, D.; Fini, M. Long-term in vivo experimental investigations on magnesium doped hydroxyapatite bone substitutes. J. Mater. Sci. Mater. Med. 2014, 25, 1495–1504. [Google Scholar] [CrossRef]
  77. Andres, N.C.; D’Elia, N.L.; Ruso, J.M.; Campelo, A.E.; Massheimer, V.L.; Messina, V.P. Manipulation of Mg2+-Ca2+ Switch on the Development of Bone Mimetic Hydroxyapatite. ACS Appl. Mater. Interfaces 2017, 9, 15698–15710. [Google Scholar] [CrossRef][Green Version]
  78. Andres, N.C.; Sieben, J.M.; Baldin, M.; Rodriguez, C.H.; Farniglietti, A.; Messina, V.P. Electroactive Mg2+-Hydroxyapatite Nanostructured Networks against Drug-Resistant Bone Infection Strains. ACS Appl. Mater. Interfaces 2018, 10, 19534–19544. [Google Scholar] [CrossRef]
  79. Yu, W.; Sun, T.; Ding, Z.; Qi, C.; Zhao, H.; Chen, F.; Shi, Z.; Zhu, Y.; Chen, D.; He, Y. Copper-doped mesoporous hydroxyapatite microspheres synthesized by a microwave-hydrothermal method using creatine phosphate as an organic phosphorus source: Application in drug delivery and enhanced bone regeneration. J. Mater. Chem. B 2017, 5, 1039–1052. [Google Scholar] [CrossRef]
  80. Hidalgo-Robatto, B.M.; López-álvarez, M.; Azevedo, A.S.; Dorado, J.; Serra, J.; Azevedo, N.F.; González, P. Pulsed laser deposition of copper and zinc doped hydroxyapatite coatings for biomedical applications. Surf. Coat. Technol. 2017, 33, 168–177. [Google Scholar] [CrossRef]
  81. Sedghi, R.; Shaabani, A.; Sayyari, N. Electrospun triazole-based chitosan nanofibers as a novel scaffolds for bone tissue repair and regeneration. Carbohydr. Polym. 2020, 230, 115707. [Google Scholar] [CrossRef] [PubMed]
  82. Kulanthaivel, S.; Roy, B.; Agarwal, T.; Giri, S.; Pramanik, K.; Pal, K.; Ray, S.S.; Maiti, T.K.; Banerjee, I. Cobalt doped proangiogenic hydroxyapatite for bone tissue engineering application. Mater. Sci. Eng. 2016, 58, 648–658. [Google Scholar] [CrossRef] [PubMed]
  83. Graziani, G.; Bianchi, M.; Sassoni, E.; Russo, A.; Marcacci, M. Ion-substituted calcium phosphate coatings deposited by plasma-assisted techniques: A review. Mater. Sci. Eng. C-Mater. Biol. Appl. 2017, 74, 219–229. [Google Scholar] [CrossRef] [PubMed]
  84. Nair, L.S.; Laurencin, C.T. Biodegradable polymers as biomaterials. Prog. Polym. Sci. 2007, 32, 762–798. [Google Scholar] [CrossRef]
  85. Shuai, C.; Yang, W.; Feng, P.; Peng, S.; Pan, H. Accelerated degradation of HAP/PLLA bone scaffold by PGA blending facilitates bioactivity and osteoconductivity. Bioact. Mater. 2021, 6, 490–502. [Google Scholar] [CrossRef] [PubMed]
  86. Madhavan, N.K.; Nair, N.R.; John, R.P. An overview of the recent developments in polylactide (PLA) research. Bioresour. Technol. 2010, 101, 8493–8501. [Google Scholar] [CrossRef]
  87. Zhao, D.; Zhu, T.; Li, J.; Cui, L.; Zhang, Z.; Zhuang, X.; Ding, J. Poly(lactic-co-glycolic acid)-based composite bone-substitute materials. Bioact. Mater. 2021, 6, 346–360. [Google Scholar] [CrossRef]
  88. Okada, T.; Nobunaga, Y.; Konishi, T.; Yoshioka, T.; Hayakawa, S.; Lopes, M.A.; Miyazaki, T.; Shirosaki, Y. Preparation of chitosan-hydroxyapatite composite mono-fiber using coagulation method and their mechanical properties. Carbohydr. Polym. 2017, 175, 355–360. [Google Scholar] [CrossRef]
  89. Muzzarelli, R.A.A. Chitins and chitosans for the repair of wounded skin, nerve, cartilage and bone. Carbohyd. Polym. 2009, 76, 167–182. [Google Scholar] [CrossRef]
  90. Athanasiou, K.A.; Niederauer, G.G.; Agrawal, C.M. Sterilization, toxicity, biocompatibility and clinical applications of polylactic acid/polyglycolic acid copolymers. Biomaterials 1996, 17, 93–102. [Google Scholar] [CrossRef]
  91. Carfi, P.F.; Conoscenti, G.; Greco, S.; La Carrubba, V.; Ghersi, G.; Brucato, V. Preparation, characterization and in vitro test of composites poly-lactic acid/hydroxyapatite scaffolds for bone tissue engineering. Int. J. Biol. Macromol. 2018, 119, 945–953. [Google Scholar] [CrossRef] [PubMed]
  92. Zhang, H.; Fu, Q.W.; Sun, T.W.; Chen, F.; Qi, C.; Wu, J.; Cai, Z.Y.; Qian, Q.R.; Zhu, Y.J. Amorphous calcium phosphate, hydroxyapatite and poly(d,l-lactic acid) composite nanofibers: Electrospinning preparation, mineralization and in vivo bone defect repair. Colloids Surf. B Biointerfaces 2015, 136, 27–36. [Google Scholar] [CrossRef] [PubMed]
  93. Corcione, C.E.; Gervaso, F.; Scalera, F.; Padmanabhan, K.S.; Madaghiele, M.; Montagna, F.; Sannino, A.; Licciulli, A.; Maffezzoli, A. Highly loaded hydroxyapatite microsphere/ PLA porous scaffolds obtained by fused deposition modelling. Ceram. Int. 2019, 45, 2803–2810. [Google Scholar] [CrossRef]
  94. Shikinami, Y.; Okuno, M. Bioresorbable devices made of forged composites of hydroxyapatite (HA) particles and poly L-lactide (PLLA). Part II: Practical properties of miniscrews and miniplates. Biomaterials 2001, 22, 3197–3211. [Google Scholar] [CrossRef]
  95. Wang, X.; Song, G.; Lou, T. Fabrication and characterization of nano composite scaffold of poly(L-lactic acid)/hydroxyapatite. J. Mater. Sci. Mater. Med. 2010, 21, 183–188. [Google Scholar] [CrossRef]
  96. Smith, I.O.; Mccabe, L.R.; Baumann, M.J. MC3T3-E1 osteoblast attachment and proliferation on porous hydroxyapatite scaffolds fabricated with nanophase powder. Int. J. Nanomed. 2006, 1, 189–194. [Google Scholar] [CrossRef]
  97. He, H.; Yu, J.; Cao, J.E.L.; Wang, D.; Zhang, H.; Liu, H. Biocompatibility and Osteogenic Capacity of Periodontal Ligament Stem Cells on nHAC/PLA and HA/TCP Scaffolds. J. Biomater. Sci. Polym. Ed. 2011, 22, 179–194. [Google Scholar] [CrossRef]
  98. Wan, Y.; Wu, C.; Xiong, G.; Zuo, G.; Jin, J.; Ren, K.; Zhu, Y.; Wang, Z.; Luo, H. Mechanical properties and cytotoxicity of nanoplate-like hydroxyapatite/polylactide nanocomposites prepared by intercalation technique. J. Mech. Behav. Biomed. Mater. 2015, 47, 29–37. [Google Scholar] [CrossRef]
  99. Webster, T.J.; Siegel, R.W.; Bizios, R. Osteoblast adhesion on nanophase ceramics. Biomaterials 1999, 20, 1221–1227. [Google Scholar] [CrossRef]
  100. Wei, G.; Ma, P.X. Structure and properties of nano-hydroxyapatite/polymer composite scaffolds for bone tissue engineering. Biomaterials 2004, 25, 4749–4757. [Google Scholar] [CrossRef]
  101. Kim, H.W.; Lee, H.H.; Knowles, J.C. Electrospinning biomedical nanocomposite fibers of hydroxyapatite/poly(lactic acid) for bone regeneration. J. Biomed. Mater. Res. Part A 2006, 79, 643–649. [Google Scholar] [CrossRef] [PubMed]
  102. Sui, G.; Yang, X.; Mei, F.; Hu, X.; Chen, G.; Deng, X.; Ryu, S. Poly-L-lactic acid/hydroxyapatite hybrid membrane for bone tissue regeneration. J. Biomed. Mater. Res. Part A 2007, 82, 445–454. [Google Scholar] [CrossRef] [PubMed]
  103. Bharadwaz, A.; Jayasuriya, A.C. Recent trends in the application of widely used natural and synthetic polymer nanocomposites in bone tissue regeneration. Mater. Sci. Eng. C-Mater. Biol. Appl. 2020, 110, 110698. [Google Scholar] [CrossRef] [PubMed]
  104. Raghavendran, H.R.B.; Puvaneswary, S.; Talebian, S.; Murali, M.R.; Naveen, S.V.; Krishnamurithy, G.; McKean, R.; Kamarul, T. A comparative study on in vitro osteogenic priming potential of electron spun scaffold PLLA/HA/Col, PLLA/HA, and PLLA/Col for tissue engineering application. PLoS ONE 2014, 9, e104389. [Google Scholar] [CrossRef] [PubMed][Green Version]
  105. Zhang, H.; Mao, X.; Du, Z.; Jiang, W.; Han, X.; Zhao, D.; Han, D.; Li, Q. Three dimensional printed macroporous polylactic acid/hydroxyapatite composite scaffolds for promoting bone formation in a critical-size rat calvarial defect model. Sci. Technol. Adv. Mater. 2016, 17, 136–148. [Google Scholar] [CrossRef] [PubMed][Green Version]
  106. Liao, S.S.; Cui, F.Z.; Zhang, W.; Feng, Q.L. Hierarchically biomimetic bone scaffold materials: Nano-HA/collagen/PLA composite. J. Biomed. Mater. Res. Part B 2004, 69, 158–165. [Google Scholar] [CrossRef]
  107. Norouzi, M.; Shabani, I.; Ahvaz, H.H.; Soleimani, M. PLGA/gelatin hybrid nanofibrous scaffolds encapsulating EGF for skin regeneration. J. Biomed. Mater. Res. Part A 2015, 103, 2225–2235. [Google Scholar] [CrossRef]
  108. Huang, Y.C.; Connell, M.; Park, Y.; Mooney, D.J.; Rice, K.G. Fabrication and in vitro testing of polymeric delivery system for condensed DNA. J. Biomed. Mater. Res. Part A 2003, 67, 1384–1392. [Google Scholar] [CrossRef]
  109. Okamoto, M.; John, B. Synthetic biopolymer nanocomposites for tissue engineering scaffolds. Prog. Polym. Sci. 2013, 38, 1487–1503. [Google Scholar] [CrossRef]
  110. Danhier, F.; Ansorena, E.; Silva, J.M.; Coco, R.; Le Breton, A.; Preat, V. PLGA-based nanoparticles: An overview of biomedical applications. J. Control. Release 2012, 161, 505–522. [Google Scholar] [CrossRef]
  111. Fisher, P.D.; Venugopal, G.; Milbrandt, T.A.; Hilt, J.Z.; Puleo, D.A. Hydroxyapatite-reinforced in situ forming PLGA systems for intraosseous injection. J. Biomed. Mater. Res. Part A 2015, 103, 2365–2373. [Google Scholar] [CrossRef] [PubMed]
  112. Fu, C.; Bai, H.; Zhu, J.; Niu, Z.; Bai, Y. Enhanced cell proliferation and osteogenic differentiation in electrospun PLGA/hydroxyapatite nanofibre scaffolds incorporated with graphene oxide. PLoS ONE 2017, 12, e188352. [Google Scholar] [CrossRef] [PubMed]
  113. Huang, Y.X.; Ren, J.; Chen, C.; Ren, T.B.; Zhou, X.Y. Preparation and Properties of Poly(lactide-co-glycolide) (PLGA)/ Nano-Hydroxyapatite (NHA) Scaffolds by Thermally Induced Phase Separation and Rabbit MSCs Culture on Scaffolds. J. Biomater. Appl. 2008, 22, 409–432. [Google Scholar] [CrossRef] [PubMed]
  114. Petricca, S.E.; Marra, K.G.; Kumta, P.N. Chemical synthesis of poly(lactic-co-glycolic acid)/hydroxyapatite composites for orthopaedic applications. Acta Biomater. 2006, 2, 277–286. [Google Scholar] [CrossRef]
  115. Cieslik, M.; Mertas, A.; Morawska-Chochol, A.; Sabat, D.; Orlicki, R.; Owczarek, A.; Krol, W.; Cieslik, T. The evaluation of the possibilities of using PLGA co-polymer and its composites with carbon fibers or hydroxyapatite in the bone tissue regeneration process in vitro and in vivo examinations. Int. J. Mol. Sci. 2009, 10, 3224–3234. [Google Scholar]
  116. Kumar, M.N.V.R.; Muzzarelli, R.A.A.; Muzzarelli, C.; Sashiwa, H.; Domb, A.J. Chitosan chemistry and pharmaceutical perspectives. Chem. Rev. 2004, 104, 6017–6084. [Google Scholar] [CrossRef]
  117. Kim, I.Y.; Seo, S.J.; Moon, H.S.; Yoo, M.K.; Park, I.Y.; Kim, B.C.; Cho, C.S. Chitosan and its derivatives for tissue engineering applications. Biotechnol. Adv. 2008, 26, 1–21. [Google Scholar] [CrossRef]
  118. Zou, Z.; Wang, L.; Zhou, Z.; Sun, Q.; Liu, D.; Chen, Y.; Hu, H.; Cai, Y.; Lin, S.; Yu, Z.; et al. Simultaneous incorporation of PTH(1-34) and nano-hydroxyapatite into Chitosan/Alginate Hydrogels for efficient bone regeneration. Bioact. Mater. 2021, 6, 1839–1851. [Google Scholar] [CrossRef]
  119. Mohammadi, Z.; Mesgar, A.S.; Rasouli-Disfani, F. Reinforcement of freeze-dried chitosan scaffolds with multiphasic calcium phosphate short fibers. J. Mech. Behav. Biomed. Mater. 2016, 61, 590–599. [Google Scholar] [CrossRef]
  120. Pangon, A.; Saesoo, S.; Saengkrit, N.; Ruktanonchai, U.; Intasanta, V. Hydroxyapatite-hybridized chitosan/chitin whisker bionanocomposite fibers for bone tissue engineering applications. Carbohydr. Polym. 2016, 144, 419–427. [Google Scholar]
  121. Ito, M. In vitro properties of a chitosan-bonded hydroxyapatite bone-filling paste. Biomaterials 1991, 12, 41–45. [Google Scholar] [CrossRef]
  122. Costa-Pinto, A.R.; Correlo, V.M.; Sol, P.C.; Bhattacharya, M.; Charbord, P.; Delorme, B.; Reis, R.L.; Neves, N.M. Osteogenic Differentiation of Human Bone Marrow Mesenchymal Stem Cells Seeded on Melt Based Chitosan Scaffolds for Bone Tissue Engineering Applications. Biomacromolecules 2009, 10, 2067–2073. [Google Scholar] [CrossRef] [PubMed][Green Version]
  123. Hu, Q.; Li, B.; Wang, M.; Shen, J. Preparation and characterization of biodegradable chitosan/hydroxyapatite nanocomposite rods via in situ hybridization: A potential material as internal fixation of bone fracture. Biomaterials 2004, 25, 779–785. [Google Scholar] [CrossRef]
  124. Shahzadi, L.; Zeeshan, R.; Yar, M.; Bin Qasim, S.; Chaudhry, A.A.; Khan, A.F.; Muhammad, N. Biocompatibility Through Cell Attachment and Cell Proliferation Studies of Nylon 6/Chitosan/Ha Electrospun Mats. J. Polym. Environ. 2018, 26, 2030–2038. [Google Scholar] [CrossRef]
  125. Zhao, F.; Grayson, W.L.; Ma, T.; Bunnell, B.; Lu, W.W. Effects of hydroxyapatite in 3-D chitosan–gelatin polymer network on human mesenchymal stem cell construct development. Biomaterials 2006, 27, 1859–1867. [Google Scholar] [CrossRef]
  126. Dhivya, S.; Saravanan, S.; Sastry, T.P.; Selvamurugan, N. Nanohydroxyapatite-reinforced chitosan composite hydrogel for bone tissue repair in vitro and in vivo. J. Nanobiotechnol. 2015, 13, 40. [Google Scholar] [CrossRef][Green Version]
  127. Danilchenko, S.N.; Kalinkevich, O.V.; Pogorelov, M.V.; Kalinkevich, A.N.; Sklyar, A.M.; Kalinichenko, T.G.; Ilyashenko, V.Y.; Starikov, V.V.; Bumeyster, V.I.; Sikora, V.Z.; et al. Characterization and in vivo evaluation of chitosan-hydroxyapatite bone scaffolds made by one step coprecipitation method. J. Biomed. Mater. Res. Part A 2011, 96, 639–647. [Google Scholar] [CrossRef]
  128. Zhang, X.; Zhu, L.; Lv, H.; Cao, Y.; Liu, Y.; Xu, Y.; Ye, W.; Wang, J. Repair of rabbit femoral condyle bone defects with injectable nanohydroxyapatite/chitosan composites. J. Mater. Sci. Mater. Med. 2012, 23, 1941–1949. [Google Scholar] [CrossRef]
  129. Ma, X.Y.; Feng, Y.F.; Ma, Z.S.; Li, X.; Wang, J.; Wang, L.; Lei, W. The promotion of osteointegration under diabetic conditions using chitosan/hydroxyapatite composite coating on porous titanium surfaces. Biomaterials 2014, 35, 7259–7270. [Google Scholar] [CrossRef]
  130. Lin, K.F.; He, S.; Song, Y.; Wang, C.M.; Gao, Y.; Li, J.Q.; Tang, P.; Wang, Z.; Bi, L.; Pei, G.X. Low-Temperature Additive Manufacturing of Biomimic Three-Dimensional Hydroxyapatite/Collagen Scaffolds for Bone Regeneration. ACS Appl. Mater. Interfaces 2016, 8, 6905–6916. [Google Scholar] [CrossRef]
  131. Azami, M.; Moztarzadeh, F.; Tahriri, M. Preparation, characterization and mechanical properties of controlled porous gelatin/hydroxyapatite nanocomposite through layer solvent casting combined with freeze-drying and lamination techniques. J. Porous Mat. 2010, 17, 313–320. [Google Scholar] [CrossRef]
  132. Eshraghi, S.; Das, S. Micromechanical finite-element modeling and experimental characterization of the compressive mechanical properties of polycaprolactone-hydroxyapatite composite scaffolds prepared by selective laser sintering for bone tissue engineering. Acta Biomater. 2012, 8, 3138–3143. [Google Scholar] [CrossRef] [PubMed][Green Version]
  133. Baji, A.; Wong, S.C.; Srivatsan, T.S.; Njus, G.; Mathur, G. Processing Methodologies for Polycaprolactone-Hydroxyapatite Composites: A Review. Mater. Manuf. Process. 2006, 21, 211–218. [Google Scholar] [CrossRef]
  134. Supova, M. Problem of hydroxyapatite dispersion in polymer matrices: A review. J. Mater. Sci. Mater. Med. 2009, 20, 1201–1213. [Google Scholar] [CrossRef]
  135. Kim, M.S.; Khang, G.; Hai, B.L. Gradient polymer surfaces for biomedical applications. Prog. Polym. Sci. 2008, 33, 138–164. [Google Scholar] [CrossRef]
  136. Qiu, X.; Hong, Z.; Hu, J.; Chen, L.; Chen, X.; Jing, X. Hydroxyapatite surface modified by L-lactic acid and its subsequent grafting polymerization of L-lactide. Biomacromolecules 2005, 6, 1193–1199. [Google Scholar] [CrossRef]
  137. Liu, Q.; Wijn, J.R.D.; Bakker, D.; Blitterswijk, C.A.V. Surface modification of hydroxyapatite to introduce interfacial bonding with polyactiveTM 70/30 in a biodegradable composite. J. Mater. Sci. Mater. Med. 1996, 7, 551–557. [Google Scholar] [CrossRef]
  138. Liu, Q.; Wijn, J.R.D.; Bakker, D.; Toledo, M.V.; Blitterswijk, C.A.V. Polyacids as bonding agents in hydroxyapatite polyester-ether (PolyactiveTM 30/70) composites. J. Mater. Sci. Mater. Med. 1998, 9, 23–30. [Google Scholar] [CrossRef]
  139. Qiu, X.; Hong, Z.; Hu, J.; Chen, L.; Chen, X.; Jing, X. Surface-modified hydroxyapatite linked byL-lactic acid oligomer in the absence of catalyst. J. Polym. Sci. Part A Polym. Chem. 2005, 43, 5177–5185. [Google Scholar] [CrossRef]
  140. Hong, Z.; Qiu, X.; Sun, J.; Deng, M.; Chen, X.; Jing, X. Grafting polymerization of L-lactide on the surface of hydroxyapatite nano-crystals. Polymer 2004, 45, 6699–6706. [Google Scholar] [CrossRef]
  141. Hong, Z.; Zhang, P.; He, C.; Qiu, X.; Liu, A.; Chen, L.; Chen, X.; Jing, X. Nano-composite of poly(L-lactide) and surface grafted hydroxyapatite: Mechanical properties and biocompatibility. Biomaterials 2005, 26, 6296–6304. [Google Scholar] [CrossRef] [PubMed]
  142. Wei, J.; Liu, A.; Chen, L.; Zhang, P.; Chen, X.; Jing, X. The surface modification of hydroxyapatite nanoparticles by the ring opening polymerization of gamma-benzyl-l-glutamate N-carboxyanhydride. Macromol. Biosci. 2009, 9, 631–638. [Google Scholar] [CrossRef] [PubMed]
  143. Liu, Y.; Cui, H.; Zhuang, X.; Zhang, P.; Cui, Y.; Wang, X.; Wei, Y.; Chen, X. Nano-hydroxyapatite Surfaces Grafted with Electroactive Aniline Tetramers for Bone-Tissue Engineering. Macromol. Biosci. 2013, 13, 356–365. [Google Scholar] [CrossRef] [PubMed]
  144. Azzaoui, K. Novel Tricomponenets composites Films from Polylactic Acid/ Hydroxyapatite/ Poly-Caprolactone Suitable For Biomedical Applications. J. Mater. Environ. Sci. 2016, 7, 761–769. [Google Scholar]
  145. Shuai, C.; Yu, L.; Yang, W.; Peng, S.; Feng, P. Phosphonic Acid Coupling Agent Modification of HAP Nanoparticles: Interfacial Effects in PLLA/HAP Bone Scaffold. Polymers 2020, 12, 199. [Google Scholar] [CrossRef][Green Version]
  146. Shao, N.; Guo, J.; Guan, Y.; Zhang, H.; Li, X.; Chen, X.; Zhou, D.; Huang, Y. Development of organic/inorganic compatible and sustainably bioactive composites for effective bone regeneration. Biomacromolecules 2018, 19, 3637–3648. [Google Scholar] [CrossRef]
  147. Zhang, P.; Hong, Z.; Yu, T.; Chen, X.; Jing, X. In vivo mineralization and osteogenesis of nanocomposite scaffold of poly(lactide-co-glycolide) and hydroxyapatite surface-grafted with poly(L-lactide). Biomaterials 2009, 30, 58–70. [Google Scholar] [CrossRef]
  148. Cui, Y.; Liu, Y.; Cui, Y.; Jing, X.; Zhang, P.; Chen, X. The nanocomposite scaffold of poly(lactide-co-glycolide) and hydroxyapatite surface-grafted with l-lactic acid oligomer for bone repair. Acta Biomater. 2009, 5, 2680–2692. [Google Scholar] [CrossRef]
  149. Song, X.; Ling, F.; Ma, L.; Yang, C.; Chen, X. Electrospun hydroxyapatite grafted poly(L-lactide)/poly(lactic-co-glycolic acid) nanofibers for guided bone regeneration membrane. Compos. Sci. Technol. 2013, 79, 8–14. [Google Scholar] [CrossRef]
  150. Liao, L.; Yang, S.; Miron, R.J.; Wei, J.; Zhang, Y.; Zhang, M. Osteogenic properties of PBLG-g-HA/PLLA nanocomposites. PLoS ONE 2014, 9, e105876. [Google Scholar] [CrossRef]
Figure 1. The Ca2+, PO43− and OH in the crystal structure of hydroxyapatite can be substituted by many other ions [12].
Figure 1. The Ca2+, PO43− and OH in the crystal structure of hydroxyapatite can be substituted by many other ions [12].
Crystals 11 00149 g001
Figure 2. Histological analysis of the tissue response to bare polyetheretherketone (PEEK) (a,b) and fluorine doped hydroxyapatite (F-HA)/PEEK implants (c,d) after 8 weeks. The subfigures (b) and (d) refer to the higher-magnification images of (a,c). The dark red area represents the newly formed bone, and dark black represents the PEEK-based implant. (white scale bar: 200 μm, black scale bar: 100 μm) [73].
Figure 2. Histological analysis of the tissue response to bare polyetheretherketone (PEEK) (a,b) and fluorine doped hydroxyapatite (F-HA)/PEEK implants (c,d) after 8 weeks. The subfigures (b) and (d) refer to the higher-magnification images of (a,c). The dark red area represents the newly formed bone, and dark black represents the PEEK-based implant. (white scale bar: 200 μm, black scale bar: 100 μm) [73].
Crystals 11 00149 g002

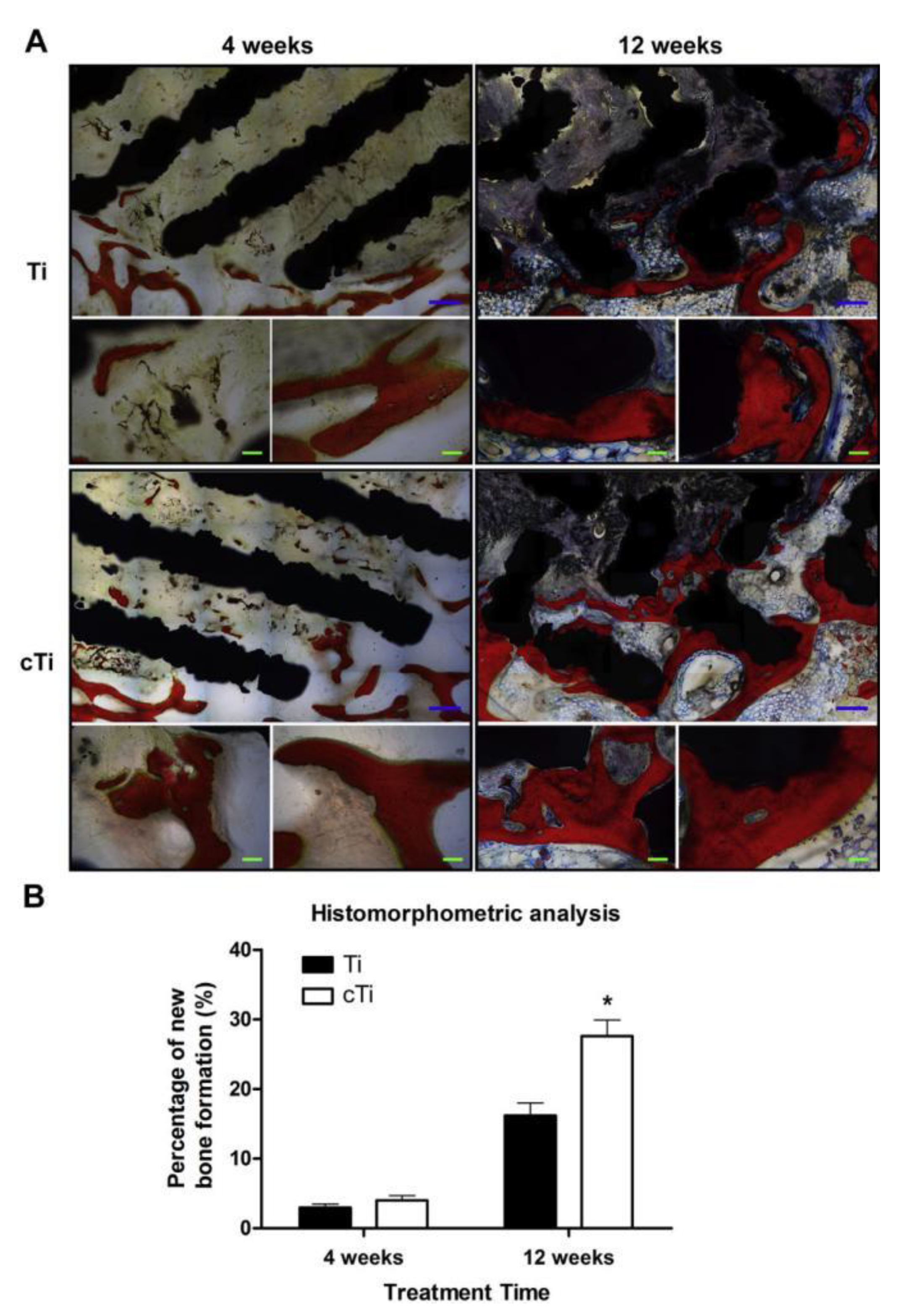

Figure 3. Histological examination of osteointegration at 4 and 12 weeks after implantation. (A) Van Gieson staining. The tissue stained in red color: the newly formed bone with visible cell nucleus. The tissue stained in dark blue color: fibrous tissue. (B) Histomorphometric measurement of new bone formation within the implants. (* p < 0.05) [129].
Figure 3. Histological examination of osteointegration at 4 and 12 weeks after implantation. (A) Van Gieson staining. The tissue stained in red color: the newly formed bone with visible cell nucleus. The tissue stained in dark blue color: fibrous tissue. (B) Histomorphometric measurement of new bone formation within the implants. (* p < 0.05) [129].
Crystals 11 00149 g003
Figure 4. The rabbit radius defects implanted with the porous scaffolds of BMP-2/p-HA/PLGA (a-1–4), p-HA/PLGA (b-1–4), HA/PLGA (c-1–4), and PLGA (d-1–4) at 0, 2, 4 and 8 weeks post-surgery [147].
Figure 4. The rabbit radius defects implanted with the porous scaffolds of BMP-2/p-HA/PLGA (a-1–4), p-HA/PLGA (b-1–4), HA/PLGA (c-1–4), and PLGA (d-1–4) at 0, 2, 4 and 8 weeks post-surgery [147].
Crystals 11 00149 g004
Table 1. Ion doped hydroxyapatite and the enhanced biological function studies.
Table 1. Ion doped hydroxyapatite and the enhanced biological function studies.
Doped IonsFunctionReference
Sr-HAMechanical properties[26,27,28]
Osteogenic activity[29,30,31,32,33,34]
Zn-HAOsteogenic activity[39,40,41]
Osteogenic activity[59,60,61]
Osteogenic activity[68,69,70,73,75]
Mg-HAOsteogenic activity[76]
Mn-HAOsteoblast differentiation[81]
Co-HAOsteogenic activity[82]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Shi, H.; Zhou, Z.; Li, W.; Fan, Y.; Li, Z.; Wei, J. Hydroxyapatite Based Materials for Bone Tissue Engineering: A Brief and Comprehensive Introduction. Crystals 2021, 11, 149.

AMA Style

Shi H, Zhou Z, Li W, Fan Y, Li Z, Wei J. Hydroxyapatite Based Materials for Bone Tissue Engineering: A Brief and Comprehensive Introduction. Crystals. 2021; 11(2):149.

Chicago/Turabian Style

Shi, Hui, Ziqi Zhou, Wuda Li, Yuan Fan, Zhihua Li, and Junchao Wei. 2021. "Hydroxyapatite Based Materials for Bone Tissue Engineering: A Brief and Comprehensive Introduction" Crystals 11, no. 2: 149.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
