New Cu4Na4- and Cu5-Based Phenylsilsesquioxanes. Synthesis via Complexation with 1,10-Phenanthroline, Structures and High Catalytic Activity in Alkane Oxidations with Peroxides in Acetonitrile
1
Nesmeyanov Institute of Organoelement Compounds, Russian Academy of Sciences, ulitsa Vavilova, 28, Moscow 119991, Russia
2
Peoples’ Friendship University of Russia, ulitsa Miklukho-Maklaya, 6, Moscow 117198, Russia
3
Pirogov Russian National Research Medical University, ulitsa Ostrovitianova, 1, Moscow 117997, Russia
4
National Research Center “Kurchatov Institute”, pl. Akademika Kurchatova, 1, Moscow 123098, Russia
5
Semenov Federal Research Center for Chemical Physics, Russian Academy of Sciences, ulitsa Kosygina, 4, Moscow 119991, Russia
6
Chair of Chemistry and Physics, Plekhanov Russian University of Economics, Stremyannyi pereulok, 36, Moscow 117997, Russia
*
Authors to whom correspondence should be addressed.
Received: 6 August 2019 / Accepted: 17 August 2019 / Published: 21 August 2019

Abstract

:
Self-assembly of copper(II)phenylsilsesquioxane assisted by the use of 1,10-phenanthroline (phen) results in isolation of two unusual cage-like compounds: (PhSiO1,5)12(CuO)4(NaO0.5)4(phen)4 1 and (PhSiO1,5)6(PhSiO1,5)7(HO0.5)2(CuO)5(O0.25)2(phen)3 2. X-Ray diffraction study revealed extraordinaire molecular architectures of both products. Namely, complex 1 includes single cyclic (PhSiO1,5)12 silsesquioxane ligand. Four sodium ions of 1 are additionally ligated by 1,10-phenanthrolines. In turn, “sodium-less” complex 2 represents coordination of 1,10-phenanthrolines to copper ions. Two silsesquioxane ligands of 2 are: (i) noncondensed cubane of a rare Si6-type and (ii) unprecedented Si7-based ligand including two HOSiO1.5 fragments. These silanol units were formed due to removal of phenyl groups from silicon atoms, observed in mild conditions. The presence of phenanthroline ligands in products 1 and 2 favored the π–π stacking interactions between neighboring cages. Noticeable that in the case of 1 all four phenanthrolines participated in such supramolecular organization, unlike to complex 2 where one of the three phenanthrolines is not “supramolecularly active”. Complexes 1 and 2 were found to be very efficient precatalysts in oxidations with hydroperoxides. A new method for the determination of the participation of hydroxyl radicals has been developed.
Keywords:
alkanes; hydrogen peroxide; copper complexes; metallasilsesquioxanes

1. Introduction

Cage metallasilsesquioxanes (CLMSs) [1,2,3,4,5,6,7,8,9] are among objects for the study of principles of interaction of metal ion(s) and organoelement ligands. In the case of CLMSs, silsesquioxane ligands successfully play a role of structural matrix for the formation of high nuclear (e.g., Bi12 [10], Cu9Na6 [11,12], Cu10Cs6 [13], Fe6Na8 [14], Cu16 [15], Mn8Na14 [16] and Cu24 [17]) products. CLMSs have been thoroughly studied as active (pre)catalysts [18,19,20,21,22,23,24], as objects with specific magnetic (spin glass) properties [25,26] as well as pre-products for functional materials and nanoparticles [27,28,29,30,31,32,33,34]. Regarding synthetic approaches to CLMSs, three ways deserve to be mentioned as being especially effective: (i) Application of cubane Si7 [2,4,6] or cyclic Si4 silanols [35]; (ii) use of trisilanols [1,3,7,10,17,36,37] and (iii) self-assembly based on siloxanolate RSi(O)O units [5,8,13,14,15,16]. Recently a convenient alternative method, consisting in “dual” complexation of metal ions by siloxanolate and additional organic (P- [11], N- [12,38,39,40] or O-based [41]) ligands, was suggested. Taking in mind easiness (one pot implementation) of synthetic procedure, diversity of cage products (Cu3 [42], Cu4 [11,41], Cu5 [39], Cu6 [42,43,44], Cu9 [11,12], Cu11 [38] and Co8 [40]) and their high catalytic activity [11,12,14,39,40,41,42,43,44], we were quite interested in the further progress of this chemistry. Here we present our results devoted to the synthesis, structure elucidation and catalytic activity of new examples of cage Cu(II)silsesquioxane complexed with 1,10-phenanthroline.

2. Experimental

2.1. Synthesis

For the method of synthesis, a self-assembly reaction of [(PhSiO1.5)(NaO0.5)]x as a source of silsesquioxane ligands, CuCl2 as a source of copper ions and 1,10-phenanthroline as additional N, N-based ligand (Scheme 1) was chosen. Details of synthetic procedures are given in the ESI (Electronic Supplementary Information Table S1).

2.2. Oxidation of Alkanes and Alcohols

The oxidation reactions were typically carried out in air in thermostated Pyrex cylindrical vessels with vigorous stirring; total volume of the reaction solution was 2.5 mL (Caution: The combination of air or molecular oxygen and H2O2 with organic compounds at elevated temperatures may be explosive). Initially, a portion of 50% aqueous solution of hydrogen peroxide or 70% aqueous tert-butyl hydroperoxide was added to the solution of the catalyst and substrate in acetonitrile. The reaction solutions were analyzed by GC (Gas Chromatograph) (the instrument 3700, fused silica capillary column FFAP/OV-101 20/80 w/w, 30 m × 0.2 mm × 0.3 µm; helium as a carrier gas. Attribution of peaks was made by comparison with chromatograms of authentic samples). Usually samples were analyzed twice, i.e., before and after the addition of the excess of solid PPh3. This method was developed and used previously by Shul’pin [45,46,47,48,49,50,51]. Alkyl hydroperoxides are transformed in the GC injector into a mixture of the corresponding ketone and alcohol. Due to this we quantitatively reduced the reaction samples with PPh3 to obtain the corresponding alcohol. This method allows us to calculate the real concentrations not only of the hydroperoxide but also of the alcohols and ketones present in the solution at a given moment.

3. Results and Discussion

3.1. Description of Compounds 1 and 2

A ratio between interacting silanolate [(PhSiO1.5)(NaO0.5)]x and copper(II) chloride was oriented to let some amount of sodium ions not to be replaced by copper ions. The resulted Cu/Na mixture in the reaction system allowed us to expect a formation of an unusual cage product [11,12,38,39,40], instead of widespread prismatic forms of Cu-only products [15,42,52,53,54]. Indeed, this choice of ratio provokes the isolation of the nontrivial “double-ligated” Cu4Na4 product 1 (Scheme 1, Figure 1). Note, that starting silanolate units during assembly of 1 were rearranged into Si12-based siloxanolate ligand of Ph12Si12(O)12(O)12 composition, found earlier in several examples of CLMSs [55,56,57,58,59]. Symptomatically that 2,2′-bipyridine containing CLMS of “Bicycle helmet” geometry, reported by some of us very recently [39], represents another type of Si12-siloxanolate ligand, namely Ph12Si12O12(OH)(O)11. It points out the significant flexibility of CLMSs’ self-assembly, taking in mind that both 1 and “Bicycle Helmet” [39] were isolated as THF-solvated complexes with N, N-ligands. Nevertheless, two of these products differed not only in the composition of central siloxanolate ligand but also in other features of composition. Compare, for example, (i) types of nuclearity (Cu4Na4 for 1 vs. Cu5Na18b), and (ii) N, N-ligand/cage’ ratio (4/1 for 1 vs. 3/1 [39]).
Mentioned above non-rigidity of siloxanolate ligands in the procedure of CLMS’ assembly found additional evidence during the study of the synthesis of Cu-silsesquioxane in dimethylformamide (DMF) media (Scheme 1, complex 2). This reaction allows unprecedented pentanuclear CLMS 2 (PhSiO1,5)6(PhSiO1,5)7(HO0.5)2(CuO)5(O0.25)2(phen)3 (Figure 2, top), which is very unlike pentacopper (PhSiO1.5)10(CuO)5-CLMSs, reported earlier by us [54] and the Y. Kononevich team [52]. Most likely, this difference was due to the participation of phenanthroline ligands in the reaction reporting here. Note, three phenanthroline ligands coordinated three copper ions of 2, while the remaining two copper centers were O-ligated only. This ligation was realized via participation of two types of polycyclic siloxanolate ligands. The first type represented incompletely condensed cubane silsesquioxane of Si6 composition (Figure 2, center). Unlike widespread CLMSs, obtained using Si7-triols [2,4,6,18,19,20], cage metallasilsesquioxanes including Si6-tetraol as a structural unit [60,61] are the rarest representatives of the CLMSs family. Noteworthy is that Si6-fragment in 2 was formed in situ during the self-assembly of complex 2, while Refs. [60,61] describe the use of corresponding Si6 tetraol as a synthon. The second type of silsesquioxane skeleton in 2, to our opinion, was absolutely a unique one. First of all, this Si7-unit (Figure 2, bottom) did not contain condensed cycles, characteristic for Si7-triols, mentioned above [2,4,6,18,19,20]. Instead of that, Si7 ligand in 2 involved the Si4-based cycle, connected to the “Si3-based tail”. To a certain extent, this structural composition resembled the composition of the Ursa Major constellation. Secondly, this ligand contained two non-silsesquioxane fragments of the HOSiO1.5 composition. Taking in mind that only phenyltriethoxysilane PhSi(OEt)3 was used in the synthesis, we should witness the mild conditioned removal of organic groups from silicon (followed by the formation of silanol fragments). To the best of our knowledge, this process is a truly unprecedented one. Compare it, for example, to earlier reported process of calcination of metallasilsesquioxanes, both oligomeric [21] and cage-like ones [62,63,64,65], where cleavage of Si–R fragments required a temperature no less than 130 °C. It seems logical that mild temperature of synthesis of 2 allowed us to retain most of the phenyl groups in the silicon atoms.
Taking into account the novelty of siloxanolate ligands obtained, chemical connectivity of copper atoms within metal-containing cluster was of interest. It was analyzed following the procedure described by Kostakis and Powell [66] to obtain the graph of the Cu-containing skeleton keeping the cluster connectivity as implemented into the ToposPro package [67]. The procedure includes analysis of metal atoms connected via bridge atoms only (here, oxygen atoms of siloxanolate anions, Figure 3). We found that metal atoms in the cages of 1 and 2 belonged to discrete clusters with, respectively, 1,2M4-1, and 1,2,3M5-1 topology (Figure 3). Notation of clusters is given as NDk-m, where N is equal to the coordination number of topologically non-equivalent nodes, M denotes a discrete cluster (in contrast with 1-, 2- and 3-periodic architectures), k is the number of metal atoms in the cluster and m—a classification number to distinguish topologically distinct clusters with equal NDk parameters. The majority of globular bi- and trimetallic silsesquioxanes [13,59] clusters realize the 1,2M4-1 topology of the metal core, while the 1,2,3M5-1 topology was not met in metallasilsesquioxanes before. Moreover, previously published databases of Co [68], Mn [69] and Ni-containing [70] high-nuclearity cluster also lack such architectures.
Both complex 1 and 2 represent specific supramolecular organization due to the π–π stacking interactions of phenanthroline ligands. In the case of 1, contacts involved all four phenanthrolines leading to the formation of an extended supramolecular structure (Figure 4, top). To the best of our knowledge, analogues cases (heterometallic complexes, exhibiting packing through Na-phen units) are not widespread [71,72,73,74,75] and reported only for praseodymium/sodium [71], copper/sodium [72,73], iron/sodium [74], bismuth/sodium [75] and cerium/sodium [76] systems but never for CLMSs. Interestingly one of the phenanthroline ligands in the composition of complex 2 were involved in π–π stacking interactions with phenyl groups of the same cage while two others provide formation of an extended structure due to contacts with phenanthrolines of neighboring cages (Figure 4, bottom).

3.2. Catalytic Oxidations of Alkanes and Alcohols

Transition metal complexes bearing voluminous organic ligands are widely used as catalysts in various organic reactions including CH-functionalization (see reviews and original works [77,78,79,80,81,82,83,84,85]): “Over the past 50 years organic chemists have invented an incredible number of synthetically useful transition metal catalyzed reaction types. In the most cases, the transition metals are complexed to sterically and electronically tunable organic ligands, which govern activity and selectivity” [80]. “Capitalizing on a well-defined second coordination sphere provided by the protein around the metal cofactor, researchers have modified (artificial) metalloenzymes to react with exquisite levels of selectivity including enantio-, diastereo-, chemo-, and regioselectivity. Such catalyst control has been made possible by combining the tools of chemistry and biology” [81].
Di Stefano and co-workers [86] published a list of the following tools to distinguish between metal-based and free-radical oxidation mechanisms: (1) Alcohol/ketone ratio (A/K); (2) kinetic isotope effects (KIE); (3) reaction under argon/air; (4) the Shul’pin test for alkyl hydroperoxides; (5) regioselectivity; (6) epimerization; (7) chirality transfer; (8) labeling studies; (9) use of radical traps and (10) cyclohexene oxidation. In the present work, we applied the Shul’pin test (adding PPh3), regioselectivity in oxidation of linear and branched alkanes as well as epimerization of 1,2-dimethylcyclohexane. Previously, we studied the catalytic systems based on the data on the selectivity of alkane oxidation and we concluded that the oxidizing species are hydroxyl radicals. The synthesized complexes have been also used in oxidation of some alcohols with tert-butyl hydroperoxide in acetonitrile.
We found that compounds 1 and 2 catalyze the oxidation of alkanes with H2O2 in acetonitrile. We investigated oxidations of alkanes and alcohols with hydroperoxides catalyzed by specially synthesized in this work (see above) compounds 1 and 2. The results of our investigations of some oxidation reactions catalyzed by complexes 1 and 2 under various conditions (temperatures 20–50 °C) are summarized in Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9. In some cases HNO3 was added to the reaction solution. It could be clearly seen that after addition of PPh3 to the reaction sample concentrations of cyclohexanone decreased while concentration of cyclohexanol after the same time period noticeably rose. This may be explained by the reduction of formed cyclohexyl hydroperoxide to give the corresponding alcohol (in accordance to the Shul’pin method11 (see item 4 in the list cited by Di Stefano) [86].
In this work, we used a kinetic method developed by some of us [82]. To determine the kinetic characteristics of the oxidizing species generated by two catalytic systems studied in this work, the dependence of the cyclohexane oxidation rate on its initial concentration was studied (Figure 8 and Figure 9). The nature of the dependence corresponds to the assumption of the competitive interaction of the oxidizing species X with acetonitrile (stage 1) and cyclohexane RH (stage 2):
H2O2 + catalyst → X  rate of this stage is Wi,
X + CH3CN →...→ products rate constant k1,
X + RH →...→ ROOH rate constant k2.
Here, Equation (i) is the effective reaction of generating oxidizing species X at a rate of Wi; Equations (1) and (2) are the transformations of CH3CN and RH with the formation, in particular, various products from acetonitrile and of cyclohexyl hydroperoxide ROOH, induced by interactions that limit their rate with X. The rate constants of these interactions are k1 and k2, respectively. Assuming that the concentration of species X is quasi-stationary, we obtained the following expression for the initial rate of formation of ROOH:
(d[ROOH]/dt)0 = k2[RH]0Wi/(k1[CH3CN]0 + k2[RH]0).
Let us present Equation (3) in the form of Equation (4), convenient for the analysis of experimental data:
(d[ROOH]/dt)0−1 = Wi−1{1 + (k1[CH3CN]0/k2[RH]0)}.
It follows from Figure 8B and Figure 9B, the experimental data shown in Figure 8A and Figure 9A, satisfy Equation (4), and this indicates the validity of the model of the competitive interaction of species X with CH3CN and RH. Analysis of the dependence W on [CyH] for both catalysts in the frames of the model given by Equations (i)–(2) for the concurrent interaction of oxidizing species with acetonitrile and cyclohexane allowed us using Equation (4) to determine values k1[CH3CN]/k2: 0.44 M for 1 and 0.66 M for 2. These parameters were sufficiently higher than characteristics known for the reactions of cyclohexane with hydroxyl radicals: Interval 0.04–0.1 M. It is important to emphasize here that the regioselectivity parameters collected in Table 1 indicated that oxidizing species in the cases of both catalysts 1 and 2. The contradiction between conclusions made on the basis of the kinetic study and investigation using selectivity parameters can be understood if we assumed that the approach of reaction centre to acetonitrile and cyclohexane molecules was different due to their different special characteristics. Concentrations of CH3CN and CyH close to the reaction center and in solution balk volume were different. Due to this the constant ratios k1/k2 in the reactions catalyzed by 1 or 2 differ from that found for the interactions with the participation of free hydroxyl radicals.
As shown above, the low selectivity of the oxidative effect of X species, which is close to the selectivity found for reactions involving hydroxyl radicals, and this indicates that hydroxyl radicals are generated in the catalytic systems studied in the present work. Similar results (a decrease in the relative reactivity of the oxidizing species for cyclohexane in comparison with acetonitrile) were obtained earlier by us in clarifying the nature of the oxidizing species during the catalysis of the decomposition of hydrogen peroxide on the complex palanquin-like Cu4Na4 silsesquioxane [41] as well as using aluminum nitrate [85].
We found that the additives of HNO3 reduced the catalytic activity of both the 1 complex and the 2 complex (see Figure 8A and Figure 9B). This difference could be explained either by a change in the structure of the initial complex 1 or 2 in a solution containing HNO3, or by a change in the rate of interaction of complexes 1 and 2 with H2O2. The acid probably broke up the initial complex into many smaller particles, which were less active in catalysis. The data on the oxidation of linear n-heptane (see Table 1) showed that the oxidative effect of the species generated by the catalytic decomposition of H2O2 in the presence of compounds 1 or 2, both in the absence of HNO3 and in its presence, was close to the regioselectivity characteristic of the reaction with hydroxyl radical. On the other hand, analysis of the dependence of the initial oxidation rate of cyclohexane on its initial concentration during catalysis of the H2O2 decomposition on complex 1 in the presence of HNO3 in the frames of a homogeneous model (i)–(2) of the competitive interaction of the oxidizing species with cyclohexane and acetonitrile (similar to the one given above for the reaction in the absence of HNO3) showed that the reactivity of the oxidizing particle corresponded to the participation of the hydroxyl radical: The value of k1[CH3CN]/k2 = 0.11 M was close to the values typical for the hydroxyl radical parameters 0.04–0.1 M. While for complex 1 in the absence of HNO3, the value of k1[CH3CN]/k2 = 0.44 M differed significantly from that which were typical for reactions involving hydroxyl radicals.
The combination of our results shows that in the presence of nitric acid the structure of the initial complex was likely changed, namely the complex structures of multicore complexes were transformed into simpler compounds, the reaction centers of which were equally accessible to both acetonitrile and cyclohexane. This led to a difference in the reactivity of complexes 1 and 2 in the presence of HNO3 from that in its absence (when the reaction centers were more accessible for interaction with acetonitrile than with cyclohexane).
The complexes 1 and 2 were also used in the oxidation of some alcohols with tert-butyl hydroperoxide in acetonitrile. 1-Phenylethanol could be transformed into acetophenone in almost the quantitative yield (Figure 10 and Figure 11). Cyclohexanol and heptanol-2 were oxidized to the corresponding ketones less efficiently.

4. Conclusions

We presented here non-trivial Cu4Na4 1 and Cu5 2 phenylsilsesquioxanesas complexes with 1,10-phenanthroline ligands. The cage structure of complex 1 was characterized by the presence of the Si12-based ligand, favoring the contacts of external sodium ions to phenanthroline molecules. Complex 2 involved two different types of silsesquioxane fragments, namely the Si6-non-condensed cubane and Si7-“Ursa Major” ligand. The latter represents a very unusual removal of phenyl groups from silicon atoms with simultaneous formation of Si–OH groups. It points to a complicated way of self-assembly of metallasilsesquioxane cages especially in the presence of additional organic ligands. Stacking interactions of phenanthrolines formed extended supramolecular assembly of both compounds 1 and 2 in crystal packing. Catalytic tests of 1 and 2 showed their high activity in oxidations of alkanes and alcohols with peroxides. Further investigation of the “sesquioxane O-ligand plus N,N-ligand” approach to isolation of catalytically prospective Cu(II)-based structures is currently on way in our team. A new method for the determination of the participation of hydroxyl radicals was developed.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/9/701/s1, Table S1. Crystallographic data for 1–2.

Author Contributions

A.N.B. and G.B.S. conceived and designed the experiments; G.S.A., N.S.I., P.V.D. and L.S.S. performed the experiments; A.N.B., E.S.S., M.M.L., Y.N.K., A.A.K. and G.B.S. analyzed the data; A.N.B. and G.B.S. wrote the paper.

Funding

This research was funded by the RUDN University Program “5-100”, the Russian Foundation for Basic Research (Grant Nos. 19-03-142, 17-03-00993), the Ministry of Education and Science of the Russian Federation (project code RFMEFI61917X0007), as well as by the Initiative Program in the frames of the State Task 0082-2014-0007, “Fundamental regularities of heterogeneous and homogeneous catalysis.”

Acknowledgments

The publication has been prepared with the support of the «RUDN University Program 5-100» and funded by RFBR according to Research Projects Grant Nos. 17-03-00993, 19-03-00142, 19-03-00488, 16-29-05180, the Ministry of Education and Science of the Russian Federation (project code RFMEFI61917X0007), as well as by the Initiative Program in the frames of the State Tasks 0082-2014-0004 and 0082-2014-0007 “Fundamental regularities of heterogeneous and homogeneous catalysis”. Elemental analysis was performed with the financial support from Ministry of Science and Higher Education of the Russian Federation using the equipment of Center for molecular composition studies of INEOS RAS. This work was also performed within the framework of the Program of Fundamental Research of the Russian Academy of Sciences for 1013-2020 on the research issue of IChP RAS No. 47.16. State registration number of Center of Information Technologies and Systems for Executive Power Authorities (CITIS).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Murugavel, R.; Voigt, A.; Walawalkar, M.G.; Roesky, H.W. Hetero- and metallasiloxanes derived from silanediols, disilanols, silanetriols, and trisilanols. Chem. Rev. 1996, 96, 2205–2236. [Google Scholar] [CrossRef] [PubMed]
  2. Lorenz, V.; Fischer, A.; Gießmann, S.; Gilje, J.W.; Gun’ko, Y.; Jacob, K.; Edelmann, F.T. Disiloxanediolates and polyhedral metallasilsesquioxanes of the early transition metals and f-elements. Coord. Chem. Rev. 2000, 206, 321–368. [Google Scholar] [CrossRef]
  3. Roesky, H.W.; Anantharaman, G.; Chandrasekhar, V.; Jancik, V.; Singh, S. Control of molecular topology and metal nuclearity in multimetallic assemblies: Designer metallosiloxanes derived from silanetriols. Chem. Eur. J. 2004, 10, 4106–4114. [Google Scholar] [CrossRef] [PubMed]
  4. Lorenz, V.; Edelmann, F.T. Metallasilsesquioxanes. Adv. Organomet. Chem. 2005, 53, 101–153. [Google Scholar]
  5. Levitsky, M.M.; Zavin, B.G.; Bilyachenko, A.N. Chemistry of metallasiloxanes. Current trends and new concepts. Russ. Chem. Rev. 2007, 76, 847–866. [Google Scholar] [CrossRef]
  6. Edelmann, F.T. Metallasilsesquioxanes-Synthetic and structural studies. In Silicon Chemistry: From the Atom to Extended Systems; Jutzi, P., Schubert, U., Eds.; Wiley: Hoboken, NJ, USA, 2007; pp. 383–394. [Google Scholar]
  7. Pinkert, D.; Limberg, C. Iron silicates, iron-modulated zeolite catalysts, and molecular models thereof. Chem. Eur. J. 2014, 20, 9166–9175. [Google Scholar] [CrossRef]
  8. Levitsky, M.M.; Bilyachenko, A.N. Modern concepts and methods in the chemistry of polyhedral metallasiloxanes. Coord. Chem Rev. 2016, 306, 235–269. [Google Scholar] [CrossRef]
  9. Levitsky, M.M.; Zubavichus, Y.V.; Korlyukov, A.A.; Khrustalev, V.N.; Shubina, E.S.; Bilyachenko, A.N. Silicon and Germanium-Based Sesquioxanes as Versatile Building Blocks for Cage Metallacomplexes. J. Clust. Sci. 2019. [Google Scholar] [CrossRef]
  10. Nehete, U.N.; Roesky, H.W.; Jancik, V.; Pal, A.; Magull, J. Polyhedral antimony(III) and bismuth(III) siloxanes: Synthesis, spectral studies, and structural characterization of [Sb(O3SiR)]4 and [Bi12(O3SiR)8(μ3-O)4Cl4(THF)8] (R = (2,6-iPr2C6H3)N(SiMe3)). Inorg. Chim. Acta 2007, 360, 1248–1257. [Google Scholar] [CrossRef]
  11. Bilyachenko, A.N.; Kulakova, A.N.; Levitsky, M.M.; Korlyukov, A.A.; Khrustalev, V.N.; Vologzhanina, A.V.; Titov, A.A.; Dorovatovskii, P.V.; Shul’pina, L.S.; Lamaty, F.; et al. Ionic Complexes of Tetra and Nonanuclear Cage Copper(II) Phenylsilsesquioxanes: Synthesis and High Activity in Oxidative Catalysis. ChemCatChem 2017, 9, 4437–4447. [Google Scholar] [CrossRef]
  12. Astakhov, G.S.; Bilyachenko, A.N.; Korlyukov, A.A.; Levitsky, M.M.; Shul’Pina, L.S.; Bantreil, X.; Lamaty, F.; Vologzhanina, A.V.; Shubina, E.S.; Dorovatovskii, P.V.; et al. High-Cluster (Cu9) Cage Silsesquioxanes: Synthesis, Structure, and Catalytic Activity. Inorg. Chem. 2018, 57, 11524–11529. [Google Scholar] [CrossRef] [PubMed]
  13. Korlyukov, A.A.; Vologzhanina, A.V.; Buzin, M.I.; Sergienko, N.V.; Zavin, B.G.; Muzafarov, A.M. Cu(II)-Silsesquioxanes as Secondary Building Units for Construction of Coordination Polymers: A Case Study of Cesium-Containing Compounds. Cryst. Growth Des. 2016, 16, 1968–1977. [Google Scholar] [CrossRef]
  14. Bilyachenko, A.N.; Levitsky, M.M.; Yalymov, A.I.; Korlyukov, A.A.; Vologzhanina, A.V.; Kozlov, Y.N.; Shul’Pina, L.S.; Nesterov, D.S.; Pombeiro, A.J.L.; Lamaty, F.A.; et al. heterometallic (Fe6Na8) cage-like silsesquioxane: Synthesis, structure, spin glass behavior and high catalytic activity. RSC Adv. 2016, 6, 48165–48180. [Google Scholar] [CrossRef]
  15. Bilyachenko, A.N.; Khrustalev, V.N.; Zubavichus, Y.V.; Vologzhanina, A.V.; Astakhov, G.S.; Gutsul, E.I.; Shubina, E.S.; Levitsky, M.M. High-Nuclearity (Cu8-Based) Cage Silsesquioxanes: Synthesis and Structural Study. Cryst. Growth Des. 2018, 18, 2452–2457. [Google Scholar] [CrossRef]
  16. Bilyachenko, A.N.; Dronova, M.S.; Korlyukov, A.A.; Levitsky, M.M.; Antipin, M.Y.; Zavin, B.G. Cage-like manganesephenylsiloxane with an unusual structure. Russ. Chem. Bull. Int. Ed. 2011, 60, 1762–1765. [Google Scholar] [CrossRef]
  17. Tan, G.; Yang, Y.; Chu, C.; Zhu, H.; Roesky, H.W. Cu24O24Si8R8: Organic soluble 56-membered copper(I) siloxane cage and its use in homogeneous catalysis. J. Am. Chem. Soc. 2010, 132, 12231–12233. [Google Scholar] [CrossRef] [PubMed]
  18. Abbenhuis, H.C.L. Advances in Homogeneous and Heterogeneous Catalysis with Metal-Containing Silsesquioxanes. Chem. Eur. J. 2000, 6, 25–32. [Google Scholar] [CrossRef]
  19. Duchateau, R. Incompletely Condensed Silsesquioxanes:  Versatile Tools in Developing Silica-Supported Olefin Polymerization Catalysts. Chem. Rev. 2002, 102, 3525–3542. [Google Scholar] [CrossRef]
  20. Ward, A.J.; Masters, A.F.; Maschmeyer, T. Metallasilsesquioxanes: Molecular Analogues of Heterogeneous Catalysts. In Applications of Polyhedral Oligomeric Silsesquioxanes; Springer: New York, NY, USA, 2011; Volume 3, pp. 135–166. [Google Scholar]
  21. Levitskii, M.M.; Smirnov, V.V.; Zavin, B.G.; Bilyachenko, A.N.; Rabkina, A.Y. Metalasiloxanes: New structure formation methods and catalytic properties. Kinet. Catal. 2009, 50, 490–507. [Google Scholar] [CrossRef]
  22. Quadrelli, E.A.; Basset, J.M. On silsesquioxanes’ accuracy as molecular models for silica-grafted complexes in heterogeneous catalysis. Coord. Chem. Rev. 2010, 254, 707–728. [Google Scholar] [CrossRef]
  23. Levitsky, M.M.; Yalymov, A.I.; Kulakova, A.N.; Petrov, A.A.; Bilyachenko, A.N. Cage-like metallasilsesquioxanes in catalysis: A review. J. Mol. Catal. A Chem. 2017, 426, 297–304. [Google Scholar] [CrossRef]
  24. Levitsky, M.M.; Bilyachenko, A.N.; Shul’pin, G.B. Oxidation of C-H compounds with peroxides catalyzed by polynuclear transition metal complexes in Si-or Ge-sesquioxane frameworks: A review. J. Organomet. Chem. 2017, 849, 201–218. [Google Scholar] [CrossRef]
  25. Levitsky, M.M.; Bilyachenko, A.N.; Shubina, E.S.; Long, J.; Guari, Y.; Larionova, J. Magnetic cage-like metallasilsesquioxanes. Coord. Chem. Rev. 2019, 398, 213015. [Google Scholar] [CrossRef]
  26. Bilyachenko, A.N.; Yalymov, A.; Dronova, M.; Korlyukov, A.A.; Vologzhanina, A.V.; Es’Kova, M.A.; Long, J.; Larionova, J.; Guari, Y.; Dorovatovskii, P.V.; et al. Family of Polynuclear Nickel Cagelike Phenylsilsesquioxanes; Features of Periodic Networks and Magnetic Properties. Inorg. Chem. 2017, 56, 12751–12763. [Google Scholar] [CrossRef] [PubMed]
  27. Beletskiy, E.V.; Hou, X.; Shen, Z.; Gallagher, J.R.; Miller, J.T.; Wu, Y.; Li, T.; Kung, M.C.; Kung, H.H. Supported Tetrahedral Oxo-Sn Catalyst: Single Site, Two Modes of Catalysis. J. Am. Chem. Soc. 2016, 138, 4294–4297. [Google Scholar] [CrossRef] [PubMed]
  28. Yoshikawa, M.; Shiba, H.; Kanezashi, M.; Wada, H.; Shimojima, A.; Tsuru, T.; Kuroda, K. Synthesis of a 12-membered cyclic siloxane possessing alkoxysilyl groups as a nanobuilding block and its use for preparation of gas permeable membranes. RSC Adv. 2017, 7, 48683–48691. [Google Scholar] [CrossRef]
  29. Yi, Y.; Zheng, S. Synthesis and self-assembly behavior of organic–inorganic macrocyclic molecular brushes composed of macrocyclic oligomeric silsesquioxane and poly(N-isopropylacrylamide). RSC Adv. 2014, 4, 28439–28450. [Google Scholar] [CrossRef]
  30. Wei, K.; Liu, N.; Lia, L.; Zheng, S. A stereoregular macrocyclic oligomeric silsesquioxane bearing epoxide groups: Synthesis and its nanocomposites with polybenzoxazine. RSC Adv. 2015, 5, 77274–77287. [Google Scholar] [CrossRef]
  31. Yoshikawa, M.; Shiba, H.; Wada, H.; Shimojima, A.; Kuroda, K. Polymerization of cyclododecasiloxanes with Si-H and Si-OEt side groups by the piers-Rubinsztajn reaction. B Chem. Soc. Jpn. 2018, 91, 747–753. [Google Scholar] [CrossRef]
  32. Yoshikawa, M.; Ikawa, H.; Wada, H.; Shimojima, A.; Kuroda, K. Self-assembly of Cyclohexasiloxanes Possessing Alkoxysilyl Groups and Long Alkyl Chains. Chem. Lett. 2018, 47, 1203–1206. [Google Scholar] [CrossRef]
  33. Sugiyama, T.; Shiba, H.; Yoshikawa, M.; Wada, H.; Shimojima, A.; Kuroda, K. Synthesis of Polycyclic and Cage Siloxanes by Hydrolysis and Intramolecular Condensation of Alkoxysilylated Cyclosiloxanes. Chem. Eur. J. 2019, 25, 2764–2772. [Google Scholar] [CrossRef] [PubMed]
  34. Davies, G.-L.; O’Brien, J.; Gun’ko, Y.K. Rare Earth Doped Silica Nanoparticles via Thermolysis of a Single Source Metallasilsesquioxane Precursor. Sci. Rep. 2017, 7, 45862. [Google Scholar] [CrossRef] [PubMed]
  35. Hirotsu, M.; Taruno, S.; Yoshimura, T.; Ueno, K.; Unno, M.; Matsumoto, H. Synthesis and Structures of the First Titanium(IV)Complexes with Cyclic Tetrasiloxide Ligands: Incomplete andComplete Cage Titanosiloxanes. Chem. Lett. 2005, 34, 1542–1543. [Google Scholar] [CrossRef]
  36. Kishore, P.V.V.N.; Baskar, V. Hexa- and Trinuclear Organoantimony Oxo Clusters Stabilized by Organosilanols. Inorg. Chem. 2014, 53, 6737–6742. [Google Scholar] [CrossRef] [PubMed]
  37. Lokare, K.S.; Frank, N.; Braun-Cula, B.; Goikoetxea, I.; Sauer, J.; Limberg, C. Trapping Aluminum Hydroxide Clusters with Trisilanols during Speciation in Aluminum(III)−Water Systems: Reproducible, Large Scale Access to Molecular Aluminate Models. Angew. Chem. Int. Ed. 2016, 55, 12325–12329. [Google Scholar] [CrossRef] [PubMed]
  38. Astakhov, G.S.; Bilyachenko, A.N.; Levitsky, M.M.; Korlyukov, A.A.; Zubavichus, Y.V.; Dorovatovskii, P.V.; Khrustalev, V.N.; Vologzhanina, A.V.; Shubina, E.S. Tridecanuclear CuII 11Na2 Cagelike Silsesquioxanes. Cryst. Growth Des. 2018, 18, 5377–5384. [Google Scholar] [CrossRef]
  39. Kulakova, A.N.; Bilyachenko, A.N.; Korlyukov, A.A.; Shul’pina, L.S.; Bantreil, X.; Lamaty, F.; Shubina, E.S.; Levitsky, M.M.; Ikonnikov, N.S.; Shul’pin, G.B. A new “bicycle helmet”-like copper(ii), sodiumphenylsilsesquioxane. Synthesis, structure and catalytic activity. Dalton Trans. 2018, 47, 15666–15669. [Google Scholar] [CrossRef]
  40. Liu, Y.-N.; Su, H.-F.; Li, Y.-W.; Liu, Q.-Y.; Jagličić, Z.; Wang, W.-G.; Tung, C.-H.; Sun, D. Space Craft-like Octanuclear Co(II)-Silsesquioxane Nanocages: Synthesis, Structure, Magnetic Properties, Solution Behavior, and Catalytic Activity for Hydroboration of Ketones. Inorg. Chem. 2019, 58, 4574–4582. [Google Scholar] [CrossRef]
  41. Kulakova, A.N.; Khrustalev, V.N.; Zubavichus, Y.V.; Shul’pina, L.S.; Shubina, E.S.; Levitsky, M.M.; Ikonnikov, N.S.; Bilyachenko, A.N.; Kozlov, Y.N.; Shul’pin, G.B. Palanquin-like Cu 4 Na 4 silsesquioxane synthesis (via oxidation of 1,1-bis(diphenylphosphino)methane), structure and catalytic activity in alkane or alcohol oxidation with peroxides. Catalysts 2019, 9, 154. [Google Scholar] [CrossRef]
  42. Bilyachenko, A.N.; Kulakova, A.N.; Levitsky, M.M.; Petrov, A.A.; Korlyukov, A.A.; Shul’pina, L.S.; Khrustalev, V.N.; Dorovatovskii, P.V.; Vologzhanina, A.V.; Tsareva, U.S.; et al. Unusual Tri-, Hexa-, and Nonanuclear Cu(II) Cage Methylsilsesquioxanes: Synthesis, Structures, andCatalytic Activity in Oxidations with Peroxides. Inorg. Chem. 2017, 56, 4093–4103. [Google Scholar] [CrossRef]
  43. Kulakova, A.N.; Bilyachenko, A.N.; Levitsky, M.M.; Khrustalev, V.N.; Korlyukov, A.A.; Zubavichus, Y.V.; Dorovatovskii, P.V.; Lamaty, F.; Bantreil, X.; Villemejeanne, B.; et al. Si10Cu6N4Cage Hexacoppersilsesquioxanes Containing N-Ligands: Synthesis, Structure, and High Catalytic Activity in Peroxide Oxidations. Inorg. Chem. 2017, 56, 15026–15040. [Google Scholar] [CrossRef] [PubMed]
  44. Bilyachenko, A.N.; Levitsky, M.M.; Khrustalev, V.N.; Zubavichus, Y.V.; Shul’pina, L.S.; Shul’pin, G.B.; Shubina, E.S. Mild and Regioselective Hydroxylation of Methyl Group in Neocuproine: Approach to an N, O-Ligated Cu6 Cage Phenylsilsesquioxane. Organometallics 2018, 37, 168–171. [Google Scholar] [CrossRef]
  45. Shul’pin, G.B. Metal-catalyzed hydrocarbon oxygenations in solutions: The dramatic role of additives: A review. J. Mol. Catal. A Chem. 2002, 189, 39–66. [Google Scholar] [CrossRef]
  46. Shul’pin, G.B. Metal-catalysed hydrocarbon oxidations. C. R. Chim. 2003, 6, 163–178. [Google Scholar] [CrossRef]
  47. Shul’pin, G.B.; Kozlov, Y.N.; Shul’pina, L.S.; Kudinov, A.R.; Mandelli, D. Extremely Efficient Alkane Oxidation by a New Catalytic Reagent H2O2/Os3(CO)12/Pyridine. Inorg. Chem. 2009, 48, 10480–10482. [Google Scholar] [CrossRef] [PubMed]
  48. Shul’pin, G.B.; Kozlov, Y.N.; Shul’pina, L.S.; Petrovskiy, P.V. Oxidation of alkanes and alcohols with hydrogen peroxide catalyzed by complex Os3(CO)10(μ-H)2. Appl. Organometal. Chem. 2010, 24, 464–472. [Google Scholar] [CrossRef]
  49. Shul’pin, G.B.; Gradinaru, J.; Kozlov, Y.N. Alkane hydroperoxidation with peroxides catalysed by copper complexes. Org. Biomol. Chem. 2003, 1, 3611–3617. [Google Scholar] [CrossRef] [PubMed]
  50. Garcia-Bosch, I.; Siege, M.A. Copper-Catalyzed Oxidation of Alkanes with H2O2 under a Fenton-like Regime. Angew. Chem. Int. Ed. 2016, 55, 12873–12876. [Google Scholar] [CrossRef]
  51. Maksimov, A.L.; Kardasheva, Y.S.; Predeina, V.V.; Kluev, M.V.; Ramazanov, D.N.; Talanova, M.Y.; Karakhanov, E.A. Iron and copper complexes with nitrogen-containing ligands as catalysts for cyclohexane oxidation with hydrogen peroxide under mild reaction conditions. Pet. Chem. 2012, 52, 318–326. [Google Scholar] [CrossRef]
  52. Kononevich, Y.N.; Anisimov, A.A.; Korlyukov, A.A.; Tsareva, U.S.; Shchegolikhina, O.I.; Muzafarov, A.M. Synthesis and structures of novel tetra- and pentanuclear copper sandwich-like metallasiloxanes with pyridine ligands. Mendeleev Commun. 2017, 27, 332–334. [Google Scholar] [CrossRef]
  53. Bilyachenko, A.N.; Levitsky, M.M.; Korlyukov, A.A.; Khrustalev, V.N.; Zubavichus, Y.V.; Shul’pina, L.S.; Shubina, E.S.; Vologzhanina, A.V.; Shul’pin, G.B. Heptanuclear Cage Cu(II)-Silsesquioxanes. Features of Synthesis, Structure and Catalytic Activity. Eur. J. Inorg. Chem. 2018, 22, 2505–2511. [Google Scholar] [CrossRef]
  54. Bilyachenko, A.N.; Kulakova, A.N.; Shul’pina, L.S.; Levitsky, M.M.; Korlyukov, A.A.; Khrustalev, V.N.; Zubavichus, Y.V.; Dorovatovskii, P.V.; Tsareva, U.S.; Shubina, E.S.; et al. Family of penta- and hexanuclear metallasilsesquioxanes: Synthesis, structure and catalytic properties in oxidations. J. Organomet. Chem. 2018, 867, 133–141. [Google Scholar] [CrossRef]
  55. Igonin, V.A.; Lindeman, S.V.; Struchkov, Y.T.; Shchegolikhina, O.I.; Zhdanov, A.A.; Molodtsova, Y.A.; Razumovskaya, I.V. The structure of the copper complexes with macrocyclic organosiloxanolate ligands. Organomet. Chem. USSR (Engl. Transl.) 1991, 4, 672. [Google Scholar]
  56. Zherlitsyna, L.; Auner, N.; Bolte, M. Bis(μ6-cis-2,4,6,8,10,12,14,16-octamethylcyclooctasiloxane-2, 4,6,8,10,12,14,16-octolato)octakis[(dimethylformamide)copper(II)] dimethylformamide solvate enclosing a pyrazine molecule. Acta Crystallogr. Sect. A Crystal Struct. Commun. 2006, 62, m199–m200. [Google Scholar] [CrossRef] [PubMed]
  57. Sergienko, N.V.; Trankina, E.S.; Pavlov, V.I.; Zhdanov, A.A.; Lyssenko, K.A.; Antipin, M.Yu.; Akhmet’eva, E.I. Reactions of cage-like copper/sodium organosiloxanes with CuCl2. Russ. Chem. Bull. Int. Ed. 2004, 53, 351–357. [Google Scholar] [CrossRef]
  58. Dronova, M.S.; Bilyachenko, A.N.; Yalymov, A.I.; Kozlov, Y.N.; Shul’Pina, L.S.; Korlyukov, A.A.; Arkhipov, D.E.; Levitsky, M.M.; Shubina, E.S.; Shul’Pin, G.B. Solvent-controlled synthesis of tetranuclear cage-like copper(ii) silsesquioxanes. Remarkable features of the cage structures and their high catalytic activity in oxidation with peroxides. Dalton Trans. 2014, 43, 872–882. [Google Scholar] [CrossRef] [PubMed]
  59. Bilyachenko, A.N.; Korlyukov, A.A.; Vologzhanina, A.V.; Khrustalev, V.N.; Kulakova, A.N.; Long, J.; Larionova, J.; Guari, Y.; Dronova, M.S.; Tsareva, U.S.; et al. Tuning linkage isomerism and magnetic properties of bi- and tri-metallic cage silsesquioxanes by cation and solvent effects. Dalton Trans. 2017, 46, 12935–12949. [Google Scholar] [CrossRef] [PubMed]
  60. Lorenz, V.; Blaurock, S.; Görls, H.; Edelmann, F.T. The First Niobasilsesquioxanes. Organometallics 2006, 25, 5922–5926. [Google Scholar] [CrossRef]
  61. Giovenzana, T.; Guidotti, M.; Lucenti, E.; Biroli, A.O.; Sordelli, L.; Sironi, A.; Ugo, R. Synthesis and Catalytic Activity of Titanium Silsesquioxane Frameworks as Models of Titanium Active Surface Sites of Controlled Nuclearity. Organometallics 2010, 29, 6687–6694. [Google Scholar] [CrossRef]
  62. Maxim, N.; Abbenhuis, H.C.L.; Stobbelaar, P.J.; Mojet, B.L.; van Santen, R.A. Chromium silsesquioxane based synthesis and characterization of a microporous Cr–Si–O material. Phys. Chem. Chem. Phys. 1999, 1, 4473–4477. [Google Scholar] [CrossRef]
  63. Maxim, N.; Magusin, P.C.M.M.; Kooyman, P.J.; van Wolput, J.H.M.C.; van Santen, R.A.; Abbenhuis, H.C.L. Microporous Mg−Si−O and Al−Si−O Materials Derived from Metal Silsesquioxanes. Chem. Mater. 2001, 13, 2958–2964. [Google Scholar] [CrossRef]
  64. Maxim, N.; Overweg, A.; Kooyman, P.J.; Van Wolput, J.H.M.C.; Hanssen, R.W.J.M.; Van Santen, R.A.; Abbenhuis, H.C.L. Synthesis and Characterization of Microporous Fe−Si−O Materials with Tailored Iron Content from Silsesquioxane Precursors. J. Phys. Chem. B 2002, 106, 2203–2209. [Google Scholar] [CrossRef]
  65. Murugavel, R.; Davis, P.; Shete, V.S. Reactivity Studies, Structural Characterization, and Thermolysis of Cubic Titanosiloxanes:  Precursors to Titanosilicate Materials Which Catalyze Olefin Epoxidation. Inorg. Chem. 2003, 42, 4696–4706. [Google Scholar] [CrossRef] [PubMed]
  66. Kostakis, G.E.; Powell, A.K. An approach to describing the topology of polynuclear clusters. Coord. Chem. Rev. 2009, 253, 2686–2697. [Google Scholar] [CrossRef]
  67. Blatov, V.A.; Shevchenko, A.P.; Proserpio, D.M. Applied Topological Analysis of Crystal Structures with the Program Package ToposPro. Cryst. Growth Des. 2014, 147, 3576–3586. [Google Scholar] [CrossRef]
  68. Kostakis, G.E.; Perlepe, S.P.; Blatov, V.A.; Proserpio, D.M.; Powell, A.K. High-nuclearity cobalt coordination clusters: Synthetic, topological and magnetic aspects. Coord. Chem. Rev. 2012, 256, 1246–1278. [Google Scholar] [CrossRef]
  69. Kostakis, G.E.; Blatov, V.A.; Proserpio, D.M. A method for topological analysis of high nuclearity coordination clusters and its application to Mn coordination compounds. Dalton Trans. 2012, 41, 4634–4640. [Google Scholar] [CrossRef]
  70. Wix, P.; Kostakis, G.E.; Blatov, V.A.; Proserpio, D.M.; Perlepes, S.P.; Powell, A.K. A database of topological representations of polynuclear nickel compounds. Eur. J. Inorg. Chem. 2013, 9, 520–526. [Google Scholar] [CrossRef]
  71. Qian, C.; Wang, B.; Xin, Y.; Lin, Y. Studies on organolanthanide complexes. Part 56. Formation of ion-pair complexes [Na·3phen]+[Ln(C5H5)3Cl]–phen (Ln = La, Pr or Nd; phen = 1,10-phenanthroline) and crystal structure for Ln = Pr. J. Chem. Soc. Dalton Trans. 1994, 14, 2109–2112. [Google Scholar] [CrossRef]
  72. Tseng, C.-K.; Lee, C.-R.; Han, C.-C.; Shyu, S.-G. Copper(I)–Anilide Complex [Na(phen)3] [Cu(NPh2)2]: An Intermediate in the Copper-Catalyzed N-Arylation of N-Phenylaniline. Chem. Eur. J. 2011, 17, 2716–2723. [Google Scholar] [CrossRef]
  73. Doi, R.; Ohashi, M.; Ogoshi, S. Copper-Catalyzed Reaction of Trifluoromethylketones with Aldehydes via a Copper Difluoroenolate. Angew. Chem. Int. Ed. 2016, 55, 341–344. [Google Scholar] [CrossRef] [PubMed]
  74. Zhang, B.; Xie, C.; Wang, X.; Shen, G.; Shen, D. A novel heterometallic FeII–Na+ phase: 1,10-phenanthrolinium aqua-bis(1,10-phenanthroline)-sodium(I) pentacyanonitrosoiron(II) monohydrate. Acta Crystallogr. Sect. E 2004, 60, m1293–m1295. [Google Scholar] [CrossRef]
  75. Li, F.; Yin, H.; Wang, D. Di-μ-iodo-1:2κ4I: I-diiodo-2κ2I-tris-(1,10-phenanthroline)-1κ2N, N′;2κ2N, N′-bis-muth(III)sodium(I). Acta Crystallogr. Sect. E 2006, 62, m437–m439. [Google Scholar] [CrossRef]
  76. Chesman, A.S.R.; Turner, D.R.; Langley, S.K.; Moubaraki, B.; Murray, K.S.; Deacon, G.B.; Batten, S.R. Synthesis and Structure of New Lanthanoid Carbonate “Lanthaballs”. Inorg. Chem. 2015, 54, 792–800. [Google Scholar] [CrossRef] [PubMed]
  77. Shul’pin, G.B. Alkane-oxidizing systems based on metal complexes. Radical versus non-radical mechanisms. In Alkane Functionalization; Pombeiro, A.J.L., Guedes da Silva, F.C., Eds.; Wiley: Hoboken, NJ, USA, 2018; pp. 47–72. [Google Scholar]
  78. Shul’pin, G.B. C-H functionalization: Thoroughly tuning ligands at a metal ion, a chemist can greatly enhance catalyst’s activity and selectivity. Dalton Trans. 2013, 42, 12794–12818. [Google Scholar] [CrossRef] [PubMed]
  79. Shul’pin, G.B. New trends in oxidative functionalization of carbon–hydrogen bonds: A review. Catalysts 2016, 6, 50. [Google Scholar] [CrossRef]
  80. Reetz, M.T. Directed Evolution of Artificial Metalloenzymes: A Universal Means to Tune the Selectivity of Transition Metal Catalysts? Acc. Chem. Res. 2019, 52, 336–344. [Google Scholar] [CrossRef]
  81. Hartwig, J.F.; Ward, T.R. New “Cats” in the House: Chemistry Meets Biology in Artificial Metalloenzymes and Repurposed Metalloenzymes. Acc. Chem. Res. 2019, 52, 1145. [Google Scholar]
  82. Shul’pin, G.B.; Nizova, G.V.; Kozlov, Y.N.; Cuervo, L.G.; Süss-Fink, G. Hydrogen peroxide oxygenation of alkanes including methane and ethane catalyzed by iron complexes in acetonitrile. Adv. Synth. Catal. 2004, 346, 317–332. [Google Scholar] [CrossRef]
  83. Shul’pin, G.B.; Kozlov, Y.N.; Nizova, G.V.; Süss-Fink, G.; Stanislas, S.; Kitaygorodskiy, A.; Kulikova, V.S. Oxidations by the reagent O2-H2O2-vanadium derivative-pyrazine-2-carboxylic acid. Part 12.1 Main features, kinetics and mechanism of alkane hydroperoxidation. J. Chem. Soc. Perkin Trans. 2 2001, 8, 1351–1371. [Google Scholar] [CrossRef]
  84. Shul’pin, G.B.; Süss-Fink, G.; Lindsay Smith, J.R. Oxidations by the system hydrogen peroxide-manganese(IV) complex- acetic acid-Part II: Hydroperoxidation and hydroxylation of alkanes in acetonitrile. Tetrahedron 1999, 55, 5345–5358. [Google Scholar] [CrossRef]
  85. Mandelli, D.; Chiacchio, K.C.; Kozlov, Y.N.; Shul’pin, G.B. Hydroperoxidation of alkanes with hydrogen peroxide catalyzed by aluminium nitrate in acetonitrile. Tetrahedron Lett. 2008, 49, 6693–6697. [Google Scholar] [CrossRef]
  86. Olivo, G.; Lanzalunga, O.; Di Stefano, S. Non-Heme Imine-Based Iron Complexes as Catalysts for Oxidative Processes (Review). Adv. Synth. Catal. 2016, 358, 843–863. [Google Scholar] [CrossRef]
Scheme 1. Phenanthroline-assisted self-assembly of complexes 1 and 2.
Scheme 1. Phenanthroline-assisted self-assembly of complexes 1 and 2.
Catalysts 09 00701 sch001

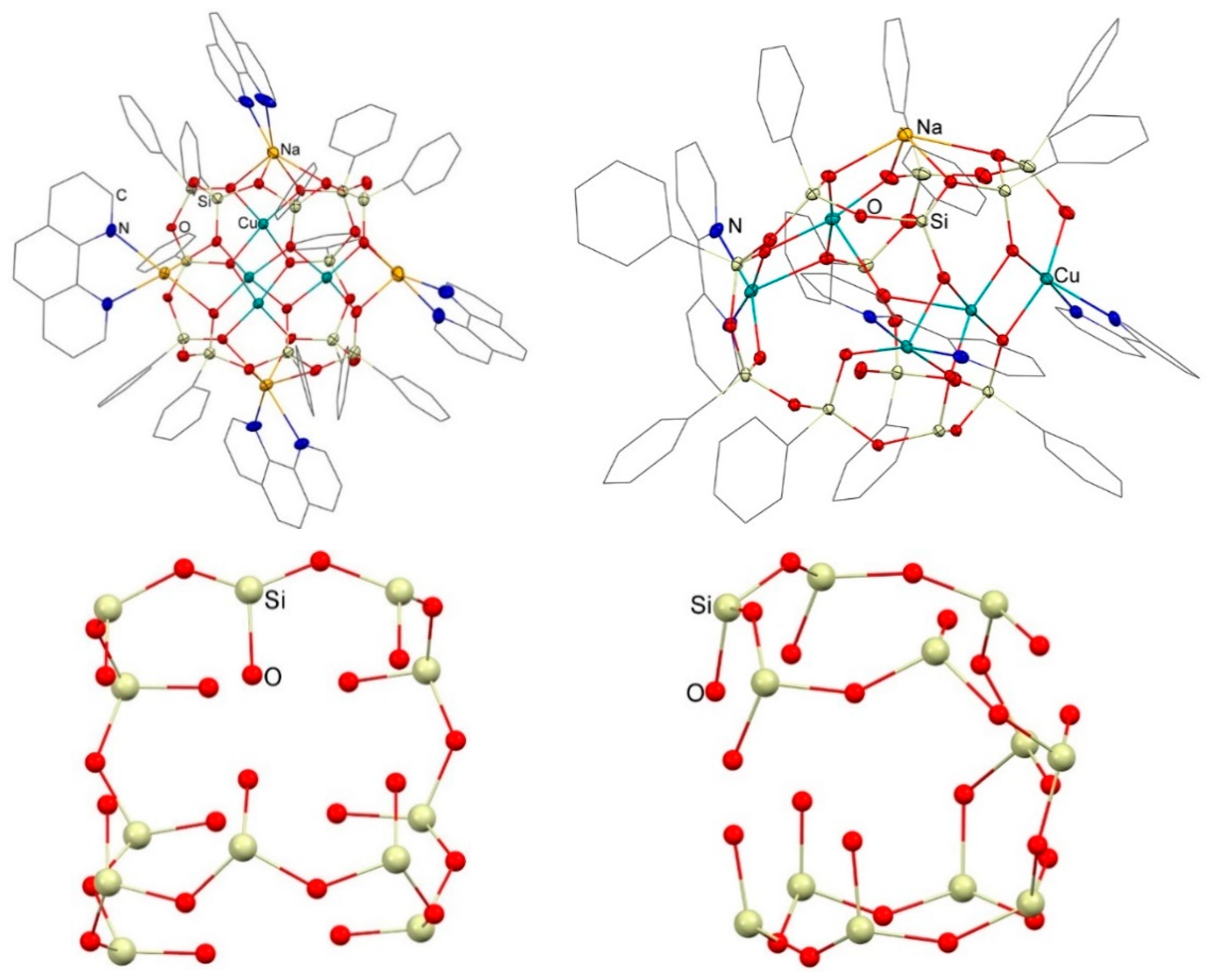

Figure 1. Top left: Molecular structure of 1. Top right: Molecular structure of cage metallasilsesquioxane (CLMS) from ref. 8b. Solvating molecules of THF are not shown for clarity. Bottom left: Structure of silsesquioxane Si12-ligand in 1. Bottom right: Structure of silsesquioxane Si12-ligand in CLMS from ref. 8b.
Figure 1. Top left: Molecular structure of 1. Top right: Molecular structure of cage metallasilsesquioxane (CLMS) from ref. 8b. Solvating molecules of THF are not shown for clarity. Bottom left: Structure of silsesquioxane Si12-ligand in 1. Bottom right: Structure of silsesquioxane Si12-ligand in CLMS from ref. 8b.
Catalysts 09 00701 g001

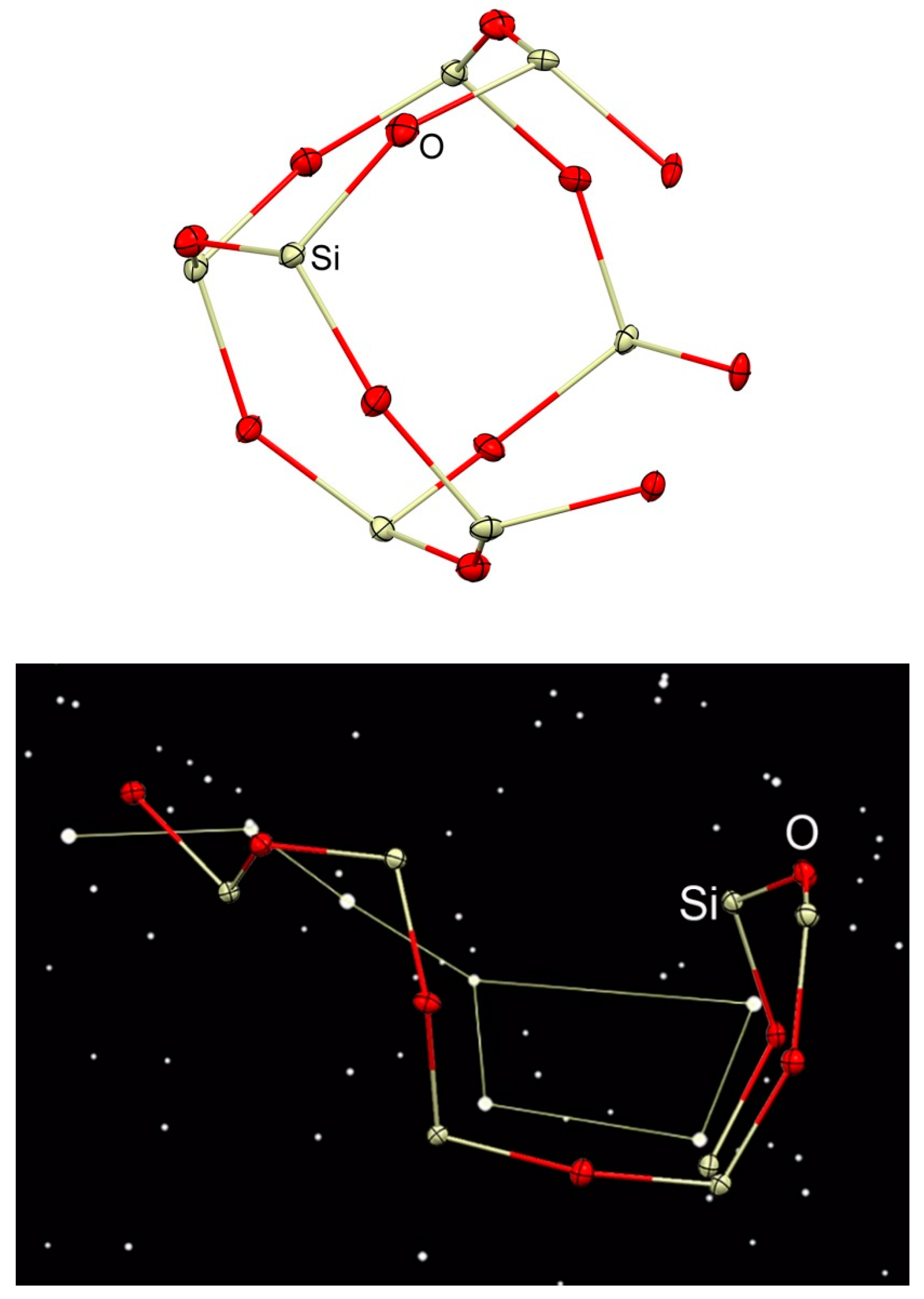

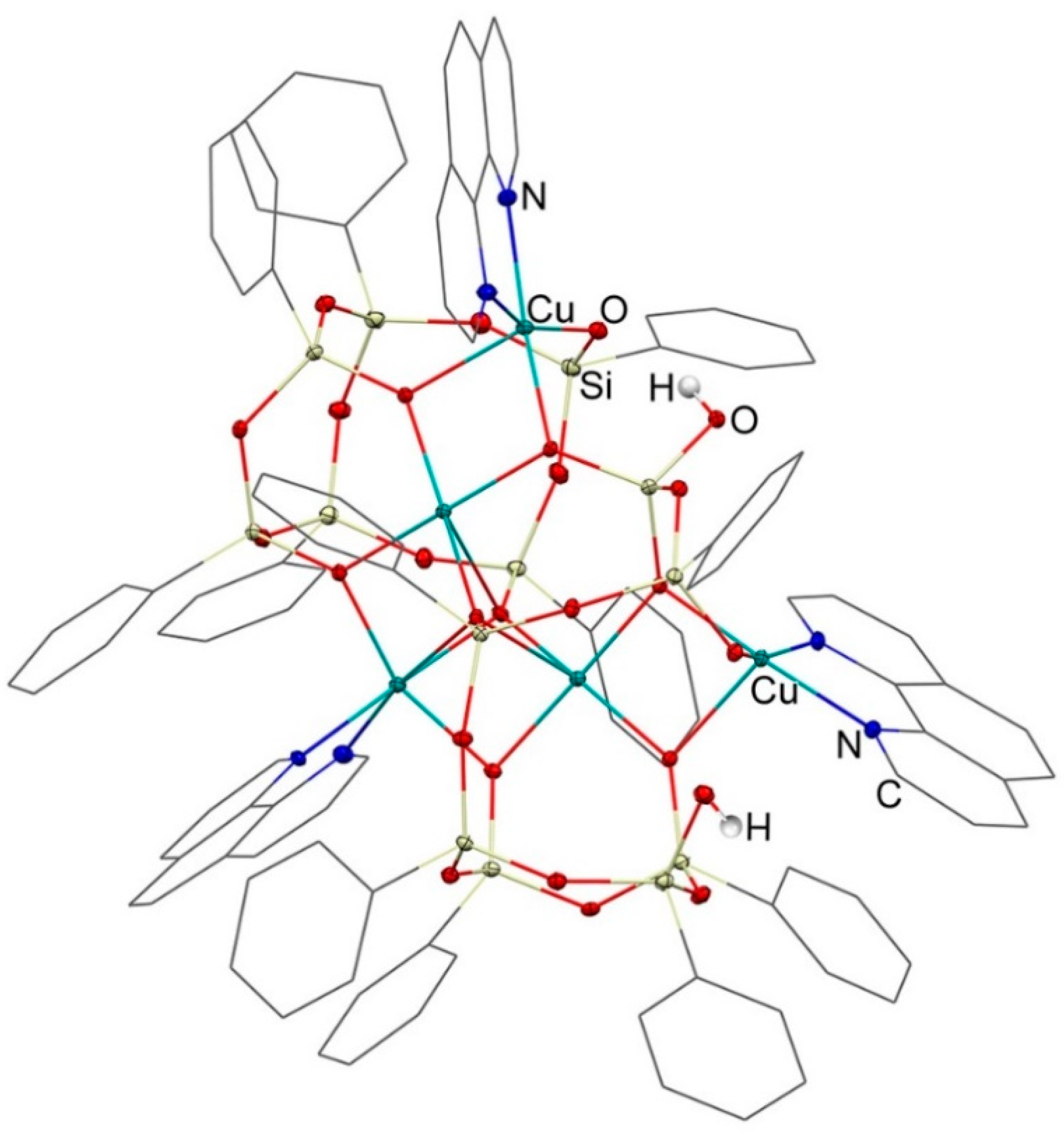

Figure 2. Top: Molecular structure of 2. Center: Non-condensed cubane siloxanolate ligand in 2. Bottom: “Ursa Major” siloxanolate-silanol ligand in 2.
Figure 2. Top: Molecular structure of 2. Center: Non-condensed cubane siloxanolate ligand in 2. Bottom: “Ursa Major” siloxanolate-silanol ligand in 2.
Catalysts 09 00701 g002aCatalysts 09 00701 g002b

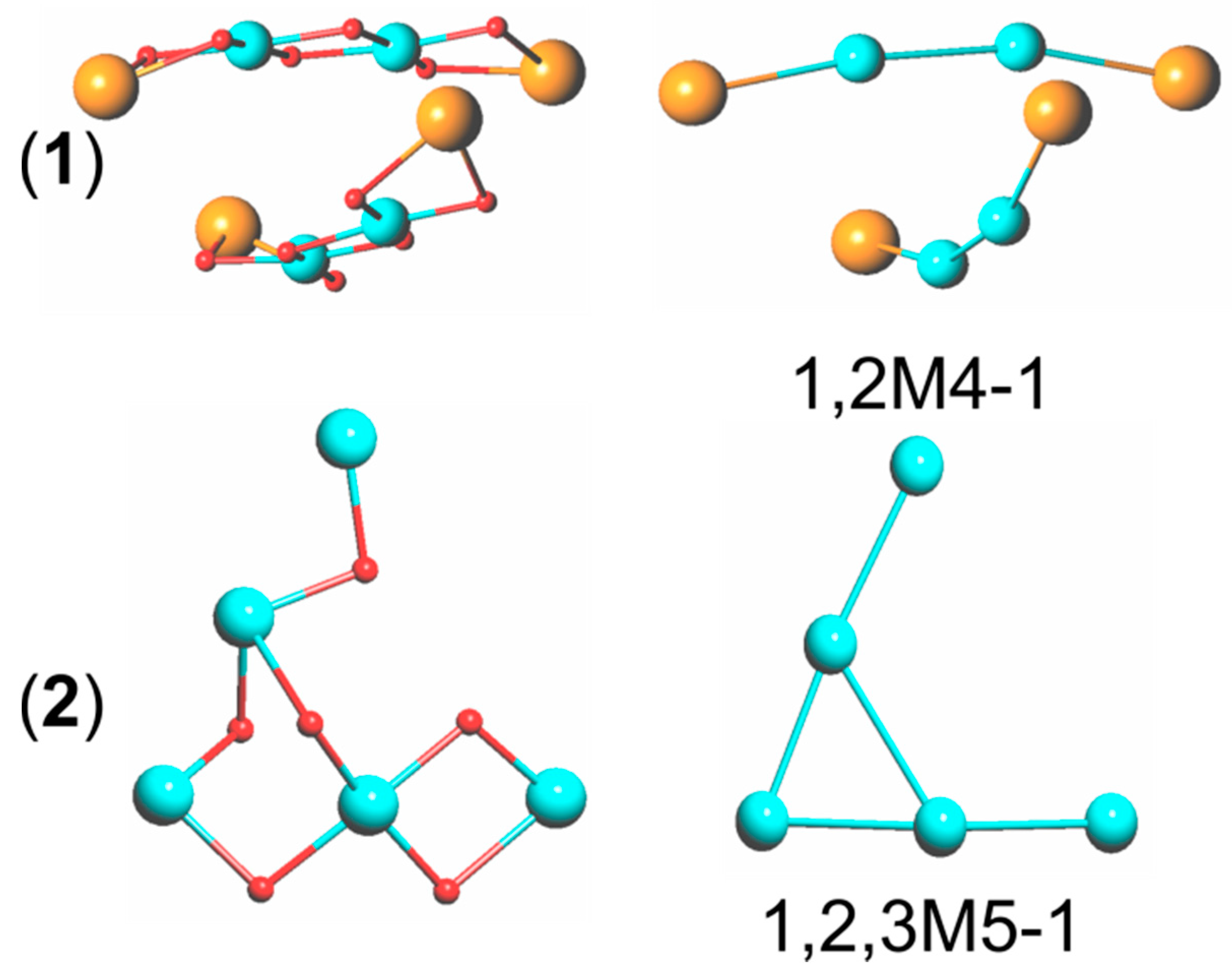

Figure 3. The Cu-containing polynuclear complexes in 1 and 2 connected by the bridged atoms (left) and the graphs for the corresponding polynuclear complexes’ connectivity (right). Color code: Cu—blue, Na—orange and O—red.
Figure 3. The Cu-containing polynuclear complexes in 1 and 2 connected by the bridged atoms (left) and the graphs for the corresponding polynuclear complexes’ connectivity (right). Color code: Cu—blue, Na—orange and O—red.
Catalysts 09 00701 g003

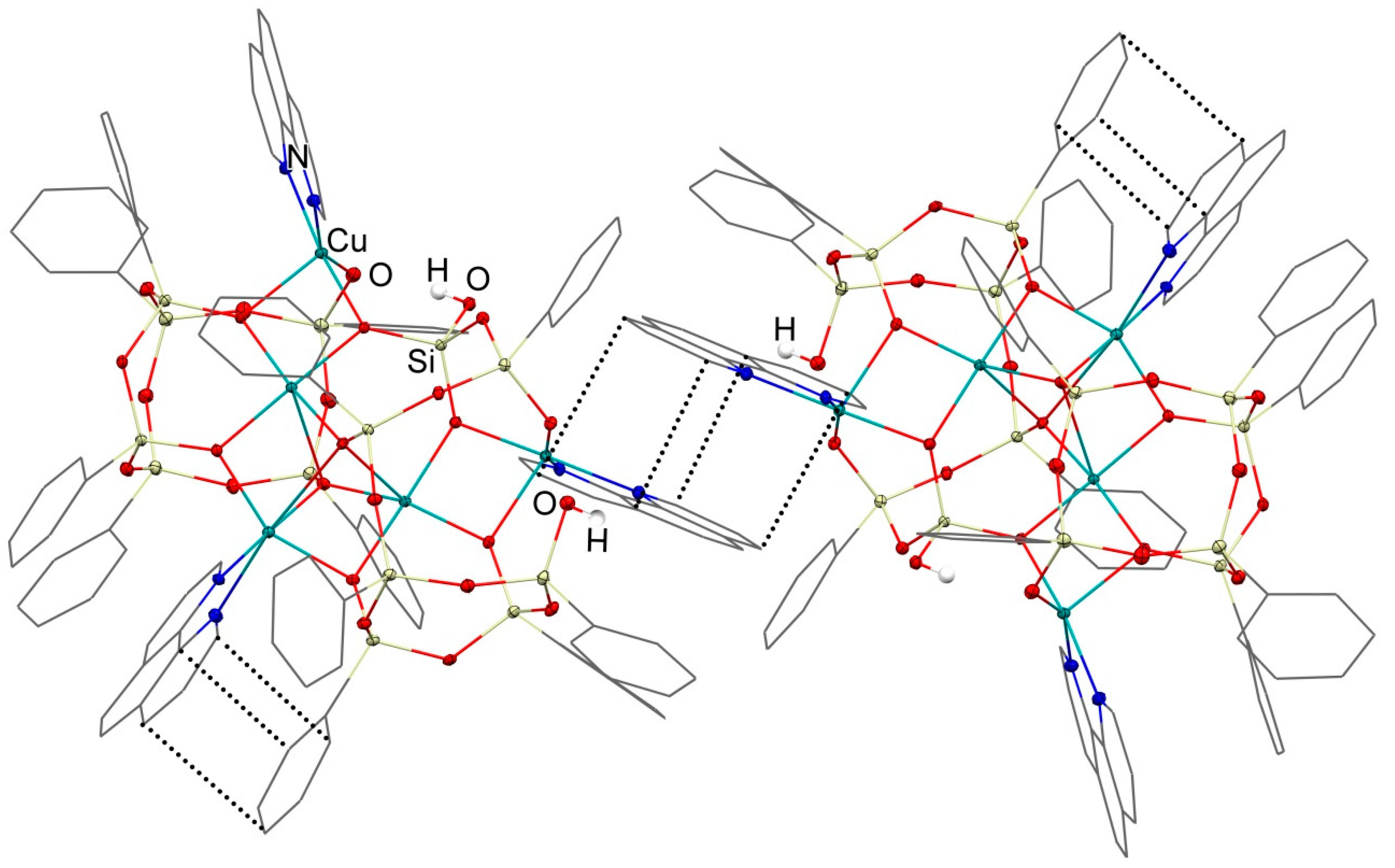

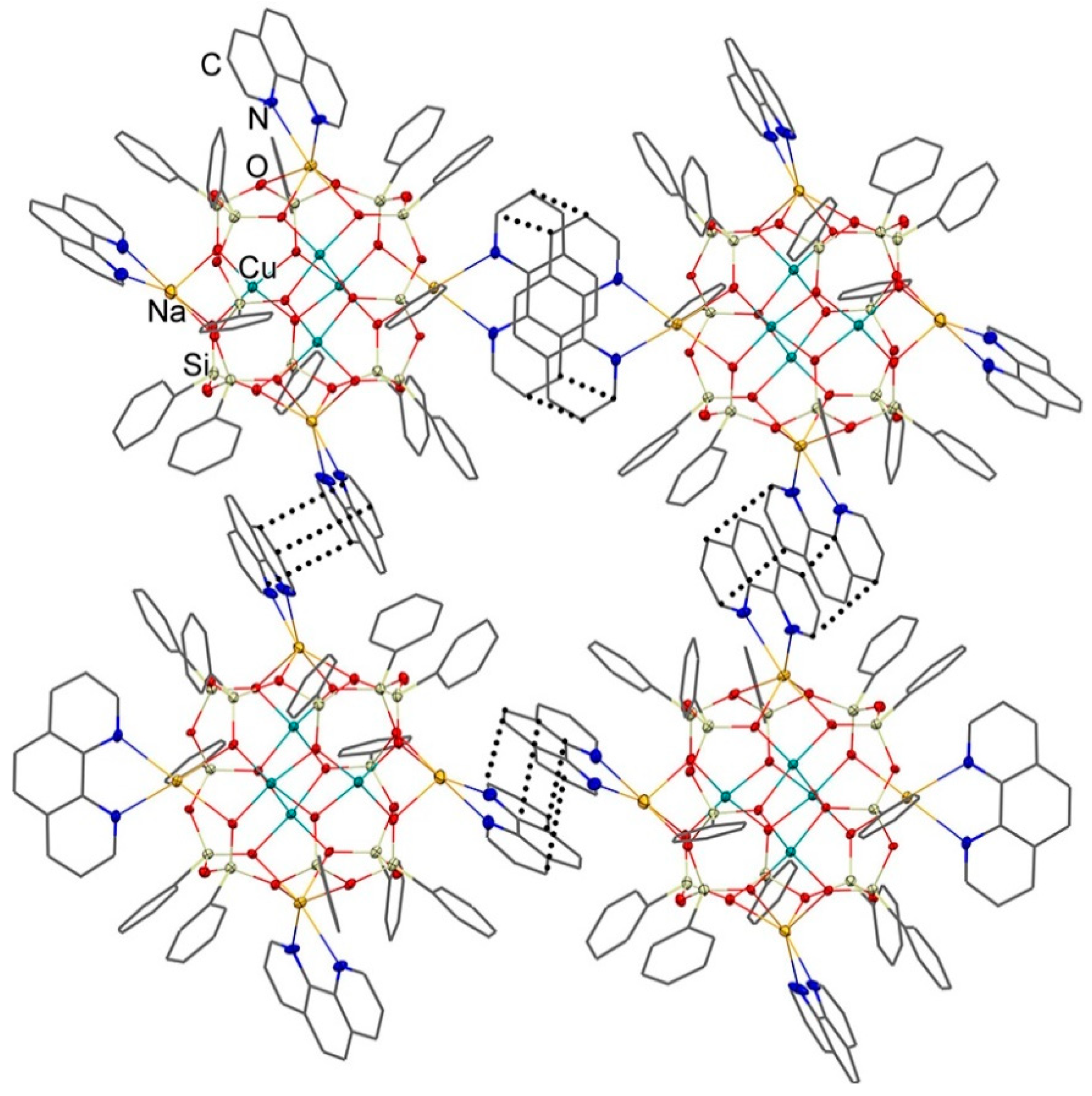

Figure 4. Top. “Phenanthroline to phenanthroline” stacking interactions of 1 in crystal. Bottom. “Phenanthroline to phenanthroline” and “Phenanthroline to phenyl” stacking interactions of 2 in crystal.
Figure 4. Top. “Phenanthroline to phenanthroline” stacking interactions of 1 in crystal. Bottom. “Phenanthroline to phenanthroline” and “Phenanthroline to phenyl” stacking interactions of 2 in crystal.
Catalysts 09 00701 g004aCatalysts 09 00701 g004b

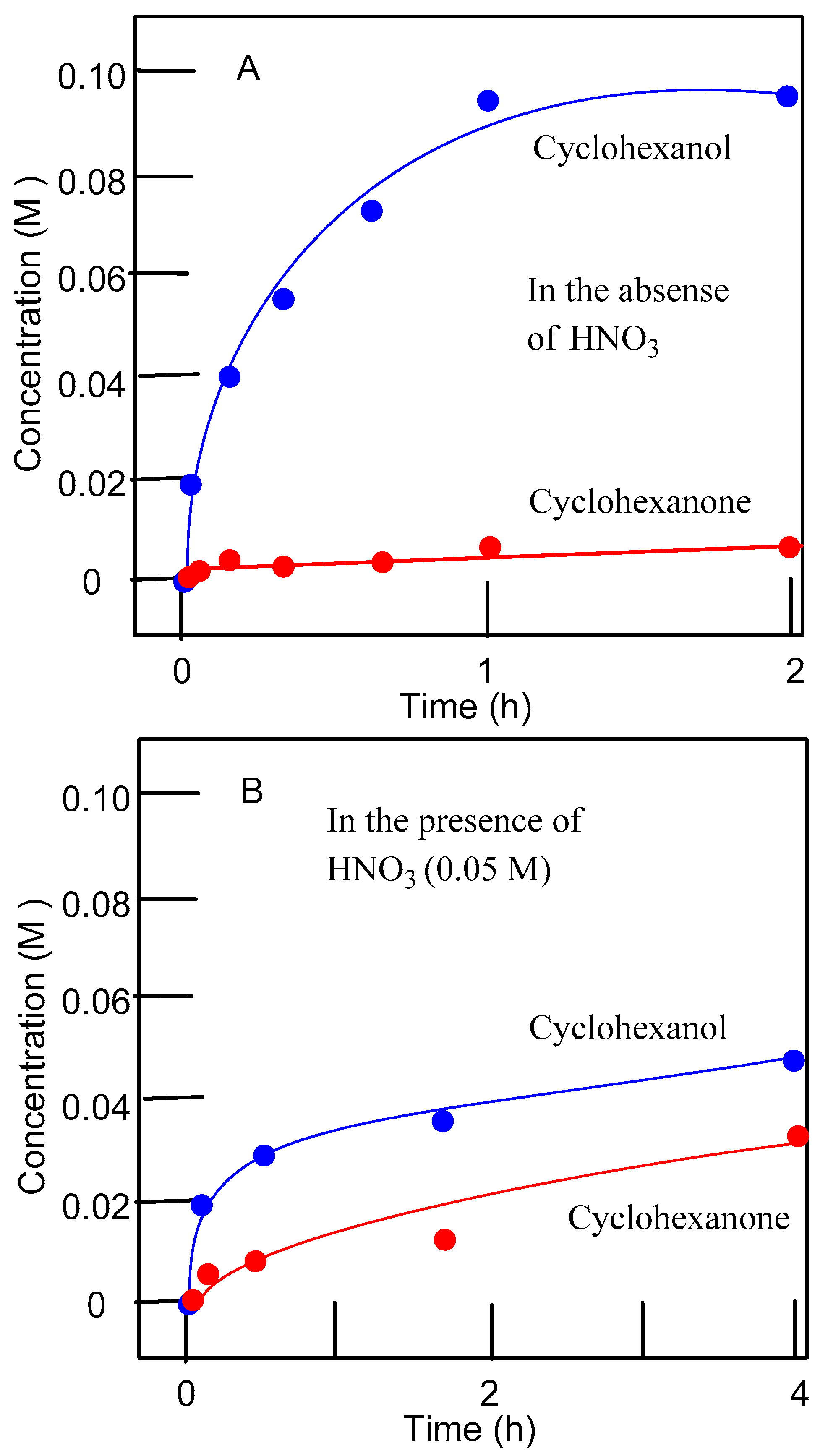

Figure 5. Accumulation of cyclohexanol and cyclohexanone in the oxidation of cyclohexane (0.46 M) with hydrogen peroxide (2.0 M, 50% aqueous) catalyzed by compound 1 (5 × 10−4 M) in MeCN at 50 °C. Concentrations of cyclohexanone and cyclohexanol were determined after reduction of the aliquots with solid PPh3. Graph A: in the absence of HNO3. Graph B: in the presense of HNO3.
Figure 5. Accumulation of cyclohexanol and cyclohexanone in the oxidation of cyclohexane (0.46 M) with hydrogen peroxide (2.0 M, 50% aqueous) catalyzed by compound 1 (5 × 10−4 M) in MeCN at 50 °C. Concentrations of cyclohexanone and cyclohexanol were determined after reduction of the aliquots with solid PPh3. Graph A: in the absence of HNO3. Graph B: in the presense of HNO3.
Catalysts 09 00701 g005

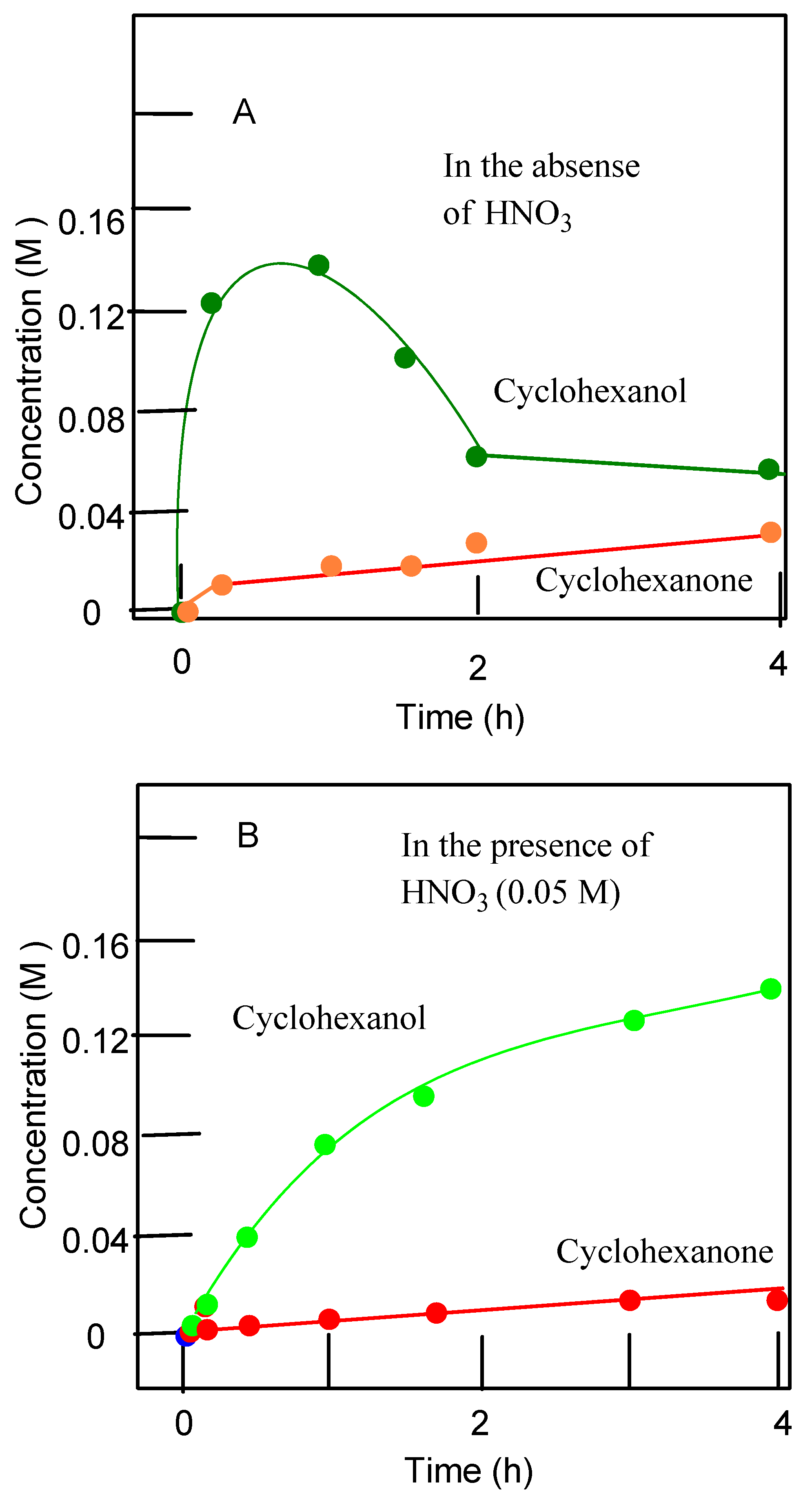

Figure 6. Accumulation of cyclohexanol and cyclohexanone in oxidation of cyclohexane (0.46 M) with hydrogen peroxide (2.0 M, 50% aqueous) catalyzed by compound 2 (5 × 10−4 M) in MeCN at 50 °C. Concentrations of cyclohexanone and cyclohexanol were determined after reduction of the aliquots with solid PPh3. Graph A: in the absence of HNO3. Graph B: in the presense of HNO3.
Figure 6. Accumulation of cyclohexanol and cyclohexanone in oxidation of cyclohexane (0.46 M) with hydrogen peroxide (2.0 M, 50% aqueous) catalyzed by compound 2 (5 × 10−4 M) in MeCN at 50 °C. Concentrations of cyclohexanone and cyclohexanol were determined after reduction of the aliquots with solid PPh3. Graph A: in the absence of HNO3. Graph B: in the presense of HNO3.
Catalysts 09 00701 g006

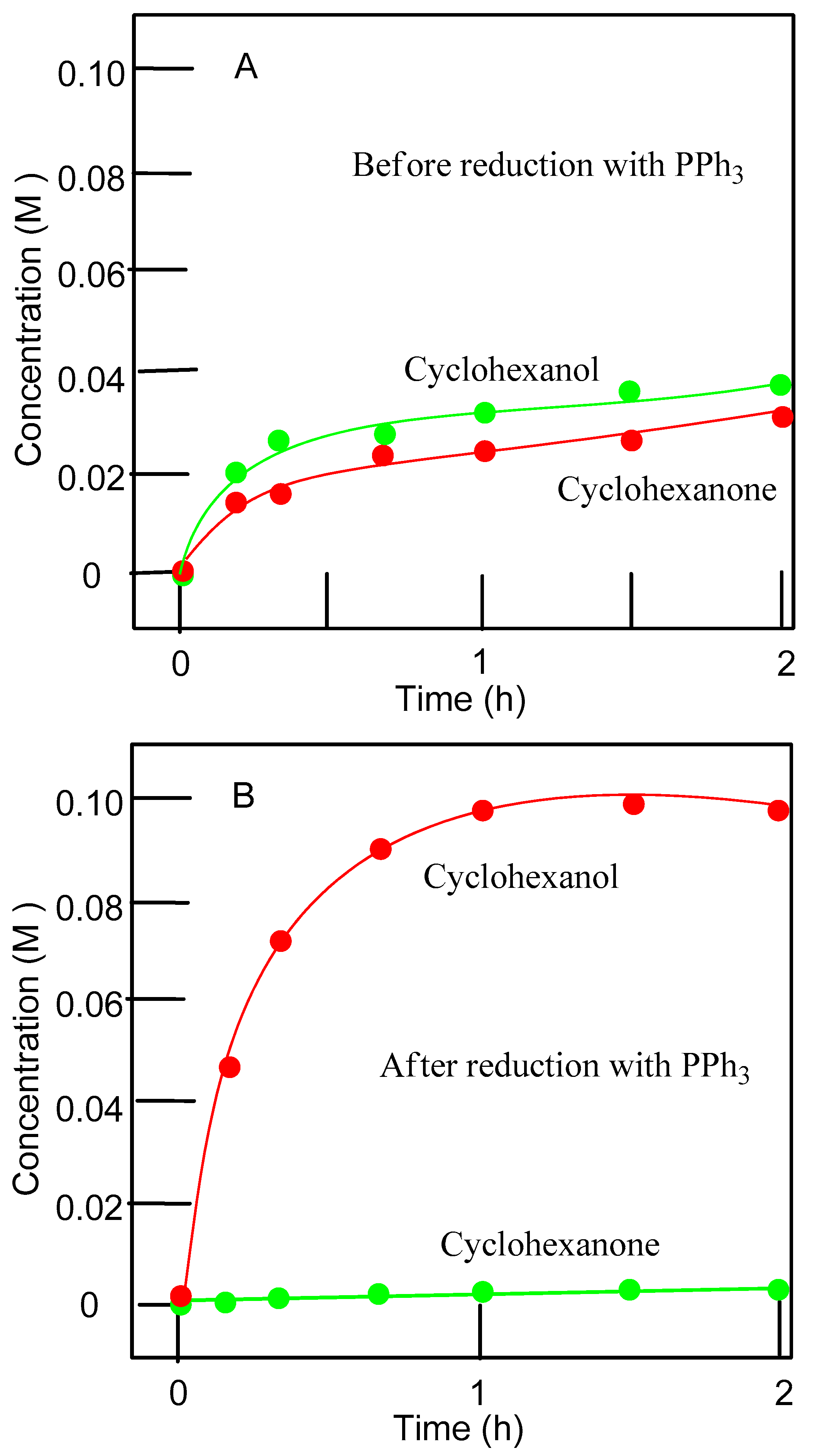

Figure 7. Accumulation of cyclohexanol and cyclohexanone in the oxidation of cyclohexane (0.46 M) with hydrogen peroxide (2.0 M, 50% aqueous) catalyzed by compound 1 (5 × 10−4 M) in MeCN at 50 °C. Concentrations of cyclohexanone and cyclohexanol were determined before (graph A) and (graph B) after reduction of the aliquots with solid PPh3 (according to the Shul’pin method [45,46,47,48,49,50,51]).
Figure 7. Accumulation of cyclohexanol and cyclohexanone in the oxidation of cyclohexane (0.46 M) with hydrogen peroxide (2.0 M, 50% aqueous) catalyzed by compound 1 (5 × 10−4 M) in MeCN at 50 °C. Concentrations of cyclohexanone and cyclohexanol were determined before (graph A) and (graph B) after reduction of the aliquots with solid PPh3 (according to the Shul’pin method [45,46,47,48,49,50,51]).
Catalysts 09 00701 g007

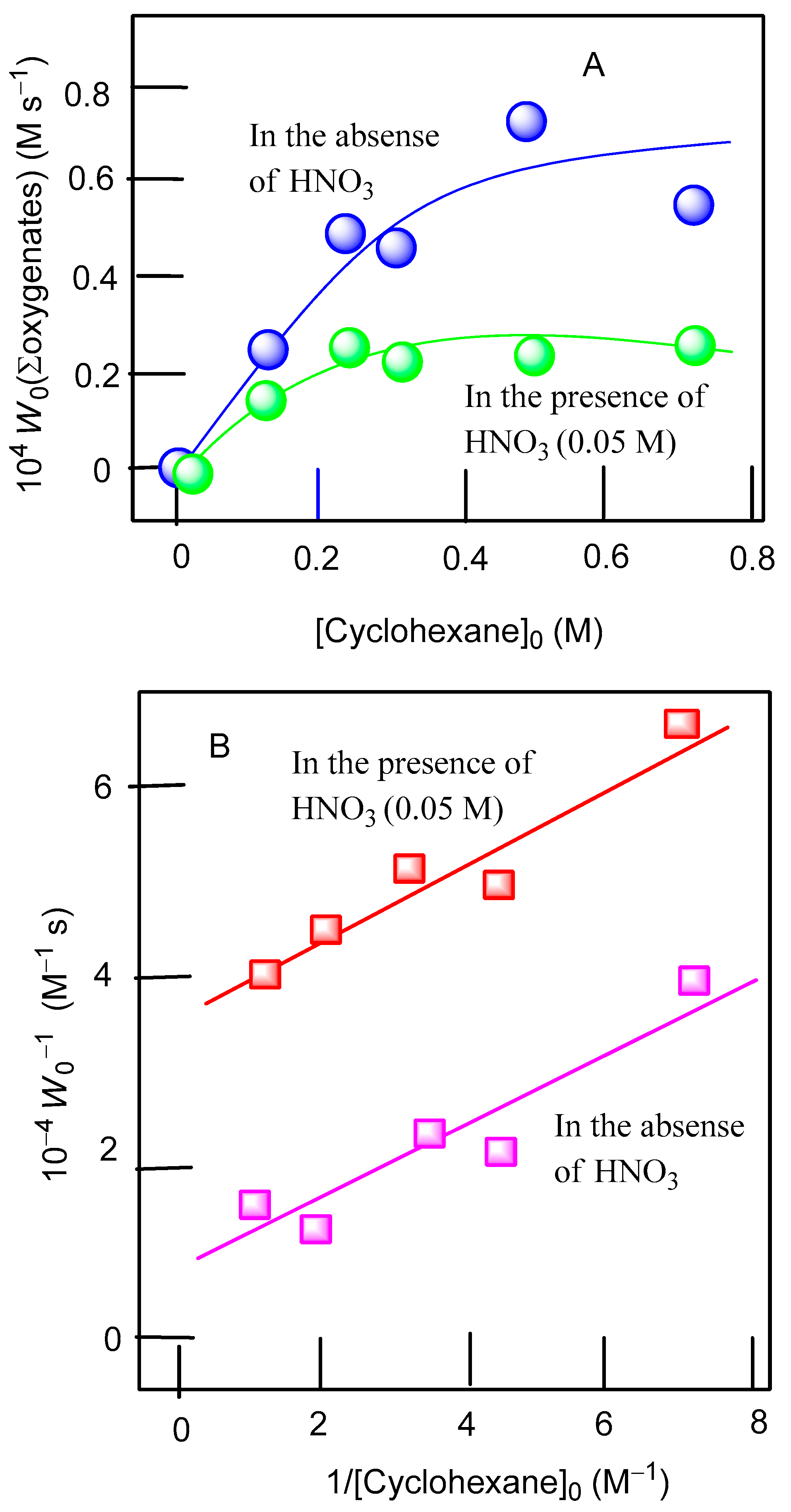

Figure 8. Dependence of the initial rate of oxygenate (sum cyclohexanol + cyclohexanone) formation W0 for complex 1 on the initial concentration of cyclohexane is shown in graph A. Linearization of the curve from graph A in coordinates W0−1–1/[C6H12] is presented in graph B. Concentrations of cyclohexanone and cyclohexanol were determined after reduction of the aliquots with solid PPh3.
Figure 8. Dependence of the initial rate of oxygenate (sum cyclohexanol + cyclohexanone) formation W0 for complex 1 on the initial concentration of cyclohexane is shown in graph A. Linearization of the curve from graph A in coordinates W0−1–1/[C6H12] is presented in graph B. Concentrations of cyclohexanone and cyclohexanol were determined after reduction of the aliquots with solid PPh3.
Catalysts 09 00701 g008

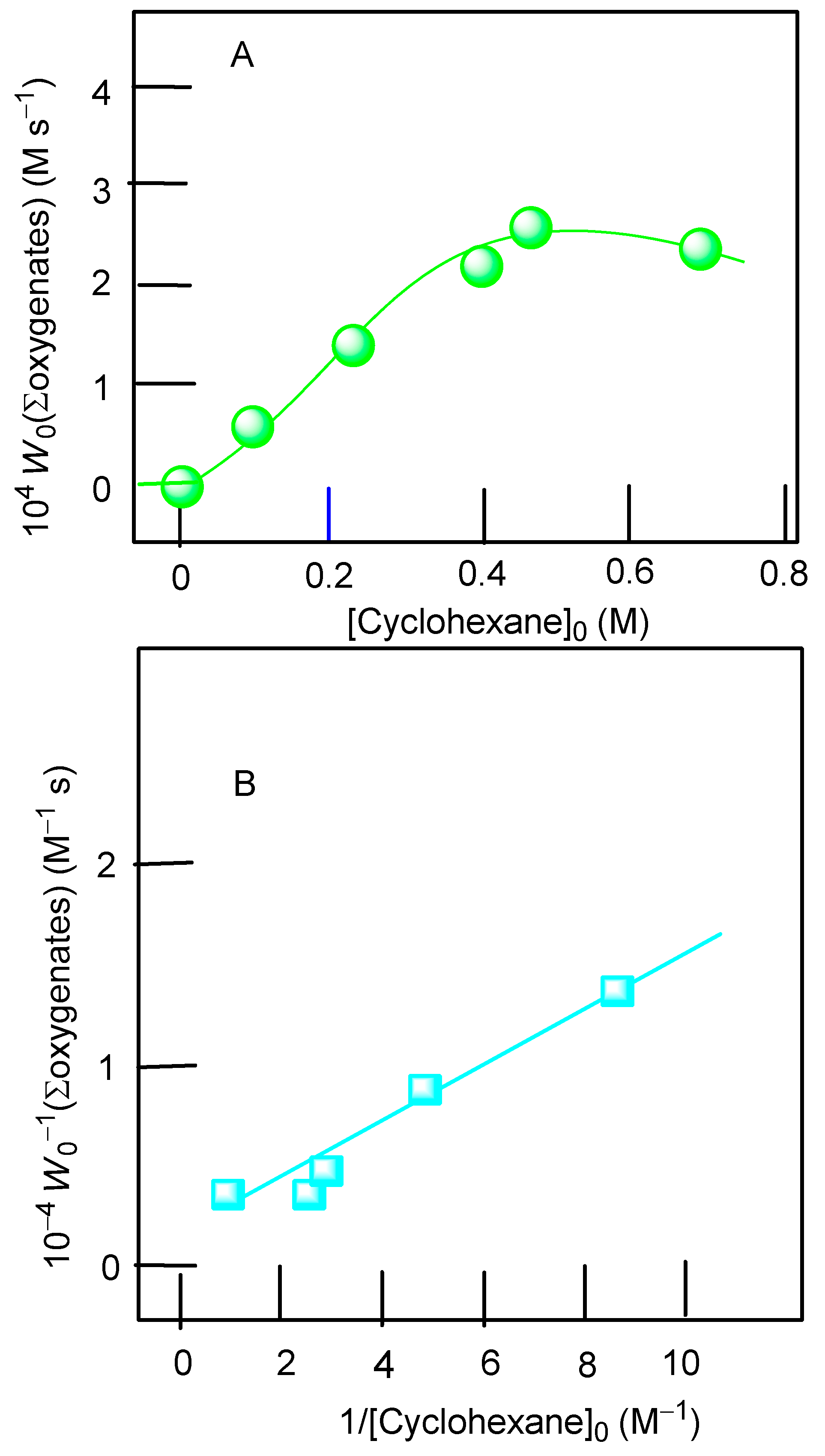

Figure 9. Dependence of the initial rate of oxygenate (sum cyclohexanol + cyclohexanone) formation W0 for complex 2 on the initial concentration of cyclohexane is shown in graph A. Linearization of the curve from graph A in coordinates W0−1–1/[C6H12] is presented in graph B. Concentrations of cyclohexanone and cyclohexanol were determined after reduction of the aliquots with solid PPh3.
Figure 9. Dependence of the initial rate of oxygenate (sum cyclohexanol + cyclohexanone) formation W0 for complex 2 on the initial concentration of cyclohexane is shown in graph A. Linearization of the curve from graph A in coordinates W0−1–1/[C6H12] is presented in graph B. Concentrations of cyclohexanone and cyclohexanol were determined after reduction of the aliquots with solid PPh3.
Catalysts 09 00701 g009

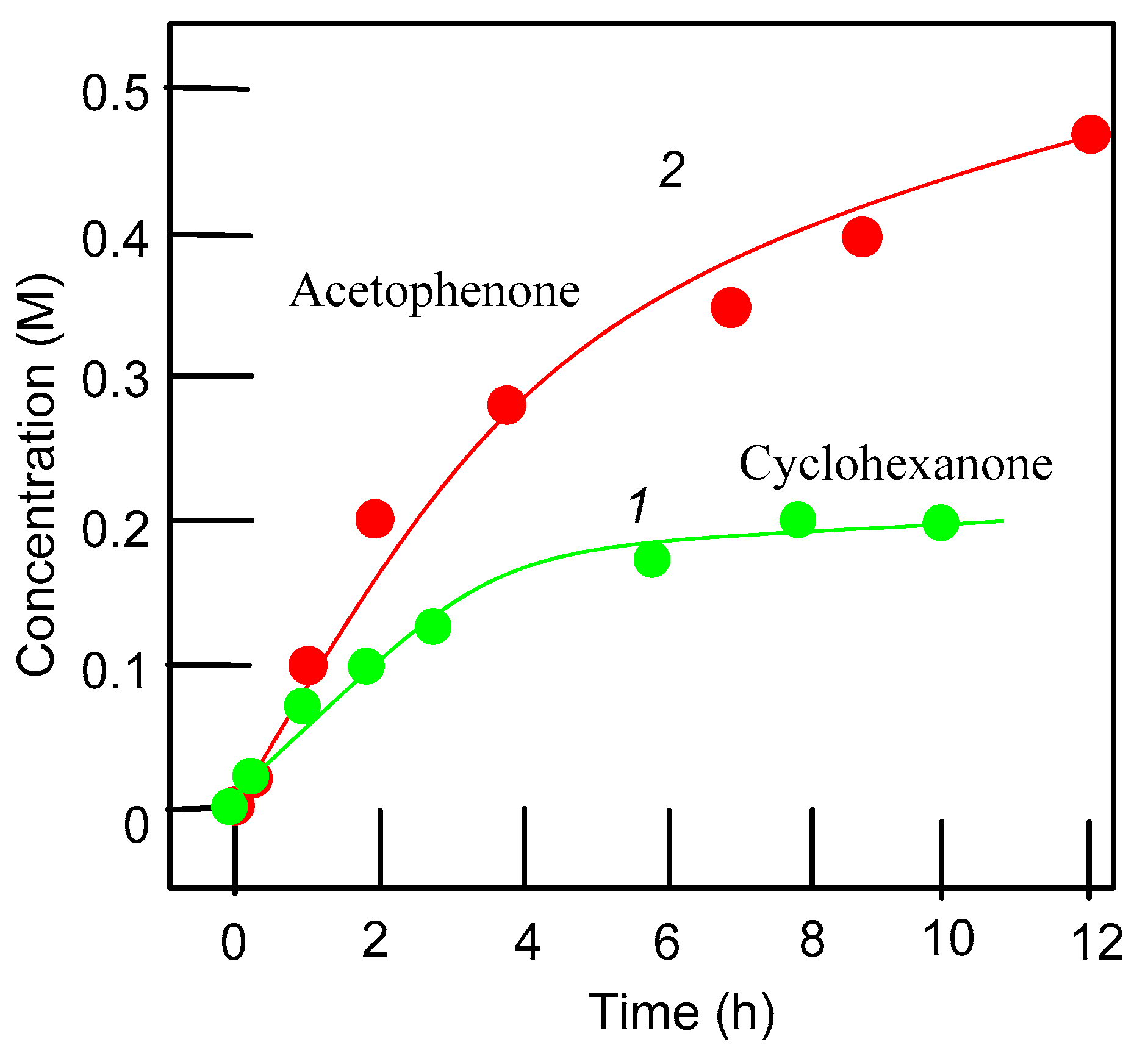

Figure 10. Accumulation of cyclohexanone (curve 1), and acetophenone (curve 2) in the oxidation of cyclohexanol (0.5 M) or 1-phenylethanol (0.5 M), respectively, with tert-butyl hydroperoxide (1.5 M) catalyzed by complex 1 (5 × 10−4 M) at 50 °C in acetonitrile. In order to quench the oxidation process concentrations of products were measured by GC only after the reduction of the reaction sample with solid PPh3.
Figure 10. Accumulation of cyclohexanone (curve 1), and acetophenone (curve 2) in the oxidation of cyclohexanol (0.5 M) or 1-phenylethanol (0.5 M), respectively, with tert-butyl hydroperoxide (1.5 M) catalyzed by complex 1 (5 × 10−4 M) at 50 °C in acetonitrile. In order to quench the oxidation process concentrations of products were measured by GC only after the reduction of the reaction sample with solid PPh3.
Catalysts 09 00701 g010

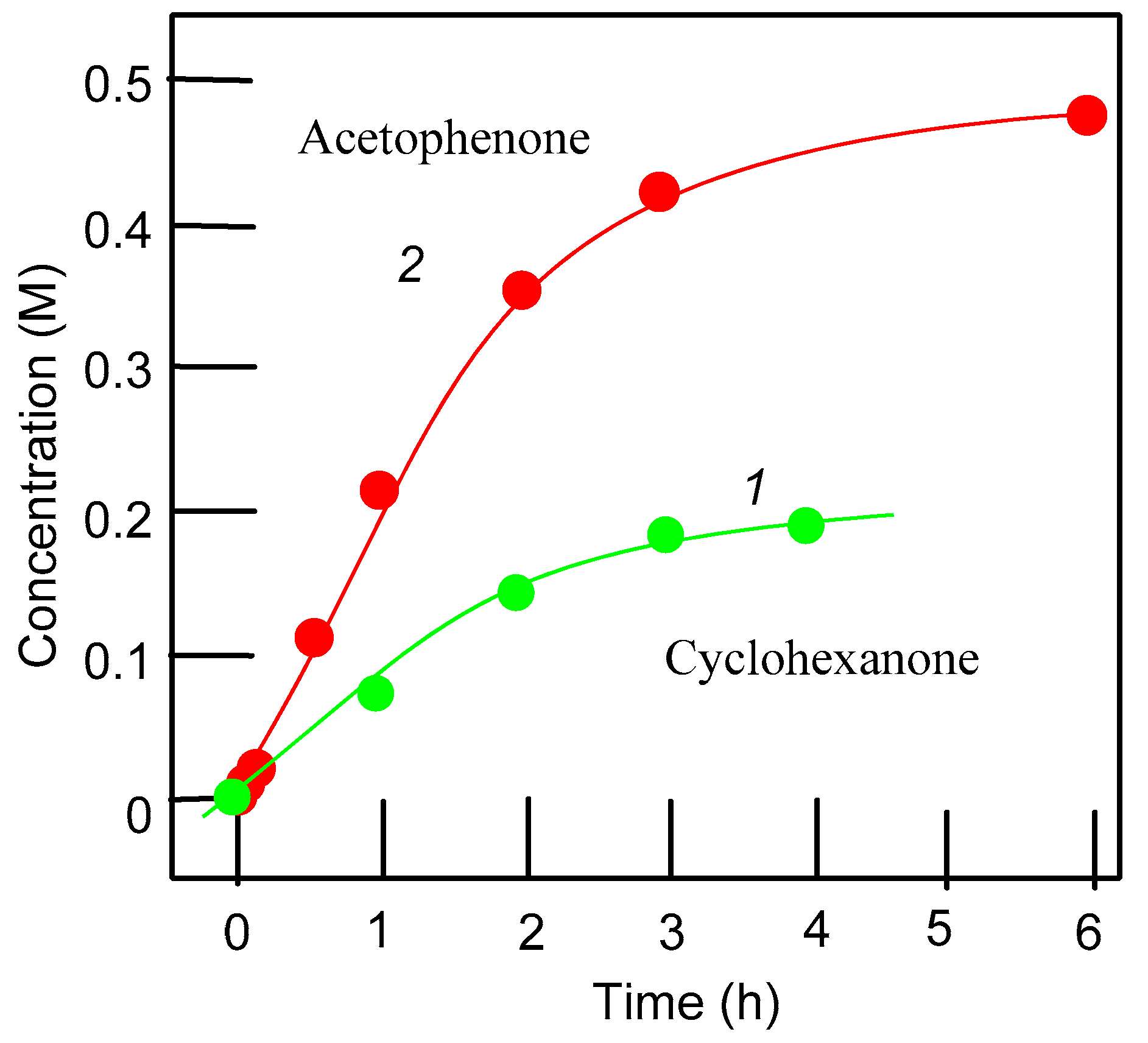

Figure 11. Accumulation of cyclohexanone (curve 1), and acetophenone (curve 2) in the oxidation of cyclohexanol (0.5 M) or 1-phenylethanol (0.5 M), respectively, with tert-butyl hydroperoxide (1.5 M) catalyzed by complex 2 (5 × 10−4 M) at 50 °C in acetonitrile. In order to quench the oxidation process concentrations of products were measured by GC only after the reduction of the reaction sample with solid PPh3.
Figure 11. Accumulation of cyclohexanone (curve 1), and acetophenone (curve 2) in the oxidation of cyclohexanol (0.5 M) or 1-phenylethanol (0.5 M), respectively, with tert-butyl hydroperoxide (1.5 M) catalyzed by complex 2 (5 × 10−4 M) at 50 °C in acetonitrile. In order to quench the oxidation process concentrations of products were measured by GC only after the reduction of the reaction sample with solid PPh3.
Catalysts 09 00701 g011
Table 1. Selectivity parameters in H2O2 oxidations of alkanes by certain catalytic systems a.
Table 1. Selectivity parameters in H2O2 oxidations of alkanes by certain catalytic systems a.
EntryCatalytic SystemC(1):C(2):C(3):C(4)1°:2°:3°trans/cis
n-HeptaneMCHcis-1,2-DMCH
1Catalyst 11.0:5.9:6.2:5.61.0:5.6:14.00.8
2Catalyst 1 + HNO31.0:4.5:4.3:3.91.0:4.7:11.30.8
3Catalyst 21.0:5.3:5.3:5.41.0:6.2:17.40.9
4Catalyst 2 + HNO31.0:5.7:5.7:5.21.0:5.4:15.0
5VO3/PCA b1.0:6.0:7.0:5.01:9:370.75
6[Mn2L2(O)3]2+/MeCO2H c1:46:35:341:26:200
a Parameter C(1):C(2):C(3):C(4) is the relative normalized (calculated taking into account the number of hydrogen atoms at each carbon) reactivities of hydrogen atoms at carbons 1, 2, 3 and of the chain of n-heptane. Parameter 1°:2°:3° is the relative normalized reactivities of hydrogen atoms at the primary, secondary and tertiary carbons of methylcyclohexane and isooctane. Parameter trans/cis is the ratio of isomers of tert-alcohols with mutual trans- and cis-orientation of the methyl groups formed in the oxidation of cis- and trans-1,2-dimethylcyclohexane. All parameters were measured after the reduction of the reaction mixtures with triphenylphosphine before GC analysis and calculated based on the ratios of isomeric alcohols. b PCA is pyrazine-2-carboxylic acid. For this system, see Ref. [83]. c L is trimethyltriazacyclononane. For this system, see Ref. [84].

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
