Article

Development of a Four-Enzyme Magnetic Nanobiocatalyst for Multi-Step Cascade Reactions

1
Biotechnology Laboratory, Department of Biological Applications and Technologies, University of Ioannina, 45110 Ioannina, Greece
2
Department of Materials Science & Engineering, University of Ioannina, 45110 Ioannina, Greece
3
Institute of Biology, Medicinal Chemistry & Biotechnology, National Hellenic Research Foundation, 11635 Athens, Greece
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(12), 995; https://doi.org/10.3390/catal9120995
Submission received: 4 November 2019 / Revised: 20 November 2019 / Accepted: 22 November 2019 / Published: 27 November 2019
(This article belongs to the Special Issue State of the Art and Future Trends in Nanostructured Biocatalysis)

Abstract

:
We report the preparation, characterization and application of a novel magnetic four-enzyme nanobiocatalyst prepared by the simultaneous covalent co-immobilization of cellulase (CelDZ1), β-glucosidase (bgl), glucose oxidase (GOx) and horseradish peroxidase (HRP) onto the surface of amino-functionalized magnetic nanoparticles (MNPs). This nanobiocatalyst was characterized by various spectroscopic techniques. The co-immobilization process yielded maximum recovered enzymatic activity (CelDZ1: 42%, bgl: 66%, GOx: 94% and HRP: 78%) at a 10% v/v cross-linker concentration, after 2 h incubation time and at 1:1 mass ratio of MNPs to total enzyme content. The immobilization process leads to an increase of Km and a decrease of Vmax values of co-immobilized enzymes. The thermal stability studies of the co-immobilized enzymes indicated up to 2-fold increase in half-life time constants and up to 1.5-fold increase in their deactivation energies compared to the native enzymes. The enhanced thermodynamic parameters of the four-enzyme co-immobilized MNPs also suggested increment in their thermal stability. Furthermore, the co-immobilized enzymes retained a significant part of their activity (up to 50%) after 5 reaction cycles at 50 °C and remained active even after 24 d of incubation at 5 °C. The nanobiocatalyst was successfully applied in a four-step cascade reaction involving the hydrolysis of cellulose.

Graphical Abstract

1. Introduction

Enzymes, widely employed as green catalysts, are versatile protein biomolecules with high stereo- and regio-selectivity that catalyze numerous biochemical reactions of industrial importance. They are preferred over conventional chemical catalysts due to their high turnover rates under mild reaction conditions and the reduction of by-product formation [1]. Therefore, biocatalysis that relies on enzymatic processes has rapidly gained considerable attention as a less toxic and eco-friendly approach. Its tremendous applications include an expanded range of fields, such as the production of biofuels, pharmaceuticals, foods, textiles and cosmetics [2]. However, enzymes in their free form are typically unstable and may undergo denaturation under harsh reaction conditions, settling challenges in their handling and separation. Moreover, most of the desired chemical reactions are composed of many steps and cannot be effectively catalyzed by a single enzyme. Thus, several enzymes working together in multi-step reactions or cascade processes are desired [3]. However, the development of robust multi-enzyme biocatalysts that exhibit high operational stability towards organic solvents or extreme pH and temperature conditions, along with facile recoverability and reusability, remains challenging.
Multi-enzymatic cascade reactions, that is, the integration of several biocatalytic transformations proceeding in a concurrent fashion, offer a wide range of opportunities and new paths to the synthesis of high-added value products. Such systems could improve biocatalytic processes by saving time and reducing waste, while being self-sufficient in terms of co-factor requirements [4,5,6]. Moreover, multi-enzyme cascade biocatalytic systems could offer the possibility of mimicking metabolic pathways of living cells by cascading multi-enzyme reactions or even the development of artificial metabolic pathways that do not appear in nature [7]. Finally, as there is an increasing urgency for greener and more sustainable alternative ways of producing chemicals and bioproducts, cascade reactions can be a highly promising approach in this direction by eliminating short conventional step-by-step synthesis [8,9].
Enzyme immobilization, namely the confinement of an enzyme on an insoluble matrix, is considered a promising technique that can address recoverability and reusability issues and broaden the industrial implementation of enzymes [10]. Moreover, the rapid growth of nanotechnology over the last few decades has provided various nanomaterials, which have been utilized as potential nanocarriers both in single and multi-enzyme immobilization [11,12,13]. Nanoparticles (NPs) exhibit numerous advantages, such as high surface area-to-volume ratio and nanoscale size, that provides them with excellent electronic, chemical, optical and physical properties as well as mechanical stability [14,15]. Among the various available nanomaterials, magnetic nanoparticles (MNPs) hold a prominent position due to their distinct characteristics [16]. These nanomatrices offer the great advantage of easy separation from the reaction mixture just by the application of an external magnetic field, thus overcoming recoverability and reusability issues so that the overall handling process is notably facilitated. So far, several enzymes have been successfully immobilized onto various types of magnetic nanoparticles [17,18,19] indicating favorable activity and stability.
Inspired by the cascade processes in nature, scientists have recently developed effective strategies in order to artificially co-localize diverse enzymes on nanocarriers for the development of nanobiocatalytic systems [20,21]. Multi-enzyme immobilization places several free enzymes in proximity, thus enabling the substrate channeling effect that can remarkably reduce diffusion losses and accelerate the overall cascade reaction rate [22,23,24]. So far, the successful simultaneous covalent co-immobilization of various classes of enzymes, mainly hydrolases and oxidoreductases, on magnetic nanoparticles for the catalysis of cascade reactions of biotechnological interest has been reported. These reactions involve, for example, the synergistic hydrolysis of natural biopolymers, such as starch into high-added value products or the development of biosensors for biomedical applications [17,18,25,26]. To date, the reported multi-enzyme nanobiocatalytic systems reported consist of at least three enzymes.
In this study, we report, to the best of our knowledge, the first example of simultaneous covalent co-immobilization of four enzymes, a cellulase (CelDZ1), a β-glucosidase (bgl), a glucose oxidase (GOx) and horseradish peroxidase (HRP) (Table 1), onto the surface of amino-functionalized magnetic nanoparticles (MNPs) for the hydrolysis of cellulose through a four-step cascade reaction. Cellulose, an abundant biopolymer, consists of several glucose units connected through β-1, 4-glucosidic bonds. Hence, its breakdown can lead to glucose, oligosaccharides or other intermediates of significant importance, such as gluconic acid, offering new possibilities in its industrial exploitation. Under optimal conditions, CelDZ1 hydrolyzes soluble cellulose (CMC) into simpler sugar molecules, such as cellobiose, which can be subsequently hydrolyzed by bgl into glucose. The produced glucose serves as a substrate for GOx that oxidizes it to gluconic acid and H2O2. Finally, the last step of the cascade process involves the HRP-mediated reduction of H2O2 to H2O in the presence of an electron donor. So, the prepared magnetic nanobiocatalytic system herein could be established as a model system for the study of cascade reactions of biotechnological interest in terms of kinetic behavior or thermal stability. Maghemite iron nanoparticles (γ-Fe2O3) functionalized with (3-Aminopropyl) triethoxysilane (Aptes) were chosen as the carrier for the co-immobilization of the four enzymes of interest. For the preparation of the magnetic nanobiocatalyst several parameters were optimized, including the glutaraldehyde cross-linker concentration, the incubation time and the mass ratio of magnetic nanoparticles to total enzyme content. The resultant nanobiocatalyst was characterized by various spectroscopic methods such as Fourier transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS) and atomic force microscopy (AFM). Furthermore, we evaluated the kinetic parameters (Vmax and Km) and the thermal stability in terms of deactivation rate constants (kd), half-life time constants (t1/2) and deactivation energy (Ed). Moreover, we presented a comprehensive analysis of the thermodynamic profile of the co-immobilized system. Additionally, we examined the reusability of the four-enzyme magnetic nanobiocatalyst for five consecutive reaction cycles and its storage stability for 24 d. Finally, the magnetic nanobiocatalyst was successfully applied to a four-step cascade reaction involving the hydrolysis of cellulose and the conversion of glucose to gluconic acid.

2. Results and Discussion

2.1. Synthesis and Characterization of the Magnetic Nanoparticles

For the preparation of the organophilic iron nanoparticles, a thermolysis method was used based on the thermolytic decomposition of an iron chloride precursor, using oleylamine both as solvent and capping agent. A first indication about the structure of the iron nanoparticles was gained from the XRD pattern (Supplementary Materials Figure S1). The peaks appearing in the range of 20° and 80° can be assigned to the crystallographic Miller planes (220), (311), (400), (422), (511), (440) indicative of γ-Fe2O3 phase [19]. Moreover, in order to confirm the size of the magnetic nanoparticles, AFM height images of the γ-Fe2O3 nanoparticles deposited on a Si-wafer were collected (the micrographs are shown in Figure S2, Supplementary Materials). Relatively isolated and uniform γ-Fe2O3 nanoparticles without aggregation can be observed. The average heights of the pristine nanoparticles range in the areas of 7–10 nm, as derived from the topographical height profile (section analysis).

2.2. Preparation of the Magnetic Four-Enzyme Nanobiocatalyst

CelDZ1, bgl, GOx and HRP (at a typical mass ratio of 1:1:1:3) were covalently attached onto the surface of amino-functionalized magnetic nanoparticles employing glutaraldehyde to prevent leaching of enzymes during the cascade reaction. The mass ratio for the co-immobilization of the four enzymes was chosen based on preliminary results (data not shown), as well as on the immobilization yield that each enzyme exhibited when immobilized individually (Table S1). Specifically, we varied the mass ratio of CelDZ1, bgl, GOx and HRP from 1:1:1:1 to 1:1:1:3, respectively. It was indicated that the use of excess HRP concentration during the immobilization process, enhanced the final step of the studied cascade process, a result that is in accordance with other studies that reported that the increase in the initial amount of HRP is essential in the development of robust bi-enzymatic systems comprising of GOx and HRP [28,29]. Glutaraldehyde, acting as a bifunctional cross-linker, reacts with the amino groups of both the enzymes and the MNPs, directly affecting enzyme loading, activity recovery and operational stability of the prepared nanobiocatalyst [30]. Hence, the effect of cross-linker concentration on the activity recovery of the enzymes was investigated (at 2 h incubation time and molar ratio 1:1 w/w MNPs-to-enzyme mass ratio mass ratio) and the results are presented in Figure 1a. As it can be seen, enzyme activity recovery strongly depends on the glutaraldehyde concentration and a maximum activity recovery for bgl, GOx and HRP (58%, 73% and 30% respectively) was observed at 10% v/v cross-linker concentration, while for CelDZ1 (30%) it was observed at 15% v/v, implying that the varieties of the enzymes can directly affect their recovery activities. At higher or lower glutaraldehyde concentrations, the enzymatic activities were significantly reduced for all the enzymes. Lower cross-linker concentrations may not be sufficient to bind all enzymes on MNPs, while at higher concentrations, abundant covalent linkages might occur between all the molecules interfering with the co-immobilization procedure and thus leading to a loss in enzymes’ activity. These results are in agreement with previous studies [16,17,25] that also report that the activity recoveries for all the enzymes participating in multi-enzyme nanobiocatalytic systems tend to increase with increasing glutaraldehyde concentration. However, after reaching a maximum value, the activities begin to decline with increasing glutaraldehyde concentration.
Incubation time is another critical parameter that affects the activity recovery of the enzymes during the co-immobilization process. Figure 1b, shows that the activity recovery of all enzymes increased with increasing incubation time (at 10% v/v glutaraldehyde concentration and at 1:1 w/w MNPs-to-enzyme mass ratio mass ratio) demonstrating a maximum activity recovery after 2 h of incubation (CelDZ1: 22%, bgl: 66%, GOx: 94% and HRP: 78%). Lower immobilizing time might not be enough for all the enzymes to be bound onto MNPs. However, at extended incubation times, a decline in activity recoveries was observed. This can be possibly attributed to the fact that glutaraldehyde might have caused rigidification of enzymes in the co-immobilized form, restricting their flexibility and, thus, reducing their activities [17].
Moreover, in order to optimize the mass ratio of magnetic nanoparticles-to-enzyme content, the activity recovery of all the enzymes was determined by varying the mass ratios of the nanocarrier-to-enzyme cocktail from 0.5:1 to 2:1 (w/w). The glutaraldehyde concentration was maintained at 10% v/v and the incubation time was 2 h. As shown in Figure 1c, lower activities were observed at the lowest mass ratio of 0.5:1 (w/w), probably due to the insufficient available surface area of the nanocarrier to load all the enzymes, resulting in decreased activity recovery. Enzymes reached their maximum activity recoveries at a mass ratio of 1:1 w/w (CelDZ1: 41%, bgl: 47%, GOx: 38% and HRP: 56%), while a further increase in the MNPs-to-enzyme mass ratio leads to lower binding of the enzymes onto the nanocarrier probably due to enhanced immobilization on the surface, consequently leading to steric hindrance amongst the enzymes [26]. Muley et al., who have previously studied the co-immobilization of cellulase, pectinase and xylanase onto amino-functionalized magnetic nanoparticles, also demonstrated that the ratio of MNPs to enzyme activity recoveries increased with increasing ratio up to a maximum value and then declined [18].
Hence, based on the results presented above, the four-enzyme magnetic nanobiocatalyst was prepared by cross-linking enzymes onto MNPs employing glutaraldehyde as cross-linking agent at 10% v/v concentration, incubation time of 2 h and at 1:1 mass ratio of MNPs-to-enzyme content. These conditions resulted in maximum activity recoveries of CelDZ1, bgl, GOx and HRP (42%, 66%, 94% and 78% respectively).

2.3. Characterization of the Four-Enzyme Magnetic Nanobiocatalyst

2.3.1. Fourier Transform Infrared Spectroscopy (FTIR)

The FTIR spectra of the prepared magnetic nanoparticles, in the form of amino-functionalized magnetic nanoparticles and four-enzyme magnetic nanoparticles (Figure 2), were recorded in order to confirm the functionalization of MNPs with Aptes and the successful anchoring of the enzymes. A characteristic peak of the prepared γ-Fe-Aptes, observed at 568 cm−1 corresponds to the Fe-O stretching vibrations [25]. The confirmation of the silica network on NPs after functionalization with Aptes, can be attributed to the distinct peaks at 1040 and 1120 cm−1 corresponding to the Si-O-Si and Si-O-H groups, respectively [16]. Moreover, the distinct peaks at 1393 and 1630 cm−1 corresponding to the Aptes C-H scissoring vibration and N-H stretching vibration, respectively, also confirm the functionalization of the magnetic nanoparticles with Aptes. The peak at 2931 cm−1 corresponds to the -(CH2)n-group and arises from the Aptes C-H stretching. Finally, the absorption peak at 3400 cm−1 corresponds to the O-H stretching vibration [31,32,33].
The FTIR spectrum of the prepared γ-Fe-Aptes-4-enzyme is additionally characterized by a sharp peak at 1540 cm−1 attributed to the C-N stretching and N-H bending vibrations corresponding to the Amide II band. Furthermore, the sharp peak at 1653 cm−1 which is attributed to C = 0 stretching vibrations of the enzymes and corresponds to Amide I band, verifies the anchoring of the four-enzyme mixture on the MNPs. The successful binding of the enzymes can be also proved by the distinct peak at 3280 cm−1 corresponding to the N-H asymmetric stretching of the amine H-bonds or the O-H vibrations [17].

2.3.2. X-ray Photoelectron Spectroscopy (XPS)

In order to get deeper information concerning the co-immobilization of CelDZ1, bgl, GOx and HRP onto the surface of the amino functionalized magnetic nanoparticles, as well the type of interactions of these specific enzymes we employed XPS measurements. The Fe2p photoelectron spectrum presented in Figure 3a reveals the existence of γ-Fe2O3 nanoparticles, which is in good agreement with the XRD patterns (Supplementary Materials, Figure S1). After the immobilization of the enzymes we do not observe any significant shift of the Fe2p spectrum which is an evidence of no strong interaction of the enzymes with the core of the Fe nanoparticles (Figure 3c). From the C1s photoelectron spectra we collect data from the functionalization of Fe2O3 nanoparticles with Aptes (Figure 3b), as well information after the 4-enzyme co-immobilization (Figure 3d). C1s of the amino-functionalized magnetic nanoparticles reveals the different bonds of carbon such as C-Si from the successful interaction of Aptes, the C-C and C-H bonds from the presence of Aptes, as well the C-O and C-N bonds at 286.0 eV. We also observe at 287.3 eV bonds of carbon derived from epoxy or carbonyl groups and carboxyl groups at 289.3 eV probably due to the functional carbon groups of the magnetic nanoparticles (Figure 3b). After the co-immobilization procedure on the surface of the amino-functionalized magnetic nanoparticles, the C1s spectra changes and this is because of the existence of the four different enzymes interacting with the functionalized magnetic nanoparticles as Figure 3d reveals. The successful covalent co-immobilization is demonstrated by the existence of an amide peak at 287.9 eV representing 16.9% of the whole carbon amount [34]. Finally, from the N1s photoelectron spectrum (Figure 3e) of the 4-enzyme magnetic nanobiocatalyst we receive three photoelectron peaks. The first one centered at 398.0 eV is due to pyridinic N exist in the glucose oxidase’s cofactor (flavin adenine dinucleotide, FAD) formation and representing 18.2% of the nitrogen amount. The second peak is due to NH bonds (36.2%), while the peak at 401.0 eV is attributed to the amide formation from the covalent functionalization as well from the amide groups of all the participating enzymes [34].

2.4. Thermal Stability Studies of Magnetic Four-Enzyme Nanobiocatalyst

In order to investigate the thermal stability of the free form (FF) and co-immobilized form (CIF) of the enzymes CelDZ1, GOx and HRP, we incubated each form (in absence of respective substrate) in sodium phosphate buffer in the range of 30 to 60 °C. For bgl, it was chosen a temperature range from 70 to 90 °C as it is considered a highly thermostable enzyme [35] and no significant decline in residual activity was observed after 2 h of incubation up to 70 °C. Plots of residual activity [expressed as ln(A/Ao)] against time were plotted as illustrated in Figure 4 in order to determine the deactivation rate constants (kd) as well as the half-life time (t1/2) at all studied temperatures for each enzyme, both in free and co-immobilized form. The values for the half-life time (t1/2) at 50 °C for CelDZ1, GOx and HRP and at 70 °C for bgl are summarized in Table 2 (the values for the half-life time at all the other temperatures are more comprehensively represented on Tables S2–S4, Supplementary Materials). Results indicate that the thermal inactivation kinetics of all the enzymes, both in free and co-immobilized form, presented gradual reduction in activity with increasing temperature at an extended incubation period, showing linearity and thus suggesting that the inactivation rates follow first-order kinetics [26].
The thermal inactivation constant (kd) of the magnetic nanobiocatalyst in co-immobilized form, as obtained from the semi-log plots of residual activity against time, was significantly lower than that of free form at all studied temperatures. On the other hand, the t1/2 values (on average, for CelDZ1: 2.0-fold, for bgl: 1.8- fold, for GΟx: 1.3-fold and for HRP: 1.2-fold) was undoubtedly higher in the co-immobilized form when compared to the free form of all the enzymes at all temperatures, indicating enhanced thermal stability. The improved thermal stability after co-immobilization can be attributed to the strong covalent bonds between the amino groups present both on the surface of MNPs and enzymes via cross-linking with glutaraldehyde that protects the catalytic conformations of enzymes, conserving and stabilizing the structural conformation of the co-immobilized complex [18,36]. Increased t1/2 values have been also observed for cellulases after co-immobilization on Au-doped magnetic silica nanoparticles [25], as well as for cellulase, pectinase and xylanase after co-immobilization on magnetic nanoparticles [18].
Deactivation energy (Ed), another crucial parameter in determining the thermal stability of an enzyme, refers to the energy required to dissociate its tertiary catalytic conformation [17]. It can be calculated from the slope of the Arrhenius plot (Supplementary Materials, Figures S3–S6) and it is summarized in Table 2. As can be observed, at all studied temperatures, the difference in values of deactivation energies between the free and co-immobilized form of CelDZ1, bgl, GOx and HRP was estimated at 4.4 kJ/mol, 2.7 kJ/mol, 17.6 kJ/mol and 6.0 kJ/mol, respectively. Higher deactivation energy accounts for a highly thermostable catalyst. These results suggest the preparation of a stable nanobiocatalyst that was less sensitive to temperature changes than native enzymes, thus requiring higher energies to dissociate its structural conformation [37]. Therefore, both the support chosen for the co-immobilization as well as the co-immobilization protocol seem to significantly improve the thermal stability of each enzyme participating in the magnetic complex. Sojitra et al., who reported the simultaneous covalent co-immobilization of α-amylase, pectinase and cellulase on magnetic nanoparticles also demonstrated a significant increase in the difference of deactivation energy between free and co-immobilized enzymes [17], clearly indicating the nanobiocatalyst’s enhanced thermal stability against denaturation at high temperatures after co-immobilization.

2.5. Determination of Thermodynamic Parameters

The assessment of the thermodynamic parameters was based on the combination of deactivation energy (Ed) and Eyring’s transition state theory [17], in order to evaluate the thermodynamic profile of the four-enzyme magnetic nanobiocatalyst. The results for the thermodynamic parameters, enthalpy of activation (ΔH°), Gibbs free energy of denaturation (ΔG°) and entropy for activation (ΔS°), of free and co-immobilized enzymes, are indicatively represented at 50 °C for CelDZ1, GOx and HRP and at 70 °C for bgl in Table 3 (a more comprehensive representation of the ΔΗ°, ΔG° and ΔS° values at all studied temperatures can be found in Tables S5–S7, see Supplementary Materials).
ΔH°, a significant thermodynamic parameter, corresponds to the total amount of energy that is needed for enzyme denaturation. Hence, high and positive values of ΔH° are associated with enhanced thermostability during the inactivation process. According to our results, in all cases, the ΔH° values declined steadily with an increase in temperature, revealing that a lower amount of energy was essential to denature enzymes at higher temperatures. Moreover, the ΔH° values of the co-immobilized complex were significantly higher compared to native enzymes, indicating that co-immobilization results in higher thermostability [18,38]. Another thermodynamic parameter, ΔG°, estimates the spontaneity of the thermal inactivation process, thus providing a measure of enzyme’s stability. High values of ΔG° reflect the ability of an enzyme to retain its stability against thermal inactivation, while a low value of ΔG° accounts for a less stable biocatalyst that can easily undergo unfolding. The ΔG° values of free and co-immobilized form of enzymes increased with elevated temperature. Moreover, the ΔG° values of the four-enzyme magnetic complex were higher than that of the respective free enzymes, revealing that the co-immobilization procedure onto the amino-functionalized magnetic nanoparticles protects enzymes’ structure from denaturation. Finally, ΔS°, refers to the amount of energy per degree required for the transition from a native state to a denatured one [39,40]. The ΔS° values seemed to be slightly affected after co-immobilization when compared with the free form of the enzymes. Similar results concerning the thermodynamic profile of co-immobilized enzymes have been reported by Farrugia et al., who studied the co-immobilization of bgl, GOx and HRP on protein-polymer surfactant self-standing films [41], as well as by Muley et al. who studied a co-immobilized magnetic complex comprising cellulase, pectinase and xylanase [18].

2.6. Kinetic Parameters

Enzyme kinetic constants (Km and Vmax) of the free, individually immobilized or co-immobilized form of each enzyme were determined by measuring the initial reaction rates at varying respective substrate concentrations. As shown in Table 4, the apparent Km values of either individually or co-immobilized form of enzymes is higher than that of the free enzymes in all the cases that were examined. Km values for CelDZ1 are expressed in terms of mass (mg mL−1) due to the natural heterogeneity of the substrate, while for the other three enzymes, Km is expressed in terms of mM. The increase in Km values indicates that the affinity of enzymes towards their substrate declines after immobilization on magnetic nanoparticles. This phenomenon could be attributed to conformational changes on the protein molecules after immobilization, that reduce their flexibility, restricting the diffusion of the respective substrates to the active site of the enzymes. These results are in agreement with previously reported studies [17,18,26,42]. Further, the apparent Vmax values, in all cases, were significantly decreased after immobilization, indicating lower enzymatic reaction rates of the respective substrates. This is probably arising from the reduction of active sites during the immobilization process due to the rigidification of the biocatalyst by the glutaraldehyde cross-linker [17,42]. A similar increase in Km values with a significant decrease in Vmax values has been also reported for the co-immobilization of cellulase, pectinase and xylanase on magnetic nanoparticles [18] and for the co-immobilization of glucose oxidase and glucoamylase on a silver nanostructure [42].

2.7. Storage Stability Studies

The storage stability for each of the four enzymes in the co-immobilized magnetic complex was studied for a total of 24 days during storage at 5 °C in an aqueous buffer solution (sodium phosphate 100 mM, pH 6.0). As shown in Figure 5, bgl and CelDZ1 retained more than 70% of their initial activity after 24 days, while the residual activity of both GOx and HRP was found to be around 30% of their initial activity. Other studies have also mentioned enhanced storage stability (up to 7 weeks during storage at 4 °C) for individually immobilized GOx [43] and cellulase onto magnetic nanoparticles [44] as well as for bgl immobilized on modified magnetic nanoparticles [45]. Increased storage stability has also been reported for the co-immobilization of cellulase on magnetic nanoparticles, either with α-amylase and pectinase or with pectinase and xylanase [17,18]. Hence, the increased storage stability of the four-enzyme magnetic nanobiocatalyst could be possibly attributed to the covalent linkage of enzymes onto the magnetic nanoparticles that protects the enzyme structure, preventing possible distortion effects on their active centers during storage in buffer solution [17]. However, HRP seems to be more sensitive to storage stability. This result is in agreement with a previous work [29], where the low storage stability of a bienzymatic biocatalyst constituted by GOx and HRP was likely imputable to HRP, whose immobilization is directly affected by many parameters [46], rather than the more robust GOx enzyme. It is worth mentioning that the storage stability of all the free enzyme forms was 10% lower than the co-immobilized enzymes, in the same conditions.

2.8. Reusability Studies

In order to render the industrial implementation of immobilized multi-enzymatic systems viable, we should consider recycling of the immobilized nanobiocatalysts as a high priority [47]. So, the reusability of the four-enzyme magnetic complex was evaluated for five successive reaction cycles for hydrolysis of respective substrates of each enzyme in a batch mode (Figure 6). After each cycle, the co-immobilized system was separated by the use of an external magnet (Supplementary data, Figure S7), washed thrice with phosphate buffer (100 mM, pH 6.0) and added to fresh substrate solution to start a new reaction cycle. As can be seen in Figure 6, the residual activity of the reused multi-enzyme nanobiocatalyst decreased gradually after being repeatedly recycled for five consecutive cycles. However, all the enzymes retained more than 20% of their initial activity. The decline in residual activity could be attributed to many factors, such as the mechanical damage of the nanobiocatalyst during the recycling procedure along with product inhibition [17,18]. Similar results have been also reported for the immobilization of other cellulases onto magnetic nanoparticles [44], for the co-immobilization of bgl and glucose isomerase onto stellate macroporous silica nanospheres [48], as well as for the immobilization of GOx [49] and HRP [50] on magnetic nanoparticles.

2.9. Use of the Multi-Enzyme Magnetic Nanobiocatalyst in a Four-Step Cascade Reaction

The catalytic performance of the prepared four-enzyme magnetic complex was assessed by its effectiveness in conducting a multi-step chain reaction involving the hydrolysis of cellulose. CelDZ1 hydrolyzes carboxymethylcellulose (CMC) into simpler sugar molecules, such as cellobiose, which can be subsequently hydrolyzed by bgl into glucose. The produced glucose serves in a next step as a substrate for GOx that oxidizes it to gluconic acid and H2O2. Finally, the last step of the cascade process involves the HRP-mediated reduction of H2O2 to H2O in the presence of a chromogenic substrate, 2,2′-Azino-bis (3-ethylbenzothiazoline-6-sulfonic acid) diammonium salt (ABTS), that turns into dark green in its oxidized form [41] (Figure 7). The oxidized form of ABTS (ABTS+) was confirmed by the characteristic peaks in absorption bands firstly at 405 nm and at 730 nm (Figure 8a) only after a lag time of 120 min. The absorption peak at 730 nm continued to increase after the 120 min interval, while the color of the reaction in the test tube progressively turned from initially colorless to dark green (Figure 8b), indicating that all the steps of the cascade reaction were successful. Spectra were taken in the range of 400–800 nm over an extended period of time (6 h) at standard intervals to confirm the oxidation of ABTS. A temperature increase from 40 °C to 50 °C resulted in enhanced rate of the cascade reaction, as confirmed by the increment in absorption bands at 405 and 730 nm (Figure 8c). Finally, it is worth mentioning that the nanobiocatalyst could be reused for consecutive reaction cycles for the catalysis of the cascade reaction described above and its residual activity after five reaction cycles was about 15%.

3. Materials and Methods

3.1. Materials

CelDZ1, a GH5 cellulase originally isolated from an Icelandic hot spring Thermoanaerobacterium isolate was recombinantly produced in Escherichia coli, purified and lyophilized (74 Units mg−1) as previously reported [27]. β-Glucosidase (bgl) from Thermotoga maritima (85 Units mg−1) was purchased from Megazyme (Chicago, IL, USA) and was used with no further purification. Glucose oxidase (GOx) from Aspergillus niger (135 Units mg−1) and Horseradish peroxidase (HRP) (148 Units mg−1) were purchased from Sigma-Aldrich (St. Louis, MO, USA) and were used with no further purification. 2,2′-Azino-bis (3-ethylbenzothiazoline-6-sulfonic acid) diammonium salt, (ABTS, ≥98% [HPLC]), glutaraldehyde solution (25% v/v in H2O), 3,5-dinitrosalicylic acid (DNSA), 4-nitrophenyl β-D-galactoside, (p-NPG, ≥98% [TLC]), D(+)-Glucose anhydrous, carboxymethylcellulose sodium salt (low viscosity, CMC) and (3-Aminopropyl)triethoxysilane (Aptes, 99%) were also purchased from Sigma-Aldrich (St. Louis, MO, USA). All the other chemicals and reagents were of analytical grade and procured from reliable sources. Milli-Q water was used for the preparation of all the buffers and solutions.

3.2. Methods

All experiments were performed by triplicate and the values are given as mean values and experimental errors.

3.2.1. Cellulase Isolation, Purification and Lyophilization

CelDZ1 was produced recombinantly in E. coli cells and purified using imobilized metall affinity chromatography (IMAC) as described thoroughly previously [27]. Briefly, E. coli BL21 (DE3) cells carrying the recombinant plasmid pET-CelDZ1 were grown in selective LB broth. The overexpression of celDZ1 was induced by the addition of isopropyl thio-β-D-galactoside (IPTG) followed by overnight incubation. For CelDZ1 purification, the His-Tag Protein Purification Ni-NTA Agarose kit (QIAGEN) was used. Following optimization of the manufacturer’s protocol, cells from an overnight culture were harvested, washed, re-suspended in equilibration buffer NPI10 (50 mM NaH2PO4, 300 mM NaCl, 10 mM imidazole) and lysed by brief sonication steps on ice. The cell extract was clarified by centrifugation and the supernatant was incubated at 60 °C for 1 h to denature non-thermostable host proteins. The heat-treated extract was centrifuged again and the supernatant containing the recombinant protein was incubated under mild shaking with Ni-NTA agarose beads. The mixture was then loaded onto a polypropylene column, the flow-through was discarded and the column was washed with NPI20 wash buffer (50 mM NaH2PO4, 300 mM NaCl, 20 mM imidazole). CelDZ1 was eluted using NPI200 elution buffer (50 mM NaH2PO4, 300 mM NaCl, 20 mM imidazole). Imidazole and buffer salts were removed from the protein preparation using an Amicon® Ultra Centrifugal Filter with a 30,000 molecular weight cutoff. The IMAC elution was loaded on the filter and washed with double distilled water in several centrifugation rounds. The purified protein was visualized by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) (data not shown) and lyophilized.

3.2.2. Synthesis of Magnetic Nanoparticles

In a typical synthesis, 1 g [Fe (Chloride tetrahydrate)] were dispersed in 80 mL oleylamine at 80 °C for 30 min, under continuous magnetic stirring. When the mixture became a clear solution, the temperature was raised to 250 °C for 1 h. Then, the reaction mixture was allowed to cool to room temperature. The iron nanoparticles (γ-Fe2O3) were washed and centrifuged three times (6000 rpm, 10 min); the first one with 50 mL ethanol and then with a (10:1 v/v) ethanol:chloroform solution in order to remove the oleylamine and obtain pristine magnetic nanoparticles. The last centrifugation was conducted with ethanol and the precipitate was collected and left to dry at room temperature.

3.2.3. Synthesis of Amino Functionalized Magnetic Nanoparticles

A solution of 0.4 g Aptes in 1 mL of dry chloroform was added to a suspension of 70 mg γ-Fe2O3 in 16 mL of dry toluene. The suspension of magnetic nanoparticles in toluene was sonicated for 15 min in order to avoid aggregation. Then, the final mixture was refluxed for 72 h at 100 °C. The solid was filtered and washed by dry chloroform (6000 rpm, 10 min) and dried in vacuum. A Schematic representation of the final functionalized nanoparticle is displayed in the following Figure 9.

3.2.4. Characterization of the Amino-Functionalized Magnetic Nanoparticles

X-ray Diffraction (XRD)

XRD patterns were collected on a D8 Avance Bruker diffractometer by using Cu Ka radiation (40 kV, 40 mA) and a secondary beam graphite monochromator.

Atomic Force Microscopy (AFM)

To confirm the size of the γ-Fe2O3 nanoparticles, atomic force microscopy (AFM) images were collected in tapping mode with a Bruker Multimode 3D Nanoscope (Ted Pella Inc., Redding, CA, USA) using a micro fabricated silicon cantilever type TAP-300G, with a tip radius of <10 nm and a force constant of approximately 20–75 N m−1.

3.2.5. Preparation of Four-Enzyme Magnetic Nanobiocatalyst

CelDZ1, bgl, GOx and HRP were covalently co-immobilized onto the surface of amino-functionalized magnetic nanoparticles (MNPs) employing the glutaraldehyde cross-linking agent, which links the NH2 groups of the nanomaterials with the free amino groups of the enzymes [30,51]. In a typical procedure, 15 mg of nanomaterial were dispersed in sodium phosphate buffer (20 mL, 100 mM, pH 6.0) in the presence of 0.36 mL Tween-20 (1% v/v) and the mixture was incubated in an ultrasonic bath for 30 min. After 30 min, the cross-linker glutaraldehyde (10% v/v) was added and the mixture was allowed to shake for 30 min under stirring at room temperature (30 ± 2). Thorough centrifugation followed for removing the glutaraldehyde excess. The activated nanoparticles were re-dispersed in sodium phosphate buffer (10 mL, 100 mM, pH 6.0) and the enzyme cocktail (total protein content of 15 mg) containing CelDZ1, bgl, GOx and HRP (in a typical mass ratio of 1:1:1:3) was added into the solution. Then the mixture was incubated for 2 h with constant shaking at 150 rpm. After cross-linking, the co-immobilized enzymes were separated with magnet, washed thrice with sodium phosphate buffer (100 mM, pH 6.0), to remove any physical adsorbed amount of protein and stored at 4 °C. The prepared nanobiocatalyst was used as magnetic four-enzyme nanobiocatalyst. In order to attain the maximum activity recoveries of all the enzymes we examined several parameters of the immobilization procedure, such as the glutaraldehyde concentration (2.5%, 5%, 10%, 15% and 20%), the incubation time (1 h, 2 h, 4 h and 20 h) and the mass ratio of MNPs to protein content (0.5:1, 1:1 and 2:1) by one factor at a time. The activities of enzymes were expressed as activity recovery (%), which is determined as the percent activity of each immobilized enzyme (U) divided by the total initial activity of each enzyme. Also, CelDZ1, bgl, GOx and HRP were immobilized separately (individually) onto amino-functionalized magnetic nanoparticles using glutaraldehyde as the cross-linker. The immobilization percentage was determined by the Bradford assay [52] through the difference of the protein concentration in the supernatant before and after the immobilization. All experiments were carried out in triplicate.

3.2.6. Characterization of the Four-Enzyme Magnetic Nanobiocatalyst

Fourier-Transform Infrared Spectroscopy (FTIR)

In order to confirm the characteristic functional peaks of amino functionalized magnetic nanoparticles and four-enzyme co-immobilized magnetic nanoparticles a FTIR-8400 infrared spectrometer (Shimadzu, Tokyo, Japan) equipped with a deuterated triglycine sulfate (DTGS) detector was used. All spectra were recorded within 400–4.000 cm−1 range and on average of 32 scans.

X-ray Photoelectron Spectroscopy (XPS)

X-ray photoelectron spectroscopy (XPS) measurements were performed in ultrahigh vacuum at a base pressure of 2 × 10−10 mbar with a SPECS GmbH spectrometer equipped with a monochromatic MgKa source (hv = 1253.6 eV) and a Phoibos-100 hemispherical analyzer (SPECSGROUP, Berlin, Germany). The spectra were collected in normal emission and energy resolution was set to 1.16 eV to minimize measuring time. Spectral analysis included a Shirley background subtraction and a peak deconvolution employing mixed Gaussian-Lorentzian functions, in a least squares curve-fitting program (WinSpec) developed at the Laboratoire Interdisciplinaire de Spectroscopie Electronique, University of Namur, Belgium.

3.2.7. Enzyme Assays

Enzymatic activities of the free, individually immobilized and co-immobilized CelDZ1 were determined by the amount of reducing sugars released from soluble cellulose (CMC) by 3,5-dinitrosalicylic acid (DNS) method [53]. Briefly, 3 μg/mL of native enzyme (or equivalent amount of individually immobilized or co-immobilized CelDZ1) was added to a soluble cellulose solution (1% w/v in 100 mM sodium acetate buffer, pH 5.0) in a test tube and the mixture was incubated at 50 °C for 15 min. In a following step, an equal volume of DNSA was added to terminate the reaction and then the reaction mixture was boiled for 5 min. Then the samples were collected, diluted with distilled water and cooled in an ice bath. The released reducing sugar (estimated as glucose) was measured spectrophotometrically at 540 nm (Shimadzu, Tokyo, Japan). One unit of cellulase activity was defined as the amount of the enzyme required for releasing one μmole of reducing sugars (glucose) at optimum conditions.
The enzymatic assays of the other three enzymes (bgl, GOx and HRP) in free, individually immobilized or co-immobilized form were performed on a UV-Vis spectrophotometer equipped with a Peltier temperature controller (Shimadzu, Tokyo, Japan). The activity of β-glucosidase was estimated by using p-NPG as a substrate. Under optimum conditions, β-glucosidase hydrolyzes p-NPG into p-NP (colored product) and glucose. For the activity assay, 0.12 μg/mL of free enzyme solution (or equivalent amount of individually immobilized and co-immobilized bgl) was mixed with 2.0 mM p-NPG in 100 mM citrate phosphate buffer, pH 6.5 at 50 °C. The reaction was followed by measuring the increase in absorbance of p-NP at 410 nm using a UV/Vis spectrophotometer (Shimadzu, Tokyo, Japan). Absorption values are taken every one minute for a total of five minutes and were converted to p-NP concentration using the molar extinction coefficient of p-NP at 410 nm [54]. Enzymatic activity was estimated as the amount (μmoles) of p-NP transformed per minute.
HRP utilizes hydrogen peroxide to convert chromogenic substrates (e.g., ABTS). Hence, the study of horseradish peroxidase activity is based on the oxidation reaction of ABTS to ABTS+. The increase in absorbance of ABTS+ is measured at 405 nm. Briefly, 0.5 mM ABTS are mixed with 0.1 mM hydrogen peroxide and 0.4 μg/mL of free enzyme solution (or equivalent amount of individually immobilized and co-immobilized HRP) to a final total volume of 1 mL supplemented with 100 mM sodium phosphate buffer, pH 6.0. Absorbance values are taken every one minute for a total of 10 min and were converted to ABTS concentration using the molar extinction coefficient of oxidized ABTS at 405 nm [55]. Enzymatic activity was determined as the amount (μmoles) of ABTS transformed per minute.
The study of glucose oxidase activity is based on its coupling reaction with the horseradish peroxidase enzyme. Specifically, GOx utilizes D-glucose as a substrate converting it to D-glucono-S-lactone and hydrogen peroxide. HRP then uses hydrogen peroxide to convert ABTS to ABTS+. The reaction is followed by measuring the increase in absorbance of ABTS+ at 405 nm. Absorption values are taken every one minute for a total of five minutes. Briefly, 0.5 μg/mL of free enzyme solution (or equivalent amount of individually immobilized and co-immobilized GOx) is mixed with 250 mM glucose solution, 0.4 mM ABTS and 0.3 μg/mL HRP. Enzymatic activity was determined as the amount (μmoles) of ABTS transformed per min.

3.2.8. Thermal Inactivation Kinetics Studies

Thermal stability of CelDZ1, bgl, GOx and HRP in free and co-immobilized form was studied by incubating in the temperature range of 30–60 °C for celDZ1 and GOx, 30–50 °C for HRP as it is rapidly inactivated at temperatures over 50 °C and 70–90 °C for bgl as it is considered a highly thermostable enzyme [35]. The samples were collected at standard minute intervals for a total of 120 min, cooled quickly and then assayed for the respective enzyme activities as described above. A semi-log plot of residual activity of each enzyme against time was plotted to determine the slope as the inactivation rate constant (kd). The half-life (t1/2) is the time required to reduce the activity to 50% of the original activity and was evaluated as:
t1/2 = 0.693/kd
Further, activation energy for deactivation (Ed) of the free and immobilized form of enzymes was determined from the slope of ln(kd) versus 1/T [T corresponds to the absolute temperature (K)] from the Arrhenius plots as:
Slope = −Ed/R,
where R corresponds to the gas constant (R = 8.314 J/mol/K).

3.2.9. Determination of Thermodynamic Parameters

The changes in the thermodynamic behavior after heat treatment of the four enzymes before and after co-immobilization were evaluated by Eyring’s transition state theory. The enthalpy for activation (ΔH°) was determined by the following equation:
ΔH° = Ed − RT,
where R corresponds to the gas constant (R = 8.314 J/mol/K) and T to the absolute temperature (K). The free energy for activation (ΔG°) was determined as:
ΔG° = −RT ln(kd/kB × h/T),
where kB represents the Boltzman constant (kB = 1.38 × 10−23 J/K), while h corresponds to Planck’s constant (h = 11.04 × 10−34 J min). Finally, the entropy for activation (ΔS°) was calculated by the difference between ΔH° and ΔG° divided by the absolute temperature (K) as:
ΔS° = (ΔH° − ΔG°)/T.

3.2.10. Determination of Michaelis-Menten Kinetic Parameters

The kinetic parameters (Km, Vmax) of free, individually immobilized and co-immobilized form of CelDZ1, bgl, GOx and HRP were determined by measuring the initial reaction rates for each form by varying concentrations of CMC, p-NPG, glucose and H2O2 respectively at 50 °C as described above. The concentrations of CMC, p-NPG, glucose and H2O2 were ranged from 0.1 to 3.5% w/v, 0.05 to 15 mM, 1 to 25 mM and 0.015 to 0.275 mM, respectively. HRP assays were carried out in the presence of 3 mM ABTS, while GOx was assayed in the presence of 2.5 mM ABTS. The Michaelis-Menten constant (Km) and maximum velocity (Vmax) were calculated from non-linear regression fitting of the initial reaction rates corresponding to different substrate concentrations by the EnzFitter (Biosoft) software.

3.2.11. Reusability Studies

The reaction was carried out for the specified time at 50 °C and activity was measured by using the respective substrates (CMC, p-NPG, glucose and H2O2). After each reaction cycle, the four-enzyme nanobiocatalyst was separated using an external magnetic field, washed thoroughly with sodium phosphate buffer (100 mM, pH 6.0) and re-suspended in fresh substrate solution to start a new reaction cycle. The process was repeated for five consecutive cycles. The activity of each enzyme after each cycle was estimated in terms of residual activity by considering the activity of the first cycle to be 100%.

3.2.12. Storage Stability Studies

The storage stability of the co-immobilized form of the enzymes was estimated during storage at 5 °C. The activity of each sample was evaluated after different day intervals for a total of 24 days. The activity of each enzyme after standard day intervals was estimated in terms of residual activity using respective assay by considering the activity of the first day to be 100%.

3.2.13. Application of the Magnetic Nanobiocatalyst for Cellulose Hydrolysis in a Four-Step Cascade Reaction

The catalytic performance of the magnetic four-enzyme nanobiocatalyst was estimated with regard to a four-step cascade reaction involving the CelDZ1-mediated hydrolysis of soluble cellulose (CMC) to cellobiose that was consecutively hydrolyzed by bgl to D-glucose. D-glucose was successively oxidized by GOx to gluconic acid and H2O2, followed by reduction of H2O2 to H2O by HRP in the presence of an electron donor (ABTS). Briefly, 0.3 mg/mL of the magnetic nanobiocatalyst were added into 1% w/v CMC solution containing 3 mM ABTS in 100 mM sodium phosphate buffer, pH 6.0 at 50 °C. The initially colorless substrate solution gradually turned green due to oxidation of ABTS and formation of the corresponding radical cation. The reaction was followed by measuring the increase in absorbance at 730 nm (ABTS+) at a UV-Vis photometer equipped with a Peltier temperature controller (Shimadzu, Tokyo, Japan).

4. Conclusions

In the present work, we have shown for the first time that the simultaneous covalent co-immobilization of four enzymes onto magnetic nanoparticles can lead to the development of robust nanoassemblies able to conduct multi-step cascade reactions. The prepared nanobiocatalyst was able to catalyze the hydrolysis of cellulose to glucose along with a simple, direct and continuous monitoring of the reaction progress. Amino-functionalized magnetic nanoparticles proved to be an effective platform for the four-enzyme biocatalyst produced by the co-immobilization of CelDZ1, bgl, GOx and HRP. Although the co-immobilization process leads to some loss in enzymatic activities, the resultant nanobiocatalyst exhibited enhanced thermal stability and higher ΔΗ°, ΔG° and ΔS° values than the native enzymes over a wide range of incubation temperatures. Moreover, the ease of manipulating magnetic biocatalysts with the use of an external magnetic field can overcome commonplace obstacles concerning their handling and separation. The highly efficient concerted mechanisms of cascade reactions, characterized by selectivity, absence of hazardous chemicals, low energy and no need to isolate the reaction intermediates, endorse that co-immobilization of multiple enzymes onto nanosupports can provide an efficient way to design in vitro multi-enzymatic nanoassemblies for cascade reactions. Based on this work, we anticipate that future work will be directed towards the development of innovative multi-enzymatic systems for a wide range of biocatalysts applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/12/995/s1, Table S1: Immobilization yield of CelDZ1, bgl, GOx and HRP individually immobilized on amino-functionalized magnetic nanoparticles; Table S2: Thermal inactivation kinetics parameters of free and co-immobilized bgl at 70, 80 and 90 °C; Table S3: Thermal inactivation kinetics parameters of free and co-immobilized HRP at 30, 40 and 50 °C; Table S4: Thermal inactivation kinetics parameters of free and co-immobilized cellulase and GOx at 40, 50 and 60 °C; Table S5: Thermodynamic parameters of free and co-immobilized bgl at 70, 80 and 90 °C; Table S6: Thermodynamic parameters of free and co-immobilized HRP at 30, 40 and 50 °C; Table S7: Thermodynamic parameters of free and co-immobilized cellulase and GOx at 40, 50 and 60 °C; Figure S1: XRD patterns of maghemite γ-Fe2O3 nanoparticles obtained by thermolysis method; Figure S2: AFM height image (a) and cross section analysis (b) of γ-Fe2O3 magnetic nanoparticles; Figure S3: Arrhenius plot for the inactivation of free form (FF) and co-immobilized form (CIF) of celDZ1; Figure S4: Arrhenius plot for the inactivation of free form (FF) and co-immobilized form (CIF) of bgl; Figure S5: Arrhenius plot for the inactivation of free form (FF) and co-immobilized form (CIF) of GOx; Figure S6: Arrhenius plot for the inactivation of free and co-immobilized HRP; Figure S7: Nanobiocatalyst’s magnetic separation by the use of an external magnetic field.

Author Contributions

A.G. performed immobilization and biocatalytic experiments, results interpretation and manuscript writing; M.P. contributed to results analysis and interpretation; N.C. and K.S. performed AFM. XRD and XPS experiments and contributed to result analysis; D.Z. and G.S. performed the production and purification of cellulase and reviewed the manuscript; D.G. contributed to results interpretation and reviewed the manuscript; H.S. contributed to the overall design of the experiments, results interpretation and manuscript writing.

Funding

This work was supported by the project “Synthetic Biology: from omics technologies to genomic engineering (OMIC-ENGINE)” (MIS 5002636), which is implemented under the Action “Reinforcement of the Research and Innovation Infrastructure,” funded by the Operational Program “Competitiveness, Entrepreneurship and Innovation” (NSRF 2014–2020) and co-financed by Greece and the European Union (European Regional Development Fund).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses or interpretation of data; in the writing of the manuscript or in the decision to publish the results.

References

  1. Min, K.; Yoo, Y.J. Recent progress in nanobiocatalysis for enzyme immobilization and its application. Biotechnol. Bioprocess Eng. 2014, 19, 553–567. [Google Scholar] [CrossRef]
  2. Choi, J.; Han, S.; Kim, H. Industrial applications of enzyme biocatalysis: Current status and future aspects. Biotechnol. Adv. 2015, 33, 1443–1454. [Google Scholar] [CrossRef] [PubMed]
  3. Jia, F.; Narasimhan, B.; Mallapragada, S. Materials-Based Strategies for Multi-Enzyme Immobilization and Co-Localization: A Review. Biotechnol. Bioeng. 2014, 111, 209–222. [Google Scholar] [CrossRef] [PubMed]
  4. Filice, M.; Palomo, J.M. Cascade reactions catalyzed by bionanostructures. ACS Catal. 2014, 4, 1588–1598. [Google Scholar] [CrossRef]
  5. Sperl, J.M.; Sieber, V. Multienzyme Cascade Reactions—Status and Recent Advances. ACS Catal. 2018, 8, 2385–2396. [Google Scholar] [CrossRef]
  6. Velasco-Lozano, S.; López-Gallego, F. Wiring step-wise reactions with immobilized multi-enzyme systems. Biocatal. Biotransform. 2018, 36, 184–194. [Google Scholar] [CrossRef]
  7. Giannakopoulou, A.; Gkantzou, E.; Polydera, Α.; Stamatis, H. Multienzymatic Nanoassemblies: Recent Progress and Applications. Trends Biotechnol. 2019. [Google Scholar] [CrossRef]
  8. Ji, Q.; Wang, B.; Tan, J.; Zhu, L.; Li, L. Immobilized multienzymatic systems for catalysis of cascade reactions. Process Biochem. 2016, 51, 1193–1203. [Google Scholar] [CrossRef]
  9. Hwang, E.T.; Lee, S. Multienzymatic Cascade Reactions via Enzyme Complex by Immobilization. ACS Catal. 2019, 9, 4402–4425. [Google Scholar] [CrossRef]
  10. Meryam Sardar, R.A. Enzyme Immobilization: An Overview on Nanoparticles as Immobilization Matrix. Biochem. Anal. Biochem. 2015, 4, 178. [Google Scholar] [CrossRef]
  11. Gupta, M.N.; Kaloti, M.; Kapoor, M.; Solanki, K. Nanomaterials as matrices for enzyme immobilization. Artif. Cells Blood Substit. Biotechnol. 2011, 39, 98–109. [Google Scholar] [CrossRef] [PubMed]
  12. Patila, M.; Kouloumpis, A.; Gournis, D.; Rudolf, P.; Stamatis, H. Laccase-functionalized graphene oxide assemblies as efficient nanobiocatalysts for oxidation reactions. Sensors (Switz.) 2016, 16, 287. [Google Scholar] [CrossRef] [PubMed]
  13. Chatzikonstantinou, A.V.; Gkantzou, E.; Gournis, D.; Patila, M.; Stamatis, H. Stabilization of Laccase through Immobilization on Functionalized GO-Derivatives. Enzyme Nanoarchitectures: Enzymes Armored with Graphene, 1st ed.; Kumar, C.V., Ed.; Elsevier Inc.: Amsterdam, The Netherlands, 2018; Volume 609, pp. 47–81. [Google Scholar]
  14. Chen, M.; Zeng, G.; Xu, P.; Lai, C.; Tang, L. How Do Enzymes ‘Meet’ Nanoparticles and Nanomaterials? Trends Biochem. Sci. 2017, 42, 914–930. [Google Scholar] [CrossRef] [PubMed]
  15. Pavlidis, I.V.; Patila, M.; Bornscheuer, U.T.; Gournis, D.; Stamatis, H. Graphene-based nanobiocatalytic systems: Recent advances and future prospects. Trends Biotechnol. 2014, 32, 312–320. [Google Scholar] [CrossRef]
  16. Bilal, M.; Zhao, Y.; Rasheed, T.; Iqbal, H.M.N. Magnetic nanoparticles as versatile carriers for enzymes immobilization: A review. Int. J. Biol. Macromol. 2018, 120, 2530–2544. [Google Scholar] [CrossRef]
  17. Sojitra, U.V.; Nadar, S.S.; Rathod, V.K. A magnetic tri-enzyme nanobiocatalyst for fruit juice clarification. Food Chem. 2016, 213, 296–305. [Google Scholar] [CrossRef]
  18. Muley, A.B.; Thorat, A.S.; Singhal, R.S.; Harinath Babu, K. A tri-enzyme co-immobilized magnetic complex: Process details, kinetics, thermodynamics and applications. Int. J. Biol. Macromol. 2018, 118, 1781–1795. [Google Scholar] [CrossRef]
  19. Orfanakis, G.; Patila, M.; Catzikonstantinou, A.V.; Lyra, K.-M.; Kouloumpis, A.; Spyrou, K.; Katapodis, P.; Paipetis, A.; Rudolf, P.; Gournis, D.; et al. Hybrid Nanomaterials of Magnetic Iron Nanoparticles and Graphene Oxide as Matrices for the Immobilization of β-Glucosidase: Synthesis, Characterization, and Biocatalytic Properties. Front. Mater. 2018, 5, 11. [Google Scholar] [CrossRef]
  20. Jia, F.; Mallapragada, S.K.; Narasimhan, B. Multienzyme Immobilization and Colocalization on Nanoparticles Enabled by DNA Hybridization. Ind. Eng. Chem. Res. 2015, 54, 10212–10220. [Google Scholar] [CrossRef]
  21. Wang, S.Z.; Zhang, Y.H.; Ren, H.; Wang, Y.L.; Jiang, W.; Fang, B.S. Strategies and perspectives of assembling multi-enzyme systems. Crit. Rev. Biotechnol. 2017, 37, 1024–1037. [Google Scholar] [CrossRef]
  22. Wheeldon, I.; Minteer, S.D.; Banta, S.; Barton, S.C.; Atanassov, P.; Sigman, M. Substrate channelling as an approach to cascade reactions. Nat. Chem. 2016, 8, 299–309. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, Y.H.P. Substrate channeling and enzyme complexes for biotechnological applications. Biotechnol. Adv. 2011, 29, 715–725. [Google Scholar] [CrossRef] [PubMed]
  24. Poshyvailo, L.; Von Lieres, E.; Kondrat, S. Does metabolite channeling accelerate enzyme-catalyzed cascade reactions? PLoS ONE 2017, 12, e0172673. [Google Scholar] [CrossRef] [PubMed]
  25. Cho, E.J.; Jung, S.; Kim, H.J.; Lee, Y.G.; Nam, K.C.; Lee, H.J.; Bae, H.J. Co-immobilization of three cellulases on Au-doped magnetic silica nanoparticles for the degradation of cellulose. Chem. Commun. 2012, 48, 886–888. [Google Scholar] [CrossRef] [PubMed]
  26. Chen, Q.; Liu, D.; Wu, C.; Yao, K.; Li, Z.; Shi, N.; Wen, F.; Gates, I.D. Co-immobilization of cellulase and lysozyme on amino-functionalized magnetic nanoparticles: An activity-tunable biocatalyst for extraction of lipids from microalgae. Bioresour. Technol. 2018, 263, 317–324. [Google Scholar] [CrossRef]
  27. Zarafeta, D.; Kissas, D.; Sayer, C.; Gudbergsdottir, S.R. Discovery and Characterization of a Thermostable and Highly Halotolerant GH5 Cellulase from an Icelandic Hot Spring Isolate. PLoS ONE 2016, 11, e0146454. [Google Scholar] [CrossRef]
  28. Chen, S.; Wen, L.; Svec, F.; Lv, Y. Magnetic metal-organic frameworks as scaffolds for spatial co-location and positional assembly of multi-enzyme systems enabling enhanced cascade biocatalysis. RSC Adv. 2017, 7, 21205–21213. [Google Scholar] [CrossRef]
  29. Pitzalis, F.; Monduzzi, M.; Salis, A. A bienzymatic biocatalyst constituted by glucose oxidase and Horseradish peroxidase immobilized on ordered mesoporous silica. Microporous Mesoporous Mater. 2017, 241, 145–154. [Google Scholar] [CrossRef]
  30. Barbosa, O.; Ortiz, C.; Berenguer-Murcia, Á.; Torres, R.; Rodrigues, R.C.; Fernandez-Lafuente, R. Glutaraldehyde in bio-catalysts design: A useful crosslinker and a versatile tool in enzyme immobilization. RSC Adv. 2014, 4, 1583–1600. [Google Scholar] [CrossRef]
  31. Xu, Y.; Zhou, Y.; Ma, W.; Wang, S. A Fluorescent Sensor for Zinc Detection and Removal Based on Core-Shell Functionalized Fe3O4 @SiO2 Nanoparticles. J. Nanomater. 2013, 2013, 178138. [Google Scholar] [CrossRef]
  32. Bayat, A.; Shakourian-fard, M.; Ehyaei, N. A magnetic supported iron complex for selective oxidation of sulfides to sulfoxides using 30% hydrogen peroxide at room temperature. RSC Adv. 2014, 4, 44274–44281. [Google Scholar] [CrossRef]
  33. Majoul, N.; Aouida, S.; Bessaïs, B. Progress of porous silicon APTES-functionalization by FTIR investigations. Appl. Surf. Sci. 2015, 331, 388–391. [Google Scholar] [CrossRef]
  34. Tawil, N.; Sacher, E.; Boulais, E.; Mandeville, R.; Meunier, M. X-ray Photoelectron Spectroscopic and Transmission Electron Microscopic Characterizations of Bacteriophage–Nanoparticle Complexes for Pathogen Detection. J. Phys. Chem. C 2013, 117, 20656–20665. [Google Scholar] [CrossRef]
  35. Gupta, P.; Verma, S.; Vakhlu, J. Comparative Analysis of Β -Glucosidases Thermostability: Differences in Amino Acids Composition and Distribution among Mesostable and Thermostable Β -Glucosidases. J. Adv. Bioinform. Appl. Res. 2014, 5, 215–227. [Google Scholar]
  36. Salgaonkar, M.; Nadar, S.S.; Rathod, V.K. Combi-metal organic framework (Combi-MOF) of α-amylase and glucoamylase for one pot starch hydrolysis. Int. J. Biol. Macromol. 2018, 113, 464–475. [Google Scholar] [CrossRef] [PubMed]
  37. Henriques, R.O.; Bork, J.A.; Fernandez-Lorente, G.; Guisan, J.M.; Furigo, A.; de Oliveira, D.; Pessela, B.C. Co-immobilization of lipases and Β-D-galactosidase onto magnetic nanoparticle supports: Biochemical characterization. Mol. Catal. 2018, 453, 12–21. [Google Scholar] [CrossRef]
  38. Eze, S.O.O.; Chilaka, F.C.; Nwanguma, B.C. Studies on Thermodynamics and Kinetics of Thermo-Inactivation of Some Quality-Related Enzymes in White Yam (Dioscorea rotundata). J. Thermodyn. Catal. 2010. [Google Scholar] [CrossRef] [Green Version]
  39. Monteiro, P.; Aliakbarian, B.; Ximenes, E.; Filho, F.; Oliveira, P.; Pessoa, A.; Converti, A.; Perego, P. Kinetic and thermodynamic studies of a novel acid protease from Aspergillus foetidus. Int. J. Biol. Macromol. 2015, 81, 17–21. [Google Scholar] [CrossRef] [Green Version]
  40. De Oliveira, R.L.; da Silva, O.S.; Converti, A.; Porto, T.S. Thermodynamic and kinetic studies on pectinase extracted from Aspergillus aculeatus: Free and immobilized enzyme entrapped in alginate beads. J. Biological. Macromol. 2018, 115, 1088–1093. [Google Scholar] [CrossRef]
  41. Farrugia, T.; Perriman, A.W.; Sharma, K.P.; Mann, S. Multi-enzyme cascade reactions using protein -polymer surfactant self-standing films. Chem. Commun. 2017, 53, 2094–2097. [Google Scholar] [CrossRef] [Green Version]
  42. Rezaei, S.; Landarani-Isfahani, A.; Moghadam, M.; Tangestaninejad, S.; Mirkhani, V.; Mohammadpoor-Baltork, I. Development of a novel bi-enzymatic silver dendritic hierarchical nanostructure cascade catalytic system for efficient conversion of starch into gluconic acid. Chem. Eng. J. 2019, 356, 423–435. [Google Scholar] [CrossRef]
  43. Kouassi, G.K.; Irudayaraj, J.; Mccarty, G. Activity of glucose oxidase functionalized onto magnetic nanoparticles. Biomagn. Res. Technol. 2005, 3, 1. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Abraham, R.E.; Verma, M.L.; Barrow, C.J.; Puri, M. Suitability of magnetic nanoparticle immobilised cellulases in enhancing enzymatic saccharification of pretreated hemp biomass. Biotechnol. Biofuels 2014, 7, 90. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Wang, N.; Wu, R.; Fu, Q.; Wang, H.; Zhang, Z.; Haji, Z.; Li, X.; Lian, X.; An, Y. Immobilization of β-Glucosidase BglC on Decanedioic Acid-Modified Magnetic Nanoparticles. J. Chem. Eng. Technol. 2018, 41, 1949–1955. [Google Scholar] [CrossRef]
  46. Chouyyok, W.; Panpranot, J.; Thanachayanant, C.; Prichanont, S. Effects of pH and pore characters of mesoporous silicas on horseradish peroxidase immobilization. J. Mol. Catal. B Enzym. 2009, 56, 246–252. [Google Scholar] [CrossRef]
  47. Chapman, J.; Ismail, A.E.; Dinu, C.Z. Industrial Applications of Enzymes: Recent Advances, Techniques, and Outlooks. Catalysts 2018, 8, 238. [Google Scholar] [CrossRef] [Green Version]
  48. Hsin Chi, H.; Radu, D.R.; Dezayas, G.; Penney, M.; Yu Lai, C. Stellate MSN-based Dual-enzyme Nano-Biocatalyst for the Cascade Conversion of Non-Food Feedstocks to Food Products. J. Thermodyn. Catal. 2017, 8, 2. [Google Scholar] [CrossRef] [Green Version]
  49. Altun, S.; Çakıroğlu, B.; Özacar, M. A facile and effective immobilization of glucose oxidase on tannic acid modified CoFe2O4 magnetic nanoparticles. Colloids Surf. B Biointerfaces 2015, 136, 963–970. [Google Scholar] [CrossRef]
  50. Chang, Q.; Tang, H. Immobilization of horseradish peroxidase on NH2-modified magnetic Fe3O4/SiO2 particles and its application in removal of 2,4-dichlorophenol. Molecules 2014, 19, 15768–15782. [Google Scholar] [CrossRef]
  51. López-Gallego, F.; Guisán, J.M.; Betancor, L. Glutaraldehyde-mediated protein immobilization. Methods Mol. Biol. 2008, 1051, 33–41. [Google Scholar] [CrossRef]
  52. Bradford, M.M. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal. Biochem. 1976, 72, 248–254. [Google Scholar] [CrossRef]
  53. Miller, G.L. Use of DinitrosaIicyIic Acid Reagent for Determination of Reducing Sugar. Anal. Chem. 1959, 31, 426–428. [Google Scholar] [CrossRef]
  54. Bowers, G.N.; Mccomb, R.B.; Christensen, R.C.; Schaffer, R. High-purity 4-nitrophenol: Purification, characterization, and specifications for use as a spectrophotometric reference material. Clin. Chem. 1980, 26, 724–729. [Google Scholar] [PubMed]
  55. Scott, S.L.; Chen, W.; Bakac, A.; Espenson, J.H. Spectroscopic parameters, electrode potentials, acid ionization constants, and electron exchange rates of the 2,2′-azinobis(3-ethylbenzothiazoline-6-sulfonate)radicals and ions. J. Phys. Chem. 1993, 97, 6710–6714. [Google Scholar] [CrossRef]

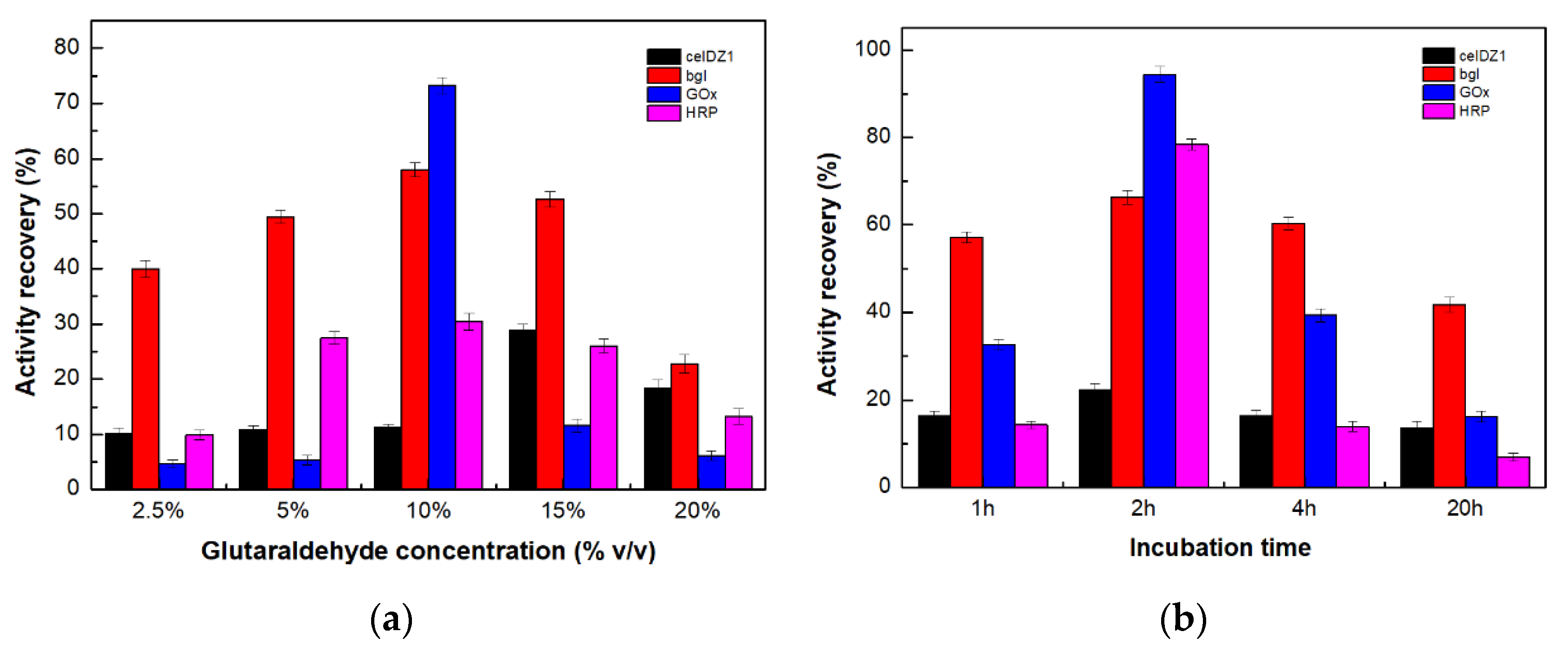

Figure 1. Effect of immobilization parameters on the activity recovery of the enzymes as a function of: (a) cross-linker concentration, (b) immobilizing time and (c) magnetic nanoparticles-to-enzymes mass ratio.
Figure 1. Effect of immobilization parameters on the activity recovery of the enzymes as a function of: (a) cross-linker concentration, (b) immobilizing time and (c) magnetic nanoparticles-to-enzymes mass ratio.
Catalysts 09 00995 g001aCatalysts 09 00995 g001b

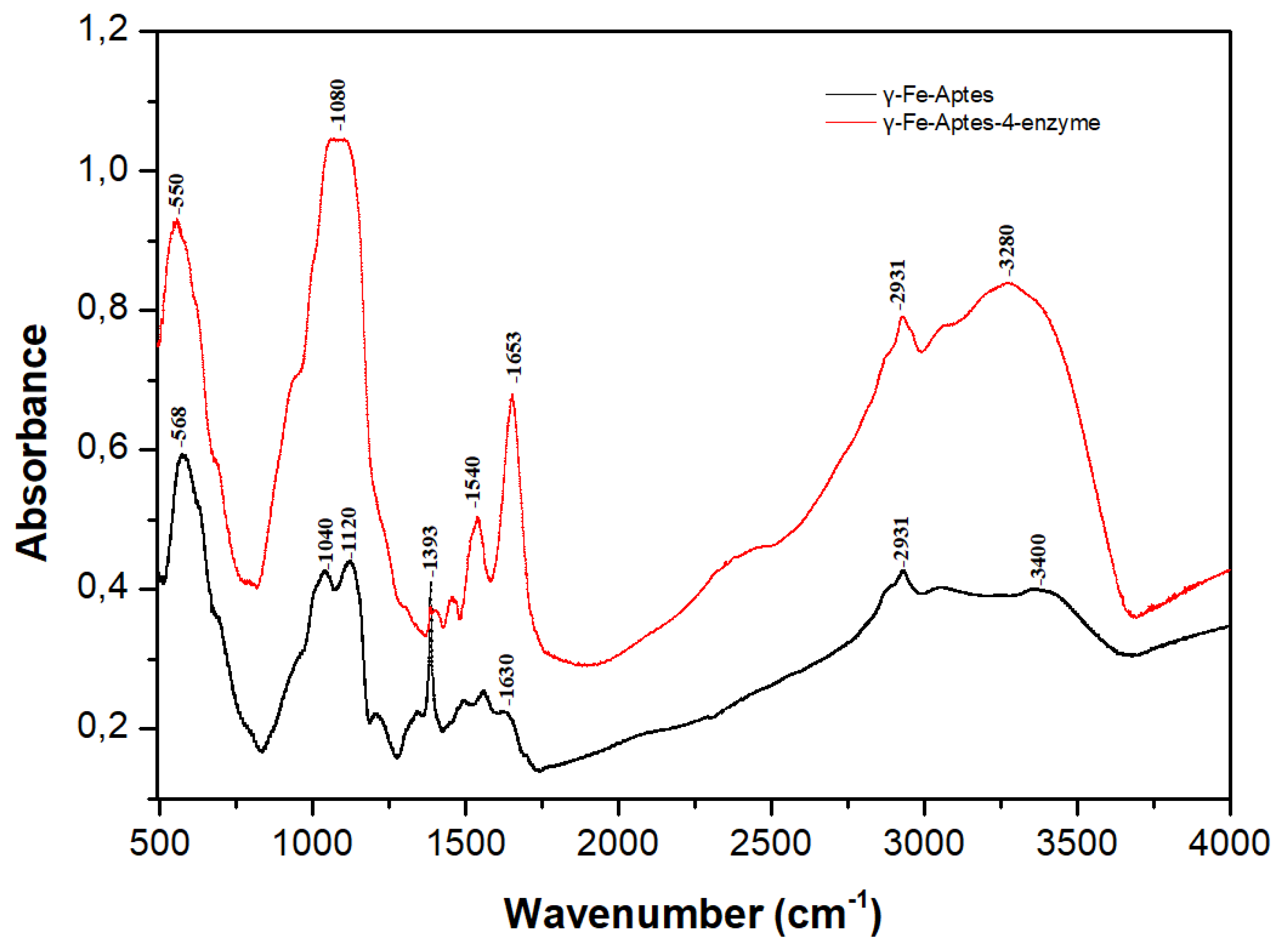

Figure 2. Fourier transform infrared (FTIR) spectra of amino functionalized magnetic nanoparticles (black) and four-enzyme co-immobilized nanoparticles (red), showing their distinct peaks.
Figure 2. Fourier transform infrared (FTIR) spectra of amino functionalized magnetic nanoparticles (black) and four-enzyme co-immobilized nanoparticles (red), showing their distinct peaks.
Catalysts 09 00995 g002

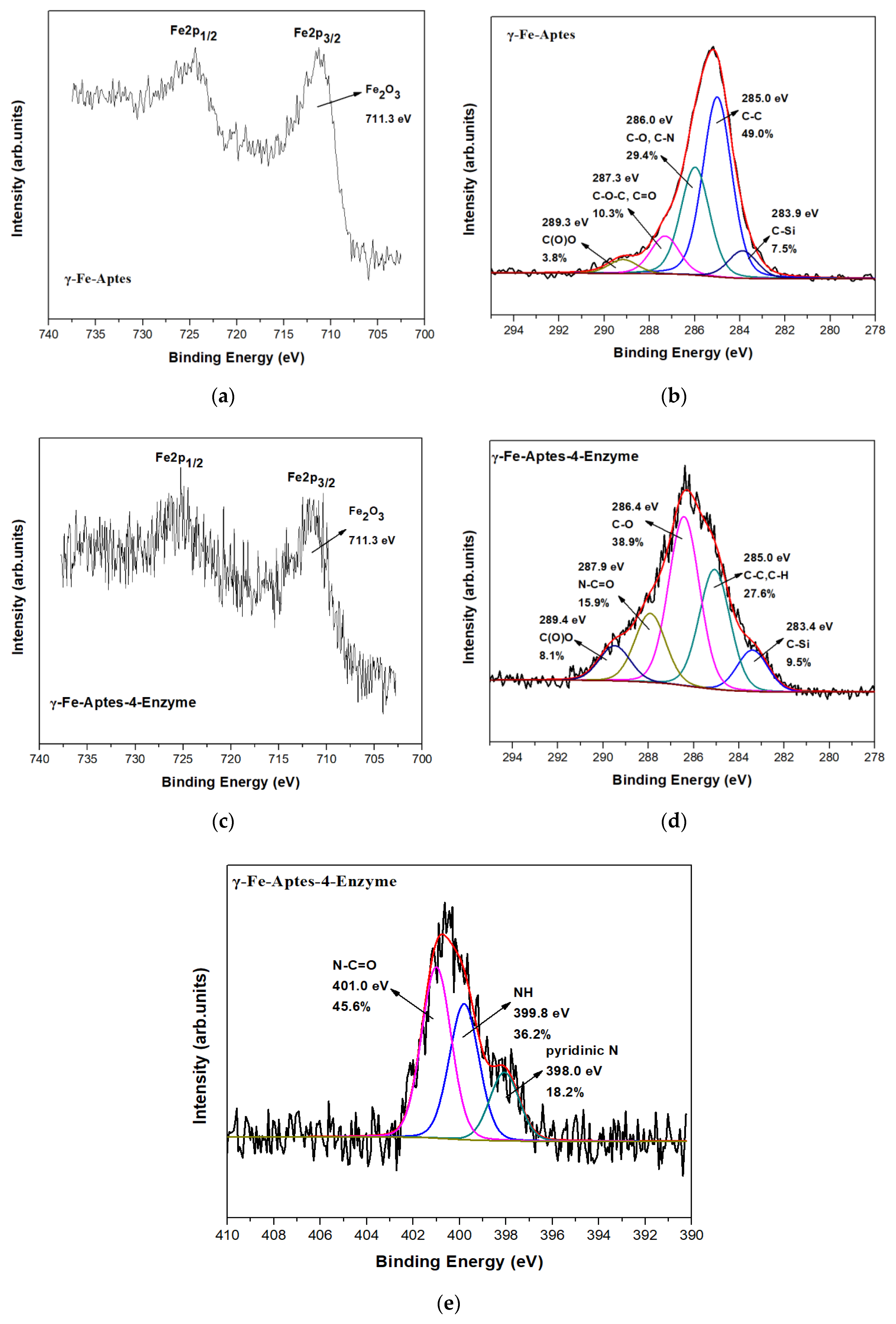

Figure 3. (a) Fe2p photoelectron spectra of amino functionalized magnetic nanoparticles (MNPs), (b) C1s photoelectron spectra of amino functionalized MNPs, (c) Fe2p photoelectron spectra of the 4-enzyme magnetic nanobiocatalyst, (d) C1s photoelectron spectra of the 4-enzyme magnetic nanobiocatalyst, and (e) N1s photoelectron spectra of the 4-enzyme magnetic nanobiocatalyst.
Figure 3. (a) Fe2p photoelectron spectra of amino functionalized magnetic nanoparticles (MNPs), (b) C1s photoelectron spectra of amino functionalized MNPs, (c) Fe2p photoelectron spectra of the 4-enzyme magnetic nanobiocatalyst, (d) C1s photoelectron spectra of the 4-enzyme magnetic nanobiocatalyst, and (e) N1s photoelectron spectra of the 4-enzyme magnetic nanobiocatalyst.
Catalysts 09 00995 g003

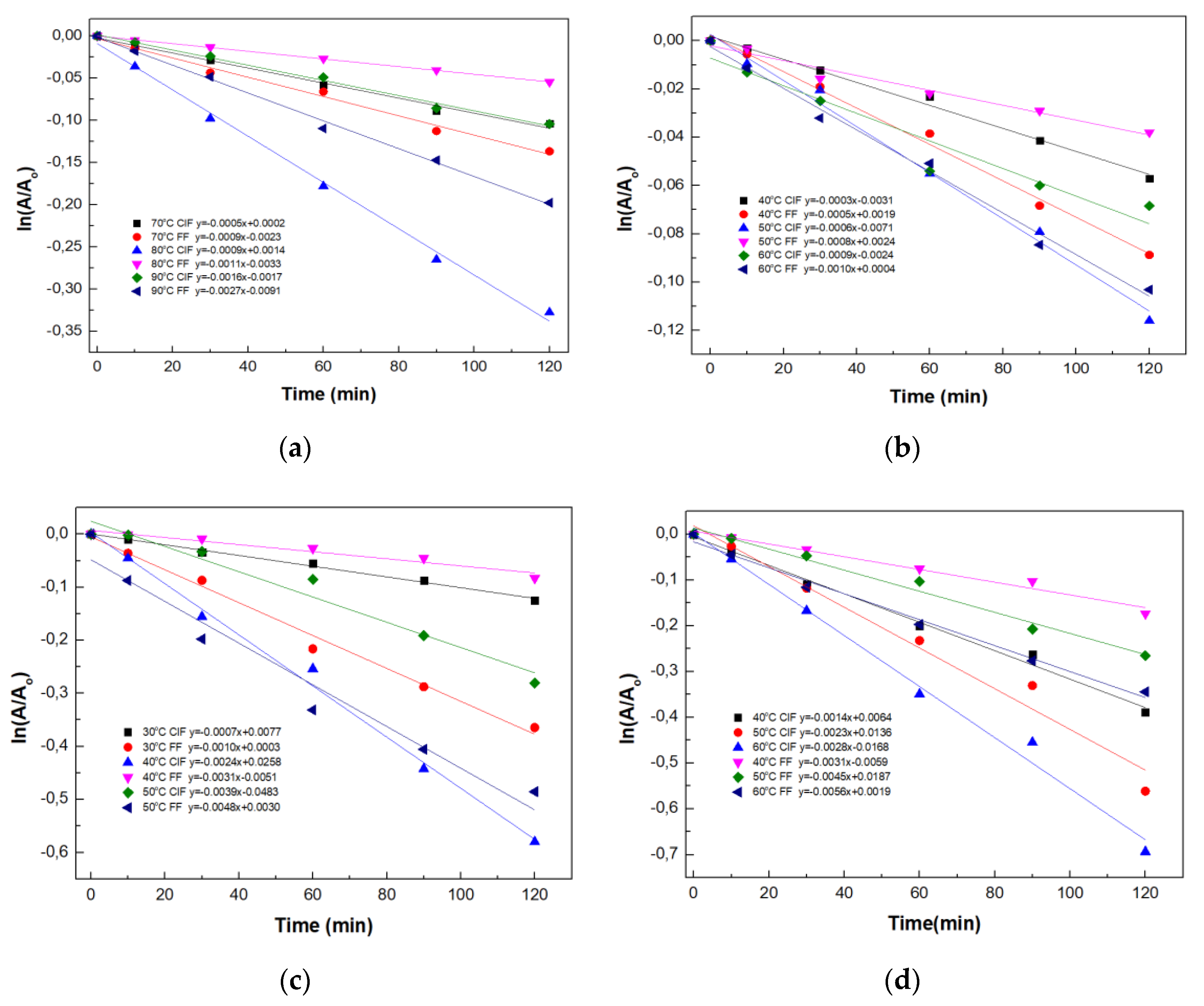

Figure 4. Thermal inactivation kinetics of free and co-immobilized (a) bgl, (b) GOx, (c) HRP and (d) CelDZ1.
Figure 4. Thermal inactivation kinetics of free and co-immobilized (a) bgl, (b) GOx, (c) HRP and (d) CelDZ1.
Catalysts 09 00995 g004
Figure 5. Storage stability studies of the four enzymes co-immobilized onto Aptes-functionalized MNPs during storage at 5 °C for 24 days. The activity of the first day was set to 100%.
Figure 5. Storage stability studies of the four enzymes co-immobilized onto Aptes-functionalized MNPs during storage at 5 °C for 24 days. The activity of the first day was set to 100%.
Catalysts 09 00995 g005

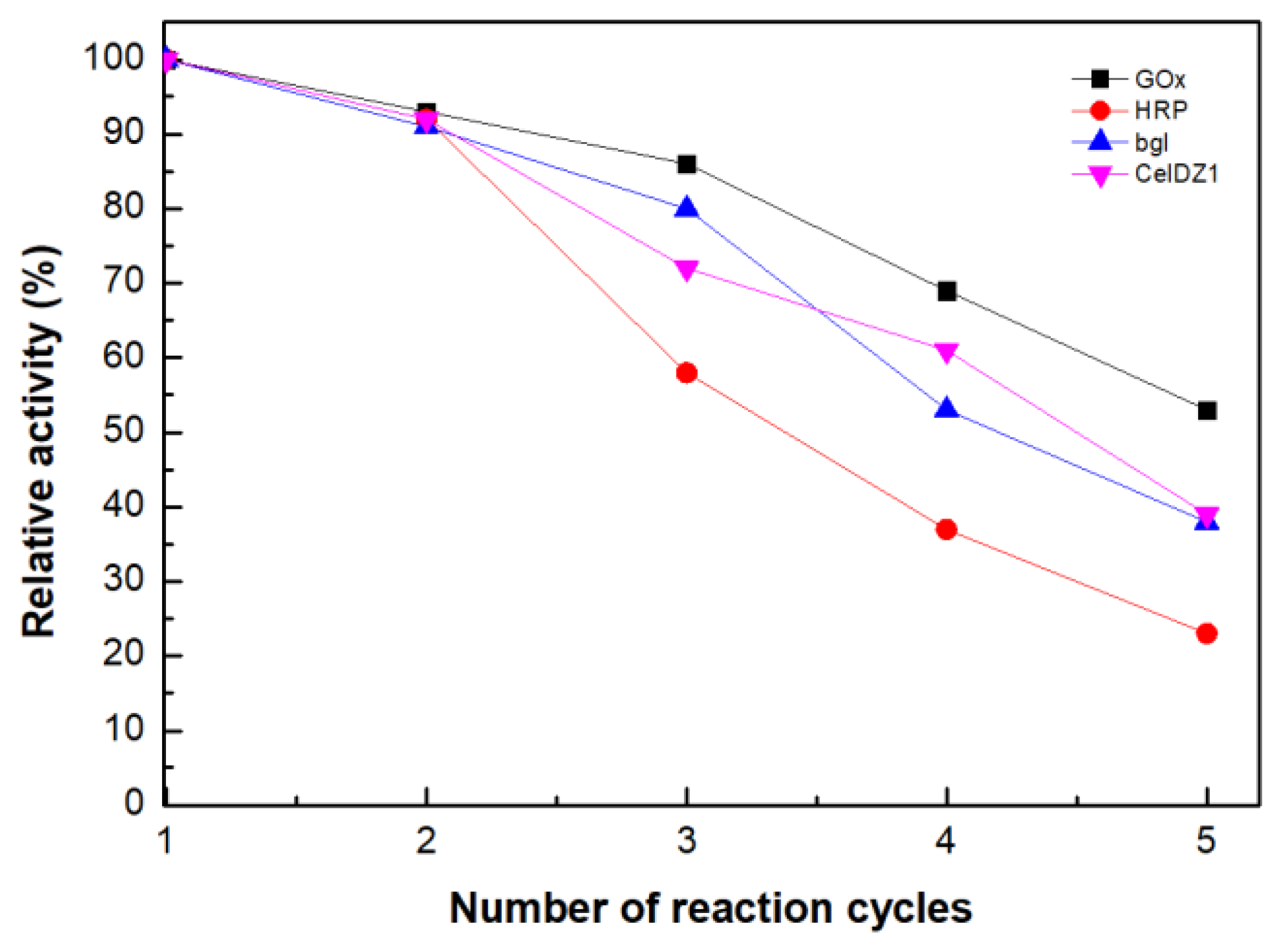

Figure 6. Reusability studies of the four-enzyme magnetic complex for five consecutive cycles. The activity of the first cycle was set to 100%.
Figure 6. Reusability studies of the four-enzyme magnetic complex for five consecutive cycles. The activity of the first cycle was set to 100%.
Catalysts 09 00995 g006
Figure 7. A schematically represented four-step cascade reaction for the hydrolysis of cellulose. In the first step, CelDZ1 hydrolyzes cellulose into cellobiose which further turns into glucose by bgl. The third step of the cascade process involves the oxidation of glucose to gluconic acid and H2O2. Finally, H2O2 acts as substrate for the HRP which reduces it to H2O in the presence of ABTS that progressively turns green.
Figure 7. A schematically represented four-step cascade reaction for the hydrolysis of cellulose. In the first step, CelDZ1 hydrolyzes cellulose into cellobiose which further turns into glucose by bgl. The third step of the cascade process involves the oxidation of glucose to gluconic acid and H2O2. Finally, H2O2 acts as substrate for the HRP which reduces it to H2O in the presence of ABTS that progressively turns green.
Catalysts 09 00995 g007

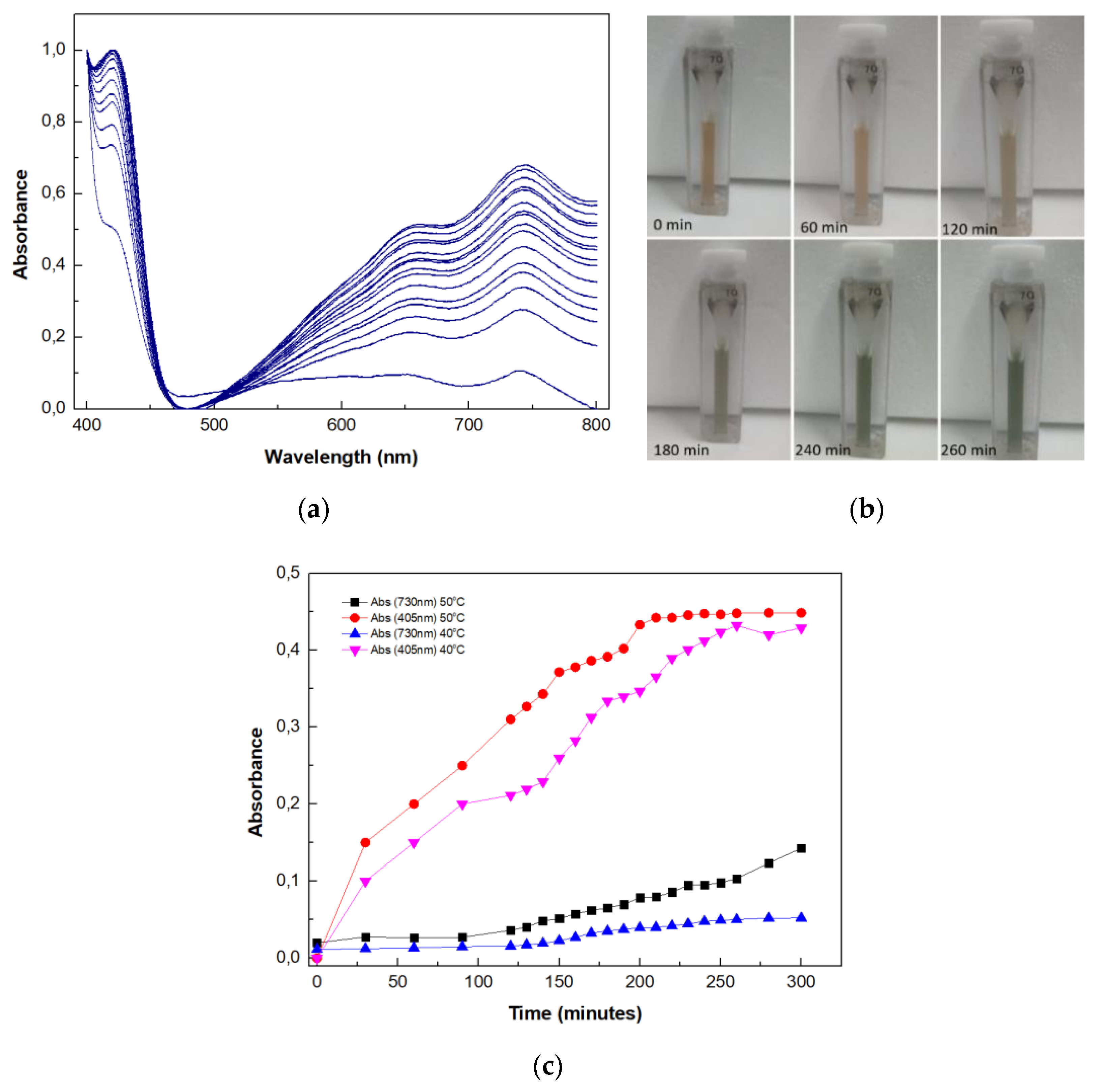

Figure 8. A cascade reaction catalyzed by the four-enzyme magnetic nanobiocatalyst for CMC hydrolysis. (a) Normalized time-dependent UV-Vis spectra recorded on solutions containing the four-enzyme magnetic nanobiocatalyst, CMC and ABTS at 50 °C, showing increase in absorption peak at 730 nm (ABTS+) over an extended period of time (6 h), (b) Optical images showing aqueous mixture of CMC and ABTS at various incubation times (t = 0, 60, 120, 180, 240 and 260 min) at 50 °C. The solution turns progressively green as oxidized ABTS is released at the final stage of the cascade reaction and (c) Time-dependent increase in absorption at 405 nm and 730 nm for the cascade reaction carried at 40 °C and 50 °C.
Figure 8. A cascade reaction catalyzed by the four-enzyme magnetic nanobiocatalyst for CMC hydrolysis. (a) Normalized time-dependent UV-Vis spectra recorded on solutions containing the four-enzyme magnetic nanobiocatalyst, CMC and ABTS at 50 °C, showing increase in absorption peak at 730 nm (ABTS+) over an extended period of time (6 h), (b) Optical images showing aqueous mixture of CMC and ABTS at various incubation times (t = 0, 60, 120, 180, 240 and 260 min) at 50 °C. The solution turns progressively green as oxidized ABTS is released at the final stage of the cascade reaction and (c) Time-dependent increase in absorption at 405 nm and 730 nm for the cascade reaction carried at 40 °C and 50 °C.
Catalysts 09 00995 g008

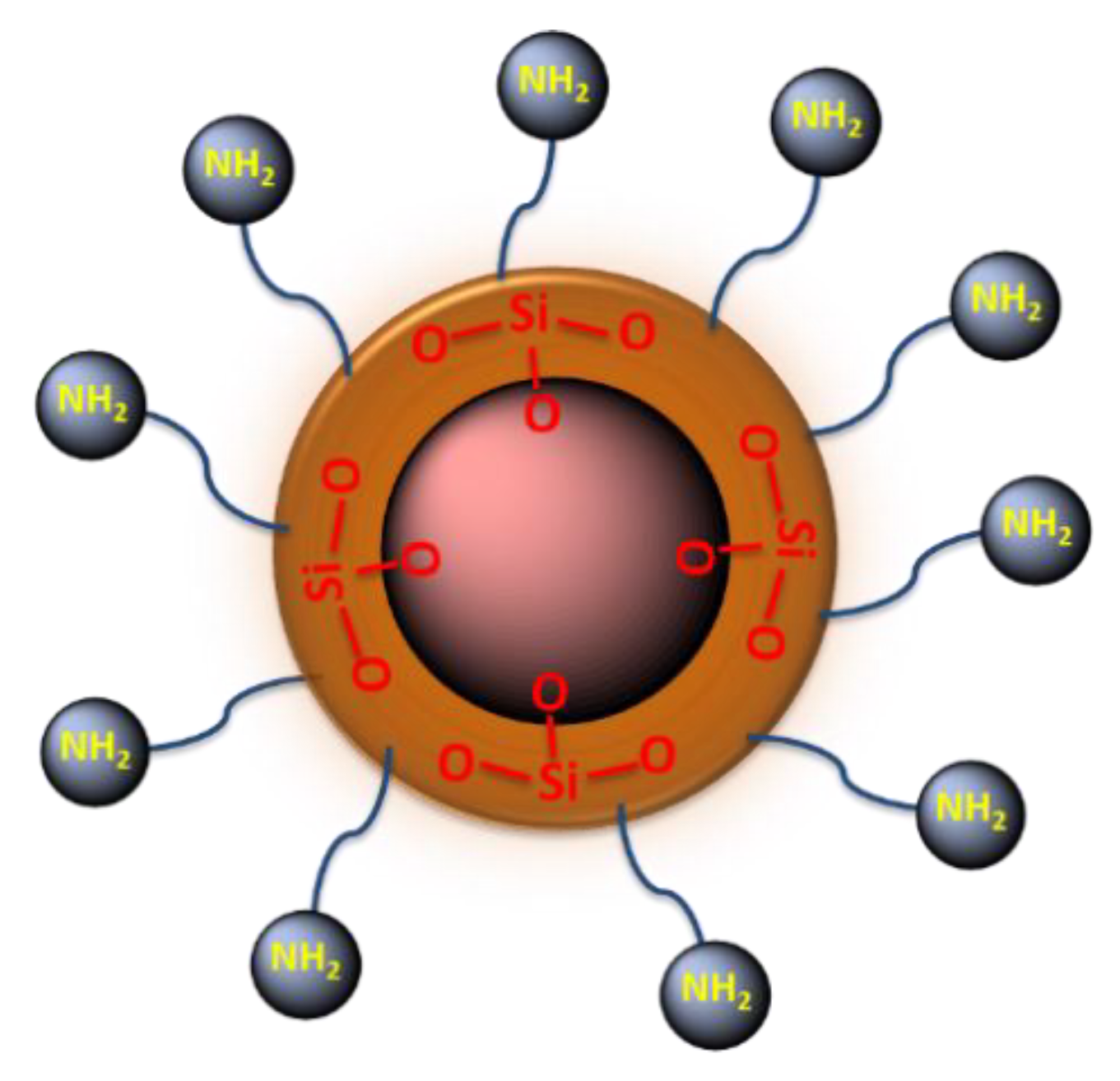

Figure 9. Schematic representation of amino-functionalized magnetic nanoparticles.
Figure 9. Schematic representation of amino-functionalized magnetic nanoparticles.
Catalysts 09 00995 g009
Table 1. Molecular mass (MM) and isoelectric point (pI) of the four enzymes employed for co-immobilization onto the surface of amino-functionalized magnetic nanoparticles.
Table 1. Molecular mass (MM) and isoelectric point (pI) of the four enzymes employed for co-immobilization onto the surface of amino-functionalized magnetic nanoparticles.
EnzymeM.M. (kDa)pI
Cellulase, CelDZ1, from a Thermoanaerobacterium hot spring isolate [27]425.7
β-Glucosidase from Thermotoga maritima53.76.0
Glucose oxidase from Aspergillus niger1604.2
Horseradish peroxidase407.2
Table 2. Half- life times (t1/2) (at 50 °C for CelDZ1, GOx and horseradish peroxidase (HRP) and at 70 °C for bgl) and deactivation energies (Ed) for each enzyme both in free and co-immobilized form.
Table 2. Half- life times (t1/2) (at 50 °C for CelDZ1, GOx and horseradish peroxidase (HRP) and at 70 °C for bgl) and deactivation energies (Ed) for each enzyme both in free and co-immobilized form.
Enzymet1/2 (h)Ed (kJ/mol)
Free form of CelDZ12.525.7
Co-immobilized form of CelDZ15.030.1
Free form of bgl12.857.5
Co-immobilized form of bgl23.160.2
Free form of GOx14.430.1
Co-immobilized form of GOx19.247.7
Free form of HRP2.464.1
Co-immobilized form of HRP2.970.1
Table 3. Thermodynamic parameters, ΔΗ°, ΔG° and ΔS° (at 50 °C for CelDZ1, GOx and HRP and at 70 °C for bgl) for each enzyme both in free and co-immobilized form.
Table 3. Thermodynamic parameters, ΔΗ°, ΔG° and ΔS° (at 50 °C for CelDZ1, GOx and HRP and at 70 °C for bgl) for each enzyme both in free and co-immobilized form.
EnzymeΔΗ° (kJ/mol)ΔG° (kJ/mol)ΔS° (J/mol/K)
Free form of CelDZ123.0092.45−215.01
Co-immobilized form of CelDZ127.4794.25−208.13
Free form of bgl54.65102.91−140.69
Co-immobilized form of bgl57.35104.60−137.75
Free form of GOx27.4297.07−215.63
Co-immobilized form of GOx45.0297.85−163.56
Free form of HRP61.4292.27−95.51
Co-immobilized form of HRP67.4292.83−78.66
Table 4. Apparent kinetic constants of free, individually immobilized and co-immobilized form of CelDZ1, bgl, GOx and HRP.
Table 4. Apparent kinetic constants of free, individually immobilized and co-immobilized form of CelDZ1, bgl, GOx and HRP.
FormsKmVmax (μmol/min)
Free CelDZ16.09 ± 0.78 1.41 ± 0.16
CelDZ1 in co-immobilized form6.78 ± 0.210.40 ± 0.02
CelDZ1 in individually immobilized form8.15 ± 2.471.22 ± 0.28
Free bgl0.25 ± 0.0137.54 ± 0.56
bgl in co-immobilized form0.36 ± 0.059.46 ± 0.26
bgl in individually immobilized form0.46 ± 0.042.36 ± 0.06
Free GOx1.72 ± 0.11 12.07 ± 1.38
GOx in co-immobilized form2.76 ± 0.985.30 ± 0.28
GOx in individually immobilized form11.93 ± 1.773.70 ± 0.17
Free HRP0.014 ± 0.001 20.74 ± 1.05
HRP in co-immobilized form0.017 ± 0.013 5.45 ± 0.57
HRP in individually immobilized form0.044 ± 0.0103.66 ± 0.21

Share and Cite

MDPI and ACS Style

Giannakopoulou, A.; Patila, M.; Spyrou, K.; Chalmpes, N.; Zarafeta, D.; Skretas, G.; Gournis, D.; Stamatis, H. Development of a Four-Enzyme Magnetic Nanobiocatalyst for Multi-Step Cascade Reactions. Catalysts 2019, 9, 995. https://doi.org/10.3390/catal9120995

AMA Style

Giannakopoulou A, Patila M, Spyrou K, Chalmpes N, Zarafeta D, Skretas G, Gournis D, Stamatis H. Development of a Four-Enzyme Magnetic Nanobiocatalyst for Multi-Step Cascade Reactions. Catalysts. 2019; 9(12):995. https://doi.org/10.3390/catal9120995

Chicago/Turabian Style

Giannakopoulou, Archontoula, Michaela Patila, Konstantinos Spyrou, Nikolaos Chalmpes, Dimitra Zarafeta, Georgios Skretas, Dimitrios Gournis, and Haralambos Stamatis. 2019. "Development of a Four-Enzyme Magnetic Nanobiocatalyst for Multi-Step Cascade Reactions" Catalysts 9, no. 12: 995. https://doi.org/10.3390/catal9120995

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
