Article

Advanced Ga2O3/Lignin and ZrO2/Lignin Hybrid Microplatforms for Glucose Oxidase Immobilization: Evaluation of Biosensing Properties by Catalytic Glucose Oxidation

by
Artur Jędrzak
1,
Tomasz Rębiś
2,
Maria Kuznowicz
1,
Agnieszka Kołodziejczak-Radzimska
1,
Jakub Zdarta
1,
Adam Piasecki
3 and
Teofil Jesionowski
1,*
1
Institute of Chemical Technology and Engineering, Faculty of Chemical Technology, Poznan University of Technology, Berdychowo 4, PL-60965 Poznan, Poland
2
Institute of Chemistry and Technical Electrochemistry, Faculty of Chemical Technology, Poznan University of Technology, Berdychowo 4, PL-60965 Poznan, Poland
3
Institute of Materials Science and Engineering, Faculty of Mechanical Engineering and Management, Poznan University of Technology, Jana Pawła II 24, PL-60965 Poznan, Poland
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(12), 1044; https://doi.org/10.3390/catal9121044
Submission received: 30 October 2019 / Revised: 30 November 2019 / Accepted: 4 December 2019 / Published: 9 December 2019

Abstract

:
In this study, novel Ga2O3/lignin and ZrO2/lignin hybrid materials were obtained and used as supports for the adsorption of the enzyme glucose oxidase (GOx). A biosensor system based on the hybrid supports was then designed to determine the concentration of glucose in various solutions. The obtained bioinspired platforms were analyzed to determine chemical and physical properties of the support structures. A determination was made of the effectiveness of the proposed method of immobilization and the quality of operation of the constructed glucose biosensor in electrochemical tests. To characterize the materials, Fourier transform infrared spectroscopy (FT-IR), transmission electron microscopy (TEM), scanning electron microscopy (SEM), X-ray diffraction (XRD), thermogravimetric analysis (TGA), electrokinetic (zeta) potential measurements, atomic force microscopy (AFM), particle size measurements (NIBS technique), and elemental analysis (EA) were used. In further research, glucose oxidase (GOx) was immobilized on the surface of the obtained functional Ga2O3/lignin and ZrO2/lignin biomaterials. The best immobilization capacities—24.7 and 27.1 mg g−1 for Ga2O3/lignin and ZrO2/lignin, respectively—were achieved after a 24 h immobilization process. The Ga2O3/Lig/GOx and ZrO2/Lig/GOx systems were used for the construction of electrochemical biosensor systems, in a dedicated carbon paste electrode (CPE) with the addition of graphite and ferrocene.

Graphical Abstract

1. Introduction

Hybrid materials have existed on Earth for millions of years. There are many examples of combinations of inorganic and organic components that occur in nature, including shells of mollusks and components of human bones [1,2,3,4,5]. Over time, people took notice that combinations of two or more components could enable the fabrication of a material with new properties that were not exhibited by the separate components. This was just the beginning, as the new properties of hybrid connections are still being explored and their potential has not yet been fully exploited [2,3,4,5,6]. Hybrid materials are most often defined as systems consisting of a homogeneous mixture of inorganic and organic components that are mixed together at the molecular level. This structural limitation means that the resulting products offer specific properties that the original components do not possess. The wide range of possibilities of designing the composition of hybrid materials means they have huge potential for application in many fields of science and industry [5,6,7,8,9].
Lignin is the second most abundant natural polymer with amorphous character. It is an attractive component due to the rich aromatic character of the biopolymer [3,4,5]. This is responsible for its high affinity to carbon-based materials, in addition to strong adsorption on the sp2-hybridized carbon surfaces of platforms [10,11,12].
An immobilization is a process of confining cell, enzymes, or other biomaterials on special inert and insoluble matrix. There are several methods of immobilization, and depending on the method chosen, the binding of the biocatalyst may occur more or less permanently. This technique is used to improve the properties of biocatalysts and the efficiency of catalytic processes while reducing process costs. [13,14,15,16]. Immobilization prevents the loss of catalytic activity, which allows multiple use of produced biocatalytic systems. The separation of immobilized biosystems from the reaction process is easier and faster, making them more attractive for industrial applications [13,16,17]. Immobilization processes are of great significance in many branches of industry, including the chemical, pharmaceutical, and biological sectors. Additionally, the possibility of enzyme immobilization may contribute to the ongoing progress in bioprocesses and in biosensing [5].
Over the years, glucose oxidase (GOx) has been increasingly used in the construction of biosensor systems [18,19,20]. Glucose oxidase is a flavoprotein that catalyzes the oxidation of β-D-glucose [18,21]. Many commercially available glucose sensors are based on immobilized glucose oxidase or glucose dehydrogenase, and they are particularly widely used in the food industry and medicine [18,21].
Today, metal oxide-based materials (ZrO2, Ga2O3, CeO2, ZnO, SiO2) are intensively studied as sophisticated supports for enzyme immobilization. This is due to their nontoxicity, biostability, biocompatibility, and ease of process separation [22,23]. Novel metal oxide-based platforms, like those using Ga2O3 [24,25,26,27,28] or ZrO2 [29,30,31,32,33,34], provide better electron conductivity, a higher isoelectric point, and improved biocompatibility or bioactivity [35]. Wang and co-authors prepared humidity sensors based on Ga2O3 which has satisfying sensing properties [24]. In addition, the use of thin layers of ZnO causes good electrical transport, high isoelectric point and cost effectiveness. Marie and co-workers investigated a glucose electrochemical sensor based on ZnO nanorods [36]. On the other hand, enzymatic glucose biosensor based on CeO2 was proposed by Patil and co-authors. They used cerium (IV) oxide because of electrical conductivity, biocompatibility, high specific surface area, and chemical inertness [37]. In their research, Golikova and co-workers immobilized the enzyme on the SiO2 and Al2O3 surface. The advanced layout allows for effective immobilization and high activity and stability of biocatalysts [38].
The aim of this work was to obtain innovative hybrid biomaterials conforming to the principles of sustainable chemistry due to the use of by-products such as lignin in the microplatforms. The work consisted of several stages. First, modified zirconium dioxide and gallium oxide were attached separately to lignin [7]. Next, the glucose oxidase enzyme was immobilized on them by adsorption. A biosensor was constructed with a dedicated carbon paste electrode (CPE) to examine glucose solutions. Physicochemical analyses were carried out to enable the precise characterization of the obtained micromaterials.

2. Results and Discussion

2.1. Surface Morphology

The techniques that were used to determine the morphological structure of oxides and the obtained hybrid materials were transmission electron microscopy (TEM), scanning electron spectroscopy (SEM), energy-dispersive X-ray spectroscopy (EDS), and X-ray diffraction analysis (XRD). The results of transmission electron microscopy are shown in Figure 1.
The bare Ga2O3 particles have sizes ranging from 1 to 5 µm (Figure 1A). The micrograph of ZrO2 presents spherical nanoparticles from 20 to 50 nm (Figure 1B). Both images show individual primary particles that tend to agglomerate to form larger clusters. The Ga2O3/lignin and ZrO2/lignin hybrid materials are shown in Figure 1C,D, respectively. The change in the morphology of the material, including the size of the repeated pattern observed in the TEM image, indirectly demonstrates the effectiveness of the combination of APTES-modified metal oxides with activated lignin. Scanning electron microscopy (SEM) was also used to determine the morphology of the components and the obtained hybrid materials (Figure 2).
The SEM micrographs present structures of Ga2O3, ZrO2, Ga2O3/lignin and ZrO2/lignin in a range of about 2–50 μm with the occurrence of irregularly shaped particles. It may be assumed from the shape and size of the particles that the materials will have a relatively small specific surface area and mainly macroscopic pores. The primary microparticles are capable of forming aggregates and agglomerates. The lignin component of the hybrid materials is visible. In the SEM micrographs of the resulting supports, stable irregularly shaped modules of modified gallium oxide or zirconium dioxide and activated lignin have merged together to form clusters of aggregates with no precisely outlined contours.
Energy Dispersive Spectroscopy (EDS) was used for the elements distribution analysis and mapping. The test was carried out for both pristine oxides (ZrO2, Ga2O3) and for hybrid supports (ZrO2/Lig, Ga2O3/Lig). The obtained results are presented in Figure 3, Figure 4, Figure 5 and Figure 6.
The results of EDS also allowed the determination of the percentage content of elements (Ga, Zr, O, C, S, Na, and I). According to the EDS results, a strong peak from C and S are presented in Ga2O3/Lig and ZrO2/Lig materials confirming the existence of incorporated lignin. The values obtained for sulfur and carbon may suggest that in both hybrid materials, it contains similar amounts of lignin. EDS mapping results confirm a uniform of Ga, Zr, S, O, and C elements. The data also reveals the presence of slight amount of sodium and iodine in hybrid Ga2O3/Lig and ZrO2/Lig materials, which may come from the activation of lignin with sodium periodate. The percentage content of elements was collected and summarized in Table 1.
In order to determine the crystal structure, an X-ray diffraction analysis for oxides, hybrid materials, and lignin was performed. The XRD patterns are shown in Figure 7. The XRD patterns of Ga2O3 show characteristic peaks at 2θ values of 31.72°, 35.22°, and 63.89° correspond to the (002), (111), and (512) diffraction peaks, respectively. All obtained XRD patterns are in accordance with those of monoclinic phase of β-Ga2O3 (JCPDS: 41-1103) [39]. Sharp diffraction peaks also indicate the high crystalline quality of the used compounds. The crystalline structures of ZrO2 were also investigated with this analysis. The peaks at 2θ of 28.74°, 31.38°, 50.39°, and 60.47° correspond to the (111), (200), (220), and (311) diffraction planes, respectively (JCPDS: 79-1771) [40]. The same diffraction reflections from both oxides and hybrid materials are observed. No Bragg peaks have been noticed in the case of lignin because of the amorphous nature of lignin [41]. The study confirmed that the proposed method of synthesis does not affect the crystal structure of the created materials.

2.2. Zeta Potential, Mean Hydrodynamic Diameter, PdI, and Elemental Analysis of Microplatforms

The Ga2O3/lignin and ZrO2/lignin supports and their components were exposed to electrokinetic potential measurements to define the dispersion stability of individual supports. The results are shown in Table 1. The potential of the metal oxides changed after modification with APTES from −32.2 to −28.2 mV for Ga2O3 and from −33.5 to −29.4 mV for ZrO2, respectively. The results indicate the moderate dispersion stability of Ga2O3/lignin and ZrO2/lignin, for which the electrokinetic potential values are −35.8 and −36.1 mV, respectively. The zeta potential of lignin indicates that the biopolymer is very stable [42]. Moreover, the changes in the zeta potentials of these hybrid platforms provide further confirmation of the binding of lignin to the metal oxide surfaces. Furthermore, there were presented sizes of particles based on non-invasive back scattering (NIBS) measurements and the polydispersity index (PdI) findings of the metal oxides (Ga2O3, ZrO2), before and after APTES-modification and final hybrid products. The modification of the metal oxides and binding them to the lignin facilitate aggregations and agglomerations of the molecules. The PdI index also increased after both the modification and the hybrid materials synthesis (see Table 2).
The next test to confirm the chemical composition of synthesized samples was elemental analysis. This analysis allowed the determination of the nitrogen (N), carbon (C), hydrogen (H), and sulfur (S) contents. The presence of nitrogen content in the modified metal oxides after APTES-modification were observed. The obtained results are similar for both hybrid materials (Ga2O3/lignin; ZrO2/lignin). The obtained results were presented in Table 3.

2.3. Fourier Transform Infrared Spectroscopy (FT-IR) Analysis

FT-IR spectra are shown in Figure 8A,B. The band of stretching vibrations of −OH groups lies in the wavenumber range 3600–3400 cm−1 [5]. In the range 3000–2800 cm−1, peaks originating from stretching vibrations of −CH groups (CH3 and CH2) are noticeable [5]. The signals in the range 1600–1475 cm−1 are characteristic for stretching vibrations of CAr = CAr groups originating from the aromatic rings of lignin [5].
Figure 8A shows the FT-IR spectrum of Ga2O3 after modification. As a result of the modification, −NH2 groups are introduced [43]. The spectrum confirms the effectiveness of the modification due to the presence of a band in the wavenumber range 3400–3200 cm−1, derived from stretching vibrations of −NH bonds [5,43]. The spectrum also includes bands corresponding to the vibrations of functional groups originating from Ga2O3. The vibrations of Ga–O bonds produce a signal in the wavenumber range 650–700 cm−1 [43]. Figure 8A also shows the FT-IR spectrum of the Ga2O3/lignin hybrid. In the range 3200–3600 cm−1, increase in the intensity of bands originating from stretching vibrations of −OH and −NH, at wavenumber range 3400–3200 cm−1, groups are visible, indicating effective obtaining of hybrid [5].
In the spectrum of zirconium dioxide after modification, which is shown in Figure 8B, attention should be paid to the signals in the wavenumber range 3600–3400 cm−1 generated by stretching vibrations of hydroxyl groups, and the band in the region around 500 cm−1, characteristic for Zr–O groups [43]. Hydroxyl and amine groups bands increased in intensity following modification with APTES. After binding of the structure of lignin to the metal oxide, bands corresponding to vibrations of C–H bonds are presented at about 2800 cm−1, and signals in the range 1500–1425 cm−1 indicate the CAr-CAr bonds originating from the aromatic structures occurring in the structure of lignin [43].

2.4. Thermal Stability

Thermogravimetric analysis (TG) was used to determine the thermal stability of the prepared hybrids (Figure 9).
Measurements were performed in the temperature range up to 1000 °C. The TG curves of Ga2O3 before and after modification show insignificant mass loss [44] associated with the loss of water that was connected to the oxide surface with physical bonds. The analysis shows the high thermal stability of Ga2O3 in a wide range of temperatures. From the curve for the Ga2O3/lignin hybrid system, it can be concluded that the thermal decomposition of the sample consists of three main steps. In the temperature range from 25 °C to about 250 °C, there is a slight decrease (around 10%) in the mass of the sample, related to the evaporation of water on matrix surface. There is then a rapid decrease in mass by about 30% in a temperature range of approximately 300–600 °C [44]. This is related to the thermal decomposition of the lignin present in the Ga2O3/lignin hybrid system. At temperatures above 600 °C, the sample passes along a further loss of mass of about 15%, caused by the thermal degradation of lignin fragments that occur in combination with carbon. Nevertheless, it can be concluded that the Ga2O3/lignin hybrid system has relatively high thermal stability [4,5,44].
On the graph in Figure 9B, the ZrO2/lignin hybrid system is observed to undergo a significant loss of mass of heating compared with unmodified and modified zirconium dioxide. The first mass loss, connected with the elimination of water physically absorbed on the surface of lignin, occurred in the temperature range 25–200 °C and amounted to about 8%. The second larger loss occurred in the range 280–320 °C. This was a loss of about 25%, associated with the loss of crystalline water trapped in the structure of the ZrO2/lignin hybrid material [4,5]. Thermal treatment in the third stage above 350 °C (up to 1000 °C) causes a partial loss of lignin fragments associated with carbon decomposition (a mass loss of about 30%), which results from fragmentation of the molecule due to unclear and uncontrolled reactions [3,4].

2.5. Efficiency of Glucose Oxidase (GOx) Immobilization

To measure the efficiency of enzyme immobilization, the Bradford method was used. The assay is a spectrophotometric measurement at wavelength λ = 595 nm, using a dye called Coomassie Brillant Blue G-250, which makes a specific combination with amino acid residues containing a positive charge, including mainly arginine, as well as histidine, lysine, proline, tryptophan, and tyrosine. The used G-250 dye links with amino acids that change the colour from brown to blue, which it can be observed at UV-Vis spectrophotometer. The Bradford test is a comparatively universal and effective assay. The adsorption immobilization of GOx on Ga2O3/lignin or ZrO2/lignin hybrid materials was conducted at pH 5.0 and involved the formation of hydrogen bonds between amine groups in the enzyme and the carbonyl groups present in lignin. Studies of the quantity of immobilized GOx was performed using supernatants from presented hybrid materials after immobilization and unbound enzyme. The results are shown in Figure 10.
It may be observed from Figure 10 that the quantity of enzyme immobilized on the material grows as the process time increases up to 24 h. Extending the duration of the process, such as 72 h or 96 h, does not increase the quantity of enzyme adsorbed on the support. This may be due to the saturation of the surface active sites capable of immobilizing the enzyme. The maximum quantities of immobilized glucose oxidase on the Ga2O3, ZrO2, Ga2O3/lignin, and ZrO2/lignin hybrid materials were obtained after 24 h of the process, and reached 9.7, 11.6, 24.7, and 27.1 mg g−1, respectively.
The obtained results were compared with our previously created systems and literature data and are summarized in Table 4.
To confirm the immobilization of GOx on the surfaces of the hybrids and to examine changes in the surface topography, AFM measurements were carried out (Figure 11).
Variable changes take place in the samples before and after the immobilization process. The parameter Z on the AFM images increases for the systems containing enzyme. In addition, the surface structure of the matrix becomes rougher, which may suggest that the surface is covered with objects of a larger size in relation to the native roughness of the lignin.

2.6. Electrochemical Properties of Electrocatalytic Microplatforms with Immobilized Glucose Oxidase

Figure 12A shows cyclic voltammograms of CPE/Ga2O3/lignin-GOx in PBS in the absence of glucose and in the presence of 1, 2, 5, and 10 mM glucose. Ferrocene mediator was incorporated into the electrode to provide electrochemical communication between GOx active sites and the electrode surface. It can be seen that the oxidation was accomplished based on a clear increase in the anodic current at a potential close to the formal potential for ferrocene. This behavior indicates that the CPE/Ga2O3/lignin-GOx electrode is able to catalyze the oxidation of glucose using Fc+/Fc as an effective mediator. As shown by the plot in Figure 11B, the anodic current increased with increasing glucose concentration. All electrochemical tests were repeated three times and were characterized by high repeatability.
Similar results were obtained for the CPE/ZrO2/lignin-GOx modified electrode system (Figure 13). It is observed that the higher the glucose concentration, the higher the anodic current recorded at the CPE/ZrO2/lignin-GOx. Moreover, the shape of the I vs. c curve in Figure 13B suggests that the enzymatic reaction follows Michaelis–Menten kinetics [49].

3. Materials and Methods

3.1. Materials and Chemicals

The components used in this work were gallium oxide (Ga2O3), zirconium(IV) oxide (ZrO2), kraft lignin, phosphate buffer saline (PBS) (pH 7.4; 10 mM), citric buffer (pH 5.0; 10 mM), sodium iodate, methanol, dioxane, APTES, glucose oxidase from Aspergillus niger, ferrocene, and glucose solutions (1, 2, 5, and 10 mM). A basic biosensor was constructed using carbon paste electrode (CPE), ferrocene, and graphite. The chemical reagents were purchased from Sigma-Aldrich (St. Louis, MO, USA) with the exception of the CPE (BASi, West Lafayette, IN, USA). Reagents and solvents used in the research were reagent-grade quality.

3.2. Modification of Metal Oxide Materials

To obtain modified oxides (gallium oxide and zirconium (IV) oxide) a solution consisting of (3-aminopropyl) triethoxysilane (APTES):water:methanol in the ratio 1:4:16 was prepared. The modification was carried out using 6 g of one of the oxides and 6.3 mL of the modifying solution (0.3 mL of APTES, 1.2 mL of H2O, 4.8 mL of MeOH). The modifying solution was added to the oxide with constant stirring. The final paste product was dried at 105 °C for 24 h. The last stage of the modification consisted in grinding and sieving the obtained modified oxide through a sieve with a mesh size of 64 μm. The mechanism of modification of selected oxides with the APTES is presented in Figure 14.

3.3. Activation of Lignin and Synthesis of Ga2O3/Lignin and ZrO2/Lignin Supports

In a 500 mL glass reactor equipped with a peristaltic pump, 4 g of lignin, 200 mL of dioxane, and 22.5 mL of distilled water were mixed. Next, 6 g of sodium iodate dissolved in 120 mL of water was added at a rate of 12 mL min−1. To ensure that the lignin oxidized only under the influence of the oxidant, the reactor was sealed with silver foil. This caused the oxidation process to occur only under the impact of sodium periodate (NaIO4), excluding oxidation under the influence of light. The reaction of chemical activation of lignin lasted 80 min. The mechanism of this synthesis is presented in Figure 15.
In the next step, the 4 g of modified oxide (Ga2O3 or ZrO2) was added to the reaction mixture. Media synthesis reactions were carried out for 1 h with continuous stirring. The next step was evaporation of the solvents in an evaporator. The obtained dry powder was washed with distilled water and left in an oven at 105 °C for 24 h. This step is schematically shown in Figure 16.

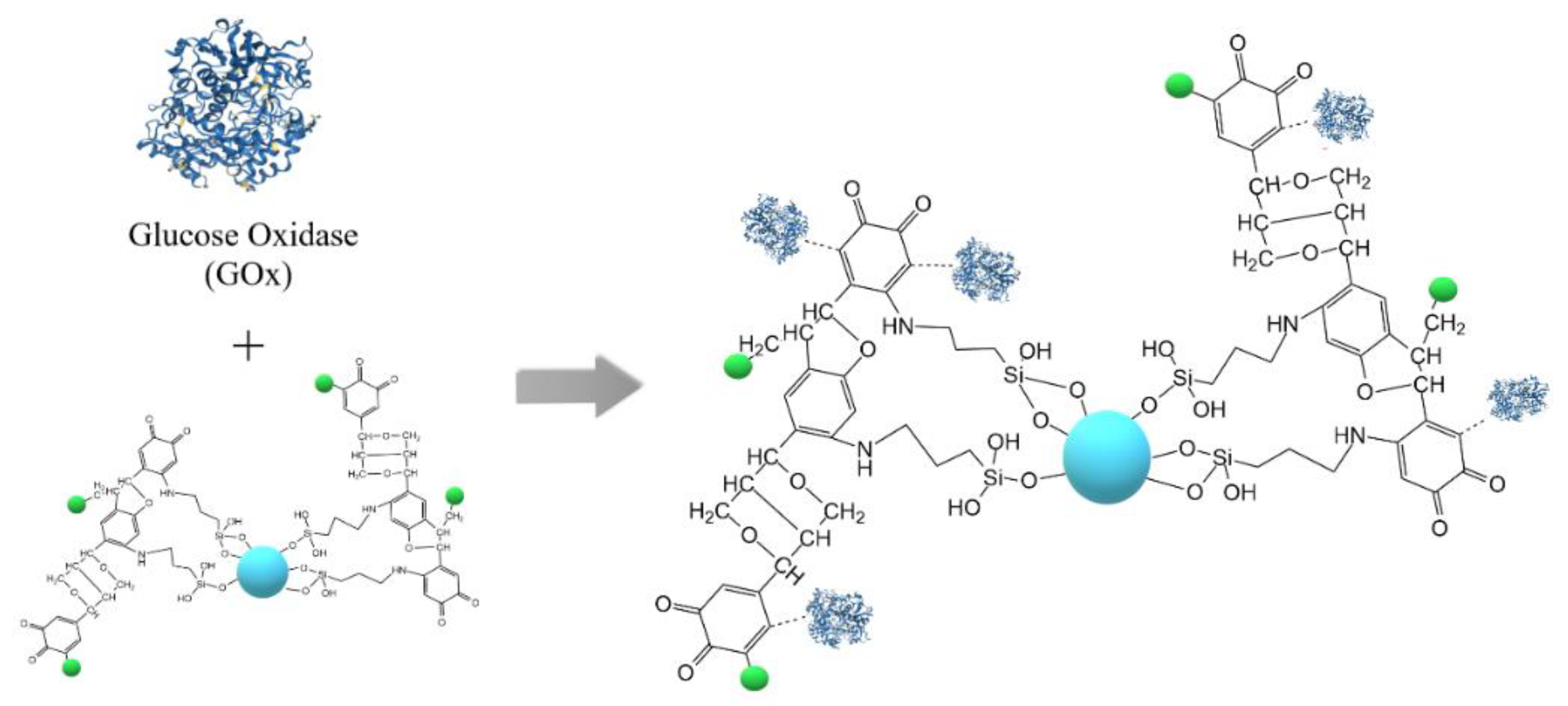

3.4. Immobilization of Glucose Oxidase on Ga2O3/Lignin and ZrO2/Lignin Supports

Before the adsorption immobilization process, an enzyme solution was prepared in a 10 mg mL−1 PBS phosphate saline buffer. Next, 50 mg of the support and 20 mL of the previously prepared solution of glucose oxidase were combined. The reaction system was stirred using a magnetic stirrer for 1, 2, 3, 24, 72, or 96 h. Immobilization was carried out at ambient temperature. After the immobilization process was completed, the solution was poured out and centrifuged for 15 min at 15,000 rpm. The resulting filtrate was then separated and the precipitate was dried at ambient temperature for 24 h. Furthermore, the Bradford method was a technique that could not be used to determine the efficiency of immobilization for kraft lignin as a component. As presented in previous works, the kraft lignin is well-soluble in water, which made it impossible to use the Bradford method [50]. Figure 17 shows a schematic process of glucose oxidase immobilization on the Ga2O3/lignin and ZrO2/lignin matrix surfaces.
The mechanism by which enzyme binds to lignin has been presented previously in the literature [50,51]. These studies have shown that the activity of the immobilized enzyme on the matrix surface slightly decreases, which is determined by the formation of hydrogen bonds and ionic interactions between the enzyme and matrix [51,52].

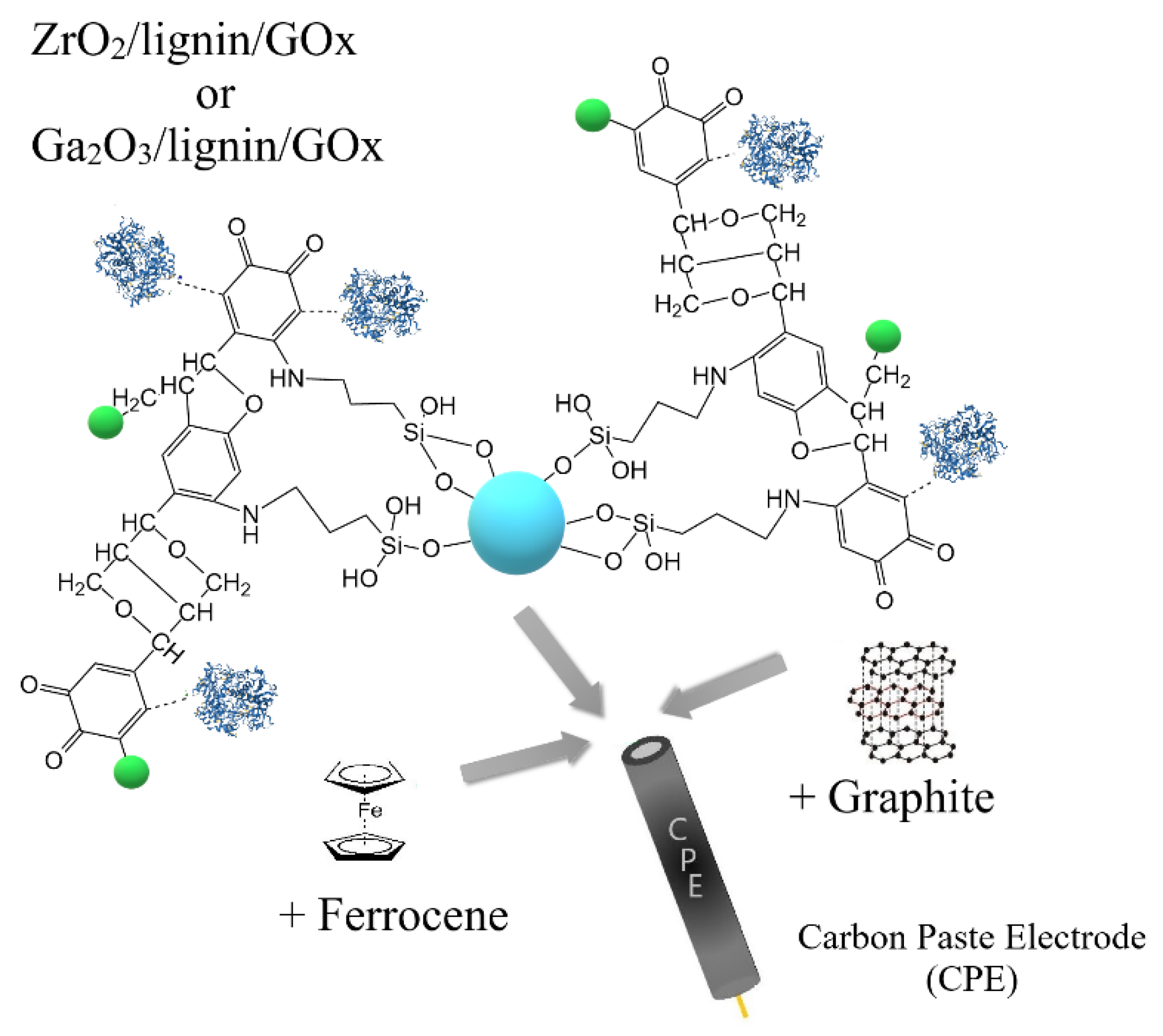

3.5. Construction of an Enzymatic Biosensor

To construct an enzyme biosensor, a paste composed of 15 mg of Ga2O3/lignin/GOx or ZrO2/lignin/GOx, 15 mg of graphite and 2 mg of ferrocene mediator was hand-mixed in a mortar, with one drop of paraffin oil used as a binder. Freshly made paste was used to construct the carbon paste electrode, as shown in Figure 18.

3.6. Physicochemical Analysis

To determine the functional groups present in the structure of the hybrid materials, they were subjected to Fourier transform infrared spectroscopy (FT-IR). FT-IR spectra were collected using a Vertex 70 spectrometer (Bruker, Billerica, MA, USA). Materials for analysis were tested in the form of tablets, previously prepared by mixing 2 mg of the test substance and 250 mg of anhydrous KBr at a pressure of 10 MPa. The FT-IR analyses were performed at a resolution of 0.5 cm−1 in the wavenumber range of 4000–500 cm−1. TEM analysis records the electrons passing through the sample. A Jeol analyzer (JEM-1400) was used for the analysis, with 120 kV maximum acceleration and 2 nm resolution. Atomic Force Microscopy was performed using an Agilent 5500 atomic force microscope in intermittent contact mode in ambient conditions. The test material from the solution was applied to the surface of mica, which was earlier cleaned by mechanical removal of stripping. The test material was applied to the substrate by spin coating. An Allin One cantilever (BudgetSensors, Sofia, Bulgaria) with a resonance frequency of approximately 150 kHz was used for scanning. The surface morphology of the samples were determined using scanning electron microscope with energy dispersive spectroscopy (SEM-EDS). The tests were performed on a Jeol 7001TTLS (Jeol SAS, Croissy, France) with 30 kV maximum acceleration and 1.5 nm resolution. To assess the stability of materials in liquid solvent, zeta potential (ZP) analysis was performed using a Zetasizer Nano ZS (Malvern Instruments Ltd., Malvern, UK) with a range of 0.6–6000 nm. Thermogravimetric analysis (TGA) was carried out using a Jupiter STA 449 F3 instrument (Netzsch, Selb, Germany). The XRD analysis was made using a D8 Advance X-ray diffractometer (Bruker, Billerica, MA, USA). The elemental analysis was made using a Vario EL Cube apparatus (Elementar Analysensysteme GmbH, Langenselbold, Germany). A 10 mg of sample was used for analysis. During the process, a sample was combusted in an oxygen atmosphere, and after that, transferred onto the reduction column. The resulting gases were separated in an adsorption column, and then recorded using a detector. The results are given as averages of three measurements, each accurate to 0.0001%.

3.7. Electrochemical Study

Electrochemical tests were carried out in a three-electrode system using an Autolab (PGSTAT-30) electrochemical analyzer (Eco Chemie, Utrecht, Netherlands). A carbon paste electrode (BASi, West Lafayette, IN, USA) was used for the working electrodes (CPE/Ga2O3/lignin/GOx/Fc and CPE/ZrO2/lignin/GOx/Fc). Silver chlorine electrode Ag/AgCl (3 M KCl) was the reference electrode and platinum wire the counter electrode. All electrochemical tests were conducted in ambient temperature in at phosphate buffer pH 7.4.

4. Conclusions

In this paper, we have presented attractive alternative microplatforms for enzyme immobilization and biosensing. The support obtained exhibited good affinity for the immobilization of glucose oxidase (GOx). A higher amount of the GOx (27.1 mg g−1) was immobilized on ZrO2/lignin carrier than on Ga2O3/lignin (24.7 mg g−1). The Ga2O3/lignin-GOx and ZrO2/lignin-GOx systems, with ferrocene and carbon paste (BASi), exhibited satisfied electrochemical properties in the catalytic oxidation of glucose. The microplatforms are suitable materials for the preparation of efficient and cheap supports for biocatalysts and for biosensor application.
A review of the literature indicates the higher interest of research on metal oxides and the development of microcarriers for industrial and environmental applications indeed. An interesting application may be the use of an enzyme biosensor for glucose detection based on the aforementioned micromaterials, as produced in this study.

Author Contributions

Methodology and planning of studies (A.J., T.R., T.J.); Synthesis and preparation of the hybrids (A.J.; M.K.); Evaluation of enzyme immobilization efficiency and stability (A.J.; J.Z.); Electrochemical support (T.R.), preparation of the manuscript (A.J.; M.K.; T.R.), Elemental analysis study (A.K.-R.), description part of the manuscript (A.K.-R., J.Z., A.P.), Energy-dispersive X-ray spectroscopy analysis (A.P.), Coordination of all research tasks and evaluation of the manuscript (T.J.).

Funding

This work was founded by the National Science Center Poland, no. 2017/27/B/ST8/01506.

Acknowledgments

The authors are grateful to Monika Gwizdała and Karolina Hały for substantive support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nanko, M. Definitions and categories of hybrid materials. AZojomo 2009, 6, 1–8. [Google Scholar]
  2. Chung, D.D.L. Composite Materials, Kirk-Othmer Encyclopedia of Chemical Technology; Wiley-VCH: New York, NY, USA, 2011. [Google Scholar]
  3. Jesionowski, T.; Klapiszewski, Ł.; Milczarek, G. Structural and electrochemical properties of multifunctional silica/lignin materials. Mat. Chem. Phys. 2014, 147, 1049–1057. [Google Scholar] [CrossRef]
  4. Klapiszewski, Ł.; Nowacka, M.; Milczarek, G.; Jesionowski, T. Physicochemical and electrokinetic properties of silica/lignin biocomposites. Carbohydr. Polym. 2013, 94, 345–355. [Google Scholar] [CrossRef] [PubMed]
  5. Jędrzak, A.; Rębiś, T.; Klapiszewski, Ł.; Zdarta, J.; Milczarek, G.; Jesionowski, T. Carbon paste electrode based on functional GOx/silica-lignin system to prepare an amperometric glucose biosensor. Sens. Actuators B 2018, 256, 176–185. [Google Scholar] [CrossRef]
  6. Kickelbick, G. Hybrid Materials: Synthesis, Characterization and Applications; John Wiley & Sons: Wien, Austria, 2007. [Google Scholar]
  7. Gomez-Romero, P.; Sanchez, C. Functional Hybrid Materials; John Wiley & Sons: Darmstadt, Germany, 2006. [Google Scholar]
  8. Kango, S.; Kalia, S.; Celli, A.; Njuguna, J.; Habibi, Y.; Kumar, R. Surface modification of inorganic nanoparticles for development of organic–inorganic nanocomposites—A review. Prog. Polym. Sci. 2013, 38, 1232–1261. [Google Scholar] [CrossRef]
  9. Drisko, D.L.; Sanchez, C. Hybridization in Materials Science—Evolution, Current State, and Future Aspirations. Eur. J. Inorg. Chem. 2012, 32, 5097–5105. [Google Scholar] [CrossRef]
  10. Yoon, K.; Takahashi, S.; Nge, T.T.; Nakagawa-izumi, A.; Ohi, H.; Yamada, T. Characterization of lignin derivatives in alkaline polyethylene glycol-treated soda cooking black liquor powder. BioResources 2016, 3, 6426–6437. [Google Scholar] [CrossRef] [Green Version]
  11. Bajwa, D.S.; Wang, X.; Sitz, E.; Loll, T.; Bhattacharje, S. Application of bioethanol derived lignin for improving physico-mechanical properties of thermoset biocomposites. Int. J. Biol. Macromol. 2016, 89, 265–272. [Google Scholar] [CrossRef]
  12. Espinoza-Acosta, J.L.; Torres-Chávez, P.I.; Ramírez-Wong, B.; López-Saiz, C.M.; Montaño-Leyva, B. Antioxidant, antimicrobial, and antimutagenic properties of technical lignins and their applications. BioResources 2016, 11, 5452–5481. [Google Scholar] [CrossRef]
  13. Jesionowski, T.; Zdarta, J.; Krajewska, B. Enzyme immobilization by adsorption: A review. Adsorption 2014, 20, 801–821. [Google Scholar] [CrossRef] [Green Version]
  14. Zdarta, J.; Meyer, A.S.; Jesionowski, T.; Pinelo, M. Developments in support materials for immobilization of oxidoreductases: A comprehensive review. Adv. Colloids Interf. 2018, 258, 1–20. [Google Scholar] [CrossRef] [PubMed]
  15. Mohamad, N.; Marzuki, N.; Buang, N.; Huyop, F.; Wahab, R. An overview of technologies for immobilization of enzymes and surface analysis techniques for immobilized enzymes. Biotechnol. Equip. 2015, 29, 205–220. [Google Scholar] [CrossRef] [PubMed]
  16. Zdarta, J.; Klapiszewski, Ł.; Jędrzak, A.; Nowicki, M.; Moszynski, D.; Jesionowski, T. Lipase B from Candida antarctica Immobilized on a Silica-Lignin Matrix as a Stable and Reusable Biocatalytic System. Catalysts 2017, 7, 14. [Google Scholar] [CrossRef] [Green Version]
  17. Zdarta, J.; Jędrzak, A.; Klapiszewski, Ł.; Jesionowski, T. Immobilization of Cellulase on a Functional Inorganic–Organic Hybrid Support: Stability and Kinetic Study. Catalysts 2017, 7, 374. [Google Scholar] [CrossRef] [Green Version]
  18. Bankar, S.B.; Bule, M.V.; Singhal, R.S.; Ananthanarayan, L. Glucose oxidase—An overview. Biotechnol. Adv. 2009, 27, 489–501. [Google Scholar] [CrossRef] [PubMed]
  19. Batule, B.S.; Park, K.S.; Gautam, S.; Cheon, H.J.; Kim, M.I.; Park, H.G. Intrinsic peroxidase-like activity of sonochemically synthesized protein copper nanoflowers and its application for the sensitive detection of glucose. Sens. Actuator B-Chem. 2018, 283, 749–754. [Google Scholar] [CrossRef]
  20. Baghayeri, M.; Veisi, H.; Ghanei-Motlagh, M. Amperometric glucose biosensor based on immobilization of glucose oxidase on a magnetic glassy carbon electrode modified with a novel magnetic nanocomposite. Sens. Actuator B-Chem. 2017, 249, 321–330. [Google Scholar] [CrossRef]
  21. Wong, C.M.; Wong, K.H.; Chen, X.D. Glucose oxidase: Natural occurrence, function, properties and industrial applications. Appl. Microbiol. Biotechnol. 2008, 78, 927–938. [Google Scholar] [CrossRef]
  22. Wang, J. Nanomaterial-based electrochemical biosensors. Analyst 2005, 130, 421–426. [Google Scholar] [CrossRef]
  23. Valentini, F.; Palleschi, G. Nanomaterials and analytical chemistry. Anal. Lett. 2008, 41, 479–520. [Google Scholar] [CrossRef]
  24. Wang, D.; Lou, Y.; Wang, R.; Wang, P.; Zheng, X.; Zhang, Y.; Jiang, N. Humidity sensor based on Ga2O3 nanorods doped with Na+ and K+ from GaN powder. Ceramics Int. 2015, 41, 14790–14797. [Google Scholar] [CrossRef]
  25. Nikolaev, V.I.; Maslov, V.; Stepanov, S.I.; Pechnikov, A.I.; Krymov, V.; Nikitinac, I.P.; Guzilova, L.I.; Bougrov, V.E.; Romanov, A.E. Growth and characterization of beta-Ga2O3 crystals. J. Crystal Growth 2016, 457, 132–136. [Google Scholar] [CrossRef]
  26. Ramana, C.V.; Rubio, E.J.; Barraza, C.D.; Gallardo, A.M.; Mcpeak, S. Chemical bonding, optical constants, and electrical resistivity of sputter-deposited gallium oxide thin films. J. Appl. Phys. 2014, 115, 1–10. [Google Scholar] [CrossRef] [Green Version]
  27. Ai, M.; Guo, D.; Qu, Y.; Cui, W.; Wu, Z.; Li, P.; Li, L.; Tang, W. Fast-response solar-blind ultraviolet photodetector with a graphene/β-Ga2O3/graphene hybrid structure. J. Alloy. Compd. 2016, 692, 634–638. [Google Scholar] [CrossRef]
  28. Jung, J.; Cho, W.; Kim, J.; Hwang, K.; Kang, E.; Han, K. Morphological and crystal structural characterization of Ga2O3 particles synthesized by a controlled precipitation and polymerized complex method. Ceram. Int. 2016, 42, 2582–2588. [Google Scholar] [CrossRef]
  29. Jena, K.; Narayan, R.; Raju, K. Surface functionalized zinc oxide (ZnO) nanoparticle filled organic–inorganic hybrid materials with enhanced thermo-mechanical properties. Prog. Org. Coat. 2015, 89, 82–90. [Google Scholar] [CrossRef]
  30. Siddiqui, M.R.H.; Al-Wassil, A.I.; Al-Otaibi, A.M.; Mahfouz, R.M. Effects of Precursor on the Morphology and Size of ZrO2 Nanoparticles, Synthesized by Sol-gel Method in Non-aqueous Medium. Mater. Res. 2012, 15, 986–989. [Google Scholar] [CrossRef] [Green Version]
  31. Deshmane, V.G.; Adewuyi, Y.G. Synthesis of thermally stable, high surface area, nanocrystalline mesoporous tetragonal zirconium dioxide (ZrO2): Effects of different process parameters. Micropor. Mesopor. Mat. 2012, 148, 88–100. [Google Scholar] [CrossRef]
  32. Jayakumar, S.; Ananthapadmanabhan, P.V.; Perumal, K. Characterization of nano-crystalline ZrO2 synthesized via reactive plasma processing. Mater. Sci. Eng. B 2011, 176, 894–899. [Google Scholar] [CrossRef]
  33. Mallakpour, S.; Dinari, M.; Neamani, S. Surface Treatment of ZrO2 Nanoparticles with Biosafe Citric Acid and Its Utilization for the Synthesis of L-Leucine Based Poly(amide-imide) Nanocomposites. Polym. Plast. Technol. Eng. 2015, 54, 1634–1643. [Google Scholar] [CrossRef]
  34. Sidhu, G.K.; Kaushik, A.K.; Rana, S.; Bhansali, S. Photoluminescence quenching of Zirconia nanoparticle by surface modification. Appl. Surf. Sci. 2015, 334, 216–221. [Google Scholar] [CrossRef]
  35. Wang, J.; Sun, X.; Wei, A. Zinc oxide nanocomb biosensor for glucose detection. Appl. Phys. Lett. 2006, 88, 233106. [Google Scholar] [CrossRef]
  36. Marie, M.; Mandal, S.; Manasreh, O. An electrochemical glucose sensor based on zinc oxide nanorods. Sensors 2015, 15, 18714–18723. [Google Scholar] [CrossRef] [PubMed]
  37. Patil, D.; Jung, H.; Dung, N. Enzymatic glucose biosensor based on CeO2 nanorods synthesized by non-isothermal precipitation. Biosens. Bioelectron. 2012, 31, 176–181. [Google Scholar] [CrossRef]
  38. Golikova, E.; Lakina, N.; Grebennikova, O.; Matveeva, V.; Sulman, E. A study of biocatalysts based on glucose oxidase. Faraday Discuss. 2017, 202, 303–314. [Google Scholar] [CrossRef]
  39. Wang, Y.; Li, N.; Duan, P.; Sun, X.; Chu, B.; He, Q.; He, Q. Properties and Photocatalytic Activity of β -Ga2O3 Nanorods under Simulated Solar Irradiation. J. Nanomater. 2015, 16, 1–5. [Google Scholar]
  40. Sathyaseelan, B.; Elayaperumal, M.; Baskaran, I.; Senthilnathan, K.; Sivakumar, K.; Moodley, M.; Ladchumananandasivam, R.; Maaza, M. Studies on structural and optical properties of ZrO2 nanopowder for opto-electronic applications. J. Alloy. Compd. 2017, 694, 556–559. [Google Scholar] [CrossRef]
  41. Goudarzi, A.; Lin, L.T.; Ko, F.K. X-ray diffraction analysis of kraft lignins and lignin-derived carbon nanofibers. J. Nanotechnol. Eng. Med. 2014, 5, 021006. [Google Scholar] [CrossRef]
  42. Luxbacher, T. The Zeta Guide: Principles of the Streaming Potential Technique; Anton Paar GmbH: Graz, Austria, 2014. [Google Scholar]
  43. Silverstein, R.M.; Webster, F.; Kiemle, D. Spectrophotometric Identification of Organic Compounds; John Wiley and Sons: New York, NY, USA, 2005. [Google Scholar]
  44. Reddy, L.S.; Ko, Y.H.; Yu, J.S. Hydrothermal Synthesis and Photocatalytic Property of β-Ga2O3 Nanorods. Nanoscale Res. Lett. 2015, 10, 1–7. [Google Scholar] [CrossRef] [Green Version]
  45. Jędrzak, A.; Rębiś, T.; Kuznowicz, M.; Jesionowski, T. Bio-inspired magnetite/lignin/polydopamine-glucose oxidase biosensing nanoplatform. From synthesis, via sensing assays to comparison with others glucose testing techniques. Int. J. Biol. Macromol. 2019, 127, 677–682. [Google Scholar] [CrossRef]
  46. Ramon-Marquez, T.; Medina-Castillo, A.L.; Fernandez-Sanchez, J.F.; Fernandez-Guti’errez, A. Evaluation of different functional groups for covalent immobilization of enzymes in the development of biosensors with oxygen optical transduction. Anal. Methods 2015, 7, 2943–2949. [Google Scholar] [CrossRef] [Green Version]
  47. Mohammad, R.; Mojtaba, A. Immobilization of glucose oxidase on meso-porous glassceramic with the skeleton of CaTi4(PO4)6. J. Adv. Mater. Process. 2013, 2, 57–65. [Google Scholar]
  48. Abbasi, M.; Amiri, R.; Bordbar, A.K.; Ranjbakhsh, E.; Khosropour, A.R. Improvement of the Stability and Activity of Immobilized Glucose Oxidase on Modified Iron Oxide Magnetic Nanoparticles. Appl. Surf. Sci. 2016, 364, 752–757. [Google Scholar] [CrossRef]
  49. Berg, J.M.; Tymoczko, J.L.; Stryer, L. Biochemistry; W. H. Freeman: New York, NY, USA, 2002. [Google Scholar]
  50. Bradford, M.M. A rapid and sensitive method for the quantitation microgram quantitiesmof protein utilizing the principle of protein-dye binding. Anal. Biochem. 1976, 254, 248–254. [Google Scholar] [CrossRef]
  51. Klapiszewski, Ł.; Zdarta, J.; Jesionowski, T. Titania/lignin hybrid materials as a novel support for -amylase immobilization: A comprehensive study. Colloids Surf. B Biointerfaces 2018, 162, 90–97. [Google Scholar] [CrossRef] [PubMed]
  52. Khan, M.J.; Khan, F.H.; Husain, Q.N. Application of Immobilized Ipomoea batata β Amylase in the Saccharification of Starch. J. Appl. Biol. Sci. 2011, 5, 33. [Google Scholar]
Figure 1. TEM micrographs of Ga2O3 (A), ZrO2 (B), Ga2O3/lignin (C), and ZrO2/lignin (D).
Figure 1. TEM micrographs of Ga2O3 (A), ZrO2 (B), Ga2O3/lignin (C), and ZrO2/lignin (D).
Catalysts 09 01044 g001
Figure 2. SEM micrographs: Ga2O3 (A), ZrO2 (B), Ga2O3/lignin (C), and ZrO2/lignin (D) supports.
Figure 2. SEM micrographs: Ga2O3 (A), ZrO2 (B), Ga2O3/lignin (C), and ZrO2/lignin (D) supports.
Catalysts 09 01044 g002

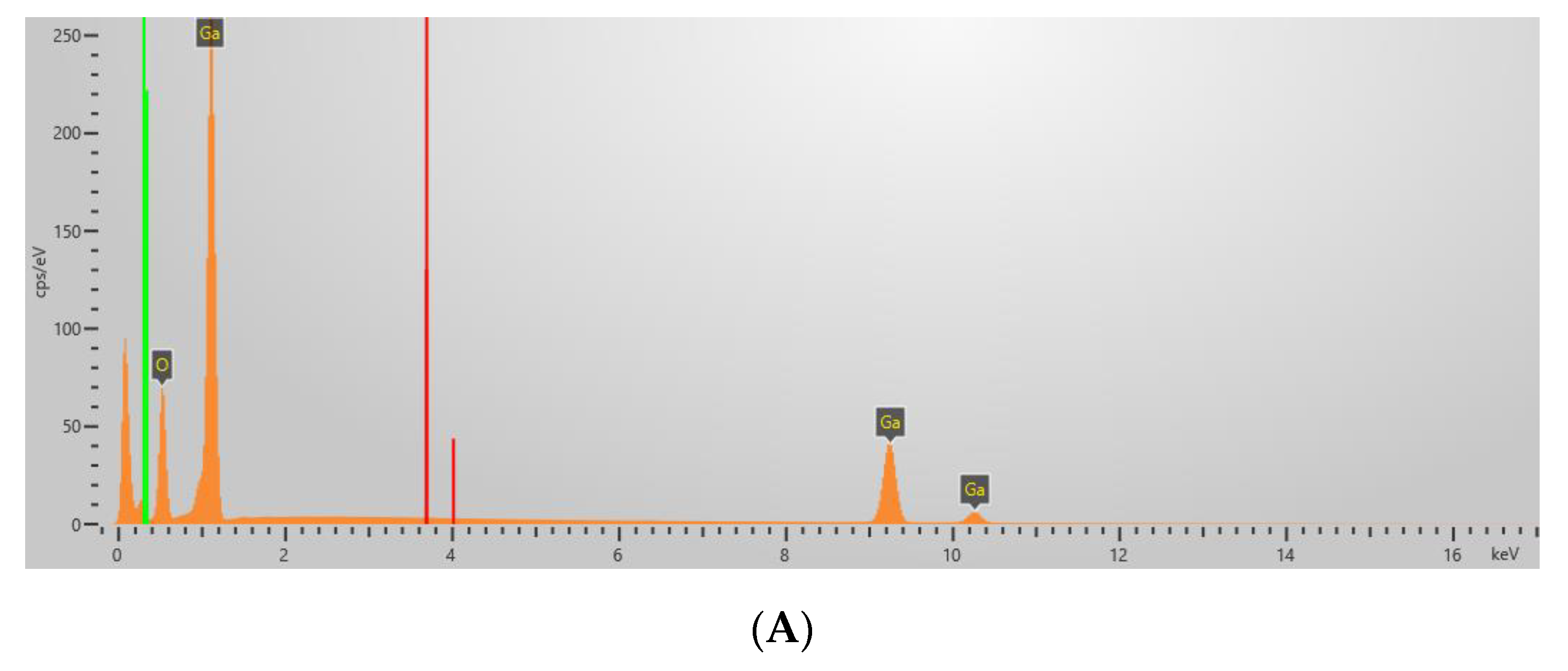

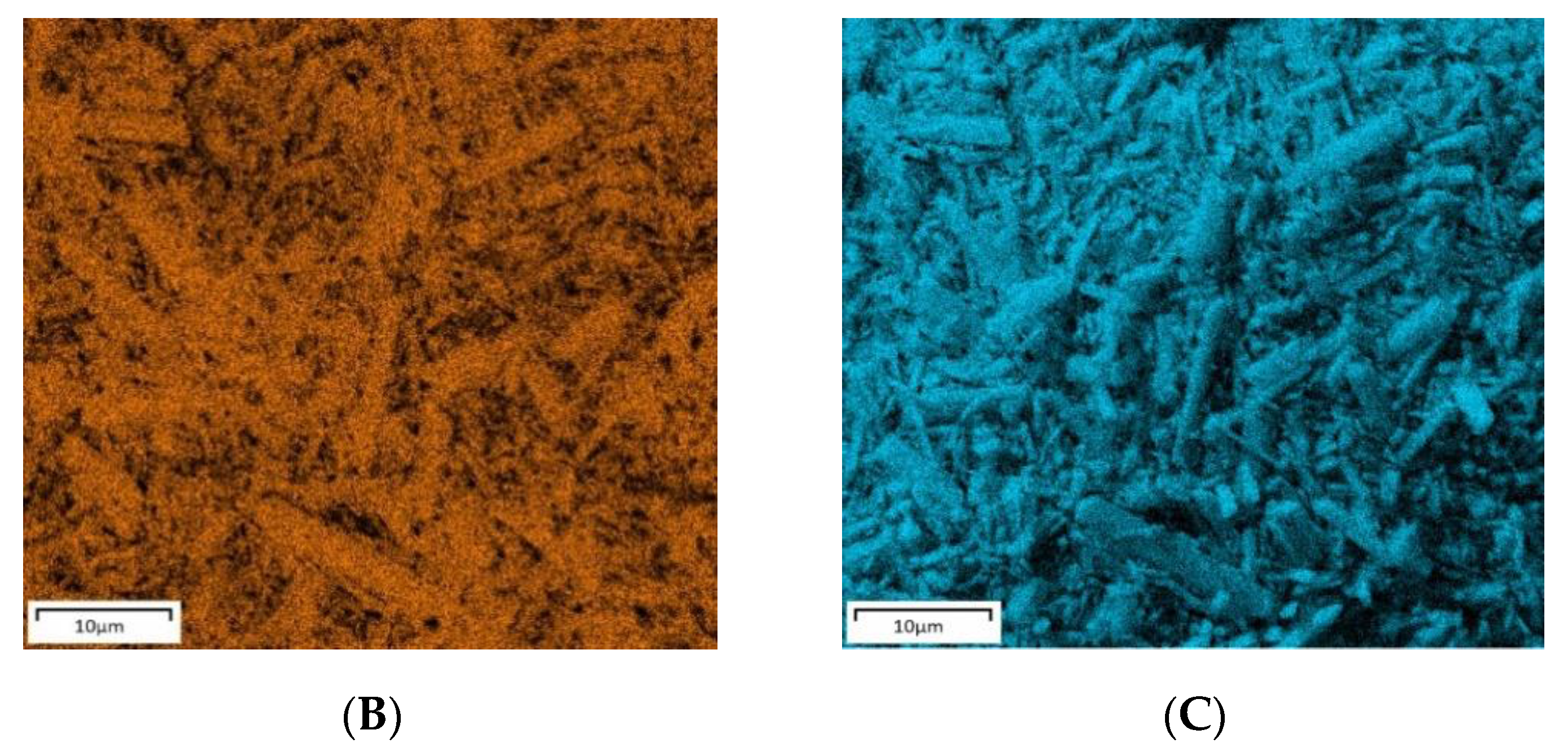

Figure 3. EDS mapping spectrum of Ga2O3 (A) and SEM-micrographs of elemental gallium (B), oxygen (C).
Figure 3. EDS mapping spectrum of Ga2O3 (A) and SEM-micrographs of elemental gallium (B), oxygen (C).
Catalysts 09 01044 g003aCatalysts 09 01044 g003b

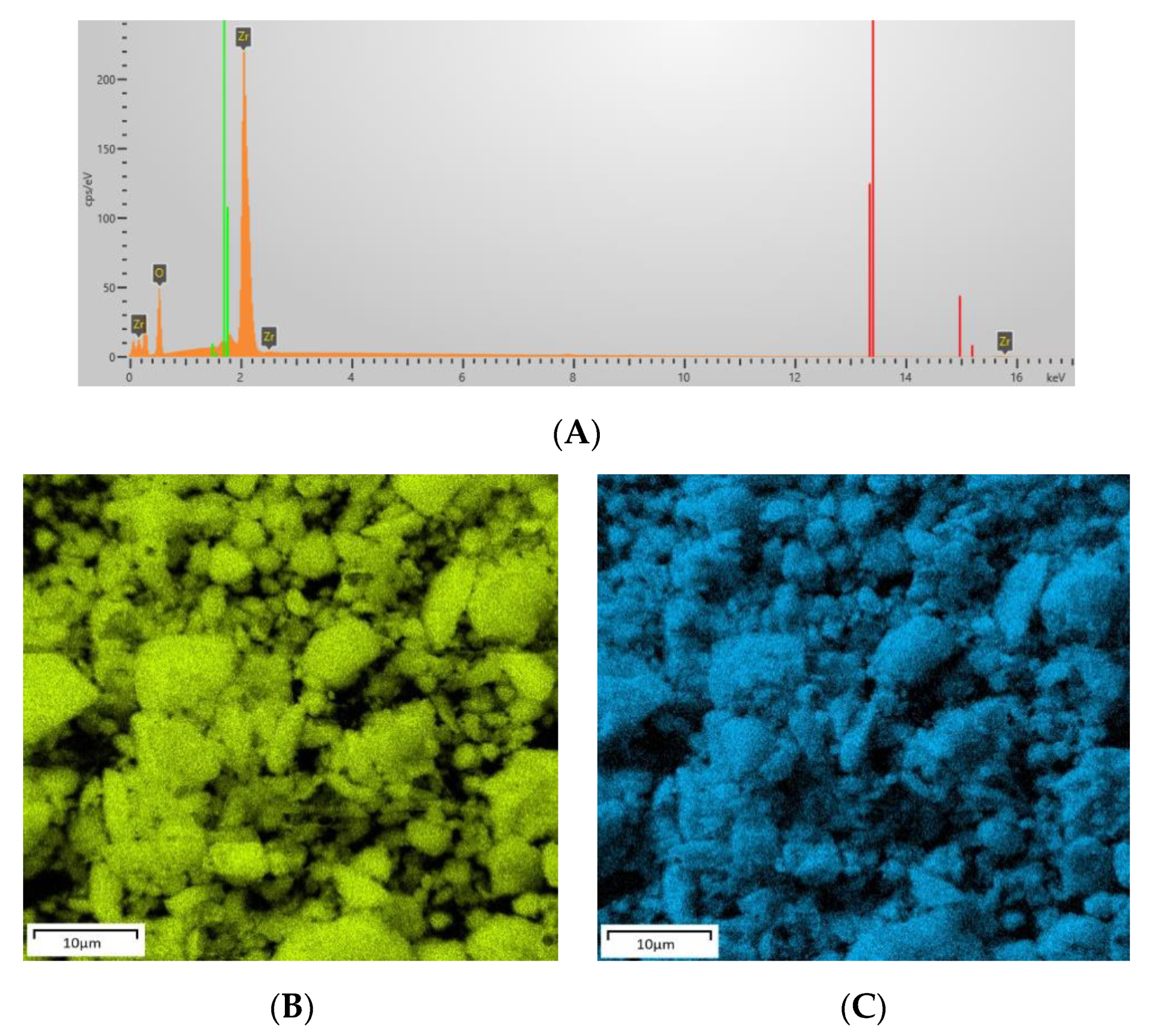

Figure 4. EDS mapping spectrum of ZrO2 (A) and SEM-micrographs of elemental zirconium (B), oxygen (C).
Figure 4. EDS mapping spectrum of ZrO2 (A) and SEM-micrographs of elemental zirconium (B), oxygen (C).
Catalysts 09 01044 g004

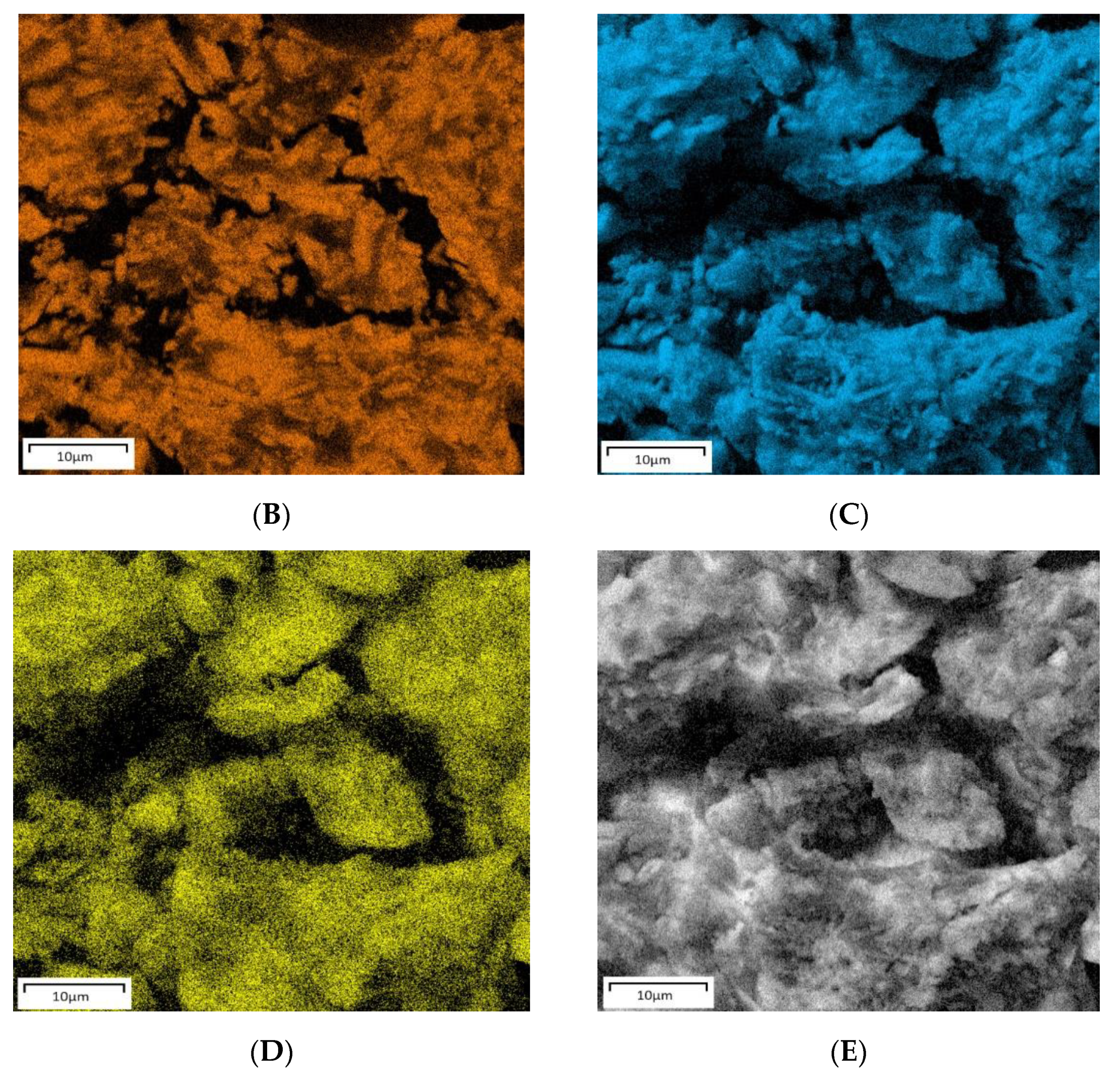

Figure 5. EDS mapping spectrum of Ga2O3/Lig (A) and SEM-micrographs of elemental gallium (B), oxygen (C), sulfur (D), carbon (E).
Figure 5. EDS mapping spectrum of Ga2O3/Lig (A) and SEM-micrographs of elemental gallium (B), oxygen (C), sulfur (D), carbon (E).
Catalysts 09 01044 g005aCatalysts 09 01044 g005b

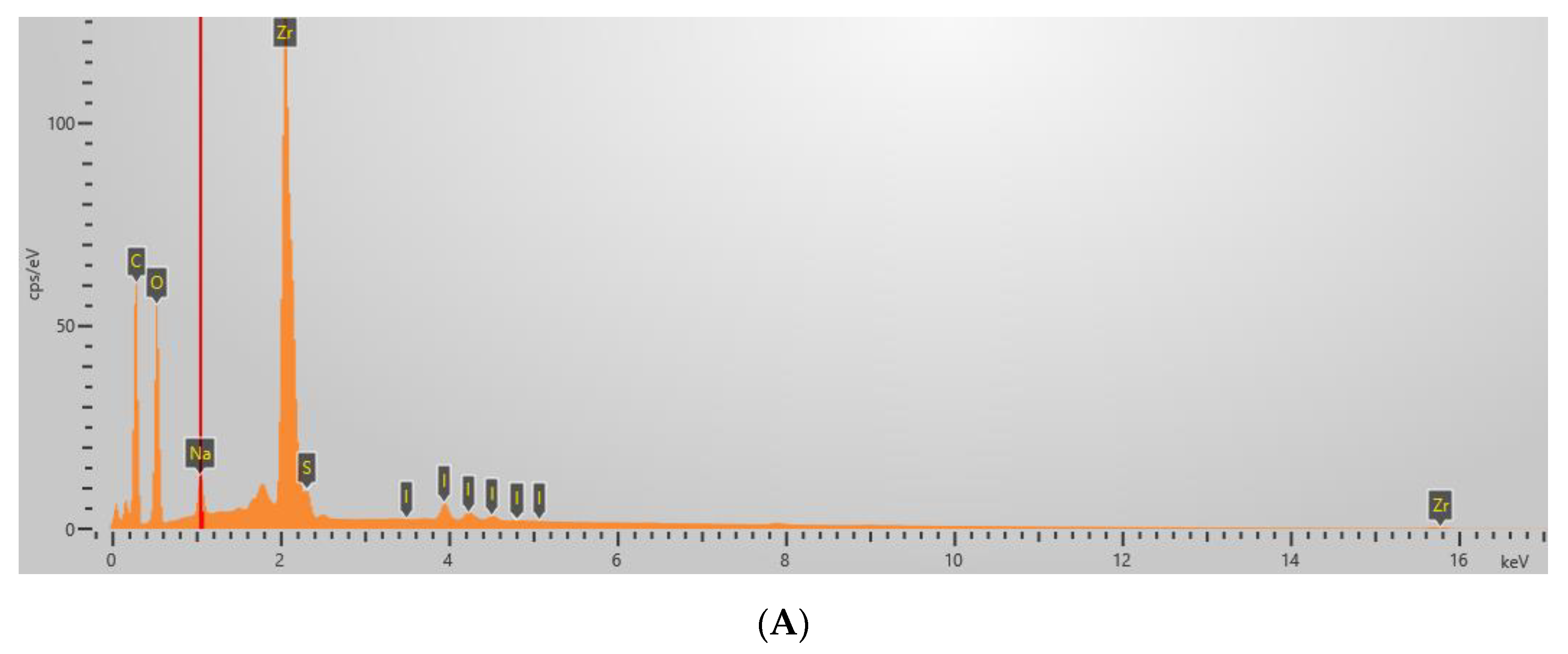

Figure 6. EDS mapping spectrum of ZnO2/Lig (A) and SEM-micrographs of elemental zirconium (B), oxygen (C), sulfur (D), carbon (E).
Figure 6. EDS mapping spectrum of ZnO2/Lig (A) and SEM-micrographs of elemental zirconium (B), oxygen (C), sulfur (D), carbon (E).
Catalysts 09 01044 g006aCatalysts 09 01044 g006b

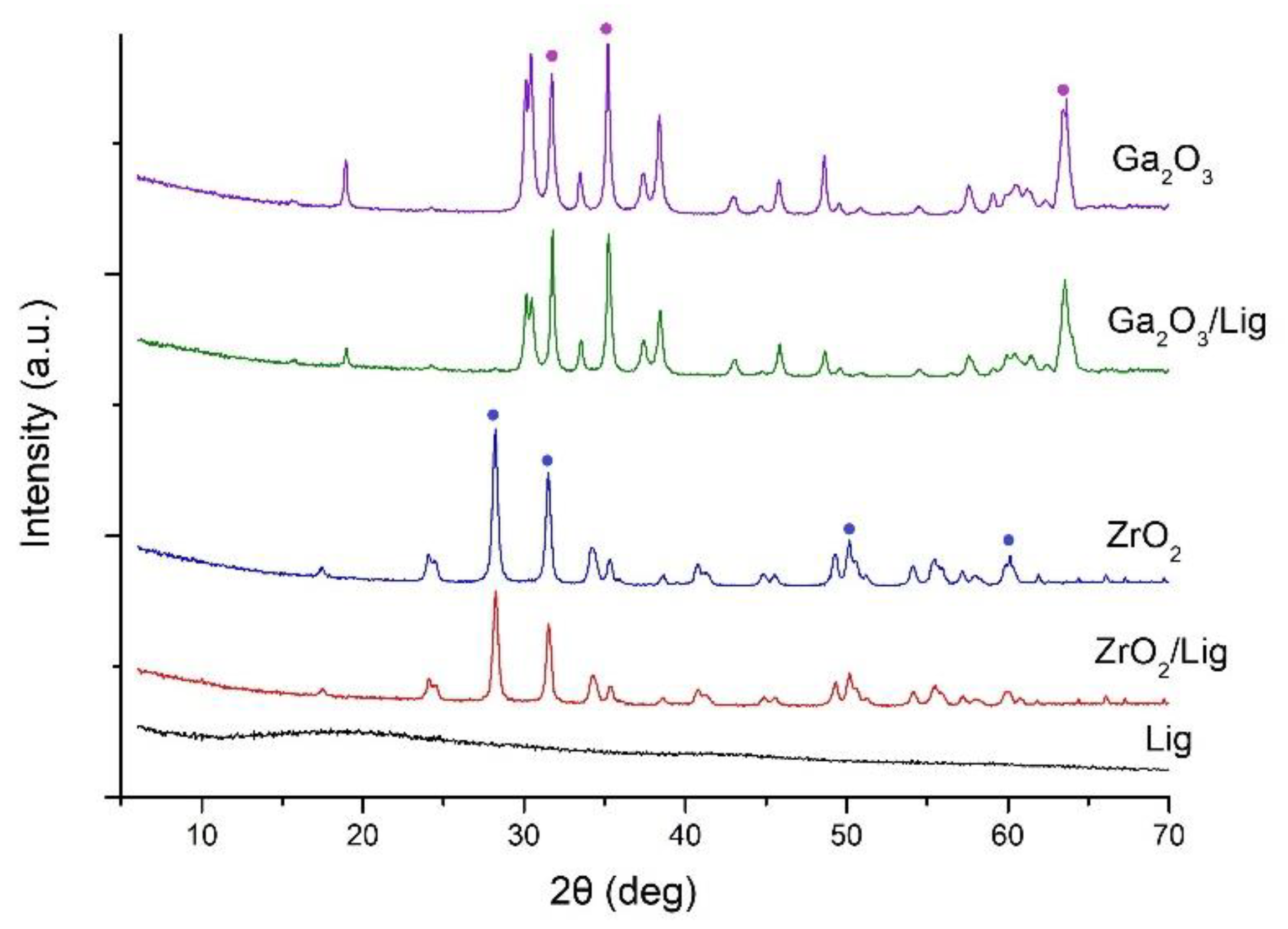

Figure 7. XRD patterns of raw Ga2O3, ZrO2, lignin, and Ga2O3/Lig, ZrO2/Lig hybrid materials.
Figure 7. XRD patterns of raw Ga2O3, ZrO2, lignin, and Ga2O3/Lig, ZrO2/Lig hybrid materials.
Catalysts 09 01044 g007

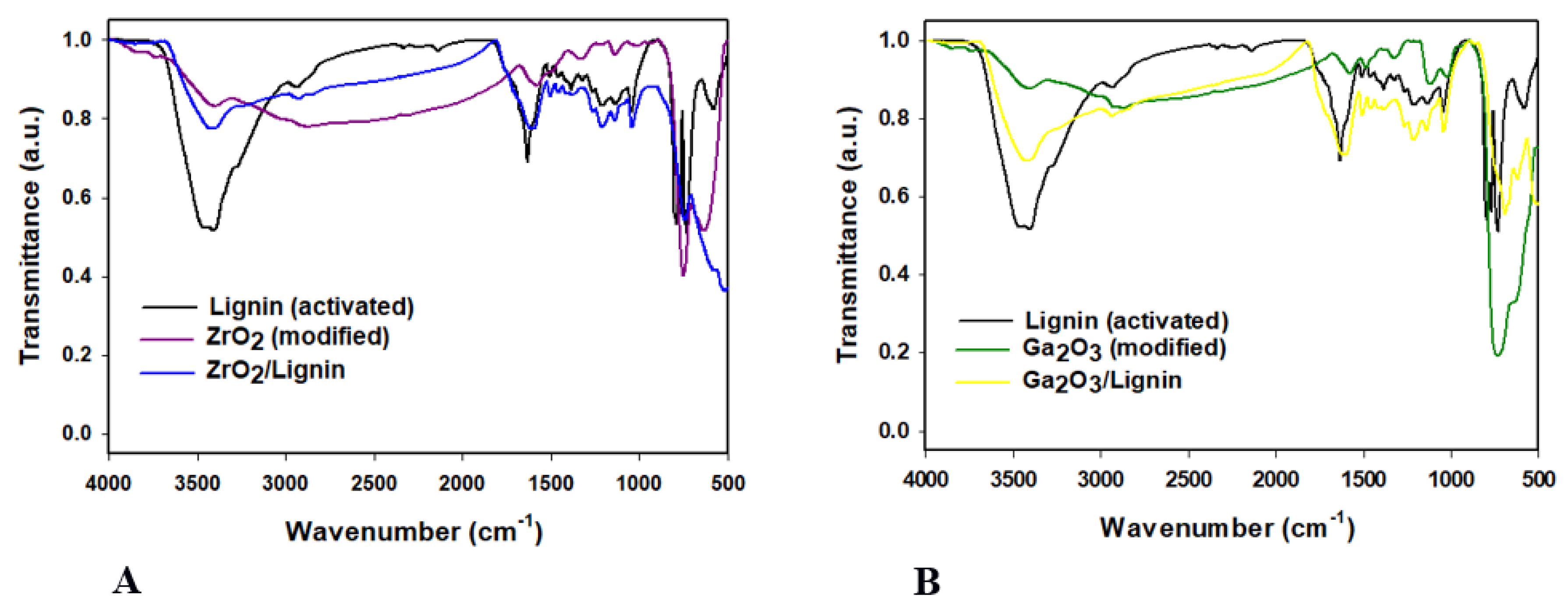

Figure 8. FT-IR spectra of lignin, modified Ga2O3 and Ga2O3/lignin hybrid (A), and lignin, modified ZrO2 and ZrO2/lignin hybrid (B).
Figure 8. FT-IR spectra of lignin, modified Ga2O3 and Ga2O3/lignin hybrid (A), and lignin, modified ZrO2 and ZrO2/lignin hybrid (B).
Catalysts 09 01044 g008
Figure 9. TG curves of modified and unmodified Ga2O3 and Ga2O3/lignin hybrid (A), and modified and unmodified ZrO2 and ZrO2/lignin hybrid (B).
Figure 9. TG curves of modified and unmodified Ga2O3 and Ga2O3/lignin hybrid (A), and modified and unmodified ZrO2 and ZrO2/lignin hybrid (B).
Catalysts 09 01044 g009
Figure 10. Quantity of enzyme immobilized on Ga2O3/lignin (red line) and ZrO2/lignin (green line) from glucose oxidase solution (5 mg mL−1) at pH 5, as a function of process duration.
Figure 10. Quantity of enzyme immobilized on Ga2O3/lignin (red line) and ZrO2/lignin (green line) from glucose oxidase solution (5 mg mL−1) at pH 5, as a function of process duration.
Catalysts 09 01044 g010
Figure 11. AFM images of Ga2O3/Lig (A), ZrO2/Lig (B), Ga2O3/Lig/GOx (C) and ZrO2/Lig/GOx (D).
Figure 11. AFM images of Ga2O3/Lig (A), ZrO2/Lig (B), Ga2O3/Lig/GOx (C) and ZrO2/Lig/GOx (D).
Catalysts 09 01044 g011

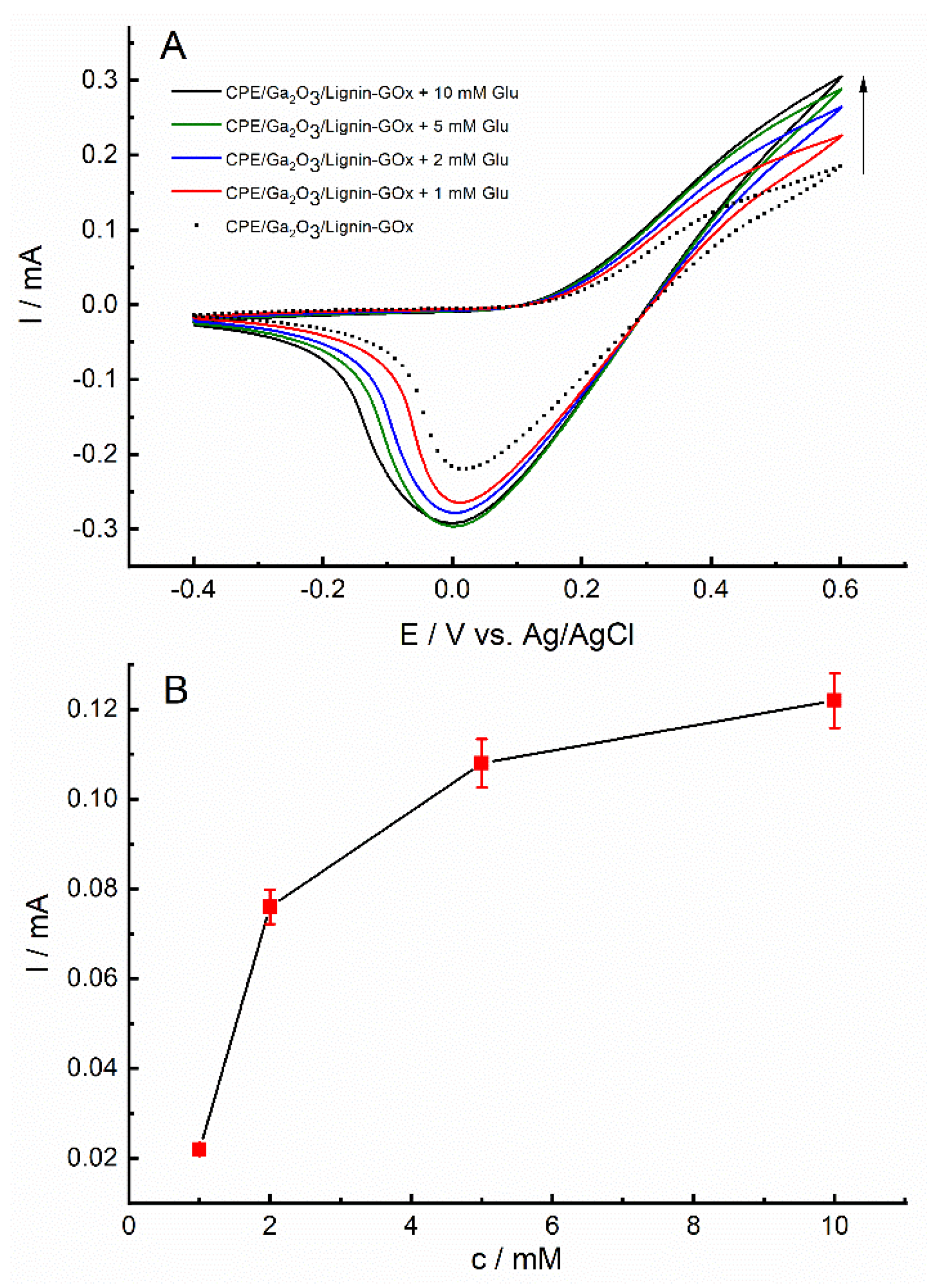

Figure 12. Cyclic voltammograms of CPE/Ga2O3/lignin-GOx recorded in PBS (pH 7.4) in the absence of glucose and in the presence of different glucose concentrations (A). Scan rate 10 mV s−1. Oxidative current dependence on glucose concentration (B).
Figure 12. Cyclic voltammograms of CPE/Ga2O3/lignin-GOx recorded in PBS (pH 7.4) in the absence of glucose and in the presence of different glucose concentrations (A). Scan rate 10 mV s−1. Oxidative current dependence on glucose concentration (B).
Catalysts 09 01044 g012
Figure 13. Cyclic voltammograms of CPE/ZrO2/lignin-GOx recorded in PBS (pH 7.4) in the absence of glucose and in the presence of different glucose concentrations (A). Scan rate 10 mV s−1. Plot of oxidation current vs. glucose concentration (B).
Figure 13. Cyclic voltammograms of CPE/ZrO2/lignin-GOx recorded in PBS (pH 7.4) in the absence of glucose and in the presence of different glucose concentrations (A). Scan rate 10 mV s−1. Plot of oxidation current vs. glucose concentration (B).
Catalysts 09 01044 g013

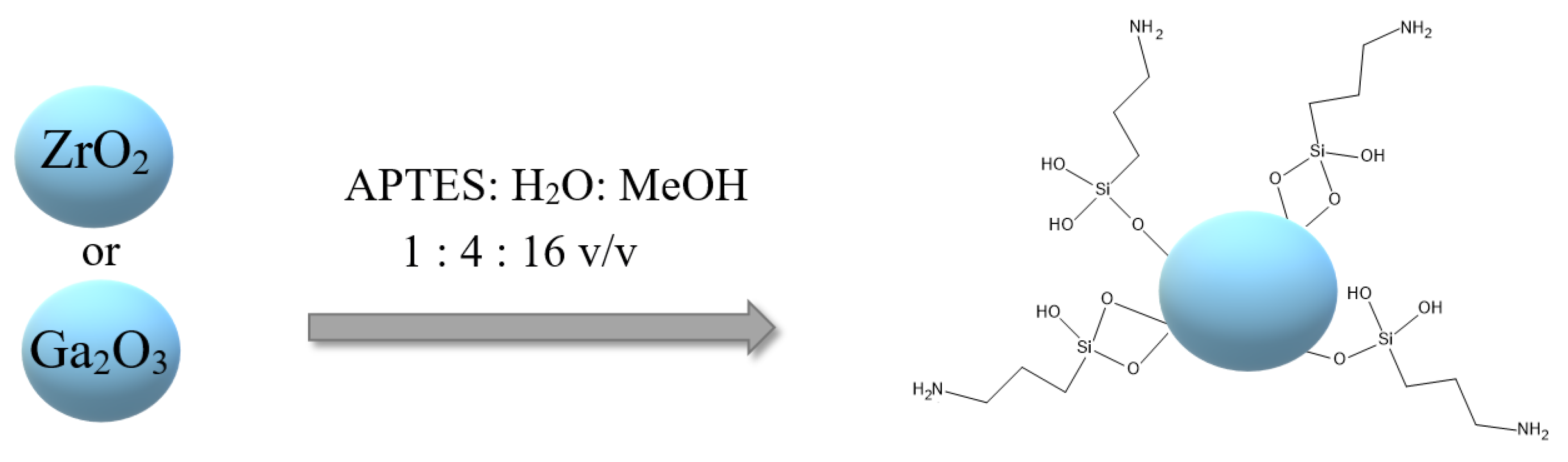

Figure 14. Scheme of modification of ZrO2 and Ga2O3.
Figure 14. Scheme of modification of ZrO2 and Ga2O3.
Catalysts 09 01044 g014

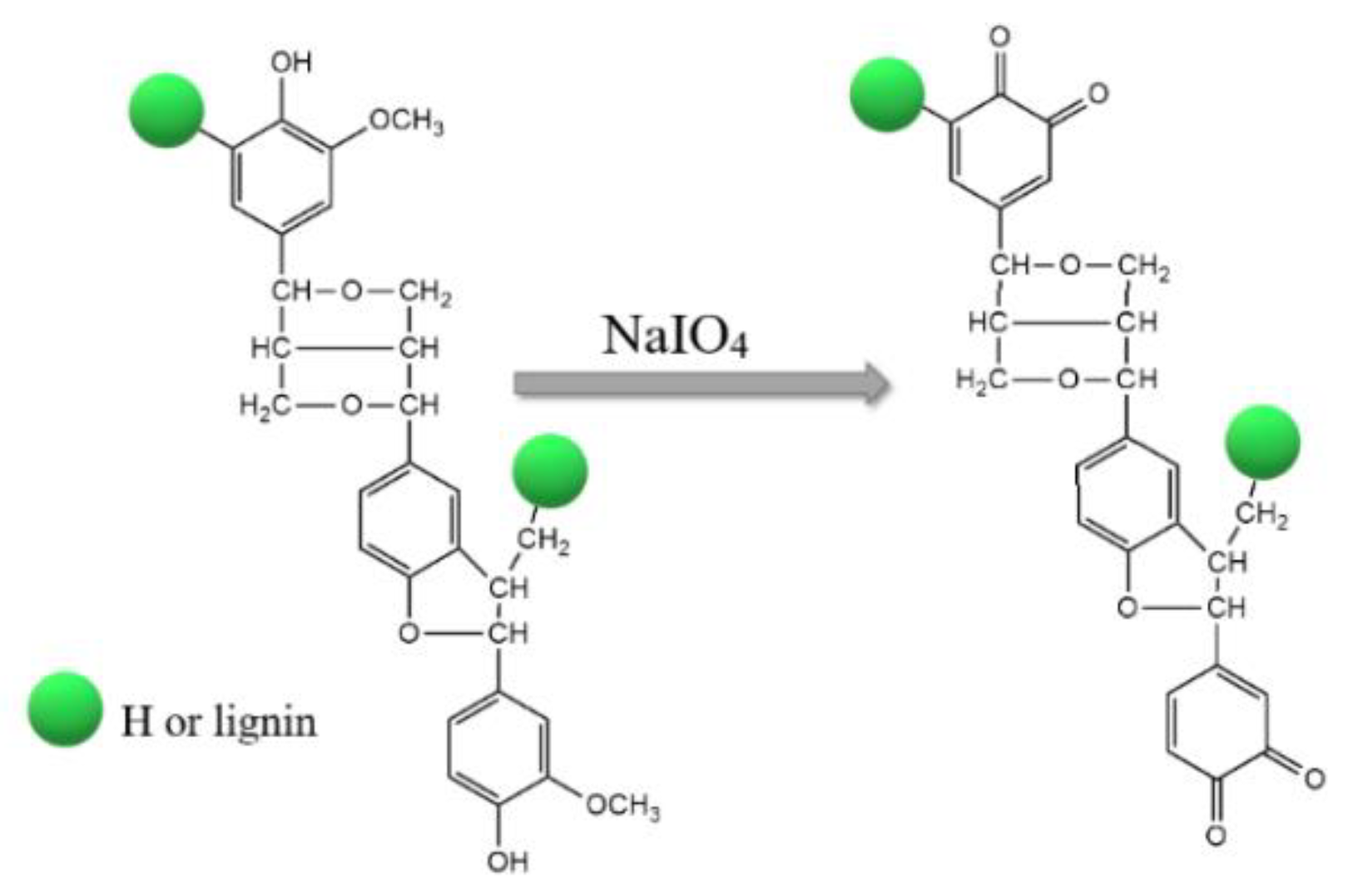

Figure 15. Schematic representation of lignin activation.
Figure 15. Schematic representation of lignin activation.
Catalysts 09 01044 g015
Figure 16. Diagram showing the creation of ZrO2/Lig and Ga2O3/Lig hybrid materials.
Figure 16. Diagram showing the creation of ZrO2/Lig and Ga2O3/Lig hybrid materials.
Catalysts 09 01044 g016
Figure 17. Schematic representation of glucose oxidase immobilization on the synthesized materials.
Figure 17. Schematic representation of glucose oxidase immobilization on the synthesized materials.
Catalysts 09 01044 g017
Figure 18. Biosensor construction based on Ga2O3/lignin/GOx or ZrO2/lignin/GOx material.
Figure 18. Biosensor construction based on Ga2O3/lignin/GOx or ZrO2/lignin/GOx material.
Catalysts 09 01044 g018
Table 1. EDS analysis results.
Table 1. EDS analysis results.
SampleContent of Elements by Weight (%)
GaZrOCSNaI
Ga2O372.9-27.1----
ZrO2-67.632.4----
Ga2O3/Lig29.0-22.346.80.70.40.7
ZrO2/Lig-27.325.542.90.71.30.7
Table 2. Zeta potential, mean particle size, and polydispersity character of studied samples.
Table 2. Zeta potential, mean particle size, and polydispersity character of studied samples.
SampleZeta Potential (mV)Mean Hydrodynamic Diameter (nm)PdI
Ga2O3−32.2930–1472 0.35
ZrO2−33.5269–2830.29
Ga2O3 (modified)−28.21408–19320.41
ZrO2 (modified)−29.4348–3800.37
Lignin−42.1280–3480.19
Ga2O3/lignin−35.81566–22510.69
ZrO2/lignin−36.1656–7850.57
Table 3. Elemental analysis of Ga2O3/Lig, ZrO2/Lig, and their components.
Table 3. Elemental analysis of Ga2O3/Lig, ZrO2/Lig, and their components.
SampleElemental Content (%)
NCHS
kraft lignin 50.36 ± 0.135.79 ± 0.043.15 ± 0.08
kraft lignin (activated) * 52.27 ± 0.155.09 ± 0.022.77 ± 0.05
Ga2O3
ZrO2
Ga2O3 (modified) **0.34 ± 0.015.82 ± 0.040.66 ± 0.01
ZrO2 (modified) **0.32 ± 0.015.64 ± 0.030.62 ± 0.01
Ga2O3/Lig0.23 ± 0.0119.97 ± 0.012.38 ± 0.022.22 ± 0.01
ZrO2/Lig0.22 ± 0.0119.38 ± 0.042.34 ± 0.021.09 ± 0.01
* lignin activated with sodium periodate (NaIO4). ** metal oxides modified by (3-aminopropyl)triethoxysilane (APTES).
Table 4. The amount of GOx immobilized on the different platforms.
Table 4. The amount of GOx immobilized on the different platforms.
SampleImmobilized GOx/mg g−1Ref.
Silica12.9[5]
Graphite7.6[5]
SiO2/Lig25.6[5]
Fe3O4/Lig/PDA29.4[45]
PolymP®-Link12.0[46]
CaTi4(PO4)627.0[47]
MIMNs 33.0[48]
Ga2O39.7This work
ZrO211.6This work
Ga2O3/Lig24.7This work
ZrO2/Lig27.1This work

Share and Cite

MDPI and ACS Style

Jędrzak, A.; Rębiś, T.; Kuznowicz, M.; Kołodziejczak-Radzimska, A.; Zdarta, J.; Piasecki, A.; Jesionowski, T. Advanced Ga2O3/Lignin and ZrO2/Lignin Hybrid Microplatforms for Glucose Oxidase Immobilization: Evaluation of Biosensing Properties by Catalytic Glucose Oxidation. Catalysts 2019, 9, 1044. https://doi.org/10.3390/catal9121044

AMA Style

Jędrzak A, Rębiś T, Kuznowicz M, Kołodziejczak-Radzimska A, Zdarta J, Piasecki A, Jesionowski T. Advanced Ga2O3/Lignin and ZrO2/Lignin Hybrid Microplatforms for Glucose Oxidase Immobilization: Evaluation of Biosensing Properties by Catalytic Glucose Oxidation. Catalysts. 2019; 9(12):1044. https://doi.org/10.3390/catal9121044

Chicago/Turabian Style

Jędrzak, Artur, Tomasz Rębiś, Maria Kuznowicz, Agnieszka Kołodziejczak-Radzimska, Jakub Zdarta, Adam Piasecki, and Teofil Jesionowski. 2019. "Advanced Ga2O3/Lignin and ZrO2/Lignin Hybrid Microplatforms for Glucose Oxidase Immobilization: Evaluation of Biosensing Properties by Catalytic Glucose Oxidation" Catalysts 9, no. 12: 1044. https://doi.org/10.3390/catal9121044

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
