Next Article in Journal
Reactive Fe-O-Ce Sites in Ceria Catalysts for Soot Oxidation
Previous Article in Journal
The Enzyme-Like Property and Photocatalytic Effect on α, α-Diphenyl-β-Picrylhydrazyl (DPPH) of CuPt Nanocomposite
Open AccessArticle

The Performance of Nickel and Nickel-Iron Catalysts Evaluated As Anodes in Anion Exchange Membrane Water Electrolysis

1
Department of Chemical and Biological Engineering, Centre for Catalysis Research and Innovation (CCRI), University of Ottawa, 161 Louis-Pasteur Ottawa, ON K1N 6N5, Canada
2
SINTEF Industry, Sustainable Energy Technology Department, New Energy Solutions Group, NO-7491 Trondheim, Norway
3
Department of Energy and Process Engineering, Norwegian University of Science and Technology, NO-7491 Trondheim, Norway
4
Department of Materials Science and Engineering, Norwegian University of Science and Technology, NO-7491 Trondheim, Norway
*
Authors to whom correspondence should be addressed.
Catalysts 2019, 9(10), 814; https://doi.org/10.3390/catal9100814
Received: 29 August 2019 / Revised: 19 September 2019 / Accepted: 24 September 2019 / Published: 27 September 2019
(This article belongs to the Section Electrocatalysis)

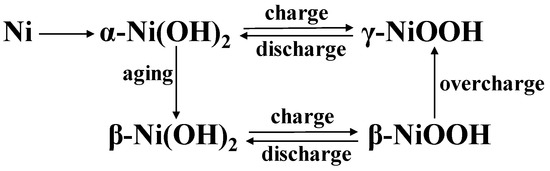

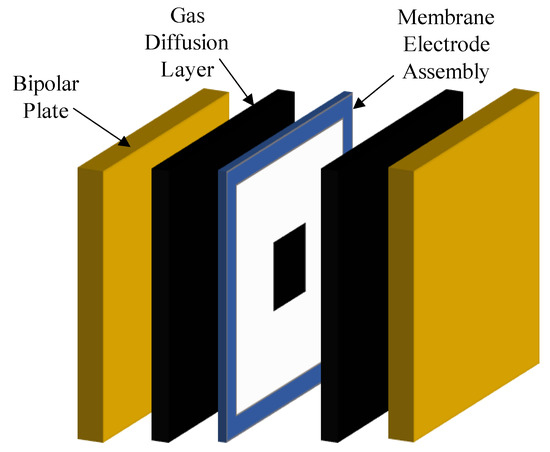

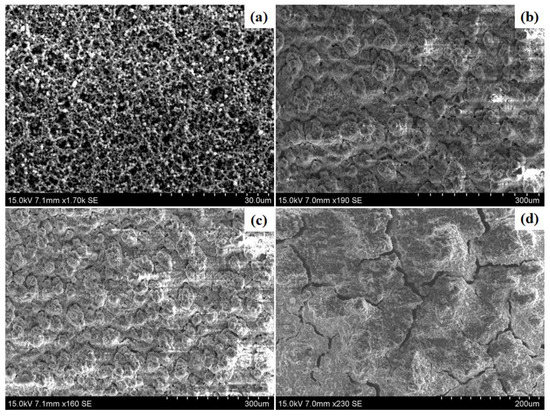

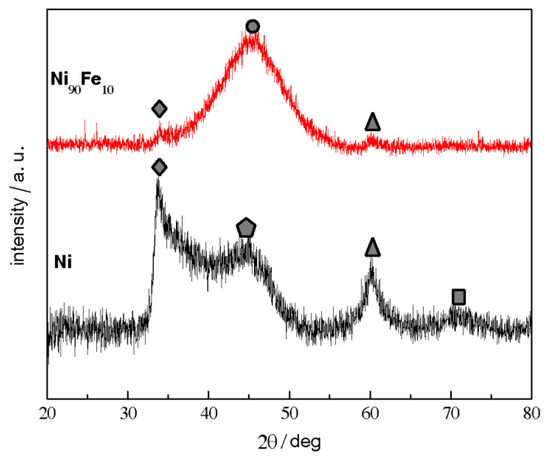

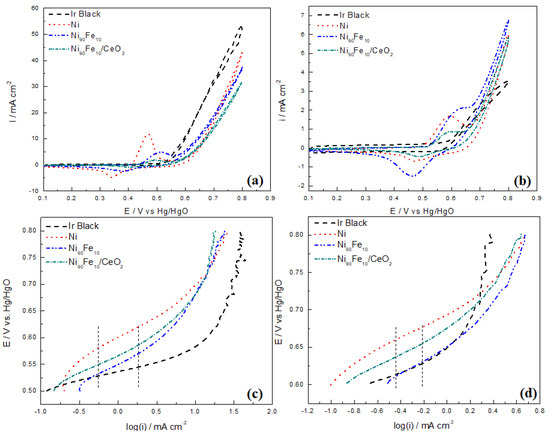

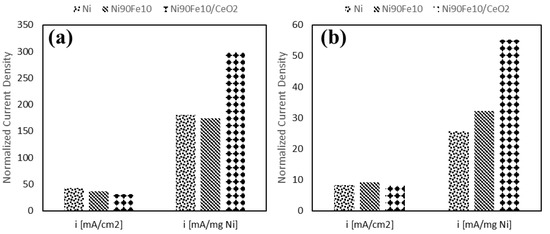

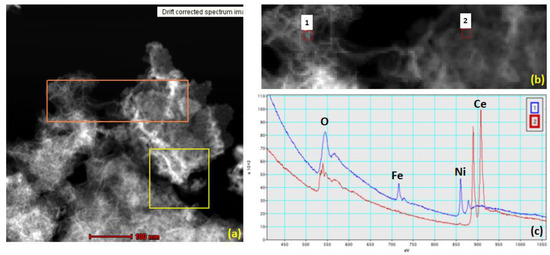

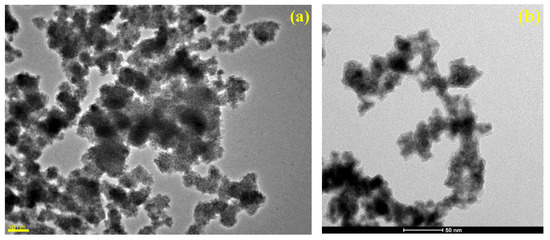

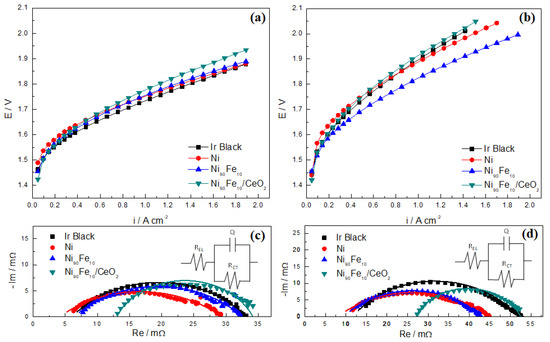

Anion exchange membrane water electrolysis (AEMWE) is an efficient, cost-effective solution to renewable energy storage. The process includes oxygen and hydrogen evolution reactions (OER and HER); the OER is kinetically unfavourable. Studies have shown that nickel (Ni)- iron (Fe) catalysts enhance activity towards OER, and cerium oxide (CeO2) supports have shown positive effects on catalytic performance. This study covers the preliminary evaluation of Ni, Ni90Fe10 (at%) and Ni90Fe10/CeO2 (50 wt%) nanoparticles (NPs), synthesized by chemical reduction, as OER catalysts in AEMWE using commercial membranes. Transmission electron microscopy (TEM) images of the Ni-based NPs indicate NPs roughly 4–6 nm in size. Three-electrode cell measurements indicate that Ni90Fe10 is the most active non-noble metal catalyst in 1 and 0.1 M KOH. AEMWE measurements of the anodes show cells achieving overall cell voltages between 1.85 and 1.90 V at 2 A cm−2 in 1 M KOH at 50 °C, which is comparable to the selected iridium-black reference catalyst. In 0.1 M KOH, the AEMWE cell containing Ni90Fe10 attained the lowest voltage of 1.99 V at 2 A cm−2. Electrochemical impedance spectroscopy (EIS) of the AEMWE cells using Ni90Fe10/CeO2 showed a higher ohmic resistance than all catalysts, indicating the need for support optimization. View Full-Text
Keywords: nickel; iron; ceria; OER; alkaline exchange membrane; electrolysis; anode nickel; iron; ceria; OER; alkaline exchange membrane; electrolysis; anode
Show Figures

Graphical abstract

MDPI and ACS Style

Cossar, E.; Oyarce Barnett, A.; Seland, F.; Baranova, E.A. The Performance of Nickel and Nickel-Iron Catalysts Evaluated As Anodes in Anion Exchange Membrane Water Electrolysis. Catalysts 2019, 9, 814.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
