Synthesis of ZSM-5 Zeolite Using Coal Fly Ash as an Additive for the Methanol to Propylene (MTP) Reaction

Abstract

Using ZSM-5 zeolites as catalysts for the methanol to propylene (MTP) reaction is being widely investigated and has been industrially applied. In this study, pure ZSM-5 zeolite was successfully synthesized by a direct hydrothermal method using the fly ash of coal gasification as an additional raw material. Various analysis methods such as X-ray diffraction, N₂ sorption, scanning electron microscopy, and infrared spectroscopy, were employed to characterize the physicochemical properties of parent and modified zeolites. Then, the prepared ZSM-5 catalysts were tested in the MTP reaction. The results showed that pure ZSM-5 could be directly synthesized in the optimized conditions using fly ash as additional silicon and aluminum sources, and those ZSM-5 catalysts turned out to be candidate catalysts for the MTP reaction. Whereas their catalytic lifetimes were not good enough due to the strong acid sites and needed improving.

1. Introduction

A large amount of fly ash has been generated from coal-based industries such as coal gasification and thermal power plants [1,2]. Generally, these solid wastes were disposed by landfill and caused environmental problems. Furthermore, it may soon be expensive to dispose of the fly ash owing to stricter legislative requirements. As a consequence, the reuse of coal fly ash has been pressing and attractive in the case of its important economic and environmental implications. Recently, researchers have tried to use fly ash as the soil amendment, adsorbents, and building materials [3]. Considering its rich in silicon and aluminum sources, an alternative usage of fly ash is to synthesize the value-added zeolites.

Zeolites are crystals consisting of high specific surface area and extensively micropore structure developed by framework silicon and aluminum oxygen tetrahedrons, having potential applications in the fields of petrochemical reactions [4,5], water purification, the purification of gas [6], and catalytic reactions of green chemistry, etc. [7,8,9,10,11]. Amongst, ZSM-5 zeolite is a three-dimensional crystalline aluminosilicate with silicon and aluminum tetrahedral that form frameworks with a relatively high SiO₂/Al₂O₃ ratio [12,13]. They have been successfully used in the fields of oil refining, environmental protection, and methanol to light olefins due its adjustable surface acidity, micropore structure, and hydrothermal stability. Nowadays, it is still of vital importance to reduce costs to synthesize this zeolite with inexpensive silica and aluminum raw materials [14].

In the last decade, many researchers have successfully employed coal-based fly ash to synthesize different zeolites using different types of methods, such as hydrothermal, hydrothermal with fusion pretreatment, microwave and ultrasound techniques [15,16]. So far, sodalite, faujasite, P zeolite, A-type zeolite, and ZSM-5 zeolite have been synthesized in many studies [15,17,18]. For instance, Ojumu et al. [15] synthesized a pure phase zeolite A from coal fly ash using ultrasonic treatment. Cardoso et al. [17] synthesized zeolites 4A and Na-P1 by two different routes using coal fly ash for treating wastewater. Belviso [1] synthesized Y zeolite from fly ash by sonication and the conventional hydrothermal method. Soongprasit et al. [19] synthesized ZSM-5 zeolite from fly ash by the alkali hydrothermal method, however, the ZSM-5 zeolite was impure associated with wairakite. Vichaphund et al. [20] prepared ZSM-5 zeolite from fly ash, which was also pretreated by hydrothermal alkaline fusion.

In general, fly ash is a combusted by-product derived from coal burning or gasification. It consists primarily of an amorphous aluminosilicate glass. Thus, in the above studies, fly ash was usually pretreated by dissolution of its crystalline and amorphous phases in alkaline such as NaOH and KOH in order to make the Si and Al available for the formation of zeolite framework during the crystallization, as summarized in previous literature [20]. Though several works were widely studied on the synthesis of ZSM-5 from fly ash, there have been few reports focusing on ZSM-5 derived from ash without alkali fusion pretreatment [15].

The aim of this work is to synthesize ZSM-5 catalysts by the conventional hydrothermal method using fly ash as an additive without the alkali fusion step. The structural characterization data are discussed alongside the catalytic performance of the zeolite materials in the methanol to propylene (MTP) reaction.

2. Results and Discussion

2.1. Fly Ash Pretreatment

The chemical composition of as-received fly ash is shown in

Table 1. Chemical compositions of fly ash derived from the X-ray fluorescence (XRF) analysis and element analysis on the basis of mass weight (wt%).

Sample	SiO2	Al2O3	Fe2O3	CaO	K2O	Residual Carbon	SiO2/Al2O3 Molar Ratio
As received fly ash	36.74	21.91	5.47	5.68	1.32	28.51	2.96
After acid washing	44.98	10.05	2.34	2.40	0.70	39.64	7.91

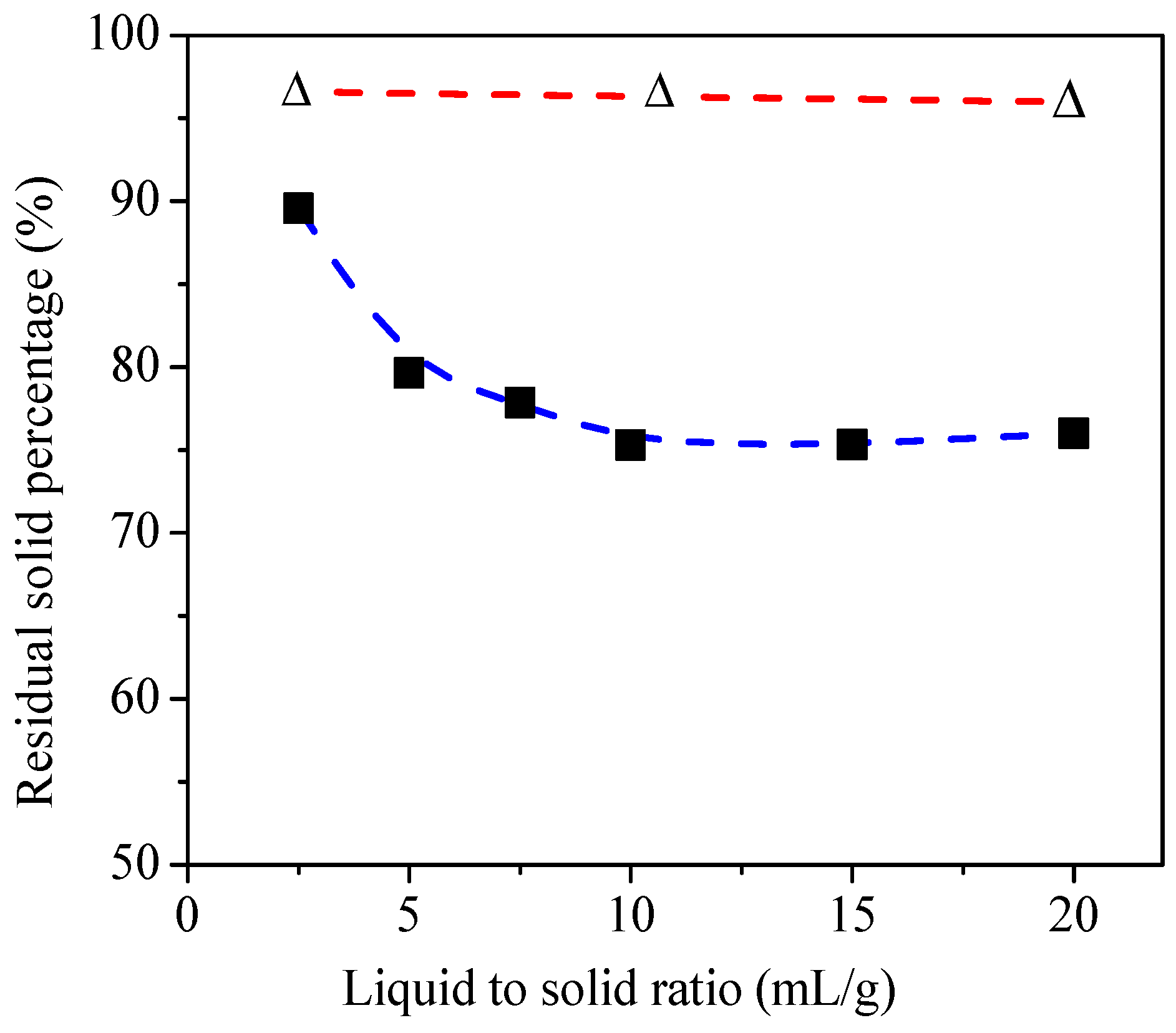

. It shows that the fly ash was mainly composed of silicon oxide, alumina, and unreacted residual carbon. Other impurities such as iron oxide, calcium oxide, and potassium oxide, were unfavorable in the synthesis of ZSM-5 zeolite and should be removed. Here, nitric acid with fixed concentration of 2 mol/L was used for washing the raw fly ash. The weight loss of fly ash with increasing the liquid-to-solid (L/S) ratio is displayed in Figure 1. It shows that with increasing the L/S ratio, the mass of residual solid fly ash gradually decreased and remained unchanged after the L/S ratio up to 10. The chemical composition of acid washed fly ash at L/S = 10 is shown in Table 1. It shows that after acid washing, part of the soluble metal oxides such as alumina, ferric oxide, calcium oxide, and potassium oxide were removed. By contrast, silicon oxide and residual were inert in the pretreatment of acid solution, leading to the increase of silicon to alumina molar ratio.

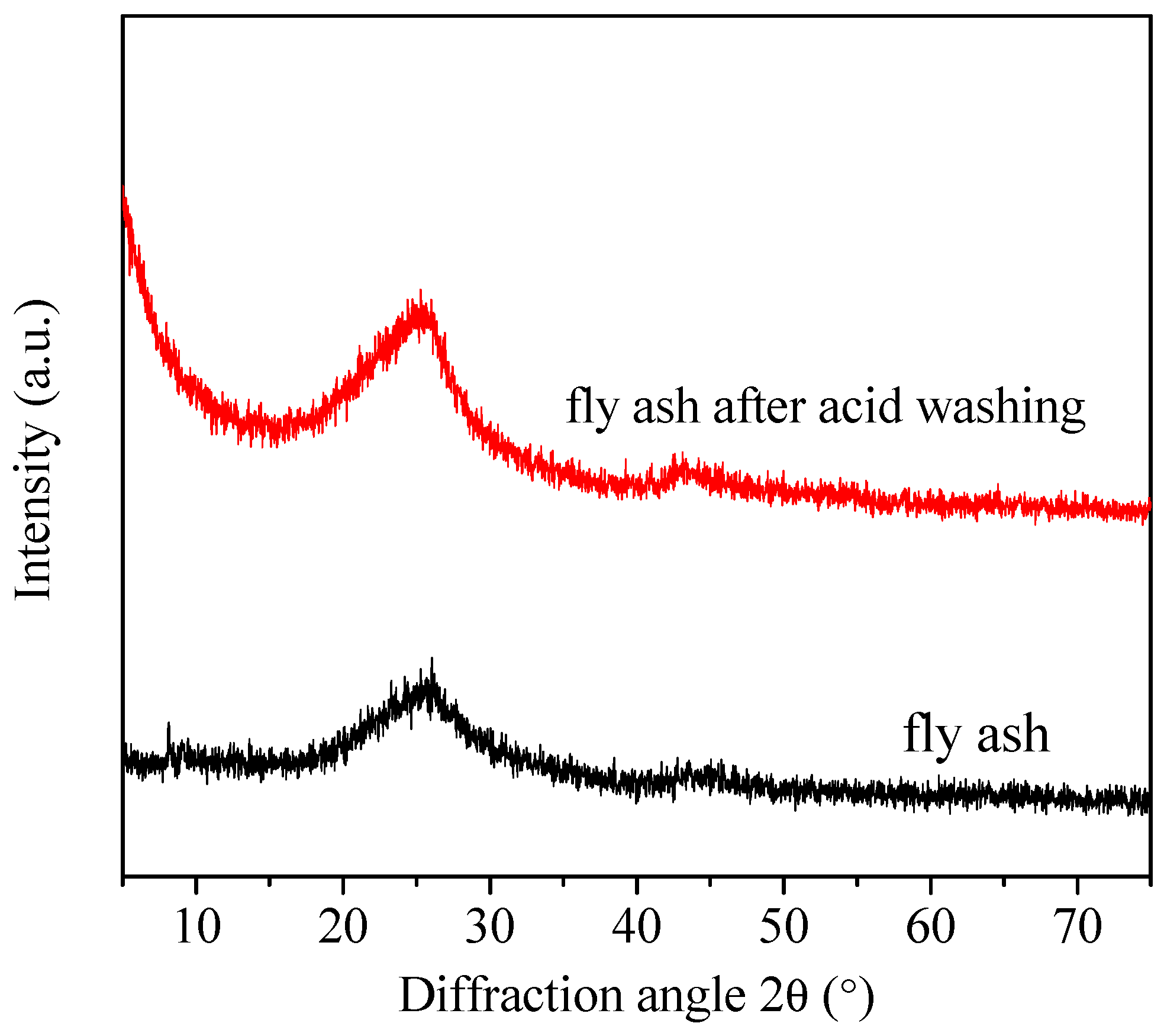

The XRD patterns and SEM images of the as-received fly ash and acid washed once at L/S = 10 are displayed in Figure 2 and Figure 3, respectively. The XRD patterns in Figure 2 show that there were no obvious crystalline phases observed in the fly ash samples before and after acid washing. The amorphous fly ash was composed of globular glass beads with particle size below 2 µm, as shown in Figure 3. These glass beads with smooth surface were formed by coal gangue at high temperature around 1300 °C in the gasification furnace [21,22]. The small porous materials marked with yellow arrow in Figure 3b was detected by a single point EDX analysis to be the unremoved carbon. The morphology of acid washed fly ash in Figure 3d remained basically unchanged compared to as-received fly ash. Considering the elemental change in

Table 2. Preparation conditions of ZSM-5 zeolites and their physical properties.

Item	Preparation Conditions			RC a/%	SiO2/Al2O3 Ratio b	SBET/m2·g−1			Volume/cm3·g−1
	Fly Ash/g	TEOS/mol	Na2O/SiO2 ratio			Total c	Smeso	Smicro	Total d	Vmeso	Vmicro
Z5-S1	4.0	0.0	0.055	-	5.63	36.0	30.2	5.8	0.009	0.009	-
Z5-S2	4.0	0.017	0.055	31.81	9.54	145.1	44.5	100.6	0.010	0.001	0.010
Z5-S3	4.0	0.033	0.055	42.24	12.29	158.7	48.3	110.4	0.084	0.011	0.073
Z5-S4	4.0	0.067	0.055	52.94	17.42	217.1	66.8	150.3	0.071	0.002	0.069
Z5-S5	0.0	0.067	0.055	100.0	72.67	358.5	88.8	269.7	0.095	0.010	0.085
Z5-S6	2.0	0.067	0.055	99.83	72.66	328.8	69.8	259.0	0.104	0.012	0.092
Z5-S7	3.0	0.067	0.055	93.83	73.33	326.8	75.9	250.9	0.077	0.004	0.073
Z5-S8	4.0	0.067	0.028	49.88	18.33	215.3	84.6	130.7	0.101	0.016	0.045
Z5-S9	4.0	0.067	0.084	34.48	15.77	157.0	52.8	97.9	0.096	0.056	0.040
Z5-S10	4.0	0.067	0.114	29.01	19.96	166.8	70.0	96.8	0.081	0.066	0.015

^a Relative crystallinity from the XRD pattern; ^b derived from XRF analysis; ^c Specific surface area obtained from N₂ sorption curves; ^d Total pore volume obtained by t-plot method.

, it indicated that only a small amount of metal oxides on the surface of those glass beads, such as ferric oxide, calcium oxide, and potassium oxide, was removed after acid washing, while the residual metal oxides existing inside the glass beads could not be removed.

2.2. Physicochemical Properties of ZSM-5 Zeolites

The acid washed fly ash was used as an additive for the synthesis of ZSM-5 zeolites and the single factor experimental conditions are listed in Table 2. The XRD patterns in Figure 4 show that the sodalite phase instead of MFI phase was obtained for S1 when fly ash was used alone as a silicon source and aluminum source. With increasing the TEOS amount as the additional silicon source, the characteristic peaks of ZSM-5 zeolite at 2θ = 7.88°, 8.76°, 23.0°, 23.84°, and 24.3° emerged and their intensity gradually increased, as shown in Figure 4a. The gradual increase of the relative crystallinity of ZSM-5 zeolites with increasing the amount of TEOS in Figure 4d indicated that the appropriate SiO₂/Al₂O₃ molar ratio was needed for synthesizing ZSM-5 zeolite. In Figure 4b, with the increase of fly ash amount, the relative crystallinity of ZSM-5 decreased slightly at first, and greatly decreased to 49.88% at the fly ash usage of 4 g. In Figure 4c, with the increases the Na₂O/SiO₂ molar ratio, the relative crystallinity of ZSM-5 increased at first and then decreased. The crystallization and dissolution of zeolites were a reversible process, and the high concentration of alkaline solution could inhibit the growth of molecular sieve [23]. As for the SiO₂/Al₂O₃ molar ratios derived from the XRF analysis in Table 2, the SiO₂/Al₂O₃ molar ratios of Z5-S5, Z5-S6, and Z5-S7 were around 72.66~73.33, much higher than that of other samples.

N₂ adsorption/desorption isotherms and the pore-size distributions of the as-synthesized ZSM-5 samples are shown in Figure 5. In Figure 5a, the N₂ isotherm of Z5-S1 is identified as type II in the Brunauer classification, which is characteristic of nonporous materials, despite small sodalite phase detected in the XRD pattern. It also indicated that most of the glass beads was not converted into porous materials. The isotherms of Z5-Sx (x = 2, 3, 4, 5, 6, 7, 8) correspond to type I, which is characteristic of microporous materials. The isotherms of Z5-S9 and Z5-S10 are identified as type I with an H4 hysteresis loop according to the IUPAC classification, indicating the co-presence of micropores and mesopores in the materials [24,25]. These mesopores centered at 4 nm (Figure 5b) presumably arose from the zeolite corrosion by high concentration alkali solution in the synthesizing system. Interestingly, two hysteresis loops for some of the samples are observed. The hysteresis loop at a relative pressure of about 0.2 is small and hardly visible. This hysteresis loop is due to the fact that state variation of adsorbed nitrogen in the micropores of ZSM-5 zeolite: From energetically most favorable positions (like “liquid phase”) to the most favorable quadrupole–quadrupole interaction (like “solid phase”) with increasing the relative pressure from 0.1 to 0.2 [26,27]. The values of the BET surface area and total pore volume are listed in Table 2. It shows that the variation of the surface area of ZSM-5 samples basically agreed with their relative crystallinities. Amongst, Z5-S5 had the highest BET surface area up to 358.5 m²·g⁻¹.

The SEM imaging in Figure 6a shows that the Z5-S1 consisted of a round particle with rough surface and less than 1 µm in diameter, probably due to the partial crystallization of the surface of glass beads (Figure 1). It indicated that the silicon and aluminum sources by alkaline dissolution of the glass beads was not appropriate for the synthesis of ZSM-5 zeolite, as shown in the XRD pattern. With increasing the amount of TEOS, the newly added silicon source contributed to the formation of ZSM-5 crystalline, in the meantime, the glass beads disappeared. Specifically, the Z5-S3 in Figure 6b possessed cake-like structure with flat exposed (010) lattice plane, having typical diameters of ca. 500 nm and thick of 400 nm. At high TEOS usage, the Z5-S4 showed a twinned cam morphology (Figure 6c). This means that the amount of TEOS played an important role in accelerating the crystallization of ZSM-5 zeolites. For the Z5-S5 without fly ash addition, the conventional ZSM-5 showed an ellipsoid shaped particle with sizes of 200~400 nm (Figure 6d). The small bulges on the surface of those particles were the aggregates of nanosized ZSM-5 crystals, indicating that enough silicon source from TEOS contributed to the nucleation in the crystallization process of zeolites. With the addition of fly ash, the round particles ca. 600 nm with twined crystals emerged for Z5-S6, Z5-S7, and Z5-S8 (Figure 6e–g). With the increase of alkaline concentration, the particles sizes of Z5-S9 and Z5-S10 varied a little (Figure 6h,i). However, the multilayered structure of Z5-S10 particles (Figure 6i) indicated the alkali etching of the surface of ZSM-5 crystals at high concentration of sodium solution, which should be responsible for the formation of mesopores, as shown in Figure 5.

The strength of accessible acid sites in the selected ZSM-5 catalysts were characterized by NH₃-TPD tests. Figure 7a shows a typical acid site distribution as obtained by TPD of ammonia. All samples exhibit three characteristic contributions centered, at ca. 200 °C, 400 °C, and 700 °C. The low-temperature profile below 300 °C corresponds to adsorption on weaker acid sites. The second profile that appears around 300~500 °C corresponds to desorption of ammonia from medium strong acid sites. The acid amounts of the catalysts were studied by means of peak differentiating and imitating method and the results are shown in

Table 3. Surface acidity of selected ZSM-5 samples derived from the NH₃-TPD curves.

Items	Acid Amount (µmol∙g−1) a				Acid Amount (µmol∙g−1) b
	Total	Weak c	Medium Strong d	Strong e	Total	Brönsted Acid Sites	Lewis Acid Sites
S5	197.4	91.7	61.1	44.6	117.8	6.5	111.3
S6	238.6	89.8	51.4	97.4	124.9	7.5	117.4
S7	302.9	121.4	57.2	124.3	64.4	8.9	55.5
S4	440.5	227.1	127.9	85.5	58.8	10.8	48.0

^a acid amount derived from the NH₃-TPD tests; ^b acid amount derived from pyridine adsorbed FT-IR spectra; ^c calculated in the temperature below 300 °C; ^d calculated in the temperature of 300–500 °C; ^e calculated in the temperature higher 500 °C.

. It shows that the total acid sites of ZSM-5 catalysts increased with increasing of fly ash usage, mainly due to the increase of weak acid sites; meanwhile, the strong acid sites greatly increased when fly ash was added. The increase of acid sites was attributed to the decreased silica-to-alumina ratio on the as-synthesized ZSM-5 catalysts, arising from the introduction of additional aluminium source from fly ash.

The acid type was further measured by pyridine adsorbed FT-IR spectra, as shown in Figure 7b and Table 3. The bands at 1446 cm⁻¹ and 1549 cm⁻¹ are assigned to the pyridine adsorbed on Lewis acid sites and Brönsted acid sites, respectively [12,28,29,30]. The bands at 1577 cm⁻¹ and 1596 cm⁻¹ are attributed to the pyridine adsorbed on Lewis acid sites. The band at 1490 cm⁻¹ is generally assigned to the combined Brönsted and Lewis acid sites. The calculated results in Table 3 show that with the increase of fly ash usages, the amount of Brönsted acid sites gradually increased, which might be caused by the insertion of excessive of aluminum atoms in the ZSM-5 zeolites. However, as the crystallinity decreased, the amounts of total acid sites and Lewis acid sites increased slightly at first and then decreased greatly. It indicated that Lewis acid sites, which were found to be the primary source of weak acid sites, were the major acid sites and most of them come from the crystallized zeolites, as previously reported [29,30]. Considering the different operating conditions of NH₃-TPD and pyridine adsorbed FT-IR analysis, the acid amounts detected were different.

2.3. Catalytic Tests of As-Synthesized ZSM-5 Catalysts

In order to investigate the catalytic activity, four selected catalysts were tested in the conversion of methanol to propylene reaction under the same conditions. Figure 8 represents the lifetimes and selectivities to light olefins in MTP reactions. In general, at the initial stage of reaction, all catalysts exhibited nearly full methanol conversion, indicating the high initial activity of all catalysts. However, with increasing the time on stream, all the tested catalysts gradually reduced their catalytic activity with different deactivation rates (in Figure 8a), which could be ascribed to the coverage of acid sites and/or pore blockage by coke species, based on the previous reports [12,31,32]. Hereafter, the catalyst lifetime was defined as the time for which the conversion of methanol exceeded 85%. It clearly shows that the lifetimes of the catalysts decreased with increasing the fly ash usages, being mainly attributed to the increased amounts of acid sites, especially the strong acid sites (as shown Table 3).

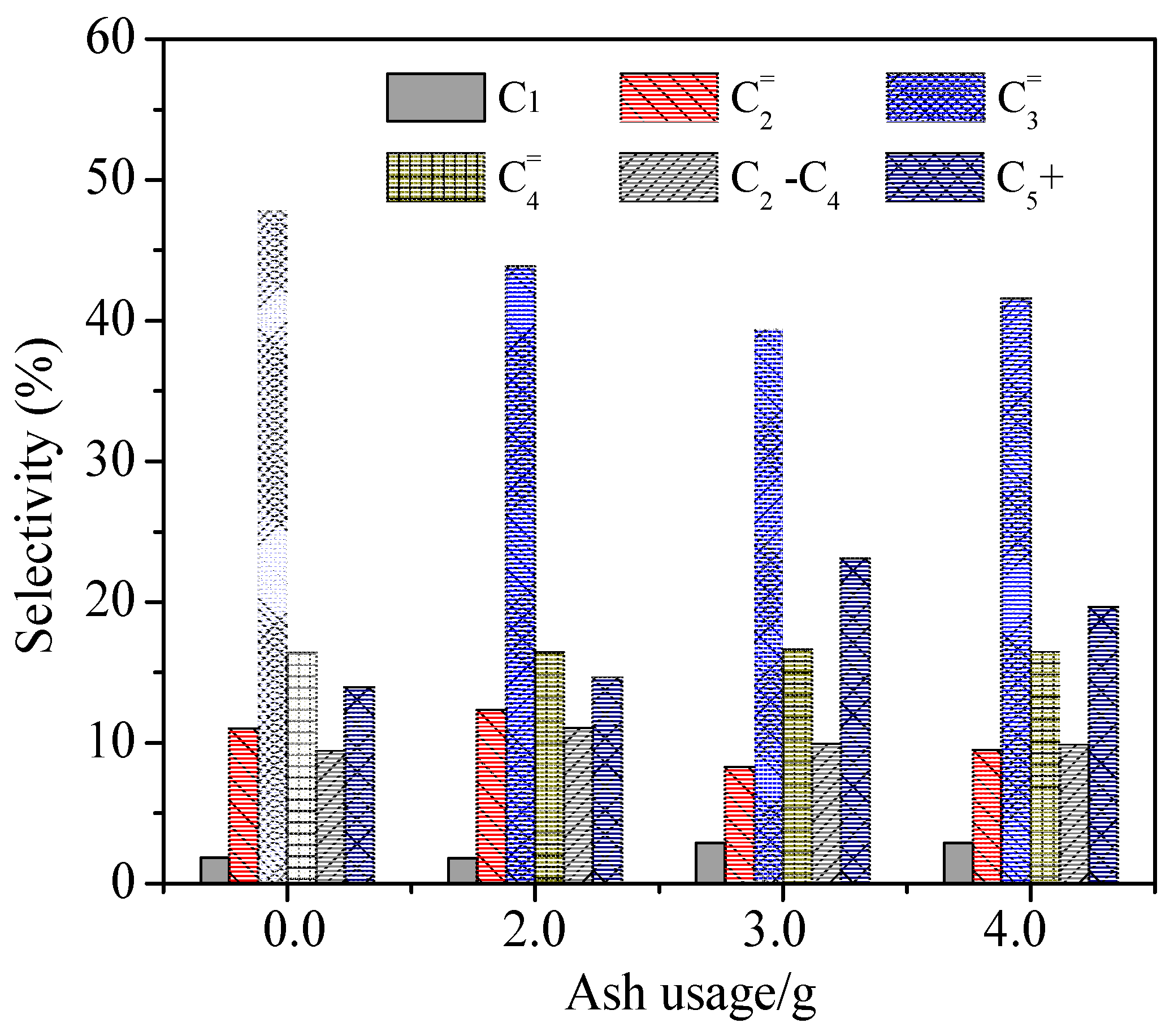

The product distributions of four catalysts at time on stream of 4 h are shown in Figure 9. The selectivity to propylene for S5 without fly ash addition was the highest, up to 47.85%. With increasing the fly ash usage, the selectivities to ethylene and propylene of the as-synthesized catalysts decreased, in contrast, the selectivities to C₅+ products increased. In the recently proposed “dual cycle” mechanism to explain the formation of ethylene and propylene, propylene and ethylene could be generated by the aromatic-based cycle, whereas, propylene mainly produced by the olefin-based cycle [33,34]. In this work, the propylene to ethylene ratio of selected samples were similar and in the scope of 3.6–4.7, indicating the primary pathway through the olefin-based cycle. However, intermediates like C₅+ molecules, which undergoes successive methylation steps on acid sites by methanol and subsequently eliminates light olefins, are likely to be essential for the formation of propylene [35]. On the other hand, the most often observed C₅+ intermediates to date have been typically methylbenzenes [36]. Those easily adsorb on the strong acid sites and/or block the pore mouth, leading to the fast deactivation, as shown in Figure 8. Therefore, excessive amounts of acid sites, especially strong acid sites, is disadvantageous on catalytic lifetime. Technically, the optimal silicon and aluminum sources in the synthesizing system, is very desirable for the fine control of acidity on the ZSM-5 catalysts.

3. Experimental Section

3.1. Raw Materials

Coal based fly ash was supplied by Tian-xi Coal-to-Oil branch of Shanxi Jincheng Coal Industry Group Ltd. (Shanxi, China) and its properties is listed in Table 1. Nitric acid (HNO₃), sodium hydroxide (NaOH), and tetraethyl orthosilicate (TEOS) with analytical purity were purchased from Sinopharm Reagent Co. Ltd. (Shanghai, China). Tetrapropyl ammonium hydroxide (TPAOH) of 25 wt% aqueous solution was also purchased from Sinopharm Reagent Co. Ltd. (Shanghai, China).

3.2. Materials Synthesis

The fly ash was first pretreated by the acid washing method. Typically, 30 g fly ash was mixed with 2 M of HNO₃ solution at 90 °C for 2 h under stirring. The solid was filtered and washed with deionized water. Sample powder was dried at 110 °C for overnight.

The ZSM-5 zeolites were synthesized by the conventional hydrothermal crystallization method, similar to that previously reported [12]. Typically, the pretreated fly ash was mixed with sodium hydroxide, TPAOH, deionized water, and TEOS and stirred at room temperature for 12 h. Then, the mixture was transferred into a Teflon-lined stainless autoclave for crystallization at 170 °C for 48 h. Here, the final gel compositions of synthesizing system were xSiO₂: yNa₂O: 1.0 Al₂O₃: 8TPAOH: 3000H₂O. Here, the x and y were adjusted by changing the usage of the pretreated fly ash, TEOS and NaOH, using the single factor experiment method. The details were listed in Table 2. After crystallization, the solid was obtained by filtering, washing and drying. The above Na-form ZSM-5 was transformed into the H-form ZSM-5 after twice ion-exchange with 1.0 mol/L of NH₄Cl solution and once calcination at 550 °C for 4 h.

3.3. Characterization

The crystalline phases were determined by the X-ray diffraction (XRD) analysis on a Bruker D8 Advance Diffractometer (Bruker, Billerica, MA, USA) with Cu-Kα radiation (λ = 0.15406 nm), operating at 40 kV and 30 mA and scanning from 5° to 60° at a speed of 0.02 °/s. Five main characteristic peaks of MFI zeolites were selected to calculate their relative crystallinities. Nitrogen sorption measurements were performed on a Micrometrics TriStar3000 analyser (Micromeritics, Norcross, GA, USA) at −196 °C to characterize the textural property. All samples were pre-treated at 300 °C and vacuum for 3 h before the measurement. The Brunauer–Emmett–Teller (BET) method and BJH method were respectively used to determine the surface areas and pore volumes. The silica-to-alumina ratio (SiO₂/Al₂O₃) was detected by the inductively coupled plasma optical emission spectrometry (ICP-OES) method. Field emission scanning electron microscopy (SEM) images were taken on a Quanta250 instrument (Hillsboro, OR, USA). The acid distribution was measured by temperature-programed desorption of ammonia (NH₃-TPD) on a Quanta Chrome ChemStar^TM instrument (Boynton Beach, FL, USA). The acid properties of ZSM-5 samples were detected on a Nicolet iS5 Fourier transform infrared (FTIR) spectrometer (Waltham, MA, USA) using pyridine as a probe molecule. Each spectrum was recorded by a total of 64 scans with a resolution of 4 cm⁻¹. The acid amounts were obtained from infrared transmittance spectroscopy, according to the previous report by Emeis. [37] The acid amount of pyridine per gram catalyst (C) was obtained by the Equation as follows.

C (pyridine on acid sites, mmol/g catalyst) = kIR²/W

where k is the integrated molar extinction coefficient of pyridine on Brönsted (at ca. 1540 cm⁻¹, 1.67 cm/µmol) or Lewis acid sites (at ca. 1450 cm⁻¹, 2.22 cm/µmol), I is the integrated absorbance (cm⁻¹), R is the radius of catalyst disk on the FT-IR instrument (cm), W is the weight of catalyst disk (mg).

3.4. Catalytic Tests

The methanol to propylene (MTP) reaction was performed on a fixed bed reactor at atmospheric pressure, similar to the previously reported by us [32,38,39]. Pure ZSM-5 catalysts with particle sizes of 40–60 mesh were prepared by pressing, crushing, and sieving. A quartz tubular reactor with 6 mm of inner diameter was placed into the furnace, using 0.10 g of catalyst. The catalyst was pretreated at 500 °C for 1 h in argon flow gas before the reaction. The temperature for MTP reaction was set to 470 °C and methanol was injected into the reactor using 50 mL/min of argon as carrier gas. The weight hourly space velocity (WHSV) of methanol was set to 4.0 h⁻¹. The coke contents on spent catalysts were determined by the elemental analysis on Elementar Various EL Cube analyzer. The reaction products were analyzed using an online gas chromatograph (GC 2014C, Shimadzu GC) with a TG-BONG Q column (30 m × 0.32 mm × 10 μm). Equipped thermal conductivity detector (TCD) and flame ionization detector (FID) were used to measure the products of CH₄, CH₃OH, dimethyl ether (DME), and other hydrocarbon products, operating at the oven temperature of 50–180 °C and a heating ramp of 10 °C/min. The methanol conversion was defined as usual:

$$X_{MeOH}=\frac{\left(m_{MeOH\left(in\right)}-1.39m_{DME\left(out\right)}-m_{MeOH\left(out\right)}\right)}{m_{MeOH\left(in\right)}}$$

While selectivity to the i product was defined as follows:

$$S_i=\frac{m_i}{\mathsf{\Sigma }{m}_i}$$

where m_i is the mass weight of compound i, and Σm_i is the total mass weight of all products. In the products, DME was found when methanol conversion decreased with time on stream and one DME molecule was regarded as two molecules of unconverted methanol. The mass balance was carefully controlled with an average error below 3%.

4. Conclusions

In this study, ZSM-5 zeolites for the MTP reaction were synthesized by the conventional hydrothermal crystallization method using fly ash as additional silicon and aluminum sources. The characterization results demonstrated that the presence of tetraethyl orthosilicate (TEOS) is necessary for the crystallization of ZSM-5 zeolites. With increasing the usage amounts of fly ash, the total amount of acid sites of ZSM-5 zeolites detected by the NH₃-TPD method gradually increased, due to a large amount of weak Lewis acid sites and a bit of strong Brönsted acid sites. However, the MTP reaction propylene selectivity and the catalytic lifetime of ZSM-5 decreased due to the increased amount of acid sites, especially the strong acid sites. In the coming work, the sufficient and effective use of the silicon and aluminum sources in fly ash is meaningful, and the effects of the impurities in fly ash on the crystallization of zeolites and their acid properties will be considered.
