Synthesis of Self-Supported Cu/Cu3P Nanoarrays as an Efficient Electrocatalyst for the Hydrogen Evolution Reaction

by
Rui Dang
1,*,
Xiufeng Xu
2,
Mengmeng Xie
2 and
Jian Liu
2,*
1
Northwest Institute for Nonferrous Metal Research, 96 Weiyang Road, Weiyang District, Xi’an 710016, China
2
Faculty of Printing, Packaging Engineering and Digital Media Technology, Xi’an University of Technology, Xi’an 710054, China
*
Authors to whom correspondence should be addressed.
Catalysts 2022, 12(7), 762; https://doi.org/10.3390/catal12070762
Submission received: 27 May 2022 / Revised: 7 July 2022 / Accepted: 7 July 2022 / Published: 9 July 2022
(This article belongs to the Special Issue Synthesis and Applications of Copper-Based Catalysts)
Browse Figures
Versions Notes

Abstract

:
Owing to the energy crisis and environmental pollution, it is essential to develop cheap, environmentally friendly and sustainable energy to replace noble metal electrocatalysts for use in the hydrogen evolution reaction (HER). We report herein that a Cu/Cu3P nanoarray catalyst was directly grown on the surfaces of Cu nanosheets from its Cu/CuO nanoarray precursor by a low-temperature phosphidation process. In particular, the effects of phosphating distance, mass ratio and temperature on the morphology of Cu/Cu3P nanoarrays were studied in detail. This nanoarray, as an electrocatalyst, displays excellent catalytic performance and long-term stability in an acid solution for electrochemical hydrogen generation. Specifically, the Cu/Cu3P nanoarray-270 exhibits a low onset overpotential (96 mV) and a small Tafel slope (131 mV dec−1).

1. Introduction

Due to the excessive consumption of fossil fuels, the resulting environmental pollution and global energy crisis have aroused widespread concern. It is essential to develop clean, environmental friendly and renewable energy sources to reduce our dependence on fossil fuels and benefit the environment by reducing greenhouse gas emissions [1,2,3,4,5,6,7]. Among variable alternatives, hydrogen has been considered as an ideal energy carrier due to its environmental friendliness and high energy density. Electrochemical water splitting is one of the most simple and promising strategies to create high-purity hydrogen in an economic way [8,9,10,11,12,13,14]. However, the production efficiency is low without the use of electrocatalysts, which can significantly reduce the large overpotential for the hydrogen evolution reaction (HER). It is well known that Pt, Ru-based and Ir-based catalysts are regarded as the most promising electrocatalysts for the HER and OER, because of their high electrocatalytic performance [15,16,17,18,19,20,21,22,23], whereas their widespread application is restricted by their high costs and low abundance on Earth. Therefore, the major challenge in hydrogen production is to reduce the use of noble metals or replace them with inexpensive non-precious metal catalysts.
In recent years, a lot of effort in the field of highly active, Earth-abundant catalysts has been dedicated to various types of alternative materials, such as transition metal sulfides [24,25,26], metal carbides [27,28,29], metal nitrides [30,31,32], metal phosphides [33,34,35,36] and even metal-free materials [37,38]. Transition-metal phosphides (TMPs) are an important class of compounds with metalloid characteristics and good electrical conductivity. In the structure of metal phosphides, negatively charged P atoms can act as ideal active centers for proton adsorption, bringing about the dynamical optimization of the HER [39,40,41]. To date, various metal phosphides have been adopted for electrochemical hydrogen evolution, such as cobalt phosphide nanoparticles (CoP NPs [42]), nickel phosphide nanoparticles (Ni2P NPs [43]), molybdenum phosphide nanoparticles (MoP NPs [44]) and Ni–Fe phosphide nanohybrids [45], which have attracted attention for their excellent electrocatalytic activities for the HER. However, the relatively low electrical conductivity of most phosphide catalysts remains a problem, leading to limited charge transfer and passivated electrocatalytic activity. Furthermore, these electrocatalysts are prone to agglomeration under high current density or long-term tests in practical application in the HER.
To overcome the above-mentioned issues, alternative architectural arrays grown on conductive substrates have been explored due to the large surface area, abundant active sites, and synergistic effects between the electrocatalysts and the conductive substrates. Recently, Sun and co-workers [46] reported on porous urchin-like Ni2P microsphere superstructures anchored on nickel foam, which afforded a current density of 10 mA cm−2 at a low overpotential of only −98 mV for the HER. Tan and co-workers [47] reported on flower-like structures consisting of NiCoP-CoP nanowires grown directly on porous nickel frameworks to achieve a highly efficient HER in an alkaline solution. For the HER, a binder-free NiCoP-CoP/Ni/NF electrode can reach 10 mA cm−2 current density at a quite low overpotential of 49 mV. Despite extensive progress in nanoarray architectures, self-supporting nanoarray structures on conductive materials are still a key challenge.
Over the past decade, Fe, Co and Ni as electrocatalysts have exhibited excellent catalytic performance for the HER. Nevertheless, as an Earth-abundant transition metal, Cu-based catalysts have been relatively less studied in terms of the HER. Therefore, it is significant to design Cu-based materials with special structures for developing high-efficiency electrocatalysts. Recent studies have shown that Cu3P is an excellent electrocatalyst for use in the HER [48,49]. Herein, self-supported Cu/Cu3P nanoarrays were successfully grown on the surfaces of Cu nanosheets from Cu/CuO nanoarrays precursor by a low-temperature phosphidation process. The Cu/Cu3P nanoarray-270, as an electrocatalyst, displays excellent catalytic performance and durability for electrochemical hydrogen generation, and exhibits a low onset overpotential (96 mV) and a small Tafel slope (131 mV dec−1). The morphology and nanostructure of the self-supported Cu/Cu3P nanoarray catalyst affect the electrocatalytic efficiency significantly. The nanoarrays possess large surface areas and a great number of active sites, which is immensely beneficial for electrocatalysis capacity enhancement. At the same time, copper-based catalysts can also be used in other types of organic reactions [50]. It is expected that this innovative approach will become a new concept to synthesize highly efficient catalysts.

2. Results

The typical procedure for the synthesis of Cu/Cu3P nanoarrays is summarized in Figure 1. In brief, Cu nanosheets are firstly synthesized according to hydrothermal method. Then, Cu nanosheets, as both a self-template and nano-conductive substrate, are immersed in a solution of NaOH/H2O2 for the formation of Cu/CuO nanoarrays. Cu/CuO nanoarrays and NaH2PO2 are calcinated under an Ar gas flow; the original black color of the Cu/CuO turns gray after the phosphorization process, thus suggesting that the copper oxides on the surfaces of Cu nanosheets are converted into cuprous phosphide.
The X-ray diffraction (XRD) patterns of the Cu/CuO nanoarrays before and after phosphidation are shown in Supplemaentery Figures S1c and 2a. The precursor shows diffraction peaks characteristic of CuO (JCPDS No. 04-1548). In contrast, only peaks corresponding to Cu3P can be observed for the resulting copper phosphide. Figure 2a shows that all diffraction peaks are in accordance with the hexagonal structure of Cu3P (JCPDS No. 02-1623), and the strong peaks at 43.4°, 50.4° and 74.1° originate from the Cu nanosheets (JCPDS No. 04-0836), indicating that all copper oxides are completely transformed into cuprous phosphides in the phosphating process, while the copper nanosheets, as a conductive template, have not been completely consumed.
The morphologies of products were characterized by scanning electron microscopy (SEM). Figure 2b and Figure S1a show the SEM images of Cu nanosheets as the self-template and conductive substrate, which had a large area of 30–100 μm in diameter with smooth surface. The SEM images of the Cu/CuO nanoarrays at different magnification are shown in Figures 2c,d and S2. The CuO nanoarrays are uniformly distributed on the surface of the Cu nanosheet, consisting of uniform nanoplates with a width ranging from 30 nm to 80 nm and are 3–5 μm in length. After phosphidation, the nanoarray morphology is still preserved, as shown in Figure 2e,f. The plate Cu3P nanoarrays grown on the Cu nanosheet substrate and the surfaces of the nanoarrays become rough. The high-magnification SEM image of the Cu3P nanoplate is shown in Figure S3, and close observation reveals that the thickness of an individual Cu3P nanoplate increases from 60 nm to 120 nm in the phosphating process. The nanoarray structure helps to expose more active sites in the catalytic reaction, and the interspace between the nanoarrays can favor the diffusion of electrolytes. The high-resolution transmission electron microscopy (HRTEM) image (inset f) shows clear lattice fringes with an interplane distance of 0.31 nm, corresponding to the (111) of the Cu3P. All these results clearly confirm the successful synthesis of Cu/Cu3P nanoarrays by low-temperature phosphidation from the Cu/CuO nanoarray precursor.
The detailed elemental compositions and valence states of as-synthesized Cu/Cu3P were characterized by X-ray photoelectron spectroscopy (XPS), as shown in Figure 3. The full survey XPS spectrum (Figure S4) shows that the Cu/Cu3P comprises Cu, P, O and C elements. As shown in Figure 3a, two main peaks of Cu 2p are located at 934.6 eV and 954.4 eV, which represent the Cu 2p3/2 and Cu 2p1/2 peaks, respectively. The peaks at 933.1 eV and 935.1 eV are assigned to the Cuδ+ in the Cu3P and oxidized Cu for the Cu 2p3/2 energy level, while the peaks at 940.8 and 944.1 eV belong to the satellite peaks of Cu 2p3/2. The three peaks appearing at 952.8, 955.2 and 962.9 eV are indexed to the Cuδ+ in the Cu3P, oxidized Cu and the satellite for Cu 2p1/2, respectively [51,52]. In Figure 3b, the peak at 133.6 eV could be indexed to oxidized phosphate species, resulting from the exposure of the sample to air. The lower binding energy peaks situated at around 129.1 eV and 129.9 eV correspond to P 2p3/2 and P 2p1/2 of Cu/Cu3P nanoarrays, respectively [53,54]. Note that the binding energy of P 2p (129.9 eV) shows a negative shift from elemental P (130.2 eV), indicating that P carries a negative charge (δ-). The results suggest that charge transfer occurs between Cu and P, in which Cu may serve as the hydride-acceptor center and P may act as the proton-acceptor center [55].
The fabrication process of the Cu/Cu3P nanoarray is illustrated in Figure 4a. The morphology of the products was found to strongly depend on the distance between Cu/CuO nanoarrays and sodium hypophosphite in the phosphating process. When the distance between the two precursors is less than 5 cm, the nanoarray structure on the surface of the Cu nanosheets disappears and its surface becomes rough, as shown in Figure 4b,c. Further increasing the phosphating distance to 16 cm, part of the array structure on the surface can be observed, as shown in Figure 4d. The nanoarrays are obviously thicker than the original CuO nanoplate, and agglomeration between the nanoarrays is more serious. When the phosphating distance was extended to 24 cm (in Figure 4e), the nanoarray structure composed of Cu3P nanoplates with a width of around 300–800 nm and lengths of up to several micrometers was vertically grown on the surface of the Cu nanosheets. The topotactic conversion of the Cu/CuO nanoarrays into the Cu/Cu3P nanoarray could be explained as follows: first, the thermal decomposition of NaH2PO2 generates PH3, and the CuO nanoarrays are reduced to Cu nanoarrays by PH3. Then, the resulting Cu subsequently catalyzes the decomposition of PH3 into elemental P. Finally, the elemental P further reacts with Cu to form Cu3P nanoarrays.
The influence of different mass ratios of phosphorus precursor and the Cu/CuO nanoarrays on the morphology and crystal structure was investigated, as shown in Figure 5. When the mass ratio of NaH2PO2 to CuO is 1, the morphology of Cu/Cu3P nanoarrays does not change significantly (Figure 5a), and the corresponding XRD pattern shows that only a small amount of Cu3P is formed in the product (Figure 5b), indicating that the CuO cannot be converted into Cu3P at this ratio. When the mass ratio of NaH2PO2/CuO increases to 2, the obtained array structure is thicker than that of the precursor (Figure 5c), and the corresponding XRD pattern reveals that CuO has been converted into Cu3P completely, but the amount of Cu3P in the product is small (Figure 5d). When the mass ratio of NaH2PO2/CuO further increases to 2.5, the morphology of the product still maintains the nanoarray structure (Figure 5e), and the corresponding XRD pattern shows that Cu3P is generated, while the peak intensity of the copper substrate does not change significantly (Figure 5f), indicating that the Cu nanosheet has not been converted. Until the mass ratio of NaH2PO2/CuO reached 3, the corresponding SEM image of this sample reveals that the Cu3P nanoarrays thickened and agglomerated together (Figure 5g). The intensity of the XRD pattern of Cu in the product is significantly weakened (Figure 5h), indicating that the Cu nanosheet substrate is partially converted into Cu3P during the phosphating reaction.
The influence of the phosphating temperature on the nanostructures formed was investigated, as shown in Figure 6. Figure 6a,b show that CuO and Cu3P were simultaneously observed on the Cu nanosheets at 260 °C.With the increase in temperature, the thickness of nanoarrays composed of nanoplates was increased, while the CuO nanoarrays were completely converted to Cu3P nanoarrays at 290 °C, as shown in Figure 6c,d. Until the temperature reached 310 °C, the nanoarray structures grown on the surfaces of Cu nanosheets experienced obvious agglomeration and collapse, and the corresponding XRD pattern revealed that a part of the Cu nanosheets was converted to Cu3P in the phosphating reaction (Figure 6e,f). The effects of phosphating time on the morphology and phase of as-prepared nanostructures were likewise studied, as shown in Figure S5. When the calcination time was increased to 1.5 h, the morphology of the product obtained was as shown in Figure S5c. The nanoarray structure composed of nanoplates is significantly thicker than that obtained at 1 h (Figure S5a). Moreover, the weak diffraction peak of Cu indicated that most of the Cu nanosheet substrates were transformed into Cu3P (Figure S5d). The above results reveal that the phosphating temperature and time had a great impact on the formation of the resultant Cu/Cu3P nanoarrays in the present study.
As a comparison, the pure Cu nanosheet was directly phosphated and calcined under the same conditions, while the morphology and crystal structure of the products were characterized. As shown in Figure S6a, the 2D nanosheet morphology was still preserved, and the smooth surface of the Cu nanosheets became rough after phosphating. At the same time, the corresponding XRD pattern confirmed that Cu3P was indeed generated (Figure S6b). The results indicate that the CuO nanoarray on the surface of the Cu nanosheet plays a very significant role in maintaining the morphology of Cu/Cu3P nanoarrays.
The electrocatalytic activity of the Cu/Cu3P nanoarray for the HER was tested by using a standard three-electrode device in 0.5 M H2SO4 solution. Figure 7 shows the polarization curves of these electrodes obtained at different temperatures without iR correction. The catalytic behavior of Cu/Cu3P NS obtained by the direct phosphating of the Cu nanosheet was also investigated for comparison. Obviously, the Cu/Cu3P NS showed poor electrocatalytic activity, with an onset overpotential value of 347 mV. In sharp contrast, Cu/Cu3P nanoarray-270 was significantly active for the HER, with an onset overpotential as low as 96 mV, and additional negative potential leads to a rapid rise in the cathodic current. It requires 253 mV of overpotential (η10) to reach a current density (j) of 10 mA cm−2, which is lower than that of Cu/Cu3P nanoarray-290 (η10 = 342 mV) and Cu/Cu3P nanoarray-310 (η10 = 395 mV). Moreover, an overpotential of 424 mV is required for Cu/Cu3P nanoarray-270 to reach the current density of 100 mA cm−2, which is much lower than that of Cu/Cu3P nanoarray-290 (η100 = 589 mV) and Cu/Cu3P nanoarray-310 (η100 = 635 mV).
The Tafel slope is an effective means to assess the advantages of electrocatalysts. The Tafel plots in Figure 7b were obtained from the linear portion that conformed to the Tafel equation (η = a + b log j, where b is the Tafel slope and j is the current density). It can be seen that the Tafel slope for Cu/Cu3P nanoarray-270 is 131 mV dec−1, much lower than that of Cu/Cu3P nanoarray-290 (145 mV dec−1) and Cu/Cu3P nanoarray-310 (156 mV dec−1). These results indicate that Cu/Cu3P nanoarray-270 exhibits high electrocatalytic efficiency. A detailed comparison of Cu/Cu3P nanoarray-270 with other electrocatalysts is shown in Table S1, indicating its superior or comparable performance [56,57,58,59].
The long-term stability of an electrode is another important issue to consider for practical applications. The durability of Cu/Cu3P nanoarray-270 was examined at 23 mA cm−2 in H2SO4 solution, as shown in Figure 7c. The current density curve related to time reveals a minor increase after 15 h, indicating the high electrochemical stability of the Cu/Cu3P nanoarray catalysts for the HER in an acidic solution. Electrochemical impedance spectroscopy (EIS) was performed to identify the interfacial properties and catalytic kinetics of the as-synthesized Cu/Cu3P nanoarray catalyst in the HER process. As shown in Figure 7d (inset: the equivalent circuit), the series resistance values (Rs) were obtained in the high-frequency zone, and the semicircle in the low-frequency range reflects the charge transfer resistance at the interface between the Cu/Cu3P and the electrolyte (Rct). The Nyquist plots reveal that Cu/Cu3P nanoarray-270 (4.1Ω) exhibits a much smaller semicircle than Cu/Cu3P nanoarray-310 (49.6 Ω), suggesting that it has fast charge transfer kinetics for the HER. This result validates that the introduced Cu nanosheet, as a conductive substrate and nano-template, can improve the charge transport and electrochemical activity of the Cu/Cu3P nanoarray electrode.

3. Materials and Methods

3.1. Chemicals and Materials

Copper(II) sulfate (CuSO4·5H2O), glucose (C6H12O6), polyvinylpyrrolidone (PVP, Mw = 30,000), hydrogen peroxide (H2O2, wt% = 30%), Nafion solution and sodium hypophosphite (NaH2PO2) were purchased from Sigma-Aldrich. All chemicals were used without further purification.

3.2. Synthesis of Cu Nanosheets

All chemicals in the experiment were analytical grade and used without purification. The well-defined Cu nanosheets were prepared according to the procedures in our previous report [60]. In brief, 1.0 g C6H12O6·H2O, 0.5 g polyvinyl pyrrolidone (PVP) and CuSO4 were dissolved in 25 mL of deionized water with vigorous magnetic stirring, and then the mixture was transferred into a Teflon-lined autoclave and heated at 180 °C for 3 h. The brown-red products were collected, washed three times with deionized water and ethanol, respectively, and then dried in a vacuum at 60 °C.

3.3. Synthesis of Cu/CuO Nanoarrays

The hierarchical Cu nanosheet@CuO nanorods were synthesized by a simple hydrothermal process. In a typical synthesis procedure, an amount of Cu nanosheets and 22 mL of NaOH (0.55 mol/L) were added into a Teflon-lined vessel with vigorous magnetic stirring, and then 2 mL H2O2 (30%) was injected rapidly into the mixture solution under stirring. Afterward, the vessel was sealed and then hydrothermally heated at 130 °C for 9 h; the as-prepared products were collected and washed three times with deionized water, and then dried in a vacuum at 60 °C.

3.4. Synthesis of Cu/Cu3P Nanoarrays

To prepare Cu/Cu3P nanoarrays, NaH2PO2 was placed at the center of the tube furnace and the Cu/CuO nanoarray was placed at the downstream side of the furnace at carefully adjusted locations to set the temperature, and the distance between them was measured to be approximately 24 cm. After flushing with Ar, the center of the furnace was elevated to 270 °C with a heating rate of 2 °C/min and held at this temperature for 60 min. For comparison, samples at different phosphating temperatures were synthesized by the same process.

3.5. Material Characterization

XRD patterns were collected using an M21X diffractometer (MAC Science Co. Ltd., Japan) with high-intensity Cu Kα radiation (λ = 1.541Å). The morphology of the products was characterized via scanning electron microscopy (SEM, ZEISS SUPRA55). The HRTEM images were collected on a FEI Tecnai F20 electron microscope operated at 200 kV. The elemental compositions and valence states of the samples were determined by XPS. XPS measurements were performed using a Thermo Fisher Scientific, Escalab-250Xi spectrometer with an Al Kα X-ray resource. The C 1s contamination peak was used for charge correction (284.8 eV).

3.6. Electrochemical Measurements

The electrochemical performances of Cu/Cu3P nanoarrays were evaluated with the CHI 660D electrochemical workstation. All the electrochemical measurements were conducted in a typical three-electrode setup with an electrolyte solution of 0.5 M H2SO4 using Cu/Cu3P nanoarrays as the working electrode, a graphite plate as the counter electrode and Ag/AgCl as the reference electrode. In all measurements, the Ag/AgCl reference electrode was calibrated with respect to a reversible hydrogen electrode (RHE). Linear sweep voltammetry (LSV) measurements were conducted in 0.5 M H2SO4 with a scan rate of 2 mV s−1. All the potentials reported in our work were versus the RHE according to E vs. RHE = E vs. Ag/AgCl + Eθvs. Ag/AgCl + 0.059 pH. Impedance measurements were carried out with a frequency range from 0.1 Hz to 10 kHz at the open-circuit potentials.

4. Conclusions

In summary, we have successfully prepared Cu/Cu3P nanoarrays via a facile two-step synthetic strategy, including the hydrothermal synthesis of a Cu/CuO nanoarray precursor and a low-temperature phosphorization process in an Ar atmosphere. The as-prepared Cu/Cu3P nanoarrays, as electrocatalysts, display excellent catalytic performance and durability for electrochemical hydrogen generation. Specifically, the Cu/Cu3P nanoarray-270 exhibits a low onset overpotential (96 mV) and a small Tafel slope (131 mV dec−1). The excellent electrocatalytic efficiency of the Cu/Cu3P nanoarray catalyst for the HER can be attributed to its unique architecture. The nanoarray structure provides more active sites and contributes to the diffusion of the products. The Cu/Cu3P nanoarrays show good electrical conductivity, which is favorable to a faster transfer rate of electrons. This strategy provides an efficient technique that can be extended to other metal phosphides and metal-based nanostructures, thus creating a new opportunity in hydrogen production.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal12070762/s1, Figure S1: Characterization of the morphology and structure of samples: (a) SEM image of Cu nanosheet, (b) XRD patterns of Cu nanosheets, and (c) XRD patterns of Cu/CuO nanoarrays; Figure S2: The high-magnification SEM images of samples: (a,b) SEM image of Cu/CuO nanoarrays; Figure S3: The high-magnification SEM images of (a) CuO nanoplate, (b) Cu3P nanoplate; Figure S4: XPS survey spectrum of Cu /Cu3P nanoarrays; Figure S5: The SEM images and XRD patterns of samples at different phosphating time: (a,b) 1 h; (c,d) 1.5 h; Figure S6: The pure Cu nanosheet was directly phosphated and calcined: (a) SEM image; (b) XRD pattern; Table S1: Comparison of HER catalytic performance of Cu/Cu3P nanoarray-270 and other non-noble-metal electrocatalysts in acidic media.

Author Contributions

The manuscript was written with contributions from all authors. Conceptualization, R.D. and J.L.; methodology and investigation, R.D. and X.X.; data curation, M.X.; formal analysis, R.D. and X.X.; writing—original draft preparation, R.D.; writing—review and editing, R.D. and J.L.; visualization, M.X.; project administration, R.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Program No. 21905232) and Natural Science Basic Research Plan in Shaanxi Province of China (Program No. 2022JM-236).

Data Availability Statement

The data are available upon request from the corresponding author.

Acknowledgments

The authors thank G. Wang and H.Y. Gao (University of Science and Technology Beijing, Beijing 100083, China) and X.W. Zhang and M.Y. Han (Beijing Normal University, 100088, China) for their help.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, Y.; Li, W.; Lu, L.; Song, W. Tuning active sites on cobalt/nitrogen doped graphene for electrocatalytic hydrogen and oxygen evolution. Electrochim. Acta 2018, 265, 497–506. [Google Scholar] [CrossRef]
  2. Jebaslinhepzybai, B.T.; Prabu, N.; Sasidharan, M. Facile galvanic replacement method for porous nanoparticles as an efficient HER electrocatalyst. Int. J. Hydrog. Energy 2020, 45, 11127–11137. [Google Scholar] [CrossRef]
  3. Jiang, H.; Gu, J.; Zheng, X.; Liu, M.; Qiu, X.; Wang, L.; Li, W.; Chen, Z.; Ji, X.; Li, J. Defect-rich and ultrathin N doped carbon nanosheets as advanced trifunctional metal-free electrocatalysts for the ORR, OER and HER. Energy Environ. Sci. 2019, 12, 322–333. [Google Scholar] [CrossRef]
  4. Li, Y.; Liu, J.; Chen, C.; Zhang, X.; Chen, J. Preparation of NiCoP Hollow Quasi-Polyhedra and Their Electrocatalytic Properties for Hydrogen Evolution in Alkaline Solution. ACS Appl. Mater. Interfaces 2017, 9, 5982–5991. [Google Scholar] [CrossRef]
  5. Martini, B.K.; Maia, G. Using a combination of Co, Mo, and Pt oxides along with graphene nanoribbon and MoSe2 as efficient catalysts for OER and HER. Electrochim. Acta 2021, 391, 138907. [Google Scholar] [CrossRef]
  6. Yu, J.; Dai, Y.; He, Q.; Cheng, C.; Ni, M. Robust non-Pt noble metal-based nanomaterials for electrocatalytic hydrogen generation. Appl. Phys. Rev. 2020, 7, 041304. [Google Scholar] [CrossRef]
  7. El-Hallag, I.; Elsharkawy, S.; Hammad, S. The effect of electrodeposition potential on catalytic properties of Ni nanoparticles for hydrogen evolution reaction (HER) in alkaline media. J. Appl. Electrochem. 2022, 52, 907–918. [Google Scholar] [CrossRef]
  8. Li, Y.; Wang, H.; Xie, L.; Liang, Y.; Hong, G.; Dai, H. MoS2 Nanoparticles Grown on Graphene: An Advanced Catalyst for Hydrogen Evolution Reaction. J. Am. Chem. Soc. 2011, 133, 7296–7299. [Google Scholar] [CrossRef] [Green Version]
  9. Popczun, E.J.; Mckone, J.R.; Read, C.G.; Biacchi, A.J.; Wiltrout, A.M.; Lewis, N.S.; Schaak, R.E. Nanostructured nickel phosphide as an electrocatalyst for the hydrogen evolution reaction. J. Am. Chem. Soc. 2013, 135, 9267–9270. [Google Scholar] [CrossRef]
  10. Li, S.; Wang, Y.; Wang, H.; Zhang, Q.; Zhang, Z.; Liu, H. Correction to: Heterostructures of MXenes and CoNx-Graphene as highly active electrocatalysts for hydrogen evolution reaction in alkaline media. J. Appl. Electrochem. 2021, 51, 1109. [Google Scholar] [CrossRef]
  11. Pu, M.; Wang, D.; Zhang, Z.; Guo, Y.; Guo, W. Flexoelectricity enhanced water splitting and hydrogen evolution reaction on grain boundaries of monolayer transition metal dichalcogenides. Nano Res. 2022, 15, 978–984. [Google Scholar] [CrossRef]
  12. Pak, S.; Lim, J.; Hong, J.; Cha, S.N. Enhanced Hydrogen Evolution Reaction in Surface Functionalized MoS2 Monolayers. Catalysts 2021, 11, 70. [Google Scholar] [CrossRef]
  13. Yan, X.; Huang, S.; Yang, F.; Sun, S.; Li, Y. Enhanced Catalytic Hydrogen Evolution Reaction Performance of Highly Dispersed Ni2P Nanoparticles Supported by P-Doped Porous Carbon. Colloids Surf. A Physicochem. Eng. Asp. 2021, 616, 126308. [Google Scholar] [CrossRef]
  14. Kluge, R.M.; Haid, R.W.; Stephens, I.; Callevallejo, F.; Bandarenka, A.S. Monitoring the active sites for the hydrogen evolution reaction at model carbon surfaces. Phys. Chem. Chem. Phys. 2021, 23, 10051–10058. [Google Scholar] [CrossRef]
  15. Kita, H.; Shen, Y.; Gao, Y. Mass transfer effect in hydrogen evolution reaction on Pt single-crystal electrodes in acid solution. J. Electroanal. Chem. 1992, 334, 351–357. [Google Scholar] [CrossRef]
  16. Yang, B.; Xu, J.; Duan, B.; Wang, J.; Liu, B. Amorphous phosphatized ruthenium-iron bimetallic nanoclusters with Pt-like activity for hydrogen evolution reaction. Appl. Catal. B Environ. 2021, 283, 119583. [Google Scholar] [CrossRef]
  17. Lai, Y.; Zhang, Z.; Tan, Y.; Yu, L.; Wu, W.; Wang, Z.; Jiang, T.; Gao, S.; Cheng, N. Electronic modulation of Pt nanoclusters through tuning the interface of Pt-SnO2 clusters for enhanced hydrogen evolution catalysis. Chem. Eng. J. 2022, 435, 135102. [Google Scholar] [CrossRef]
  18. Chen, J.; Chen, C.; Chen, Y.; Wang, H.; Wang, Y. Improving alkaline hydrogen evolution reaction kinetics on molybdenum carbide: Introducing Ru dopant. J. Catal. 2020, 392, 313–321. [Google Scholar] [CrossRef]
  19. Cai, J.; Liao, X.; Li, P.; Wang, Q.; Huang, H.; Lyu, Z.; Lin, J.; Xie, S. Penta-Twinned Rh@Pt Core-Shell nanobranches with engineered shell thickness for reversible and active hydrogen redox electrocatalysis. Chem. Eng. J. 2022, 429, 132414. [Google Scholar] [CrossRef]
  20. Yang, Q.; Li, G.; Manna, K.; Fan, F.; Sun, Y. Topological Engineering of Pt-Group-Metal-Based Chiral Crystals toward High-Efficiency Hydrogen Evolution Catalysts. Adv. Mater. 2020, 32, 1908518. [Google Scholar] [CrossRef]
  21. Jy, A.; Dan, W.B.; Zhe, Z.B.; Wy, A.; Hs, A.; Yq, A.; Sw, B.; Yukc, D.; Yz, C. Facile synthesis of Nafion-supported Pt nanoparticles with ultra-low loading as a high-performance electrocatalyst for hydrogen evolution reaction. J. Colloid Interface Sci. 2020, 566, 505–512. [Google Scholar]
  22. Tiwari, J.N.; Dang, N.K.; Sultan, S.; Thangavel, P.; Jeong, H.Y.; Kim, K.S. Multi-heteroatom-doped carbon from waste-yeast biomass for sustained water splitting. Nat. Sustain. 2020, 3, 556–563. [Google Scholar] [CrossRef]
  23. Bae, S.Y.; Mahmood, J.; Jeon, I.Y.; Baek, J.B. Recent advances in ruthenium-based electrocatalysts for the hydrogen evolution reaction. Nanoscale Horiz. 2020, 5, 43–56. [Google Scholar] [CrossRef]
  24. Bonde, J.; Moses, P.G.; Jaramillo, T.F.; Nørskov, J.K.; Chorkendorff, I. Hydrogen evolution on nano-particulate transition metal sulfides. Faraday Discuss. 2008, 140, 219–231. [Google Scholar] [CrossRef]
  25. Reeve, R.W.; Christensen, P.A.; Dickinson, A.J.; Hamnett, A.; Scott, K. Methanol-tolerant oxygen reduction catalysts based on transition metal sulfides and their application to the study of methanol permeation. Electrochim. Acta 2000, 45, 4237–4250. [Google Scholar] [CrossRef]
  26. Ys, A.; Ch, B.; Js, A.; Yz, A.; Jn, C.; Yong, H.A. One-step construction of a transition-metal surface decorated with metal sulfide nanoparticles: A high-efficiency electrocatalyst for hydrogen generation. J. Colloid Interface Sci. 2020, 558, 1–8. [Google Scholar]
  27. Dolmatov, V.S.; Kuznetsov, S.A. Synthesis of Refractory Metal Carbides on Carbon Fibers in Molten Salts and Their Electrocatalytic Properties. J. Electrochem. Soc. 2021, 168, 122501. [Google Scholar] [CrossRef]
  28. Díaz-Coello, S.; Afonso, M.M.; Palenzuela, J.A.; Pastor, E.; García, G. Composite materials from transition metal carbides and ionic liquids as electrocatalyst for hydrogen evolution in alkaline media. J. Electroanal. Chem. 2021, 898, 115620. [Google Scholar] [CrossRef]
  29. Ihsanullah, I. MXenes (two-dimensional metal carbides) as emerging nanomaterials for water purification: Progress, challenges and prospects. Chem. Eng. J. 2020, 388, 124340. [Google Scholar] [CrossRef]
  30. Yu, F.; Zhang, X.; Yang, Z.; Yang, P.; Ma, J. Environmental applications of two-dimensional transition metal carbides and nitrides for water purification: A review. Environ. Chem. Lett. 2022, 20, 633–660. [Google Scholar] [CrossRef]
  31. Yan-Juan, L.I.; Wang, M.; Liu, S.; Gao, J.X.; Yan, X. Preparation and properties of transition metal nitrides caged in N-doped hollow porous carbon sphere for oxygen reduction reaction. Trans. Nonferrous Met. Soc. China 2021, 31, 1427–1438. [Google Scholar]
  32. Sun, H.; Yan, Z.; Liu, F.; Xu, W.; Cheng, F.; Chen, J. Self-Supported Transition-Metal-Based Electrocatalysts for Hydrogen and Oxygen Evolution. Adv. Mater. 2020, 32, 1806326.1–1806326.18. [Google Scholar] [CrossRef]
  33. Li, A.; Zhang, L.; Wang, F.; Li, L.; Chen, H.; Wei, Z. Rational design of porous Ni-Co-Fe ternary metal phosphides nanobricks as bifunctional electrocatalysts for efficient overall water splitting. Appl. Catal. B Environ. 2022, 310, 121353. [Google Scholar] [CrossRef]
  34. Han, P.; Li, B.; Dang, Y.; Zhou, Y. A Novel Trimetal Phosphide with Amorphous Porous Structure for the Enhanced Electrocatalysis of Oxygen Evolution Reaction. J. Electrochem. Soc. 2021, 168, 116510. [Google Scholar]
  35. Wy, A.; Yg, A.; Zhi, C.A.; Ying, Z.A.; Zw, A.; Lei, W. Strategies on improving the electrocatalytic hydrogen evolution performances of metal phosphides. Chin. J. Catal. 2021, 42, 1876–1902. [Google Scholar]
  36. Liu, L.; Li, N.; Han, J.; Yao, K.; Liang, H. Multicomponent transition metal phosphide for oxygen evolution. Int. J. Miner. Metall. Mater. 2022, 29, 503–512. [Google Scholar] [CrossRef]
  37. Jian, L.; Gao, X.; Liu, B.; Feng, Q.; Li, X.B.; Huang, M.Y.; Liu, Z.; Zhang, J.; Tung, C.H.; Wu, L.Z. Graphdiyne: A Metal-Free Material as Hole Transfer Layer to Fabricate Quantum Dot-Sensitized Photocathodes for Hydrogen Production. J. Am. Chem. Soc. 2016, 138, 3954. [Google Scholar]
  38. Cao, R.; Hu, F.; Zhang, T.; Shao, W.; Jian, X. Bottom-up fabrication of triazine-based frameworks as metal-free materials for supercapacitors and oxygen reduction reaction. RSC Adv. 2021, 11, 8384–8393. [Google Scholar] [CrossRef]
  39. Wei, S.; Qi, K.; Jin, Z.; Cao, J.; Zheng, W.; Chen, H.; Cui, X. One-Step Synthesis of a Self-Supported Copper Phosphide Nanobush for Overall Water Splitting. ACS Omega 2016, 1, 1367–1373. [Google Scholar] [CrossRef]
  40. Ping, L.; Rodriguez, J.A. Catalysts for hydrogen evolution from the [NiFe] hydrogenase to the Ni2P (001) surface: The importance of ensemble effect. J. Am. Chem. Soc. 2005, 127, 14871–14878. [Google Scholar]
  41. Zhang, W.; Hong, J.; Zheng, J.; Huang, Z.; Zhou, J.; Xu, R. Nickel-thiolate complex catalyst assembled in one step in water for solar H2 production. J. Am. Chem. Soc. 2011, 133, 20680–20683. [Google Scholar] [CrossRef]
  42. Li, Q.; Xing, Z.; Asiri, A.M.; Ping, J.; Sun, X. Cobalt phosphide nanoparticles film growth on carbon cloth: A high-performance cathode for electrochemical hydrogen evolution. Int. J. Hydrog. Energy 2014, 39, 16806–16811. [Google Scholar] [CrossRef]
  43. Cao, S.; Yong, C.; Wang, C.J.; He, P.; Fu, W.F. Highly efficient photocatalytic hydrogen evolution by nickel phosphide nanoparticles from aqueous solution. Chem. Commun. 2014, 50, 10427–10429. [Google Scholar] [CrossRef]
  44. Mcenaney, J.M.; Crompton, J.C.; Callejas, J.F.; Popczun, E.J.; Biacchi, A.J.; Lewis, N.S.; Schaak, R.E. Amorphous Molybdenum Phosphide Nanoparticles for Electrocatalytic Hydrogen Evolution. Chem. Mater. 2014, 26, 4826–4831. [Google Scholar] [CrossRef] [Green Version]
  45. Wu, Y.; Li, Y.; Yuan, M.; Zhe, L.; Wei, B. Direct growth of Ni–Fe phosphides nanohybrids on NiFe foam for highly efficient water oxidation. J. Alloys Compd. 2020, 847, 156363. [Google Scholar] [CrossRef]
  46. You, B.; Jiang, N.; Sheng, M.; Bhushan, M.W.; Sun, Y. Hierarchically Porous Urchin-Like Ni2P Superstructures Supported on Nickel Foam as Efficient Bifunctional Electrocatalysts for Overall Water Splitting. ACS Catal. 2016, 6, 714–721. [Google Scholar] [CrossRef]
  47. Gao, X.; Lu, K.; Chen, J.; Min, J.; Tan, M. NiCoP–CoP heterostructural nanowires grown on hierarchical Ni foam as a novel electrocatalyst for efficient hydrogen evolution reaction. Int. J. Hydrog. Energy 2021, 46, 23205–23213. [Google Scholar] [CrossRef]
  48. Yang, Z.; Tuo, Y.; Lu, Q.; Chen, C.; Liu, M.; Liu, B.; Duan, X.; Zhou, Y.; Zhang, J. Hierarchical Cu3P-based nanoarrays on nickel foam as efficient electrocatalysts for overall water splitting. Green Energy Environ. 2020, 2, 236–245. [Google Scholar] [CrossRef]
  49. Hou, C.C.; Chen, Q.Q.; Wang, C.J.; Liang, F.; Lin, Z.; Fu, W.F.; Chen, Y. Self-Supported Cedarlike Semimetallic Cu3P Nanoarrays as a 3D High-Performance Janus Electrode for Both Oxygen and Hydrogen Evolution under Basic Conditions. ACS Appl. Mater. Interfaces 2016, 8, 23037–23048. [Google Scholar] [CrossRef]
  50. Shiri, P. An overview on the copper-promoted synthesis of five-membered heterocyclic systems. Appl. Organomet. Chem. 2020, 34, 5600–5622. [Google Scholar] [CrossRef]
  51. Zheng, H.; Huang, X.; Gao, H.; Lu, G.; Dong, W.; Wang, G. Cu@Cu3P core-shell nanowires attached on Ni foam as high-performance electrocatalyst for hydrogen evolution reaction. Chemistry 2018, 25, 1083–1089. [Google Scholar] [PubMed]
  52. Fedorov, A.; Saraev, A.; Kremneva, A.; Selivanova, A.; Vorokhta, M.; Šmíd, B.; Bulavchenko, O.; Yakovlev, V.; Kaichev, V. Kinetic and mechanistic study of CO oxidation over nanocomposite CuFeAl oxide catalysts. ChemCatChem 2020, 19, 4911–4921. [Google Scholar] [CrossRef]
  53. Rong, J.; Xu, J.; Qiu, F.; Zhu, Y.; Fang, Y.; Xu, J.; Zhang, T. Sea Urchin-Like MOF-Derived Formation of Porous Cu3P@C as an Efficient and Stable Electrocatalyst for Oxygen Evolution and Hydrogen Evolution Reactions. Adv. Mater. Interfaces 2019, 6, 1900502. [Google Scholar] [CrossRef]
  54. Zhou, X.; Zhou, X.; Liu, L.; Chen, H.; Hu, X.; Qian, J.; Huang, D.; Zhang, B.; Tang, J. Self-supported Cu3P nanowire electrode as an efficient electrocatalyst for the oxygen evolution reaction. RSC Adv. 2021, 11, 34137–34143. [Google Scholar] [CrossRef] [PubMed]
  55. Kou, Y.; Wang, K.; Wumaer, M.; Guo, C.; Tian, B.; Zhang, L.; Akram, N.; Wang, J. Synthesis of hollow Cu@Cu3-xP core-shell nanostructure as dual-functional catalyst with copper vacancy for enhancing chemical reduction and photocatalytic performance. Appl. Surf. Sci. 2022, 589, 153031. [Google Scholar] [CrossRef]
  56. Ma, L.; Shen, X.; Zhou, H.; Zhu, J.; Xi, C.; Ji, Z.; Kong, L. Synthesis of Cu3P nanocubes and their excellent electrocatalytic efficiency for the hydrogen evolution reaction in acidic solution. RSC Adv. 2016, 6, 9672–9677. [Google Scholar] [CrossRef]
  57. Tian, J.; Liu, Q.; Cheng, N.; Asiri, A.M.; Sun, X. Self-supported Cu3P nanowire arrays as an integrated high-performance three-dimensional cathode for generating hydrogen from water. Angew. Chem. 2015, 126, 9731–9735. [Google Scholar] [CrossRef]
  58. Tian, T.; Ai, L.; Jiang, J. Metal–organic framework-derived nickel phosphides as efficient electrocatalysts toward sustainable hydrogen generation from water splitting. RSC Adv. 2015, 5, 10290–10295. [Google Scholar] [CrossRef]
  59. Xu, Y.; Wu, R.; Zhang, J.; Shi, Y.; Zhang, B. Anion-exchange synthesis of nanoporous FeP nanosheets as electrocatalysts for hydrogen evolution reaction. Chem. Commun. 2013, 49, 6656–6658. [Google Scholar] [CrossRef]
  60. Dang, R.; Song, L.L.; Dong, W.J.; Li, C.R.; Zhang, X.B. Synthesis and self-assembly of large-area Cu nanosheets and their application as an aqueous conductive ink on flexible electronics. ACS Appl. Mater. Interfaces 2014, 6, 622–629. [Google Scholar] [CrossRef]
Catalysts 12 00762 g001 550

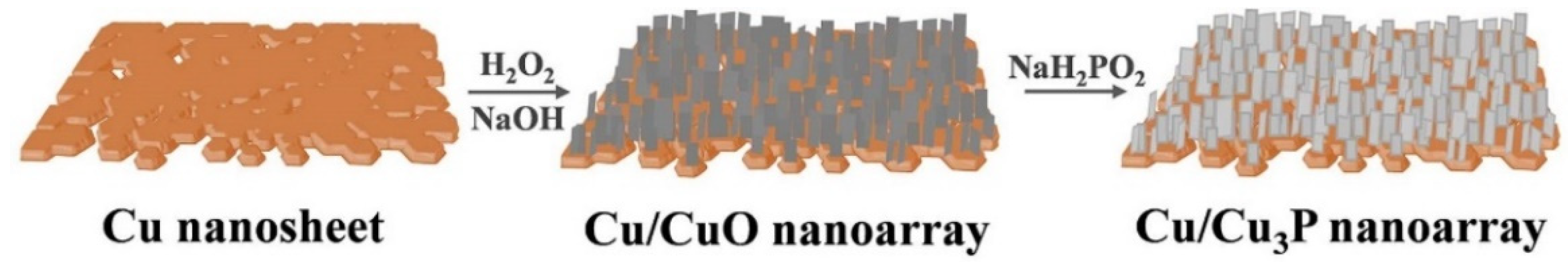

Figure 1. Illustration of the preparation of Cu/Cu3P nanoarrays.
Figure 1. Illustration of the preparation of Cu/Cu3P nanoarrays.
Catalysts 12 00762 g001
Catalysts 12 00762 g002 550

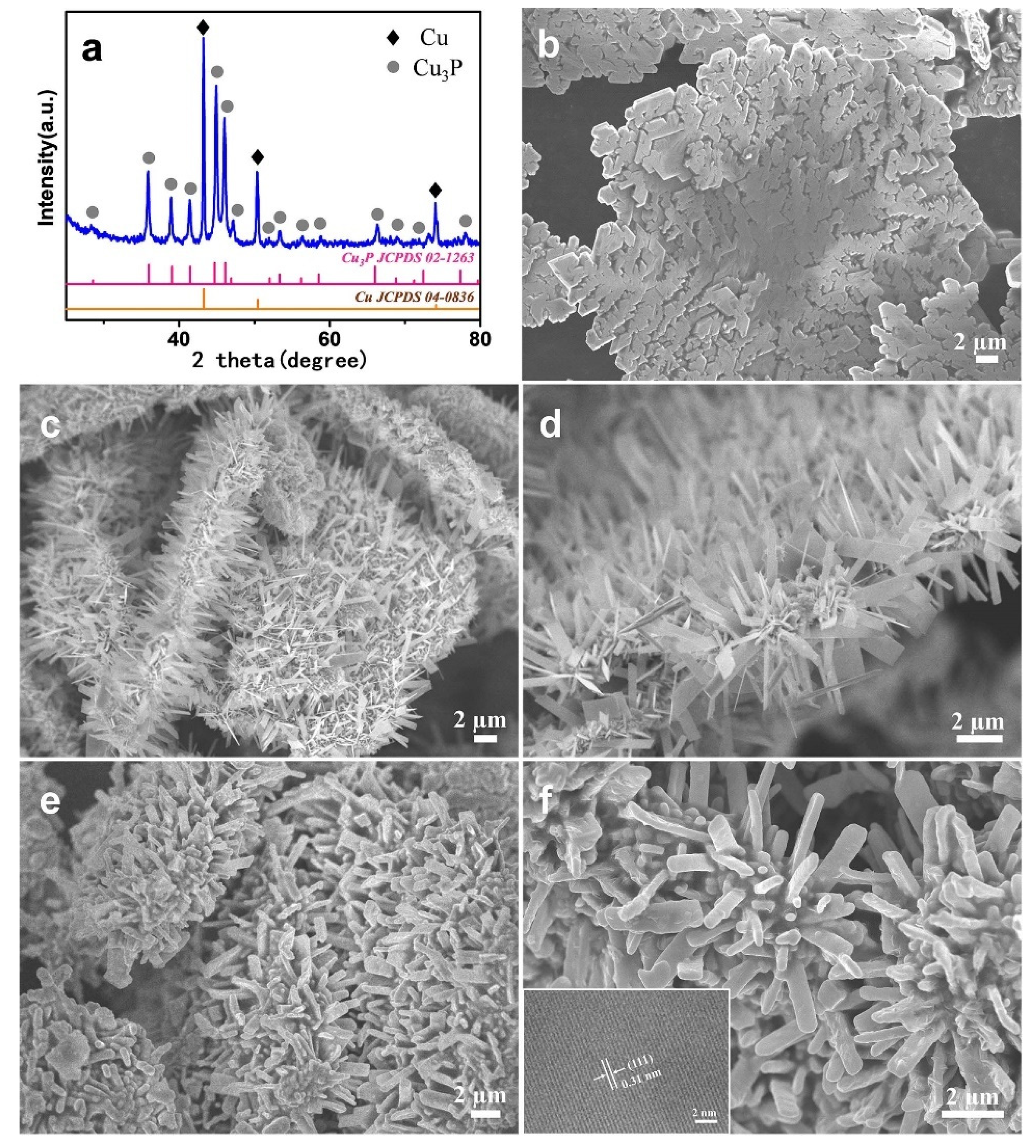

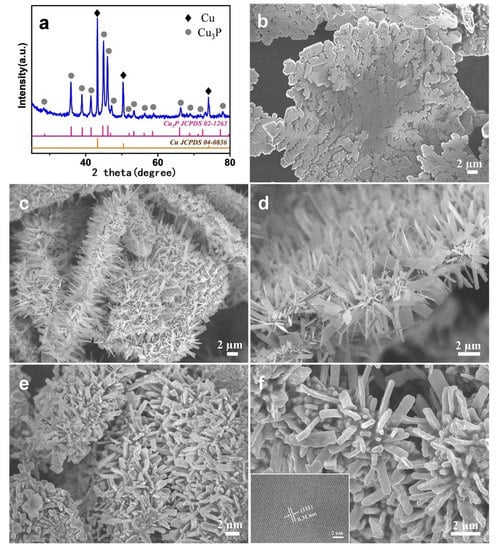

Figure 2. Characterization of the morphology and structure of sample: (a) XRD pattern of Cu/Cu3P nanoarrays. (b) SEM image of Cu nanosheets. (c,d) SEM images of Cu/CuO nanoarrays. (e,f) SEM images of Cu/Cu3P nanoarrays; inset shows the HRTEM of Cu3P.
Figure 2. Characterization of the morphology and structure of sample: (a) XRD pattern of Cu/Cu3P nanoarrays. (b) SEM image of Cu nanosheets. (c,d) SEM images of Cu/CuO nanoarrays. (e,f) SEM images of Cu/Cu3P nanoarrays; inset shows the HRTEM of Cu3P.
Catalysts 12 00762 g002
Catalysts 12 00762 g003 550

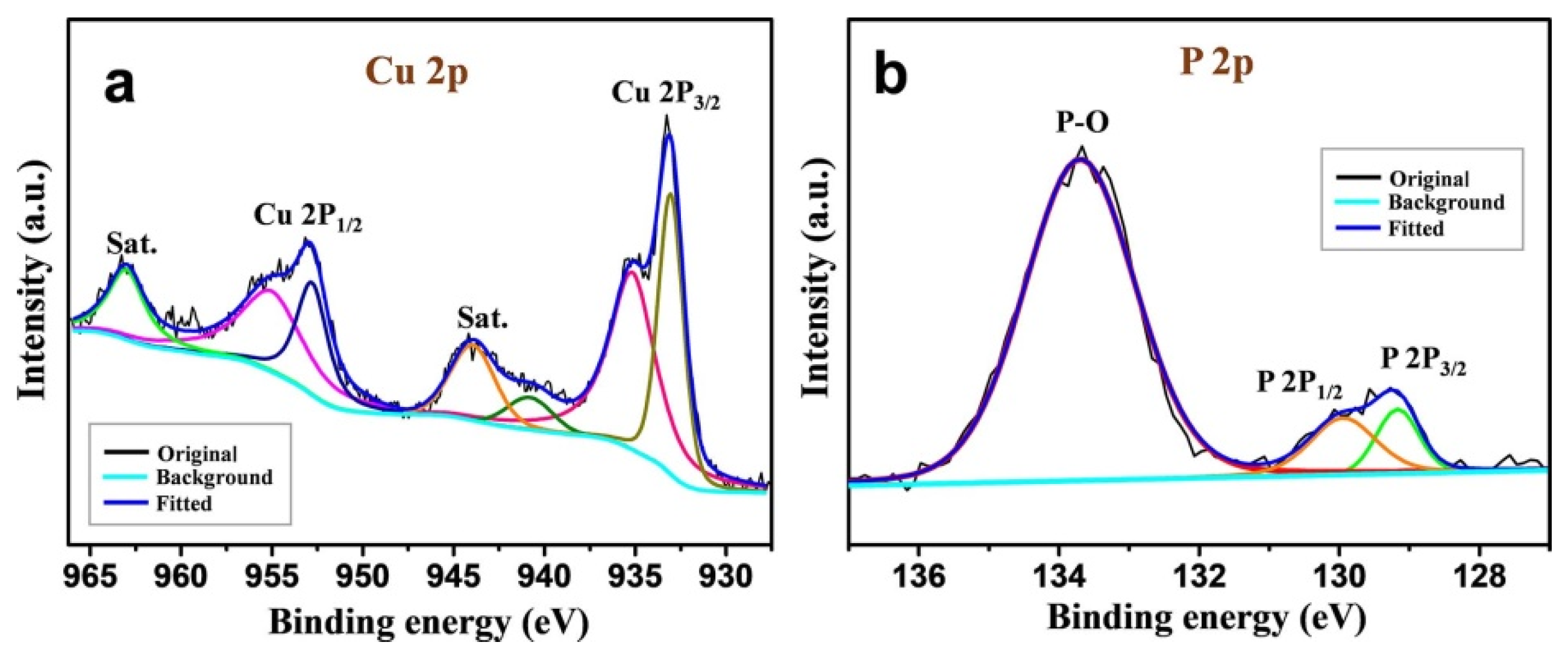

Figure 3. Cu 2p (a) and P 2p (b) core-level spectra of Cu/Cu3P nanoarrays.
Figure 3. Cu 2p (a) and P 2p (b) core-level spectra of Cu/Cu3P nanoarrays.
Catalysts 12 00762 g003
Catalysts 12 00762 g004 550

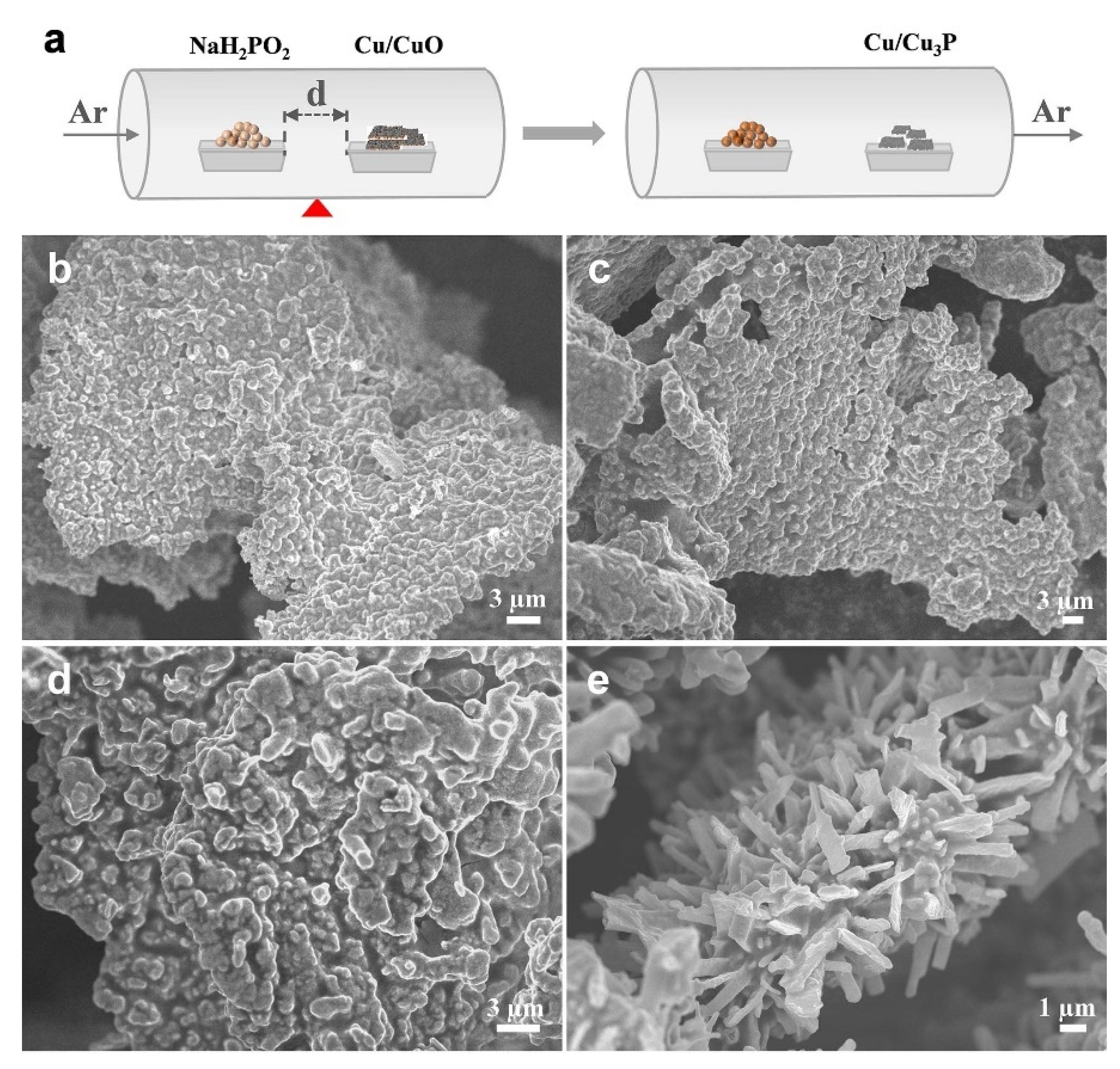

Figure 4. (a) Schematic of the preparation process of the Cu3P nanoarrays via the phosphorization of Cu/CuO. (b–e) SEM images of products at different distances between Cu/CuO and NaH2PO2: (b) d = 0 cm, (c) d = 5 cm, (d) d = 16 cm and (e) d = 24 cm.
Figure 4. (a) Schematic of the preparation process of the Cu3P nanoarrays via the phosphorization of Cu/CuO. (b–e) SEM images of products at different distances between Cu/CuO and NaH2PO2: (b) d = 0 cm, (c) d = 5 cm, (d) d = 16 cm and (e) d = 24 cm.
Catalysts 12 00762 g004
Catalysts 12 00762 g005 550

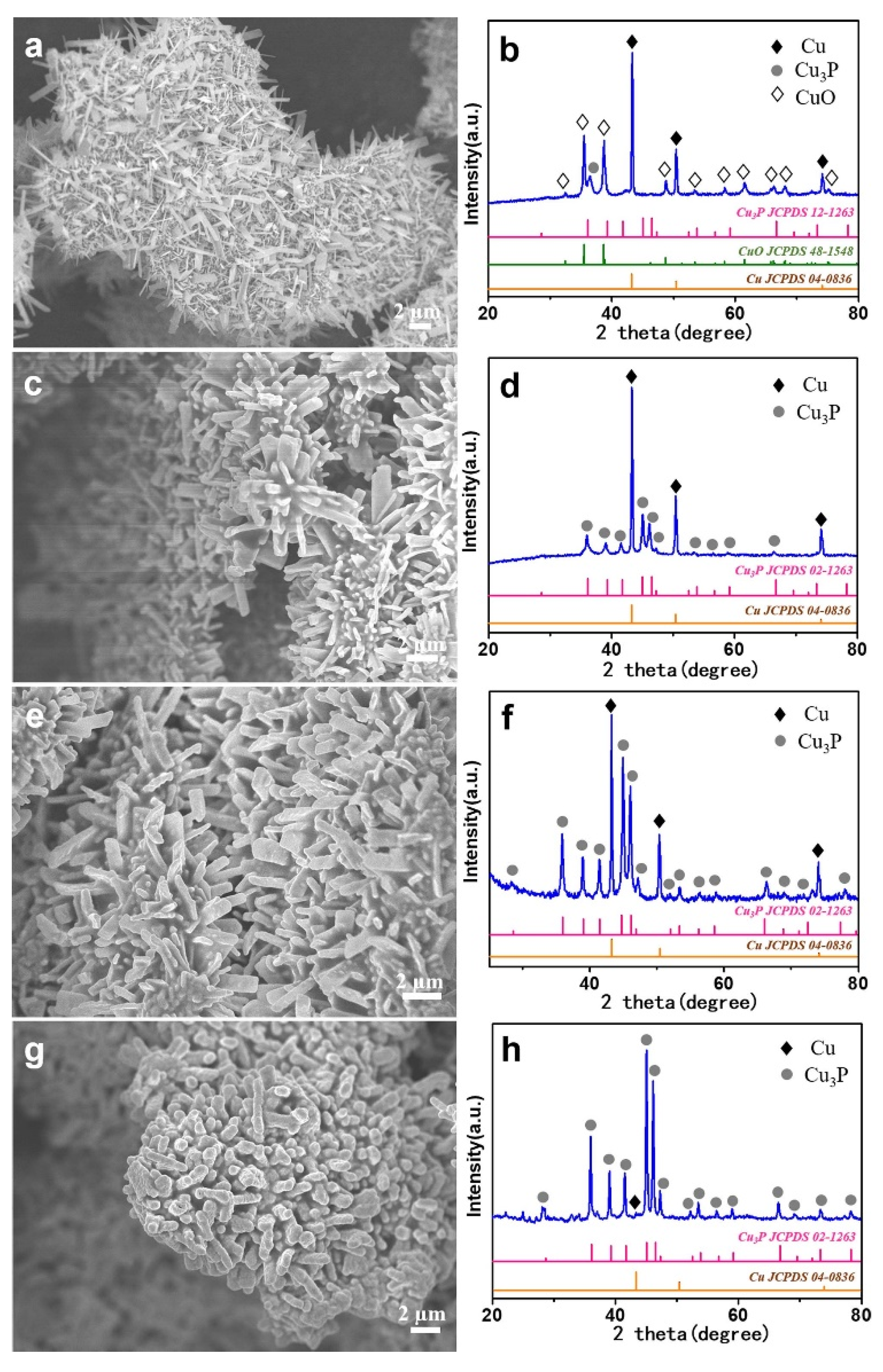

Figure 5. SEM images and XRD patterns of products at different mass ratios of NaH2PO2/CuO: (a,b) 1, (c,d) 2, (e,f) 2.5, (g,h) 3.
Figure 5. SEM images and XRD patterns of products at different mass ratios of NaH2PO2/CuO: (a,b) 1, (c,d) 2, (e,f) 2.5, (g,h) 3.
Catalysts 12 00762 g005
Catalysts 12 00762 g006 550

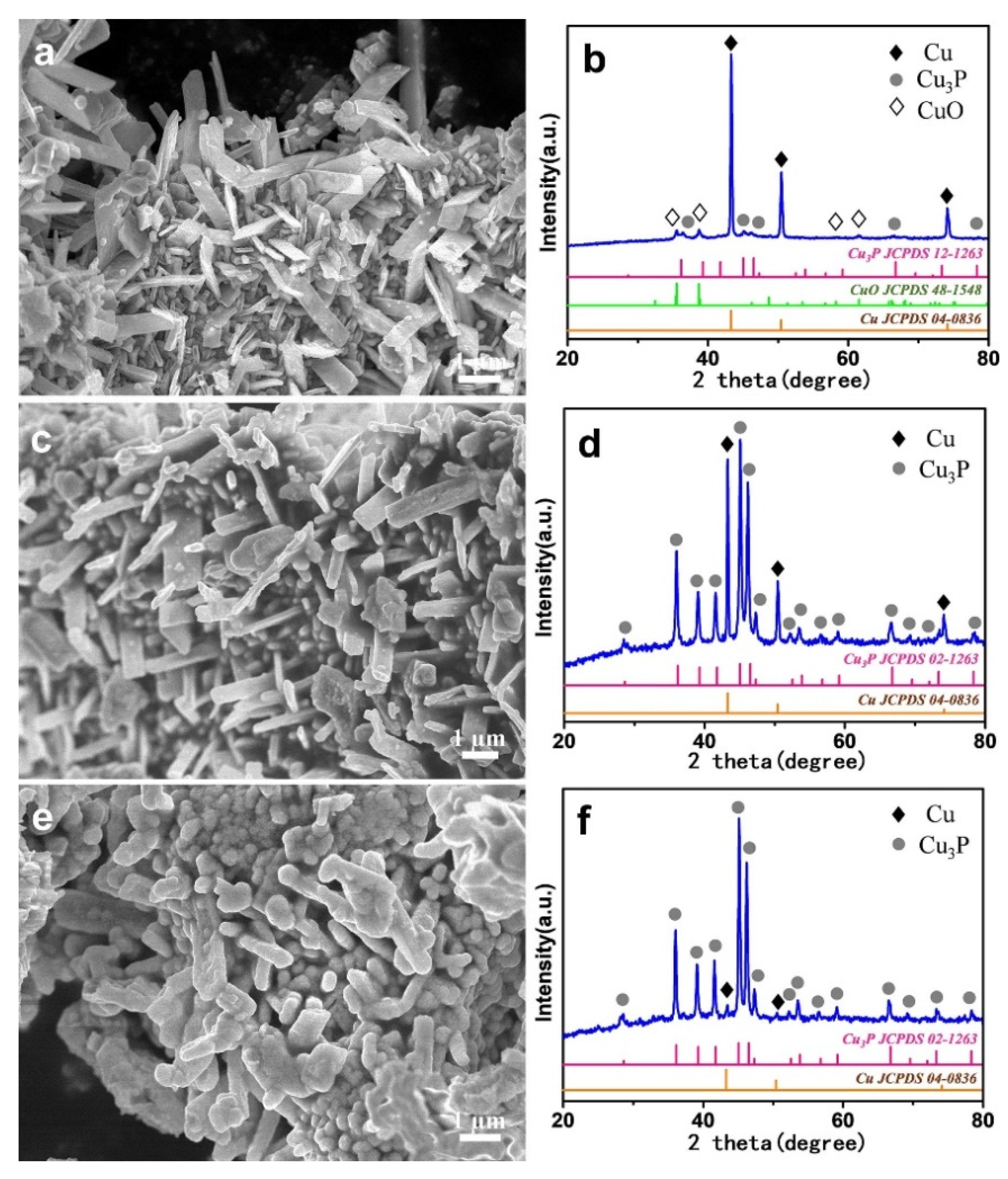

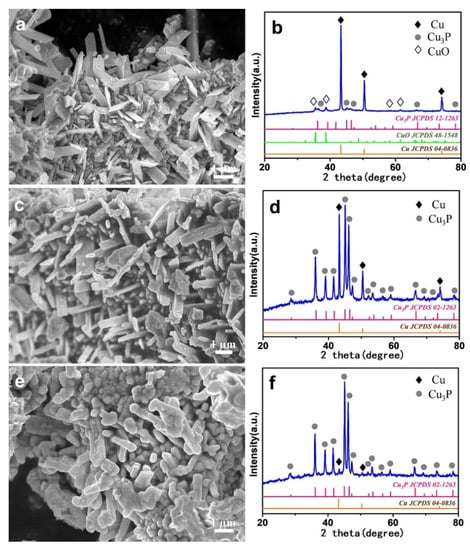

Figure 6. SEM images and XRD patterns of products at different phosphating temperatures: (a,b) 260 °C, (c,d) 290 °C, (e,f) 310 °C.
