Oxidative Coupling of Methane over Pt/Al₂O₃ at High Temperature: Multiscale Modeling of the Catalytic Monolith

Abstract

At high temperatures, the oxidative coupling of methane (OCM) is an attractive approach for catalytic conversion of methane into value-added chemicals. Experiments with a Pt/Al₂O₃-coated catalytic honeycomb monolith were conducted with varying CH₄/O₂ ratios, N₂ dilution at atmospheric pressure, and very short contact times. The reactor was modeled by a multiscale approach using a parabolic two-dimensional flow field description in the monolithic channels coupled with a heat balance of the monolithic structure, and multistep surface reaction mechanisms as well as elementary-step, gas phase reaction mechanisms. The contribution of heterogeneous and homogeneous reactions, both of which are important for the optimization of C₂ products, is investigated using a combination of experimental and computational methods. The oxidation of methane, which takes place over the platinum catalyst, causes the adiabatic temperature increase required for the generation of CH₃ radicals in the gas phase, which are essential for the formation of C₂ species. Lower CH₄/O₂ ratios result in higher C₂ selectivity. However, the presence of OH radicals at high temperatures facilitates subsequent conversion of C₂H₂ at a CH₄/O₂ ratio of 1.4. Thereby, C₂ species selectivity of 7% was achieved at CH₄/O₂ ratio of 1.6, with 35% N₂ dilution.

1. Introduction

Methane, the main component of natural gas, is burnt for heating purposes but is also an important chemical feedstock for the production of syngas by steam reforming, dry reforming, and partial oxidation [1]. Furthermore, direct conversion of methane into methanol and higher hydrocarbons under oxidative conditions is studied as well [2].

Oxidative coupling of methane (OCM) was first introduced in 1982 by Keller and Bhasin [3] for the production of C₂ products—namely, C₂H₄ and C₂H₆—in the presence of metal catalysts at atmospheric pressure and temperatures in the range of 700–1300 K. The main challenge of the process is the achievement of high C₂ product selectivity at high methane conversion. Since OCM product yields depend considerably on the catalyst used, various researchers have worked with different catalyst formulations in order to maximize yield of C₂ species. Most of the catalysts investigated for OCM are oxides of pure or modified transition metals [4], IA or IIA group elements [5], Mn/Na₂WO₄/SiO₂ catalysts [6], or Li/MgO catalysts [7] in the temperature range 1000–1100 K. Other well-known catalysts for OCM are La-doped catalysts such as LaAlO₃ [8], La₂O₃/CeO₂ [9], and Sr/La₂O₃ [10]. However, no particular catalyst has yet met the criteria for a commercial realization of the process.

Alumina has been widely used as a support material in industrial catalysis applications due to its advantageous surface and bulk properties and its ability to promote high metal catalyst stability [11,12]. For instance, Pt/Al₂O₃ catalysts have been investigated for catalytic partial oxidation of methane for the formation of CO and H₂ at temperatures above 1273 K [13]. In this context, unsaturated alumina atoms are considered to play an important role in stabilizing Pt atoms and maintain a high Pt dispersion in Pt/Al₂O₃ catalysts [11,12]. Hohn et al. [14] reported for the first time the functionality of Pt/Al₂O₃ catalysts in OCM at a very high temperature of about 1600 K for short contact times of 20 ms. Thereby, by using a Pt-coated monolith at low CH₄/O₂ ratios, high space velocities, and low N₂ dilution, a selectivity of about 20% of C₂ products was achieved. The Pt catalyst was primarily used for the activation of methane via total oxidation at the position near the entrance of the monolithic structure, leading to a rise in the temperature, which is high enough for coupling products to form downstream.

The mechanism of OCM is not yet well understood. Both surface reactions as well as reactions between gaseous species seem to be a prerequisite for achieving significant yields of C₂ products. Methane likely interacts with the available oxygen species both in the gas phase and over the catalytic surface [15]. The C–H bond is activated by the oxygen species on the catalyst surface, forming CH₃ radicals desorbing into the gas phase [9,10,15,16,17]. The combination of CH₃ radicals results in ethane formation in the gas phase and its further dehydrogenation leads to formation of ethylene. The limited yields of desired C₂ products is due to consecutive oxidation of C₂ products to CO and CO₂ aside from the thermodynamically favored path to syngas [18].

Quiceno et al. [19] studied the partial oxidation of methane over a Pt wire gauze at very short contact times to form CO and H₂, along with the formation of C₂ species in the gas phase at elevated pressures. By exploiting molecular beam spectroscopy for their in situ study on Pt catalysts, Geske et al. [20] also observed C₂ products, above 1350 K. Furthermore, a rise in CH₄ conversion along with C₂ products formation was ascertained at a CH₄/O₂ ratio of 0.6, and a maximum selectivity of C₂H₂ of about 17% was observed at approximately 1600 K along with traces of benzene and coke. C₂ products formed were attributed to the CH₃ radicals formed in the gas phase at high temperatures above 1400 K among CH₃, CH₂, and CH radicals. In that way, CH₂ and CH radicals were excluded for being the source of C₂H₂ formed.

In the present work, a Pt/Al₂O₃-coated catalytic monolith is used for OCM at short contact times and high temperatures. The objective of this study is a better understanding of the role of catalytic and homogeneous gas phase reactions on the formation of C₂ hydrocarbons by using multiscale numerical simulations.

2. Results and Discussion

2.1. Simulation Study of Literature Experimental Results

Lunsford et al. [16] reported that gas-phase reactions predominate over the heterogeneous reactions under oxidative coupling conditions at higher temperatures and facilitate the formation of coupling products. In order to investigate the role of the surface and gas-phase chemistry under oxidative coupling over Pt, simulation studies of experiments were conducted by a two-dimensional flow field description of a single channel of the catalytic monolith using DETCHEM^CHANNEL [21,22]. The operating conditions were taken from the pioneering work of Hohn et al. [14]. A detailed gas phase reaction mechanism, PolyMech [23], and/or a multistep surface reaction mechanism, Kahle-Deutschmann [24], were utilized for the numerical simulations.

The simulations were conducted under isothermal conditions, with CH₄/O₂ ratios in the range of 1.4–2.4, at the corresponding, experimentally observed temperature of 1673–1763 K. Two-dimensional numerical simulations were first conducted along the monolithic structure with the total length of 0.01 m.

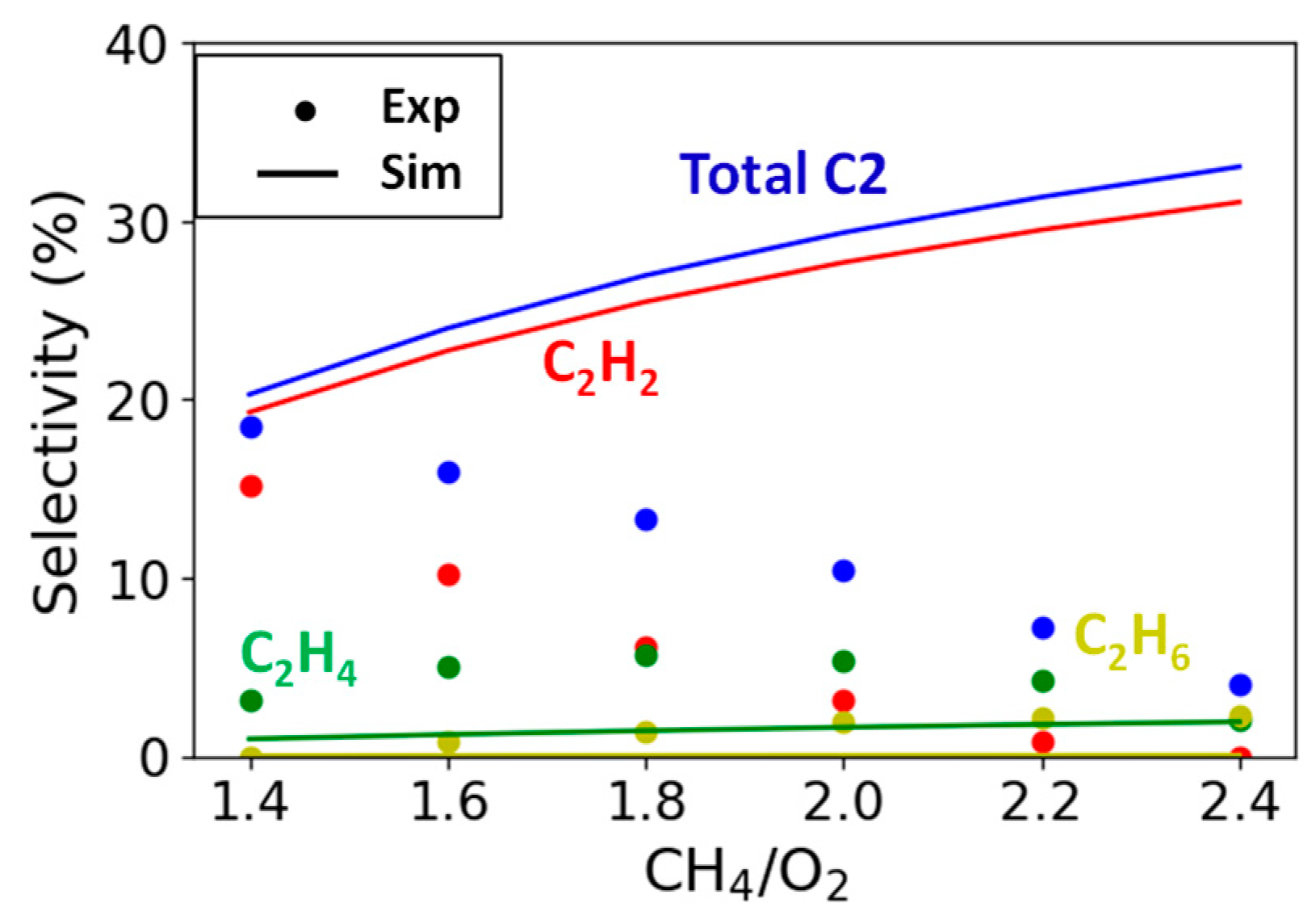

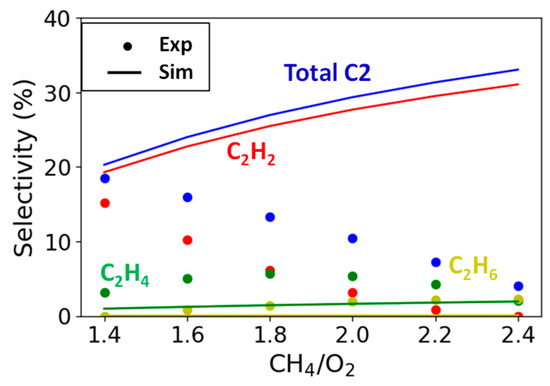

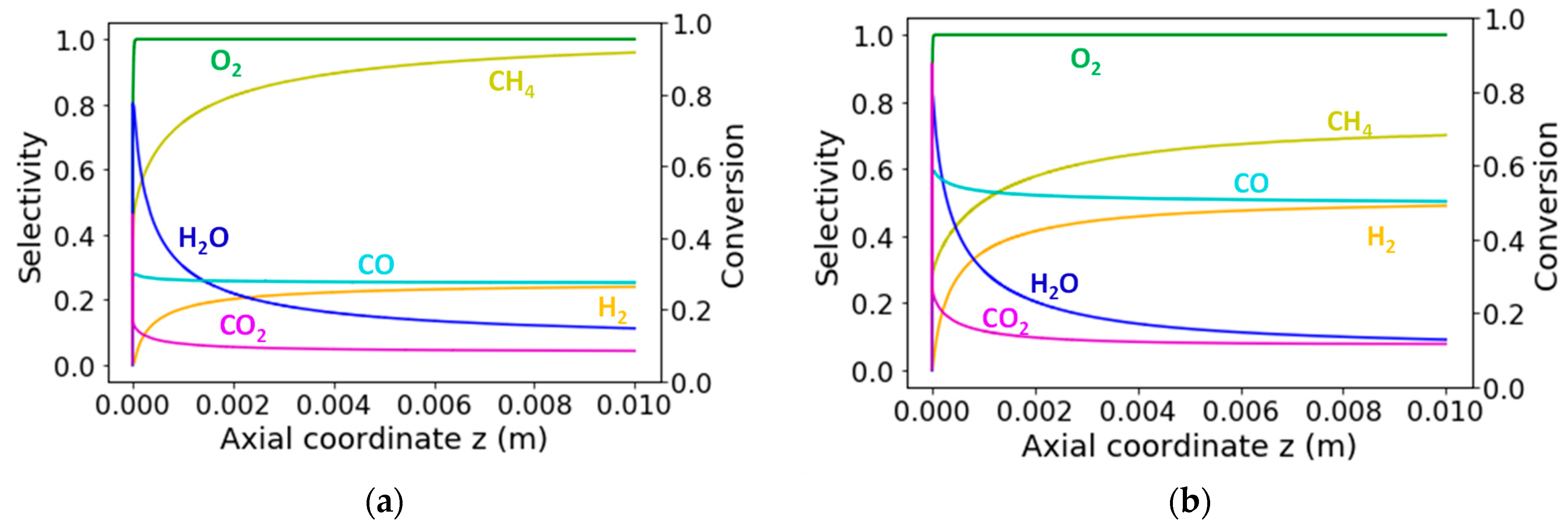

As shown in Figure 1, the simulation using homogeneous reactions only predict C₂H₂ as the major C₂ product and a steady rise in the C₂ selectivity with increasing CH₄/O₂ ratios. In contrast with numerically predicted results, the experimentally measured selectivity of C₂ products describe an opposite trend, and a gradual decline in C₂ selectivity with the rise in CH₄/O₂ ratios is obtained. Thus, it seems very unlikely that only homogeneous chemistry is taking place.

In case of considering the surface kinetics only over the length of the catalyst, the simulations predict that CO₂, H₂O, CO, and H₂ are formed as a combination of first total oxidation and partial oxidation downstream where all the oxygen is already gone. The selectivity and conversion of the gas phase species along the monolith for CH₄/O₂ ratios of 1.4 and 2.4 are shown in Figure 2.

The simulations considering only the surface reactions cannot predict the formation of C₂ products, since no coupling reactions are included in the surface mechanism.

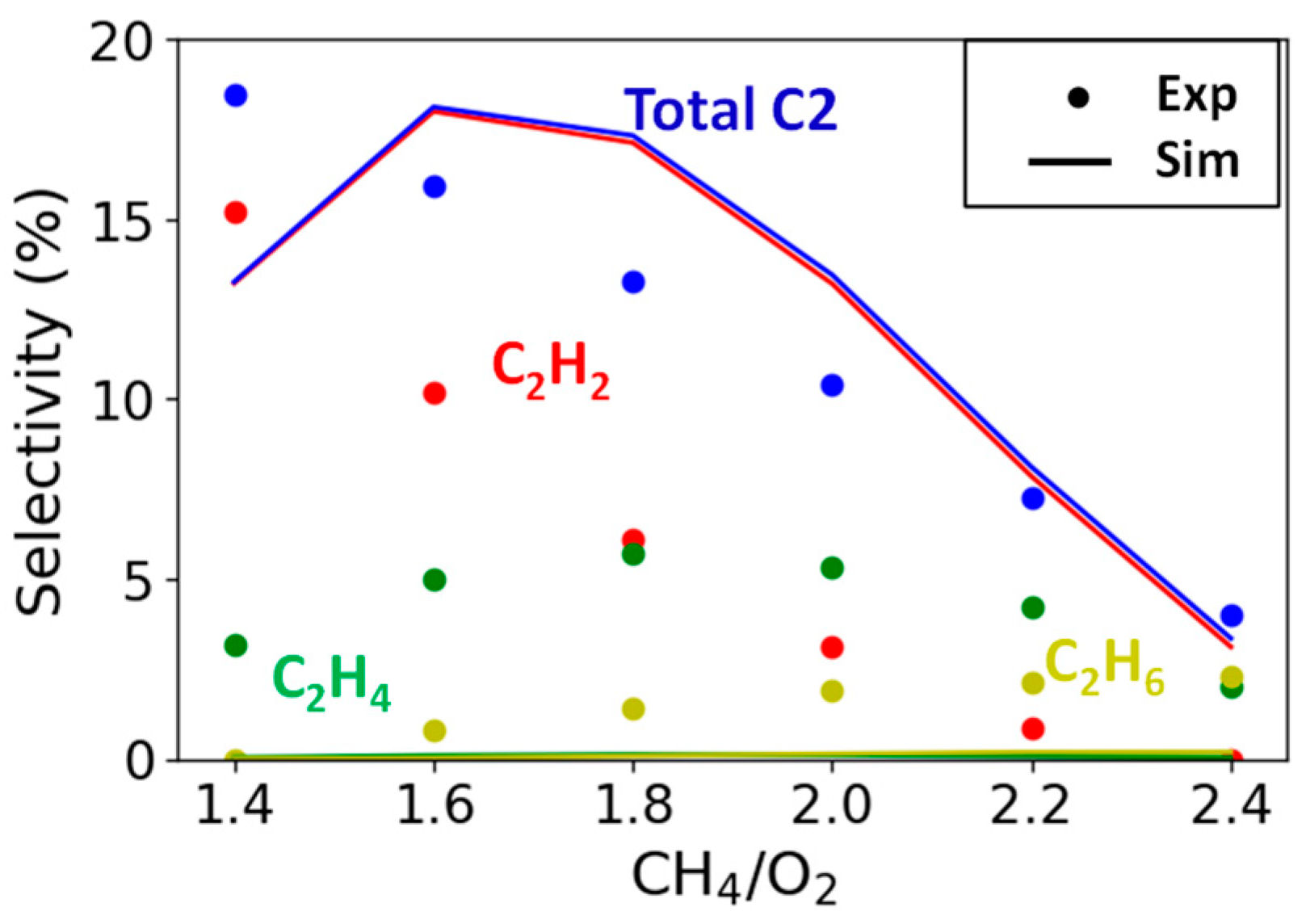

Next, we assume that the reaction zone can be divided in two broad zones for further simulations. In the first zone at the front face of the catalyst channel, heterogeneous surface chemistry leads to total oxidation (CO₂, H₂O) and partial oxidation (CO, H₂) products. Initially, a high selectivity of CO₂ and H₂O is observed at the entrance of the catalytic zone with significant O₂ conversion, followed by formation of partial oxidation products along with a rise in CH₄ conversion. At experimental conditions chosen by Hohn et al. [14], this zone is an extremely small area of ca. 0.002 m, where oxygen is available for the oxidation of methane. Since most of the methane is converted over the surface sites, only a small part leads to formation of coupling products in the gas phase in the second zone.

In the second zone, as the oxygen is almost fully consumed, gas phase chemistry becomes significant. At experimental conditions adopted by Hohn et al. [14], at varying CH₄/O₂ ratios, oxygen is fully consumed within the first few millimeters of the catalyst. Further downstream lies the second reaction zone where the gas phase chemistry takes place and ultimately results in the formation of coupling products.

Hence, simulations over the complete length of the catalyst (0.01 m) were conducted at different CH₄/O₂ ratios, with both surface reactions and gas phase reactions, at adiabatic conditions with an inlet reactor temperature of 773 K. For the first 0.002 m of the catalyst (zone 1), only the surface kinetic model was considered and, subsequently, only the gas phase kinetic model was used to simulate the remaining 0.008 m length of the catalyst monolith (zone 2). The simulation results according to this configuration are shown in Figure 3. It is observed that the kinetic simulation follows the experimentally observed trend, where the selectivity of C₂s is reduced with increasing CH₄/O₂ ratios. The experimental data suggest C₂H₂ as the major product at CH₄/O₂ ratios < 2, while C₂H₄ is seen as the major product at CH₄/O₂ ratios ≥ 2. However, there are deviations in the product distribution predicted by the model, C₂H₂ has been predicted as the major C₂ product at all variable CH₄/O₂ ratio conditions. Therefore, further experimental and modeling studies were conducted as a part of this research to understand the underlying rationale.

2.2. Simulation Studies with Novel Inhouse Experimental Results

It is also noteworthy that the residence time during the Hohn et al. [14] experiment is of a few milliseconds due to the small channel diameter and the high volumetric flow rate (

Table 1. Experimental parameters used for the validation of the kinetic model.

Catalyst	2–3% Pt/Al2O3 1	2–3% Pt/Al2O3 1	1% Pt/Al2O3 2	1% Pt/Al2O3 2	1% Pt/Al2O3 2
Inlet temperature (K)	773	773	773	773	773
Monolith length (m)	0.01	0.01	0.01	0.01	0.01
Monolith diameter (m)	0.018	0.018	0.01	0.01	0.01
Channel diameter (m)	2.3 × 10−4	2.3 × 10−4	6.3 × 10−4	6.3 × 10−4	6.3 × 10−4
Flow rate (slpm)	7.5	7.5	5	5–9	6
Velocity (m/s) (at Tinlet 773 K)	2.4	2.4	3.6	3.6–6.5	4.3
GHSV (×105 h−1)	1.8	1.8	3.7	2.9–7.1	4.5
Residence time (ms)	20	20	10	4–10	8
CH4/O2 ratio	1.7	1.4–2.4	2.0	2.0	1.8–2.4
N2 dilution (%)	20	20	35–80	35	35
Reference	[12]	[12]	this work	this work	this work

¹ 2–3% Pt loading on the alumina foam substrate; ² 1% Pt loading on the Al₂O₃ support wash-coated onto the honeycomb monolith.

). However, at higher space velocities, the length of the first zone is expected to become longer and the second zone with the homogeneous gas phase chemistry is expected to be relatively shifted along the reactor length or even downstream of the monolith, in the empty reactor tube, where the temperature is still very high.

The two-zone kinetic model proposed above was further evaluated against additional experiments conducted as part of this study with a 1% Pt/Al₂O₃ catalyst. Simulations were conducted over the maximum length of 0.4 m including not only the monolith, but also the empty reactor tube downstream. DETCHEM^MONOLITH [21] was used to model the 0.01 m catalyst and DETCHEM^CHANNEL [,21,22] was employed to model the 0.39 m quartz glass tubular reactor downstream of the monolith. Certain experimental parameters were varied over the range of conditions to investigate the optimization of C₂s selectivity.

2.2.1. Study of N₂ Dilution

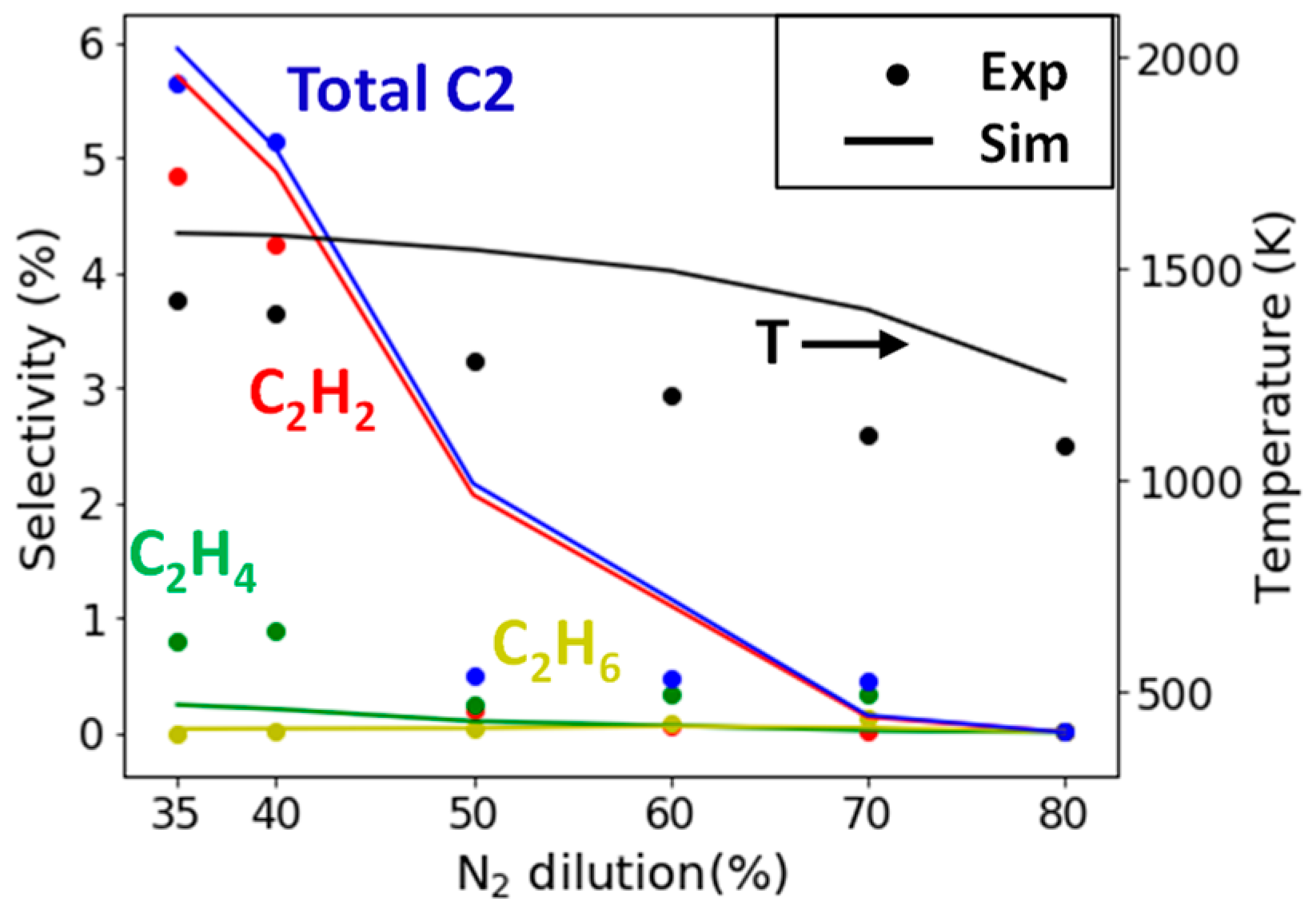

Experiments were conducted for variable N₂ dilution at a CH₄/O₂ ratio of 2 with residence time of 10 ms over the in-house prepared 1% Pt/Al₂O₃ catalyst. Experimentally, the selectivity of C₂ species increases to about 6% with the decrement in N₂ dilution from 80% to 35%. As shown in Figure 4, the kinetic model predicts the N₂ selectivity of total C₂ species in good agreement with the experimental values and reproduces the shape of the plot. However, at around 50% dilution, the kinetic model overpredicts the C₂ selectivity to almost double the experimental values. The rise in C₂ selectivity correlates to the rise in CH₄ conversion from 50% to 80% as the N₂ dilution was reduced from 80% dilution to 35% dilution. Additionally, C₂H₂ is observed as major product in the simulation results. Although the model overestimates the temperature, the predicted temperature follows the same trend as observed in the experiments, namely, an increase in temperature with decreasing dilution.

2.2.2. Variation of Flow Rate

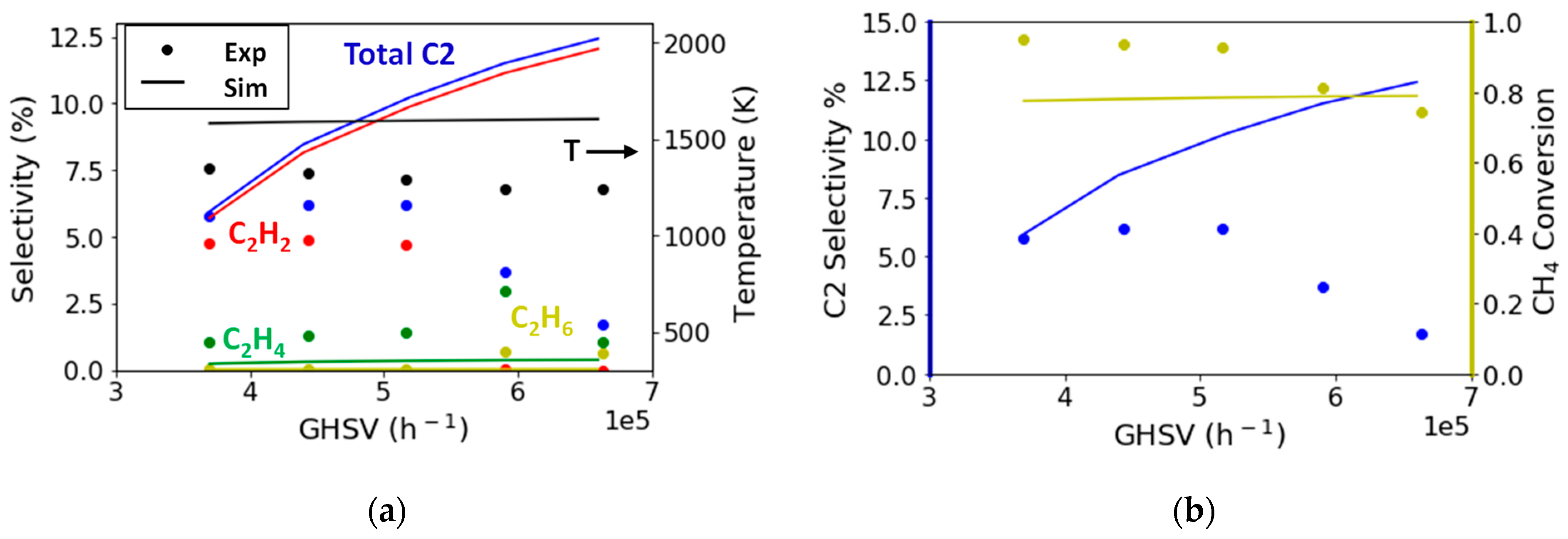

The flow rate, i.e., the gas hourly space velocity (GHSV), is known to be a crucial parameter affecting the C₂ selectivity. Several authors working with different catalysts ascertained a distinct influence of space velocity over different catalysts on the C₂ selectivity by OCM. Witt et al. [25] studied a Rh catalyst and established that 99% of O₂ conversion is desirable for achieving a stable C₂ selectivity. Increasing GHSV beyond 4.4 × 10⁵ h⁻¹ results in a drop in O₂ conversion and leads to a decline of C₂ species. Sarsani et al. [26] discovered that thermal effects and heat loss affect the C₂ selectivity apart from the threshold O₂ conversion required for C₂ products formation. It was examined that heat loss was dominant at lower GHSV, thereby preventing the autothermal operation of the reactor system. For a La-Ce powder catalyst system, a residence time of 10 ms or less enabled an adiabatic rise in temperature for significant C₂ production. Kooh et al. [27] found that higher GHSV enables higher C₂ yields by establishing a large difference between furnace temperature and catalyst hotspot temperature. Takanabe et al. [28] employed a Mn/Na₂WO₄/SiO₂ catalyst and established the direct association between CH₄ conversion and C₂ yields with GHSV. Low GHSV or higher contact time facilitated higher CH₄ conversion and, thereby, higher C₂ yields.

During the experiments conducted over the 1 wt.% Pt/Al₂O₃ catalyst at 35% N₂ dilution, a CH₄/O₂ ratio of 2 with varying GHSV conditions and C₂ selectivity plateaus at 7% selectivity with 94% CH₄ conversion at space velocity of 4.5 × 10⁵ h⁻¹ and declines at higher GHSV. The temperature measured after the catalyst remains almost constant at variable space velocities; the decline in experimentally determined C₂ selectivity can be attributed to the decline in CH₄ conversion due to decreasing contact time. Although the numerically predicted kinetic model matches the experimentally determined results well at lower space velocities, at higher space velocities a rise in C₂ selectivity is predicted, which differs from the experimentally determined values (Figure 5). Despite the low contact times, the hotspot temperature and the overall CH₄ conversion remain constant. This indicates that even though less CH₄ is expected to be converted in the catalytic zone along the length of monolith, as an effect of increase in GHSV, the model predicts that the overall CH₄ conversion is compensated in the gas phase zone behind the catalyst (Figure 5b), leading to CH₃ radicals and, subsequently, C₂ species. However, such an effect cannot be validated in the present experimental campaign, and further work is required to understand the impact of GHSV.

2.2.3. Variation in CH₄/O₂ Ratio

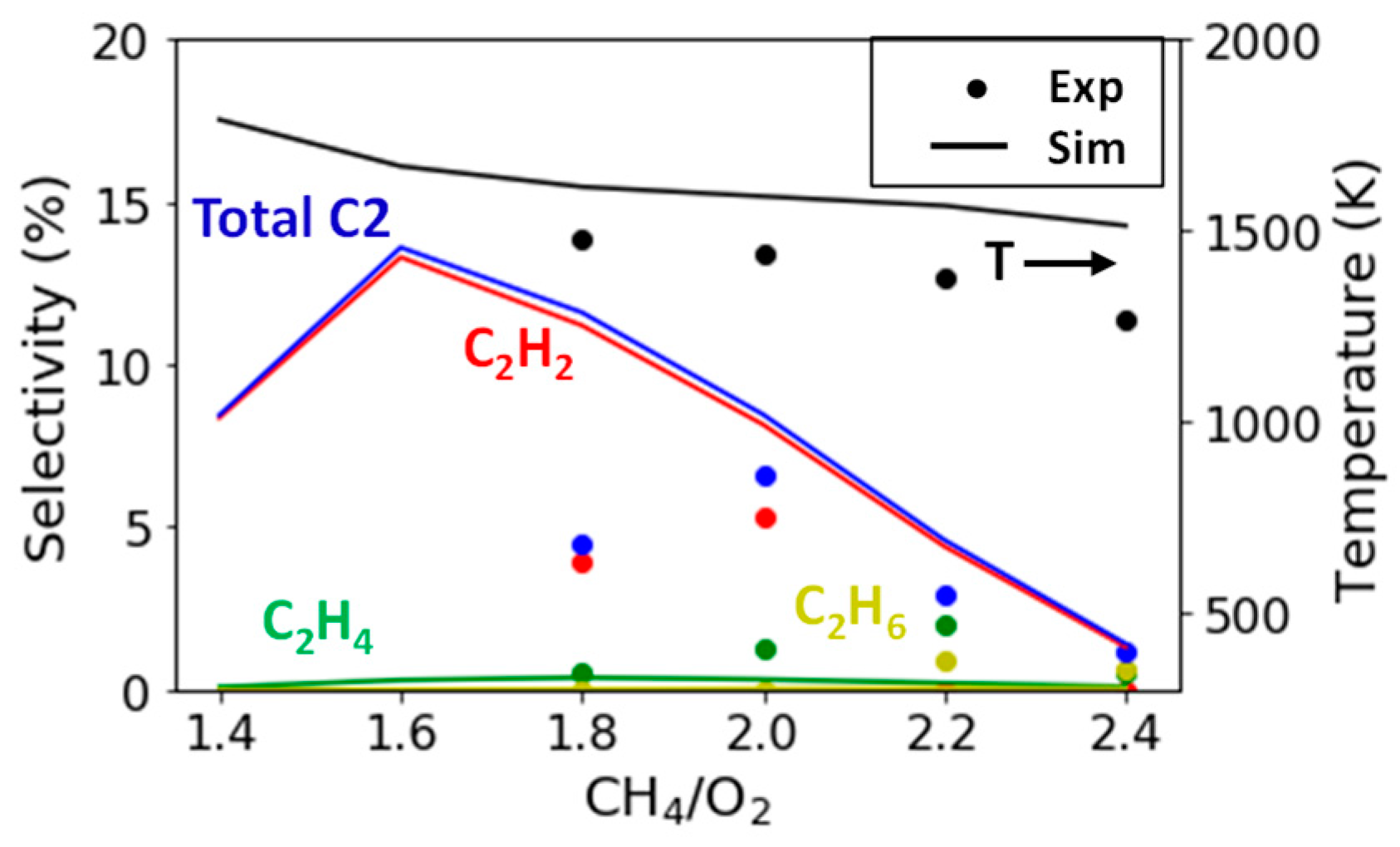

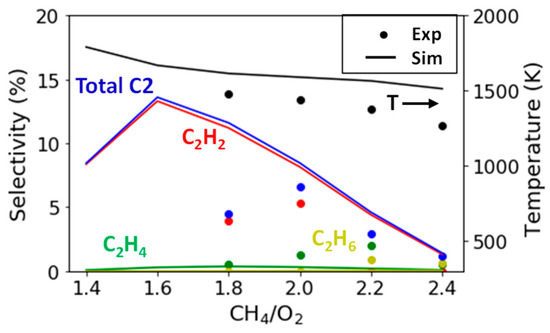

Experiments were conducted for variable CH₄/O₂ ratios from 1.8–2.4, under conditions with 35% N₂ dilution, space velocity of 4.5 × 10⁵ h⁻¹, and corresponding residence time of 8 ms over 1% Pt/Al₂O₃ catalyst. Simulations conducted including only surface kinetics along the catalyst depict that due to the very low residence time, the oxygen is not fully consumed in the catalytic zone up to the end of the monolith. Unlike the Hohn et al. [14] experiments, oxygen is rather fully converted in the gas phase zone after the monolith. Hence, the two-zone model simulations were configured so that the surface chemistry was considered along the catalyst’s overall length (0.01 m) and the gas phase chemistry was considered along the empty tube reactor downstream of the monolithic catalyst (0.39 m). In Figure 6, the kinetic simulations envision the experimentally measured C₂ selectivity for a CH₄/O₂ ratio ≥ 2 quite closely. However, at a CH₄/O₂ ratio < 2, the kinetic model overpredicts the C₂ selectivity and predicts the maximum C₂ selectivity at a CH₄/O₂ ratio of 1.6 with 14% C₂ selectivity and 92% CH₄ conversion. Experimentally, the maximum C₂ selectivity of 7% with 94% CH₄ conversion is observed at a CH₄/O₂ ratio of 2.0. Kinetic study at a CH₄/O₂ ratio of 1.4 is estimated to explain the reduction in C₂ selectivity observed at a CH₄/O₂ ratio of 1.8 experimentally. Thus, to have a better understanding, the axial profiles for conversion of reactants and formation of products are discussed in more detail in the next section.

2.3. Catalytic Reaction Kinetics over the Monolith

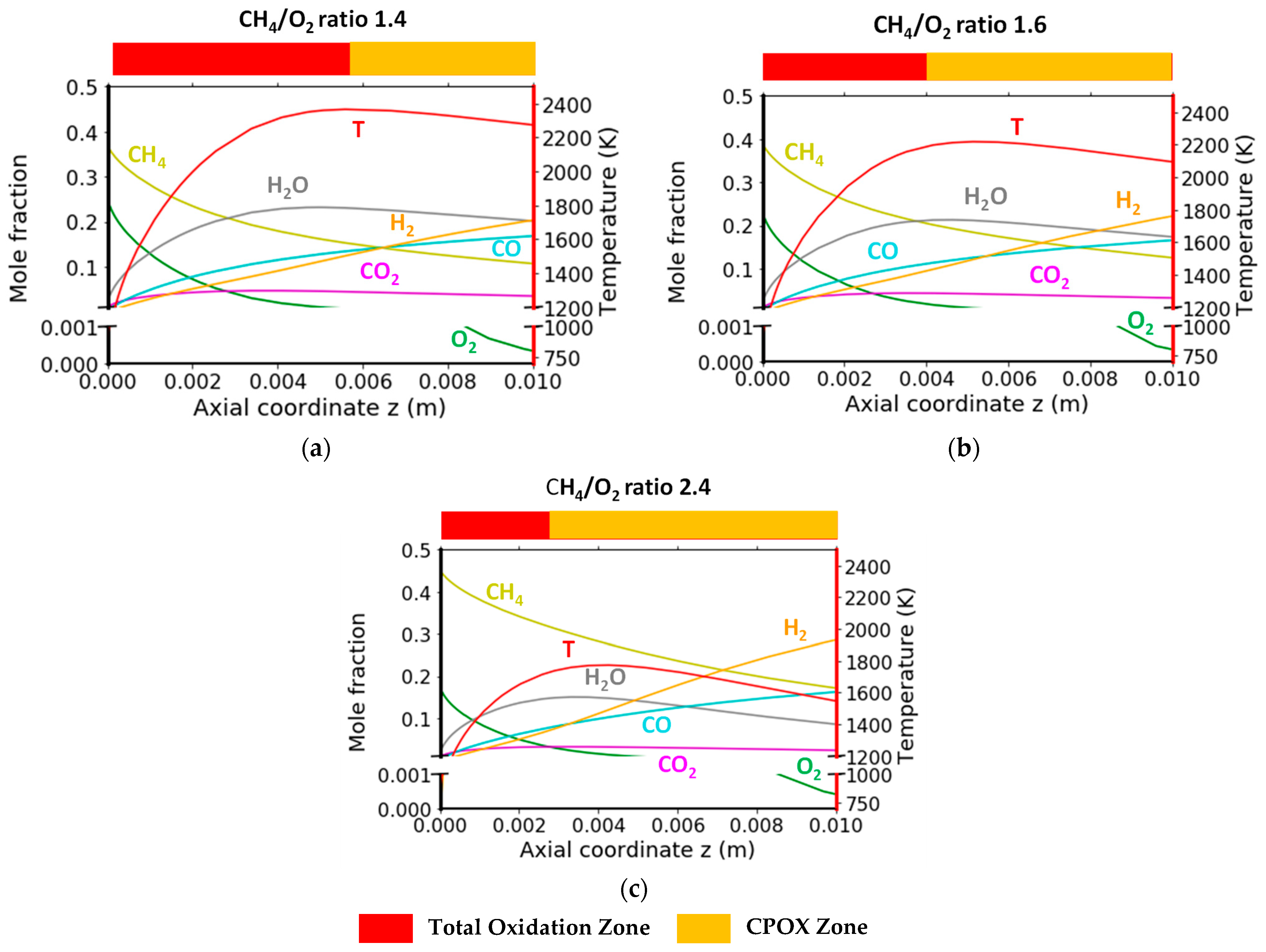

During the experiments, the reactor’s final product composition was measured by analyzing the effluent gas stream’s composition. While these results allow for optimizing the process parameters with respect to maximum CH₄ conversion and C₂ selectivity, spatial information on selectivity and conversion along the length of the reactor are of major relevance in order to better understand the reaction hierarchy. Simulations of the reactor model coupled with detailed kinetic models were used to determine the molar fractions of the products as the reactant gases are converted inside the reactor, with an emphasis on the catalytic zone.

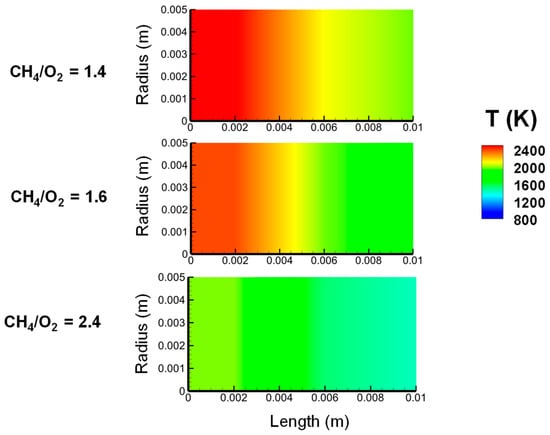

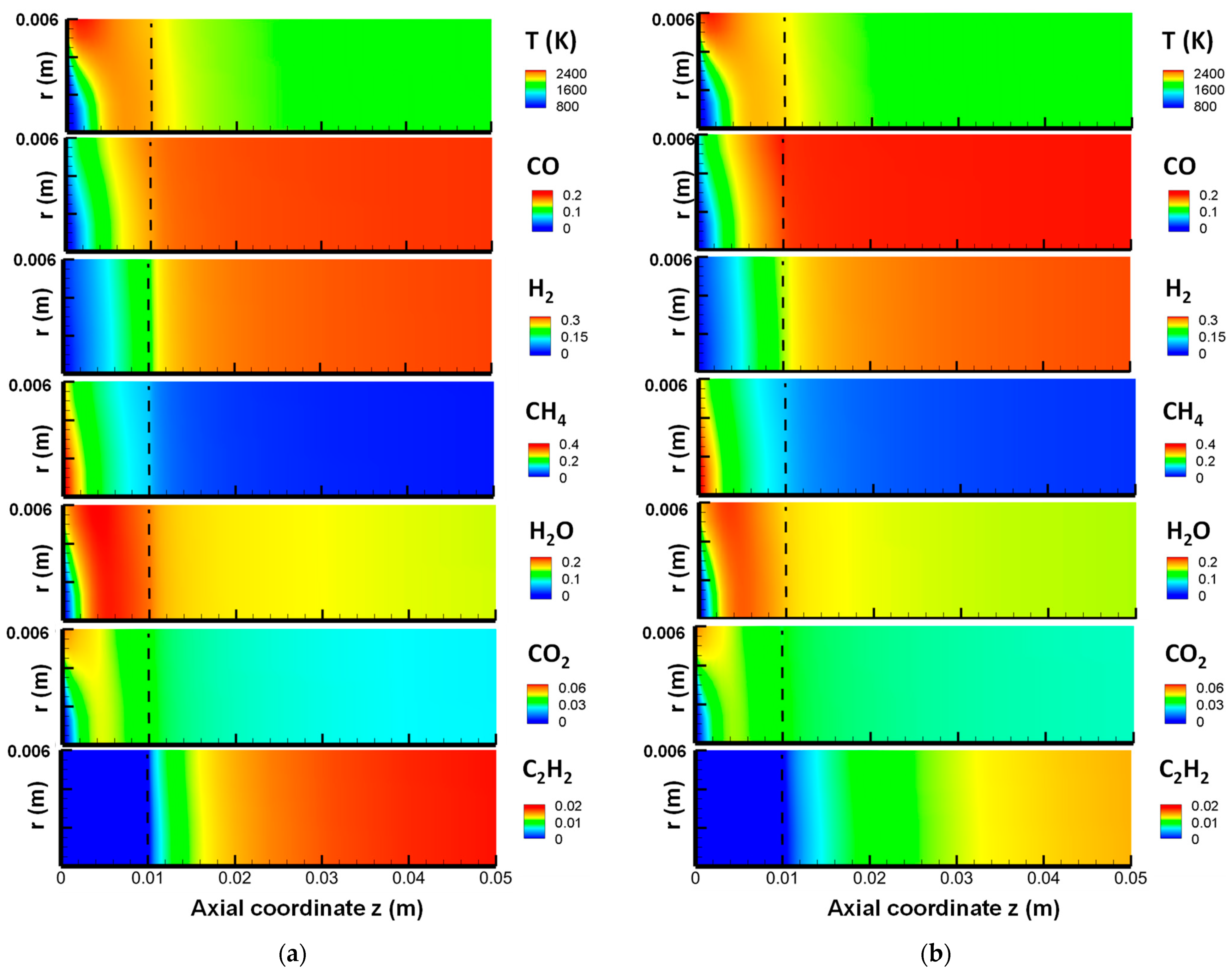

In Figure 7, the two-dimensional temperature profile across the monolith, obtained using DETCHEM^MONOLITH, describes a rise in temperature, which is observed at the onset of the catalyst surface. However, for lower CH₄/O₂ ratios, the maximum temperature reported across the monolith is substantially higher. Furthermore, axial profiles of reactants and products over the Pt catalyst, obtained using the Kahle-Deutschmann kinetic model, are shown in Figure 8. Simulation results for variable CH₄/O₂ ratios 1.4, 1.6, and 2.4 are computed with an initial reactor temperature of 773 K. Under all three cases, a rise in temperature is observed in the first 0.002 m of the catalyst surface along with a fast decrease in the mole fractions of methane and oxygen due to high catalytic activity of Pt in the oxidation reactions. Based on the profiles obtained for variable CH₄/O₂ ratios, we can establish two zones over the catalyst length: A total oxidation (combustion) zone and a partial oxidation/steam reforming zone.

Total oxidation (combustion) zone: The simulation suggests an initial combustion zone under both low fuel (CH₄/O₂ = 1.4) and high fuel (CH₄/O₂ = 2.4) input conditions, on the interaction of gases with the catalyst surface. CO₂ and steam, which are produced by complete oxidation of methane, are created in the first few millimeters of the catalyst surface. As the O₂ is being consumed due to complete oxidation at the catalyst’s starting length, the exothermic combustion reaction results in a pronounced temperature increase. The combustion reactions are dominant for approximately 0.006 m from the inlet of the monolith when the fuel inlet condition is low (CH₄/O₂ = 1.4), and the respective temperature reaches 2400 K. Under high fuel (CH₄/O₂ = 2.4) conditions, the temperature increase obtained by the simulations is 1750 K. However, the combustion zone is shorter (z = 0.003 m) followed by the reactor zone where the catalytic partial oxidation zone is dominant.

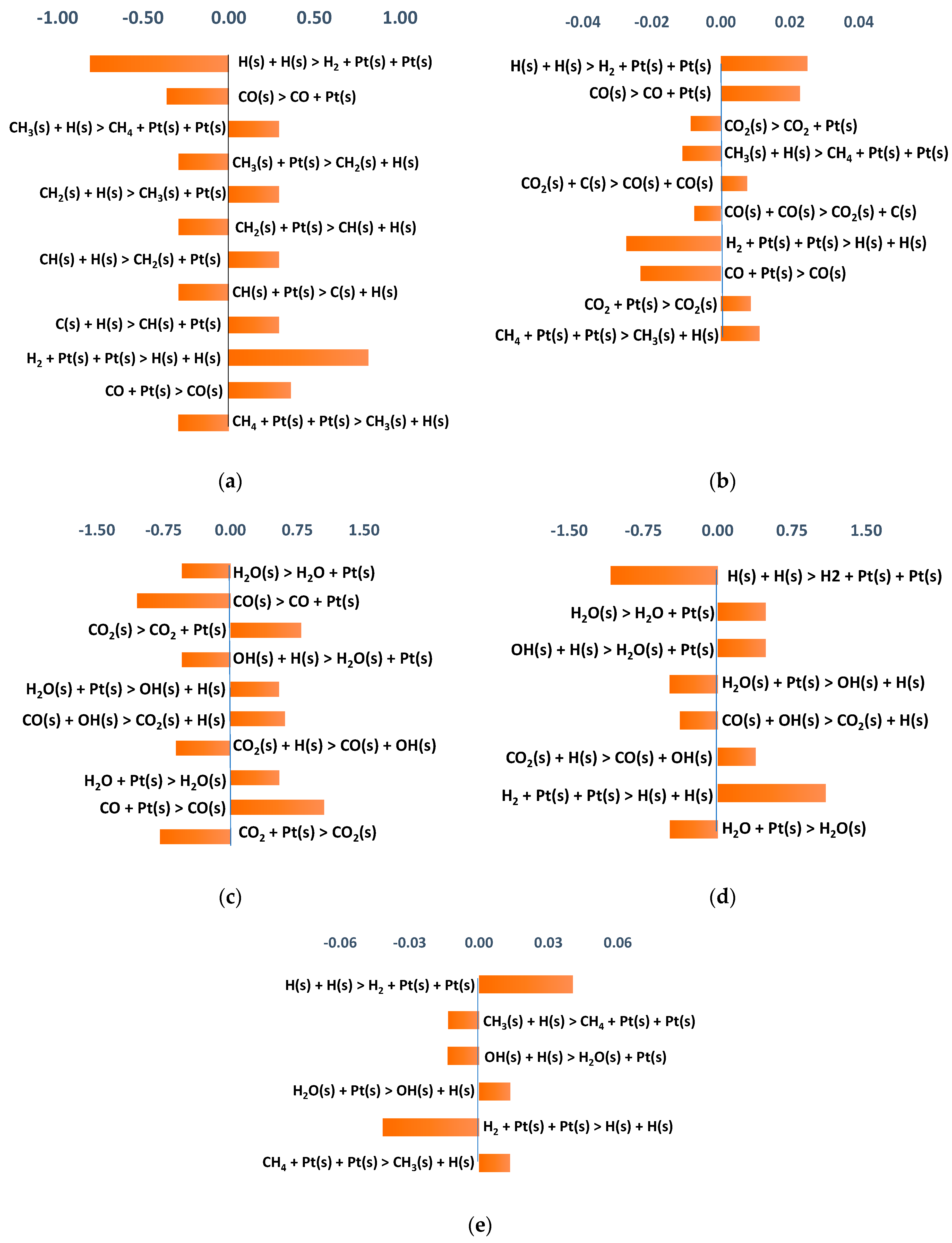

A sensitivity analysis of the Kahle-Deutschmann mechanism [24] (supplemented in Appendix A) allows us to analyze the major pathways for CH₄ conversion and formation of products over the Pt catalytic surface under adiabatic conditions at a CH₄/O₂ of 1.4. The following are the primary reactions on the catalyst’s surface in the total oxidation zone:

• Methane adsorption with hydrogen atom abstraction (Figure A2a):

  $${\mathrm{CH}}_4\to {\mathrm{CH}}_4\left(\mathrm{s}\right)\to {\mathrm{CH}}_3\left(\mathrm{s}\right)+\mathrm{H}\left(\mathrm{s}\right)$$

  (1)
• The process of water formation (Figure A2b):

  $$\mathrm{O}\left(\mathrm{s}\right)+\mathrm{H}\left(\mathrm{s}\right)\to \mathrm{OH}\left(\mathrm{s}\right)$$

  (2)

  $$\mathrm{OH}\left(\mathrm{s}\right)+\mathrm{H}\left(\mathrm{s}\right)\to {\mathrm{H}}_2\mathrm{O}\left(\mathrm{s}\right)\to {\mathrm{H}}_2\mathrm{O}$$

  (3)
• CO₂ desorption (Figure A2c):

  $${\mathrm{CO}}_2\left(\mathrm{s}\right)\to {\mathrm{CO}}_2$$

  (4)

CPOX (catalytic partial oxidation) zone: In this zone, H₂ is generated on the catalytic surface by steam reforming and partial oxidation of methane to syngas near the exit of the monolith under low fuel input conditions (CH₄/O₂ = 1.4). Under high fuel conditions (CH₄/O₂ = 2.4), the total oxidation zone is shorter and the CPOX zone is prominent, which results in an increase in CO and H₂ mole fractions throughout the catalyst length. In the case of high fuel circumstances (CH₄/O₂ = 2.4), the dominant CPOX and steam reforming results in a relatively lower hotspot temperature near the exit of the monolith (1500 K). Under both low (CH₄/O₂ = 2.4) and high (CH₄/O₂ = 2.4) fuel conditions, the available oxygen is not completely utilized on the catalyst surface.

The following are the primary reactions on the catalyst’s surface in the CPOX zone:

• Carbon monoxide is formed on the surface (Figure A2d):

  $${\mathrm{CO}}_2\left(\mathrm{s}\right)+\mathrm{C}\left(\mathrm{s}\right)\to \mathrm{CO}\left(\mathrm{s}\right)+\mathrm{CO}\left(\mathrm{s}\right)$$

  (5)
• The desorption of hydrogen atoms after recombination of hydrogen atoms (formed in reaction (1)) on the catalyst’s surface (Figure A2e):

  $$\mathrm{H}\left(\mathrm{s}\right)+\mathrm{H}\left(\mathrm{s}\right)\to {\mathrm{H}}_2\left(\mathrm{s}\right)\to {\mathrm{H}}_2$$

  (6)

In the simulations shown in this section, only the surface reactions are considered and the formation of C₂ products is not predicted, because coupling reactions are not considered on the surface. However, when both the surface and gas phase kinetics are considered in the kinetic model, C₂s are formed at a thermally insulated empty reactor tube downstream of the monolith. Additionally, the presence of O₂ at the exit of the monolith is of importance in all cases, as O₂ is not fully consumed along the monolithic channel (Figure 8). The remaining CH₄ and O₂ at the exit of the catalyst play a crucial role on the coupling of methane in the gas phase, which is discussed in detail in the next section.

2.4. Homogeneous Reaction Kinetics after the Monolith

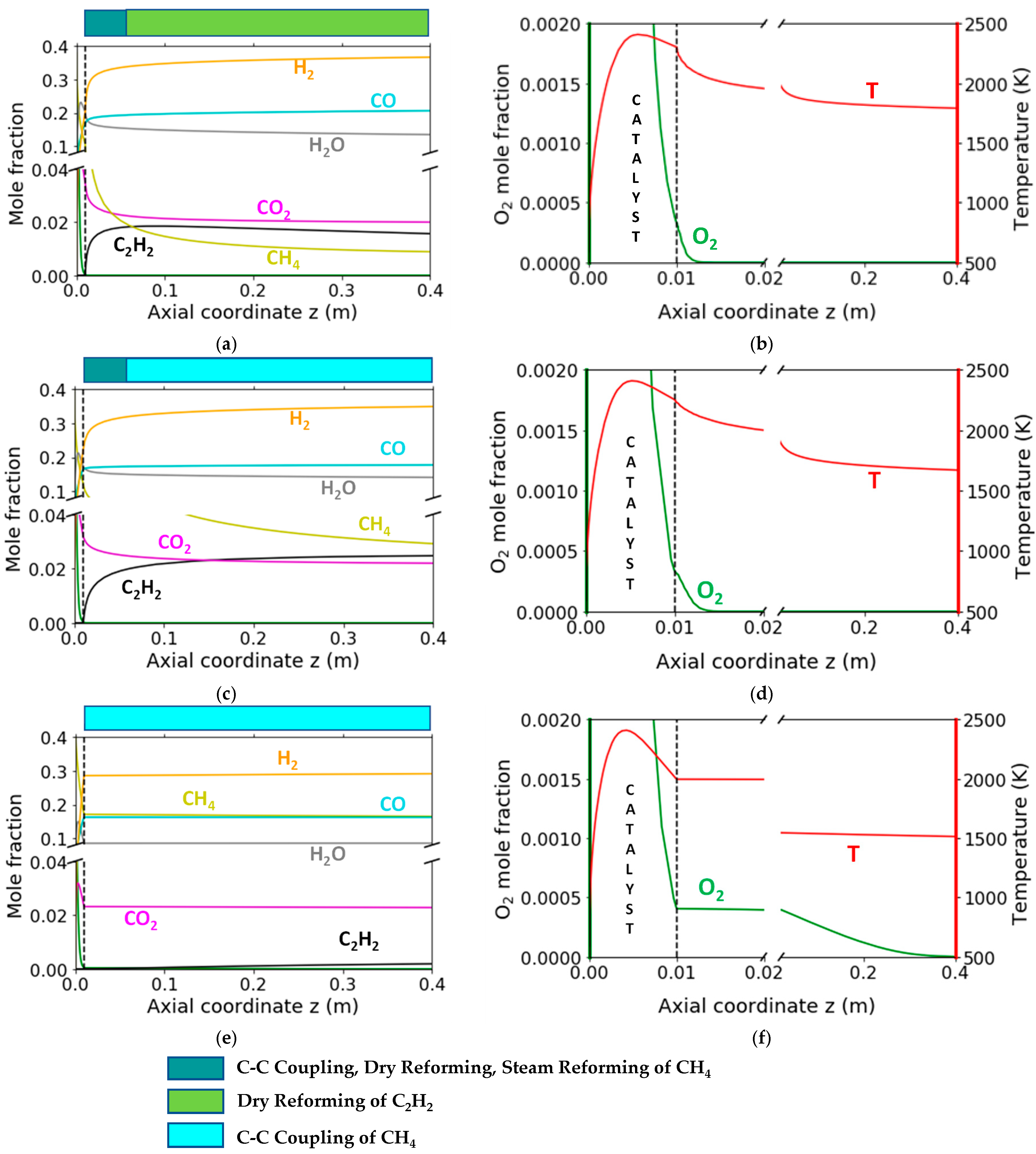

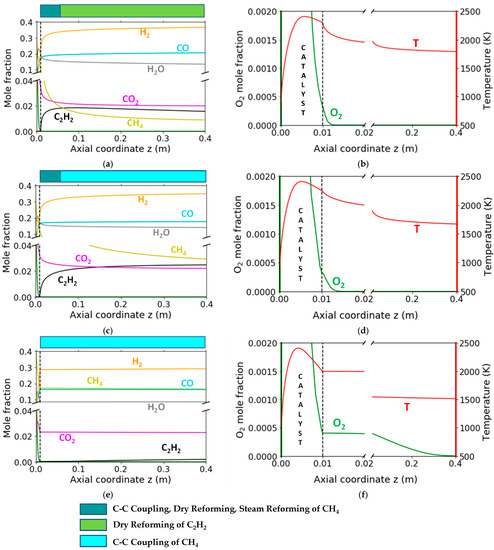

In the previous section, we described that along the monolith channel, zones of dominating reactions are predicted by simulations. At the empty reactor tube after the monolith exit, the coupling zone develops, where some of the residual methane is transformed into coupling products. Figure 9 depicts the predicted mole fractions of primary products and additional C₂ species generated as a function of axial position up to the exit of the insulated empty tube reactor at z = 0.4 m. From the profiles obtained, we can also establish different reaction zones based on dominant products over the reactor length in the gas phase zone. Different reactions are dominant in the gas phase depending on the inlet CH₄/O₂ ratios.

Coupling zone: Under low input fuel conditions (CH₄/O₂ = 1.4, CH₄/O₂ = 1.6), the coupling zone follows the partial oxidation at the end of the catalyst surface due to very fast kinetics of available O₂ at high temperature. At the catalyst outlet, the gas phase temperature is high as 2300 K (CH₄/O₂ = 1.4) and 2100 K (CH₄/O₂ = 1.6) and unreacted methane and oxygen interact with the active radicals in the gas phase and form CH₃ radicals (Figure 9b,d). For all fuel conditions, C₂ formation is attributed to the following reactions:

• The OH radicals desorbed from the catalytic surface react with methane to generate water:

  $${\mathrm{CH}}_4+{\mathrm{OH}}^{·}\rightleftharpoons {\mathrm{CH}}_3^{·}+{\mathrm{H}}_2\mathrm{O}$$

  (7)
• On complete consumption of available oxygen, methane releases methyl radicals by H-atom abstraction (reaction (8)) or initiation/thermal decomposition (reaction (9))

  $${\mathrm{CH}}_4+{\mathrm{H}}^{·}\rightleftharpoons {\mathrm{CH}}_3^{·}+{\mathrm{H}}_2$$

  (8)

  $${\mathrm{CH}}_4\left(+\mathrm{M}\right)\rightleftharpoons {\mathrm{CH}}_3^{·}+{\mathrm{H}}^{·}\left(+\mathrm{M}\right)$$

  (9)

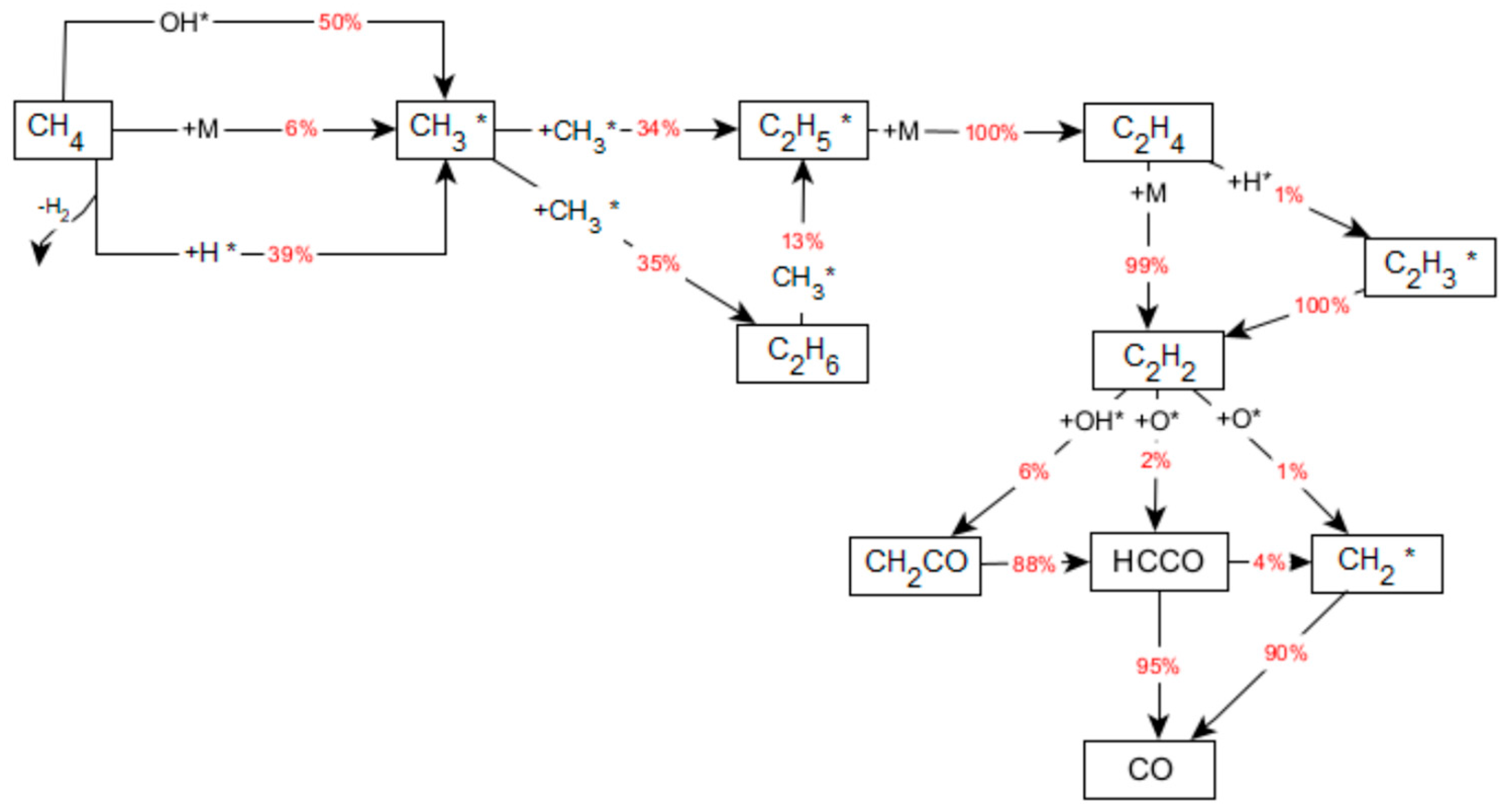

Further, a reaction flow analysis (RFA) is performed for the PolyMech mechanism at 1673 K, CH₄/O₂ of 1.4, 35% N₂ dilution and is supplemented in Appendix A. The RFA (Figure A1) suggests that due to the fast kinetics and low activation energy of reaction (7) at high temperature, reaction (7) predominates over reaction (8) and (9). Thereby, CH₃ radicals are formed in the gas phase, which is the source initiator for the coupling products formation. CH₃ radicals combine together at high temperature to form C₂H₆. The concentration of C₂H₆ is negligible, as it is quickly consumed at high temperature to form C₂H₄ (Figure A1). By interacting with CH₃ and H radicals, C₂H₄ is rapidly transformed to C₂H₂, which is a more thermodynamically stable under these conditions due to its Gibbs free energy [29,30].

At high fuel conditions (CH₄/O₂ = 2.4), a shift in the coupling zone is observed along the length of the reactor. Initially, C₂H₆ is formed, which is subsequently transformed into C₂H₄ and C₂H₂ at high temperatures. A stable concentration of C₂H₂ is visualized at the end of the reactor (Figure 9e). Here, the available O₂ combines with a H radical to form metastable HO₂ radicals (reaction (10)), which act as a reducing agent [31] and inhibit the further conversion of CH₄ (Figure 9f).

$${\mathrm{O}}_2+{\mathrm{H}}^{·}+\mathrm{M}\rightleftharpoons {\mathrm{HO}}_2^{·}+\mathrm{M}$$

(10)

Methane reforming zone: Methane reforming is also dominant in the gas phase zone in the case of low input fuel conditions (CH₄/O₂ = 1.4, CH₄/O₂ = 1.6) but does not take place in a discrete zone (Figure 9a,c). Along the axial position of the reactor, both steam reforming (SR) and dry reforming (DR) of methane is contemplated along with the pyrolytic coupling zone of methane in a short zone in the gas phase [29,30]. Reforming is the endothermic zone that occurs after the initial formation of CH₃ radicals under the presence of O-containing species. In Figure 10, the two-dimensional concentration profiles at CH₄/O₂ of 1.4 and CH₄/O₂ of 1.6 over the homogeneous reforming zone are shown. Figure 10 describes that decline in temperature as well as CO₂ and H₂O concentrations along with the rise in CO and H₂ can be attributed to the onset of the endothermic reforming reactions.

In homogeneous steam reforming of methane, H₂ and CO are the main products, but small fractions of C₂ are produced as byproducts [32,33]. From a mechanistic point of view, the available H₂O generates OH radicals that react with methane (reaction (7)) to generate the desired CH₃ radicals for C₂ formation [34]. Simultaneously, the H₂O concentration decreases, while the concentration of CO and H₂ increases. The decline in H₂O mole fraction along the axial length of reactor downstream of the monolith, along with the rise in C₂H₂, CO, and H₂ mole fractions over the reforming zone, can also be visualized in Figure 10.

In the context of homogeneous dry reforming of methane, Angeli et al. [35] observed that C₂ products are formed as byproducts along with CO and H₂ at a temperature of 1623 K. Thus, dry reforming enhances the C₂ products formation at high temperature. CO₂ is converted at a high pace, with the major reaction pathway being its interaction with hydrogen atoms to generate CO and an OH radical.

$${\mathrm{CO}}_2+{\mathrm{H}}^{·}\to \mathrm{CO}+{\mathrm{OH}}^{·}$$

(11)

As a consequence, CO₂ promotes the formation of OH radicals in the dry reforming of methane, thereby, increasing the reactivity of the primary reaction pathway (reaction (7)) for C₂ formation [36]. The decline in CO₂ mole fraction along with rise in C₂H₂ is more profound in the case of a CH₄/O₂ of 1.4, as compared with CH₄/O₂ of 1.6 (Figure 10). Thus, it can be postulated that reforming has a stronger influence at lower CH₄/O₂ ratios.

Acetylene reforming zone: At substantially higher temperatures achieved at low fuel conditions (CH₄/O₂ = 1.4), the interaction of C₂H₂ with OH radicals causes the observed decrease in C₂H₂ and an increase in CO mole fractions (Figure 9a). Once the proportion of OH radicals generated as a result of the reaction (11) is elevated, acetylene interacts with the OH radicals to form CH₂CO, which then decomposes into CO and methyl radicals (reaction (12)):

$${\mathrm{C}}_2{\mathrm{H}}_2+{\mathrm{OH}}^{·}\to {\mathrm{CH}}_2\mathrm{CO}+{\mathrm{H}}^{·}$$

(12)

$${\mathrm{CH}}_2\mathrm{CO}+{\mathrm{H}}^{·}\to \mathrm{CO}+{\mathrm{CH}}_3^{·}$$

(13)

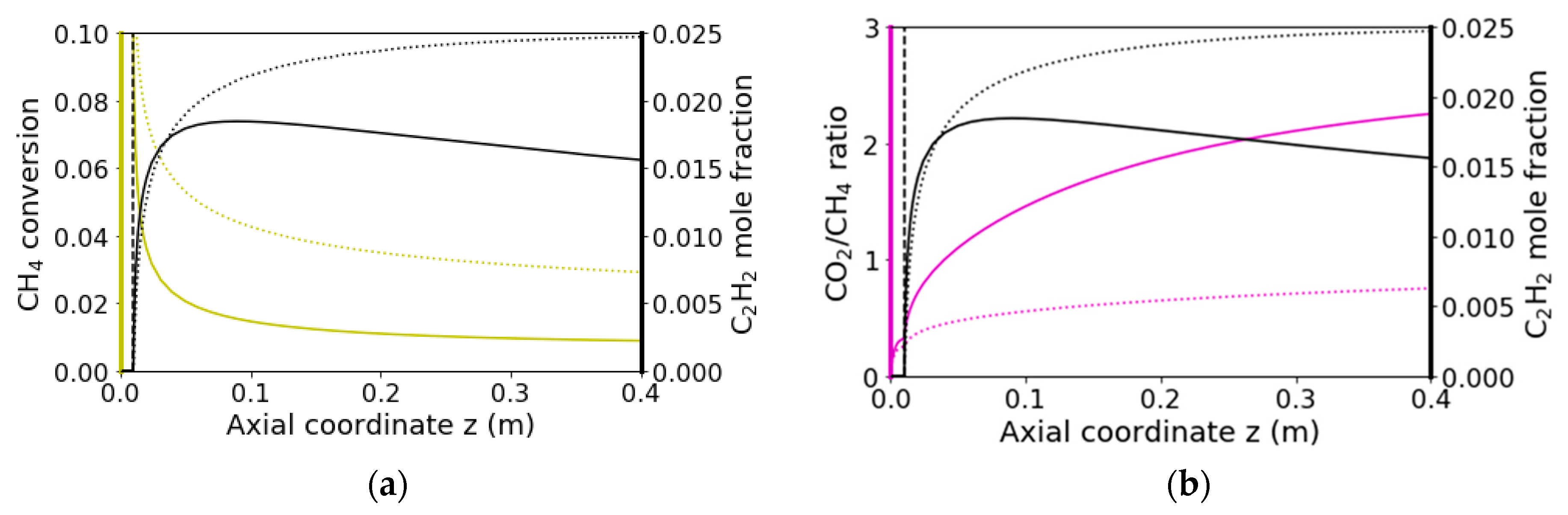

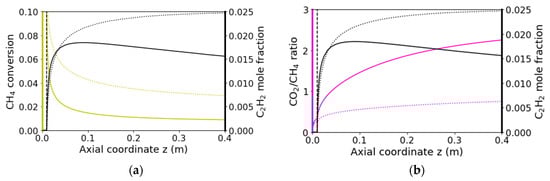

The C₂H₂ conversion rate is affected by the CO₂/CH₄ ratio. After notable methane conversion, high CO₂ concentrations promote the reforming of C₂H₂. Moreover, Savchenko et al. [35] studied homogeneous dry reforming of methane and found that with higher initial CO₂/CH₄ ratio conditions, C₂H₂ formed was faster converted to CO, leading to its decline (Figure 11b). In our experiments, due to the long total oxidation zone, the maximum CO₂ concentration at the outlet of the monolith is obtained for an initial CH₄/O₂ ratio of 1.4. Furthermore, the higher CH₄ conversion achieved at a CH₄/O₂ ratio of 1.4 causes the rise in CO₂/CH₄ ratio along the length of the reactor downstream of the monolith, as shown in Figure 11a, thereby declining C₂H₂ mole fraction.

The relatively lower endothermicity of C₂H₂ reforming reaction and the exothermic water gas shift reaction are responsible for the fact that the temperature profile is not strongly affected in the gas phase.

$$\mathrm{CO}+{\mathrm{H}}_2\mathrm{O}\rightleftharpoons {\mathrm{CO}}_2+{\mathrm{H}}_2$$

(14)

3. Materials and Methods

3.1. Experimental

3.1.1. Catalyst Preparation

The 1% Pt/Al₂O₃ catalyst powder was prepared via incipient wetness impregnation (IWI) [37]. For this, the commercial Al₂O₃ support (Puralox, Sasol, Sandton, South Africa) was calcined for 5 h at 700 °C and the crystalline (NH₃)₄Pt(NO₃)₂, which served as Pt precursor (Alfa Aesar, Haverhill, MA, USA) was dissolved in purified water equal to the pore volume of the calcined Al₂O₃ before impregnation. After 2 h of drying at 70 °C and calcination of the received powder at 823 K for 5 h under static air, the powder catalyst was wash-coated onto cordierite monolithic honeycombs using the methodology previously described by Karinshak et al. [38]. The resulting honeycomb catalyst samples with a cell density of 400 cpsi, a length of 0.01 m, and a diameter of 0.01 m exhibited a noble metal loading of 30 g/ft³. The noble metal dispersion of 47% was measured by means of CO chemisorption, as described in detail by Chan et al. [39].

3.1.2. Reactor Setup and Experimental Procedure

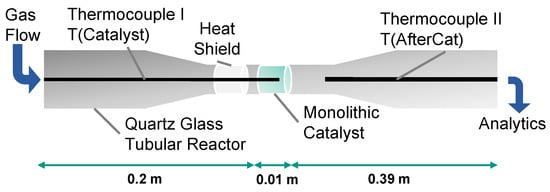

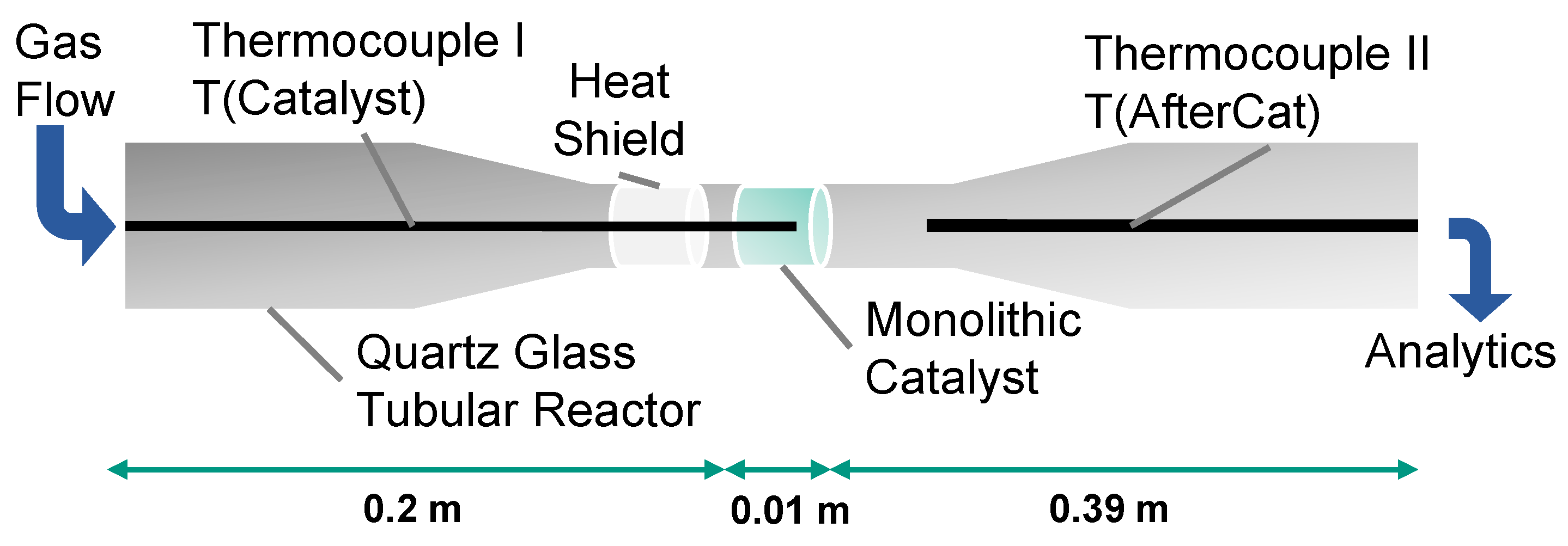

The experiments were performed in a quartz glass tubular reactor, which was placed in a furnace (HST 12/400, Carbolite, Sheffield, UK), enabling heating, and the reactor’s reaction zone was additionally wrapped with thermal insulation to ensure adiabatic operation. Before flowing into the reactor, the feed gas mixture consisting of methane, oxygen, and nitrogen was premixed and preheated to 463 K, while the furnace temperature itself was kept constant at 773 K. Experiments were performed at atmospheric pressure and at flowrates of minimum 5 slpm (standard liters per minute), resulting in residence times of milliseconds in the monolithic catalyst samples. The quartz glass tubular reactor, which is schematically depicted in Figure 12, is about 0.6 m long. Two thermocouples were placed—one inside the monolith and one after the monolith—to measure the temperature at the catalyst surface and the temperature after the catalyst in the reactive zone, respectively.

The coated monolithic catalyst was placed 0.2 m downstream of the reactor inlet. An uncoated cordierite honeycomb (diameter, 0.01 m; length, 0.01 m), placed upstream of the coated catalyst, served as a heat shield and ensured optimal heat transfer. A small space of approximately 0.005 m was kept between the heat shield and the coated monolith catalyst to avoid flow disturbance at the front entrance of the catalytic monolith.

Experimental results by Hohn et al. [14] were used as a preliminary investigation to evaluate and understand the surface and gas phase chemistry involved in the catalytic coupling of methane under oxidative conditions. Similar to the present study, the authors used a quartz glass tubular reactor with a diameter of 0.018 m and length of 0.4 m. The study employed alumina foam impregnated with Pt, resulting in a Pt loading of 2–3% on the structured substrate. To prevent radiation losses, an uncoated monolith was placed in front of the catalyst and the reactor was insulated from outside in order to allow an operation under adiabatic conditions.

The literature data of the study by Hohn et al. [14] and the experiments of the present study conducted with a 1% Pt/Al₂O₃ catalyst were utilized for the validation of the kinetic model. Table 1 summarizes the experimental conditions used for the comprehension and validation of the model. Experiments over a wide range of input parameters including catalyst metal loadings, space velocities, residence times, N₂ dilution, and catalyst dimensions were selected.

3.2. Model Description and Numerical Simulation

In multiscale modelling of heterogeneous catalytic reactors, the steps involved in the process can be predicted starting with the reaction mechanism at atomic scale, reaction rates and adsorption and diffusion processes over the catalyst surface, and reaction rates in the gas-phase [40]. The numerical simulations in this work include the catalytic performance simulations of the chemical system under reaction conditions by coupling the 2D DETCHEM^CHANNEL [21,22] reactor model with the elementary step-based kinetic models of gas phase and surface reactions. Further, DETCHEM^MONOLITH [21] simulations are conducted over honeycomb catalyst to include transient conditions. DETCHEM^MONOLITH models the transient temperature field, by a thorough simulation of representative channels using DETCHEM^CHANNEL code.

3.2.1. Mathematical Model

In the 2D reactor model (DETCHEM^CHANNEL), the flow field of a cylindrical channel of the monolith is calculated under steady-state conditions by solving parabolized Navier-Stokes equations in the boundary layer approximation:

Continuity Equation

$$\frac{\partial \left(r\rho u\right)}{\partial z}+\frac{\partial \left(r\rho v\right)}{\partial r}=0$$

(15)

Axial momentum equation

$$\frac{\partial \left(r\rho u^2\right)}{\partial z}+\frac{\partial \left(r\rho uv\right)}{\partial r}=-r\frac{\partial p}{\partial z}+\frac{\partial }{\partial r}\left(\mu r\frac{\partial u}{\partial r}\right)$$

(16)

Conservation of energy

$$\frac{\partial \left(r\rho uh\right)}{\partial z}+\frac{\partial \left(r\rho vh\right)}{\partial r}=u\frac{\partial p}{\partial z}+\frac{\partial }{\partial r}\left(\lambda r\frac{\partial T}{\partial r}\right)-\frac{\partial }{\partial r}\left({\displaystyle \sum }_{s}r{j}_s{h}_s\right)$$

(17)

Species continuity equation

$$\frac{\partial \left(r\rho u{Y}_s\right)}{\partial z}+\frac{\partial \left(r\rho v{Y}_s\right)}{\partial r}=-\frac{\partial }{\partial r}\left(r{j}_s\right)+r{\dot{\omega }}_s$$

(18)

where $r$ is the radial coordinate, $z$ is the axial coordinate, $\rho$ is the density, $u$ is the axial component of velocity, $v$ is the radial component of velocity, $\lambda$ is the thermal conductivity, $p$ is the pressure, $Y_s$ is mass fraction of the species $s$, $\mu$ is the viscosity, $j_s$ is the radial flux of species $s$, ${\dot{\omega }}_s$ is the gas-phase production rate of species $s$, and $h_s$ is the enthalpy density of the species $s$.

DETCHEM^MONOLITH solves the unsteady-state two-dimensional heat conduction equations:

$$\rho c_p\frac{\partial T}{\partial t}=\frac{\partial \left({\lambda }_{ij}\frac{\partial T}{\partial x_j}\right)}{\partial x_i}+q$$

(19)

where t is the time, T temperature, $\mathsf{\rho }$ density, $c_p$ is the heat capacity, ${\lambda }_{ij}$ tensor of heat conductivity, and q is heat source term for interaction within the channels.

$$q=-\sigma \frac{\mathrm{d}{H}_{\mathrm{channel}}}{\mathrm{d}x}$$

(20)

where $\sigma$ is the channel density (in channels per cross-sectional area).

Neumann boundary conditions are applied:

$$-\lambda {\frac{\partial T}{\partial n}|}_{\mathrm{wall}}=\phi$$

(21)

$$\phi =c\left(T-T_{\mathrm{surr}}\right)+ϵ{\sigma }_{\mathrm{SB}}\left(T^4-T_{\mathrm{surr}}^4\right)+{\phi }_{\mathrm{const}}$$

(22)

where ${\sigma }_{\mathrm{SB}}$ is the Stefan-Boltzmann constant, c is the heat transfer coefficient, $ϵ$ is the emissivity, and T_surr the surrounding temperature.

The state of the reactive catalytic surface is described by the mean-field model, i.e., in terms of coverages. The coverage, ${\theta }_s$, can be defined as the fraction of surface sites covered with surface species or adsorbed gas phase species

$${\theta }_s=\frac{c_s{\sigma }_s}{\Gamma }$$

(23)

where $c_s$ is the concentration of species $s$, ${\sigma }_s$ is the number of sites occupied by one molecule of the species $s$, and $\Gamma$ is the surface site density. For Pt, the surface density was taken as 2.72 × 10⁻⁵ mol m⁻² [24].

A surface reaction can be represented as

$${\displaystyle \sum }_{i=1}^{N_{\mathrm{g}}+N_{\mathrm{s}}}{v}_{ik}^{\prime }{A}_{\mathrm{i}}\to {\displaystyle \sum }_{i=1}^{N_{\mathrm{g}}+N_{\mathrm{s}}}{v}_{ik}^{″}{A}_{\mathrm{i}}$$

(24)

where N_g is the number of gas phase species, N_s is the number of surface species, and $v_{ik}$=$v_{ik}^{\prime }-v_{ik}^{″}$ is the stoichiometric coefficients. The total molar production rate ${\dot{s}}_i$ of surface species i on the catalyst is calculated by

$${\dot{s}}_i={\displaystyle \sum }_{k=1}^{K_{\mathrm{s}}}{v}_{ik}{k}_{\mathrm{f}k}{\displaystyle \prod }_{j=1}^{N_{\mathrm{g}}+N_{\mathrm{s}}}{c}_j^{v_{jk}^{\prime }}$$

(25)

The kinetics of the elementary surface reactions are represented by a modified Arrhenius equation:

$$k_{\mathrm{f}k}=A_k{T}^{{\beta }_k}\exp (\frac{-E_{\mathrm{a},k}}{RT}){\displaystyle \prod _i\exp (\frac{{ϵ}_{ik}{\theta }_i}{RT})}$$

(26)

where $k_{\mathrm{f}k}$ is the reaction rate coefficient, $A_k$ is the preexponential factor, ${\beta }_k$ is a temperature exponent, $E_{\mathrm{a},k}$ is the activation energy, ${ϵ}_{ik}$ is a coverage-dependent activation energy, and R is the gas constant [21].

3.2.2. Reaction Flow Analysis

A reaction flow analysis (RFA) identifies and describes the major successive pathways for the formation of products and utilization of reactants in a chemical reaction mechanism based on the rate of species production. In this work, the methodology was adopted from Gossler et al. [41]. The integral reaction flow analysis identifies the contribution of the most important reactions throughout the time interval considered.

3.2.3. Sensitivity Analysis

A sensitivity analysis identifies rate-determining steps as well as the essential parameters of the process. The approach adopted by Herrera Delgado et al. [42] is utilized for sensitivity analysis studies over the surface mechanism. In its most primitive form, a completely mixed reactor with only surface reactions operating at a constant temperature is examined.

The change in the amount $n_i$ of species is given by

$$\frac{\mathrm{d}{n}_i}{\mathrm{d}t}=A_{\mathrm{cat}}{\dot{s}}_i$$

(27)

where $A_{\mathrm{cat}}$ is the catalytic surface area.

A time-dependent sensitivity coefficient $E_{i,k}\left(t\right)$ is defined as the change in the number of species i in relation to a relative change in the rate coefficient $k_{\mathrm{f}k}$,

$$E_{i,k}\left(t\right)=\frac{\partial n_i \left(t\right)}{\partial \ln k_{\mathrm{f}k}}$$

(28)

Thus, the time development of the sensitivity coefficient is solved by inserting Equations (25) and (27) into Equation (28):

$$\frac{\mathrm{d}{E}_{i,k}\left(t\right)}{\mathrm{d}t}=A_{\mathrm{cat}}{v}_{ik}{k}_{\mathrm{f}k}{\displaystyle \prod }_{j=1}^{N_{\mathrm{g}}+N_{\mathrm{s}}}{c}_j^{v_{ik}^{\prime }}+A_{\mathrm{cat}}{\displaystyle \sum }_{l=1}^{K_{\mathrm{s}}}{v}_{il}{k}_{\mathrm{f}l}\left({\displaystyle \prod }_{j=1}^{N_{\mathrm{g}}+N_{\mathrm{s}}}{c}_j^{v_{jl}^{\prime }}\right)\left({\displaystyle \sum }_{j=1}^{N_{\mathrm{g}}+N_{\mathrm{s}}}{v}_{ik}^{\prime }\frac{E_{j,l}}{n_j}\right)$$

(29)

As a result, the sensitivity coefficient describes the contribution of the k^th reaction to the generation of species i.

3.2.4. Chemical Reaction System

Gas Phase Reaction Models

Four different gas phase homogeneous models were initially considered in this work for the oxidative coupling of methane at high temperatures. The first mechanism was based on the widely used GRI Mech 3.0 [43], developed for natural gas by the Combustion Laboratory at the University of California, Berkeley. The mechanism consists of 53 species and 325 reactions to describe the combustion of natural gas in the temperature range of 1000–2500 K at 0.1–10 bar and for equivalence ratios of φ = 0.1–5.

The second was the detailed mechanism by Healy et al. [44] with 289 species and 3128 reactions. The Healy-Curran model has been validated for oxidation of methane and propane mixtures for the temperature range of 740–1550 K at compressed gas pressures of 10–30 bar and for varying equivalence ratios of 0.3–3.0 in a high-pressure shock tube and in a rapid compression machine.

Another mechanism for ethane oxidation with 180 species and 2069 reactions based on work by Dean’s group [45] was applied as well. This mechanism was validated for a wide range of conditions with temperatures varying between 700 K and 1800 K, pressures of approximately 1–10 bar, and equivalence ratios of φ = 0.1–1.5. The range of experiments include a high-pressure flow reactor, shock tube studies, and low-pressure flame experiments.

A relatively smaller mechanism with 58 species and 588 reactions, PolyMech by Porras et al. [23], was used for the simulations as well. The mechanism includes both oxidative and pyrolytic reaction pathways for the conversion of methane and the formation of aromatics up to benzene. Fuel-rich methane/dimethyl ether/air mixtures (fuel–air equivalence ratio φ = 1–20) were used for its validation in the temperature range of 630–1500 K, with a pressure of 1–20 bar in a shock tube and in a rapid compression machine experiment.

The homogeneous gas phase models were compared for the experimental conditions used by Hohn et al. [14] at a CH₄/O₂ ratio of 1.7, 20% N₂, and at a residence time of 20 ms. DETCHEM^CHANNEL [21,22] simulations were conducted isothermally at the experimentally observed temperature of 1673 K. These reaction conditions were selected for the evaluation of the gas phase kinetic models because the temperature is very high; therefore, the gas-phase reactions are expected to take place in high rates. Hohn et al. [14] compared the experimental data with that of the model presented by Dean et al. [45]. However, the large number of defined species and chemical reactions act as an impediment in its utilization in further studies. Among the four mechanisms studied in this work, the Healy-Curran model [44] and the PolyMech mechanism [23] predict the experimentally measured end-of-pipe C₂ selectivity and CH₄ conversion considerably well. However, neither of the two models was able to accurately describe the product distribution of C₂ species (C₂H₆, C₂H₄, C₂H₂). The PolyMech [23] mechanism has the advantage of including a relatively smaller number of species and elementary reactions, thus, it requires less computational time for the numerical simulations. Furthermore, PolyMech has been successfully used for the simulation of gas phase dry reforming experiments at high temperature [35] and, thereby, was selected to be used in this work.

Surface Reaction Models

Platinum-based catalysts over support materials such as CeO₂ or Al₂O₃ are known to be active in the oxidation of various hydrocarbons. In this study, two heterogeneous detailed kinetic models for platinum catalyst were used to understand and evaluate the role of the catalyst in the oxidative coupling of methane at high temperatures. In the first mechanism, Quiceno et al. [19] described the high activity of platinum for partial oxidation of methane at elevated temperatures. The mechanism, consisting of 21 species and 36 reactions, has been validated by experiments in a platinum wire gauze reactor at 1.3 bar and temperatures ranging from 700–1100 K (CH₄/O₂ = 2.5, diluted by 80% He, residence time τ = 36 s). Above 1200 K, a significant amount of hydrogen is formed, while steam is observed at lower temperatures. C₂ species are not included in this mechanism. In the second mechanism, the kinetics of methane dry reforming at high temperatures over platinum are addressed by the Kahle-Deutschmann model [24]. The mechanism, comprising 22 species and 58 reactions, was validated at a temperature of 1123–1273 K and a pressure of 20 bar, for experiments carried out over a catalytic bed of Pt-containing pellets with a CH₄/CO₂ ratio of 1.0.

The two heterogeneous models were examined for the experimental conditions used by Hohn et al. [14]. Both models predict equivalent catalytic activity leading to similar composition of reaction products and elevation in temperature due to exothermic reactions. However, among the two kinetic models studied over platinum catalysts, the Kahle-Deutschmann mechanism [24] was selected for further evaluation of experiments in this work due to being thermodynamically consistent, in contrast to the model by Quiceno et al. [19]. Thus, reversibility of forward and backward reactions is ensured microkinetically [42]. It is noteworthy that no catalytic coupling reactions are taken into consideration over the surface. The mechanisms are available electronically (Available online: www.detchem.com/mechanisms (accessed on 6 May 2021).

4. Conclusions

In this work, a combined experimental and simulation investigation on oxidative coupling of methane over Pt/Al₂O₃ was conducted employing detailed kinetic models from literature for both surface kinetics over Pt and gas phase kinetics. Varying the reaction conditions during experiments revealed that low N₂ dilution and higher space velocity favors the formation of C₂ species. However, when increasing the GHSV beyond 4.5 × 10⁵ h⁻¹, we found a decline in C₂ selectivity. Experiments at different inlet CH₄/O₂ ratios showed a maximum C₂ selectivity of 7% C₂ with 94% CH₄ conversion at a CH₄/O₂ ratio of 2.

The simulation investigation of the oxidative coupling over Pt monoliths showed that both heterogeneous and homogeneous chemistry together are required for describing the formation of C₂ species. The highly active Pt catalyst facilitates the exothermic oxidation of methane, consuming the majority of the oxygen on the catalyst surface and simultaneously increasing the temperature. The remaining oxygen and desorbed OH radicals facilitate the formation of CH₃ radicals from CH₄ in the gas-phase downstream of the monolith, which can then participate in coupling reactions to form C₂ species. Among the C₂ species, C₂H₂ is the main product. However, depending on the CH₄/O₂ ratio at the inlet and, consequently, at the outlet conditions of the monolith, the ratio of CO₂/CH₄ in the reaction gas stream plays a key role in the further consumption of C₂H₂ and can decrease the overall obtained selectivity of the process. Additionally, the simulation results do not agree completely with the experimental ones with respect to the distribution of C₂ species but describe the total C₂ selectivity well. These discrepancies are likely because the kinetic model was not initially developed for OCM and, thus, some gas phase reactions affecting the formation of C₂ species require further tuning. Future studies should, additionally, lay particular focus on considering interacting species and reactions combining the two mechanisms.

It is evident that in order to optimize the selectivity of the desired products, the reaction conditions and reactor parameters should be selected carefully. Understanding the impact of various reaction conditions on the product selectivity is significant for both academia and industry.
