Improving Photocatalytic Stille Coupling Reaction by CuPd Alloy-Doped Ordered Mesoporous TiO2

by
Ting Tang
1,
Lehong Jin
1,
Wei Chai
2,
Jing Shen
3,
Zhenmin Xu
3,* and
Haifang Mao
3,*
1
School of Public Health, Hangzhou Normal University, Hangzhou 311121, China
2
Department of Chemical Engineering, Zaozhuang Vocational College, Zaozhuang 277800, China
3
School of Chemical and Environmental Engineering, Shanghai Institute of Technology, Shanghai 201418, China
*
Authors to whom correspondence should be addressed.
Catalysts 2022, 12(10), 1238; https://doi.org/10.3390/catal12101238
Submission received: 23 September 2022 / Revised: 10 October 2022 / Accepted: 12 October 2022 / Published: 14 October 2022
(This article belongs to the Special Issue Recent Progress of Catalysis in “Dual Carbon Targets”)
Browse Figures
Review Reports Versions Notes

Abstract

:
Rational surface engineering of noble metal-doped photocatalysts is essential for the efficient conversion of solar energy into chemical energy, but it is still challenging to perform. Herein, we reported an effective strategy for structuring alloyed CuPd (CP) nanoclusters on the ordered mesoporous TiO2 (CPT) by a pore confinement effect. The resultant CPT exhibited an extraordinary photocatalytic activity during Stille reaction under visible light. The X-ray photoelectron spectroscopy spectra, the field emission scanning electron microscope (FESEM) images, and the aberration-corrected high-angle annular dark scanning transmission electron microscopy (HAADF-STEM) images demonstrated that CP nanoclusters were anchored in the mesoporous pore wall of TiO2, and the atomic ratio as well as densities of CP could be precisely modulated via the coordination configuration. As the atomic ratio of CP to TiO2 increased to a certain extent, their photocatalytic activity during Stille reaction increased. A mechanistic investigation suggested that the CP alloy could absorb visible light and its conduction electrons gained energy, which were available at the surface Pd sites. This allowed the Pd sites to become electron-rich and to accelerate the rate-determining step of the Stille reaction. As a result, the efficiency of the photocatalytic Stille coupling reaction was extraordinary enhanced.

1. Introduction

The Stille cross-coupling reaction, as one of the most powerful C-C bond-forming reactions, has been widely used in natural products, pharmaceutical and polymer syntheses due to the stability of organostannanes, the broad scope of reaction substrate, the functional group tolerance as well as the high chemoselectivity [1,2,3]. The current Stille cross-coupling reaction is traditionally carried out with the aid of various palladium-based homogeneous catalytic systems. However, this approach has suffered from high costs and difficulty in the separation and recovery of Pd catalysts [4,5]. In recent years, Pd nanoparticles that are based on heterogeneous systems have been developed as candidate catalysts that could operate under mild conditions and be separated and recovered more easily, although their catalytic activity is generally inferior to that of the homogeneous Pd catalysts [6]. In addition, the Stille cross-coupling reaction involves redox processes, including oxidative addition, metal migration, isomerization, and reduction elimination. The key to redox processes is the transfer of electrons between metal catalysts and organic substances, which requires energy input to overcome the high reaction energy barrier to activate the C-X bond and to enable the effective conversion of organic electrophiles and organostannanes to desirable products [7,8,9,10]. Nevertheless, a high temperature not only increases the possibility of the formation of undesirable products but also can be detrimental to the stability and reusability of catalysts. Thus, efficient catalytic systems that are based on recyclable catalysts and green energy sources and that can carry out these reactions at an ambient temperature are highly desirable but remain a significant challenge.
As an inexhaustible green energy source, sunlight has been increasingly used in chemical reactions [11,12], and numerous studies have demonstrated that photoexcited electrons can also trigger C−C coupling at ambient conditions in the presence of photocatalysts [13,14,15]. For example, Xiao et al. discovered that Au/Pd alloy can strongly absorb and gain energy from visible light; the availability of photoexcited electrons with high energy densities on the Pd surfaces not only increases their affinity for the reactant molecules but also enhances their intrinsic ability to activate the reactant molecules. Thus, the conversion of the Suzuki cross-coupling reaction is efficiently enhanced at a mild temperature [16,17]. Although Xiao et al. have achieved satisfactory results, the application of gold and palladium alloy is limited by its complex preparation process and high price. Semiconductor-supported palladium and its alloys are considered promising photocatalysts for C-C formation due to their effective absorption of visible light, good durability, capacity for multivalent binding to substances, and cost-effectiveness. However, it is still a challenge to precisely control the particle size and distribution of Pd and its alloys.
Mesoporous TiO2 usually exhibits high photocatalytic activity, owing to its improved reactant diffusion and light absorbance [18,19,20,21]. Additionally, the open pore structure of the catalyst is crucial because it promotes the adsorption and diffusion of target molecules; the enlarge BET surface areas can provide more active sites, and more importantly, the multiple scattering of light that occurs in the mesopore will also improve light harvest [22]. Herein, we reported the synthesis of a CuPd alloy that was embedded into TiO2 via a pore-confined strategy by in situ surfactant-assisted self-assembly (Figure 1). In this process, the uniform P123/ titanium oligomer composite micelles were formed and worked as the building blocks to enable the self-assembly of micelles into the ordered mesostructure, where the oligomer not only provided a reinforced structure to retain the highly ordered mesostructure but also acted as a cross-linked network to maintain the confinement of other metal ions. After crystallization, the isolated CuPd atoms were confined to the pore wall of the mesostructured TiO2 [23]. As a result, the size and distribution of the CuPd alloy (CP) could be easily controlled. Meanwhile, the mesoporous structure could be tailed and engineered. The CP modified mesoTiO2 (CPT) exhibited a high photocatalytic activity during Stille cross-coupling reaction, owing to the synergetic effects from CuPd and the ordered mesoporous TiO2.

2. Experimental

2.1. Chemicals and Materials

Tributyl(vinyl)tin (C14H30Sn), Tributyl(Phenyl)Stannane (C18H32Sn), Iodobenzene (C6H5I), 4-Iodotoluene (C7H7I), 4-Iodoanisole (C7H7IO), 4-Iodonitrobenzene (C6H4INO2), Cupric acetate (C4H6CuO4), Palladium(II) acetate (Pd(OAc)2), Titanium(IV) butoxide (C16H36O4Ti), Titanium(IV) Chloride (TiCl4), Potassium Carbonate (K2CO3), Sodium Hydroxide (NaOH), Triethylamine (TEA, C6H15N), N-Ethyldiisopropylamine (DIPEA, C8H19N), Ethanol (EtOH, C2H5OH), Acetonitrile (MeCN), 1,4-Dioxane (C4H8O2), N,N-Dimethylformamide (DMF, C3H7NO), and Dimethyl sulfoxide (DMSO, C2H6OS) were purchased from Sinopharm Chemical Reagent (Shanghai, China). Pluronic P123 (EO20PO70EO20, Mw = 5800 g/mol) was obtained from Sigma-Aldrich. All chemicals were used without further purification.

2.2. Preparation of Ordered Mesoporous TiO2

TiO2 with ordered mesoporous was synthesized as follows. Together, 1.0 g P123, 1 mmol TiCl4, 1 mmol C16H36O4Ti, and 20 mL EtOH were mixed and vigorous stirred for 1 h. Then, the resultant solution was transferred into petri dishes (15 × 15 mm) and dried in an oven at 40 °C for 24 h and then at 80 °C for another 24 h. Finally, the ordered mesoporous TiO2 was obtained via calcination at 350 °C in N2 for 2 h and 400 °C in air for 3 h.

2.3. Preparation of Ordered Mesoporous TiO2 with Cu or/and Pd Doped

Pd/TiO2 (PT) with ordered mesopores was fabricated using the following procedure. Specifically, 1.0 g P123, 1 mmol TiCl4, 1 mmol C16H36O4Ti, 0.05 mmol Pd(OAc)2, and 20 mL EtOH were mixed and vigorous stirred for 1 h. The resultant solution was transferred into petri dishes (15 × 15 mm) and dried in an oven at 40 °C for 24 h and then at 80 °C for another 24 h. Finally, gray powder was obtained via calcination at 350 °C in N2 for 2 h, 400 °C in air for 3 h, and 280 °C in H2 for 3 h, which was denoted as Pd/TiO2 (PT).
Similar procedures were employed to fabricate Cu-TiO2 and CuPd-TiO2, except that Pd(OAc)2 was replaced in whole or in part by Cu(OAc)2. The obtained samples were denoted as CT and CPT-X, respectively, where X was the molar ratio of Cu to Pd. In this paper, CPT-0.2, CPT-0.6, CPT-1.0, CPT-1.5, and CPT-2.0 were synthesized and their photocatalytic properties were studied, and the molar ratio of Cu to Pd for each sample was determined using ICP and XPS (Table S2).

2.4. Photocatalytic Stille Coupling Reaction

CPT (20 mg) was dispersed in 2 mL EtOH, followed by the addition of 0.1 mmol of aryl halides, organostannanes (C14H30Sn or C18H32Sn), and 0.5 mmol of K2CO3, in a Pyrex reactor equipped with a rubber septum. The reaction solution was irradiated with a 300 W Xenon lamp (λ > 420 nm) at room temperature. After irradiation for a certain period time, the reaction mixture was filtered and analyzed by a high-performance liquid chromatograph (Agilent 6410 Series Triple Quad), which was equipped with an Agilent C18 reverse-phase chromatographic column and a UV detector (wavelength of 280 nm). The mobile phase was 55:45 acetonitrile/water (flow rate of 1 mL/min and injection volume of 5 μL). The conversion of aryl halides and the yield of corresponding products were determined using trimethylbenzene as the internal standard sample.

3. Results and Discussion

3.1. Structural Properties of CPT

The X-ray diffraction (XRD) patterns in Figure 2a showed seven diffuse peaks which could be well-matched to anatase. The negligible variation in the position and intensity of those diffuse peaks and undiscovered peaks, for both CuPd alloy and their monomers, indicated well-retained phases and highly dispersed crystalline nanoclusters after the introduction of CuPd into the skeleton of the mesoporous TiO2 [24,25]. The SAXS patterns of the CPTs in Figure 2b showed two well-defined scattering peaks assigned to the 10 and 11 reflections of the hexagonal symmetry (p6m), implying a highly ordered mesostructure [26]. Type IV isotherms with a capillary condensation at a middle pressure were observed in Figure 2c, suggesting all CPTs possessed large mesoporous size. The H1-type hysteresis loops were found for all CPTs, suggesting uniform cylindrical mesochannels [27]. In addition, pore volumes and BET surface areas of CPT-0.2, CPT-1.5, and CPT-2.0 were estimated to be 0.46, 0.32, and 0.30 cm3/g, and 180, 164, and 155 m2/g, respectively, with a pore size distribution of 4.1–3.2 nm (Table S1). The high BET specific surface areas, large pore volumes, and uniform pore size distribution (Figure 2d, Table S1) determined the variation in the atomic ratio of CuPd and slightly affected the mesostructure. These results were indicative of the fact that the atomic CuPd alloy was anchored into the skeleton of the mesostructure of TiO2 via a pore confinement effect. This enabled the CPTs to have open and ordered mesopores.
The electronic configuration of CPT was explored using XPS. The high-resolution XPS spectra of Ti revealed that the intrinsic values of Ti 2p3/2 and Ti 2p1/2 had a slightly negative shift (Figure S1), signifying that the introduction of CuPd was accompanied by the formation of oxygen vacancy (Ov bulk). This hypothesis was further verified by the high-resolution XPS spectra of O (Figure S2). In the case of Cu and Pd XPS spectra (Figure 2e,f), the characteristic peaks located at 952.1 eV and 932.1 eV in the Cu XPS spectra of CPT could be attributed to Cu 2p1/2 and 2p3/2 of Cu(0), and the peaks at 339.6 eV and 334.4 eV in the high-resolution XPS of Pd could be assigned to Pd 3d3/2 and Pd 3d5/2 of Pd in the CPT, respectively [28]. In addition, the atomic ratio as determined by the XPS was basically consistent with the results of the ICP test (Table S2), implying the atomically dispersed CuPd alloy was embedded into the wall of the mesostructure via a pore confinement effect.
The field emission scanning electron microscope (FESEM) images of the CPTs showed a typical bulk configuration with a size of approximately 2 mm (Figure S3). The high-resolution FESEM images exhibited ordered and open mesoporous arrays in large domain, and no apparent CuPd nanoparticles on the external surfaces or inside of the pore channels were found (Figure S4). The mesostructures of the sampled CPTs were further confirmed using transmission electron microscope (TEM). As shown in Figure S5, all of them possessed a 2D hexagonal mesoporous structure with an average diameter of 3.0∼4.0 nm and an average thickness of 3.0∼4.0 nm for the pore walls. These results were in agreement with the results of the SASX. Apparently, isolated CuPd alloy (bright spots) with a size of 2.5 nm could be found on the aberration-corrected high-angle annular dark scanning transmission electron microscopy (HAADF-STEM) image (Figure 3). These bright spots were confined to the pore wall of TiO2. Moreover, the corresponding energy-dispersive X-ray spectroscopy (EDX) elemental mapping images demonstrated that CuPd was uniformly distributed on TiO2, which had an ordered mesoporous structure.

3.2. Photocatalytic Stille Coupling Reaction

The photocatalytic activity of the CPT was conducted using Stille coupling reaction under visible light at room temperature, as shown in Figure 4a. The CPT was added into an ethanol (EtOH) solution of Iodobenzene and Tributyl(vinyl)tin with K2CO3 as a base. This mixture was stirred for 1 h under visible light irradiation using Xe lamp (equipped with a cut-off filter at 420 nm) to enable Iodobenzene to be converted into the corresponding product styrene. Although Pd is well-accepted as the ideal co-catalyst to activate C-X and achieve C-C coupling, such as the Suzuki and Ullmann reactions [29,30], Pd-doped TiO2 (PT) showed the expected activity toward Iodobenzene conversion (Figure 4b). Significantly, the activity of PT was further improved by introducing Cu; all of the CPTs showed a higher efficiency of Iodobenzene conversion compared with pristine PT under the same condition. In particular, the photocatalytic activity of the CPT increased at first and then slightly decreased with an increasing amount of Cu, which presented a volcano-type trend with an increase of Cu to Pd ratio (Figure S6). This result suggested the CuPd ratio was an important factor that was affected the photocatalytic performance of CPT, and the optimal CPT could almost realize the complete conversion of aryl halides to their corresponding products within 3 h (Figure 4c). This result was superior to the results previously reported for heterogeneous Pd catalysts [31,32,33,34] (Figure S7). In addition, the repeated experiment of CPT-1.5 was investigated in successive works. As described in Figure 4g, high yields of the target product remained after repeating the experiment five times, suggesting CPT-1.5 possessed excellent recyclability. The phase and morphology of CPT-1.5 after reuse were explored using XRD and TEM. As depicted in Figures S8 and S9, the main diffraction peaks of CPT-1.5 matched well with the original sample and its ordered mesoscopic structure remained good. In addition, the ICP tests showed that no obvious leaching of CuPd particles was found. These results showed that CPT1.5 had good structural stability, due to the strong interaction between CP particles and TiO2, which could effectively prevent the leaching of CuPd during photocatalytic Stille reaction. The XPS test results showed two more peaks with low intensity that appeared at 335.5 and 341.5 eV for divalent Pd after CPT-1.5 was reused for five times (Figure S10), indicating that a fraction of the metallic Pd of the CuPd alloy on CPT-1.5 was oxidized to Pd2+ in the repeated experiment. This might have been responsible for the tiny decline in the catalytic activity after repeating the test five times.
To elucidate the mechanism responsible for the photocatalytic Stille coupling reaction, the influence of catalyst support was studied. As shown in Figure 4d, when SiO2 or activated C was used as a catalyst support in place of TiO2, the conversion of Iodobenzene was negligible. When silver nitrate was added as an electron trapping agent into the reaction of Iodobenzene with Tributyl(vinyl)tin to trap the electrons transferred from CuPd alloy to Iodobenzene, the yield of the photocatalytic Stille reaction decreased significantly, indicating that photoexcited electrons played a key role in this reaction. Liebeskind L.S. et al. proposed that the introduction of copper or copper salts could increase the concentration of tin reagent on the catalyst surface, thereby improving the conversion and selectivity of the Stille reaction [35]. Contrary to this, Simon P.H. et al. found that the introduction of copper or copper salt did not affect the oxidative addition of Pd during the Stille reaction. It only promoted the electron transfer of tin reagent and Iodobenzene, thereby improving the conversion of Iodobenzene [36]. Figure S11 shows the FR-IR spectrum of tin reagent adsorbing over CPT-1.5 and PT surfaces during the reaction process. There were two sets of absorption peaks that were located between 1250 and 1750 cm−1 and could be assigned to the stretching vibration absorption peaks of C = C (ν = 1658 and 1619 cm−1) and the bending vibration of C-H for -CH2 (ν = 1403 cm−1) and -CH3 (ν = 1376 cm−1), respectively. Additionally, the absorption peaks situated at 1006 and 997 cm−1 could be originated from the bending vibration of C=C, and the peak at 828 cm−1 could be assigned to the trans vibration of C-H for -CH2. The lack of differentiation in the intensity of these characteristic peaks indicated that the concentration of tin reagent adsorbed on the surface of CPT-1.5 catalyst did not increase significantly. Therefore, the concentration variation in the tin reagent was not the main reason for the improved efficiency of the Stille reaction. Furthermore, the UV-Vis diffuse reflectance spectra of PT, CPT-1.5, and CPT-2.0 showed light absorption in the visible region, and their corresponding values of bandgaps were calculated to be 2.95, 2.78 and 2.8 eV, respectively, based on the Kubelka–Munk formula (Figures S12 and S13). Both CPT-1.5 and CPT-2.0 showed significant improvement in light-absorption in the visible region, which might be attributed to the synergistic effect of optimizing the energy band structure of CPT and the Cu plasma effect [37]. In addition, a control experiment was conducted by comparing the activity of TiO2 with Cu and Pd doped alone (Figure 4b,d), which showed that the active center during the photocatalytic Stille reaction was mainly in the Pd sites. Furthermore, photocurrent and EIS test showed that CPT possessed higher photocurrent density and smaller arc radius than those of PT under the same condition [38] (Figures S14 and S15). Additionally, PL spectral intensity of CPT was lower than that of PT (Figure S16). These results indicated that the modulation of CuPd ratio was critical to the efficient transfer of photoexcited charges, and it inhibited the recombination of electrons and holes [39].
Therefore, the optimal CuPd ratio could improve the light absorption of CPT on the one hand. On the other hand, with an increase in Cu ratio, the electron transfer from TiO2 to Pd sites was accelerated, and the electron cloud density on the Pd surface increased [16]. These light-excited electrons were available at the surface of the Pd sites. Therefore, the Pd sites had a good affinity for both aryl halides and organostannanes, and the electrons at the Pd sites could also enhance their intrinsic ability to activate the reactant molecules.
To better understand the reaction mechanism of the photocatalytic Stille coupling reaction, the effects of bases were investigated (Figure 4e). Among the bases used, NaOH and K2CO3 were determined to be the most effective, whereas KHPO4 was found to be less effective due to its weak alkalinity. This phenomenon was very similar to that of traditional Stille reaction. When organic bases such as TEA and DIPEA were used, an inferior conversion of Iodobenzene was found. This might be attributed to the strong electrostatic adsorption capacity of TEA and DIPEA, which were adsorbed on the surface of the Pd sites and inhibited the exposure of active sites, leading to the decline of catalytic activity [40].
Subsequently, the influences of different solvents on the Stille reaction catalyzed by CPT-1.5 under visible light were investigated. As shown in Figure 4f, non-polar organic solvent (1,4-Dioxane) exhibited a moderated activity under this type of photocatalytic Stille reaction. Generally, polar aprotic solvents were considered the ideal solvents for Stille reaction that could enable high yields of the desired products. However, except for MeCN, both DMF and DMSO gave unsatisfactory results when the reaction was carried out at room temperature under visible light, which was different from that of conventional Stille reaction. Notably, when EtOH was used as a solvent, a very high yield of the desired products was achieved under the same condition, which suggested that EtOH was more favorable for the photocatalytic Stille reaction. We speculated that EtOH might act as a hole trapping agent because it could be oxidized more readily by photogenerated hole transfer due to the relatively low oxidation potential, thus promoting the transfer of photogenerated electrons.
Based on the above experimental results, a possible mechanism responsible for the photocatalytic Stille coupling reaction that was catalyzed by CPT was proposed (Figure 5). Under visible light irradiation, the CPT hybrids were excited and the photogenerated electrons in the CB of the TiO2 support could be transferred more easily to the CB of the CuPd alloy particles. Simultaneously, the photogenerated holes that remained in the VB of TiO2 were transferred to the solvent. Therefore, the CPT hybrids efficiently facilitated the separation of photoinduced electron–hole pairs. In addition, the alloy nanoparticles could absorb visible light, and the generated hot electrons due to the plasma effect of Cu could become available at the surface of the Pd sites, allowing the Pd sites to have a good affinity for the reactant. These electron-rich Pd sites then underwent oxidative addition of the aryl halides, which was followed by transarylation of the organostannanes. Finally, the desired product was achieved after reductive elimination.
Finally, CPT was used to activate the photocatalytic Stille reaction of various aryl halides with organostannanes at room temperature (Table 1). Regardless of whether Tributyl(vinyl)tin or ributyl(phenyl)stannane was used, all substituents of the electron-donating group were effectively converted to their corresponding products in high yield. In addition, the steric hindrance of aryl halides rarely affected the yields of the Stille reaction. However, a slight decrease in product yields was found when the aryl halides belonged to the electron-withdrawing groups. This result verified that CPT hybrids could be applied to the photocatalytic Stille reaction with various aryl halides and organostannanes at room temperature.

4. Conclusions

In summary, alloyed CuPd that is embedded in an ordered mesoporous TiO2 has been rationally designed and synthesized using a pore-confined strategy for photocatalytic Stille coupling reaction under mild conditions. The atomic ratio and density of the CuPd on the mesoporous TiO2 hybrids are readily controlled during synthesis, and we found that the CuPd ratio is the crucial factor for the photocatalytic activity of the CPT during Stille reaction under visible light. Moreover, solvent and base also have important influences on the efficiency of the photocatalytic Stille reaction. Experimental results show that the yields of target products are extraordinarily enhanced when protic solvents are used in the presence of K2CO3. In addition, CPT also shows good reusability and organic substrate compatibility with various aryl halides and organostannanes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal12101238/s1, Figure S1: Ti 2p XPS spectra of CPT-1.5; Figure S2: O 2p XPS spectra of CPT-1.5; Figure S3: FESEM images of (a) CPT-0.2, (b) CPT-1.5 and (c) CPT-2.0; Figure S4: High-resolution FESEM images of (a) CPT-0.2, (b) CPT-1.5 and (c) CPT-2.0; Figure S5: High-resolution TEM images of (a,d) CPT-0.2, (b,e) CPT-1.0 and (c,f) CPT-2.0; Figure S6: The yield of styrene in the photocatalytic Stille reaction of Iodobenzene and Tributyl(vinyl)tin over different samples; Figure S7: Comparison of the activity of CPT-1.5 with those of previously reported photocatalysts for photocatalyzed stille reactons; Figure S8: XRD of CPT-1.5 before and after repeated test in photocatalytic Stille reaction; Figure S9: TEM of CPT-1.5 after repeated test in photocatalytic Stille reaction; Figure S10:Pd 3d XPS spectra of CPT-1.5 after repeated test in photocatalytic Stille reaction; Figure S11: FI-IR of tributylvinyltin over in different catalysts during the photocatalytic Stille reaction; Figure S12: UV-Vis DRS of PT, CPT-1.5 and CPT-2.0; Figure S13: The plots of transformed Kubelka-Munk function versus the energy of light; Figure S14: Transient photocurrent response of PT, CPT-1.5 and CPT-2.0; Figure S15: EIS Nyquist plots of PT, CPT-1.5 and CPT-2.0; Figure S16: PL curves of PT, CPT-1.5 and CPT-2.0; Table S1: Structural parameters of different samples; Table S2: Content of CuPd for different samples.

Author Contributions

Conceptualization, T.T. and L.J.; methodology, W.C. and J.S.; writing—original draft preparation, T.T. and L.J.; writing—review and editing, W.C. and J.S.; supervision, H.M. and Z.X.; funding acquisition, H.M. and Z.X. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key Research and Development Program of China (2020YFA0211004), the National Natural Science Foundation of China (22176128, 21876114), Shanghai Government (21XD1422800, 19DZ1205102 and 19160712900), the Chinese Education Ministry Key Laboratory and International Joint Laboratory on Resource Chemistry, the Shanghai Eastern Scholar Program, the Shanghai Engineering Research Center of Green Energy Chemical Engineering (18DZ2254200), and the Shanghai Frontiers Science Center of Biomimetic Catalysis.

Acknowledgments

Thanks for the technical support from Hangzhou Normal University and Shanghai Institute of Technology.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mohazzab, B.F.; Jaleh, B.; Issaabadi, Z.; Nasrollahzadeh, M.; Varma, R.S. Stainless steel mesh-GO/Pd NPs: Catalytic applications of Suzuki–Miyaura and Stille coupling reactions in eco-friendly media. Green Chem. 2019, 21, 3319–3327. [Google Scholar] [CrossRef]
  2. Garcia-Martinez, J.C.; Lezutekong, R.; Crooks, R.M. Dendrimer-Encapsulated Pd Nanoparticles as Aqueous, Room-Temperature Catalysts for the Stille Reaction. J. Am. Chem. Soc. 2005, 127, 5097–5103. [Google Scholar] [CrossRef] [PubMed]
  3. Ryu, S.H.; Choi, S.J.; Seon, J.H.; Jo, B.; Lee, S.M.; Kim, H.J.; Ko, Y.-J.; Ko, K.C.; Ahn, T.K.; Son, S.U. Visible light-driven Suzuki–Miyaura reaction by self-supported Pd nanocatalysts in the formation of Stille coupling-based photoactive microporous organic polymers. Catal. Sci. Technol. 2020, 10, 5535–5543. [Google Scholar] [CrossRef]
  4. Nikoorazm, M.; Ghorbani, F.; Ghorbani-Choghamarani, A.; Erfani, Z. Pd(0)- S-propyl-2-aminobenzothioate immobilized onto functionalized magnetic nanoporous MCM-41 as efficient and recyclable nanocatalyst for the Suzuki, Stille and Heck cross coupling reactions. Appl. Organ. Chem. 2018, 32, 4282. [Google Scholar] [CrossRef]
  5. Babu, A.; Joy, M.N.; Sunil, K.; Sajith, A.M.; Santra, S.; Zyryanov, G.V.; Konovalova, O.A.; Butorin, I.I.; Muniraju, K. Towards novel tacrine analogues: Pd(dppf)Cl2·CH2Cl2 catalyzed improved synthesis, in silico docking and hepatotoxicity studies. RSC Adv. 2022, 12, 22476–22491. [Google Scholar] [CrossRef]
  6. Rathod, J.; Sharma, P.; Pandey, P.; Singh, A.P.; Kumar, P. Highly active recyclable SBA-15-EDTA-Pd catalyst for Mizoroki-Heck, Stille and Kumada C–C coupling reactions. J. Porous Mater. 2017, 24, 837–846. [Google Scholar] [CrossRef]
  7. Alamgholiloo, H.; Pesyan, N.N.; Rostamnia, S. A novel strategy for stabilization of sub-nanometric Pd colloids on kryptofix functionalized MCM-41: Nanoengineered material for Stille coupling transformation. Sci. Rep. 2021, 11, 18417. [Google Scholar] [CrossRef]
  8. Boudjelel, M.; Sadek, O.; Mallet-Ladeira, S.; García-Rodeja, Y.; Sosa Carrizo, E.D.; Miqueu, K.; Bouhadir, G.; Bourissou, D. Phosphine–Borane Ligands Induce Chemoselective Activation and Catalytic Coupling of Acyl Chlorides at Palladium. ACS Catal. 2021, 11, 3822–3829. [Google Scholar] [CrossRef]
  9. Sanhueza, I.A.; Klauck, F.J.R.; Senol, E.; Keaveney, S.T.; Sperger, T.; Schoenebeck, F. Base-Free Cross-Couplings of Aryl Diazonium Salts in Methanol: PdII–Alkoxy as Reactivity-Controlling Intermediate. Angew. Chem. Int. Ed. 2021, 60, 7007–7012. [Google Scholar] [CrossRef]
  10. Zhou, P.; Chao, Y.; Lv, F.; Wang, K.; Zhang, W.; Zhou, J.; Chen, H.; Wang, L.; Li, Y.; Zhang, Q.; et al. Metal Single Atom Strategy Greatly Boosts Photocatalytic Methyl Activation and C–C Coupling for the Coproduction of High-Value-Added Multicarbon Compounds and Hydrogen. ACS Catal. 2020, 10, 9109–9114. [Google Scholar] [CrossRef]
  11. Li, X.; Chen, Y.; Tao, Y.; Shen, L.; Xu, Z.; Bian, Z.; Li, H. Challenges of photocatalysis and their coping strategies. Chem. Catal. 2022, 2, 1315–1345. [Google Scholar] [CrossRef]
  12. Ren, Y.; Chen, Y.; Li, Q.; Li, H.; Bian, Z. Microwave-Assisted Photocatalytic Degradation of Organic Pollutants via CNTs/TiO2. Catalysts 2022, 12, 940. [Google Scholar] [CrossRef]
  13. Zhao, S.; Song, S.; You, Y.; Zhang, Y.; Luo, W.; Han, K.; Ding, T.; Tian, Y.; Li, X. Tuning redox ability of Zn3In2S6 with surfactant modification for highly efficient and selective photocatalytic C-C coupling. Mol. Catal. 2022, 528, 112429. [Google Scholar] [CrossRef]
  14. Wang, P.; Yu, X.; Li, C.; He, B.; Chen, J.; Xiao, W. A photocatalytic iminyl radical-mediated C–C bond cleavage/addition/cyclization cascade for the synthesis of 1,2,3,4-tetrahydrophenanthrenes. Chem. Commun. 2018, 54, 9925–9928. [Google Scholar] [CrossRef] [PubMed]
  15. Huang, C.; Li, J.; Li, C. Photocatalytic C(sp3) radical generation via C–H, C–C, and C–X bond cleavage. Chem. Sci. 2022, 13, 5465–5504. [Google Scholar] [CrossRef]
  16. Xiao, Q.; Sarina, S.; Bo, A.; Jia, J.; Liu, H.; Arnold, D.P.; Huang, Y.; Wu, H.; Zhu, H. Visible Light-Driven Cross-Coupling Reactions at Lower Temperatures Using a Photocatalyst of Palladium and Gold Alloy Nanoparticles. ACS Catal. 2014, 4, 1725–1734. [Google Scholar] [CrossRef]
  17. Sarina, S.; Zhu, H.; Jaatinen, E.; Xiao, Q.; Liu, H.; Jia, J.; Chen, C.; Zhao, J. Enhancing Catalytic Performance of Palladium in Gold and Palladium Alloy Nanoparticles for Organic Synthesis Reactions through Visible Light Irradiation at Ambient Temperatures. J. Am. Chem. Soc. 2013, 135, 5793–5801. [Google Scholar] [CrossRef]
  18. Ravuvari, A.K.; Yechuri, S.; Chaitanya, C.; Rajesh, C. Improved Light Efficiency in Si Solar Cells by Coating Mesoporous TiO2 and Cu-Modified Mesoporous TiO2. Sol. RRL 2018, 2, 1800214. [Google Scholar] [CrossRef]
  19. Jeon, B.; Lee, H.; Goddeti, K.C.; Park, J.Y. Hot Electron Transport on Three-Dimensional Pt/Mesoporous TiO2 Schottky Nanodiodes. ACS Appl. Mater. Inter. 2019, 11, 15152–15159. [Google Scholar] [CrossRef]
  20. Lan, K.; Wang, R.; Zhang, W.; Zhao, Z.; Elzatahry, A.; Zhang, X.; Liu, Y.; Al-Dhayan, D.; Xia, Y.; Zhao, D. Mesoporous TiO2 Microspheres with Precisely Controlled Crystallites and Architectures. Chem 2018, 4, 2436–2450. [Google Scholar] [CrossRef]
  21. Xie, C.; Yang, S.; Shi, J.; Niu, C. Highly Crystallized C-Doped Mesoporous Anatase TiO2 with Visible Light Photocatalytic Activity. Catalysts 2016, 6, 117. [Google Scholar] [CrossRef] [Green Version]
  22. Xu, Z.; Zheng, R.; Chen, Y.; Zhu, J.; Bian, Z. Ordered mesoporous Fe/TiO2 with light enhanced photo-Fenton activity. Chin. J. Catal. 2019, 40, 631–637. [Google Scholar] [CrossRef]
  23. Duan, L.; Fu, R.; Zhang, B.; Shi, W.; Chen, S.; Wan, Y. An Efficient Reusable Mesoporous Solid-Based Pd Catalyst for Selective C2 Arylation of Indoles in Water. ACS Catal. 2016, 6, 1062–1074. [Google Scholar] [CrossRef]
  24. Zou, Y.; Xiao, K.; Qin, Q.; Shi, J.-W.; Heil, T.; Markushyna, Y.; Jiang, L.; Antonietti, M.; Savateev, A. Enhanced Organic Photocatalysis in Confined Flow through a Carbon Nitride Nanotube Membrane with Conversions in the Millisecond Regime. ACS Nano 2021, 15, 6551–6561. [Google Scholar] [CrossRef]
  25. Li, H.; Bian, Z.; Zhu, J.; Huo, Y.; Li, H.; Lu, Y. Mesoporous Au/TiO2 Nanocomposites with Enhanced Photocatalytic Activity. J. Am. Chem. Soc. 2007, 129, 4538–4539. [Google Scholar] [CrossRef]
  26. Wang, S.; Qin, J.; Zhao, Y.; Duan, L.; Wang, J.; Gao, W.; Wang, R.; Wang, C.; Pal, M.; Wu, Z.-S.; et al. Ultrahigh Surface Area N-Doped Hierarchically Porous Carbon for Enhanced CO2 Capture and Electrochemical Energy Storage. ChemSusChem 2019, 12, 3541–3549. [Google Scholar] [CrossRef]
  27. Zhao, X.; Zhu, X.; Wang, K.; Lv, J.; Chen, S.; Yao, G.; Lang, J.; Lv, F.; Pu, Y.; Yang, R.; et al. Palladium catalyzed radical relay for the oxidative cross-coupling of quinolines. Nat. Commun. 2022, 13, 4180. [Google Scholar] [CrossRef]
  28. Wang, Z.; Wang, H.; Shi, Y.; Liu, C.; Wu, L. CuPd alloy decorated SnNb2O6 nanosheets as a multifunctional photocatalyst for semihydrogenation of phenylacetylene under visible light. Chem. Eng. J. 2022, 429, 132018. [Google Scholar] [CrossRef]
  29. Ke, W.; Cui, T.; Yu, Q.; Wang, M.; Lv, L.; Wang, H.; Jiang, Z.; Li, X.; Chen, J. Mesoporous H-ZSM-5 nanocrystals with programmable number of acid sites as “solid ligands” to activate Pd nanoparticles for C–C coupling reactions. Nano Res. 2018, 11, 874–881. [Google Scholar] [CrossRef]
  30. Korwar, S.; Burkholder, M.; Gilliland, S.E.; Brinkley, K.; Gupton, B.F.; Ellis, K.C. Chelation-directed C–H activation/C–C bond forming reactions catalyzed by Pd(ii) nanoparticles supported on multiwalled carbon nanotubes. Chem. Commun. 2017, 53, 7022–7025. [Google Scholar] [CrossRef]
  31. Yang, C.; Wang, B.; Zhang, L.; Yin, L.; Wang, X. Synthesis of Layered Carbonitrides from Biotic Molecules for Photoredox Transformations. Angew. Chem. Int. Ed. 2017, 129, 6727–6731. [Google Scholar] [CrossRef]
  32. Hosseini-Sarvari, M.; Bazyar, Z. Visible Light Driven Photocatalytic Cross-Coupling Reactions on Nano Pd/ZnO Photocatalyst at Room-Temperature. ChemistrySelect 2018, 3, 1898–1907. [Google Scholar] [CrossRef]
  33. Li, Y.; Zhang, Z.; Pei, L.; Li, X.; Fan, T.; Ji, J.; Shen, J.; Ye, M. Multifunctional photocatalytic performances of recyclable Pd-NiFe2O4/reduced graphene oxide nanocomposites via different co-catalyst strategy. Appl. Catal. B Environ. 2016, 190, 1–11. [Google Scholar] [CrossRef]
  34. Sun, D.; Li, Z. Double-Solvent Method to Pd Nanoclusters Encapsulated inside the Cavity of NH2–Uio-66(Zr) for Efficient Visible-Light-Promoted Suzuki Coupling Reaction. J. Phy. Chem. C 2016, 120, 19744–19750. [Google Scholar] [CrossRef]
  35. Liebeskind, L.S.; Fengl, R.W. 3-Stannylcyclobutenediones as nucleophilic cyclobutenedione equivalents. Synthesis of substituted cyclobutenediones and cyclobutenedione monoacetals and the beneficial effect of catalytic copper iodide on the Stille reaction. J. Org. Chem. 1990, 55, 5359–5364. [Google Scholar] [CrossRef]
  36. Mee, S.P.H.; Lee, V.; Baldwin, J.E. Stille Coupling Made Easier—The Synergic Effect of Copper(I) Salts and the Fluoride Ion. Angew. Chem. Int. Ed. 2004, 43, 1132–1136. [Google Scholar] [CrossRef]
  37. Hui, L.S.; Whiteway, E.; Hilke, M.; Turak, A. Synergistic oxidation of CVD graphene on Cu by oxygen plasma etching. Carbon 2017, 125, 500–508. [Google Scholar] [CrossRef]
  38. Ma, D.; Shi, J.-W.; Sun, L.; Sun, Y.; Mao, S.; Pu, Z.; He, C.; Zhang, Y.; He, D.; Wang, H.; et al. Knack behind the high performance CdS/ZnS-NiS nanocomposites: Optimizing synergistic effect between cocatalyst and heterostructure for boosting hydrogen evolution. Chem. Eng. J. 2022, 431, 133446. [Google Scholar] [CrossRef]
  39. Xu, Z.; Deng, X.; Chen, Y.; Wen, J.; Shi, L.; Bian, Z. Engineering a Rapid Charge Transfer Pathway for Enhanced Photocatalytic Removal Efficiency of Hexavalent Chromium over C3N4/NH2–UIO-66 Compounds. Sol. RRL 2021, 5, 2000416. [Google Scholar] [CrossRef]
  40. Raza, F.; Yim, D.; Park, J.H.; Kim, H.-I.; Jeon, S.-J.; Kim, J.-H. Structuring Pd Nanoparticles on 2H-WS2 Nanosheets Induces Excellent Photocatalytic Activity for Cross-Coupling Reactions under Visible Light. J. Am. Chem. Soc. 2017, 139, 14767–14774. [Google Scholar] [CrossRef]
Catalysts 12 01238 g001 550

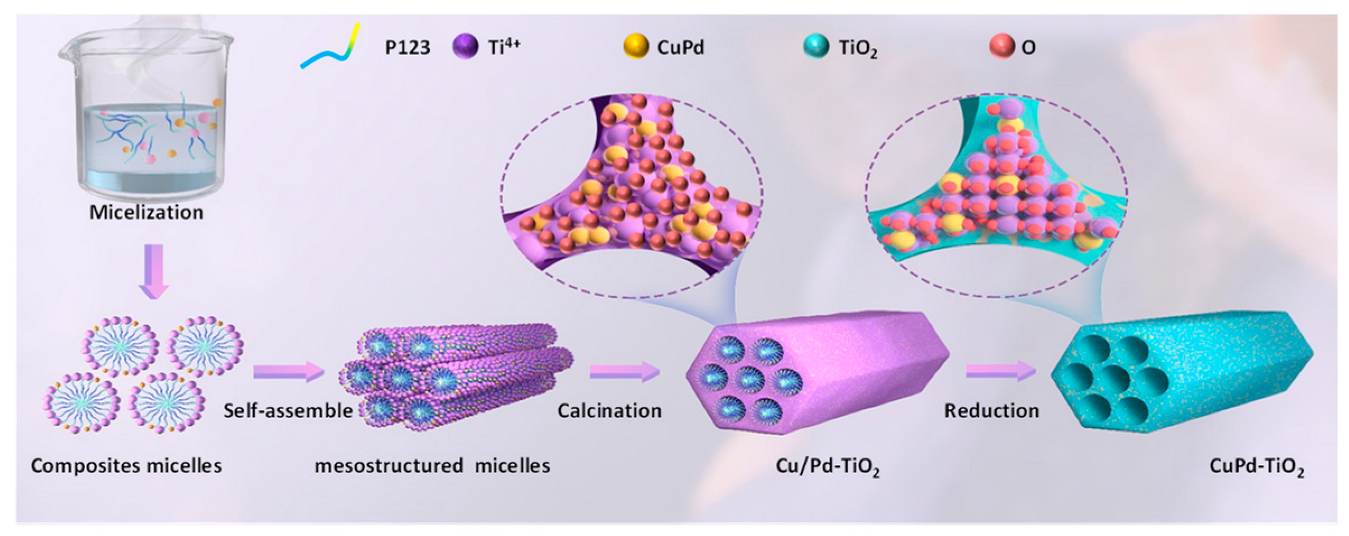

Figure 1. Illustration of the synthesis of a CuPd-TiO2(CPT) catalyst.
Figure 1. Illustration of the synthesis of a CuPd-TiO2(CPT) catalyst.
Catalysts 12 01238 g001
Catalysts 12 01238 g002 550

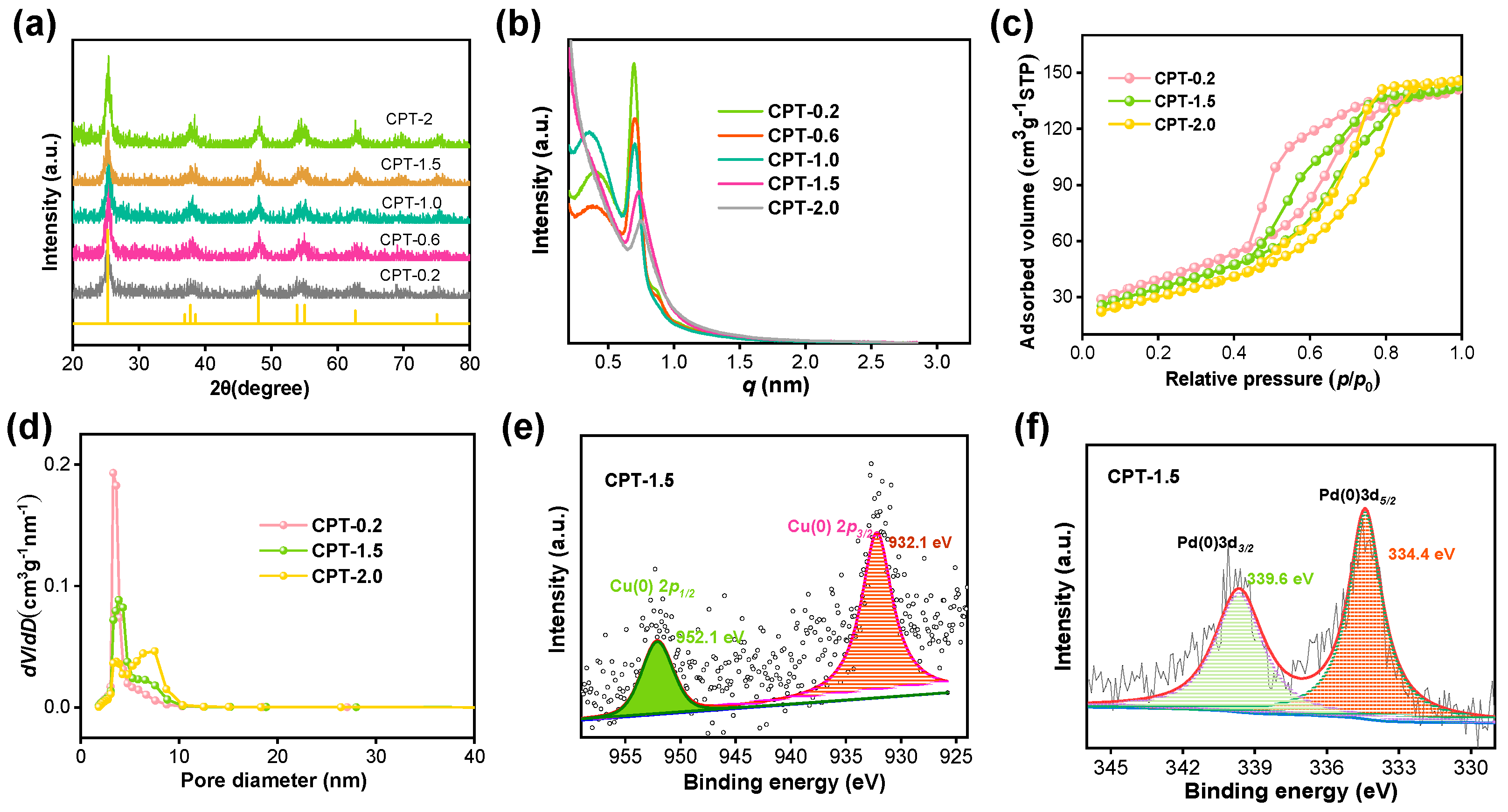

Figure 2. Structural analysis of CPT-X. (a) wide-angle (b) SAXS patterns of CPT with different Cu/Pt ratio, (c) N2 sorption isotherms, (d) pore-size distribution curves of CPT-0.2, CPT-1.5, and CPT-2.0, (e) Cu 2p, and (f) Pd 3d XPS spectra of CPT-1.5.
Figure 2. Structural analysis of CPT-X. (a) wide-angle (b) SAXS patterns of CPT with different Cu/Pt ratio, (c) N2 sorption isotherms, (d) pore-size distribution curves of CPT-0.2, CPT-1.5, and CPT-2.0, (e) Cu 2p, and (f) Pd 3d XPS spectra of CPT-1.5.
Catalysts 12 01238 g002
Catalysts 12 01238 g003 550

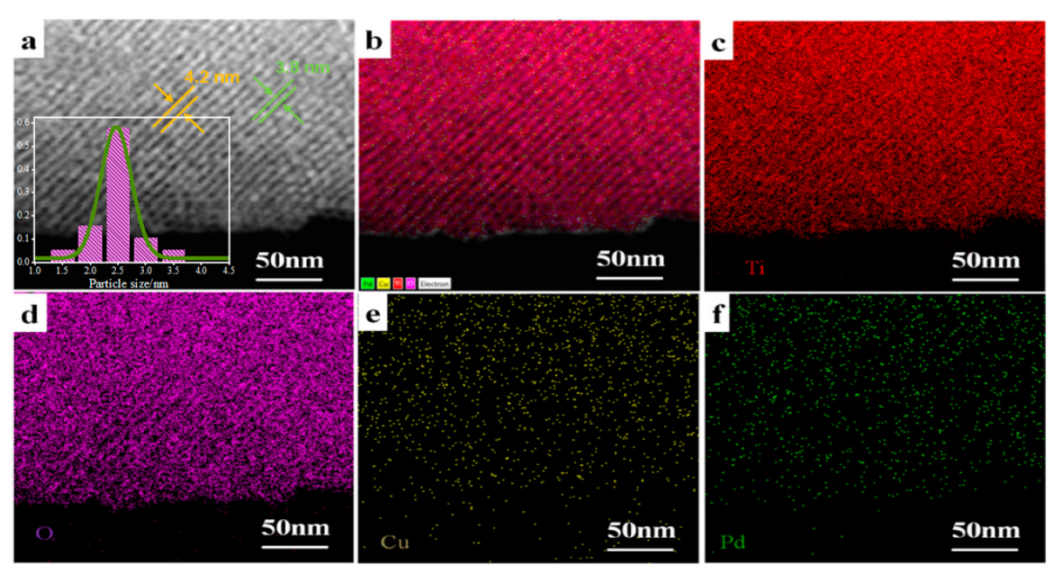

Figure 3. (a) HAADF-STEM image for CPT-1.5 and (b–f) the corresponding EDS elemental mapping images.
Figure 3. (a) HAADF-STEM image for CPT-1.5 and (b–f) the corresponding EDS elemental mapping images.
Catalysts 12 01238 g003
Catalysts 12 01238 g004 550

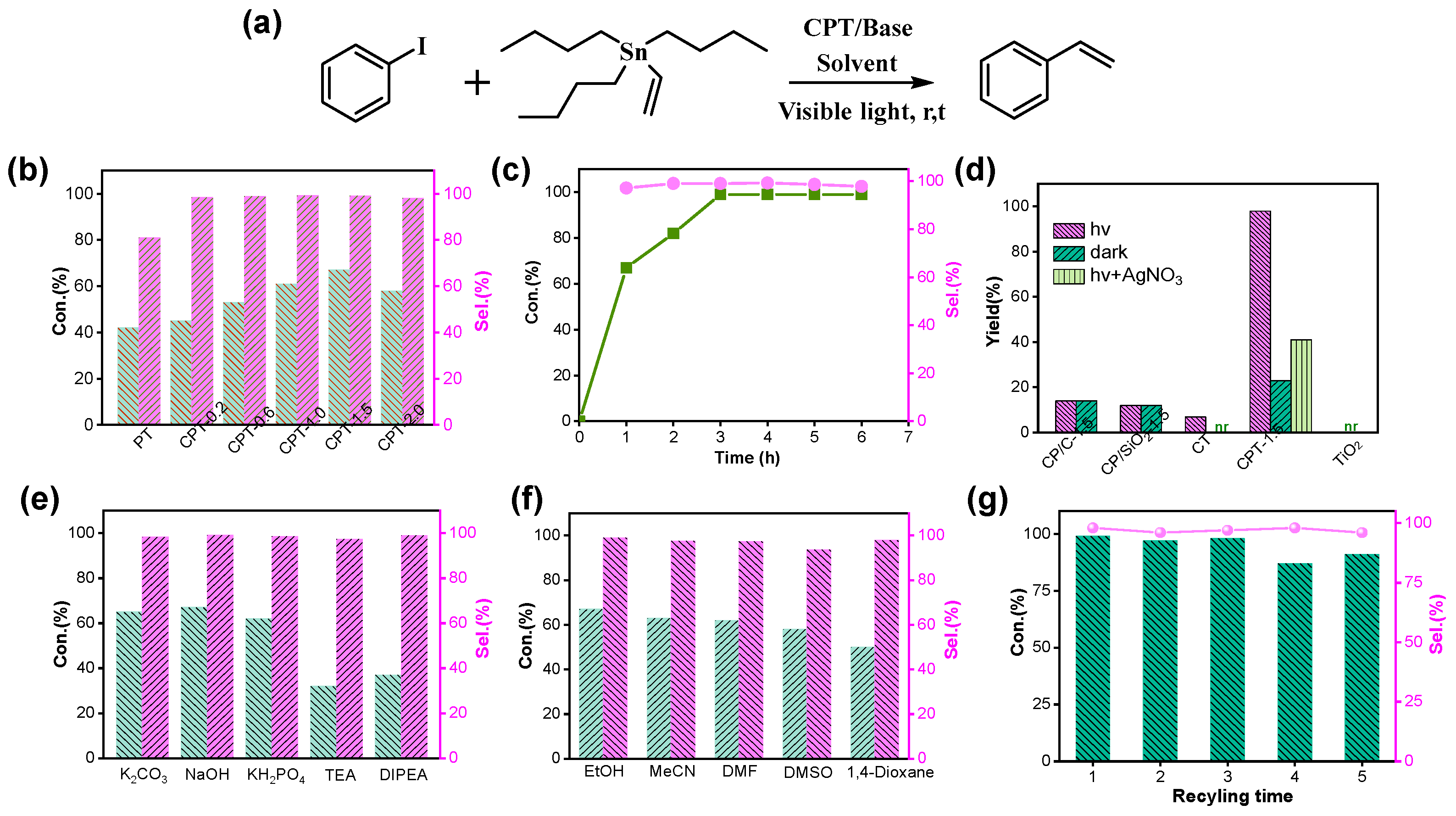

Figure 4. Photocatalytic activity of CPT under various conditions. (a) Reaction scheme for the photocatalyzed Stille coupling reaction. (b) Effect of the CuPd ratio on the photocatalytic activity of CPT. Effects of (c) time, (d) different catalysts, (e) bases, and (f) solvents on the photocatalytic activity. (g) Reusability of CPT-1.5 for the photocatalytic Stille coupling reaction.
Figure 4. Photocatalytic activity of CPT under various conditions. (a) Reaction scheme for the photocatalyzed Stille coupling reaction. (b) Effect of the CuPd ratio on the photocatalytic activity of CPT. Effects of (c) time, (d) different catalysts, (e) bases, and (f) solvents on the photocatalytic activity. (g) Reusability of CPT-1.5 for the photocatalytic Stille coupling reaction.
Catalysts 12 01238 g004
Catalysts 12 01238 g005 550

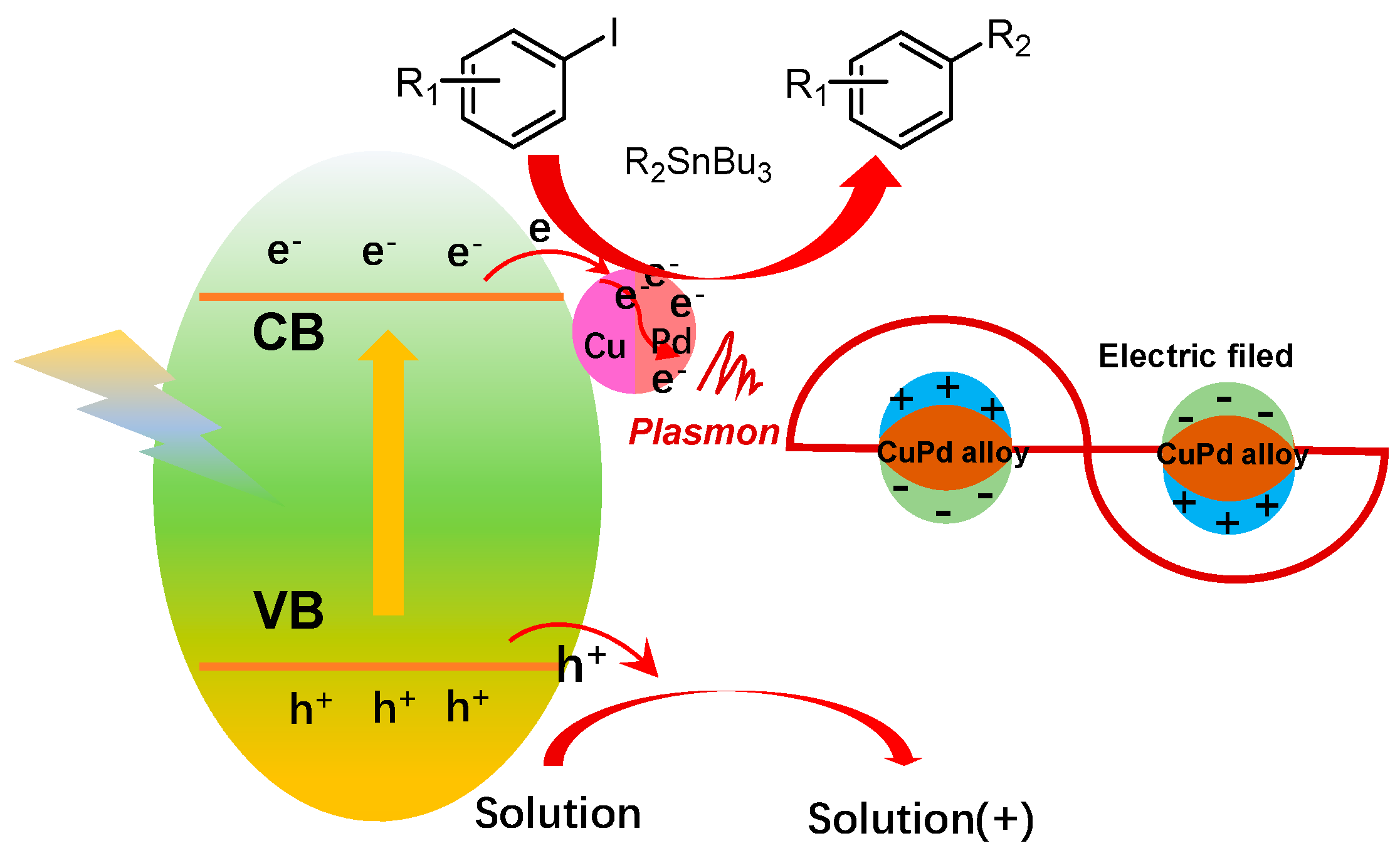

Figure 5. Proposed mechanism responsible for the photocatalytic Stille coupling reaction over CPT-1.5.
Figure 5. Proposed mechanism responsible for the photocatalytic Stille coupling reaction over CPT-1.5.
Catalysts 12 01238 g005
Table
Table 1. Photocatalytic Stille Coupling Reactions of Various Aryl Halides over CPT-1.5.
Table 1. Photocatalytic Stille Coupling Reactions of Various Aryl Halides over CPT-1.5.
Catalysts 12 01238 i001
EnrtyAryl halidesProductYield (%)
1Catalysts 12 01238 i002Catalysts 12 01238 i00398.2
2Catalysts 12 01238 i004Catalysts 12 01238 i00597.3
3Catalysts 12 01238 i006Catalysts 12 01238 i00796.6
4Catalysts 12 01238 i008Catalysts 12 01238 i00997.1
5Catalysts 12 01238 i010Catalysts 12 01238 i01195.4
6Catalysts 12 01238 i012Catalysts 12 01238 i01386.4
7Catalysts 12 01238 i014Catalysts 12 01238 i01590.1
8Catalysts 12 01238 i016Catalysts 12 01238 i01788.2
9Catalysts 12 01238 i018Catalysts 12 01238 i01985.7
Reaction conditions: Aryl Halides (0.1 mmol), CPT-1.5 (20 mg), K2CO3 (5 equiv), EtOH (2.0 mL), Xe lamp (300 W, λ > 420 nm), Time (3 h), rt, Determined by LC.
