Synergistic Effects of Bimetallic AuPd and La₂O₃ in the Catalytic Reduction of NO with CO

Abstract

Bimetallic AuPd nanoparticles supported on TiO₂ are known to catalyze the reduction of NO with CO. Here, we investigated the effects of the addition of lanthanum oxide to a AuPd/TiO₂ catalyst with a AuPd particle size of 2.1–2.2 nm. The addition of La₂O₃ enhanced the catalytic activity; for example, at 250 °C, there was 40.9% NO conversion and 49.3% N₂-selectivity for AuPd/TiO₂, and 100% NO conversion and 100% N₂-selectivity for AuPd-La (1:1)/TiO₂. The temperature requiring 100% NO conversion dropped from 400 °C to 200 °C by the simple post-impregnation of La₂O₃ onto AuPd/TiO₂. In situ diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS) combined with modulation excitation spectroscopy (MES) demonstrated that CO adsorption occurs first on Au atoms and then, within 80 s, moves onto Pd atoms. This transformation between two adsorption sites was facilitated by the addition of La₂O₃.

1. Introduction

Fundamental discoveries in the 1970s and 1980s [1,2] that gold nanoparticles supported on metal oxides act as a catalyst in a low temperature range is one of the most fascinating observations in chemistry. Before that, bulk Au had been considered inert and unreactive because of its electron negativity (2.54), which is close to the value of carbon (2.55) [3]. Au nanoparticles need to be finely dispersed on the metal oxide support [1,2] and their preparation method greatly influences the catalytic performance of the Au catalysts [4]. In addition, the valence electrons, the nature of support materials, interface/perimeter between Au and metal oxide, and their charge transfer strongly affect the catalytic performance of Au catalysis [5]. Au catalysis covers a wide range of chemical reactions such as oxidation [6], hydrogenation [7], cross-coupling reaction [8], fine chemical synthesis [9], and photocatalysis [10]. Its high potential has opened a path for the industrialization of Au catalysis in biorefinery, fine chemical synthesis, and pharmaceutical industries [11].

Nitric oxide and carbon monoxide emitted from internal combustion engines are dangerous to public health and ecological balance [12]. Noble metals such as Rh, Pt, and Pd supported on metal oxides have been extensively explored for eliminating NO and CO simultaneously [13,14,15,16,17,18,19,20]. Catalytic reduction of NO with CO proceeds via the formation of isocyanate (–NCO) species and their reaction with NO to form N₂ and CO₂ [14]. Pd-based catalysts have been reported to be an alternative to traditional three-way catalysts [19,21]. However, the limitation of the Pd catalysts is its low selectivity to dinitrogen. There are two main factors to control the N₂-selectivity regulated by the following reactions:

2 NO + 2 CO → N₂ + 2 CO₂

(1)

2 NO + CO → N₂O + CO₂

(2)

N₂O + CO → N₂ + CO₂

(3)

Reaction (1) is the direct to path to form N₂. Reactions (2) and (3) indicate the indirect path via N₂O formation and its subsequent reaction with CO. Generally, reaction (3) governs the N₂-selectivity [22]. To facilitate reaction (3), a number of attempts have been made for Pd-based catalysts such as the modification of support materials [23,24,25], additives [13,26,27], and alloying [28,29,30]. Alloying Au nanoparticles with Rh has also been reported to facilitate reaction (3) [31]. Among them, bimetallic AuPd nanoparticles supported on TiO₂ was reported to catalyze the above reactions efficiently [32]. AuPd (1:1)/TiO₂ outperforms monometallic Pd and Au catalysts [32]. In particular, monometallic Au catalysts without any additives cannot promote reaction (3) [33,34]. However, even with highly active bimetallic AuPd catalysts, the full NO conversion requires temperatures as high as 350 °C and the N₂-selectivity never reaches 100% [33,34]. Therefore, in this study, we focused on achieving 100% NO conversion and 100% N₂-selectivity at lower temperature by modification of the AuPd/TiO₂ catalyst.

Lanthanide elements (e.g., La, Ce) were widely used as an additive to improve catalytic performance [15,35,36,37]. For example, the addition of lanthana (La₂O₃) or ceria (CeO₂) does not only improve the catalytic activity of Pd, but also stabilizes its metallic-state nanoparticles [15,36]. The model proposed to describe the Pd–lanthana interaction is based on an assumption of the metal decoration with LaO_x (x < 1.5) overlayers migrating from the support material at the Pd–LaO_x interface in a strong metal–support interaction (SMSI) under reductive conditions [36]. In this study, we combined bimetallic AuPd nanoparticles and La₂O₃ supported on TiO₂ to harmonize promotional effects for catalytic reduction of NO with CO. AuPd-La₂O₃/TiO₂ catalysts showed high NO conversion and N₂-selectivity in the low temperature range. The effects of the La₂O₃ were characterized by means of spectroscopic techniques.

2. Results and Discussion

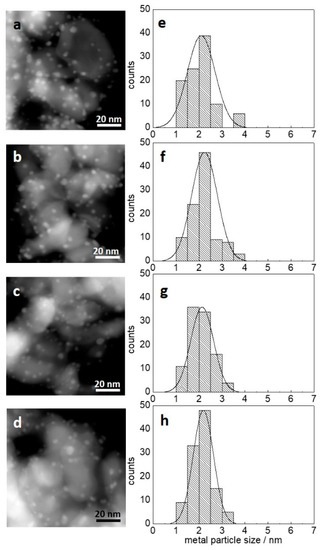

Figure 1 shows the annular dark-field transmission electron microscope (ADF-TEM) images of each catalyst and size distribution histograms of bimetallic AuPd nanoparticles. The bimetallic nanoparticles with an average particle size of 2.1–2.2 nm were finely dispersed on the TiO₂ support for all samples. The addition of La₂O₃ had no influence on the size distribution, whereas BET surface area dropped from 52.1 m²/g to 37.0 m²/g as in

Table 1. BET surface area and AuPd particle size of AuPd, AuPd-La, and La supported on TiO₂. Catalyst designations are given in the Experimental Section.

Catalyst	Mean Size of Metal Particles/nm	BET Surface Area/m2 g−1
AuPd/TiO2	2.1	52.1
AuPd-La(2:1)/TiO2	2.2	47.1
AuPd-La(1:1)/TiO2	2.1	43.2
AuPd-La(1:2)/TiO2	2.2	37
La/TiO2	-	19.2

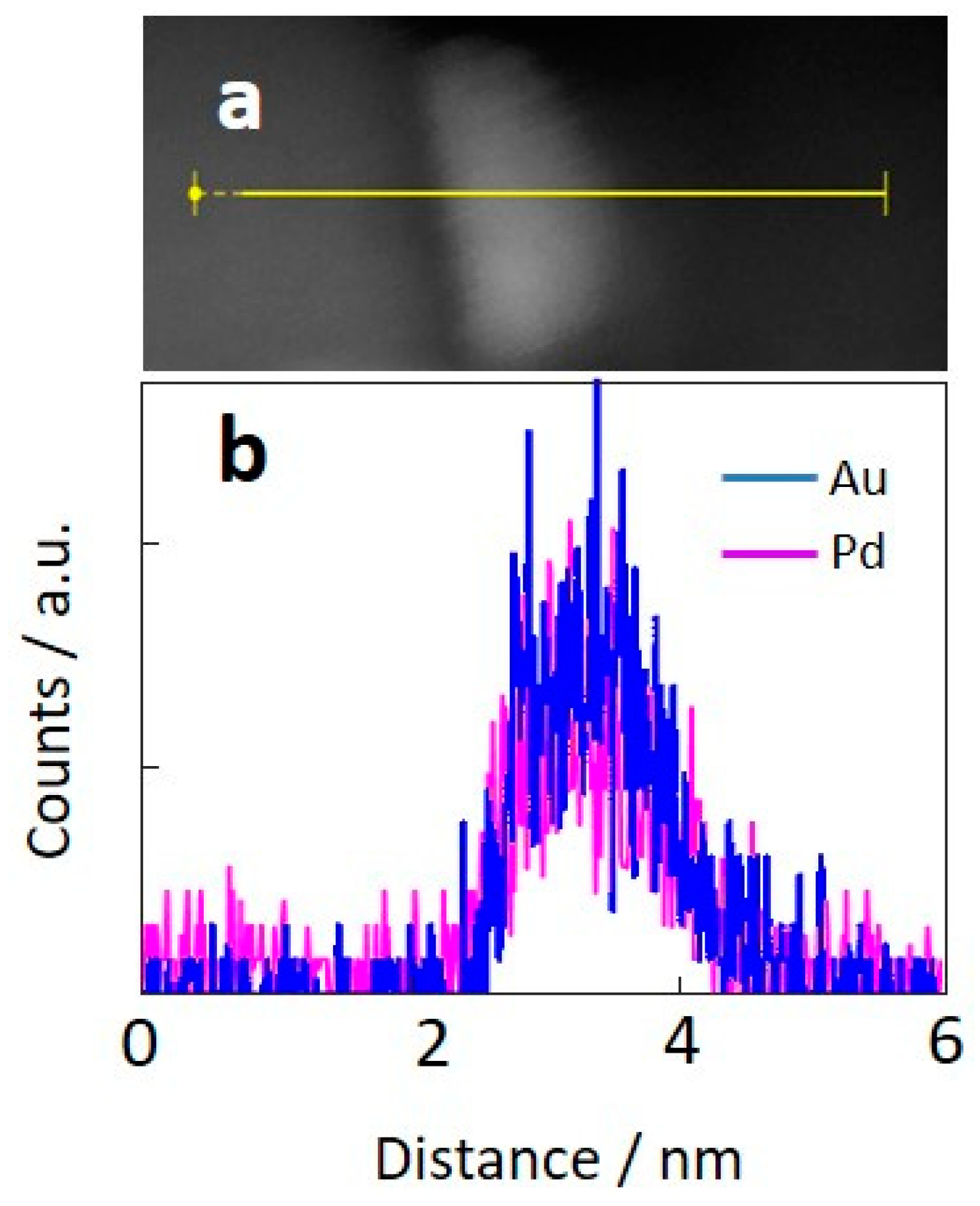

. Figure 2a,b shows a focused image of a bimetallic AuPd/TiO₂ particle and the corresponding energy-dispersive spectroscopy (EDS) line scan of Au and Pd. Au and Pd elements perfectly overlap each other, which led us to conclude that the bimetallic AuPd nanoparticles were in the form of a well-mixed alloy. Because the size of AuPd nanoparticles is not affected by the AuPd–La ratio, effects of La₂O₃ addition on catalytic performance can be reasonably evaluated.

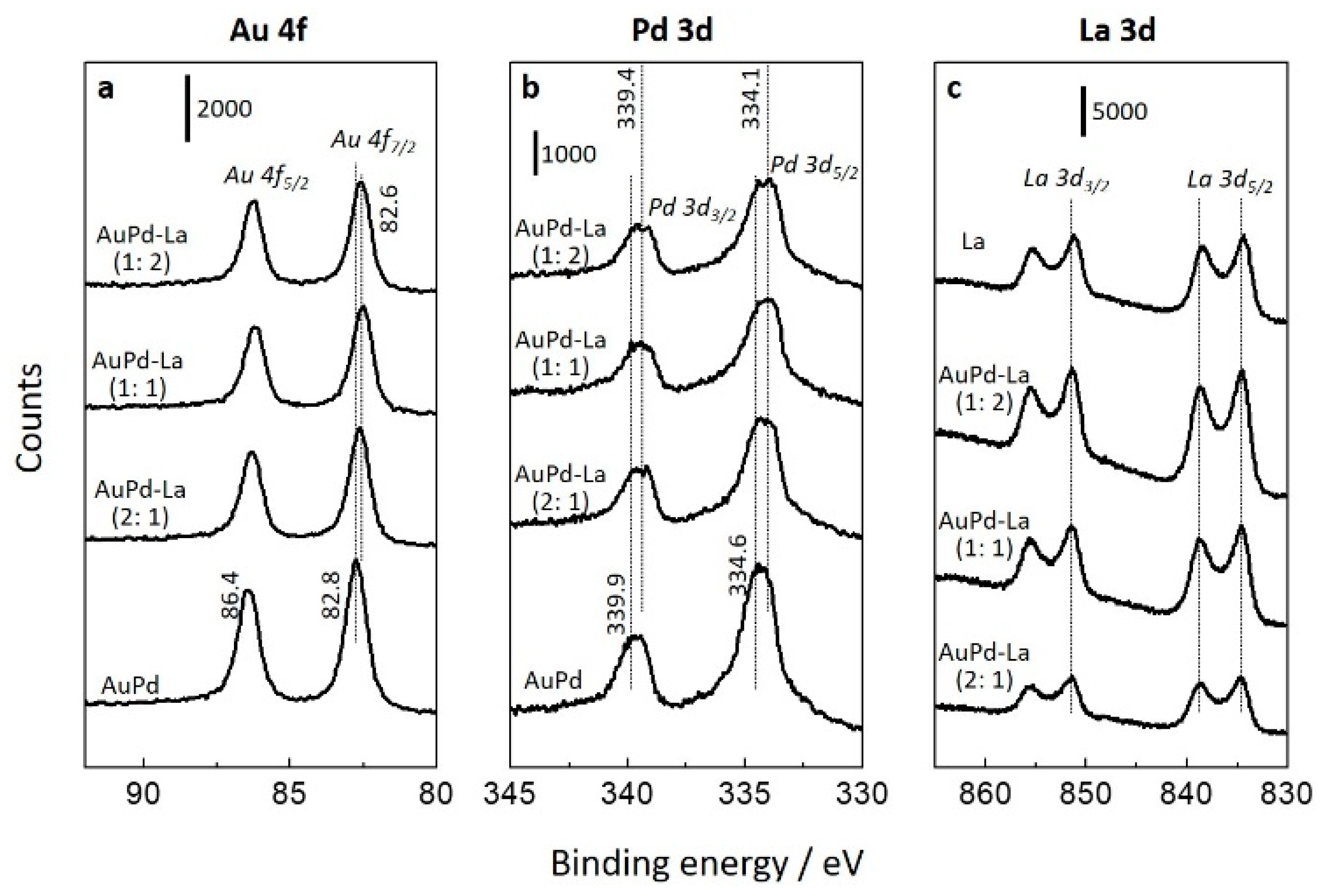

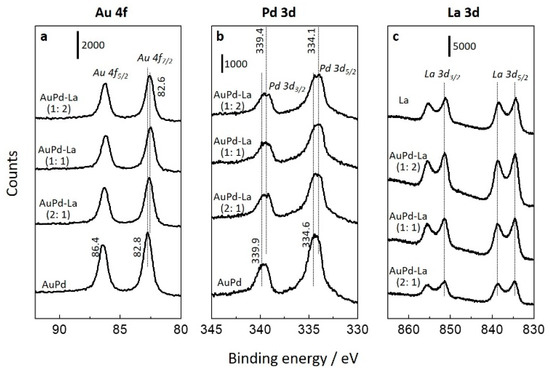

Figure 3 shows X-ray photoelectron spectroscopy (XPS) spectra of the Au 4f, Pd 3d, and La 3d regions of the catalysts pre-treated with pure hydrogen at 300 °C for 1 h. For the AuPd/TiO₂, a peak of Au 4f_7/2 centered at 82.8 eV was assigned to metallic Au. Two peaks at 339.9 and 334.6 eV were assigned to metallic Pd [38]. The lower binding energy (BE) for both Pd_3/2 and Au 4f_7/2 compared to the standard values of corresponding metals arose from the net charge flowing into Au (higher Au s or p electron densities) and Pd (gaining d electrons from Au) [38,39,40], indicating the formation of an alloy through the modification of the electronic structure between Au and Pd. The ratio of Au to Pd (Au/(Au + Pd)) on the surface was 0.43 (Table S1 in the Supplementary Materials), indicating that Pd was slightly more present on the surface of the bimetallic nanoparticles. With the addition of La₂O₃, the peaks of Au 4f_7/2 and Pd 3d_5/2 further shifted toward lower BE, implying the formation of electron-enriched Au^δ− species. The increased electron density on gold is known to facilitate CO adsorption and thus to enhance catalytic activity [41,42]. Because of a partial coverage of AuPd particles by La₂O₃, the signals of Au and Pd were attenuated (see Table S1 in the Supplementary Materials). The XPS spectrum of La 3d at 834.6 eV evidenced that La was in the oxidation state of La³⁺ as La₂O₃ [43]. Moreover, the La 3d_5/2 BE values were close to the value of the finely dispersed La₂O₃ phase (835.0 eV), but they were substantially higher than the value observed for the pure La₂O₃ phase (833.5 eV) [44], indicating the well-dispersed La₂O₃ on the catalyst surface. This accounts for a reason as to why the crystalline phase of La₂O₃ was not observed by XRD (Figure S1).

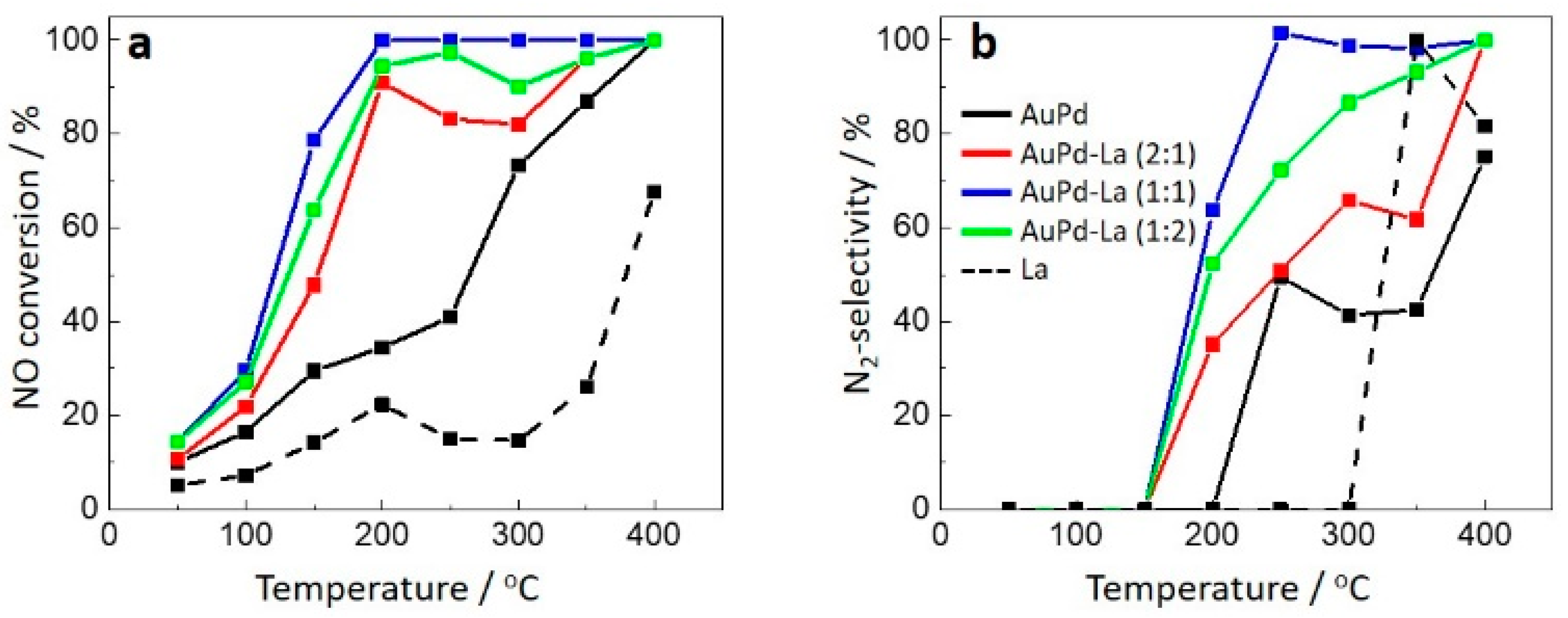

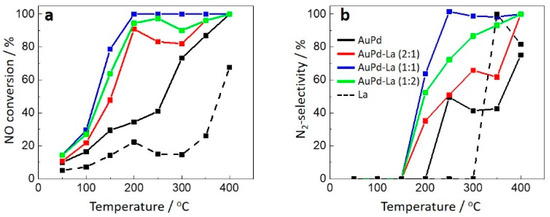

Figure 4 shows the catalytic performance for the reduction of NO with CO (2000 ppm NO, 2000 ppm CO, He balance: 150 mL/min). AuPd/TiO₂ only showed low NO conversion and N₂-selectivity. In addition, it required 400 °C for 100% NO conversion with 75% N₂-selectivity. Hence, the unpromoted catalyst was proven to be inefficient for the reduction of N₂O with CO (Reaction (3)). On the other hand, the addition of La₂O₃ to AuPd/TiO₂ drastically changed the catalytic performance. The best performance was achieved with AuPd-La(1:1)/TiO₂: 100% NO conversion and 63.7% N₂-selectivity at 200 °C; and 100% NO conversion and 100% N₂-selectivity at 250 °C. Further addition of La₂O₃ (i.e., AuPd-La(1:2)/TiO₂), deteriorated the catalytic performance probably due to covering the AuPd nanoparticles by the La₂O₃ layers. For the catalysts other than AuPd-La(1:1)/TiO₂, the conversion and selectivity dropped in the temperature range of 250–350 °C (Figure 4). This occasionally happens for the catalytic reduction of NO with CO due to switching between two different mechanisms: the bimolecular mechanism at low temperature and the dissociative mechanism at high temperature [29]. As clearly seen in Figure 4, La₂O₃/TiO₂ (dotted line) showed poor activity, confirming the unique synergistic effect of bimetallic AuPd and La₂O₃.

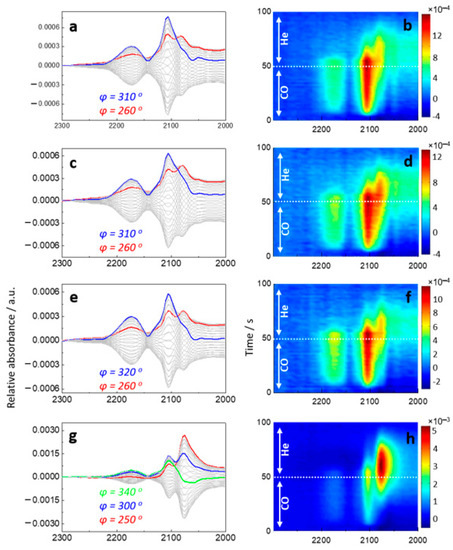

To further study the surface properties of bimetallic AuPd nanoparticles and their synergy with La₂O₃, carbon monoxide was used as a probe molecule. Its adsorption-desorption behavior was followed by using in situ diffuse reflectance Fourier transform infrared spectroscopy (DRIFTS) in tandem with modulation excitation spectroscopy (MES). Figure 5 displays the phase-domain (a, c, e, g) and time-domain (b, d, f, h) DRIFTS spectra taken during repeated cycles of CO adsorption-desorption at 50 °C. In Figure 5a,b (AuPd/TiO₂), a broad IR band at 2150–2220 cm⁻¹ was assigned to CO adsorbed on TiO₂ [45,46]. A sharp and intense band at 2108 cm⁻¹ was assignable to CO linearly-adsorbed on metallic Au [38,47]. Both bands were detected at the same in-phase angle of 310° and, hence, these bands appeared at the same time. Interestingly, the band at 2108 cm⁻¹ shifted gradually and reached its maximum at 2080 cm⁻¹ at an in-phase angle of 260°. This unambiguous shift observed in the time-domain spectra is rationalized by CO changing its binding partner from Au to Pd. This transformation completed within 80 s. This new band is characteristic of linearly-adsorbed CO on Pd [38,47]. The addition of La₂O₃ accelerated this transformation and enhanced CO adsorption property on Pd revealed by the in-phase angle of Au-CO at 2108 cm⁻¹ increasing by 30° (310° → 340°). This indicates that CO adsorption on Au occurred more rapidly, and its change in binding partner from Au-CO to Pd-CO was also accelerated. AuPd-La(1:2)/TiO₂ showed intense band of Pd-CO, and its desorption was considerably delayed compared to the catalysts with a lower amount of La₂O₃ addition. The excess addition of La₂O₃ appeared to strengthen the Pd–CO bond. As evidenced from the XPS spectra (Figure 3), electron-enrichment of AuPd surfaces were induced by the addition of La₂O₃. Electron-enriched metal surfaces are known to facilitate electron back-donation to 2 pi (π) anti-bonding molecular orbital of C–O, leading to strong affinity of adsorbed CO to the metal surfaces. This characteristic affinity was confirmed by the time-resolved MES-DRIFTS spectra (Figure 5h). This would account for the deteriorated catalytic performance with AuPd-La(1:2)/TiO₂. On the other hand, MES-DRIFTS revealed no influence of the addition of La₂O₃ on NO adsorption as shown in Figure S2 in the Supplementary Materials. Au nanoparticles were reported to adsorb almost no NO molecules on the surface [45]. Therefore, the role of bimetallic AuPd nanoparticles would be a separation of the adsorption site; NO adsorbs preferentially on Pd sites while CO first adsorbs on Au sites, which migrates to Pd sites to react with adsorbed NO. The synergistic effect by La₂O₃ seems to enhance this effect.

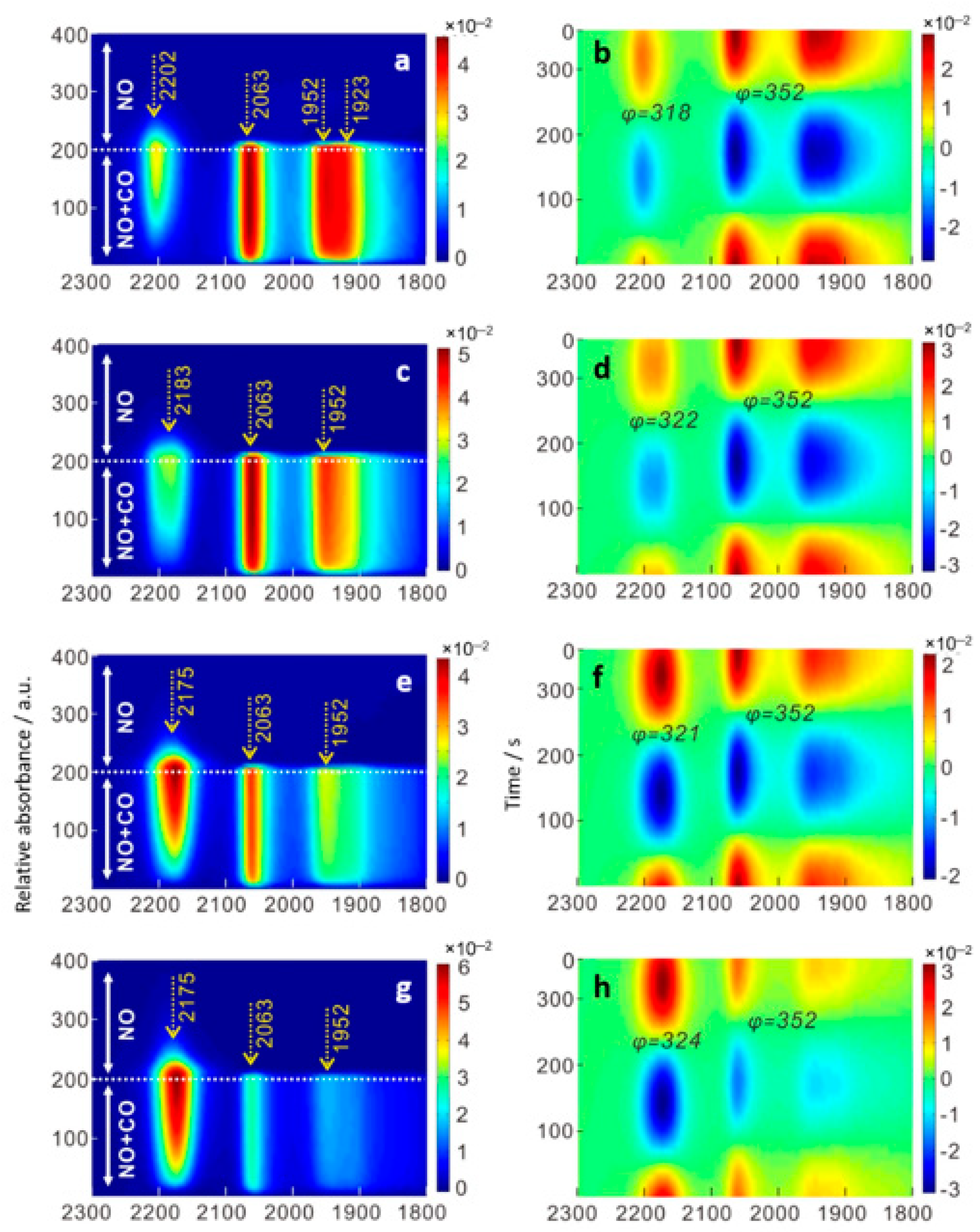

Figure 6 shows in situ time-domain and phase-domain DRIFTS spectra during NO + CO reaction (CO-concentration modulation) at 300 °C. At such high temperature, the band at 2108 cm⁻¹ (Au-CO) was not observed while the band at 2065 cm⁻¹ (Pd-CO), together with a broad band of bridged CO at 1850–1980 cm⁻¹, directly appeared. This indicates that at high temperature, CO-transfer from Au to Pd sites occurs rapidly. Compared to the CO adsorption spectra (Figure 5), an obvious redshift (2081 cm⁻¹ → 2065 cm⁻¹) of CO adsorption on Pd was observed in the presence of NO at 300 °C. The band at around 2065 cm⁻¹ was reported to be relevant to small Pd clusters covered with O atoms [45]. NO molecules adsorbed on Pd dissociated to N and O atoms, resulting in the Pd clusters covered with O atoms. This is consistent with our assumption that CO and NO share the same active sites. After saturation of the surface with adsorbed CO, a new band at 2204 cm⁻¹ gradually emerged with a phase-delay of ca. 30° compared to adsorbed CO (in-phase angle of 352°). This IR band is characteristic of the stretching vibration of isocyanate species (−NCO) on the TiO₂ surface [34,46]. The formation of isocyanate and its reaction with NO is an important intermediate step to produce N₂ and CO₂ [18]. The addition of La₂O₃ shifted the band position of isocyanate to lower wavenumbers of 2183–2175 cm⁻¹, which was assigned to the isocyanate adsorbed on metal surfaces [46,48]. This might have promoted further reaction of –NCO with NO to form N₂ and CO₂ on the bimetallic particles. The fact that the addition of La₂O₃ doubled the amount of isocyanate detected on the surface supports this assumption. Nonetheless, its reaction with NO occurred in the almost same in-phase angle of 318–324°, indicating that the reaction rate of isocyanate with NO also doubled. Interestingly, by adding La₂O₃, the band of isocyanate species on TiO₂ (2202 cm⁻¹) completely disappeared. The presence of La₂O₃ might have suppressed the formation of isocyanate on TiO₂ and facilitated its formation only on bimetallic nanoparticles.

3. Materials and Methods

3.1. Catalyst Preparation

Titanium(IV) oxide (Sigma-Aldrich, Burlington, USA, a mixture of anatase and rutile, 99.5%) was used as a catalytic material support. Chloroauric acid (HAuCl₄·H₂O, Xi’an Wonder Energy Chemical Co., Ltd., Xi’an, China, 98%), palladium(II) sodium chloride (Na₂PdCl₄, Xi’an Wonder Energy Chemical Co., Ltd., Xi’an, China, Pd ≥ 35.5%), sodium hydroxide (J&K Scientific Ltd., Beijing, China, 1 M), and tetra (hydroxymethyl) phosphonium chloride (Sigma-Aldrich, Burlington, USA) were used for the synthesis of bimetallic AuPd nanoparticles. Lanthanum(III) nitrate hexahydrate (LaN₃O₉·6H₂O, Sigma-Aldrich, Burlington, USA, ≥99%) was used for post-impregnation of La₂O₃ as a promoter.

Bimetallic AuPd nanoparticles supported by TiO₂ were prepared according to a report by Duff et al. as follows [47,49]: HAuCl₄ and Na₂PdCl₄ as Au and Pd precursors and THPC as a reducing agent were dissolved in deionized water. The molar ratios of Au to Pd were adjusted to 1:1. The ratio of NaOH, THPC, and the metals (Au + Pd) was adjusted to 6:1.4:1. The resulting colloidal solution was stirred vigorously at room temperature for 1 h, and then added into a suspension of TiO₂ in 100 mL of deionized water. The total metal loading amounts to 2 wt%. After the pH value of the suspension was adjusted at 2.0 with nitric acid, the suspension was filtered and washed with 3 L of deionized water. The obtained material was dried overnight at 80 °C in air.

AuPd-La/TiO₂ with different AuPd:La molar ratios (2:1, 1:1, 1:2) were prepared by impregnating the lanthanum precursor onto the above prepared AuPd(1:1)/TiO₂ catalyst. The lanthanum(III) nitrate hexahydrate was dissolved in deionized water and stirred for 30 min. Then, AuPd(1:1)/TiO₂ powders were added and stirred for another 1 h. The suspension was aged for 1 h at 60 °C in a rotary evaporator and dried at 35 °C under vacuum. The obtained powders were further dried at 60 °C in an oven overnight. A reference catalyst, La/TiO₂, whose La molar amount corresponded to the AuPd-La(1:1)/ TiO₂ catalyst, was synthesized in the same impregnation manner. Even though La was present as La₂O₃, the promoted catalysts are denoted as AuPd-La/ TiO₂ for simplicity.

3.2. Catalytic Reaction

The catalytic activity test was carried out in a fixed bed micro-flow reactor system. A total of 400 mg of catalyst powder was loaded into a stainless-steel tube reactor with an inner diameter of 8.2 mm. Prior to catalytic reaction, the catalysts were pre-treated at 300 °C for 1 h under pure H₂ (flow rate of 100 mL/min) with a ramping rate of 5 °C/min. To remove gaseous H₂ in the gas lines and adsorbed hydrogen atoms on the catalyst surface, the catalyst was then kept in a pure He stream at 300 °C for 10 min. Subsequently, the reactor was cooled down to 50 °C and the reaction mixture (2000 ppm of CO, 2000 ppm of NO, balanced with He) was introduced at the total flow rate of 150 mL/min, corresponding to a gas-hourly space velocity (GHSV) of 12,000 h⁻¹. Catalytic performance in the temperature range of 50–400 °C was evaluated with a gas chromatograph (NINGBO HaiShu Sklon Electronic Instrument Co.,Ltd., Ningbo, China, 9750 GC) equipped with a thermal conductivity detector (TCD) and a capillary column (Molecular Sieve 5A) and a NO-NO₂-NO_x analyzer (Thermo Fischer Scientific, Waltham, USA, 42i-HL). All data were recorded after waiting for 30–70 min until the gaseous compositions reached a steady state at each measurement temperature. The same experiments were repeated at least twice to ensure the reproducibility of the data. A blank test without any catalyst showed no catalytic activity by the inner wall of the stainless-steel tube reactor. The mass balance of carbon and nitrogen atoms were almost 100% for all the catalysts tested in the entire temperature range.

3.3. Catalyst Characterization

BET surface area was measured by the adsorption of nitrogen molecules at liquid nitrogen temperature by employing a Quadrasorb SI instrument (Quantachrome, Boynton, FL, USA). Prior to each of the measurements, the sample powders were vacuumed at 150 °C for 1 h to remove the adsorbed molecules (H₂O and CO₂) on the catalyst surface and in the pores of the TiO₂ support. X-ray diffraction (XRD) patterns were measured with a PANalytical X’Pert diffractometer (Malvern Panalytical, Malvern, UK) equipped with Pd-filtered Cu Kα radiation at 60 kV and 55 mA. X-ray photoelectron spectroscopy (XPS) was used to record the surface compositions and oxidation state of each element using a Thermo ESCALAB 250Xi (Thermo Fischer Scientific, Waltham, USA). Al Kα radiation (1486.6 eV, 15 kV, 10.8 mA) was selected to excite photoelectrons at the 50 eV pass energy. Transmission electron microscopy (TEM, JEOL, Tokyo, Japan, JEM-2100, 200 kv) was used to analyze the mean size of bimetallic AuPd nanoparticles. The EDS line scan was applied to gain information about the elemental distribution of Au and Pd in the nanoparticles. In situ infrared studies were performed with an infrared spectroscopy (Bruker Corporation, Billerica, MA, USA, Vertex 70) equipped with an MCT detector at the spectral resolution of 4 cm⁻¹. A total of 20 mg of the sample was loaded into a porous ceramic cup and placed in an in situ diffuse reflectance FTIR spectroscopic (DRIFTS) cell (ST Japan, Tokyo, Japan). Prior to each measurement, the samples were pre-treated with pure H₂ at the flow rate of 100 mL/min for 1 h at 300 °C (ramping rate: 5 °C/min). Modulation-excitation spectroscopy (MES) was coupled with in situ DRIFTS by periodically changing between two different gas mixtures: (i) CO (2000 ppm) in He and pure He (CO adsorption-desorption modulation); and (ii) CO (2000 ppm) and NO (2000 ppm) in He and NO (2000 ppm) in He (CO-modulation during NO-CO reaction). The spectra of the initial three cycles were disposed to obtain stable responses. Afterward, the five cycles were averaged as one cycle to increase the signal-to noise (S/N) ratio. Phase-domain spectra were obtained by a mathematical treatment of the time-domain spectra according to the following equation:

$$A_k \left({\phi }_k^{PSD}\right)=\frac{2}{T}{{\displaystyle \int }}_0^{T}A\left(t\right)\sin \left(k\omega t+{\phi }_k^{PSD}\right) \mathrm{dt},$$

(4)

where T represents the length of a cycle; ω is the frequency of modulation; ${\phi }_k^{PSD}$ is the phase angle used for demodulation; k is the demodulation index (k = 1 in this study); and A(t) and A_k are the responses of the active species in the time- and phase-domains, respectively.

4. Conclusions

This work showed a promotional effect of bimetallic AuPd nanoparticles supported on TiO₂ by the addition of La₂O₃ in terms of both NO conversion and N₂-selectivity for the catalytic reduction of NO with CO. XPS study revealed electron-enrichment of bimetallic AuPd nanoparticles in the presence of La₂O₃, leading to a beneficial CO adsorption property. In situ MES-DRIFTS demonstrated that CO first adsorbs on Au sites and then gradually move to Pd sites. This site transformation was considerably amplified by the addition of La₂O₃. Another critical role of La₂O₃ is to promote the formation of the isocyanate intermediate. This effect seems critical to facilitate the sequential reaction of isocyanate with NO to produce N₂ and CO₂ efficiently. In this study, we focused on the effect of La₂O₃ addition to the AuPd/TiO₂ catalyst under model gas conditions (only NO and CO in the feed gas). There were some reports that under industry-relevant conditions, Pd can be easily oxidized [50,51]. In light of this, the effect of La₂O₃ addition onto the behavior of AuPd alloys should be the next scope of this research direction.
