Iridium Complex Catalyzed Hydrogen Production from Glucose and Various Monosaccharides

by
Ken-ichi Fujita
*,
Takayoshi Inoue
,
Toshiki Tanaka
,
Jaeyoung Jeong
,
Shohichi Furukawa
and
Ryohei Yamaguchi
Graduate School of Human and Environmental Studies, Kyoto University, Kyoto 606-8501, Japan
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(8), 891; https://doi.org/10.3390/catal11080891
Submission received: 26 June 2021 / Revised: 19 July 2021 / Accepted: 20 July 2021 / Published: 23 July 2021
(This article belongs to the Special Issue Advance in Selective Alcohol and Polyol Oxidation Catalysis)
Browse Figures
Versions Notes

Abstract

A new catalytic system has been developed for hydrogen production from various monosaccharides, mainly glucose, as a starting material under reflux conditions in water in the presence of a water-soluble dicationic iridium complex bearing a functional bipyridine ligand. For example, the reaction of D-glucose in water under reflux for 20 h in the presence of [Cp*Ir(6,6′-dihydroxy-2,2′-bipyridine)(H2O)][OTf]2 (1.0 mol %) (Cp*: pentamethylcyclopentadienyl, OTf: trifluoromethanesulfonate) resulted in the production of hydrogen gas in 95% yield. In the present catalytic reaction, it was experimentally suggested that dehydrogenation of the alcoholic moiety at 1-position of glucose proceeded.

Graphical Abstract

1. Introduction

Hydrogen is important as a raw material for the industrial production of ammonia and methanol [1,2,3,4,5]. In addition, it is an essential industrial reagent in the refining and desulfurization of petroleum [6,7,8]. Hydrogen is also used in large quantities in industrial processes such as turning unsaturated fats into saturated oils and fats, metal alloying and iron flashmaking, and electronics manufacturing (creating semiconductors, LEDs, displays, and photovoltaic segments) [9]. Furthermore, in addition to these industrial applications, hydrogen has been promoted as an energy carrier because it can easily be converted into other energy forms, namely, electrical energy or mechanical energy, with only harmless water as a by-product of the energy conversion [10,11]. Hydrogen has attracted attention as a next-generation energy carrier to replace fossil fuel resources because it has the advantage of exceedingly high energy density per weight.
Under this background, there is a need to develop new techniques to produce hydrogen using sustainable and available resources as feedstock [12,13]. In this context, biomass is expected to be a starting material for producing hydrogen, with the biomass mainly comprised of saccharides.
Research into developing a reaction to produce hydrogen using saccharides as starting material has been carried out for a relatively long time [14]. There are a number of reported reactions in which saccharides are dehydrogenated using heterogeneous catalysts [15,16,17] or enzyme catalysts [18,19] to obtain hydrogen. However, most of the reported examples using heterogeneous catalysts are reactions done under high temperature conditions above 300 °C using expensive noble metals. Furthermore, there are many catalytic systems that produce hydrogen gas mixed with carbon monoxide, carbon dioxide, or methane, instead of highly pure hydrogen, which is often difficult to produce. On the other hand, in the case of a reaction using an enzyme catalyst, it is often possible to obtain hydrogen from a saccharide under mild conditions. However, there are associated disadvantages such as long reaction times, reaction conditions requiring precise control, and time-consuming culturing of enzymes.
In view of these circumstances, there have been great expectations to realize hydrogen production from saccharides under mild conditions within a short reaction time using artificial homogeneous transition metal catalysts. It would be particularly significant if a water-soluble monosaccharide such as glucose was used as the starting material and hydrogen could be efficiently produced by catalytic dehydrogenation in an aqueous medium.
In 2018, Garcia and Mata et al. reported that gluconic acid was formed by the reaction of glucose in aqueous solvents using iridium complex catalysis, accompanied by hydrogen evolution (Scheme 1a) [20,21,22]. This is particularly noteworthy because glucose is sustainably available as a natural resource. However, to efficiently proceed with the dehydrogenation reaction, the usage of strong acids such as sulfuric acid and hydrochloric acid was essential, and the amount of iridium catalyst used was relatively large at 2.0 mol %.
Our research group has developed water-soluble iridium catalysts that demonstrate high catalytic activity for the dehydrogenation reaction of alcohols and has reported the synthesis of aldehydes and ketones by the simple dehydrogenation of primary and secondary alcohols [23,24]. In addition, catalytic lactone synthesis involving the evolution of hydrogen using diol as a starting material has also been reported [25].
In this study, we developed a new catalytic system to produce hydrogen under reflux conditions in water in the presence of a water-soluble dicationic iridium catalyst using various monosaccharides, mainly glucose, as a starting material. As a result, we found that hydrogen could be efficiently obtained from these monosaccharides without the need for the addition of acids or bases and with less catalyst (from 0.2 to 1.0 mol %) than the previously reported examples (Scheme 1b).

2. Results and Discussion

The structures of the iridium catalysts used in this study are shown in Figure 1.
When D-glucose (5.0 mmol) was heated under reflux in water (15 mL) for 20 h in the presence of catalyst 1 (0.2 mol %), which was used under highly acidic conditions in the previous research by Garcia an Mata, only very low yield (7%) of hydrogen was generated (Table 1, entry 1) [26]. In contrast, when water-soluble dicationic catalyst 2, which was previously developed for the dehydrogenative oxidation of simple alcohols in water, was employed for the dehydrogenation of glucose; hydrogen was obtained in 76% yield (entry 2). In this dehydrogenation reaction, it is important that the complex catalyst is dicationic and soluble in water, and that it has 6,6′-dihydroxy-2,2′-bipyridine as a ligand. In other words, no hydrogen was produced when [Cp*IrCl2]2 (Cp*: pentamethylcyclopentadienyl), which is not soluble in water (entry 3), or [Cp*Ir(H2O)3][OTf]2 having no 6,6′-dihydroxy-2,2′-bipyridine ligand was used as the catalyst (entry 4). In addition, the presence of a hydroxy group at the 6,6′-position of the ligand is very important for catalytic performance. For example, hydrogen was not produced in the reaction using catalyst 3 with no hydroxy groups (entry 5) or catalyst 4 with a hydroxy group at the 4,4′-positions (entry 6). Subsequently, the reaction using catalyst 5 with tetrafluoroborate anion was carried out to investigate the influence of the counter anion (entry 7). In this case, although the yield of hydrogen was slightly reduced, there was no large difference from that when using catalyst 2. The yield was successfully improved to 95% by increasing the amount of the catalyst 2 to 1.0 mol %, (entry 8). The time course of hydrogen generation in the reaction of entry 8 was examined, and the results are shown in Figure 2.
In the dehydrogenation reaction of glucose catalyzed by iridium complex catalyst 2, a simultaneous parallel experiment of alkene hydrogenation was performed to confirm that the obtained gas was highly-pure hydrogen. Simultaneous parallel experiments were carried out by connecting flask A, in which the dehydrogenation of glucose (5.0 mmol) in the presence of catalyst 2 was proceeding, and flask B, in which 1-decene (5.0 mmol) was heated to 50 °C in benzene solvent in the presence of RhCl (PPh3)3 (2.0 mol %), using a rubber tube (Scheme 2). As shown in entry 2 of Table 1, 76% of hydrogen is expected to be produced in flask A. By this simultaneous parallel experiment, decane was obtained in 74% yield in the reaction in flask B. This result indicates that the gas produced using glucose as a starting material in the presence of catalyst 2 is highly-pure hydrogen and does not contain a component that inhibits the catalytic hydrogenation of an alkene. In addition, gas chromatographic analysis of the gas obtained by dehydrogenation of glucose was carried out to confirm that it was highly-pure hydrogen (the results are given in Figure S2 in the supporting information).
There are five alcoholic hydroxy groups in the D-glucose molecule. To ascertain the site at which the dehydrogenation reaction by the iridium complex catalyst 2 proceeds, experiments using glucose analogues with protected hydroxy groups were conducted (Table 2). First, the reaction of normal D-glucose is re-listed as entry 1 (the yield of hydrogen is 95%). Next, for the glucose analogue in which hydroxy groups other than the 6-position were methoxy protected, a very low yield (8%) of hydrogen was obtained (entry 2). For the glucose analogue in which only the hydroxy group at 1-position was methoxy protected, the hydrogen yield was greatly reduced to 14% (entry 3). No hydrogen was produced for the glucose analogue in which all hydroxy groups were methoxy protected (entry 4). Finally, for the glucose analogue in which all hydroxy groups but that at the 1-position were protected, the hydrogen yield was 92%, and it was found that the hydrogen yield not significantly different from that obtained when using unprotected glucose (entry 5). These results indicate that dehydrogenation from the hydroxy group at the 1-position proceeds during the hydrogen production reaction from glucose by catalyst 2. Incidentally, the organic product obtained in 97% yield in the experiment of entry 5 was found to be a gluconolactone derivative with a lactone structure (Figure 3). Based on these results, it is likely that gluconolactone is formed after the dehydrogenation of glucose.
We then investigated the dehydrogenation of various monosaccharides using iridium catalyst 2 (Table 3). Hydrogen was produced in good yields in the case of the feedstocks, D-galactose, D-mannose, and L-arabinose, that can form lactone structures by dehydrogenation (entries 2–4). In the case of D-fructose, a starting material in which dehydrogenation from a hydroxy group at the 1-position is difficult, the hydrogen yield was greatly reduced (entry 5).

3. Materials and Methods

3.1. General

All reactions and manipulations were performed under argon atmosphere using standard Schlenk techniques. 1H and 13C{1H} NMR spectra were recorded on JEOL ECS-400 or ECX-500 spectrometers. Gas chromatograph analyses of hydrogen were performed on a GL-Sciences GC390 gas chromatograph with packed columns (Molecular Sieve 5A and Gaskuropack 54). Gas chromatograph analysis of organic product was performed on a GL-Sciences GC353B gas chromatograph with a capillary column (GL-Sciences TC-17 and TC-WAX). Silica-gel column chromatography was performed using Wako-gel C-200 (Wako Pure Chemical Corporation). The iridium catalysts, [Cp*IrCl2]2 [27], [Cp*Ir(H2O)3][OTf]2 [28], and 1 to 5 [10,29,30,31] were prepared according to the literature methods. Various glucose analogues having protected hydroxy groups used in Table 2 were prepared according to the literature methods [32,33,34]. Organic solvent was distilled under an argon atmosphere with an appropriate drying agent. Other reagents were commercially available and were used as received.

3.2. General Procedures for the Hydrogen Production from D-Glucose Catalyzed by Various Iridium Complexes

Under argon atmosphere, iridium catalyst (0.20 or 1.0 mol % Ir), D-glucose (5.0 mmol), and distilled water (15 mL) were placed in a flask equipped with a reflux condenser and a gas burette. The mixture was magnetically stirred under reflux for 20 h in an oil bath. The volume of the evolved hydrogen gas was measured by using a gas burette, and the yield of evolved hydrogen gas was calculated using the ideal gas law. The illustration of reaction apparatus is shown in Figure S1 in the supporting information. The purity of the evolved hydrogen gas was confirmed by GC analysis. Details are shown in Figure S2 in the supporting information.

3.3. Procedure for the Simultaneous Parallel Experiment (Hydrogenation of 1-Decene with Hydrogen Produced by the Dehydrogenation of Glucose)

Under an atmosphere of argon, iridium catalyst 2 (0.20 mol %), D-glucose (5.0 mmol), and distilled water (15 mL) were placed in a flask A. In another flask B, under an atmosphere of argon, RhCl(PPh3)3 (2.0 mol %), 1-decene (5.0 mmol), and benzene (7.5 mL) were placed. The two flasks A and B were connected through a rubber tube. The mixture in the flask A was stirred under reflux for 20 h, while the mixture in the flask B was stirred at 50 °C. The yield of decane was determined by GC analysis using undecane as an internal standard.

3.4. General Procedures for the Hydrogen Production from Various Substrates

Under argon atmosphere, iridium catalyst 2 (1.0 mol %), substrate (5.0 mmol), and distilled water (15 mL) were placed in a flask equipped with a reflux condenser and a gas burette. The mixture was magnetically stirred under reflux for 20 h in an oil bath. The volume of the evolved hydrogen gas was measured by using a gas burette, and the yield of evolved hydrogen gas was calculated using the ideal gas law. The illustration of reaction apparatus is shown in Figure S1 in the supporting information. For the reaction shown in entry 5 of Table 2, the organic product was isolated by silica-gel chromatography (eluent: dichloromethane:methanol = 30:1) as illustrated in Figure 3. 1H NMR (500 MHz, CDCl3) [35]: δ 4.40 (ddd, J = 9, 4, 3 Hz, 1H), 3.84 (d, J = 6 Hz, 1H), 3.70–3.52 (m, 2H), 3.65 (m, 2H), 3.57 (s, 3H), 3.54 (s, 3H), 3.51 (s, 3H), 3.41 (s, 3H). 13C{1H} NMR (125 MHz, CDCl3): δ 168.4, 82.1, 79.2, 77.4, 77.3, 70.6, 58.93, 58.86, 58.6, 58.3. These NMR spectra are shown in the supporting information.

4. Conclusions

In conclusion, we succeeded in developing a new catalytic system for hydrogen production from glucose and various monosaccharides using a dicationic water-soluble dicationic iridium catalyst 2 under reflux conditions in water. The addition of a strong acid or base is not required during the reaction. Hydrogen can be efficiently obtained from various kinds of monosaccharides with a relatively small amount of catalyst (0.2 to 1.0 mol %). It was experimentally suggested that the dehydrogenation of the alcoholic moiety at 1-position of monosaccharides proceeded. This method to obtain high-purity hydrogen conveniently under mild conditions using saccharides sustainably available from natural resources as raw materials can potentially form the basis for crucial technologies aimed at the transition to a hydrogen society in the future.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/catal11080891/s1, Figure S1: the reaction setup for hydrogen production from glucose and various monosaccharides, Figure S2: GC analysis of the evolved gas by the reaction of glucose under optimal conditions catalyzed by catalyst 2.

Author Contributions

K.-i.F. guided the research, designed the experiments, and wrote the manuscript. T.I., T.T., and J.J. performed the experiments. S.F. supported the analysis of the experimental results and the writing of the manuscript. R.Y. also guided the research and helped to write the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was also financially supported by JSPS KAKENHI Grant Number JP18H04255, JP18H05517, JP19H02715, and JP19H05053.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Martín, A.J.; Shinagawa, T.; Pérez-Ramírez, J. Electrocatalytic Reduction of Nitrogen: From Haber-Bosch to Ammonia Artificial Leaf. Chem 2019, 5, 263–283. [Google Scholar] [CrossRef] [Scilit]
  2. Smith, C.; Hill, A.K.; Torrente-Murciano, L. Current and Future Role of Haber-Bosch Ammonia in a Carbon-free Energy Landscape. Energy Environ. Sci. 2020, 13, 331–344. [Google Scholar] [CrossRef] [Scilit]
  3. Atsbha, T.A.; Yoon, T.; Seongho, P.; Lee, C.-J. A Review on the Catalytic Conversion of CO2 Using H2 for Synthesis of CO, Methanol, and Hydrocarbons. J. CO2 Util. 2021, 44, 10413. [Google Scholar] [CrossRef] [Scilit]
  4. Porosoff, M.D.; Yan, B.; Chen, J.G. Catalytic Reduction of CO2 by H2 for Synthesis of CO, Methanol and Hydrocarbons: Challenges and Opportunities. Energy Environ. Sci. 2016, 9, 62–73. [Google Scholar] [CrossRef] [Scilit]
  5. Olah, G.A. Towards Oil Independence Through Renewable Methanol Chemistry. Angew. Chem. Int. Ed. 2013, 52, 104–107. [Google Scholar] [CrossRef] [Scilit]
  6. Alves, J.J.; Towler, G.P. Analysis of Refinery Hydrogen Distribution Systems. Ind. Eng. Chem. Res. 2002, 41, 5759–5769. [Google Scholar] [CrossRef] [Scilit]
  7. Song, C. An Overview of New Approaches to Deep Desulfurization for Ultra-clean Gasoline, Diesel Fuel and Jet Fuel. Catal. Today 2003, 86, 211–263. [Google Scholar] [CrossRef] [Scilit]
  8. Babich, I.V.; Moulijn, J.A. Science and Technology of Novel Processes for Deep Desulfurization of Oil Refinery Streams: A Review. Fuel 2003, 82, 607–631. [Google Scholar] [CrossRef] [Scilit]
  9. Hydrogen Industry Applications: Past, Present, and Future. Available online: https://wha-international.com/hydrogen-in-industry/ (accessed on 25 June 2021).
  10. Dunn, S. Hydrogen Futures: Toward a Sustainable Energy System. Int. J. Hydrogen Energy 2002, 27, 235–264. [Google Scholar] [CrossRef] [Scilit]
  11. Sartbaeva, A.; Kuznetsov, V.L.; Wells, S.A.; Edwards, P.P. Hydrogen Nexus in a Sustainable Energy Future. Energy Environ. Sci. 2008, 1, 79–85. [Google Scholar] [CrossRef] [Scilit]
  12. Zhang, P.; Guo, Y.-J.; Chen, J.; Zhao, Y.-R.; Chang, J.; Junge, H.; Beller, M.; Li, Y. Streamlined Hydrogen Production from Biomass. Nat. Catal. 2018, 1, 332–338. [Google Scholar] [CrossRef] [Scilit]
  13. Lee, C.S.; Conradie, A.V.; Lester, E. Review of Supercritical Water Gasification with Lignocellulosic Real Biomass as the Feedstocks: Process Parameters, Biomass Composition, Catalyst Development, Reactor Design and Its Challenges. Chem. Eng. J. 2021, 415, 128837. [Google Scholar] [CrossRef] [Scilit]
  14. Fasolini, A.; Cucciniello, R.; Paone, E.; Mauriello, F.; Tabanelli, T. A Short Overview on the Hydrogen Production via Aqueous Phase Reforming (APR) of Cellulose, C6-C5 Sugars and Polyols. Catalysts 2019, 9, 917. [Google Scholar] [CrossRef] [Scilit]
  15. Byrd, A.J.; Pant, K.K.; Gupta, R.B. Hydrogen Production from Glucose Using Ru/Al2O3 Catalyst in Supercritical Water. Ind. Eng. Chem. Res. 2007, 46, 3574–3579. [Google Scholar] [CrossRef] [Scilit]
  16. Behnia, I.; Yuan, Z.; Charpentier, P.; Xu, C. Production of Methane and Hydrogen via Supercritical Water Gasification of Renewable Glucose at a Relatively Low Temperature: Effects of Metal Catalysts and Supports. Fuel Process. Technol. 2016, 143, 27–34. [Google Scholar] [CrossRef] [Scilit]
  17. Hossain, M.Z.; Clowdhury, M.B.I.; Jhawar, A.K.; Charpentier, P.A. Supercritical Water Gasification of Glucose Using Bimetallic Aerogel Ru-Ni-Al2O3 Catalyst for H2 Production. Biomass Bioenergy 2017, 107, 39–51. [Google Scholar] [CrossRef] [Scilit]
  18. Sharma, K. Carbohydrate-to-Hydrogen Production Technologies: A Mini-Review. Renew. Sustain. Energy Reviews. 2019, 105, 138–143. [Google Scholar] [CrossRef] [Scilit]
  19. Ye, X.; Wang, Y.; Hopkins, R.C.; Adams, M.W.W.; Evans, B.R.; Mielenz, J.R.; Zhang, Y.-H.P. Spontaneous High-Yield Production of Hydrogen from Cellulosic Materials and Water Catalyzed by Enzyme Cocktails. ChemSusChem 2009, 2, 149–152. [Google Scholar] [CrossRef] [Scilit]
  20. Borja, P.; Vicent, C.; Baya, M.; Garcia, H.; Mata, J.A. Iridium Complexes Catalysed the Selective Dehydrogenation of Glucose to Gluconic Acid in Water. Green Chem. 2018, 20, 4094–4101. [Google Scholar] [CrossRef] [Scilit]
  21. Taccardi, N.; Assenbaum, D.; Berger, M.E.M.; Bösmann, A.; Enzenberger, F.; Wölfel, R.; Neuendorf, S.; Goeke, V.; Schödel, N.; Maass, H.-J.; et al. Catalytic Production of Hydrogen from Glucose and Other Carbohydrates under Exceptionally Mild Reaction Conditions. Green Chem. 2010, 12, 1150–1156, Hydrogen production from glucose in ionic liquid has been also reported. [Google Scholar]
  22. Zhan, Y.; Shen, Y.; Li, S.; Yue, B.; Zhou, X. Hydrogen Generation from Glucose Catalyzed by Organoruthenium Catalysts under Mild Conditions. Chem. Commun. 2017, 53, 4230–4233, Hydrogen production under acidic conditions has been also reported. [Google Scholar]
  23. Fujita, K. Development and Application of New Iridium Catalysts for Efficient Dehydrogenative Reactions of Organic Molecules. Bull. Chem. Soc. Jpn. 2019, 92, 344–351. [Google Scholar] [CrossRef] [Scilit]
  24. Kawahara, R.; Fujita, K.; Yamaguchi, R. Dehydrogenative Oxidation of Alcohols in Aqueous Media Using Water-Soluble and Reusable Cp*Ir Catalysts Bearing a Functional Bipyridine Ligand. J. Am. Chem. Soc. 2012, 134, 3643–3646. [Google Scholar] [CrossRef] [Scilit]
  25. Fujita, K.; Ito, W.; Yamaguchi, R. Dehydrogenative Lactonization of Diols in Aqueous Media Catalyzed by a Water-Soluble Iridium Complex Bearing a Functional Bipyridine Ligand. ChemCatChem 2014, 6, 109–112. [Google Scholar] [CrossRef] [Scilit]
  26. The yield of hydrogen in this paper is expressed as 100% when 1 equiv of hydrogen molecules are generated from 1 equiv of glucose.
  27. Ball, R.G.; Graham, W.A.G.; Heinekey, D.M.; Hoyano, J.K.; McMaster, A.D.; Mattson, B.M.; Michel, S.T. Synthesis and Structure of [η5-C5Me5)Ir(CO)]2. Inorg. Chem. 1990, 29, 2023–2025. [Google Scholar] [CrossRef] [Scilit]
  28. Ogo, S.; Makihara, N.; Watanabe, Y. pH-Dependent Transfer Hydrogenation of Water-Soluble Carbonyl Compounds with [Cp*IrIII(H2O)3]2+ (Cp* = η5-C5Me5) as a Catalyst Precursor and HCOONa as a Hydrogen Donor in Water. Organometallics 1999, 18, 5470–5474. [Google Scholar] [CrossRef] [Scilit]
  29. Xiao, X.-Q.; Jin, G.-X. Functionalized N-Heterocyclic Carbene Iridium Complexes: Synthesis, Structure and Addition Polymerization of Norbornene. J. Organomet. Chem. 2008, 693, 3363–3368. [Google Scholar] [CrossRef] [Scilit]
  30. Ogo, S.; Makihara, N.; Kaneko, Y.; Watanabe, Y. pH-Dependent Transfer Hydrogenation, Reductive Amination, and Dehalogenation of Water-Soluble Carbonyl Compounds and Alkyl Halides Promoted by Cp*Ir Complexes. Organometallics 2001, 20, 4903–4910. [Google Scholar] [CrossRef] [Scilit]
  31. Himeda, Y.; Onozawa-Komatsuzaki, N.; Miyazawa, S.; Sugihara, H.; Hirose, T.; Kasuga, K. pH-Dependent Catalytic Activity and Chemoselectivity in Transfer Hydrogenation Catalyzed by Iridium Complex with 4,4′-Dihydroxy-2,2′-bipyridine. Chem. Eur. J. 2008, 14, 11076–11081. [Google Scholar] [CrossRef] [Scilit]
  32. Wang, H.; Sun, L.; Glazebnik, S.; Zhao, K. Peralkylation of Saccharides under Aqueous Conditions. Tetrahedron Lett. 1995, 36, 2953–2956. [Google Scholar] [CrossRef] [Scilit]
  33. Xu, G.; Moeller, K.D. Anodic Coupling Reactions and the Synthesis of C-Glycosides. Org. Lett. 2010, 12, 2590–2593. [Google Scholar] [CrossRef] [Scilit]
  34. Collins, D.J.; Hibberd, A.I.; Skelton, B.W.; White, A.H. Enolic Ortho Esters VII: Involvement of Magnesium Halides as Lewis Acids in the Reaction of Grignard Reagents with 1,6-Dideoxy-1,1,-ethylenedioxy-2,3,4-tri-O-methyl-D-xylo-hex-5-enopyranose and its 6-Phenyl Derivative: A Correction. Aust. J. Chem. 1998, 51, 681–694. [Google Scholar] [CrossRef] [Scilit]
  35. Bihovsky, R.; Selick, C.; Giusti, I. Synthesis of C-Glucosides by Reaction of Glucosyl Halides with Organocuprates. J. Org. Chem. 1988, 53, 4026–4031. [Google Scholar] [CrossRef] [Scilit]
Catalysts 11 00891 sch001

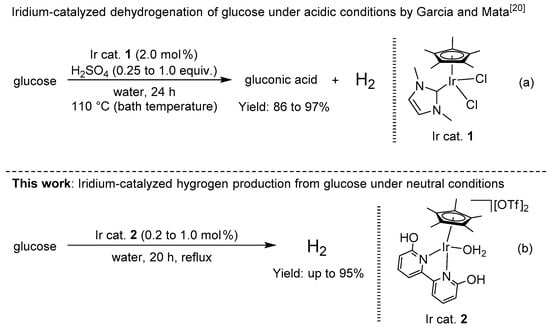

Scheme 1. Iridium-catalyzed dehydrogenation of glucose in water: (a) under acidic conditions report by Garcia and Mata et al. (b) under neutral conditions reported in this work.
Scheme 1. Iridium-catalyzed dehydrogenation of glucose in water: (a) under acidic conditions report by Garcia and Mata et al. (b) under neutral conditions reported in this work.
Catalysts 11 00891 sch001
Catalysts 11 00891 g001

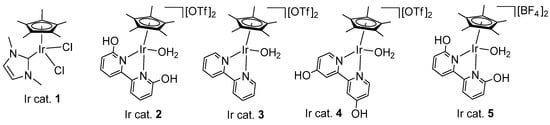

Figure 1. A series of iridium catalysts used for the dehydrogenation of glucose in this study.
Figure 1. A series of iridium catalysts used for the dehydrogenation of glucose in this study.
Catalysts 11 00891 g001
Catalysts 11 00891 g002

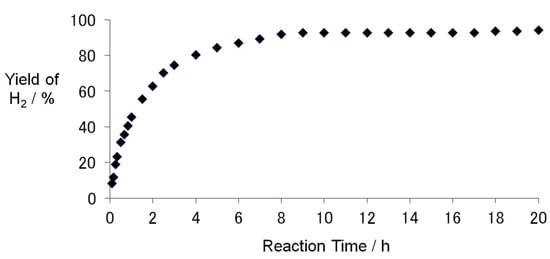

Figure 2. Time-resolved profile of the yield of hydrogen for the dehydrogenation of D-glucose (Table 1, entry 8).
Figure 2. Time-resolved profile of the yield of hydrogen for the dehydrogenation of D-glucose (Table 1, entry 8).
Catalysts 11 00891 g002
Catalysts 11 00891 sch002

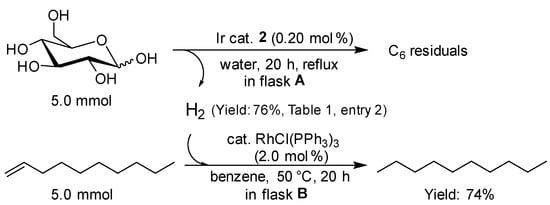

Scheme 2. A simultaneous parallel experiment: Hydrogenation of 1-decene with hydrogen produced by the dehydrogenation of glucose.
Scheme 2. A simultaneous parallel experiment: Hydrogenation of 1-decene with hydrogen produced by the dehydrogenation of glucose.
Catalysts 11 00891 sch002
Catalysts 11 00891 g003

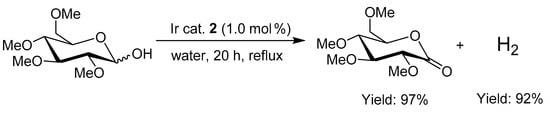

Figure 3. Isolation of a gluconolactone derivative with a lactone structure formed by the reaction shown in entry 5 in Table 2.
Figure 3. Isolation of a gluconolactone derivative with a lactone structure formed by the reaction shown in entry 5 in Table 2.
Catalysts 11 00891 g003
Table 1. Hydrogen production from D-glucose catalyzed by various iridium complexes.
Table 1. Hydrogen production from D-glucose catalyzed by various iridium complexes.
Catalysts 11 00891 i001
EntryCatalyst (mol %)Yield of Hydrogen (%) a
11 (0.20 mol %)7
22 (0.20 mol %)76
3[Cp*IrCl2]2 (0.20 mol % Ir)0
4[Cp*Ir(H2O)3][OTf]2 (0.20 mol %)trace
53 (0.20 mol %)trace
64 (0.20 mol %)trace
75 (0.20 mol %)71
82 (1.0 mol %)95
a Yield of hydrogen gas collected in a gas burette. The molar amount of hydrogen gas was calculated using the ideal gas law.
Table 2. Hydrogen production from various glucose analogues having protected hydroxy groups.
Table 2. Hydrogen production from various glucose analogues having protected hydroxy groups.
Catalysts 11 00891 i002
EntrySubstrateYield of Hydrogen (%) a
1Catalysts 11 00891 i00395
2Catalysts 11 00891 i0048
3Catalysts 11 00891 i00514
4Catalysts 11 00891 i0060
5Catalysts 11 00891 i00792
a Yield of hydrogen gas collected in a gas burette. The molar amount of hydrogen gas was calculated using the ideal gas law.
Table 3. Hydrogen production from various monosaccharides using the iridium catalyst 2.
Table 3. Hydrogen production from various monosaccharides using the iridium catalyst 2.
Catalysts 11 00891 i008
EntrySubstrateYield of Hydrogen (%)a
1Catalysts 11 00891 i00995
2Catalysts 11 00891 i01087
3Catalysts 11 00891 i01183
4Catalysts 11 00891 i01283
5Catalysts 11 00891 i01311
a Yield of hydrogen gas collected in a gas burette. The molar amount of hydrogen gas was calculated using the ideal gas law.
