Borate Anion Dopant Inducing Oxygen Vacancies over Co3O4 Nanocages for Enhanced Oxygen Evolution

by
Xuetao Liu
,
Heng Liu
,
Guangling He
,
Yanlin Zhu
,
Jiamin Xiao
and
Lei Han
*
Hunan Joint International Laboratory of Advanced Materials and Technology for Clean Energy, College of Materials Science and Engineering, Hunan University, Changsha 410082, China
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(6), 659; https://doi.org/10.3390/catal11060659
Submission received: 2 May 2021 / Revised: 18 May 2021 / Accepted: 19 May 2021 / Published: 22 May 2021
(This article belongs to the Section Electrocatalysis)
Browse Figures
Versions Notes

Abstract

:
The rational design of cost effective and highly efficient oxygen evolution reaction (OER) catalysts plays an extremely important role in promoting the commercial applications of electrochemical water splitting. Herein we reported a sacrificial template strategy for the preparation of borate anion doped Co3O4@ZIF-67 nanocages assembled with nanosheets (B-Co3O4@ZIF-67) by hydrothermal boronation of zeolitic imidazolate framework-67 (ZIF-67). During the preparation process, two different kinds of borate anion sources were found to regulate the morphological structures by tuning the etching rate between ZIF precursors and the borate anion. Moreover, borate anion doping was also found to induce oxygen vacancy defects, which is beneficial for modulating the electronic structure and accelerating electron transport. Meanwhile, the resultant B-Co3O4@ZIF-67 nanocages possess a large specific surface area, which is beneficial for the mass transfer of the electrolyte and exposing more catalytic active sites. Benefiting from the advantages above, the resultant B-Co3O4@ZIF-67 nanocages exhibit impressive OER performance with a small overpotential of 334 mV, a current density of 10 mA cm−2, a small Tafel slope of 73.88 mV dec−1, as well as long-term durability in an alkaline electrolyte.

1. Introduction

Hydrogen as a clean energy carrier with high energy density (282 kJ·mol−1) is considered most promising for replacing traditional fossil fuels to cope with the increasing global energy demand and environmental issues [1,2,3,4]. Electrochemical water splitting (2H2O → 2H2 + O2), consisting of two half reactions of the oxygen evolution reaction (OER) and the hydrogen evolution reaction (HER), provides a green technology for hydrogen production through the use of renewable energy (such as wind energy, solar energy, tidal energy, etc.) [5,6,7]. Relative to the HER, the OER is a four-electron proton coupled transfer process, and possesses sluggish kinetics, severely limiting the efficiency of overall water splitting [8,9,10]. To date, the state-of-the-art OER catalysts mainly focus on precious metal catalysts (such as RuO2 and IrO2), but their scarcity and high cost limit their implementation in practical commercial applications [11,12]. Therefore, it is essential, yet remains a huge challenge for development of cost effective and highly efficient oxygen evolution reaction (OER) catalysts.
Recently, various transition-metal-based materials, including transition metal oxides [13], phosphides [14,15], sulfides [16], borides [17], (oxy) hydroxides [18], and layered double hydroxides (LDHs) [19,20], have been widely studied as a promising substitute to precious metal OER catalysts. Particularly, Co3O4-based materials have received increasing attention as promising alternatives due to their good OER catalytic activity in alkaline solution [21,22]. Nevertheless, the poor electronic conductivity of Co3O4 is the main bottleneck hindering the improvement of its OER activity [23,24]. In this regard, the regulation in morphologic and electronic structure has been reported as an effective way to improve the electrochemical performances of Co3O4-based materials [25,26,27]. On one hand, the unique nanostructures, such as nanosheets and nanocages, usually possess large specific surface area, which are beneficial to the mass transport and exposure of catalytically active sites, and the release of the generated gas during the water splitting process [24,27,28,29,30]. On the other hand, recent studies have shown that the introduction of dopants can induce the formation of a large number of oxygen vacancy defects, increasing electronic conductivity and promoting the improvement of electrochemical OER performance [31,32]. For instance, the introduction of boron into transition metal compounds was reported to induce vacancy defects and result in the generation of large numbers of catalytically active sites, promoting the improvement of electrochemical performances [24,31,33]. Based on the above considerations, it can be reasonable to conclude that high OER catalytic activity can be expected for heteroatom-doped Co3O4-based materials with nanocages structures composed of ultrathin nanosheets.
Metal–organic frameworks (MOFs), consisting of inorganic metal ions/clusters coordinated with organic ligands, are distinctive organic–inorganic hybrid porous materials with controllable porous structures, high specific surface areas and well-tunable structures [34,35]. Because of these unique structural merits, MOFs and their derivatives have been widely applied in energy storage and conversion [36,37], gas adsorption and separation [38,39] and other research fields. Generally, MOFs are used as sacrificial templates for the fabrication of various nanostructured materials that inherit the advantages of their precursors [8]. The large specific surface area of MOFs-derived nanostructured materials is conducive to exposing more catalytically active sites and promoting charge and mass transfer during the OER process [40]. Inspired by this, herein we propose an easy and effective strategy for the synthesis of MOF-derived borate anion doped cobalt oxide (B-Co3O4@ZIF-67) nanocages assembled with nanosheets by hydrothermal boronation. Meanwhile, the type of boron source and solvent system were also optimized, and borate-buffered methanol was found to be the optimal condition for the formation of unique nanocage structures composed of nanosheets. The unique nanocage structures create the large specific surface area (705.77 m2g−1), thus facilitating the exposure of catalytically active sites and accelerating mass transfer and gas release during the OER process. Moreover, borate anion doping is also conducive to the formation of oxygen vacancy defects, thus modulating the electronic structure of atoms and promoting improvement in catalytic OER activity. As expected, the resultant B-Co3O4@ZIF-67 exhibited superior OER activity in alkaline solution.

2. Results and Discussion

The schematic illustration for the preparation of the B-Co3O4-2@ZIF-67 nanocages is shown in Figure 1. Briefly, the uniform ZIF-67 nanocubes were first synthesized by the reaction of Co(NO3)2⋅6H2O with 2-methylimidazole under the assistance of CTAB. Subsequently, B-Co3O4-2@ZIF-67 nanocages were successfully obtained through the hydrothermal reaction of ZIF-67 with borate buffers solution (BBS). The pH value of the BBS solution, containing a large amount of borate ion (B4O72−), was measured to be 9.5. During the hydrothermal reaction process, hydroxyl ions (OH−) were produced through the hydrolysis of B4O72−, which then replaced 2-methylimidazole within ZIF-67 precursor to form Co(OH)2, which were finally transformed into B-doped Co3O4 under high temperatures due to the existence of dissolved oxygen and a lot of borate ions (B4O72−) in the reaction system [41].
The morphological structures of the resultant ZIF-67 precursors and their derivatives were investigated by FESEM and TEM. As shown, uniform cubic morphology was observed for the resultant ZIF-67 precursor with an average size of 1 μm (Figures S1 and S2), which is in accordance with the previously reported results [42,43]. After the hydrothermal reaction of ZIF-67 precursor with BBS in methanol, the resultant ZIF-67 nanocubes were transformed into B-Co3O4-2@ZIF-67 nanocubes assembled with nanosheets (Figure 2a,b). TEM results demonstrated that the resultant B-Co3O4-2@ZIF-67 possesses hollow nanocages assembled from nanosheets with wrinkled edges (Figure 2c–e). Furthermore, there are no obvious lattice fringes from high-resolution HRTEM images and selective area electron diffraction (SAED) displays of the diffused rings (Figure 2f), both of which indicate the amorphous nature of the resultant B-Co3O4-2@ZIF-67 nanocages. Meanwhile, the EDX elemental mapping (Figure 2g) and the EDX spectra (Figure S3) reveal the uniform distributions of C, N, O, B, and Co in the resultant B-Co3O4-2@ZIF-67 nanocages. Interestingly, when we only used K2B4O7·4H2O as a boron source, nanosheets-assembled core-shell structured B-Co3O4-1@ZIF-67 can be obtained (Figure S4a,b), which could be further confirmed by TEM images (Figure S4c–e). Similarly, HRTEM images and SAED patterns also proved the amorphous nature of the resultant B-Co3O4-1@ZIF-67 (Figure S4f,g). In the contrast, CoBi/ZIF-67 is composed of the residual ZIF-67 and cobalt borate (Co–Bi) nanosheets in the presence of H3BO3 as a boron source (Figure S4h,i). We inferred that the formation of core–shell structure may be attributed to the incomplete etching process due to the insufficient amount of B4O72− only in the presence of K2B4O7. Differently, boric acid used as a boron source can produce protons (H+) for the protonation of 2-methylimidazole, resulting in the release of Co2+ and then reacting with the borate ions (B4O72−) to form cobalt borate (Co–Bi) nanosheets. In addition, the effect of the solvent in the reaction system on the morphology of the resultant catalysts was also investigated. Under the same reaction conditions, the introduction of water resulted in the complete destruction of morphology from the nanocubes into irregular structures (nanowires and nanoparticles) (Figure S5), which may be attributed to the fast etching rate. These results demonstrate that the morphologic structures of the resultant catalysts can be regulated through tuning the boron source and solvent during the preparation process. Besides, potassium hydroxide was selected as a substitute of K2B4O7·4H2O to provide an alkaline environment. Only a small number of nanosheets were formed on the surface of ZIF-67 precursor, but the cubic morphology of ZIF-67 precursor was still well-retained (Figure S6). These results demonstrate that the presence of borate ion is essential for the formation of nanocages.
The phase composition and crystal structure of the resultant materials were characterized by XRD. As observed, there are residual ZIF-67 precursors in the resultant B-Co3O4-2@ZIF-67, B-Co3O4-1@ZIF-67, and CoBi/ZIF-67 regardless of the type of boron source (Figure S7), which could be clearly observed from TEM images (Figure S4). Nevertheless, the diffraction peak intensity assigned to ZIF-67 obviously decreases for the resultant B-Co3O4-2@ZIF-67, implying the more thorough etching of ZIF-67 precursor when reacting with the BBS solution compared to K2B4O7 and H3BO3. Besides, there are not any crystal diffraction peaks except for those assigned to ZIF-67, demonstrating the amorphous nature of the newly formed nanosheets after reacting with different boron sources. Unexpectedly, all of the diffraction peaks assigned to ZIF-67 disappeared completely whereas new diffraction peaks indexed to the Co3O4 (JCPDS No. 74-2120) could be observed after the introduction of water in the reaction system (Figure S8a) [44]. Moreover, the diffraction peak intensity increased as the addition of water increased, which may explain why there is poor crystallinity for the resultant B-Co3O4-2@ZIF-67 nanocages despite the introduction of a very small amount of water from K2B4O7·4H2O. It should be noted that no peaks assigned to cobalt borate were detected for all of the above XRD patterns, indicating that there was no formation of a new crystalline phase after the addition of a boron source. Careful observation demonstrates the appearance of the diffraction peak assigned to the (511) crystal plane of Co3O4 in the XRD patterns of the resultant B-Co3O4-1, B-Co3O4-2 and B-Co3O4-2@ZIF-67 (Figure S8b), which all shifted the lower Bragg angle relative to standard diffraction peak (59.35°) of the (511) crystal plane of Co3O4. The negative shift of the Bragg angle indicates the expansion of the crystal lattice at the same incident wavelength [45], indicating that boron as dopant may be incorporated into the crystal structure Co3O4. Based on the XRD results, we inferred that B-doped cobalt oxide (denoted as B-Co3O4) was successfully formed by replacing oxygen ions (140 pm) in cobalt oxide with borate ions (191 pm) [2]. In order to further confirm the successful synthesis of B-Co3O4, the resultant B-Co3O4-2@ZIF-67 samples were further annealed at 700 °C for 1 h in air atmosphere. As shown in Figure S8c, eight diffraction peaks at 19.0°, 31.3°, 36.8°, 38.5°, 44.8°, 56.6°, 59.3°, and 65.2° can be assigned to the Co3O4 (JCPDS No. 74-2120). Meanwhile, it is worth noting that four diffraction peaks at 19.8, 30.0°, 31.6°and 34.2° were also detected, which can be indexed to the Co2B2O5 (JCPDS No. 98-09-6562) phase. Besides, the EDX element mapping and the EDX spectra also verify the presence of B elements in the resultant B-Co3O4-1 and B-Co3O4-2 (Figure S9 and Table S2), further confirming the successful doping of B into the Co3O4.
FT-IR spectra were also performed to investigate the surface functional groups and the skeleton changes of the resultant catalysts [46]. For ZIF-67 precursor, there is the apparent stretching vibration at 425 cm−1 related to the characteristic peak of Co–N (Figure S10), which confirms the bonding between the cobalt atom and the N atom in the 2-methylimidazole linker in ZIF-67 [47]. The peaks in the region of 600–1500 cm−1 contribute to the bending and stretching modes of the imidazole ring in ZIF-67 [48]. The characteristic peaks at 693 cm−1 and 756 cm−1 can be ascribed to the out-of-plane bending vibration mode of the imidazole ring [49], while the in-plane bending vibration of the imidazole ring can be observed at 900–1350 cm−1 [50]. Additionally, the obvious characteristic peaks in the range 1350–1500 cm−1 can be attributed to the stretching vibration mode of the ring [51]. The peak at 1580 cm−1 can be associated with the stretching vibration of the C=N bond in 2-methylimidazole ligand [52]. Moreover, the peak at 2929 cm−1 and 3134 cm−1 are caused by the C-H stretching vibration of the aromatic ring and the aliphatic methyl group in 2-methylimidazole, respectively [47]. The above results demonstrate the successful synthesis of the ZIF-67 precursor. After the reaction of ZIF-67 precursor with different boron sources, there is new peak vibration in the range 480–660 cm−1 corresponding to the formation of a metal–oxygen bond (M–O) [53]. Meanwhile, the intensity of the vibration peak assigned to the ZIF-67 precursor decreases with the amount of boron source added, indicating the transformation of ZIF-67 into other components. Some characteristic peaks related to ZIF-67 precursor almost disappear after the introduction of water (Figure S11), indicating that the material skeleton on the surface of ZIF-67 collapsed [46]. Meanwhile, there are two sharp characteristic peaks at 575 cm−1 and 667 cm−1 in the spectra, which contributed to the stretching vibration mode of octahedral coordinated Co3+–O bonding and tetrahedral coordinated Co2+–O bonding in Co3O4, respectively [54,55]. The broad absorption peak at 3440 cm−1 is due to the vibration of O–H from surface water molecules [51,56]. These results demonstrate that the main component was Co3O4 after the introduction of water, which is consistent with the XRD results. Combined with the appearance of metal–oxygen bonds after the introduction of different boron sources, we can infer that we successfully synthesized B-Co3O4.
In addition, UV-Vis absorption spectra were also carried out by dispersing the resultant catalysts into ethanol with a constant concentration in the range of 400 to 700 nm. As displayed in Figure S12, the ZIF-67 precursor has characteristic transitions of tetrahedral Co2+ at 539 nm and 596 nm, respectively [47]. Moreover, the characteristic transition peak can be well-retained after reaction with different boron sources and potassium hydroxide, and the intensity of the B-Co3O4-2@ZIF-67 peak is much lower than that of the ZIF-67 precursor, indicating that there remain ZIF-67 residues in the resultant B-Co3O4-2@ZIF-67, which is consistent with the above mentioned FESEM and TEM analysis results.
Nitrogen adsorption–desorption isotherms were performed to investigate the specific surface area of the resultant B-Co3O4-1@ZIF-67 and B-Co3O4-2@ZIF-67 [57]. The specific surface area of the resultant B-Co3O4-2@ZIF-67 as calculated to be 705.77 m2g−1, which is higher than that of the resultant B-Co3O4-1@ZIF-67 (398.29 m2g−1) (Figure S3a). In addition, a hysteresis loop with type-IV isotherm could be observed in the resultant B-Co3O4-2@ZIF-67 and B-Co3O4-1@ZIF-67, indicating the existence of mesoporous structures [58]. The pore size distribution results demonstrate (Figure 3b that the resultant B-Co3O4-2@ZIF-67 mainly contained micropores whereas the resultant B-Co3O4-1@ZIF-67 was dominated by mesopores, with their average pore diameters being 2.97 and 7.98 nm, respectively [59]. The large specific surface area and microporous structure of the resultant B-Co3O4-2@ZIF-67 are beneficial for exposing more active sites and accelerating mass transfer, which can improve the catalytic activity of OER [60].
The surface chemical composition and element valence states of the resultant catalysts were further evaluated by XPS. The XPS survey spectra (Figure 4a and Figure S12a) revealed the existence of C, N, O, B, and Co elements on the surface of the resultant B-Co3O4-1@ZIF-67 and B-Co3O4-2@ZIF-67, which is consistent with the EDX element mapping results (Figure 2g), while the resultant Co(OH)2@ZIF-67 contains C, N, O, and Co elements. In the high-resolution Co XPS 2p spectra of Co(OH)2@ZIF-67 samples (Figure S12b), there are two strong peaks at binding energies of 781.57 eV and 797.16 eV corresponding to Co2+ species whereas the other two peaks at 780.10 eV and 795.80 eV can be attributed to Co3+ species [8,56,61]. In addition, the other two peaks at 785.06 eV and 801.71 eV are shakeup satellite peaks. Specifically, by calculating the integrated peak area, the atomic ratio of Co3+/Co2+ is 1.13 in the resultant Co(OH)2@ZIF-67, implying the partial oxidization of Co2+ in alkaline solution during the hydrothermal process. Compared with Co(OH)2@ZIF-67, the binding energy of Co2+ (781.89 eV) and Co3+ (780.48 eV) has a significant positive shift in the resultant B-Co3O4-1@ZIF-67, demonstrating that doping with electron negativity borate anions induced the formation of a higher oxidation state [33]. This phenomenon may be attributed to the electron transfer from Co atoms to the borate anion dopant due to the large electron negativity of the borate anion relative to that of the metal Co [62]. In addition, the integrated peak area ratio of Co3+/Co2+ was calculated to be 0.961 in the resultant B-Co3O4-1@ZIF-67, which is lower than the theoretical value of Co3+/Co2+ (2:1) in Co3O4. It should be here noted that a certain amount of Co2+ in the resultant B-Co3O4-1@ZIF-67 comes from the coordinated Co atoms of the ZIF-67 residues. Similarly, the more positive shift in binding energy of Co2+ (782.20 eV) and Co3+ (780.80 eV) in the resultant B-Co3O4-2@ZIF-67 was observed compared to the resultant B-Co3O4-1@ZIF-67 (Figure 4b), and the intensity of Co3+/Co2+ was 1.15. The obvious change in binding energy may be attributed to the introduction of more borate anions when reacting the ZIF-67 precursor with the BBS solution (Table S3), which can be further confirmed by the high-resolution B 1s XPS spectra of B-Co3O4-2@ZIF-67 (Figure 4c). As shown, the peak at 192.3 eV, which is assigned to three-coordinated borate species (B–O), proved that boron atoms in the form of borate were incorporated into the crystal structure of Co3O4 [63,64]. In this process, B4O72− partially replaced the oxygen anions (O2−) in the Co3O4 lattice, thereby destroying the original crystalline structure and producing a large number of oxygen vacancy defects [27,65]. Therefore, we used electron paramagnetic resonance (EPR) spectra to analyze and detect the content of unpaired electronic species (oxygen vacancy defects) in the resultant B-Co3O4-1@ZIF-67 and B-Co3O4-2@ZIF-67 [27]. As shown in Figure S14, the resultant B-Co3O4-2@ZIF-67 produces more high-energy dangling bonds than B-Co3O4-1@ZIF-67, indicating that the resultant B-Co3O4-2@ZIF-67 possesses higher concentrations of oxygen vacancy defects [32]. It has been reported that the introduction of defects is beneficial for exposing more catalytically active sites.
In the high-resolution C 1s spectra of B-Co3O4-2@ZIF-67 (Figure 4d), there are three distinct characteristic peaks at 284.8, 285.9, and 289.0 eV, which are attributed to sp2 bonded carbon (C–C), sp2 hybrid C–N bonds, and the bond between carbon and surface oxygen (O–C=O), respectively [66,67]. The high-resolution N 1s XPS spectra (Figure 4e) can be deconvoluted into three peaks corresponding to the pyridine-N (399.0 eV) and pyrrolic-N (399.8 eV) [68]. As shown in Figure 4f, the high-resolution O 1s XPS spectra can be divided into four characteristic peaks, where the binding energy at 530.9 contributes to the lattice oxygen (M–O, OI), and the binding energy at 531.36 eV can be assigned to the oxygen vacancy (Vo, OII) [31]. The resultant B-Co3O4-1@ZIF-67 and B-Co3O4-2@ZIF-67 both have vacant oxygen (Vo, OII) peaks whereas Co(OH)2@ZIF-67 only contains two oxygen species of lattice oxygen (M–O, 530.74 eV) and adsorbed oxygen (OIII, 531.53 eV) (Figure S12f), proving that the introduction of boron leads to the formation of oxygen vacancy defects. The existence of oxygen vacancy defects has been reported to facilitate the adsorption of water molecules and OH− anions during the OER process, thus promoting the water oxidation process [69]. Additionally, the binding energy at 532.2 and 533.1 eV were associated with the adsorbed oxygen species (OIII) and surface water molecules (OIV) on the catalysts’ surface, respectively [70].
The electrocatalytic OER performances of the resultant catalysts were investigated in a typical three-electrode system with a rotating disk electrode (RDE) at the rotating speed of 1600 rpm in 1.0 MKOH. The catalyst loading amount was fixed at 0.5 mg/cm2, and all electrochemical data has been corrected by iRs compensation to eliminate the influence of ohmic voltage drop [71]. As shown in Figure 5a and Table S4, the resultant B-Co3O4-2@ZIF-67 exhibits the best OER performance with the largest current density among the investigated catalysts. Moreover, the overpotential at a current density of 10 mA cm−2 is 334 mV for the resultant B-Co3O4-2@ZIF-67, which is significantly lower than that of B-Co3O4-1@ZIF-67 (349 mV) and CoBi/ZIF-67 (341 mV). Besides, the lower OER performances of the resultant B-Co3O4-1 (351 mV) and B-Co3O4-2 (346 mV) prepared by the introduction of water were observed compared to the B-Co3O4-2@ZIF-67 (Figure S15a and Table S4). In addition, the OER performance of the resultant B-Co3O4-2@ZIF-67 was also superior to that of the resultant Co(OH)2@ZIF-67 (343 mV) and ZIF-67 precursor (371 mV) (Figure S16a and Table S4). The catalytic kinetics parameter is generally used to evaluate the catalytic performances of the resultant catalysts. In order to get insight into the OER kinetics, a Tafel plot was obtained from the polarization curve according to the Tafel equation [59]: η = blogj + α, where η is the overpotential, j is the current density, b is the Tafel slope, and α is the constant. The resultant B-Co3O4-2@ZIF-67 presents a smaller Tafel slope (73.88 mVdec−1) than the resultant B-Co3O4-1@ZIF-67 (122.8 mVdec−1) and B-Co3O4/ZIF-67 (99.28 mV dec−1) (Figure 5b and Table S4), indicating more favorable OER catalytic kinetics for the resultant B-Co3O4-2@ZIF-67. The information of the rate determination step during the OER process can be acquired from the Tafel slope [2,72]. When the Tafel slope is less than 40 mVdec−1 and greater than 120 mVdec−1, the formation of * OOH (O * + OH− → * OOH + e−, where * represents the catalytic active site on the catalysts surface) and * OH (* + OH− → * OH + e−) are the rate-determining steps, whereas the Tafel slope located between the above two values, the formation of O * (* OH + OH− → * O + H2O + e−) is the rate-determining step. Therefore, the formation of O * is the rate-determining step during the OER process over the resultant B-Co3O4-2@ZIF-67.
It is well known that a highly electrochemically active surface area (ECSA) is beneficial for improving catalytic activity. Cyclic voltammetry (CV) was carried out at different scan rates in the non-faradaic potential region from 1.2 to 1.3 V vs. RHE due to the proportional relationship between ECSA and electrochemical double-layer capacitance (Cdl) [73]. As expected, the resultant B-Co3O4-2@ZIF-67 exhibited the high Cdl value of 65.78 mFcm−2, which is much higher than that of the resultant B-Co3O4-1@ZIF-67 (35.10 mFcm−2) and CoBi/ZIF-67 (48.20 mFcm−2), and the other resultant catalysts (Figure 5c, Figures S17 and S18; Table S4). The large ECSA of the resultant B-Co3O4-2@ZIF-67 may be due to its unique nanosheets-assembled nanocage structure, thus exposing more catalytic active sites during the OER process [74]. Electrochemical impedance spectroscopy (EIS) measurements were also performed to explore the interfacial charge transport properties of these catalyst modified electrodes [75]. Unexpectedly, the resultant B-Co3O4-2@ZIF-67 exhibited a larger charge transfer resistance (Rct) than the resultant CoBi/ZIF-67, B-Co3O4-1@ZIF-67 (Figure 5d). In addition, the resultant B-Co3O4-1 and B-Co3O4-2 also exhibited a similar Rct with the resultant B-Co3O4-2@ZIF-67 (Figure S15d). However, the Rct of the resultant B-Co3O4-2@ZIF-67 was smaller than that of the resultant ZIF-67 precursor and Co(OH)2@ZIF-67 (Figure S16c). These results show that the Rct of the resultant ZIF-67 can be significantly reduced by one-step hydrothermal boronation treatment, but it is not the dominant factor affecting the catalytic performance of the resultant catalysts.
Long-term stability is another important parameter for evaluating the practical applications of the resultant catalyst [11]. In this regard, continuous CV cycles were conducted over the resultant B-Co3O4-2@ZIF-67 in the potential range from 1.2 to 1.5 V at the scan rate of 100 mVs−1 in 1.0 M KOH. No obvious decay in the current density was observed after 2000 CV cycles over the resultant B-Co3O4-2@ZIF-67 (Figure 5e). Meanwhile, the durability was also evaluated by chronopotentiometry at a current density of 10 mAcm−2 for 24 h, and chronoamperometry at the constant of potential corresponding to a current density of 10 mAcm−2 for 15 h. No obvious changes in potential and current density were observed after continuous operation (Figure 5f). These results suggest the excellent long-term durability of the resultant B-Co3O4-2@ZIF-67 in alkaline media. We also found that the morphologic structure of the resultant B-Co3O4-2@ZIF-67 can be well-retained after a long-term OER durability test (Figure S19). The composition and chemical state of the resultant B-Co3O4-2@ZIF-67 was further investigated by XPS after the long-term OER durability test (Figure S20). High-resolution Co 2p XPS spectra revealed that the intensity of the Co3+ (795.22 eV) peak is significantly higher than that of Co2+ (780.12 eV), and the ratio of Co3+/Co2+ increased from 1.15 to 1.22, indicating that the low-valence Co2+ is irreversibly oxidized to the high-valence Co3+ during the OER process (Figure S20a and Table S3). Differently, B 1’s signal peak completely disappeared after the OER (Figure S20b), which may be due to the fact that the B element on the catalyst surface dissolved into the electrolyte during the OER process under the high potential [31]. As shown in Figure S20d, the peaks of the metal-oxygen bond (M–O, 929.10 eV, vacant oxygen (Vo, 531.15 eV), and adsorbed oxygen (532.49 and 535.45 eV) are clearly observed after the OER. The above results demonstrate that the oxygen vacancies caused by borate doping play an important role in the improvement of OER catalytic activity.

3. Experimental Section

3.1. Materials

Cobalt nitrate hexahydrate (Co (NO3)2⋅6H2O, AR), 2-methylimidazole (C5H8N2, AR), hexadecyl trimethyl ammonium bromide (CTAB, 99%), potassium tetraborate tetrahydrate (K2B4O7·4H2O, AR), boric acid (H3BO3, AR), methanol (AR), and potassium hydroxide (KOH, AR) were purchased from Sinopharm Chemical Reagent Co., Ltd (Shanghai, China ). All chemicals were used without further purification.

3.2. Materials Synthesis

ZIF-67 cubes were firstly prepared according to the previously reported method with slight modification [42]. 0.87 g of Co(NO3)2⋅6H2O was dissolved in 30 mL of 0.5 mg mL−1 CTAB solution under the assistance of bath ultrasonication (550 W, 40 KHz, KunShan Ultrasonic Instruments, KQ 3200E, Kunshan, China) at room temperature to form solution A, and 13.62 g of 2-methylimidazole was dissolved in 30 mL of deionized water under magnetic stirring to form solution B. After that, the solution A was rapidly introduced into the solution B under vigorous stirring for 6 h at room temperature. The resultant purple precipitate was collected by centrifugation (2000 rpm for 8 min, Maikeer, VL-65B, Changsha, China), washed by ethanol six times, and dried at 70°C overnight for further use.
B-Co3O4@ZIF-67 nanocages were synthesized by hydrothermal reaction. Typically, 1.5 mmol K2B4O7·4H2O and 4.5 mmol H3BO3 were dissolved in 30 mL of methanol under bath ultrasonication at room temperature for 40 min (550 W, 40 KHz), and 120 mg of the resultant ZIF-67 was quickly added into the above solution under vigorous magnetic stirring and then stirred for 20 min. Subsequently, the mixed solution was transferred into a 50 mL Teflon-lined stainless-steel autoclave (PAILAN, Shanghai, China), and was sealed and maintained at 150 °C for 10 h in an electric oven. After being naturally cooled to room temperature, the product was collected via centrifugation (5000 rpm for 5 min), washed with ethanol three times, and finally dried for 30 h at −60 °C in a freeze dryer (SCIENTZ, SCIENCE-10N,Ningbo, China) for further use, which was denoted as B-Co3O4-2@ZIF-67 (2 represents the number of boron sources). As comparisons, CoBi/ZIF-67 and B-Co3O4-1@ZIF-67 were also prepared through the same method except for the use of different boron sources: H3BO3 and K2B4O7·4H2O, respectively. B-Co3O4 was also prepared using 30 mL of deionized water and the mixture of water and methanol (v/v = 1:1) instead of methanol, and the resultant products were denoted B-Co3O4-1 and B-Co3O4-2, respectively. Meanwhile, Co(OH)2@ZIF-67 was also prepared replacing K2B4O7·4H2O with KOH.

3.3. Physicochemical Characterization

Powder X-ray diffraction (XRD) patterns were recorded on a Bruker D8 Advance X-ray diffractometer (Karlsruhe, Germany) with Cu-Kα radiation (λ = 1.5406 Å; scan rate: 5°/min). The morphologic structures were characterized by field-emission scanning electron microscopy (FESEM) on a MIRA3 TESCAN scanning electron microscope operating at 15.0 kV with transmission electron microscopy (TEM, FEI Tecnai G2 F20, Hillsboro, OR, USA) and equipped with an OXFORD X-max 80T energy-dispersive X-ray (EDX) system. Chemical valence and element analysis were conducted by X-ray photoelectron spectroscopy (XPS) on a Thermo Scientific K-Alpha+ instrument (Waltham, MA, USA) operating at 12 kV. All spectra took the C1’s peak at binding energy of 284.80 eV as the energy standard. Fourier transform infrared spectroscopy (FT-IR) spectra (4000–400 cm−1) were measured using KBr as the reference sample on a Thermo Scientific Nicolet iS10 FTIR spectrophotometer (Waltham, MA, USA). UV–Vis absorption spectra were recorded on a UV–Vis spectrophotometer (YOKE INSTRUMENT T2600, Shanghai, China) with a certain concentration (0.5 mg/mL) of catalyst samples in ethanol solution. The specific surface area and pore volume were measured using an AUTOSORB IQ analyzer and analyzed via nitrogen adsorption–desorption isotherm. The pore-size distributions were calculated from the nitrogen desorption isotherms via the Horvaih-Kawazoe (HK) and Barrett-Joyner-Halenda (BJH) methods. The electron paramagnetic resonance (EPR) spectra were recorded on a Bruker EMXplus spectrometer (Karlsruhe, Germany) operated at X-band 9.5 GHz at room temperature.

3.4. Electrochemical Measurements

The electrochemical performances were investigated using a CHI 760E electrochemical workstation (CH Instruments, Inc., Shanghai, China) in a typical three-electrode system at room temperature. The catalyst-modified glassy carbon electrode (GCE, diameter: 5 mm) was used as a working electrode, and the GCE was polished with alumina slurry followed by cleaning in water and ethanol successively with ultrasonication prior to use. A carbon rod (Yueci Electronics, Shanghai) and an Ag/AgCl with saturated KCl solution electrode (Pine Research Instrumentation, Durham, NC, USA) were used as the counter electrode and reference electrode, respectively. The catalyst inks were prepared through dispersing 5 mg of the resultant catalyst into a mixture of 980 μL ethanol and 20 μL Nafion (5 wt.%, DuPont, Shenzhen, China) under ultrasonication for 40 min. Then 20 μL of the obtained ink was dropped on the surface of the polished GCE and dried in ambient conditions to form a uniform thin catalyst layer (we calculated the amount of catalyst loading to be 0.50 mg cm−2). For the durability test, the electrode was also fabricated using carbon paper (CP, 1 cm2 in area, Comston Technology, Shenzhen, China). All the measured potentials were converted to the reversible hydrogen electrode (RHE) according the equation: ERHE = EAg/AgCl + 0.215 + 0.059 pH. The 1.0 M KOH aqueous solution was used as the electrolyte for OER performance measurements. The rotation speed of the rotating disk electrode (RDE) was fixed at 1600 rpm for all the measurements. Prior to the linear sweep voltammetry (LSV) test, the working electrode was activated by applying continuous cyclic voltammetry (CV) several times between 1.2 and 1.5 V in 1.0 M KOH with a scan rate of 100 mVs−1 until the stable CV curves were obtained. The LSV curves were measured by sweeping the potential from 1.2 to 1.8 V vs. RHE with a scan rate of 5 mVs−1. The electrochemical impedance spectroscopy (EIS) measurements were carried out in a frequency range from 100 KHz to 0.01 Hz at 1.5 V by applying an alternating current (AC) voltage with 5 mV amplitude. The electrochemical double layer capacitance (Cdl) of different catalysts were measured using cyclic voltammetry in a non-faradaic region from 1.2 to 1.3 V vs. RHE with different scan rates of 5, 10, 15, 20, and 25 mVs−1. The durability of the catalyst was evaluated according to the following methods: a polarization curve after 2000 CV cycles, chronopotentiometry at the fixed current density of 10 mAcm−2, and chronoamperometry at the fixed potential corresponding to the current density of 10 mAcm−2. All electrochemical potentials were corrected by iRs compensation except for the chronopotential curve. The equivalent circuit of electrochemical impedance spectroscopy (EIS) was fitted by ZView software (Southern Pines, NC, USA).

4. Conclusions

In summary, B-Co3O4@ZIF-67 nanocages composed of nanosheets have been successfully prepared by hydrothermal boronation, and investigated as OER catalysts. The optimal B-Co3O4@ZIF-67 nanocages exhibited superior OER activity with a small overpotential of 330 mV at the current density of 10 mAcm−2 and excellent long-term durability in 1.0 MKOH. The excellent OER performance of B-Co3O4@ZIF-67 can be attributed to the two following qualities: (1) large specific surface area from unique its nanocages structure assembled with nanosheets, which is helpful in promoting mass transfer and exposing more catalytically active sites; (2) the formation of oxygen vacancy defects induced by borate anion doping, which is beneficial for modulating the electronic structure and improving the conductivity of the catalyst.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/catal11060659/s1, Figure S1: FESEM images of the resultant ZIF-67 precursor, Figure S2: XRD pattern of the resultant ZIF-67 precursor and the simulated ZIF-67, Figure S3: EDX spectra of the resultant B-Co3O4-2@ZIF-67, Figure S4: (a and b) FESEM images, (c–e) TEM images, (f) HRTEM image, and (g) SAED pattern of the resultant B-Co3O4-1@ZIF-67; (h and i) FESEM images of the resultant CoBi/ZIF-67, Figure S5: FESEM images of the resultant B-Co3O4-1 (a,b) and B-Co3O4-2 (c,d), Figure S6: FESEM images of the resultant Co(OH)2@ZIF-67, Figure S7: XRD patterns of the resultant B-Co3O4-1@ZIF-67、B-Co3O4-2@ZIF-67, and B-Co3O4/ZIF-67, Figure S8: (a) XRD patterns of the resultant B-Co3O4-1、B-Co3O4-2 and B-Co3O4-2@ZIF-67; (b) the expanded XRD patterns of the area in figure a; (c) XRD patterns of the annealed B-Co3O4-2@ZIF-67; (d) XRD patterns of the resultant Co(OH)2@ZIF-67, Figure S9: EDX element mapping of C, O, B, and Co images of the resultant B-Co3O4-1 (a) and B-Co3O4-2 (b), Figure S10: FT-IR spectra of the resultant ZIF-67 precursor, B-Co3O4-1@ZIF-67, B-Co3O4-2@ZIF-67, and Co-Bi/ZIF-67, Figure S11: FT-IR spectra of the resultant ZIF-67 precursor, B-Co3O4-1, and B-Co3O4-2, Figure S12: UV-Visible spectra of the as-prepared ZIF-67 precursor and its derivatives: B-Co3O4-1, B-Co3O4-2, CoBi/ZIF-67, Co(OH)2@ZIF-67, B-Co3O4-1@ZIF-67 and B-Co3O4-2@ZIF-67, Figure S13: (a) The XPS survey spectra, (b) high-resolution Co 2p spectra, (d) high-resolution C 1s spectra, (e) high-resolution N 1s spectra, (f) high-resolution O 1s spectra of the resultant Co(OH)2@ZIF-67 and B-Co3O4-1@ZIF-67; (c) high-resolution B 1s spectra of the resultant B-Co3O4-1@ZIF-67, Figure S14: EPR spectra of the resultant B-Co3O4-1@ZIF-67 and B-Co3O4-2@ZIF-67, Figure S15: Electrochemical performances of the resultant B-Co3O4-1, B-Co3O4-2, and B-Co3O4-2@ZIF-67 in 1.0 M KOH: (a) polarization curves with iR compensation, (b) Tafel slope plots, (c) current density as a function of scan rate derived from the CV curves at different scan rates and (d) Nyquist plots, Figure S16: Electrochemical performances of the resultant ZIF-67, Co(OH)2@ZIF-67, and B-Co3O4-2@ZIF-67 in 1.0 M KOH: (a) polarization curves with iR compensation, (b) Tafel slope plots, and (c) Nyquist plots, Figure S17: (a,c,e) CV curves at different scan rates (5, 10, 15, 20 and 25 mV s−1) and (b,d,f) current density as a function of scan rate derived from the CV curves at different scan rates for the resultant B-Co3O4-1@ZIF-67 (a,b), B-Co3O4-2@ZIF-67 (c,d), and CoBi/ZIF-67 (e,f) in 1.0 M KOH, Figure S18: (a,c,e,g) CV curves at different scan rates (5, 10, 15, 20 and 25 mV s−1) and (b,d,f,h) current density as a function of scan rate derived from the CV curves at different scan rates for the resultant B-Co3O4-1 (a,b), B-Co3O4-2 (c,d), Co(OH)2 (e,f) and ZIF-67 (g,h) in 1.0 M KOH solution, Figure S19: Low-magnification (a) and high-magnification (b) FESEM images of the resultant B-Co3O4-2@ZIF-67 after OER durability test, Figure S20: High-resolution XPS Co 2p spectra (a), B 1s spectra (b), C 1s spectra (c), O 1s spectra (d) of the resultant B-Co3O4-2@ZIF-67 before and after the stability test, Table S1: Summary of nitrogen adsorption-desorption isotherm data of the resultant B-Co3O4-1@ZIF-67 and B-Co3O4-2@ZIF-67, Table S2: The EDX results of the resultant B-Co3O4-1 and B-Co3O4-2. (The element content is atomic percentage), Table S3: The XPS element atomic content percentage and Co3+/Co2+ ratio of the test samples, Table S4: Summary of the electrochemical data of all the samples for OER in 1.0 M KOH solution, Table S5: The EDX results of the B-Co3O4-2@ZIF-67 catalyst before and after OER test. (The element content is atomic percentage), Table S6: Comparison of OER catalystic activity between B-Co3O4-2@ZIF-67 sample and other electrocatalysts in alkaline solution.

Author Contributions

Designed and performed the experiments, X.L.; analyzed the experimental data, X.L. aided in data collection, H.L.; data interpretation and plotting, H.L.; contributed to Tafel slope and EIS analysis, G.H.; contributed to the preparation of ZIF-67 precursor, Y.Z.; contributed to literature search and edited the manuscript, J.X.; wrote the manuscript, X.L.; supervised the project, revised and edited the manuscript, L.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Fundamental Research Funds for the Central Universities (Project No.531118010232) and the Huxiang High-Level Talent Gathering Project of Hunan Province (Project No.2019RS1012).

Institutional Review Board Statement

Not application.

Informed Consent Statement

Not application.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, D.; Su, Z.; Chen, Y.; Srinivas, K.; Gao, J.; Zhang, W.; Wang, Z.; Lin, H. Electronic modulation of hierarchical spongy nanosheets toward efficient and stable water electrolysis. Small 2021, 17, 2006881. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, Z.; Zhang, T.; Lee, J.Y. 110th Anniversary: A total water splitting electrocatalyst based on borate/Fe Co-doping of nickel sulfide. Ind. Eng. Chem. Res. 2019, 58, 13053–13063. [Google Scholar] [CrossRef]
  3. Zang, W.; Sun, T.; Yang, T.; Xi, S.; Waqar, M.; Kou, Z.; Lyu, Z.; Feng, Y.P.; Wang, J.; Pennycook, S.J. Efficient hydrogen evolution of oxidized Ni-N3 defective sites for alkaline freshwater and seawater electrolysis. Adv. Mater. 2021, 33, 2003846. [Google Scholar] [CrossRef]
  4. Yu, J.; Wang, J.; Long, X.; Chen, L.; Cao, Q.; Wang, J.; Qiu, C.; Lim, J.; Yang, S. Formation of FeOOH nanosheets induces substitutional doping of CeO2−x with high-valence Ni for efficient water oxidation. Adv. Energy Mater. 2020, 11, 2002731. [Google Scholar] [CrossRef]
  5. Zhu, J.; Wei, M.; Meng, Q.; Chen, Z.; Fan, Y.; Hasan, S.W.; Zhang, X.; Lyu, D.; Tian, Z.Q.; Shen, P.K. Ultrathin-shell IrCo hollow nanospheres as highly efficient electrocatalysts towards the oxygen evolution reaction in acidic media. Nanoscale 2020, 12, 24070–24078. [Google Scholar] [CrossRef]
  6. Quang, N.D.; Majumder, S.; Van, P.C.; Jeong, J.-R.; Kim, C.; Kim, D. Co3O4/reduced graphene oxide/BiVO4 nanorod as high performance photoanode for water oxidation. Electrochim. Acta 2020, 364, 137283–137293. [Google Scholar] [CrossRef]
  7. Lei, Y.; Xu, T.; Ye, S.; Zheng, L.; Liao, P.; Xiong, W.; Hu, J.; Wang, Y.; Wang, J.; Ren, X.; et al. Engineering defect-rich Fe-doped NiO coupled Ni cluster nanotube arrays with excellent oxygen evolution activity. Appl. Catal. B Environ. 2021, 285, 119809–119818. [Google Scholar] [CrossRef]
  8. Zhang, S.L.; Guan, B.Y.; Lu, X.F.; Xi, S.; Du, Y.; Lou, X.W.D. Metal atom-doped Co3O4 hierarchical nanoplates for electrocatalytic oxygen evolution. Adv. Mater. 2020, 32, 2002235. [Google Scholar] [CrossRef]
  9. Dong, F.; Li, L.; Kong, Z.; Xu, X.; Zhang, Y.; Gao, Z.; Dongyang, B.; Ni, M.; Liu, Q.; Lin, Z. Materials engineering in perovskite for optimized oxygen evolution electrocatalysis in alkaline condition. Small 2021, 17, 2006638. [Google Scholar] [CrossRef] [PubMed]
  10. Huang, Y.; Wei, G.; He, J.; An, C.; Hu, M.; Shu, M.; Zhu, J.; Yao, S.; Xi, W.; Si, R.; et al. Interfacial electronic interaction of atomically dispersed IrClx on ultrathin Co(OH)2/CNTs for efficient electrocatalytic water oxidation. Appl. Catal. B Environ. 2020, 279, 119398–119405. [Google Scholar] [CrossRef]
  11. Srinivas, K.; Chen, Y.; Wang, B.; Yu, B.; Lu, Y.; Su, Z.; Zhang, W.; Yang, D. Metal-organic framework-derived Fe-doped Ni3Fe/NiFe2O4 heteronanoparticle-decorated carbon nanotube network as a highly efficient and durable bifunctional electrocatalyst. ACS Appl. Mater. Interfaces 2020, 12, 55782–55794. [Google Scholar] [CrossRef]
  12. Moschkowitsch, W.; Dhaka, K.; Gonen, S.; Attias, R.; Tsur, Y.; Caspary Toroker, M.; Elbaz, L. Ternary NiFeTiOOH catalyst for the oxygen evolution reaction: Study of the effect of the addition of Ti at different loadings. ACS Catal. 2020, 10, 4879–4887. [Google Scholar] [CrossRef]
  13. Choi, J.; Kim, D.; Zheng, W.; Yan, B.; Li, Y.; Lee, L.Y.S.; Piao, Y. Interface engineered NiFe2O4−x/NiMoO4 nanowire arrays for electrochemical oxygen evolution. Appl. Catal. B Environ. 2021, 286, 119857–119865. [Google Scholar] [CrossRef]
  14. Liu, Z.; Yu, X.; Xue, H.; Feng, L. A nitrogen-doped CoP nanoarray over 3D porous Co foam as an efficient bifunctional electrocatalyst for overall water splitting. J. Mater. Chem. A 2019, 7, 13242–13248. [Google Scholar] [CrossRef]
  15. Yuan, G.; Bai, J.; Zhang, L.; Chen, X.; Ren, L. The effect of P vacancies on the activity of cobalt phosphide nanorods as oxygen evolution electrocatalyst in alkali. Appl. Catal. B Environ. 2021, 284, 119693–119701. [Google Scholar] [CrossRef]
  16. Naderi, A.; Yong, X.; Karamad, M.; Cai, J.; Zang, Y.; Gates, I.; Siahrostami, S.; Wang, G. Ternary cobalt–iron sulfide as a robust electrocatalyst for water oxidation: A dual effect from surface evolution and metal doping. Appl. Sur. Sci. 2021, 542, 148681–148687. [Google Scholar] [CrossRef]
  17. Masa, J.; Weide, P.; Peeters, D.; Sinev, I.; Xia, W.; Sun, Z.; Somsen, C.; Muhler, M.; Schuhmann, W. Amorphous cobalt boride (Co2B) as a highly efficient nonprecious catalyst for electrochemical water splitting: Oxygen and hydrogen evolution. Adv. Energy Mater. 2016, 6, 1502313. [Google Scholar] [CrossRef]
  18. Yi, L.; Niu, Y.; Feng, B.; Zhao, M.; Hu, W. Simultaneous phase transformation and doping via a unique photochemical–electrochemical strategy to achieve a highly active Fe-doped Ni oxyhydroxide oxygen evolution catalyst. J. Mater. Chem. A 2021, 9, 4213–4220. [Google Scholar] [CrossRef]
  19. Xu, Z.; Ying, Y.; Zhang, G.; Li, K.; Liu, Y.; Fu, N.; Guo, X.; Yu, F.; Huang, H. Engineering NiFe layered double hydroxide by valence control and intermediate stabilization toward the oxygen evolution reaction. J. Mater. Chem. A 2020, 8, 26130–26138. [Google Scholar] [CrossRef]
  20. He, J.; Zhou, X.; Xu, P.; Sun, J. Promoting electrocatalytic water oxidation through tungsten-modulated oxygen vacancies on hierarchical FeNi-layered double hydroxide. Nano Energy 2021, 80, 105540–105548. [Google Scholar] [CrossRef]
  21. Xu, L.; Wang, Z.; Wang, J.; Xiao, Z.; Huang, X.; Liu, Z.; Wang, S. N-doped nanoporous Co3O4 nanosheets with oxygen vacancies as oxygen evolving electrocatalysts. Nanotechnology 2017, 28, 165402–165409. [Google Scholar] [CrossRef] [Green Version]
  22. Zhang, J.; Qian, J.; Ran, J.; Xi, P.; Yang, L.; Gao, D. Engineering lower coordination atoms onto NiO/Co3O4 heterointerfaces for boosting oxygen evolution reactions. ACS Catal. 2020, 10, 12376–12384. [Google Scholar] [CrossRef]
  23. Zeng, H.; Oubla, M.H.; Zhong, X.; Alonso-Vante, N.; Du, F.; Xie, Y.; Huang, Y.; Ma, J. Rational defect and anion chemistries in Co3O4 for enhanced oxygen evolution reaction. Appl. Catal. B Environ. 2021, 281, 119535–119543. [Google Scholar] [CrossRef]
  24. Zou, L.; Xu, Q. Synthesis of a hierarchically porous C/Co3O4 nanostructure with boron doping for oxygen evolution reaction. Chem. Asian J. 2020, 15, 490–493. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Xia, H.; Huang, Z.; Lv, C.; Zhang, C. A self-supported porous hierarchical core–shell nanostructure of cobalt oxide for efficient oxygen evolution reaction. ACS Catal. 2017, 7, 8205–8213. [Google Scholar] [CrossRef]
  26. Zhang, B.; Jiang, K.; Wang, H.; Hu, S. Fluoride-induced dynamic surface self-reconstruction produces unexpectedly efficient oxygen-evolution catalyst. Nano Lett. 2019, 19, 530–537. [Google Scholar] [CrossRef]
  27. Wang, Q.; Xue, X.; Lei, Y.; Wang, Y.; Feng, Y.; Xiong, X.; Wang, D.; Li, Y. Engineering of electronic states on Co3O4 ultrathin nanosheets by cation substitution and anion vacancies for oxygen evolution reaction. Small 2020, 16, 2001571. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, C.; Yang, Z.; Liang, W.; Yan, H.; Tuo, Y.; Li, Y.; Zhou, Y.; Zhang, J. Ultra-small Co/CoO nanoparticles dispersed on N-doped carbon nanosheets for highly efficient electrocatalytic oxygen evolution reaction. J. Energy Chem. 2021, 55, 345–354. [Google Scholar] [CrossRef]
  29. Liu, T.; Zhang, L.; You, W.; Yu, J. Core-shell nitrogen-doped carbon hollow spheres/Co3O4 nanosheets as advanced electrode for high-performance supercapacitor. Small 2018, 14, 1702407–1702414. [Google Scholar] [CrossRef] [PubMed]
  30. Li, H.; Tan, M.; Huang, C.; Luo, W.; Yin, S.-F.; Yang, W. Co2(OH)3Cl and MOF mediated synthesis of porous Co3O4/NC nanosheets for efficient OER catalysis. Appl. Sur. Sci. 2021, 542, 148739–148747. [Google Scholar] [CrossRef]
  31. Yuan, H.; Wang, S.; Ma, Z.; Kundu, M.; Tang, B.; Li, J.; Wang, X. Oxygen vacancies engineered self-supported B doped Co3O4 nanowires as an efficient multifunctional catalyst for electrochemical water splitting and hydrolysis of sodium borohydride. Chem. Eng. J. 2021, 404, 126474–126486. [Google Scholar] [CrossRef]
  32. Wang, Z.; Xu, W.; Chen, X.; Peng, Y.; Song, Y.; Lv, C.; Liu, H.; Sun, J.; Yuan, D.; Li, X.; et al. Defect-rich nitrogen doped Co3O4/C porous nanocubes enable high-efficiency bifunctional oxygen electrocatalysis. Adv. Funct. Mater. 2019, 29, 1902875. [Google Scholar] [CrossRef]
  33. Yang, H.; Chen, Z.; Guo, P.; Fei, B.; Wu, R. B-doping-induced amorphization of LDH for large-current-density hydrogen evolution reaction. Appl. Catal. B Environ. 2020, 261, 118240–118248. [Google Scholar] [CrossRef]
  34. Lai, Y.; Xiao, L.; Tao, Y.; Gao, Z.; Zhang, L.; Su, X.; Dai, Y. Enhancing one-dimensional charge transport in metal-organic framework hexagonal nanorods for electrocatalytic oxygen evolution. ChemSusChem 2021, 14, 1–6. [Google Scholar] [CrossRef] [PubMed]
  35. Lin, Y.; Zhang, M.; Zhao, L.; Wang, L.; Cao, D.; Gong, Y. Ru doped bimetallic phosphide derived from 2D metal organic framework as active and robust electrocatalyst for water splitting. Appl. Sur. Sci. 2021, 536, 147952–147964. [Google Scholar] [CrossRef]
  36. Weng, Y.G.; Yin, W.Y.; Jiang, M.; Hou, J.L.; Shao, J.; Zhu, Q.Y.; Dai, J. Tetrathiafulvalene-based metal-organic framework as a high-performance anode for lithium-ion batteries. ACS Appl. Mater. Interfaces 2020, 12, 52615–52623. [Google Scholar] [CrossRef] [PubMed]
  37. Cheng, N.; Wang, N.; Ren, L.; Casillas-Garcia, G.; Liu, N.; Liu, Y.; Xu, X.; Hao, W.; Dou, S.X.; Du, Y. In-situ grafting of N-doped carbon nanotubes with Ni encapsulation onto MOF-derived hierarchical hybrids for efficient electrocatalytic hydrogen evolution. Carbon 2020, 163, 178–185. [Google Scholar] [CrossRef]
  38. Marks, S.D.; Riascos-Rodriguez, K.; Arrieta-Pérez, R.R.; Yakovenko, A.A.; Exley, J.; Evans, P.G.; Hernández-Maldonado, A.J. Lattice expansion and ligand twist during CO2 adsorption in flexible Cu bipyridine metal–organic frameworks. J. Mater. Chem. A 2020, 8, 18903–18915. [Google Scholar] [CrossRef]
  39. Mohan, M.; Essalhi, M.; Durette, D.; Rana, L.K.; Ayevide, F.K.; Maris, T.; Duong, A. A rational design of microporous nitrogen-rich lanthanide metal-organic frameworks for CO2/CH4 separation. ACS Appl. Mater. Interfaces 2020, 12, 50619–50627. [Google Scholar] [CrossRef]
  40. Zhu, J.; Liu, C.; Sun, J.; Xing, Y.; Quan, B.; Li, D.; Jiang, D. Interfacial engineering of Co3FeN embedded N-doped carbon nanoarray derived from metal–organic frameworks for enhanced oxygen evolution reaction. Electrochim. Acta 2020, 354, 136629–136636. [Google Scholar] [CrossRef]
  41. Wang, C.; Chen, W.; Yuan, D.; Qian, S.; Cai, D.; Jiang, J.; Zhang, S. Tailoring the nanostructure and electronic configuration of metal phosphides for efficient electrocatalytic oxygen evolution reactions. Nano Energy 2020, 69, 104453–104460. [Google Scholar] [CrossRef]
  42. Wu, H.B.; Guan, B.Y.; He, P.; Yu, X.-Y. Synthesis of ZIF-67 nanocubes with complex structures co-mediated by dopamine and polyoxometalate. J. Mater. Chem. A 2018, 6, 19338–19341. [Google Scholar] [CrossRef]
  43. Lv, Z.; Zhong, Q.; Bu, Y. Controllable synthesis of Ni-Co nanosheets covered hollow box via altering the concentration of nitrate for high performance supercapacitor. Electrochim. Acta 2016, 215, 500–505. [Google Scholar] [CrossRef]
  44. Chen, W.; Han, B.; Tian, C.; Liu, X.; Liang, S.; Deng, H.; Lin, Z. MOFs-derived ultrathin holey Co3O4 nanosheets for enhanced visible light CO2 reduction. Appl. Catal. B Environ. 2019, 244, 996–1003. [Google Scholar] [CrossRef]
  45. Silva, F.L.G.; Veiga, A.G.; Carvalho, N.M.F. Manganese oxides treated with organic compounds as catalysts for water oxidation reaction. Int. J. Hydrog. Energy 2021, 46, 11677–11687. [Google Scholar] [CrossRef]
  46. Wang, H.; Fu, W.; Chen, Y.; Xue, F.; Shan, G. ZIF-67-derived Co3O4 hollow nanocage with efficient peroxidase mimicking characteristic for sensitive colorimetric biosensing of dopamine. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2021, 246, 119006–119015. [Google Scholar] [CrossRef]
  47. Garg, N.; Kumar, M.; Kumari, N.; Deep, A.; Sharma, A.L. Chemoresistive room-temperature sensing of ammonia using zeolite imidazole framework and reduced graphene oxide (ZIF-67/rGO) composite. ACS Omega 2020, 5, 27492–27501. [Google Scholar] [CrossRef]
  48. Pei, W.; Zhang, J.; Tong, H.; Ding, M.; Shi, F.; Wang, R.; Huo, Y.; Li, H. Removal and reutilization of metal ions on ZIF-67/GO membrane via synergistic photocatalytic-photothermal route. Appl. Catal. B Environ. 2021, 282, 119575–119584. [Google Scholar] [CrossRef]
  49. Jafarinasab, M.; Akbari, A.; Omidkhah, M.; Shakeri, M. An efficient Co-based metal–organic framework nanocrystal (Co-ZIF-67) for adsorptive desulfurization of dibenzothiophene: Impact of the preparation approach on structure tuning. Energy Fuels 2020, 34, 12779–12791. [Google Scholar] [CrossRef]
  50. Chameh, B.; Moradi, M.; Hajati, S.; Hessari, F.A. Design and construction of ZIF(8 and 67) supported Fe3O4 composite as advanced materials of high performance supercapacitor. Phys. E Low Dimens. Syst. Nanostruct. 2021, 126, 114442–114452. [Google Scholar] [CrossRef]
  51. Modi, A.; Bellare, J. Zeolitic imidazolate framework-67/carboxylated graphene oxide nanosheets incorporated polyethersulfone hollow fiber membranes for removal of toxic heavy metals from contaminated water. Sep. Purif. Technol. 2020, 249, 117160–117169. [Google Scholar] [CrossRef]
  52. Qin, J.; Wang, S.; Wang, X. Visible-light reduction CO2 with dodecahedral zeolitic imidazolate framework ZIF-67 as an efficient co-catalyst. Appl. Catal. B Environ. 2017, 209, 476–482. [Google Scholar] [CrossRef]
  53. Xu, W.; Wang, X.; Wu, Y.; Li, W.; Chen, C. Functionalized graphene with Co-ZIF adsorbed borate ions as an effective flame retardant and smoke suppression agent for epoxy resin. J. Hazard Mater. 2019, 363, 138–151. [Google Scholar] [CrossRef] [PubMed]
  54. Cheng, K.; Cao, D.; Yang, F.; Xu, Y.; Sun, G.; Ye, K.; Yin, J.; Wang, G. Facile synthesis of morphology-controlled Co3O4 nanostructures through solvothermal method with enhanced catalytic activity for H2O2 electroreduction. J. Power Sources 2014, 253, 214–223. [Google Scholar] [CrossRef]
  55. Zhou, T.; Lu, P.; Zhang, Z.; Wang, Q.; Umar, A. Perforated Co3O4 nanoneedles assembled in chrysanthemum-like Co3O4 structures for ultra-high sensitive hydrazine chemical sensor. Sens. Actuators B Chem. 2016, 235, 457–465. [Google Scholar] [CrossRef]
  56. Zhang, R.; Ke, W.; Chen, S.; Yue, X.; Hu, Z.; Ning, T. Phase evolution of vulcanized Co3O4 catalysts during oxygen evolution reaction. Appl. Sur. Sci. 2021, 546, 148819. [Google Scholar] [CrossRef]
  57. Yan, W.; Shen, Y.; An, C.; Li, L.; Si, R.; An, C. FeOx clusters decorated hcp Ni nanosheets as inverse electrocatalyst to stimulate excellent oxygen evolution performance. Appl. Catal. B Environ. 2021, 284, 119687–119695. [Google Scholar] [CrossRef]
  58. Zhang, J.; Zhao, Z.; Xia, Z.; Dai, L. A metal-free bifunctional electrocatalyst for oxygen reduction and oxygen evolution reactions. Nat. Nanotechnol. 2015, 10, 444–452. [Google Scholar] [CrossRef]
  59. Guo, M.; Qu, Y.; Yuan, C.; Chen, S. Electrochemical exfoliation of hierarchical Co3O4 microflowers and their conversion into CoP as high-efficiency hydrogen evolution electrocatalyst. Electrochim. Acta 2019, 322, 134768–134777. [Google Scholar] [CrossRef]
  60. Vikraman, D.; Hussain, S.; Karuppasamy, K.; Feroze, A.; Kathalingam, A.; Sanmugam, A.; Chun, S.-H.; Jung, J.; Kim, H.-S. Engineering the novel MoSe2-Mo2C hybrid nanoarray electrodes for energy storage and water splitting applications. Appl. Catal. B Environ. 2020, 264, 118531–118543. [Google Scholar] [CrossRef]
  61. Li, Y.; Li, F.-M.; Meng, X.-Y.; Li, S.-N.; Zeng, J.-H.; Chen, Y. Ultrathin Co3O4 nanomeshes for the oxygen evolution reaction. ACS Catal. 2018, 8, 1913–1920. [Google Scholar] [CrossRef]
  62. Zhang, Z.; Zhang, T.; Lee, J.Y. Enhancement effect of borate doping on the oxygen evolution activity of α-nickel hydroxide. ACS Appl. Nano Mater. 2018, 1, 751–758. [Google Scholar] [CrossRef]
  63. Wang, X.; Zhou, L.; Yang, T.; Gao, J.; He, P.; Jia, L.; Dong, F.; Jia, B.; Zhang, H. Facile one-step synthesis of tunable nanochain-like Fe–Mo–B: A highly efficient and stable catalyst for oxygen evolution reaction. J. Alloys Compd. 2020, 822, 153517–153524. [Google Scholar] [CrossRef]
  64. Yang, Y.X.; Li, B.L.; Zhang, Q.; Guo, W.H.; Wang, X.H.; Li, L.J.; Luo, H.Q.; Li, N.B. Prussian blue analogues–derived CoFe–B nanocubes with increased specific surface area and modulated electronic structure as enhanced oxygen evolution electrocatalysts. Energy Technol. 2020, 9, 2000178. [Google Scholar] [CrossRef]
  65. Xiao, Z.; Wang, Y.; Huang, Y.-C.; Wei, Z.; Dong, C.-L.; Ma, J.; Shen, S.; Li, Y.; Wang, S. Filling the oxygen vacancies in Co3O4 with phosphorus: An ultra-efficient electrocatalyst for overall water splitting. Energy Environ. Sci. 2017, 10, 2563–2569. [Google Scholar] [CrossRef]
  66. Ji, L.; Wang, J.; Teng, X.; Meyer, T.J.; Chen, Z. CoP nanoframes as bifunctional electrocatalysts for efficient overall water splitting. ACS Catal. 2019, 10, 412–419. [Google Scholar] [CrossRef] [Green Version]
  67. Yang, X.; Chen, J.; Chen, Y.; Feng, P.; Lai, H.; Li, J.; Luo, X. Novel Co3O4 nanoparticles/nitrogen-doped carbon composites with extraordinary catalytic activity for oxygen evolution reaction (OER). Nano-Micro Lett. 2018, 10, 15–25. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Lian, Y.; Sun, H.; Wang, X.; Qi, P.; Mu, Q.; Chen, Y.; Ye, J.; Zhao, X.; Deng, Z.; Peng, Y. Carved nanoframes of cobalt-iron bimetal phosphide as a bifunctional electrocatalyst for efficient overall water splitting. Chem. Sci. 2019, 10, 464–474. [Google Scholar] [CrossRef] [Green Version]
  69. Liu, P.F.; Yang, S.; Zhang, B.; Yang, H.G. Defect-rich ultrathin cobalt-iron layered double hydroxide for electrochemical overall water splitting. ACS Appl. Mater. Interfaces 2016, 8, 34474–34481. [Google Scholar] [CrossRef] [PubMed]
  70. Zhuang, L.; Ge, L.; Yang, Y.; Li, M.; Jia, Y.; Yao, X.; Zhu, Z. Ultrathin iron-cobalt oxide nanosheets with abundant oxygen vacancies for the oxygen evolution reaction. Adv. Mater. 2017, 29, 1606793–1606799. [Google Scholar] [CrossRef] [PubMed]
  71. Xie, M.; Ma, Y.; Lin, D.; Xu, C.; Xie, F.; Zeng, W. Bimetal-organic framework MIL-53(Co-Fe): An efficient and robust electrocatalyst for the oxygen evolution reaction. Nanoscale 2020, 12, 67–71. [Google Scholar] [CrossRef] [PubMed]
  72. Liu, S.; Zhang, J.; Wang, H.; Asefa, T.; Huang, X. A facile route to efficient water oxidation electrodes via electrochemical activation of iron in nickel sulfate solution. ACS Sustain. Chem. Eng. 2020, 8, 15550–15559. [Google Scholar] [CrossRef]
  73. Qu, M.; Jiang, Y.; Yang, M.; Liu, S.; Guo, Q.; Shen, W.; Li, M.; He, R. Regulating electron density of NiFe-P nanosheets electrocatalysts by a trifle of Ru for high-efficient overall water splitting. Appl. Catal. B Environ. 2020, 263, 118324–118332. [Google Scholar] [CrossRef]
  74. Wang, T.; Zhang, X.; Zhu, X.; Liu, Q.; Lu, S.; Asiri, A.M.; Luo, Y.; Sun, X. Hierarchical CuO@ZnCo LDH heterostructured nanowire arrays toward enhanced water oxidation electrocatalysis. Nanoscale 2020, 12, 5359–5362. [Google Scholar] [CrossRef] [PubMed]
  75. Hoang, V.C.; Dinh, K.N.; Gomes, V.G. Hybrid Ni/NiO composite with N-doped activated carbon from waste cauliflower leaves: A sustainable bifunctional electrocatalyst for efficient water splitting. Carbon 2020, 157, 515–524. [Google Scholar] [CrossRef]
Catalysts 11 00659 g001 550
Figure 1. Schematic illustration of the preparation of B-Co3O4-2@ZIF-67 nanocages.
Figure 1. Schematic illustration of the preparation of B-Co3O4-2@ZIF-67 nanocages.
Catalysts 11 00659 g001
Catalysts 11 00659 g002 550
Figure 2. (a,b) FESEM images, (c–e) TEM images (f) HRTEM image (the inset showing the SAED pattern), and (g) Element mappings of C, N, O, Co, B and P images of the resultant B-Co3O4-2@ZIF-67 electrocatalyst.
Figure 2. (a,b) FESEM images, (c–e) TEM images (f) HRTEM image (the inset showing the SAED pattern), and (g) Element mappings of C, N, O, Co, B and P images of the resultant B-Co3O4-2@ZIF-67 electrocatalyst.
Catalysts 11 00659 g002
Catalysts 11 00659 g003 550

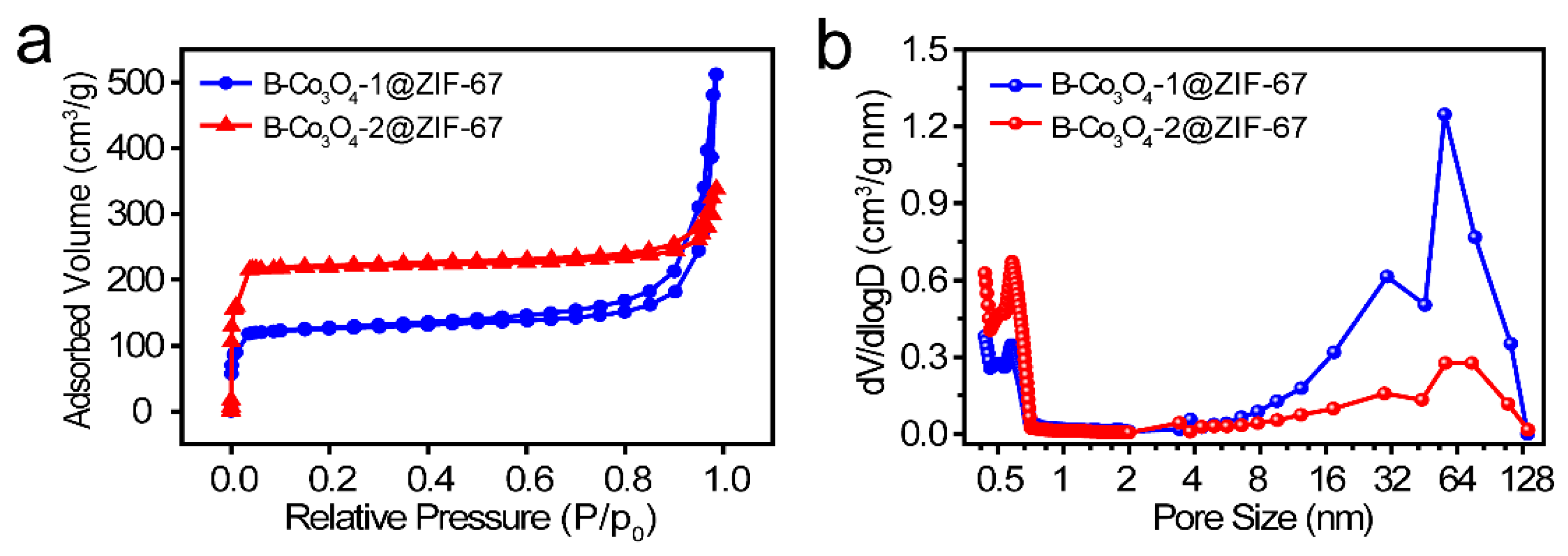

Figure 3. (a) N2 adsorption-desorption isotherms and (b) the corresponding pore size distribution of the resultant B-Co3O4-1@ZIF-67 and B-Co3O4-2@ZIF-67.
Figure 3. (a) N2 adsorption-desorption isotherms and (b) the corresponding pore size distribution of the resultant B-Co3O4-1@ZIF-67 and B-Co3O4-2@ZIF-67.
Catalysts 11 00659 g003
Catalysts 11 00659 g004 550

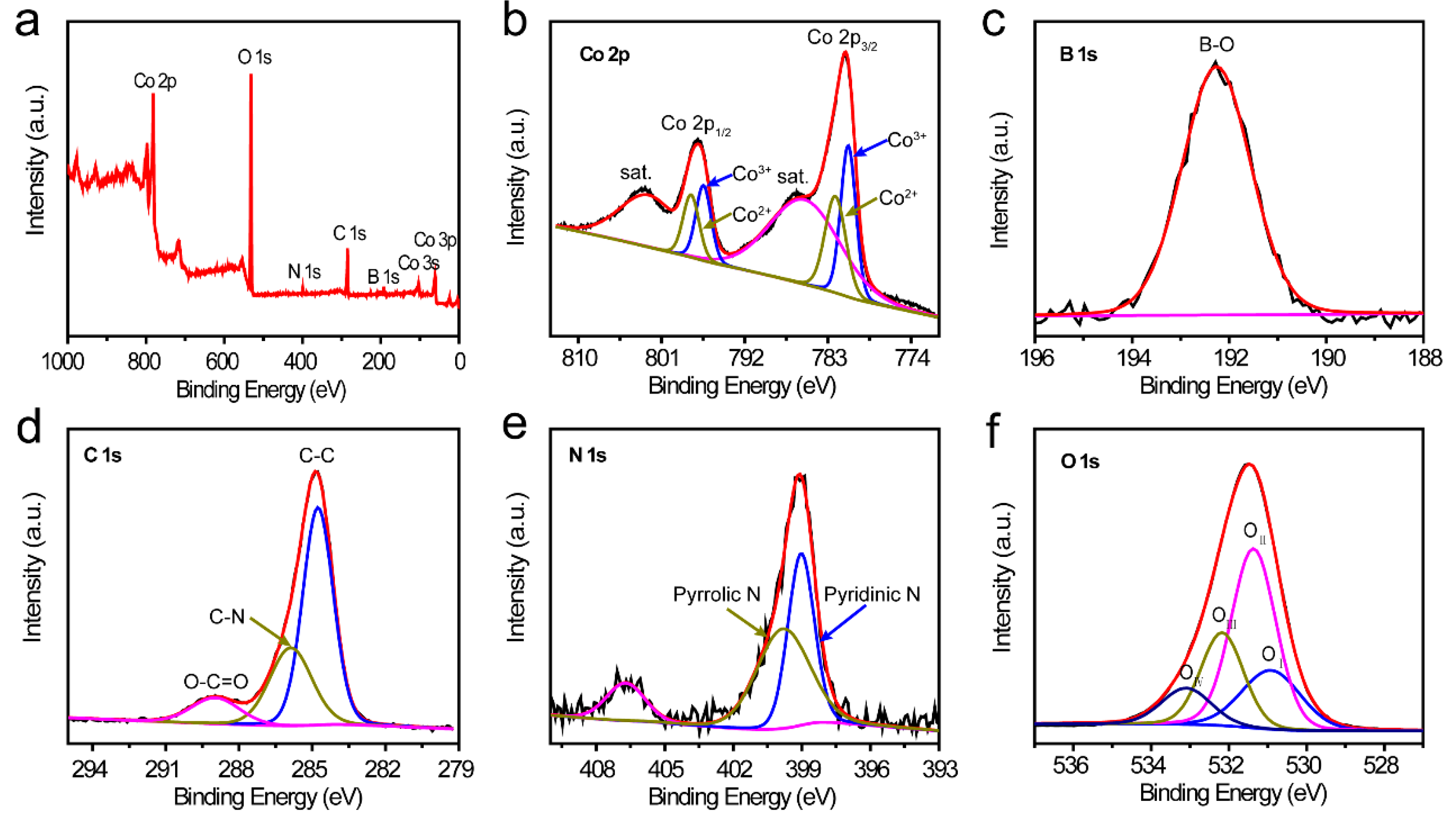

Figure 4. (a) The XPS survey spectra, (b) high-resolution Co 2p spectra, (c) high-resolution B 1s spectra, (d) C 1s spectra, (e) N 1s spectra, and (f) O 1s spectra of the resultant B-Co3O4-2@ZIF-67.
Figure 4. (a) The XPS survey spectra, (b) high-resolution Co 2p spectra, (c) high-resolution B 1s spectra, (d) C 1s spectra, (e) N 1s spectra, and (f) O 1s spectra of the resultant B-Co3O4-2@ZIF-67.
Catalysts 11 00659 g004
Catalysts 11 00659 g005 550

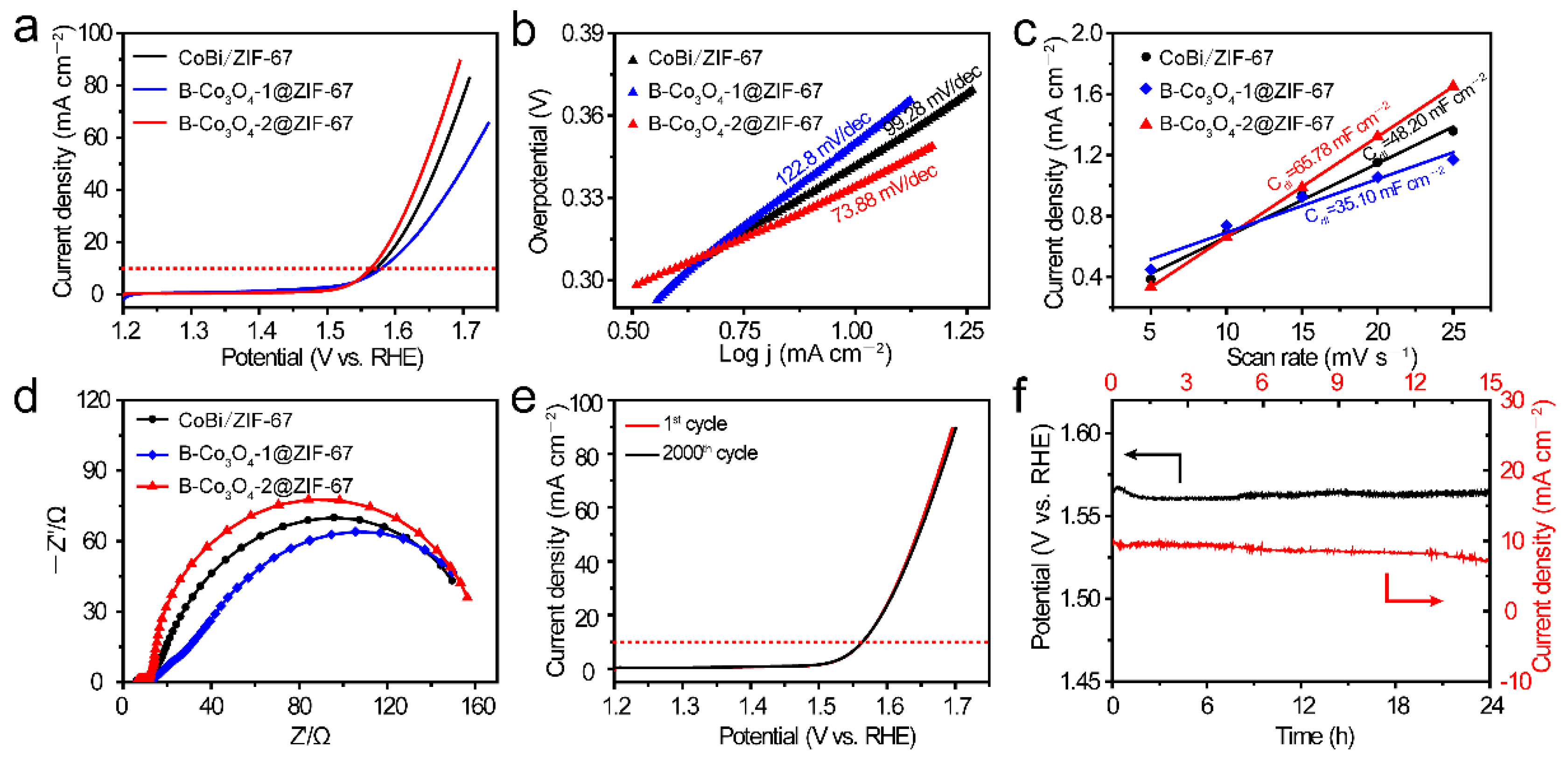

Figure 5. Electrochemical performances of the resultant CoBi/ZIF-67, B-Co3O4-1@ZIF-67, and B-Co3O4-2@ZIF-67 in 1.0 M KOH: (a) polarization curves with iRs compensation, (b) Tafel slope plots, (c) current density as a function of scan rate derived from the CV curves at different scan rates, (d) Nyquist plots, (f) polarization curves of the resultant B-Co3O4-2@ZIF-67 before and after 2000 CV cycles, and (e) chronopotentiometry at the fixed current density of 10 mA cm−2 and the chronoamperometry at the fixed potential corresponding to the current density of 10 mA cm−2 of the resultant B-Co3O4-2@ZIF-67.
Figure 5. Electrochemical performances of the resultant CoBi/ZIF-67, B-Co3O4-1@ZIF-67, and B-Co3O4-2@ZIF-67 in 1.0 M KOH: (a) polarization curves with iRs compensation, (b) Tafel slope plots, (c) current density as a function of scan rate derived from the CV curves at different scan rates, (d) Nyquist plots, (f) polarization curves of the resultant B-Co3O4-2@ZIF-67 before and after 2000 CV cycles, and (e) chronopotentiometry at the fixed current density of 10 mA cm−2 and the chronoamperometry at the fixed potential corresponding to the current density of 10 mA cm−2 of the resultant B-Co3O4-2@ZIF-67.
Catalysts 11 00659 g005
