UV/Vis-Based Persulphate Activation for p-Nitrophenol Degradation

Valentin Dubois
Carmen S. D. Rodrigues
Ana S. P. Alves
1 and
Luis M. Madeira
LEPABE—Laboratory for Process Engineering, Environment, Biotechnology and Energy, Faculty of Engineering, University of Porto, Rua Dr. Roberto Frias, 4200-465 Porto, Portugal
INSA—Institut National des Sciences Appliquées de Toulouse, 135, Avenue de Rangueil, 31400 Toulouse, France
Author to whom correspondence should be addressed.
Catalysts 2021, 11(4), 480;
Submission received: 1 March 2021 / Revised: 31 March 2021 / Accepted: 6 April 2021 / Published: 8 April 2021


In the present work, the degradation of p-nitrophenol (PNP) and its mineralization by a UV/Vis-based persulphate activation process was investigated. Firstly, a screening of processes as direct photolysis, persulphate alone and persulphate activated by radiation was performed. The incidence of radiation demonstrated to have an important role in the oxidant activation, allowing to achieve the highest PNP and total organic carbon (TOC) removals. The maximum PNP oxidation (100%) and mineralization (61.6%)—both after 2 h of reaction time—were reached when using T = 70 °C, (S2O82−) = 6.4 g/L and I = 500 W/m2. The influence of radiation type (ultraviolet/visible, visible or simulated solar light) was also evaluated, being found that the source with the highest emission of ultraviolet radiation (UV/visible) allowed to achieve the best oxidation efficiency; however, solar radiation also reached very-good performance. According to quenching experiments, the sulphate radical is key in the activated persulphate oxidation process, but the hydroxyl radical also plays an important role.

Graphical Abstract

1. Introduction

p-Nitrophenol (PNP) has several industrial applications. Effectively, it is applied both as raw material and as a process intermediary in numerous types of industrial activities, such as the production of pharmaceutical and petrochemical products, explosives, pesticides, pigments, dyes, plasticisers, wood preservatives, and rubber chemicals, among others [1,2,3]. Due such widespread use, small concentrations of this chemical compound have been detected in both water resources and soils due to improper wastewater discharges resulting from production, distribution, and application processes [4,5,6]. This has alarmed the scientific community, as PNP is acutely toxic (the LD50, in rats, is 250 mg/kg [7]), carcinogenic and recalcitrant, thus presenting harmful effects both on the environment and on human life [8,9,10]. As a consequence, PNP has been considered by the US Environmental Protection Agency (EPA) as a priority (micro)pollutant and its concentration is limited to less than 10 ng/L in natural waters [11,12,13]. Moreover, the maximum recommended concentration in drinking water is 60 µg/L [14].
Therefore, to minimize the adverse effects caused by this chemical, it is essential to treat wastewater before it is discharged into the water bodies. The conventional biological treatment is inefficient on its degradation due to the electro-withdrawing effect of the nitro group in microorganisms [1,2,15]. On the other hand, physical processes, like adsorption [16], only transfer the pollutant from one phase to another. Thus, it is crucial achieving an alternative solution that would enable to respond to this environmental challenge, ensuring the correct degradation of PNP.
Advanced oxidation processes (AOPs) are safe and effective techniques for removing resistant pollutants, maximising pollutants’ degradation and/or mineralization, while producing nontoxic and environmentally friendly by-products like water and carbon dioxide [5]. Among AOPs, the persulphate-based oxidation stands out because the oxidant is more stable and cheaper than others (e.g., hydrogen peroxide [17]), can be applied in a wide range of pH [4,5], and generated sulphate radicals ( SO 4 ), which have a redox potential (E0 = 2.6 eV) similar to hydroxyl (E0 = 2.8 eV), have a longer half-life time (3–4 × 10−5 s for SO 4 versus 2 × 10−8 s for HO ) [8,15,18,19,20].
The formation of the sulphate radical is achieved from persulphate activation that can be carried out by non-catalytic or catalytic methods, namely by heat, radiation or ultrasound—Equation (1), in the presence of transition metal ions ( Me n + )—Equation (2), and by pH change (imposing either alkaline or acidic conditions)—Equation (3) or Equations (4) and (5), respectively [1,6,21,22]. If heat, radiation, or ultrasound is used (Equation (1)), what happens is the cleavage of the oxygen-binding between the two sulphate groups [9,23,24]; these are the most efficient methods of activation, since one molecule of S 2 O 8 2 originates two of SO 4 [7,25]. If the presence of transition metal ions is used (Equation (2)), the formation of sulphate radicals occurs through the oxidation-reduction reaction of metal ions [18,26,27]; finally, if alkaline conditions are implemented (Equation (3)), radicals are formed due to the reaction that occurs between persulphate and HO [3], while in acid medium the persulphate reacts with H+ generating sulphate radicals (Equations (4) and (5)) [28]. These activation methods can be used individually or combined.
S 2 O 8 2 heat   or   radiation   or   ultrasound 2   SO 4
S 2 O 8 2 +   Me n + Me ( n + 1 ) + SO 4 + SO 4 2
2 S 2 O 8 2 + 4 HO     3 SO 4 2 + SO 4 + 2 H 2 O + O 2
S 2 O 8 2 + H +     HS 2 O 8
HS 2 O 8     SO 4 2 + SO 4 + H +
It should be noted that, under alkaline conditions, sulphate radicals can still form hydroxyl radicals (Equation (6)), both being responsible for the degradation of the organic pollutants [13,23,24,29]. Of course, depending on the pH, one species may be more dominant than another [21,25]. Typically, under acidic conditions, SO 4 is the predominant radical [5,19]; in alkaline conditions, is HO [3,6]. One feature of such AOP is that it allows the treatment of a wide variety of compounds, including toxic organic compounds, compounds mixtures or complex wastewater, because the generated sulphate and hydroxyl radicals are quite oxidizing and non-selective species.
SO 4 + HO SO 4 2 + HO
The activation of persulphate by radiation is promising when compared to the other methods [24,27] because it requires mild reaction conditions, has no metal ion leakage and has high efficiency in the degradation of refractory compounds [5,21,29]. Thus, it is beneficial to use radiation to activate the persulphate. The radiation-based persulphate activation process has already been studied to remove various pollutants or treat wastewater. Table 1 shows some studies reported in the literature, indicating the operating conditions used as well as the efficiency achieved.
The application of persulphate-based oxidation to degrade PNP has been the subject of previous studies. Research works reported in the literature used several activation methods, such as heat, alkaline and/or dissolved metal [3,4,8,26], CuFe2O4 magnetic nano-particles [30], and different catalysts like Fe/Cu [2], silica gel/ Zn(0) [1], sulphur-doped ordered mesoporous carbon [31] or biochar [32] materials.
In this study, the degradation of PNP and its mineralization by UV/visible or visible radiation-based persulphate activation was performed. Firstly, the effect of persulphate concentration, radiation intensity and the radiation type was evaluated. Then, the predominance of the radical species (sulphate or hydroxyl) responsible for the oxidation process performance was assessed. Up to the authors’ knowledge, this activation methodology was not addressed in the literature before for this pollutant degradation.

2. Results and Discussion

2.1. Comparison between Direct Photolysis, Persulphate and Persulphate Activated by Radiation

This study was started with the use of UV-visible radiation (TQ150 lamp) and it was firstly aimed to compare the performance of direct photolysis (only radiation, no persulphate), persulphate per se (no radiation) and persulphate activated with the artificial radiation. The efficiency of all processes were assessed in terms of PNP and TOC removals, being the results obtained shown in Figure 1. PNP absorbs in the 200–500 nm UV/visible range (absorption spectrum not shown), which practically covers all emission wavelengths of the TQ150 lamp (200–600 nm). However, direct photolysis proved to be inefficient in reducing the pollutant content and mineralising the organic matter, with overall removals below 8% after 2 h of irradiation, which allows concluding that PNP is not very sensitive to UV/visible radiation. This low efficiency of the process is corroborated by the fact that there is only a slight decrease of the medium pH (Figure 1d), as a consequence of carboxylic acids formation. The persulphate alone leads to an increase in PNP (38.5%) and TOC (16.9%) removals (Figure 1, being the data performances indicated reached after 2 h), as well as to a more pronounced decrease of pH (Figure 1d). In this case, the pH decrease is associated to the formation of H+ during the persulphate process, which was corroborated by the fact this parameter also reduced in the blank run (without PNP), but also to the generation of intermediate compounds like carboxyl acids. This improved efficiency of the process is due to the formation of sulphate radical (SO4), responsible for the PNP and intermediate compounds oxidation, by activation of persulphate in the presence of H+ (Equations (4) and (5)); this is corroborated by the observed decrease in persulphate concentration along reaction time (see Figure 1c).
In turn, the activation by the acid pH and radiation together improved the efficiency of the process, reaching, after 2 h, the highest overall PNP (70.2%) and TOC (41.7%) removals and the greatest reduction of persulphate concentration and pH. This is due to the fact that more sulphate radicals are available for the reaction with both PNP and intermediate compounds formed as a consequence of the additional oxidant activation via UV/visible radiation (Equation (1)).
The results obtained are in accordance with those reported by He et al. [19], who observed the same tendency when treating a concentrated leachate. On the other hand, Ioannidi et al. [13] observed that the degradation of propylparaben by direct photolysis is insignificant (only 1% was reached after 60 min of the oxidative process) and an improvement in the pollutant removal was achieved when the persulphate was activated by UV-A radiation. Gao et al. [33] report lower oxidation of sulfamethazine (15.1–22.0% within 45 min), as well as apparent kinetic constant (3.5 × 10−3–5.6 × 10−3 min−1) for persulphate per se and photolysis. However, the combination of persulphate with UV radiation allowed to increase the process efficiency, leading to an increase in the removal to 96.5% and the apparent kinetic constant raised more than an order of magnitude, to 7.5 × 10−2 min−1. In a study that evaluated the degradation of methyl paraben, the use of persulphate alone has shown low efficiency in pollutant degradation (10% of removal, after 90 min, and a degradation rate constant of 0.001 min−1) [34]; an improvement of the contaminant oxidation was observed when applying UV-C radiation (34% and rate constant of 0.005 min−1), this increase being due to the fact that the mercury lamp emits radiation in wavelength (256 nm) close to the maximum absorption band of methyl paraben; even more, the maximum oxidation (98.9%) and degradation rate constant (0.0396 min−1) were achieved when using the persulphate and UV-C radiation simultaneously. Zhou et al. [25] also found that diatrizoate does not degrade by the incidence of radiation or presence of persulphate. However, its removal is achieved when the oxidant is combined with radiation, being achieved a reduction of the pollutant concentration of 42% after 60 min of reaction. Finally, Tan el al. [29] found low removals of phenacetin at pH 5.5, 7.0 and 8.5 (13, 26.3 and 25.8%, respectively, after a reaction time of 30 min) in the presence of solar radiation, and negligible degradation of the pollutant by persulphate alone, however the combination of persulphate with radiation leads to a complete oxidation of phenacetin for the three pH levels studied.

2.2. Effect of the Temperature

In order to evaluate the effect of the reaction temperature on the process efficiency, four runs were carried out where this parameter was changed between 30 to 90 °C. As shown in Figure 2 and Table 2, the PNP removal and organics mineralization, as well as the reduction of pH, increased with the temperature up to 70 °C. This is due to the fact that the reaction kinetic constants for both the formation of sulphate radicals (e.g., through thermal activation of persulphate, Equation (1)) and for organics degradation increase with temperature according to Arrhenius’ law. However, a slight decrease in the efficiency of the process was observed for the maximum temperature tested, which is associated with the reduction of the amount of sulphate radicals available to degrade the PNP and the intermediates formed at 90 °C once, in a short reaction period, the number of radicals generated is so high that the undesired parallel reaction between them (Equation (7)) is accelerated [35,36]—the so-called scavenging effect. Thus, the best temperature selected for subsequent tests was 70 °C.
SO 4   +   SO 4 S 2 O 8 2
The positive influence of the temperature on the efficiency of persulphate activated by radiation was also reported in the literature. Pan et al. [23] observed an improvement of abatement of benzophenone-3 from 11% to 100%, after 3 h of reaction, when increasing the temperature from 25 to 40 °C; inherently, the pseudo-first-order rate constant also increased. The authors associate the excellent performance of the process at 40 °C with the high solubility of the pollutant to be removed and the formation of more active sulphate and hydroxyl radicals at this temperature [23]. He et al. [19], when treating a nanofiltration concentrated leachate by the UV/persulphate process, reported an increase of aromatic compounds and ammonia nitrogen removals when temperature increased from 50 to 80 °C, but no further improvement was observed at 90 °C. On the other hand, COD removal increased with temperature in the whole range tested (50–90 °C).

2.3. Influence of Persulphate Concentration

The dose of oxidant is an important parameter to be taken into account in the optimization of any AOP since it has a high contribution in the cost of the treatment process. For this purpose, five experiments were carried out, being the persulphate concentration varied in the range from 0.8 g/L to 8.0 g/L (corresponding to 0.1 and 1.0 times the stoichiometric amount of persulphate required for total elimination of the chemical oxygen demand (COD)—12 gpersulphate/gCOD [37]).
Figure 3 shows the evolution of PNP and TOC removals (as well as the pH profile) during the reaction time for the different levels of oxidant employed; for reference, the direct photolysis experiment was also included (blank run, wherein [S2O82−] = 0 g/L). The abatement of the pollutant and the organics mineralization increased with the oxidant dose up to 6.4 g/L, reaching, after 2 h of reaction, removals of 100% and 61.6%, respectively (see Table 2). Again, and as shown in previous figures, very similar patterns are observed in PNP and TOC removals and the pH decay with the parameter under study. In this case, pH has reached the greatest decay (from 5.0 to 1.2) for the persulphate concentration of 6.4 g/L, which indicates a greater formation of carboxylic acids for this dose of oxidant.
The results found are in agreement with those reported in the literature. For instance, for the treatment of a concentrated leachate, He et al. [19] reached the maximum removal of COD, ammonia nitrogen and aromatic compounds with a concentration of persulphate of 18 g/L, but the process efficiency decays for higher doses of the oxidant. In another study where it was evaluated the degradation of tetramethylammonium hydroxide, the rate constant increased with the persulphate concentration from 10 to 50 mM, but the authors observed a slightly negative effect for higher oxidant doses [38].
The appearance of an optimal concentration of persulphate can be explained by the scavenging of sulphate radicals in the presence of an excess of oxidant (Equation (8)); although the S 2 O 8 radical is formed, it has a lower oxidation potential compared to sulphate. Moreover, when increasing the concentration of the persulphate radical present in solution (as a consequence of the increased oxidant dose), a recombination of radicals occurs according to Equation (7) [35]. Therefore, the amount of these radicals available for the degradation of PNP and/or intermediate compounds decreases.
S 2 O 8 2   +   SO 4     SO 4 2   +   S 2 O 8
In contrast, Ioannidi et al. [13] observed an increase in the propyl paraben degradation (from 27.6 to 100%, after 30 min), as well as in the apparent kinetic constant (from ~0.01 to ~0.17 min−1), when the concentration of persulphate increased from 100 to 500 mg/L. Still, in the removal of propyl paraben, Zhou et al. [25] reported the same tendency, i.e., the pollutant oxidation performance and apparent kinetic constant increase with persulphate concentration in the range 6 to 24 mM. The authors state that the improvement in the process’ performance is associated with the fact that no radical scavenging reaction (Equation (8)) occurs in the persulphate concentration range tested. The same tendency and justification was reported in the studies developed by Sakulthaew et al. [39] and Dhaka et al. [34] when degrading 17β-estradiol and methyl paraben, respectively, by UV/persulphate.

2.4. Effect of the Irradiation Intensity

The radiation intensity has an important role in the efficiency of the photo-assisted oxidation process. To evaluate this parameter’s effect, experiments were carried out where the intensity varied up to 500 W/m2. Apart from the control run, without radiation, the two lowest intensities (100 and 150 W/m2) correspond to the minimum and the maximum solar radiation incidence in the north of Portugal [40]. However, higher intensities, including the maximum emitted by the TQ150 lamp (500 W/m2), were tested in order to simulate the results to other regions/countries where the incidence of solar radiation is larger.
The PNP removal, mineralization degree and the decay in pH are more pronounced with the light intensity increase (see Figure 4 and Table 2), as expected. This increase in the oxidative process efficiency is related to the improvement of the sulphate radicals’ formation, according to Equation (1). These results are in agreement with other studies reported in literature, namely those which applied persulphate activated by ultraviolet light in the degradation of 17β-estradiol [39] and tetramethylammonium hydroxide [38]. The authors observed an increased in the rate constants when improving the lamp power from 4 to 8 W and 8 to 15 W, respectively.

2.5. Effect of Irradiation Type

Experiments were also carried out with UV/visible, visible only and simulated solar radiation to determine the effects related to the type of radiation on PNP abatement and organics mineralization. For a proper comparison of these radiation types, the runs were performed under the same conditions of irradiance; so, it was necessary to reduce the intensity of radiation in the UV/visible lamp to 449 W/m2 by recirculating a Solophenyl BLE 155% dye solution on the water jacket quartz tube, as detailed in the Materials and Methods section.
Figure 5 shows that visible radiation is not very effective on persulphate activation, whereby the removals reached (82.2 for PNP and 48.0% for TOC after 2 h—Table 2) are very close to the performances reached without radiation. However, when applying simulated solar radiation the process efficiency is much better; improvements are even higher when UV/visible radiation is used because the TQ150 lamp emits more UV radiation than the Xenon lamp used to simulate solar radiation. Therefore, the results show the importance of using UV radiation. Nevertheless, the possibility of using solar radiation is shown and shall be considered, once the energy cost is null. The results obtained are in line with was reported in other studies that evaluated the influence of UV, visible, and/or solar radiation in the degradation of other pollutants, namely propyl paraben [13] and benzophenone-3 [23].

2.6. Radicals Role

Using the best conditions reported so far, two new experiments were carried out in the presence of ethanol (EtOH) or tert-butyl alcohol (TBA) with 2.4 M concentration of the scavenger (corresponding to a persulphate:scavenger molar ratio of 1.7, as proposed by other authors [41]) to assess the presence of sulphate and hydroxyl radicals and their contribution to the oxidation performances. The results obtained are compared in Figure 6 with those obtained without the addition of scavengers. The two scavengers’ selection took into account the fact that the first (EtOH) reacts with both radicals with a similar rate of reaction, while the second (TBA) reacts at a higher rate with the hydroxyl as compared to the sulphate radical [25,42].
Figure 6 shows the effect of using these quenchers on PNP abatement, TOC removal and reduction of solution pH during the persulphate activated by UV/visible radiation process. It was found that both scavengers lead to a reduction in the oxidative process efficiency, as well as in decay of pH. However, this effect is more pronounced in the presence of EtOH than TBA. Thus, it is concluded that the sulphate radical dominated the oxidative process, but a contribution of the hydroxyl radical in the degradation of the contaminant and organics mineralization also occurs.
Dhaka et al. [34] also verified, under acid and neutral pH conditions, a higher reduction of methyl paraben removal in presence of EtOH (decay from 100% to 54.3–52.7%) than with TBA (from 100% to 80.2–77.1%). Still, Zhou et al. [21] observed, at pH 3 and 7.0, a much greater decrease of reduction of bis(2-cloroethyl) ether, after 60 min of reaction, in presence of EtOH (decrease from 90.7 to 53.6% and from ~73 to 46.4%, respectively) than with TBA (decrease from 90.7 to 88.7% at pH = 3.0 and, from ~73 to ~62% at pH = 7.0); however, in alkaline conditions (pH = 10) the decay of the pollutant removal also occurs in the presence of both radical quenchers but was higher in presence of TBA than EtOH (from ~83 to ~46 and ~66%, respectively). The authors concluded that in acid and neutral conditions the sulphate radical dominated, but in alkaline medium is the hydroxyl radical that prevails.

3. Materials and Methods

3.1. Chemicals

In this study PNP (C6H5NO4, which has a molecular weight of 155.11 g/mol) was used as a model compound, being purchased from Acros Organics with a purity of 99%. The oxidant (potassium persulphate) was obtained from Alfa Aesar with a purity of 99%. The scavengers ethanol—EtOH—(≥96%) and tert-butyl alcohol—TBA—(99.5%) were from VWR Chemicals and Sigma-Aldrich, respectively.

3.2. Experimental Procedure

The degradation of PNP by persulphate activated by artificial light was carried out in a glass batch reactor with 500 mL-capacity. The photoreactor is equipped with a UV/visible Heraeus TQ 150 lamp (with a potency of 150 W, which corresponds to an intensity of 500 W/m2, emitting radiation at wavelengths between 200 and 600 nm) that was axially located inside a submerged quartz tube. This tube has a jacket for water recirculation connected to a thermostat (Hubber, polystat cc1) to keep the temperature inside the reactor constant (±1.0 °C).
The reactor was filled with 250 mL of a PNP solution (without adjusting the pH, i.e., using the natural pH of the solution—5.0) with a concentration of 500 mg/L (this concentration was typically found in real wastewaters [2,43]). After the solution has reached the desired temperature, the lamp was switched on and the irradiation emission allowed to stabilize (only 1.5 min are required—data not shown). Then, the desired amount of solid persulphate was added; this moment corresponded to the initial instant of the reaction (t = 0 min). The pH was fixed in the above value, which was the best condition achieved in a previous study wherein the degradation of the same pollutant by persulphate activated with alkaline conditions, temperature and iron was evaluated [3].
Throughout the runs, the solution inside the photoreactor was stirred at 200 rpm. For this purpose, a magnetic bar and a magnetic stirrer (VWR, model VS-C7) were used. During the reaction, samples were taken at specific reaction times (5, 10, 15, 30, 45, 60 and 120 min) to measure the concentration of PNP, total organic carbon (TOC) and pH.
The experiments wherein the radiation intensity’s effect was evaluated were performed as described previously, i.e., by simple recirculation in the jacket quartz tube of a Solophenyl Green BLE 155% dye solution with a known concentration; more details are described elsewhere [44,45].
The run in which only visible radiation was employed was carried out in the same way as described above, but the quartz tube was substituted by a tube made of Duran glass, which filters the UV radiation.
The run with simulated solar radiation was performed in a Solarbox 3000e from N-Wissen GmbH equipped with a xenon lamp of 1500 W that emits radiation at wavelengths from 290 to 800 nm. The installation consists of two reactors with 250 mL of capacity. One reactor is placed outside the Solarbox being equipped with a jacket for water recirculation from a thermostatic bath (Hubber, polystat cc1) for temperature control; the other, without a jacket, was located inside the Suntest. Each reactor was fed with 125 mL of PNP solution (to keep the total of 250 mL as before) that was continuously recirculated, at a flow rate of 0.2 L/min, between them, using two peristaltic pumps (Miniplus3 from Gilson). After reaching the desired temperature, the lamp was switched on and the potassium persulphate added to the reactor located outside the box. During the reaction the contents of these reactors were stirred using a magnetic bar and stir plate (VWR, model VS-C7).

3.3. Analytical Methods

The concentration of PNP was determined by high performance liquid chromatography (HPLC) in a Hitachi Elite LaChrom apparatus. The chromatograph is equipped with a UV detector and uses a Purospher STAR RP-18 column (5 μm, 250 × 4.0 mm) that was heated up to 35 °C. An isocratic method was used with a flow rate of 0.75 mL/min of eluent composed by 90% water and 10% methanol. The automatic injection volume was 20 μL, and the detection was carried out by UV absorbance at a wavelength of 285 nm.
Total Organic Carbon (TOC), which is the difference between Total Carbon (TC) and Inorganic Carbon (IC), was measured on a Shimadzu TOC-L apparatus equipped with a Shimadzu SHL Autosampler. This parameter was measured according to the method 5310D [46]. For this a catalytic oxidation was conducted at 720 °C, followed by quantification of the CO2 formed in an infra-red detector.
The concentration of persulphate remaining in solution was determined by measuring the absorbance at 352 nm that results from the reaction of persulphate with iodide in the presence of sodium bicarbonate [47]. For this purpose, a Thermo Electron Corporation Heilos γ spectrophotometer was used.
All determinations were performed in duplicate, and the coefficient of variations were less than 2% for all parameters measured.

4. Conclusions

In this work it was evaluated the degradation of a priority pollutant (PNP) and its mineralization by persulphate activated by radiation. Firstly, the screening of the processes (photolysis, persulphate alone and combination of persulphate with UV/visible radiation) was assessed, allowing to conclude that the combination of radiation and oxidant permitted to achieve the maximum efficiency of the oxidative process. The direct photolysis contribution is low, <10% after 2 h, but the persulphate activation induced by the natural pH of the medium has a considerable contribution in the overall process efficiency, being more relevant, particularly in terms of mineralization, the radiation-activated part. The effect of the temperature, persulphate concentration, radiation intensity and the radiation type was also assessed; it was found that complete degradation of PNP and considerable TOC removal (61.6%) were reached in 2 h when applying the best operating conditions (T = 70 °C, [S2O82−] = 6.4 g/L and I = 500 W/m2 of UV/visible radiation). Nevertheless, the process is clearly feasible with solar radiation, opening the door for the industrial-scale implementation of the technology. According to the quenching experiments, both sulphate and hydroxyl radicals are responsible for the oxidation of PNP and intermediate compounds, but the sulphate radical dominates in the oxidative process.
Taking into account the outstanding performance achieved with persulphate activated by radiation, it is possible to conclude that this advanced oxidation process is a promising technology to be adopted in the treatment of effluents containing PNP, without the need of resorting to metal species as sulphate activators.

Author Contributions

V.D., validation and investigation; C.S.D.R., conceptualization, supervision, validation, investigation and writing—original draft; A.S.P.A., investigation and writing original draft; L.M.M., conceptualization, supervision, funding acquisition, resources and writing review and editing. All authors have read and agreed to the published version of the manuscript.


This work was financially supported by: Base Funding—UIDB/00511/2020 of the Laboratory for Process Engineering, Environment, Biotechnology and Energy—LEPABE—funded by national funds through FCT/MCTES (PIDDAC).

Data Availability Statement

Data sharing is not applicable to this article.


Valentin Dubois would like to gratefully acknowledge the Programme Erasmus+ Placements for funding his internship while Carmen Rodrigues thanks the Portuguese Foundation for Science and Technology (FCT) for the financial support of her work contract through the Scientific Employment Support Program (Norma Transitória DL 57/2017). The authors are grateful to Professor Joaquim Faria and Doctor Maria José Sampaio of Associate Laboratory LSRE-LCM for supplying the Solarbox.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Chen, C.; Han, Y.; Guo, J.; Zhou, L.; Lan, Y. Assessing the role of silica gel in the degradation of p-nitrophenol via zn(0)-activated persulphate. J. Taiwan Inst. Chem. Eng. 2018, 88, 169–176. [Google Scholar] [CrossRef]
  2. Ji, Q.; Li, J.; Xiong, Z.; Lai, B. Enhanced reactivity of microscale fe/cu bimetallic particles (mfe/cu) with persulphate (ps) for p-nitrophenol (pnp) removal in aqueous solution. Chemosphere 2017, 172, 10–20. [Google Scholar] [CrossRef] [PubMed]
  3. Rodrigues, C.S.D.; Madeira, L.M. P-nitrophenol degradation by activated persulphate. Environ. Technol. Innovat. 2021, 21, 101265. [Google Scholar] [CrossRef]
  4. Hu, L.; Wang, P.; Liu, G.; Zheng, Q.; Zhang, G. Catalytic degradation of p-nitrophenol by magnetically recoverable fe3o4 as a persulphate activator under microwave irradiation. Chemosphere 2020, 24, 124977. [Google Scholar] [CrossRef] [PubMed]
  5. Ahmadian, M.; Pirsaheb, M.; Janjani, H.; Hossaini, H. Ultraviolet activated persulphate based aop for mtbe decomposition in aqueous solution. Desalinat. Water Treat. 2019, 161, 269–274. [Google Scholar] [CrossRef] [Green Version]
  6. Castilla-Acevedo, S.F.; Betancourt-Buitrago, L.A.; Dionysiou, D.D.; Machuca-Martínez, F. Ultraviolet light-mediated activation of persulphate for the degradation of cobalt cyanocomplexes. J. Hazard. Mater. 2020, 392, 122389. [Google Scholar] [CrossRef]
  7. Zarei, A.R.; Rezaeivahidian, H.; Soleymani, A.R. Investigation on removal of p-nitrophenol using a hybridized photo-thermal activated persulphate process: Central composite design modeling. Proc. Saf. Environ. Protect. 2015, 98, 109–115. [Google Scholar] [CrossRef]
  8. Zhang, M.; Chen, X.; Zhou, H.; Murugananthan, M.; Zhang, Y. Degradation of p-nitrophenol by heat and metal ions co-activated persulphate. Chem. Eng. J. 2015, 264, 39–47. [Google Scholar] [CrossRef]
  9. Yang, Y.; Ji, Y.; Yang, P.; Wang, L.; Lu, J.; Ferronato, C.; Chovelon, J.-M. Uv-activated persulphate oxidation of the insensitive munitions compound 2, 4-dinitroanisole in water: Kinetics, products, and influence of natural photoinducers. J. Photochem. Photobiol. A Chem. 2018, 360, 188–195. [Google Scholar] [CrossRef]
  10. Sabri, M.; Habibi-Yangjeh, A.; Chand, H.; Krishnan, V. Activation of persulphate by novel tio2/feocl photocatalyst under visible light: Facile synthesis and high photocatalytic performance. Separat. Purificat. Technol. 2020, 250, 117268. [Google Scholar] [CrossRef]
  11. Shang, K.; Li, W.; Wang, X.; Lu, N.; Jiang, N.; Li, J.; Wu, Y. Degradation of p-nitrophenol by dbd plasma/fe2+/persulphate oxidation process. Separat. Purificat. Technol. 2019, 218, 106–112. [Google Scholar] [CrossRef]
  12. Xu, Z.; Gao, Y.; Sun, Z.; Zhang, D.; Zhou, Y.; Chen, W. New insights into the reinforced reduction performance of fe0/c internal electrolysis activated by persulphate for p-nitrophenol removal. Chemosphere 2020, 254, 126899. [Google Scholar] [CrossRef] [PubMed]
  13. Ioannidi, A.; Frontistis, Z.; Mantzavinos, D. Destruction of propyl paraben by persulphate activated with uv-a light emitting diodes. J. Environ. Chem. Eng. 2018, 6, 2992–2997. [Google Scholar] [CrossRef]
  14. U.S. Environmental Protection Agency. National Pesticide Survey: 4-Nitrophenol Publications; U.S. Environmental Protection Agency: Washington, DC, USA, 2015.
  15. Li, J.; Ji, Q.; Lai, B.; Yuan, D. Degradation of p-nitrofenol by fe0/h2o2/persulphate system: Optimization, performance and mechanisms. J. Taiwan Instit. Chem. Eng. 2017, 80, 686–694. [Google Scholar] [CrossRef]
  16. Jia, Z.; Jiang, M.; Wu, G. Amino-mil-53(al) sandwich-structure membranes for adsorption of p-nitrophenol from aqueous solutions. Chem. Eng. J. 2017, 307, 283–290. [Google Scholar] [CrossRef]
  17. Romero, A.; Santos, A.; Vicente, F.; González, C. Diuron abatement using activated persulphate: Effect of ph, fe(ii) and oxidant dosage. Chem. Eng. J. 2010, 162, 257–265. [Google Scholar] [CrossRef]
  18. Feng, Q.; Zhou, J.; Luo, W.; Ding, L.; Cai, W. Photo-fenton removal of tetracycline hydrochloride using lafeo3 as a persulphate activator under visible light. Ecotoxicol. Environ. Saf. 2020, 198, 110661. [Google Scholar] [CrossRef] [PubMed]
  19. He, L.; Chen, H.; Wu, L.; Zhang, Z.; Ma, Y.; Zhu, J.; Liu, J.; Yan, X.; Li, H.; Yang, L. Synergistic heat/uv activated persulphate for the treatment of nanofiltration concentrated leachate. Ecotoxicol. Environ. Saf. 2021, 208, 111522. [Google Scholar] [CrossRef]
  20. Devi, P.; Das, U.; Dalai, A.K. In-situ chemical oxidation: Principle and applications of peroxide and persulphate treatments in wastewater systems. Sci. Total Environ. 2016, 571, 643–657. [Google Scholar] [CrossRef]
  21. Zhou, Y.; Shi, J.; Li, Y.; Long, T.; Zhu, X.; Sun, C.; Wang, Y. Degradation kinetics and mechanism of bis(2-chloroethyl) ether by eletromagnetic induction eletrodeless lamp activated persulphate. Chemosphere 2020, 261, 127709. [Google Scholar] [CrossRef] [PubMed]
  22. Furman, O.S.; Teel, A.L.; Watts, R.J. Mechanism of base activation of persulphate. Environ. Sci. Technol. 2010, 44, 6423–6428. [Google Scholar] [CrossRef] [PubMed]
  23. Pan, X.; Yan, L.; Qu, R.; Wang, Z. Degradation of the uv-filter benzophenone-3 in aqueous solution using persulphate activated by heat, metal ions and light. Chemosphere 2018, 196, 95–104. [Google Scholar] [CrossRef] [PubMed]
  24. Fan, X.; Bao, Y.; Mumtaz, M.; Huang, J.; Yu, G. Determination of total oxidizable percursors in foam surfactants and foam contaminated water based on uv-activated persulphate oxidation. Sci. Total Environ. 2020, 763, 142943. [Google Scholar] [CrossRef] [PubMed]
  25. Zhou, L.; Ferronato, C.; Chovelon, J.-M.; Sleiman, M.; Richard, C. Investigations of diatrizoate degradation by photo-activated persulphate. Chem. Eng. J. 2017, 311, 28–36. [Google Scholar] [CrossRef]
  26. Chen, X.; Murugananthan, M.; Zhang, Y. Degradation of p-nitrophenol by thermally activated persulphate in soil system. Chem. Eng. J. 2016, 283, 1357–1365. [Google Scholar] [CrossRef]
  27. Li, Y.; Xiang, W.; Zhou, T.; Huang, M.; Wang, C.; Wu, X.; Mao, J.; Wang, P. Visible light induced efficient activation of persulphate by a carbon quantum dots (cqds) modified γ-fe2o3 catalyst. Chin. Chem. Lett. 2019, 31, 2757–2761. [Google Scholar] [CrossRef]
  28. Rodriguez, S.; Santos, A.; Romero, A.; Vicente, F. Kinetic of oxidation and mineralization of priority and emerging pollutants by activated persulphate. Chem. Eng. J. 2012, 213, 225–234. [Google Scholar] [CrossRef]
  29. Tan, C.; Jian, X.; Wu, H.; Sheng, T.; Sun, K.; Gao, H. Kinetics degradation of phenacetin by solar activated persulphate system. Separat. Purificat. Technol. 2021, 256, 117851. [Google Scholar] [CrossRef]
  30. Li, J.; Ren, Y.; Ji, F.; Lai, B. Heterogeneous catalytic oxidation fot the degradation of p-nitrophenol in aqueous solution by persulphate activated with cufe2o4 magnetic nano-particles. Chem. Eng. J. 2017, 324, 63–73. [Google Scholar] [CrossRef]
  31. Liu, S.; Lai, C.; Li, B.; Zhang, C.; Zhang, M.; Huang, D.; Qin, L.; Yi, H.; Liu, X.; Huang, F.; et al. Role of radical and non-radical pathway in activating persulphate for degradation of p-nitrophenol by sulfur-doped ordered mesoporous carbon. Chem. Eng. J. 2020, 384, 123304. [Google Scholar] [CrossRef]
  32. Shi, C.; Li, Y.; Feng, H.; Jia, S.; Xue, R.; Li, G.; Wang, G. Removal of p-nitrophenol using persulphate activated by biochars prepared from different biomass materials. Chem. Res. Chin. Univ. 2018, 34, 39–43. [Google Scholar] [CrossRef]
  33. Gao, Y.-Q.; Gao, N.-Y.; Deng, Y.; Yang, Y.-Q.; Ma, Y. Ultraviolet (uv) light-activated persulphate oxidation of sulfamethazine in water. Chem. Eng. J. 2012, 195–196, 248–253. [Google Scholar] [CrossRef]
  34. Dhaka, S.; Kumar, R.; Khan, M.A.; Paeng, K.-J.; Kurade, M.B.; Kim, S.-J.; Jeon, B.-H. Aqueous phase degradation of methyl paraben using uv-activated persulphate method. Chem. Eng. J. 2017, 321, 11–19. [Google Scholar] [CrossRef]
  35. Eslami, A.; Asadi, A.; Meserghani, M.; Bahrami, H. Optimization of sonochemical degradation of amoxicillin by sulfate radicals in aqueous solution using response surface methodology (rsm). J. Mol. Liquids 2016, 222, 739–744. [Google Scholar] [CrossRef]
  36. Xu, X.; Pliego, G.; Zazo, J.A.; Casas, J.A.; Rodriguez, J.J. Mineralization of naphtenic acids with thermally-activated persulphate: The important role of oxygen. J. Hazard. Mater. 2016, 318, 355–362. [Google Scholar] [CrossRef]
  37. Silveira, J.E.; Paz, W.S.; Garcia-Muñoz, P.; Zazo, J.A.; Casas, J.A. Uv-led/ilmenite/persulphate for azo dye mineralization: The role of sulfate in the catalyst deactivation. Appl. Catal. B Environ. 2017, 219, 314–321. [Google Scholar] [CrossRef]
  38. Wang, C.-W.; Liang, C. Oxidative degradation of tmah solution with uv persulphate activation. Chem. Eng. J. 2014, 254, 472–478. [Google Scholar] [CrossRef]
  39. Sakulthaew, C.; Chokejaroenrat, C.; Satapanajaru, T.; Chirasatienpon, T.; Angkaew, A. Removal of 17β-estradiol using persulphate synergistically activated using heat and ultraviolet light. Water Air Soil Pollut. 2020, 231, 247. [Google Scholar] [CrossRef]
  40. Rodrigues, C.S.D.; Silva, R.M.; Carabineiro, S.A.C.; Maldonado-Hódar, F.J.; Madeira, L.M. Dye-containing wastewater treatment by photo-assisted wet peroxidation using au nanosized catalysts. J. Chem. Technol. Biotechnol. 2018, 93, 3223–3232. [Google Scholar] [CrossRef]
  41. Xian, G.; Niu, L.; Zhang, G.; Zhou, N.; Long, Z.; Zhi, R. An efficient cuo-γfe2o3 composite activates persulphate for organic pollutants removal: Performance, advantages and mechanism. Chemosphere 2020, 242, 125191. [Google Scholar] [CrossRef]
  42. Kang, Y.-G.; Vu, H.C.; Le, T.T.; Chang, Y.-S. Activation of persulphate by a novel fe(ii)-immobilized chitosan/alginate composite for bisphenol a degradation. Chem. Eng. J. 2018, 353, 736–745. [Google Scholar] [CrossRef]
  43. Bhatti, Z.I.; Toda, H.; Furukawa, K. P-nitrophenol degradation by activated sludge attached on nonwovens. Water Res. 2002, 36, 1135–1142. [Google Scholar] [CrossRef]
  44. Rodrigues, C.S.D.; Madeira, L.M.; Boaventura, R.A.R. Optimization and economic analysis of textile wastewater treatment by photo-fenton process under artificial and simulated solar radiation. Ind. Eng. Chem. Res. 2013, 52, 13313–13324. [Google Scholar] [CrossRef]
  45. Silva, C.G.; Faria, J.L. Effect of key operational parameters on the photocatalytic oxidation of phenol by nanocrystalline sol–gel tio2 under uv irradiation. J. Mol. Catal. A Chem. 2009, 305, 147–154. [Google Scholar] [CrossRef]
  46. APHA; AWWA; WEF. Standard Methods for the Examination of Water and Wastewater; American Public Health Association, American Water Works Association, Water Pollution Control Federation: Washington, DC, USA, 1998. [Google Scholar]
  47. Liang, C.; Huang, C.-F.; Mohanty, N.; Kurakalva, R.M. A rapid spectrophotometric determination of persulphate anion in ISCO. Chemosphere 2008, 73, 1540–1543. [Google Scholar] [CrossRef] [PubMed]

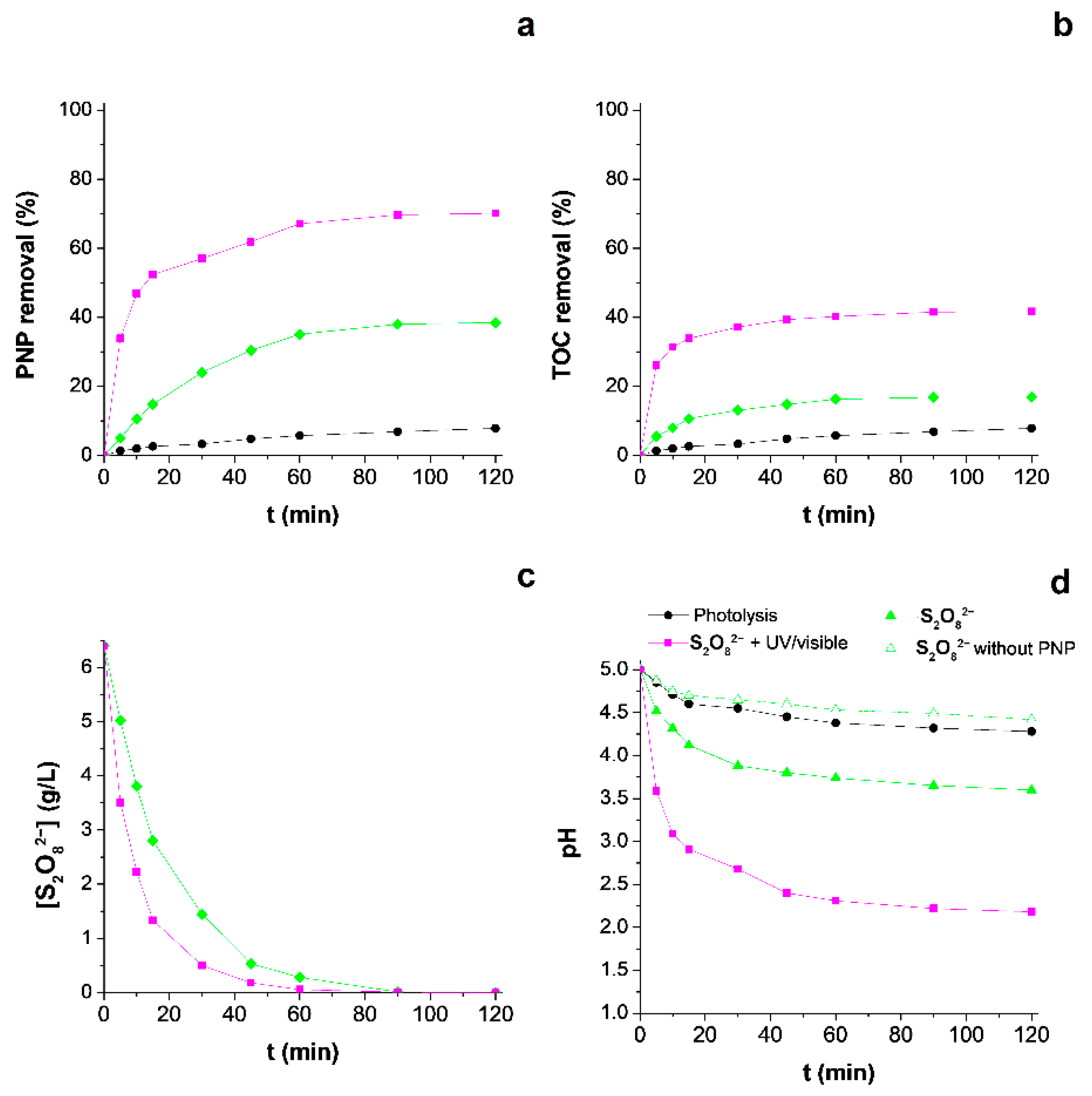

Figure 1. Evolution of p-nitrophenol (PNP) (a) and total organic carbon (TOC) (b) removals, concentration of persulphate remaining in solution (c) and pH (d) during photolysis, persulphate alone and persulphate activated with UV/visible light ([PNP]o when used = 500 mg/L, pH = 5.0, T = 30 °C, Iwhen used = 500 W/m2 and [S2O82−]o,when used = 6.4 g/L).
Figure 1. Evolution of p-nitrophenol (PNP) (a) and total organic carbon (TOC) (b) removals, concentration of persulphate remaining in solution (c) and pH (d) during photolysis, persulphate alone and persulphate activated with UV/visible light ([PNP]o when used = 500 mg/L, pH = 5.0, T = 30 °C, Iwhen used = 500 W/m2 and [S2O82−]o,when used = 6.4 g/L).
Catalysts 11 00480 g001

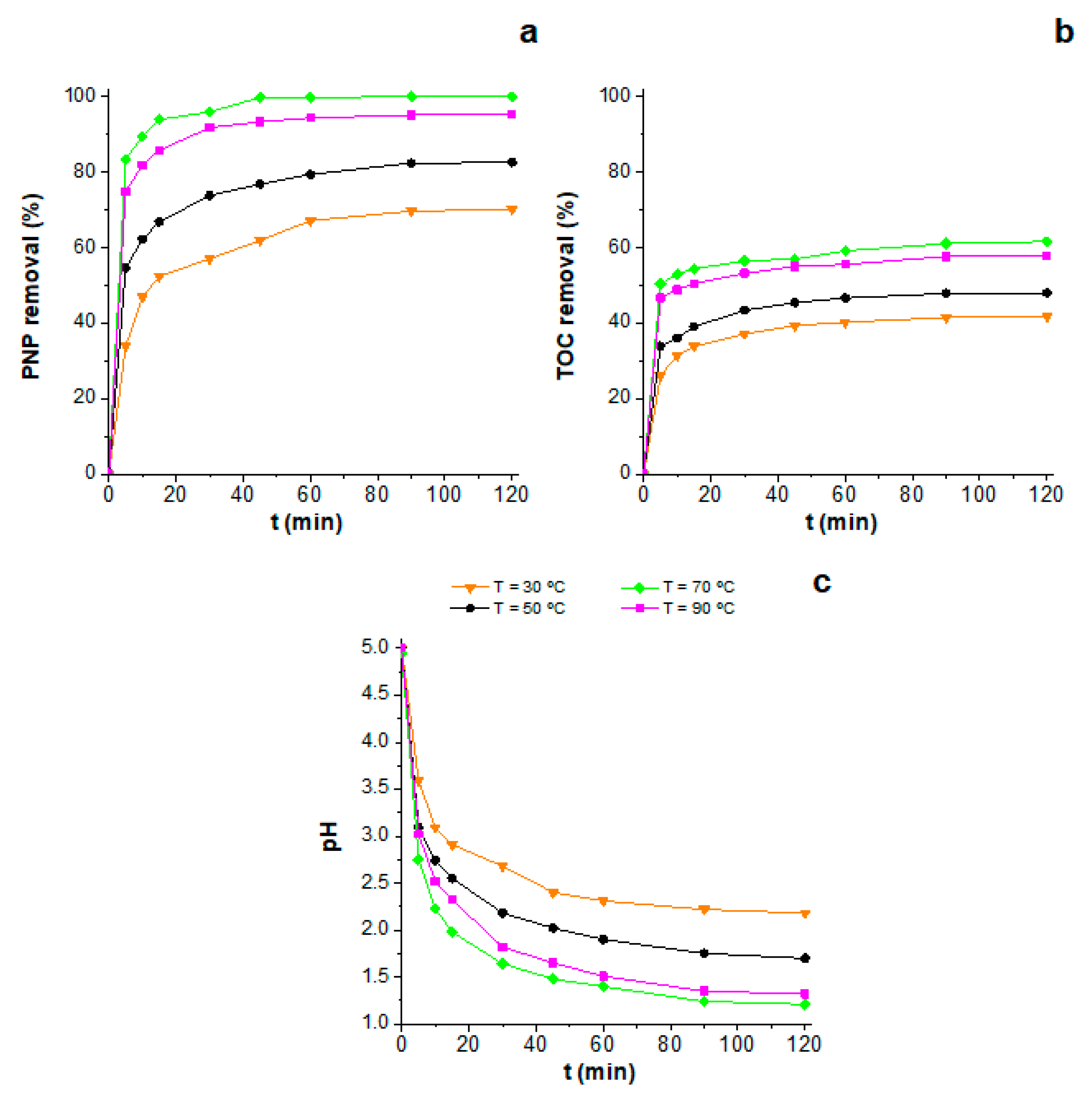

Figure 2. Influence of temperature on PNP (a) and TOC (b) removals and pH evolution (c) during the persulphate activated by radiation process ([PNP]o = 500 mg/L, pH = 5.0, [S2O82−]o = 6.4 g/L and I = 500 W/m2).
Figure 2. Influence of temperature on PNP (a) and TOC (b) removals and pH evolution (c) during the persulphate activated by radiation process ([PNP]o = 500 mg/L, pH = 5.0, [S2O82−]o = 6.4 g/L and I = 500 W/m2).
Catalysts 11 00480 g002

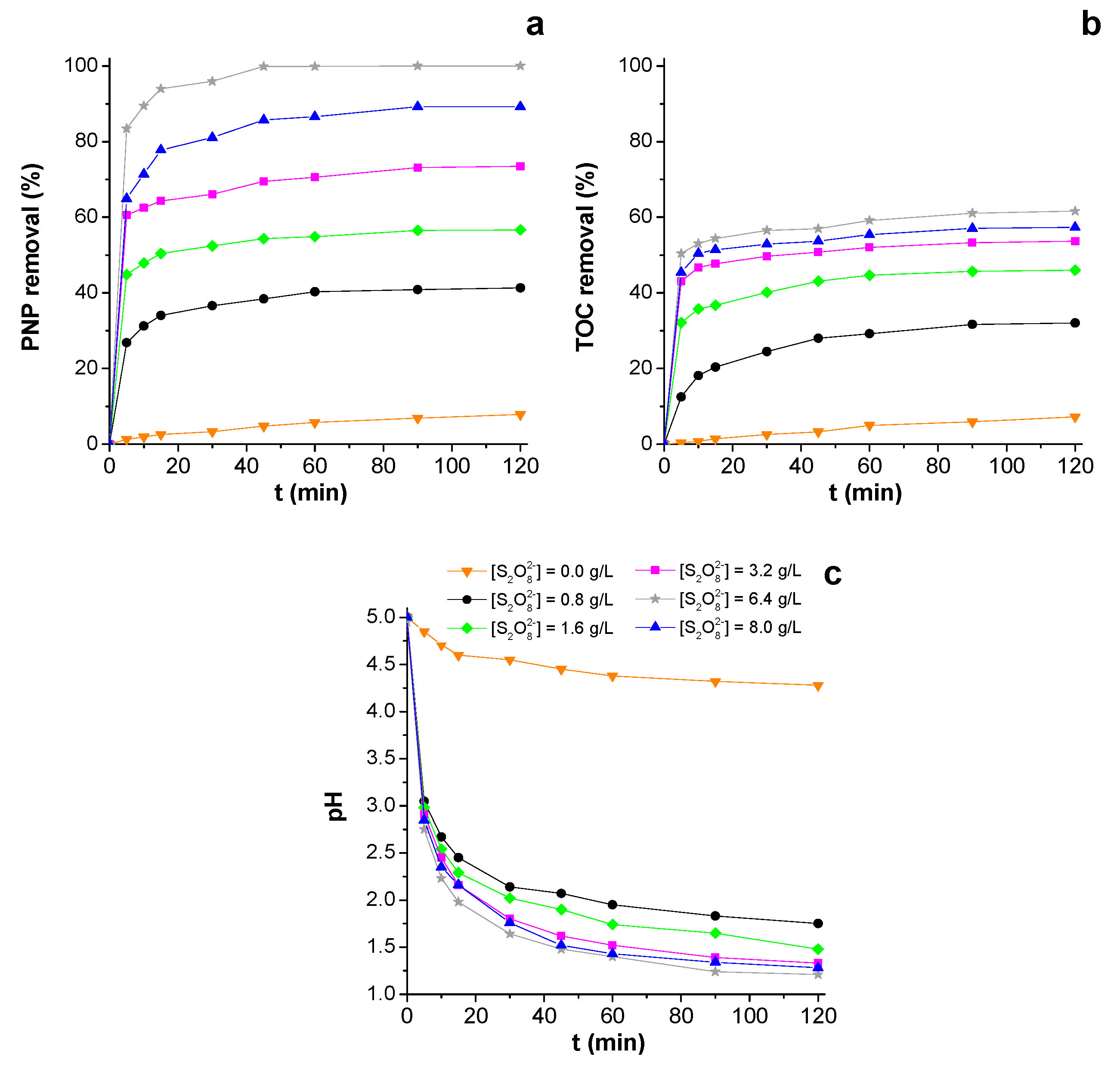

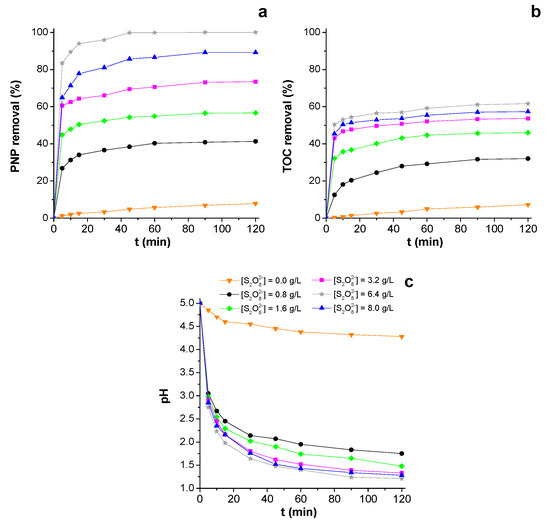

Figure 3. Effect of persulphate concentration on PNP (a) and TOC (b) removals and pH evolution (c) during the oxidation process ([PNP]o = 500 mg/L, pH = 5.0, T = 70 °C and I = 500 W/m2).
Figure 3. Effect of persulphate concentration on PNP (a) and TOC (b) removals and pH evolution (c) during the oxidation process ([PNP]o = 500 mg/L, pH = 5.0, T = 70 °C and I = 500 W/m2).
Catalysts 11 00480 g003

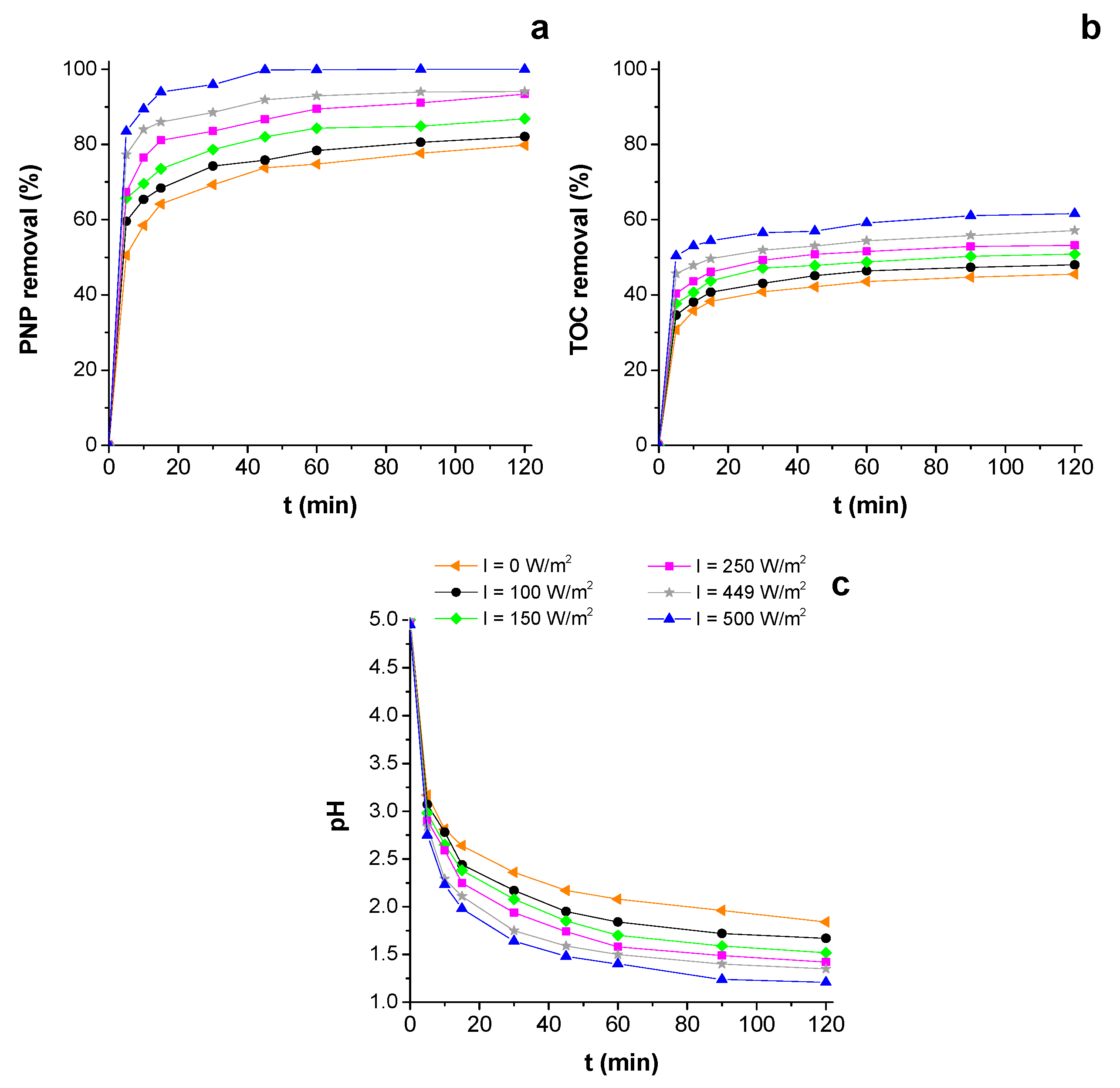

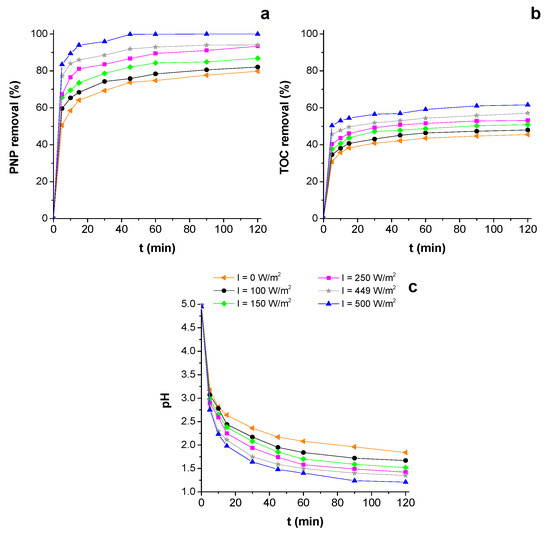

Figure 4. PNP (a) and TOC (b) removals and pH evolution (c) for different radiation intensities during the persulphate oxidation process ([PNP]o = 500 mg/L, pH = 5.0, T = 70 °C and [S2O82−]o, = 6.4 g/L).
Figure 4. PNP (a) and TOC (b) removals and pH evolution (c) for different radiation intensities during the persulphate oxidation process ([PNP]o = 500 mg/L, pH = 5.0, T = 70 °C and [S2O82−]o, = 6.4 g/L).
Catalysts 11 00480 g004

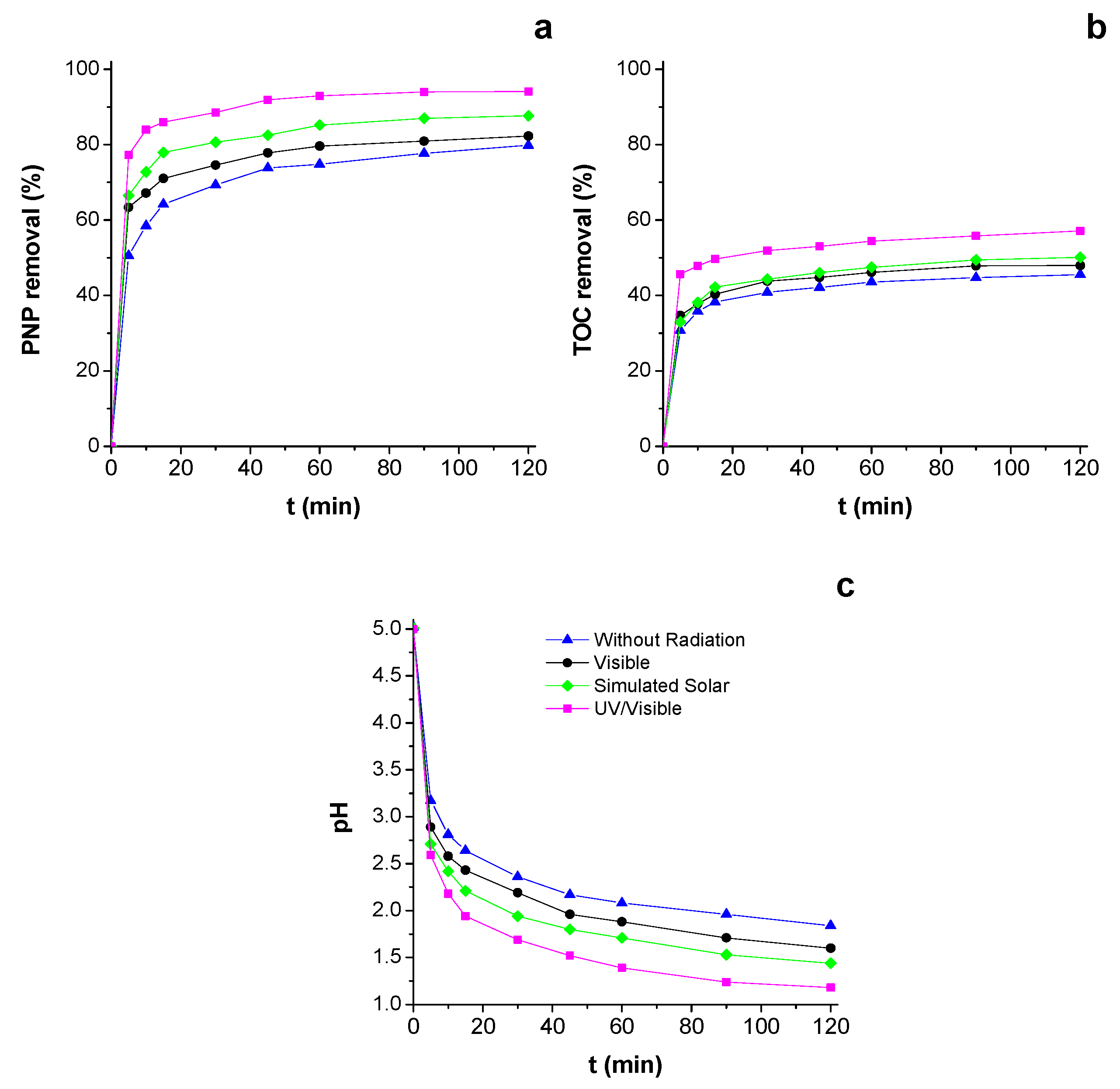

Figure 5. PNP (a) and TOC (b) removals and pH evolution (c) during the persulphate oxidation process when using different types of light ([PNP]o = 500 mg/L, pH = 5.0, T = 70 °C, I = 449 W/m2 and [S2O82−]o = 6.4 g/L).
Figure 5. PNP (a) and TOC (b) removals and pH evolution (c) during the persulphate oxidation process when using different types of light ([PNP]o = 500 mg/L, pH = 5.0, T = 70 °C, I = 449 W/m2 and [S2O82−]o = 6.4 g/L).
Catalysts 11 00480 g005

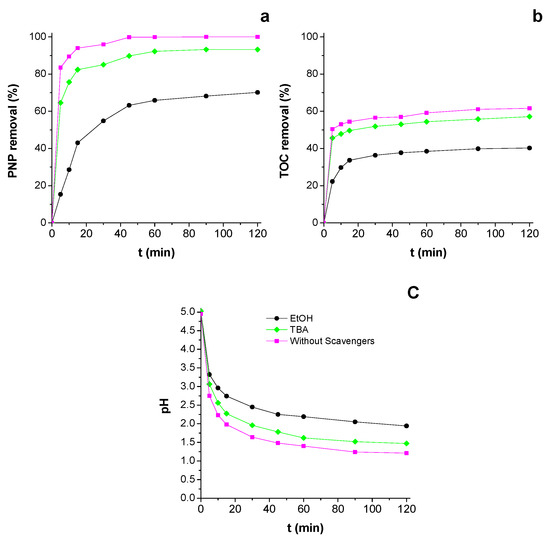

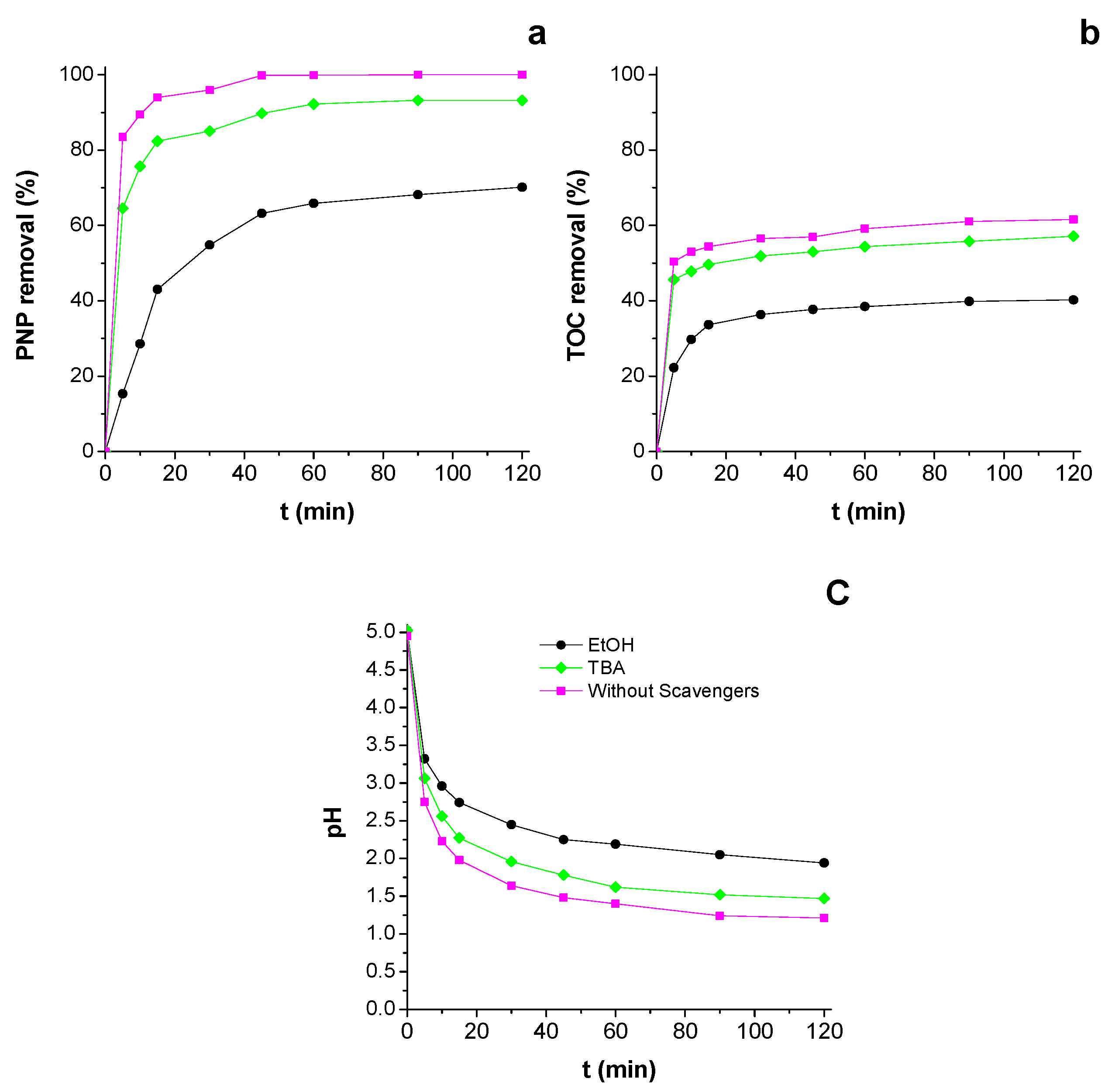

Figure 6. PNP (a) and TOC (b) removals and pH evolution (c) during the persulphate oxidation process activated by radiation in presence or not of scavengers ([PNP]o = 500 mg/L, pH = 5.0, T = 70 °C, I = 500 W/m2, [S2O82−]o = 6.4 g/L and (persulphate:scavenger) o,when used = 1.7 mol/mol).
Figure 6. PNP (a) and TOC (b) removals and pH evolution (c) during the persulphate oxidation process activated by radiation in presence or not of scavengers ([PNP]o = 500 mg/L, pH = 5.0, T = 70 °C, I = 500 W/m2, [S2O82−]o = 6.4 g/L and (persulphate:scavenger) o,when used = 1.7 mol/mol).
Catalysts 11 00480 g006
Table 1. Studies focused on the radiation-activated persulphate process for pollutants removal or wastewater treatment.
Table 1. Studies focused on the radiation-activated persulphate process for pollutants removal or wastewater treatment.
Pollutant/WastewaterOperating ConditionsRemovalsReference
Methyl-tert-butyl ether (MTBE)(MBTE) = 50 mg/L
(S2O82−) = 20 mg/L
pHinitial = 7.0
UV-C radiation
Lamp power = 8 W
t = 200 min
I = 0.007 W/cm2
MTBE = 100%
TOC = 73.6%
2,4-dinitroanisole (DNAN)(S2O82−) = 10 mM
pHinitial = 7.0
UV-C radiation
Lamp power = 15 W
Photon flux = 6.67 × 10−8 E/(L.s)
t = 120 min
T = 20 °C
DNAN = 100%[9]
Propyl paraben (PP)(S2O82−) = 250 mg/L
[PP] = 200 mg/L
pHinitial = 6.0
LED UV-A Lamp power = 10 W
Photon flux = 9.6 × 10−7 E/(L.s)
T = 27 °C
t = 60 min
PP = 100%[13]
Nanofiltration concentrated leachate(S2O82−) = 18.0 g/L
pHinitial = 9.0
UV Lamp power = 60 W
T = 80 °C
t = 8 h
COD = 65.4%
NH3 = 51.4%
UV254 nm = 98.1%
Bis(2-chloroethyl) ether (BCEE)(Na2S2O8) = 15 mM
(BCEE) = 4 mg/L
pHinitial = 2.0
Lamp power = 40 W
T = 25 °C
t = 60 min
UV-visible radiation
BCEE = 95%
TOC = 56%
Benzophenone-3 (BP-3)BP-3:S2O82− molar ratio = 1:500
pHinitial = 7.0
UV radiation
Lamp power = 500 W
T = 40 °C
t = 650 min
BP-3 = 100%[23]
Diatrizoate (DTZ)(DTZ) = 30 mg/L
(S2O82−) = 24 mM
pHinitial = 6.5
Simulated solar radiation with UV filter
Lamp power = 1.5 KW
T = 20 °C
t = 60 min
DTZ = ~83%[25]
Phenacetin (PNT)(S2O82−) = 0.3 mM
pHinitial = 7.0
Simulated solar radiation
Lamp power = 500 W
Quantum yield = 1.14 × 10−4 E/(m2.s)
T = 27 °C
t = 10 min
PNT = 100%[29]
Table 2. Conditions employed in the activated persulphate process and PNP and TOC removals after 2 h. In bold are highlighted the optimum conditions in each set of the parametric study.
Table 2. Conditions employed in the activated persulphate process and PNP and TOC removals after 2 h. In bold are highlighted the optimum conditions in each set of the parametric study.
Parameter AssessedT
Radiation TypeRemoval (%)
Persulphate concentration700500UV/visible7.87.2
Irradiation intensity706.40UV/visible79.845.5
Radiation type706.4449Without Radiation79.845.5
Simulated Solar87.650.1
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Dubois, V.; Rodrigues, C.S.D.; Alves, A.S.P.; Madeira, L.M. UV/Vis-Based Persulphate Activation for p-Nitrophenol Degradation. Catalysts 2021, 11, 480.

AMA Style

Dubois V, Rodrigues CSD, Alves ASP, Madeira LM. UV/Vis-Based Persulphate Activation for p-Nitrophenol Degradation. Catalysts. 2021; 11(4):480.

Chicago/Turabian Style

Dubois, Valentin, Carmen S. D. Rodrigues, Ana S. P. Alves, and Luis M. Madeira. 2021. "UV/Vis-Based Persulphate Activation for p-Nitrophenol Degradation" Catalysts 11, no. 4: 480.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
