Article

CO2 Methanation on Supported Rh Nanoparticles: The combined Effect of Support Oxygen Storage Capacity and Rh Particle Size

by
Georgia Botzolaki
1,
Grammatiki Goula
1,
Anatoli Rontogianni
1,
Ersi Nikolaraki
1,
Nikolaos Chalmpes
2,
Panagiota Zygouri
2,
Michalis Karakassides
2,
Dimitrios Gournis
2,
Nikolaos Charisiou
3,
Maria Goula
3,
Stylianos Papadopoulos
4 and
Ioannis Yentekakis
1,*
1
Laboratory of Physical Chemistry & Chemical Processes, School of Environmental Engineering, Technical University of Crete, GR-73100 Chania, Greece
2
Department of Materials Science and Engineering, University of Ioannina, GR-45110 Ioannina, Greece
3
Department of Chemical Engineering, University of Western Macedonia, GR-50100 Koila, Greece
4
Intergeo Ltd., Thermi, GR-57001 Thessaloniki, Greece
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(8), 944; https://doi.org/10.3390/catal10080944
Submission received: 10 July 2020 / Revised: 3 August 2020 / Accepted: 13 August 2020 / Published: 17 August 2020
(This article belongs to the Special Issue Nanomaterials in Catalysis Applications)

Abstract

:
CO2 hydrogenation toward methane, a reaction of high environmental and sustainable energy importance, was investigated at 200–600 °C and H2/CO2 = 4/1, over Rh nanoparticles dispersed on supports with different oxygen storage capacity characteristics (γ-Al2O3, alumina-ceria-zirconia, and ceria-zirconia). The effects of the support OSC and Rh particle size on reaction behavior under both integral and differential conditions were investigated, to elucidate the combined role of these crucial catalyst design parameters on methanation efficiency. A volcano-type variation of methanation turnover frequency was found in respect to support OSC; Rh/ACZ, with intermediate OSC, was the optimal catalyst. The structure sensitivity of the reaction was found to be a combined function of support OSC and Rh particle size: For Rh/γ-Al2O3 (lack of OSC) methanation was strongly favored on small particles—the opposite for Rh/CZ (high OSC). The findings are promising for rational design and optimization of CO2 methanation catalysts by tailoring the aforementioned characteristics.

Graphical Abstract

1. Introduction

Fossil fuels (coal, oil, and natural gas) remain the dominant source of energy in the industrial, commercial, residential, and transportation sectors. Besides the fact that fossil fuels are finite, fossil fuel utilization leads to the emission of tremendous quantities of CO2 in the atmosphere: These have consequently risen from ~280 ppm before the industrial revolution to ~410 ppm nowadays. Moreover, it is predicted that the concentration of CO2 may reach ~570 ppm by the end of the century, if urgent mitigating actions are not implemented. As is well understood, CO2 is the dominant greenhouse gas and has the most significant contribution to the greenhouse effect, as well as in the concomitant global warming and climate change. Therefore, control of CO2 emissions is a critical and urgent environmental issue [1,2,3,4,5,6,7,8,9]. A possible solution can be provided by energy models with a reduced environmental footprint that can also be combined with the so-called cyclic economy strategies [4,9,10,11,12,13,14]. Apart from direct efforts for replacement of carbon-based fuels with renewable energy sources, CO2 capture and storage (CCS) and utilization-recycling through its conversion to added-value products and fuels are nowadays among the approaches that receive intense research and technological interest [1,2,3,4,5,6,7,8,9,10,11,12,13,14].
The latter strategy actually concerns the catalytic hydrogenation of CO2 toward a variety of hydrogenated products (including mainly methane or methanol, as well as higher hydrocarbons or alcohols, dimethyl ether and formic acid), depending on the catalyst and conditions used [1,2,3,4,5,6,7,8,9,10,11,12,13,14]. In general, high pressures, along with Cu-, Zn-, and Cu-Zn-based catalysts mainly lead to the formation of methanol [1,2,3,15,16], whilst atmospheric pressure conditions and platinum-group metal (PGM)-, Ni-, Fe- and Co-based catalysts mainly lead to the formation of methane [1,2,3,4,5,6,7,8,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46], via the highly exothermic carbon dioxide methanation reaction (R1), also known as the Sabatier reaction [1,4,5].
CO 2 + 4 H 2 CH 4 + 2 H 2 O ,   Δ H 298 Κ ο = 164.7   kJ / mol
Methane is an energy carrier with a variety of applications in several sectors (residential, industrial, electrical energy power plants, and natural gas vehicles), due to the continuously growing natural gas distribution network. Bearing in mind that the hydrogen demands for CO2 methanation (R1) can be provided via a solar- or wind-powered water-splitting system, we further expand the eco-friendly and sustainability character of a holistic CO2 methanation concept. This concept, often called the power-to-gas process [4,11,12,13,14], attracts intense interest as a promising method for the storage of hydrogen, by overcoming the safety challenges of direct storage and transport technologies.
Kinetic and mechanistic studies of CO2 methanation implicate either (i) CO2 dissociation toward CO and O surface species, when the former interacts with hydrogen to produce methane [21,36,45,47], or (ii) interaction of adsorbed CO2 and H species for the formation of adsorbed formate (HCOO) intermediates—part of these interact with adsorbed H to form CH4, while the remaining desorbs, yielding CO [8,21,33,35,38,39,45,46,47]. However, the occurrence of the reverse water–gas shift (rWGS) reaction (R2) into the overall CO2 methanation scheme is a critical factor which determines the products distribution, i.e., the selectivity toward CH4 or CO [8,31,34,38,42,43,46]
CO 2 + H 2 CO + H 2 O ,   Δ H 298 Κ ο = 41.1   kJ / mol
From a thermodynamic viewpoint, the CO2 methanation reaction (R1) is exothermic; therefore, it is favored at low temperatures; above 600 °C, the Gibbs free-energy change of (R1) reaches positive values, and methane formation becomes unfavored [46]. However, low temperatures inhibit reaction rates. Thus, the development of methanation catalysts, active and selective at low temperatures, atmospheric pressure, and low H2/CO2 feed ratios remains a major challenge.
Among the CO2 methanation catalysts investigated so far, supported PGM-catalysts (Pt, Pd, Rh, Ru, and Ir), in particular Rh and Ru, have been found to be highly active and selective at low temperatures and atmospheric pressure, even with low PGM-loadings (ca. 0.5 wt%) [30,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46]. Non-precious metal alternatives (e.g., Ni, Fe, Co, or combinations of them) have also been investigated, with Ni being the most studied one, due to its good methanation activity and selectivity [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31]. However, the propensity of Ni to form coke and to agglomerate when exposed to CH4, CO, or CO2-containing mixtures are major shortcomings of Ni-based catalysts [48,49,50]. In contrast, PGM-based catalysts exhibit very low propensity to accumulate carbon and to agglomerate [51,52,53], which justifies renewed interest on these catalysts for CO2 methanation and hydrocarbon-processing studies.
In an attempt to tackle methanation catalysts’ performance deficiencies on activity, selectivity and/or stability, several promotion approaches have been employed (examples include References [42,43,46]), implicating surface-induced, support-mediated, or even electrochemical promotion routes, similar to those successfully applied in other catalytic systems (examples include References [54,55,56,57]). The advanced single-atom catalysis approach [37,58], found to work well in other CO2 processing reaction systems (e.g., in the dry-reforming of methane (DRM) [59]), could also be a potential alternative for preparing high-performance CO2 methanation catalysts. However, this should not be considered, at least in advance, beneficial to methane formation; CO2 methanation has been reported as a structure-sensitive reaction (examples include References [22,35,40,44]), where particle size affects methanation efficiency in a way that still remains unclear, often found to be favored on larger particles [35,40,44]. Evidently, any further insight elucidating what are the main material properties and how they interact, affecting the structural sensitivity of the reaction, will provide advantages and benefits for the design and optimization of CO2 methanation catalysts.
Numerous efforts for promoting CO2 methanation performance of supported metal catalysts by means of support-mediated promotion routes, using supports different than the traditional γ-Al2O3, can be found in the literature. These were TiO2, SiO2, MgO, ZrO2, CeO2, CeO2-Al2O3, Ce-Zr-O, Ce-Zn-O, YSZ, LaOx, PrOx, MCM-41, or SBA-15 and applied to the group of VIII-XI metals, with the vast majority to Ni [17,18,19,20,21,22,23,24,25,26,27], some to Ru [35,42,43,45,46] and fewer to Rh [35,41], Pt [35,36], Pd [32,35], or Ir [44]. Although γ-Al2O3 is typically a good support, some performance improvements have been achieved, particularly by using TiO2. It should be stressed here that the CO2 hydrogenation reaction requires two different functionalities in an active catalyst: centers active in H2 dissociation (typically reduced metal sites) and centers capable of activating CO2 dissociation (typically support sites in ultimate contact with the metallic component of the catalyst) [26,27,37,38]. In such a complex catalytic system, even the Al2O3 oxide can function as a critical active catalyst component, as demonstrated by Kwak and co-workers [37,38]. It is also worth noting that, although Rh is one of the most active methanation catalysts [5,32,35], support-mediated promotion efforts on Rh-catalyzed CO2 methanation have received less attention than those on Ni or Ru. Moreover, apart from a few studies on Ni-based catalysts [24,25,26,27], no particular emphasis has been given so far on critical support-mediated effects that can be offered by CeO2-based mixed oxides via their enhanced oxygen storage capacity (OSC), O2− mobility, reducibility (shuttling between Ce3+ and Ce4+ states), and concentration of surface oxygen vacancies’ properties [60,61]. These properties have been found to play a pivotal role in many other catalytic applications, for example, in three-way catalytic converters (TWCs) [62], in hydrocarbons reforming, and water–gas shift reactions [49,50,52,53,63], and it is therefore reasonable to expect that they will be critical in a methanation reaction, as well. CeO2-containing catalysts can typically provoke benefits on the required bi-functional operation of CO2 methanation reaction, in which abundant oxygen vacancies on the support surface participate as CO2 activation (adsorption and dissociation) sites [24,25,26,27,53]. Besides the above, a significant additional benefit has been recently demonstrated by the use of CeO2-based mixed oxides as catalysts’ supports: Owing to their high oxygen ion lability/mobility and the associated metal–support interactions, they were found to effectively stabilize catalysts’ nanostructure, preventing thermal sintering of dispersed metal nanoparticles, or even facilitating particles redispersion at high temperatures [52,64,65].
In light of the above, the objective of this study was to explore, for the first time, the combined impact of the oxygen ion lability (or lack of it) characteristic of supporting materials with the mean particle size of the active metal on the Rh-catalyzed CO2 methanation, in an attempt to gain advantages in the design of high-performance CO2 methanation catalysts. The former characteristic is related to the OSC and O2− mobility of the supports, which determine their propensity to provide O2− spillover to catalyst nanoparticles, creating an effective double layer, [Oδ, δ+], that strongly modifies their intrinsic activity toward catalytic reactions [53,57,66]. It is noted that different mean Rh particle sizes were obtained via the recently reported oxidative thermal sintering–redispersion method, which allows for an easy tuning of particle sizes at nanoscale [65]. Specifically, we report on the intrinsic and integral CO2 methanation activity and selectivity of different sizes Rh nanoparticles deposited on oxide supports encompassing a wide range of OSC, namely γ-Al2O3, alumina–ceria–zirconia (ACZ: 80 wt% Al2O3–20 wt% Ce0.5Zr0.5O2-δ), and ceria-zirconia (CZ: Ce0.5Zr0.5O2-δ), in a comparative manner. For the sake of a rational comparison, the Rh/γ-Al2O3, Rh/ACZ, and Rh/CZ catalysts were exposed to the reaction mixture (CO2+H2), keeping the effective mean contact time of the reactants with catalyst active sites constant [56,67], rather than the weight-basis gas hourly space velocity (wGHSV; F/w). A strong, but non-monotonic effect of OSC of the support on Rh methanation activity was found: Rh dispersed on the support with moderate OSC value (Rh/ACZ) was superior in CO2 methanation. Moreover, a strong dependence of CO2 methanation on Rh particle size was observed, with a very interesting feature of this structure sensitivity: For Rh particles dispersed on a non-reducible support (i.e., Rh/γ-Al2O3), the lower the particle size, the more superior the methanation performance, in full contrast with the feature for rhodium particles dispersed on high OSC support (i.e., Rh/CZ), where the higher the particle size, the more superior the methanation performance. These observations open up new possibilities on improving the methanation efficiency of supported metal catalysts by simultaneous adjusting their OSC and particle size characteristics. The results are adequately rationalized in terms of the (Oδ, δ+) effective-double-layer account of promotion and metal–support interactions.

2. Results and Discussion

2.1. Morphological and Reducibility Characteristics of the Materials

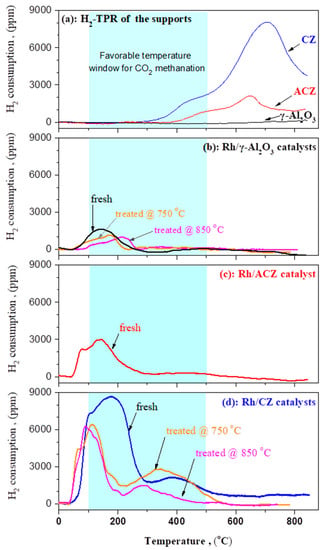

Table 1 displays the main morphological and physicochemical properties of the support and catalysts studied herein. The BET surface area values (SBET) of the oxide supports are 178, 149, and 22 m2/g for the γ-Al2O3, ACZ, and CZ, respectively. After Rh deposition, the obtained counterpart catalysts show a slight decreased in SBET values (160, 136, and 17 m2/g, respectively), probably due to some pore blocking of the mesoporous oxide supports [65]. Minor losses on the BET surface area can also be observed in the catalysts subjected to further treatment at high temperatures, 750 and 850 °C, under oxidative conditions (Table 1). Rhodium metal loadings measured by ICP-OES was found to be close to the nominal 1 wt% Rh loading (Table 1) [53].
The total oxygen storage capacities (in μmol O2/g) of the supports and Rh catalyst counterparts, assessed by H2-TPR as the half of the total amount of consumed H2 in the 25–850 °C temperature interval of the H2 consumption profiles, are shown in Figure 1. The oxide supports γ-Al2O3, ACZ, and CZ used encompass a wide range of OSC values, i.e., 0, 101, and 557 μmol O2/g, respectively (Table 1), reflecting the non-reducibility of γ-Al2O3, and the Ce4+ → Ce3+ reduction of ACZ and CZ supports appearing in the TPR spectra (Figure 1a) as two overlapping broad peaks at ca. 300–550 °C and 500–850 °C, a feature characteristic of ceria-containing samples [68,69].
Incorporation of ~1 wt% Rh on the supports increases the OSC of the resulted catalysts to 69, 146, and 589 μmol O2/g of the fresh Rh/γ-Al2O3, Rh/ACZ, and Rh/CZ catalysts (Table 1 and Figure 1a). The corresponding 69, 45, and 32 μmol O2/g OSC increments found reflect the contribution of Rh3+ and Rh1+ oxide reduction to Rh° and are close to the theoretically calculated amounts of O2 for these transformations (i.e., 72 μmol O2/g for Rh3+ → Rh° and 29 μmol O2/g for Rh1+ → Rh°), bearing in mind that Rh particles anchored on γ-Al2O3 can be fully oxidized (Rh3+) in contrast to those dispersed on high OSC supports, which undergo only partial oxidation due to strong interactions between Rh particles and the support that destabilize rhodium oxide phases, as demonstrated by recent XPS studies [53].
It should be stressed, however, that incorporation of Rh on the supports resulted in a significant promotion of the reducibility of ACZ and CZ, as evidenced by the substantial shifts of the TPR peaks, attributed to the reduction of ceria at much lower temperatures (from ca. 300 to 850 °C for the supports → ca. 50–550 °C for the counterpart catalysts (Figure 1a,c,d and Table 1), indicating the strong promotion of H2 spillover [68,69], which, in the absence of metal, is limited by H2 dissociation. These shifts are advantageous for the catalytic system under investigation, as the reducibility (i.e., the lattice oxygen lability) of the resulted Rh catalysts is well matched to the favorable temperature range of the CO2 methanation reaction (Figure 1).
Some additional features of the H2-TPR profiles are of particular interest. In the case of fresh Rh/γ-Al2O3 catalyst, the reduction of Rh species appeared as a LT peak (at ~150 °C) and a HT broad one (at ~500 °C) (Figure 1b and Table 1); the former is attributed to the reduction of Rh2O3 species anchored on the Al2O3 surface, while the latter to the reduction of Rh oxide diffused into alumina and thus in strong interaction with it (RhAlxOy) [70]. The interesting point is that the TPR peak of Rh2O3 surface species of the samples that have aged at oxidative thermal conditions, Rh/γ-Al2O3-treated at 750 °C, and Rh/γ-Al2O3-treated at 850 °C, is shifted to higher temperatures, from 150 to 175 and 215 °C, respectively (Figure 1b and Table 1), implying more difficult-to-reduce Rh particles—most probably larger particles. As discussed below, this is in agreement with the Rh particle agglomeration found after oxidative thermal aging of Rh particles anchored on γ-Al2O3 support, which is lacking in oxygen storage capacity. In striking contrast, TPR peaks on fresh Rh/CZ catalyst attributed to Rh oxide species (at ~105 °C), to superficial reduction of ceria taking place at CZ surfaces (at ~175 °C), and to the reduction of bulk ceria (at ~380 °C) are all shifted to lower temperatures over the thermally aged Rh/CZ catalysts (Figure 1d and Table 1). This implies an enhanced promotion of the reducibility of the aged (Rh/CZ-treated at 750 °C and Rh/CZ-treated at 850 °C), which is rationally understood by considering an enhanced metal–support interaction between Rh particles and CZ support resulting from a larger amount of undercoordinated rhodium sites, implying lower-size Rh particles (i.e., Rh redispersion during oxidative thermal aging). The latter is fully consistent with our results for the mean Rh particle sizes obtained by means of TEM and H2-chemisorption experiments, included in Table 1 and discussed below.
Finally, the moderate reduction on the OSC values found for the thermally aged Rh/CZ catalysts (from 589 on fresh → 476 on treated at 750 °C → 327 μmol O2/g on treated at 850 °C; Table 1 and Figure 1d) was expected, since it is well-known in the literature for CeO2-ZrO2 systems [71]. However, as will be discussed below, the remaining OSC ability of the catalysts is still high enough to induce substantial modifications on their CO2 methanation performance.
Rh nanoparticle sizes measured by both HRTEM (Supplementary Materials Figure S1) and H2 isothermal chemisorption, the arithmetic mean value ( d ¯ Rh) obtained by the two independent methods for each catalyst (Supplementary Materials Section S1), are shown in Table 1. These take the values of 1.2, 1.7, and 5.0 nm on the fresh Rh/γ-Al2O3, Rh/ACZ, and Rh/CZ catalysts, respectively. It is highlighted that Rh nanoparticles dispersed on zero OSC support (γ-Al2O3) underwent agglomeration after high-temperature oxidative treatment under the sintering protocols #1 and #2: from 1.2 nm on Rh/γ-Al2O3 (fresh) → 1.6 nm on Rh/γ-Al2O3 (treated at 750 °C) → 2.1 nm on Rh/γ-Al2O3 (treated at 850 °C). In contrast, Rh nanoparticles on the high OSC support (CZ) underwent significant redispersion: from 5.0 nm on Rh/CZ (fresh) → 2.3 nm on Rh/CZ (treated at 750 °C) → 2.1 nm on Rh/CZ (treated at 850 °C). These findings are strikingly consistent with the H2-TPR behavior of the corresponding samples (Figure 1).
The resistance to sintering during oxidative thermal treatment—on both mechanisms of particles agglomeration, i.e., large particle migration and coalescence (PMC) and Ostwald ripening (OR)—or even redispersion of metal particles dispersed on supports characterized by moderate and high values of labile lattice oxygen capacity has been thoroughly interpreted in Reference [65]; only a brief description is included herein. The creation of an Oδ− electric layer via the spontaneous (thermally driven) O2− backspillover from the support to the surface of metal particles quenches the PMC mechanism due to the resulting interparticle electrostatic repulsion (anti-PMC). At the same time, metal atoms possibly detached from large metal crystallites are efficiently trapped by surface oxygen vacancies in the support material suppressing surface diffusion of these atomic species on the support and their subsequent attachment to larger particles (anti-OR). The latter can certainly lead to redispersion, the extent of which depends on several factors, including the metal identity, the sintering conditions, and length of time imposed, and mainly the population of the surface oxygen vacancies of the support [65]. Metal nanoparticles dispersed on supports with a lack of labile lattice oxygen (e.g., γ-Al2O3) where such phenomena are absent provide little or no resistance to sintering under high-temperature oxidative treatment, as indeed found (Table 1).

2.2. Comparative Evaluation of Catalytic Performance: Effect of the Support

2.2.1. CO2 Hydrogenation Performance Under Integral Reaction Conditions

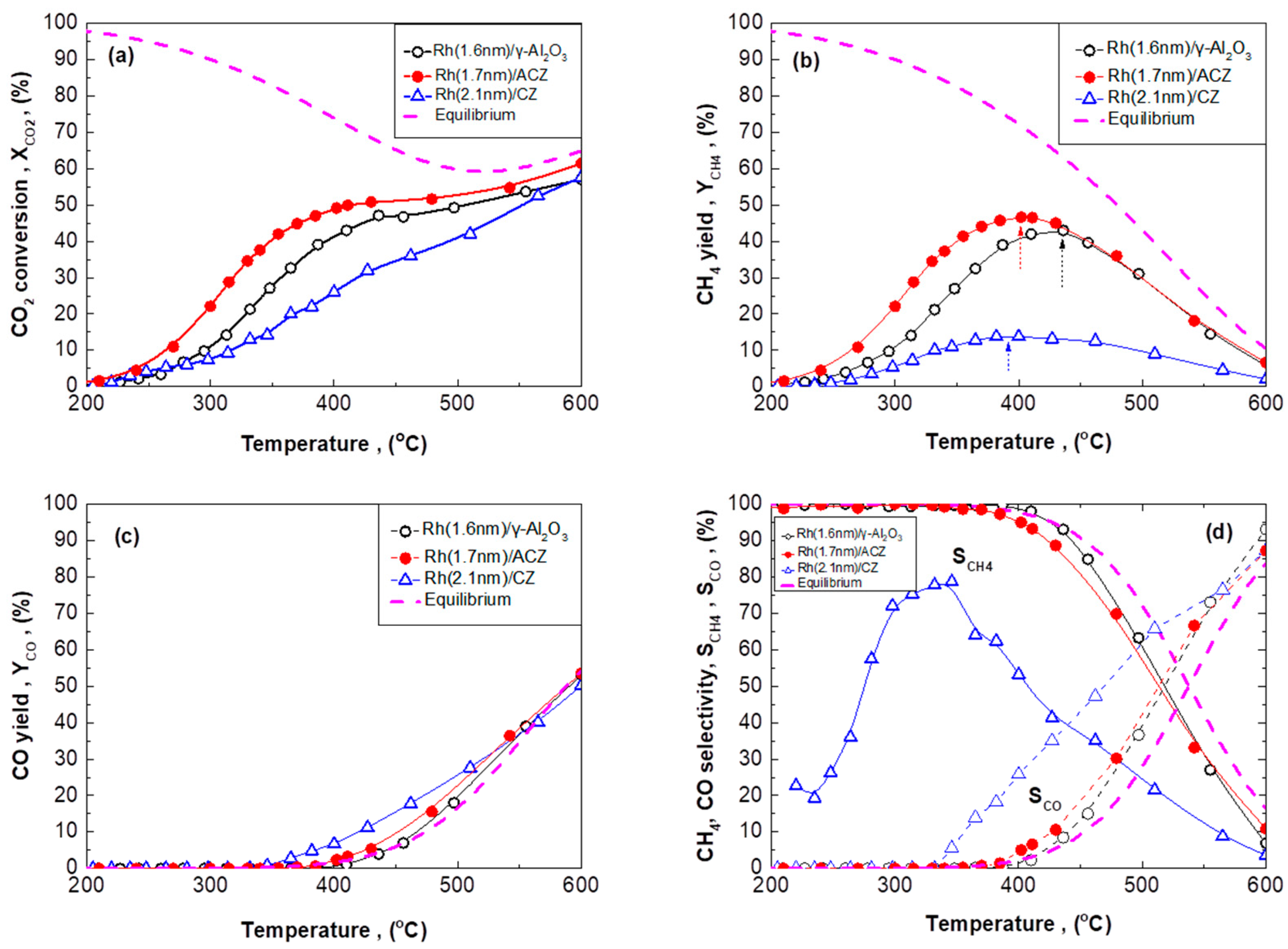

Figure 2 depicts the CO2 hydrogenation output characteristics, i.e., CO2 conversion (Figure 2a), and the yields of methane (YCH4, Figure 2b) and CO (YCO, Figure 2c), and the corresponding CH4 and CO selectivities (Figure 2d) as a function of reaction temperature (light-off performance), over the Rh(1.6nm)/γ-Al2O3, Rh(1.7nm)/ACZ, and Rh(2.1)/CZ catalysts, selected from the seven prepared samples (Table 1) so that to have different supporting material, but as close as possible to the mean Rh particle size. The latter was adopted to allow us to investigate and understand the effect of the support OSC isolated from that of particle size. For the sake of comparison, the equilibrium CO2 conversion, CH4 and CO yields, and selectivity profiles, predicted by the thermodynamics of the methanation reaction (R1) by using the Outokumpu HSC Chemistry® program [46], are also included in the figure. The feed composition was kept constant at the stoichiometry of the CO2 methanation reaction (R1), i.e., 5% CO2/20% H2 balance Ar at 1 bar, as well as the effective mean contact time of the reactants, with rhodium active sites at τ(CO2) = 1.26 s (and τ(H2) = 5.04 s). Due to the different concentration of Rh active sites per mass of catalyst of the Rh(1.6nm)/γ-Al2O3, Rh(1.7nm)/ACZ, and Rh(2.1nm)/CZ samples, the latter was achieved by adjusting the total flow rates at 78, 60, and 47 N mL/min, respectively.
At the relatively high wGHSVs employed (ca. 56400–93600 N mL/g∙h; low effective mean contact time τ(CO2)~1.3 s), the CO2 hydrogenation reaction is practically activated at temperatures higher than ~180–200 °C for all three catalysts tested (Figure 2a); then CO2 conversion increases with a temperature approaching the thermodynamic equilibrium curve at about 550 °C. The clear superiority of Rh particles dispersed on ACZ support (with intermediate OSC = 101 μmol O2/g) on CO2 conversion efficiency is evident in the whole temperature range investigated (200–600 °C), while Rh particles on CZ support (with the highest OSC = 557 μmol O2/g) appear worse, even compared with Rh particles dispersed on γ-Al2O3 with negligible oxygen storage capacity and lability. Interesting differences in the CH4 and CO product distribution features between the three catalysts are also perceivable (Figure 2b,c). Compared with γ-Al2O3, the most active Rh(1.7 nm)/ACZ catalyst effectively promotes CH4 yield (i.e., the CO2 methanation reaction (R1)) at temperatures up to ~425 °C, while at higher temperatures, its YCH4 profile approaches that of Rh(1.6nm)/γ-Al2O3. On the other hand, the methanation efficiency of Rh(2.1 nm)/CZ appears significantly depressed and inferior to that of Rh(1.6 nm)/γ-Al2O3 in the whole temperature range. Finally, maximum methane yield values obtained for Rh(1.7 nm)/ACZ, Rh(1.6 nm)/γ-Al2O3, and Rh(2.1 nm)/CZ were 46.8% (at 402 °C), 43.3% (at 436 °C), and 14.2% (at 388 °C), respectively (Figure 2b; Table 2).
According to thermodynamics, CH4 yield is restricted at elevated temperatures (Figure 2b), while the Gibbs free-energy of the methanation reaction (R1) receives positive values at temperatures higher than 600 °C. Therefore, getting close to this temperature (typically for T > ~400 °C; Figure 2b), the initially increasing YCH4 passes through a maximum and then lessens, approaching the equilibrium predicted profile. On the other hand, as expected and shown in Figure 2c, CO production is activated at elevated temperatures (ca. 350–400 °C) where the reverse water–gas shift (rWGS) reaction is thermodynamically favored. Then, it keeps increasing upon increasing temperature at the expense of CH4 production, thus rendering the “CO2 methanation system” to a “syngas production system” (Figure 2b–d). It is also evident that the YCO profile is systematically moved to lower temperatures as the support’s OSC increases (Figure 2c). Thus, CO productivity for each catalyst is ignited according to the following temperature order: 350 °C (over Rh(2.1nm)/CZ) < 375 °C (over Rh(1.7nm)/ACZ) < 410 °C (over Rh(1.6nm)/γ-Al2O3), i.e., in reverse order, compared to the order of the OSC values of the supports, OSC(CZ) = 557 μmol O2/g > OSC(ACZ) = 101 μmol O2/g > OSC(γ-Al2O3) = 0 μmol O2/g. A notable effect of the OSC of the support on the Rh-catalyzed rWGS reaction (R2) is therefore obvious; the higher the OSC of the support, the greater the promotion of rWGS reaction at elevated (> ~350 °C) temperatures.
The CH4 and CO selectivity performances of the Rh(1.6nm)/γ-Al2O3 and Rh(1.7nm)/ACZ catalysts depicted in Figure 2d are in accordance with the CH4 and CO productivity discussed above. They offer ~100% selectivity toward CH4 (SCH4) at the low- to intermediate-temperature range (200 to ~350 °C), while at higher temperatures, the selectivity toward CO (SCO) starts increasing, with a concomitant SCH4 decrease, in accordance with thermodynamics. The symmetry between their SCH4 and SCO curves in respect to the horizontal invisible line at S = 50%, reflects the fact that no other products except CH4 and CO were obtained by these two catalysts; the carbon balance XCO2 = YCH4 + YCO for these two catalysts always closed well with deviations of less than ~3 %.
Nevertheless, the selectivity behavior of Rh(2.1nm)/CZ appears to be rather more complicated. For this catalyst, the carbon balance, XCO2 = YCH4 + YCO, did not close well, implying the formation of additional C-containing by-products, besides CH4 and CO. Indeed, such C2+ products (mostly C2H6) were observed in gas chromatographs, but at very low concentrations, inappropriate for quantitative analysis within the detection limits of our analysis system. It is worth noting that formation of C2+ products in small amounts has been reported in the literature of CO2 hydrogenation over Rh/TiO2 and Rh/Nb2O5 catalysts with the main product being C2H6 [72]. An overview and thorough explanation of the effect of the support OSC on the catalysts’ light-off and turnover frequency (TOF) performances is given below, following the presentation of the latter, since both should have a common interpretation.

2.2.2. CO2 Hydrogenation Intrinsic Activity of Rh Nanoparticles

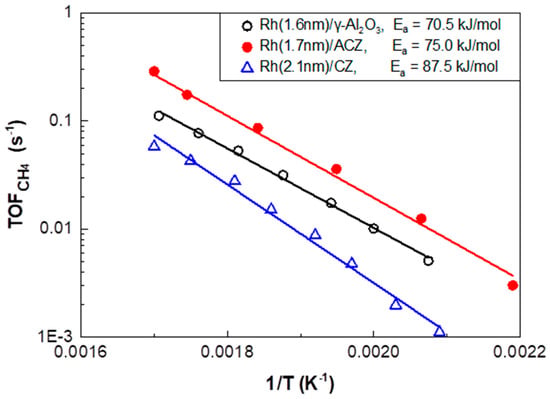

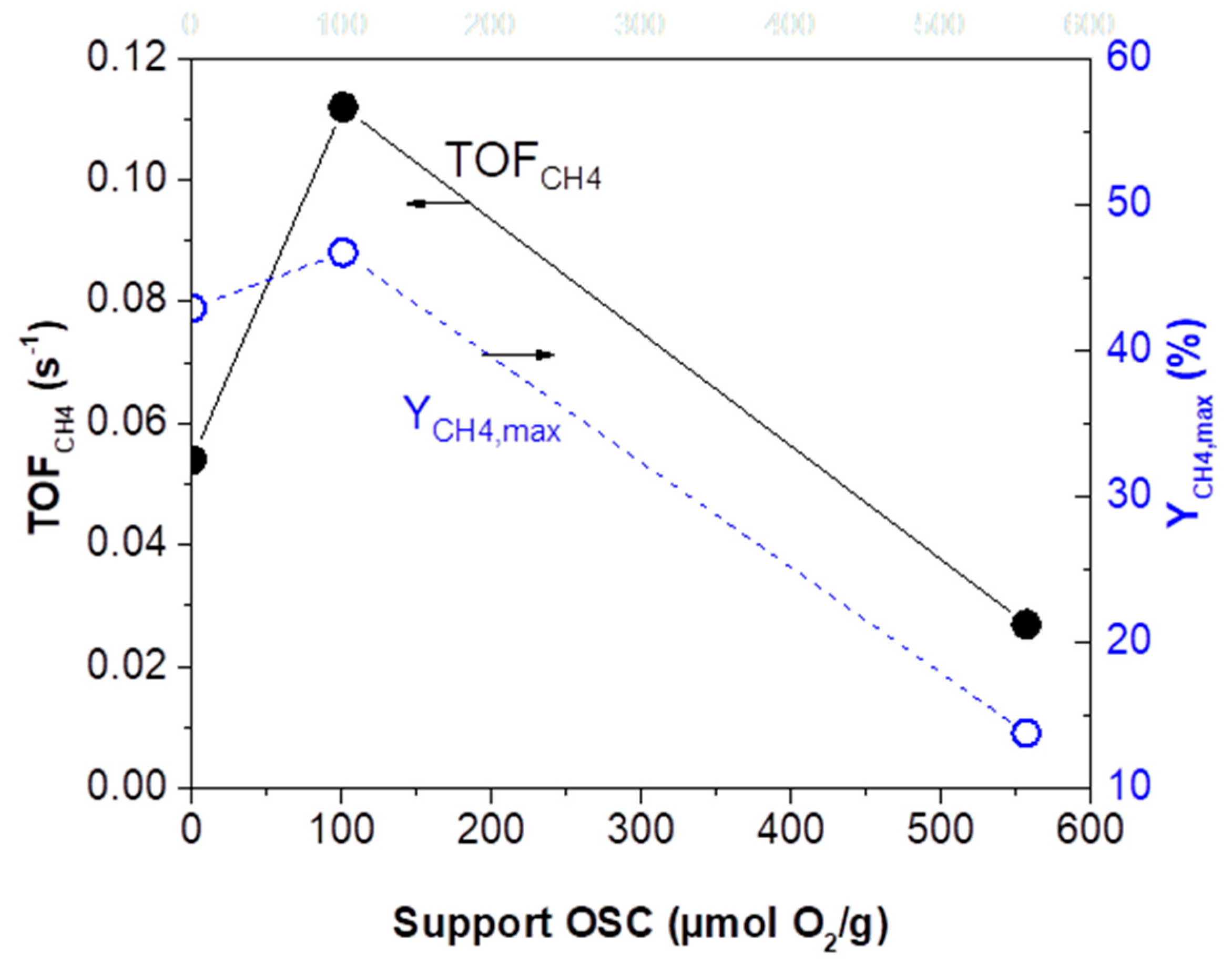

Turnover frequency results for the CO2 methanation (TOFCH4) on Rh(1.6nm)/γ-Al2O3, Rh(1.7nm)/ACZ, and Rh(2.1nm)/CZ are shown as Arrhenius plots in Figure 3; TOFCH4 is given as moles of methane produced per mole of rhodium active site per second (Rh active sites were estimated on the basis of mean Rh particle size values given in Table 1). Kinetic data were acquired under conditions of low CO2 (and H2) conversion, typically ~5–15%, in order to reflect intrinsic activity, unaffected by reactants concentration gradients, mass, and/or thermal transport constraints (differential reaction conditions). Apparently, Rh dispersed on ACZ with the intermediate OSC shows the highest methanation activity, followed by Rh on γ-Al2O3 and finally by Rh on CZ, with the higher OSC exhibiting the lower activity (Figure 3). Its TOFCH4 values are also positively compared with values recently reported for Rh catalysts supported on other supports and studied at similar conditions (examples include References [35,40]).
The apparent activation energy (Ea) of the methanation reaction systematically increases upon increasing the OSC of the support, Ea = 70.5, 75.0, and 87.5 kJ/mol with concomitant increases of the pre-exponential factor as well, T O F C H 4 o = 12.4, 14.1, and 15.3 s−1, for Rh(1.6nm)/γ-Al2O3, Rh(1.7nm)/ACZ, and Rh(2.1nm)/CZ, respectively (Table 2). These apparent activation energy values are similar to previously reported values over supported Rh catalysts. Solymosi et al. [73] reported an apparent activation energy value of 68 kJ/mol on Rh/γ-Al2O3, while more recently Karelovic and Ruiz [40] reported an interesting dependence of Ea on Rh particle size for Rh/γ-Al2O3 catalysts, which varied in the range of 61–95 kJ/mol when Rh particle size varied between 3.6 and 15.4 nm with the smaller particles to obey the higher Ea values due to the structure sensitivity of the reaction, as the authors confirmed. On the other hand, in cases where Rh particles were dispersed on supports imposing significant metal–support interactions, such as TiO2 and W6+-doped TiO2, elevated Ea values were typically obtained: 71 kJ/mol on Rh/TiO2 [35] and 70–103 kJ/mol on Rh/(W6+-doped TiO2) [41] catalysts.
Taking into consideration both integral and intrinsic CO2 hydrogenation performance of the Rh nanoparticles dispersed on the different supports, γ-Al2O3, ACZ, and CZ (Figure 2 and Figure 3; Table 2), and given the large variation in oxygen ion lability between them that can stimulate possible metal–support interactions [53,66], the main experimental observations are summarized as follows:
(i)
Supports possessing intermediate oxygen storage capacity and lability (ACZ) substantially promote the CO2 methanation activity of Rh (Figure 2b, Figure 3, and Table 2), providing a volcano-type promotion behavior in respect to the OSC of the support or the counterpart catalyst (Figure 4).
(ii)
ACZ and CZ promote the reverse water–gas shift reaction (CO formation) in a monotonic manner in respect to their OSC value; the higher the OSC, the higher the promotion of rWGS (Figure 2c). In particular, CZ also promotes the formation of additional C-containing byproducts, besides CH4 and CO (Figure 2d).
(iii)
The apparent activation energies (Ea) of CH4 formation and the corresponding pre-exponential factors ( T O F C H 4 o ) increase monotonically with increasing the OSC of the support, i.e., Ea and T O F C H 4 o values follow the order Rh/CZ > Rh/ACZ > Rh/γ-Al2O3 (Figure 3; Table 2).
It is readily understood that the combination of the effects of (i) and (ii) determines the obtained Rh/ACZ > Rh/γ-Al2O3 > Rh/CZ order for the maxima in CH4 yield and the temperatures where these maxima are located (Figure 2b and Table 2), as well as the behavior of the selectivity toward CH4 and CO (Figure 2d). The question arising regards the origin of these effects. It has been previously demonstrated that CeO2-based supports are characterized by substantial oxygen storage capacity (Table 1) due to the labile lattice oxygen and therefore by high concentration of bulk and surface oxygen ion defects (oxygen vacancies, V O ¨ ) [57,60,61,62]. Therefore, the suggestion of a bi-functional reaction mechanism, commonly employed in mechanistic reaction schemes involving CO2 processing over CeO2-containing catalysts [53], is consistent with the present catalytic system as well.
According to this mechanism, CO2 activation (dissociative adsorption) is especially favored on CeO2-containing supports incorporating a significant concentration of oxygen vacancies ( V O ¨ ) that act as additional active centers, via the reaction (R3) [53]:
CO 2   ( g ) + V O ¨ O i + CO   ( g )
where O i represents interstitial oxygen ion, i.e., O2− corresponding to the redox cycle Ce3+/Ce4+ characteristic of CeO2 containing supports [60,61,62] the lability (and mobility) of which is determined by the equilibrium reaction (R4) taking place into the support body between lattice oxygen ( O O ), interstitial oxygen ions ( O i ), and lattice oxygen vacancies ( V O ¨ ) [57]:
O O V O ¨ + O i
Such a contribution of the support to CO2 activation (R3) should ultimately be beneficial for the overall methanation reaction progress. Specifically, the elevated population of surface oxygen vacancies on ACZ and CZ supports will substantially promote CO2 scission with a concomitant effective promotion of the rWGS reaction (R2), a key step in the CO2 methanation pathway. Therefore, the enhancement found in both YCH4 and YCO yields on Rh/ACZ catalyst is fully consistent with the effect of its OSC characteristic on the CO2 hydrogenation performance (Figure 2). The pronounced CO evolution (YCO) by Rh/CZ compared to Rh/ACZ (and even more compared to Rh/γ-Al2O3, Figure 2c) is a consequence of the higher availability of V O ¨ centers on the surface of CZ, resulting from its higher OSC, which facilitates reaction (R3). However, the inferior YCH4 of the Rh/CZ still remains to be interpreted, and it can be readily understood as follows. An additional effect of the occurrence of reaction (R3) is the continuous replenishment of the support with interstitial O2− ions ( O i ) that can spontaneously (thermally driven) backspillover onto the surface of Rh particles creating an effective double layer [Oδ−, δ+] via the step (R5) [53,66]:
O i + R h * [ O δ , δ + ] R h * + V O ¨
where Rh* denotes a rhodium active site on the surface of Rh particles.
According to the effective-double-layer account of catalysts promotion and metal–support interactions [66] the as-created Oδ layer on the surface of metal particles (Figure S2 in the Supplementary Material) acts as an electronic modifier of the catalytic particles by its compensating charge, δ+, altering their work function and chemisorptive properties and hence the intrinsic activity and/or selectivity toward catalytic reactions [52,57,66,74], before the ultimate reaction of Oδ− species as sacrificial promoter (Oδ− species are quite reactive and therefore consumed by the oxidizable reactants (e.g., H2) that scavenge them [66]). Nevertheless, they are effective because of their continuous replenishment via reactions (R3) and (R5). Apparently, the intensity of the Oδ layer and consequently its concomitant effect on intrinsic activity are in accordance with the oxygen ions capacity and mobility of the support.
In this context, the increased work function, due to the creation of the effective double layer ([Oδ, δ+]), or equivalently the decreased electron availability on the surface of Rh particles, results in strengthening of the chemisorptive bond of electron donor (electrophobic) adsorbates and weakening that of electron acceptor (electrophilic). Nevertheless, CO adsorption characteristics on catalyst particles play a key role in CO2 methanation mechanism [22,37,39]. CO chemisorption on Pt-group metals involves both donation and backdonation of electrons. Therefore, it is difficult to estimate which one of its electrophilic or electrophobic character dominates under the specific conditions employed, and therefore to quantify the effect of increasing metal work function on its chemisorption bond strength [54,75] (additional information is provided in the Supplementary Materials, Section S2). The present results, however, point toward the electrophobic character of CO chemisorption bonding in agreement with References [75,76]. Indeed, the monotonic increase in the apparent activation energy of the methanation reaction upon increasing the OSC of the support (observation iii, Table 2), which is associated with the concomitant enhancement in intensity of the Oδ layer, accompanied by the increasing work function of Rh, rationally implies a strengthening of the Rh-CO bond; that is, the electron-donor (electrophobic) character of CO dominates in our catalytic system under the conditions employed. More specifically, the increase in the apparent activation energy of the CO2 methanation reaction indicates that the reaction proceeds through schemes with higher energetic barriers; a more strongly bonded, thus less reactive, CO is consistent with this observation. This view is also consistent with the observed increase of the entropic ( T O F C H 4 o ) Arrhenius factor (observation iii, Table 2): Strengthening of the Rh-CO bond implies an increase in the amount of adsorbed CO on the Rh surface, and therefore to an enhancement of the reaction probability, i.e., higher methanation rate, as indeed obtained (observation i). However, over-strengthening of the Rh-CO bond can finally induce self-poisoning of the reaction, i.e., CO-poisoning of the surface by strongly adsorbed, less-reactive CO, which is fully consistent with the inferior methanation activity of Rh/CZ and the concomitant volcano-type dependence of the promotion on the support’s OSC (observation i; Figure 4). Apparently, the values of these two compensative factors (Ea and pre-exponential factor) of the methanation reaction (R1) are optimized when supports with intermediate OSC values (e.g., ACZ) are used.
Our recent post-DRM-reaction XPS studies on Rh/γ-Al2O3, Rh/ACZ, and Rh/CZ catalysts [53] have shown that, between the Rh3+, Rh1+, and Rh° oxidation states of rhodium, the principal Rh species was Rh°; its relative content decreasing in the order Rh/CZ(100%) > Rh/ACZ(72%) > Rh/γ-Al2O3(55%). That is, supports with high oxygen ion lability (ACZ and CZ) due to O2− backspillover that weakens the Rh-O bond destabilize rhodium oxide, promoting its metallic state [53]. Bearing in mind that, under CO2 hydrogenation and DRM reactions, the catalyst is exposed to a relatively close reaction products environment, and the bifunctional character of CO2 methanation reaction, which requires reduced metal sites that are active in H2 dissociation [26,27,37,38], it is reasonable to suggest that the increase in Rh° state on the catalyst containing ACZ and CZ supports is an additional factor promoting the methanation reaction however, minor in effect compared to the aforementioned one related to CO formation and its chemisorption strengthening on metal sites, able to create reverse effects (CO-poisoning) in the case of supports with very high OSC value (CZ).
The work of Liu et al. [24] on the effect of CeO2 addition on Ni/Al2O3 catalyst for CO2 methanation is worth mentioning here. By incorporating different amounts of CeO2 between 0 and 6 wt%, the authors found that methanation is significantly promoted by low CeO2 loadings, optimized at an intermediate loading of 2 wt%, and then depressed for higher CeO2 loadings. The CeO2-induced promotion was attributed to the enhanced reducibility of the resulted Ni/CeO2-Al2O3 catalysts. Although the OSC values of their catalysts are not available for a closer comparison with the present results, the general feature of the reported promotion is in qualitative agreement with the volcano-type behavior found herein as a function of the OSC (reducibility) of our catalysts.

2.3. Effect of Rh Particle Size on CO2 Methanation Performance

In this context, Rh/Al2O3 and Rh/CZ catalysts, as representative extreme cases regarding the OSC value of the supporting material, were selected for a detailed investigation of the effect of mean particle size of Rh on CO2 methanation reaction, i.e., its structure sensitivity, and possible synergy with the OSC characteristic of the support.

2.3.1. Rh/γ-Al2O3 Catalysts with Different Mean Rh Particle Size

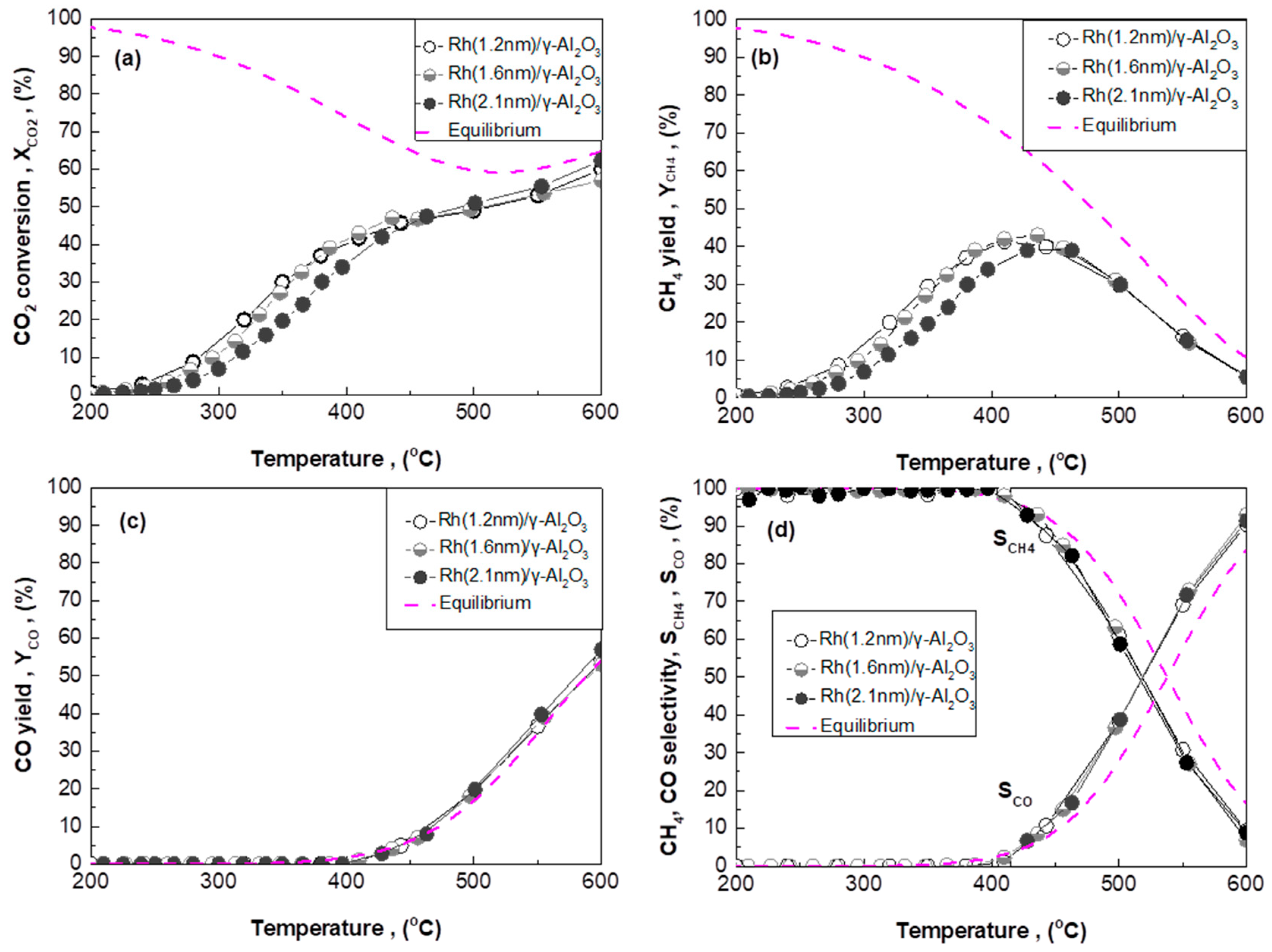

Figure 5 illustrates the CO2 methanation performance (XCO2, YCH4, YCO, SCH4, and SCO) of the three Rh/γ-Al2O3 catalysts different in the mean Rh particle size: 1.2, 1.6, and 2.1 nm. Although the range of particle size values does not show a large variation, the reaction apparently exhibits structure sensitivity, clearly influencing CO2 conversion (Figure 5a) and CH4 yield (Figure 5b), but not to any significant extent the CO yield (Figure 5c), thus causing marginal effects on system selectivity (Figure 5d). Overall, CH4 formation performance superiority follows the order Rh(1.2nm)/γ-Al2O3 > Rh(1.6nm)/γ-Al2O3 >> Rh(2.1nm)/γ-Al2O3; the reverse water–gas shift (rWGS) reaction appears insensitive to Rh particle size.

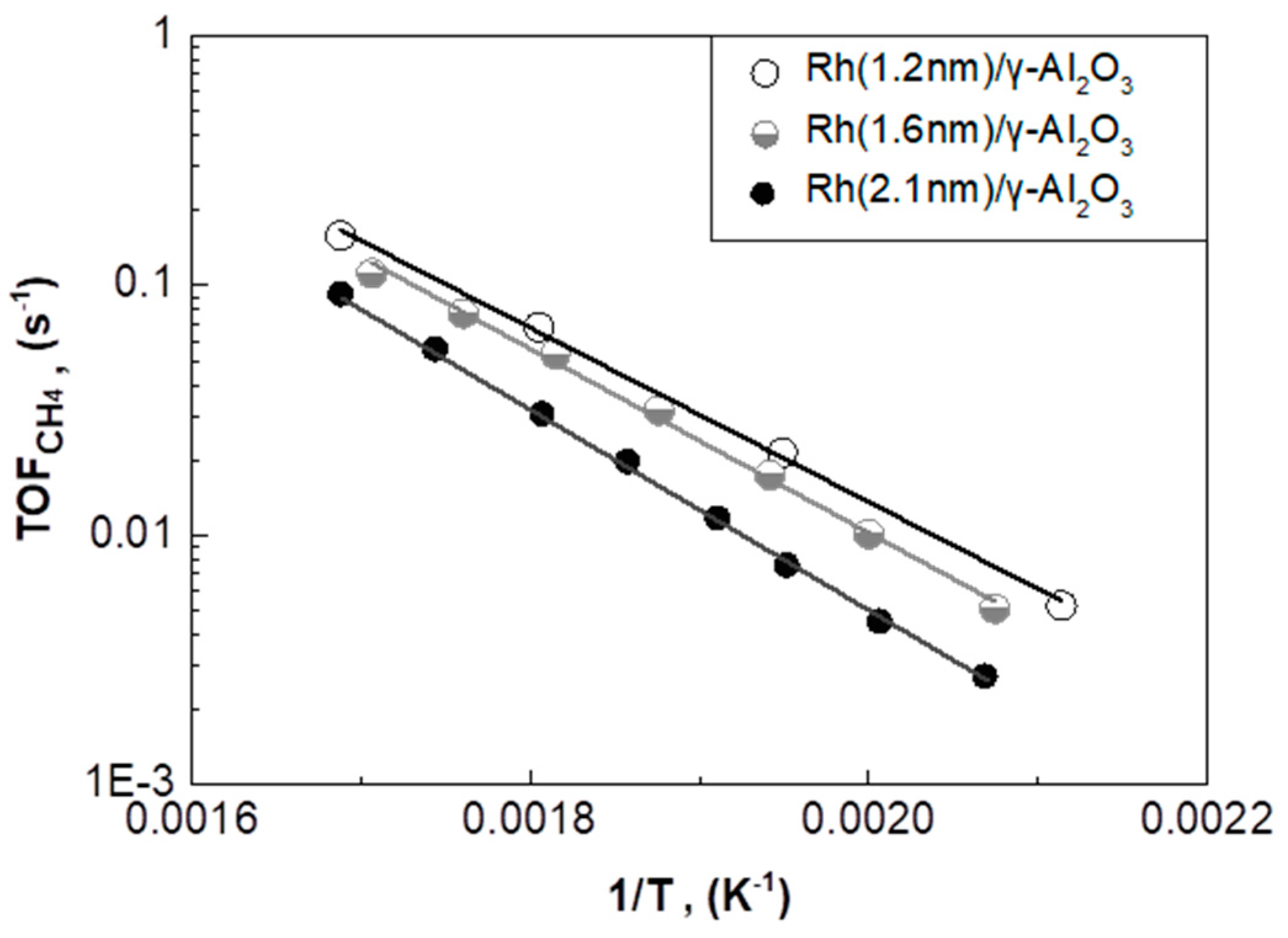

Under intrinsic reaction conditions (Figure 6), the trend of methane formation turnover frequency (TOFCH4) is similar to the above order, while an increasing trend of the apparent activation energy of the methanation reaction upon decreasing Rh particle size is obtained: 67.5 kJ/mol < 70.5 kJ/mol << 77.9 kJ/mol over Rh(1.2nm)/γ-Al2O3, Rh(1.6nm)/γ-Al2O3, and Rh(2.1nm)/γ-Al2O3, respectively (Figure 6 and Table 3).
The structure sensitivity of Rh/γ-Al2O3-catalysed CO2 methanation is known in the literature. Studying Rh/γ-Al2O3 catalysts with a variety of Rh particle sizes (between 3.6 and 15.4 nm) obtained by applying different Rh loadings (between 1 and 5 wt%), Karelovic and Ruiz [40] reported significant structure sensitivity of the titled reaction, which was favored on larger Rh particles but only at low temperatures (135–150 °C). At a higher temperature (200 °C), the authors observed similar CH4 formation TOFs on all Rh particle sizes, or slightly better on the smaller one. Here, we report a clear beneficial influence on CH4 formation activity of the smaller particles at temperatures higher than 200 °C. Based on the facts that the catalysts studied herein concern small Rh particle sizes (1.2–2.1 nm), smaller than that in Reference [40], and the temperature window is higher than 200 °C (ca. 200–350 °C), the observed structure sensitivity and its trend are actually in agreement with that reported by Karelovic and Ruiz at similar conditions. An increasing variation of the apparent activation energy, in the range of ca. 61–95 kJ/mol, with decreasing the particle size was also reported by the authors [40]. Changes in Ea in the present study have an opposite trend: Ea is increased (up to 10 kJ/mol; Figure 6, Table 3) as the mean Rh particle size increases from 1.2 to 2.1 nm. The different trend compared to that found in Reference [40] most probably originates from the different reaction conditions applied, but also on possible differences on the individual particle distribution of the catalysts. More specifically, it is attributed to the fact that the thermal sintering method applied to our catalysts for changing the size of the particles leads to significantly narrow particle size distribution [65,77], as compared to methods employing different metal loadings to achieve this which commonly lead to a fairly broader particle size distribution.

2.3.2. Rh/CZ Catalysts with Different Mean Rh Particle Sizes

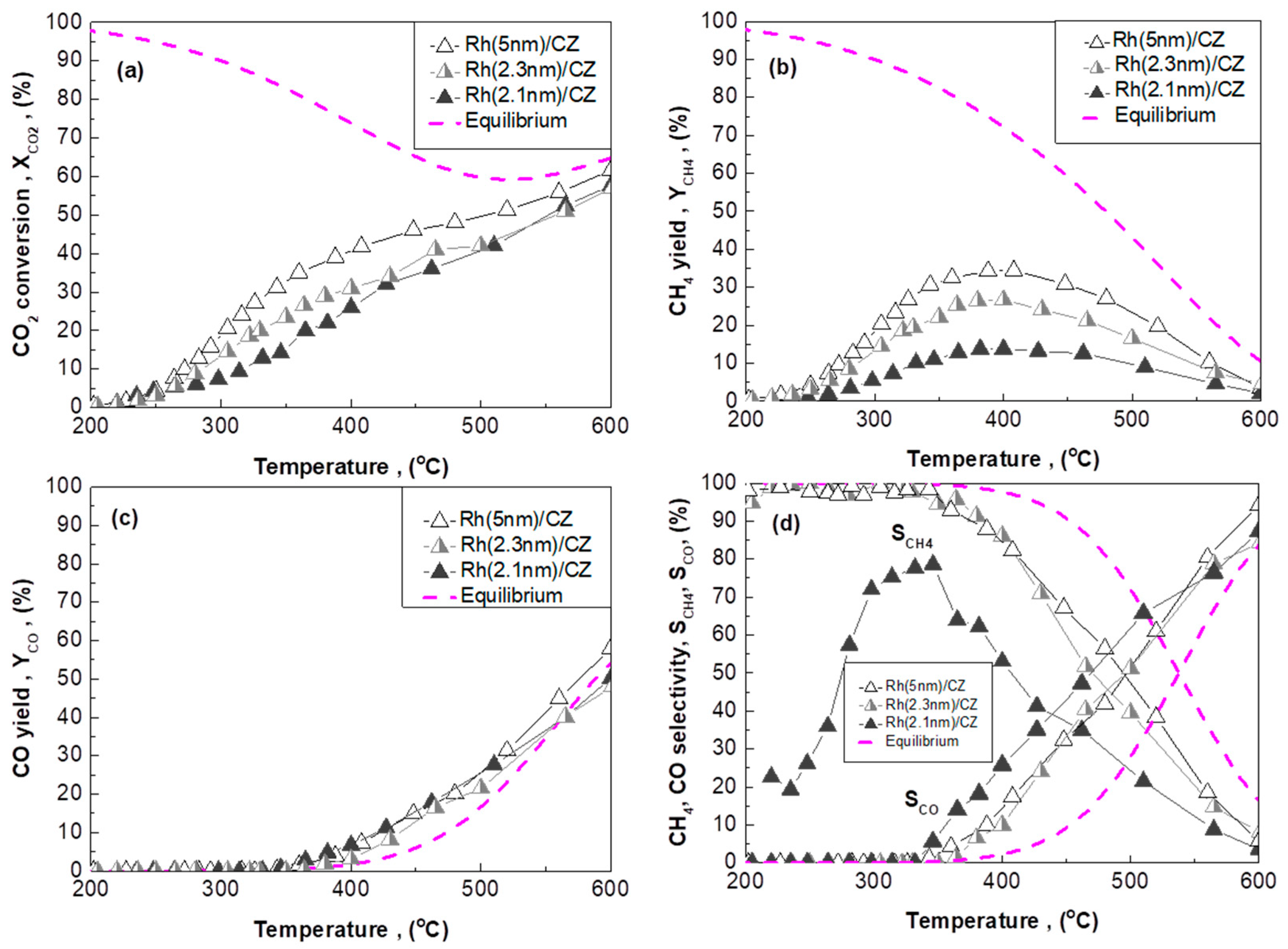

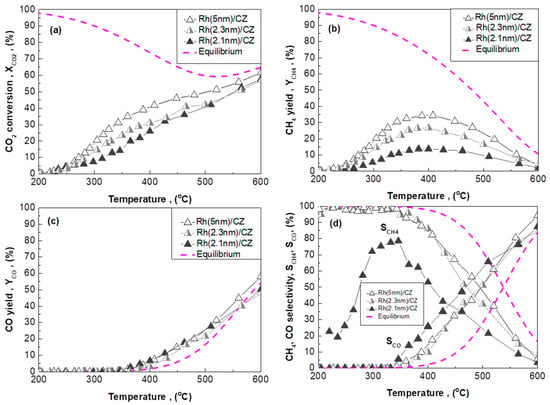

Figure 7 illustrates the full CO2 methanation performance of Rh/CZ catalysts, in respect to variation in mean Rh particle size, between 2.1 to 5 nm. Apparently, the Rh/CZ catalyst exhibits rather stronger structure sensitivity than that previously depicted for Rh/γ-Al2O3 with the following principal features: The CO2 conversion is significantly depressed with decreased size of Rh particles (Figure 7a), similarly to the CH4 yield (Figure 7b), while only marginal effects are recorded in CO yield (Figure 7c). However, as has been already mentioned in Section 3.2.1, the selectivity behavior of the Rh/CZ catalysts appears to be rather more complicated, especially over Rh(2.1nm)/CZ with the lowest Rh particles size (Figure 7d), for which the carbon balance (XCO2 = YCH4 + YCO) did not close well, implying the formation of additional C-containing byproducts besides CH4 and CO [72]. Overall, as shown in Figure 7, the methanation superiority over Rh/CZ catalysts in relation to Rh particle size follows the order Rh(5nm)/CZ > Rh(2.3nm)/CZ > Rh(2.1nm)/CZ; the reverse water–gas shift (rWGS) reaction appears, again, rather insensitive to Rh particle size.

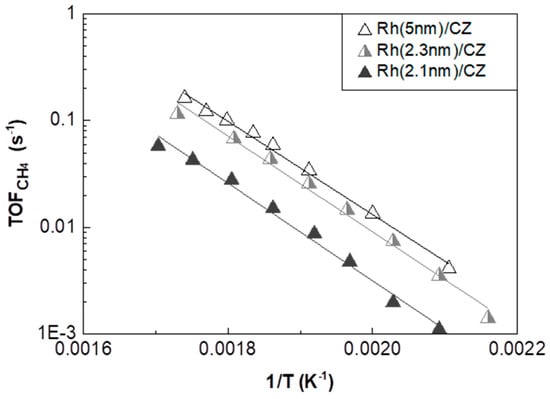

The Arrhenius plots of the turnover frequency of methane formation (TOFCH4) on Rh/CZ catalysts with different particle sizes (Figure 8) show a similar to the aforementioned methanation trend. Moreover, a slight decrease in the apparent activation energy upon decreasing Rh particle size is obtained: 83.6 kJ/mol < 85.8 kJ/mol < 87.5 kJ/mol over Rh(5nm)/CZ, Rh(2.3nm)/CZ, and Rh(2.1nm)/CZ catalysts, respectively, while the pre-exponential factor is marginally affected (Figure 8; Table 4).
The above effects are reasonably understood by the following considerations: lower in size dispersed Rh particles correspond to a larger amount of undercoordinated sites, leading to enhanced metal–support interactions. Therefore, as previously discussed, in regard to Figure 2 results, the Rh(5nm)/CZ fresh catalyst inhibiting effect on CO2 methanation of the very high OSC CZ support, due to over-strengthening of the Rh-CO bond, becomes even worse in the case of smaller particles.
That is, the lower the Rh particles size, the higher the undercoordinated sites and metal–support interactions responsible for reaction inhibition via enhanced CO-poisoning. Indeed, the inhibiting effect is more pronounced on Rh(2.1nm)/CZ and less so on Rh(2.6nm)/CZ, as compared to that on Rh(5nm)/CZ catalysts (Figure 8). Although quite small, the obtained increase in apparent activation energy by decreasing Rh particles size (Table 4) is consistent to the above interpretation. Vulnerability of the CO2 methanation reaction to CO-poisoning has also been reported by Italiano et al. [22] on Ni/CeO2 catalysts. In addition to the above, strongly bonded CO on Rh surface seems to promote side reaction paths, leading to the formation of a variety of C2+ byproducts at the expense of methane formation (Figure 7b,d and Figure 8). It should be noted, however, that the occurrence of these competitive side reactions makes the system more complex and the full understanding of the behavior of the methanation reaction more difficult.

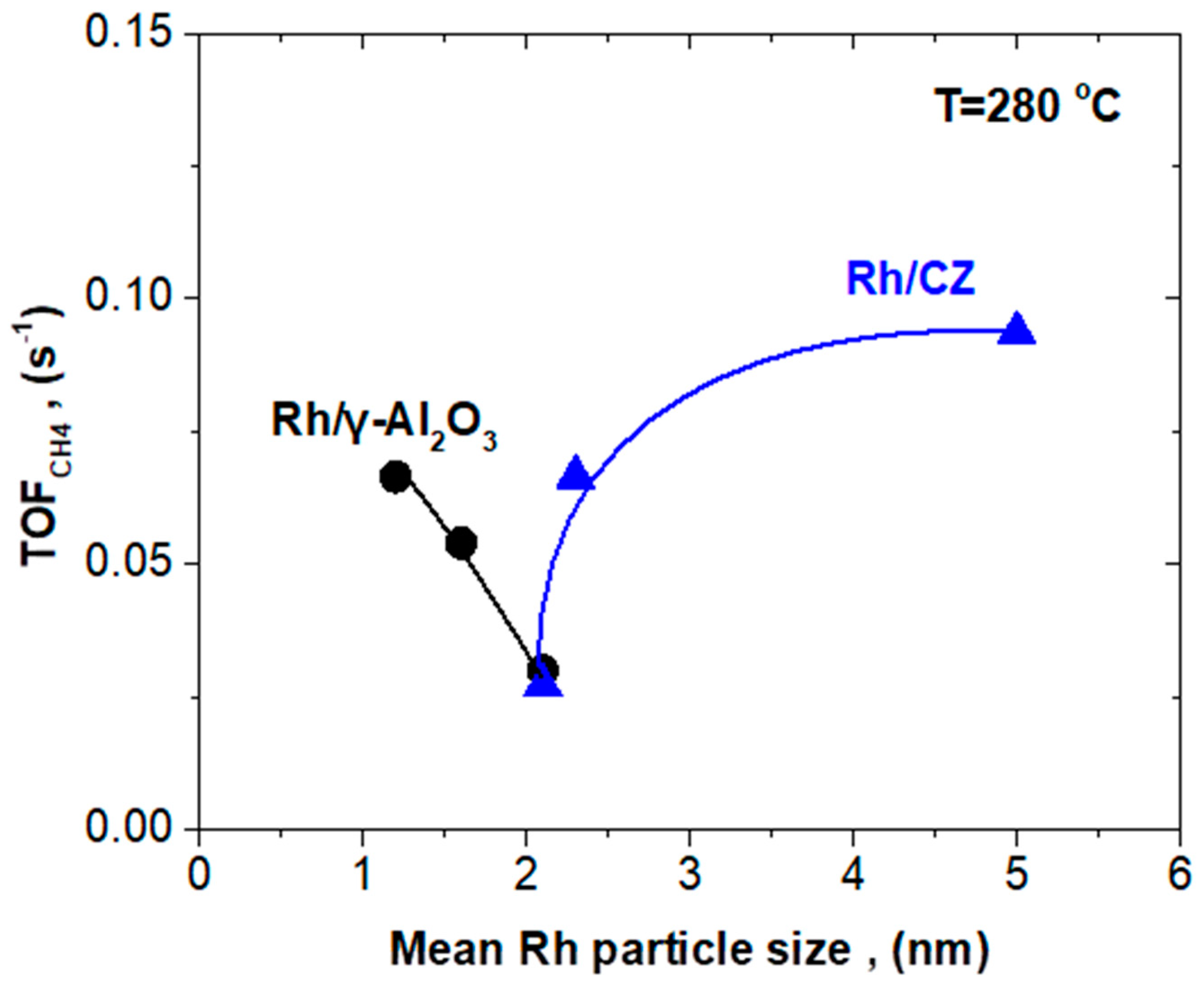

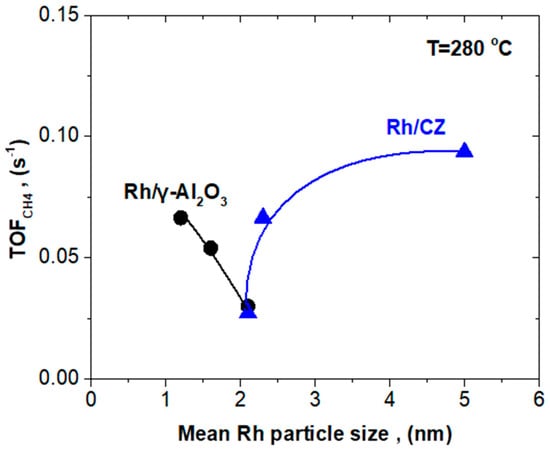

Figure 9 depicts the impact of the support’s nature (γ-Al2O3 and CZ) and mean metal particle size on CO2 methanation intrinsic activity (TOF) of supported Rh nanoparticles, in a comparative manner. The results clearly reveal that the structure sensitivity of CO2 methanation over Rh is a combined effect of metal–support interactions and particle size: over high OSC capacity support (Rh/CZ catalysts), the reaction is favored by larger particles, in apparent contrast to that obtained over Rh/γ-Al2O3 catalysts (with lack of OSC). The reported here, for the very first time, synergy between the particle size and the OSC characteristic of the support on CO2 methanation structure sensitivity provides an effective method for promoting catalysts’ methanation efficiency via fine-tuning of these two critical parameters (metal particle size and support OSC) during the design of novel effective CO2 methanation catalyst formulations.
Regarding the most promising in methanation efficiency Rh/ACZ catalyst, investigation of the Rh particle size on its CO2 methanation activity, similar to that performed for Rh/γ-Al2O3 and Rh/CZ, was not conducted herein. This is because only a very limiting variation on Rh particle size was achieved for Rh/ACZ upon oxidative treatment at 750 and 850 °C (Supplementary Materials Figure S1 and Table S1), making the resulted catalysts unsuitable for such an investigation. Nevertheless, optimization studies focused only on this catalyst, involving preparation of a new series characterized by a wide variation in both Rh particle sizes and OSC values of the ACZ support (the latter to be achievable by changing its CeO2 content) are currently under work. Finally, the time-on-stream stability of Rh/γ-Al2O3, Rh/ACZ, and Rh/CZ catalysts was investigated in 6 h, in stability experiments, under constant feed and temperature conditions. Independently of the support used, the catalysts were very stable (Supplementary Materials Figure S3), confirming the well-known low sintering and coke formation propensity of Rh experienced in close to the present CH4, H2, and CO2 containing environments at elevated temperatures [53]. It is expected, however, that materials with the ability to provide Oδ− species onto metal particle surfaces (such as ACΖ and CZ) add further to catalyst robustness in two ways: oxidizing deposited carbon, and thus preventing carbon accumulation [53], and preventing particles sintering through the mechanism described in Reference [65]. Although, according to the sacrificial promoter concept [66], Oδ species on the Rh surface are themselves reactive and are rapidly consumed by the oxidizable reactants present (e.g., H2), they remain nevertheless effective because they are continuously replenished by labile O2− species provided by the support (Eqs. R3 and R5). At the relatively low temperatures (200–450 °C) advantageous for the CO2 methanation reaction, the lifetime of Oδ species is expected to be high enough, and, accordingly, their promotional and anti-sintering effects are significant.

3. Materials and Methods

3.1. Catalysts’ Preparation

3.1.1. Supporting Materials

A co-precipitation method [53] was followed for the preparation of ACZ (80 wt% Al2O3−20 wt% Ce0.5Zr0.5O2-δ) and CZ (Ce0.5Zr0.5O2-δ) supports in the form of powders, using the corresponding precursor salts: Al(NO3)3·9H2O, Zr(NO3)2·H2O, and Ce(NO3)3·6H2O, supplied by Alfa Aesar. The γ-Al2O3 support was obtained from Engelhard and was ground to powder (180–250 μm). All supports were calcined at 800 °C, for 1 h, before used for Rh nanoparticles deposition.

3.1.2. Supported Rh Catalysts

Rh nanoparticles were dispersed on the supports via the traditional wet impregnation method, using rhodium (III) nitrate solution (10% w/v Rh in 20–25 wt% HNO3) purchased from Acros Organics as the metal precursor, after its dilution in water, in order to produce a 2 mg Rh/mL concentrated solution of Rh(NO3)3. Appropriate amounts of each support were impregnated with this solution, under continuous stirring at 75 °C, until water evaporation to yield Rh-supported catalysts with 1.0 wt% Rh nominal loading. The resulted suspensions were dried at 110 °C for 12 h, calcined in air at 450 °C for 1 h (for the nitrate precursor decomposition), and then reduced at 400 °C under 50% H2/He flow for 2 h, followed by heating (20 °C/min) under 1% H2/He flow to 800 °C for 1 h, for the removal of any precursors’ residuals and structure stabilization. Portions from the as-prepared Rh/γ-Al2O3, Rh/ACZ, and Rh/CZ fresh catalysts were further thermally treated as described below for Rh particle size modification.

3.1.3. Modification of Rh Particle Size

Changes in mean Rh particle size (agglomeration or redispersion) were achieved by further treatment of the fresh Rh/γ-Al2O3 and Rh/CZ catalysts at high-temperature oxidative conditions via the methodology described in detail in Reference [65] (a concise summary of the method is given in the results and discussion section). Two treatment protocols were imposed. Protocol #1: heating in 10 NmL/min flow of 20% O2/He for 2 h at 750 °C, hereafter denoted as “treated at 750 °C” samples. Protocol #2: heating in 10 NmL/min flow of 20% O2/He for 2 h at 750 °C, followed by further heating in the same flow conditions for 2 additional hours, at 850 °C, hereafter denoted as “treated at 850 °C” samples. In this way, a set of seven Rh catalysts, supported on three different OSC supports and with different Rh particle sizes, was achieved that enabled us to a thoroughly investigate the combined effect of these two major material properties (OSC and catalyst particle size) on CO2 methanation. The resulted catalysts are listed in Table 1, using the code Rh(Xnm)/Support, where X denotes mean Rh particle size, and Support is γ-Al2O3, ACZ, or CZ. Catalyst particle-size modification by this method enables a more reliable investigation of the structure sensitivity of the CO2 methanation reaction in light of the advantage of constant metal loading in all the samples under comparison, thus avoiding possible complications created by changing the latter.

3.2. Characterization Methods

3.2.1. Materials Characterization

A thorough characterization of the materials (supports and catalysts) was performed by a variety of techniques and has been reported previously [53,65]. However, additional characterizations were also performed herein. Comprehensive details about the methodology followed are provided in the Supplementary Materials (Section S1); a concise summary follows. Total Rh contents were obtained by means of inductively coupled plasma–optical emission spectroscopy (ICP–OES) measurements. Textural, structural, and morphological characteristics of the synthesized catalysts were determined by Brunauer-Emmett-Teller and Barrett-Joyner-Halenda (BET–BJH) method from N2 adsorption–desorption isotherms at −196 °C, high-resolution transmission electron microscopy (HRTEM), and powder X-ray diffraction (PXRD). The total oxygen storage capacities (OSC) of the samples were determined by utilizing hydrogen temperature-programmed reduction (H2-TPR) measurements conducted on pre-oxidized samples. Rh particle sizes (dRh) of the catalysts were determined via HRTEM images and isothermal hydrogen chemisorption experiments; the results were found to be in close agreement. Arithmetic mean values ( d ¯ Rh) obtained by the two methods for each catalyst were adopted herein.

3.2.2. Catalytic Performance Evaluation

Catalysts evaluation for the CO2 methanation reaction (R1) was performed in a continuous flow experimental apparatus (Figure 10) consisting of a feed unit, the reactor, and an analysis unit utilizing on-line gas chromatography (SHIMADZU GC-2014, thermal conductivity detector (TCD), Ar carrier gas, equipped with a HayeSep D column), for the analysis of reactants and products. A feed composition of H2/CO2/Ar = 20%/5%/75% at 1 bar, which corresponds to the stoichiometric ratio (H2/CO2 = 4/1) of the reaction (R1), was synthesized in the feed unit of the apparatus, utilizing mass flow meters (MKS-247) connected to cylinders containing the necessary gases, i.e., CO2 (99.6 %), ultra-pure H2, and Ar, and fed to the reactor. The total feed flow rate was adjusted so as to maintain the effective mean contact time of the reactants with Rh active sites at the same value (τ(CO2) = 1.26 s; τ(H2) = 5.04 s). Since the various catalytic samples did not actually have an identical number of active sites per mass, the effective contact time is the key parameter that should be kept constant, in order to obtain rational comparison of their relative merits (at constant wGHSV, the comparison is not actually made on equal terms, due to the differences in the number of active sites that the reactants are exposed to). It is defined as the surface Rh atoms/(reactant molecules/s) [56,67] and estimated via Equation (1).
τ ( C O 2 ) = ( w c a t X R h / M R h ) D R h ( F i n [ C O 2 ] i n / V m o l 60 )
where wcat is the mass (g) of catalyst loaded in the reactor; XRh is the rhodium content of the catalyst (gRh/gcat); MRh is the molecular weight of rhodium (102.9 g/mol); Fin (N mL/min) and [CO2]in (v/v) are the total flow rate and CO2 concentration in the reactor inlet, respectively; Vmol is the molar volume of an ideal gas at room temperature and 1 atm pressure (24,450 N mL/mol); and DRh is the rhodium dispersion associated with the mean Rh particles sizes ( d ¯ Rh), estimated via Equation (2).
d ¯ R h = 6 M R h 10 23 D R h ρ R h a R h N A V
where d ¯ Rh is the mean Rh particle size (nm), ρ R h is the Rh metal density (12.4 g/N mL), a R h is the area occupied by a surface Rh atom (7.58 Å2/atom), NAV is the Avogadro number (6.023∙1023 molecules/mol), and 1023 is a unit conversion factor when the units of parameters in Equation (2) are used as indicated above.

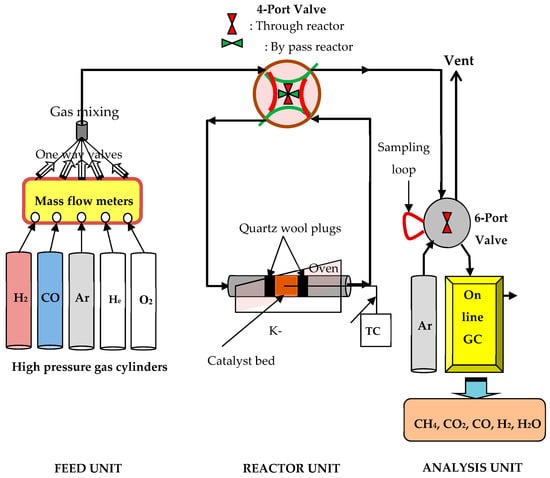

A 3 mm internal diameter tubular quartz, fixed bed, single-pass flow reactor was equipped in the apparatus (Figure 10) for the catalytic performance data acquisition, which was loaded, in all cases, with 50 mg of catalyst (grain size 180–250 μm), held between two quartz wool plugs; the catalyst temperature was measured by a centered K-type thermocouple (Figure 10).
In order to keep τ(CO2) at 1.26 s for all catalysts with different concentration of active sites per mass tested, the total feed flow rate (Fin) was accordingly varied between 20 and 100 NmL/min, corresponding to weight-basis gas hourly space velocity (wGHSV = Fin/wcat) variation into the interval 24,000 to 120,000 NmL/gcat h.
The following equations were used to calculate CO2 conversion (XCO2), CH4 and CO yields (YCH4, YCO), and corresponding selectivities (SCH4, SCO):
XCO2 (%) = 100·(Fin∙[CO2]in-Fout∙[CO2]out)/Fin ∙[CO2]in
YCH4 (%) = 100·Fout∙[CH4]out/Fin∙[CO2]in
YCO (%) = 100∙Fout∙[CO]out/Fin∙[CO2]in
SCH4 (%) = 100·[CH4]out/(Fin∙[CO2]in-Fout∙[CO2]out)
SCO (%) = 100·[CO]out/(Fin∙[CO2]in-Fout∙[CO2]out)
where Fin and Fout are the total flow rates in the inlet and outlet of the reactor (NmL/min), respectively; the symbols in brackets are the concentrations (v/v) of the corresponding reactants and products.
Based on the above definitions of the reaction output parameters, the following equation was used to check the carbon balance during kinetic experiments:
XCO2 = YCH4 + YCO
Equation (4) was found to close well with a deviation of less than 3% for the vast majority of kinetic experiments, indicating that CH4 and CO were the main CO2 hydrogenation products over the catalysts studied and under the experimental conditions employed.
Attention was paid to both integral (high conversions; light-off performance) and differential (low conversions; intrinsic activity) operation of the reactor, for a better analysis and understanding of the catalytic behavior. Turnover frequency calculations of CH4 formation, TOFCH4 (s−1), defined as molecules of CH4 produced per surface Rh atom per second (Equation (5)), were based on data obtained at low CO2 and H2 conversions (ca. 5–15%; differential operation):
r C H 4 = F o u t [ C H 4 ] o u t w c a t
where rCH4 (mol/gcat∙s) is the intrinsic rate of CO2 consumption obtained under differential reactor operation and calculated by using Equation (6):
T O F C H 4 ( s 1 ) = r C H 4 M R h D R h X R h
A combination of Equations (1), (3b), (5), and (6) finally provides the following:
T O F C H 4 ( s 1 ) = Y C H 4 ( % ) / 100 τ ( C O 2 )

4. Conclusions

A detailed investigation of the effect of the support, in regards to its oxygen storage capacity (OSC)/lability and catalyst particle size on important catalytic parameters (light-off characteristics, turnover activity, yield, and selectivity), relevant to CO2 hydrogenation reaction, on supported Rh nanoparticles, was conducted. This enabled an in-depth understanding of the combined effect of these important catalyst properties on the titled reaction output characteristics. Different oxide supports, namely γ-Al2O3, ACZ, and CZ, with marginal, intermediate, and high oxygen ion lability, were used, over which the same loading (but different in crystallite size) of Rh nanoparticles was dispersed.
The results unambiguously show that OSC of the support is a significant catalyst property that can effectively determine the CO2 methanation behavior of Rh. Specifically, supports with intermediate OSC values offer optimal CO2 methanation performance. The effective double layer model of metal–support interactions, i.e., the spontaneously created Oδ− layer on the surface of Rh particles via O2− backspillover from supports with high oxygen lability and its concomitant effect on Rh-CO bond strength, fits well with the observations. This effect also accounts for the final competition result between the methanation and reverse water–gas shift reactions during CO2 hydrogenation.
The structure sensitivity of the Rh-catalyzed CO2 methanation reaction is confirmed to be a combined result of OSC of the support and mean Rh particle size, capable of being inversed on the same metal, depending on the oxygen lability characteristic of the support: CO2 methanation efficiency is favored on smaller Rh particles when dispersed on support with lack of oxygen ion lability (Rh/γ-Al2O3 catalyst), in full contrast to Rh particles dispersed on support with high oxygen ion lability (Rh/CZ), where the reaction is strongly favored on larger Rh particles.
Some new insights and a sense of awareness can be offered by these findings, which appear highly promising for rational design of CO2 methanation catalysts; the simultaneous tailoring of support OSC and active phase particle size characteristics of the catalysts enables fine-tuning and optimization of their CO2 methanation efficiency and selectivity, gaining merits and benefits on a process aiming to control greenhouse gas and renewable fuel production.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/8/944/s1. Figure S1: HRTEM images of the fresh, treated at 750 °C and treated at 850 °C Rh/γ-Al2O3 (a, b, c), Rh/ACZ (d, e, f), and Ru/CZ (g, h, i) catalysts, respectively. Figure S2: Schematic representation of the effective-double layer account of chemical promotion and metal support interactions. Figure S3: First 6 h time-on-stream stability of fresh Rh/γ-Al2O3, Rh/ACZ and Rh/CZ catalysts at constant feed (5% CO2/20% H2/75% Ar at 1 bar) and temperature (T = 380 °C) conditions.

Author Contributions

G.B., G.G., A.R., E.N., N.C. and P.Z. contributed to investigation, materials synthesis, catalytic data acquisition, and analysis; I.V.Y. contributed to the conceptualization, methodology, supervision of studies, results interpretation, visualization, writing—original draft, coordination and project administration, resources, and funding acquisition; M.K., D.G., N.C., M.G. and S.P. contributed to results interpretation, discussion, co-supervision of studies, reviewing and editing, resources; I.Y. edited and submitted the manuscript in the final form; All authors have read and agreed to the published version of the manuscript

Funding

This research was co-funded by the European Union and Greek national funds through the Operational Program “Competitiveness, Entrepreneurship and Innovation”, under the call “RESEARCH-CREATE-INNOVATE” (project code: T1ΕΔΚ-00782).

Conflicts of Interest

The authors declare no conflict of interest.
