Article

Potential of Ceria-Zirconia-Based Materials in Carbon Soot Oxidation for Gasoline Particulate Filters

Dipartimento Politecnico di Ingegneria e Architettura, Università di Udine, Unità di Ricerca INSTM Udine, 33100 Udine, Italy
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(7), 768; https://doi.org/10.3390/catal10070768
Submission received: 22 June 2020 / Revised: 6 July 2020 / Accepted: 7 July 2020 / Published: 9 July 2020
(This article belongs to the Special Issue Catalytic Diesel and Gasoline Particulate Filters)

Abstract

:
ZrO2 and Ce0.8Zr0.2O2 mixed oxides were prepared and tested in the oxidation of carbon soot at different oxygen partial pressures and degrees of catalyst/soot contact to investigate their activity under typical gasoline direct injection (GDI) operating conditions. Under reductive atmospheres, generation of oxygen vacancies occurs in Ce0.8Zr0.2O2, while no reduction is observed on ZrO2. Both materials can oxidize carbon under high oxygen partial pressures; however, at low oxygen partial pressures, the presence of carbon can contribute to the reduction of the catalyst and formation of oxygen vacancies, which can then be used for soot oxidation, increasing the overall performance. This mechanism is more efficient in Ce0.8Zr0.2O2 than ZrO2, and depends heavily on the interaction and the degree of contact between soot and catalyst. Thus, the ability to form oxygen vacancies at lower temperatures is particularly helpful to oxidize soot at low oxygen partial pressures, and with higher CO2 selectivity under conditions typically found in GDI engine exhaust gases.

Graphical Abstract

1. Introduction

The gasoline engine market, based on direct injection (DI) technology is growing rapidly, especially in relation to their better efficiency and lower CO2 emissions [1]. In addition, for 2020 the European Union has imposed a limit on CO2 emissions for cars of 95 g/km; the GDI engines are able to increase fuel economy, and consequently reduce these emissions [2]. On the other hand, however, these engines produce a higher amount of soot than conventional gasoline engines. In particular, attention is focused not only on particulate emissions (PM), but also on the particulate number (PN), and consequently it is necessary to implement new emission control strategies [3]. As required for diesel engines, it is possible to introduce a particulate filter to reduce emissions of soot: the so-called gasoline particulate filter (GPF) [4,5,6]. However, due to the different operating conditions of a diesel engine and a GDI engine [3], it is not possible to simply transfer the technologies optimized and developed in the last twenty years for diesel particulate filters (DPF), but it is necessary to investigate in detail the mechanisms of soot accumulation and oxidation under typical GDI operating conditions [7]. Exactly as it happens for DPFs, the accumulation phase must necessarily be followed by a regeneration phase, in order to oxidize the accumulated soot and prevent an increased pressure drop [8]. Since particulate oxidizes at around 600 °C, in order to save fuel and to avoid filter damage, a catalyst impregnated on the filter, which lowers the combustion temperature, can be used. To ensure regeneration, however, issues arising from the different atmosphere of the exhaust gas of a GDI and a diesel engine must be taken into consideration [3]. In the diesel engine, in fact, regeneration is favored by the high oxygen content and by the presence of nitrogen oxides, NOx, which participate in the oxidation reaction. Consequently, the catalyst formulations developed for the DPFs cannot be directly transferred to the GDI engines, in which the oxygen content is low with a lower NOx content [9]. In addition, due to the low oxygen concentration, special attention should be paid to CO/CO2 selectivity in order to limit the formation of CO. Studies on catalytic GPF systems are still in the initial stages. If a search is made on WoS using gasoline particulate filter” and “catalyst” as keywords, there are ca. 50 articles in the last five years, while in the same timeframe the keywords diesel particulate filter” and “catalyst returns almost 260 items.
Since 2015, only few studies were focused on catalytic materials for GDI, and specifically the family of perovskites and ceria-based oxide formulations have been primarily investigated. La/Sr-based [10,11] and Cu-doped BaFeO3 perovskites [12] are suitable to oxidize soot at low oxygen partial pressures, thanks to their redox properties and oxygen surface vacancies, by transporting bulk oxygen to the catalyst–soot contact points. Surface lattice oxygen and oxygen adsorbed on vacancies are key factors in soot oxidation under GPF conditions over α-Mn2O3, with more than 99% CO2 selectivity [13]. Ceria-based catalysts have been extensively studied in DPF systems [14,15,16,17,18,19,20], and could also be promising for GPF thanks to their oxygen storage capacity (OSC) properties. Cerium oxide has the ability to rapidly modify its oxidation state from Ce4+ to Ce3+, releasing oxygen and maintaining structural integrity under a reducing atmosphere, while when the atmosphere is lean, oxygen uptake and the reoxidation of Ce3+ to Ce4+ is observed [21,22,23]. The unique redox behavior of ceria is the key of the success of ceria-based materials in catalysis, and more specifically it contributes to the mechanism of soot oxidation by promoting the formation of oxygen vacancies at the interface between ceria and carbon, which is the key point to obtain active surface oxygen species [24,25,26]. Silver on ceria has been extensively investigated as a catalyst for diesel soot oxidation [27,28,29,30], and recently, several studies have been related to its application under conditions typical of gasoline engines. Weng et al. [9,31,32,33] found that Ag/Ce is a promising material for soot oxidation, due to the bulk-to-surface oxygen migration. They also developed core-shell Ag/MxOy@CeO2 materials (with M = Fe or Co) with a tandem oxygen delivery route (MxOy→CeO2→Ag), resulting in an efficient transfer of bulk oxygen to soot [33,34]. Ceria has also been found to deliver active oxygen to the surface and to silver nanoparticles in Ag-CeO2 materials, and also act as an oxygen collector, improving soot oxidation under low oxygen concentration [35]. A few studies on unsupported Ce-based oxides for soot oxidation in GPF conditions are also reported, and are mainly focused on the relations between activity and OSC and redox behavior [36,37,38,39]. Overall, it seems that OSC properties of ceria and its high oxygen mobility could help in promoting the release of oxygen, and provide an additional mechanism route to oxidize carbon particles when oxygen content is low. However, direct comparison of results in the literature is quite difficult, due to the many parameters that are taken into consideration, and which influence activity, such as the effect of type of soot and kind of soot/catalyst contact, the soot/catalyst ratio and the oxygen concentration. Here we have investigated the soot combustion reaction over Ce0.8Zr0.2O2 and ZrO2 (as an example of reducible and non-reducible materials, respectively), with a specific focus on the influence of the atmosphere of reaction (from inert gas to air) and of the type of carbon/catalyst interaction by varying the way soot and catalyst were put into contact. For this reason, three different contact conditions were employed with varying degrees of carbon/catalyst interactions, which were previously characterized at a nanoscale level [40,41]. This allowed us to monitor the oxidation ability of modified ceria at low oxygen pressure, as a function of the degree of interaction between carbon soot and surface ceria oxygens, and verify that this formulation could represent a good starting point for the development of catalysts for GPF systems.

2. Results and Discussion

2.1. Textural, Structural and Redox Characterization of Soot/Catalyst Mixtures

Two types of mixing conditions have been employed to put into contact carbon soot and catalysts to simulate different degrees of interactions. For loose contact, soot and catalyst have been mixed in a vial for two minutes, which is representative of the weak degree of interaction that is found in real systems. Tight contact has been obtained by grinding the mixture in an agate mortar for ten minutes. This is less representative of real conditions, but results are generally more reproducible, and a much stronger interaction is observed [42]. A third type of mixing has only been employed in the case of ceria–zirconia, and it is realized by milling powders for 8 h in a high-energy mill to obtained a supertight contact [40]. This is not representative of the real application, but it is a good reference for a high degree of redox interaction that can be obtained between carbon and catalyst, and is useful in the understanding of the mechanism of reaction and on the intrinsic activity of reducible materials. This contact is characterized by a different morphology, where a layer of soot forms a thin shell covering ceria–zirconia crystallite cores promoting interactions at a nanoscale at the ceria–zirconia/carbon interface [40,41]. The different contact modes are represented in Scheme 1.
The composition and BET surface area of investigated materials are reported in Table 1. Ceria-zirconia and zirconia show a surface area in the range of 60–80 m2/g. When soot is mixed with the catalyst in a loose and tight contact mode, the surface area is not affected, while the surface area of ceria-zirconia decreases by effect of milling from 79 to 29 m2/g. This is typically observed upon the milling of high surface area powders, and is probably due to the adhesion of fine crystallites on the surface of larger particles [40,43].
X-ray diffraction (XRD) profiles are shown in Figure 1A,B. ZrO2 shows the simultaneous presence of tetragonal (space group P42/nmc; main reflection at 30.2°) and monoclinic ZrO2 (space group P121/c1; main reflection at 28.2°) and milling with soot does not modify the XRD profile. Ceria–zirconia (CZ) catalysts (Figure 1B) exhibit reflections characteristic of a pure fluorite phase. The soot/CZ mixture in loose and tight contact do not evidence any difference with parent CZ. The XRD profiles do not show significant modification of the ceria–zirconia structure, and all samples are indexed in a fluorite cubic cell. The CZST sample shows a sharpening of XRD signals due to an increase of the particle size. In addition, a small signal appears at ca. 30.5 degrees, due to the main reflection of the (011) plane of ZrO2, originating from abrasion during milling. Rietveld analysis also reveals a small decrease of the lattice cell parameter due to insertion of ZrO2 into CZ, with a slight change in stoichiometry of solid solution that goes from Ce0.8Zr0.2O2 to Ce0.78Zr0.22O2 in agreement with previous observations [40]. No signals of reaction between the oxide and carbon are revealed by XRD.
In order to characterize the reduction behavior of the materials and understand the role of carbon in the removal of lattice oxygen, we have further investigated the redox and oxygen storage properties of pure catalyst and catalyst soot mixtures under different contact conditions by H2-TPR and OSC measurements; the results are summarized in Figure 2 and Figure 3, respectively. For zirconia, a temperature-programmed reduction (TPR) feature of a typical non-reducible support was found, while CZ shows one broad hydrogen uptake peak centered at around 558 °C, due to the reduction of surface and bulk Ce4+ cations [44]. In carbon-containing samples, the H2 consumption peak shifts to progressively lower temperatures as the contact become more intimate. The reduction peak for bare CZ centered at 558 °C progressively shifts to 530, 506 and 420 °C, respectively for loose, tight and supertight contact, with an overall reduction degree, similar for all the investigated samples, of 45%. No evidence for reduction is found in Zr samples. In bare CZ, the reduction peak is correlated to consumption of H2 with the formation of H2O. With CZ/soot mixtures, the outlet gas composition has been followed by MS/FTIR, indicating the production of H2O (see inset of Figure 2A), with no formation of CH4, thus excluding the reduction of carbon by hydrogen. Figure 2C,D show CO formation profiles in TPR, as followed by Fourier-transform infrared spectroscopy (FTIR). Pure CZ shows the development of a very low amount of CO at around 600 °C, likely related to the desorption of residual carbonate species adsorbed on the surface. When soot/catalyst mixtures are investigated, the amount of CO formed during the reaction increases by increasing the contact with soot. No evidence for CO formation is observed in Zr samples, regardless of the contact conditions. Overall, these results indicate that deposited carbon promotes the reduction of ceria–zirconia as a function of the degree of interaction with the surface; the more robust the carbon/ceria contact, the lower the reduction temperature. This is particularly evident in CZST, where the morphology of carbon distributed as a thin envelope on the surface of the catalyst acts as a booster for the reduction reaction, with a reduction profile centered 140 °C lower than bare CZ. One possible mechanism is that carbon at the interface forms C–O* adsorbed species that act as a driving force for the reduction of the material. This adsorbed oxygen then reacts more easily with hydrogen, forming H2O. In other words, carbon, when finely dispersed over ceria-zirconia, can act as a catalyst for ceria-zirconia reduction reaction. Traces of CO are also formed by direct oxidation of carbon with lattice oxygen; again, these are more evident in CZST, where the carbon is finely dispersed over ceria-zirconia.
Similar results are confirmed by oxygen storage capacity analysis carried out on pure zirconia and ceria–zirconia, and on soot-catalyst mixtures at different temperatures, as seen in Figure 3. The data were collected according to the method described in the experimental part; zirconia, as expected, does not show any measurable oxygen storage capacity, while OSC of ceria–zirconia increases from 1796 µg O2/g at 300 °C, to 2922 and 8762 µg O2/g, respectively, at 400 °C and 500 °C. For bare CZ and CZL, removal of oxygen is similar in the temperature range investigated, while for tight and supertight contact, a higher OSC has been found, confirming the enhanced “reducibility” of the material in the presence of soot.
Carbon particles can act as an “activator” of the oxygen, moving it towards the surface and making it more available for the hydrogen present in the gas phase, as depicted in Scheme 2. The higher the contact between carbon and the catalyst, the higher the amount of oxygen that can be transferred at a lower temperature.

2.2. Catalytic Activity

The catalytic activity has been investigated by means of thermogravimetric experiments and temperature programmed oxidation under different oxygen concentration, with the objective to understand whether a reducible CZ and a non-reducible Zr material can be used under oxygen conditions, simulating those of gasoline exhaust gases, in which the amount of oxygen is typically low. Representative weight loss profiles obtained for bare soot and CZ in loose contact under different atmospheres (air, 1% O2/N2 and N2) are shown in Figure 4.
The non-catalytic reaction (Figure 4A) is strongly dependent on the amount of oxygen in the gas phase. Under inert atmosphere a negligible weight loss is observed, while in the presence of O2 a complete oxidation is reached with a T50 of 705 °C (1O2/N2) and 630 °C (air). When soot is mixed with CZ in loose contact mode (Figure 4B), a remarkable increase in the activity is achieved independently of the O2 concentration. The oxidation of carbon in CZL in the absence of oxygen is not quantitative, and is associated with the oxidation of the soot by the surface/bulk oxygens of ceria–zirconia. The weight loss (2.7%) is due to the formation of CO/CO2 evolving from the system, and it also accounts for the lattice oxygen of CZ used for oxidation during the reaction. Weight loss in 1% O2/N2 and in air shows very similar profiles, but when a lower amount of oxygen is used, a shift of the oxidation curve profile to higher temperature is observed; in particular, T50 shifts from 515 °C for reaction under air to 545 °C for reaction in 1% O2/N2.
Figure 5 shows the T50 for all the investigated catalysts as a function of the reaction atmosphere. Under an inert atmosphere, weight loss is negligible in bare soot and in zirconia/soot mixtures regardless of the contact type; this is consistent with the lack of lattice oxygen available for promotion of redox reaction in zirconia and the lack of volatile matter in soot composition, which can be released during thermal treatment. No oxidation is therefore observed in these samples under an inert atmosphere. With the introduction of ceria in CZ, a higher activity can be observed already under inert atmosphere, with a T50 for the loose contact of 775 °C, which progressively decreases to 546 and 420 °C for tight and supertight contact, respectively. This is consistent with the fact that ceria–zirconia-based systems can use the surface/bulk oxygen to oxidize soot even in the absence of oxygen in the gas phase, through the oxidation of carbon at the carbon/CZ interface with the formation of an oxygen vacancy [24,45]. The oxidation reaction proceeds to consume available oxygen, and the activity is closely related to the amount of reducible oxygen/OSC, and is progressively inhibited due to the lack of reoxidation of the material when the inert gas phase is used [46,47]. The introduction of oxygen facilitates oxidation in all formulations. If we focus on CZ, we can observe that the catalytic activity in 1% O2/N2 slightly differs from that in air (ΔT50 close to 25/35 °C), while for Zr materials the T50 in 1% O2/N2 is 70/80 °C, which is higher compared to oxidation in air. In the case of zirconia, the change of oxygen concentration heavily affects T50, as carbon reacts directly with O from the gas phase, while in CZ materials the dependence on the amount of oxygen in the gas phase is less significant, and mediated by the available oxygen from the CZ surface. Therefore, even when the oxygen concentration is very low, ceria-based materials are able to release their surface/bulk oxygen to oxidize the soot with formation of vacancies that are refilled through oxygen of the gas phase, promoting oxidation. It is therefore the oxygen from ceria that sustains the catalytic activity through a mechanism that exploits both the available surface oxygen and the bulk oxygen [47].
The catalytic activity for the combustion of soot was also determined from peak-top temperature (Tm) during temperature programmed oxidation (TPO) of catalyst/soot mixtures under 10% O2/N2 or 1% O2/N2, mainly to verify gas composition after combustion and evaluate the selectivity to CO2. Figure 6 compares CO and CO2 profiles of all samples.
The results are in agreement with those obtained from TGA, with ceria–zirconia displaying a lower oxidation temperature than zirconia for any contact conditions, and regardless of oxygen content. Selectivity to CO2 is always higher than 97%@1% O2, compared to a value of 60–80% obtained with Zr. The data are summarized in Table 2; it can be observed that selectivity to CO2 in ZrL at 1% oxygen is comparable to selectivity in bare soot. Selectivity in ceria–zirconia systems is only negligibly affected by the different oxygen concentration and contact conditions, while in bare soot and Zr-based samples, the CO/CO2 ratio is strongly influenced by atmosphere and carbon catalyst contact. In particular, zirconia at low oxygen concentration in loose conditions has negligible catalytic activity and selectivity (Tm = 680 °C, Sel = 63%), which is increased under tight conditions, as well as 10% oxygen, to reach 97% with a Tm of 535 °C.
The specific reaction rate for soot oxidation was also calculated to evaluate in more detail the ability of ceria-based materials to help the transfer of lattice oxygen to carbon in oxygen-poor atmospheres. The values at different temperatures are reported in Figure 7. While no oxidation is observed in uncatalyzed reaction at 500 °C (S@500 in Figure 7), for zirconia, both in tight and loose contact, in the 400–500 °C temperature range, the specific reaction rate is quite low, and does not exceed 300 µgsoot/gsoot*s*m2. For CZ, higher reaction rate values are observed regardless of the contact type, and the rates increase as the contact become more intimate (CZST > CZT > CZL).
In an oxygen-poor atmosphere, ceria–zirconia has a specific reaction rate from four (CZL) to seven (CZT) times higher than the corresponding zirconia-based systems, confirming the importance of the redox behavior for oxidation under low oxygen pressure.
We have previously reported that soot oxidation over ceria-based catalysts is driven by two different coexisting phenomena, one influenced by the amount of surface active oxygens that predominates in oxygen rich atmosphere, and another related to the OSC (bulk oxygen) of the material that prevails when gas-phase oxygen is absent [47]. In particular, (i) oxygen withdrawn from ceria–zirconia oxidizes carbon at the soot catalyst interface; and (ii) the resulting vacancy or other surface defects can be the center for the activation of gas phase oxygen and the formation of active oxygen species that contributes to oxidize soot on a parallel route. In the absence of gas phase oxygen, route (i) is the only available way to oxidize carbon, while in the presence of oxygen, the two mechanisms may coexist in proportions that depend on oxygen partial pressure and the degree of carbon catalyst contact. The concurrence of the two mechanisms could therefore be important in GPF applications, where the oxygen concentration is lower than in DPF.
Overall, the results obtained in this study highlight the characteristics of materials for use in the catalytic oxidation of particulate matter under oxygen-poor conditions such as those found in GDI engines. It is shown that the activation and transfer of lattice/surface oxygen are fundamental in order to develop catalytic materials suitable for GPF. Ceria–zirconia compositions overtake ZrO2 in both activity and selectivity under these conditions; several known strategies could then be accomplished to increase the transfer of oxygen in these materials, like the engineering of the shape and size of ceria particles (nanocubes, nanorods, etc.) or tailoring the composition of the materials, by lattice/surface doping with rare earth, noble or transition metals elements.

3. Materials and Methods

3.1. Catalyst Preparation

The ceria–zirconia (Ce0.8Zr0.2O2, CZ80) sample was prepared by the co-precipitation of an acidic solution of cerium and zirconium nitrate (Treibacher Industrie AG, Althofen, Austria) with NH4OH in the presence of H2O2. The precipitate was dried overnight at 100 °C, and calcined in air at 500 °C for 3 h. Zirconia was synthesized by the calcination of zirconium hydroxides (Mel Chemicals, Manchester, UK) at 500 °C for 3 h. Conventional catalyst/soot mixtures were obtained in loose (L) and tight (T) contact modes by mixing the appropriate amount of catalyst (CZ80 or ZrO2) with soot (Printex U by Degussa, Esse, Germany, surface area of 100 m2/g), respectively, in a vial for 2 min or in an agate mortar for 10 min. The catalyst/soot weight ratio of 20:1 was adopted in this study. For CZ80, improved contact (supertight, ST) was achieved in a high-energy Spex mill equipped with a zirconia jar and balls [40]. A reference sample, to obtain the non-catalytic combustion profile, was prepared diluting soot with powder quartz (Carlo Erba Reagents S.r.l., Milan, Italy) in a weight ratio of 1:20.

3.2. Catalyst Characterization

Surface area of the materials has been measured by means of a Tristar 3000 gas adsorption analyzer (Micromeritics, Norcross, GA, USA), according to the B.E.T. method by nitrogen adsorption at 77 K. Structural features of the catalysts were investigated by XRD. Diffractograms were recorded on a Philips X’Pert diffractometer (Ni-filtered Cu-Kα radiation) in the range 20°–145° using a step size of 0.02° and a counting time of 40 s per angular abscissa (PANalytical B.V., Almelo, the Netherlands). Phase identification has been performed by means of Philips X’Pert HighScore software (Version 1.0b, PANalytical B.V., Almelo, the Netherlands).
In TPR experiments, the catalysts (50 mg) were heated at a constant rate (10 °C/min) in a U-shaped quartz reactor from room temperature to 900 °C under a flowing hydrogen/nitrogen mixture (35 mL/min, 4.5% H2 in N2). The hydrogen consumption was monitored using a thermal conductivity detector (TCD). For ZrO2 and Ce0.8Zr0.2O2, pretreatment under air at 500 °C for 1 h was carried out. The outlet gas composition was also followed by an online quadrupole mass-spectrometer (Omnistar, Balzers Instruments, Balzers, Liechtenstein). In addition, H2-TPR experiments under 1.8% H2 in N2 (total flow 500 mL/min) in a tubular quartz reactor followed by FTIR gas analyzers (MultiGas 2030, MKS Instrumentrs, Inc., Andover, MA, USA) have been performed.
The OSC of samples was investigated by carrying out TGA experiments (Q500, TA Instruments, New Castle, DE) in 4.5% H2 in N2 mixture flow (100 mL/min). Each sample was treated in N2 atmosphere for 1 h at 150 °C, followed by heating at a constant rate (10 °C/min) up to a fixed temperature (300, 400 and 500 °C), and finally the N2/H2 mixture was introduced while keeping that temperature for 60 min. The observed weight loss is due to oxygen removal by H2 to form water, and it can be associated with total oxygen storage capacity at that temperature.

3.3. Catalytic Activity

The soot oxidation activity was measured by running thermogravimetric analysis from r.t. to 800 °C (heating rate 10 °C/min) under a different atmosphere (N2, 1% O2/N2 and air) [48,49]. Before the catalytic tests, the samples (soot + catalyst, ca. 20 mg) were subjected to a 1 h pre-treatment at 150 °C under inert atmosphere (60 mL/min), in order to eliminate the adsorbed water. The activity was measured by means of T50, the temperature at which 50% of the weight loss is observed. Catalytic activity measurements have also been carried out by TPO experiments heating at a constant rate (10 °C/min) 20 mg of sample under O2 gas flow (1% or 10% O2(v/v) balance N2; total flow 0.5 L/min). The catalyst temperature was measured by a chromel–alumel thermocouple, located on the catalyst bed. The outlet gas composition (i.e., CO, and CO2) was measured by FTIR gas analyzers (MultiGas 2030, MKS Instrumentrs, Inc., Andover, MA, USA). As a matter of fact, reproducibility of results was verified by running several TGA/TPO experiments on similar samples, and the results, in terms of T50/Tp, were always within ± 3 °C.
Reaction rate measurements were performed by TGA isothermal experiments after pretreatment of ca. 20 mg of a catalyst–soot mixture under nitrogen atmosphere for 1 h at 150 °C. Then the temperature has been increased at a constant rate (10 °C/min) up to the reaction temperature (300, 400 or 500 °C), followed by switching to air. The reaction was followed for 1 h. A specific reaction rate has been determined, according to Van Setten et al. [50], and normalized to the soot initially present in the reactor and to the catalyst surface area (µgsoot/(gsootinitial·s·m2) [51]. The reaction rate was calculated at 3% of conversion. A reaction rate in an inert atmosphere has also been performed.

4. Conclusions

Ceria-based materials has been widely studied as a catalyst in diesel particulate filters, but their role and applicability in gasoline particulate filters, under oxygen-poor conditions, is still at the initial stage, and this preliminary work investigates their potential in soot oxidation at low oxygen partial pressure. The comparison of the behavior of ceria–zirconia and zirconia in soot oxidation shows that the former is less influenced by the variation of the oxygen atmosphere, and is capable of carbon oxidation at a lower temperature with almost full selectivity to CO2; in contrast, activity in ZrO2 is highly influenced by the oxygen atmosphere, and lower CO2 selectivities are obtained. Lattice and surface oxygen in ceria–zirconia can help with oxidation at low oxygen partial pressure. The mechanism works through the interface between carbon and catalysts, and is therefore highly dependent on the way carbon and catalysts are put into contact. The presence of soot over ceria–zirconia particles acts as a driving force for the reduction of the material enhancing the oxygen removal rate, and its use in oxidation reaction in the substitution of gas phase oxygen.

Author Contributions

E.A.: conceptualization, data curation, investigation, methodology, writing—original draft, writing—review & editing; A.T.: supervision, writing-review & editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded in part by Interreg V Italy-Austria project COAT4CATA project number ITAT1019.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Spiess, S.; Wong, K.-F.; Richter, J.-M.; Klingmann, R. Investigations of Emission Control Systems for Gasoline Direct Injection Engines with a Focus on Removal of Particulate Emissions. Top Catal. 2013, 56, 434–439. [Google Scholar] [CrossRef]
  2. Union, E. Regulation (EU) No 333/2014 of the European Parliament and of the Council of 11 March 2014 amending Regulation (EC) N° 443/2009 to define the modalities for reaching the 2020 target to reduce CO2 emissions from new passenger cars. Off. J. Eur. Union 2014, 103, 15–21. [Google Scholar]
  3. Guan, B.; Zhan, R.; Lin, H.; Huang, Z. Review of the state-of-the-art of exhaust particulate filter technology in internal combustion engines. J. Environ. Manag. 2015, 154, 225–258. [Google Scholar] [CrossRef]
  4. Nicolin, P.; Rose, D.; Kunath, F.; Boger, T. Modeling of the Soot Oxidation in Gasoline Particulate Filters. SAE Int. J. Engines 2015, 8, 1253–1260. [Google Scholar] [CrossRef]
  5. Lambert, C.; Chanko, T.; Dobson, D.; Liu, X.; Pakko, J. Gasoline Particle Filter Development. Emiss. Control Sci. Technol. 2017, 3, 105–111. [Google Scholar] [CrossRef] [Green Version]
  6. Johnson, T.; Joshi, A. Review of Vehicle Engine Efficiency and Emissions. SAE Int. J. Engines 2018, 11, 1307–1330. [Google Scholar] [CrossRef]
  7. Bogarra, M.; Herreros, J.M.; Tsolakis, A.; Rodriguez-Fernandez, J.; York, A.P.E.; Millington, P.J. Gasoline direct injection engine soot oxidation: Fundamentals and determination of kinetic parameters. Combust. Flame 2018, 190, 177–187. [Google Scholar] [CrossRef]
  8. Lopez-Gonzalez, D.; Tsampas, M.N.; Boreave, A.; Retailleau-Mevel, L.; Klotz, M.; Tardivat, C.; Cartoixa, B.; Pajot, K.; Vernoux, P. Mixed Ionic-Electronic Conducting Catalysts for Catalysed Gasoline Particulate Filters. Top Catal. 2015, 58, 1242–1255. [Google Scholar] [CrossRef]
  9. Liu, S.; Wu, X.D.; Liu, W.; Chen, W.M.; Ran, R.; Li, M.; Weng, D. Soot oxidation over CeO2 and Ag/CeO2: Factors determining the catalyst activity and stability during reaction. J. Catal. 2016, 337, 188–198. [Google Scholar] [CrossRef]
  10. Hernandez, W.Y.; Tsampas, M.N.; Zhao, C.; Boreave, A.; Bosselet, F.; Vernoux, P. La/Sr-based perovskites as soot oxidation catalysts for Gasoline Particulate Filters. Catal. Today 2015, 258, 525–534. [Google Scholar] [CrossRef]
  11. Hernandez, W.Y.; Lopez-Gonzalez, D.; Ntais, S.; Zhao, C.; Boreave, A.; Vernoux, P. Silver-modified manganite and ferrite perovskites for catalyzed gasoline particulate filters. Appl. Catal. B Environ. 2018, 226, 202–212. [Google Scholar] [CrossRef]
  12. Moreno-Marcos, C.; Torregrosa-Rivero, V.; Albaladejo-Fuentes, V.; Sanchez-Adsuar, M.S.; Illan-Gomez, M.J. BaFe1-xCuxO3 Perovskites as Soot Oxidation Catalysts for Gasoline Particulate Filters (GPF): A Preliminary Study. Top Catal. 2019, 62, 413–418. [Google Scholar] [CrossRef] [Green Version]
  13. Yang, W.N.; Wang, S.M.; Li, K.Z.; Liu, S.; Gan, L.N.; Peng, Y.; Li, J.H. Highly selective α−Mn2O3 catalyst for cGPF soot oxidation: Surface activated oxygen enhancement via selective dissolution. Chem. Eng. J. 2019, 364, 448–451. [Google Scholar] [CrossRef]
  14. Fino, D.; Bensaid, S.; Piumetti, M.; Russo, N. A review on the catalytic combustion of soot in Diesel particulate filters for automotive applications: From powder catalysts to structured reactors. Appl. Catal. A Gen. 2016, 509, 75–96. [Google Scholar] [CrossRef]
  15. Liu, S.; Wu, X.D.; Weng, D.; Ran, R. Ceria-based catalysts for soot oxidation: A review. J. Rare Earth 2015, 33, 567–590. [Google Scholar] [CrossRef]
  16. Hernandez-Gimenez, A.M.; Castello, D.L.; Bueno-Lopez, A. Diesel soot combustion catalysts: Review of active phases. Chem. Pap. 2014, 68, 1154–1168. [Google Scholar] [CrossRef] [Green Version]
  17. Aneggi, E.; de Leitenburg, C.; Trovarelli, A. Ceria-based formulations for catalysts for diesel soot combustion. In Catalysis by Ceria and Related Materials, 2nd ed.; Alessandro, T., Paolo, F., Eds.; Imperial College Press: London, UK, 2013; pp. 565–621. [Google Scholar]
  18. di Sarli, V.; Landi, G.; Lisi, L.; di Benedetto, A. Ceria-Coated Diesel Particulate Filters for Continuous Regeneration. Aiche J. 2017, 63, 3442–3449. [Google Scholar] [CrossRef]
  19. di Sarli, V.; Landi, G.; Lisi, L.; Saliva, A.; di Benedetto, A. Catalytic diesel particulate filters with highly dispersed ceria: Effect of the soot-catalyst contact on the regeneration performance. Appl. Catal. B Environ. 2016, 197, 116–124. [Google Scholar] [CrossRef]
  20. Bueno-Lopez, A. Diesel soot combustion ceria catalysts. Appl. Catal. B Environ. 2014, 146, 1–11. [Google Scholar] [CrossRef] [Green Version]
  21. Montini, T.; Melchionna, M.; Monai, M.; Fornasiero, P. Fundamentals and Catalytic Applications of CeO2-Based Materials. Chem. Rev. 2016, 116, 5987–6041. [Google Scholar] [CrossRef]
  22. Devaiah, D.; Reddy, L.H.; Park, S.E.; Reddy, B.M. Ceria-zirconia mixed oxides: Synthetic methods and applications. Catal. Rev. 2018, 60, 177–277. [Google Scholar] [CrossRef]
  23. Trovarelli, A. Catalytic properties of ceria and CeO2-containing materials. Catal. Rev. 1996, 38, 439–520. [Google Scholar] [CrossRef]
  24. Soler, L.; Casanovas, A.; Escudero, C.; Perez-Dieste, V.; Aneggi, E.; Trovarelli, A.; Llorca, J. Ambient Pressure Photoemission Spectroscopy Reveals the Mechanism of Carbon Soot Oxidation in Ceria-Based Catalysts. Chemcatchem 2016, 8, 2748–2751. [Google Scholar] [CrossRef] [Green Version]
  25. Bueno-Lopez, A.; Krishna, K.; Makkee, M.; Moulijn, J. Active oxygen from CeO2 and its role in catalysed soot oxidation. Catal. Lett. 2005, 99, 203–205. [Google Scholar] [CrossRef]
  26. Machida, M.; Murata, Y.; Kishikawa, K.; Zhang, D.J.; Ikeue, K. On the reasons for high activity of CeO2 catalyst for soot oxidation. Chem. Mater. 2008, 20, 4489–4494. [Google Scholar] [CrossRef]
  27. Aneggi, E.; Llorca, J.; de Leitenburg, C.; Dolcetti, G.; Trovarelli, A. Soot combustion over silver-supported catalysts. Appl. Catal. B Environ. 2009, 91, 489–498. [Google Scholar] [CrossRef]
  28. Shimizu, K.; Kawachi, H.; Satsuma, A. Study of active sites and mechanism for soot oxidation by silver-loaded ceria catalyst. Appl. Catal. B Environ. 2010, 96, 169–175. [Google Scholar] [CrossRef]
  29. Yamazaki, K.; Kayama, T.; Dong, F.; Shinjoh, H. A mechanistic study on soot oxidation over CeO2-Ag catalyst with ’rice-ball’ morphology. J. Catal. 2011, 282, 289–298. [Google Scholar] [CrossRef]
  30. Castoldi, L.; Aneggi, E.; Matarrese, R.; Bonzi, R.; Llorca, J.; Trovarelli, A.; Lietti, L. Silver-based catalytic materials for the simultaneous removal of soot and NOx. Catal. Today 2015, 258, 405–415. [Google Scholar] [CrossRef] [Green Version]
  31. Gao, Y.X.; Duan, A.Q.; Liu, S.; Wu, X.D.; Liu, W.; Li, M.; Chen, S.G.; Wang, X.; Weng, D. Study of Ag/CexNd1-xO2 nanocubes as soot oxidation catalysts for gasoline particulate filters: Balancing catalyst activity and stability by Nd doping. Appl. Catal. B Environ. 2017, 203, 116–126. [Google Scholar] [CrossRef]
  32. Wang, H.L.; Liu, S.; Zhao, Z.; Zou, X.; Liu, M.H.; Liu, W.; Wu, X.D.; Weng, D. Activation and deactivation of Ag/CeO2 during soot oxidation: Influences of interfacial ceria reduction. Catal. Sci. Technol. 2017, 7, 2129–2139. [Google Scholar] [CrossRef]
  33. Wang, H.L.; Luo, S.T.; Li, X.H.; Liu, W.; Wu, X.D.; Weng, D.; Liu, S. Thermally stable Ag/Al2O3 confined catalysts with high diffusion-induced oxidation activity. Catal. Today 2019, 332, 189–194. [Google Scholar] [CrossRef]
  34. Wang, H.; Jin, B.; Wang, H.; Ma, N.; Liu, W.; Weng, D.; Wu, X.; Liu, S. Study of Ag promoted Fe2O3@CeO2 as superior soot oxidation catalysts: The role of Fe2O3 crystal plane and tandem oxygen delivery. Appl. Catal. B Environ. 2018, 237, 251–262. [Google Scholar] [CrossRef]
  35. Wu, S.J.; Yang, Y.; Lu, C.X.; Ma, Y.Y.; Yuan, S.X.; Qian, G.R. Soot Oxidation over CeO2 or Ag/CeO2: Influences of Bulk Oxygen Vacancies and Surface Oxygen Vacancies on Activity and Stability of the Catalyst. Eur. J. Inorg. Chem. 2018, 25, 2944–2951. [Google Scholar] [CrossRef]
  36. Wang, R.; Lan, L.; Gong, M.C.; Chen, Y.Q. Catalytic Combustion of Gasoline Particulate Soot over CeO2-ZrO2 Catalysts. Acta Phys.Chim. Sin. 2016, 32, 1747–1757. [Google Scholar] [CrossRef]
  37. Liu, S.; Wu, X.D.; Tang, J.; Cui, P.Y.; Jiang, X.Q.; Chang, C.G.; Liu, W.; Gao, Y.X.; Li, M.; Weng, D. An exploration of soot oxidation over CeO2-ZrO2 nanocubes: Do more surface oxygen vacancies benefit the reaction? Catal. Today 2017, 281, 454–459. [Google Scholar] [CrossRef]
  38. Martinez-Munuera, J.C.; Zoccoli, M.; Gimenez-Manogil, J.; Garcia-Garcia, A. Lattice oxygen activity in ceria-praseodymia mixed oxides for soot oxidation in catalysed Gasoline Particle Filters. Appl. Catal. B Environ. 2019, 245, 706–720. [Google Scholar] [CrossRef] [Green Version]
  39. Park, C.S.; Lee, M.W.; Lee, J.H.; Jeong, E.J.; Lee, S.H.; Choung, J.W.; Kim, C.H.; Ham, H.C.; Lee, K.Y. Promoting effect of H2O over macroporous Ce-Zr catalysts in soot oxidation. Mol. Catal. 2019, 474, 110416. [Google Scholar] [CrossRef]
  40. Aneggi, E.; Rico-Perez, V.; de Leitenburg, C.; Maschio, S.; Soler, L.; Llorca, J.; Trovarelli, A. Ceria-Zirconia Particles Wrapped in a 2D Carbon Envelope: Improved Low-Temperature Oxygen Transfer and Oxidation Activity. Angew Chem. Int. Edit. 2015, 54, 14040–14043. [Google Scholar] [CrossRef] [Green Version]
  41. Aneggi, E.; Llorca, J.; Trovarelli, A.; Aouine, M.; Vernoux, P. In situ environmental HRTEM discloses low temperature carbon soot oxidation by ceria-zirconia at the nanoscale. Chem. Commun. 2019, 55, 3876–3878. [Google Scholar] [CrossRef]
  42. Neeft, J.P.A.; Makkee, M.; Moulijn, J.A. Metal oxides as catalysts for the oxidation of soot. Chemical. Eng. J. 1996, 64, 295–302. [Google Scholar] [CrossRef]
  43. Balaz, P.; Achimovicova, M.; Balaz, M.; Billik, P.; Cherkezova-Zheleva, Z.; Criado, J.M.; Delogu, F.; Dutkova, E.; Gaffet, E.; Gotor, F.J.; et al. Hallmarks of mechanochemistry: From nanoparticles to technology. Chem. Soc. Rev. 2013, 42, 7571–7637. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Fally, F.; Perrichon, V.; Vidal, H.; Kaspar, J.; Blanco, G.; Pintado, J.M.; Bernal, S.; Colon, G.; Daturi, M.; Lavalley, J.C. Modification of the oxygen storage capacity of CeO2–ZrO2 mixed oxides after redox cycling aging. Catal. Today 2000, 59, 373–386. [Google Scholar] [CrossRef]
  45. Aneggi, E.; Leitenburg, C.D.; Trovarelli, A. Influence of Nanoscale Surface Arrangements on the Oxygen Transfer Ability of Ceria–Zirconia Mixed Oxide. Inorganics 2020, 8, 34. [Google Scholar] [CrossRef]
  46. Aneggi, E.; Divins, N.J.; de Leitenburg, C.; Llorca, J.; Trovarelli, A. The formation of nanodomains of Ce6O11 in ceria catalyzed soot combustion. J. Catal. 2014, 312, 191–194. [Google Scholar] [CrossRef]
  47. Aneggi, E.; de Leitenburg, C.; Trovarelli, A. On the role of lattice/surface oxygen in ceria-zirconia catalysts for diesel soot combustion. Catal. Today 2012, 181, 108–115. [Google Scholar] [CrossRef]
  48. Carrascull, A.; Grzona, C.; Lick, D.; Ponzi, M.; Ponzi, E. Soot combustion. CO and K catalysts supported on different supports. React. Kinet. Catal. L 2002, 75, 63–68. [Google Scholar] [CrossRef]
  49. Lamonier, J.F.; Sergent, N.; Matta, J.; Aboukais, A. Caracterization of ZrxCe1-xO2 catalysts and analysis of their reactivity in carbon soot oxidation by TGA/DTA. J. Therm. Anal. Calorim. 2001, 66, 645–658. [Google Scholar] [CrossRef]
  50. van Setten, B.A.A.L.; van Dijk, R.; Jelles, S.J.; Makkee, M.; Moulijn, J.A. The potential of supported molten salts in the removal of soot from diesel exhaust gas. Appl. Catal. B Environ. 1999, 21, 51–61. [Google Scholar] [CrossRef]
  51. Aneggi, E.; de Leitenburg, C.; Llorca, J.; Trovarelli, A. Higher activity of Diesel soot oxidation over polycrystalline ceria and ceria-zirconia solid solutions from more reactive surface planes. Catal. Today 2012, 197, 119–126. [Google Scholar] [CrossRef]

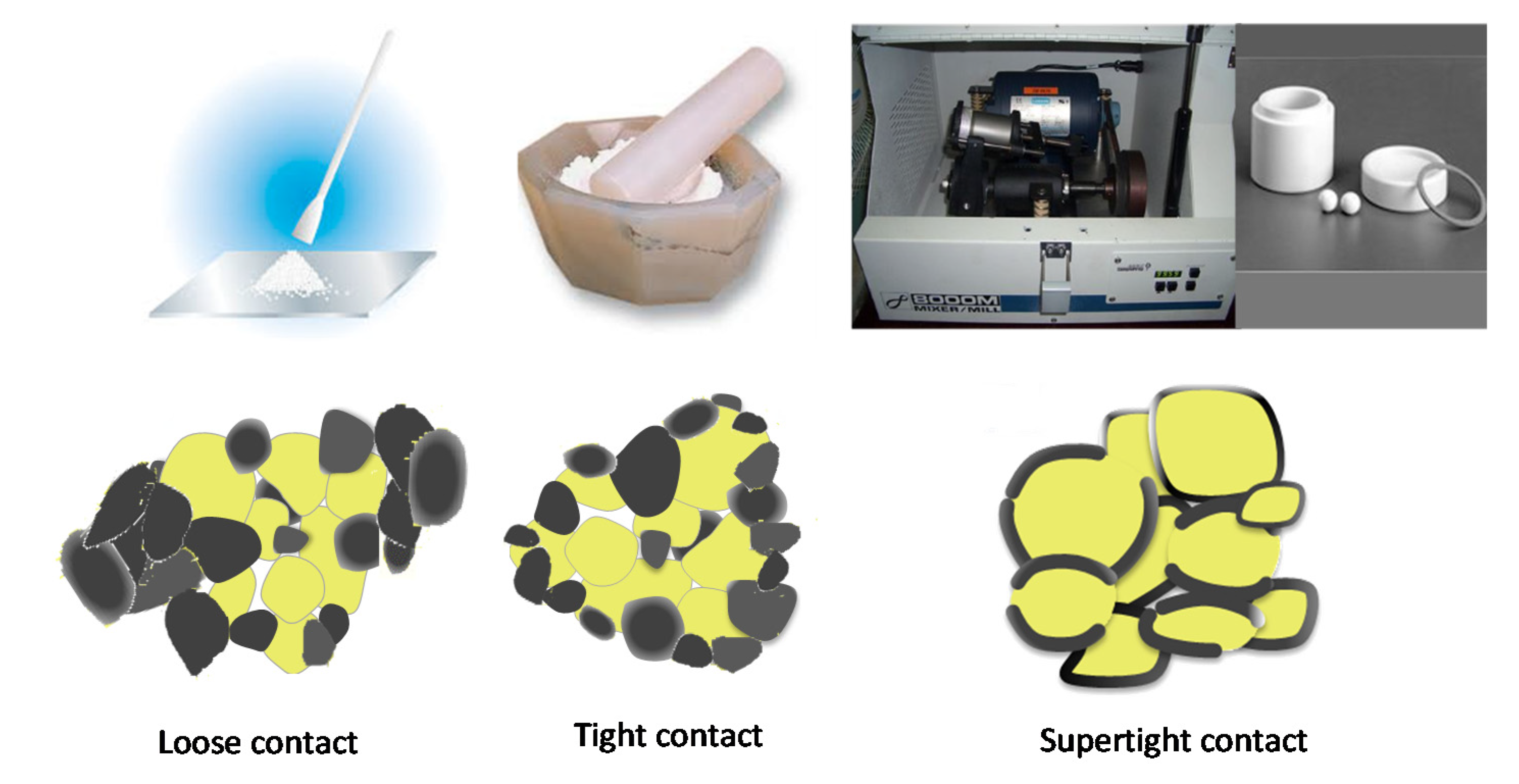

Scheme 1. Different kinds of contact obtained by mixing soot (black) and catalyst (yellow) using a spatula, an agate mortar and a high-energy mill.
Scheme 1. Different kinds of contact obtained by mixing soot (black) and catalyst (yellow) using a spatula, an agate mortar and a high-energy mill.
Catalysts 10 00768 sch001

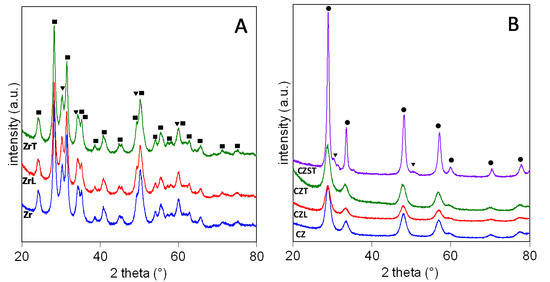

Figure 1. X-ray diffraction (XRD) profile of (A) zirconia-based materials (ZrO2 monoclinic, ■; ZrO2 tetragonal, ▼); and (B) ceria–zirconia-based materials (Ce0.8Zr0.2O2, ●; ZrO2 tetragonal, ▼).
Figure 1. X-ray diffraction (XRD) profile of (A) zirconia-based materials (ZrO2 monoclinic, ■; ZrO2 tetragonal, ▼); and (B) ceria–zirconia-based materials (Ce0.8Zr0.2O2, ●; ZrO2 tetragonal, ▼).
Catalysts 10 00768 g001

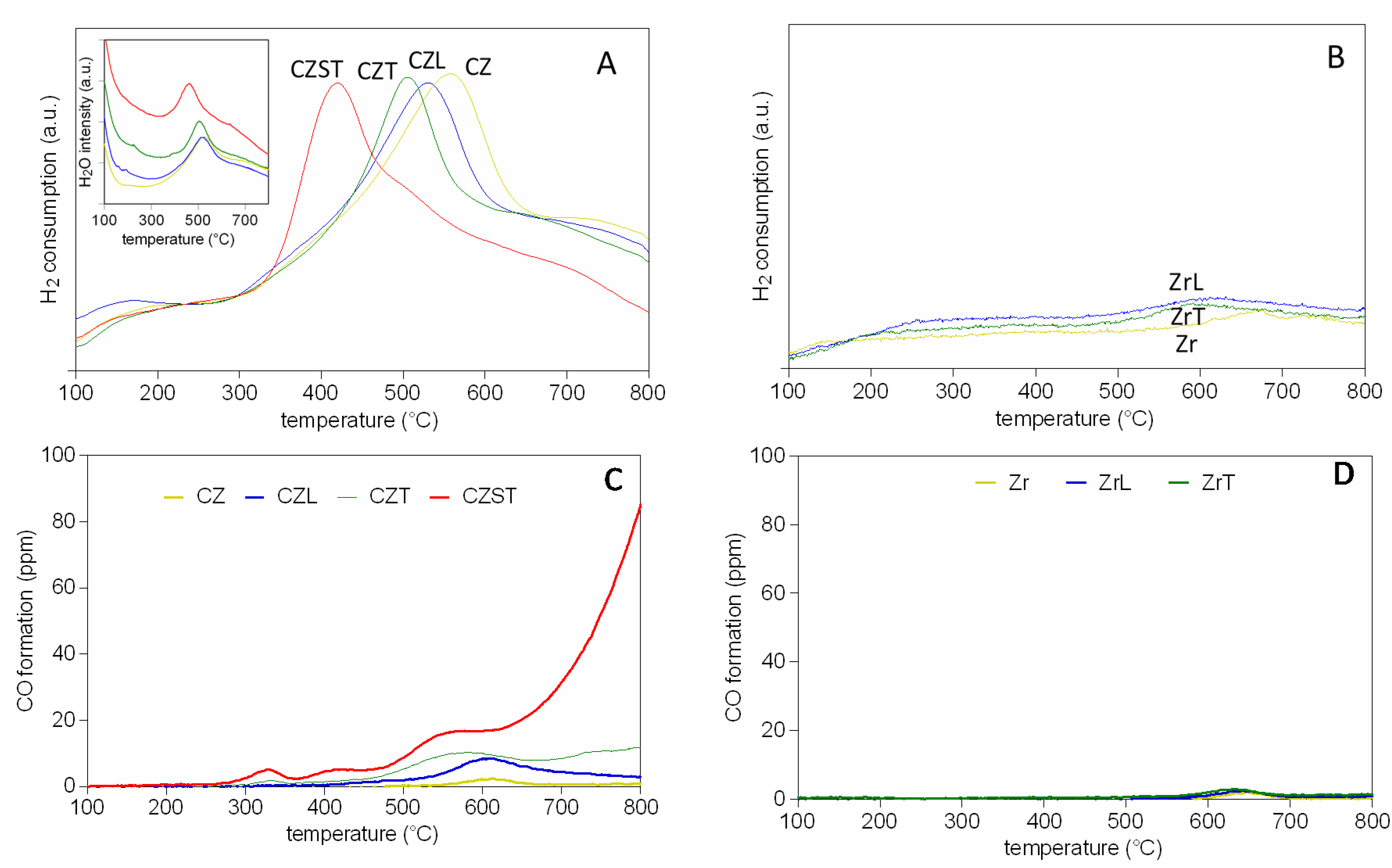

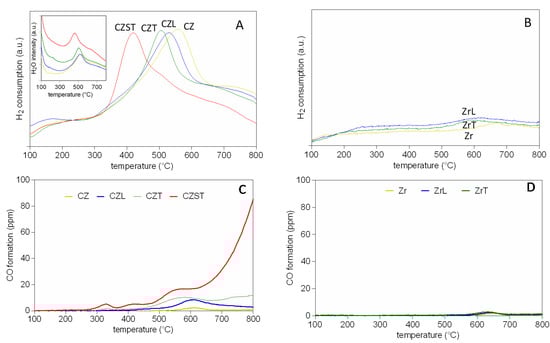

Figure 2. (A) H2-TPR profile of pure ceria–zirconia (CZ) and CZ/soot mixtures under different contact conditions, (B) H2-TPR profile of pure zirconia (Zr) and Zr/soot mixtures under different contact conditions; (C,D) CO formation from H2-TPR followed by FTIR gas analysis. The inset in (A) shows H2O profiles in temperature-programmed reduction (TPR), followed by mass spectrometry (MS) analysis.
Figure 2. (A) H2-TPR profile of pure ceria–zirconia (CZ) and CZ/soot mixtures under different contact conditions, (B) H2-TPR profile of pure zirconia (Zr) and Zr/soot mixtures under different contact conditions; (C,D) CO formation from H2-TPR followed by FTIR gas analysis. The inset in (A) shows H2O profiles in temperature-programmed reduction (TPR), followed by mass spectrometry (MS) analysis.
Catalysts 10 00768 g002

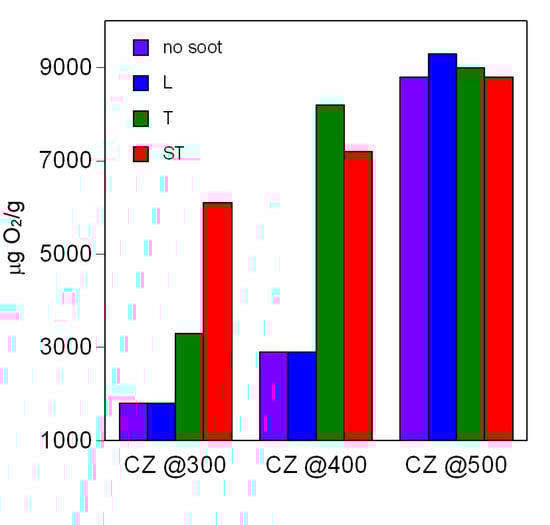

Figure 3. Oxygen storage capacity (OSC) results from thermal gravimetric analysis (TGA) analysis for different contact conditions.
Figure 3. Oxygen storage capacity (OSC) results from thermal gravimetric analysis (TGA) analysis for different contact conditions.
Catalysts 10 00768 g003

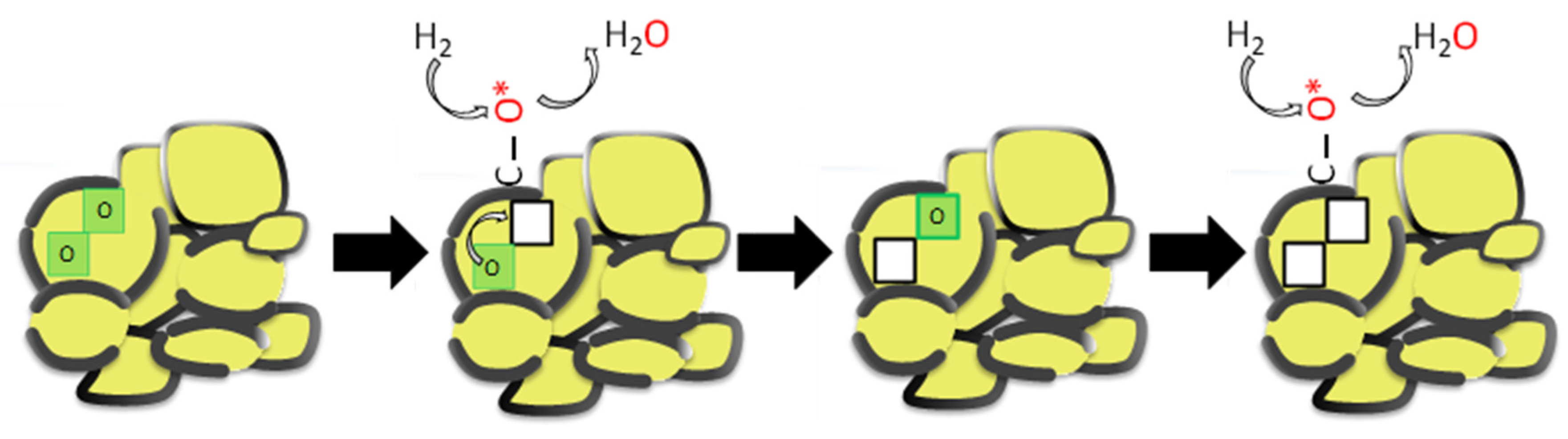

Scheme 2. Mechanism of reaction for oxygen transfer over soot/CZ mixtures.
Scheme 2. Mechanism of reaction for oxygen transfer over soot/CZ mixtures.
Catalysts 10 00768 sch002

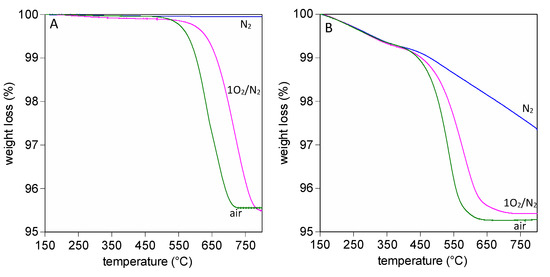

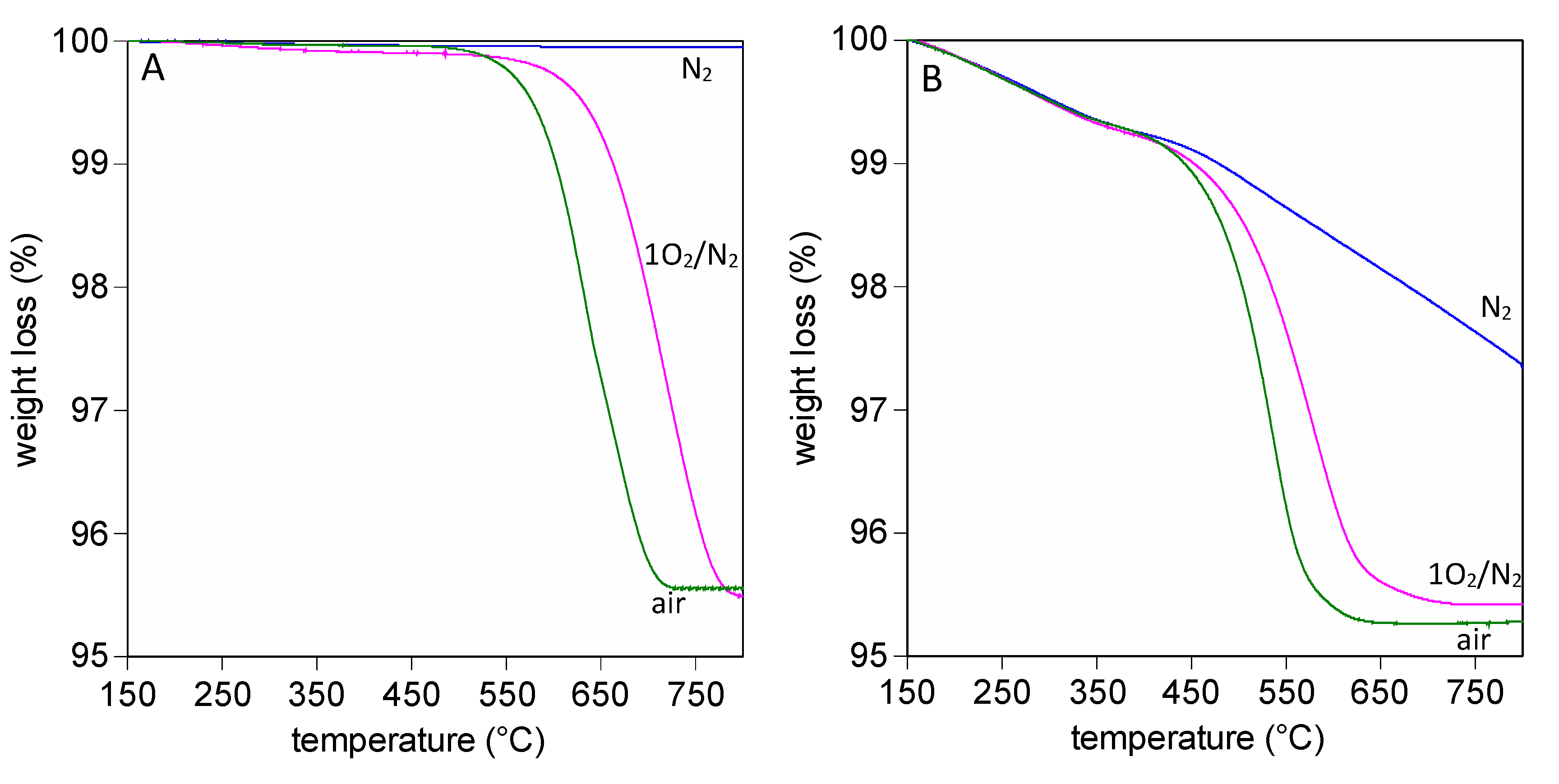

Figure 4. Weight loss profiles obtained from TGA analysis of bare soot (A) and CZL (B) under different atmospheres (air, 1% O2 in N2 and N2).
Figure 4. Weight loss profiles obtained from TGA analysis of bare soot (A) and CZL (B) under different atmospheres (air, 1% O2 in N2 and N2).
Catalysts 10 00768 g004

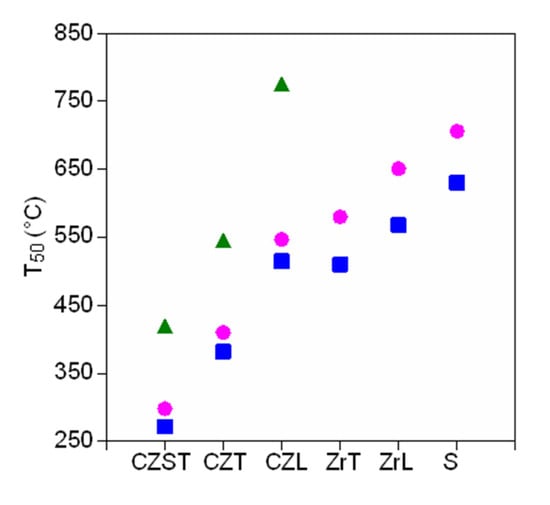

Figure 5. TGA results as T50 for different contact and different atmosphere (, air; , 1% O2/N2; , N2).
Figure 5. TGA results as T50 for different contact and different atmosphere (, air; , 1% O2/N2; , N2).
Catalysts 10 00768 g005

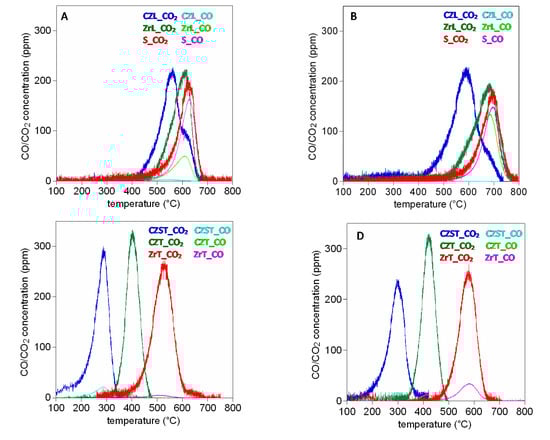

Figure 6. CO/CO2 profiles from temperature programmed oxidation (TPO) in 10% O2/N2 (A,C) and 1% O2/N2 (B,D).
Figure 6. CO/CO2 profiles from temperature programmed oxidation (TPO) in 10% O2/N2 (A,C) and 1% O2/N2 (B,D).
Catalysts 10 00768 g006

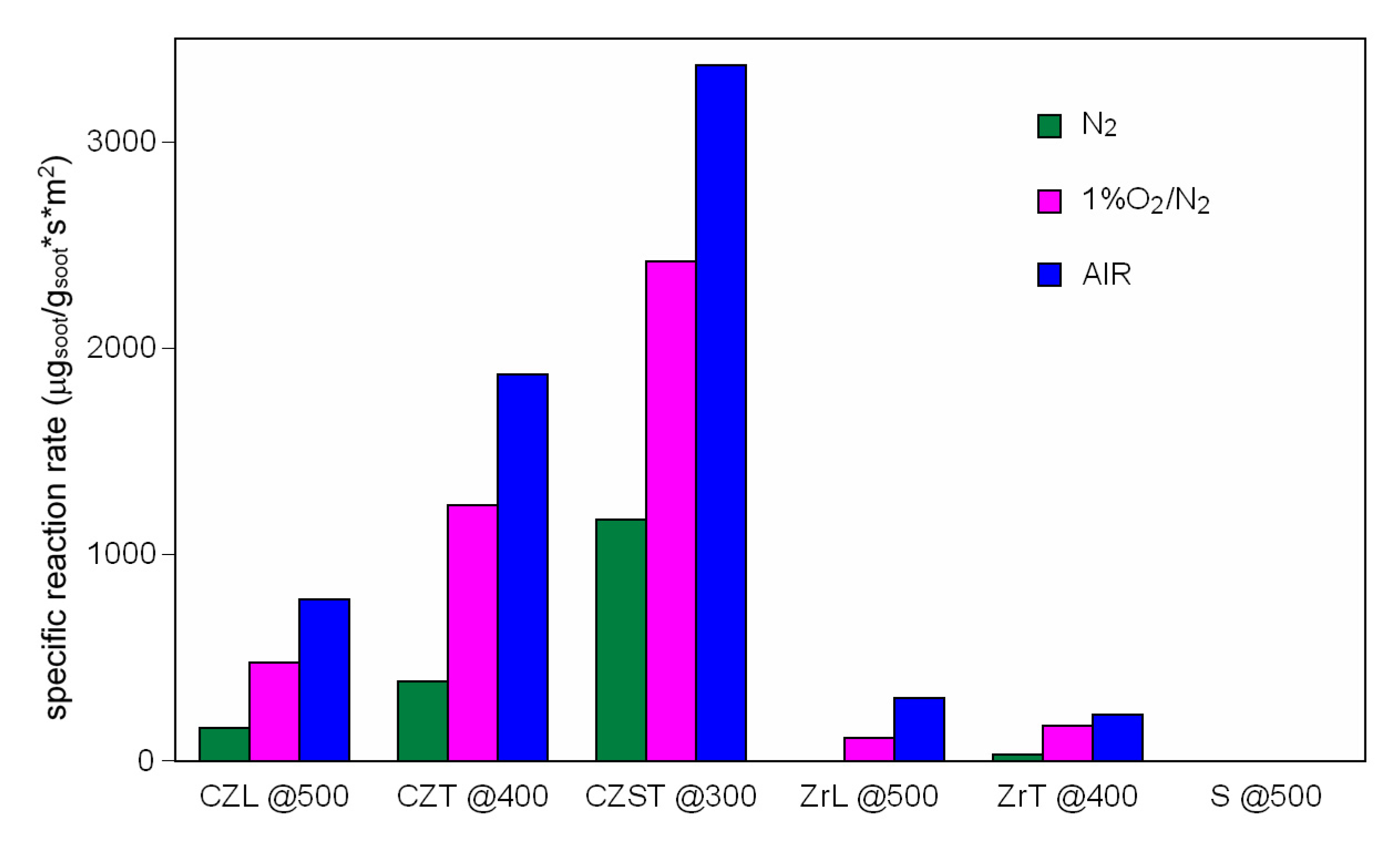

Figure 7. Specific reaction rate for different contact conditions and different reaction atmospheres.
Figure 7. Specific reaction rate for different contact conditions and different reaction atmospheres.
Catalysts 10 00768 g007
Table 1. Composition and textural characterization of investigated samples.
Table 1. Composition and textural characterization of investigated samples.
SampleNameSurface Area (m2/g)
Ce0.8Zr0.2O2CZ79
Ce0.8Zr0.2O2 + 5 wt. % soot (loose contact)CZL79
Ce0.8Zr0.2O2 + 5 wt. % soot (tight contact)CZT78
Ce0.8Zr0.2O2 + 5 wt. % soot (supertight contact)CZST29
ZrO2Zr64
ZrO2 + 5 wt. % soot (loose contact)ZrL64
ZrO2 + 5 wt. % soot (tight contact)ZrT62
Soot aS6
a: soot mixed with powder quartz in 1:20 proportions.
Table 2. CO2 selectivity from TPO experiments.
Table 2. CO2 selectivity from TPO experiments.
Sample1% O2/N210% O2/N2
CZL9997
CZT9799
CZST9797
ZrL6380
ZrT8597
S5858
