Next Article in Journal
Reduced Graphene Oxide/ZnIn2S4 Nanocomposite Photocatalyst with Enhanced Photocatalytic Performance for the Degradation of Naproxen under Visible Light Irradiation
Next Article in Special Issue
Enhanced Heterogeneous Photodegradation of Organic Pollutants by a Visible Light Harvesting CoO@meso–CN@MoS2 Nanocomposites
Previous Article in Journal
Pt-Amorphous Barium Aluminum Oxide/Carbon Catalysts for an Enhanced Methanol Electrooxidation Reaction
Previous Article in Special Issue
One-Step Synthesis of b-N-TiO2/C Nanocomposites with High Visible Light Photocatalytic Activity to Degrade Microcystis aeruginosa
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:

Recent Progresses on Metal Halide Perovskite-Based Material as Potential Photocatalyst

Bianca-Maria Bresolin
Yuri Park
1 and
Detlef W. Bahnemann
Separation and Purification Technology, School of Engineering Science, Lappeenranta University of Technology, Sammonkatu 12, 50130 Mikkeli, Finland
Institut für Technische Chemie, Leibniz Universität Hannover, Callinstr. 3, D-30167 Hannover, Germany
Laboratory of Nano- and Quantum-Engineering (LNQE), Gottfried Wilhelm Leibniz University Hannover, Schneiderberg 39, 9 D-30167 Hannover, Germany
Laboratory Photoactive Nanocomposite Materials, Saint-Petersburg State University, Ulyanovskaya str. 1, Peterhof, Saint-Petersburg 198504, Russia
Author to whom correspondence should be addressed.
Catalysts 2020, 10(6), 709;
Submission received: 11 May 2020 / Revised: 6 June 2020 / Accepted: 15 June 2020 / Published: 24 June 2020
(This article belongs to the Special Issue Progression in Photocatalytic Materials for Efficient Performance)


Recent years have witnessed an incredibly high interest in perovskite-based materials. Among this class, metal halide perovskites (MHPs) have attracted a lot of attention due to their easy preparation and excellent opto-electronic properties, showing a remarkably fast development in a few decades, particularly in solar light-driven applications. The high extinction coefficients, the optimal band gaps, the high photoluminescence quantum yields and the long electron–hole diffusion lengths make MHPs promising candidates in several technologies. Currently, the researchers have been focusing their attention on MHPs-based solar cells, light-emitting diodes, photodetectors, lasers, X-ray detectors and luminescent solar concentrators. In our review, we firstly present a brief introduction on the recent discoveries and on the remarkable properties of metal halide perovskites, followed by a summary of some of their more traditional and representative applications. In particular, the core of this work was to examine the recent progresses of MHPs-based materials in photocatalytic applications. We summarize some recent developments of hybrid organic–inorganic and all-inorganic MHPs, recently used as photocatalysts for hydrogen evolution, carbon dioxide reduction, organic contaminant degradation and organic synthesis. Finally, the main limitations and the future potential of this new generation of materials have been discussed.

1. Introduction

Environmental sustainability and the development of alternative and renewable energy supplies represent two of the major challenges of the current society [1,2]. Rapid urbanization and industrialization have resulted in a remarkable water shortage and a massive contamination of the fresh water available. The increase of human activities, related to hazardous greenhouse gases emissions, has been recognized as the major driver of the present global climate change issues. Moreover, the rapid population growth, coupled with increasing energy demand, are alarming, and require the employment of alternative renewable energy sources for a viable future. Therefore, the development of alternative, renewable and green energies replacing unrenewable and limited fossil fuels, and environmental remediation, have become extremely hot topics in academic research, in order to guarantee a sustainable existence on our planet.
Solar power is a renewable energy source that is sustainable and inexhaustible, unlike fossil fuels. Moreover, it can be considered an attractive alternative due its abundance, easy accessibility and cleanliness [3,4]. In the recent years, increasing attention has been turned on the applications of solar-light energy, such as solar cells, for heating systems and electricity production. In a year, the solar energy irradiating the surface of the Earth is approximately 3,850,000 exajoules (EJ), and it has been proven that, in the current scenario, only 1% of this energy would meet the energy demand of human beings [5]. Human energy consumption in 2005 was estimated to be 539 EJ globally per year, which is around 0.014% of the total solar energy reaching the Earth [6,7]. Moreover, the solar energy employment can increase the world’s safety and human sustainability by decreasing the pollution, lowering the risk of mitigating climate change and reducing such a dangerous dependence on fossil fuels. Solar-light based engineering can provide cost-effective and efficient applications, and recent great developments have been achieved using such a sustainable and green source of power.
From this perspective, photocatalysis is considered one of the main routes for an efficient utilization of solar-light energy. The field of photocatalysis has notably expanded in recent decades, undergoing a rapid development in relation to energetic challenges and environmental issues. In particular, photocatalytic processes have been used for renewable energy production and storage, as well as for the remediation and protection of the environment, in particular for treating polluted air and water [8,9,10]. The multidisciplinary nature of this technology can be considered among the reasons for the rapid evolution, which counts on the contribution of semiconductor physics, surface sciences, photo and physical chemistry, materials science and chemical engineering. Inspired by natural photosynthesis, photocatalytic processes have been applied in different fields, such as the degradation of organic compounds in the liquid and gaseous phase [11,12,13,14], water splitting [15,16], carbon dioxide reduction [17,18] and photocatalytic organic synthesis [19,20]. In general, the photocatalytic process can be defined as the acceleration of reactions in the presence of a photocatalyst, which can provide chemical alteration in another species as a consequence of an initial absorption of light radiation. The process usually refers to heterogeneous photocatalysis, when the two chemical species are in different phases (i.e., liquid–solid). Nowadays, the interest in heterogeneous photocatalysis mainly focuses on semiconductors as photocatalysts, because of their intrinsic optical and electronic properties, including the ability to photogenerate electron–hole pairs [21,22]. Heterogeneous photocatalysis exhibits several advantages over other conventional catalytic processes, such as homogenous photocatalysis, including higher stability and a potential recyclability of the photocatalysts used during the process [23,24,25].
Titanium dioxide (TiO2) is by far the most used and investigated semiconductor photocatalyst, due to its efficient photostability, non-toxicity and abundance. However, TiO2, with its wide band gap (3.2 eV), limits its applicability in the ultraviolet (UV) wavelengths range, which accounts for only 5% of the total solar-light energy that is potentially available [26]. Moreover, the fast recombination of the photogenerated electron–hole pairs leads to a fast dissipation of the energy that reduces the efficiency in photocatalytic processes [27]. Some traditional approaches to overcoming the mentioned issues include the extending of the absorption edge to the visible light range [28,29], and the decreasing of the recombination rate of the photogenerated electrons and holes [30,31]. In the past, the solutions studied for enhancing the photocatalytic efficiency include the design of suitable band gaps [32,33], the employment of nanosized structures [25,34], the adoption of facet-engineered surface and interface design [35,36], metal and non-metal co-catalysts and dopants utilization [37,38,39,40], surface modification [41,42] and the heterostructure or Z-scheme construction [43,44,45,46]. However, the low light-absorption ability, the disadvantageous charge carriers’ recombination rate, and the low photo-conversion efficiencies of the majority of the photocatalysts, remain among the major challenges to be faced. Table 1 reports some recent reports on frequently employed photocatalysts. However, the development of new materials can open a window to enhancing the current photocatalytic performances.
In the last 20 years, metal halide perovskites (MHPs) have received a remarkable amount of attention as one of the most promising materials in the photovoltaic field, due to their excellent optoelectronic properties. In particular, hybrid organic–inorganic MHPs have often been used in the photovoltaic community in the past 10 years, due to their unprecedented rate of power conversion efficiency [47,48]. A pioneering study, introduced by Miyasaka and their research group, investigated the concept of the self-organization potential of MHPs in the nanoporous TiO2 layer for dye-sensitized cells [49,50]. Since then, hybrid organic–inorganic MHPs have rapidly shown their great potential due to their higher efficiency, in comparison to the more traditional silicon or gallium arsenide-based solar cells [51]. Moreover, the hybrid MHPs have excellent carrier diffusion lengths and superior electronic properties, as well as distinct advantages such as structural simplicity and flexibility [52]. These have been considered as a great advantage in many light-based applications. Despite their remarkable properties, the relatively poor environmental stability of hybrid organic–inorganic MHPs is one of their main drawbacks [53]. All-inorganic MHPs have recently drawn increasing attention, particularly due to their higher stability, but there are further developments needed in order to enhance their efficiency and feasibility.
To the best of our knowledge, there are limited reviews regarding the booming use of MHPs-based materials as photocatalysts; nevertheless, this topic has witnessed incredibly fast development in the last 10 years [53,54,55,56,57,58,59,60,61,62,63,64,65,66] (Figure 1). Herein, we aim to briefly introduce metal halide perovskites, reviewing their optical and electrochemical properties, and especially their potential in photocatalytic applications.

2. Heterogeneous Photocatalysis: Principles

Heterogeneous photocatalysis is an interdisciplinary branch of science that has its source in several areas, including chemistry, physics and biology. Heterogeneous photocatalysis can be considered as one of the most successful approaches used for solar energy harvesting, and many environment-related issues have already arisen at the stage of pilot plants [67,68,69,70]. Historically speaking, the first study referred to Fujishima and Honda, who in 1972 reported the photochemical water splitting ability of TiO2 [66].
The photocatalytic process can be related to the ability of a material to absorb photons and promote a reaction, where there is no net storage of chemical energy and the radiant energy is used to carry out a target reaction whose kinetics would be extremely slow, compared to the case of the absence of the photocatalyst. In general, heterogeneous photocatalysis is based on the irradiation of semiconductors by a light source with an energy at least equal to that of its band gap. The process, while varying the details in terms of reactions and mechanisms, can be described in four stages: (I) absorption of light energy to generate electron–hole pairs; (II) separation of the photogenerated charges; (III) transfer of electrons and holes to the surface of photocatalysts; (IV) utilization of photogenerated charges for redox reactions on the surface of the catalyst. The mechanism is displayed in Figure 2A. Figure 2B shows the reduction and oxidation levels of the principal photocatalytic reactions, with reference to vacuum vs the normal hydrogen electrode (NHE), in terms of the thermodynamic feasibility. The energy of the photoexcited electron must be higher than the corresponding redox level, and the conduction band potential (CB) of the photocatalyst should be located at a higher energy value.
Among the limits of such a mechanism, either on the surface or on the bulk sites of the photocatalysis, the potential electrostatic recombination (IIIa) of the photogenerated charges may dissipate the harvested energy in the form of a radiative and non-radiative recombination, such as light and heat, decreasing the efficiency of the photocatalytic process.
According to the mentioned principles, there are three main fundamental approaches useful to enhancing the efficiency of a photocatalyst: (i) the increase of its absorption ability in the visible range (45% of the solar spectrum) [71]; (ii) the decrease of the recombination rate of the photogenerated electron–holes pairs [72] and (iii) the evaluation of the redox capacity of the semiconductors according to the target photocatalytic application [73].

3. Metal Halide Perovskite

3.1. Background on Metal Halide Perovskites

Perovskite materials, with a similar crystal structure of calcium titanate (CaTiO3), were discovered in 1839 by Perovski, a Russian mineralogist [74,75]. Recently, MHPs have been gaining a remarkable amount of attention in the numerous academic fields, yielding over 100 peer-reviewed articles [76] (Figure 3).
MHPs were firstly investigated for their captivating optical properties [77,78], as well as their interesting quantum effects [79,80,81]. In the past 20 years, MHPs-based materials have witnessed an unbelievable development, especially in photovoltaics, with a remarkable increase of interest also in many other light-driven related applications [76]. MHPs have recently been involved in significant discoveries related to nanometer-sized semiconductors, due to their visible and near-infrared optical abilities, the beneficial effects of their surface defects and their specific electronic structure [48,50,82,83]. Solar-cells have shown to be a great implementation of MHPs due to their easy preparation and remarkable efficiencies, leading to results comparable to the more traditional semiconductors-based devices, such GaAs and Si, due to their high crystallinity and low temperature processing [84]. The evaluation of the potential of MHPs as sensitizers on mesoporous TiO2 electrodes was started in 2005 in the Miyasaka group [85], inspired by the quantum photochemistry research of Teshima and Kojima [86,87]. Preliminary studies with methylammonium lead halide perovskite nanocrystals (CH3NH3PbI3) showed promising results in visible light absorption ability when deposited on a TiO2 electrode. Schmidt et al. in 2014 published the first solution-based colloidal approaches based on lead halide hybrid organic–inorganic MHPs [88]. Recently, remarkable advances in the exploration and development of all-inorganic MHPs have also been achieved. Protesescu et al. [89] investigated the ability of different cesium-based MHPs to act as entire visible spectrum-absorbers, with surprising and remarkable quantum yield efficiencies. Nowadays, the discoveries associated with the remarkable optical and electrical properties of MHPs have extended to several other applications, such as light-emitting diodes, photodetectors, X-ray detectors, memory devices, and many others [90]. The interdisciplinary interests of MHPs, necessitating expertise in chemistry, physics and optoelectronics, may challenge a great part of the research community, leading to intensive and practical developments in the near future.

3.2. Perovskites’ Fundamental Structure, Composition and Applications

MHPs have an ABX3 structure (Figure 4), whcih contains a hybrid organic–inorganic or inorganic monovalent cation in the A-site position (methylammonium MA+, formamidinium FA+, cesium Cs+ or mixed cations), a divalent oxidation state IVA metal element in the B-site (Pb2+, Sn2+, Ge2+…), and a halide anions in the X-site (I, Br or Cl).
When the A-site is occupied by organic cations (MA+ or FA+), we usually refer to these as hybrid organic–inorganic MHPs. In recent research, in order to overcome the relative environmental instability of hybrid organic–inorganic MHPs, scientists have efficiently replaced the organic cations with inorganic metals (all-inorganic MHPs) without decreasing the electro-chemical properties [91]. Moreover, intensive research into structural and compositional modifications have produced breakthroughs in MHPs efficiencies [92,93,94].
Generally speaking, the cation selected for the A-site is responsible in the determination of the orientation cage within the structure, and its manipulation may lead to the beneficial transition of the optoelectronic properties [95,96,97]. The size of the A-cation adversely affects the symmetry of the structure, causing distortions on the B–X bond which controls the electronic properties in the perovskite framework [98]. Among the organic cations, methylammonium (MA+) has been widely used because of its radius (1.8 Å), resulting in lower packing symmetry, higher band gap and higher efficiency, and it appears to be the more suitable in solar cells [95]. In general, inorganic elements exhibit better stability compared to organics; therefore, the organic cations have been beneficially substituted with cesium cations (Cs+) in what have become known as all-inorganic MHPs [99].
The B-site is generally occupied by elements belong to the IVA group of the periodic table. Its modulation was found to be affected by proceeding along the periodic table group, with a reduction in the stability of the divalent oxidation state, decreasing as a consequence of the band gap and electron pair effect, due to the enhancement of its electronegativity and covalent characters [72,100]. Despite lead-based MHPs gaining a lot of success, partial or total substitution of lead (Pb) with other ions, such as tin (Sn), may led to increases of its absorption ability and environment stability [101]. Moreover, ions doping, in particular with environmentally friendly ions (e.g., Ca, Mn, Sr, Bi), has been recently considered, in order to find an equilibrium between good performances and environmental aspects [102,103,104,105,106,107], leading, in particular, to an increased stability.
Finally, the X-site is occupied by a halogen element that has a great influence on the valence band energy of the MHPs, according to its electronic features. In particular, the valence bands and the associated electron binding energies of MHPs have been recorded to decrease after applying the XVII group elements, going from Cl to I. Manipulation with mixed halogen ions has led to an enhancement in the thermal stability, in comparison to the single halogen ion-based MHPs counterparts. Mixed Cl and I halide perovskite have shown improved efficiency in the pioneering work of Lee and co-workers [50]. Previous researchers have further suggested that mixed Cl and I halogens may be beneficial for the growth of crystal domains, due to a slower crystal lattice generation process, leading to a decrease in the grain boundary number, enabling the charge carriers to move across the structure, thus reducing charge recombination [108]. The introduction of Br-halide ions resulted in an increase in the quality of the final material in terms of the symmetry of the lattice, its stability under a humid environment, and its morphology and optical properties [109,110]. However, total substitutions of Br resulted in photoinduced phase segregation, and thus the mentioned approach still need further insights [111].
In general, several compositional factors are not entirely understood, including long-term environmental stability, toxicity and final efficiencies, and these are the main points to be addressed in the future in order to assure the feasibility of MHPs.
MHPs attract our attention mainly for the rapid development they have recently achieved in the photovoltaic field, by accomplishing notable progresses in only a few decades. Among the traditional applications where MHPs have witnessed extraordinary developments, one may cite solar cells and light emitting diodes.
Research into perovskite-based solar cells started in 2005, with the aim of examining the possibility of using halide perovskites as sensitizers on mesoporous TiO2 electrodes. The halide perovskites were firstly applied in the dye-sensitized technology in solar cell devices [112]. Lead-based hybrid MHPs (CH3NH3PbI3) adsorbed on TiO2 film was firstly discovered as a potential alternative to the traditional solar cell materials, showing a remarkable photocurrent efficiency [113]. Moreover, if any significant differences were observed, the tests were performed on a different substrate, verifying the interesting ability of the MHPs [51]. In addition, the researchers noticed that the transfer of photogenerated charge carriers could directly occur on the perovskite, resulting in the non-necessity of an electron-accepting layer. Thus, perovskite solar cells may be fabricated from direct junctions between the perovskite, the n-type TiO2 and p-type hole-transport material (HTM) films. Following this concept, a planar pin junction was prepared by co-evaporation of CH3NH3I and PbCl2, and this structure further increased the photocurrent efficiency [114]. As reported by McMeekin et al. [115], by employing a tandem architecture, halide perovskite-based photovoltaic cells can potentially boost the efficiency of the more commercial modules based on silicon.
On the other hand, perovskite light-emitting diodes (LEDs) are gaining considerable attention for applications in next-generation displays and lighting. Tremendous efforts have been devoted to implement all-inorganic MHPs in this field [66,116], leading to remarkable achievements [117,118]. In summary, the great performance of MHPs-based LEDs can be reduced to three fundamentals: (i) a balanced injection of charges, (ii) a minimal non-radiative charges recombination loss, and (iii) efficient extraction of the emitted photons [119,120]. New strategies have been recently applied in order to further enhance the efficiency of MHPs-based LEDs. Among them, the transition from 3D bulk to 2D layered structures has resulted in an increase in radiative recombination and efficient energy funneling, leading to nearly 100% internal quantum efficiency [121]. Nevertheless, the improvement in device stability still remains among the major challenges, and it has been previously reported that oppression of ion migration, with additives or blocking layers, may further optimize the MHPs’ interface connection [117].

3.3. Outstanding Properties of MHPs as Photocatalyst

MHPs have mainly emerged for their unique optoelectronic properties, including favorable band gaps for extended light absorption in the visible light range, high charge carrier mobility, and long charge diffusion lengths for a reduced recombination rate of photogenerated electron–hole pairs. These properties have made MHPs remarkably suitable for photocatalytic applications, as remarked in many recent reports [5,19,82,84,93,99,122]. In particular, the important factors that support the potentially superior photocatalytic performance of MHPs include the following: (1) a high optical absorption coefficient with easily tunable band gaps; (2) a long carrier diffusion length and suppressed recombination rate that enhance the charge carriers lifetime; and (3) a well-balanced charge transfer suitable for redox reactions [85].

3.3.1. Extended Optical Absorption Range

The light absorption ability of the MHPs was found to be enhanced when compared with traditional semiconductors (e.g., TiO2), contributing to the increase of photon-to-carrier conversion efficiency, as demonstrated in many perovskites-based solar cells [123]. A suitable band gap is fundamentally required in order to maximize the optical absorption of photocatalytic materials. In theory, the range of visible light absorption becomes wider, and the efficiency of light utilization can be increased, by narrowing the band gap values [122]. MHPs-based nanostructures have recently emerged as low-dimensional semiconductors of great interest in photovoltaics, photonics and optoelectronics, and extensive efforts have been made towards their controlled synthesis. Among their unique properties, notable are their exceptionally good light absorption in the visible region and their tunable photoluminescence, which have witnessed increasing attention in different applications and technologies [124].
The engineering of the band structures is considered fundamental in the rational tuning of the electronic and optical properties of perovskite nanostructures, and it is among the key means of achieving multifunctional optoelectronic efficiency [125]. In general, the MHPs have a direct band gap ranging across the entire visible spectrum, meaning that, in a photocatalytic application, the charge carriers can be efficiently generated at lower energies [125,126]. Among the advanced properties of MHPs has been reported an easy approach to achieving seamless tuning of the band gap, by simply changing the mixing ratio of the halide elements (e.g., I–Br, Br–Cl) [127]. Protesescu et al. showed that the emission wavelength of CsPbX3 (with X = Cl, Br or I) can be shifted from 410 nm to 512 nm, and then up to 685 nm, changing only the halogen element in the X-position to Cl, Br or I, respectively. In the same research, mixed halogen composition led to the potential to absorb light through the entire range of the solar spectrum [128]. The modification of the band gaps of MHPs is very interesting with regards to targeted device design that requires specific energy levels. In recent years, it has been reported that the efficiency of MHPs-based devices can be compared to the state-of-the-art of quantum dots and organic materials as traditional solar-light absorbers [117,129,130].
The nature of the electronic structure of MHPs, and the formation of energetic bands through the hybridization of metal and halogen orbitals, has led to successful results in photocatalytic applications [131]. In contrast with the conventional semiconductors, whose band gaps are formed between bonding and antibonding orbitals, in MHPs the valence band edge shifts in energetic levels, according to the halogen component, while only small changes are ascribed to the conduction band edges [132]. In this case, the A-site cation produces the major effect on the band gap value of the perovskites. It was reported that, with shifting from inorganic cesium (Cs+) to organic MA+ and FA+ cations, as the sizes of cations respectively increase, the band gap of the corresponding material red shifts. This behavior was ascribed to an enhancement in the tilting angle of metal–halogen bonds and the distortion of the crystal structure [133,134]. The B-site’s composition may also influence the optical properties, most likely due to the electronegativity of the metal element employed [72,100]. It can be concluded that the final band gap, and the connected optoelectronic properties of the MHPs, strictly depend on the final stoichiometry, if comparable sizes and shapes are maintained. On the other hand, the Stokes shift increases as the size of the nanoparticles is reduced, due to the formation of a confined holes state delocalized across the entire nanocrystal, showing the size-dependency of MHPs’ properties [133].
In terms of quantum yield (QY), the electronic structure and the band gap formed between the antibonding orbitals lead to the predominant formation of shallow traps, allowing typically remarkably high values, and a strong defect tolerance. Higher values of QY were reported for inorganic Cs-based and hybrid MA- and FA-based halide perovskites, whereas Cl-based MHPs have much lower values of QY with respect to their Br and I counterparts, due to the small size of the Cl-halogen anions affecting the defects in the crystal structure [131]. Furthermore, the metal-ions doping approach has exhibited the potential enhancement of the optical properties of the halide perovskite. For example, it was reported that when Pb was partially replaced by other cations, such as Mn, the structure may lead to a strong Stokes-shifted emission, resulting in a higher utilization of solar energy [135]. On the contrary, blue shift in the band edge was detected by doping the halide perovskite with other cations (Sn2+, Cd2+, Al2+ and Zn2+). These effects can be ascribed to the contraction of the original MHPs’ lattice, which may result in wide band gaps and lower absorption abilities [136,137]. Thus, dopant atoms led to a potential modification of the absorption wavelengths, as was demonstrated in the literature, with non-obvious beneficial effects [138].
The morphology of MHPs recently gained more attention with regards to the design of MHPs-based materials, in particular transferring from bulk to low dimensions (0D, 1D, 2D and 3D) nanomaterials. The nanostructures have shown distinctive optoelectronic properties in comparison with their bulk counterparts, due to their quantum-confined effects. The tuning of the band structures of the perovskite nanostructures allows the design of novel, efficient and functional light-active MHPs, leading to a new degree of freedom in the modification of their optoelectronic characteristics. Previous studies have shown that a band gap between 1.34 and 1.5 eV can effectively absorb visible light, but at lower values, the photogenerated charges recombination rate negatively increases. According to this assumption, the energy band diagram of 3D perovskite materials seems to be the most suitable to satisfy the mentioned requirements [139]. On the other hand, when the dimension was reduced to 2D or 1D, the band gap appeared to enlarge, which can be beneficial for some solar light-driven applications [124]. Thus, the control of the compositions, structures and dimensions can affect the band gap of MHPs, leading to a wide tunability with regards to light emission, and absorption ranging from ultraviolet to the near-infrared wavelength [125].

3.3.2. Direct Generation of Free Charge Carriers

Exploring charge carriers kinetic is essential to the design of new photocatalysts, because it allows us to reveal the photocatalytic mechanisms and to optimize the material efficiency.
The semiconductor-based photocatalysis is initiated by the absorption of a photon with an energy at least greater than the band gap energy of the photocatalyst, inducing inter-band transition, with the formation of electrons and holes in the conduction and valence bands, respectively. The electron–hole pairs are photogenerated within a femtosecond time, thus they tend to easily recombine in the bulk or on the surface of the photocatalyst, with the subsequent loss of energy in terms of light or heat [140]. Then, the non-recombined charge carriers can migrate to the surface, and they can be trapped before undergoing the interfacial charge transfer. Afterwards, the redox reactions can occur through interfacial charge transfer, influenced by the energetic position of the trapped states. Thus, the overall photocatalytic efficiency is dependent firstly on the pico/nanosecond competition between charge carrier recombination and trapping, and secondly on the micro/millisecond recombination of the trapped charge carriers and interfaces [71]. Thus, energy level alignments at the interfaces, in strict relation with the band gap, play a key role in the engineering of the charge transport behavior of the semionductors.
In the MHPs-based material, increases in the separation and extraction of photo-generated carriers have been recorded as coupled with a decrease in the recombination of charge carriers. Therefore, in the majority of the solar-light driven applications, the MHPs can act both as a charge generation and a transport medium [122]. As for their other properties, the performance of MHPs greatly varies depending on several factors, including crystal structure, nanoscale morphology, microstructure, and the hierarchical architecture of the final [128,141]. However, the easy control over the band alignment in MHPs represents a great advantage, and helps us provide novel and functional materials for different light-driven applications.

3.3.3. Long-Range Balanced and Ambipolar Charge Carrier Transport Properties

The diffusion length of the photogenerated carrier has been considered one of the strongest gaps for screening materials for light-driven processes [142].
In the field of heterogeneous photocatalysis, carrier diffusion and transport are important parameters to be consider. The electronic structure, including determination of the absorption coefficient and the charge carrier concentration, remarkably influence carrier lifetime and diffusion length. After the photogeneration of the electrons and holes, excited carriers subsequently undergo separation and transport from the bulk to the surface of the semiconductor. In photocatalytic reactions, charge separation and transport processes are a primary concern [143]. These phenomena, comparable to an electron flow, such as current, are mainly influenced by parameters such as the diffusion coefficient, and the gradient, mobility and concentration of the electrons and holes. As the electronic structure predominantly determines the effectiveness of good mobility, a long carrier diffusion length represents a key advantage as regards the intrinsic properties of a semiconductor [144].
Scientific breakthroughs with MHPs in 2013 were focused on the potential use of MHPs as promising light-harvesters, along with their beneficial electronic properties, such as a long photogenerated diffusion and lifetime, which can be compared to the traditional semiconductors [142,145,146]. Studies on photophysical processes, such as transient absorption spectroscopy, have recently confirmed the effectiveness of charge carrier dynamics in monitoring the photogenerated carriers, in terms of photon absorption, vibrational relaxation and exciton generation and separation [147,148,149]. The advantageous properties include balanced long electro-hole diffusion lengths that surpassed those of typically used photovoltaic materials [145], high charge carrier mobility and lifetime [150], and beneficial interfacial charge transfer dynamics, as well as still-uncovered electron injection dynamics [151]. Moreover, MHPs have been shown to possess an ambipolar charge carrier transport capacity, which can assure potentially outstanding photocatalytic properties, with balanced hole and electron mobility under light illumination. Recent studies have revealed that the ambipolar performance can be considered an intrinsic property MHPs as a feature independent from the device architecture [152].

3.3.4. Point-Defect Tolerance and Reduced Recombination Centers

The presence of point-defects on a photocatalyst can affect its structural, electronic and optical properties, and can thus be used as a strategy for improving its performance [153].
As for other semiconductors, the intrinsic optoelectronic features of MHPs are greatly determined by several factors, including the presence of beneficial defects in the crystal structure, which, in the case of this family of materials, can be easily controlled by synthesis [154]. Both experimental and theoretical studies have recently demonstrated that defects, including vacancy, impurity and the presence of interstitial atoms, may lead to decreases in band gap value, enhancing the light absorption through the visible range and resulting in higher photocatalytic activity [155,156].
It seems very useful for the future to gain deeper insights into the potential defect science of MHPs, which seems to be essential for the enhancement of the efficiency of materials in light-driven technologies.

4. Photocatalytic Applications

4.1. Photocatalytic CO2 Reduction

CO2 conversion to fuels has been promoted as a climate change mitigation measure, able to reduce the use of fossil fuels with a simultaneous beneficial recycling of carbon [157,158]. Thus, addressing the problems of the depletion of fossil fuels and global warming appears to be an urgent task, and the search for valid approaches to maintaining the atmospheric CO2 level has become fundamental and urgent [159,160]. Artificial-based photocatalytic processes, supported by globally available and inexhaustible solar-light energy, have attracted particular attention as regards the conversion of CO2 to solar fuels [161]. In this scenario, the remarkable optical and electrochemical properties of MHPs may represent a pivotal advantage for their success as high-efficiency solar energy-based photocatalysts [162]. Recently, different MHPs have been investigated as potential photocatalysts for the reduction of CO2, demonstrating promising results (Table 2).
The instability of the commonly-used MHPs has been reported in the current literature as one of the main drawbacks of aqueous solutions [162]. Low-polar, non-aqueous solvents, such as ethyl acetate, have been widely selected in many studies in order to assure a longer stability of the particles during the photocatalytic processes [165,169]. In order to overcome the stability issues, CO2 can be reduced to its gaseous form at high temperatures, however, the application of a solid–vapour system may be limited by several factors, including a lower efficiency and selectivity [170]. On the other hand, the separation and transfer of the photogenerated charges may also represent a limit to the photocatalytic applications [90]. The recorded high photoluminescent quantum yield can be interpreted as the fast consumption of the excited electron−hole pairs in the radiative charge recombination before the chemical reactions [171]. An efficient separation of the electron–hole pairs, temporally and spatially, can be easily resolved by coupling MHPs’ interfaces in compositions with other materials, including TiO2, graphene oxide or metal-organic frameworks [165,166,167,168]. As far as future prospects go, it seems that the composition of multiple and suitable semiconductors may lead to the potential acceleration of the photoinduced electron transfer, inducing greater catalytic reaction sites, and it can also facilitate the injection of the free electrons in the subsequent chemical reactions [172]. In conclusion, even if the employment of MHPs in CO2 reduction photocatalysis is still at its first stage, previously reported results demonstrate their great potential for progress in the near future.

4.2. Photocatalytic H2 Evolution

Heterogeneous photocatalysis based on solar-light energy is considered among the promising ways to generate hydrogen, as a renewable approach to facing the recent energy crisis and demand. As in the majority of light-driven applications, the well-known TiO2-based photocatalysts have demonstrated great potential as a low-cost and environmentally friendly approach to solar-hydrogen production. However, the principal barriers are the rapid recombination of photo-generated charges, as well as backward reactions and low activation under visible light irradiation [16]. The optical and electrochemical properties of MHPs may provide a new paradigm for solar fuel production, and recently have also been tested as ideal candidates in photocatalytic hydrogen generation [84].
A summary of recent approaches to photocatalytic hydrogen evolution, by means of MHPs and their composites, has been summarized in Table 3.
The encapsulation technique was first applied in order to overcome the instability problems in hydrogen generation based on MHPs. In 2016, Crespo-Quesada et al. [175] presented their work on CH3NH3PbI-based photocathodes used as a light absorber and an efficient charge transfer under solar simulator irradiation. In their work, a simple encapsulation approach was used, leading to the generation of H2 over 2 h in a mildly neutral electrolyte. Similarly, Nam et al. [176] applied a lift-off process to encapsulate the MHPs-based photoelectrode, achieving more precise desired morphological dimensions, and the possibility of additional layers with specific protective and photocatalytic functions. The prepared device showed remarkable results toward water oxidation as well as an excellent long-term stability in a strongly oxidizing electrolyte. The stability problem in the water splitting application is associated with the decomposition of the MHPs that usually occurs because of the ingress of water molecules through the pinholes. Thus, as an alternative, a remarkable enhancement in the stability was achieved by employing pinhole-free hole transport layers [177]. Another method was identified by Park and their group, who prepared a suitable solar-driven hydrogen evolution system based on bare MHPs using hydrohalic acids as medium [53]. In their work, photocatalytic H2 generation was performed without co-catalysts or oxidants, and stable conditions were maintained over 160 h due to the dynamic equilibrium between phases. Lately, similar techniques have been employed using mixed aqueous HBr/HI solution. Powder samples of MHPs loaded with Pt co-catalyst particles, applied on the surface, demonstrated superb photocatalytic H2 evolution activity, especially due to the efficient band gap and the subsequent separation at the interface of the materials [173]. The enhanced results of such a structure should be considered in future, with regards to other MHPs-based materials. In order to overcome the unfavorable and expensive approaches previously mentioned, Kim et al. investigated a simpler strategy for the utilization of conventional MHPs photocatalysts by designing a semi-transparent photocathode compatible with strongly acidic aqueous electrolytes [178].
Despite the potential results of the previously cited works, all-inorganic halide perovskites should be considered as well, as promising materials. These materials exhibited different advantages in comparison to other hybrid MHPs systems, including higher photocurrent density, higher photovoltage potential, and, more importantly, higher stability in contact with several acidic electrolytes [178].

4.3. Photocatalytic Removal of Organic Contaminants

Environmental industrial emissions of organic contaminants, due to their toxicity, are globally considered as a serious threat to human health and ecosystems. Recently, the impressive response achieved through MHPs has inspired applications well beyond those previously mentioned. In addition to the various well-known applications, MHPs have been utilized as remarkably efficient photocatalysts for numerous light-driven reactions, including wastewater treatments [179,180]. The first results in photocatalytic wastewater treatment belong to Aamir et al. [181], who reported the preparation of new hydroxyl ammonium lead halide perovskites, OHNH3PbI2Cl and OHNH3PbCl3, which showed suitable stability in an aqueous medium and visible light activity in the photocatalytic degradation of yellow dye under ambient conditions. Lead-based MHPs emerged as visible light photocatalysts, applied in the degradation of other organic dye contaminants such as rhodamine B (RhB). The efficiency was found to be enhanced in the presence of assistant oxidants, such as H2O2, and the evidence of reactive oxygen species production was defined [182]. Lead-free hybrid MHPs have been prepared by replacing lead with cadmium, a non-toxic 6p-block element, leading to higher stability, increased charge-carrier lifetimes, and lower charge carriers recombination rates [183]. Bismuth-based hybrid organic–inorganic MHPs have been prepared and tested as new effective visible light-responsive photocatalysts, for the degradation of different environment pollutants [101].
However, despite the recent success of organometallic halide perovskites, other analogue MHPs have been developed with competitive performances. Among them, the preparation of all-inorganic MHPs has recently gain a lot of attention, because they demonstrated better stability and the ability to absorb a wider range of the visible light region of the solar spectrum [90]. After the pioneering work of Protesescu et al. properties [77], the preparation of all-inorganic MHPs has been the focus of much effort. Gao et al. [23] reported MHPs’ potential photoactivity on organic dye degradation in 2017. In his work, all-inorganic CsPbX3 (X = Cl, Br, I) quantum dots were promoted to study the potential effects of preparing various types of halide perovskites for the photocatalytic degradation of methyl orange (MO). Lately, similar evidence was obtained concerning CsPbBr3 for the photodegradation of 2-mercaptobenzothiazole, an important heterocyclic aromatic compound, poorly biodegradable, toxic, and probably carcinogenic to humans [184]. In 2019, inorganic CsPbBr3 quantum dots were successfully employed even for the removal of antibiotic residues. The photocatalytic activity was evaluated on the photodegradation of tetracycline hydrochloride in ethanol as a model reactant, showing its benefits as a novel visible light photocatalyst for wastewater applications [180].
Schünemann et al. [185] suggested a polystyrene-based colloidal crystal templating approach to synthesize macro/mesoporous CsPbBr3. The as-prepared MHP, with inverse opal morphology, resulted in superior photocatalytic activity compared to the bare CsPbBr3 material. The results, potentially beneficial for other photocatalytic reactions, greatly enriched the MHPs-based novel research area.
Environmentally friendly alternative approaches, with respect to the commonly employed lead-based MHPs, have been successfully proposed by Reyes-Pérez et al. [179], by employing CsSnBr3 in crystal violet photodegradation under visible light irradiation. A similar approach was employed for the degradation of methylene blue and methyl orange by nanostructures of TlCdI3, synthesized by a new, efficient and quick mechanical method [186].
Lim et al. [187] have recently proposed a facile method for eight binary and six ternary perovskite-like and perovskite-derivative nanostructures, leading to potential applications in many hundreds of other similar materials. The optical and photocatalytic properties of perovskite-based nanomaterials were evaluated, and distinguished applications have been proposed.
Compositional engineering applied to MHPs allowed the great tunability of the band gaps over a wider range of the solar-light spectrum, making the photons effectively harvest sunlight. The improved stability and successful alcohol-based photocatalytic systems based on MHPs, have been developed by employing a lead-free double material, Cs2AgBiBr6, used for the photocatalytic degradation of four types of ionic dyes. Among the dyes degraded, rodamine B was found to be almost completely degraded, up to 98%, within two hours of irradiation [188].
Inspired by the remarkable efficiency of MHPs, heterostructured and composite perovskite-based photocatalysts have also been prepared. In 2017, Pu et al. [189] studied the degradation of p-nitrophenol under visible light irradiation, by preparing methylamine lead bromide perovskite/protonated graphitic carbon nitride nanocomposites. In the study, a higher stability and charge transfer ability were recorded; in particular, the photoexcited electron on the hybrid perovskite conduction band was found to preferentially transfer to the carbon-base sheets, leading to an enhanced charge separation. Their work demonstrated the possibility of modulating the interfacial charge transfer behavior, achieving a superior charge separation efficiency in heterostructured photocatalyst. The band alignment in the formamidinium lead bromide-based perovskite and TiO2 has been composited, in order to demonstrate the enhancement in the selective photocatalytic oxidization of benzylic alcohols by funneling the photogenerated electrons from the perovskite into the titanium dioxide [172].
Following these principles, all-inorganic perovskites have also been applied in composites. Schünemann et al. [190] synthesized a CsPbBr3/TiO2 composite via low-temperature wet-impregnation, and demonstrated its enhanced visible light activity towards the selective oxidation of benzyl alcohol. ESR (electron spin resonance) analyses further showed the transfer of photoexcited electrons within the CsPbBr3 to the TiO2, and the generation of superoxide radicals. Similar results have been achieved by anchoring Cs3Bi2I9 on UV100–TiO2 nanoparticles used as visible light photocatalyst for methanol oxidation in formaldehyde, with a favorable decrease in the recombination of photoinduced charge carriers, and a suitable band gap for visible light driven photocatalytic applications [191]. Novel strategies for providing water resistance and increasing the photocatalytic efficiency of halide perovskites in aqueous medium, through unabated charge extraction, have been recently exploited in effective composite systems, which help to extract the photo-generated charge carriers, as well as providing water resistance. In Type II and Type I or Quasi Type II systems based on Cs3Bi2X9, oxalic acid and TiO2, or Ag2S, allowed the excitons to be generated by the back-illumination of the perovskite material [192]. The presence of the TiO2 and the Ag2S stabilized the interactions with water molecules, and simultaneously efficiently decreased the photogenerated charges recombination.
Some of the results previously discussed are reported in Table 4 as a comparison of the main organic pollutants treated in the previous literature.

4.4. Photocatalytic Organic Synthesis

The economic feasibility and the efficiency of photocatalytic processes have been considered, and they have also been identified as desirable approaches in the field of organic chemistry. Advances in the artificial formation of organic compounds have been achieved via photoredox catalysis with semiconductors of different nature [195,196,197]. The traditional photocatalysts employed have shown limits, such as difficult preparations, the uneconomic content of high-cost noble metals, instability, and in certain cases, low activities, leading to the necessity of new, easy-to-produce, economical and effective alternatives. Given the widespread success of MHPs in many light-driven applications, recently many researchers have questioned the possibility of their use in highly efficient photocatalytic organic molecules synthesis. Some of the mentioned research is summarized in Table 5.
Huang et al. [172] studied the efficiency in photocatalytic oxidization of benzylic alcohols, by utilizing an energy band alignment within formamidinium lead bromide MHPs and TiO2 irradiated by solar-light. In their work, the authors highlighted the necessity of a capping agent in improving the instability of the MHPs-based composites. As alternative, in 2017, all-inorganic CsPbI3 quantum dots were applied for the synthesis of conducting polymers, which are widely used, especially in optoelectronic devices, and are usually prepared by slow and difficult chemical or electrochemical methods [199]. Recently, Zhu et al. [200] compared two lead-based MHPs colloids, for selective carbon−carbon bonds for the formation of aldehydes, leading to the development of many other possibilities for potential organic compounds synthesis. In fact, the same catalytic systems shown were evaluated for the photocatalytic formation of symmetrical and unsymmetrical disulfides from thiol [198]. Moreover, Tan et al. [201] tested the stability of lead-based MHPs protected by high molecular weight polymers fully immersed in water, further demonstrating the success of these materials in photoactivated organic synthesis. A three-component hybrid perovskite-based solar photocatalyst cell (NiOx/FAPbBr3/TiO2) was adopted for photocatalytic organic synthesis, due to its capacity for bond-activation with high selectivity, and high conversion rates under ambient conditions [202].
Among the possible lead-free and more eco-friendly alternatives, Bi-based MHPs have been shown to be promising, with advantageous low toxicity and higher air-stability [203]. As an example, lead-free Cs3Bi2Br9 has recently demonstrated exceptional high activity and selectivity in solar light-driven photocatalytic organic synthesis [195]. The reasons for such an unexpected catalytic ability are attributed to the combination of the photocatalytic process and the presence of proper Lewis acidic centers on the surface of the photocatalyst, leading to a higher activity with respect to the lead-based counterpart.
The development of MHPs in photocatalytic organic chemistry, even if at its early stage, has shown promising results, offering a preliminary framework for future investigation.

5. Current Limitations and Future Perspectives

The core of our work is to review the recent achievements in MHPs-based materials applied in photocatalytic processes. Recently, the discovery of their easy preparation and processing, coupled with remarkable optical and electrochemical properties, has attracted the interest of several academic fields. Therefore, MHPs have been considered in the new generation of materials with great potential in many light-driven applications, leading to an incredibly rapid development. The field of MHP-based photocatalysis is still in a relatively early stage of discovery, and some limits still need to be addressed in order to achieve further improvement and promote future industrial commercialization. Their feasibility is still hindered by relatively poor stability in particular environments, and in certain cases, the efficiency can be further improved. Structural and chemical stability, as well as temperature, humidity and long-term irradiation, represent the main gaps to be overcome in order to design and optimize MHPs-based photocatalysts.
In recent years, several approaches have been developed in order to achieve promising and stable photocatalytic reaction environments by means of MHPs [204,205,206].
Structural and chemical stabilities include the lack of polymorphism [207], and a lack in resistant crystalline phases [208]. These effects can be easily overcome by selecting suitable preparation conditions, such as temperature and pressure [209], or by modifying the MHPs morphological compositions [210]. Generally speaking, the MA+ and FA+ organic precursors, MA+-based MHPs, showed higher photocatalytic performance and superior thermal stability, but similar humidity problems [211]. Hybrid organic–inorganic structures have strict requirements for ion size, and the structural symmetry stability is considerably decreased by a small lattice expansion or distortion. In general, it has been reported that the tolerance factor, mainly dependent on the effective radii of the employed ions [212], may influence the structural stability, and thus by replacing or mixing the compositions of MHPs with different sized ions is a possible means to obtain crystal structures with greater stabilities [213]. Furthermore, thermal and humidity disadvantages can be faced by mixing or replacing organic cations with inorganic elements, for example, cesium has emerged as the most widely used inorganic precursor [110,214,215].
More specifically, several methods have been tested in order to enhance environmental stability in relation to target photocatalytic reactions, including CO2 reduction, H2 evolution, organic matter photodecomposition or organic transformations. The relative HOIPs (hybrid organic inorganic perovskite) sensitivity to degradation by polar molecules can be addressed by using low-polarity solvents for CO2 reduction, such as ethyl acetate or acetonitrile, creating stable photocatalytic reaction conditions [164]. Further enhanced stability can be achieved by combining HOIPs with graphene or graphitic carbon nitrile, by passivation through the interaction between the surface groups [174]. In addition, the compositions with TiO2 or transition MXenes structures can help to speed up the charge separation, by acting as reaction sites to improve the overall stability [216]. Morphology modification, and substitution of halogens in the HOIPs or the ions in the A- and B-sites’ structure, have also been proven as suitable approaches to enhancing the stability toward decomposition [163,164,167,192]. In the same way, low-polarity solvents may be employed in photocatalytic organic synthesis, including non-polars such as toluene, dichloromethane, tetrahydrofuran, hexane etc. [19,166,195,200,217].
Suitable compositions, and re-engineering of the HOIPs-based systems, can be useful approaches not only to achieving higher transformation efficiency, but also to stabilizing the photocatalysts in photo-oxidation processes [172]. Besides the synthesis of organics into value-added products, the complete mineralization of organic pollutants of MHPs photocatalysts has also been investigated in toluene [218].
The precipitation–solubility equilibrium, between the HOIPs phase and the soluble ionic species, represents one among the creative approaches to facing the stability problem. For example, saturated hydrogen iodide (HI) acid aqueous solutions using HOIPs polycrystalline powders were found to be a suitable method for photocatalytic H2 production [53]. Due to the dynamic equilibrium between the MHPs powders and the ionic species in the saturated solution, the material was found to remain stable for several hours under continuous irradiation. Similar principles have been employed by using HBr/HI mixed acid solution [173]. Improved stability and enhanced hydrogen photocatalytic activity were achieved by composing HOIPs in supports, such as TiO2 [162], rGO [219] and black phosphorus [220].
As an alternative, a straightforward stabilization method consists of encapsulating the HOIPs by means of a protective layer. The core-shell particles may prevent direct contact between the material and the destabilizing environment. This approach was used for CO2 reduction [221], as well as in organic pollutants photodecomposition [222]. The core-shell structure achieved the valuable stabilization of the HOIPs, not only in low-polarity solvents, but also in a high-polarity solvent, like water. Adding hydrophobic ligands to coat the surface is another waterproof effective method [223].
In photoelectrochemical cells, used in H2 evolution and CO2 reduction reactions, HOIPs have been coated with hole and electron transport layers (HTL and ETL, respectively), enhancing the overall device stability. Two main options have been exploited: the implementation of MHPs photoelectrodes in separated compartments [54], and the HOIPs integrated photoelectrode [175]. The mentioned approaches offered relatively successful solutions. However, the development of MHPs that are intrinsically stable under common conditions represents an ideal scenario for photocatalytic reactions. In general, replacing or partially replacing the organic fraction with all-inorganic MHPs has resulted in higher stability, due to the enhanced formation energy, lower configurational entropy, and the non-volatile and less hygroscopic nature [224]. Many approaches have been developed in different photocatalytic reactions, including CO2 reduction [158,163,164,165,168] and organic dye degradation [167,180,186,192,193,194].
Lead-based MHPs have shown very promising performances in photocatalytic processes, but due to the high and well-known toxicity of Pb, for both the ecosystem and environment, it should be replaced with more eco-friend elements. Generally, germanium- and tin-based perovskite systems showed rapid oxidation and uncontrolled crystallization, resulting in poorly efficiency. Bismu- and antimony-based MHPs showed promising results, with stability comparable to lead-based MHPs [85]. However, appropriate efficiencies, due to the unsuitable band gaps, have not reached the traditional standards. Thus, a better understanding of photogenerated carrier dynamics at the interfaces needs to be addressed, in order to effectively improve the performance and stability of all lead-free MHPs.
There is a lack of total understanding of the optical and chemical reactions, and microscopic physics mechanisms, in the majority of the MHPs’ applications. Therefore, the development of complete theoretical models is necessary to explain the remarkable efficiency of these materials when applied in photocatalytic processes. Theoretical research can improve the understanding of the established activities of MHPs, and they may provide strategies to develop simpler materials and structures with even higher efficiencies.
Thus, MHPs-based photocatalysts currently need further developments in order to be effective with regards to the energy and environmental needs of our society. However, the state of the art has demonstrated that MHPs represent an emerging generation of materials with several applications, including in photocatalytic processes. Despite the number of remaining challenges, it is important to remind ourselves that the commercial successes of emerging materials and technologies, such MHPs and their applications, have never been achieved in just a few decades.
Our research intended to present a general overview of the main progresses in MHPs-based photocatalysts, recognizing their great potential as future sources of interdisciplinary and multidisciplinary research.

Author Contributions

Conceptualization, B.-M.B.; data curation, B.-M.B.; writing—original draft preparation, B.-M.B.; writing—review and editing, B.-M.B.; supervision, Y.P., D.W.B. All authors have read and agree to the published version of the manuscript.


This research was funded by Maa-ja vesitekniikan tuki Foundation.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Nakata, K.; Fujishima, A. TiO2 photocatalysis: Design and applications. J. Photochem. Photobiol. C Photochem. Rev. 2012, 13, 169–189. [Google Scholar] [CrossRef]
  2. Grätzel, M. Photoelectrochemical cells. Nature 2001, 414, 338–344. [Google Scholar] [CrossRef] [PubMed]
  3. Arutyunov, V.S.; Lisichkin, V. Energy resources of the 21st century: Problems and forecasts. Can renewable energy sources replace fossil fuels? Russ. Chem. Rev. 2017, 86, 777–804. [Google Scholar] [CrossRef]
  4. Ganiyu, S.O.; Martínez-huitle, C.A.; Rodrigo, M.A. Renewable energies driven electrochemical wastewater/soil decontamination technologies: A critical review of fundamental concepts and applications. Appl. Catal. B Environ. 2020, 270, 118857. [Google Scholar] [CrossRef]
  5. Wang, W.; Tadé, M.O.; Shao, Z. Research progress of perovskite materials in photocatalysis- and photovoltaics-related energy conversion and environmental treatment. Chem. Soc. Rev. 2015, 44, 5371–5408. [Google Scholar] [CrossRef]
  6. Veeraboina, P.; Yesuratnam, G.; Sundar, L.S. Estimation of annual solar radiation from measured temperatures by using temperature-based (TB) approach in different cities in India. Sustain. Cities Soc. 2011, 1, 187–194. [Google Scholar] [CrossRef]
  7. Veeraboina, P.; Yesuratnam Guduri, G. Analysis of yearly solar radiation by using correlations based on ambient temperature: India. Sustain. Cities Soc. 2014, 11, 16–21. [Google Scholar] [CrossRef]
  8. Matsuoka, M.; Kitano, M.; Takeuchi, M.; Tsujimaru, K.; Anpo, M.; Thomas, J.M. Photocatalysis for new energy production Recent advances in photocatalytic water splitting reactions for hydrogen production. Catal. Today 2007, 122, 51–61. [Google Scholar] [CrossRef]
  9. Bahnemann, D. Photocatalytic water treatment: Solar energy applications. Sol. Energy 2004, 77, 445–459. [Google Scholar] [CrossRef]
  10. Taylor, P.; Yunus, I.S.; Kurniawan, A.; Adityawarman, D.; Indarto, A. Nanotechnologies in water and air pollution treatment. Environ. Technol. Rev. 2012, 1, 136–148. [Google Scholar]
  11. Zhao, J.; Yang, X. Photocatalytic oxidation for indoor air purification: A literature review. Build. Environ. 2003, 38, 645–654. [Google Scholar] [CrossRef]
  12. Gaya, U.I.; Abdullah, A.H. Heterogeneous photocatalytic degradation of organic contaminants over titanium dioxide: A review of fundamentals, progress and problems. J. Photochem. Photobiol. C Photochem. Rev. 2008, 9, 1–12. [Google Scholar] [CrossRef]
  13. Mo, J.; Zhang, Y.; Xu, Q.; Lamson, J.J.; Zhao, R. Photocatalytic purification of volatile organic compounds in indoor air: A literature review. Atmos. Environ. 2009, 43, 2229–2246. [Google Scholar] [CrossRef]
  14. Herrmann, J.M.; Guillard, C.; Pichat, P. Heterogeneous photocatalysis: An emerging technology for water treatment. Catal. Today 1993, 17, 7–20. [Google Scholar] [CrossRef]
  15. Martin, D.J.; Reardon, P.J.T.; Moniz, S.J.A.; Tang, J. Visible light-driven pure water splitting by a nature-inspired organic semiconductor-based system. J. Am. Chem. Soc. 2014, 136, 12568–12571. [Google Scholar] [CrossRef]
  16. Ni, M.; Leung, M.K.H.; Leung, D.Y.C.; Sumathy, K. A review and recent developments in photocatalytic water-splitting using TiO2 for hydrogen production. Renew. Sustain. Energy Rev. 2007, 11, 401–425. [Google Scholar] [CrossRef]
  17. Xiong, J.; Song, P.; Di, J.; Li, H. Ultrathin structured photocatalysts: A versatile platform for CO2 reduction. Appl. Catal. B Environ. 2019, 256. [Google Scholar] [CrossRef]
  18. Ye, S.; Wang, R.; Wu, M.Z.; Yuan, Y.P. A review on g-C3N4 for photocatalytic water splitting and CO2 reduction. Appl. Surf. Sci. 2015, 358, 15–27. [Google Scholar] [CrossRef]
  19. Zhu, X.; Lin, Y.; San Martin, J.; Sun, Y.; Zhu, D.; Yan, Y. Lead halide perovskites for photocatalytic organic synthesis. Nat. Commun. 2019, 10, 1–10. [Google Scholar] [CrossRef]
  20. Friedmann, D.; Hakki, A.; Kim, H.; Choi, W.; Bahnemann, D. Heterogeneous photocatalytic organic synthesi: State-of-the-art and future perspectives. Green Chem. 2016, 18, 5391–5411. [Google Scholar] [CrossRef] [Green Version]
  21. Suk, J.; Gyu, H.; Sung, J. Heterojunction semiconductors: A strategy to develop efficient photocatalytic materials for visible light water splitting. Catal. Today 2012, 185, 270–277. [Google Scholar] [CrossRef]
  22. Chen, S.; Huang, D.; Xu, P.; Xue, W.; Lei, L.; Cheng, M.; Wang, R.; Liu, X.; Deng, R. Semiconductor-based photocatalysts for photocatalytic and photoelectrochemical water splitting: Will we stop with photocorrosion? J. Mater. Chem. A 2020, 8, 2286–2322. [Google Scholar] [CrossRef]
  23. Gao, C.; Wang, J.; Xu, H.; Xiong, Y. Coordination chemistry in the design of heterogeneous photocatalysts. Chem. Soc. Rev. 2017, 46, 2799–2823. [Google Scholar] [CrossRef] [PubMed]
  24. Kou, J.; Lu, C.; Wang, J.; Chen, Y.; Xu, Z.; Varma, R.S. Selectivity Enhancement in Heterogeneous Photocatalytic Transformations. Chem. Rev. 2017, 117, 1445–1514. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Xu, C.; Ravi Anusuyadevi, P.; Aymonier, C.; Luque, R.; Marre, S. Nanostructured materials for photocatalysis. Chem. Soc. Rev. 2019, 48, 3868–3902. [Google Scholar] [CrossRef] [PubMed]
  26. Lettmann, C.; Hildenbrand, K.; Kisch, H.; Macyk, W.; Maier, W.F. Visible light photodegradation of 4-chlorophenol with a coke-containing titanium dioxide photocatalyst. Appl. Catal. B Environ. 2001, 32, 215–227. [Google Scholar] [CrossRef]
  27. Ola, O.; Maroto-Valer, M.M. Review of material design and reactor engineering on TiO2 photocatalysis for CO2 reduction. J. Photochem. Photobiol. C Photochem. Rev. 2015, 24, 16–42. [Google Scholar] [CrossRef] [Green Version]
  28. Cai, J.; Shen, J.; Zhang, X.; Ng, Y.H.; Huang, J.; Guo, W.; Lin, C.; Lai, Y. Light-Driven Sustainable Hydrogen Production Utilizing TiO2 Nanostructures: A Review. Small Methods 2019, 3, 1–24. [Google Scholar] [CrossRef] [Green Version]
  29. Kusiak-Nejman, E.; Morawski, A.W. TiO2/graphene-based nanocomposites for water treatment: A brief overview of charge carrier transfer, antimicrobial and photocatalytic performance. Appl. Catal. B Environ. 2019, 253, 179–186. [Google Scholar] [CrossRef]
  30. Tachikawa, T.; Tojo, S.; Kawai, K.; Endo, M.; Fujitsuka, M.; Ohno, T.; Nishijima, K.; Miyamoto, Z.; Majima, T. Photocatalytic oxidation reactivity of holes in the sulfur- and carbon-doped TiO2 powders studied by time-resolved diffuse reflectance spectroscopy. J. Phys. Chem. B 2004, 108, 19299–19306. [Google Scholar] [CrossRef] [Green Version]
  31. Frank, A.J.; Willner, I.; Goren, Z.; Degani, Y. Improved Charge Separation and Photosensitized H2 Evolution from Water with TiO2 Particles on Colloidal SiO2 Carriers. J. Am. Chem. Soc. 1987, 109, 3568–3573. [Google Scholar] [CrossRef]
  32. Wang, F.; DiValentin, C.; Pacchioni, G. Rational Band Gap Engineering of WO3 Photocatalyst for Visible light Water Splitting. ChemCatChem 2012, 4, 476–478. [Google Scholar] [CrossRef]
  33. Khan, M.M.; Ansari, S.A.; Pradhan, D.; Ansari, M.O.; Han, D.H.; Lee, J.; Cho, M.H. Band gap engineered TiO2 nanoparticles for visible light induced photoelectrochemical and photocatalytic studies. J. Mater. Chem. A 2014, 2, 637–644. [Google Scholar] [CrossRef]
  34. Wang, X.; Bai, L.; Liu, H.; Yu, X.; Yin, Y.; Gao, C. A Unique Disintegration–Reassembly Route to Mesoporous Titania Nanocrystalline Hollow Spheres with Enhanced Photocatalytic Activity. Adv. Funct. Mater. 2018, 28, 1–8. [Google Scholar] [CrossRef]
  35. Bai, S.; Wang, L.; Li, Z.; Xiong, Y. Facet-Engineered Surface and Interface Design of Photocatalytic Materials. Adv. Sci. 2017, 4, 1–26. [Google Scholar] [CrossRef] [PubMed]
  36. Han, X.; Kuang, Q.; Jin, M.; Xie, Z.; Zheng, L. Synthesis of titania nanosheets with a high percentage of exposed (001) facets and related photocatalytic properties. J. Am. Chem. Soc. 2009, 131, 3152–3153. [Google Scholar] [CrossRef]
  37. Liqiang, J.; Yichun, Q.; Baiqi, W.; Shudan, L.; Baojiang, J.; Libin, Y.; Wei, F.; Honggang, F.; Jiazhong, S. Review of photoluminescence performance of nano-sized semiconductor materials and its relationships with photocatalytic activity. Sol. Energy Mater. Sol. Cells 2006, 90, 1773–1787. [Google Scholar] [CrossRef]
  38. Anandan, S.; Ohashi, N.; Miyauchi, M. ZnO-based visible-light photocatalyst: Band-gap engineering and multi-electron reduction by co-catalyst. Appl. Catal. B Environ. 2010, 100, 502–509. [Google Scholar] [CrossRef]
  39. Marschall, R.; Wang, L. Non-metal doping of transition metal oxides for visible-light photocatalysis. Catal. Today 2014, 225, 111–135. [Google Scholar] [CrossRef]
  40. Sato, S.; Nakamura, R.; Abe, S. Visible-light sensitization of TiO2 photocatalysts by wet-method N doping. Appl. Catal. A Gen. 2005, 284, 131–137. [Google Scholar] [CrossRef]
  41. Zheng, Z.; Huang, B.; Lu, J.; Wang, Z.; Qin, X.; Zhang, X.; Dai, Y.; Whangbo, M.H. Hydrogenated titania: Synergy of surface modification and morphology improvement for enhanced photocatalytic activity. Chem. Commun. 2012, 48, 5733–5735. [Google Scholar] [CrossRef] [PubMed]
  42. Hong, R.Y.; Li, J.H.; Chen, L.L.; Liu, D.Q.; Li, H.Z.; Zheng, Y.; Ding, J. Synthesis, surface modification and photocatalytic property of ZnO nanoparticles. Powder Technol. 2009, 189, 426–432. [Google Scholar] [CrossRef]
  43. Balachandran, S.; Swaminathan, M. Facile fabrication of heterostructured Bi2O3-ZnO photocatalyst and its enhanced photocatalytic activity. J. Phys. Chem. C 2012, 116, 26306–26312. [Google Scholar] [CrossRef]
  44. Yu, Z.B.; Xie, Y.P.; Liu, G.; Lu, G.Q.; Ma, X.L.; Cheng, H.M. Self-assembled CdS/Au/ZnO heterostructure induced by surface polar charges for efficient photocatalytic hydrogen evolution. J. Mater. Chem. A 2013, 1, 2773–2776. [Google Scholar] [CrossRef]
  45. Jin, J.; Yu, J.; Guo, D.; Cui, C.; Ho, W. A Hierarchical Z-Scheme CdS-WO3 Photocatalyst with Enhanced CO2 Reduction Activity. Small 2015, 11, 5262–5271. [Google Scholar] [CrossRef]
  46. Liu, G.; Wang, L.; Yang, H.G.; Cheng, H.M.; Lu, G.Q. Titania-based photocatalysts-Crystal growth, doping and heterostructuring. J. Mater. Chem. 2010, 20, 831–843. [Google Scholar] [CrossRef]
  47. Snaith, H.J. Perovskites: The emergence of a new era for low-cost, high-efficiency solar cells. J. Phys. Chem. Lett. 2013, 4, 3623–3630. [Google Scholar] [CrossRef]
  48. Green, M.A.; Ho-Baillie, A.; Snaith, H.J. The emergence of perovskite solar cells. Nat. Photonics 2014, 8, 506–514. [Google Scholar] [CrossRef]
  49. Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal halide perovskites as visible-light sensitizers for photovoltaic cells. J. Am. Chem. Soc. 2009, 131, 6050–6051. [Google Scholar] [CrossRef]
  50. Lee, M.M.; Teuscher, J.; Miyasaka, T.; Murakami, T.N.; Snaith, H.J. Efficient Hybrid Solar Cells Based on Meso-Superstructured Organometal Halide Perovskites. Science 2012, 338, 643–648. [Google Scholar] [CrossRef] [Green Version]
  51. Park, N.G. Perovskite solar cells: An emerging photovoltaic technology. Mater. Today 2015, 18, 65–72. [Google Scholar] [CrossRef]
  52. Zhang, G.; Liu, G.; Wang, L.; Irvine, J.T.S. Inorganic perovskite photocatalysts for solar energy utilization. Chem. Soc. Rev. 2016, 45, 5951–5984. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Park, S.; Chang, W.J.; Lee, C.W.; Park, S.; Ahn, H.Y.; Nam, K.T. Photocatalytic hydrogen generation from hydriodic acid using methylammonium lead iodide in dynamic equilibrium with aqueous solution. Nat. Energy 2017, 2, 1–8. [Google Scholar] [CrossRef]
  54. Luo, J. Water photolysis at 12.3% efficiency via perovskite photovoltaics and Earth-abundant catalysts. Science 2014, 345, 1593–1596. [Google Scholar] [CrossRef] [PubMed]
  55. Andrei, V.; Reuillard, B.; Reisner, E. Bias-free solar syngas production by integrating a molecular cobalt catalyst with perovskite–BiVO4 tandems. Nat. Mater. 2020, 19. [Google Scholar] [CrossRef]
  56. Kong, W.; Rahimi-iman, A.; Bi, G.; Dai, X.; Wu, H. Oxygen Intercalation Induced by Photocatalysis on the Surface of Hybrid Lead-Halide Perovskites Oxygen Intercalation Induced by Photocatalysis on the Surface of Hybrid Lead-halide Perovskites. J. Phys. Chem. C 2016, 120. [Google Scholar] [CrossRef]
  57. Kato, H.; Kudo, A. Visible-Light-Response and Photocatalytic Activities of TiO2 and SrTiO3 Photocatalysts Codoped with Antimony and Chromium. J. Phys. Chem. A 2002, 106, 5029–5034. [Google Scholar] [CrossRef]
  58. Bard, A.J. Photoelectrochemistry and Heterogeneous Photo-catalysis at Semiconductors. J. Photochem. 1979, 10, 59–75. [Google Scholar] [CrossRef]
  59. Inoue, Y.; Niiyama, T.; Asai, Y.; Sato, K. Stable Photocatalytic Activity of BaTi4O9 Combined with Ruthenium Oxide for Decomposition of Water. J. Chem. Soc. Chem. Commun. 1992, 579–580. [Google Scholar] [CrossRef]
  60. Kudo, A.; Tanaka, A.; Domen, K.; Maruya, K.; Aika, K.; Onishi, T. Photocatalytic decomposition of water over NiO-K4Nb6O17 catalyst. J. Catal. 1988, 111, 67–76. [Google Scholar] [CrossRef]
  61. Kamat, P. V All Solution-Processed Lead Halide Perovskite-BiVO4 Tandem Assembly for Photolytic Solar Fuels Production. J. Am. Chem. Soc. 2015, 137. [Google Scholar] [CrossRef] [Green Version]
  62. Mathies, F.; Unger, E.; Universität, H.; Physik, I.; Chemie, I.; Adlershof, I.; Zentrum, H.; Straße, B.T. Advances in Inkjet-Printed Metal-Halide PerovskitePhotovoltaic and Optoelectronic Devices Florian. Energy Technol. 2020, 8. [Google Scholar] [CrossRef] [Green Version]
  63. Park, B.; Philippe, B.; Zhang, X.; Rensmo, H.; Boschloo, G.; Johansson, E.M.J. Bismuth Based Hybrid Perovskites A3Bi2I9 (A:Methylammonium or Cesium) for Solar Cell Application. Adv. Mater. 2015, 27, 6806–6813. [Google Scholar] [CrossRef] [PubMed]
  64. Kudo, A.; Ueda, K.; Kato, H.; Mikami, I. Photocatalytic O2 evolution under visible light irradiation on BiVO4 in aqueous AgNO3 solution. Catal. Letters 1998, 53, 229–230. [Google Scholar] [CrossRef]
  65. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef]
  66. Li, J.; Xu, L.; Wang, T.; Song, J.; Chen, J.; Xue, J.; Dong, Y. 50-Fold EQE Improvement up to 6.27% of Solution-Processed All-Inorganic Perovskite CsPbBr3 QLEDs via Surface Ligand Density Control. Adv. Mater. 2016, 29. [Google Scholar] [CrossRef]
  67. Andronic, L.; Isac, L.; Miralles-cuevas, S.; Visa, M.; Oller, I.; Duta, A.; Malato, S. Pilot-plant evaluation of TiO2 and TiO2-based hybrid photocatalysts for solar treatment of polluted water. J. Hazard. Mater. 2016, 320, 469–478. [Google Scholar] [CrossRef]
  68. Jim, M.; Maldonado, M.I.; Mar, E.; Hern, A.; Saggioro, E. Supported TiO2 solar photocatalysis at semi-pilot scale: Degradation of pesticides found in citrus processing industry wastewater, reactivity and influence of photogenerated species Antonio S anchez. J. Chem. Technol. Biotechnol. 2015, 90, 149–157. [Google Scholar] [CrossRef]
  69. Shaban, Y.A.; El Sayed, M.A.; El Maradny, A.A.; Al Farawati, R.K.; Al Zobidi, M.I.; Khan, S.U.M. Degradation of Polychlorinated Biphenyls in Seawater Using CM-n-TiO2 Nanoparticles. Int. J. Photoenergy 2016, 2016, 1–7. [Google Scholar] [CrossRef]
  70. Serpone, N.; Emeline, A.V. Semiconductor Photocatalysis—Past, Present, and Future Outlook. J. Phys. Chem. Lett. 2012, 3, 673–677. [Google Scholar] [CrossRef]
  71. Hoffmann, M.R.; Martin, S.T.; Choi, W.; Bahnemannt, D.W. Environmental Applications of Semiconductor Photocatalysis. Chem. Rev. 1995, 95, 69–96. [Google Scholar] [CrossRef]
  72. Zhu, S.; Wang, D. Photocatalysis: Basic principles, diverse forms of implementations and emerging scientific opportunities. Adv. Energy Mater. 2017, 7, 1–24. [Google Scholar] [CrossRef] [Green Version]
  73. Yasmina, M.; Mourad, K.; Mohammed, S.H.; Khaoula, C. Treatment heterogeneous photocatalysis; Factors influencing the photocatalytic degradation by TiO2. Energy Procedia 2014, 50, 559–566. [Google Scholar] [CrossRef] [Green Version]
  74. Rose, G. De perowskite, fossili novo. In De Novis Quibusdam Fossilibus Quae in Montibus Uraliis Inveniuntur; Verlagsort: Berlin, Germany, 1839. [Google Scholar]
  75. Chakhmouradian, A.R.; Woodward, P.M. Celebrating 175 years of perovskite research: A tribute to Roger H. Mitchell. Phys. Chem. Miner. 2014, 41, 387–391. [Google Scholar] [CrossRef]
  76. Kovalenko, M.V.; Bodnarchuk, M.I. Lead halide perovskite nanocrystals: From discovery to self-assembly and applications. CHIMIA (Aarau) 2017, 71, 461–470. [Google Scholar] [CrossRef] [Green Version]
  77. Berry, C.R. Structure and optical absorption of AgI microcrystals. Phys. Rev. 1967, 161, 848–851. [Google Scholar] [CrossRef]
  78. Akkerman, Q.A.; Rainò, G.; Kovalenko, M.V.; Manna, L. Genesis, challenges and opportunities for colloidal lead halide perovskite nanocrystals. Nat. Mater. 2018, 17, 394–405. [Google Scholar] [CrossRef]
  79. Itoh, T.; Kirihara, T. Excitons in CuCI microcrystals embedded in NaCl. J. Lumin. 1984, 32, 120–122. [Google Scholar] [CrossRef]
  80. Efros, A.L.; Onushchenko, A.A. Quantum size effect in three-dimensional microscopic semiconductor crystals. JETP Lett. 1881, 34, 345–349. [Google Scholar]
  81. Éfros, A.L. Density of states and interband absorption of light in strongly doped semiconductors. Sov. Phys. Usp. 1974, 16, 789–805. [Google Scholar] [CrossRef]
  82. Grätzel, M. The light and shade of perovskite solar cells. Nat. Mater. 2014, 13, 838–842. [Google Scholar] [CrossRef] [PubMed]
  83. Park, N.G. Organometal perovskite light absorbers toward a 20% efficiency low-cost solid-state mesoscopic solar cell. J. Phys. Chem. Lett. 2013, 4, 2423–2429. [Google Scholar] [CrossRef]
  84. Dong, Y.; Zhao, Y.; Zhang, S.; Dai, Y.; Liu, L.; Li, Y.; Chen, Q. Recent advances toward practical use of halide perovskite nanocrystals. J. Mater. Chem. A 2018, 6, 21729–21746. [Google Scholar] [CrossRef]
  85. Jena, A.K.; Kulkarni, A.; Miyasaka, T. Halide Perovskite Photovoltaics: Background, Status, and Future Prospects. Chem. Rev. 2019, 119, 3036–3103. [Google Scholar] [CrossRef] [PubMed]
  86. Takeoka, Y.; Asai, K.; Rikukawa, M.; Sanui, K. Incorporation of conjugated polydiacetylene systems into organic—Inorganic quantum-well structures. Chem. Commun. 2001, 1, 2592–2593. [Google Scholar] [CrossRef]
  87. Kondo, T.; Iwamoto, S.; Hayase, S.; Tanaka, K.; Ishi, J.; Mizuno, M.; Ema, K.; Ito, R. Resonant third-order optical nonlinearity in the layered perovskite-type material (C6H13NH3)2PbI4. Solid State Commun. 1997, 105, 503–506. [Google Scholar] [CrossRef]
  88. Schmidt, L.C.; Pertegás, A.; González-Carrero, S.; Malinkiewicz, O.; Agouram, S.; Mínguez Espallargas, G.; Bolink, H.J.; Galian, R.E.; Pérez-Prieto, J. Nontemplate synthesis of CH3NH3PbBr3 perovskite nanoparticles. J. Am. Chem. Soc. 2014, 136, 850–853. [Google Scholar] [CrossRef]
  89. Nedelcu, G.; Protesescu, L.; Yakunin, S.; Bodnarchuk, M.I.; Grotevent, M.J.; Kovalenko, M.V. Fast Anion-Exchange in Highly Luminescent Nanocrystals of Cesium Lead Halide Perovskites (CsPbX3, X = Cl, Br, I). Nano Lett. 2015, 15, 5635–5640. [Google Scholar] [CrossRef]
  90. Li, X.; Cao, F.; Yu, D.; Chen, J.; Sun, Z.; Shen, Y.; Zhu, Y. All Inorganic Halide Perovskites Nanosystem: Synthesis, Structural Features, Optical Properties and Optoelectronic Applications. Small 2017, 1–24. [Google Scholar] [CrossRef]
  91. Hoefler, S.F.; Trimmel, G.; Rath, T. Progress on lead-free metal halide perovskites for photovoltaic applications: A review. Monatshefte Fur Chemie 2017, 148, 795–826. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  92. Koh, T.M.; Thirumal, K.; Soo, H.S.; Mathews, N. Multidimensional Perovskites: A Mixed Cation Approach Towards Ambient Stable and Tunable Perovskite Photovoltaics. ChemSusChem 2016, 9, 2541–2558. [Google Scholar] [CrossRef] [PubMed]
  93. McClure, E.T.; Ball, M.R.; Windl, W.; Woodward, P.M. Cs2AgBiX6 (X = Br, Cl): New Visible Light Absorbing, Lead-Free Halide Perovskite Semiconductors. Chem. Mater. 2016, 28, 1348–1354. [Google Scholar] [CrossRef]
  94. Brennan, M.C.; Draguta, S.; Kamat, P.V.; Kuno, M. Light-Induced Anion Phase Segregation in Mixed Halide Perovskites. ACS Energy Lett. 2018, 3, 204–213. [Google Scholar] [CrossRef] [Green Version]
  95. Ogomi, Y.; Morita, A.; Tsukamoto, S.; Saitho, T.; Fujikawa, N.; Shen, Q.; Toyoda, T.; Yoshino, K.; Pandey, S.S.; Ma, T.; et al. CH3NH3SnxPb(1−x)I3 perovskite solar cells covering up to 1060 nm. J. Phys. Chem. Lett. 2014, 5, 1004–1011. [Google Scholar] [CrossRef]
  96. Yin, W.J.; Shi, T.; Yan, Y. Unique properties of halide perovskites as possible origins of the superior solar cell performance. Adv. Mater. 2014, 26, 4653–4658. [Google Scholar] [CrossRef]
  97. Correa-Baena, J.P.; Nienhaus, L.; Kurchin, R.C.; Shin, S.S.; Wieghold, S.; Putri Hartono, N.T.; Layurova, M.; Klein, N.D.; Poindexter, J.R.; Polizzotti, A.; et al. A-Site Cation in Inorganic A3Sb2I9 Perovskite Influences Structural Dimensionality, Exciton Binding Energy, and Solar Cell Performance. Chem. Mater. 2018, 30, 3734–3742. [Google Scholar] [CrossRef]
  98. Chen, Q.; De Marco, N.; Yang, Y.M.; Song, T.B.; Chen, C.C.; Zhao, H.; Hong, Z.; Zhou, H.; Yang, Y. Under the spotlight: The organic-inorganic hybrid halide perovskite for optoelectronic applications. Nano Today 2015, 10, 355–396. [Google Scholar] [CrossRef] [Green Version]
  99. Li, B.; Fu, L.; Li, S.; Li, H.; Pan, L.; Wang, L.; Chang, B.; Yin, L. Pathways toward high-performance inorganic perovskite solar cells: Challenges and strategies. J. Mater. Chem. A 2019, 7, 20494–20518. [Google Scholar] [CrossRef]
  100. Stoumpos, C.C.; Malliakas, C.D.; Kanatzidis, M.G. Semiconducting tin and lead iodide perovskites with organic cations: Phase transitions, high mobilities, and near-infrared photoluminescent properties. Inorg. Chem. 2013, 52, 9019–9038. [Google Scholar] [CrossRef]
  101. Liang, J.; Zhao, P.; Wang, C.; Wang, Y.; Hu, Y.; Zhu, G.; Ma, L.; Liu, J.; Jin, Z. CsPb0.9Sn0.1IBr2 Based All-Inorganic Perovskite Solar Cells with Exceptional Efficiency and Stability. J. Am. Chem. Soc. 2017, 139, 14009–14012. [Google Scholar] [CrossRef] [PubMed]
  102. Pazoki, M.; Jacobsson, T.J.; Hagfeldt, A.; Boschloo, G.; Edvinsson, T. Effect of metal cation replacement on the electronic structure of metalorganic halide perovskites: Replacement of lead with alkaline-earth metals. Phys. Rev. B 2016, 93, 1–10. [Google Scholar] [CrossRef]
  103. Lau, C.F.J.; Deng, X.; Zheng, J.; Kim, J.; Zhang, Z.; Zhang, M.; Bing, J.; Wilkinson, B.; Hu, L.; Patterson, R.; et al. Enhanced performance: Via partial lead replacement with calcium for a CsPbI3 perovskite solar cell exceeding 13% power conversion efficiency. J. Mater. Chem. A 2018, 6, 5580–5586. [Google Scholar] [CrossRef]
  104. Zou, S.; Liu, Y.; Li, J.; Liu, C.; Feng, R.; Jiang, F.; Li, Y.; Song, J.; Zeng, H.; Hong, M.; et al. Stabilizing Cesium Lead Halide Perovskite Lattice through Mn(II) Substitution for Air-Stable Light-Emitting Diodes. J. Am. Chem. Soc. 2017, 139, 11443–11450. [Google Scholar] [CrossRef] [PubMed]
  105. Liang, J.; Liu, Z.; Qiu, L.; Hawash, Z.; Meng, L.; Wu, Z.; Jiang, Y.; Ono, L.K.; Qi, Y. Enhancing Optical, Electronic, Crystalline, and Morphological Properties of Cesium Lead Halide by Mn Substitution for High-Stability All-Inorganic Perovskite Solar Cells with Carbon Electrodes. Adv. Energy Mater. 2018, 8, 1–7. [Google Scholar] [CrossRef]
  106. Jacobsson, T.J.; Pazoki, M.; Hagfeldt, A.; Edvinsson, T. Goldschmidt Rules and Strontium Replacement in Lead Halogen Perovskite Solar Cells: Theory and Preliminary Experiments on CH3NH3SrI3. J. Phys. Chem. C 2015, 119, 25673–25683. [Google Scholar] [CrossRef]
  107. Cuhadar, C.; Kim, S.G.; Yang, J.M.; Seo, J.Y.; Lee, D.; Park, N.G. All-Inorganic Bismuth Halide Perovskite-Like Materials A3Bi2I9 and A3Bi1.8Na0.2I8.6 (A = Rb and Cs) for Low-Voltage Switching Resistive Memory. ACS Appl. Mater. Interfaces 2018, 10, 29741–29749. [Google Scholar] [CrossRef]
  108. Xiao, Z.; Bi, C.; Shao, Y.; Dong, Q.; Wang, Q.; Yuan, Y.; Wang, C.; Gao, Y.; Huang, J. Efficient, high yield perovskite photovoltaic devices grown by interdiffusion of solution-processed precursor stacking layers. Energy Environ. Sci. 2014, 7, 2619–2623. [Google Scholar] [CrossRef]
  109. Yang, M.; Zhang, T.; Schulz, P.; Li, Z.; Li, G.; Kim, D.H.; Guo, N.; Berry, J.J.; Zhu, K.; Zhao, Y. Facile fabrication of large-grain CH3NH3PbI3−x Brx films for high-efficiency solar cells via CH3NH3Br-selective Ostwald ripening. Nat. Commun. 2016, 7, 2–10. [Google Scholar] [CrossRef]
  110. Noh, J.H.; Im, S.H.; Heo, J.H.; Mandal, T.N.; Seok, S.I. Chemical management for colorful, efficient, and stable inorganic-organic hybrid nanostructured solar cells. Nano Lett. 2013, 13, 1764–1769. [Google Scholar] [CrossRef]
  111. Hoke, E.T.; Slotcavage, D.J.; Dohner, E.R.; Bowring, A.R.; Karunadasa, H.I.; McGehee, M.D. Reversible photo-induced trap formation in mixed-halide hybrid perovskites for photovoltaics. Chem. Sci. 2015, 6, 613–617. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  112. O’regan, B.; Grätzel, M. A low-cost, high-efficiency solar cell based on dye-sensitized colloidal TiO2 films. Nature 1991, 353, 737–740. [Google Scholar]
  113. Kim, H.S.; Lee, C.R.; Im, J.H.; Lee, K.B.; Moehl, T.; Marchioro, A.; Moon, S.J.; Humphry-Baker, R.; Yum, J.H.; Moser, J.E.; et al. Lead iodide perovskite sensitized all-solid-state submicron thin film mesoscopic solar cell with efficiency exceeding 9%. Sci. Rep. 2012, 2, 1–7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  114. Liu, M.; Johnston, M.B.; Snaith, H.J. Efficient planar heterojunction perovskite solar cells by vapour deposition. Nature 2013, 501, 395–398. [Google Scholar] [CrossRef]
  115. McMeekin, D.P.; Sadoughi, G.; Rehman, W.; Eperon, G.E.; Saliba, M.; Hörantner, M.T.; Haghighirad, A.; Sakai, N.; Korte, L.; Rech, B.; et al. A mixed-cation lead mixed-halide perovskite absorber for tandem solar cells. Science 2016, 351, 151–155. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  116. Yang, X.; Zhang, X.; Deng, J.; Chu, Z.; Jiang, Q.; Meng, J.; Wang, P.; Zhang, L.; Yin, Z.; You, J. Efficient green light-emitting diodes based on quasi-two-dimensional composition and phase engineered perovskite with surface passivation. Nat. Commun. 2018, 9, 1–8. [Google Scholar] [CrossRef] [PubMed]
  117. Lin, K.; Xing, J.; Quan, L.N.; De Arquer, F.P.G.; Gong, X.; Lu, J.; Xie, L.; Zhao, W.; Zhang, D.; Yan, C.; et al. Perovskite light-emitting diodes with external quantum efficiency exceeding 20 per cent. Nature 2018, 562, 245–248. [Google Scholar] [CrossRef]
  118. Cao, Y.; Wang, N.; Tian, H.; Guo, J.; Wei, Y.; Chen, H.; Miao, Y.; Zou, W.; Pan, K.; He, Y.; et al. Perovskite light-emitting diodes based on spontaneously formed submicrometre-scale structures. Nature 2018, 562. [Google Scholar] [CrossRef]
  119. Cheng, L.; Huang, J.; Shen, Y.; Li, G.; Liu, X.; Li, W.; Wang, Y.; Li, Y.; Jiang, Y.; Gao, F.; et al. Efficient CsPbBr3 Perovskite Light-Emitting Diodes Enabled by Synergetic Morphology Control. Adv. Opt. Mater. 2018, 7, 1–9. [Google Scholar] [CrossRef] [Green Version]
  120. Cho, H.; Jeong, S.; Park, M.; Kim, Y.; Wolf, C.; Lee, C.; Heo, J.H.; Sadhanala, A.; Myoung, N.; Yoo, S.; et al. Overcoming the electroluminescence efficiency limitations of perovskite light-emitting diodes. Science 2015, 350, 1222–1226. [Google Scholar] [CrossRef]
  121. Zhao, B.; Bai, S.; Kim, V.; Lamboll, R.; Shivanna, R.; Auras, F.; Richter, J.M.; Yang, L.; Dai, L.; Alsari, M.; et al. High-efficiency perovskite–polymer bulk heterostructure light-emitting diodes. Nat. Photonics 2018, 12. [Google Scholar] [CrossRef]
  122. Chen, K.; Schünemann, S.; Song, S.; Tüysüz, H. Structural effects on optoelectronic properties of halide perovskites. Chem. Soc. Rev. 2018, 47, 7045–7077. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  123. Jiang, Q.; Zhao, Y.; Zhang, X.; Yang, X.; Chen, Y.; Chu, Z.; Ye, Q.; Li, X.; Yin, Z.; You, J. Surface passivation of perovskite film for efficient solar cells. Nat. Photonics 2019, 13, 460–466. [Google Scholar] [CrossRef]
  124. Wang, J.; Dong, J.; Lu, F.; Sun, C.; Zhang, Q.; Wang, N. Two-Dimensional Lead-Free Halide Perovskite Materials and Devices. J. Mater. Chem. A 2019, 7, 23563–23576. [Google Scholar] [CrossRef]
  125. Ou, Q.; Bao, X.; Zhang, Y.; Shao, H.; Xing, G.; Li, X. Band structure engineering in metal halide perovskite nanostructures for optoelectronic applications. Nano Mater. Sci. 2019, 1, 268–287. [Google Scholar] [CrossRef]
  126. Brenner, T.M.; Egger, D.A.; Kronik, L.; Hodes, G.; Cahen, D. Hybrid organic–inorganic perovskites: Low-cost semiconductors with intriguing charge-transport properties. Nat. Rev. Mater. 2016, 1, 1–16. [Google Scholar] [CrossRef]
  127. Sutherland, B.R.; Sargent, E.H. Perovskite photonic sources. Nat. Photonics 2016, 10, 295–302. [Google Scholar] [CrossRef]
  128. Protesescu, L.; Yakunin, S.; Bodnarchuk, M.I.; Krieg, F.; Caputo, R.; Hendon, C.H.; Yang, R.X.; Walsh, A.; Kovalenko, M.V. Nanocrystals of Cesium Lead Halide Perovskites (CsPbX3, X = Cl, Br, and I): Novel Optoelectronic Materials Showing Bright Emission with Wide Color Gamut. Nano Lett. 2015, 15, 3692–3696. [Google Scholar] [CrossRef] [Green Version]
  129. Chiba, T.; Hayashi, Y.; Ebe, H.; Hoshi, K.; Sato, J.; Sato, S.; Pu, Y.; Ohisa, S.; Kido, J. Anion-exchange red perovskite quantum dots with ammonium iodine salts for highly efficient light-emitting devices. Nat. Photonics 2018, 12, 681–688. [Google Scholar] [CrossRef]
  130. Shen, Y.; Cheng, L.; Li, Y.; Li, W.; Chen, J.; Lee, S. High-Efficiency Perovskite Light-Emitting Diodes with Synergetic Outcoupling Enhancement. Adv. Mater. 2019, 1–8. [Google Scholar] [CrossRef]
  131. Shamsi, J.; Urban, A.S.; Imran, M.; De Trizio, L.; Manna, L. Metal Halide Perovskite Nanocrystals: Synthesis, Post-Synthesis Modi fi cations, and Their Optical Properties. Chem. Rev. 2019, 119, 3296–3348. [Google Scholar] [CrossRef] [PubMed]
  132. Schulz, P.; Edri, E.; Kirmayer, S.; Hodes, G.; Cahenb, D.; Kahn, A. Interface energetics in organo-metal halide perovskite-based photovoltaic cells. Energy Environ. Sci. 2014, 7, 1377–1381. [Google Scholar] [CrossRef]
  133. Eperon, G.E.; Stranks, S.D.; Menelaou, C.; Johnston, M.B.; Herz, L.M.; Snaith, H.J. Formamidinium lead trihalide: A broadly tunable perovskite for e ffi cient planar heterojunction solar. Energy Environ. Sci. 2014, 7, 982–988. [Google Scholar] [CrossRef]
  134. Rothlisberger, U. Valence and conduction band tuning in halide perovskites for solar cell applications. J. Mater. Chem. A 2016, 4, 15997–16002. [Google Scholar] [CrossRef]
  135. Mauri, M.; Dang, Z.; Manna, L.; Brovelli, S. Doped Halide Perovskite Nanocrystals for Reabsorption-Free Luminescent Solar Concentrators. ACS Energy Lett. 2017, 2, 2368–2377. [Google Scholar] [CrossRef]
  136. Van Der Stam, W.; Geuchies, J.J.; Altantzis, T.; Van Den Bos, K.H.W.; Meeldijk, J.D.; Van Aert, S.; Bals, S.; Vanmaekelbergh, D.; Donega, C.D.M. Highly Emissive Divalent-Ion-Doped Colloidal CsPb1−xMxBr3 Perovskite Nanocrystals through Cation Exchange. J. Am. Chem. Soc. 2017, 139, 4087–4097. [Google Scholar] [CrossRef]
  137. Liu, M.; Zhong, G.; Yin, Y.; Miao, J.; Li, K.; Wang, C. Aluminum-Doped Cesium Lead Bromide Perovskite Nanocrystals with Stable Blue Photoluminescence Used for Display Backlight. Adv. Sci. 2017, 1–8. [Google Scholar] [CrossRef]
  138. Pan, G.; Bai, X.; Yang, D.; Chen, X.; Jing, P.; Qu, S.; Zhang, L.; Zhou, D.; Zhu, J.; Xu, W.; et al. Doping Lanthanide into Perovskite Nanocrystals: Highly Improved and Expanded Optical Properties. Nano Lett. 2017, 17, 8005–8011. [Google Scholar] [CrossRef]
  139. Yang, T.C.; Fiala, P.; Jeangros, Q.; Ballif, C. High-Bandgap Perovskite Materials for Multijunction Solar Cells. Joule 2018, 2, 1421–1436. [Google Scholar] [CrossRef] [Green Version]
  140. Qian, R.; Zong, H.; Schneider, J.; Zhou, G.; Zhao, T.; Li, Y. Charge carrier trapping, recombination and transfer during TiO2 photocatalysis: An overview. Catal. Today 2019, 335, 78–90. [Google Scholar] [CrossRef]
  141. Rodriguez, J.A. Physical and chemical properties of bimetallic surfaces. Science 1996, 24, 223–287. [Google Scholar] [CrossRef]
  142. Stranks, S.D.; Eperon, G.E.; Grancini, G.; Menelaou, C.; Alcocer, M.J.P.; Leijtens, T.; Herz, L.M.; Petrozza, A.; Snaith, H.J. Electron-Hole Diffusion Lengths Exceeding 1 Micrometer in an Organometal Trihalide Perovskite Absorber. Science 2013, 342, 341–344. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  143. Mei, B.; Han, K.; Mul, G. Driving Surface Redox Reactions in Heterogeneous Photocatalysis: The active state of illuminated semiconductor-supported nanoparticles during overall water-splitting. ACS Catal. 2018, 8, 9154–9164. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  144. Takanabe, K. Photocatalytic Water Splitting: Quantitative Approaches toward Photocatalyst by Design. ACS Catal. 2017, 7, 8006–8022. [Google Scholar] [CrossRef]
  145. Xing, G.; Mathews, N.; Sun, S.; Lim, S.S.; Lam, Y.M.; Grätzel, M.; Mhaisalkar, S.; Sum, T.C. Long-Range Balanced Electron- and Hole-Transport Lengths in Organic-Inorganic CH3NH3PbI3. Science 2013, 342, 344–347. [Google Scholar] [CrossRef]
  146. Sirringhaus, H. Device Physics of Solution-Processed Organic Field-Effect Transistors. Adv. Mater. 2005, 17, 2411–2425. [Google Scholar] [CrossRef]
  147. Bresolin, B.; Günnemann, C.; Bahnemann, D.W. Pb-Free Cs3Bi2I9 Perovskite as a Visible-Light-Active Photocatalyst for Organic Pollutant Degradation. Nanomaterials 2020, 10, 763. [Google Scholar] [CrossRef]
  148. Zhou, C.; Lai, C.; Zhang, C.; Zeng, G.; Huang, D.; Cheng, M.; Hu, L.; Xiong, W.; Chen, M.; Wang, J.; et al. Semiconductor/boron nitride composites: Synthesis, properties, and photocatalysis applications. Appl. Catal. B Environ. 2018, 238, 6–18. [Google Scholar] [CrossRef]
  149. Spasiano, D.; Marotta, R.; Malato, S.; Fernandez-Ibanez, P.; Di Somma, I. Solar photocatalysis: Materials, reactors, some commercial, and pre-industrialized applications. A comprehensive approach. Appl. Catal. B Environ. 2015, 171, 90–123. [Google Scholar] [CrossRef]
  150. Wehrenfennig, C.; Eperon, G.E.; Johnston, M.B.; Snaith, H.J.; Herz, L.M. High Charge Carrier Mobilities and Lifetimes in Organolead Trihalide Perovskites. Adv. Mater. 2014, 26, 1584–1589. [Google Scholar] [CrossRef] [Green Version]
  151. Friedrich, D.; Kunst, M.; Van De Krol, R.; Marchioro, A.; Moehl, T.; Gra, M. charge transfer processes in lead iodide perovskite. Nat. Photonics 2014, 8, 250–255. [Google Scholar] [CrossRef]
  152. Ma, C.; Wang, H.; Hu, W.; Yu, W.; Sheikh, A.D.; Li, F.; Wu, T. Ambipolar solution-processed hybrid perovskite phototransistors. Nat. Commun. 2015, 1–8. [Google Scholar] [CrossRef] [Green Version]
  153. Zhang, H.; Zhang, X.; Yang, G.; Zhou, X. Point Defect Effects on Photoelectronic Properties of the Potential Metal-Free C2N Photocatalysts: Insight from First-Principles Computations. J. Phys. Chem. C 2018, 122, 5291–5302. [Google Scholar] [CrossRef]
  154. Ran, C.; Xu, J.; Gao, W.; Huang, C.; Dou, S. Defects in metal triiodide perovskite materials towards high-performance solar cells: Origin, impact, characterization, and engineering. Chem. Soc. Rev. 2018, 47, 4581–4610. [Google Scholar] [CrossRef] [PubMed]
  155. Asahi, R.; Morikawa, T.; Ohwaki, T.; Aoki, K.; Taga, Y. Visible-Light Photocatalysis in Nitrogen-Doped Titanium Oxides. Science 2001, 293, 269–271. [Google Scholar] [CrossRef]
  156. Guan, M.; Xiao, C.; Zhang, J.; Fan, S.; An, R.; Guan, M.; Xiao, C.; Zhang, J.; Fan, S.; An, R.; et al. Vacancy Associates Promoting Solar-driven Photocatalytic Activity of Ultrathin Bismuth Oxychloride Nanosheets Vacancy Associates Promoting Solar-driven Photocatalytic Activity of Ultrathin Bismuth Oxychloride Nanosheets. J. Am. Chem. Soc. 2013, 135, 10411–10417. [Google Scholar] [CrossRef]
  157. Gale, J.; Davison, J. Transmission of CO2-safety and economic considerations. Energy 2004, 29, 1319–1328. [Google Scholar] [CrossRef]
  158. Xu, Y.; Yang, M.; Chen, H.; Liao, J.; Wang, X.; Kuang, D. Enhanced Solar-driven Gaseous CO2 Conversion by CsPbBr3 Nanocrystal/Pd Nanosheet Schottky-junction Photocatalyst. ACS Appl. Energy Mater. 2018, 1, 5083–5089. [Google Scholar] [CrossRef]
  159. Abanades, J.C.; Rubin, E.S.; Mazzotti, M.; Herzog, H.J. On the climate change mitigation potential of CO2 conversion to fuels. Energy Environ. Sci. 2017, 10, 2491–2499. [Google Scholar] [CrossRef]
  160. Oschatz, M.; Antonietti, M. A search for selectivity to enable CO2 capture with porous adsorbents. Energy Environ. Sci. 2018, 11, 57–70. [Google Scholar] [CrossRef] [Green Version]
  161. Balzani, V.; Pacchioni, G.; Prato, M.; Zecchina, A. Solar-driven chemistry: Towards new catalytic solutions for a sustainable world. Sol. Driven Chem. 2019, 30, 443–452. [Google Scholar] [CrossRef] [Green Version]
  162. Wang, X.; Wang, H.; Zhang, H.; Yu, W.; Wang, X.; Zhao, Y.; Zong, X.; Li, C. Dynamic Interaction Between Methylammonium Lead Iodide and TiO2 Nanocrystals Leads to Enhanced Photocatalytic H2 Evolution from HI Splitting. ACS Energy Lett. 2018, 3, 1159–1164. [Google Scholar] [CrossRef]
  163. Hou, J.; Cao, S.; Wu, Y.; Gao, Z.; Hou, J.; Cao, S.; Wu, Y.; Gao, Z.; Liang, F.; Sun, Y. Inorganic Colloidal Perovskite Quantum Dots Realizing Robust Solar CO2 Reduction. Chem. A Eur. J. 2017, 23, 9481–9485. [Google Scholar] [CrossRef] [PubMed]
  164. Zhou, L.; Xu, Y.-F.; Chen, B.-X.; Kuang, D.-B.; Su, C. Synthesis and Photocatalytic Application of Stable Lead-Free Cs2AgBiBr6 Perovskite Nanocrystals. Small 2018, 14, 1–7. [Google Scholar] [CrossRef]
  165. Xu, Y.; Yang, M.; Chen, B.; Wang, X.; Chen, H.; Kuang, D.; Su, C. A CsPbBr3 Perovskite Quantum Dot/Graphene Oxide Composite for Photocatalytic CO2 Reduction. J. Am. Chem. Soc. 2017, 139, 5660–5663. [Google Scholar] [CrossRef]
  166. Kong, Z.-C.; Liao, J.-F.; Dong, Y.-J.; Xu, Y.-F.; Chen, H.-Y.; Kuang, D.-B.; Su, C.-Y. Core@Shell CsPbBr3@Zeolitic Imidazolate Framework Nanocomposite for Efficient Photocatalytic CO2 Reduction. ACS Energy Lett. 2018, 3, 2656–2662. [Google Scholar] [CrossRef]
  167. Wan, S.; Ou, M.; Zhong, Q.; Wang, X. Efficient visible-light-driven photocatalyst for CO2 reduction. Chem. Eng. J. 2019, 358, 1287–1295. [Google Scholar] [CrossRef]
  168. Xu, Y.; Wang, X.; Liao, J.; Chen, B.; Chen, H. Composite Photocatalyst with Enhanced Charge Separation and CO2 Fixation. Adv. Mater. Interfaces 2018, 1–8. [Google Scholar] [CrossRef]
  169. Kim, Y.; Yassitepe, E.; Voznyy, O.; Comin, R.; Walters, G.; Gong, X.; Kanjanaboos, P.; Nogueira, A.F.; Sargent, E.H. Efficient Luminescence from Perovskite Quantum Dot Solids. ACS Appl. Mater. Interfaces 2015, 7, 25007–25013. [Google Scholar] [CrossRef]
  170. Corma, A.; Garcia, H. Photocatalytic reduction of CO2 for fuel production: Possibilities and challenges. J. Catal. 2013, 308, 168–175. [Google Scholar] [CrossRef]
  171. Abdellah, M.; El-zohry, A.M.; Antila, L.J.; Windle, C.D.; Reisner, E.; Hammarström, L. Time-Resolved IR Spectroscopy Reveals a Mechanism with TiO2 as a Reversible Electron Acceptor in a TiO2–Re catalyst system for CO2 photoreduction. J. Am. Chem. Soc. 2017, 13, 1226–1232. [Google Scholar] [CrossRef] [PubMed]
  172. Huang, H.; Yuan, H.; Janssen, K.; Solís-fernández, G.; Wang, Y.; Tan, C.Y.X.; Jonckheere, D.; Debroye, E.; Long, J.; Hendrix, J.; et al. Efficient and Selective Photocatalytic Oxidation of Benzylic Alcohols with Hybrid Organic-Inorganic Perovskite Materials. ACS Energy Lett. 2018, 3, 755–759. [Google Scholar] [CrossRef] [Green Version]
  173. Wu, Y.; Wang, P.; Guan, Z.; Liu, J.; Wang, Z.; Zheng, Z.; Jin, S.; Dai, Y.; Whangbo, M.; Huang, B. Enhancing the Photocatalytic Hydrogen Evolution Activity of Mixed-Halide Perovskite CH3NH3PbBr3−xIx Achieved by Bandgap Funneling of Charge Carriers. ACS Catal. 2018, 8, 10349–10357. [Google Scholar] [CrossRef]
  174. Wu, Y.; Wang, P.; Zhu, X.; Zhang, Q.; Wang, Z.; Liu, Y. Composite of CH3NH3PbI3 with Reduced Graphene Oxide as a Highly Efficient and Stable Visible-Light Photocatalyst for Hydrogen Evolution in Aqueous HI Solution. Adv. Mater. 2018, 1704342, 2–7. [Google Scholar] [CrossRef]
  175. Crespo-Quesada, M.; Pazos-outo, L.M.; Warnan, J.; Kuehnel, M.F.; Friend, R.H.; Reisner, E. Metal-encapsulated organolead halide perovskite photocathode for solar-driven hydrogen evolution in water. Nat. Commun. 2016, 7, 1–7. [Google Scholar] [CrossRef] [Green Version]
  176. Nam, S.; Thi, C.; Mai, K.; Oh, I. Ultra-Stable Photoelectrodes for Solar Water Splitting Based on Organic Metal Halide Perovskite Fabricated by Lift-Off Process. ACS Appl. Mater. Interfaces 2018, 10, 14659–14664. [Google Scholar] [CrossRef]
  177. Hoang, M.T.; Pham, N.D.; Han, J.H.; Gardner, J.M.; Oh, I. Integrated Photoelectrolysis of Water Implemented On Organic Metal Halide Perovskite Photoelectrode. ACS Appl. Mater. Interfaces 2016, 8, 11904–11909. [Google Scholar] [CrossRef]
  178. Kim, I.S.; Pellin, M.J.; Martinson, A.B.F. Acid-Compatible Halide Perovskite Photocathodes Utilizing Atomic Layer Deposited TiO2 for Solar-Driven Hydrogen Evolution. ACS Energy Lett. 2019, 4, 293–298. [Google Scholar] [CrossRef] [Green Version]
  179. Reyes-pérez, F.; Gallardo, J.J.; Aguilar, T.; Alcántara, R.; Fernández-lorenzo, C.; Navas, J. Visible-Light-Enhanced Photocatalytic Activity of Totally Inorganic Halide-Based Perovskite. Chem. Sel. 2018, 3, 10226–10235. [Google Scholar] [CrossRef]
  180. Qian, X.; Chen, Z.; Yang, X.; Zhao, W.; Liu, C.; Sun, T.; Zhou, D.; Yang, Q.; Wei, G.; Fan, M. Perovskite cesium lead bromide quantum dots: A new ef fi cient photocatalyst for degrading antibiotic residues in organic system. J. Clean. Prod. 2019, 249, 119335. [Google Scholar] [CrossRef]
  181. Gao, P.; Grätzel, M.; Nazeeruddin, M.K. Organohalide lead perovskites for photovoltaic applications. Energy Environ. Sci. 2014, 7, 2448–2463. [Google Scholar] [CrossRef]
  182. Bresolin, B.M.; Ben Hammouda, S.; Sillanpää, M. An Emerging Visible-Light Organic–Inorganic Hybrid Perovskite for Photocatalytic Applications. Nanomaterials 2020, 10, 115. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  183. Schoop, L.M.; Felser, C.; Cava, R.J. Lone Pair Effect, Structural Distortions, and Potential for Superconductivity in Tl Perovskites. Inorg. Chem. 2013, 52, 5479–5483. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  184. Beatriz, A.; Vitoreti, F. Photocatalytic and Photoelectrochemical Degradation of Organic Compounds with All-Inorganic Metal Halide Perovskite Quantum Dots. J. Phys. Chem. Lett. 2019, 10, 630–636. [Google Scholar] [CrossRef] [Green Version]
  185. Schünemann, S.; Tüysüz, H. Inverse Opal Structured Halide Perovskite Photocatalyst. Eur. J. Inorg. Chem. 2018, 2350–2355. [Google Scholar] [CrossRef]
  186. Ghanbari, M.; Ansari, F.; Salavati-niasari, M. Inorganica Chimica Acta Simple synthesis-controlled fabrication of thallium cadmium iodide nanostructures via a novel route and photocatalytic investigation in degradation of toxic dyes. Inorg. Chim. Acta 2017, 455, 88–97. [Google Scholar] [CrossRef] [Green Version]
  187. Lim, S.; Lin, H.; Tsai, W.; Lin, H.; Hsu, Y.; Tuan, H. Binary halide, ternary perovskite-like, and perovskite-derivative nanostructures: Hot injection synthesis and optical and photocatalytic properties. Nanoscale 2017, 9, 3747–3751. [Google Scholar] [CrossRef]
  188. Zhang, Z.; Liang, Y.; Huang, H.; Liu, X.; Li, Q.; Chen, L.; Xu, D. Stable and Highly Efficient Photocatalysis with Lead-Free Double-Perovskite of Cs2AgBiBr6. Angew. Chemie Int. Ed. 2019, 58, 7263–7267. [Google Scholar] [CrossRef]
  189. Pu, Y.-C.; Fan, H.-C.; Liu, T.-W.; Chen, J.-W. Methylamine lead bromide perovskite/protonated graphitic carbon nitride nanocomposites: Interfacial charge carrier dynamics and photocatalysis. J. Mater. Chem. A 2017, 5, 1–33. [Google Scholar] [CrossRef]
  190. Schünemann, S.; Van Gastel, M.; Tüysüz, H. A CsPbBr3/TiO2 Composite for Visible-Light Driven Photocatalytic Benzyl Alcohol Oxidation. ChemSusChem 2018, 11, 2057–2061. [Google Scholar] [CrossRef]
  191. Bresolin, B.; Balayeva, N.O.; Granone, L.I.; Dillert, R. Anchoring lead-free halide Cs3Bi2I9 perovskite on UV100-TiO2 for enhanced photocatalytic performance. Sol. Energy Mater. Sol. Cells 2020, 204, 1–11. [Google Scholar] [CrossRef]
  192. Bhattacharjee, S.; Chaudhary, S.P.; Bhattacharyya, S. Lead-Free Metal Halide Perovskite Nanocrystals for Photocatalysis in Water. ChemRxiv 2019. [Google Scholar] [CrossRef]
  193. Huynh, K.A.; Tri, L.; Nguyen, V.; Vo, D.N.; Thang, Q. Halide perovskite photocatalysis: Progress and perspectives. J. Chem. Technol. Biotechnol. 2020. [Google Scholar] [CrossRef]
  194. Aamir, M.; Hussain, Z.; Sher, M.; Iqbal, A. Enhanced photocatalytic activity of water stable hydroxyl ammonium lead halide perovskites. Mater. Sci. Semicond. Process. 2017, 63, 6–11. [Google Scholar] [CrossRef]
  195. Dai, Y.; Tüysüz, H. Lead-free Cs3Bi2Br9 Perovskite as Photocatalyst for Ring-Opening Reactions of Epoxides. ChemSusChem 2019, 12, 2587–2592. [Google Scholar] [CrossRef]
  196. Romero, N.A.; Nicewicz, D.A. Organic Photoredox Catalysis. Chem. Rev. 2016, 116, 10075–10166. [Google Scholar] [CrossRef]
  197. Li, X.; Li, Z.; Gao, Y.; Meng, Q.; Yu, S.; Weiss, R.G.; Tung, C.; Wu, L. Mechanistic Insights into the Interface-Directed Transformation of Thiols into Disulfides and Molecular Hydrogen by Visible-Light Irradiation of Quantum Dots. Angew. Chemie Int. Ed. 2014, 53, 2085–2089. [Google Scholar] [CrossRef]
  198. Wu, W.-B.; Wong, Y.-C.; Tan, Z.-K.; Wu, J. Photo-Induced Thiol Coupling and C−H Activation Using Nanocrystalline Lead-Halide Perovskite Catalysts. Catal. Sci. Technol. 2018, 8, 4257–4263. [Google Scholar] [CrossRef]
  199. Chen, K.; Deng, X.; Dodekatos, G. Photocatalytic Polymerization of 3,4-Ethylenedioxythiophene over Cesium Lead Iodide Perovskite Quantum Dots. J. Am. Chem. Soc. 2017, 139, 12267–12273. [Google Scholar] [CrossRef] [Green Version]
  200. Zhu, X.; Lin, Y.; Sun, Y.; Beard, M.C.; Yan, Y.; Lin, Y.; Sun, Y.; Beard, M.C.; Yan, Y. Lead-Halide Perovskites for Photocatalytic α-Alkylation of Aldehydes. J. Am. Chem. Soc. 2019, 141, 733–738. [Google Scholar] [CrossRef]
  201. Wong, Y.; Ng, J.D.A.; Tan, Z. Perovskite-Initiated Photopolymerization for Singly Dispersed Luminescent Nanocomposites. Adv. Mater. 2018, 30, 1800774. [Google Scholar] [CrossRef]
  202. Huang, H.; Yuan, H.; Zhao, J.; Sol, G.; Roe, M.B.J. C(sp3)-H Bond Activation by Perovskite Solar Photocatalyst Cell. ACS Energy Lett. 2019, 4, 203–208. [Google Scholar] [CrossRef] [Green Version]
  203. Leng, M.; Yang, Y.; Zeng, K.; Chen, Z.; Tan, Z.; Li, S.; Li, J.; Xu, B.; Li, D.; Hautzinger, M.P.; et al. All-Inorganic Bismuth-Based Perovskite Quantum Dots with Bright Blue Photoluminescence and Excellent Stability. Adv. Funct. Mater. 2017, 1–11. [Google Scholar] [CrossRef]
  204. Li, B.; Li, Y.; Zheng, C.; Gao, D.; Huang, W. Advancements in stability of perovskite solar cells: Degradation mechanisms and improvement approaches. RSC Adv. 2016, 6, 38079–38091. [Google Scholar] [CrossRef]
  205. Hailegnaw, B.; Kirmayer, S.; Edri, E.; Hodes, G.; Cahen, D. Rain on Methyl-Ammonium-Lead-Iodide Based Perovskites: Possible Environmental Effects of Perovskite Solar Cells. J. Phys. Chem. Lett. 2015, 6, 1543–1547. [Google Scholar] [CrossRef] [PubMed]
  206. Koh, T.M.; Fu, K.; Fang, Y.; Chen, S.; Sum, T.C.; Mathews, N. Formamidinium-Containing Metal-Halide: An Alternative Material for Near-IR Absorption Perovskite Solar Cells. J. Phys. Chem. C 2014, 118, 16458–16462. [Google Scholar] [CrossRef]
  207. Wang, S.; Mitzi, D.B.; Feild, C.A.; Guloys, A. Synthesis and Characterization of [NH2C(I)=NH2]3MIs (M = Sn, Pb): Stereochemical Activity in Divalent Tin and Lead Halides Containing Single (1 10) Perovskite Sheets. J. Am. Chem. Soc. 1995, 117, 5297–5302. [Google Scholar] [CrossRef]
  208. Yu, H.; Wang, F.; Xie, F.; Li, W.; Chen, J.; Zhao, N. The Role of Chlorine in the Formation Process of. Adv. Funct. Mater. 2014, 24, 7102–7108. [Google Scholar] [CrossRef]
  209. Leijtens, T.; Eperon, G.E.; Noel, N.K.; Habisreutinger, S.N.; Petrozza, A.; Snaith, H.J. Stability of Metal Halide Perovskite Solar Cells. Adv. Energy Mater. 2015, 5, 1–23. [Google Scholar] [CrossRef]
  210. Jeon, N.J.; Noh, J.H.; Yang, W.S.; Kim, Y.C.; Ryu, S.; Seo, J.; Seok, S.I. Compositional engineering of perovskite materials for high-performance solar cells. Nature 2015, 517. [Google Scholar] [CrossRef]
  211. Lee, J.; Seol, D.; Cho, A.; Park, N. High-Efficiency Perovskite Solar Cells Based on the Black. Adv. Mater. 2014, 6, 1–8. [Google Scholar] [CrossRef]
  212. Mitzi, D.B. Templating and structural engineering in organic–inorganic perovskites. J. Chem. Soc. Dalt. Trans. 2001, 1–12. [Google Scholar] [CrossRef]
  213. Yi, C.; Luo, J.; Meloni, S.; Boziki, A.; Ashari-Astani, N.; Grätzel, C.; Zakeeruddin, S.M.; Röthlisberger, U.; Grätzel, M. Entropic stabilization of mixed A-cation ABX3 metal halide perovskites for high performance perovskite solar cells. Energy Environ. Sci. 2016, 9, 656–662. [Google Scholar] [CrossRef]
  214. Saliba, M.; Matsui, T.; Seo, J.-Y.; Domanski, K.; Correa-Baena, J.P.; Nazeeruddin, M.K.; Zakeeruddin, S.M.; Tress, W.; Abate, A.; Hagfeldt, A.; et al. Cesium-containing triple cation perovskite solar cells: Improved stability, reproducibility and high efficien. Energy Environ. Sci. 2016, 9, 1989–1997. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  215. Frost, J.M.; Butler, K.T.; Brivio, F.; Hendon, C.H.; Van Schilfgaarde, M.; Walsh, A. Atomistic Origins of High-Performance in Hybrid Halide Perovskite Solar Cells. Nano Lett. 2014, 14, 2584–2590. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  216. Guo, X.; Tang, S.; Mu, Y.; Wu, L.; Dong, G.; Zhang, M. Engineering a CsPbBr3-based nanocomposite for efficient photocatalytic CO2 reduction: Improved charge separation concomitant with increased activity sites. RSC Adv. 2019, 9, 34342–34348. [Google Scholar] [CrossRef] [Green Version]
  217. Fabián, A.; Reyes, G.; Rodriguez-pereira, J.; Gonzalez, E.A.; Rueda-P, J.; Ospina, R.; Masi, S.; Yoon, S.J.; Tirado, J.; Agouram, S.; et al. Unravelling the Photocatalytic Behavior of All-Inorganic Mixed Halide Perovskites: The Role of Surface Chemical states. ACS Appl. Mater. Interfaces 2020, 12, 914–924. [Google Scholar] [CrossRef]
  218. Feng, X.; Ju, H.; Song, T.; Fang, T.; Liu, W.; Huang, W. Highly Efficient Photocatalytic Degradation Performance of CsPb(Br1−xClx)3-Au Nanoheterostructures. ACS Sustain. Chem. Eng. 2019, 7, 5152–5156. [Google Scholar] [CrossRef]
  219. Wang, T.; Yue, D.; Li, X.; Zhao, Y. Applied Catalysis B: Environmental Lead-free double perovskite Cs2AgBiBr6/RGO composite for efficient visible light photocatalytic H2 evolution. Appl. Catal. B Environ. 2020, 268, 118399. [Google Scholar] [CrossRef]
  220. Li, R.; Li, X.; Wu, J.; Lv, X.; Zheng, Y.; Zhao, Z.; Ding, X. Few-layer black phosphorus-on-MAPbI3 for superb visible-light photocatalytic hydrogen evolution from HI splitting Ran. Appl. Catal. B Environ. 2019, 259, 118075. [Google Scholar] [CrossRef]
  221. Jiang, Y.; Liao, J.-F.; Xu, Y.-F.; Chen, H.-Y.; Wang, X.; Kuang, D. Hierarchical CsPbBr3 nanocrystal-decorated ZnO nanowire/macroporous graphene hybrids for enhancing charge separation and photocatalytic CO2 reduction. J. Mater. Chem. A 2019, 7, 13762–13769. [Google Scholar] [CrossRef]
  222. Poli, I.; Baker, J.; Hintermair, U.; Watson, T.M.; Regue, M.; Eslava, S.; Kumar, S.; Sackville, E.V.; Cameron, P.J. Graphite-protected CsPbBr3 perovskite photoanodes functionalised with water oxidation catalyst for oxygen evolution in water. Nat. Commun. 2019, 10, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  223. Mu, Y.; Zhang, W.; Guo, X.; Dong, G.; Zhang, M. Water-Tolerant Lead Halide Perovskite Nanocrystals as Efficient Photocatalysts for Visible-Light-Driven CO2 Reduction in Pure Water. ChemSusChem 2019, 12, 4769–4774. [Google Scholar] [CrossRef] [PubMed]
  224. Zhou, Y. Environmental Science Chemical stability and instability of inorganic halide perovskites. Energy Environ. Sci. 2019, 12, 1495–1511. [Google Scholar] [CrossRef]

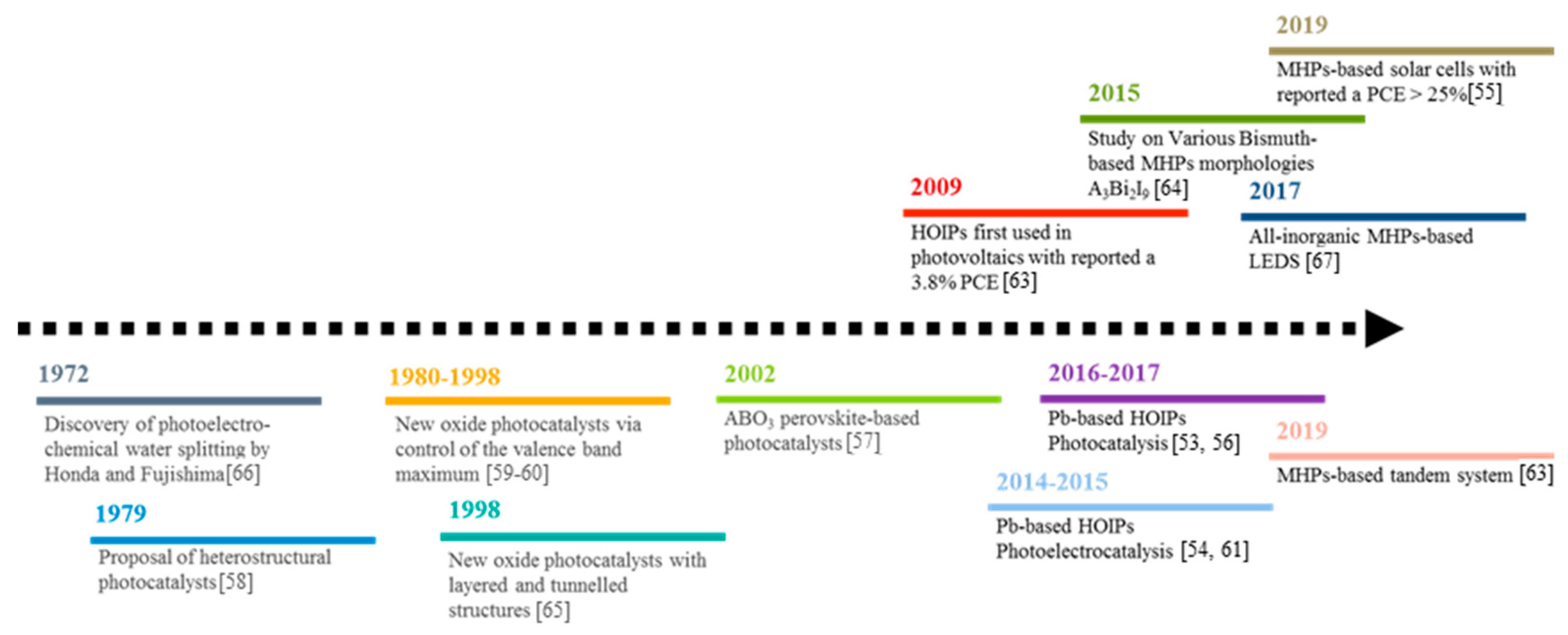

Figure 1. Timeline of progress in photocatalysis and metal halide perovskite-based materials.
Figure 1. Timeline of progress in photocatalysis and metal halide perovskite-based materials.
Catalysts 10 00709 g001
Figure 2. (A) Steps in photocatalytic reaction process: (I) light absorption, (II) separation of photogenerated charges, (III) transfer of electrons and holes, (III) eventual recombination of charges; (IV) redox reactions where A and B mean chemicals in reductive and oxidative reactions, respectively. (B) Energy levels of the important photocatalytic reactions with respect to normal hydrogen electrode NHE at pH = 0.
Figure 2. (A) Steps in photocatalytic reaction process: (I) light absorption, (II) separation of photogenerated charges, (III) transfer of electrons and holes, (III) eventual recombination of charges; (IV) redox reactions where A and B mean chemicals in reductive and oxidative reactions, respectively. (B) Energy levels of the important photocatalytic reactions with respect to normal hydrogen electrode NHE at pH = 0.
Catalysts 10 00709 g002
Figure 3. Trends of the published scientific articles on metal halide perovskites and academic trends. Analysis search results by
Figure 3. Trends of the published scientific articles on metal halide perovskites and academic trends. Analysis search results by
Catalysts 10 00709 g003
Figure 4. General crystal structure of metal halide perovskites.
Figure 4. General crystal structure of metal halide perovskites.
Catalysts 10 00709 g004
Table 1. Summary of some employed materials for photocatalytic applications.
Table 1. Summary of some employed materials for photocatalytic applications.
PhotocatalystsExamplesPhotocatalytic ApplicationsRef.
Binary semiconductor photocatalystsnitridesN3−-basedg-C3N4NOx oxidation[47]
oxidesO2−-basedZnOwastewater treatments[48]
chalcogenidessulfides-basedCdSwastewater treatments[49]
selenides-basedCdSephotocatalytic CO2 reduction[50]
Ternary photocatalyststernary oxidesABO3AgNbO3hydrogen evolution[51]
AB2O4CaIn2O5wastewater treatments[52]
ABO2AgGaO2wastewater treatments[53]
ABO4BiVO4wastewater treatments[54]
ternary halideABX3CsPbBr3wastewater treatments[55]
ternary chalcogenidessulfides-basedCuGaS2wastewater treatments[56]
selenides-basedCuGaSe2hydrogen evolution[57]
Table 2. Comparison of CO2 reduction efficiency of different metal halide perovskites-based photocatalysts reported in the literature.
Table 2. Comparison of CO2 reduction efficiency of different metal halide perovskites-based photocatalysts reported in the literature.
PhotocatalystIrradiationMediumAveraged Electron Yield μmol g−1Selectivity %CO
μmol g−1
μmol g−1
μmol g−1
CsPbBr3 QDs 8.5 nm300 W Xe, AM 1.5G filterH2O/ethyl acetate20.909934.1012.200.80[163]
CsPbBr3 QDs 11.6 nm300 W Xe, AM 1.5G filterH2O/ethyl acetate--2490.60[163]
CsPbBr3 QDs 3.8 nm300 W Xe, AM 1.5G filterH2O/ethyl acetate--18.106.900.40[163]
Cs2AgBiBr6 unwashed300 W Xe, AM 1.5G filterethyl acetate16.201005.500.65-[164]
Cs2AgBiBr6 in Abs EtOH300 W Xe, AM 1.5G filterethyl acetate105.3010014.109.60-[164]
Bulk Cs2AgBiBr6 in Abs EtOH300 W Xe, AM 1.5G filterethyl acetate5.60 ---[164]
CsPbBr3 QDs100 W Xe, AM 1.5G filterethyl acetate284.7099.349.5022.91.07[165]
CsPbBr3 QDs/G.O.100 W Xe, AM 1.5G filterethyl acetate357.4099.158.7029.61.58[165]
CsPbBr3100 W Xe, AM 1.5G filterCO2 and H2O vapour33.42100---[166]
CsPbBr3/ZIF-8100 W Xe, AM 1.5G filterCO2 and H2O vapour46.49100---[166]
CsPbBr3/ZIF-67100 W Xe, AM 1.5G filterCO2 and H2O vapour88.89100---[166]
15%-CsPbBr3 QDs/UiO-66300 W Xe, 420 nm filterH2O/ethyl acetate222-98.573.08-[167]
CsPbBr3 NCs300 W Xe, 420 nm filterethyl acetate29.601003.622.790[158]
CsPbBr3 NCs/Pd NS (100)300 W Xe, 420 nm filterethyl acetate41.38297.67.923.070.50[158]
CsPbBr3 NCs/Pd NS (300)300 W Xe, 420 nm filterethyl acetate59.089612.6310.411.17[158]
CsPbBr3 NCs/Pd NS (600)300 W Xe, 420 nm filterethyl acetate101.3993.55.775.263.29[158]
CsPbBr3 NCs/Pd NS (900)300 W Xe, 420 nm filterethyl acetate52.6694.73.90-1.40[158]
CsPbBr3 NCs150 W Xe, AM 1.5G filterethyl acetate/IPA25.7290.33.352.061.64[168]
CsPbBr3 NCs/a-TiO2 (10)150 W Xe, AM 1.5G filterethyl acetate/IPA106.5690.57.7310.125.08[168]
CsPbBr3 NCs/a-TiO2 (20)150 W Xe, AM 1.5G filterethyl acetate/IPA193.3695.511.7120.154.38[168]
CsPbBr3 NCs/a-TiO2 (30)150 W Xe, AM 1.5G filterethyl acetate/IPA140.0993.78.0514.44.42[168]
CsPbBr3 NCs/a-TiO2 (50)150 W Xe, AM 1.5G filterethyl acetate/IPA79.2587.48.726.475.01[168]
Table 3. Comparison of H2 generation efficiency of different hybrid organic–inorganic perovskites and their composites reported in the literature.
Table 3. Comparison of H2 generation efficiency of different hybrid organic–inorganic perovskites and their composites reported in the literature.
PhotocatalystIrradiationMediumHER μmol h−1 g−1Apparent Quantum Efficiency (%)Ref.
MAPbBr3λ ≥ 420 nmmixed HI/HBr acid11.20-[173]
MAPbBr3/Ptλ ≥ 420 nmmixed HI/HBr acid33.60-[173]
MAPbBr3−xIxλ ≥ 420 nmmixed HI/HBr acid1021.20-[173]
MAPbBr3−xIx/Ptλ ≥ 420 nmmixed HI/HBr acid2604.808.10 (450 nm)[173]
MAPbBr3λ ≥ 420 nmHI acid11.31-[53]
DMF-MAPbBr3λ ≥ 420 nmHI acid22.62-[53]
DMSO-MAPbBr3λ ≥ 420 nmHI acid31.67-[53]
Pt:DMSO-MAPbBr3λ ≥ 420 nmHI acid57.00-[53]
MAPbBr3300 W Xe, λ ≥ 420 nmHI solution14.00-[174]
MAPbBr3/Pt300 W Xe, λ ≥ 420 nmHI solution40.00-[174]
MAPbBr3/rGO300 W Xe, λ ≥ 420 nmHI solution938.901.4 (450 nm)[174]
MAPbBr3λ ≥ 420 nmsaturated HI solution38.00-[162]
Pt/MAPbBr3λ ≥ 420 nmsaturated HI solution90.00-[162]
TiO2-Pt/MAPbBr3λ ≥ 420 nmsaturated HI solution620.00-[162]
Pt/TiO2-MAPbBr3λ ≥ 420 nmsaturated HI solution1986.6770 (420 nm)[162]
Table 4. Comparison of organic contaminants degradation percentage for different metal halide perovskites and their composites, reported in the literature.
Table 4. Comparison of organic contaminants degradation percentage for different metal halide perovskites and their composites, reported in the literature.
PhotocatalystBand Gap (eV)IrradiationPollutantDegradation %Ref.
TlCdI32.9UV Lightmethyl orange dye27[186]
TlCdI32.9UV Lightmethylene blue dye100[186]
CsSnBr31.74Visible lightcrystal violet dye73.1[193]
CsSnBr32.4500 W Xe, Visible lightmethyl orange dye90[167]
CsPbCl32.4500 W Xe, Visible lightmethyl orange dye82[167]
CsPbBr32.26300 W Xe, λ ≥ 420 nmtetracycline hydrochloride in ethanol76[180]
CsPbBr32.26300 W Xe, λ ≥ 420 nmtetracycline hydrochloride in water18[180]
CsPbBr32.26300 W Xe, λ ≥ 420 nmtetracycline hydrochloride in isopropanol53[180]
CsPbBr32.26300 W Xe, λ ≥ 420 nmmethyl orange dye in ethanol70[180]
OHNH3PbI2Cl3.7Solar lightdye Direct Yellow 2793.98[194]
OHNH3PbCl33.9Solar lightdye Direct Yellow 2782.19[194]
Cs3Bi2I9-OA2.12Visible lightmethylene blue in water62.1[192]
Cs3Bi2I9-OA/Ag2S-Visible lightmethylene blue in water88.8[192]
Cs3Bi2I9-OA/TiO2-Visible lightmethylene blue in water83.5[192]
Cs3Bi2Br9-OA2.65Visible lightmethylene blue in water26.6[192]
Cs3Bi2Br9-OA/Ag2S-Visible lightmethylene blue in water40.13[192]
Cs3Bi2Br9-OA/TiO2-Visible lightmethylene blue in water27.6[192]
Cs3Bi2Br92.65Visible lightmethylene blue in isopropanol66.3[192]
Cs3Bi2Br9-OA NCs2.65Visible lightmethylene blue in isopropanol58.8[192]
IO-CsPbBr32.3simulated solar light, AM 1.5rhodamine 6G95[193]
Bulk-CsPbBr3-simulated solar light, AM 1.5rhodamine 6G75[193]
Table 5. Comparison in different organic synthesis reactions of different metal halide perovskites and their composites, reported in the literature.
Table 5. Comparison in different organic synthesis reactions of different metal halide perovskites and their composites, reported in the literature.
PhotocatalystIrradiationPhotocatalytic ReactionConversion %Selectivity %ref.
TiO2simulated light irradiation, AM 1.5Goxidation of benzylic alcohol1595[172]
FAPbBr3simulated light irradiation, AM 1.5Goxidation of benzylic alcohol1599[172]
nano-FAPbBr3simulated light irradiation, AM 1.5Goxidation of benzylic alcohol1199[172]
15% FAPbBr3/TiO2simulated light irradiation, AM 1.5Goxidation of benzylic alcohol6399[172]
15% FAPbBr3/SiO2simulated light irradiation, AM 1.5Goxidation of benzylic alcohol1399[172]
15% FAPbBr3/TiO2-Msimulated light irradiation, AM 1.5Goxidation of benzylic alcohol3799[172]
15% FAPbBr3/TiO2λ ≥ 500 nmoxidation of benzylic alcohol1399[172]
15% FAPbBr3/TiO2without light irradiationoxidation of benzylic alcohol00[172]
CsPbI3Vis LED, 420–700 nmthiophenol coupled to disulfide58-[198]
CsPbBr3Vis LED, 420–700 nmthiophenol coupled to disulfide98-[198]
CsPbBr2ClVis LED, 420–700 nmthiophenol coupled to disulfide98-[198]
CsPbBr0.5Cl0.5Vis LED, 420–700 nmthiophenol coupled to disulfide68-[198]
CsPbBrCl2Vis LED, 420–700 nmthiophenol coupled to disulfide35-[198]
CsPbCl3Vis LED, 420–700 nmthiophenol coupled to disulfide12-[198]
CsPbCl3Vis LED, 420–700 nmthiophenol coupled to disulfide93-[198]
CsPbCl3 + Br2Vis LED, 420–700 nmthiophenol coupled to disulfide62-[198]
Cs3Bi2Br9visible light ≥ 420 nmalcoholysis of styrene oxide in IPA (isopropanol)>99-[195]
Cs3Bi2Br9visible light ≥ 420 nmalcoholysis of styrene oxide in IPA>99-[195]
CsPbBr3visible light ≥ 420 nmalcoholysis of styrene oxide in IPA1-[195]
CsPbI3visible light ≥ 495 nmpolymerization of 3,4-ethylenedioxythiophene32.6-[199]
CsPbBr3Blue LED 455 nmα-alkylation of aldehydes>9996[200]
CsPbBr3 NCs12 W Blue LED, 455 nmsynthesis aldehyde85-[19]
CsPbBr3 NCs12 W Blue LED, 455 nmsynthesis aldehyde52-[19]
CsPbBr3 NCs12 W Blue LED, 455 nmsynthesis tertiary amines90-[19]
CsPbBr3 NCs12 W Blue LED, 455 nmsynthesis tertiary amines79-[19]
CsPbBr3 NCs12 W Blue LED, 455 nmcyclization of benzaldehyde phenylhydrazone88-[19]
MAPbBr312 W Blue LED, 455 nmcyclization of benzaldehyde phenylhydrazone75-[19]
CsPbBr3 NCs12 W Blue LED, 455 nmcyclization of ethyl (Z)-3-phenyl-3-(phenylamino)acrylate93-[19]
MAPbBr312 W Blue LED, 455 nmcyclization of ethyl (Z)-3-phenyl-3-(phenylamino)acrylate65-[19]
CsPbBr3 NCs12 W Blue LED, 455 nmcoupling of benzoic acid with 4-bromotrifluorobenzene78-[19]
CsPbBr34.6 W Blue LEDphotopolymerized styrene12-[201]
no perovskite4.6 W Blue LEDphotopolymerized styrene3.2-[201]
no light4.6 W Blue LEDphotopolymerized styrene1-[201]

Share and Cite

MDPI and ACS Style

Bresolin, B.-M.; Park, Y.; Bahnemann, D.W. Recent Progresses on Metal Halide Perovskite-Based Material as Potential Photocatalyst. Catalysts 2020, 10, 709.

AMA Style

Bresolin B-M, Park Y, Bahnemann DW. Recent Progresses on Metal Halide Perovskite-Based Material as Potential Photocatalyst. Catalysts. 2020; 10(6):709.

Chicago/Turabian Style

Bresolin, Bianca-Maria, Yuri Park, and Detlef W. Bahnemann. 2020. "Recent Progresses on Metal Halide Perovskite-Based Material as Potential Photocatalyst" Catalysts 10, no. 6: 709.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
