Time-Dependent Diffusion MRI-Based Microstructural Mapping for Characterization of Cribriform and Intraductal Carcinoma Morphologies in Prostate Cancer: A Preliminary Study

by
Yanchun Wei
1,†,
Shicong Yang
2,†,
Tuo Ren
1,
Zhihua Wen
1,
Xiang Li
1,
Jian Ling
1,
Jinhua Lin
3,
Yan Guo
1,
Xueying Zhao
4,
Huanjun Wang
1,* and
Yanling Chen
1,*
1
Department of Radiology, The First Affiliated Hospital, Sun Yat-sen University, Guangzhou 510080, China
2
Department of Pathology, The First Affiliated Hospital, Sun Yat-sen University, Guangzhou 510700, China
3
Department of Medical Ultrasound, Division of Interventional Ultrasound, The First Affiliated Hospital, Sun Yat-sen University, Guangzhou 510080, China
4
MR Research, GE Healthcare, Beijing 100093, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Cancers 2026, 18(13), 2056; https://doi.org/10.3390/cancers18132056 (registering DOI)
Submission received: 19 May 2026 / Revised: 19 June 2026 / Accepted: 23 June 2026 / Published: 25 June 2026
(This article belongs to the Special Issue Clinical and Translational Research of Prostate Cancer)
Browse Figures
Versions Notes

Simple Summary

Cribriform and intraductal carcinoma morphologies are important adverse histologic patterns in prostate cancer and require more intensive management. However, these adverse histologic patterns are difficult to identify before surgery using conventional imaging alone. This study explored whether time-dependent diffusion magnetic resonance imaging could provide microstructural information related to these morphologies. Tumors with cribriform or intraductal carcinoma showed higher intracellular volume fraction and cellularity, suggesting denser tumor structure. Intracellular volume fraction showed favorable performance for differentiating these patterns and remained associated with Cr/IDC status after adjustment for Gleason grade. These findings suggest that time-dependent diffusion magnetic resonance imaging may provide biologically relevant information regarding prostate cancer aggressiveness, although further prospective studies are required to validate its clinical utility.

Abstract

Background: Intraductal carcinoma (IDC) and invasive cribriform (Cr) histologic patterns are important adverse morphologies in prostate cancer (PCa) and may influence pretreatment risk stratification. This study evaluated the feasibility of time-dependent diffusion magnetic resonance imaging (td-dMRI)-based microstructural mapping for preoperative characterization of these aggressive morphologies. Methods: This retrospective study included 95 men with pathologically confirmed PCa on radical prostatectomy specimens from March 2023 to March 2025. Td-dMRI was performed using pulsed and oscillating gradient diffusion sequences. Microstructural parameters, including extracellular diffusivity (Dex), cell diameter (d), intracellular volume fraction (fin), cellularity, and diffusivities at 0, 17, and 33 Hz (ADC0Hz, ADC17Hz, and ADC33Hz), were estimated using a two-compartment model. Conventional apparent diffusion coefficient (ADCDWI) values were obtained from standard diffusion-weighted imaging. Parameters were compared between tumors with and without Cr/IDC patterns, and diagnostic performance was assessed using receiver operating characteristic analysis. Pairwise comparisons of AUCs were performed using the DeLong test. Results: Among 95 participants, 62 (65.3%) had Cr/IDC patterns. Compared with Cr/IDC-negative tumors, Cr/IDC-positive tumors showed higher fin and cellularity (both p < 0.001) and lower ADCDWI, ADC0Hz, ADC17Hz, and ADC33Hz values (all p < 0.05). Dex and d did not differ significantly between groups. Among td-dMRI-derived parameters, fin showed the highest diagnostic performance (AUC = 0.757; 95% CI, 0.654–0.860). Conclusions: Td-dMRI-based microstructural mapping demonstrates promise for characterizing the Cr/IDC morphologies in PCa.

1. Introduction

Prostate cancer (PCa) is the fourth most commonly diagnosed malignancy and the eighth leading cause of cancer-related death worldwide [1]. Although Gleason score remains a key indicator of tumor aggressiveness, the prognostic significance of cribriform growth pattern (Cr) and intraductal carcinoma (IDC) has been increasingly recognized [2,3]. These high-risk morphologies are linked to genomic instability, biochemical recurrence, and distant metastasis; accordingly, current PCa reporting guidelines recommend documenting these patterns in biopsy and prostatectomy specimens [4,5]. The presence of Cr/IDC in prostate biopsy specimens is regarded as a contraindication to active surveillance and minimally invasive focal therapy [6,7]. In addition, detection of Cr/IDC enhances pretreatment risk stratification using the Cancer of the Prostate Risk Assessment and National Comprehensive Cancer Network frameworks [8]. Therefore, early identification of these aggressive subtypes is crucial for clinical decision-making and prognosis prediction.
Although multiparametric magnetic resonance imaging (mpMRI), especially diffusion-weighted imaging, plays an indispensable role in PCa detection, it remains limited for characterizing cellular microstructure within tumors. Advances in multidimensional diffusion magnetic resonance imaging, including different diffusion weightings (q-space) and varying diffusion times (t-space), have expanded the ability to probe tissue microstructure and broadened the scope of PCa research [9,10,11]. In particular, time-dependent diffusion magnetic resonance imaging (td-dMRI) enables characterization of cellular architecture by capturing restricted water diffusion across diffusion times and relating diffusion-time dependence to specific microstructural parameters [12,13,14]. Prior studies have indicated that td-dMRI-derived parameters can discriminate PCa across Gleason scores and correlate with pathologic findings [15]. However, its feasibility for describing Cr/IDC morphologies in PCa has not yet been explored.
Cribriform architecture refers to solid proliferation of PCa cells forming multiple glandular lumina without intervening stroma, whereas IDC involves malignant cells filling and distending preexisting ductal or glandular spaces [16]. Although Cr and IDC are distinct pathologic entities, they frequently coexist and are often grouped together clinically because of overlapping morphology and similarly poor prognosis [17,18,19,20]. Because tumors with Cr/IDC morphologies exhibit distinct histologic architecture, we hypothesized that td-dMRI-based microstructural mapping may add value for noninvasive detection of these high-risk patterns. This study aimed to evaluate the clinical utility of td-dMRI-based microstructural mapping for noninvasive characterization of Cr/IDC patterns in PCa.

2. Materials and Methods

2.1. Study Participants

This retrospective study included consecutive patients with pathologically confirmed PCa who underwent preoperative multiparametric MRI including td-dMRI at our institution between March 2023 and March 2025. The source population was limited to surgically treated patients with available prostatectomy specimens as the histopathologic reference standard. Patients were excluded because of prior treatment for PCa, incomplete clinical information, insufficient image quality, lesions smaller than 1 cm that were unsuitable for reliable region-of-interest (ROI) analysis, absence of radical prostatectomy pathology, or lack of Cr/IDC description in the pathology report. The patient selection flowchart is shown in Figure 1.
The study was approved by the ethics committee of the First Affiliated Hospital, Sun Yat-sen University [(2023)094]. Written informed consent was obtained from all participants.

2.2. Image Acquisition

Prostate magnetic resonance imaging was performed on a 3.0-T scanner (Premier, GE Healthcare, Waukesha, WI, USA) with a nominal maximum gradient amplitude of 80 mT/m and a maximum slew rate of 200 T/m/s, using a 30-channel AIR coil. The protocol included td-dMRI and standard-of-care mpMRI, consisting of axial T1-weighted fast spin-echo; T2-weighted fast spin-echo in axial, coronal, and sagittal planes; echo-planar diffusion-weighted imaging with b values of 50, 1000, and 1500 s/mm2; and dynamic contrast-enhanced MRI. Detailed imaging parameters are listed in Table S1.
Td-dMRI included an oscillating gradient spin-echo (OGSE) sequence with a trapezoid-cosine waveform and a pulsed gradient spin-echo (PGSE) sequence. OGSE data were acquired at 33 Hz (effective diffusion time = 7.6 ms; two cycles; b = 300 and 600 s/mm2) and 17 Hz (effective diffusion time = 14.8 ms; one cycle; b = 200, 400, 800, and 1200 s/mm2). PGSE data were acquired with diffusion-gradient duration δ = 8 ms and separation Δ = 70 ms (equivalent frequency = 0 Hz; effective diffusion time = 67.3 ms; b = 200, 400, 800, and 1200 s/mm2). The following parameters were identical for both sequences: repetition time = 7000 ms; echo time = 150 ms; diffusion directions = 6; field of view = 230 × 230 mm; in-plane resolution = 2.7 × 2.7 mm; matrix = 86 × 86; slices = 10; and slice thickness = 5 mm. The total acquisition time for the td-dMRI protocol was approximately 7 min 40 s. Detailed diffusion encoding parameters for OGSE and PGSE are provided in Table S2.

2.3. Image Processing

Td-dMRI data were fitted using the Imaging Microstructural Parameters Using Limited Spectrally Edited Diffusion (IMPULSED) model, a two-compartment model comprising intracellular and extracellular components [21]: S = fin·Sin(d,Din,b) + (1 − fin)·Sex, where S is the measured diffusion-weighted magnetic resonance imaging signal; Sin and Sex are the intracellular and extracellular signals, respectively; fin is the intracellular volume fraction; d is the mean cell diameter; b is the diffusion-weighting factor determined by the diffusion gradients; and Din is the intracellular diffusivity. Sin was modeled using analytical expressions [22] for diffusion in spheres under trapezoidal OGSE encoding. Din was fixed at 1.0 μm2/ms to stabilize fitting [15,23]. Sex was modeled as Sex = exp(−b·Dex), with extracellular diffusivity (Dex) assumed to be independent of diffusion time [21,24,25]. Microstructural parameters, including Dex, d, and fin, were estimated by least-squares curve fitting using MATLAB 2018a (MathWorks, Natick, MA, USA). Parameter bounds were 0 < d < 30 μm, 0 < fin < 1, and 0 < Dex < 3.5 μm2/ms. To avoid local minima, fitting was repeated with 100 randomized initializations, and the solution with the smallest residual was retained. Cellularity was calculated as (fin/d) × 100. ADC at each diffusion time was estimated from S/S0 = exp(−b·D) by log-linear fitting to yield ADC0Hz (PGSE, b = 800 s/mm2), ADC17Hz (OGSE, b = 800 s/mm2), and ADC33Hz (OGSE, b = 600 s/mm2).
For MRI-pathology co-registration, two experienced radiologists (Y.G. and J.L., with 30 and 20 years of prostate imaging experience, respectively) and a genitourinary pathologist (S.C.Y., with 20 years of experience) reviewed the corresponding MRI and pathology slides for each patient and identified the dominant tumor lesion. Tumor ROIs were manually delineated on each MRI slice for the entire lesion with reference to T2-weighted images and DWI by two additional radiology fellows (Y.L.C. and Y.C.W., each with 3 years of prostate imaging experience), who were blinded to clinical information except lesion location. Lesion edges, artifacts, necrosis, hemorrhage, and calcification were carefully excluded during ROI delineation. Fitted microstructural parameters (Dex, d, fin, cellularity, ADC0Hz, ADC17Hz, and ADC33Hz) were averaged across corresponding ROIs. In addition, the conventional ADC value were also calculated from the standard DWI(ADCDWI) to test the added value of td-dMRI over the standard-of-care mpMRI.

2.4. Histopathologic Analysis

The presence or absence of cribriform architecture and intraductal carcinoma was assessed on radical prostatectomy specimens according to International Society of Urological Pathology (ISUP) criteria [26]. Cribriform architecture was defined as confluent epithelial proliferation forming multiple gland-like lumina without intervening stroma. Intraductal carcinoma was defined as malignant epithelial cells filling and expanding preexisting prostatic ducts or glands. Cr/IDC status was assessed at the patient/dominant-lesion level. A tumor was classified as Cr/IDC-positive if either cribriform architecture or intraductal carcinoma was identified in the corresponding prostatectomy specimen. The percentage of Cr/IDC components was not routinely quantified. Additional recorded pathologic features included Gleason score and International Society of Urological Pathology grade group (2014 recommendations), pathologic T stage (AJCC TNM, 8th edition), D’Amico risk group, and aggressive pathologic features: extraprostatic extension (EPE), seminal vesicle invasion (SVI), perineural invasion (PNI), lymphovascular invasion (LVI), and positive surgical margin (PSM). These histologic characteristics were determined based on prostatectomy specimens.

2.5. Statistical Analysis

Continuous variables were compared using Student’s t test or the Mann–Whitney U test depending on data distribution. Normality was assessed by the Shapiro–Wilk test. Categorical variables were compared using the Pearson chi-square test or Fisher’s exact test. Sensitivity analyses adjusted for Gleason grade were performed to evaluate associations between Cr/IDC status and each td-dMRI-derived parameter using multivariable linear regression, with adjusted p-values reflecting the effect of Cr/IDC patterns after controlling for tumor grade. Diagnostic performance of each microstructural parameter was assessed using receiver operating characteristic (ROC) analysis, with sensitivity, specificity, and accuracy calculated at the optimal threshold based on the Youden index. Areas under the ROC curves (AUCs) were compared using the DeLong test, and internal validation was performed using 1000-sample bootstrap resampling. To explore the independent predictors for Cr/IDC patterns, supplementary univariate and multivariable logistic regression analyses were conducted including preoperative clinical variables, conventional MRI metrics, and td-dMRI parameters. Multicollinearity was assessed using variance inflation factors (VIF), and variables with statistical significance in univariate analysis were retained for multivariable modeling after careful consideration of collinearity. If sufficient independent predictors were identified, a combined diagnostic model will be constructed and evaluated for diagnostic performance.
Interobserver agreement was evaluated using the intraclass correlation coefficient (ICC), interpreted as excellent (≥0.80), good (0.60–0.79), fair (0.40–0.59), or poor (<0.40). Statistical analyses were performed using GraphPad Prism (version 10.1.2; GraphPad Software, San Diego, CA, USA) and R software (version 4.1.1; R Foundation for Statistical Computing, Vienna, Austria). p < 0.05 was considered statistically significant.

3. Results

3.1. Patient Characteristics

In total, 95 participants (median age, 68 years; interquartile range, 62–72 years) were included; 62 (65.3%) had Cr/IDC-positive PCa and 33 (34.7%) had Cr/IDC-negative PCa. Prostate-specific antigen (PSA) and prostate-specific antigen density (PSAD) levels differed between groups [PSA, 13.28 (9.98, 26.26) vs. 8.62 (5.64, 13.96) ng/mL; p = 0.003; PSAD, 0.43 (0.25, 0.72) vs. 0.26 (0.15, 0.41) ng/mL2; p = 0.001]. Baseline participant characteristics are summarized in Table 1.

3.2. Pathologic Features of Tumors with Cr/IDC Architecture

There was a significant difference in histologic grade between tumors with and without Cr/IDC architecture. Cr/IDC-positive tumors were associated with higher ISUP grade group (p < 0.001). PNI and PSM were more commonly found in PCa with Cr/IDC architecture (p = 0.039 and p = 0.007, respectively), whereas no significant differences were observed for EPE, SVI and LVI (all p > 0.05). Furthermore, Cr/IDC-positive tumors were more frequently classified into higher D’Amico risk groups (p < 0.001). Pathologic characteristics are summarized in Table 2.

3.3. Comparison of Microstructural Features Between Cr/IDC-Positive and Cr/IDC-Negative Tumors

Figure 2 shows IMPULSED-fitted microstructural parameter maps for PCa with and without Cr/IDC patterns, together with ADC maps acquired at different oscillating frequencies. Within the tumor regions (dashed contours), fin and cellularity were higher in Cr/IDC-positive tumors, whereas diffusivity measurements at 0, 17, and 33 Hz were lower.
Quantitatively, fin and cellularity were significantly higher in the Cr/IDC-positive group (both p < 0.001; Figure 3A,B). No significant differences were observed for Dex or d (p = 0.628 and p = 0.439, respectively; Figure 3C,D). ADCDWI, ADC0Hz, ADC17Hz, and ADC33Hz values were significantly lower in the Cr/IDC-positive group (p < 0.001, p = 0.001, p = 0.009, and p = 0.006, respectively; Figure 3E–H) (Table 3). Both Cr/IDC-positive and Cr/IDC-negative tumors exhibited an increase in ADC from 0 to 33 Hz of similar magnitude (Figure 3I).
Because Gleason grade may also correlate with microstructural parameters, sensitivity analyses adjusting for Gleason grade were performed to assess the direct relationship between Cr/IDC pattern and td-dMRI-derived metrics. After adjustment, the differences remained significant: Cr/IDC-positive tumors exhibited significantly higher fin and cellularity (p = 0.009 and p = 0.022, respectively) and lower ADC0Hz (p = 0.007), ADCDWI (p = 0.015).
Univariate and multivariable logistic regression analyses were further performed to explore the independent predictor of Cr/IDC status. In univariate analyses, PSA, PSAD, PI-RADS score, fin, cellularity, ADC0Hz, ADC17Hz, ADC33Hz, and ADCDWI were significantly associated with Cr/IDC-positive tumors (all p < 0.05). Multicollinearity analysis suggested potential collinearity between PSA and PSAD (VIF = 13.6 and 12.9, respectively), as well as between fin and cellularity (VIF = 23.0 and 34.7, respectively). After comprehensive evaluation of collinearity and clinical interpretability, PSAD and fin were retained for multivariable analysis. Among the multiple ADC measurements, ADCDWI was included to allow direct comparison with conventional mpMRI metrics. Finally, PSAD, PI-RADS score, fin, and ADCDWI were included in the multivariable logistic regression model. Nonetheless, none of the included variables reached statistical significance after adjustment, as shown in Supplementary Table S3.

3.4. Diagnostic Performance of td-dMRI-Derived Parameters for Cr/IDC Morphology

The diagnostic performance of microstructural parameters for identifying Cr/IDC morphologies in PCa is summarized in Table 4 and Figure 4. Among the microstructural metrics, fin demonstrated the highest diagnostic performance for detecting Cr/IDC architecture (AUC = 0.757; 95% CI, 0.654–0.860), with a sensitivity of 69.4%, specificity of 81.8%, and accuracy of 73.7% at the exploratory optimal threshold determined by the Youden index. Its diagnostic performance remained stable in internal validation using 1000-sample bootstrap resampling, yielding a comparable bootstrap AUC of 0.761 (95% CI, 0.664–0.855) (Figure 4A). The diagnostic performance of fin was slightly higher than that of the conventional ADC measurements, while the differences were not statistically significant (Figure 4B).

3.5. Interreader Reliability

Interobserver agreement for td-dMRI-derived measurements was excellent, with intraclass correlation coefficients ranging from 0.899 to 0.995 (Table S4).

4. Discussion

Noninvasive identification of Cr/IDC morphologies in PCa is important for guiding management and predicting clinical outcomes. This study demonstrates that td-dMRI-derived fin and cellularity were significantly higher in Cr/IDC-positive tumors, whereas ADC values at 0, 17, and 33 Hz were lower than in Cr/IDC-negative tumors. These findings remained robust after adjustment for Gleason grade. Among the microstructural features, fin demonstrated the highest diagnostic performance (AUC = 0.757; 95% CI, 0.654–0.860), suggesting its potential for identifying these aggressive histologic patterns.
Our analysis revealed that PCa with Cr/IDC morphologies exhibited higher pathologic grade. In addition, adverse pathologic features, including PNI and PSM, were more frequently observed in Cr/IDC-positive tumors. These findings are consistent with prior reports identifying Cr/IDC architecture as a pathologic hallmark of adverse clinical outcomes [27,28]. For risk stratification, Cr/IDC-positive tumors were more frequently classified into the high-risk group, highlighting the clinical importance of early identification of these aggressive histologic patterns.
Previous studies reported lower ADC values in tumors with Cr/IDC patterns [20,29,30]. In our study, ADC values at 0, 17, 33 Hz and ADC derived from DWI were also lower in Cr/IDC-positive tumors than in Cr/IDC-negative tumors. The difference in ADC0Hz and ADCDWI between the two groups remained significant after adjustment for Gleason grade, a well-established marker of tumor aggressiveness. This result may reflect increased tissue cellularity in IDC and compact arrangement of malignant epithelial cells within cribriform structures, which reduce intervening stroma and vasculature and thereby restrict water diffusion [29,31]. Additionally, Wu et al. reported differences in diffusion-time dependence among ISUP grade groups [15]; however, we did not observe such differences between Cr/IDC-positive and Cr/IDC-negative tumors. These observations suggest that diffusion-time dependence of water mobility may be more strongly influenced by pathologic grade than by Cr/IDC architecture. Nonetheless, validation in larger cohorts is warranted. Despite statistically significant differences in ADC values between Cr/IDC-positive and Cr/IDC-negative tumors, ADC primarily serves as a macroscopic indicator of water diffusivity and does not directly reflect microstructural properties at the cellular level.
Various imaging approaches have been developed to probe prostate tissue microstructure, including luminal water imaging [32], VERDICT (vascular, extracellular, and restricted diffusion for cytometry in tumors) [33], hybrid multidimensional MRI [34], and diffusion-relaxation spectrum imaging [11]. However, their clinical translation may be limited by complex acquisition requirements, prolonged scan times, or indirect assessment of cellular architecture. In contrast, by integrating q-space and t-space diffusion information within a time-dependent diffusion MRI framework, IMPULSED uses an analytical biophysical model to estimate interpretable microstructural parameters, providing information beyond conventional ADC measurement. Moreover, IMPULSED can be implemented on clinical MRI scanners, supporting its clinical translational value [15]. Its feasibility has been validated against histopathology in several tumor types, including glioma, breast tumor, ovarian cancer, etc. [35,36,37]. In PCa, previous studies have confirmed the potential of td-dMRI to depict microstructural characteristics across different ISUP grade groups [12]. Wu et al. further reported that td-dMRI showed superior accuracy for discriminating clinically significant PCa from clinically insignificant disease [15]. We extended this technique to map the microstructure of Cr/IDC patterns in PCa and found that fin and cellularity were higher in Cr/IDC-positive tumors than in Cr/IDC-negative tumors. These results remained significant after adjustment for Gleason grade, suggesting that these parameters may not only reflect tumor pathologic grading but also capture microstructural features related to Cr/IDC patterns. From a biological perspective, this finding provides supporting evidence for the pathological relevance of IMPULSED-derived parameters. Elevated fin and cellularity in Cr/IDC-positive tumors likely reflect the dense, compact growth patterns of these subtypes. Pathologically, Cr/IDC lesions are characterized by increased cellular density, reduced extracellular space, and higher architectural complexity, which may restrict water diffusion and enhance intracellular signal contribution [38].
The td-dMRI-derived parameters, particularly fin, showed favorable diagnostic performance for identifying Cr/IDC morphologies, with an AUC of 0.757. However, its independent incremental value beyond clinical and conventional mpMRI parameters was not confirmed in multivariable analysis. This may be related to the joint analysis of Cr and IDC despite their distinct histologic architectures, which may introduce biological heterogeneity. In addition, the absence of quantitative information on Cr/IDC extent precluded assessment of potential dose–response effects, and lesion-level averaging within ROIs may have further diluted spatially heterogeneous tumor components, reducing sensitivity in multivariable models. Therefore, validation with more refined pathological stratification is warranted.
Several limitations should be noted. First, this was a single-center, retrospective study with a modest sample size, including only radical prostatectomy patients to ensure comprehensive histopathologic reference [39], which may limit generalizability to patients managed with other strategies. Validation in larger, multicenter cohorts is needed. Second, spatial co-registration between MRI-based ROIs and histopathology may be imperfect, as whole-mount sections were not available for all cases, which may introduce measurement uncertainty in td-dMRI parameters. Third, Cr and IDC were analyzed together due to their frequent coexistence and shared prognostic implications. Separate analyses and quantitative assessment of Cr/IDC component burden within tumors were not feasible due to limited subgroup size and the lack of routine immunohistochemical confirmation, which represents an important direction for future research. Fourth, lesions smaller than 1 cm were excluded because of the current spatial resolution limitations of td-dMRI, which may introduce selection bias. Finally, this study primarily focused on the feasibility of td-dMRI for preoperative characterization of Cr/IDC, and further work is required to investigate its prognostic implications in long-term outcomes.

5. Conclusions

Td-dMRI-derived microstructural parameters show promise for characterizing Cr/IDC-related tissue alterations, while further validation in larger, multicenter cohorts is warranted.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/cancers18132056/s1: Table S1: Sequence parameters for diagnostic MRI; Table S2: Sequence parameters for diagnostic MRI; Table S3: Univariate and Multivariable Logistic Regression Analyses for Identifying Cr/IDC-Positive Prostate Cancer. Table S4: Results of two-reader reliability analysis.

Author Contributions

Conceptualization, H.W. and Y.C.; methodology, Y.W., J.L. (Jinhua Lin), S.Y., X.Z., H.W. and Y.C.; software, Y.W. and X.Z.; validation, Y.G., J.L. (Jian Ling) and S.Y.; formal analysis, Y.W.; investigation, Y.W., T.R., Z.W. and X.L.; resources, H.W. and Y.C.; data curation, Y.W. and T.R.; writing—original draft preparation, Y.W. and S.Y.; writing—review and editing, all authors; visualization, Y.W.; supervision, H.W. and Y.C.; funding acquisition, H.W. and Y.G. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the National Natural Science Foundation of China (Nos. 82372075, 82371911 and 82402415).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Ethics Committee of the First Affiliated Hospital, Sun Yat-sen University (protocol code: [(2023)094], approved on 9 February 2023).

Informed Consent Statement

Written informed consent was obtained from all participants involved in the study.

Data Availability Statement

The data presented in this study are available from the corresponding author upon reasonable request.

Conflicts of Interest

Xueying Zhao is an employee of GE Healthcare. She was not involved in any data collection or data management that would influence the study. The remaining authors declare no conflicts of interest related to this work.

Abbreviations

PCaProstate cancer
CrCribriform
IDCIntraductal carcinoma
td-dMRItime-dependent diffusion MRI
IMPULSEDImaging Microstructural Parameters Using Limited Spectrally Edited Diffusion
OGSEOscillating gradient spin-echo
PGSEPulsed gradient spin-echo
DWIDiffusion weighted imaging
ADCApparent diffusion coefficient
Dexextracellular diffusivity
finIntracellular volume fraction

References

  1. Bray, F.; Laversanne, M.; Sung, H.; Ferlay, J.; Siegel, R.L.; Soerjomataram, I.; Jemal, A. Global cancer statistics 2022: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA A Cancer J. Clin. 2024, 74, 229–263. [Google Scholar] [CrossRef] [PubMed]
  2. Bernardino, R.M.; van der Kwast, T.; Fleshner, N.E. Intraductal Carcinoma and Cribriform Pattern in Prostate Cancer: Challenges and Emerging Perspectives. Eur. Urol. 2025, 88, 123–125. [Google Scholar] [CrossRef]
  3. Nguyen, J.K. Old school, new insight: Revisiting histomorphology in the modern era of prostate cancer risk stratification. Semin. Diagn. Pathol. 2026, 151012. [Google Scholar] [CrossRef] [PubMed]
  4. Böttcher, R.; Kweldam, C.F.; Livingstone, J.; Lalonde, E.; Yamaguchi, T.N.; Huang, V.; Yousif, F.; Fraser, M.; Bristow, R.G.; van der Kwast, T.; et al. Cribriform and intraductal prostate cancer are associated with increased genomic instability and distinct genomic alterations. BMC Cancer 2018, 18, 8. [Google Scholar] [CrossRef] [PubMed]
  5. Montironi, R.; Cimadamore, A.; Gasparrini, S.; Mazzucchelli, R.; Santoni, M.; Massari, F.; Cheng, L.; Lopez-Beltran, A.; Scarpelli, M. Prostate cancer with cribriform morphology: Diagnosis, aggressiveness, molecular pathology and possible relationships with intraductal carcinoma. Expert Rev. Anticancer Ther. 2018, 18, 685–693. [Google Scholar] [CrossRef] [PubMed]
  6. Epstein, J.I.; Amin, M.B.; Fine, S.W.; Algaba, F.; Aron, M.; Baydar, D.E.; Beltran, A.L.; Brimo, F.; Cheville, J.C.; Colecchia, M.; et al. The 2019 Genitourinary Pathology Society (GUPS) White Paper on Contemporary Grading of Prostate Cancer. Arch. Pathol. Lab. Med. 2021, 145, 461–493. [Google Scholar] [CrossRef] [PubMed]
  7. Tohi, Y.; Ishikawa, R.; Kato, T.; Miyakawa, J.; Matsumoto, R.; Mori, K.; Mitsuzuka, K.; Inokuchi, J.; Matsumura, M.; Shiga, K.; et al. Clinical outcomes of intraductal carcinoma or cribriform in radical prostatectomy specimens of men opting for active surveillance: Data from the PRIAS-JAPAN study. Int. J. Clin. Oncol. 2023, 28, 299–305. [Google Scholar] [CrossRef] [PubMed]
  8. Cornford, P.; van den Bergh, R.C.N.; Briers, E.; Van den Broeck, T.; Brunckhorst, O.; Darraugh, J.; Eberli, D.; De Meerleer, G.; De Santis, M.; Farolfi, A.; et al. EAU-EANM-ESTRO-ESUR-ISUP-SIOG Guidelines on Prostate Cancer-2024 Update. Part I: Screening, Diagnosis, and Local Treatment with Curative Intent. Eur. Urol. 2024, 86, 148–163. [Google Scholar] [CrossRef] [PubMed]
  9. Novikov, D.S.; Fieremans, E.; Jespersen, S.N.; Kiselev, V.G. Quantifying brain microstructure with diffusion MRI: Theory and parameter estimation. NMR Biomed. 2019, 32, e3998. [Google Scholar] [CrossRef] [PubMed]
  10. Panagiotaki, E.; Chan, R.W.; Dikaios, N.; Ahmed, H.U.; O’Callaghan, J.; Freeman, A.; Atkinson, D.; Punwani, S.; Hawkes, D.J.; Alexander, D.C. Microstructural characterization of normal and malignant human prostate tissue with vascular, extracellular, and restricted diffusion for cytometry in tumours magnetic resonance imaging. Investig. Radiol. 2015, 50, 218–227. [Google Scholar] [CrossRef] [PubMed]
  11. Zhang, Z.; Wu, H.H.; Priester, A.; Magyar, C.; Afshari Mirak, S.; Shakeri, S.; Mohammadian Bajgiran, A.; Hosseiny, M.; Azadikhah, A.; Sung, K.; et al. Prostate Microstructure in Prostate Cancer Using 3-T MRI with Diffusion-Relaxation Correlation Spectrum Imaging: Validation with Whole-Mount Digital Histopathology. Radiology 2020, 296, 348–355. [Google Scholar] [CrossRef] [PubMed]
  12. Lemberskiy, G.; Rosenkrantz, A.B.; Veraart, J.; Taneja, S.S.; Novikov, D.S.; Fieremans, E. Time-Dependent Diffusion in Prostate Cancer. Investig. Radiol. 2017, 52, 405–411. [Google Scholar] [CrossRef] [PubMed]
  13. Gore, J.C.; Xu, J.; Colvin, D.C.; Yankeelov, T.E.; Parsons, E.C.; Does, M.D. Characterization of tissue structure at varying length scales using temporal diffusion spectroscopy. NMR Biomed. 2010, 23, 745–756. [Google Scholar] [CrossRef] [PubMed]
  14. Novikov, D.S.; Jensen, J.H.; Helpern, J.A.; Fieremans, E. Revealing mesoscopic structural universality with diffusion. Proc. Natl. Acad. Sci. USA 2014, 111, 5088–5093. [Google Scholar] [CrossRef] [PubMed]
  15. Wu, D.; Jiang, K.; Li, H.; Zhang, Z.; Ba, R.; Zhang, Y.; Hsu, Y.C.; Sun, Y.; Zhang, Y.D. Time-Dependent Diffusion MRI for Quantitative Microstructural Mapping of Prostate Cancer. Radiology 2022, 303, 578–587. [Google Scholar] [CrossRef] [PubMed]
  16. Szolnoky, K.; Blilie, A.; Mulliqi, N.; Tsuzuki, T.; Samaratunga, H.; Titus, M.; Ji, X.; Boman, S.E.; Gudlaugsson, E.; Kjosavik, S.R.; et al. Finding Holes: Pathologist-Level Performance Using AI for Cribriform Morphology Detection in Prostate Cancer. Eur. Urol. Open Sci. 2026, 87, 31–39. [Google Scholar] [CrossRef] [PubMed]
  17. Bernardino, R.M.; Yin, L.B.; Lajkosz, K.; Cockburn, J.G.; Wettstein, M.; Sayyid, R.K.; Henrique, R.; Pinheiro, L.C.; van der Kwast, T.; Fleshner, N.E. Undetected Cribriform and Intraductal Prostate Cancer at biopsy is associated with adverse outcomes. Prostate Cancer Prostatic Dis. 2025, 28, 187–192. [Google Scholar] [CrossRef] [PubMed]
  18. van Leenders, G.; van der Kwast, T.H.; Grignon, D.J.; Evans, A.J.; Kristiansen, G.; Kweldam, C.F.; Litjens, G.; McKenney, J.K.; Melamed, J.; Mottet, N.; et al. The 2019 International Society of Urological Pathology (ISUP) Consensus Conference on Grading of Prostatic Carcinoma. Am. J. Surg. Pathol. 2020, 44, e87–e99. [Google Scholar] [CrossRef] [PubMed]
  19. Osiecki, R.; Kozikowski, M.; Sarecka-Hujar, B.; Pyzlak, M.; Dobruch, J. Prostate Cancer Morphologies: Cribriform Pattern and Intraductal Carcinoma Relations to Adverse Pathological and Clinical Outcomes-Systematic Review and Meta-Analysis. Cancers 2023, 15, 1372. [Google Scholar] [CrossRef] [PubMed]
  20. Ghai, S.; Klotz, L.; Pond, G.R.; Kebabdjian, M.; Downes, M.R.; Belanger, E.C.; Moussa, M.; van der Kwast, T.H. Comparison of Multiparametric MRI-targeted and Systematic Biopsies for Detection of Cribriform and Intraductal Carcinoma Prostate Cancer. Radiology 2024, 312, e231948. [Google Scholar] [CrossRef] [PubMed]
  21. Jiang, X.; Li, H.; Xie, J.; McKinley, E.T.; Zhao, P.; Gore, J.C.; Xu, J. In vivo imaging of cancer cell size and cellularity using temporal diffusion spectroscopy. Magn. Reson. Med. 2017, 78, 156–164. [Google Scholar] [CrossRef] [PubMed]
  22. Wu, D.; Liu, D.; Hsu, Y.C.; Li, H.; Sun, Y.; Qin, Q.; Zhang, Y. Diffusion-prepared 3D gradient spin-echo sequence for improved oscillating gradient diffusion MRI. Magn. Reson. Med. 2021, 85, 78–88. [Google Scholar] [CrossRef] [PubMed]
  23. Adamaki, M.; Zoumpourlis, V. Prostate Cancer Biomarkers: From diagnosis to prognosis and precision-guided therapeutics. Pharmacol. Ther. 2021, 228, 107932. [Google Scholar] [CrossRef] [PubMed]
  24. Xu, J.; Jiang, X.; Li, H.; Arlinghaus, L.R.; McKinley, E.T.; Devan, S.P.; Hardy, B.M.; Xie, J.; Kang, H.; Chakravarthy, A.B.; et al. Magnetic resonance imaging of mean cell size in human breast tumors. Magn. Reson. Med. 2020, 83, 2002–2014. [Google Scholar] [CrossRef] [PubMed]
  25. Reynaud, O.; Winters, K.V.; Hoang, D.M.; Wadghiri, Y.Z.; Novikov, D.S.; Kim, S.G. Pulsed and oscillating gradient MRI for assessment of cell size and extracellular space (POMACE) in mouse gliomas. NMR Biomed. 2016, 29, 1350–1363. [Google Scholar] [CrossRef] [PubMed]
  26. Epstein, J.I.; Egevad, L.; Amin, M.B.; Delahunt, B.; Srigley, J.R.; Humphrey, P.A. The 2014 International Society of Urological Pathology (ISUP) Consensus Conference on Gleason Grading of Prostatic Carcinoma: Definition of Grading Patterns and Proposal for a New Grading System. Am. J. Surg. Pathol. 2016, 40, 244–252. [Google Scholar] [CrossRef] [PubMed]
  27. Shi, H.; Wang, Y.; Miyamoto, H. Intraductal Carcinoma of the Prostate With a Solid Nest Pattern May Be More Aggressive Than Gleason Grade 5 Conventional Prostatic Adenocarcinoma. Am. J. Surg. Pathol. 2026, 50, 156–162. [Google Scholar] [CrossRef] [PubMed]
  28. Bernardino, R.M.; Yin, L.B.; Lajkosz, K.; Winquist, E.; Cockburn, J.G.; Jenjitranant, P.; Veloso, R.; ÓConnell, C.; Benitez, A.M.; Nguyen, D.D.; et al. Intraductal Carcinoma Predicts Poor Response to Neoadjuvant Therapy in High-risk Prostate Cancer: A Retrospective Analysis of a Prospective Trial. Eur. Urol. Open Sci. 2025, 82, 52–58. [Google Scholar] [CrossRef] [PubMed]
  29. Seyrek, N.; Hollemans, E.; Schoots, I.G.; van Leenders, G. Association of quantifiable prostate MRI parameters with any and large cribriform pattern in prostate cancer patients undergoing radical prostatectomy. Eur. J. Radiol. 2023, 166, 110966. [Google Scholar] [CrossRef] [PubMed]
  30. Kim, D.H.S.; Sonni, I.; Grogan, T.; Sisk, A.; Murthy, V.; Hsu, W.; Sung, K.; Lu, D.S.; Reiter, R.E.; Raman, S.S. Quantitative 3-T Multiparametric MRI Parameters as Predictors of Aggressive Prostate Cancer. Radiol. Imaging Cancer 2025, 7, e240011. [Google Scholar] [CrossRef] [PubMed]
  31. Prendeville, S.; Gertner, M.; Maganti, M.; Pintilie, M.; Perlis, N.; Toi, A.; Evans, A.J.; Finelli, A.; van der Kwast, T.H.; Ghai, S. Role of Magnetic Resonance Imaging Targeted Biopsy in Detection of Prostate Cancer Harboring Adverse Pathological Features of Intraductal Carcinoma and Invasive Cribriform Carcinoma. J. Urol. 2018, 200, 104–113. [Google Scholar] [CrossRef] [PubMed]
  32. Sabouri, S.; Chang, S.D.; Savdie, R.; Zhang, J.; Jones, E.C.; Goldenberg, S.L.; Black, P.C.; Kozlowski, P. Luminal Water Imaging: A New MR Imaging T2 Mapping Technique for Prostate Cancer Diagnosis. Radiology 2017, 284, 451–459. [Google Scholar] [CrossRef] [PubMed]
  33. Johnston, E.W.; Bonet-Carne, E.; Ferizi, U.; Yvernault, B.; Pye, H.; Patel, D.; Clemente, J.; Piga, W.; Heavey, S.; Sidhu, H.S.; et al. VERDICT MRI for Prostate Cancer: Intracellular Volume Fraction versus Apparent Diffusion Coefficient. Radiology 2019, 291, 391–397. [Google Scholar] [CrossRef] [PubMed]
  34. Chatterjee, A.; Bourne, R.M.; Wang, S.; Devaraj, A.; Gallan, A.J.; Antic, T.; Karczmar, G.S.; Oto, A. Diagnosis of Prostate Cancer with Noninvasive Estimation of Prostate Tissue Composition by Using Hybrid Multidimensional MR Imaging: A Feasibility Study. Radiology 2018, 287, 864–873. [Google Scholar] [CrossRef] [PubMed]
  35. Cao, Y.; Lu, Y.; Shao, W.; Zhai, W.; Song, J.; Zhang, A.; Huang, S.; Zhao, X.; Cheng, W.; Wu, F.; et al. Time-dependent diffusion MRI-based microstructural mapping for differentiating high-grade serous ovarian cancer from serous borderline ovarian tumor. Eur. J. Radiol. 2024, 178, 111622. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, X.; Ba, R.; Huang, Y.; Cao, Y.; Chen, H.; Xu, H.; Shen, H.; Liu, D.; Huang, H.; Yin, T.; et al. Time-Dependent Diffusion MRI Helps Predict Molecular Subtypes and Treatment Response to Neoadjuvant Chemotherapy in Breast Cancer. Radiology 2024, 313, e240288. [Google Scholar] [CrossRef] [PubMed]
  37. Zhang, H.; Liu, K.; Ba, R.; Zhang, Z.; Zhang, Y.; Chen, Y.; Gu, W.; Shen, Z.; Shu, Q.; Fu, J.; et al. Histological and molecular classifications of pediatric glioma with time-dependent diffusion MRI-based microstructural mapping. Neuro-Oncology 2023, 25, 1146–1156. [Google Scholar] [CrossRef] [PubMed]
  38. Agosti, V.; Munari, E. Histopathological evaluation and grading for prostate cancer: Current issues and crucial aspects. Asian J. Androl. 2024, 26, 575–581. [Google Scholar] [CrossRef] [PubMed]
  39. Watfa, M.; El Hussein, M.; Younis, S.K.; Dortche, K.; Bernardino, R.M.; Al-Bayati, A.; Wang, B.; Autorino, R.; McKenney, J.K.; Haywood, S.; et al. Unsampled large cribriform and intraductal carcinoma and the limits of risk stratification by prostate biopsy. BJU Int. 2026. [Google Scholar] [CrossRef] [PubMed]
Cancers 18 02056 g001

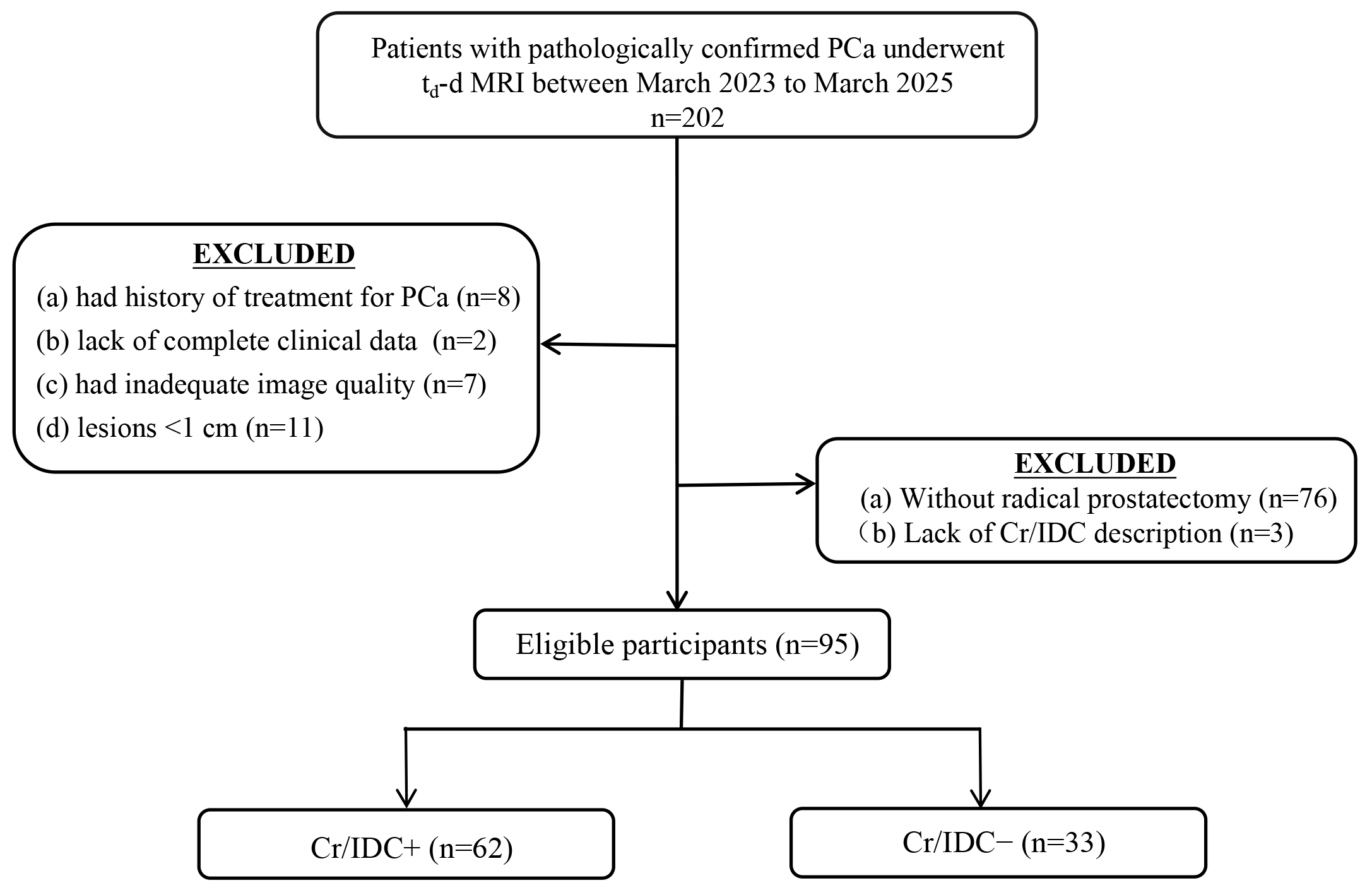

Figure 1. Flowchart showing participant enrollment. Abbreviations: Cr/IDC, cribriform/intraductal carcinoma histologic pattern; PCa, prostate cancer.
Figure 1. Flowchart showing participant enrollment. Abbreviations: Cr/IDC, cribriform/intraductal carcinoma histologic pattern; PCa, prostate cancer.
Cancers 18 02056 g001
Cancers 18 02056 g002

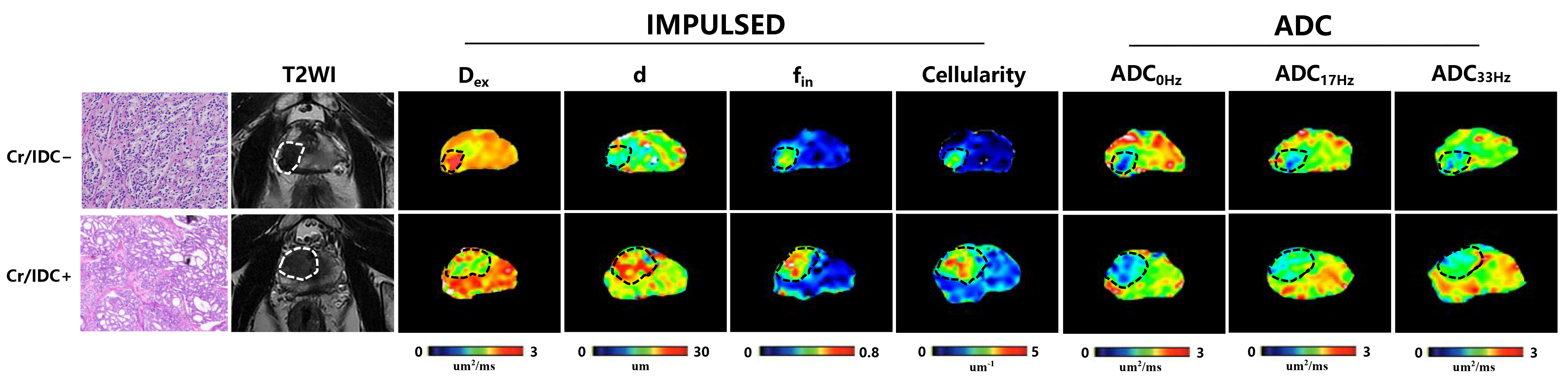

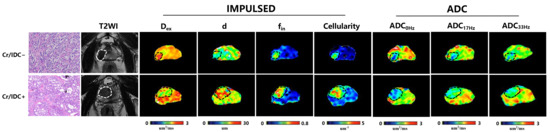

Figure 2. Representative microstructural maps of Cr/IDC-positive and Cr/IDC-negative PCa. The while/black dash contours indicate cancerous regions based on manual delineation. Corresponding pathologic findings based on H&E staining and the T2-weighted images at similar axial locations are shown in the first and second columns, followed by the IMPULSED-derived maps (Dex, d, fin, and cellularity) and diffusivity maps (ADC0Hz,ADC17Hz and ADC33Hz). Abbreviations: Cr/IDC, cribriform/intraductal carcinoma histologic pattern; Dex, extracellular diffusivity; d, cell diameter; fin, intracellular volume fraction; ADC, apparent diffusion coefficient; IMPULSED, Imaging Microstructural Parameters Using Limited Spectrally Edited Diffusion.
Figure 2. Representative microstructural maps of Cr/IDC-positive and Cr/IDC-negative PCa. The while/black dash contours indicate cancerous regions based on manual delineation. Corresponding pathologic findings based on H&E staining and the T2-weighted images at similar axial locations are shown in the first and second columns, followed by the IMPULSED-derived maps (Dex, d, fin, and cellularity) and diffusivity maps (ADC0Hz,ADC17Hz and ADC33Hz). Abbreviations: Cr/IDC, cribriform/intraductal carcinoma histologic pattern; Dex, extracellular diffusivity; d, cell diameter; fin, intracellular volume fraction; ADC, apparent diffusion coefficient; IMPULSED, Imaging Microstructural Parameters Using Limited Spectrally Edited Diffusion.
Cancers 18 02056 g002
Cancers 18 02056 g003

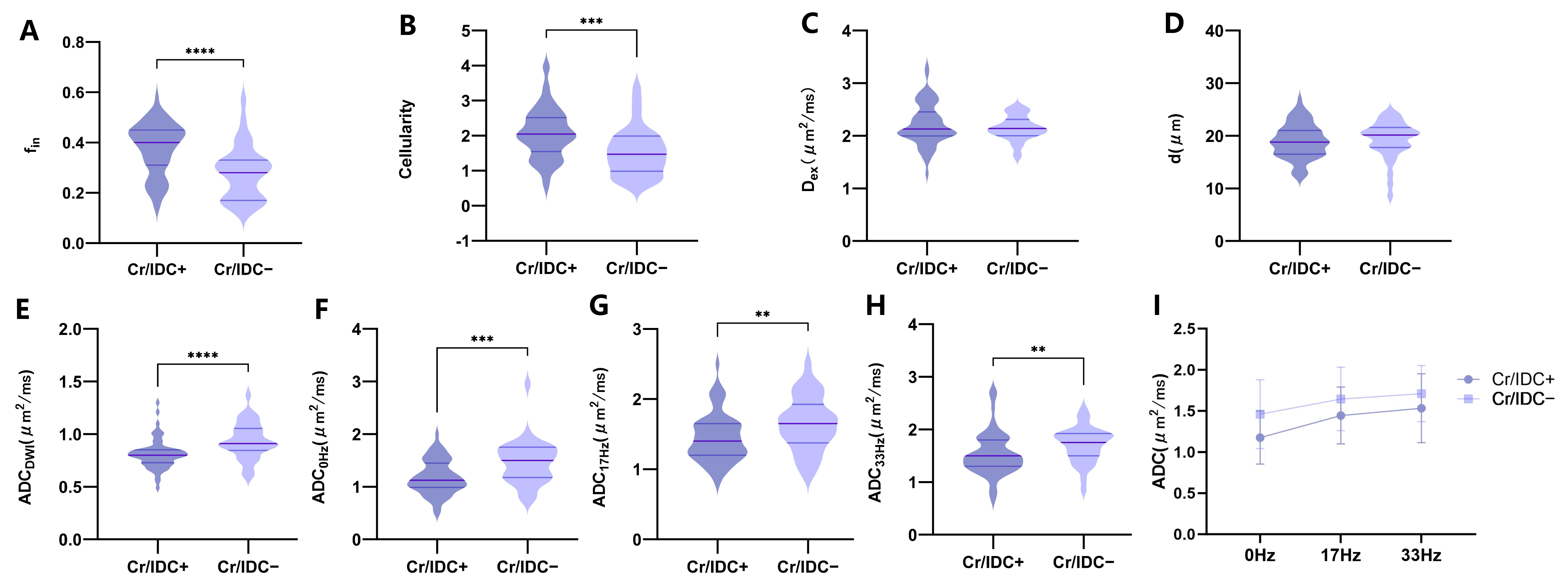

Figure 3. Violin plots comparing microstructural parameters between Cr/IDC-positive and Cr/IDC-negative PCa. (A) fin, (B) cellularity, (C) Dex, (D) d, (E) ADCDWI, (F) ADC0Hz, (G) ADC17Hz, (H) ADC33Hz, and (I) Diffusion time-dependent changes in ADC with oscillating frequency. Abbreviations: ADCDWI, ADC derived from diffusion-weighted imaging; ADC0Hz, diffusivity at 0 Hz; ADC17Hz, diffusivity at 17 Hz; ADC33Hz, diffusivity at 33 Hz; Cr/IDC, cribriform/intraductal carcinoma histologic pattern; Dex, extracellular diffusivity; fin, intracellular volume fraction. ** p < 0.01; *** p < 0.001; **** p < 0.0001. p ≥ 0.05 is not denoted in the plots.
Figure 3. Violin plots comparing microstructural parameters between Cr/IDC-positive and Cr/IDC-negative PCa. (A) fin, (B) cellularity, (C) Dex, (D) d, (E) ADCDWI, (F) ADC0Hz, (G) ADC17Hz, (H) ADC33Hz, and (I) Diffusion time-dependent changes in ADC with oscillating frequency. Abbreviations: ADCDWI, ADC derived from diffusion-weighted imaging; ADC0Hz, diffusivity at 0 Hz; ADC17Hz, diffusivity at 17 Hz; ADC33Hz, diffusivity at 33 Hz; Cr/IDC, cribriform/intraductal carcinoma histologic pattern; Dex, extracellular diffusivity; fin, intracellular volume fraction. ** p < 0.01; *** p < 0.001; **** p < 0.0001. p ≥ 0.05 is not denoted in the plots.
Cancers 18 02056 g003
Cancers 18 02056 g004

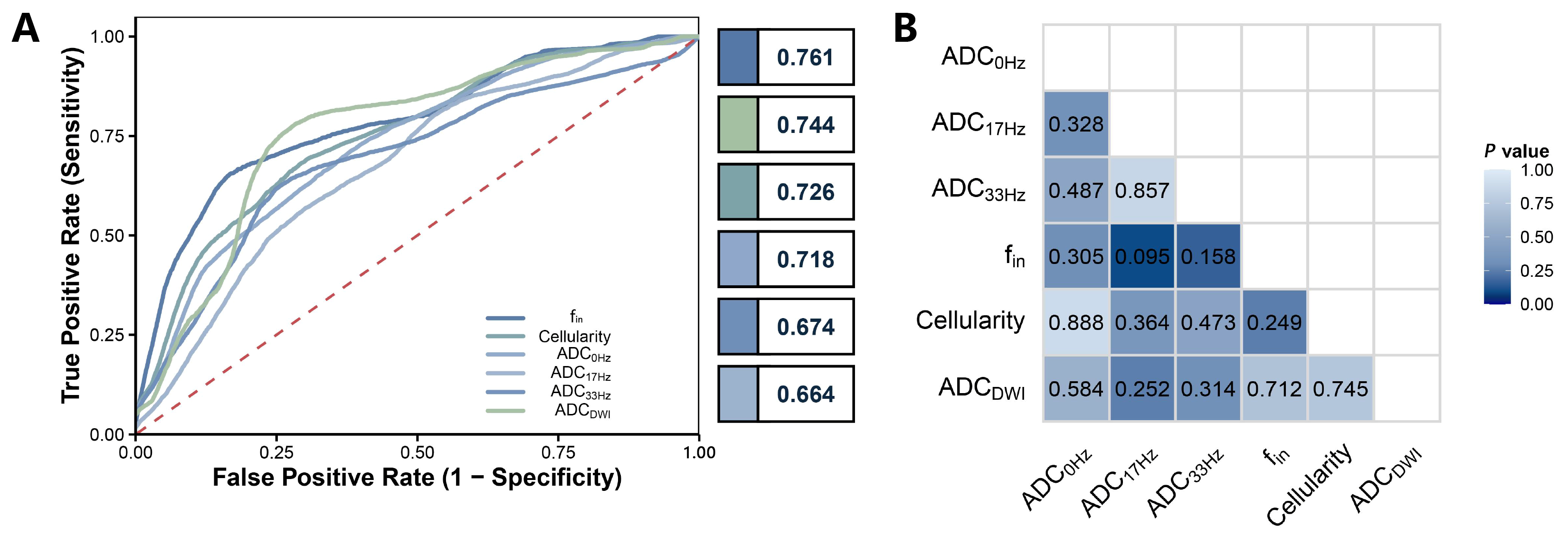

Figure 4. Diagnostic performance of the microstructural parameters for identifying Cr/IDC morphologies in PCa. (A) Receiver operating characteristic curves generated using 1000-sample bootstrap resampling; (B) Heatmap of p-values from pairwise DeLong tests comparing AUCs among different imaging parameters. Abbreviations: ADCDWI, ADC derived from diffusion-weighted imaging; ADC0Hz, diffusivity at 0 Hz; ADC17Hz, diffusivity at 17 Hz; ADC33Hz, diffusivity at 33 Hz; fin, intracellular volume fraction.
Figure 4. Diagnostic performance of the microstructural parameters for identifying Cr/IDC morphologies in PCa. (A) Receiver operating characteristic curves generated using 1000-sample bootstrap resampling; (B) Heatmap of p-values from pairwise DeLong tests comparing AUCs among different imaging parameters. Abbreviations: ADCDWI, ADC derived from diffusion-weighted imaging; ADC0Hz, diffusivity at 0 Hz; ADC17Hz, diffusivity at 17 Hz; ADC33Hz, diffusivity at 33 Hz; fin, intracellular volume fraction.
Cancers 18 02056 g004
Table 1. Baseline participant and tumor characteristics.
Table 1. Baseline participant and tumor characteristics.
VariableValue
Age (years)68.00 (62.00, 72.00)
PSA (ng/mL)12.00 (8.20, 22.04)
PSAD (ng/mL2)0.35 (0.20, 0.61)
Prostate volume (cm3)33.58 (28.01, 48.30)
Tumor Diameter (cm)1.80 (1.30, 2.40)
Location
Peripheral zone47 (49.5)
Transition zone38 (40.0)
Both10 (10.5)
PI-RADS score
PI-RADS 314 (14.7)
PI-RADS 429 (30.5)
PI-RADS 552 (54.7)
ISUP grade group
Grade group 111 (11.6)
Grade group 233 (34.7)
Grade group 326 (27.4)
Grade group 49 (9.5)
Grade group 516 (16.8)
Cr/IDC+62 (65.3)
Cr/IDC−33 (34.7)
Note: Data are reported as medians with interquartile ranges in parentheses or patient number with percentage in parentheses. Abbreviations: Cr/IDC, cribriform/intraductal carcinoma histologic pattern; ISUP, International Society of Urological Pathology; PI-RADS, Prostate Imaging and Reporting Data System; PSA, prostate-specific antigen; PSAD, prostate-specific antigen density.
Table 2. Comparison of pathologic characteristics between Cr/IDC-positive and Cr/IDC-negative prostate cancer.
Table 2. Comparison of pathologic characteristics between Cr/IDC-positive and Cr/IDC-negative prostate cancer.
VariableCr/IDC+ (n = 62)Cr/IDC− (n = 33)χ2p Value
ISUP grade group 25.646<0.001 *
Grade group 11 (1.6)10 (30.3)
Grade group 218 (29.0)15 (45.5)
Grade group 321 (33.9)5 (15.2)
Grade group 49 (14.5)0
Grade group 513 (21.0)3 (9.1)
Extraprostatic extension30 (48.4)11 (33.3)1.9890.158
Seminal vesicle invasion14 (22.6)4 (12.1)1.5340.215
Perineural invasion54 (87.1)23 (69.7)4.2460.039 *
Lymphovascular invasion11 (17.7)2 (6.1)1.5970.206
Positive surgical margin35 (56.5)9 (27.3)7.3750.007 *
D’Amico risk stratification 18.274<0.001 *
Low risk06 (18.2)
Intermediate risk16 (25.8)15 (45.5)
High risk46 (74.2)12 (36.4)
Note: Data are expressed as patient number with percentage in parentheses. p-values were evaluated with the Pearson chi-square test or Fisher’s exact test. * p < 0.05. Abbreviations: Cr/IDC, cribriform/intraductal carcinoma histologic pattern.
Table 3. Comparison of time-dependent diffusion magnetic resonance imaging-derived microstructural parameters between Cr/IDC-positive and Cr/IDC-negative prostate cancer.
Table 3. Comparison of time-dependent diffusion magnetic resonance imaging-derived microstructural parameters between Cr/IDC-positive and Cr/IDC-negative prostate cancer.
VariableCr/IDC+ (n = 62)Cr/IDC− (n = 33)t/z Valuep Valuep Value Adjusted for Gleason Grade
Dex (μm2/ms)2.13 (2.00, 2.45)2.14 (2.00, 2.31)0.485 b0.6280.519
d (μm)18.81 (16.52, 21.01)20.13 (17.75, 21.59)−0.774 b0.4390.701
fin0.40 (0.31, 0.45)0.28 (0.17, 0.33)0.411 b<0.001 *0.009 *
Cellularity (μm−1)2.06 ± 0.721.53 ± 0.69−3.513 a<0.001 *0.022 *
ADC0Hz (μm2/ms)1.13 (0.99, 1.45)1.50 (1.18, 1.75)−3.433 b0.001 *0.007 *
ADC17Hz (μm2/ms)1.40 (1.20, 1.65)1.65 (1.38, 1.93)−2.618 b0.009 *0.074
ADC33Hz (μm2/ms)1.50 (1.30, 1.80)1.75 (1.50, 1.93)−2.749 b0.006 *0.080
ADCDWI (μm2/ms)0.80 (0.73, 0.85)0.91 (0.85, 1.06)−3.828 b<0.001 *0.015 *
Note: Data are means ± SDs or median (IQR). a Student’s t-test. b Mann–Whitney U test. Adjusted p-values were obtained from Gleason grade-adjusted multivariable linear regression models. * p < 0.05. Abbreviations: ADC0Hz, diffusivity at 0 Hz; ADC17Hz, diffusivity at 17 Hz; ADC33Hz, diffusivity at 33 Hz; ADCDWI, ADC derived from diffusion-weighted imaging; Cr/IDC, cribriform/intraductal carcinoma histologic pattern; Dex, extracellular diffusivity; d, cell diameter; fin, intracellular volume fraction.
Table 4. Diagnostic performance of time-dependent diffusion magnetic resonance imaging-derived microstructural parameters for identifying Cr/IDC morphologies in prostate cancer.
Table 4. Diagnostic performance of time-dependent diffusion magnetic resonance imaging-derived microstructural parameters for identifying Cr/IDC morphologies in prostate cancer.
ParameterAUC (95% CI)Cutoff ValueSensitivity (%)Specificity (%)Accuracy (%)
fin0.757 (0.654–0.860)0.34469.4 (56.3–80.4)81.8 (64.5–93.0)73.7 (63.6–82.2)
Cellularity (μm−1)0.721 (0.611–0.832)1.79867.7(54.7–79.1)72.7 (54.5–86.7)69.5 (59.2–78.5)
ADC0Hz (μm2/ms)0.714 (0.604–0.825)1.27566.1 (53.0––77.7)66.7 (48.2–82.0)66.3 (55.9–75.7)
ADC17Hz (μm2/ms)0.663 (0.545–0.782)1.47559.7 (46.4–71.9)69.7 (51.3–84.4)63.2 (52.6–72.8)
ADC33Hz (μm2/ms)0.672 (0.557–0.786)1.52562.9(49.7–74.8)75.8(57.7–88.9)67.4 (57.0–76.6)
ADCDWI (μm2/ms)0.739 (0.625–0.853)0.87582.3 (70.5–90.8)69.7 (51.3–84.4)77.9 (68.2–85.8)
Note: Data are mean values, with bootstrapped 95% confidence intervals in parentheses. Abbreviations: ADC0Hz, diffusivity at 0 Hz; ADC17Hz, diffusivity at 17 Hz; ADC33Hz, diffusivity at 33 Hz; ADCDWI, ADC derived from diffusion-weighted imaging; AUC, area under the receiver operating characteristic curve; Cr/IDC, cribriform/intraductal carcinoma histologic pattern; fin, intracellular volume fraction.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wei, Y.; Yang, S.; Ren, T.; Wen, Z.; Li, X.; Ling, J.; Lin, J.; Guo, Y.; Zhao, X.; Wang, H.; et al. Time-Dependent Diffusion MRI-Based Microstructural Mapping for Characterization of Cribriform and Intraductal Carcinoma Morphologies in Prostate Cancer: A Preliminary Study. Cancers 2026, 18, 2056. https://doi.org/10.3390/cancers18132056

AMA Style

Wei Y, Yang S, Ren T, Wen Z, Li X, Ling J, Lin J, Guo Y, Zhao X, Wang H, et al. Time-Dependent Diffusion MRI-Based Microstructural Mapping for Characterization of Cribriform and Intraductal Carcinoma Morphologies in Prostate Cancer: A Preliminary Study. Cancers. 2026; 18(13):2056. https://doi.org/10.3390/cancers18132056

Chicago/Turabian Style

Wei, Yanchun, Shicong Yang, Tuo Ren, Zhihua Wen, Xiang Li, Jian Ling, Jinhua Lin, Yan Guo, Xueying Zhao, Huanjun Wang, and et al. 2026. "Time-Dependent Diffusion MRI-Based Microstructural Mapping for Characterization of Cribriform and Intraductal Carcinoma Morphologies in Prostate Cancer: A Preliminary Study" Cancers 18, no. 13: 2056. https://doi.org/10.3390/cancers18132056

APA Style

Wei, Y., Yang, S., Ren, T., Wen, Z., Li, X., Ling, J., Lin, J., Guo, Y., Zhao, X., Wang, H., & Chen, Y. (2026). Time-Dependent Diffusion MRI-Based Microstructural Mapping for Characterization of Cribriform and Intraductal Carcinoma Morphologies in Prostate Cancer: A Preliminary Study. Cancers, 18(13), 2056. https://doi.org/10.3390/cancers18132056

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
