The KRAS-Mutant Consensus Molecular Subtype 3 Reveals an Immunosuppressive Tumor Microenvironment in Colorectal Cancer

by
Pariyada Tanjak
1,2,†,
Amphun Chaiboonchoe
3,4,†,
Tharathorn Suwatthanarak
1,
Onchira Acharayothin
1,
Kullanist Thanormjit
1,2,
Jantappapa Chanthercrob
3,4,
Thanawat Suwatthanarak
1,2,
Bundit Wannasuphaphol
1,
Kemmapon Chumchuen
4,
Bhoom Suktitipat
5,6,7,
Somponnat Sampattavanich
3,4,
Krittiya Korphaisarn
8,
Ananya Pongpaibul
9,
Naravat Poungvarin
10,
Harald Grove
7,
Woramin Riansuwan
1,
Atthaphorn Trakarnsanga
1,
Asada Methasate
1,
Manop Pithukpakorn
4,11 and
Vitoon Chinswangwatanakul
1,2,*
1
Department of Surgery, Faculty of Medicine Siriraj Hospital, Mahidol University, Wanglang Road, Bangkok 10700, Thailand
2
Siriraj Cancer Center, Faculty of Medicine Siriraj Hospital, Mahidol University, Bangkok 10700, Thailand
3
Siriraj Center of Research Excellent for Systems Pharmacology, Faculty of Medicine Siriraj Hospital, Mahidol University, Bangkok 10700, Thailand
4
Siriraj Genomics, Faculty of Medicine Siriraj Hospital, Mahidol University, Bangkok 10700, Thailand
5
Department of Biochemistry, Faculty of Medicine Siriraj Hospital, Mahidol University, Bangkok 10700, Thailand
6
Integrative Computational Bioscience Center, Mahidol University, Nakhon Pathom 73170, Thailand
7
Division of Medical Bioinformatics, Research Department, Faculty of Medicine Siriraj Hospital, Mahidol University, Bangkok 10700, Thailand
8
Department of Medicine, Faculty of Medicine Siriraj Hospital, Mahidol University, Bangkok 10700, Thailand
9
Department of Pathology, Faculty of Medicine Siriraj Hospital, Mahidol University, Bangkok 10700, Thailand
10
Department of Clinical Pathology, Faculty of Medicine Siriraj Hospital, Mahidol University, Bangkok 10700, Thailand
11
Division of Medical Genetics, Department of Medicine, Faculty of Medicine Siriraj Hospital, Mahidol University, Bangkok 10700, Thailand

add Show full affiliation list

remove Hide full affiliation list
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this study and are co-first authors.
Cancers 2023, 15(4), 1098; https://doi.org/10.3390/cancers15041098
Submission received: 10 January 2023 / Revised: 3 February 2023 / Accepted: 6 February 2023 / Published: 8 February 2023
(This article belongs to the Special Issue Tumor Microenvironment: A Key Piece in the Puzzle of Cancer Heterogeneity)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

The poor prognosis outcome of patients with KRAS mutations (KRASmut) was correlated with an immunosuppressive tumor microenvironment (TME). At the gene expression level and pathway analysis, KRASmut tumor activates TGFβ signaling to reduced proinflammatory and cytokine gene signatures. Spatial profiling in the TME region of KRASmut, classified as consensus molecular subtype 3 (CMS3), showed an up-regulation of genes CD40, CTLA4, ARG1, STAT3, IDO, and CD274, associated with immunosuppression in TME.

Abstract

Colorectal cancers (CRC) with KRAS mutations (KRASmut) are frequently included in consensus molecular subtype 3 (CMS3) with profound metabolic deregulation. We explored the transcriptomic impact of KRASmut, focusing on the tumor microenvironment (TME) and pathways beyond metabolic deregulation. The status of KRASmut in patients with CRC was investigated and overall survival (OS) was compared with wild-type KRAS (KRASwt). Next, we identified CMS, and further investigated differentially expressed genes (DEG) of KRASmut and distinctive pathways. Lastly, we used spatially resolved gene expression profiling to define the effect of KRASmut in the TME regions of CMS3-classified CRC tissues. CRC patients with KRASmut were mainly enriched in CMS3. Their specific enrichments of immune gene signatures in immunosuppressive TME were associated with worse OS. Activation of TGFβ signaling by KRASmut was related to reduced pro-inflammatory and cytokine gene signatures, leading to suppression of immune infiltration. Digital spatial profiling in TME regions of KRASmut CMS3-classified tissues suggested up-regulated genes, CD40, CTLA4, ARG1, STAT3, IDO, and CD274, that could be characteristic of immune suppression in TME. This study may help to depict the complex transcriptomic profile of KRASmut in immunosuppressive TME. Future studies and clinical trials in CRC patients with KRASmut should consider these transcriptional landscapes.

1. Introduction

Colorectal cancer (CRC ) is a heterogenous disease defined by various alterations in several genes and signaling pathways, both within tumor cells and in the tumor microenvironment (TME), driving its progression and invasion [1,2]. Approximately 30% of CRC arises via an activation of the mitrogen-activated protein kinase (MAPK) signaling pathway that is associated with the presence of KRASmut [3]. CRC patients with KRASmut revealed a poor prognosis [4], liver metastases [5], and tumor aggressiveness [6], compared to patients with KRASwt. The status of KRASmut is used as an established biomarker of resistance to anti-epidermal growth factor receptor (EGFR) therapies [7,8]. The predictive value of KRASmut in other roles is inconclusive. Due to the intrinsic characteristics of the oncogenic KRAS protein, blocking KRAS has been quite a challenge. Many efforts have focused on indirectly targeting KRASmut tumors, including immunotherapeutic approaches [9]. However, the biological interaction between cancer cells that harbor KRASmut and their surrounding immune cells in the TME of CRC is unclear.
The four consensus molecular subtypes (CMSs) are currently the best description of CRC heterogeneity at the gene expression level. Although KRASmut is enriched in CMS3 with a prominent signature indicating metabolic derangement, KRASmut tumors can be found in all subtypes [10]. Furthermore, KRASmut tumors classified as CMS2 and 3 revealed relatively poor immune infiltration [10,11,12]. It is possible that KRASmut occurs in a different biological context with metabolic alterations in CRC, and may have an additional role in cancer immunology.
Immune cells are a major cell composition in the TME [13]. Some immune cells often assist cancer cells to thrive and successfully escape immune surveillance [2]. The TGFβ signaling pathway is reported as a key mediator of the KRAS mutation in the invasion of CRC by evading the immune system [14,15,16,17]. Up regulation of TGFβ signal is associated with activation of the epithelial to mesenchymal transition (EMT) pathway, which is strongly associated with immune escape in the TME [18]. In the past decade, molecular characteristics related to the prognosis of CRC have focused mainly on cancer cells [19,20]. CMS classification is complemented by transcriptomic analyses of whole tumor samples without compartmentalization between cancer cells and TME. Although the composition of immune and stromal cells has been reported, in which four CMS by using their bulk RNA [13,21,22], the spatial molecular heterogeneity between cancer and TME regions of each CMS has not been investigated. Exploring the interaction between KRASmut and gene expression profiling beyond MAPK and metabolic signaling pathways could provide more information on the biology of CRC and facilitate the discovery of therapeutic targets in KRASmut CRC. Here, we report the differential gene expression profile associated with KRASmut, with a focus on the immune TME of KRASmut CRC.

2. Materials and Methods

2.1. Patients and Tissue Samples

The cohort included patients aged 18 years and older who had colorectal adenocarcinoma. Written informed consent was obtained from each patient, and the study protocol was approved by the Siriraj Institutional Review Board (certificate of approval number Si642/2557 and Si593/2019). All experiments were performed according to the relevant guidelines and regulations. A total of 97 fresh frozen colorectal adenocarcinoma samples were collected from 97 CRC patients who underwent surgical treatment in the Department of Surgery, Faculty of Medicine Siriraj Hospital, Mahidol University, between October 2010 and March 2011.

2.2. Survival, Clinical and Statistical Analysis

Analyses were performed using the R program (version 3.6; R Foundation for Statistical Computing, Vienna, Austria). t-test, Chi-squared, or Fisher’s exact tests were performed to test the statistical significance of clinical characteristics. A p-value of <0.05 was considered statistically significant. Overall survival (OS), the main endpoint, was determined from the date of diagnosis to the date of death from any cause. The end of the surveillance period was 31 January 2022. The patient’s survival outcome was analyzed using Kaplan–Meier analysis, in the “survminer” R package. Differences between curves were compared using the logarithmic rank test. Cox regression analysis was used to study the association between survival and clinicopathological variables in univariate and multivariate analyses. Hazard ratio (HR) with corresponding 95% confidence intervals (CI) and p-value were estimated.

2.3. DNA Isolation

The genomic DNA of all patients’ tissues was extracted from fresh frozen tissue using the QIAamp DNA Mini Kit (Qiagen, Hilden, Germany), according to the manufacturer’s instructions. DNA was extracted from all frozen cancer tissues after an overnight proteinase K digestion step at 65 °C. After extraction, all DNA samples were subjected to RNAse treatment (Qiagen, Hilden, Germany) and optimized in an elution step.

2.4. RNA Isolation

All fresh frozen tissues were placed in lysis buffer with lysing matrix Z (MP Biomedicals, Santa Ana, CA, USA) and homogenized using the FastPrep-24™ 5G Instrument (MP Biomedicals, Santa Ana, CA, USA). The RNA was then extracted using the RNeasy Mini Kit (Qiagen, Hilden, Germany), according to the manufacturer’s protocol. RNA integrity was assessed using the RNA Nano 6000 Assay Kit and the Bioanalyzer 2100 system (Agilent Technologies, Santa Clara, CA, USA).

2.5. KRAS Mutation Screening

Mutations in exon 2 (codon 12 and 13) of the KRAS gene were analyzed with the therascreen KRAS kit (Qiagen, Hilden, Germany) which used allele-specific amplification achieved by an amplification refractory mutation system, according to the manufacturer’s instructions. All negative samples were subsequently subjected to Sanger sequencing to identify KRASmut in exon 3 (codon 61).

2.6. KRAS-Related Gene Expression Profiling Using NanoString Platform

The nCounter® analysis system was used to perform the assay (NanoString Technologies, Seattle, WA, USA). A pancancer progression panel kit was used to measure the expression of 770 genes. The raw counts of each target gene were normalized by the geometric mean counts of 11 housekeeping genes (HRNP1, RPL27, RPL9, RPL6, RPL30, OAZ1, PTMA, RPS29, UBC, RPS12, and RPS16) and spiked controls. A threshold count value equal to 20 was used for background thresholding and normalizing the samples for differences in hybridization. Raw data were processed into a signature matrix using nSolver Analysis Software version 4.0 (NanoString Technologies Inc., Seattle, DC, USA). The read counts from the raw data output were evaluated for differentially expressed genes (DEG) and cell type scoring, after normalization using ROSALIND software. Gene expression data were normalized using the DESeq2 package in R. Hierarchical clustering and DEG exploration were carried out [23]. The identification of DEG in gene expression between KRASmut and KRASwt was determined using a t-test with a significance threshold of p-value < 0.05. The Benjamini-Hochberg method was applied to adjust the p-value as the false discovery rate (FDR). The graphs were plotted using the ggplot2 and ComplexHeatmap packages in R.

2.7. Pathway Analysis

Ingenuity Pathway Analysis Software (IPA 84978992, Ingenuity® Systems, https://digitalinsights.qiagen.com/, accessed on 31 October 2022) was used to examine the biological network associated with KRASmut. The IPA software (IPA 84978992) uses a manually curated database that contains information from several reputable sources, including published journal papers and gene annotation databases. Fisher’s exact test was used to calculate the probabilities between the input gene set and the canonical pathway, disease, and function. IPA also predicted the upstream and downstream effects of activation or inhibition on other molecules on the basis of the expression data from the input gene set.

2.8. CMS Classification Using the NanoString Platform

CRC subtype classification based on deep learning, or DeepCC, a supervised functional spectra-based cancer subtyping stratification model, was implemented to identify CMS from the CRC gene expression profile [24]. A gene expression data set of Siriraj hospital’s CRC cohort was logarithm transformed and converted from genetic information to functional spectra associated with biological pathway activities. Subsequently, a DeepCC model (DeepCC R package version 0.1.1), containing a trained artificial neural network, was performed to extract advantageous features and classify the Siriraj hospital gene expression data into four CMS classes, CMS1, CMS2, CMS3, and CMS4 [10].

2.9. Digital Spatial Profiling (DSP)

Formalin-fixed, paraffin-embedded tissue slides (FFPE) from seven patients (KRASmut, n = 4; KRASwt, n = 3), from a subset of 97 patients, were strictly prepared for DSP using manual instruction from the GeoMx instrument and the GeoMx immune pathway panel kit with 84 genes (NanoString Technologies Inc.). A tricolor panel of fluorescence morphology markers was used, targeting Pan-cytokeratin (Pan-CK, epithelial and tumoral regions), CD45 (immune cells), and SYTO13 (nuclear) on stained slides. Slides were loaded onto the GeoMx instrument, scanned, and selected for regions of interest (ROI) for 58 ROIs. To ensure reliable quantification and comparison of inter-ROI data, ROI surface areas were drawn between 202,791–340,192 μm2, encompassing between 498–548 nuclei. The raw data were then counted in the nCounter analysis system using standard procedures. Raw digital count files (RCC) for individual ROIs were normalized by the geometric mean of the housekeeping genes RAB7A, OAZ1, UBB, POLR2A, and SDHA. Normalized data were logarithmically transformed with or without being median centered prior to comparison and plotting. All data were processed and analyzed in DSP analysis software. Volcano plots were created with a log2 fold change and an adjusted p-value at 0.05 for cut-off. For differential expression analysis, a non-parametric Mann–Whitney U test with a p-value < 0.05 at the significant cutoff was conducted.

3. Results

3.1. CRC Patients with KRASmut Show a Shorter Overall Survival That Is Mainly Correlated with Their Transcriptomic Profile

To study the effect of KRASmut on gene expression level, we initially investigated patient characteristics and KRASmut status in our cohort (n = 97). Univariate analyses of clinicopathologic characteristics according to the KRASmut status are summarized in Table 1. We observed KRASmut in 41.24% (n = 40) of the cases. Mutations occurred mainly in exon 2 (total n = 36; codon 12, n = 28; codon 13, n = 8) and rarely in exon 3, codon 61 (n = 4). The baseline clinical characteristics of all patients were similar between the KRASwt and KRASmut groups without being statistically different.
Like previously published data, patients with KRASmut had a worse clinical outcome (Figure 1A). Based on tissue samples and RNA quality of each sample, different numbers of samples were available for the various assays. We found fresh frozen specimens of patients with KRASwt (n = 25) and KRASmut (n = 34) met the RNA quality to study their gene expression profile using the NanoString platform. Notably, between patients (n = 59) with KRASwt and KRASmut, we still observed significant overall survival (Figure 1B). This implied that the transcriptomic profiling study of 34 patients with KRASmut was associated with the worst outcome.

3.2. DEG of KRASmut Tumors Enrich in Immune Signature and TGFβ Pathways

After RNA quality assessment, we examined gene expression and classified the CMS of the patients (n = 59) using their gene expression profile from the NanoString platform. Although the KRASmut tumor could be assigned from CMS1 to CMS4, most of the KRASmut tumors were clustered in CMS3 (Figure 2A and Supplemental Table S1). We found 92 (53 increased and 39 decreased) nominally significant DEGs of KRASmut with a p-value < 0.05, which FREM1, ERMP1 (up-regulated), and CCL8 (down-regulated) were significant after multiple test corrections (FDR < 0.05). After adjustment for age and sex, CCL8 still remained statistically differentially expressed, with levels lower in the KRASmut group (p-value = 0.01). To gain insight into the pathways involved, we used gene set analysis to determine which nominal DEGs had been annotated or identified using ROSALIND and nCounter software. The analysis of the gene set showed that DEG is enriched in the top-five pathways (p-value < 0.01) in the sources of the BioPlanet and WikiPathways database sources (Figure 2B). Surprisingly, we found that DEGs were mainly enriched in immune pathways in both databases, such as the immune system pathway (BioPlanet) and the innate immune system (BioPlanet), as well as interactions between immune cells and microRNAs in the TME pathway (WikiPathways).
To identify significant canonical pathways (p-value < 0.001) in 92 genes up- or down-regulated, IPA was used. As expected, the HIF1α signaling pathway, which normally involves metabolic reprogramming, was also included in the IPA graphical summary. It can be implied that KRASmut reprogramed the metabolic pathway via the HIF1α signaling pathway. In particular, the IPA graphical summary suggested the roles of CCL11 and TNFSF12 in down-regulating cell movement and cellular infiltration of lymphocytes (Figure 2C). Thus, we focused on the immune and TME pathways using the canonical pathway analysis. We found that KRASmut DEGs were also enriched in the regulation of EMT, macrophage stimulating protein receptor d’origine nantais (MSP-RON), and TGFβ signaling pathways with p-value < 0.001 (Supplemental Table S2). These signaling pathways have been reported to associate with maintaining the stability of TME and contributing to immune escape in immune TME [18,25].
We then investigated the upstream regulator analysis of the IPA. Interestingly, the result revealed that TGFBR1 played a regulatory key role for STAT1, CXCL10, BMP4, and CDKN1A in the inhibition of lymphocyte cell death, which to be T-regs (Figure 2D and Supplemental Figure S1). Taken together, these findings suggested that the transcriptomic profile of KRASmut is not only linked to CMS3-enrichement, a prominent metabolic adaptation in CRC at the pathway level, but also enables remodeling of immune TME via activation of the TGFβ signaling pathway to reduce pro-inflammatory cytokines and suppress immune infiltration.

3.3. KRASmut CMS3 Classified Tumors Show a Distinct Immune Suppression of the Gene Expression Pattern in the TME

To decipher the molecular changes of the TME in KRASmut at the gene expression and pathway levels, we used DSP GeoMx technology to profile different gene expression between TME in KRASmut and TME in KRASwt. From our last result, KRASmut was mainly encompassed in CMS3, therefore, we addressed the heterogeneity of CMS3 in terms of KRAS mutational status and focused on transcriptomic profiling in TME regions. We selected samples from four patients with KRASmut and three patients with KRASwt, which were all classified as CMS3 (Figure 3A). The seven samples were a subset of 97 patients. CMS classification of seven patients was performed by using their gene expression profile in dataset GSE220148 from the Gene Expression Omnibus (GEO, https://www.ncbi.nlm.nih.gov/geo/, accessed on 8 December 2022) repository. We found that the expression profiles of 84 genes between the cancer and TME regions showed region-specific expression patterns (Figure 3B).
Next, we analyzed differential gene expression between the TME regions of KRASmut and the TME regions of KRASwt. As shown in Figure 3C, we found 15 significant DEGs for the TME regions of KRASmut with a p-value < 0.05 (14 increased and 1 decreased). Interestingly, we observed that only HLA-DRB was significantly over-expressed in the TME regions of KRASwt. We found significant upregulation of 14 genes (CD40, STAT3, CD4, IDO1, CTLA4, CD40LG, CXCL10, CXCR6, CXCL9, CD27, CD274, MSA4, YSIR, and ARG1) in the TME regions of KRASmut. We also found 37 significant DEGs for cancer regions of KRASmut (Supplemental File S1).

3.4. The upregulation of CD40 in the TME of KRASmut

To determine the critical biological processes and molecular pathway, significant DEGs of the TME regions of KRASmut were imported into IPA. The IPA pathway analysis of DEGs for the TME regions in KRASmut showed that their DEGs were enriched in the TME, primary immunodeficiency and CD40 signaling pathways with a p-value < 0.001 (Supplemental Table S3). We then focused on identifying the interaction among candidate genes, proteins, and functional roles in which IPA mapped the TME pathway. We found that the TME pathway map showed upregulation of genes, CTLA4, ARG1, STAT3, IDO, and CD274, and was associated with a reduction of immune infiltration of cytotoxic T cell lymphocytes in TME regions (Supplemental Figure S2). However, these genes were likely related to the upregulation of genes in the cancer regions of KRASmut. In order to identify the molecular differences between TME of KRASmut and KRASwt, we determined the contrasting upregulation of DEGs between TME and cancer regions in each KRAS tumor type (Figure 4A and Supplemental File S1). We found CD40 was the up-regulated gene in TME of KRASmut. Taken together, the IPA analyses of DEG for KRASmut from NanoString and DEGs for TME of KRASmut from GeoMx suggest that KRASmut tumors suppress immune infiltration by activating the TGFβ signaling pathway. In KRASmut CMS3 classified tumors, overexpression of CD40 was associated with immunosuppressive signals, resulting in the upregulation of CTLA4, ARG1, STAT3, IDO, and CD274 in TME (Figure 4B).

4. Discussion

CRC is a heterogeneous disease that involves multiple genes and signaling pathways to drive cancer progression [1]. The surrounding TME also strongly communicates with cancer cells to support cancer growth, cancer evasion, and influence their response to therapy [26,27,28]. Several studies point out that mutant KRAS influences on the composition of the immune microenvironment through multiple mechanisms [9,11]. CMS3 is enriched in tumors with KRASmut and shows an adaptation to the metabolic pathway, however, other roles of KRAS remain unclear.
Here, we observed that the gene profile of KRASmut tumors was classified mainly as CMS3 that showed metabolic adaptation through HIF1α signaling. Importantly, we found that KRASmut DEG was enriched in immune pathways and led to an immunosuppressive environment in TME. Our finding suggested that this phenomenon occurred through an activation of TGFβ to reduce proinflammatory and cytokine gene signatures such as CCL8, CCL11, CXCL10, and TNFSF12 leading to immune suppression in patients with CRC. The gene expression profile in CMS3 TME of KRASmut shows upregulation of CD40, CTLA4, ARG1, STAT3, IDO, and CD274, making it a key regulator of immune suppression in TME regions surrounding the KRASmut tumor. Our data might help to uncover the complex interrelationship among gene expression, pathway, and function of KRASmut tumors leading to immunosuppressive TME.
The EMT signaling pathway was regulated by TGFβ signaling, which plays a key role in the progression of colorectal cancer by evading the immune system [15,29,30]. TGFβ signaling plays a critical role in suppressing immunity in the TME by altering T-regs [31]. Several studies have shown that TGFβ can induced many genes of stromal cells in TME, contributing to cytokine and chemokine secretion [32,33,34,35,36,37]. Consistent with these findings, we found that TGFβ signaling at gene expression level is associated with KRASmut. We suggested that upregulation of TGFBR1 reduced proinflammatory and cytokine gene signatures such as CCL8, CCL11, CXCL10, and TNFSF12 leading to inhibition of T-reg cell death in CRC patients.
CMS3 is highly enriched for patients with KRASmut, which is characterized by poor infiltration of immune cells [13], however, CMS3 also includes a group of patients with KRASwt. We found that KRASmut CMS3 is most likely to represent the tumor-associated immunosuppressive microenvironment subtype. To explain the association of KRASmut CMS3 in immunosuppressive TME, digital spatial profiling was conducted. The use of digital spatial profiling to address the question of molecular targets and pathways at the RNA level might help identify indirect target oncogenic KRAS in CMS3. We investigated transcriptomic profiling in the TME regions, comparing KRASmut and KRASwt of CMS3, focusing on the IPA TME pathway map. Our results suggested that DEGs for TME of KRASmut tumors increased the gene expression of CTLA4, ARG1, STAT3, IDO, and CD274 to shape immunosuppressive TME.
These genes have been reported at various stages of cancer progression such as angiogenesis, anti-apoptosis, and immune evasion [38,39,40,41,42,43]. Accumulating evidence indicates that the KRASmut tumor invasion mechanism plays an important role in suppressing immune cell responses within TME by recruiting immunosuppressive cells, including MDSC, and T-regs. However, in KRASmut tumors that intersect with a CMS classification reveal a low expression of CTLA4 in KRASmut tumors at RNA level [10,12]. These contrasts may be explained by DEGs for TME regions of KRASmut enriched in primary immunodeficiency signaling pathways, therefore, upregulation of the CTLA4 probably represents high T-regs in TME. It should be noted that the expression of inhibitory markers is not always a sign of the immune response, but it may also be evidence of an immune deficiency pathway that is a major obstacle to the antitumor immune response. The use of spatial profiling that is specified for the TME might enhance precise treatment, especially in immunotherapy. In the TME regions of KRASmut tumors, we further found significant downregulation of HLA-DRB. HLA-DRB overexpression is strongly related to a better prognosis in CRC patients [44,45]. Together, HLA-DRB overexpression in TME could be used as a biomarker with a good prognosis of KRASwt classified as CMS3.
In addition to recruiting immunosuppressive cells, MDSC, tumor-associated macrophages, and tumor-associated neutrophils, play an important role in tumor progression and immunosuppressive function [46,47,48]. Tumor-associated neutrophils exhibit immunosuppressive function by producing ARG1 and IDO [49]. Furthermore, tumor-associated macrophages exert an immunosuppressive effect by producing the chemokines and NF-κB p65/STAT3, which preferentially recruit non-cytotoxic T cell subsets [50]. Therefore, upregulation of STAT3, ARG1 and IDO in TME of KRASmut tumors in our results might be due to the infiltration of tumor-associated macrophages and tumor-associated neutrophils in TME. Moreover, our result showed the upregulation of CD40 in TME of KRASmut tumors, which is in contrast to the TME of KRASwt. As a member of tumor necrosis factor receptor superfamily, CD40 is most prominently expressed on dendritic, myeloid, and B cells [51]. Agonistic CD40 antibodies have been explored with anti-angiogenic agents in the experimental model, which show that they improved tumor infiltration by cytotoxic T cells [52]. We therefore hypothesized that CD40 activation might not only improve cytotoxic T cell infiltration but also enhance immunosuppressive cells in the TME. Taken together, our results suggested that upregulation of CD40, CTLA4, ARG1, STAT3, IDO, and CD274, which were included in tumor inflammation signature [53], in the TME of KRASmut, could be characteristic of immune suppression.
Despite this, our transcriptomic study had some limitations. First, mutation testing was limited to KRAS exon 2 (codons 12 and 13) and exon 3 using classic real-time PCR and Sanger sequencing, which may have low sensitivity compared to modern next-generation sequencing techniques. Second, our study cohort may be small in size; however, ours includes long-term follow-up data that still showed the statistical significance of survival between KRASmut and KRASwt patients. Third, although the immunogenic transcriptomic landscape of KRASmut in this study suggested some targeted genes, such as TGFBR1, CD40, CTLA4, ARG1, STAT3, IDO, and CD274, their functional proteins need to be confirmed.

5. Conclusions

In summary, our study has studied the clinically significant genomic transcriptomic and heterogeneity of the TME in CMS3 CRC patients with KRASmut compared to KRASwt. Overall, the data presented here reveal that KRASmut tumor activates TGFβ signaling to reduced proinflammatory and cytokine gene signatures, resulting in recruitment of immunosuppressive cells, including MSDS and T-reg in the TME. Our data might help to explain the complex transcriptomic interrelationship in TME of KRASmut in terms of immune suppression. Future studies and clinical trials in KRASmut CRC should consider these transcriptomic findings.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers15041098/s1, Figure S1. The IPA pathway analysis of 92 DEGs for KRASmut from the NanoString PanCancer progression panel reveals that the illustration map of TGFβ signaling pathway was activated; Figure S2. The IPA pathway analysis of 15 DEGs for TME cancer regions and 37 DEGs for cancer from digital spatial profiling (DSP) GeoMx immune pathway panel reveals that DEGs are enriched in the TME canonical pathway region; Table S1. The significant 92 DEGs of KRASmut; Table S2. The enrichment analysis of top ten canonical pathways correlating with immune and TME pathways for 92 DEGs of KRASmut by IPA analysis; Table S3. The enrichment analysis of top six canonical pathways of 37 DEGs in cancer and 15 DEGs TME regions of KRASmut by IPA analysis; File S1. The differential gene expression of TME or cancer region between KRASmut and KRASwt; the differential gene expression between TME and cancer regions in each KRAS tumor type.

Author Contributions

Conceptualization, P.T., A.C. and V.C.; data curation, P.T., A.C., K.T., J.C., K.C., B.S., K.K., N.P., M.P. and V.C.; formal analysis, P.T., A.C., T.S. (Tharathorn Suwatthanarak), O.A., K.T., J.C., T.S. (Thanawat Suwatthanarak), B.W., K.C., N.P. and H.G.; funding acquisition, P.T., M.P. and V.C.; methodology, P.T., A.C., O.A., J.C., B.S., N.P. and H.G.; resources, K.K., A.P., W.R., A.T., A.M. and V.C.; supervision: B.S., S.S., W.R., A.T., A.M., M.P. and V.C.; visualization, P.T., A.C., J.C., K.C., S.S. and A.P.; writing—original draft, P.T., A.C. and B.W.; writing—review and editing, P.T., A.C., T.S. (Tharathorn Suwatthanarak), T.S. (Thanawat Suwatthanarak), B.S., M.P. and V.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Health Systems Research Institute (HSRI), Thailand (63–117) and partially supported by the Foundation for Cancer Care, Siriraj Hospital, Thailand (R016241047).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Siriraj Institutional Review Board (certificate of approval number Si642/2557 and Si593/2019). Written informed consent was obtained from each patient.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study. Written informed consent has been obtained from the patient(s) to publish this paper.

Data Availability Statement

Supplementary data are attached in additional files. The other datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Acknowledgments

This work was supported by the Minimally Invasive Surgery Unit, the Colorectal Surgery Unit, the Division of General Surgery, the Department of Surgery, and Siriraj Biobank of the Faculty of Medicine Siriraj Hospital, Mahidol University, for providing all tumor tissues. The authors thank Panchanok Anusatsanee and Papussorn Terbto at the Department of Pathology, the Faculty of Medicine Siriraj Hospital, Mahidol University, for supporting all FFPE samples. We also greatly appreciate Benjarat Thiengtrong, Panudeth Juengwiwattanakitti, and Tippawan Gerdsuriwong for their contributions. The authors thank a support team of NanoString Technologies for providing GeoMx fluent training and a training kit.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schmitt, M.; Greten, F.R. The inflammatory pathogenesis of colorectal cancer. Nat. Rev. Immunol. 2021, 21, 653–667. [Google Scholar] [CrossRef]
  2. Hinshaw, D.C.; Shevde, L.A. The Tumor Microenvironment Innately Modulates Cancer Progression. Cancer Res. 2019, 79, 4557–4566. [Google Scholar]
  3. Phipps, A.I.; Buchanan, D.D.; Makar, K.W.; Win, A.K.; Baron, J.A.; Lindor, N.M.; Potter, J.D.; Newcomb, P.A. KRAS-mutation status in relation to colorectal cancer survival: The joint impact of correlated tumour markers. Br. J. Cancer 2013, 108, 1757–1764. [Google Scholar]
  4. Conlin, A.; Smith, G.; Carey, F.A.; Wolf, C.R.; Steele, R.J. The prognostic significance of K-ras, p53, and APC mutations in colorectal carcinoma. Gut 2005, 54, 1283–1286. [Google Scholar] [CrossRef]
  5. Nash, G.M.; Gimbel, M.; Shia, J.; Nathanson, D.R.; Ndubuisi, M.I.; Zeng, Z.S.; Kemeny, N.; Paty, P.B. KRAS mutation correlates with accelerated metastatic progression in patients with colorectal liver metastases. Ann. Surg. Oncol. 2010, 17, 572–578. [Google Scholar]
  6. Arrington, A.K.; Heinrich, E.L.; Lee, W.; Duldulao, M.; Patel, S.; Sanchez, J.; Garcia-Aguilar, J.; Kim, J. Prognostic and predictive roles of KRAS mutation in colorectal cancer. Int. J. Mol. Sci. 2012, 13, 12153–12168. [Google Scholar]
  7. Van Krieken, J.H.; Jung, A.; Kirchner, T.; Carneiro, F.; Seruca, R.; Bosman, F.T.; Quirke, P.; Flejou, J.F.; Plato Hansen, T.; de Hertogh, G.; et al. KRAS mutation testing for predicting response to anti-EGFR therapy for colorectal carcinoma: Proposal for an European quality assurance program. Virchows Arch. 2008, 453, 417–431. [Google Scholar]
  8. Ryan, M.B.; Coker, O.; Sorokin, A.; Fella, K.; Barnes, H.; Wong, E.; Kanikarla, P.; Gao, F.; Zhang, Y.; Zhou, L.; et al. KRAS(G12C)-independent feedback activation of wild-type RAS constrains KRAS(G12C) inhibitor efficacy. Cell Rep. 2022, 39, 110993. [Google Scholar]
  9. Hamarsheh, S.; Gross, O.; Brummer, T.; Zeiser, R. Immune modulatory effects of oncogenic KRAS in cancer. Nat. Commun. 2020, 11, 5439. [Google Scholar] [CrossRef]
  10. Guinney, J.; Dienstmann, R.; Wang, X.; de Reynies, A.; Schlicker, A.; Soneson, C.; Marisa, L.; Roepman, P.; Nyamundanda, G.; Angelino, P.; et al. The consensus molecular subtypes of colorectal cancer. Nat. Med. 2015, 21, 1350–1356. [Google Scholar]
  11. Lal, N.; White, B.S.; Goussous, G.; Pickles, O.; Mason, M.J.; Beggs, A.D.; Taniere, P.; Willcox, B.E.; Guinney, J.; Middleton, G.W. KRAS Mutation and Consensus Molecular Subtypes 2 and 3 Are Independently Associated with Reduced Immune Infiltration and Reactivity in Colorectal Cancer. Clin. Cancer Res. 2018, 24, 224–233. [Google Scholar] [CrossRef]
  12. Lal, N.; Beggs, A.D.; Willcox, B.E.; Middleton, G.W. An immunogenomic stratification of colorectal cancer: Implications for development of targeted immunotherapy. Oncoimmunology 2015, 4, e976052. [Google Scholar] [CrossRef]
  13. Becht, E.; de Reynies, A.; Giraldo, N.A.; Pilati, C.; Buttard, B.; Lacroix, L.; Selves, J.; Sautes-Fridman, C.; Laurent-Puig, P.; Fridman, W.H. Immune and Stromal Classification of Colorectal Cancer Is Associated with Molecular Subtypes and Relevant for Precision Immunotherapy. Clin. Cancer Res. 2016, 22, 4057–4066. [Google Scholar] [CrossRef]
  14. Boutin, A.T.; Liao, W.T.; Wang, M.; Hwang, S.S.; Karpinets, T.V.; Cheung, H.; Chu, G.C.; Jiang, S.; Hu, J.; Chang, K.; et al. Oncogenic Kras drives invasion and maintains metastases in colorectal cancer. Genes Dev. 2017, 31, 370–382. [Google Scholar]
  15. Tauriello, D.V.F.; Palomo-Ponce, S.; Stork, D.; Berenguer-Llergo, A.; Badia-Ramentol, J.; Iglesias, M.; Sevillano, M.; Ibiza, S.; Canellas, A.; Hernando-Momblona, X.; et al. TGFbeta drives immune evasion in genetically reconstituted colon cancer metastasis. Nature 2018, 554, 538–543. [Google Scholar] [CrossRef]
  16. Zhang, B.; Halder, S.K.; Kashikar, N.D.; Cho, Y.J.; Datta, A.; Gorden, D.L.; Datta, P.K. Antimetastatic role of Smad4 signaling in colorectal cancer. Gastroenterology 2010, 138, 969–980 e961–963. [Google Scholar]
  17. Inamoto, S.; Itatani, Y.; Yamamoto, T.; Minamiguchi, S.; Hirai, H.; Iwamoto, M.; Hasegawa, S.; Taketo, M.M.; Sakai, Y.; Kawada, K. Loss of SMAD4 Promotes Colorectal Cancer Progression by Accumulation of Myeloid-Derived Suppressor Cells through the CCL15-CCR1 Chemokine Axis. Clin. Cancer Res. 2016, 22, 492–501. [Google Scholar] [CrossRef]
  18. Gonzalez, D.M.; Medici, D. Signaling mechanisms of the epithelial-mesenchymal transition. Sci. Signal. 2014, 7, re8. [Google Scholar] [CrossRef]
  19. Kim, S.T.; Park, K.H.; Shin, S.W.; Kim, Y.H. Dose KRAS Mutation Status Affect on the Effect of VEGF Therapy in Metastatic Colon Cancer Patients? Cancer Res. Treat. 2014, 46, 48–54. [Google Scholar]
  20. De Cuba, E.M.; Snaebjornsson, P.; Heideman, D.A.; van Grieken, N.C.; Bosch, L.J.; Fijneman, R.J.; Belt, E.; Bril, H.; Stockmann, H.B.; Hooijberg, E.; et al. Prognostic value of BRAF and KRAS mutation status in stage II and III microsatellite instable colon cancers. Int. J. Cancer 2016, 138, 1139–1145. [Google Scholar]
  21. Soldevilla, B.; Carretero-Puche, C.; Gomez-Lopez, G.; Al-Shahrour, F.; Riesco, M.C.; Gil-Calderon, B.; Alvarez-Vallina, L.; Espinosa-Olarte, P.; Gomez-Esteves, G.; Rubio-Cuesta, B.; et al. The correlation between immune subtypes and consensus molecular subtypes in colorectal cancer identifies novel tumour microenvironment profiles, with prognostic and therapeutic implications. Eur. J. Cancer 2019, 123, 118–129. [Google Scholar]
  22. Ge, P.; Wang, W.; Li, L.; Zhang, G.; Gao, Z.; Tang, Z.; Dang, X.; Wu, Y. Profiles of immune cell infiltration and immune-related genes in the tumor microenvironment of colorectal cancer. Biomed. Pharmacother. 2019, 118, 109228. [Google Scholar]
  23. Love, M.I.; Huber, W.; Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol 2014, 15, 550. [Google Scholar]
  24. Gao, F.; Wang, W.; Tan, M.; Zhu, L.; Zhang, Y.; Fessler, E.; Vermeulen, L.; Wang, X. DeepCC: A novel deep learning-based framework for cancer molecular subtype classification. Oncogenesis 2019, 8, 44. [Google Scholar] [CrossRef] [Green Version]
  25. Bourn, J.R.; Ruiz-Torres, S.J.; Hunt, B.G.; Benight, N.M.; Waltz, S.E. Tumor cell intrinsic RON signaling suppresses innate immune responses in breast cancer through inhibition of IRAK4 signaling. Cancer Lett. 2021, 503, 75–90. [Google Scholar] [CrossRef]
  26. Hanahan, D.; Coussens, L.M. Accessories to the crime: Functions of cells recruited to the tumor microenvironment. Cancer Cell 2012, 21, 309–322. [Google Scholar]
  27. Quail, D.F.; Joyce, J.A. Microenvironmental regulation of tumor progression and metastasis. Nat. Med. 2013, 19, 1423–1437. [Google Scholar] [CrossRef]
  28. Hirata, E.; Sahai, E. Tumor Microenvironment and Differential Responses to Therapy. Cold Spring Harb. Perspect. Med. 2017, 7, a026781. [Google Scholar] [CrossRef]
  29. Yang, L.; Pang, Y.; Moses, H.L. TGF-beta and immune cells: An important regulatory axis in the tumor microenvironment and progression. Trends Immunol. 2010, 31, 220–227. [Google Scholar]
  30. Itatani, Y.; Kawada, K.; Sakai, Y. Transforming Growth Factor-beta Signaling Pathway in Colorectal Cancer and Its Tumor Microenvironment. Int. J. Mol. Sci. 2019, 20, 5822. [Google Scholar] [CrossRef]
  31. Yamada, N.; Kuranaga, Y.; Kumazaki, M.; Shinohara, H.; Taniguchi, K.; Akao, Y. Colorectal cancer cell-derived extracellular vesicles induce phenotypic alteration of T cells into tumor-growth supporting cells with transforming growth factor-beta1-mediated suppression. Oncotarget 2016, 7, 27033–27043. [Google Scholar]
  32. Kitamura, T.; Kometani, K.; Hashida, H.; Matsunaga, A.; Miyoshi, H.; Hosogi, H.; Aoki, M.; Oshima, M.; Hattori, M.; Takabayashi, A.; et al. SMAD4-deficient intestinal tumors recruit CCR1+ myeloid cells that promote invasion. Nat. Genet. 2007, 39, 467–475. [Google Scholar]
  33. Zhu, Z.; Aref, A.R.; Cohoon, T.J.; Barbie, T.U.; Imamura, Y.; Yang, S.; Moody, S.E.; Shen, R.R.; Schinzel, A.C.; Thai, T.C.; et al. Inhibition of KRAS-driven tumorigenicity by interruption of an autocrine cytokine circuit. Cancer Discov. 2014, 4, 452–465. [Google Scholar] [CrossRef]
  34. Hawinkels, L.J.; Paauwe, M.; Verspaget, H.W.; Wiercinska, E.; van der Zon, J.M.; van der Ploeg, K.; Koelink, P.J.; Lindeman, J.H.; Mesker, W.; ten Dijke, P.; et al. Interaction with colon cancer cells hyperactivates TGF-beta signaling in cancer-associated fibroblasts. Oncogene 2014, 33, 97–107. [Google Scholar] [CrossRef]
  35. Calon, A.; Espinet, E.; Palomo-Ponce, S.; Tauriello, D.V.; Iglesias, M.; Cespedes, M.V.; Sevillano, M.; Nadal, C.; Jung, P.; Zhang, X.H.; et al. Dependency of colorectal cancer on a TGF-beta-driven program in stromal cells for metastasis initiation. Cancer Cell 2012, 22, 571–584. [Google Scholar] [CrossRef]
  36. Calon, A.; Lonardo, E.; Berenguer-Llergo, A.; Espinet, E.; Hernando-Momblona, X.; Iglesias, M.; Sevillano, M.; Palomo-Ponce, S.; Tauriello, D.V.; Byrom, D.; et al. Stromal gene expression defines poor-prognosis subtypes in colorectal cancer. Nat. Genet. 2015, 47, 320–329. [Google Scholar]
  37. West, N.R.; McCuaig, S.; Franchini, F.; Powrie, F. Emerging cytokine networks in colorectal cancer. Nat. Rev. Immunol. 2015, 15, 615–629. [Google Scholar]
  38. Nagasaki, T.; Hara, M.; Nakanishi, H.; Takahashi, H.; Sato, M.; Takeyama, H. Interleukin-6 released by colon cancer-associated fibroblasts is critical for tumour angiogenesis: Anti-interleukin-6 receptor antibody suppressed angiogenesis and inhibited tumour-stroma interaction. Br. J. Cancer 2014, 110, 469–478. [Google Scholar] [CrossRef]
  39. Tacconi, C.; Ungaro, F.; Correale, C.; Arena, V.; Massimino, L.; Detmar, M.; Spinelli, A.; Carvello, M.; Mazzone, M.; Oliveira, A.I.; et al. Activation of the VEGFC/VEGFR3 Pathway Induces Tumor Immune Escape in Colorectal Cancer. Cancer Res. 2019, 79, 4196–4210. [Google Scholar] [CrossRef]
  40. Lim, E.J.; Kang, J.H.; Kim, Y.J.; Kim, S.; Lee, S.J. ICAM-1 promotes cancer progression by regulating SRC activity as an adapter protein in colorectal cancer. Cell Death Dis. 2022, 13, 417. [Google Scholar] [CrossRef]
  41. Velez-Delgado, A.; Donahue, K.L.; Brown, K.L.; Du, W.; Irizarry-Negron, V.; Menjivar, R.E.; Lasse Opsahl, E.L.; Steele, N.G.; The, S.; Lazarus, J.; et al. Extrinsic KRAS Signaling Shapes the Pancreatic Microenvironment Through Fibroblast Reprogramming. Cell Mol. Gastroenterol. Hepatol. 2022, 13, 1673–1699. [Google Scholar] [CrossRef]
  42. Huang, C.Y.; Chiang, S.F.; Ke, T.W.; Chen, T.W.; You, Y.S.; Chen, W.T.; Chao, K.S.C. Clinical significance of programmed death 1 ligand-1 (CD274/PD-L1) and intra-tumoral CD8+ T-cell infiltration in stage II-III colorectal cancer. Sci. Rep. 2018, 8, 15658. [Google Scholar] [CrossRef]
  43. Gabrilovich, D.I.; Nagaraj, S. Myeloid-derived suppressor cells as regulators of the immune system. Nat. Rev. Immunol. 2009, 9, 162–174. [Google Scholar]
  44. Lee, J.; Li, L.; Gretz, N.; Gebert, J.; Dihlmann, S. Absent in Melanoma 2 (AIM2) is an important mediator of interferon-dependent and -independent HLA-DRA and HLA-DRB gene expression in colorectal cancers. Oncogene 2012, 31, 1242–1253. [Google Scholar] [CrossRef]
  45. Walsh, M.D.; Dent, O.F.; Young, J.P.; Wright, C.M.; Barker, M.A.; Leggett, B.A.; Bokey, L.; Chapuis, P.H.; Jass, J.R.; Macdonald, G.A. HLA-DR expression is associated with better prognosis in sporadic Australian clinicopathological Stage C colorectal cancers. Int. J. Cancer 2009, 125, 1231–1237. [Google Scholar]
  46. Kitamura, T.; Qian, B.Z.; Pollard, J.W. Immune cell promotion of metastasis. Nat. Rev. Immunol. 2015, 15, 73–86. [Google Scholar] [CrossRef]
  47. Coffelt, S.B.; Wellenstein, M.D.; de Visser, K.E. Neutrophils in cancer: Neutral no more. Nat. Rev. Cancer 2016, 16, 431–446. [Google Scholar] [CrossRef]
  48. Engblom, C.; Pfirschke, C.; Pittet, M.J. The role of myeloid cells in cancer therapies. Nat. Rev. Cancer 2016, 16, 447–462. [Google Scholar] [CrossRef]
  49. Ogawa, R.; Yamamoto, T.; Hirai, H.; Hanada, K.; Kiyasu, Y.; Nishikawa, G.; Mizuno, R.; Inamoto, S.; Itatani, Y.; Sakai, Y.; et al. Loss of SMAD4 Promotes Colorectal Cancer Progression by Recruiting Tumor-Associated Neutrophils via the CXCL1/8-CXCR2 Axis. Clin. Cancer Res. 2019, 25, 2887–2899. [Google Scholar]
  50. Liu, C.; Yao, Z.; Wang, J.; Zhang, W.; Yang, Y.; Zhang, Y.; Qu, X.; Zhu, Y.; Zou, J.; Peng, S.; et al. Macrophage-derived CCL5 facilitates immune escape of colorectal cancer cells via the p65/STAT3-CSN5-PD-L1 pathway. Cell Death Differ. 2020, 27, 1765–1781. [Google Scholar]
  51. Siddiqa, A.; Sims-Mourtada, J.C.; Guzman-Rojas, L.; Rangel, R.; Guret, C.; Madrid-Marina, V.; Sun, Y.; Martinez-Valdez, H. Regulation of CD40 and CD40 ligand by the AT-hook transcription factor AKNA. Nature 2001, 410, 383–387. [Google Scholar]
  52. Kashyap, A.S.; Schmittnaegel, M.; Rigamonti, N.; Pais-Ferreira, D.; Mueller, P.; Buchi, M.; Ooi, C.H.; Kreuzaler, M.; Hirschmann, P.; Guichard, A.; et al. Optimized antiangiogenic reprogramming of the tumor microenvironment potentiates CD40 immunotherapy. Proc. Natl. Acad. Sci. USA 2020, 117, 541–551. [Google Scholar]
  53. Cristescu, R.; Mogg, R.; Ayers, M.; Albright, A.; Murphy, E.; Yearley, J.; Sher, X.; Liu, X.Q.; Lu, H.; Nebozhyn, M.; et al. Pan-tumor genomic biomarkers for PD-1 checkpoint blockade-based immunotherapy. Science 2018, 362, eaar3593. [Google Scholar] [CrossRef] [Green Version]
Cancers 15 01098 g001 550

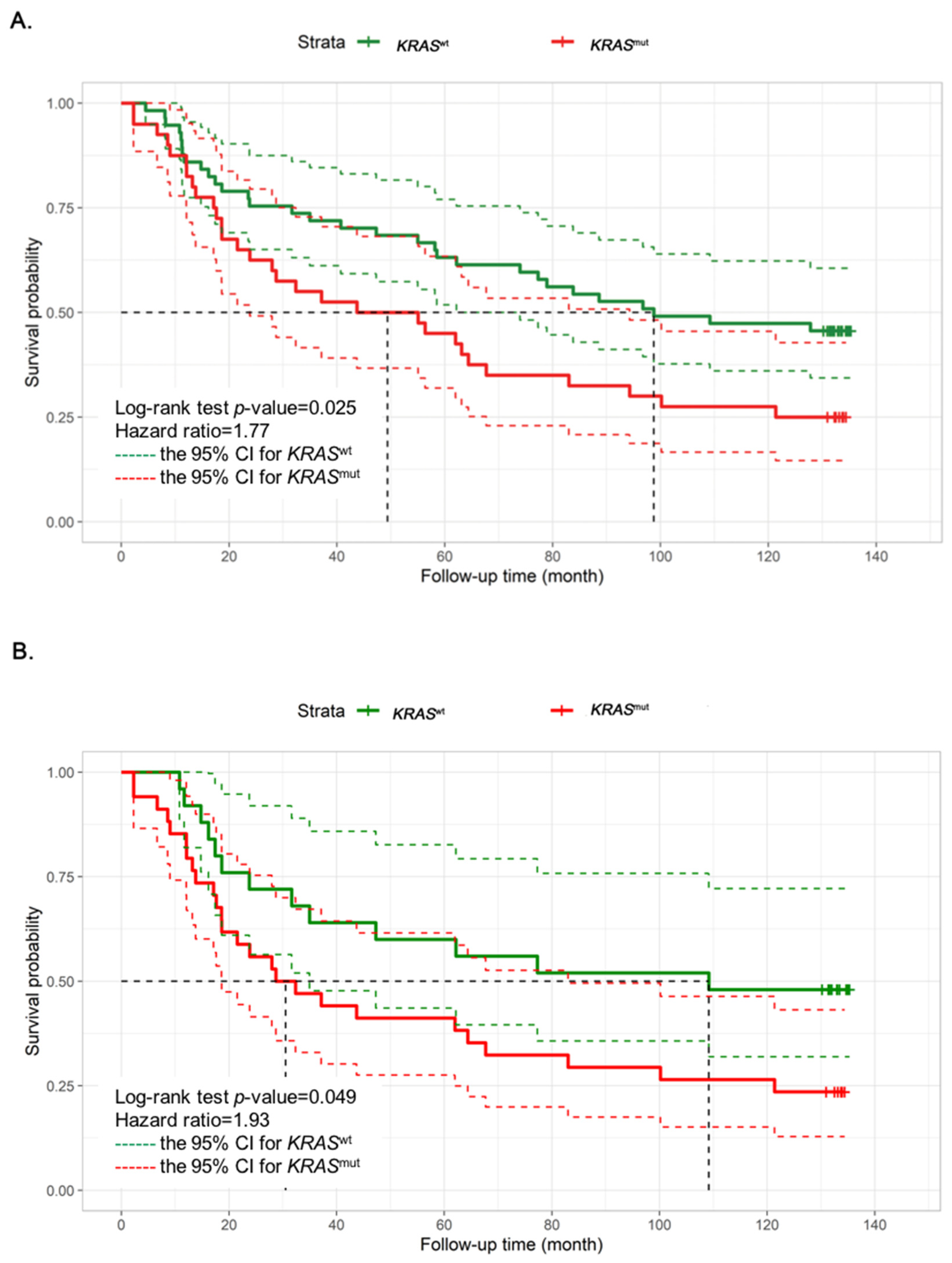

Figure 1. Kaplan–Meier graphs depicting overall survival (OS) of colorectal cancer patients according to the mutational status of KRAS in (A) all cohort (n = 97) and (B) transcriptomic study cohort (n = 59). Each graph shows univariate hazard ratios (95%CI) and log rank p-values. The dashed lines indicate the 95% CI for KRASwt (in green dash) and KRASmut (in red dash). KRASwt, KRAS wild type; KRASmut, KRAS mutation; CI, confidence interval.
Figure 1. Kaplan–Meier graphs depicting overall survival (OS) of colorectal cancer patients according to the mutational status of KRAS in (A) all cohort (n = 97) and (B) transcriptomic study cohort (n = 59). Each graph shows univariate hazard ratios (95%CI) and log rank p-values. The dashed lines indicate the 95% CI for KRASwt (in green dash) and KRASmut (in red dash). KRASwt, KRAS wild type; KRASmut, KRAS mutation; CI, confidence interval.
Cancers 15 01098 g001
Cancers 15 01098 g002 550
Figure 2. Differential gene expression between KRASmut and KRASwt with a p-value < 0.05. (A) Heatmap for 92 DEGs of KRASmut (rows) from the NanoString PanCancer progression panel are clustered by statistically significant downregulation (blue) and up regulation (red) between KRASmut and KRASwt (column). The consensus molecular subtypes 1–4 (CMS1–4) were also clustered (column). Blue to red denotes gene expression, with blue implying low gene expression and red implying high gene expression. (B) Top five pathways of BioPlanet and WikiPathways database sources enriched by DEGs with their FDR values. (C) The IPA graphical summary of 92 statistically significant DEG of KRASmut. (D) The IPA upstream regulator analysis reveal that TGFBR1 is the upstream regulator associated with lymphocyte cell death.
Figure 2. Differential gene expression between KRASmut and KRASwt with a p-value < 0.05. (A) Heatmap for 92 DEGs of KRASmut (rows) from the NanoString PanCancer progression panel are clustered by statistically significant downregulation (blue) and up regulation (red) between KRASmut and KRASwt (column). The consensus molecular subtypes 1–4 (CMS1–4) were also clustered (column). Blue to red denotes gene expression, with blue implying low gene expression and red implying high gene expression. (B) Top five pathways of BioPlanet and WikiPathways database sources enriched by DEGs with their FDR values. (C) The IPA graphical summary of 92 statistically significant DEG of KRASmut. (D) The IPA upstream regulator analysis reveal that TGFBR1 is the upstream regulator associated with lymphocyte cell death.
Cancers 15 01098 g002
Cancers 15 01098 g003 550
Figure 3. Differential gene expression in TME or cancer regions of patients with CRC KRASmut or KRASwt from DSP analysis. (A) Representative images of the TBI03 CRC sample stained by hematoxylin and eosin (H&E) (left) and immunofluorescence with selected ROIs: 1-12 (middle), cancer or TME ROIs (right). Representative of ROIs in all patients are shown with tricolor fluorescence labeling (blue: SYTO13; green: Pan-CK; red: CD45 with scale bar 500 μM. (B) Heatmap for 84 DEGs (rows) from the GeoMx immune pathway panel are clustered by TME or cancer (column) in KRASmut (yellow) and KRASwt (blue). Blue to red denotes gene expression, with blue implying low gene expression and red implying high gene expression. (C) Volcano plot of 84 genes comparing the differential gene expression of TME region between KRASmut and KRASwt. The x-axis is the log2 fold change of gene expression between KRASmut and KRASwt. The y-axis is the −log10 p value results. Genes of interest have been annotated within the plot. The blue dots above the green line are genes that are statistically significant upregulation in KRASmut and KRASwt.
Figure 3. Differential gene expression in TME or cancer regions of patients with CRC KRASmut or KRASwt from DSP analysis. (A) Representative images of the TBI03 CRC sample stained by hematoxylin and eosin (H&E) (left) and immunofluorescence with selected ROIs: 1-12 (middle), cancer or TME ROIs (right). Representative of ROIs in all patients are shown with tricolor fluorescence labeling (blue: SYTO13; green: Pan-CK; red: CD45 with scale bar 500 μM. (B) Heatmap for 84 DEGs (rows) from the GeoMx immune pathway panel are clustered by TME or cancer (column) in KRASmut (yellow) and KRASwt (blue). Blue to red denotes gene expression, with blue implying low gene expression and red implying high gene expression. (C) Volcano plot of 84 genes comparing the differential gene expression of TME region between KRASmut and KRASwt. The x-axis is the log2 fold change of gene expression between KRASmut and KRASwt. The y-axis is the −log10 p value results. Genes of interest have been annotated within the plot. The blue dots above the green line are genes that are statistically significant upregulation in KRASmut and KRASwt.
Cancers 15 01098 g003
Cancers 15 01098 g004 550
Figure 4. Diagrams illustrating the gene expression patterns in TME of KRASmut (A) Venn diagram showing the contrasting CD40 upregulation in TME of KRASmut (p-value < 0.05). (B) Diagrams of the immunosuppressive tumor microenvironment of KRASmut. Colorectal cancer cells with KRASmut up-regulate TGFβ signaling and down-regulate proinflammatory cytokine to recruit immunosuppressive cells, including myeloid, dendritic, and B cells, which mostly express CD40. These cells may up-regulate genes CTLA4, ARG1, STAT3, IDO, and CD274 to suppress the immune function and infiltration of effector cytotoxic T cells in TME.
Figure 4. Diagrams illustrating the gene expression patterns in TME of KRASmut (A) Venn diagram showing the contrasting CD40 upregulation in TME of KRASmut (p-value < 0.05). (B) Diagrams of the immunosuppressive tumor microenvironment of KRASmut. Colorectal cancer cells with KRASmut up-regulate TGFβ signaling and down-regulate proinflammatory cytokine to recruit immunosuppressive cells, including myeloid, dendritic, and B cells, which mostly express CD40. These cells may up-regulate genes CTLA4, ARG1, STAT3, IDO, and CD274 to suppress the immune function and infiltration of effector cytotoxic T cells in TME.
Cancers 15 01098 g004
Table
Table 1. Clinical characteristics and KRASmut status of patients with CRC.
Table 1. Clinical characteristics and KRASmut status of patients with CRC.
CharacteristicsTotal
N (%), n = 97 (100)		KRASwt
N (%), n = 57 (58.76)		KRASmut
N (%), n = 40 (41.24)		p-Value
Mutation status
Exon 2 codon 12 -28 (70)
Exon 2 codon 13 -8 (20)
Exon 3 codon 61 -4 (10)
Mean age64.8663.0167.480.101
Sex 0.459
Male4830 (62.5)18 (37.5)
Female4927 (55.1)22 (44.9)
Tumor site 0.381
Rectum3818 (50.0)18 (50.0)
Left side colon4328 (65.1)15 (34.9)
Right side colon1811 (61.1)7 (38.9)
Stage 0.109
I1311 (84.6)2 (15.4)
II3116 (51.6)15 (48.4)
III3321 (63.6)12 (36.4)
IV209 (45.0)11 (55.0)
Metastatic site 1.000
Liver168 (50.0)8 (50.0)
Lung1-1 (100)
Liver and lung2-2 (100)
Others11 (100)-
Pathological grade 0.126
Moderately differentiated8653 (61.6)33 (38.4)
Well differentiated93 (33.8)6 (66.7)
Poorly differentiated21(50.0)1(50.0)
Adjuvant chemotherapy 0.662
Yes5729 (50.9)28 (49.1)
No4023 (50.9)17 (49.1)
KRASwt, KRAS wild type; KRASmut, KRAS mutation. t-test, Chi-squared or Fisher’s exact tests were performed to test the statistical significance of clinical characteristics.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tanjak, P.; Chaiboonchoe, A.; Suwatthanarak, T.; Acharayothin, O.; Thanormjit, K.; Chanthercrob, J.; Suwatthanarak, T.; Wannasuphaphol, B.; Chumchuen, K.; Suktitipat, B.; et al. The KRAS-Mutant Consensus Molecular Subtype 3 Reveals an Immunosuppressive Tumor Microenvironment in Colorectal Cancer. Cancers 2023, 15, 1098. https://doi.org/10.3390/cancers15041098

AMA Style

Tanjak P, Chaiboonchoe A, Suwatthanarak T, Acharayothin O, Thanormjit K, Chanthercrob J, Suwatthanarak T, Wannasuphaphol B, Chumchuen K, Suktitipat B, et al. The KRAS-Mutant Consensus Molecular Subtype 3 Reveals an Immunosuppressive Tumor Microenvironment in Colorectal Cancer. Cancers. 2023; 15(4):1098. https://doi.org/10.3390/cancers15041098

Chicago/Turabian Style

Tanjak, Pariyada, Amphun Chaiboonchoe, Tharathorn Suwatthanarak, Onchira Acharayothin, Kullanist Thanormjit, Jantappapa Chanthercrob, Thanawat Suwatthanarak, Bundit Wannasuphaphol, Kemmapon Chumchuen, Bhoom Suktitipat, and et al. 2023. "The KRAS-Mutant Consensus Molecular Subtype 3 Reveals an Immunosuppressive Tumor Microenvironment in Colorectal Cancer" Cancers 15, no. 4: 1098. https://doi.org/10.3390/cancers15041098

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
