Efficient Radial-Shell Model for 3D Tumor Spheroid Dynamics with Radiotherapy

by
Florian Franke
1,2,*,
Soňa Michlíková
3,4,
Sebastian Aland
2,5,6,
Leoni A. Kunz-Schughart
3,7,
Anja Voss-Böhme
1,2 and
Steffen Lange
1,3
1
DataMedAssist Group, HTW Dresden—University of Applied Sciences, 01069 Dresden, Germany
2
Faculty of Informatics/Mathematics, HTW Dresden—University of Applied Sciences, 01069 Dresden, Germany
3
OncoRay—National Center for Radiation Research in Oncology, Faculty of Medicine and University Hospital Carl Gustav Carus, Technische Universität Dresden, Helmholtz-Zentrum Dresden—Rossendorf, 01307 Dresden, Germany
4
Helmholtz-Zentrum Dresden-Rossendorf, Institute of Radiooncology—OncoRay, 01328 Dresden, Germany
5
Faculty of Mathematics and Computer Science, TU Freiberg, 09599 Freiberg, Germany
6
Center for Systems Biology Dresden (CSBD), 01307 Dresden, Germany
7
National Center for Tumor Diseases (NCT), Partner Site Dresden, 69120 Heidelberg, Germany
*
Author to whom correspondence should be addressed.
Cancers 2023, 15(23), 5645; https://doi.org/10.3390/cancers15235645
Submission received: 30 October 2023 / Revised: 21 November 2023 / Accepted: 23 November 2023 / Published: 29 November 2023
(This article belongs to the Section Cancer Therapy)

Abstract

:

Simple Summary

Approximately 50% of patients diagnosed with cancer receive radiotherapy at least once during their disease. Experiments with sophisticated in-cellulo assays to improve radiotherapeutic outcomes are still challenging, and some critical details of tumor cell dynamics still need to be explored. To enhance the informative value of such approaches and support future therapeutic study designs, we developed an efficient mathematical model for three-dimensional multicellular tumor spheroids, which reflect microregions within a large tumor or avascular micrometastases and which are an auspicious experimental framework to pre-assess the curative effect of radio(chemo)therapy. We validate our mathematical model using experimental tumor spheroid growth data of several cell lines with and without radiotherapy and observe equal or better performance than previous models. Moreover, our model allows for efficient parameter calibration within previously reported and/or physiologically reasonable ranges. Based on this data-driven approach, we can explain the mechanism of the characteristic dynamics at small tumor volumes.

Abstract

Understanding the complex dynamics of tumor growth to develop more efficient therapeutic strategies is one of the most challenging problems in biomedicine. Three-dimensional (3D) tumor spheroids, reflecting avascular microregions within a tumor, are an advanced in vitro model system to assess the curative effect of combinatorial radio(chemo)therapy. Tumor spheroids exhibit particular crucial pathophysiological characteristics such as a radial oxygen gradient that critically affect the sensitivity of the malignant cell population to treatment. However, spheroid experiments remain laborious, and determining long-term radio(chemo)therapy outcomes is challenging. Mathematical models of spheroid dynamics have the potential to enhance the informative value of experimental data, and can support study design; however, they typically face one of two limitations: while non-spatial models are computationally cheap, they lack the spatial resolution to predict oxygen-dependent radioresponse, whereas models that describe spatial cell dynamics are computationally expensive and often heavily parameterized, impeding the required calibration to experimental data. Here, we present an effectively one-dimensional mathematical model based on the cell dynamics within and across radial spheres which fully incorporates the 3D dynamics of tumor spheroids by exploiting their approximate rotational symmetry. We demonstrate that this radial-shell (RS) model reproduces experimental spheroid growth curves of several cell lines with and without radiotherapy, showing equal or better performance than published models such as 3D agent-based models. Notably, the RS model is sufficiently efficient to enable multi-parametric optimization within previously reported and/or physiologically reasonable ranges based on experimental data. Analysis of the model reveals that the characteristic change of dynamics observed in experiments at small spheroid volume originates from the spatial scale of cell interactions. Based on the calibrated parameters, we predict the spheroid volumes at which this behavior should be observable. Finally, we demonstrate how the generic parameterization of the model allows direct parameter transfer to 3D agent-based models.

1. Introduction

The quantification of the biological effects of (radio)therapy is crucial for designing and evaluating treatment protocols and the response prediction for in vivo tumors. Tumor spheroids are the preferential in vitro model to study the possible means of tumor suppression [1,2,3,4,5,6,7], as they reflect many characteristic features affecting tumor growth dynamics, including three-dimensional (3D) reciprocal intercellular and cell–extracellular matrix interactions. Multicellular spheroids are 3D avascular aggregates of several thousand tumor cells that mimic tumor microareas or micrometastases. Due to their 3D structure, spheroids exhibit metabolic gradients of oxygen, nutrients, and waste products, which can strongly modulate the therapy response of cells in addition to 3D cellular interactions [3,4,5,6,7,8]. Oxygen deficiency in tumors (hypoxia) is associated with substantial radioresistance [9,10,11,12]. The lack of such resistance factors is one reason that two-dimensional in vitro approaches such as the classical clonogenic survival assays reflect the therapeutic response of cancer cells in tissue comparatively poorly [13]. Despite the complexity of the incorporated cellular processes, experiments on in vitro spheroids are less laborious and ethically questionable than in vivo animal studies [14,15,16]. Spheroid behavior and response to treatment is often evaluated in terms of the development of the spheroid volume or average diameter over time, usually denoted as the growth curve. State-of-the-art long-term spheroid-based assays assess the curative potential of new treatment strategies by classifying each spheroid within a population as either controlled or relapsed due to its individual growth recovery and kinetics, respectively. The spheroid control probabilities and selected spheroid control doses are computed as analytical endpoints by averaging the therapeutic response over ensembles of spheroids for each treatment dose [17,18,19,20], analogous to the tumor control dose employed for in vivo experiments with mice [21,22]. Growth curves and spheroid control probabilities depend on the spheroid type (cell line), the size of the spheroids at the onset of treatment, and the applied dose.
While tumor spheroids provide a physiologically more realistic in vitro framework to study tumor growth dynamics and therapeutic response, these experiments are challenging, as typically hundreds of individual spheroids have to be cultured, irradiated with different doses, and subsequently monitored for a sufficient period in order to obtain statistically reliable results for a single treatment arm. Moreover, spheroids are typically composed of several spatial domains resulting from the pathophysiological metabolic gradients, e.g., the oxygen distribution. The most prominent spatial domains developing with increasing spheroid size and volume, respectively, are a secondary necrotic core surrounded by a viable rim. Both are entangled with growth dynamics and therapy response [23,24]. However, these inner structures can only be sampled with sufficient accuracy in stained histological sections, which impedes monitoring of the dynamics in individual spheroids over time.
Mathematical modeling can provide access to these dynamics, histomorphological features, and quantitative description of treatment response, and may allow the prediction of the effect of individual therapies [25]. Therefore, such models can assist in selecting the most relevant therapeutic parameters, e.g., the range of radiation doses, to design studies and optimize experimental setups. Starting with the phenomenological description of spheroid growth curves, for example by fitting the Gompertz function [26,27,28], several mathematical models have been formulated and simulated with different approaches, complexities, and objectives. Overall, the mathematical models that describe spheroid dynamics can be categorized into nonspatial and spatial models, depending on whether or not they resolve the spatial distribution of cells. Nonspatial models concentrate on free spheroid growth, i.e., spheroid growth without treatment, starting with Greenspan [29], who explored a set of ordinary differential equations (ODE) to describe the dynamics of the radius of the spheroid and its secondary necrotic core over time. Likewise, Grimes et al. [24] used an ODE model to reproduce the free (untreated) spheroid volume growth of different cell lines mainly based on the cellular doubling time and oxygen consumption rate determined in 2D culture. Using a combination of stained histological sections of spheroids and monolayer-based Seahorse extracellular flux analyses, a relationship between the oxygen consumption rate of individual cells and the necrotic radius within the spheroids was derived [23,24]. Browning et al. [30] introduced an ODE model to simulate the radius of a spheroid over time. They further added a statistical approach to estimate the effects of expected fluctuations, finding compelling evidence that WM983b spheroids have a limiting size that is independent of the initial seeding density. Alternatively, in order to resolve the spatial structure of spheroids, Brüningk et al. [1] proposed a 3D cellular automaton and reproduced growth experiments without treatment as well as experiments with combined hyperthermia and radiation treatment for a colorectal cancer spheroid model (HCT-116). Amereh et al. [31] used a coupled system of partial differential equations (PDEs) and ODE to simulate the radius as a function of time during the early formation of tumor spheroids without treatment and derived an analytical solution for their model. Ward and King [32] and Jin et al. [33] both used models that explicitly included spatial variations in cell densities and oxygen concentrations based on PDEs to study the phenomenon of growth saturation in tumor spheroids. In both instances, their results were qualitatively compared to experimental data from real-time cell cycle imaging in spheroids [33]. Paczkowski et al. [34] employed a nonspatial logistic growth model to describe the growth of homogeneous tumor spheroids and a cellular automaton model representing a two-dimensional (2D) cross-section through a 3D tumor spheroid to demonstrate that prostate cancer spheroids comprising mixed tumor cell populations have different growth kinetics and radiosensitivities than spheroid monocultures. The 2D cross-section was used to reduce the computational cost of a full 3D cellular automaton.
Typically, models of spheroid kinetics face at least one of two challenges. On the one hand, while computationally cheap, nonspatial models lack the resolution of an oxygen gradient across the spheroid required to estimate the oxygen enhancement of radioresistance. On the other hand, while models with genuine 3D resolution can provide metabolic gradients they are computationally expensive, particularly cell-based models that scale with the number of cells. This makes calibration of parameters based on experimental data very challenging, especially as the stochastic nature of cell-based models requires an ensemble of simulation runs for each setup to obtain the average dynamics.
To overcome the challenges of both nonspatial and spatial model types, we propose a radial-shell (RS) model (Figure 1) that is spatially discrete and continuous in time. This model can be seen as a special one-dimensional Markov chain representing the cells’ dynamics in and between radial shells. For this, we assume the spheroids to be rotationally symmetric, as suggested by histological sections [18,24] and exploited by several mathematical models before [1,24,29,30,31,34]. We demonstrate that this model is (i) spatially sufficiently resolved to describe the effects of radiotherapy, and (ii) has sufficient computational performance to enable multi-parametric optimization. We show that our model can reproduce free (untreated) growth and radiotherapy response for several cell lines, including estimates of the secondary necrotic core. Its agreement with the experimental data is similar to or better than the models originally proposed for the data. Notably, this is achieved without increasing the number of fit parameters compared to the previous cell-based models. Moreover, almost all model parameters correspond to physiologically meaningful entities and are calibrated within biologically realistic ranges. We further demonstrate that virtually all model parameters can be directly transferred to a corresponding 3D cell-based model, which is potentially valuable for examining stochastic deviations in single-cell behavior as well as rotational symmetry.

2. Radial-Shell Model (RS Model)

We present a data-driven dynamical model for the growth kinetics of a spheroid that both resolves the radial cell composition of the spheroid and at the same time is efficient enough for manageable parameter optimization; see Figure 1 for an illustration and Appendix C for details. The spheroid is assumed to be rotationally symmetric, as suggested by experimental observations [18,24]. The resulting one-dimensional (1D) dynamics are defined by the average concentrations c T ( r , t ) of type T cells and the partial oxygen pressure, i.e., the oxygen pressure ρ ( r , t ) along the radius r of the spheroid discretized into radial shells of width d r .
For free (untreated) growth, two cell types T are considered: proliferation-competent cells T = p , and membrane-defect cells T = n . In the model context, proliferation-competent cells refers to cells with the innate capacity to proliferate with a maximal proliferation rate γ given sufficient oxygen supply and free space in their vicinity. In contrast, membrane-defect cells have undergone secondary necrosis, and as a result have permanently lost their proliferative capacity. These cells do not consume oxygen, and the spheroid volume occupied by their cell bodies and related cell debris declines at a defined rate δ . We further assume as an approximation that proliferation-competent cells consume oxygen according to a constant local oxygen consumption rate a as long as the oxygen pressure is above a (putatively anoxic) threshold ρ an , resulting in an oxygen gradient ρ ( r , t ) along the radius. At low oxygen pressure ρ ( r , t ) ρ an (severe hypoxia), the initially proliferation-competent cells can no longer consume oxygen to maintain their energy homeostasis and proliferation potential. Consequently, they eventually lose their survival capacity and membrane integrity with a defined rate ϵ , leading to the emergence of a core of dead cells in the center of the spheroid surrounded by a rim of proliferation-competent cells (see Figure 1 for an illustration). This structure is consistent with the histomorphological observation of a viable rim and a necrotic center in median sections of spheroids with increasing size [3,7,18,24,27].
Notably, not all proliferation-competent cells in the spheroid viable rim actively proliferate simultaneously and in the specific local micromilieu. Subpopulations undergo transient cell-cycle arrest in the 3D cellular environment of the spheroid. However, these cells may re-enter the cell cycle by stimulation via sufficient competence factors, and as such can contribute to relapse. Vice versa, the viable rim may contain membrane-intact and proliferation-incompetent cells that consume oxygen. While these permanently cell-cycle arrested cells, i.e., terminally differentiated or senescent cell populations, can alter the oxygenation within the spheroid and thereby affect the adjacent proliferation-competent cells, they do not directly contribute to the treatment response in terms of control or relapse of a spheroid, as they cannot return to an active cycling phenotype. While it is straightforward to incorporate such cells in our model, we neglect this cell type in order to obtain an effective model with a minimal number of parameters.
A radial shell i { 0 , 1 , 2 , } encompassing all points with radius r [ i · d r , ( i + 1 ) · d r ] is centered at r i = d r · ( i + 1 / 2 ) and has a volume V i = 4 / 3 π ( [ i · d r ] 3 [ ( i + 1 ) d r ] 3 ) . Note that while the width d r of the shells is constant, their volume increases from the center i = 0 outwards and scales quadratically V i i 2 d r 3 r i 2 d r for large radii r i . The average concentration of cell type T in shell i is c T ( r i ) [ 0 , 1 ] normalized such that a total concentration T c T ( r i ) = 1 represents the maximal dense packing of cells. Thus, c T ( r i ) is a relative cell concentration with respect to the available space in the corresponding shell i, and has no unit. The cell concentration added from the proliferation-competent cells T = p in shell i is distributed over shells i 1 , i, and i + 1 proportional to the available free space. Thus, the shell width d r sets the spatial scale for cell transport and the distribution of daughter cells from proliferation. Notably, the width d r is not merely a discretization parameter that can be chosen to be arbitrarily small, as the effective proliferation and consequent growth dynamics depend on d r . Note that proliferation is reduced when the available free space is deficient, analogous to logistic growth. Furthermore, proliferation is assumed to be inhibited when the local oxygen pressure ρ ( r , t ) is below a hypoxic threshold ρ h ρ an . Further, cells which experience oxygen pressure below the so-called anoxic threshold ρ an become membrane-defect cells with an ‘anoxic death rate’ ϵ . The volume occupied by membrane-defect cells is reduced at a specific rate δ . These transitions reflect diverse biological processes, including various cell death mechanisms ranging from necrosis via necroptosis, ferroptosis, and classical apoptosis, which, for brevity, are not further distinguished in the model. The quantification of these processes requires the critical radius r an at which the oxygen pressure reaches the anoxic threshold ρ ( r an ) = ρ an . This radius is determined from the oxygen profile ρ ( r ) , which is obtained as the steady-state solution of the rotationally symmetric diffusion equation for the given distribution of cells c T ( r i ) , oxygen consumption rate a, and oxygen diffusion constant D ρ . As a boundary condition, we assume a constant oxygen pressure ρ 0 at the surface of the spheroid at r 0 provided by the center of the outermost shell for which the total cell concentration exceeds 0.1 ; see Appendix D for details. Note that additional metabolic gradients such as nutrition and waste products can be incorporated into the model; for simplicity, we use oxygen here as an effective representative gradient. Finally, to maintain a dense spherical structure, an inward transport with rate λ is implemented to account for the net effect of biomechanical mechanisms present in the spheroid, such as intercellular adhesion and mechanical pressure (see Figure 1 for an illustration).

2.1. Dynamics with Radiotherapy

The RS model not only resolves the growth dynamics of an untreated spheroid, it also allows the incorporation of therapeutic effects relevant to overall tumor spheroid response. In particular, in addition to the radial distribution of cells c T ( r i ) , the model provides the corresponding oxygen profile ρ ( r ) , which is crucial for the radioresistance of cells. Oxygen deficiency in tissues (hypoxia) is a well-known pathological radioresistance factor; oxygen-depleted tumor areas require up to three times higher radiation doses than well-oxygenated tumor areas to achieve the same therapeutic response [10,11,12]. Various models exist to describe the effect of radiotherapy on cells [35,36]. In general, these models predict the probability S ( d eff ) of a cell surviving irradiation with an effective dose d eff , most prominently the linear quadratic (LQ) model S ( d eff ) = 1 / exp ( α RT d eff + β RT d eff ) [37] with the therapeutic ratio α RT , β RT of the cell line-dependent radiological constants [37,38,39], where the effective dose d eff ( d , ρ ) d is considered a function of the actual dose d and local oxygen pressure ρ , reflecting the oxygen enhancement of radioresistance. A prominent choice for the oxygen enhancement ratio (OER) d / d eff is the Alper–Howards–Flanders oxygen equation [9]. Mitotic catastrophe has been suggested as a process for radiation-induced cell death in spheroids as a consequence of lethal irreparable DNA damage [40,41,42,43]. The incorporation of a wide variety of such mechanisms for the effect of radiation into the RS-model is straightforward. As an example, and to evaluate the performance of the model, we incorporated mitotic catastrophe as recently proposed for a 3D cellular automaton [1]. When the spheroid is irradiated with dose d, proliferation-competent cells c p ( r i ) are instantaneously converted into damaged cells c d ( r i ) with probability 1 S d eff d , ρ ( r i ) . Damaged cells proliferate with probability 1 P mc analogous to proliferation-competent cells, i.e., with rate γ ( 1 P mc ) ; however, they break up with probability P mc during proliferation, i.e., the volume of damaged cells is reduced with a rate γ P mc implemented analogously to the reduction of necrotic volume. As previously assumed [1], the probability P mc of mitotic catastrophe takes an initial value P mc 1 < 0.5 and increases to P mc 2 > 0.5 some time after treatment.

3. Parameter Calibration

The parameters of the RS model can be calibrated based on experimental volume growth curves of spheroids. Further, these parameters can be categorized into four groups: known cell-line independent parameters ( D ρ , ρ 0 , ρ an , d r * ), set by fixed values, known cell-line specific parameters ( γ , a, α RT , β RT ), calibrated within their reported range (Table 1 and Table 2), unknown biological parameters ( ϵ , δ , P mc ), and effective parameters ( λ , d r ) which are fitted within a reasonable range. The reported parameter ranges are taken exclusively from monolayer experiments due to a lack of systematic parameter reporting in spheroid experiments [44]; see Table 1 for a list of references. The specific relationships between the parameters observed in the monolayer experiment and those expected in the spheroid setup are discussed below.
As a simplification for the model, the oxygen diffusion constant D ρ , oxygen pressure ρ 0 at the surface of the spheroid, and anoxic threshold ρ an are set to fixed values of D ρ = 2 × 10 9 m 2 s 1 , ρ 0 = 100 mmHg, and ρ an = 0 mmHg according to those used in Grimes et al. [23,24] and Brüningk et al. [1]. While the oxygen pressure ρ 0 depends in principle on the experimental setup [45,46], we found that within the experimentally observed range of ρ 0 [ 80 , 120 ] mmHg the resulting dynamics are insensitive to the exact oxygen pressure ρ 0 (Table A1 and Table A2). The proliferation rate γ and the oxygen consumption rate a are fitted within their cell line-specific range as implied from monolayer culture doubling times in the literature, using the latter as an upper bound of the cell cycle time (Table 1). In general, a spheroid’s maximal cell proliferation rate γ is considered to be smaller than in the corresponding monolayer culture. However, the observed values are largely dependent on the specifics of the experimental setup [44]. Note that for the FaDu cell line we assume a range of ln ( 2 ) / γ [ 20 , 40 ] h, around the reported value of 30 h. In the case of the oxygen consumption rate a, it has been proposed that the value a measured for single cells is consistent with the size of the secondary necrotic core observed in histological sections of spheroids [23,24]. As a simple reference for the spatial scale, the average single cell diameter d r * = 16 µm is fixed for all cell lines to an intermediate value of the sizes reported in the literature for the cell lines of interest [17,47,48]. The model dynamics are independent of this single cell diameter d r * , as the oxygen consumption rate is defined per cell volume and not per cell number. Neither the anoxic death rate ϵ nor the rate δ at which the volume occupied by membrane-defect cells is reduced have been directly measured in experiments for these cell lines, and as such are fitted using a range of several orders of magnitude around the proliferation rate. The inward transport rate λ is fitted in the order of cell transport rates in tissue [49]. The shell width d r is simultaneously fitted in the range of several single cell diameters d r = κ d r * . Notably, the width d r sets the spatial scale for cell transport and the distribution of daughter cells due to proliferation. In particular, the factor κ can be translated to a spatial neighborhood of a cell; see Section 4.1.
We optimized the mentioned model parameters by minimizing the residuum between the experimentally measured growth curve R ^ spheroid ( t ) and the one predicted by the model R spheroid ( t ) using nonlinear least-squares minimization provided by the Python package lmfit [50]. Because the RS model returns the radial cell concentration c T ( r i ) for any time point t and for every cell type T, we define the corresponding radius of the spheroid R spheroid via the total cell volume i V i · T c T ( r i ) = 4 / 3 π R spheroid 3 . To take into account the inner dynamics of the spheroid, we consider the outer radius R ^ spheroid and the secondary necrotic core simultaneously, minimizing the residuum between the radii of the secondary necrotic core based on spheroid growth experiments R ^ necrotic and the model R necrotic . While R necrotic is defined analogous to R spheroid for the model, based on the volume of membrane-defect cells T = n , measuring the necrotic radius R ^ spheroid requires histological sections, which impedes monitoring those dynamics over time in individual spheroids. A method for estimating the oxygen consumption rate a from the outer radius R ^ spheroid and necrotic radius R ^ necrotic has been devised previously (Equation (A42)), and these estimates seem to be consistent with extracellular flux measurements of the oxygen consumption rate [23,24]; thus, we reverse this method to infer the corresponding necrotic radii R ^ necrotic ( t ) from the growth curve R ^ spheroid ( t ) using published values for the consumption rate a. Notably, while the radii of the spheroid R spheroid and R necrotic are similar in general, they are not equal to the radii r 0 and r an from the oxygen profile. We define t = 0 d as the first day of spheroid monitoring, when the spheroid has already formed. However, it needs to be emphasized that experiments usually start with the seeding of cells a few days prior. The seeding procedure and forming of the spheroid may differ between experiments; these details are neglected in our model [31]. Finally, the initial condition for the model reflecting an in vitro spheroid with R ^ spheroid ( t = 0 ) is set by the following procedure: the radial distribution of cell concentrations c p ( r i ) is initialized with a generic sigmoid function corresponding to a spheroid with much smaller radius, e.g., reflecting only 20% of the initial experimental spheroid volume, such that there is no anoxic core; subsequently, the model dynamics are integrated until the simulated spheroid reaches the size of the experimental one at t = 0 , and the corresponding distribution of cell concentrations is used as initial condition (see Appendix J for details).
Subsequently, the parameters α RT , β RT , and P mc related to radiotherapy are calibrated: the cell-specific radiosensitivities α RT and β RT are taken from the ranges previously reported from clonogenic survival assays [37,38,39]. The initial and final probabilities of mitotic catastrophe P mc 1 and P mc 2 are optimized based on the dynamics of the outer radius observed at high doses, e.g., 10 Gy for HCT-116 and 20 Gy for FaDu, for which spheroids do not relapse anymore. This approach is analogous to the calibration of the other model parameters, except that only P mc 1 and P mc 2 are optimized while the other parameters are fixed to the values calibrated based on untreated growth.
For the purposes of comparison, the parameters used in the models proposed along with the experimental data are listed in Table 1 and Table 2. For the cell-based model of HCT-116, only the probabilities of necrosis ϵ · d t and the reduction of the volume occupied by membrane-defect cells δ · d t are reported [1]. For a Monte Carlo step size of d t = 1 h, this translates to the corresponding rates displayed in Table 1. In the nonspatial model [24], the whole secondary necrotic core is removed within a time step d t = ln ( 2 ) / γ , from which we estimate a lower bound for the product ϵ · δ γ .
Table 1. The RS model reproduces experimental growth curves with parameters in a realistic biological range. For each experiment, the estimated parameter values and fit result of the calibrated RS Model, literature values from monolayer experiments for the parameters, and fit results from previous models (except for FaDu, for which no model has been proposed) are displayed. The parameters (left to right) are: doubling time ln ( 2 ) / γ with the proliferation rate γ , oxygen consumption rate a, anoxic death rate ϵ , rate δ at which the volume occupied by membrane-defect cells is reduced, the width of the radial shells d r = κ d r * expressed in multiples κ of the cell diameter d r * , and the inward transport rate λ , displayed as the velocity λ · d r . The goodness of fit is assessed by the coefficient of determination R 2 for the volume V spheroid . Note that the two sets of lines on HCT-116 refer to separate experiments which exhibit different spheroid growth curves, probably due to discrepancies in the experimental setup. For the FaDu cell line, we assume a range of ln ( 2 ) / γ [ 20 , 40 ] h, which is around the reported value of 30 h.
Table 1. The RS model reproduces experimental growth curves with parameters in a realistic biological range. For each experiment, the estimated parameter values and fit result of the calibrated RS Model, literature values from monolayer experiments for the parameters, and fit results from previous models (except for FaDu, for which no model has been proposed) are displayed. The parameters (left to right) are: doubling time ln ( 2 ) / γ with the proliferation rate γ , oxygen consumption rate a, anoxic death rate ϵ , rate δ at which the volume occupied by membrane-defect cells is reduced, the width of the radial shells d r = κ d r * expressed in multiples κ of the cell diameter d r * , and the inward transport rate λ , displayed as the velocity λ · d r . The goodness of fit is assessed by the coefficient of determination R 2 for the volume V spheroid . Note that the two sets of lines on HCT-116 refer to separate experiments which exhibit different spheroid growth curves, probably due to discrepancies in the experimental setup. For the FaDu cell line, we assume a range of ln ( 2 ) / γ [ 20 , 40 ] h, which is around the reported value of 30 h.
Cell LineParameter Estimation ln ( 2 ) / γ [h]a [mmHg/s] ϵ [1/h] δ [1/h] κ λ d r [µm/h] R 2
HCT-116
Figure 2
RS-model 22.8 27.7 2.30 × 10−11.11 × 10−2 1.12 38.8 0.997
Lit. (Experiment)
Schulte Am Esch et al. [51]; Cowley et al. [52];
Petitprez et al. [53]; Jain et al. [54]
17.1–36 -----
Grimes et al. [23] 22.1 ± 4.8
Lit. (3D model)28 22.1 ∼2.78 × 10−6∼2.78 × 10−7∼2.04∼12.0 0.981
Brüningk et al. [1]
HCT-116
Figure A1
RS-model 29.7 33.2 1.5 × 10−16.2 × 10−3 2.39 46.1 0.997
Lit. (Experiment)
Schulte Am Esch et al. [51]; Cowley et al. [52];
Petitprez et al. [53]; Jain et al. [54]
17.1–36 -----
Grimes et al. [24] 27.9 ± 6.0
Lit. (Non-spatial model)51.8–88.621.87–33.97 γ = 0.04 --0.968–0.998
Grimes et al. [24]
MDA-MB-468
Figure A2
RS-model 52.4 15.6 4.7 × 10−23.7 × 10−7 9.81 4.2 0.994
Lit. (Experiment)
Finlay-Schultz et al. [55]; DSMZ (www.dsmz.de)<24, 30–80 -----
Grimes et al. [24] 18.1 ± 4.5
Lit. (Non-spatial model)45.8–62.613.6–22.6 γ = 0.01 --0.893–0.971
Grimes et al. [24]
LS-174T
Figure A3
RS-model 34.7 22.5 4.5 × 10−22.0 × 10−5 6.22 67.8 0.998
Lit. (Experiment)
DSMZ (www.dsmz.de)30–40 -----
Grimes et al. [24] 20.6 ± 4.4
Lit. (Non-spatial model)25.68–39.1216.2–25.0 γ = 0.02 --0.956–0.998
Grimes et al. [24]
SCC-25
Figure A4
RS-model 36.9 11.9 1.5 × 10−12.0 × 10−2 2.85 11.0 0.993
Lit. (Experiment)
Steinbichler et al. [56]; Gavish et al. [57]32.8–57.6 ----
Grimes et al. [24] 11.2 ± 4.6
Lit. (Non-spatial model)88.1–103.06.6–15.8 γ = 0.02 --0.884–0.968
Grimes et al. [24]
FaDu
Figure A5
RS-model 36.0 9.9 3.6 × 10−13.1 × 10−2 4.15 53.3 0.998
Lit. (Experiment)
DSMZ (www.dsmz.de)20–40 -----
Leung et al. [58] 10.6
Table 2. The RS model reproduces the experimentally observed spheroid dynamics after radiation for HCT-116 and FaDu. For HCT-116, the same radiosensitivities as in Brüningk et al. [1] were chosen and the probabilities of mitotic catastrophe P mc were optimized based on the highest dose of 10 Gy while adopting the other parameters for untreated growth (Table 1). Similarly, for FaDu the probabilities of mitotic catastrophe were optimized for 20 Gy, while apt radiosensitivities were chosen from the range observed in previous clonogenic survival assays [17,59] and optimized for 5 Gy. The goodness of fit was assessed using the coefficient of determination R 2 for the volume V spheroid . The bold R 2 values indicate the experiments used for validation (not included in the calibration).
Table 2. The RS model reproduces the experimentally observed spheroid dynamics after radiation for HCT-116 and FaDu. For HCT-116, the same radiosensitivities as in Brüningk et al. [1] were chosen and the probabilities of mitotic catastrophe P mc were optimized based on the highest dose of 10 Gy while adopting the other parameters for untreated growth (Table 1). Similarly, for FaDu the probabilities of mitotic catastrophe were optimized for 20 Gy, while apt radiosensitivities were chosen from the range observed in previous clonogenic survival assays [17,59] and optimized for 5 Gy. The goodness of fit was assessed using the coefficient of determination R 2 for the volume V spheroid . The bold R 2 values indicate the experiments used for validation (not included in the calibration).
P mc 1 P mc 2 α RT β RT d [Gy] R 2
HCT-116
RS-model
0.27 0.67 0.5 0.042 10 (100% control) 0.9852
5 (100% relapse)0.9970
2 (100% relapse)0.9916
HCT-116
Brüningk et al. [1]
0.44 0.59 10 (100% control) 0.98
5 (100% relapse)0.88
2 (100% relapse)0.98
FaDu
RS-model
0.16 0.81 0.35 0.079 20 (100% control) 0.9867
5 (100% relapse) 0.9812
2.5 (100% relapse)0.9873

4. Results

In order to demonstrate the feasibility and performance of the RS model, we first calibrated the model for five different cancer cell lines (colorectal HCT-116 and LS-174T, breast MDA-MB-468, squamous cell SCC-25, and pharynx carcinoma FaDu) from six individual experiments of untreated growth [1,18,24] and compared the goodness of fit with the models previously proposed for these experiments (Table 1). The experiments included the cell lines HCT-116, LS 174T, MDA-MB-468, and SCC-25, which have been previously compared to a nonspatial model [24], HCT-116 with a comparison to a cellular automaton model [1], and FaDu, for which no corresponding model has been proposed [18]. The goodness of fit was quantified by the coefficient of determination R 2 with respect to the spheroid volume, as reported for previous models [24]. In all cases of untreated growth, the RS model yields similar or higher goodness of fit than the corresponding models proposed for these experimental data. As an example, experimental spheroid radii R ^ spheroid ( t ) and model predictions R spheroid ( t ) are displayed for HCT-116 in Figure 2a, while the corresponding figures for the other cell lines can be found in Figure A1, Figure A2, Figure A3, Figure A4 and Figure A5 along with the same results reported in terms of spheroid volume. Furthermore, while the goodness of fit is only reported with regard to the spheroid radius, the RS model is additionally calibrated to reproduce the dynamics of the secondary necrotic core (Figure 2a). Note that in the RS model the secondary necrotic core is a feature emerging from the dynamics within the spheroid, while for the nonspatial model proposed for the other cell lines [24] the necrotic radius R necrotic is simply identified with the anoxic radius r an . In particular, the distribution of membrane-defect and proliferation-competent cells over the radius of the spheroid is resolved, as shown by the examples of the first and last time point in Figure 2b,d; see Video S1 for the full dynamics over time.
Subsequently, the model was applied to experimental results after radiotherapy, available for HCT-116 at doses of 2 , 5 , 10 Gy [1] and for FaDu at doses of 2.5 , 5 , 20 Gy [18]; see Table 2 for the parameters and goodness of fit analogous to Table 1. For HCT-116, the RS model reproduces the dynamics of the spheroid after treatment as well as the model proposed along with the data. Note that only the probabilities for mitotic catastrophe P mc are additionally calibrated based on the growth curve at 10 Gy (Figure 3), while the data for 2 and 5 Gy validate the model prediction (Figure 4 and Figure 5). The RS model reproduces the experimental results for FaDu with goodness of fits comparable to the case of HCT-116 (Figure A6, Figure A7 and Figure A8). Because a very wide range of radiosensitivities α RT , β RT has been reported in the literature for FaDu [17,59], we tried to choose apt values with respect to the dynamics at 5 Gy, which is the dose most sensitive to these parameters.
We highlight that the spatial resolution and agreement with the experimental results is achieved without increasing the number of fit parameters compared to the cell-based model. All the model parameters are calibrated within previously reported or physiologically reasonable ranges; see the comparison with the values reported in the literature in Table 1. Considering the challenge of parameter identifiability typical of data-driven models, the calibrated parameters reveal additional insights into cell-specific characteristic of spheroid dynamics. From the analytic solution of an ODE model of the effective spheroid dynamic, it can be inferred that the slope of a typical growth curve is determined by the product of the proliferation rate γ and shell width d r = κ d r * , which sets the spatial scale for cell transport and distribution of daughter cells from proliferation (see Appendix C and Figure A11). This means that at intermediate-to-large spheroid sizes R spheroid > 3 · d r , for which effectively only an outer shell of the spheroid is able to proliferate, the proliferation rate ( γ in the case of untreated growth and γ ( 1 2 P mc ) after radiation) and d r cannot be inferred individually from the growth curves, only from their mutual product. However, the radial dynamics are exponential at a small spheroid radius R spheroid d r . The exponential phase corresponds to the scenario in which all proliferation-competent cells within the spheroid can proliferate and the exponent is essentially set by the proliferation rate. This behavior is particularly pronounced for FaDu after strong radiation for R spheroid < 100 µm (Figure A6), and to some degree for MDA-MB-468 (Figure A2. This not only allows us to determine d r = κ d r * and γ independently for these cases, it demonstrates the biological relevance of the spatial scale d r . In particular, for the two cases of MDA-MB-468 and LS-174T with relatively large κ , there is a lower bound for κ 5.4 and 5.7 , respectively, assuming the largest proliferation rate within the range observed in monolayer, i.e., ln ( 2 ) / γ > 30 h for both cell lines. Thus, we predict that for these two cell lines the exponential growth regime should be observable for spheroid sizes in the range of R spheroid [ d r , 3 d r ] [ 90 , 260 ] µm, which is currently slightly below the experimentally observed sizes. Figure A12 exemplifies the influence of different pairs of the proliferation rate γ and parameter κ for the FaDu cell line with a 20 Gy irradiation dose.

4.1. Parameter Transfer to a Cellular Automaton

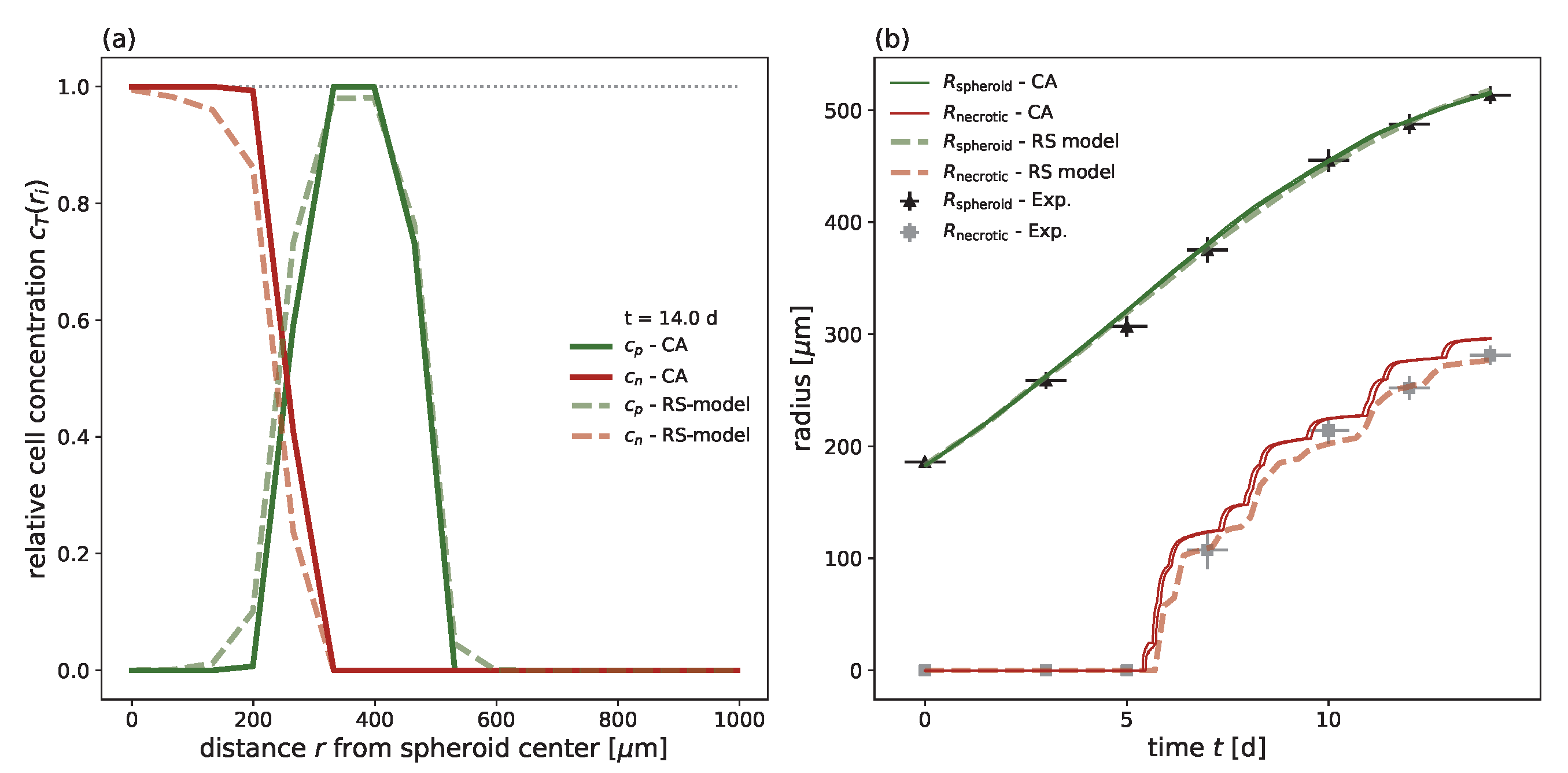

The parameters of the RS model can be translated to a cell-based model which reflects analogous cell mechanisms, as the processes incorporated in the RS model are generic. i.e., cells consume oxygen with a rate a and proliferate with a rate γ given sufficient oxygen and free space in their neighborhood. The size of the directionally unbiased interaction neighborhood considered for placing potential offspring of a cell in the cellular automaton is directly related to the shell width of the RS model. In addition, cells with insufficient oxygen supply become membrane-defect cells at a rate ϵ , the volume occupied by these membrane-defect cells is reduced with a rate δ , and all cells move inwards to keep the spheroid composition dense. A cell-based model calibrated in this way displays similar dynamics on average as the RS model while additionally exhibiting statistical variation originating from the stochastic nature of the cell-based processes. This can be used to theoretically predict spheroid control probabilities and spheroid control doses for irradiation therapies, where spheroid relapse and control are distinguished and can serve as as basis to optimize experimental design for in vitro dose ranges and potentially fractionated radiation.
To demonstrate parameter transfer, we chose a cellular automaton as an example, similar to that of Brüningk et al. [1] (see Appendix H for details) and used the FaDu cell line. For brevity, we focused on untreated growth. As explained above, almost all parameters of the RS model can be directly transferred to the cellular automaton; the only exceptions are the inwards transport rate λ and shell width d r = κ d r * , which are set through multiples κ of a single cell diameter d r * . For technical reasons involving computational speed (see Appendix G for details), we chose to replace the inwards transport rate with a rate-independent inwards shuffle leading to the requirement that the Monte Carlo time step length d t of the cellular automaton be sufficiently small; see Appendix H for details.
Additionally, the shell width d r in the RS model, and consequently κ , defines the size of the interaction neighboorhood with the mean distance d neigh in the 3D cellular automaton, i.e., it determines the maximal distance at which a cell’s daughter cell can be placed. In contrast to classical cellular automata, we allow higher orders of the typical Moore and von Neumann neighboorhoods and random alternations between them, where the order k is a suitably chosen integer. We demonstrate that there is an almost perfect linear dependency between κ and the mean cell distance d n e i g h of a chosen interaction neighborhood κ 1.19 d n e i g h 0.29 ; see Figure A14 and Table A4 for more details. We use this as a basis to specify an interaction neighborhood for the example of the FaDucell line; a neighborhood which alternates 50:50 between a Moore neighboorhood of order k = 3 ( d neigh = 3.34 ) and k = 4 ( d neigh = 4.31 ) corresponds to κ 4.26 , which is close to the value of κ = 4.31 calibrated with the RS model for FaDu. We find good agreement for the radii R spheroid and R necrotic over time between both models as well as for the cell concentrations (Figure 6).

5. Discussion

We propose an effectively 1D radial-shell (RS) model for simulating 3D tumor spheroid dynamics with and without radiotherapy while taking into account the oxygen-dependent radiosensitivity of cells. By deliberately exploiting the approximate radial symmetry of spheroids as evident in the data, we are able to considerably reduce the computational complexity of our model without compromising the quality of agreement between model and data compared to previous genuinely 3D cell-based models. We show that the proposed RS model reproduces untreated growth and radiotherapy response experiments for many different cell types and doses, including estimates of the secondary necrotic core, while restricting the parameters to biologically realistic ranges. At the same time, our model has sufficient computational performance to allow for multi-parametric optimization, enabling fits which are similar or better than those obtained from models originally proposed for the data. Additionally, we have shown through examples that there is a parameter mapping between the new RS model and related 3D cell-based models that leads to full agreement of the two models with respect to common experimentally relevant observables. In this way, we open up a way for efficient multi-parametric optimization of those cell-based models while at the same time demonstrating the adequacy of dimensional reduction.
The RS model is an effective implementation of key cell-based mechanisms underlying tumor spheroid dynamics and oxygen-dependent therapy response that is parameterized according to biological interpretables and to some extent experimentally identifiable quantities. In particular, we show that the shell size d r = κ d r * in the RS model translates to the size of the neighborhood in a 3D cellular automaton, and as such can be biologically interpreted as an effective range of proliferation. To guide experimental identification, we analytically predict the influence of the effective range d r on different spheroid growth regimes in the model; exponential growth for small radii is superseded by linear growth for larger radii, and the position of the area of transition is essentially determined by the effective range of proliferation (or equivalently, the shell size). Further, the increase in the exponential phase is set by the proliferation rate alone, while the gradient of the linear growth is determined by the product of proliferation rate and effective range of proliferation, which means that parameter identification is enhanced if observation of at least a few small radii can be included in the calibration process. The effect of the range of proliferation d r is observable in the experimental data for FaDu spheroids after strong irradiation. While the spheroids in the available experiments for the other considered cell lines are too large to exhibit the effect of d r , we predict that this effect should be experimentally observable for MDA-MB-468 and LS-174T. Based on our calibrations for these two cell lines, we estimate a range of spheroid diameters 180–520 µm in which the transition between linear and exponential growth regime is expected, which could be validated by future experiments.
It is known that there are several other cell states and intercellular processes present in a spheroid beyond those incorporated into the presented RS model, including proliferation-incompetent yet oxygen consuming membrane-intact cells, additional metabolic gradients including waste products, cell cycle arrest, and complex pathways for cell death and destruction due to anoxia or radiation. However, our goal is not to reflect all known biological processes within a spheroid but to propose an effective model which, as demonstrated, is sufficient to reproduce the available experimental growth curves based on a few key mechanisms. The model can be easily extended with additional cellular mechanisms if systematic data related to these mechanisms are available. Moreover, it can be used as a framework to include and theoretically analyze the potential effects of additional determinants, such as genetic heterogeneity of the cells modifying their motility, growth, and radioresponse characteristics, cellular plasticity [60,61], stochasticity in cellular response behavior, and loco-regional and spatio-temporal pathophysiological phenomena of tumor tissues such as chronic and acute hypoxia. While it is straightforward to incorporate additional biological processes into the RS model (e.g., the constant outer oxygen pressure ρ 0 may be replaced by a time-dependent function ρ 0 ( t ) to mimic acute and intermittent hypoxia), these extensions require the introduction of additional parameters. This is only sensible if these parameters are already known from independent experiments or if their impact is observable in complementary measurements which can be compared to simulation results, e.g., stained histological sections [23,24,46,62], cell counts [46,62,63], cell cycle imaging [33], or genetic heterogeneity. Furthermore, while estimates of several cell line-specific parameters can be found in the literature, e.g., for proliferation rates ([51,52,53,54,55,56,57] and DSMZ (www.dsmz.de)), most of these originate from monolayer experiments. Moreover, the effective values of such parameters in spheroid experiments depend not only on the cell line but on the details of the experimental setup, e.g., oxygenation, nutrition concentration, and seeding procedure. This becomes evident when comparing the two growth experiments without treatment on HCT-116 [1,24], which display considerably different spheroid growth curves and consequently result in different estimated proliferation rates for the RS model. This highlights the importance of systematic high quality spheroid experiments with detailed parameter reporting [44].
In the future, we plan to apply and verify the RS model in several scenarios. First, the parameters can be calibrated based on spheroids of a particular initial size, with the calibrated model consequently used to predict the untreated growth and therapy response of larger or smaller spheroids. This can extend the informative value of spheroid experiments and represent a first step in statistical projection from spheroid control probabilities to tumor control probabilities, as spheroids may be considered avascular microareas of varying size within a macroscopic tumor. Second, the parameters resulting from calibration of the RS model can help to uncover potential differences between spheroid types and experimental conditions as a way to stimulate extended studies and guide future experimental design. For instance, the anoxic death rate, the rate at which the volume occupied by membrane-defect cells is reduced, and the inwards velocity are all parameters of the RS model that can be readily interpreted in biological terms but which have not yet been directly identified experimentally. Third, the parameters can be calibrated based on spheroids treated with a single dose, and the calibrated model can then be used to predict the response to fractionated treatment. While fractionated treatment is more realistic than single-dose treatment, the corresponding in vitro experiments with spheroids are more laborious. In this context, model simulations can help to identify the relevant dose range, thereby reducing the required number of experiments. Finally, our results suggest that the proposed model has the potential to guide the design of future experiments at experimentally unseen doses. We have demonstrated for two examples that, following calibration based on curves from untreated growth and at high radiation dose, the model is able to predict the therapy response at intermediate doses for given radiosensitivities α RT and β RT from monolayer experiments. A prerequisite for this application is the determination of effective radiosensitivities in spheroids and their relation to the corresponding monolayer values. While it should be possible to fit such effective radiosensitivities based on at least two growth curves at intermediate doses, a more promising route would be to independently extract these values from spheroid control probabilities using a suitable statistical model.
The proposed RS model framework stands out through its computational efficacy while maintaining high conformance to genuine 3D cell-based models. It can serve as an expedient means to theoretically analyze and question experimental data by providing estimates of important influencing factors and allowing extrapolation to experimentally unexamined conditions. In particular, it could be used in the future to optimize fractionation and scheduling of single or multi-modality treatments as well as to explore the consequences of competing hypotheses on the cellular therapy response in order to gain understanding and guide future experiments.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers15235645/s1, Supporting Information Movie S1 provides an example illustration of the RS model for untreated growth experiment HCT-116 (MP4).

Author Contributions

Conceptualization, A.V.-B., L.A.K.-S. and S.L.; methodology, A.V.-B., S.L., S.M., S.A., L.A.K.-S. and F.F.; software, F.F. and S.L.; validation, A.V.-B., S.L., S.A. and F.F.; formal analysis, F.F., S.A., L.A.K.-S. and A.V.-B.; investigation, S.M., S.A. and S.L.; resources, S.M. and A.V.-B.; data curation, F.F., S.M. and S.L.; writing—original draft preparation, F.F., A.V.-B. and S.L.; writing—review and editing, A.V.-B., F.F., S.L., S.M., S.A. and L.A.K.-S.; visualization, F.F., A.V.-B. and S.L.; supervision, S.A., A.V.-B. and S.L.; project administration, L.A.K.-S. and A.V.-B.; funding acquisition, L.A.K.-S. and A.V.-B. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge that this research has been co-financed by the EU, the European Social Fund (ESF), and by tax funds on the basis of the budget passed by the Saxon state parliament (project SAB-Nr. 100382145: A.V.-B., S.L., F.F.), the Sächsisches Staatsministerium für Wissenschaft und Kunst (SMWK) (project FORZUG II TP 3: A.V.-B., F.F.), the Bundesministerium für Bildung und Forschung (BMBF 16dkwn001a/b: A.V.-B., L.K-S, S.L., F.F.), and the DFG (project AL1705/11: S.A.). The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript. The publication of this article was funded by the Open Access Publication Fund of Hochschule für Technik und Wirtschaft Dresden—University of Applied Sciences and by Deutsche Forschungsgemeinschaft (DFG, German Research Foundation)—491382348.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
RS modelRadial-Shell model
ODEordinary differential equations
PDEpartial differential equation
3Dthree-dimensional
2Dtwo-dimensional
1Done-dimensional
LQ modellinear quadratic model
OERoxygen enhancement ratio

Appendix A. Additional Comparison of RS Model to Untreated Growth Experiments

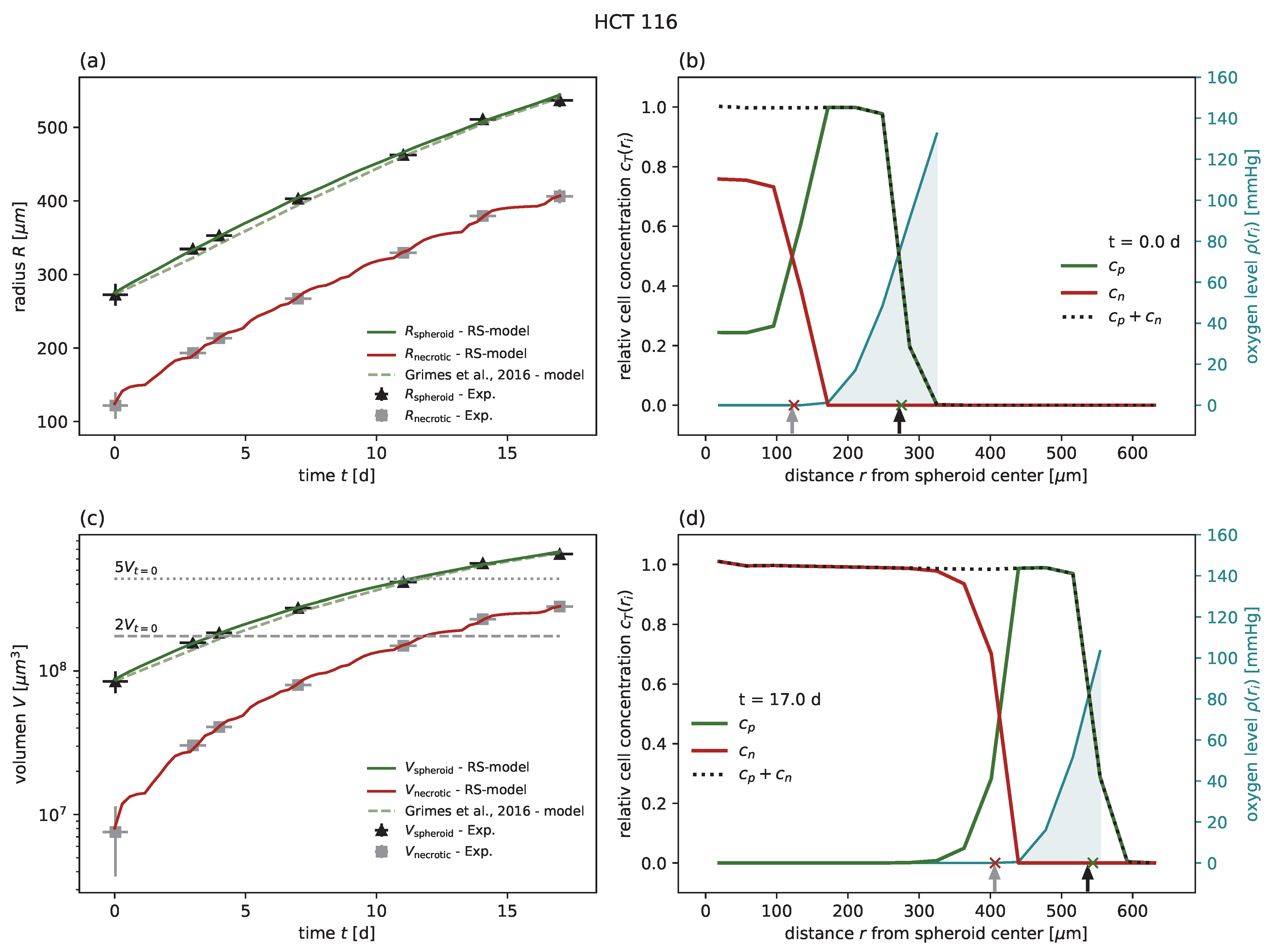

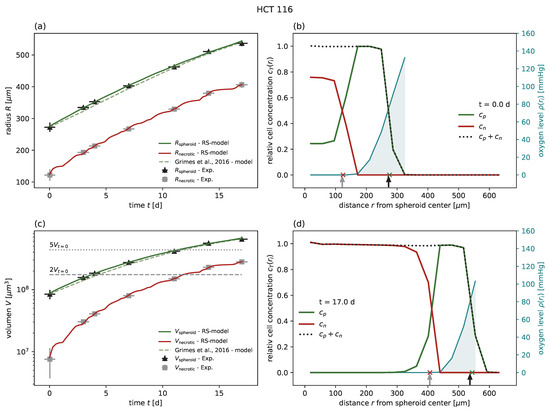

Figure A1. (a) The RS model reproduces the outer radius (dark green) for untreated growth of the cell line HCT-116, with experimental data from Grimes et al. [24] (black crosses) even better than the model proposed along with the data (light green dashed). Note that the necrotic radius during the experiment can be estimated (gray crosses; see main text Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 17 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Figure A1. (a) The RS model reproduces the outer radius (dark green) for untreated growth of the cell line HCT-116, with experimental data from Grimes et al. [24] (black crosses) even better than the model proposed along with the data (light green dashed). Note that the necrotic radius during the experiment can be estimated (gray crosses; see main text Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 17 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Cancers 15 05645 g0a1

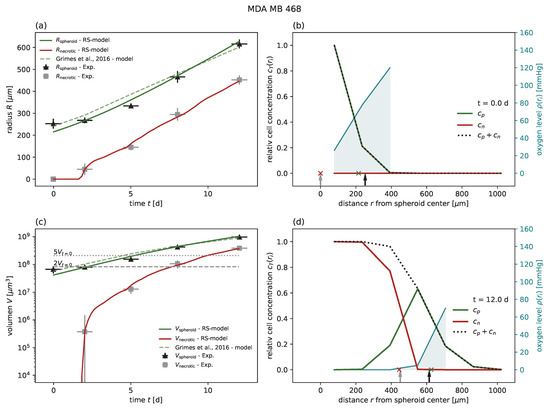

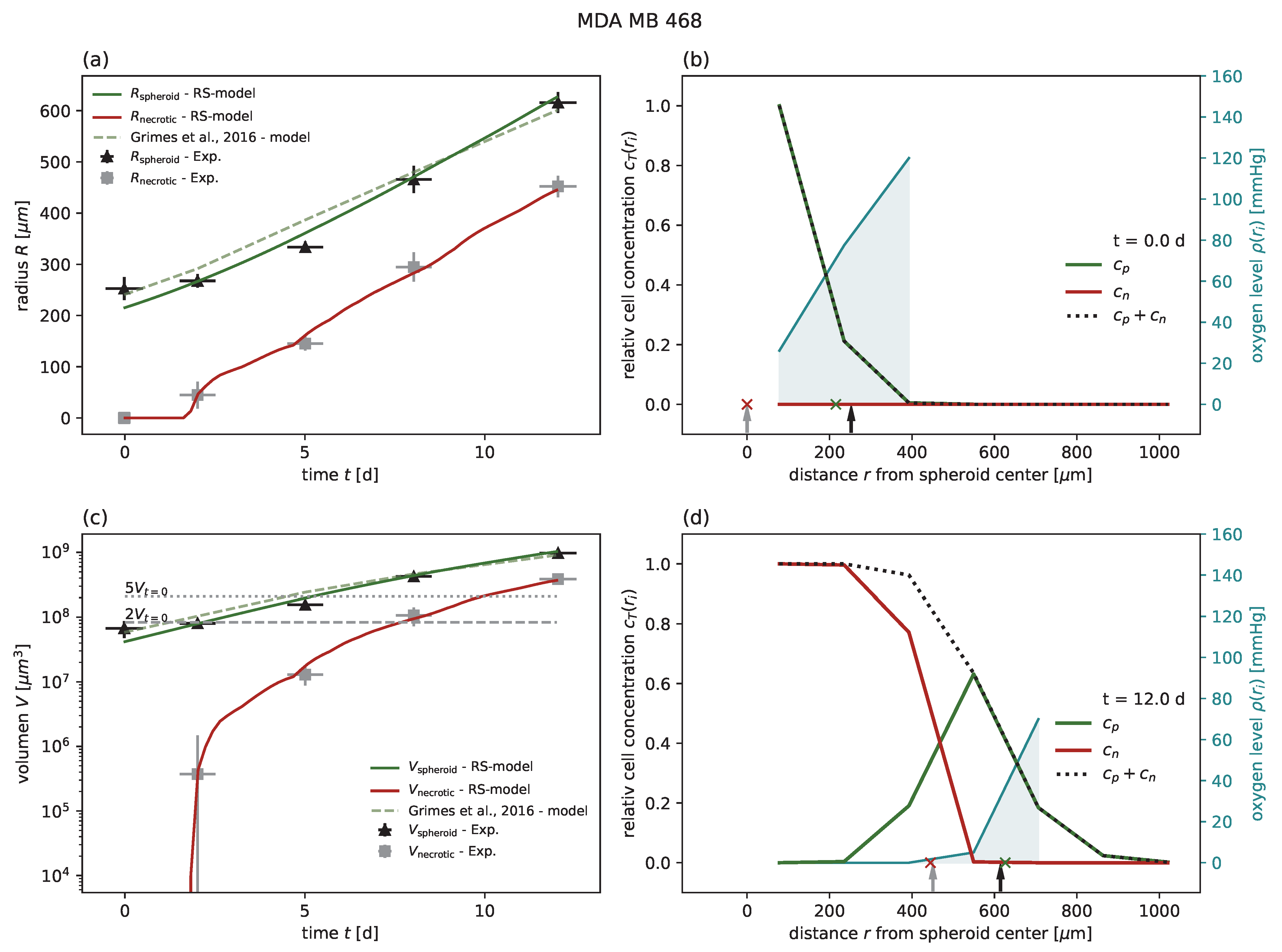

Figure A2. (a) The RS model reproduces the outer radius (dark green) for untreated growth of the cell line MDA-MB-468, with experimental data from Grimes et al. [24] (black crosses) even better than the model proposed along with the data (light green dashed). Note that the necrotic radius during the experiment can be estimated (gray crosses; see main text Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 12 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Figure A2. (a) The RS model reproduces the outer radius (dark green) for untreated growth of the cell line MDA-MB-468, with experimental data from Grimes et al. [24] (black crosses) even better than the model proposed along with the data (light green dashed). Note that the necrotic radius during the experiment can be estimated (gray crosses; see main text Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 12 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Cancers 15 05645 g0a2

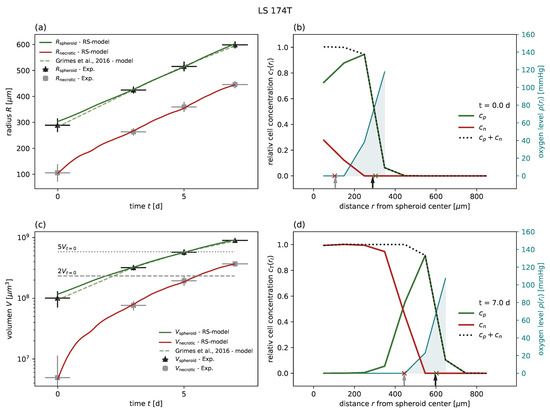

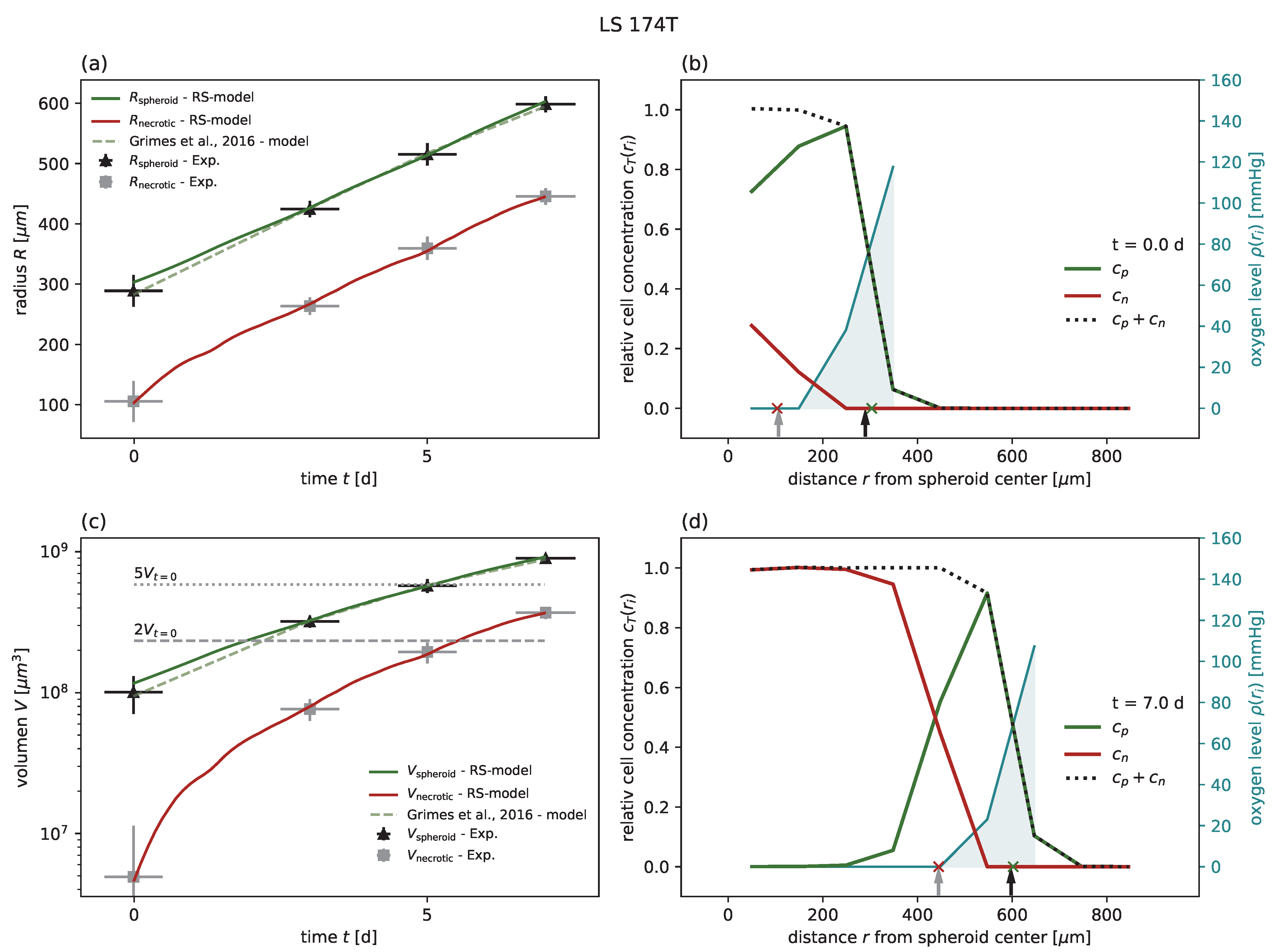

Figure A3. The RS model reproduces the outer radius (dark green) for untreated growth of the cell line LS-174T, with experimental data from Grimes et al. [24] (black crosses) even better than the model proposed along with the data (light green dashed). Note that the necrotic radius during the experiment can be estimated (gray crosses; see main text Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 7 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) ans membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Figure A3. The RS model reproduces the outer radius (dark green) for untreated growth of the cell line LS-174T, with experimental data from Grimes et al. [24] (black crosses) even better than the model proposed along with the data (light green dashed). Note that the necrotic radius during the experiment can be estimated (gray crosses; see main text Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 7 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) ans membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Cancers 15 05645 g0a3

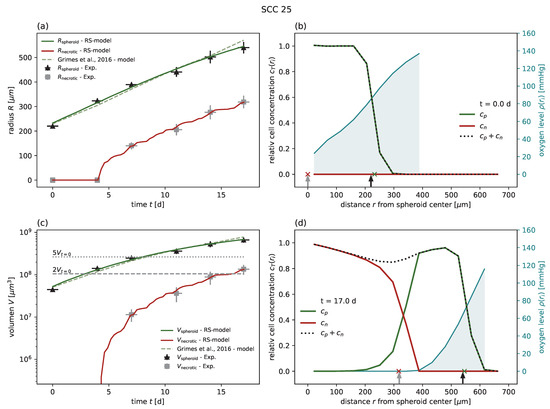

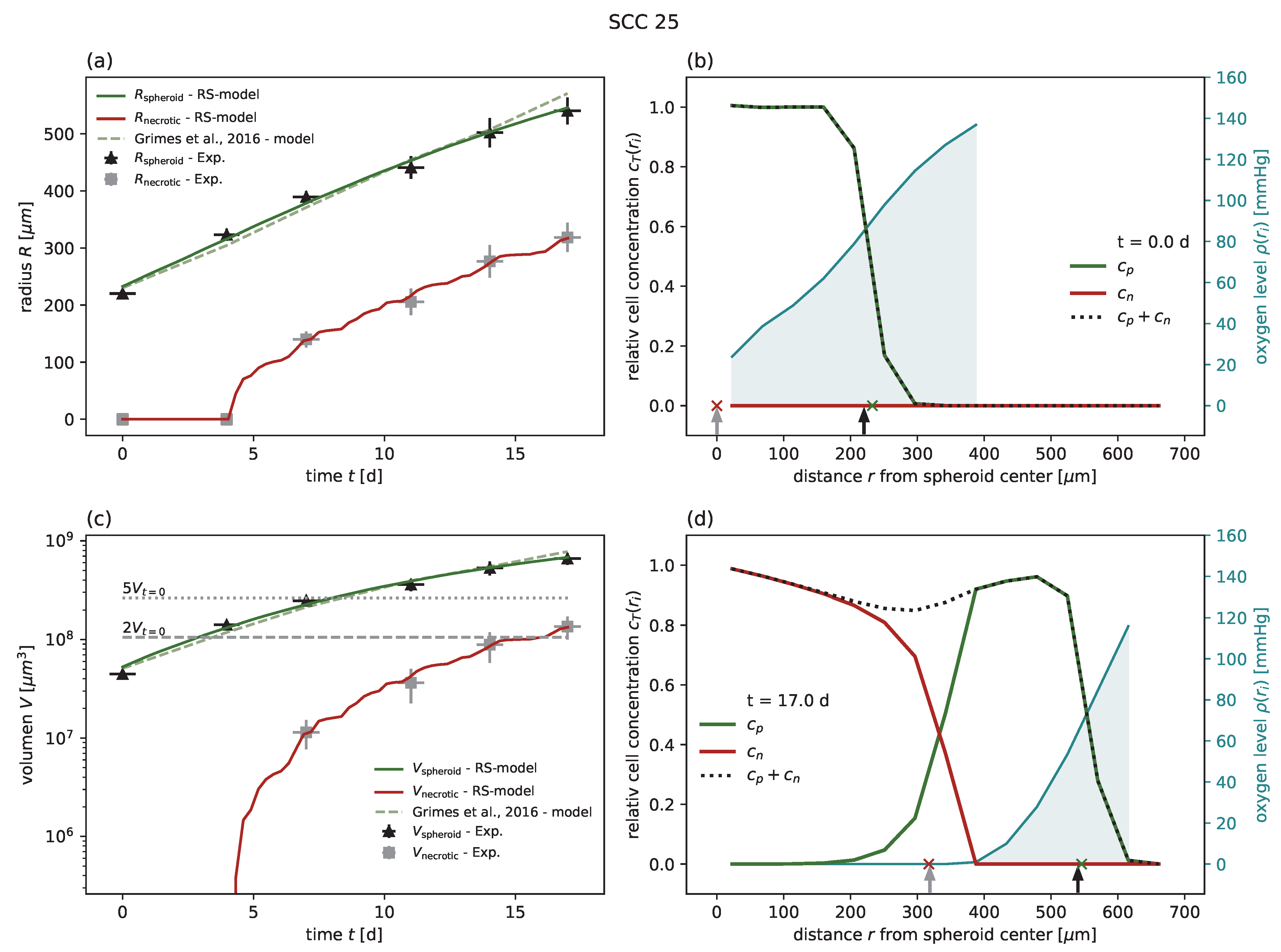

Figure A4. The RS model reproduces the outer radius (dark green) for untreated growth of the cell line SCC-25, with experimental data from Grimes et al. [24] (black crosses) even better than the model proposed along with the data (light green dashed). Note that the necrotic radius during the experiment can be estimated (gray crosses; see main text Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 17 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Figure A4. The RS model reproduces the outer radius (dark green) for untreated growth of the cell line SCC-25, with experimental data from Grimes et al. [24] (black crosses) even better than the model proposed along with the data (light green dashed). Note that the necrotic radius during the experiment can be estimated (gray crosses; see main text Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 17 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Cancers 15 05645 g0a4

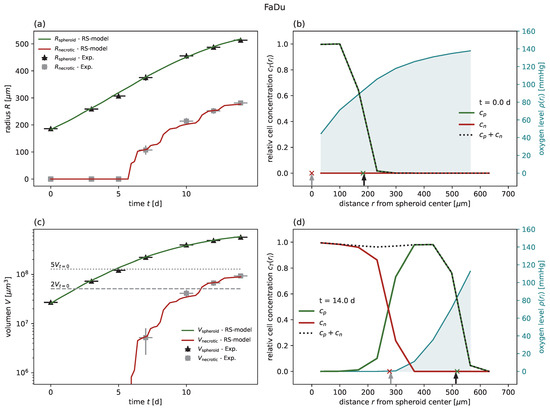

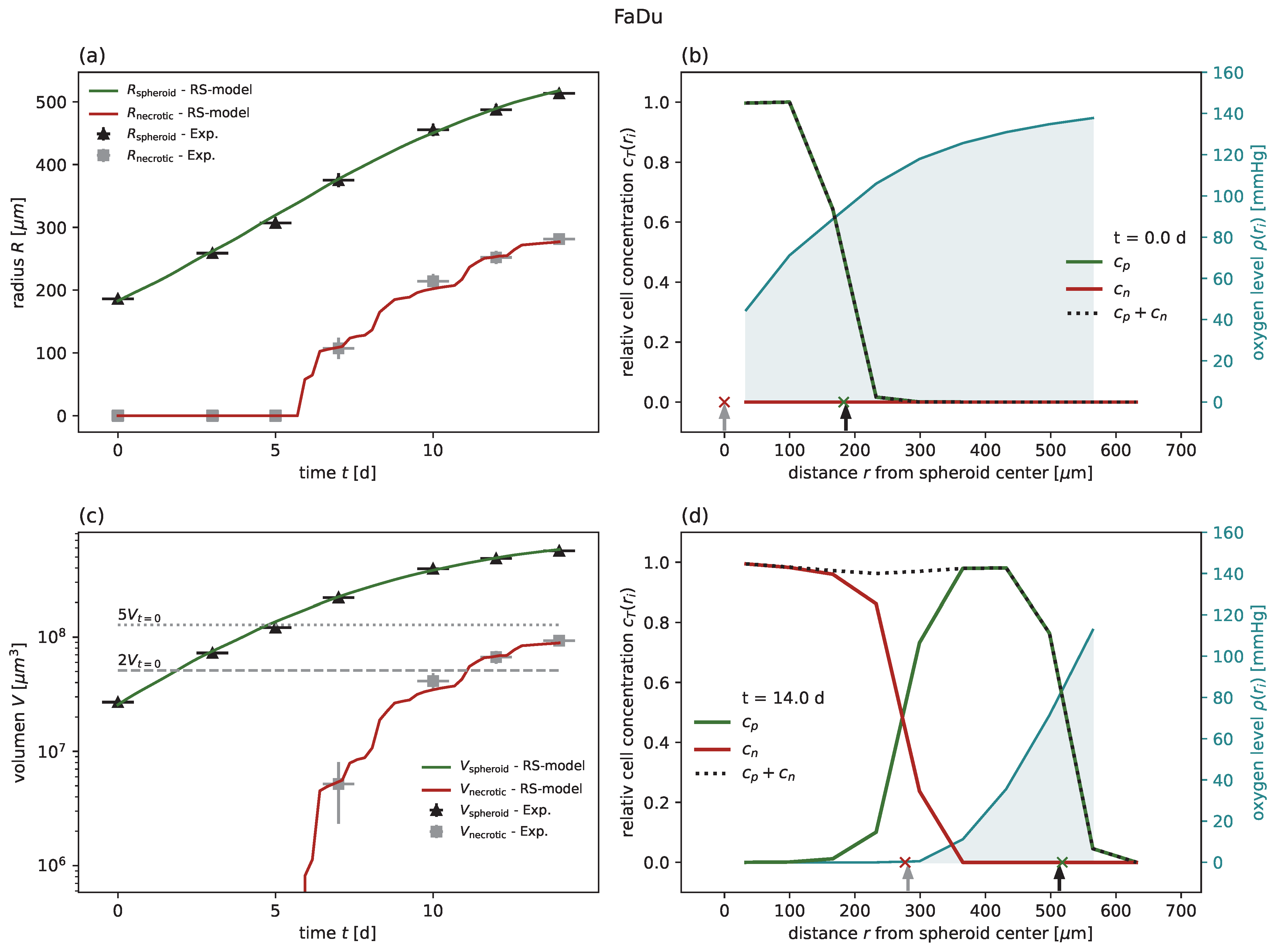

Figure A5. The RS model reproduces the outer radius (dark green) for untreated growth of the FaDu cell line, with experimental data from Chen et al. [18] (black crosses). Note that the necrotic radius during the experiment can be estimated (gray crosses; see main text Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 14 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Figure A5. The RS model reproduces the outer radius (dark green) for untreated growth of the FaDu cell line, with experimental data from Chen et al. [18] (black crosses). Note that the necrotic radius during the experiment can be estimated (gray crosses; see main text Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 14 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Cancers 15 05645 g0a5

Appendix B. Additional Comparison of RS Model to Radiotherapy Experiments

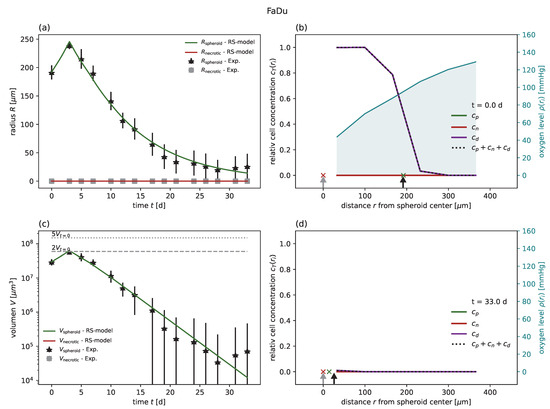

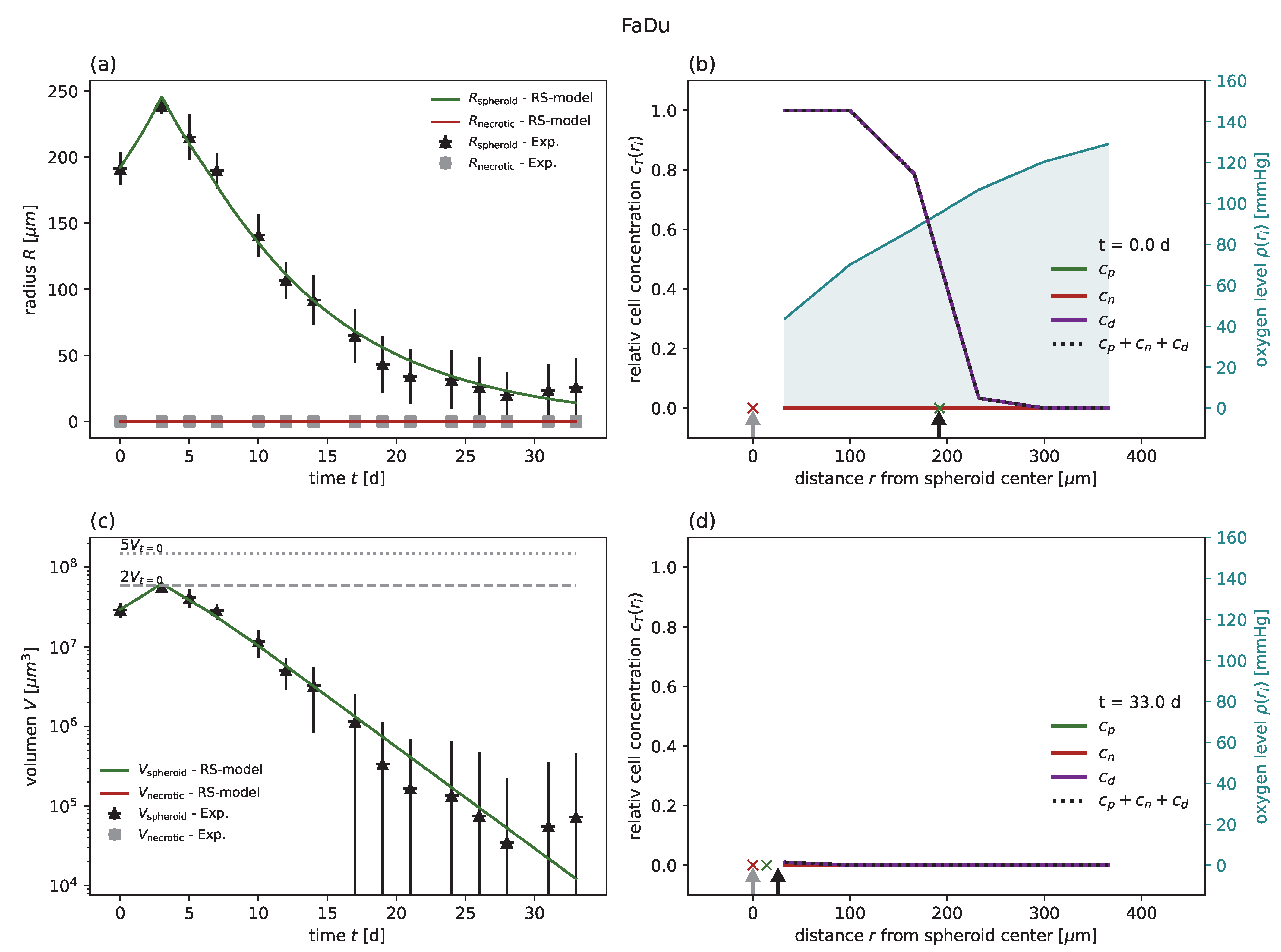

Figure A6. (a) The RS model reproduces the outer radius (dark green) for the FaDu cell line with 20 Gy radiation, experimental data from Chen et al. [18] (black crosses) as effectively as the model proposed along with the data (light green dashed). We used the parameters calibrated for untreated growth, only fitted the probabilities of mitotic catastrophe P mc 1 , P mc 2 , and adopted the radiosensitivities α RT and β RT from the ranges observed in Chen et al. [17] and Xu et al. [59]. Note that no necrotic core is expected for this regime (experimental estimate shown as gray crosses), which is reproduced by the RS model (red). The used parameters can be found in Table 1 and Table 2. (c) Volumes corresponding to the radii are displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 33 d of the experiment. Displayed are the cell concentrations of proliferation competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively.
Figure A6. (a) The RS model reproduces the outer radius (dark green) for the FaDu cell line with 20 Gy radiation, experimental data from Chen et al. [18] (black crosses) as effectively as the model proposed along with the data (light green dashed). We used the parameters calibrated for untreated growth, only fitted the probabilities of mitotic catastrophe P mc 1 , P mc 2 , and adopted the radiosensitivities α RT and β RT from the ranges observed in Chen et al. [17] and Xu et al. [59]. Note that no necrotic core is expected for this regime (experimental estimate shown as gray crosses), which is reproduced by the RS model (red). The used parameters can be found in Table 1 and Table 2. (c) Volumes corresponding to the radii are displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 33 d of the experiment. Displayed are the cell concentrations of proliferation competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively.
Cancers 15 05645 g0a6
Figure A7. (a) The RS model reproduces the outer radius (dark green) for the FaDu cell line with 5 Gy radiation, experimental data from Chen et al. [18] (black crosses). We used the parameters calibrated for untreated growth, the values for P mc 1 and P mc 2 fitted at 20 Gy, and adopted the radiosensitivities α RT and β RT from the ranges observed in Chen et al. [17] and Xu et al. [59]. Note that no necrotic core is expected for this regime (experimental estimate shown as gray crosses), which is reproduced by the RS model (red). The used parameters can be found in Table 1 and Table 2. (c) Volumes corresponding to the radii are displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 21 d of the experiment. Displayed are the cell concentrations of proliferation competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively.
Figure A7. (a) The RS model reproduces the outer radius (dark green) for the FaDu cell line with 5 Gy radiation, experimental data from Chen et al. [18] (black crosses). We used the parameters calibrated for untreated growth, the values for P mc 1 and P mc 2 fitted at 20 Gy, and adopted the radiosensitivities α RT and β RT from the ranges observed in Chen et al. [17] and Xu et al. [59]. Note that no necrotic core is expected for this regime (experimental estimate shown as gray crosses), which is reproduced by the RS model (red). The used parameters can be found in Table 1 and Table 2. (c) Volumes corresponding to the radii are displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 21 d of the experiment. Displayed are the cell concentrations of proliferation competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively.
Cancers 15 05645 g0a7

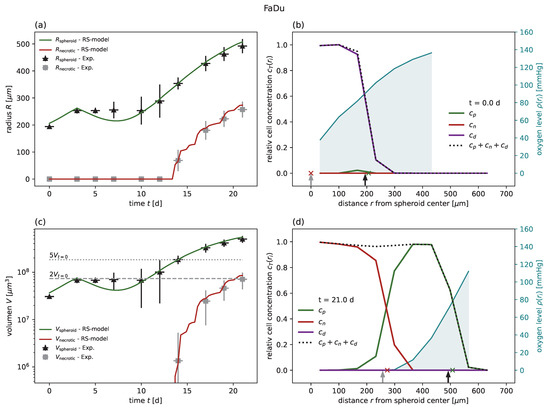

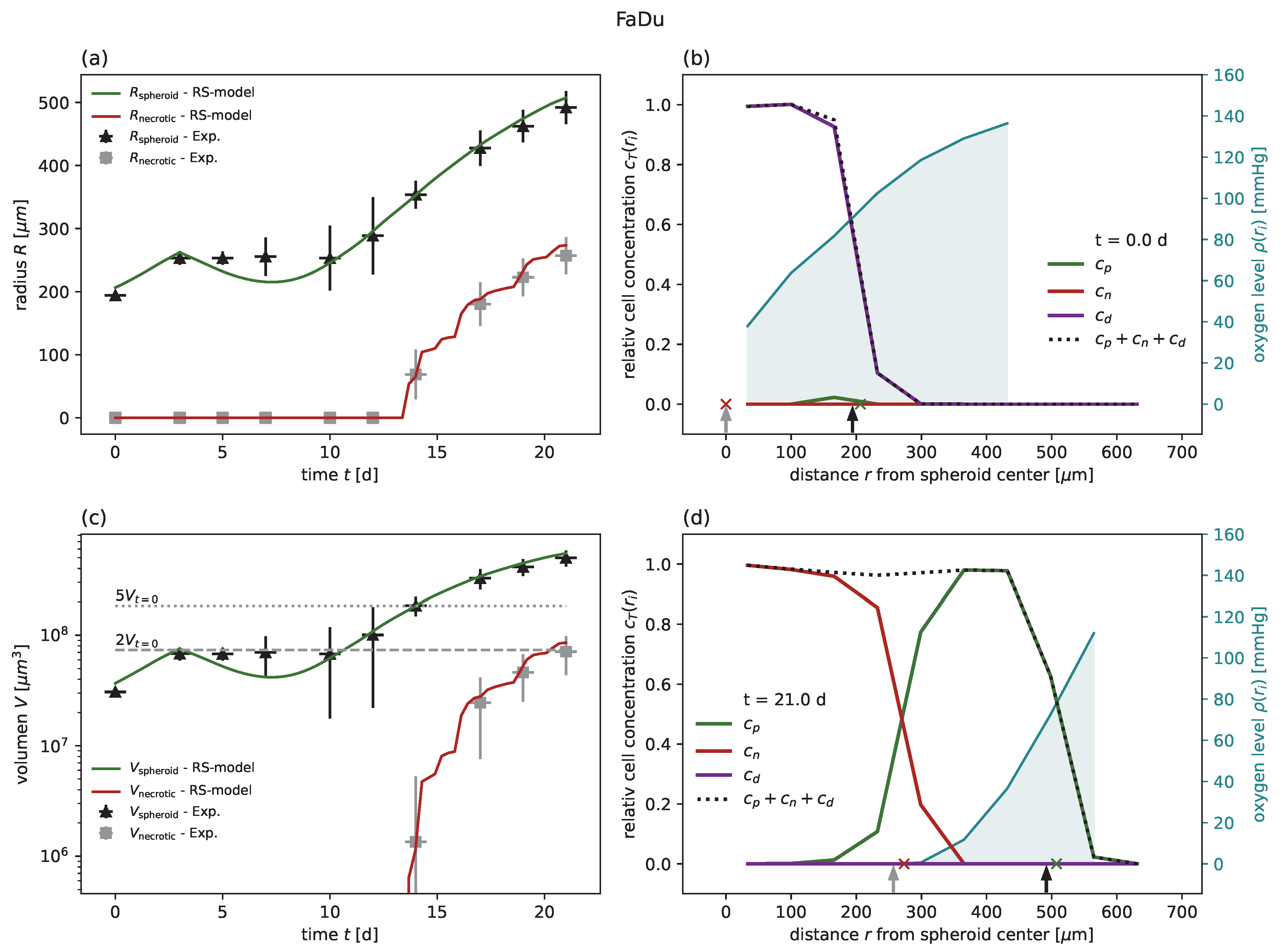

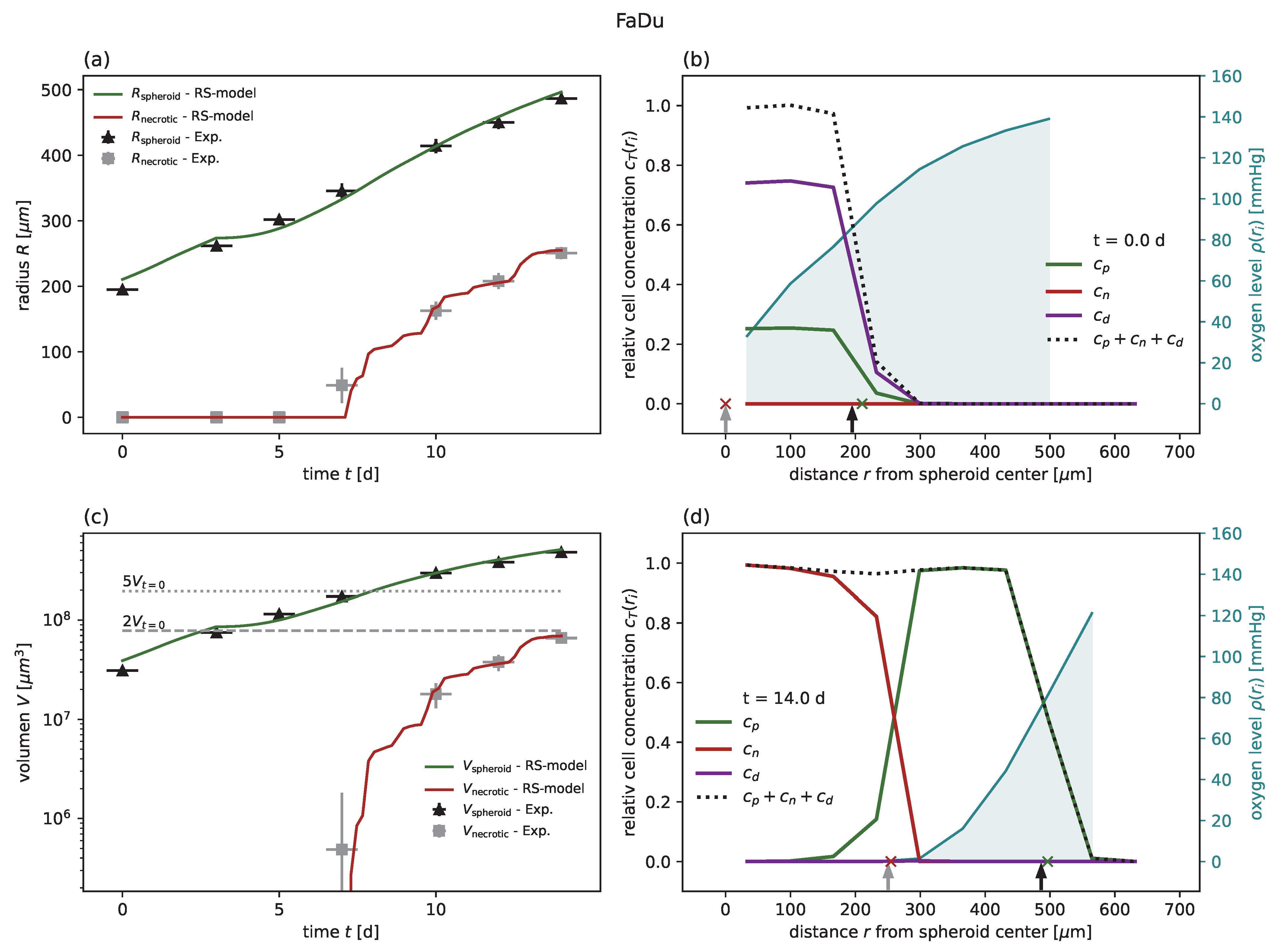

Figure A8. (a) The RS model reproduces the outer radius (dark green) for the FaDu cell line, with 2.5 Gy radiation experimental data from Chen et al. [18] (black crosses). We used the parameters calibrated for untreated growth, the values P mc 1 and P mc 2 fitted at 20 Gy, and adopted the radiosensitivities α RT and β RT from the ranges observed in Chen et al. [17] and Xu et al. [59]. The necrotic radius of the experiments can be estimated (gray crosses; see Section 3 for details). The RS model can predict the necrotic radius (red) in a good manner. Note that the necrotic radius of the RS model appears jagged due to the spatial discretization of r 0 . The used parameters can be found in Table 1 and Table 2. (c) Shows the same data plotted for the volume in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 14 d of the experiment. Displayed are the cell concentrations of proliferation competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively.
Figure A8. (a) The RS model reproduces the outer radius (dark green) for the FaDu cell line, with 2.5 Gy radiation experimental data from Chen et al. [18] (black crosses). We used the parameters calibrated for untreated growth, the values P mc 1 and P mc 2 fitted at 20 Gy, and adopted the radiosensitivities α RT and β RT from the ranges observed in Chen et al. [17] and Xu et al. [59]. The necrotic radius of the experiments can be estimated (gray crosses; see Section 3 for details). The RS model can predict the necrotic radius (red) in a good manner. Note that the necrotic radius of the RS model appears jagged due to the spatial discretization of r 0 . The used parameters can be found in Table 1 and Table 2. (c) Shows the same data plotted for the volume in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 14 d of the experiment. Displayed are the cell concentrations of proliferation competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively.
Cancers 15 05645 g0a8

Appendix C. Equations for the RS Model

The 1D radial-shell (RS) model describes the dynamics of concentrations c T ( r i ) of cells of different types T across the radial shells of a spheroid, where the i-th shell is centered at r i = ( i + 1 / 2 ) d r and has width d r . In accordance with the dynamics of individual cells, the dynamics of the concentrations are governed by the following processes, some of which depend on the local oxygen concentration ρ ( r i ) :
  • Net gain by proliferation of proliferation-competent cells, T = p , and of damaged cells, T = d , with probability 1 P mc : f γ ( r i , T , ρ )
  • Net gain due to inward transport for all cell types: f λ ( r i , T )
  • Anoxic death of proliferation-competent and damaged cells T { p , d } : f ϵ ( r i , T , ρ )
  • Reduction of volume occupied by membrane-defect cells: f δ ( r i )
  • Death due to mitotic catastrophe for damaged cells, T = d , with probability P mc : f mc ( r i , ρ ) .
For the above, the time scales are set by corresponding rates, that is, the proliferation rate γ , inward transport rate λ , anoxic death rate ϵ , and reduction rate δ . The time-continuous dynamics of the RS model are then provided by a set of ordinary differential equations:
d c p ( r i ) d t = f γ ( r i , p , ρ ) + f λ ( r i , p ) f ϵ ( r i , p , ρ ) d c n ( r i ) d t = f λ ( r i , n ) + f ϵ ( r i , p , ρ ) + f ϵ ( r i , d , ρ ) f δ ( r i ) d c d ( r i ) d t = ( 1 P mc ) f γ ( r i , d , ρ ) P mc f mc ( r i , ρ ) + f λ ( r i , d ) f ϵ ( r i , d , ρ ) ,
with the individual terms detailed as follows. First, the net gain due to proliferation f γ
f γ ( r i , T , ρ ) = γ k = 1 1 c T ( r i + k ) V i + k V i l ogistic ( i + k ) n eighbouring ( i + k , i ) [ 1 L r h ( r i + k ) ] .
describes the increase γ c T ( r i ) V i of proliferation-competent cells T = p due to proliferation with rate γ proportional to the number of cells in the shell c T ( r i ) V i . This proliferation is limited by the available free space in the immediate neighborhood of the cells, which is incorporated using the term l ogistic ( i ) :
l ogistic ( i ) = L j = 1 1 ( 1 T c T ( r i + j ) ) V i + j V i , if i = 1 , . . . , n L j = 0 1 ( 1 T c T ( r i + j ) ) V i + j V i , if i = 0 0 , if i = 1 , where
L ( x ) = 0 , if x < 0 x , if x 1 1 , otherwise .
This means that the proliferation from shell i is linearly reduced following l ogistic ( i ) < 1 whenever the total available free space in shell i and in its directly neighboring shells i + 1 and i 1 is less than the volume V i of the shell. Furthermore, the added cell volume from proliferation in shell i is distributed across shells i 1 , i, i + 1 proportionally to the available space in the respective shells. The fraction of added cell volume originating from proliferation in shell i o that a neighboring target shell i τ { i o 1 , i o , i o + 1 } receives is expressed by the term n eighbouring ( i o , i τ ) :
n eighbouring ( i o , i τ ) = ( 1 T c T ( r i τ ) ) V i τ j = 1 1 ( 1 T c T ( r i o + j ) ) V i o + j , if i o = 1 , . . . , n ( 1 T c T ( r i τ ) ) V i τ j = 0 1 ( 1 T c T ( r i o + j ) ) V i o + j , if i o = 0 0 , if i o = 1 .
This fraction is determined by the ratio of the free volume of the target shell i τ and the total free volume in all potential origin shells { i o 1 , i o , i o + 1 } . Consequently, the net gain for a shell i o encompasses not only the gain from its own proliferation but from the proliferation of the neighboring shells, as incorporated by the sum k = 1 1 c T ( r i + k ) in Equation (A2). This gain of cell volume in shell i is translated to a corresponding cell concentration in by the normalization 1 / V i . The special cases i o { 1 , 0 } in Equation (A5) numerically ensure a von Neumann boundary condition at the center of the spheroid. Finally, proliferation is assumed to only be possible if the local oxygen pressure is above the hypoxic threshold ρ h , which is implemented in Equation (A2) by the term 1 L r h ( r i ) with
L r x ( r i ) = 0 , if r i d r 2 > r x r x r i d r 2 d r , if r x r i d r 2 , r i + d r 2 1 , otherwise .
This term restricts proliferation to cells above the hypoxic radius r h at which ρ ( r h ) = ρ h . Note that this does not change the cell type of proliferation-competent cell T = p ; it only switches off their proliferation when they experience hypoxic conditions ρ an < ρ i < ρ h . If the the hypoxic radius r h falls into shell i, r h [ r i d r 2 , r i + d r 2 ] , proliferation in this shell is proportional to the fraction of the non-hypoxic volume 1 r h r i d r 2 d r . All shells located more centrally have no proliferation due to hypoxia, while the proliferation in all shells located more outwardly is unaffected by hypoxia. Note that we adopted the small value ρ h = 0.5 mmHg from Grimes et al. [23,24] and obtained virtually the same results as for ρ h = ρ an = 0 mmHg, which we consequently used in the main text.
Second, the term P mc f mc in Equation (A1) reflects cell death due to mitotic catastrophe on the part of cells T = d damaged by irradiation with
f mc ( r i , ρ ) = γ c d ( r i ) l ogistic ( i ) [ 1 L r h ( r i ) ] .
This means, that damaged cells T = d are destroyed and immediately removed from the corresponding shell with probability P mc during proliferation. The term f mc reflects the cells which try to proliferate; refer to the net gain due to proliferation in Equation (A2). In turn, the term ( 1 P mc ) f γ ( r i , d , ρ ) represents the part of the damaged cells which proliferate normally.
Note that there is effective outward transport due to proliferation, where the added cell volume is distributed over all neighboring shells (Equation (A2)). Because the shell volume increases with increasing radius and the distribution is based on the available free volume (Equation (A5)), this inward transport is on average directed outwards. Thus, an effective inward transport f λ ( r i , T ) is incorporated in Equation (A1) including an inward transport rate λ , which reflects all biological processes, e.g., cell adhesion, that keep the tumor compact despite the reduction of volume occupied by membrane-defect cells in the center and proliferation at the surface. The net gain from the inward transport f λ
f λ ( r i , T ) = λ V i + 1 c T ( r i + 1 ) ( 1 T c T ( r i ) ) V i c T ( r i ) ( 1 T c T ( r i 1 ) ) ,
contains two parts, namely, the cell volume migrating from shell i + 1 to shell i and the cell volume migrating from shell i to shell i 1 . For the first part, the cell concentration of the more outer shell i + 1 is translated to a concentration in shell i via the ratio of the volumes V i and V i + 1 . Further, the inward transport is linearly restricted by depending on the free volume in shell i, 1 T c T ( r i ) .
Finally, the term f ϵ ( r i , T , ρ ) expresses the death of proliferation-competent and damaged cells T { p , d } due to anoxia:
f ϵ ( r i , T , ρ ) = ϵ c T ( r i ) L r an ( r i ) ,
converting them into membrane-defect cells T = n at a rate ϵ . This process is restricted to regions with insufficient oxygen, i.e., to radii below the anoxic radius r an with ρ ( r an ) = ρ an , which is incorporated by the factor L r an ( r i ) (Equation (A6)) in a manner analogous to the effect of hypoxia during proliferation. In turn, the volume occupied by membrane-defect cells T = n is reduced with rate δ according to f δ in Equation (A1)
f δ ( r i ) = δ c n ( r i ) .
In order to have no flow of cell volume at the center r = 0 and no inflow of cell volume at the outermost radius r = r max , boundary conditions have to be enforced for the dynamics.
Numerically, these boundary conditions are implemented via ghost shells beyond these boundaries at r 2 , r 1 , r n + 1 , r n + 2 , which have constant cell concentrations and volume. At the center of the tumor, i { 2 , 1 } , we set T c T ( r 1 ) = T c T ( r 2 ) = 1 and V 1 = V 2 = V i = 0 and use special cases in n eighbouring and l ogistic (Equations (A3) and (A5)). At the outer edge r max , we set a large volume V n + 1 = V n + 2 = 10 8 and zero cell concentration T c T ( r n + 1 ) = T c T ( r n + 2 ) = 0 such that cell volume is only transported outside. Note that r max has to be chosen as sufficiently large to ensure T c T ( r max ) 0 and avoid an impact of the outer boundary on the simulation.
The Python package solve_ivp from scipy.integrate was used to integrate the RS model equations. We set the integration methods to an Explicit Runge–Kutta method of order 3.

Appendix D. Determination of the Radial Oxygen Profile

The radial oxygen profile ρ ( r ) across the spheroid is essential for the biological processes reflected by the RS model. During untreated growth, it determines which cells are able to proliferate and which cells die due to anoxia; in addition, it governs the response of cells across the spheroid to radiation therapy. We present an approach to estimating the oxygen profile for a given tumor spheroid inspired by the method in Grimes et al. [23]. The 3D diffusion equation for the oxygen profile ρ ( x ̲ ) reads
t ρ ( x ̲ , t ) = D ρ Δ ρ ( x ̲ , t ) Φ ( x ̲ , ρ ( x ̲ , t ) ) , with
Φ ( x ̲ , ρ ( x ̲ , t ) ) = a , if x ̲ is within a cell and ρ ( x ̲ , t ) > ρ an 0 , otherwise .
where D ρ , a respectively denote the oxygen diffusion constant and the oxygen consumption rate at a point within a cell (e.g., in mmHg/s). The tumor spheroid is assumed to be rotationally symmetric ρ ( x ̲ , t ) = ρ ( r , t ) such that the equation simplifies to
t ρ ( r , t ) = D ρ 1 r 2 r r 2 ρ ( r , t ) r Φ ( r , ρ ( r , t ) ) .
Because the time scale for oxygen diffusion (∼ seconds) is orders of magnitude smaller than the time scale of cell cycle progression (∼ hours), it is reasonable to use the steady state solution at all times t ρ ( r , t ) = 0 , which leads to
1 r 2 r r 2 ρ ( r ) r = Φ ( r , ρ ( r ) ) D ρ .
Using the cell concentrations c ( r ) , the sink term Φ reads
Φ ( r , ρ ( r , t ) ) = a · c ( r ) , if ρ ( r , t ) > ρ an 0 , otherwise
leading to
1 r 2 r r 2 ρ ( r ) r = a · c ( r ) D ρ ,
for r > r an , with the boundary conditions
ρ ( r 0 ) = ρ 0 , ρ ( r an ) r = 0 , ρ ( r an ) = ρ an ,
These boundary condition specify that at the tumor surface at radius r 0 the oxygen pressure equals ρ 0 . Additionally, the oxygen profile converges at radius r an to the anoxic threshold ρ an , below which cells cannot consume oxygen any more. We integrated Equation (A16) using a computer algebra program:
ρ ˜ ( r ) = a 0 r an x 2 · c ( x ) d x a 0 r 0 x 2 · c ( x ) d x a · r an 0 r an x · c ( x ) d x + a · r 0 0 r 0 x · c ( x ) d x + D ρ · r an · ρ an D ρ · r 0 · ρ 0 · 1 D ρ · ( r an r 0 ) + a D ρ 0 r x · c ( x ) d x a D ρ · r 0 r x 2 · c ( x ) d x + a · r an 0 r 0 x 2 · c ( x ) d x a · r 0 0 r an x 2 · c ( x ) d x + a · r an r 0 0 r an x · c ( x ) d x a · r an r 0 0 r 0 x · c ( x ) d x D ρ · r an · r 0 · ρ an + D ρ · r an · r 0 · ρ 0 · 1 D ρ · r ( r an r 0 ) .
Due to the complexity of Equation (A16), we only used two boundary conditions: ρ ( r 0 ) = ρ 0 and ρ ( r an ) = ρ an . To further solve the resulting Equation (A18), we interpret the cell concentrations c T ( r i ) , which represent the average cell concentration in the discrete radial shells with width d r centered at r i = ( 0.5 + i ) d r , as space-continuous step functions. For numerical reasons, we define r 0 to be at the first outer shell, which has a concentration T c T ( r 0 ) > 0.1 , and set the oxygen pressure at ρ ( r 0 ) = ρ 0 = 100 mmHg. This assumption produces relatively similar results for the necrotic radius r an when compared to the equation of Grimes et al. [24] if the tumor volume is estimated by r T c T r i V i (Figure A9). For simplicity, we evaluate the step function at the right edge of each shell i: r i * = ( i + 1 ) · d r . This enables us to estimate the integrals as sum over each shell at the discrete points r i * . We used the following discretization for the integrals of form 0 q x k · c * ( x ) d x in the above solution of Equation (A18):
0 q x k · c * ( x ) d x = i = 0 r i q n c * ( r i ) · d r * · r i k ; q = r an , r ˜ max , r ; k = 1 , 2 ,
using the single cell diameter d r * as spatial discretization, which is smaller than the shell width d r and as such increases the spatial resolution of the oxygen profile. While it is in principle possible to set the resolution even smaller than a single cell diameter d r * , our fit results (Table 1) suggest that a spatial resolution smaller than a single cell diameter is not relevant for experimental setups. We translate the cell concentration c T ( r i ) to this finer discretization c * ( r ) via linear interpolation.
Due to our missing third boundary condition, ρ ( r an ) r = 0 , we do not yet know the exact value of the anoxic radius r an ; therefore, we implement a hybrid-analytical approach by using a bisection algorithm to iterate r an over the range [ 0 , r 0 ] until the last boundary condition is met. In detail, we found that if r an is set too high then the minima for ρ * ( r ) is below r an while if r an is set too low then the minima of ρ * ( r ) is higher than r an (Figure A10), which we used for the bisection algorithm.

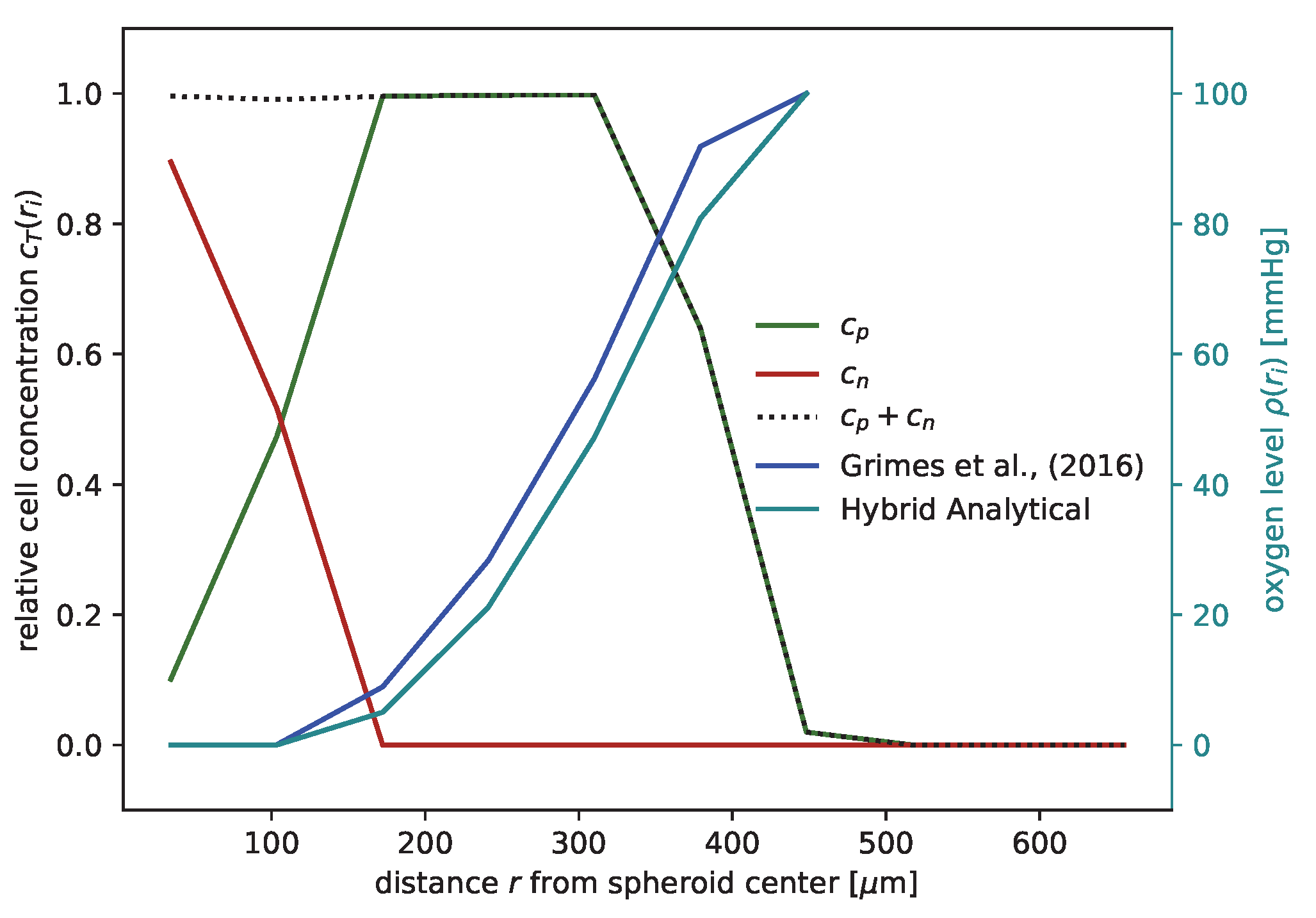

Figure A9. The oxygen profile estimated with the hybrid analytical approach (solid blue) is similar to the previously published method of Grimes et al. [24] (solid black), which assumes hard spheres for the spheroid and its necrotic core. Shown here is a cell concentration for proliferation-competent cells (solid green), membrane-defect cells (solid red), and their sum (dotted black), with the parameter fitted for the FaDu cell line.
Figure A9. The oxygen profile estimated with the hybrid analytical approach (solid blue) is similar to the previously published method of Grimes et al. [24] (solid black), which assumes hard spheres for the spheroid and its necrotic core. Shown here is a cell concentration for proliferation-competent cells (solid green), membrane-defect cells (solid red), and their sum (dotted black), with the parameter fitted for the FaDu cell line.
Cancers 15 05645 g0a9

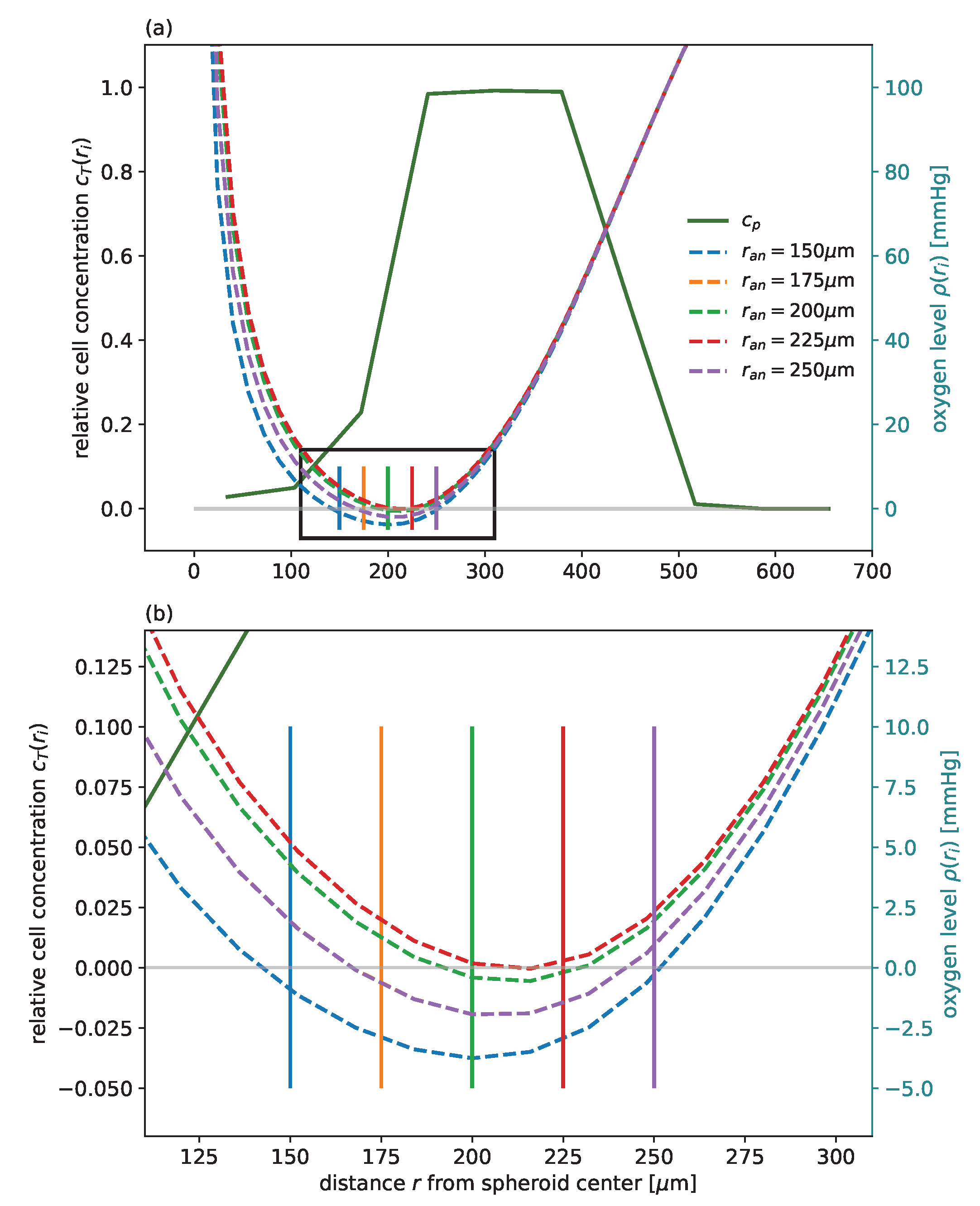

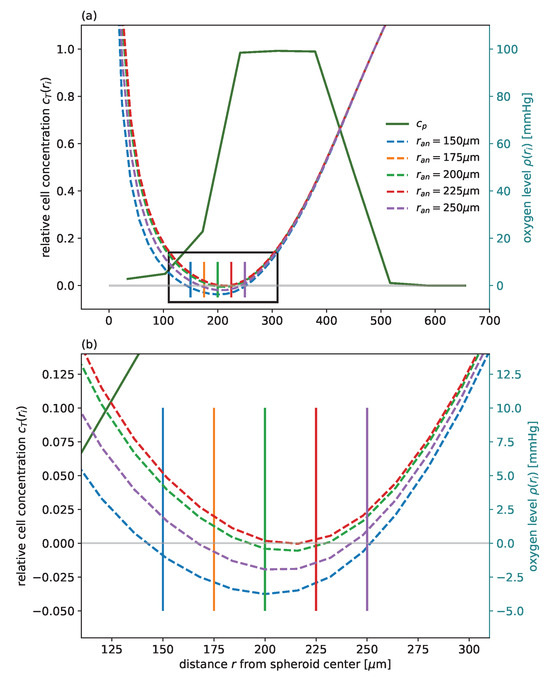

Figure A10. Using bisection, the anoxic radius r an for the oxygen profile is determined by requiring the minima of the oxygen profile ρ * ( r ) to be at r an , with ρ * ( r an ) = ρ an . (a) Example cell concentration of oxygen consuming proliferation-competent cells c p (solid dark green) with corresponding oxygen profiles for different anoxic radii r an (dashed lines). We used the parameters calibrated for FaDu. (b) Magnification of the black box in (a) around the minima of the oxygen profiles. The solid vertical lines in corresponding colors highlight the anoxic radius r an for each oxygen profile. The correct radius determined by bisection is shown in red.
Figure A10. Using bisection, the anoxic radius r an for the oxygen profile is determined by requiring the minima of the oxygen profile ρ * ( r ) to be at r an , with ρ * ( r an ) = ρ an . (a) Example cell concentration of oxygen consuming proliferation-competent cells c p (solid dark green) with corresponding oxygen profiles for different anoxic radii r an (dashed lines). We used the parameters calibrated for FaDu. (b) Magnification of the black box in (a) around the minima of the oxygen profiles. The solid vertical lines in corresponding colors highlight the anoxic radius r an for each oxygen profile. The correct radius determined by bisection is shown in red.
Cancers 15 05645 g0a10
Finally, we can assemble the actual oxygen profile ρ for further processing, which reads as follows:
ρ i * = ρ an , for 0 r r an ρ i * , for r an r r 0 ρ 0 , for r 0 r r max .
For the further simulation of the RS model, we only need the radii r an and r h . The second can be estimated through piecewise linear interpolation of ρ i * . For computation of the oxygen enhancement ratio OER ( ρ ( r i ) ) in the LQ model, we need to perform a further extrapolation from ρ * at points r i * to r i .
It is known that the oxygen pressure ρ 0 at the surface of the spheroid is not actually constant, and varies with size of the spheroid typically within the range ρ 0 [ 80 , 120 ] mmHg [45,46]. However, we confirmed that the goodness of fit of our model prediction is insensitive to variations of ρ 0 within this range (Table A1 and Table A2).
Table A1. The RS model is sufficiently insensitive to the oxygen level ρ 0 assumed at the surface of the spheroid (radius r 0 ). Here, we show that for the range ρ 0 [ 80 , 120 ] mmHg, which can be expected in experiments [45,46], the goodness of fit is only slightly affected. Examples show the cell lines HCT-116 and MDA-MB-468; the first row shows the fit results of Table 1. Below are two rows where we respectively adjusted ρ 0 and kept the previous fitted values, while separated by the dashed line are two more rows in which we respectively adjusted ρ 0 and refitted the parameters.
Table A1. The RS model is sufficiently insensitive to the oxygen level ρ 0 assumed at the surface of the spheroid (radius r 0 ). Here, we show that for the range ρ 0 [ 80 , 120 ] mmHg, which can be expected in experiments [45,46], the goodness of fit is only slightly affected. Examples show the cell lines HCT-116 and MDA-MB-468; the first row shows the fit results of Table 1. Below are two rows where we respectively adjusted ρ 0 and kept the previous fitted values, while separated by the dashed line are two more rows in which we respectively adjusted ρ 0 and refitted the parameters.
Cell Line ρ 0 [mmHg] ln ( 2 ) / γ [h]a [mmHg/s] ϵ [1/h] δ [1/h] κ λ d r [µm/h] R 2
HCT-116
Figure 2
100 (main text) 0.997
8022.7827.742.30 × 10−11.11 × 10−21.1238.8 0.9838
120 0.9905
80 23.76 29.57 1.41 × 10−19.60 × 10−3 1.25 42.3 0.9968
120 23.03 25.91 3.38 × 10−11.58 × 10−2 1.12 38.5 0.9961
MDA-MB-468
Figure A2
100 (main text) 0.9943
8052.3915.574.67 × 10−23.67 × 10−79.814.2 0.9845
120 0.9632
80 49.23 16.3 9.59 × 10−21.18 × 10−4 9.65 2.5 0.9959
120 53.95 14.51 1.30 × 10−13.53 × 10−6 8.07 2.1 0.996
Table A2. The RS model is sufficiently insensitive to the oxygen level ρ 0 assumed at the surface of the spheroid (radius r 0 ). Here, we show two that for the range ρ 0 [ 80 , 120 ] mmHg, which can be expected in experiments [45,46], the goodness of fit is only slightly affected. Examples show the fit results for radiation doses of 5 Gy and 10 Gy for the cell line HCT-116, where the first row shows the fit results of Table 2. Below are two rows where we respectively adjusted ρ 0 and kept the previous fitted values while separated by the dashed line two more rows where we respectively adjusted ρ 0 and refitted P mc 1 and P mc 2 . All other parameters are taken from calibration of untreated growth (Table 1).
Table A2. The RS model is sufficiently insensitive to the oxygen level ρ 0 assumed at the surface of the spheroid (radius r 0 ). Here, we show two that for the range ρ 0 [ 80 , 120 ] mmHg, which can be expected in experiments [45,46], the goodness of fit is only slightly affected. Examples show the fit results for radiation doses of 5 Gy and 10 Gy for the cell line HCT-116, where the first row shows the fit results of Table 2. Below are two rows where we respectively adjusted ρ 0 and kept the previous fitted values while separated by the dashed line two more rows where we respectively adjusted ρ 0 and refitted P mc 1 and P mc 2 . All other parameters are taken from calibration of untreated growth (Table 1).
Cell Line ρ 0 [mmHg] P mc 1 P mc 2 α RT β RT d [Gy] R 2
HCT-116
Figure 3
100 (main text) 0.9852
800.270.67 0.9852
120 0.50.04210 (full controlled) 0.9852
80 0.28 0.66 0.9855
120 0.26 0.67 0.9853
HCT-116
Figure 4
100 (main text) 0.9852
800.270.67 0.9877
120 0.50.0425 (full relapsed) 0.999
80 0.28 0.66 0.9982
120 0.26 0.67 0.9977

Appendix E. Radiotherapy

There exist several mathematical models which describe the experimentally observed cellular response to radiotherapy (RT). To allow for comparison, we chose the linear quadratic (LQ) model [37,39] from Brüningk et al. [1]. This statistical model predicts a probability 1 S that proliferation-competent cells T = p become damaged cells T = d or, vice versa, that they survive the radiation without any effect with probability S. Damaged cells are marked to die on a longer time scale, which is assumed to be essentially caused by mitotic catastrophe; see Section 2.1 and Appendix C for more details. The probability S depends on the applied radiation dose d and on the radiosensitivities ( α RT , β RT ) , which are cell-line specific: S d , α RT , β RT = e α RT d + β RT d 2 . However, the biological effect of radiation depends on the available oxygen, which is typically expressed by an effective dose d eff ( d , ρ ( r i ) ) :
S d eff , α RT , β RT = e α RT d eff + β RT d eff 2 .
The effective dose can be defined in terms of an oxygen enhancement ratio (OER):
d eff d , ρ ( r i ) = d OER ρ ( r i ) ,
where instead of the Alper–Howard–Flanders model [9] we use the OER proposed in Brüningk et al. [1] for comparibility:
OER ρ ( r i ) = 1 , if ρ ( r i ) > ρ RT 3 2 · ρ ( r i ) ρ RT , otherwise .
Experiments have shown that the OER is typically in the range of 1–3 [64]. This reported range motivated us to set an upper and lower limit for the OER and to linearly interpolate between these. Note that the OER increases only below a certain oxygen pressure threshold ρ RT , which we set to ρ RT = 11 mmHg to equal the one used by Brüningk et al. [1]. In conclusion, the effective dose d eff ( r i ) is dependent upon the oxygen level ρ ( r i ) , and as such is indirectly dependent on the radial distance r i from the center of the spheroid. Consequently, the survival probability S ( r i ) of cells under radiation depends on r i , i.e., it is minimal at the surface of the spheroid and increases in the inwards direction.

Appendix F. Analytical Estimates of Spheroid Dynamics

In the following, we derive the characteristics of the spheroid growth curves analytically from the RS model as functions of the model parameters and demonstrate these characteristics for an exemplary set of parameters. First, a tumor spheroid has at least two growth regimes. In the exponential regime, when the radius R spheroid of the tumor spheroid is relatively small, all N cells are able to proliferate: N ( t ) = N ( 0 ) exp ( γ t ) , from which follows
d N ( t ) d t = γ N ( t ) .
Assuming that the corresponding tumor spheroid is a perfect sphere, its volume V ( N ) and radius R ( N ) read
V ( N ) = V 1 N = 4 π 3 R ( N ) 3 , R ( N ) = 3 V 1 N 4 π 1 3 ,
where V 1 equals the volume of a single cell. From this, it follows for the tumor radius R spheroid over time t that we have
d R spheroid d t = d R spheroid d N d N d t = 1 3 3 V 1 N 4 π 2 3 3 V 1 4 π · γ N = γ 3 R spheroid ,
implying exponential growth:
R spheroid ( t ) = R spheroid ( 0 ) exp γ 3 t , V spheroid ( t ) = V spheroid ( 0 ) exp γ t .
When all cells of a spheroid are damaged after treatment, the spheroid dynamics are expressed by
d R spheroid d t = ( 1 P mc ) γ 3 R spheroid P mc γ 3 R spheroid = ( 1 2 P mc ) γ 3 R spheroid ,
R spheroid ( t ) = R spheroid ( 0 ) exp γ 3 1 2 P mc t , V spheroid ( t ) = V spheroid ( 0 ) exp γ 1 2 P mc t .
The second growth period happens when only an outer rim of the tumor spheroid actively proliferates due to spatial restrictions inside the tumor. In the RS model, new cells are placed either in their own shell i or their directly neighboring shells, depending on the available free volume during the proliferation. Because outer shells have a higher total volume than inner ones and the inner tumor is relatively dense, most of the new cells are placed in the outer neighboring shell i + 1 . Consequently, the proliferating rim in our model effectively has the size of the outermost shell with width d r . Therefore, we approximate the thickness of the proliferating rim by dr, denoting the numbers of cells in the rim as N dr ( R spheroid ) and its respective volume as V dr ( R spheroid ) . Thus, the total number N of cells over time t reads
d N ( t ) d t = γ N dr = γ V dr V 1 γ 4 π R spheroid ( N ) 2 dr V 1 .
where for large radius R spheroid we approximate
V dr ( R spheroid ) = 4 π / 3 R spheroid 3 ( R spheroid d r ) 3 4 π R spheroid 2 d r .
From Equation (A30) it follows that
d R spheroid d t = d R spheroid d N d N d t = γ dr ,
which means that the radius grows linearly:
R spheroid ( t ) = γ dr t + R spheroid ( 0 ) .
When all cells of a spheroid are damaged after treatment, the spheroid dynamics are expressed by
R spheroid ( t ) = γ dr 1 2 P mc t + R spheroid ( 0 ) .
The model always exhibits exponential behavior for R < d r , as only one shell is occupied. We estimate an upper bound beyond which the model is fully in the linear regime, assuming that the transition from exponential to linear is smooth without any local maxima:
d R lin d t ( t ) = d R exp d t ( t ) t = 3 ln 3 · d r R spheroid ( 0 ) γ 1 2 P mc
By substituting this time point into Equation (A29), the radius at which the exponential regime has the same first derivative as the linear regime is obtained as R spheroid = 3 · d r . Thus, the transition between both regimes is expected to be in the range d r R spheroid 3 · d r .
We can make a further prediction for the necrotic radius if no more proliferation-competent cells become membrane-defect cells and if the volume occupied by membrane-defect cells is reduced with rate δ . In this case, the same Equations (A24)–(A26) can be applied, with the rate γ replaced by δ , to describe the dynamics of membrane-defect cells instead of proliferation-competent cells
d R anoxic d t = δ 3 R anoxic .
A comparison of these analytical predictions and our simulation can be found in Figure A11, where we used the same parameters fitted for the cell line FaDu and a radiation dose of 20 Gy while slightly modifying the experimental setup to emphasize the characteristics of the spheroid dynamics.

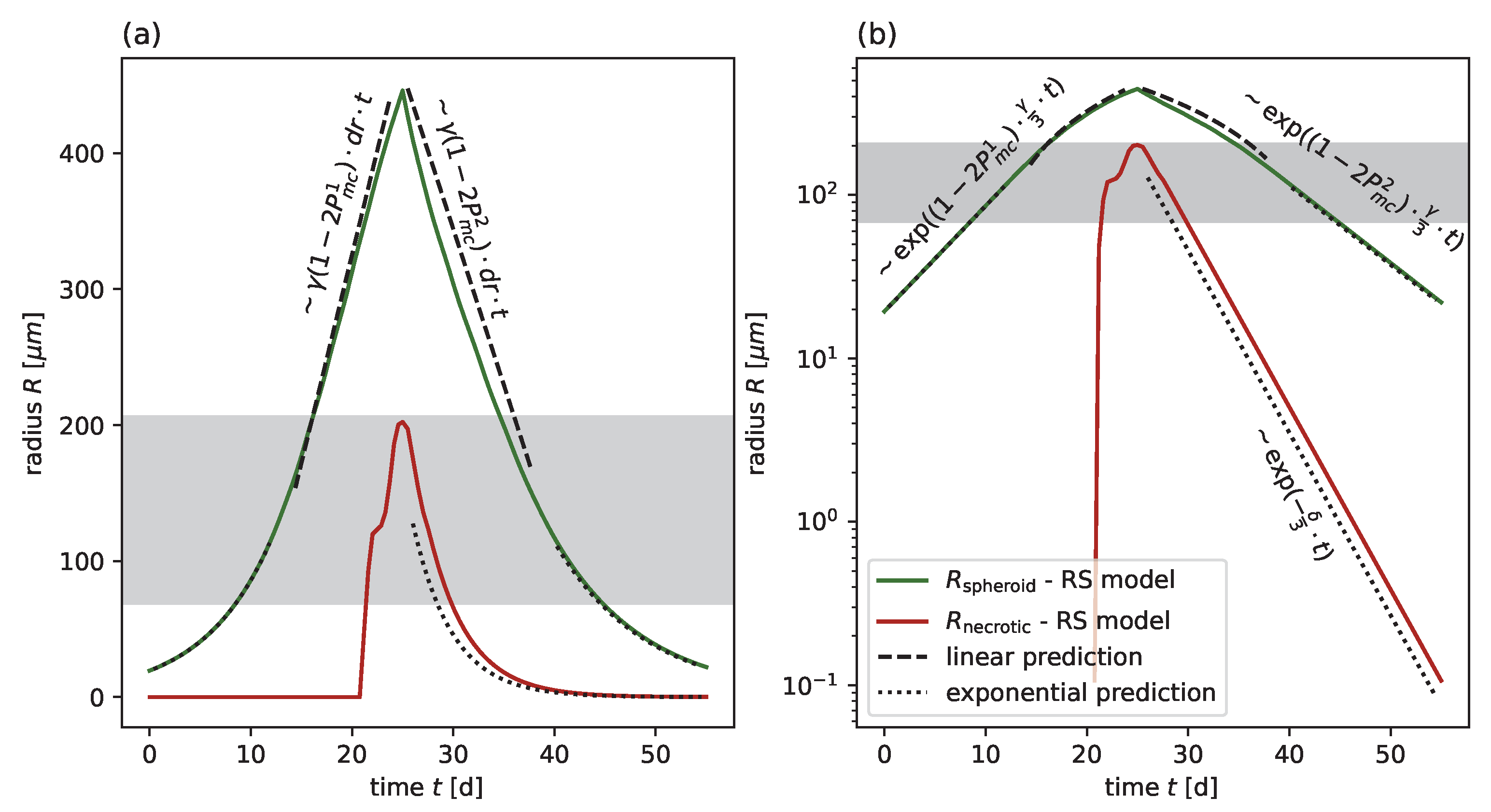

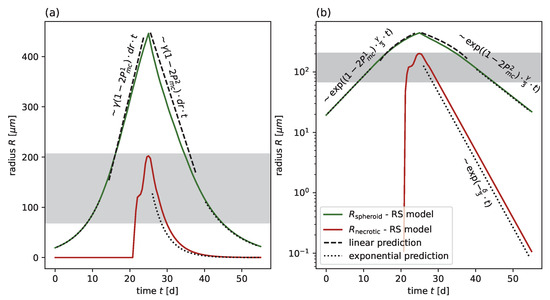

Figure A11. The outer radius R spheroid of the RS model agrees with the analytical predictions. We used the parameter fitted for the FaDu cell line and a radiation dose of 20 Gy. Certain parameters were altered to make the characteristics of the spheroid dynamics more pronounced: the initial volume is lower and the probability for a mitotic catastrophe P mc changes after t = 25 d from P mc 1 = 0 to P mc 2 = 0.87 . From the analytical derivation, a linear scaling (black dashed lines) for larger and an exponential scaling (black dotted lines) for smaller radii is expected; (a,b) display the same results in the linear and semi-log-y scales, respectively. The gray area marks the predicted transition region between the linear and exponential regimes d r R spheroid 3 · d r .
Figure A11. The outer radius R spheroid of the RS model agrees with the analytical predictions. We used the parameter fitted for the FaDu cell line and a radiation dose of 20 Gy. Certain parameters were altered to make the characteristics of the spheroid dynamics more pronounced: the initial volume is lower and the probability for a mitotic catastrophe P mc changes after t = 25 d from P mc 1 = 0 to P mc 2 = 0.87 . From the analytical derivation, a linear scaling (black dashed lines) for larger and an exponential scaling (black dotted lines) for smaller radii is expected; (a,b) display the same results in the linear and semi-log-y scales, respectively. The gray area marks the predicted transition region between the linear and exponential regimes d r R spheroid 3 · d r .
Cancers 15 05645 g0a11
Note that our analysis shows only an upper bound for the actual growth behavior of the model, which can be seen in Figure A11. There is a smooth transition of the exponential growth to the linear depending on how much larger the spheroid radius R spheroid is compared to the shell width d r . This implies that the radial growth is only fully linear for R spheroid and fully exponential for R spheroid 0 , resulting in transient behavior between these two extremes. Our findings are in line with previous reported results [65]. In conclusion, it is possible to fit various pairs of proliferation rates γ and shell widths d r to reproduce the spheroid growth in the linear regime, which is the one usually explored in experiments. However, if spheroids are observed at a smaller radius R spheroid < 3 d r , the transition to the exponential regime should be visible, allowing γ and d r to be uniquely identified. We demonstrate the sensitivity to these two parameters through an example for the FaDu cell line with 20 Gy irradiation in Figure A12, where the dynamics resulting from three different choices for γ and d r can only be discriminated below R spheroid < 150 µm.

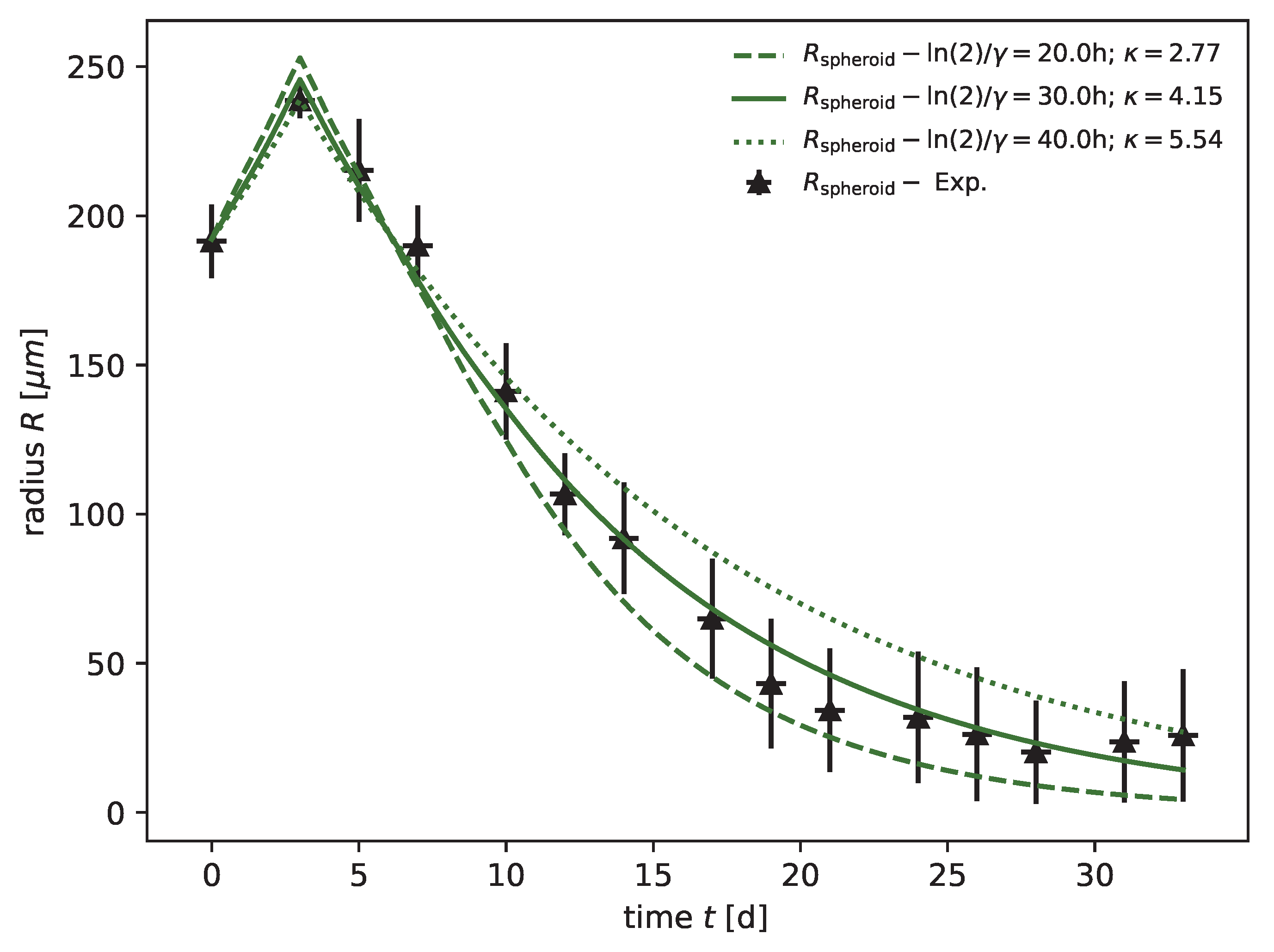

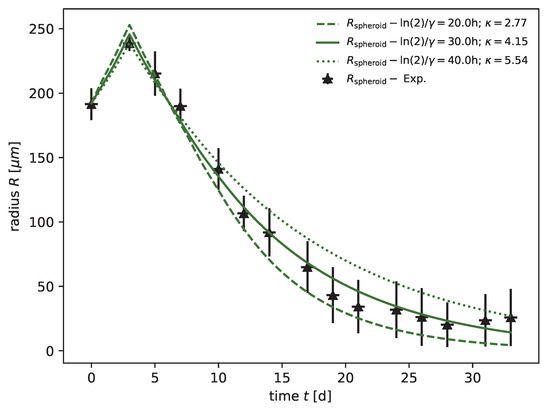

Figure A12. The dynamics resulting from different choices of γ and d r can only be discriminated at small R spheroid < 150 µm, where the transition between the linear and exponential regimes is observable. As an example, three choices of parameter sets with the same product γ d r (same slope in the linear regime) are displayed for the FaDu cell line with 20 Gy irradiation (the solid line corresponds to parameters in Figure A6). The time ln ( 2 ) / γ is varied in the fitting range used for the calibration of the RS model (20 h dashed line and 40 h dotted line).
Figure A12. The dynamics resulting from different choices of γ and d r can only be discriminated at small R spheroid < 150 µm, where the transition between the linear and exponential regimes is observable. As an example, three choices of parameter sets with the same product γ d r (same slope in the linear regime) are displayed for the FaDu cell line with 20 Gy irradiation (the solid line corresponds to parameters in Figure A6). The time ln ( 2 ) / γ is varied in the fitting range used for the calibration of the RS model (20 h dashed line and 40 h dotted line).
Cancers 15 05645 g0a12

Appendix G. Computational Speed Comparison

The newly formulated RS model can simulate the growth of a tumor spheroid much faster than cell-based models. This fact is highlighted in Figure A13, where we compare the computational time needed for an equal set of parameters to reach a certain tumor spheroid volume for a cell-based model, the new RS model, and a nonspatial model, here, the model of Grimes et al. [24].

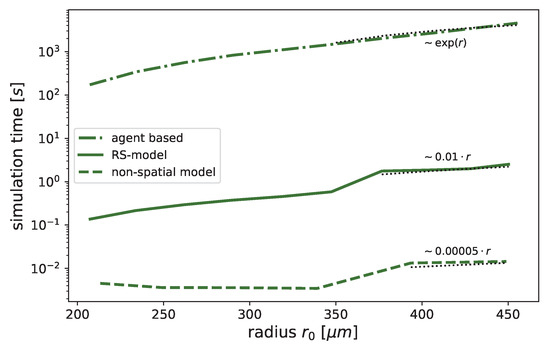

Figure A13. The RS model is feasibly fast for parameter fitting. Shown here is a comparison of the simulation time needed to reach a specific outer radius R spheroid for three model types: cell-based (3D cellular automaton), shown by the point-dashed line, the RS model, shown by a solid line, and the non-spatial model from [24], shown by a dashed line. The cell-based model scales exponentially, while the other two models scale linearly. Linear and exponential fits are respectively highlighted by black dotted lines.
Figure A13. The RS model is feasibly fast for parameter fitting. Shown here is a comparison of the simulation time needed to reach a specific outer radius R spheroid for three model types: cell-based (3D cellular automaton), shown by the point-dashed line, the RS model, shown by a solid line, and the non-spatial model from [24], shown by a dashed line. The cell-based model scales exponentially, while the other two models scale linearly. Linear and exponential fits are respectively highlighted by black dotted lines.
Cancers 15 05645 g0a13

Appendix H. Cellular Automaton

We used a cellular automaton similar to the one published in Brüningk et al. [1]. Thus, we defined a 3D cubic lattice S Z 3 with N N nodes for each dimension such that | S | = N 3 . Each node x ̲ S can hold one cell of type T { p , n } or be empty ( T = e ), with η : S T defining a specific configuration of cells and empty spaces.
Within the dynamic of η t η t + 1 , each cell type T { p , n } undergoes the same mechanism as in the RS model: proliferation-competent cells T = p consume oxygen with a rate a and proliferate with a rate γ given they have sufficient oxygen and free space. Additionally, they become membrane-defect T = n due to anoxia and move inwards at a rate λ . The volume occupied by membrane-defect cells T = n is reduced with rate δ and transported inwards with rate λ . These mechanisms are denoted as events in the following description.
Note that the parameter for the shell width d r cannot be directly transferred into the cellular automaton. However, we have shown that d r defines an effective range of proliferation that is correlated with the chosen neighborhood condition in a cellular automaton when searching for free space during proliferation; see Appendix I below. Note that for the cellular automaton the search for free space is equivalent to the logistic term from Equation (A3) in the proliferation function in Equation (A2) of the RS model.
We further use the concept of Monte Carlo Steps (MCS). Within one MCS, we repeatedly select a cell at random to perform an event, corresponding to their cell type T and the micro-environmental conditions. When the MSC is over, if on average every cell was selected, meaning that N 3 individual random cell selections were performed in total, then at the end of each MCS the oxygen profile is updated; see below. We can relate one MCS to a discrete time step length d t ; thus, the rates can be interpreted as probabilities by multiplying them by the time step length d t . This requires sufficiently small d t that we actually obtain probabilities, which is ensured when d t = 10 · max { γ , ϵ , δ , λ } 1 . Finally, we run m N MSC until a predefined real time t max is reached: t max d t · m .
Note that the inwards transport rate λ is always the highest rate when the RS model is fitted to data. However, the highest rate heavily influences d t , and consequently the computational speed of the simulation; if the highest rate increases, d t decreases and the number of MCS m must increase to reach t max , which costs more computational time. With a high value of the inwards transportation rate, it is ensured that the spheroid is dense. This leads to the consequence that most of the time cells are not able to actually move inwards due to missing free space when the inward transport rate is higher than the speed at which empty space arises. This results in computational effort without making any simulation progress. To avoid this in the cellular automaton. we implement the concept of a rate-independent inwards shuffle; after every MCS, each cell is allowed to move inwards if free space exist within their interaction neighborhood. Cells located further inwards are allowed to migrate primarily to cells that are further away from the center. When following this algorithm, the tumor spheroid in the cellular automaton stays relatively dense and the event of inwards transportation can be neglected. This results in the following revised equation for the real time step length d t :
d t = 1 10 · max { γ , ϵ , δ } .
Note that due to the implementation of the inwards shuffle the parameter mapping from the RS model to this cellular automaton is only successful if the tumor spheroid in both models is relatively dense. In the case where the spheroid in the cellular automaton is not dense, it is necessary to decrease d t in Equation (A37) e.g., by increasing the factor 10. However, this was not necessary in the example shown here.
Because there is no inwards transport in the cellular automaton anymore, the remaining events for each cell type are never simultaneously possible due to the necessary prerequisites, i.e., a proliferation-competent cell T = p can either proliferate if the oxygen level ρ ( x ̲ , t ) is sufficiently large, or die and become anoxic if the oxygen profile is to low; it can never be in a position where it is able to both proliferate and die. Therefore, we have never to choose between two events when we know the cell type and the oxygen level at its position. Thus, each drawn cell within an MCS undergoes the following algorithm:
1.
For each possible event for the selected cell type T, find the one where the prerequisites are fulfilled given the oxygen level ρ ^ ( x ̲ , t ) at the position of the cell and the free space in its neighborhood
2.
If a suitable event is found,
(a)
draw a uniform random number r andom [ 0 , 1 ] .
(b)
When the rate r ate of that specific event follows: r ate · d t > r andom , perform the event.
3.
Otherwise, the drawn cell does not perform any event.
Additionally, we implement an algorithm for calculating the 3D oxygen profile ρ ( x ̲ ) ^ corresponding to the new cell configuration η t + 1 within the tumor spheroid after each MSC. Two important things need to be updated. (1) As the tumor grows, we need to re-evaluate the outer surface of the spheroid where the radius r 0 is located and at which the oxygen level ρ 0 is defined, meaning that we keep the oxygen level at the surface of the spheroid constant during the simulation, as in the RS model. (2) We need to update the oxygen profile within in tumor spheroid based on the new radius r 0 and the new specific cell configuration η t + 1 .
In step (1), we calculate the size of the spheroid and set the oxygen pressure ρ 0 at the surface of the spheroid. For comparability reasons, we use the same algorithm as in the RS model. Therefore, we divide the 3D tumor into spherical shells of width d r , the same value as in the RS model, and for each shell we calculate the cell concentration per type T { p , n } . This results in a 1D cell concentration profile similar to the one in the RS model. Next, we can apply the same algorithm used in the RS model to estimate r 0 ; for more details, see Appendix D.
In step (2), we calculate the 3D oxygen profile within the spheroid using a numerical approach with discrete time steps that stop if a steady state is reached. Because the time scale for oxygen diffusion (∼ seconds) is orders of magnitude smaller than the time scale of cell cycle progression (∼ hours), it is reasonable that the steady state is reached on a time-scale shorter than an MCS. The numerical approach is based on Equations (A11) and (A12), and uses a 1 von Neumann neighborhood condition. We consider the equilibrium to be reached when the maximal value change ρ ^ ( x ̲ ) for every node x ̲ is less than 1 percentage point.
However, in order to perform a efficient numerical calculations a suitable starting approximation is needed. Using the oxygen profile of the previous MCS t is possible; however, we find that this method becomes computationally more expensive with growing spheroids. Therefore, we use the previous estimation for r 0 from step (1) and the equations published by Grimes et al. [24] to estimate an 1D analytical base line for the oxygen profile ρ ( r ) :
ρ ( r ) = ρ an , f . r < r n a 3 D ρ r 0 2 2 r n 3 r 0 + r 2 2 + r n 3 r + ρ 0 , f . r n r r 0 a 3 D ρ r 0 3 r + r n 3 r + r 0 2 r n 3 r 0 + ρ 0 , f . r 0 < r ,
r n = r 0 1 2 cos ( χ ( r 0 ) ) ,
χ ( r 0 ) = arccos ( 1 2 r l 2 / r 0 2 ) 2 π 3 ,
r l = 6 D ρ ( ρ 0 ρ an ) a .
Here, a denotes the oxygen consumption rate, r 0 is the radius estimated when the oxygen level ρ 0 is reached, D ρ is the oxygen diffusion coefficient, and ρ an is the anoxic oxygen level. All values except the previously estimated r 0 are set to be analogous to those in the RS model. Following the solution, we set the oxygen profile ρ ( r ) for each node at position x ̲ to ρ ( | x ̲ | ) . The resulting oxygen profile can be used as an approximation for further numerical calculations of the cells’ individual 3D oxygen profiles.

Appendix I. Parameter κ for Neighborhood Connection

It is not possible to directly transfer the shell thickness d r to a 3D cellular automaton, as there are no shells in such a model. However, we found that the shell width d r in the RS model can define the effective range of the proliferation. The same mechanism can be set through the neighborhood condition, such as the von Neumann or Moore neighborhood, in a cell-based model. To confirm this argument, we analyzed the connections between the shell size κ , which is equal to the fraction of the shell thickness d r , and the single cell diameter d r * with respect to certain neighborhood conditions in the 3D cellular automaton. For this, we set the rates for anoxia to zero, δ = ϵ = 0 , and set the proliferation rate γ and oxygen consumption rate a as equal in both models in order to only have the mechanisms of cell doubling. When choosing the same starting radius in both models and only changing κ in the RS model, we found matches for R spheroid over time in both models for different neighborhood conditions. Following this, we present matching pairs of κ and neighborhood condition in Table A4. To account for the stochastic fluctuations in the cellular automaton, we ran 5 simulation per neighborhood condition and used the mean radius R spheroid of the cellular automaton to fit κ within the RS model. Each fit was performed over an experimental time of 6 d.
The results in Table A4 are independent of the specific proliferation rate γ (see Figure A14a,b, where we change γ with a factor of 0.5 and 2 for each estimated pair of κ and neighborhood condition). Additionally, we find a linear dependence between the shell size κ and the mean distance d neigh within the local neighborhood of a given cell during proliferation. Note that if two different neighborhood conditions are shown, e.g., 1-von Neumann/1-Moore, each is chosen randomly with a 50% chance for each successive proliferation event in the 3D cellular automaton.
Table A3. The fitted shell size κ of the RS model can be mapped to different neighborhood environments of a cell-based model when transferring the parameter to achieve a similar simulation. If two neighborhood condition are shown, e.g., 1-von Neumann/1-Moore, one is chosen randomly for each successive proliferation event. Note that the 3D cellular automaton itself can have variances for the radius R spheroid that influence the κ fitting. Therefore, we used the mean of five 3D cellular automaton simulations to reduce this error.
Table A3. The fitted shell size κ of the RS model can be mapped to different neighborhood environments of a cell-based model when transferring the parameter to achieve a similar simulation. If two neighborhood condition are shown, e.g., 1-von Neumann/1-Moore, one is chosen randomly for each successive proliferation event. Note that the 3D cellular automaton itself can have variances for the radius R spheroid that influence the κ fitting. Therefore, we used the mean of five 3D cellular automaton simulations to reduce this error.
Neighborhood (ca3d)Shell Size κ
1-von Neumann 0.81
1-von Neumann/1-Moore 1.11
1-Moore 1.39
2-von Neumann 1.48
2-von Neumann/2-Moore 2.08
3-von Neumann 2.11
3-von Neumann/2-Moore 2.42
2-Moore 2.58
3-von Neumann/3-Moore 2.94
3-Moore 3.71
3-Moore/4-Moore 4.26
4-Moore 4.76

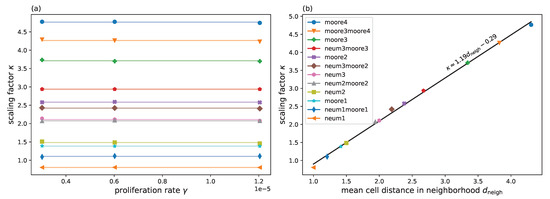

Figure A14. The shell size κ of the RS model can be related to the individual neighborhood condition of a 3D cellular automaton. (a) The correlation is independent of the chosen proliferation rate γ for the range of experimentally expected values. Note that the variance for each fit of κ was smaller than the shown symbols. (b) It is possible to find a linear correlation between the shell size κ and the mean distance at which a cell can be placed from its mother cell in a certain neighborhood condition in the 3D cellular automaton. Note that neum1moor1 refers to a random choice between these two neighborhoods for each proliferation event. The mean radius of R spheroid of 5 simulations of the 3D cellular automaton where used to fit the κ of the RS model. The fitted parameters of the FaDu cell line were used. Only ϵ and δ were set to 0 in order to single out the effect of proliferation. Additionally, the starting volume was multiplied by 2.5 to increase visibility.
Figure A14. The shell size κ of the RS model can be related to the individual neighborhood condition of a 3D cellular automaton. (a) The correlation is independent of the chosen proliferation rate γ for the range of experimentally expected values. Note that the variance for each fit of κ was smaller than the shown symbols. (b) It is possible to find a linear correlation between the shell size κ and the mean distance at which a cell can be placed from its mother cell in a certain neighborhood condition in the 3D cellular automaton. Note that neum1moor1 refers to a random choice between these two neighborhoods for each proliferation event. The mean radius of R spheroid of 5 simulations of the 3D cellular automaton where used to fit the κ of the RS model. The fitted parameters of the FaDu cell line were used. Only ϵ and δ were set to 0 in order to single out the effect of proliferation. Additionally, the starting volume was multiplied by 2.5 to increase visibility.
Cancers 15 05645 g0a14

Appendix J. Initial Starting Conditions of the RS Model

To compare simulations with experimental data, similar starting conditions are important. However, for the experiments presented here, only the starting volume and respective radii R ^ spheroid are known, not the radial cell distribution of proliferation-competent or membrane-defect cells. Therefore, we initialized our model with a sigmoid function accounting for a share θ of the starting volume. Then, we simulated until reaching 100 % of the starting volume and let the dynamics of the model determine the cell distributions, and consequently the cell concentrations which best agree with the starting radius.
For small θ , e.g., 20 % , this is quite simple, as in the realm of the experiments used here only proliferation-competent cells are present. However, to improve the performance of the parameter fitting, we set θ to a higher value, e.g., 90 % . This results in much shorter simulation times being required to reach the desired 100 % , as the starting condition needs to be calculated for each parameter set independently. However, when starting with a volume of θ = 90 % , in certain cases there were membrane-defect cells present, which increases complexity, as the exact structures of the proliferation-competent and membrane-defect cell concentrations are unknown.
Therefore, we extended the above algorithm slightly. In detail, we pre-described a steep sigmoid function and shifted the function along the radius with step size d r . For each position, we then calculated the resulting volume, finally choosing the position which yielded the closest volume to θ = 90 % of V 0 . This function returns a cell concentration c that does not differentiate between cell types T. Next,, following Grimes et al. [24], we estimated the volume V n of membrane-defect cells for a spheroid with θ = 90 % of the initial volume V 0 using Equation (A42) below:
R necrotic = R spheroid 1 2 cos arccos a 2 r l 2 R spheroid 2 2 π 3 , r l = 6 D ρ ρ 0 a ,
and applied the same algorithm as above. This yields the radial profile of membrane-defect cells c n and the concentration of proliferation-competent cells equaling c p = c c n . Subsequently, we simulated the tumor growth until it reached 100 % of the starting volume V 0 . During this transient, the shape of the logistic function can relax to its appropriate form, then the given cell concentration at this point can be set as the initial condition for the membrane-defect and proliferation-competent cells. Figure A15 shows an example verifying that our results are independent of the fraction θ { 20 % , 90 % } of the initial volume used to initialize the simulation.

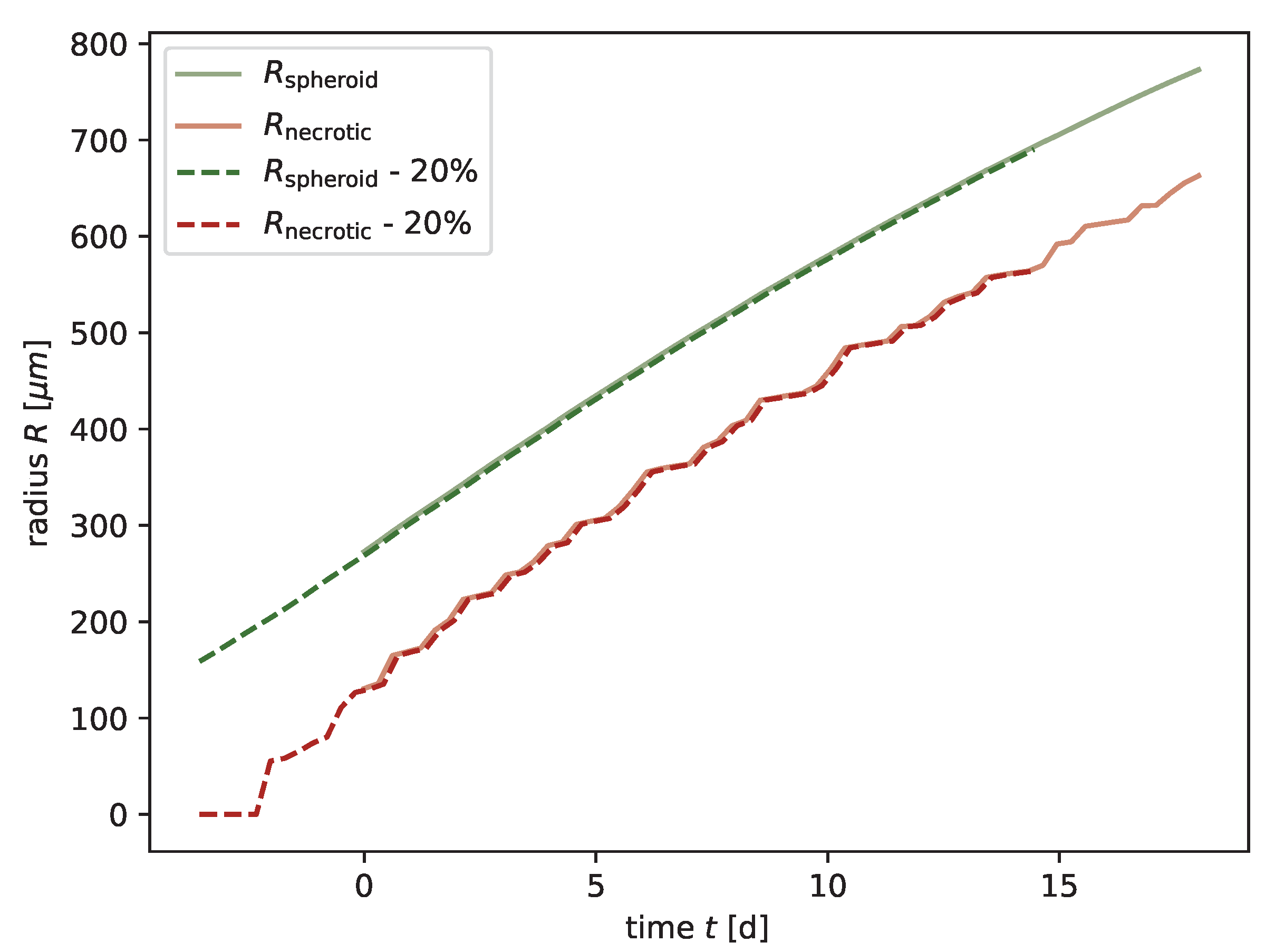

Figure A15. The simulation result is independent of the starting condition. We compared two different starting cell concentrations for the radial-shell model. The brighter colors (solid) are from the simulation where the starting condition was set as described in Appendix J and used in all other simulations of the manuscript. The darker colored lines (dashed) are from a simulation in which the initial cell concentration was set with a relatively steep sigmoid function for 20 % of the starting volume. The same parameters were used for both simulations.
Figure A15. The simulation result is independent of the starting condition. We compared two different starting cell concentrations for the radial-shell model. The brighter colors (solid) are from the simulation where the starting condition was set as described in Appendix J and used in all other simulations of the manuscript. The darker colored lines (dashed) are from a simulation in which the initial cell concentration was set with a relatively steep sigmoid function for 20 % of the starting volume. The same parameters were used for both simulations.
Cancers 15 05645 g0a15

Appendix K. Adjustment for Differing Numbers of Experimental Data Points

In experimental situations, there are typically different numbers of data points as well as measurements on different days. Therefore, we used piecewise linear interpolation between the experimental data points and selected 60 new data points equally distributed in time for the fitting in order to minimize deviations due to differences in calibration between experiments. We further implemented a residual function that uses the summed squared errors between the model prediction and the experimental data of the 60 data points. Note that the artificially generated data points were not used in the final estimation of the quality of the fits in Table 1.

References

  1. Brüningk, S.C.; Ziegenhein, P.; Rivens, I.; Oelfke, U.; ter Haar, G. A cellular automaton model for spheroid response to radiation and hyperthermia treatments. Sci. Rep. 2019, 9, 17674. [Google Scholar] [CrossRef] [PubMed]
  2. Brüningk, S.C.; Rivens, I.; Box, C.; Oelfke, U.; ter Haar, G. 3D tumour spheroids for the prediction of the effects of radiation and hyperthermia treatments. Sci. Rep. 2020, 10, 1653. [Google Scholar] [CrossRef] [PubMed]
  3. Riffle, S.; Hegde, R.S. Modeling tumor cell adaptations to hypoxia in multicellular tumor spheroids. J. Exp. Clin. Cancer Res. 2017, 36, 102. [Google Scholar] [CrossRef]
  4. Leek, R.; Grimes, D.R.; Harris, A.L.; McIntyre, A. Methods: Using Three-Dimensional Culture (Spheroids) as an In Vitro Model of Tumour Hypoxia. In Proceedings of the Tumor Microenvironment; Advances in Experimental Medicine and Biology. Koumenis, C., Coussens, L.M., Giaccia, A., Hammond, E., Eds.; Springer International Publishing: Berlin/Heidelberg, Germany, 2016; pp. 167–196. [Google Scholar] [CrossRef]
  5. Hirschhaeuser, F.; Menne, H.; Dittfeld, C.; West, J.; Mueller-Klieser, W.; Kunz-Schughart, L.A. Multicellular tumor spheroids: An underestimated tool is catching up again. J. Biotechnol. 2010, 148, 3–15. [Google Scholar] [CrossRef] [PubMed]
  6. Friedrich, J.; Ebner, R.; Kunz-Schughart, L.A. Experimental anti-tumor therapy in 3-D: Spheroids—Old hat or new challenge? Int. J. Radiat. Biol. 2007, 83, 849–871. [Google Scholar] [CrossRef]
  7. Kunz-Schughart, L.A.; Freyer, J.P.; Hofstaedter, F.; Ebner, R. The Use of 3-D Cultures for High-Throughput Screening: The Multicellular Spheroid Model. J. Biomol. Screen 2004, 9, 273–285. [Google Scholar] [CrossRef] [PubMed]
  8. Ingargiola, M.; Runge, R.; Heldt, J.M.; Freudenberg, R.; Steinbach, J.; Cordes, N.; Baumann, M.; Kotzerke, J.; Brockhoff, G.; Kunz-Schughart, L. Potential of a Cetuximab-based radioimmunotherapy combined with external irradiation manifests in a 3-D cell assay. Int. J. Cancer 2014, 135, 968–980. [Google Scholar] [CrossRef] [PubMed]
  9. Howard-Flanders, P.; Alper, T. The Sensitivity of Microorganisms to Irradiation under Controlled Gas Conditions. Radiat. Res. 1957, 7, 518–540. [Google Scholar] [CrossRef] [PubMed]
  10. Muz, B.; Puente, P.d.l.; Azab, F.; Azab, A.K. The role of hypoxia in cancer progression, angiogenesis, metastasis, and resistance to therapy. Hypoxia Med. J. 2015, 3, 83–92. [Google Scholar] [CrossRef]
  11. Rakotomalala, A.; Escande, A.; Furlan, A.; Meignan, S.; Lartigau, E. Hypoxia in Solid Tumors: How Low Oxygenation Impacts the “Six Rs” of Radiotherapy. Front. Endocrinol. 2021, 12, 742215. [Google Scholar] [CrossRef]
  12. Li, C.; Wiseman, L.; Okoh, E.; Lind, M.; Roy, R.; Beavis, A.W.; Pires, I.M. Exploring hypoxic biology to improve radiotherapy outcomes. Expert Rev. Mol. Med. 2022, 24, e21. [Google Scholar] [CrossRef]
  13. Pérez-García, V.M.; Calvo, G.F.; Bosque, J.J.; León-Triana, O.; Jiménez, J.; Pérez-Beteta, J.; Belmonte-Beitia, J.; Valiente, M.; Zhu, L.; García-Gómez, P.; et al. Universal scaling laws rule explosive growth in human cancers. Nat. Phys. 2020, 16, 1232–1237. [Google Scholar] [CrossRef] [PubMed]
  14. Vehlow, A.; Deville, S.S.; Cordes, N. 3D Radiation Biology for Identifying Radiosensitizers. In Molecular Targeted Radiosensitizers: Opportunities and Challenges; Willers, H., Eke, I., Eds.; Cancer Drug Discovery and Development; Springer International Publishing: Berlin/Heidelberg, Germany, 2020; pp. 115–135. [Google Scholar] [CrossRef]
  15. Deville, S.S.; Cordes, N. The Extracellular, Cellular, and Nuclear Stiffness, a Trinity in the Cancer Resistome—A Review. Front. Oncol. 2019, 9, 1376. [Google Scholar] [CrossRef] [PubMed]
  16. Muncie, J.M.; Weaver, V.M. Chapter One—The Physical and Biochemical Properties of the Extracellular Matrix Regulate Cell Fate. In Current Topics in Developmental Biology; Extracellular Matrix and Egg Coats; Litscher, E.S., Wassarman, P.M., Eds.; Academic Press: Cambridge, MA, USA, 2018; Volume 130, pp. 1–37. [Google Scholar] [CrossRef]
  17. Chen, O.; Manig, F.; Lehmann, L.; Sorour, N.; Löck, S.; Yu, Z.; Dubrovska, A.; Baumann, M.; Kessler, B.M.; Stasyk, O.; et al. Dual role of ER stress in response to metabolic co-targeting and radiosensitivity in head and neck cancer cells. Cell. Mol. Life Sci. 2021, 78, 3021–3044. [Google Scholar] [CrossRef]
  18. Chen, O.; Michlíková, S.; Eckhardt, L.; Wondrak, M.; De Mendoza, A.M.; Krause, M.; McLeod, D.D.; Kunz-Schughart, L.A. Efficient Heat Shock Response Affects Hyperthermia-Induced Radiosensitization in a Tumor Spheroid Control Probability Assay. Cancers 2021, 13, 3168. [Google Scholar] [CrossRef] [PubMed]
  19. Hinrichs, C.N.; Ingargiola, M.; Käubler, T.; Löck, S.; Temme, A.; Köhn-Luque, A.; Deutsch, A.; Vovk, O.; Stasyk, O.; Kunz-Schughart, L.A. Arginine Deprivation Therapy: Putative Strategy to Eradicate Glioblastoma Cells by Radiosensitization. Mol. Cancer Ther. 2018, 17, 393–406. [Google Scholar] [CrossRef]
  20. Vynnytska-Myronovska, B.; Bobak, Y.; Garbe, Y.; Dittfeld, C.; Stasyk, O.; Kunz-Schughart, L.A. Single amino acid arginine starvation efficiently sensitizes cancer cells to canavanine treatment and irradiation. Int. J. Cancer 2012, 130, 2164–2175. [Google Scholar] [CrossRef] [PubMed]
  21. Kummer, B.; Löck, S.; Gurtner, K.; Hermann, N.; Yaromina, A.; Eicheler, W.; Baumann, M.; Krause, M.; Jentsch, C. Value of functional in-vivo endpoints in preclinical radiation research. Radiother. Oncol. 2021, 158, 155–161. [Google Scholar] [CrossRef] [PubMed]
  22. Baumann, M.; Petersen, C.; Krause, M. TCP and NTCP in preclinical and clinical research in Europe. Rays 2005, 30, 121–126. [Google Scholar] [PubMed]
  23. Grimes, D.R.; Kelly, C.; Bloch, K.; Partridge, M. A method for estimating the oxygen consumption rate in multicellular tumour spheroids. J. R. Soc. Interface 2014, 11, 20131124. [Google Scholar] [CrossRef] [PubMed]
  24. Grimes, D.R.; Kannan, P.; McIntyre, A.; Kavanagh, A.; Siddiky, A.; Wigfield, S.; Harris, A.; Partridge, M. The Role of Oxygen in Avascular Tumor Growth. PLoS ONE 2016, 11, e0153692. [Google Scholar] [CrossRef] [PubMed]
  25. Karolak, A.; Markov, D.A.; McCawley, L.J.; Rejniak, K.A. Towards personalized computational oncology: From spatial models of tumour spheroids, to organoids, to tissues. J. R. Soc. Interface 2018, 15, 20170703. [Google Scholar] [CrossRef]
  26. Yan, F.; Gunay, G.; Valerio, T.I.; Wang, C.; Wilson, J.A.; Haddad, M.S.; Watson, M.; Connell, M.O.; Davidson, N.; Fung, K.M.; et al. Characterization and quantification of necrotic tissues and morphology in multicellular ovarian cancer tumor spheroids using optical coherence tomography. Biomed. Opt. Express 2021, 12, 3352–3371. [Google Scholar] [CrossRef]
  27. Kunz-Schughart, L.A.; Kreutz, M.; Knuechel, R. Multicellular spheroids: A three-dimensional in vitro culture system to study tumour biology. Int. J. Exp. Pathol. 1998, 79, 1–23. [Google Scholar] [CrossRef]
  28. Marušić, M.; Bajzer, Z.; Freyer, J.P.; Vuk-Pavlović, S. Analysis of growth of multicellular tumour spheroids by mathematical models. Cell Prolif. 1994, 27, 73–94. [Google Scholar] [CrossRef]
  29. Greenspan, H.P. Models for the Growth of a Solid Tumor by Diffusion. Stud. Appl. Math. 1972, 51, 317–340. [Google Scholar] [CrossRef]
  30. Browning, A.P.; Sharp, J.A.; Murphy, R.J.; Gunasingh, G.; Lawson, B.; Burrage, K.; Haass, N.K.; Simpson, M. Quantitative analysis of tumour spheroid structure. eLife 2021, 10, e73020. [Google Scholar] [CrossRef] [PubMed]
  31. Amereh, M.; Edwards, R.; Akbari, M.; Nadler, B. In-Silico Modeling of Tumor Spheroid Formation and Growth. Micromachines 2021, 12, 749. [Google Scholar] [CrossRef] [PubMed]
  32. Ward, J.P.; King, J.R. Mathematical modelling of avascular-tumour growth II: Modelling growth saturation. Math. Med. Biol. 1999, 16, 171–211. [Google Scholar] [CrossRef]
  33. Jin, W.; Spoerri, L.; Haass, N.K.; Simpson, M.J. Mathematical Model of Tumour Spheroid Experiments with Real-Time Cell Cycle Imaging. Bull. Math. Biol. 2021, 83, 44. [Google Scholar] [CrossRef] [PubMed]
  34. Paczkowski, M.; Kretzschmar, W.W.; Markelc, B.; Liu, S.K.; Kunz-Schughart, L.A.; Harris, A.L.; Partridge, M.; Byrne, H.M.; Kannan, P. Reciprocal interactions between tumour cell populations enhance growth and reduce radiation sensitivity in prostate cancer. Commun. Biol. 2021, 4, 1–13. [Google Scholar] [CrossRef] [PubMed]
  35. Andisheh, B.; Edgren, M.; Belkić, D.; Mavroidis, P.; Brahme, A.; Lind, B.K. A Comparative Analysis of Radiobiological Models for Cell Surviving Fractions at High Doses. Technol. Cancer Res. Treat. 2013, 12, 183–192. [Google Scholar] [CrossRef]
  36. De Mendoza, A.M.; Michlíková, S.; Berger, J.; Karschau, J.; Kunz-Schughart, L.A.; McLeod, D.D. Mathematical model for the thermal enhancement of radiation response: Thermodynamic approach. Sci. Rep. 2021, 11, 5503. [Google Scholar] [CrossRef] [PubMed]
  37. Fowler, J.F. The linear-quadratic formula and progress in fractionated radiotherapy. Brith J. Radiol. 1989, 62, 679–694. [Google Scholar] [CrossRef] [PubMed]
  38. Brüningk, S.C.; Ijaz, J.; Rivens, I.; Nill, S.; Haar, G.t.; Oelfke, U. A comprehensive model for heat-induced radio-sensitisation. Int. J. Hyperth. 2018, 34, 392–402. [Google Scholar] [CrossRef] [PubMed]
  39. Carreau, A.; Hafny-Rahbi, B.E.; Matejuk, A.; Grillon, C.; Kieda, C. Why is the partial oxygen pressure of human tissues a crucial parameter? Small molecules and hypoxia. J. Cell. Mol. Med. 2011, 15, 1239–1253. [Google Scholar] [CrossRef] [PubMed]
  40. Kaida, A.; Miura, M. Visualizing the effect of tumor microenvironments on radiation-induced cell kinetics in multicellular spheroids consisting of HeLa cells. Biochem. Biophys. Res. Commun. 2013, 439, 453–458. [Google Scholar] [CrossRef] [PubMed]
  41. Onozato, Y.; Kaida, A.; Harada, H.; Miura, M. Radiosensitivity of quiescent and proliferating cells grown as multicellular tumor spheroids. Cancer Sci. 2017, 108, 704–712. [Google Scholar] [CrossRef] [PubMed]
  42. Lauber, K.; Ernst, A.; Orth, M.; Herrmann, M.; Belka, C. Dying cell clearance and its impact on the outcome of tumor radiotherapy. Front. Oncol. 2012, 2, 116. [Google Scholar] [CrossRef] [PubMed]
  43. Lauber, K.; Brix, N.; Ernst, A.; Hennel, R.; Krombach, J.; Anders, H.; Belka, C. Targeting the heat shock response in combination with radiotherapy: Sensitizing cancer cells to irradiation-induced cell death and heating up their immunogenicity. Cancer Lett. 2015, 368, 209–229. [Google Scholar] [CrossRef] [PubMed]
  44. Peirsman, A.; Blondeel, E.; Ahmed, T.; Anckaert, J.; Audenaert, D.; Boterberg, T.; Buzas, K.; Carragher, N.; Castellani, G.; Castro, F.; et al. MISpheroID: A knowledgebase and transparency tool for minimum information in spheroid identity. Nat. Methods 2021, 18, 1294–1303. [Google Scholar] [CrossRef]
  45. Groebe, K.; Mueller-Klieser, W. Distributions of oxygen, nutrient, and metabolic waste concentrations in multicellular spheroids and their dependence on spheroid parameters. EuropeanBiophysicsJournal 1991, 19, 169–181. [Google Scholar] [CrossRef]
  46. Kunz-Schughart, L.A.; Groebe, K.; Mueller-Klieser, W. Three-dimensional cell culture induces novel proliferative and metabolic alterations associated with oncogenic transformation. Int. J. Cancer 1996, 66, 578–586. [Google Scholar] [CrossRef]
  47. Pødenphant, M.; Ashley, N.; Koprowska, K.; Mir, K.U.; Zalkovskij, M.; Bilenberg, B.; Bodmer, W.; Kristensen, A.; Marie, R. Separation of cancer cells from white blood cells by pinched flow fractionation. Lab Chip 2015, 15, 4598–4606. [Google Scholar] [CrossRef] [PubMed]
  48. Tahara, M.; Inoue, T.; Miyakura, Y.; Horie, H.; Yasuda, Y.; Fujii, H.; Kotake, K.; Sugano, K. Cell diameter measurements obtained with a handheld cell counter could be used as a surrogate marker of G2/M arrest and apoptosis in colon cancer cell lines exposed to SN-38. Biochem. Biophys. Res. Commun. 2013, 434, 753–759. [Google Scholar] [CrossRef] [PubMed]
  49. Puliafito, A.; Hufnagel, L.; Neveu, P.; Streichan, S.; Sigal, A.; Fygenson, D.K.; Shraiman, B.I. Collective and single cell behavior in epithelial contact inhibition. Proc. Natl. Acad. Sci. USA 2012, 109, 739–744. [Google Scholar] [CrossRef]
  50. Newville, M.; Stensitzki, T.; Allen, D.B.; Ingargiola, A. LMFIT: Non-Linear Least-Square Minimization and Curve-Fitting for Python. 2014. Available online: https://zenodo.org/records/11813 (accessed on 30 October 2023).
  51. Schulte Am Esch, J.S.A.; Windmöller, B.A.; Hanewinkel, J.; Storm, J.; Förster, C.; Wilkens, L.; Krüger, M.; Kaltschmidt, B.; Kaltschmidt, C. Isolation and Characterization of Two Novel Colorectal Cancer Cell Lines, Containing a Subpopulation with Potential Stem-Like Properties: Treatment Options by MYC/NMYC Inhibition. Cancers 2020, 12, 2582. [Google Scholar] [CrossRef] [PubMed]
  52. Cowley, G.S.; Weir, B.A.; Vazquez, F.; Tamayo, P.; Scott, J.A.; Rusin, S.; East-Seletsky, A.; Ali, L.D.; Gerath, W.F.; Pantel, S.E.; et al. Parallel genome-scale loss of function screens in 216 cancer cell lines for the identification of context-specific genetic dependencies. Sci. Data 2014, 1, 140035. [Google Scholar] [CrossRef]
  53. Petitprez, A.; Poindessous, V.; Ouaret, D.; Regairaz, M.; Bastian, G.; Guérin, E.; Escargueil, A.E.; Larsen, A.K. Acquired irinotecan resistance is accompanied by stable modifications of cell cycle dynamics independent of MSI status. Int. J. Oncol. 2013, 42, 1644–1653. [Google Scholar] [CrossRef] [PubMed]
  54. Jain, M.; Nilsson, R.; Sharma, S.; Madhusudhan, N.; Kitami, T.; Souza, A.L.; Kafri, R.; Kirschner, M.W.; Clish, C.B.; Mootha, V.K. Metabolite profiling identifies a key role for glycine in rapid cancer cell proliferation. N. Y. Sci. J. 2012, 336, 1040–1044. [Google Scholar] [CrossRef]
  55. Finlay-Schultz, J.; Jacobsen, B.M.; Riley, D.; Paul, K.V.; Turner, S.; Ferreira-Gonzalez, A.; Harrell, J.C.; Kabos, P.; Sartorius, C.A. New generation breast cancer cell lines developed from patient-derived xenografts. Breast Cancer Res. 2020, 22, 68. [Google Scholar] [CrossRef]
  56. Steinbichler, T.B.; Alshaimaa, A.; Maria, M.V.; Daniel, D.; Herbert, R.; Jozsef, D.; Ira-Ida, S. Epithelial-mesenchymal crosstalk induces radioresistance in HNSCC cells. Oncotarget 2018, 9, 3641–3652. [Google Scholar] [CrossRef] [PubMed]
  57. Gavish, A.; Krayzler, E.; Nagler, R. Tumor Growth and Cell Proliferation Rate in Human Oral Cancer. Arch. Med. Res. 2016, 47, 271–274. [Google Scholar] [CrossRef]
  58. Leung, E.; Cairns, R.A.; Chaudary, N.; Vellanki, R.N.; Kalliomaki, T.; Moriyama, E.H.; Mujcic, H.; Wilson, B.C.; Wouters, B.G.; Hill, R.; et al. Metabolic targeting of HIF-dependent glycolysis reduces lactate, increases oxygen consumption and enhances response to high-dose single-fraction radiotherapy in hypoxic solid tumors. BMC Cancer 2017, 17, 418. [Google Scholar] [CrossRef] [PubMed]
  59. Xu, H.G.; Reshetnikov, V.; Wondrak, M.; Eckhardt, L.; Kunz-Schughart, L.A.; Janko, C.; Tietze, R.; Alexiou, C.; Borchardt, H.; Aigner, A.; et al. Intracellular Amplifiers of Reactive Oxygen Species Affecting Mitochondria as Radiosensitizers. Cancers 2022, 14, 208. [Google Scholar] [CrossRef] [PubMed]
  60. Molina-Peña, R.; Tudon-Martinez, J.C.; Aquines-Gutiérrez, O. A Mathematical Model of Average Dynamics in a Stem Cell Hierarchy Suggests the Combinatorial Targeting of Cancer Stem Cells and Progenitor Cells as a Potential Strategy against Tumor Growth. Cancers 2020, 12, 2590. [Google Scholar] [CrossRef] [PubMed]
  61. Schwarz, F.M.; Schniewind, I.n.; Besso, M.J.; Lange, S.; Linge, A.; Patil, S.G.; Löck, S.; Klusa, D.; Dietrich, A.; Voss-Böhme, A.; et al. Plasticity within Aldehyde Dehydrogenase-Positive Cells Determines Prostate Cancer Radiosensitivity. Mol. Cancer Res. 2022, 20, 794–809. [Google Scholar] [CrossRef]
  62. Kunz-Schughart, L.A.; Doetsch, J.; Mueller-Klieser, W.; Groebe, K. Proliferative activity and tumorigenic conversion: Impact on cellular metabolism in 3-D culture. Am. J. Physiol. Cell Physiol. 2000, 278, C765–C780. [Google Scholar] [CrossRef] [PubMed]
  63. Campioni, G.; Pasquale, V.; Busti, S.; Ducci, G.; Sacco, E.; Vanoni, M. An Optimized Workflow for the Analysis of Metabolic Fluxes in Cancer Spheroids Using Seahorse Technology. Cells 2022, 11, 866. [Google Scholar] [CrossRef]
  64. Desouky, O.; Ding, N.; Zhou, G. Targeted and non-targeted effects of ionizing radiation. J. Radiat. Res. Appl. Sci. 2015, 8, 247–254. [Google Scholar] [CrossRef]
  65. Conger, A.D.; Ziskin, M.C. Growth of Mammalian Multicellular Tumor Spheroids. Cancer Res. 1983, 43, 556–560. [Google Scholar] [PubMed]

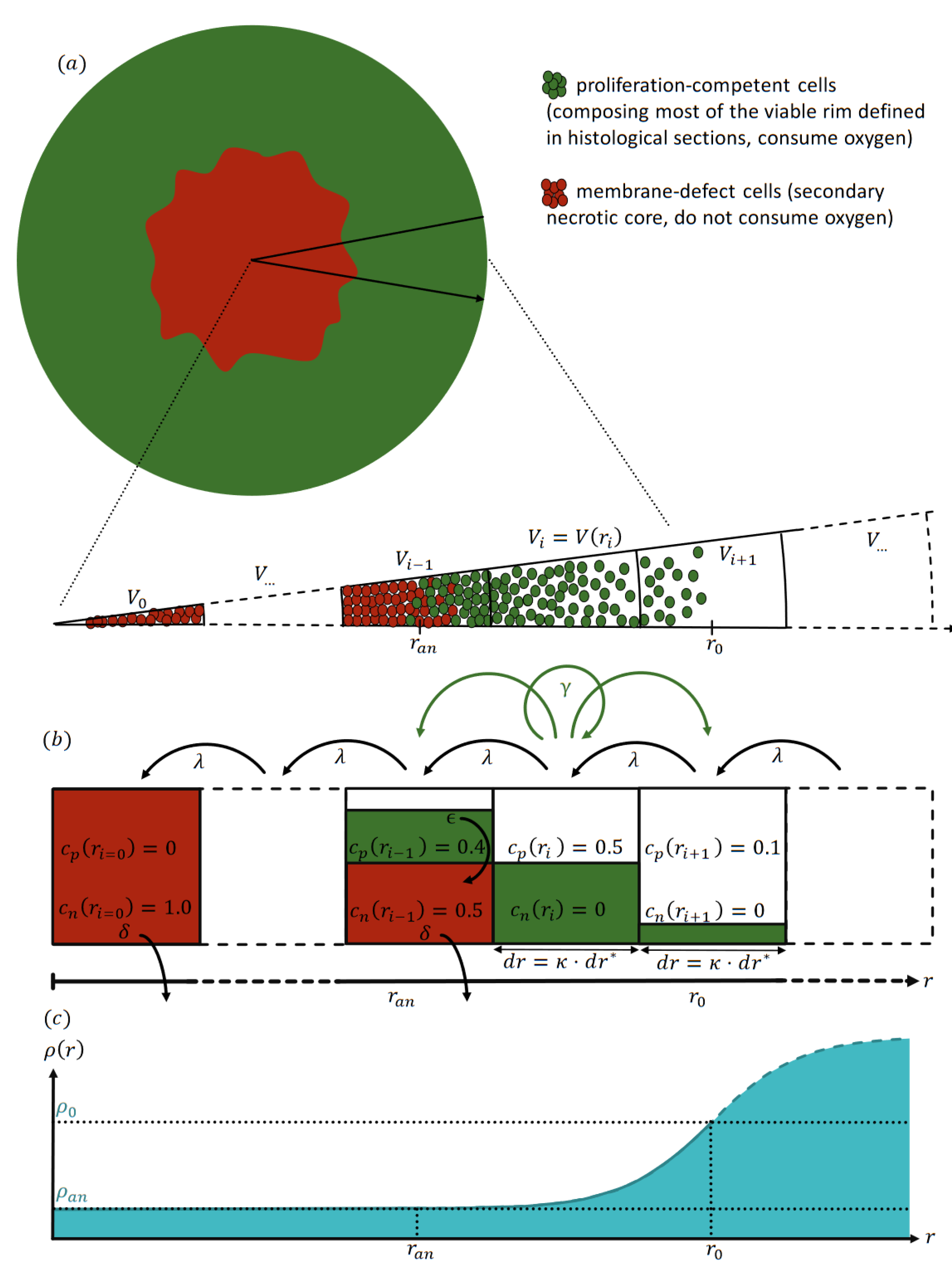

Figure 1. Illustration of the radial-shell model (RS-model). (a) Sketch of a typical stained histological section of a spheroid with a viable rim (green) surrounding a secondary necrotic core, with cell debris membrane-defect cells (red) suggesting an approximate rotational symmetry of the spheroid. (b) By exploiting the symmetry, the model is able to consider the cell dynamics on radial shells i [ 0 , 1 , 2 , . . . ) and along the distance r from the center of the spheroid at i = 0 . The shells have equal radial width d r , and their maximal volume V i is consequently increasing outwards. Each shell i holds a concentration of cells c T ( r i ) of type T cells, where T = p denotes proliferation-competent cells (green, proliferate with maximal rate γ , consume oxygen with rate a) and T = n membrane-defect cells (red, irreversibly lost competence to proliferate, do not consume oxygen). Note that the concentrations c T [ 0 , 1 ] are normalized according to the available space in each shell. (c) Oxygen consumption of proliferation-competent cells leads to a radial decrease of oxygen pressure from the value ρ 0 at the most outer shell at r 0 down to an anoxic threshold ρ an at r an towards the center of the spheroid. Beyond the threshold ρ an , cells are anoxic and become membrane-defect with the anoxic death rate ϵ . The volume occupied by membrane-defect cells is reduced with rate δ and all cells are transported inward with rate λ such that the spheroid remains compact. Then, the outer radius R spheroid and necrotic radius R necrotic are defined as the radius of a sphere with a volume equal to the total cell volume and membrane-defect cell volume, respectively. For reference, the shell width d r = κ d r * is expressed as multiple κ of a single cell diameter d r * .
Figure 1. Illustration of the radial-shell model (RS-model). (a) Sketch of a typical stained histological section of a spheroid with a viable rim (green) surrounding a secondary necrotic core, with cell debris membrane-defect cells (red) suggesting an approximate rotational symmetry of the spheroid. (b) By exploiting the symmetry, the model is able to consider the cell dynamics on radial shells i [ 0 , 1 , 2 , . . . ) and along the distance r from the center of the spheroid at i = 0 . The shells have equal radial width d r , and their maximal volume V i is consequently increasing outwards. Each shell i holds a concentration of cells c T ( r i ) of type T cells, where T = p denotes proliferation-competent cells (green, proliferate with maximal rate γ , consume oxygen with rate a) and T = n membrane-defect cells (red, irreversibly lost competence to proliferate, do not consume oxygen). Note that the concentrations c T [ 0 , 1 ] are normalized according to the available space in each shell. (c) Oxygen consumption of proliferation-competent cells leads to a radial decrease of oxygen pressure from the value ρ 0 at the most outer shell at r 0 down to an anoxic threshold ρ an at r an towards the center of the spheroid. Beyond the threshold ρ an , cells are anoxic and become membrane-defect with the anoxic death rate ϵ . The volume occupied by membrane-defect cells is reduced with rate δ and all cells are transported inward with rate λ such that the spheroid remains compact. Then, the outer radius R spheroid and necrotic radius R necrotic are defined as the radius of a sphere with a volume equal to the total cell volume and membrane-defect cell volume, respectively. For reference, the shell width d r = κ d r * is expressed as multiple κ of a single cell diameter d r * .
Cancers 15 05645 g001

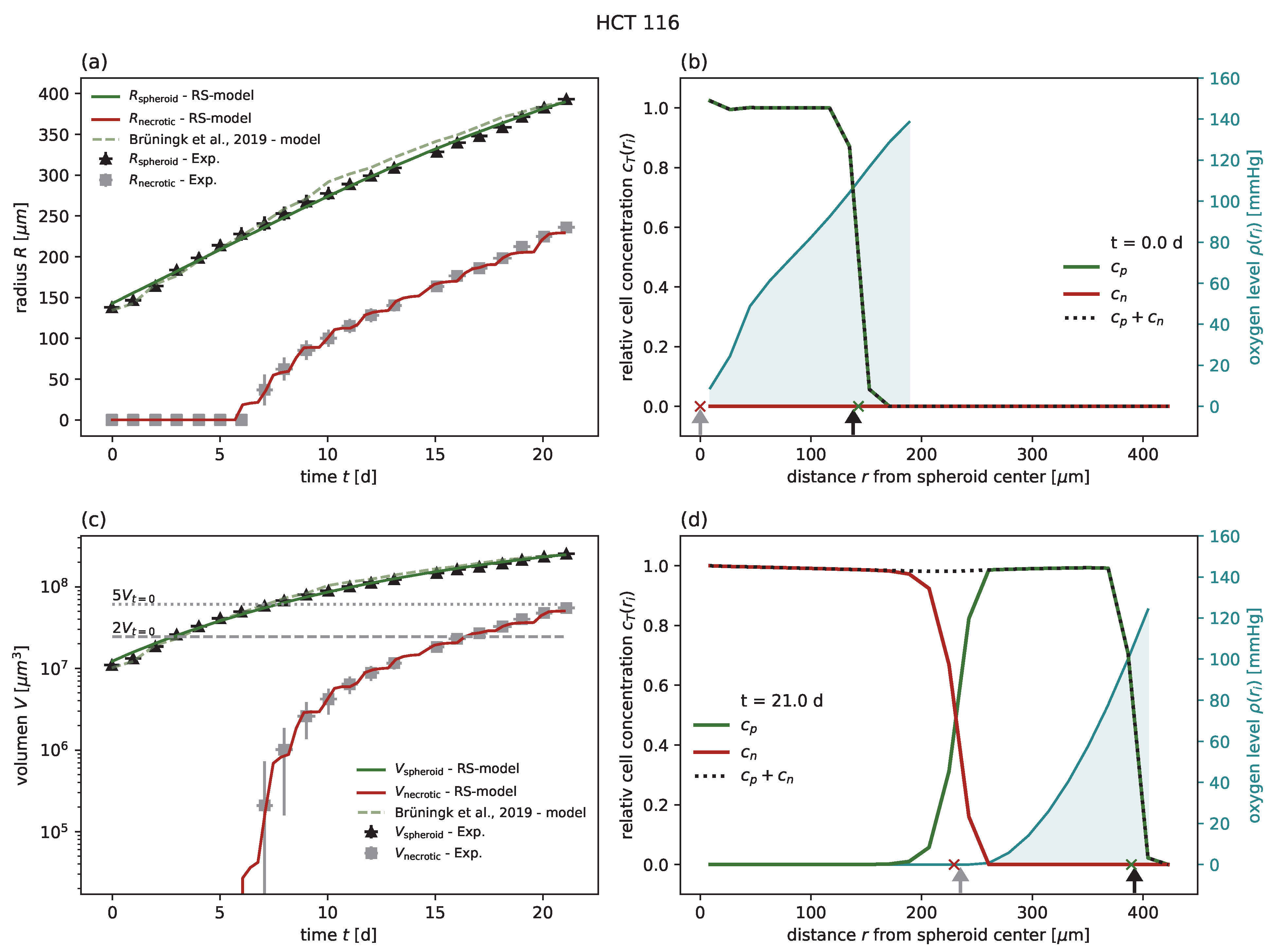

Figure 2. (a) The RS model reproduces the outer radius (dark green) for untreated growth of the cell line HCT-116, with experimental data from Brüningk et al. [1] (black crosses) even better than the model proposed along with the data (light green dashed). Note that the necrotic radius during the experiment can be estimated (gray crosses; see Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. The RS model predicts the cell concentration over the radius at any time point. Examples show the cell distributions for (b) the first time point t = 0 d and (d) the last day t = 21 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid), membrane-defect cells c n (red solid), total concentration of cells (black dotted), and oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Figure 2. (a) The RS model reproduces the outer radius (dark green) for untreated growth of the cell line HCT-116, with experimental data from Brüningk et al. [1] (black crosses) even better than the model proposed along with the data (light green dashed). Note that the necrotic radius during the experiment can be estimated (gray crosses; see Section 3 for details) and that the RS model additionally reproduces this necrotic radius (red). (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. The RS model predicts the cell concentration over the radius at any time point. Examples show the cell distributions for (b) the first time point t = 0 d and (d) the last day t = 21 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid), membrane-defect cells c n (red solid), total concentration of cells (black dotted), and oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Cancers 15 05645 g002

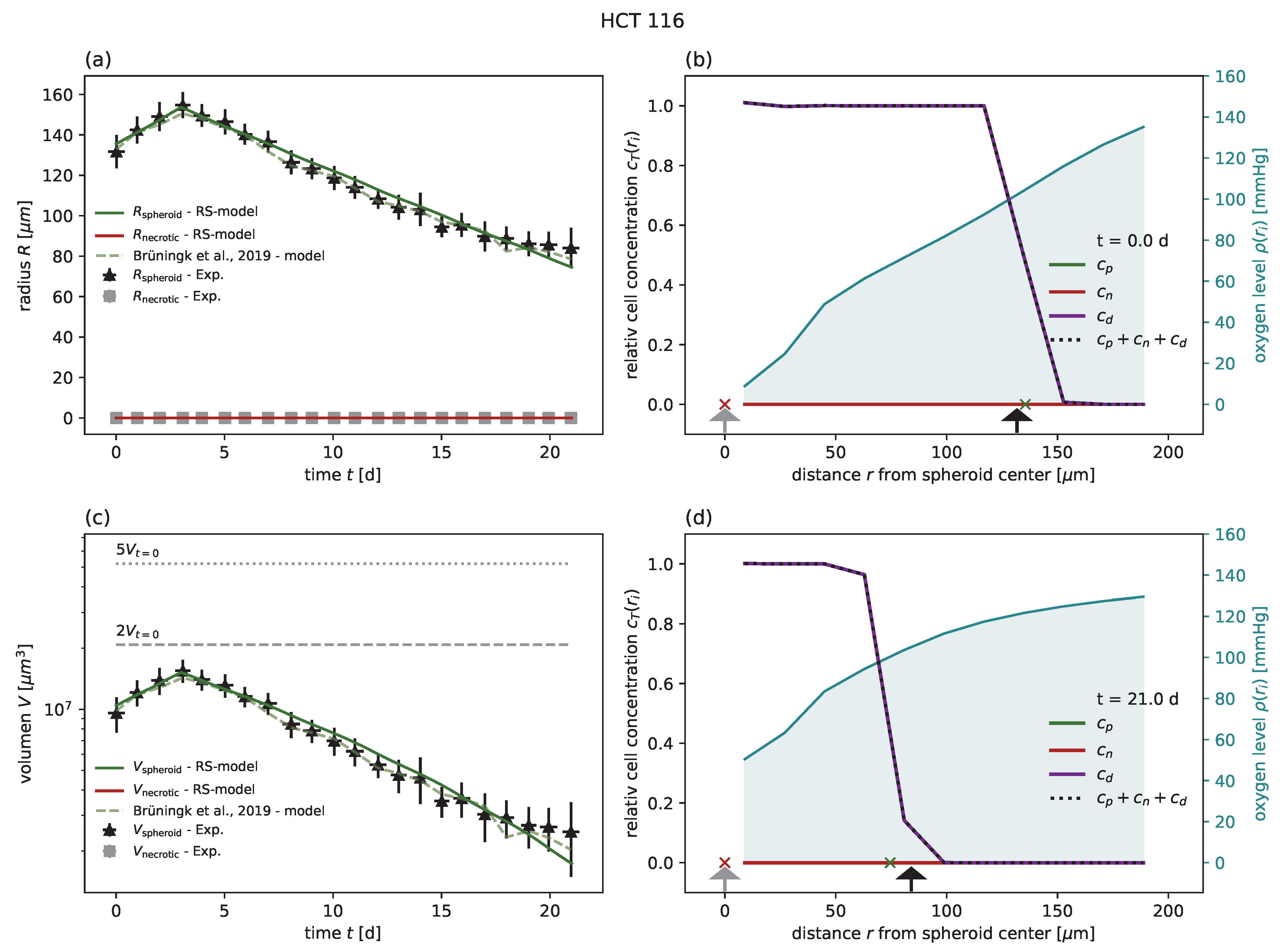

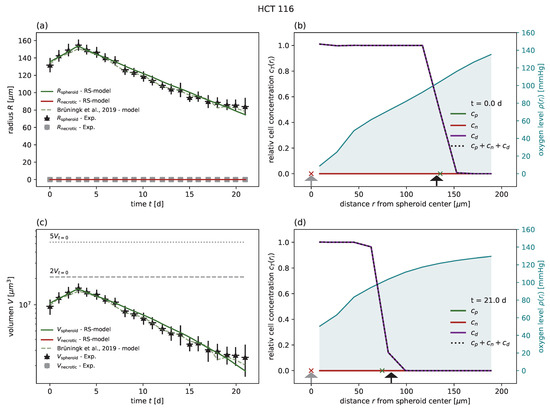

Figure 3. (a) The RS model reproduces the outer radius (dark green) for the cell line HCT-116 with 10 Gy radiation experimental data from Brüningk et al. [1] (black crosses) as effectively as the model proposed along with the data (light green dashed). We used the parameters calibrated for untreated growth, only fitted the probabilities of mitotic catastrophe P mc 1 , P mc 2 , and adopted the radiosensitivities α RT and β RT from Brüningk et al. [1]. Note that for this regime no secondary necrotic core is expected (experimental estimate shown as gray crosses), which is reproduced by the RS model (red). The parameters we used can be found in Table 1 and Table 2. (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. The RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 21 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively.
Figure 3. (a) The RS model reproduces the outer radius (dark green) for the cell line HCT-116 with 10 Gy radiation experimental data from Brüningk et al. [1] (black crosses) as effectively as the model proposed along with the data (light green dashed). We used the parameters calibrated for untreated growth, only fitted the probabilities of mitotic catastrophe P mc 1 , P mc 2 , and adopted the radiosensitivities α RT and β RT from Brüningk et al. [1]. Note that for this regime no secondary necrotic core is expected (experimental estimate shown as gray crosses), which is reproduced by the RS model (red). The parameters we used can be found in Table 1 and Table 2. (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. The RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 21 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively.
Cancers 15 05645 g003

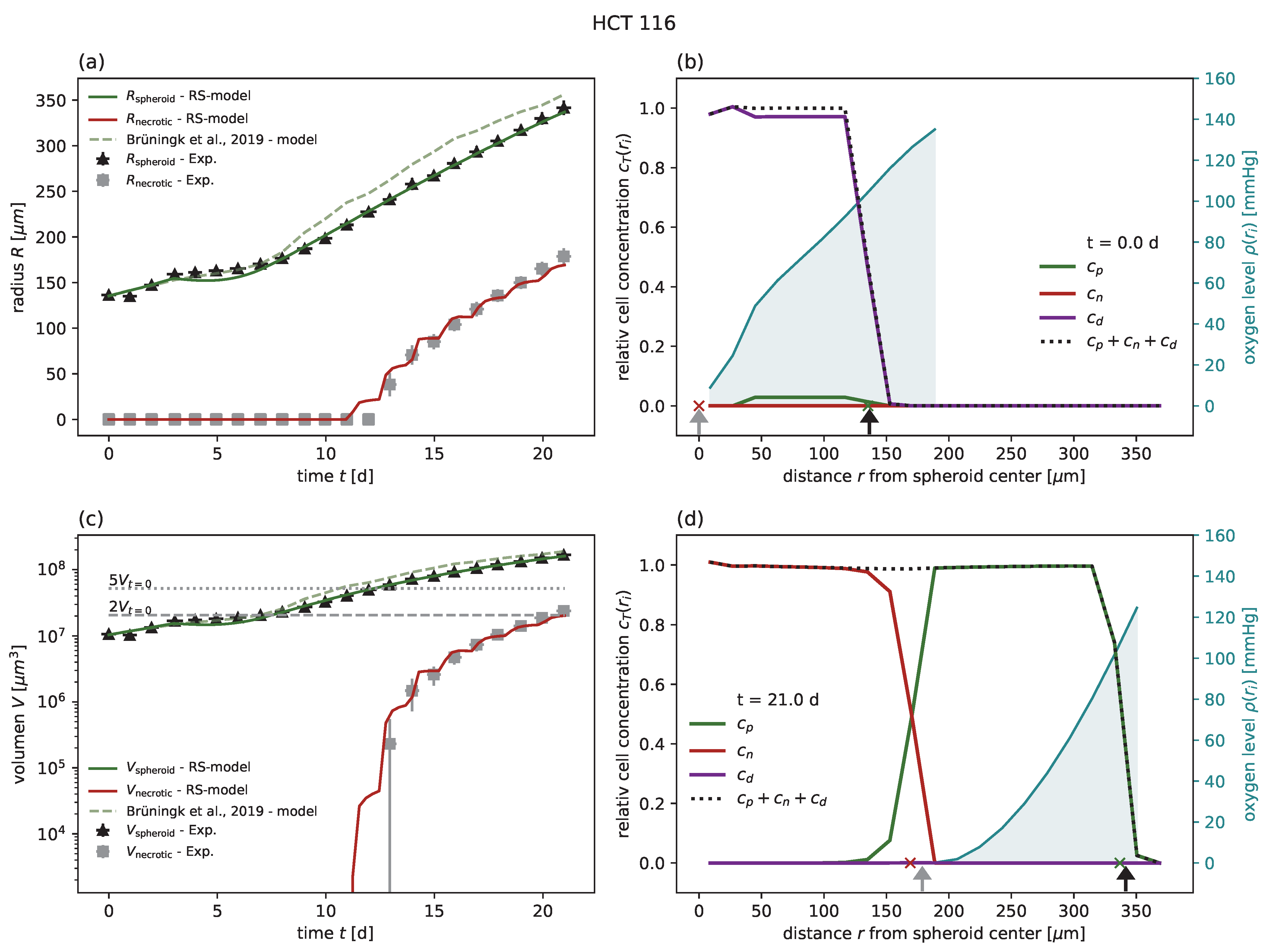

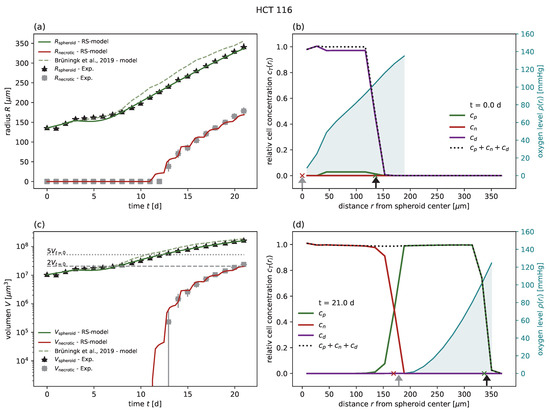

Figure 4. (a) The RS model reproduces the outer radius (dark green) for the cell line HCT-116, with 5 Gy radiation experimental data from Brüningk et al. [1] (black crosses) even better than the model proposed along with the data (light green dashed). We used the parameters calibrated for untreated growth, the values for P mc 1 and P mc 2 fitted at 10 Gy, and the values α RT and β RT from Brüningk et al. [1]. Note that the necrotic radius during the experiment can be estimated (gray crosses) (see Section 3 for details) and that the RS model reproduces this necrotic radius (red). Additionally, note that the necrotic radius of the RS model appears jagged due to the spatial discretization of r 0 . The used parameters are reported in Table 1 and Table 2. (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. The RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 21 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively.
Figure 4. (a) The RS model reproduces the outer radius (dark green) for the cell line HCT-116, with 5 Gy radiation experimental data from Brüningk et al. [1] (black crosses) even better than the model proposed along with the data (light green dashed). We used the parameters calibrated for untreated growth, the values for P mc 1 and P mc 2 fitted at 10 Gy, and the values α RT and β RT from Brüningk et al. [1]. Note that the necrotic radius during the experiment can be estimated (gray crosses) (see Section 3 for details) and that the RS model reproduces this necrotic radius (red). Additionally, note that the necrotic radius of the RS model appears jagged due to the spatial discretization of r 0 . The used parameters are reported in Table 1 and Table 2. (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. The RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 21 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively.
Cancers 15 05645 g004

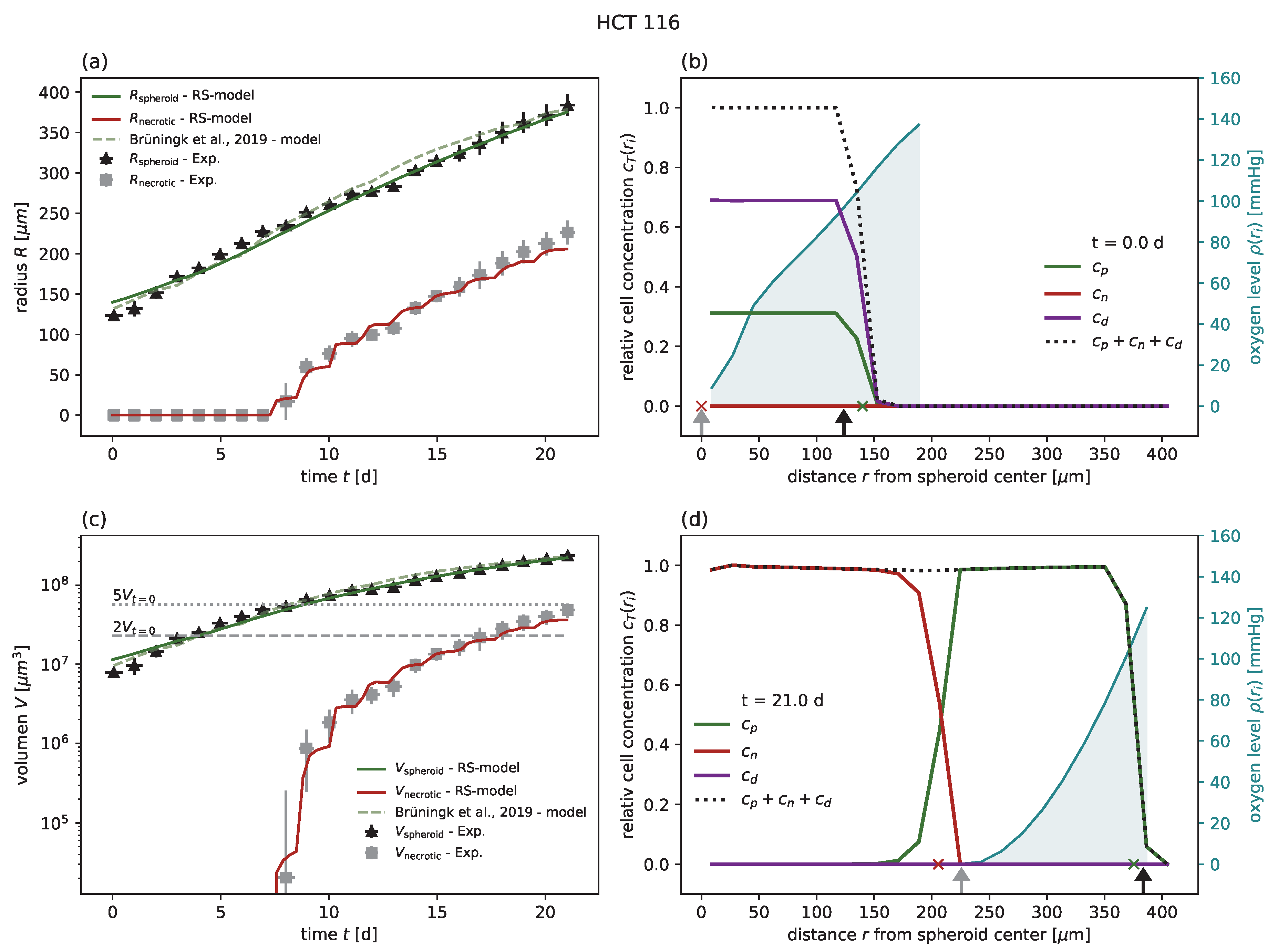

Figure 5. (a) The RS model reproduces the outer radius (dark green) for the cell line HCT-116, with 2 Gy radiation experimental data from Brüningk et al. [1] (black crosses) as effectively as the model proposed along with the data (light green dashed). We used the parameters calibrated for untreated growth, the values for P mc 1 and P mc 2 , and the model proposed along with the data (light green dashed) at 10 Gy, as well as the values α RT and β RT from Brüningk et al. [1]. The necrotic radius during the experiment can be estimated (gray crosses) (see Section 3 for details) and the RS model reproduces this necrotic radius (red). Note that the necrotic radius of the RS model appears jagged due to the spatial discretization of r 0 . The used parameters can be found in Table 1 and Table 2. (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 21 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Figure 5. (a) The RS model reproduces the outer radius (dark green) for the cell line HCT-116, with 2 Gy radiation experimental data from Brüningk et al. [1] (black crosses) as effectively as the model proposed along with the data (light green dashed). We used the parameters calibrated for untreated growth, the values for P mc 1 and P mc 2 , and the model proposed along with the data (light green dashed) at 10 Gy, as well as the values α RT and β RT from Brüningk et al. [1]. The necrotic radius during the experiment can be estimated (gray crosses) (see Section 3 for details) and the RS model reproduces this necrotic radius (red). Note that the necrotic radius of the RS model appears jagged due to the spatial discretization of r 0 . The used parameters can be found in Table 1 and Table 2. (c) Volumes corresponding to the radii displayed in (a) in a semi-log plot. Multiples of 2 and 5 of the starting volume V t = 0 are highlighted with horizontal gray dashed and gray dotted lines, respectively. Additionally, the RS model predicts the cell concentration over the radius at any time point. Examples show the cell distribution for (b) the first time point t = 0 d and (d) the last day t = 21 d of the experiment. Displayed are the cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid), the total concentration of cells (black dotted), and the oxygen profile (blue solid, right y axis). The marker at the bottom of the panels (b,c) indicates the necrotic and outer radius estimated from the model (red and green crosses) and from the actual experimental data (gray and black arrows), respectively. The used parameters are reported in Table 1.
Cancers 15 05645 g005
Figure 6. The cellular automaton reproduces the experimental growth curve for the FaDu cell line after parameter transfer from the previously fitted RS model. We directly transferred the parameters of the RS model to the cellular automaton using a 50:50 alteration between the 3-Moore and 4-Moore neighborhoods to achieve a value of κ = 4.26 . (a) Cell concentration over the radius at t = 14 d for the 3D cellular automaton; the mean cell concentrations (solid) from ten independent simulation runs are compared with the cell concentrations of the corresponding RS model (dashed). The cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid) are displayed. (b) Growth dynamics over time for the outer radius R spheroid (green) and necrotic radius R necrotic (red) along with the experimental outer radius (black crosses) and corresponding estimated necrotic radius (gray crosses). For the cellular automaton, the maximal and minimal radii from ten independent simulations are shown.
Figure 6. The cellular automaton reproduces the experimental growth curve for the FaDu cell line after parameter transfer from the previously fitted RS model. We directly transferred the parameters of the RS model to the cellular automaton using a 50:50 alteration between the 3-Moore and 4-Moore neighborhoods to achieve a value of κ = 4.26 . (a) Cell concentration over the radius at t = 14 d for the 3D cellular automaton; the mean cell concentrations (solid) from ten independent simulation runs are compared with the cell concentrations of the corresponding RS model (dashed). The cell concentrations of proliferation-competent cells c p (green solid) and membrane-defect cells c n (red solid) are displayed. (b) Growth dynamics over time for the outer radius R spheroid (green) and necrotic radius R necrotic (red) along with the experimental outer radius (black crosses) and corresponding estimated necrotic radius (gray crosses). For the cellular automaton, the maximal and minimal radii from ten independent simulations are shown.
Cancers 15 05645 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Franke, F.; Michlíková, S.; Aland, S.; Kunz-Schughart, L.A.; Voss-Böhme, A.; Lange, S. Efficient Radial-Shell Model for 3D Tumor Spheroid Dynamics with Radiotherapy. Cancers 2023, 15, 5645. https://doi.org/10.3390/cancers15235645

AMA Style

Franke F, Michlíková S, Aland S, Kunz-Schughart LA, Voss-Böhme A, Lange S. Efficient Radial-Shell Model for 3D Tumor Spheroid Dynamics with Radiotherapy. Cancers. 2023; 15(23):5645. https://doi.org/10.3390/cancers15235645

Chicago/Turabian Style

Franke, Florian, Soňa Michlíková, Sebastian Aland, Leoni A. Kunz-Schughart, Anja Voss-Böhme, and Steffen Lange. 2023. "Efficient Radial-Shell Model for 3D Tumor Spheroid Dynamics with Radiotherapy" Cancers 15, no. 23: 5645. https://doi.org/10.3390/cancers15235645

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
